ITRODUCTION
Read the safety and operating instructions carefully before using the
unit for the first time.
Before use, each ALF must be adjusted by the manufacturer to
the particular turntable ladder.
The operator ensures that all users follow these instructions
understand and follow.
The symbols used have the following meaning
WARNING
Danger of use or improper use which could result in serious personal injury, death or considerable property, financial loss or damage and environmental damage.
Usage information that helps the user to use the product
technically correct and efficient.
Distribution package
• ALF Advanced Location Finder
• Operation Manual
Care
• Clean the unit with a damp, soft cloth. In particular, the lens should only
be cleaned with a soft cloth to avoid scratches.
• Never immerse the unit in water.
• Never clean the unit with aggressive cleaning agents or solvents.
2
Page 5
State of
charge lights
(empty, charging, full)
Selection of
outrigger
On / Off
INITIAL OPERATION

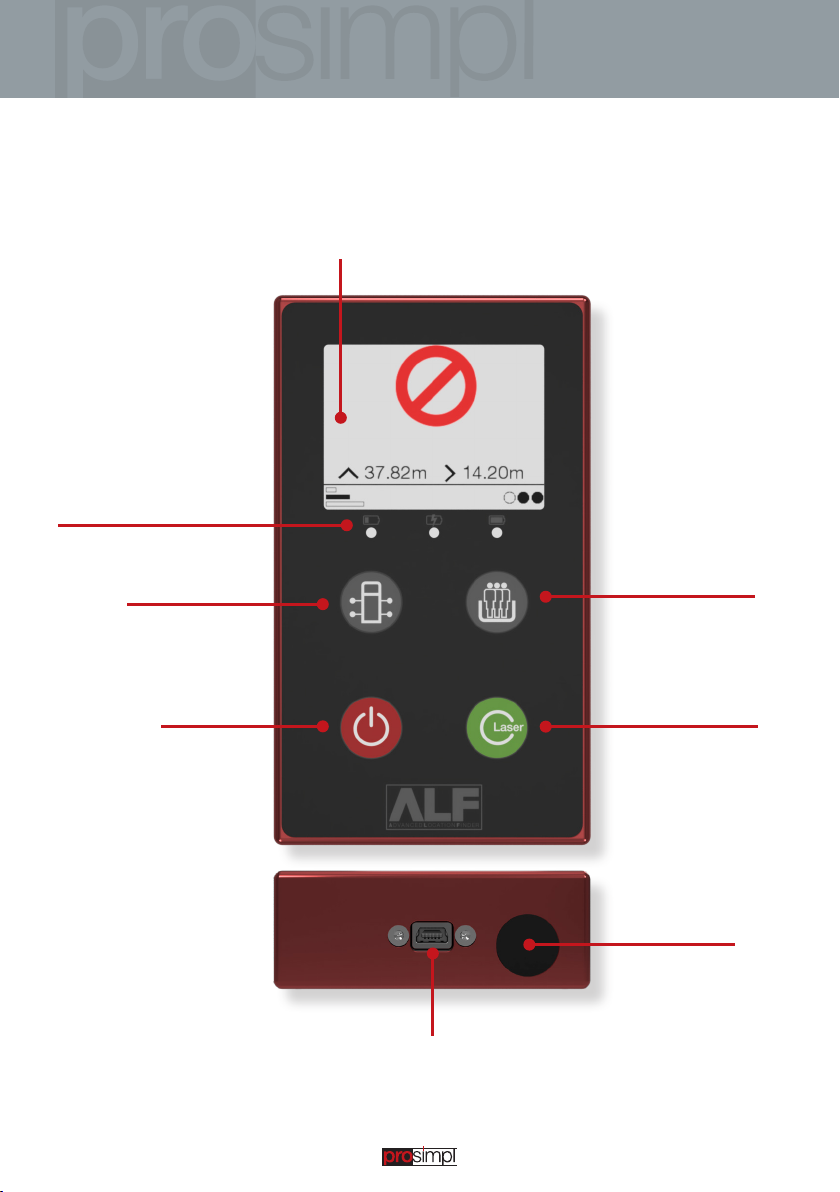

OVERVIEW
Display
Selection of
rescue cage
crew
Measure /
continuous
measurement
Targeting
aid
USB charging socket
3
Page 6
INTRODUCTION
The Advanced Location Finder (ALF) is a handheld measuring device for
rescue vehicles, especially for turntable ladders. The suitable position of a
turntable ladder can be checked within seconds with the help of the ALF.
A critical question when using aerial ladders is whether the guide point can be reached from the selected position. As a rule, one relies on the subjective assessment and the empirical values of the
Turntabl e ladder machinists. By using ALF, a clear, objective statement based
on measured values can be made within seconds. This significantly reduces
the operator‘s operational stress. In case of incorrect position selection for the
turntable ladder vehicle, the measuring device displays a proposed solution.
With only one measurement, the ALF checks the selected position. The
measurement is always carried out at the desired guide point. The machine operator first selects what he considers to be a good location for
the installation site of the turntable ladder. He then uses the ALF to aim
at the corresponding guide point (e.g. balcony) and carries out a measurement. Within seconds, the ALF indicates whether the selected location is suitable for setting up the turntable ladder to reach the target.
It is important that the ALF only provides support for the operator.
represents. Nevertheless, the machine operator must take into account
other factors such as nature of the ground oder souil conditions. The machine operator must still be able to assess the situation. The ALF supports the
machine operator in two ways. On the one hand, the distance can be measured objectively with the A LF. This way the operator does not have to rely on
a subjective estimate. On the other hand, the ALF establishes a relationship
between the field of use of the turntable ladder and the measured values.
4
Page 7
By day
1
TARGETING
TARGETING
Hold the ALF with the small opening on the lower edge
against your eye and place your finger already on the „Laser“
button. The viewing angle should be as straight as possible.
Targeting aid
IIn the middle of your field of vision you will see a small circle.
Move the ALF until the desired guide point is within this circle. Now perform the measurement.
2
By night
In dark situations, aim the visible red laser dot directly at the
desired guide point. Then perform the measurement.
1
WARNING
Do not dazzle any living being during sighting. Looking into the laser beam
is dangerous and harmful to the eyes.
5
Page 8

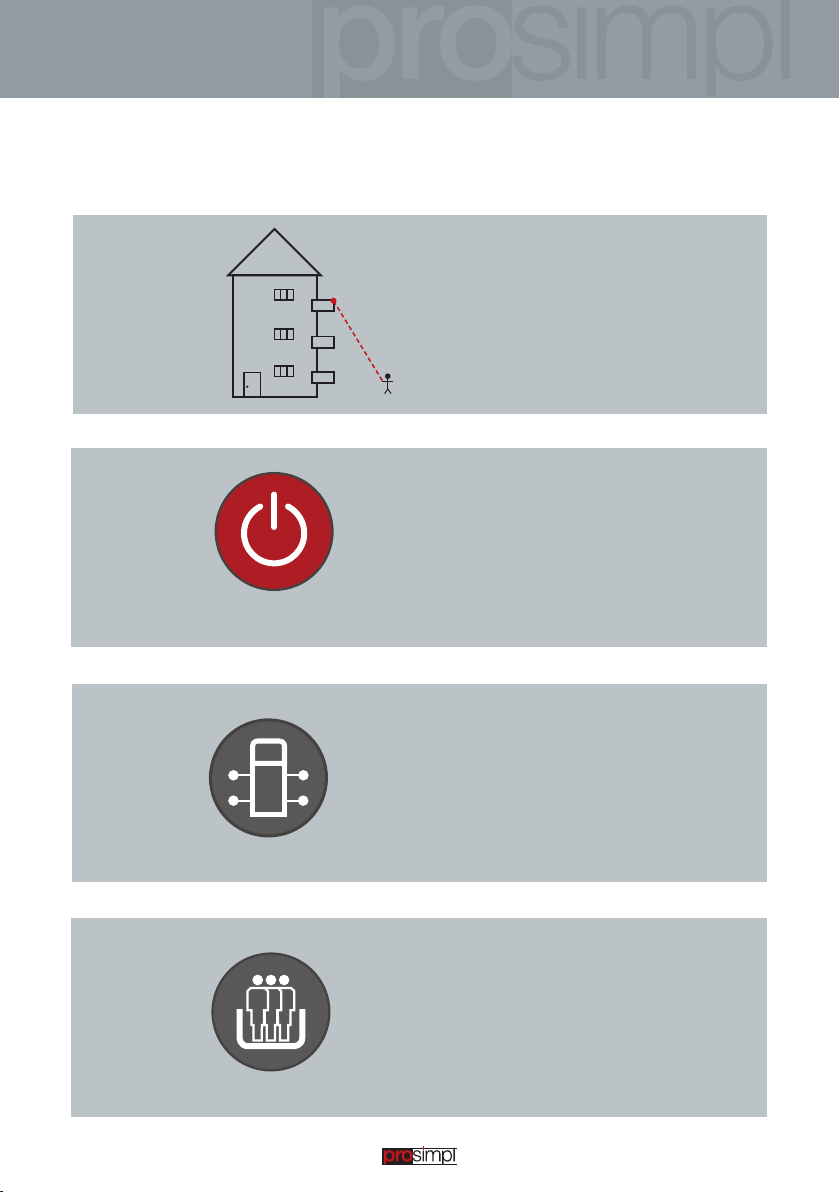

OPERATING SEQUENCE
Switching on/off
1
Choose outrigger
2 sec.
The operator places the turntable
ladder at an appropriate distance.
He then selects a suitable location for
setting up the turntable ladder.
Switch on ALF.
Switch off ALF.
ALF turns off automatically after 10
minutes of inactivity.
Selection of the possible outrigger
distance, according to the environment.
2
Choose rescue cage crew
3
6
Changes to the outriggers are updated
in real time. If the ladder park is moved
along the vehicle, this corresponds to full
support
Selection of the rescue cage crew,
according to the mission.
Changes to the rescue cage crew are
updated in real time.
Page 9
OPERATING
OPERATING SEQUENCE
Performing a measurement

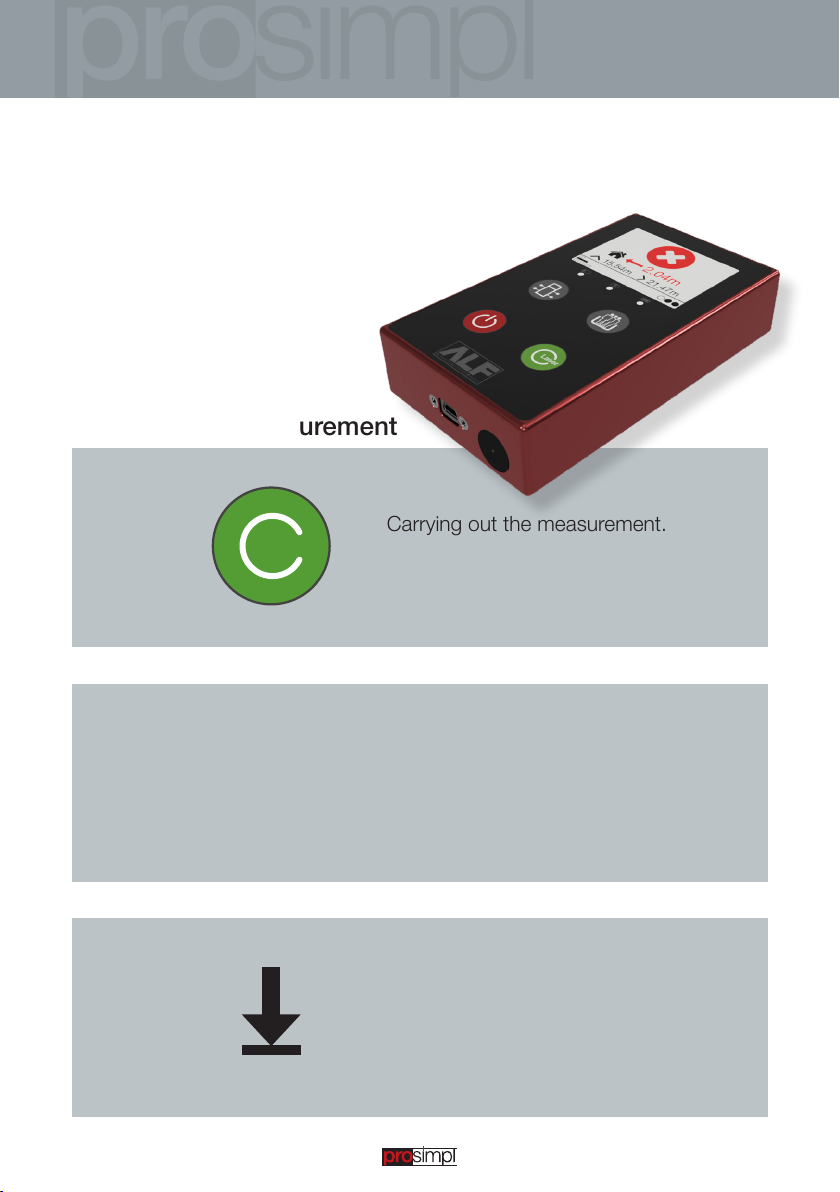

Carrying out the measurement.
Laser
Hold button for continuous measurement.
Laser switches off automatically after
two minutes of inactivity.
4
Check display
5
Position vehicle
Check the display of the
measurement result.
See the chapter „Operating“
starting on page 8
The machine operator now positions the
turntable ladder according to the measurement result.
See the chapter „Positioning“
on page 14.
7
Page 10

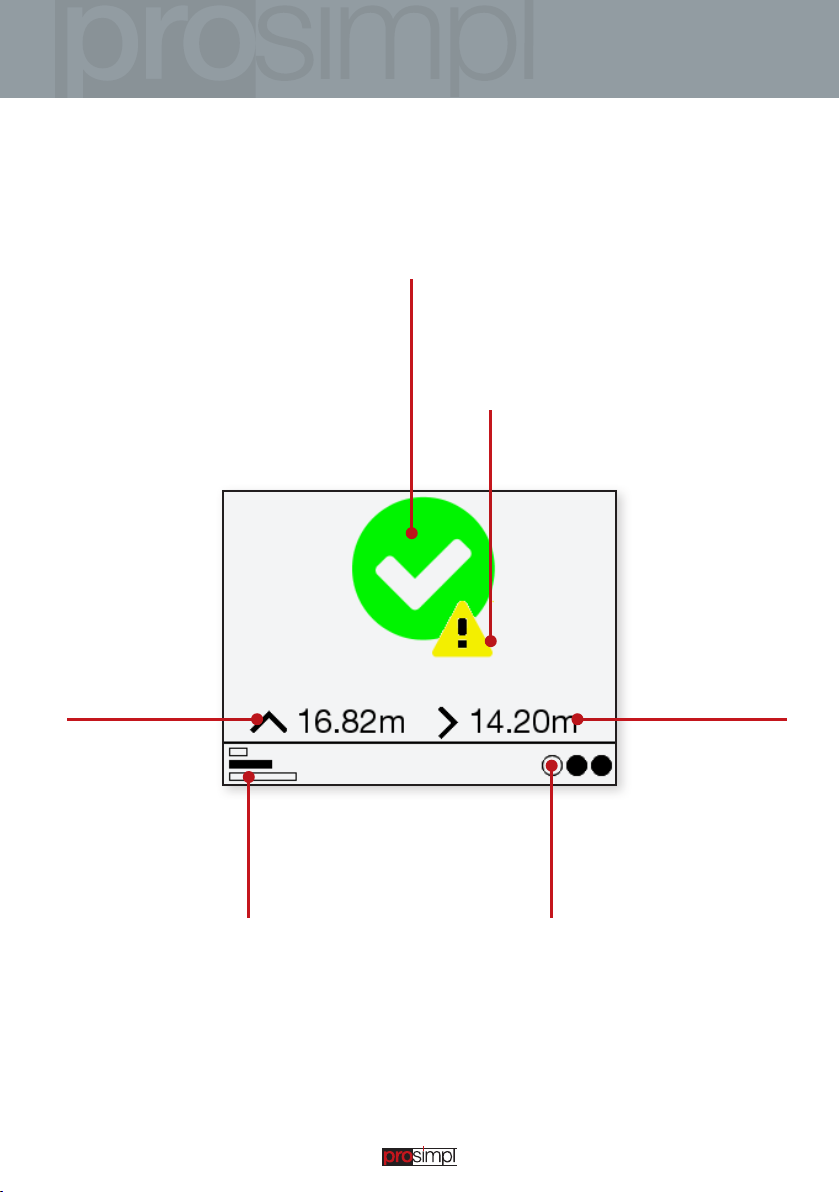

REACHABLE

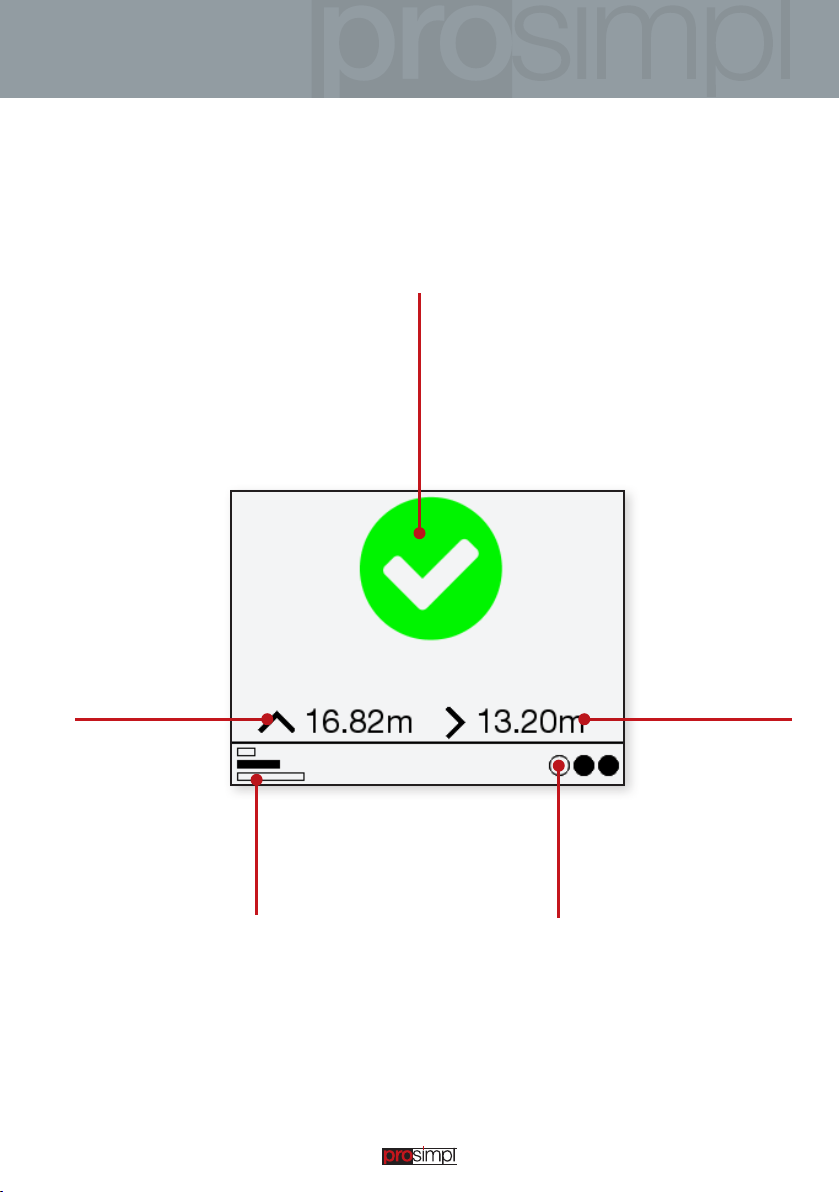

Target is accessible
from this position
Height to
target
8
Selected
outrigger
Place the turntable ladder at this location.
Distance to
target
Selected rescue cage crew
Page 11
OPERATING
BARELY REACHABLE
Target is accessible
from this position
Little reserve up to
the usage field limit
Height to
target
Selected outrigger
The limit range is defined as a function of the minimum and maximum angle as well as the minimum
and maximum projection.
Place the turntable ladder at this location.
Selected rescue cage crew
Distance to
target
9
Page 12
Height to
target

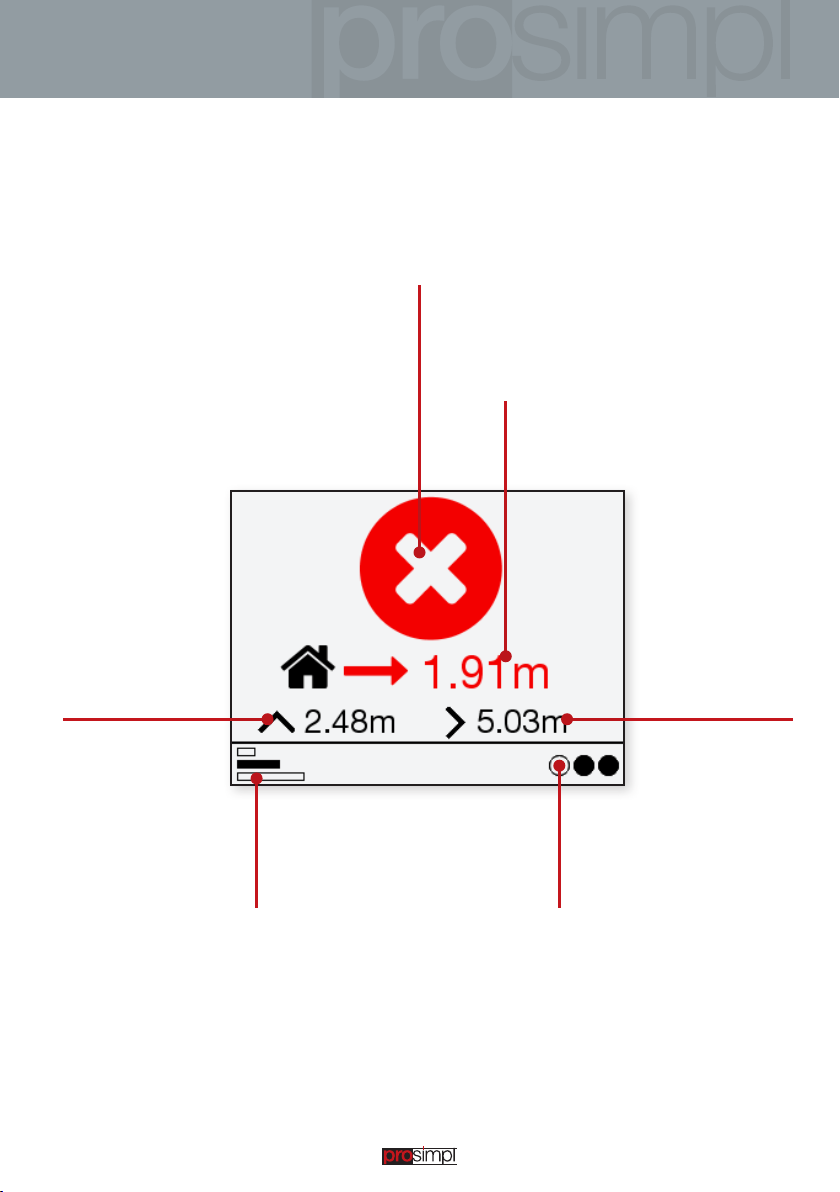

TOO CLOSE
Target is not
reachable from this
position
Centre of the turntable
must be placed 1.91 m
away from the building
Distance to
target
10
Selected
outrigger
Change location and remeasure if necessary.
Selected rescue cage crew
Page 13

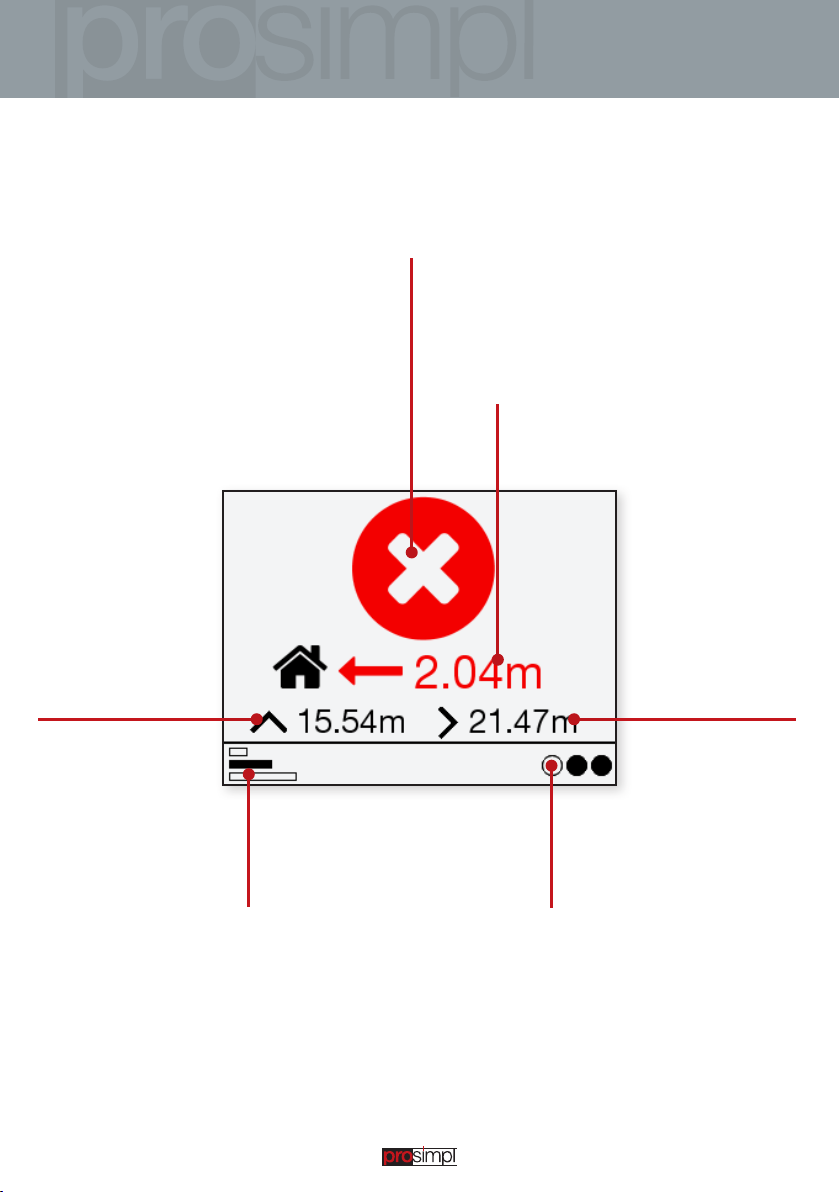

TOO FAR
Target is not
reachable from this
position
Centre of the turntable must be 2.04 m
closer to the building
OPERATING
Height to target
Selected
outrigger
Change location and remeasure if necessary.
Distance to
target
Selected rescue cage crew
11
Page 14

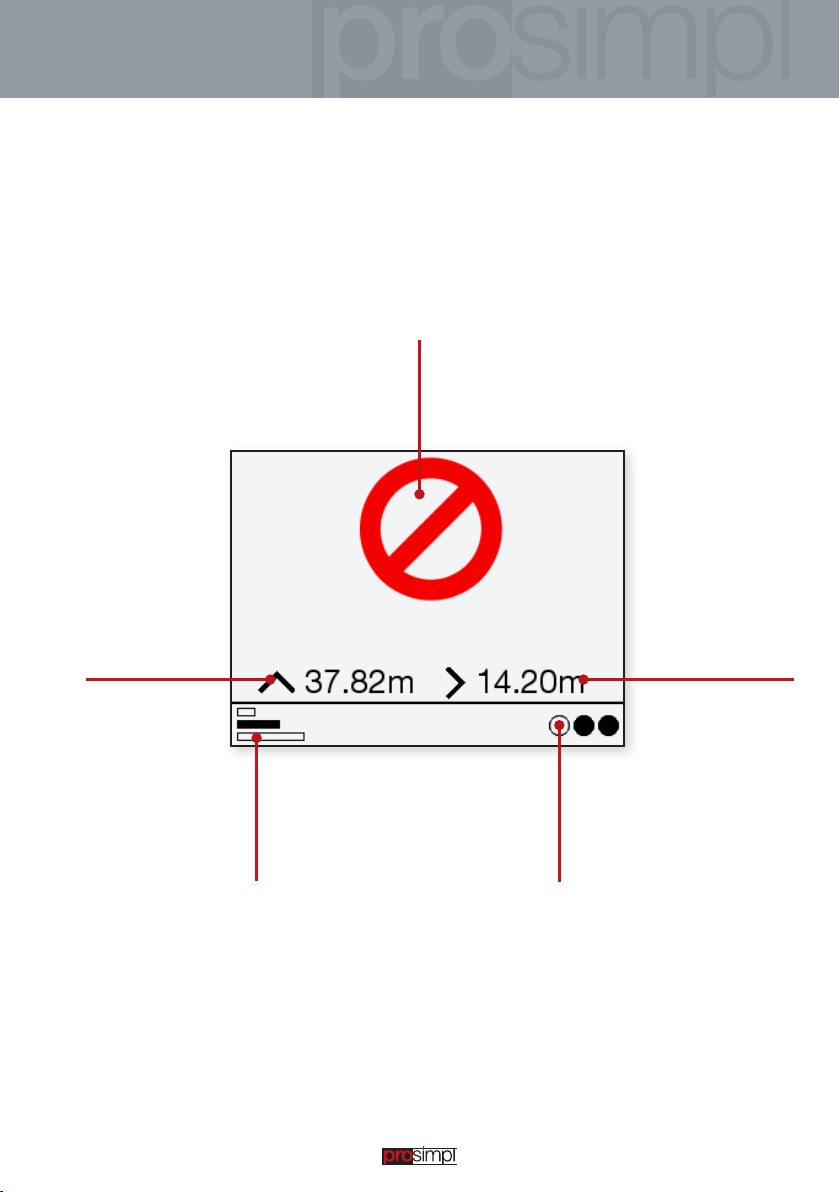

NEVER REACHABLE
Target is never
reachable with this
turntable ladder
Height to
target
12
Selected
outrigger
Target is never reachable with this turntable ladder.
Selected rescue cage crew
Distance to
target
Page 15

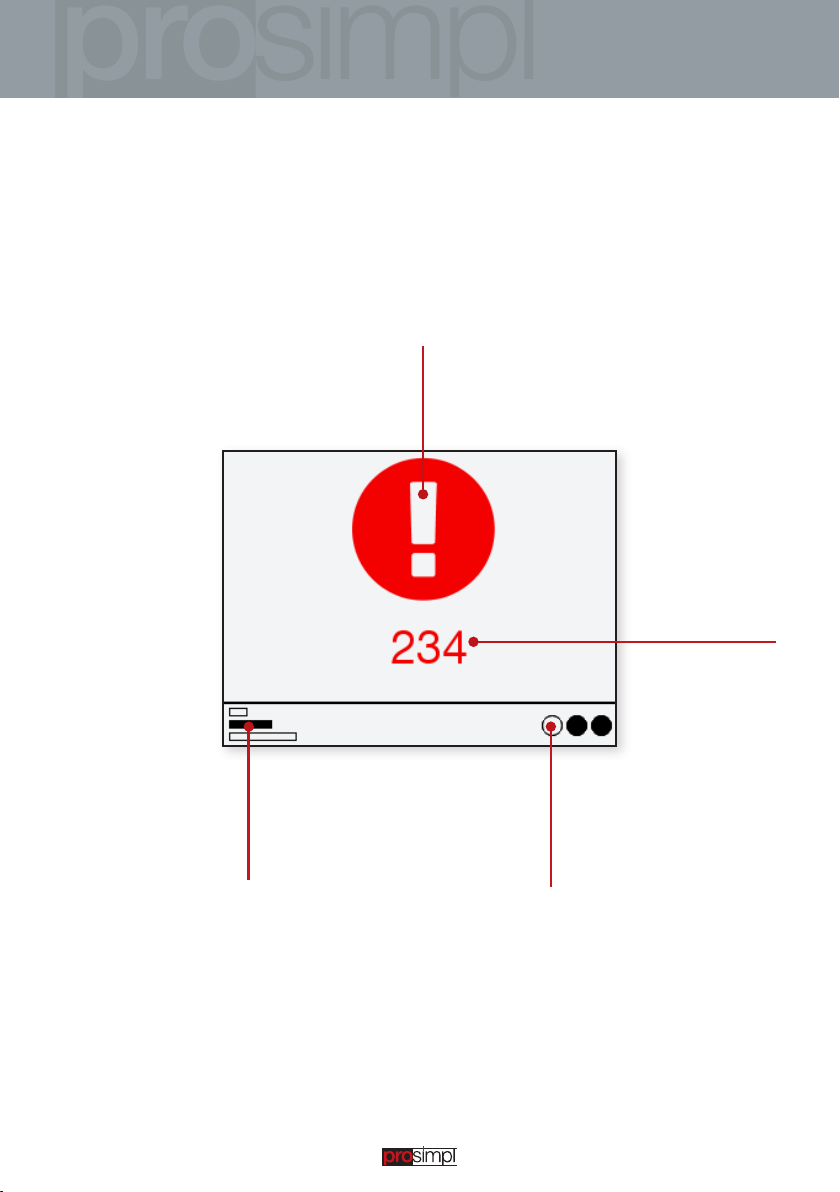

ERROR
Error during
measurement
OPERATING
Message code
Selected
outrigger
Selected rescue cage crew
Repeat measurement.
13
Page 16
POSITIONING
Positioning of the turntable ladder

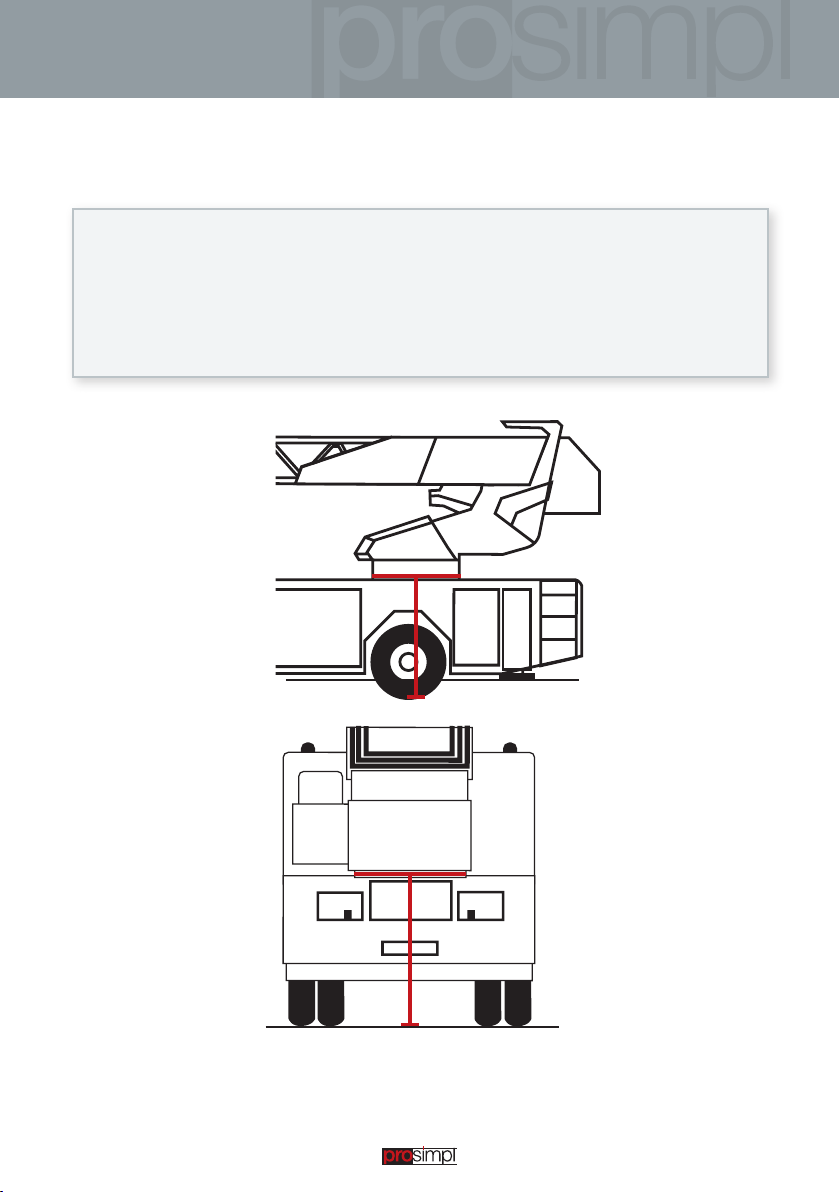

The turntable centre of the turntable ladder must be positioned so that it is
above the measurement location. The turntable ladder must therefore be
aligned both lengthwise and crosswise to this point. It is recommended to
visibly mark the centre of the turntable on the vehicle, e.g. with coloured
dots. Furthermore, it makes sense to mark the location of the measurement
during shunting.
14
Page 17
MISCELLANEOUS
Charging the battery
The permanently installed battery offers an operating time of up to 7,000
measurements when fully charged. The charge indicator lights below the
display indicate the charging status of the ALF.
The battery runs
out. Download
the ALF as soon
as possible
back up
Battery
is charging

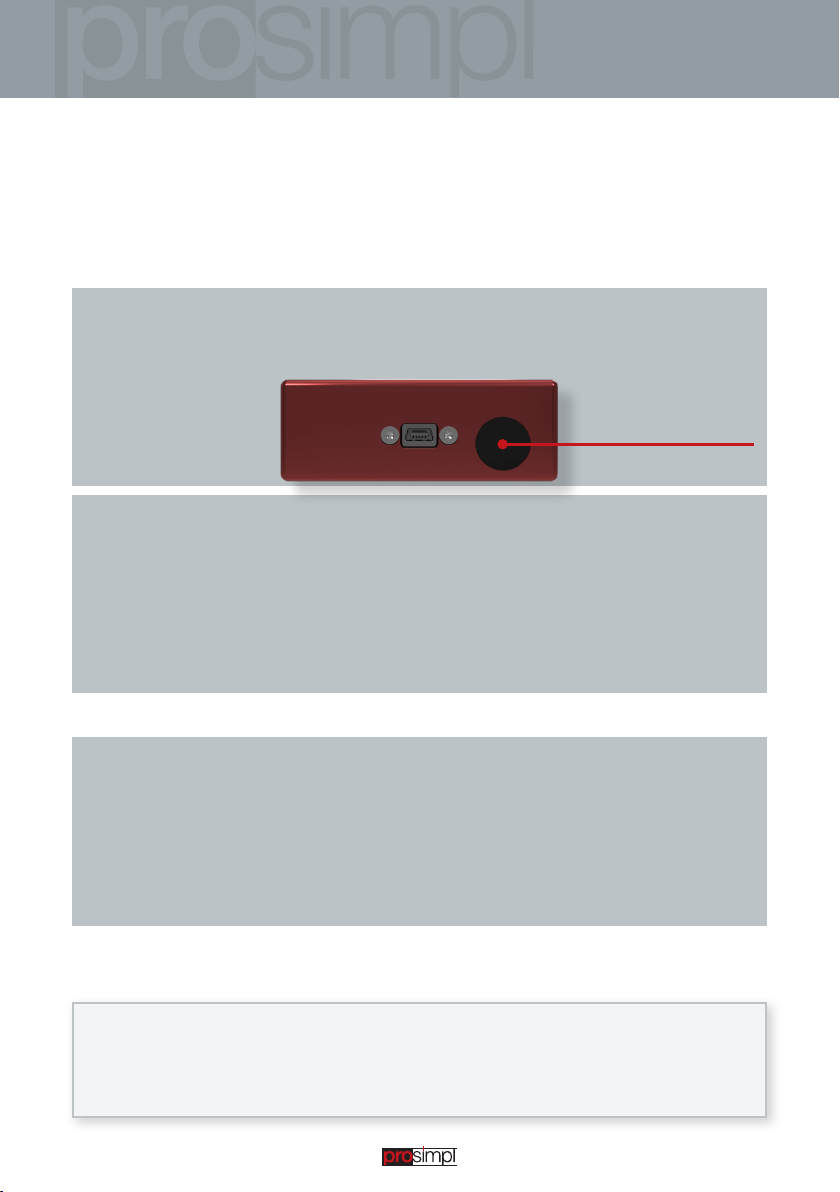

To charge the ALF, connect the ALF to the USB port on the bottom of the
unit with a USB power supply or computer using a mini USB cable.
Battery is
fully
charged
MultiTL (Optional)

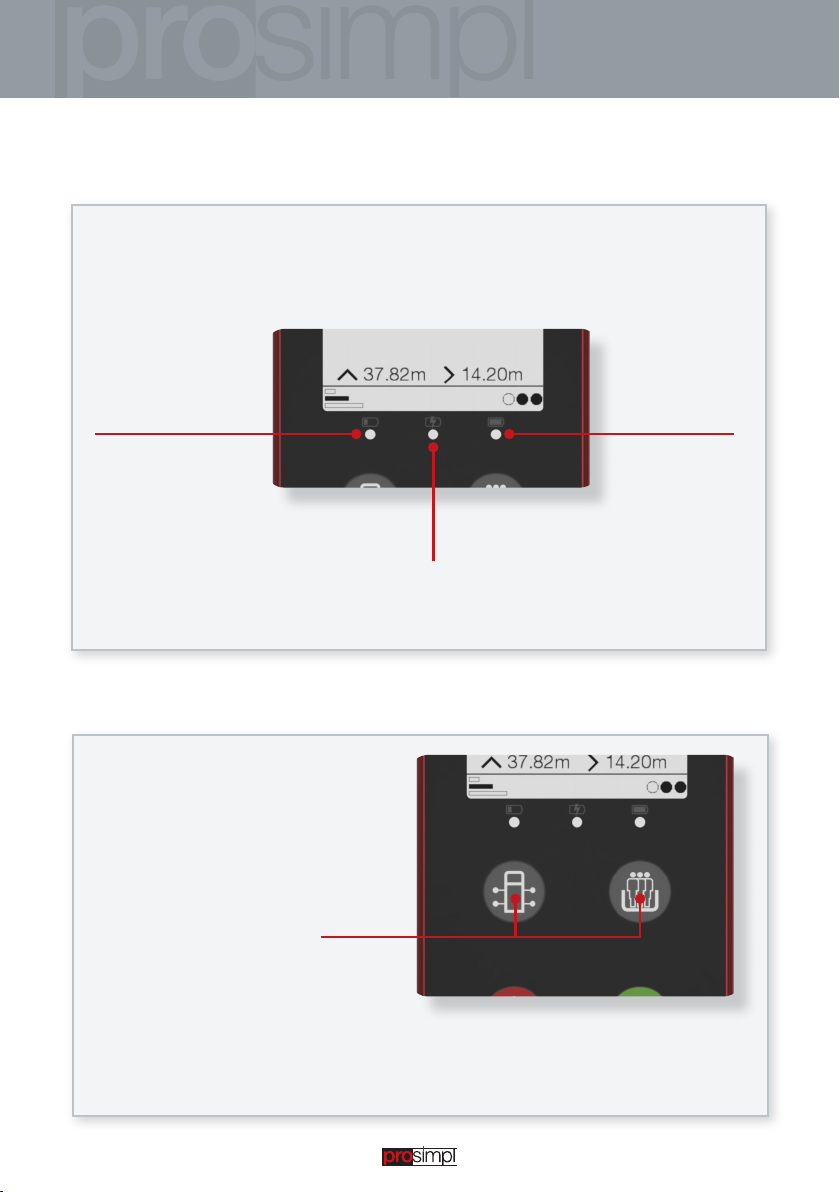

The ALF can store up to five configurations of different turntable
ladders. You can switch between
each configuration by pressing the
two upper buttons (outrigger and
rescue cage) for about five seconds.
The selected configuration is displayed at the
bottom of the screen. If a measurement has already been triggered, the result is immediately recalculated and displayed after the configuration has been changed.
This feature is not available for use in operations.
MultiTL
TL
15
Page 18
NOTIFICATIONS
Message codes
Code Description Solution proposal
234
252
253
255
256
Other
Distance not within measuring range
Temperature too high Reduce temperature
Temperature too low Increase temperature
Signal too weak or distance
not within range
Signal too strong Change target surface
Contact manufacturer
Reduce distance
Reduce distance
16
Page 19
TECHNICAL SPECIFICATIONS
Data & Facts
General information
measuring range
Typical diameter (elliptical) of the laser dot on
the target
Laser source
Dimensions (L x W x H)
Operating temperature
range
Storage temperature
range
Weight
Battery capacity
up to 50 m on natural surfaces
4 mm / 2 mm @ 5 m
7 mm / 3 mm @ 10 m
17 mm / 9 mm @ 30 m
Laser diode 620-690 nm (red, typical 655 nm)
IEC 60825-1:2014; Class 2
FDA 21CFR 1040.10 & 1040.11
Beam divergence: 0.16 x 0.6 mrad
Pulse duration: 0.2 - 0.8 x 10-9 s
Maximum radiated power: 1 mW
123 x 72 x 27 mm
-10°C to +50°C
-10°C to +60°C
354 g
up to 7,000 measurements
Measuring period
Depending on distance: 0.2 to 4 s
17
Page 20
NOTES
Limits of Use
WARNING
Distance measurement may be affected by external optical influences such
as rain, snow, fog, sun or the condition of the target surface. In order not
to negatively influence the measurement, the instrument must be held still
during the measurement.
The actual installation angle of the turntable ladder and the resulting projection or rescue height vary depending on the condition of the ground (e.g.
underground car park departure). The ALF cannot take this condition into
account. This can result in discrepancies between the measurement result
and reality.
Electromagnetic compatibility (EMC)
The device meets the strict requirements or relevant standards and directives.
WARNING
Nevertheless, the possibility of interference with other devices cannot be
completely excluded.
Disposal
The device must not be disposed of with household waste.
Return the device to the manufacturer for proper disposal:
prosimpl UG (haftungsbeschränkt)
Ghersburgstraße 40
83043 Bad Aibling
Germany
18
Page 21
SAFETY NOTICES
The operator ensures that all users understand and follow these
instructions. Liability only in case of proper use.
Responsibility of the manufacturer
Responsibility of the manufacturer of the original equipment:
prosimpl UG (haftungsbeschränkt)
Ghersburgstr. 40
83043 Bad Aibling
Germany
Internet: www.prosimpl.com
The above-mentioned company is responsible for ensuring that the product, including the instructions for use, is delivered in perfect safety condition. The above company is not responsible for third-party accessories or
improper use, use or application of the device.
Operator‘s area of responsibility
• After receipt of the ALF, it must be checked whether the field of use,
which is calculated on the basis of the survey plan, actually corresponds to the turntable ladder. This is the only way to guarantee perfect
functionality during an operation.
• Understanding the safety instructions on the product and the instruc-
tions in the instruction manual.
• Knowledge of local safety regulations for accident prevention.
• Protect the device from unauthorized access at all times.
• Opening the device will void any liability and warranty claims.
19
Page 22
USAGE
Intended Use
• Measurement of distances for optimized positioning of turntable ladders
Inappropriate Use
• Use of the product without instruction
• Use outside the application limits
• Making safety devices ineffective and removing information and warning
signs
• Opening the product
• Carrying out modifications or conversions to the device
• No use of accessories from other manufacturers that are not expressly
approved
• Insufficient protection of the measuring location (e.g. when carrying out
measurements on roads, on construction sites, etc.)
• Direct aiming in the sun
• Blinding of people and animals
• Immersion in liquids
• The openings for laser measurement and aiming must not be covered
or contaminated.
20
Page 23
SAFETY NOTICES
DANGERS OF USE
WARNING
Beware of faulty measurements when using a defective product, after a fall
or other unacceptable stress or changes to the product. Perform regular
control measurements, especially after excessive use of the device and
before and after important measuring tasks.
WARNING
Do not repair the product. In case of defects, contact the manufacturer.
WARNING
Unauthorized changes or modifications may restrict the user‘s right to
operate the equipment.
WARNING
The product is designed for use in areas that are permanently inhabitable
by people. The product must not be used in an explosive or aggressive
environment.
See chapter „Technical Specifications“ on page 17.
21
Page 24

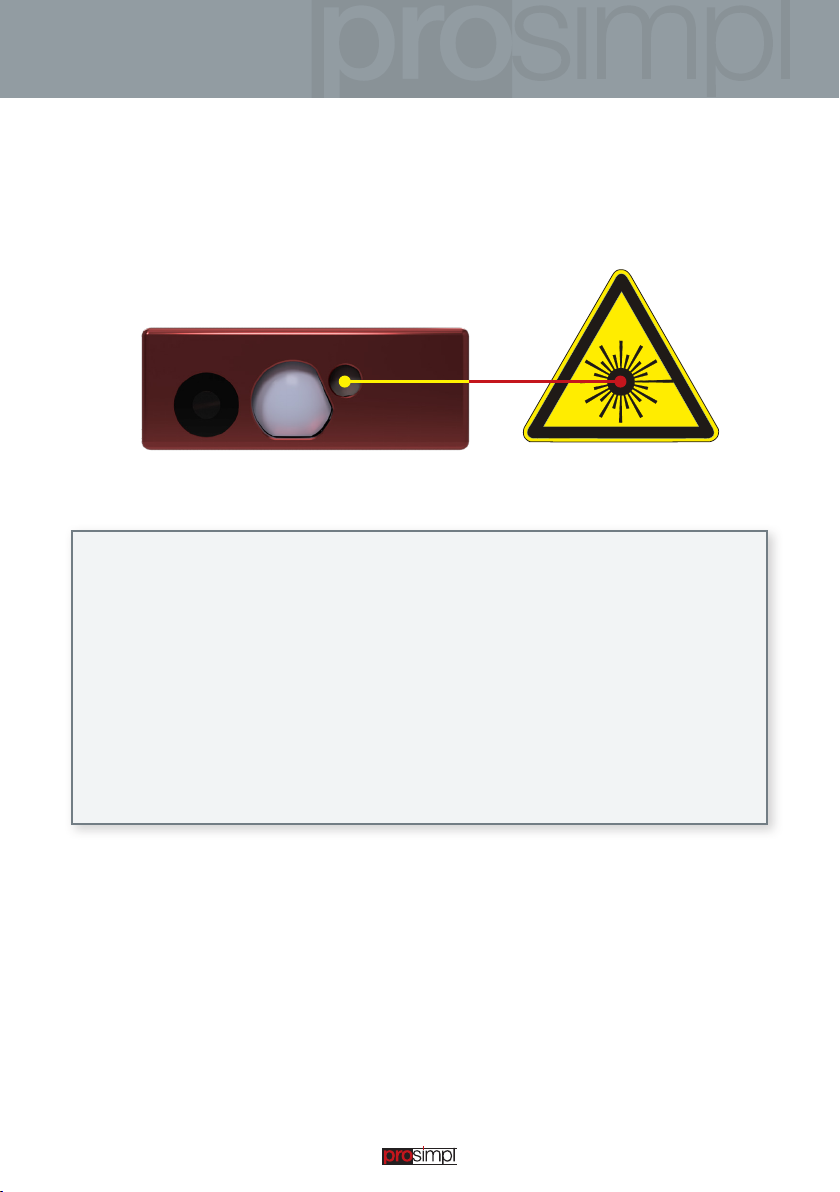

LASER CLASSIFICATION
The device generates a visible laser beam.
The device complies with laser class 2:
• IEC 60825-1 (2014) „Radiation safety of laser products“
• EN 60825-1 (2007) “Radiation safety of laser products”
• FDA 21CFR 1040.10 1004.11 (US Department of Health and Human
Service, Code of Federal Regulations)
Products of laser class 2:
Do not look into the laser beam and never point the beam at people or
animals. The protection of the eye is usually achieved by averting reactions
including the reflex of the eyelid.
22
Page 25
LASER CLASS
Technical Specifications
WARNING
The direct view into the beam with optical aids (e.g. binoculars, magnifiers,
telescopes) is dangerous. Looking into the laser beam is dangerous for the
eyes.
Description Value
Wavelength
Maximum radiated power
for classification
Impulse length
Beam divergence
620-690 nm (typical 655 nm)
<1 mW
0,2 - 0,8 x 10-9 s
0,16 x 0,6 mrad
23
Page 26
DECLARATION OF CONFORMITY
Declaration of Conformity
We,
prosimpl UG (haftungsbeschränkt),
D-83043 Bad Aibling, Ghersburgstr. 40
declare under their sole responsibility that the product
ALF Advanced Location Finder
according to the provisions of the following directives
• 2014/30/EU Electromagnetic compatibility
• 2011/65/EG RoHS — Substance Restriction
complies with the following standards
• EN 60825-1:2014
• EN 61326-1:2013
• EN 61326-2-2:2013
Date of declaration: 02.01.2019
Name of the signatory: Philipp Höfler, CEO
24
Page 27
Page 28
A DVANCEDL OCATIONF INDER
prosimpl UG (haftungsbeschränkt)
Ghersburgstraße 40
83043 Bad Aibling
Germany
[email protected]
www.prosimpl.com
Loading...
