USER MANUAL

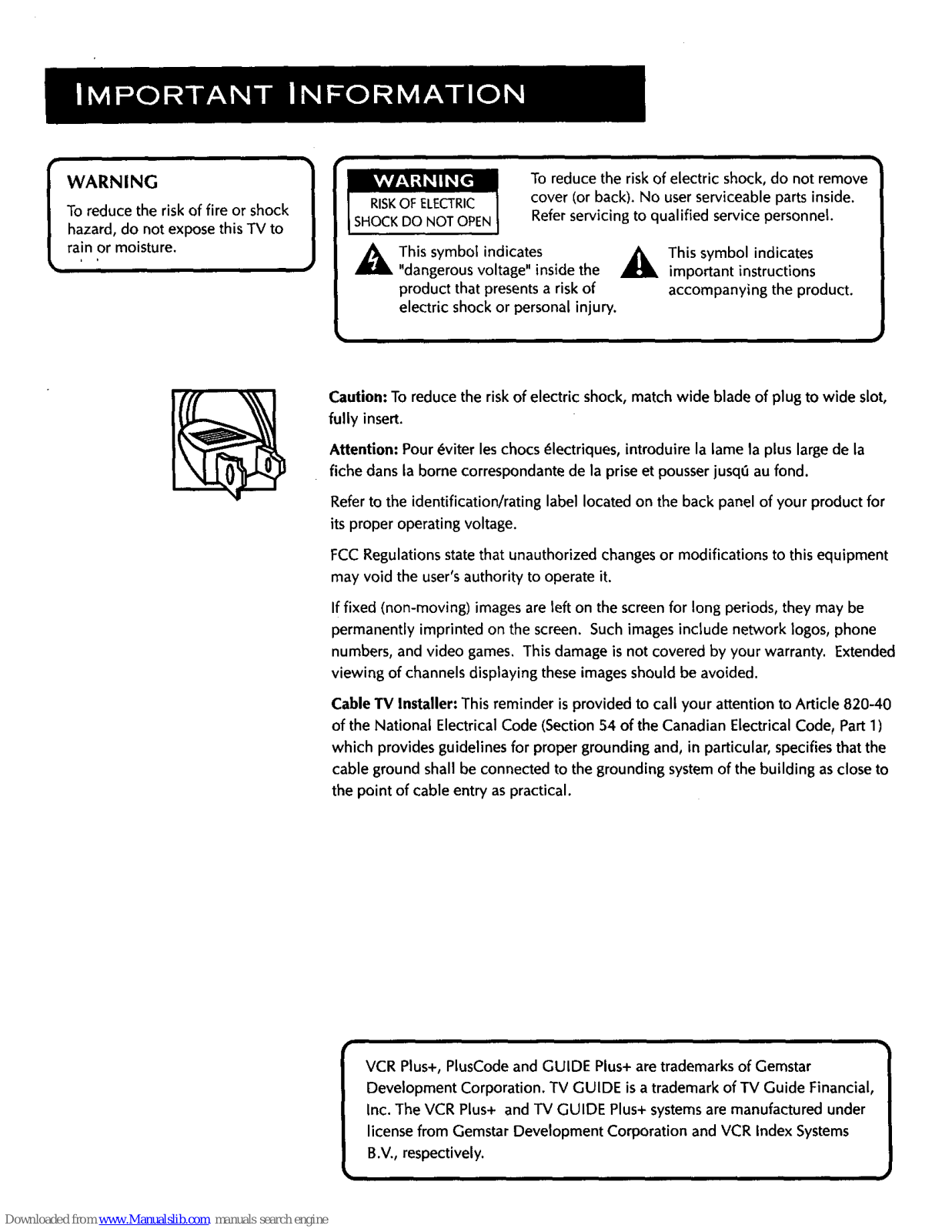

WARNING
To reduce the risk of fire or shock
hazard, do not expose this TV to
rain or moisture.
RISKOF ELECTRIC
SHOCK DO NOT OPEN
To reduce the risk of electric shock, do not remove
cover (or back). No user serviceable parts inside.
Refer servicing to qualified service personnel.
,_ This symbol indicates ,_ This symbol indicates
"dangerous voltage" inside the important instructions
product that presents a risk of accompanying the product.
electric shock or personal injury.
Caution: To reduce the risk of electric shock, match wide blade of plug to wide slot,
fully insert.
Attention: Pour _viter les chocs _lectriques, introduire la lame la plus large de la
fiche dans la borne correspondante de la prise et pousser jusqt_au fond.
Refer to the identification/rating label located on the back panel of your product for
its proper operating voltage.
FCC Regulations state that unauthorized changes or modifications to this equipment
may void the user's authority to operate it.
If fixed (non-moving) images are left on the screen for long periods, they may be
permanently imprinted on the screen. Such images include network Iogos, phone
numbers, and video games. This damage is not covered by your warranty. Extended
viewing of channels displaying these images should be avoided.
Cable TV Installer: This reminder is provided to call your attention to Article 820-40
of the National Electrical Code (Section 54 of the Canadian Electrical Code r Part 1)
which provides guidelines for proper grounding and, in particular, specifies that the
cable ground shall be connected to the grounding system of the building as close to
the point of cable entry as practical.
VCR Plus+, PlusCode and GUIDE Plus+ are trademarks of Gemstar
Development Corporation. TV GUIDE is a trademark of TV Guide Financial,
Inc. The VCR Plus+ and TV GUIDE Plus+ systems are manufactured under
license from Gemstar Development Corporation and VCR Index Systems
B.V., respectively.

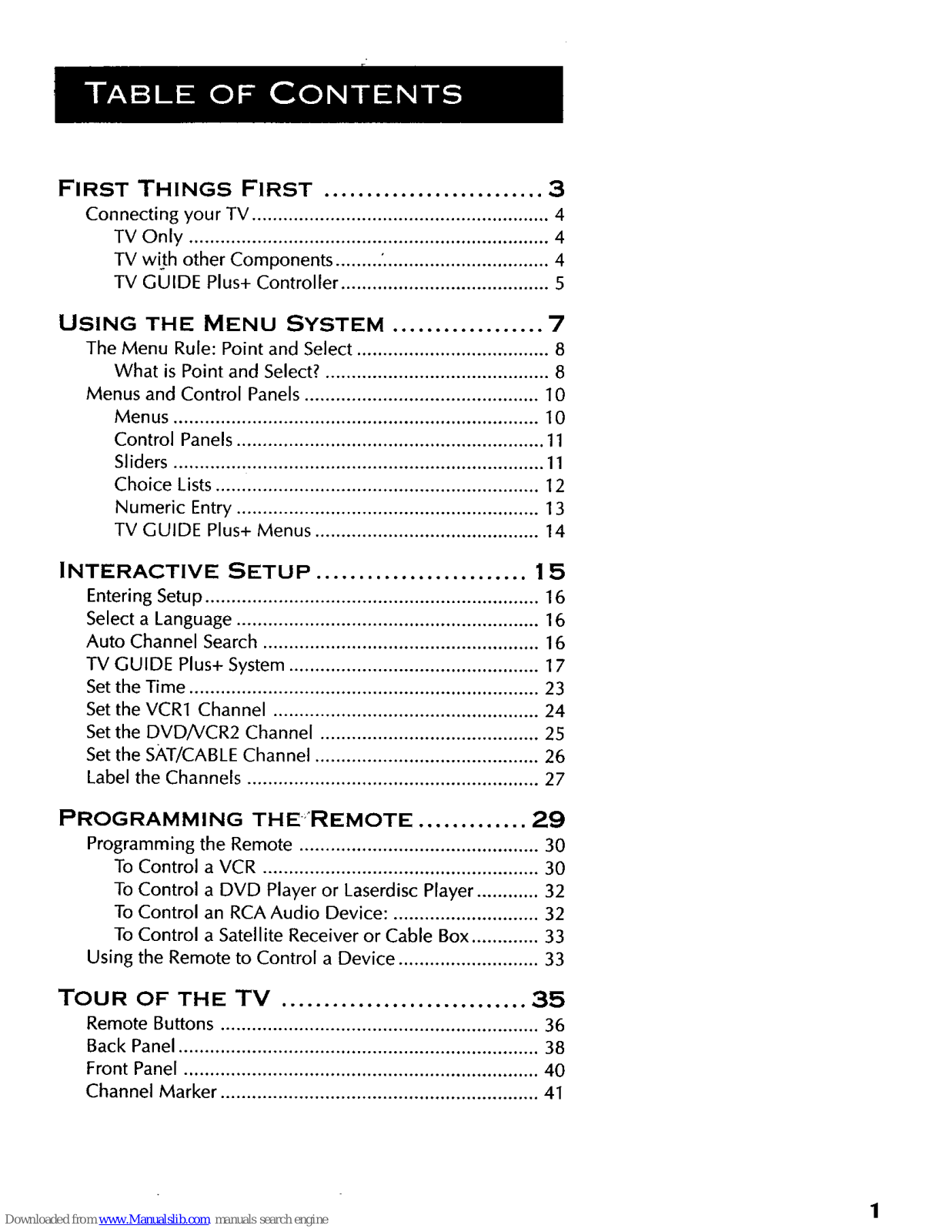

FIRST THINGS FIRST .......................... 3
Connecting your TV ......................................................... 4
TV Only ..................................................................... 4
TV with other Components ......... "................................ 4
TV GUIDE Plus+ Controller ........................................ 5

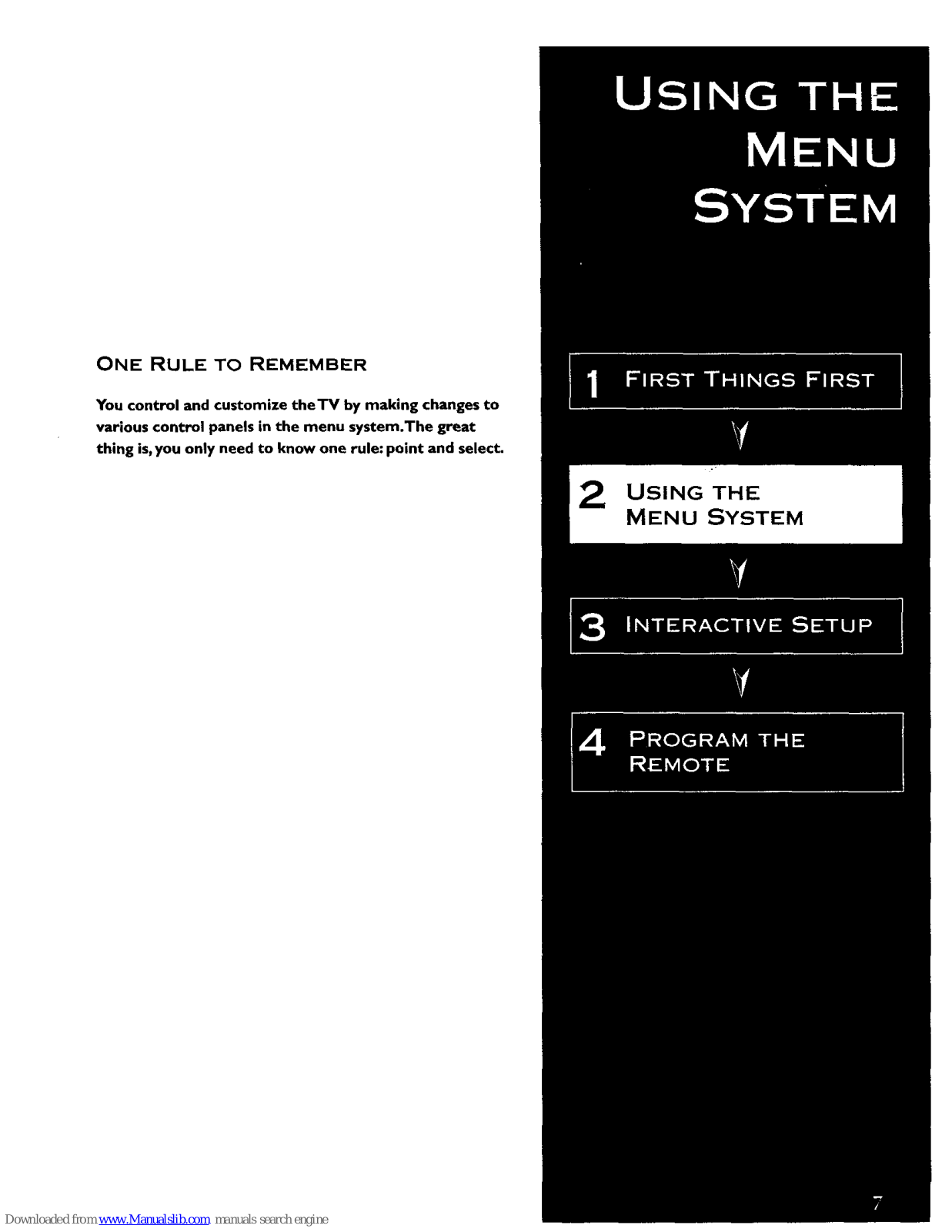

USING THE MENU SYSTEM .................. 7

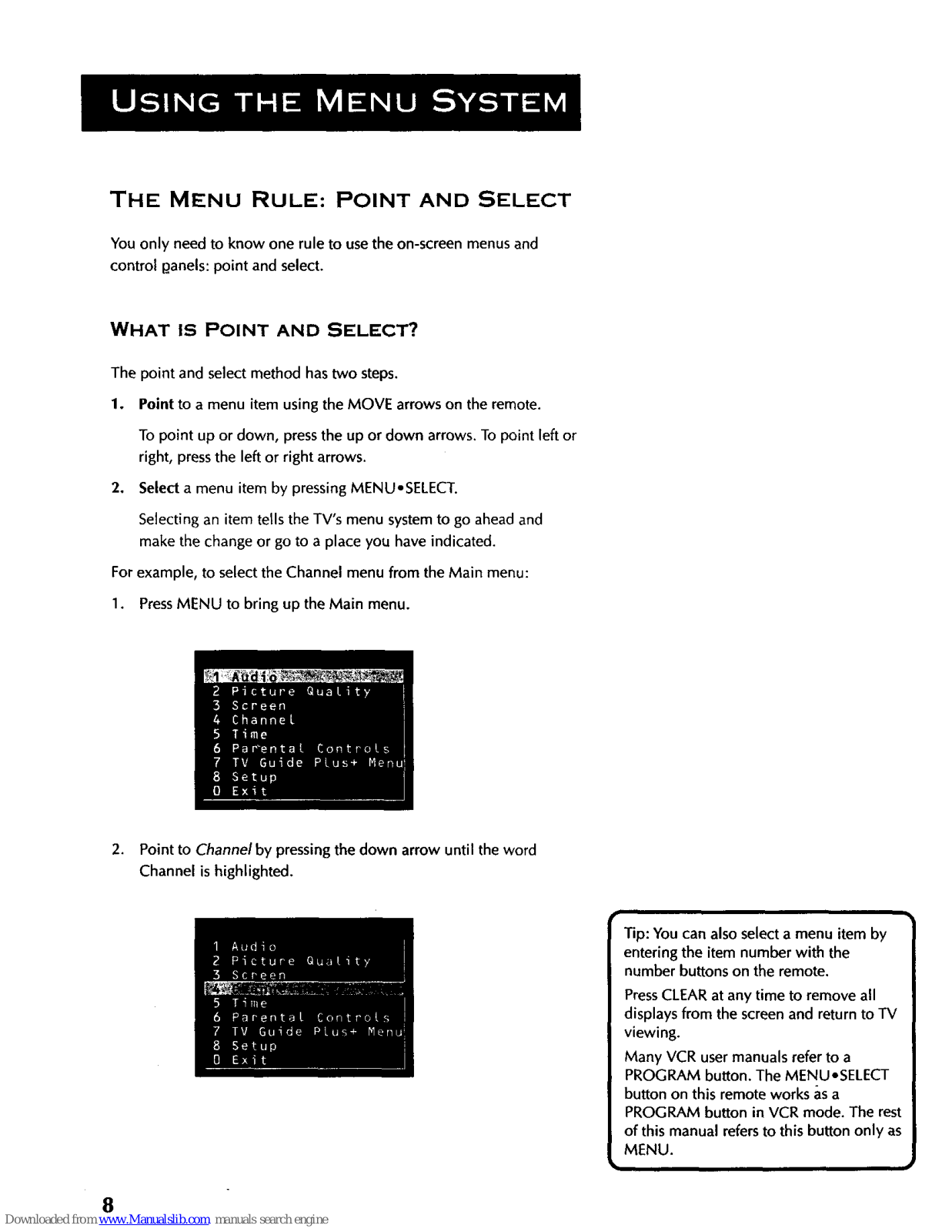

The Menu Rule: Point and Select ..................................... 8
What is Point and Select? ........................................... 8

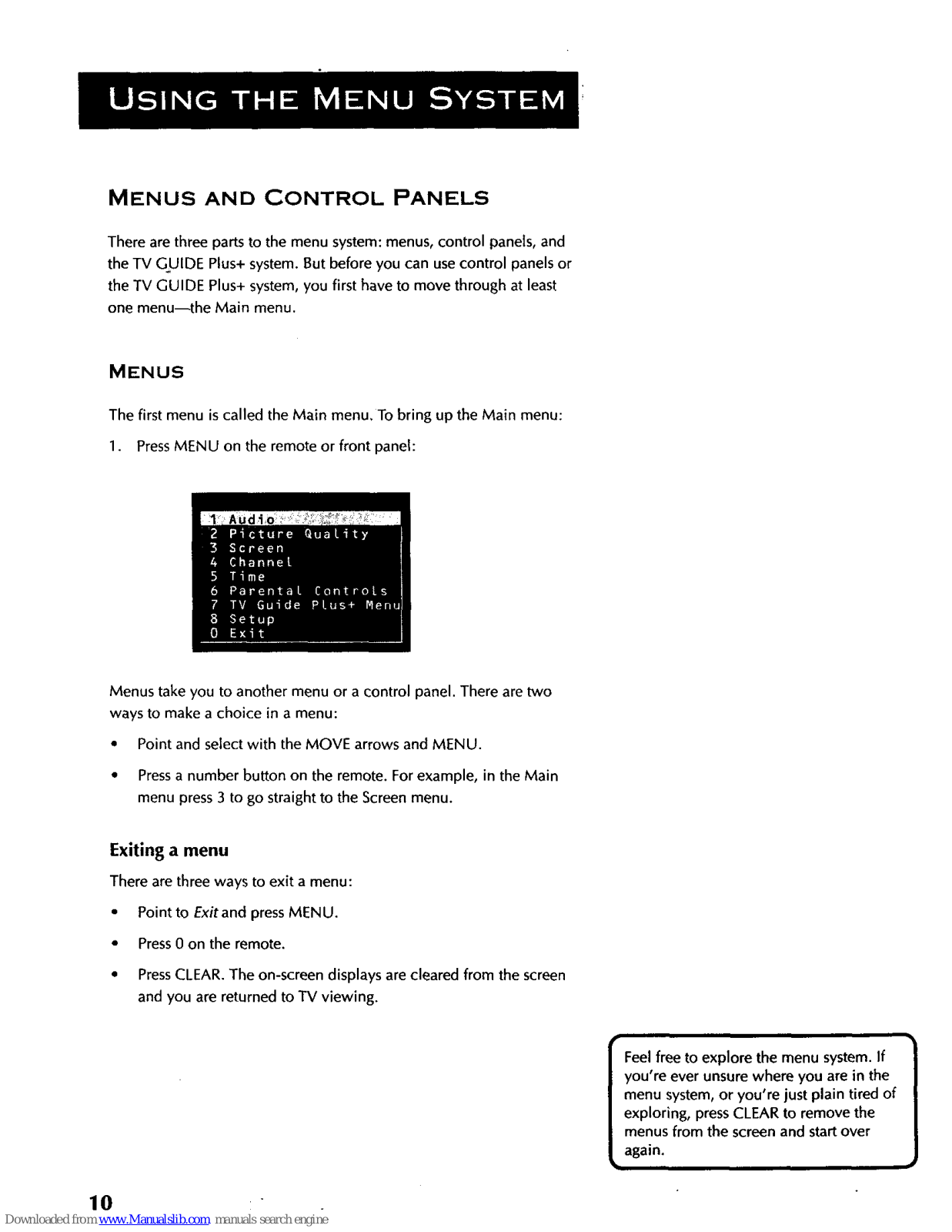

Menus and Control Panels ............................................. I0
Menus ...................................................................... 10

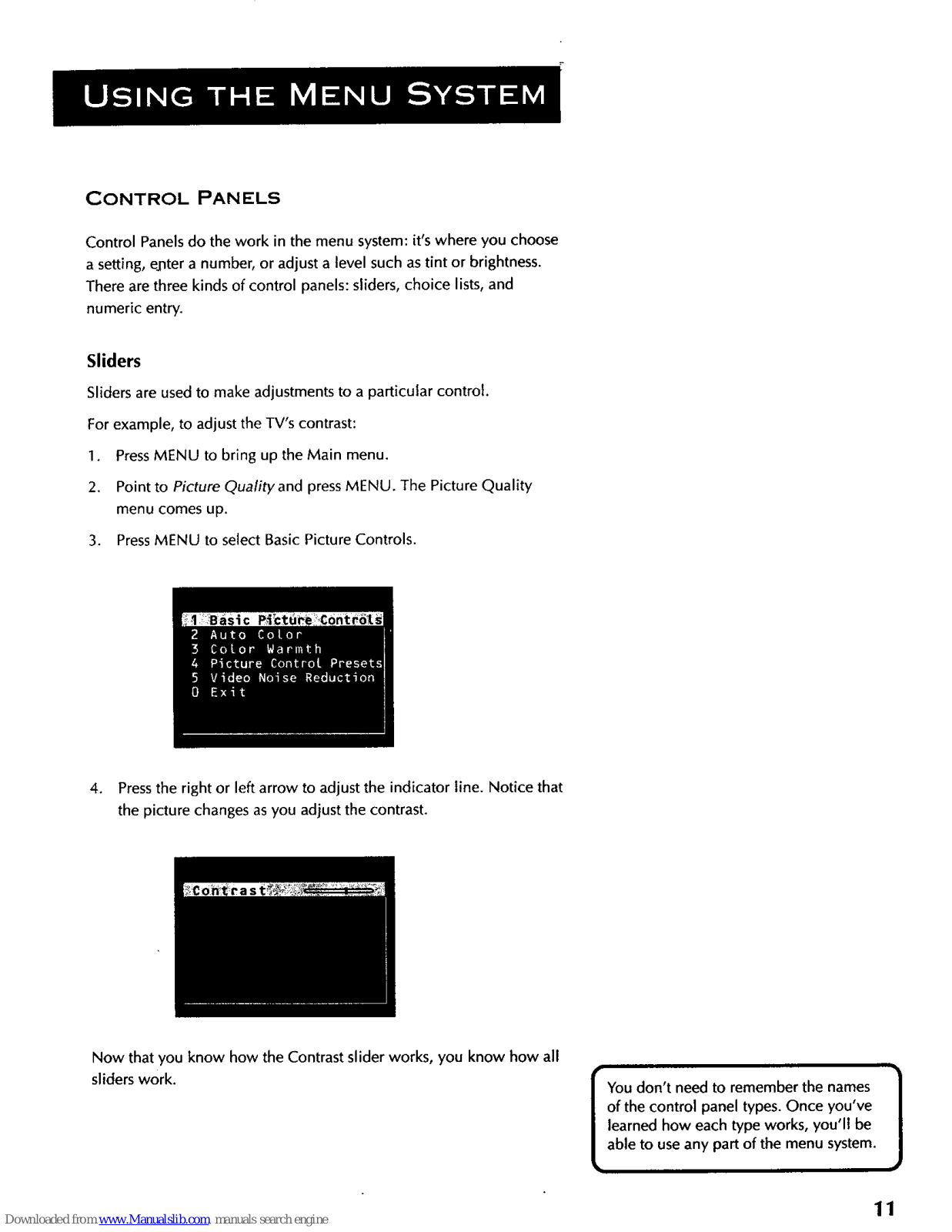

Control Panels ........................................................... 11
Sliders ....................................................................... 11

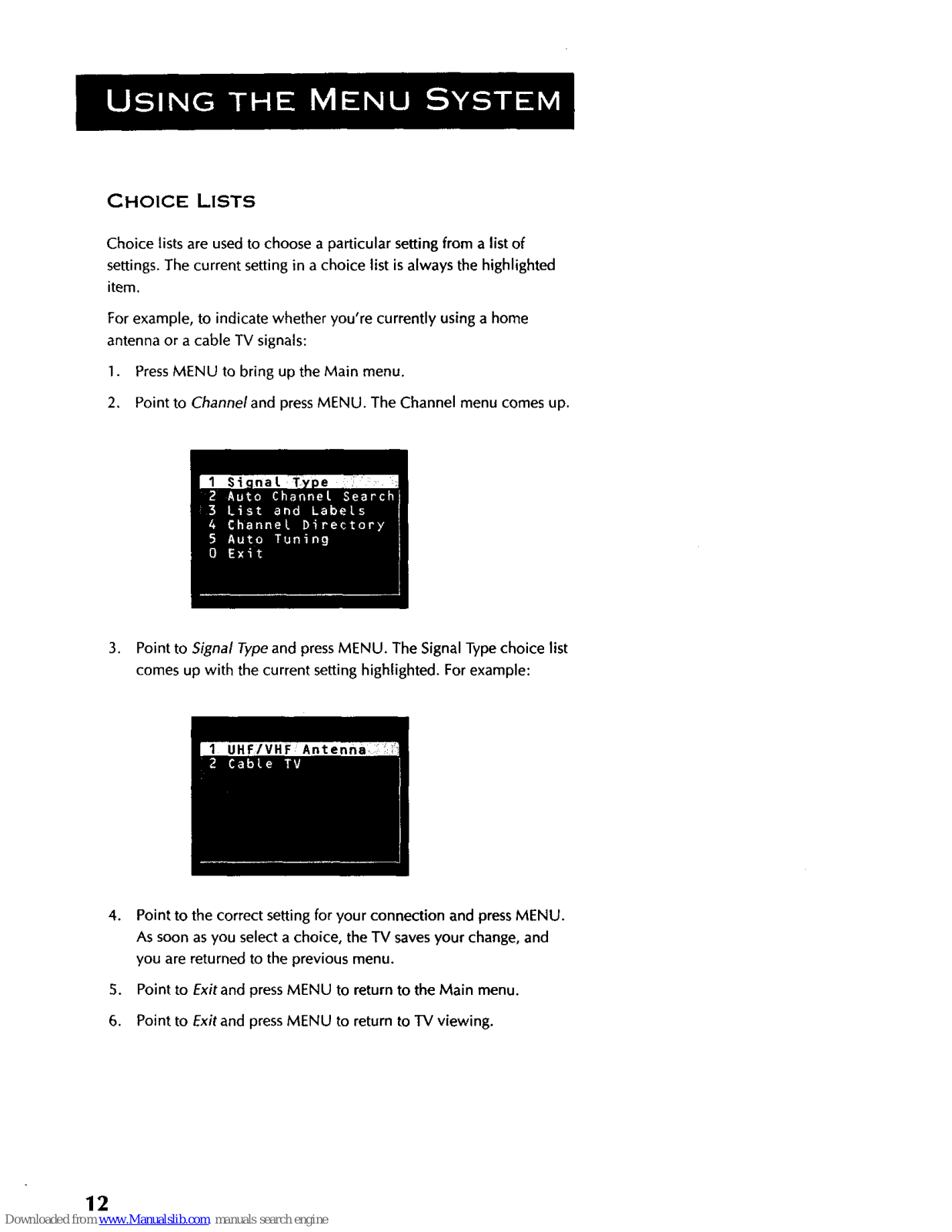

Choice Lists .............................................................. 12

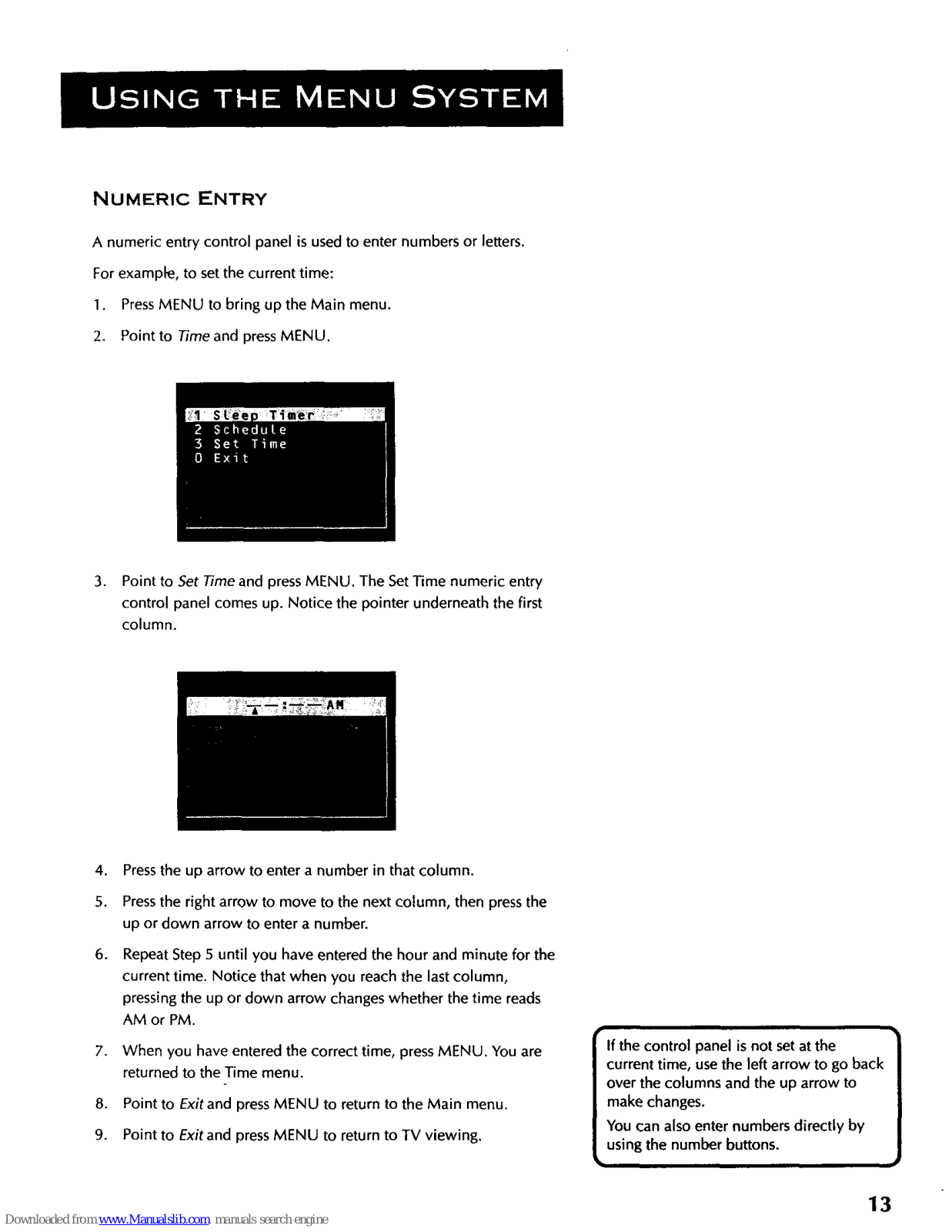

Numeric Entry .......................................................... 13

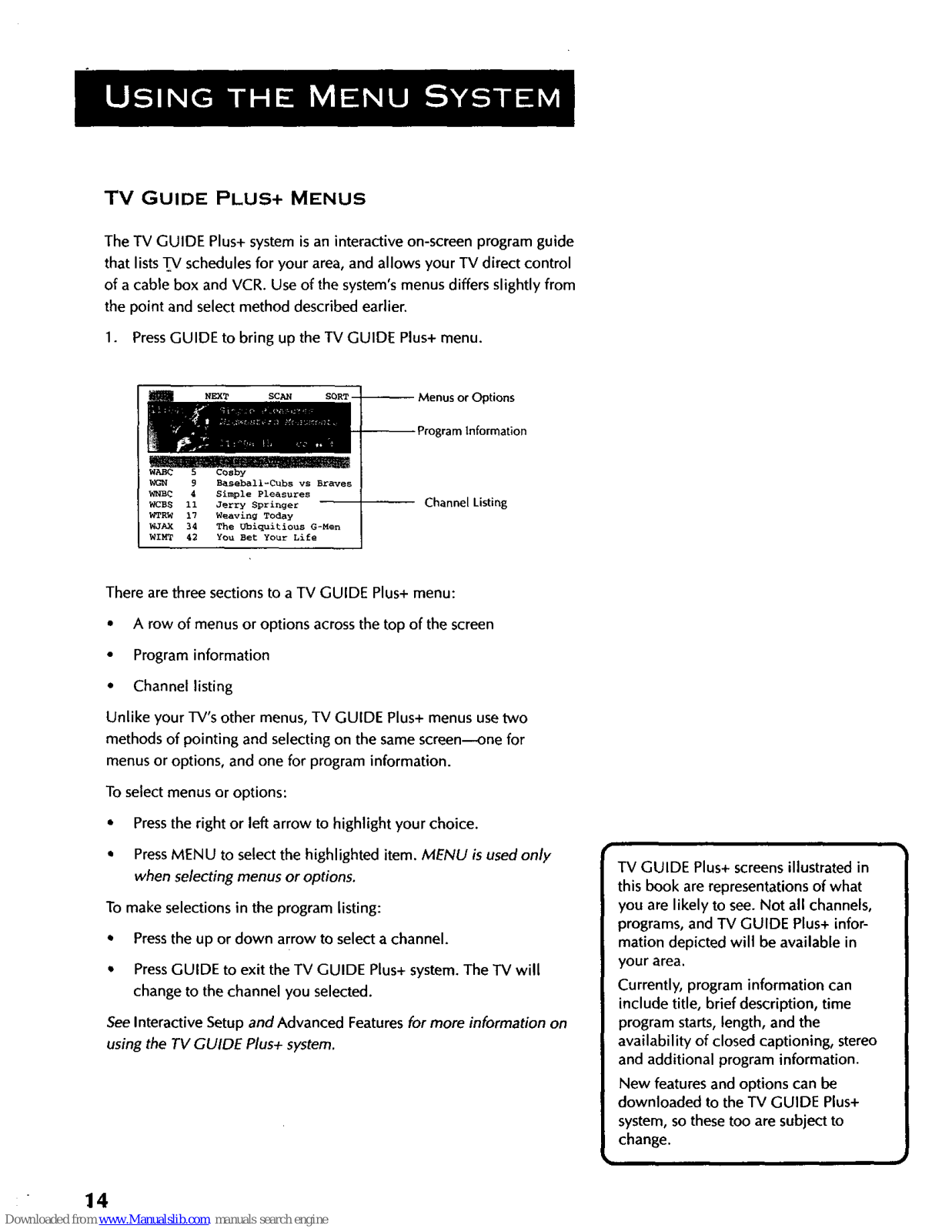

TV GUIDE Plus+ Menus ........................................... 14

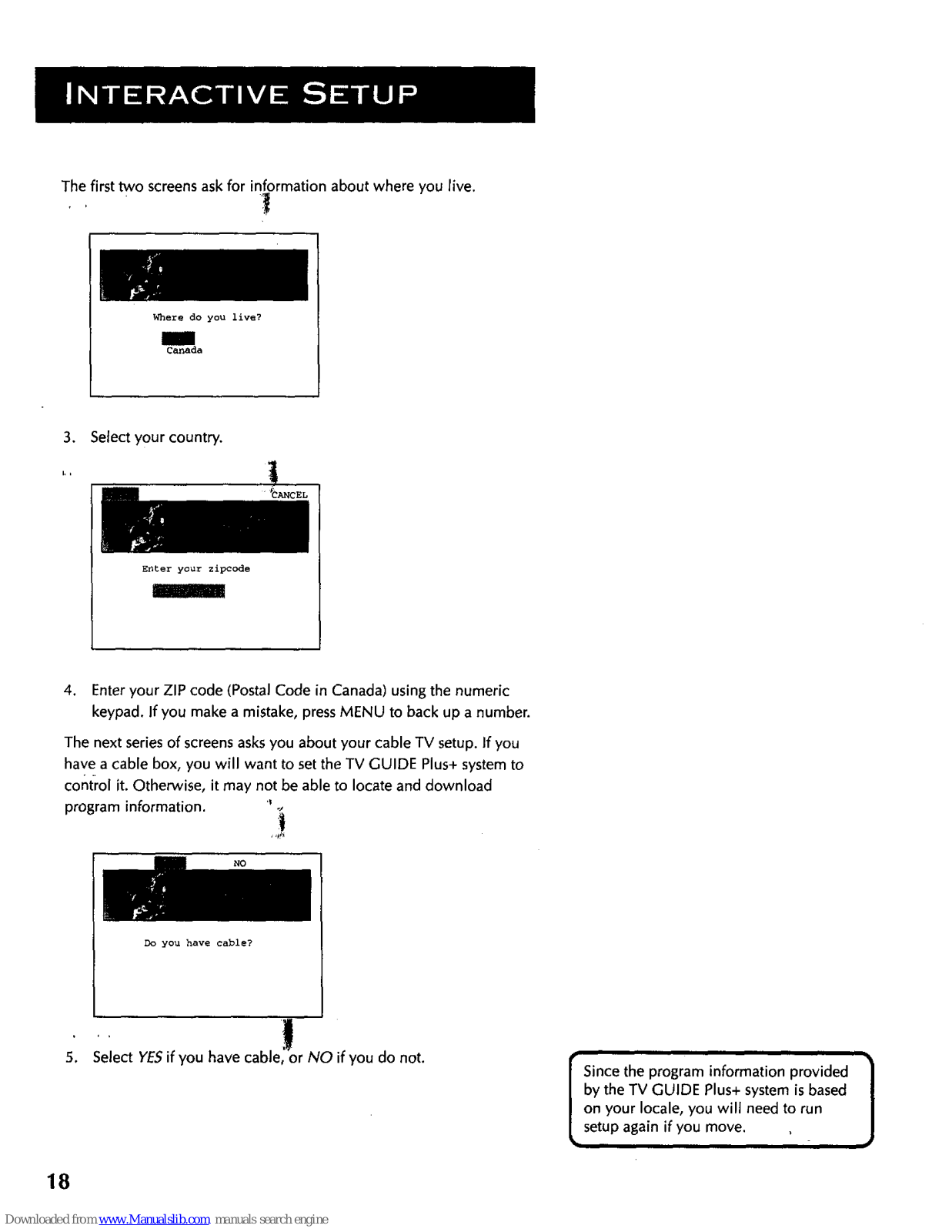

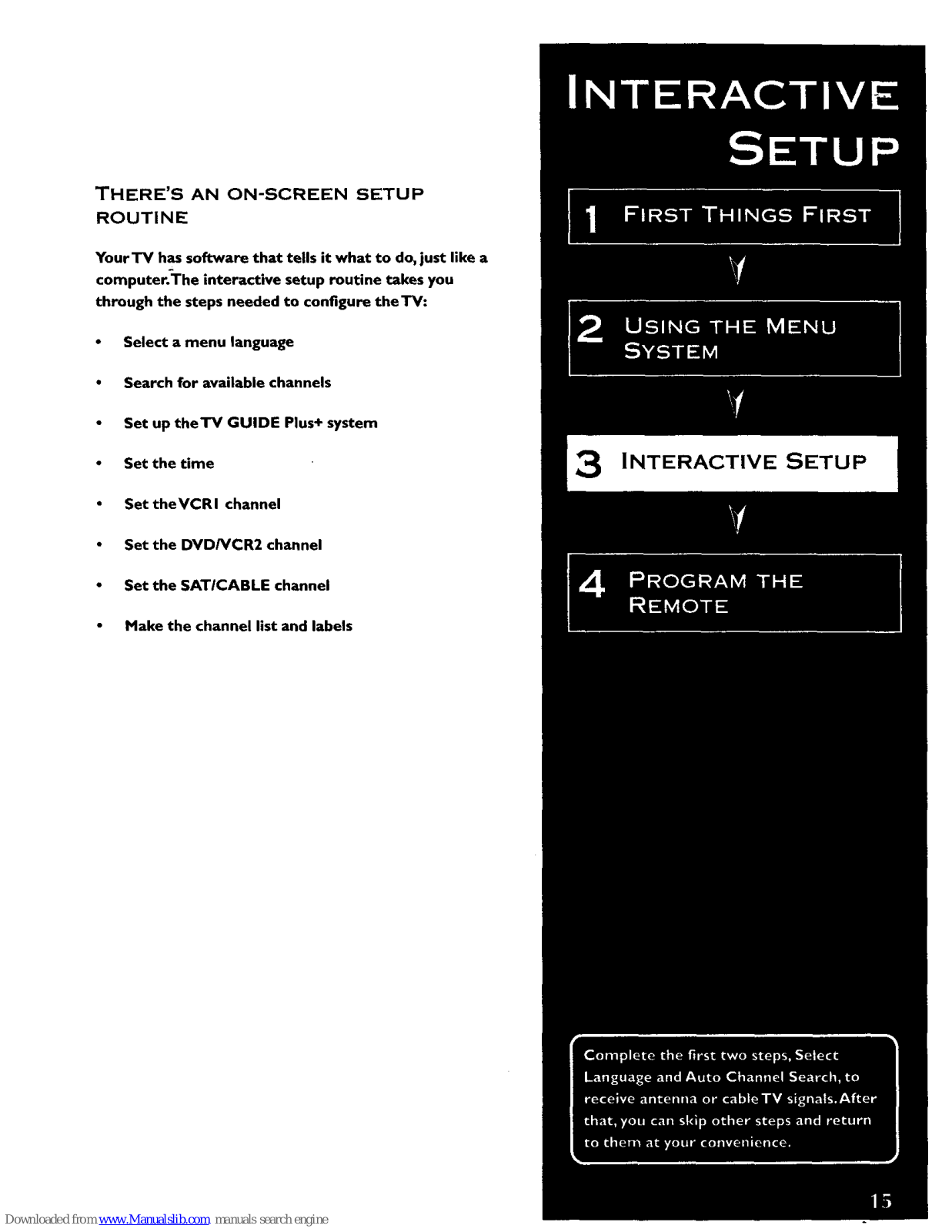

INTERACTIVE SETUP ......................... 15

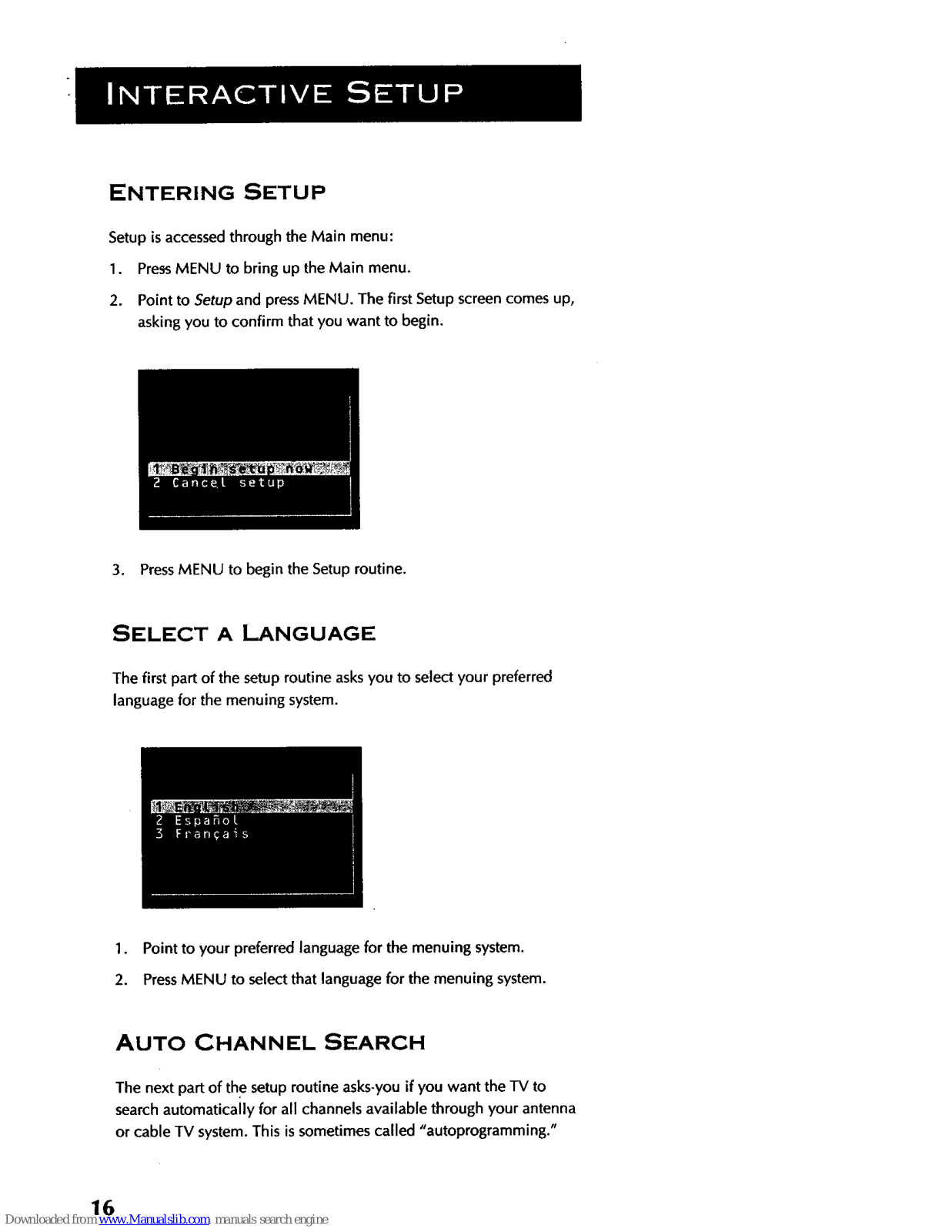

Entering Setup ................................................................ 16
Select a Language .......................................................... 16

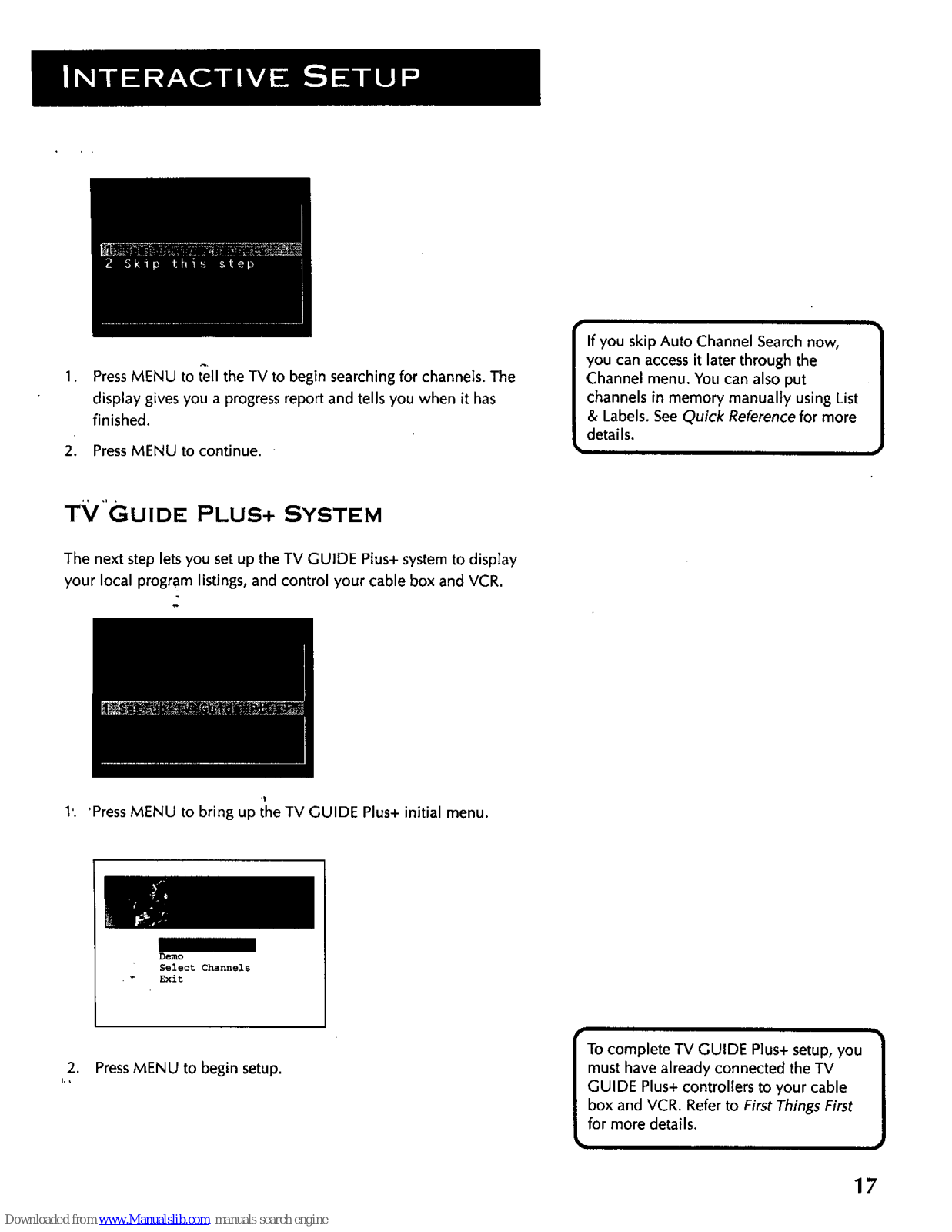

Auto Channel Search ..................................................... 16

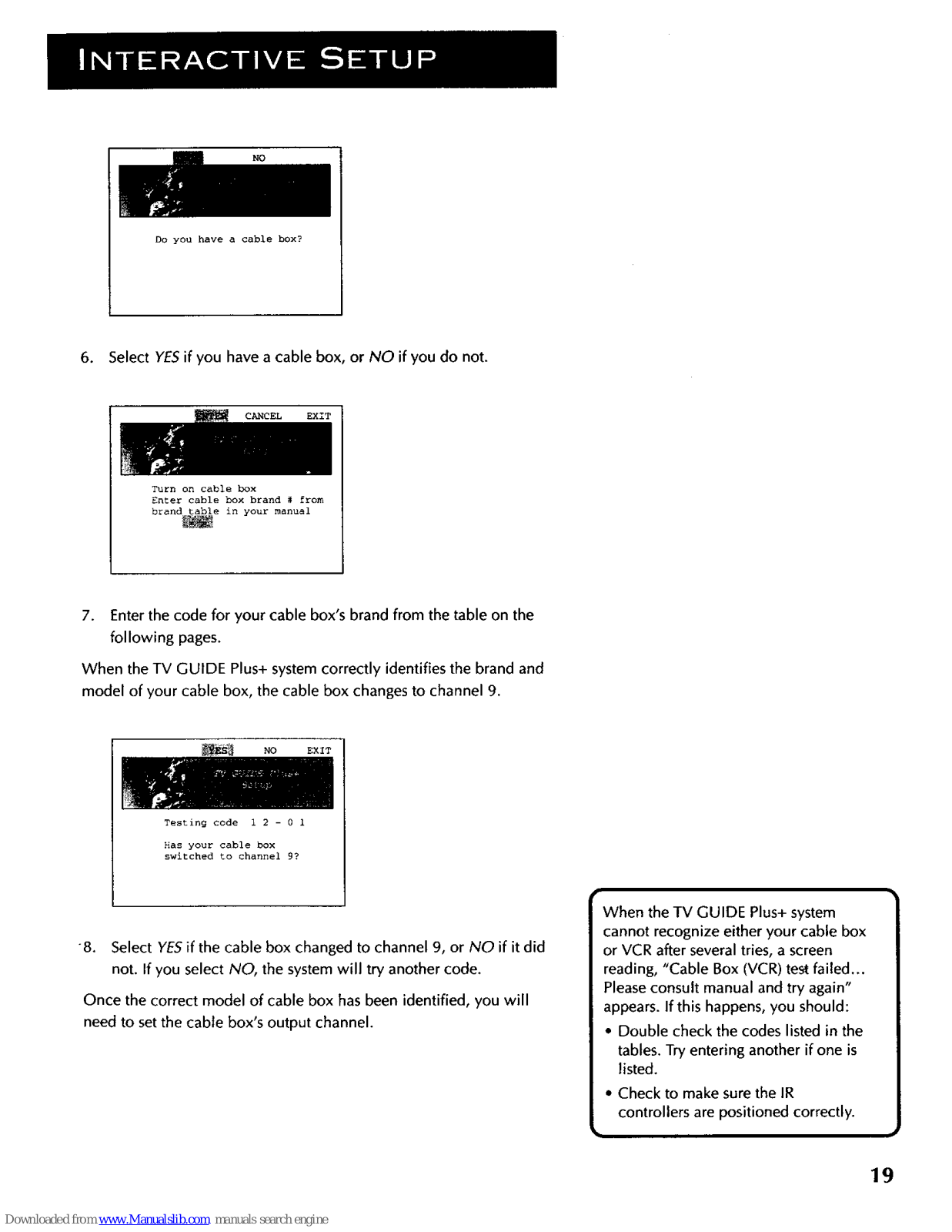

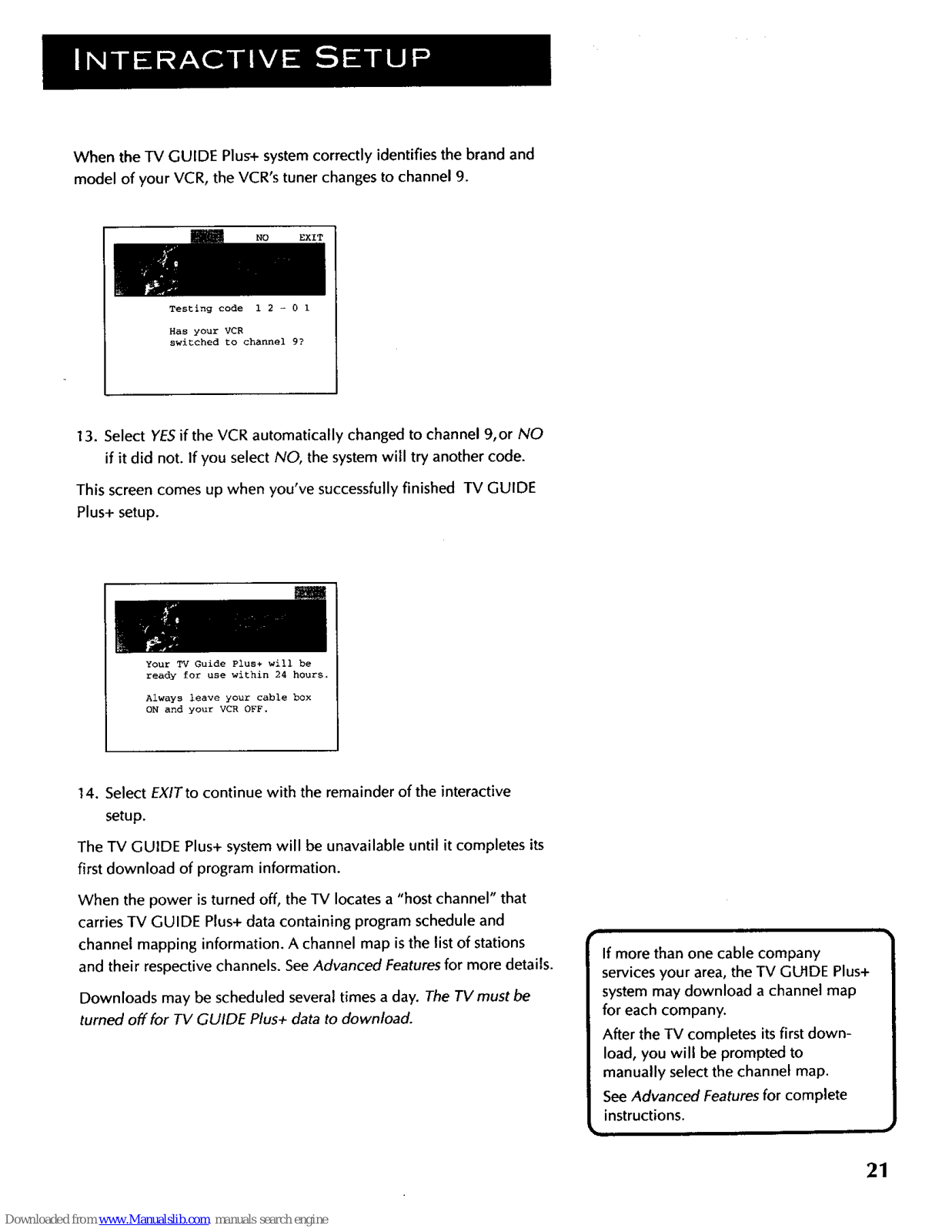

TV GUIDE Plus+ System ................................................ 17

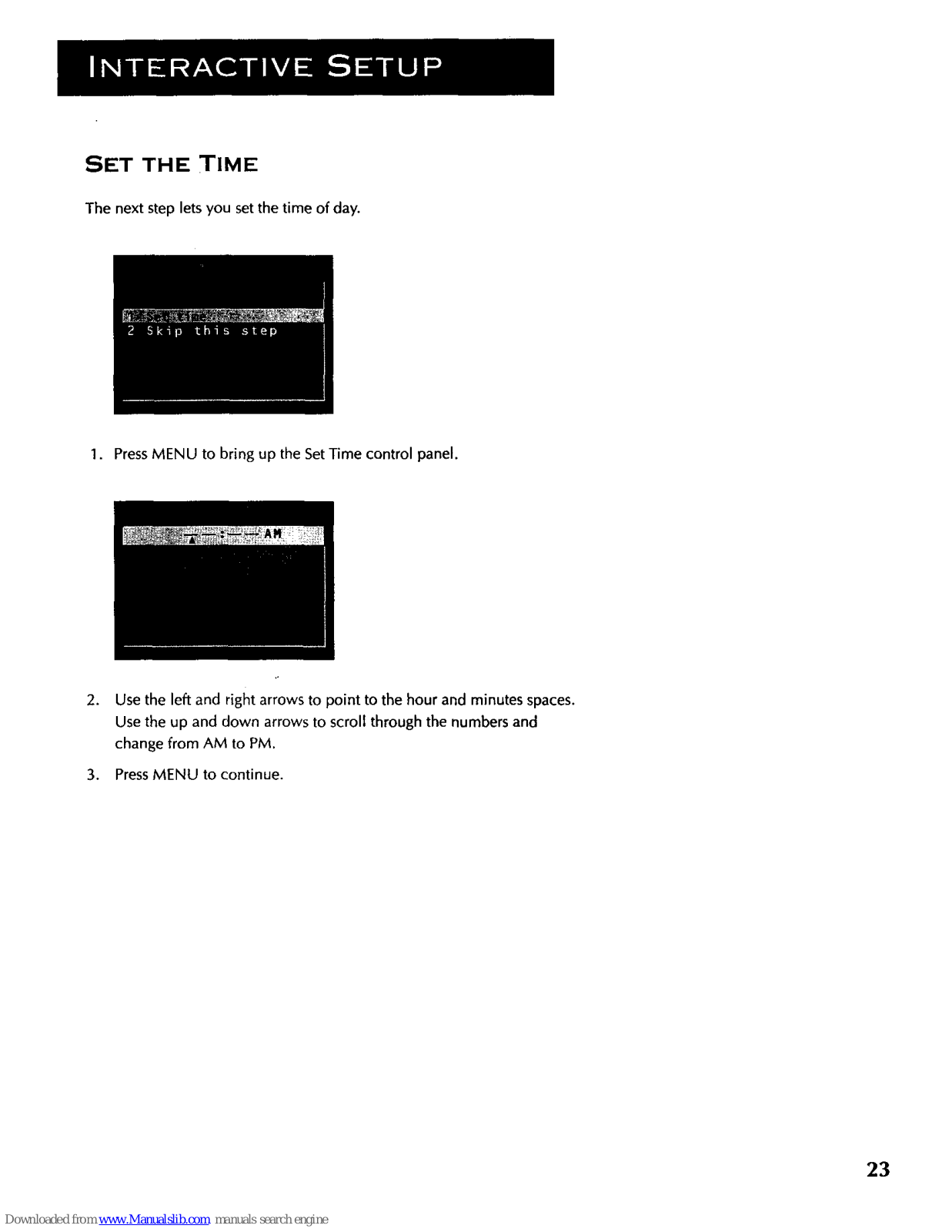

Set the Time ................................................................... 23

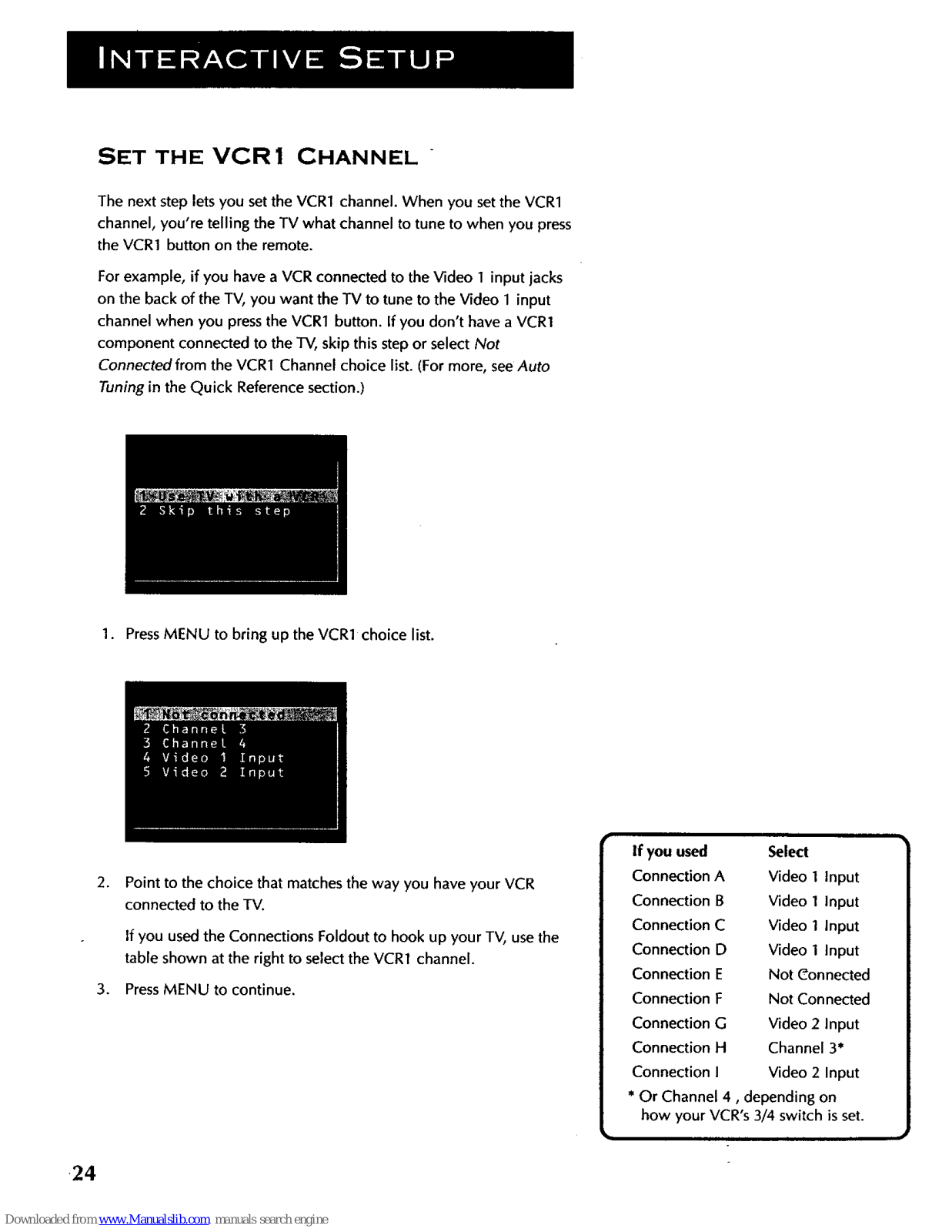

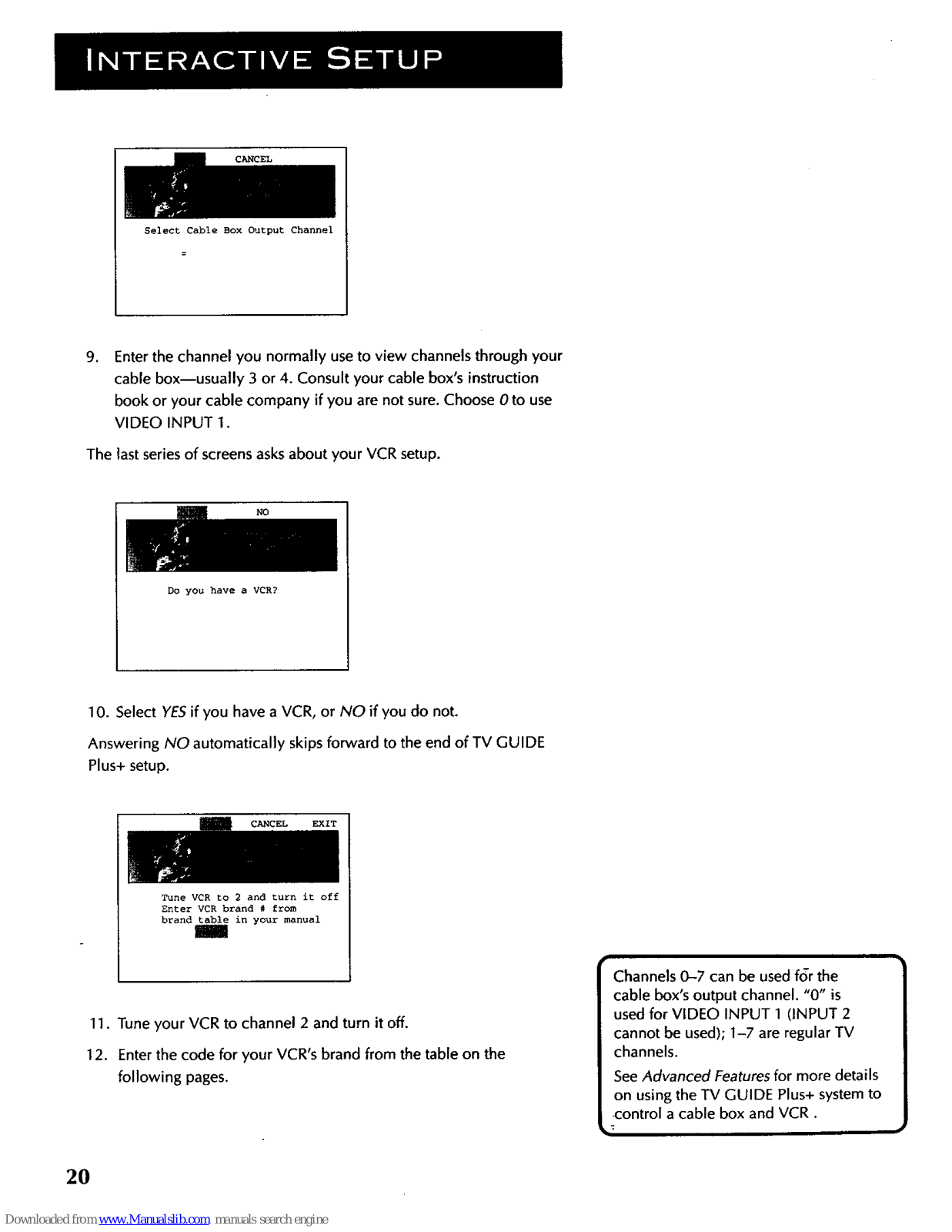

Set the VCRI Channel ................................................... 24

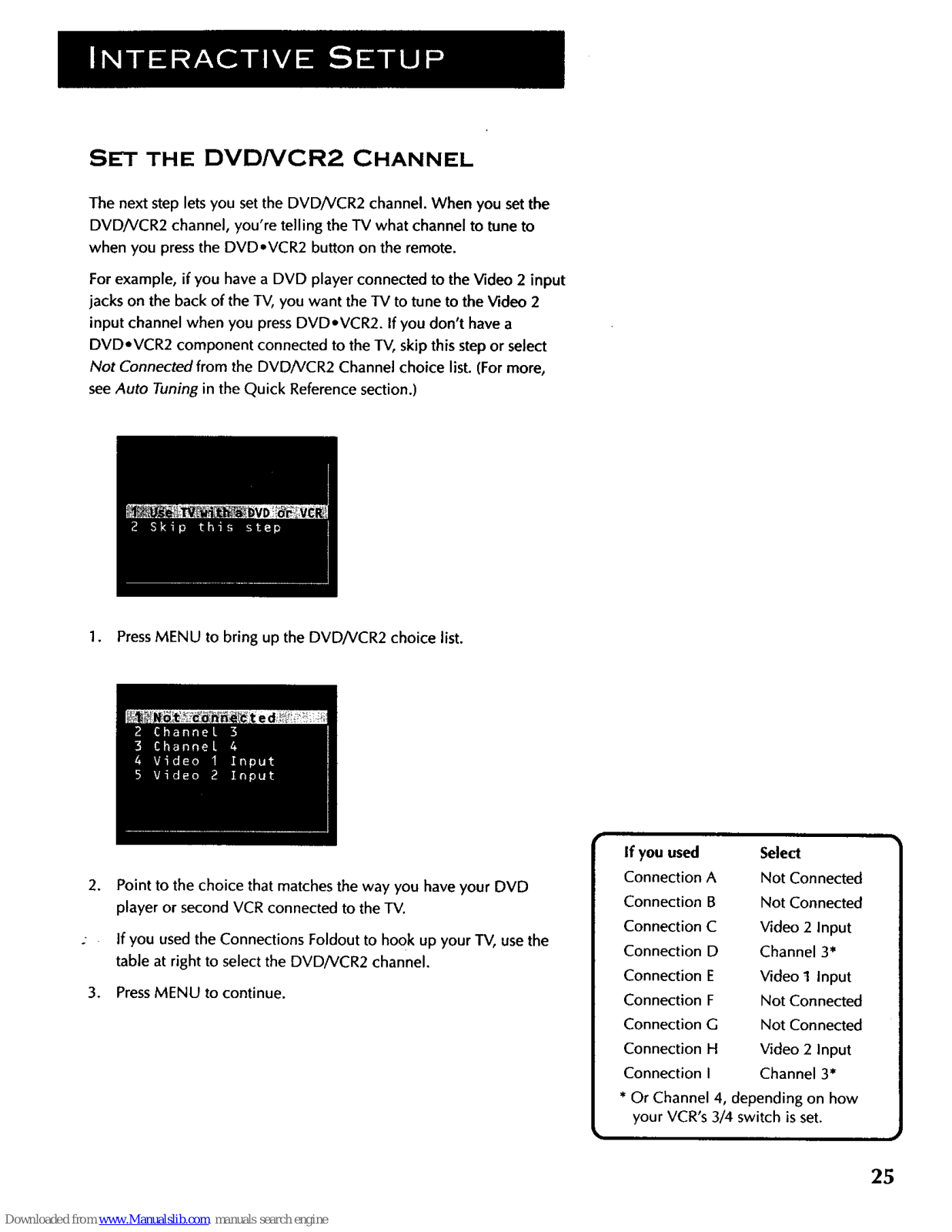

Set the DVD/VCR2 Channel .......................................... 25

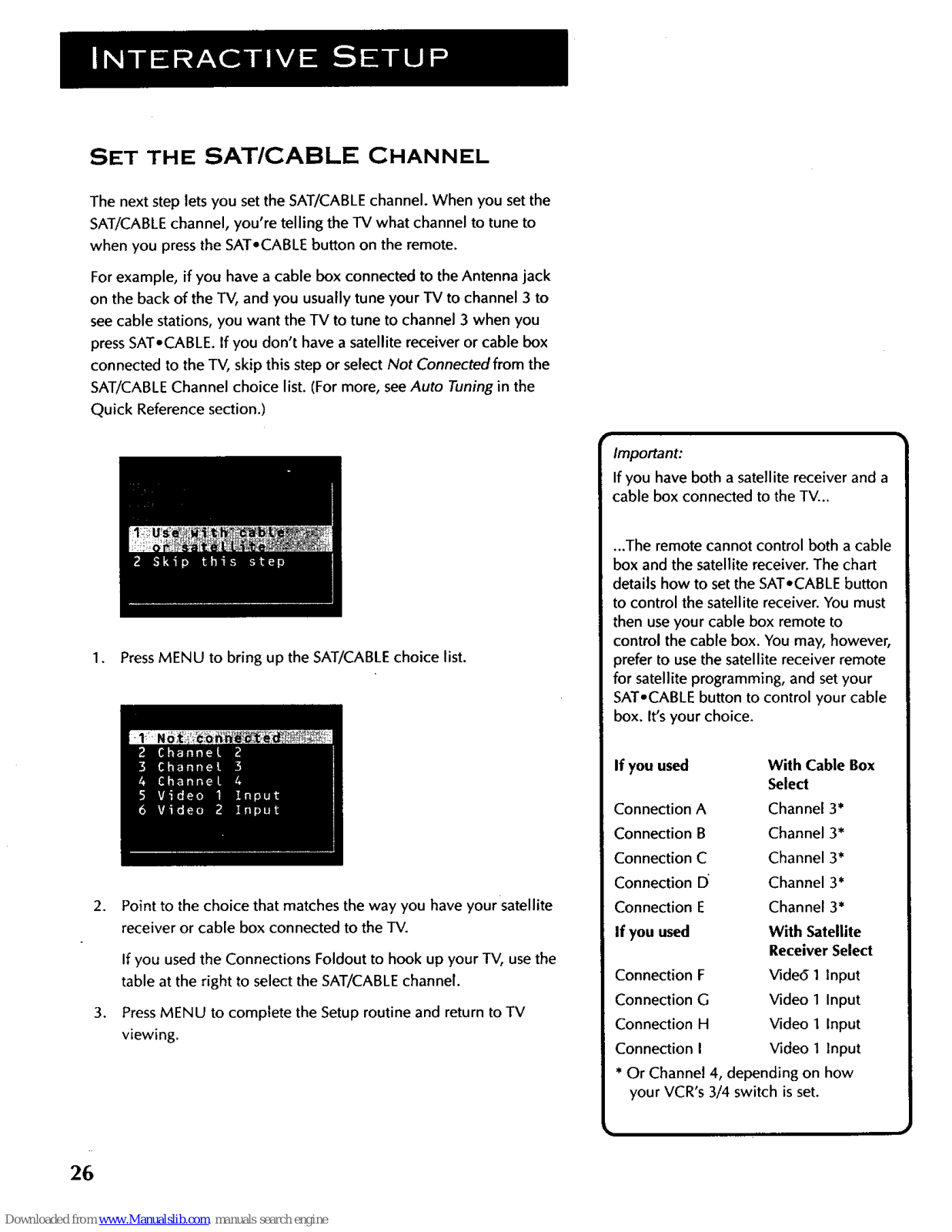

Set the SAT/CABLE Channel ........................................... 26

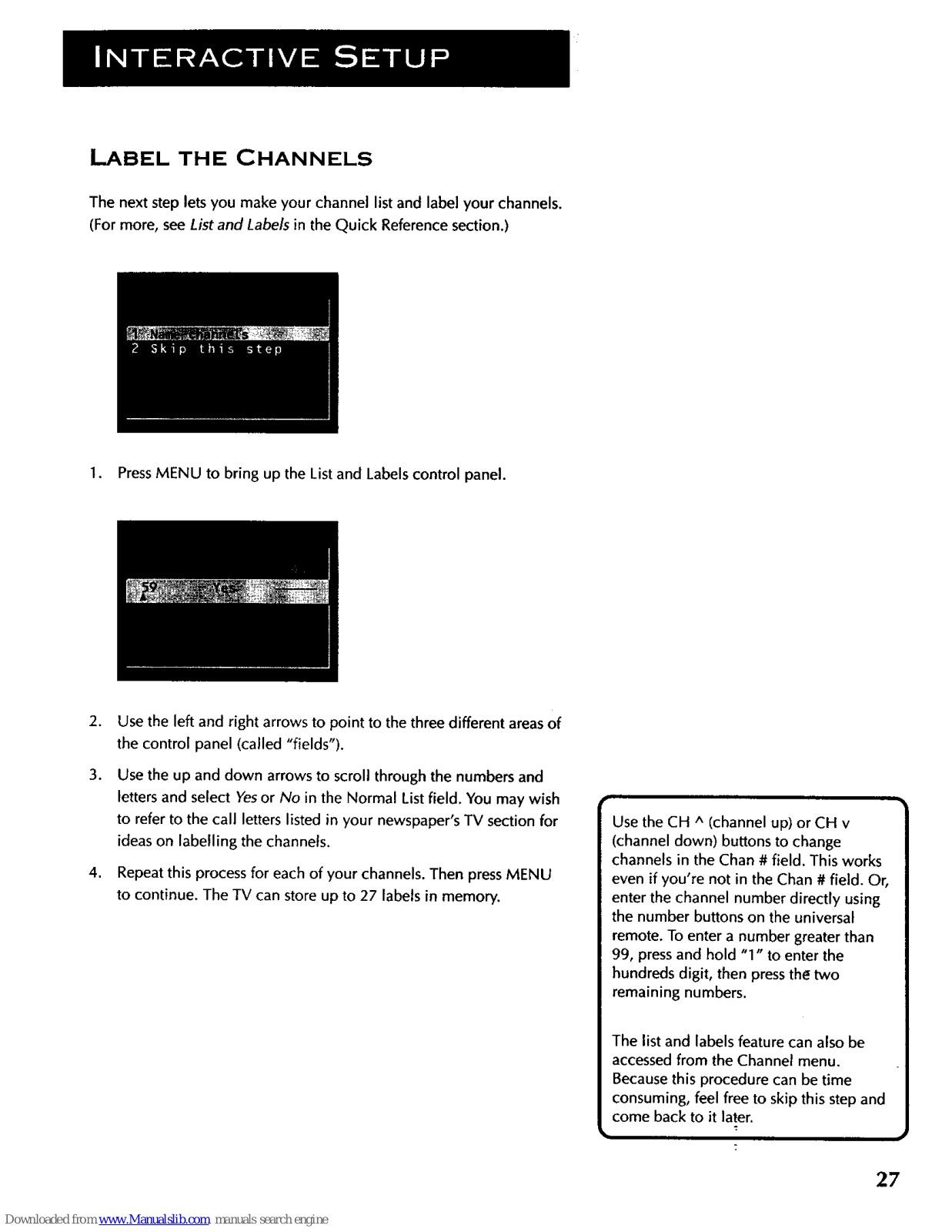

Label the Channels ........................................................ 27

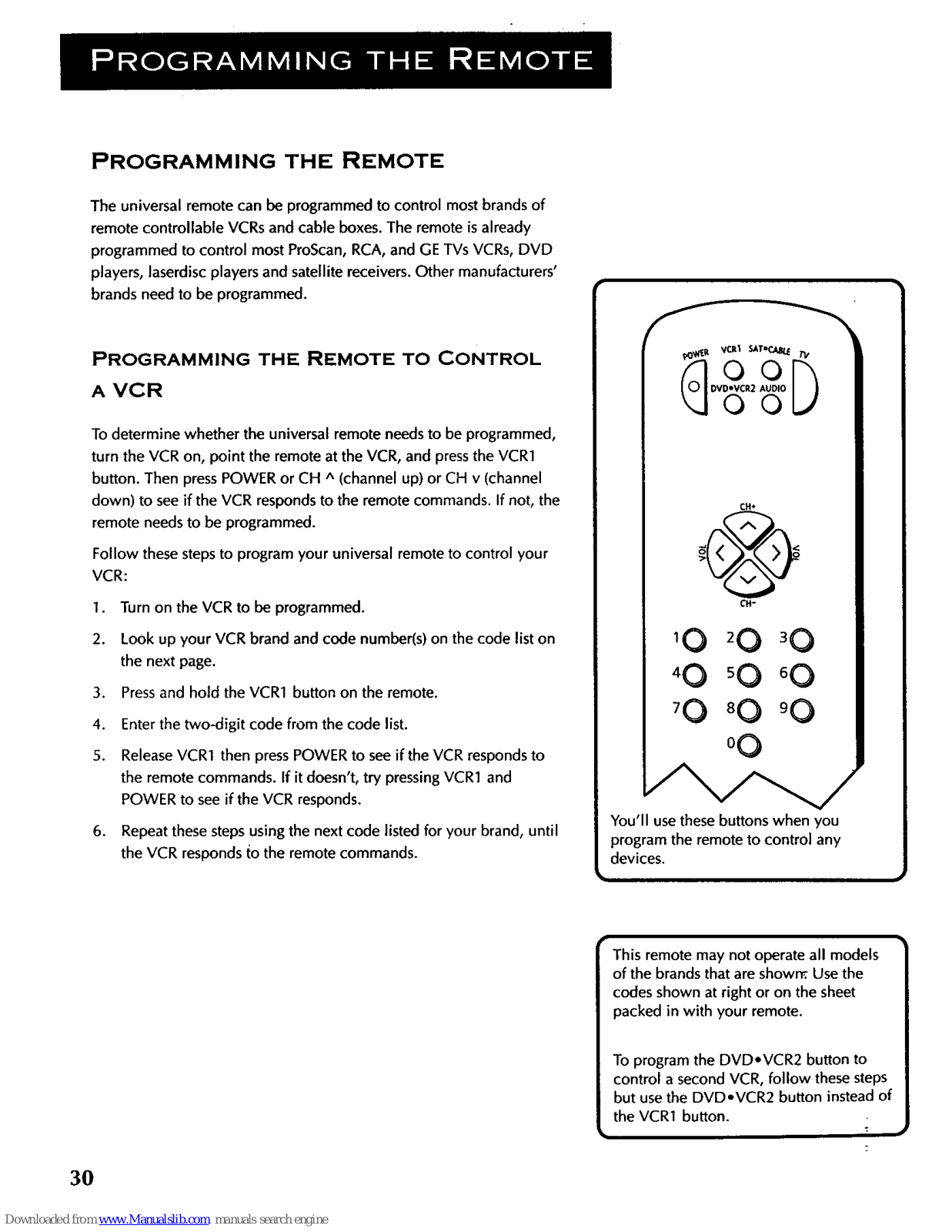

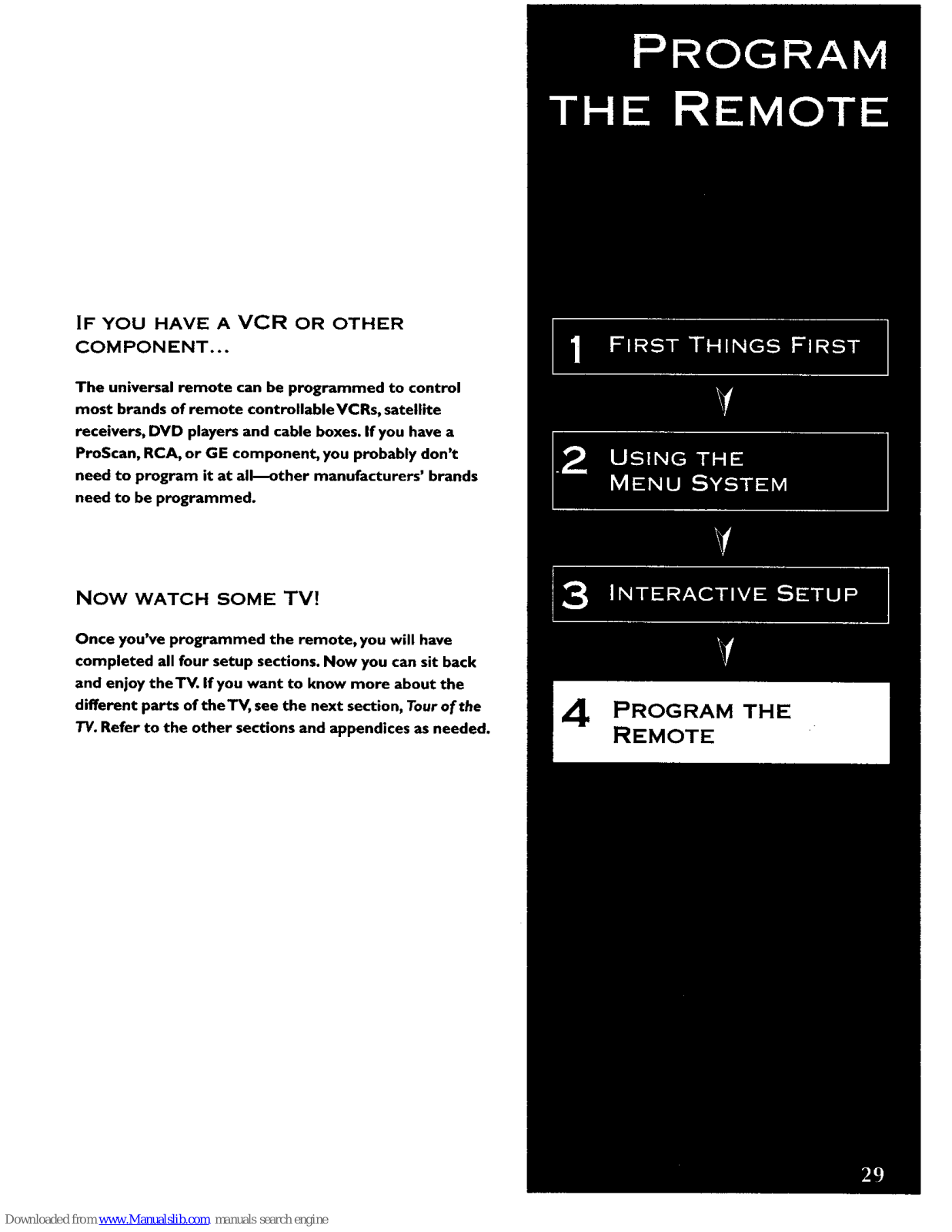

PROGRAMMING THE'REMOTE ............. 29
Programming the Remote .............................................. 30

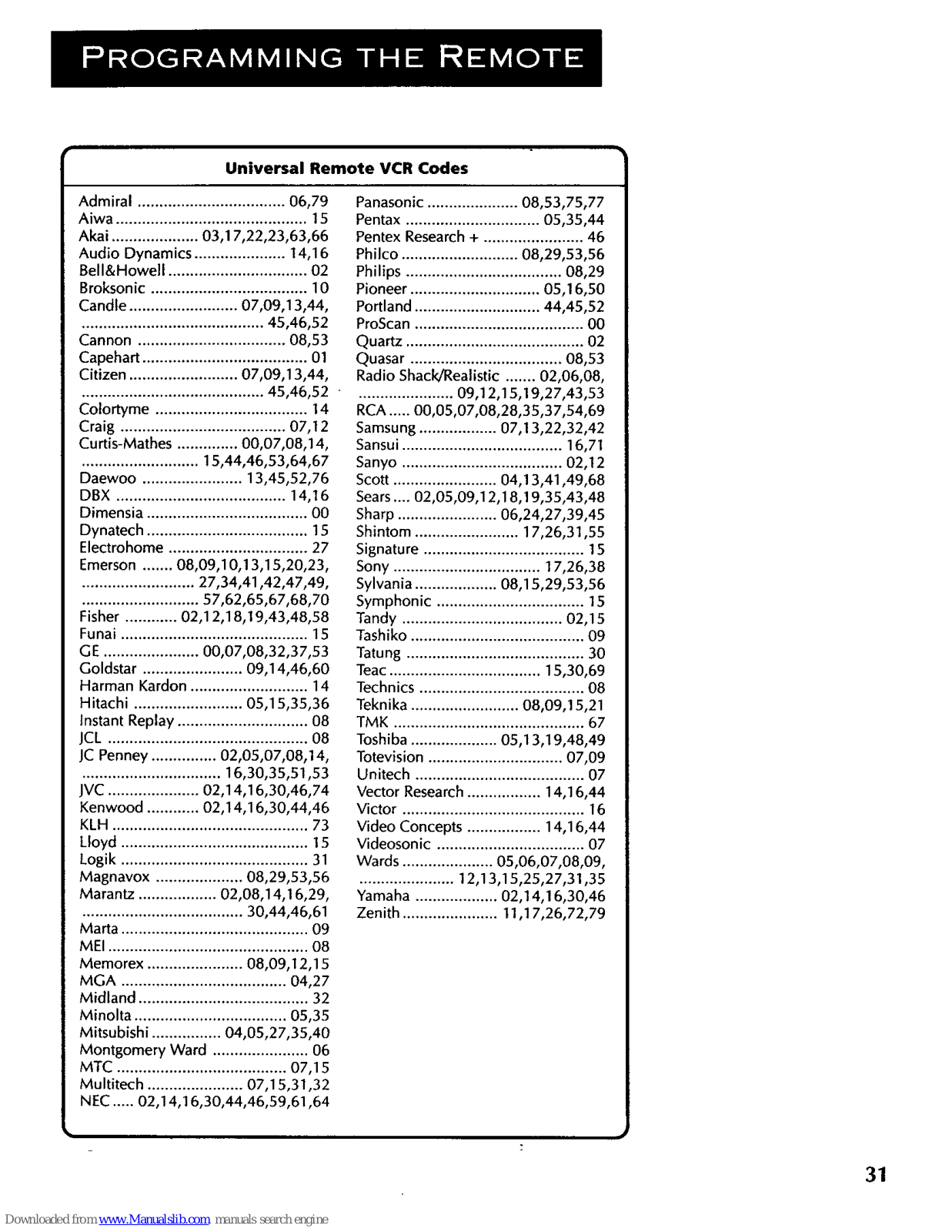

To Control a VCR ..................................................... 30

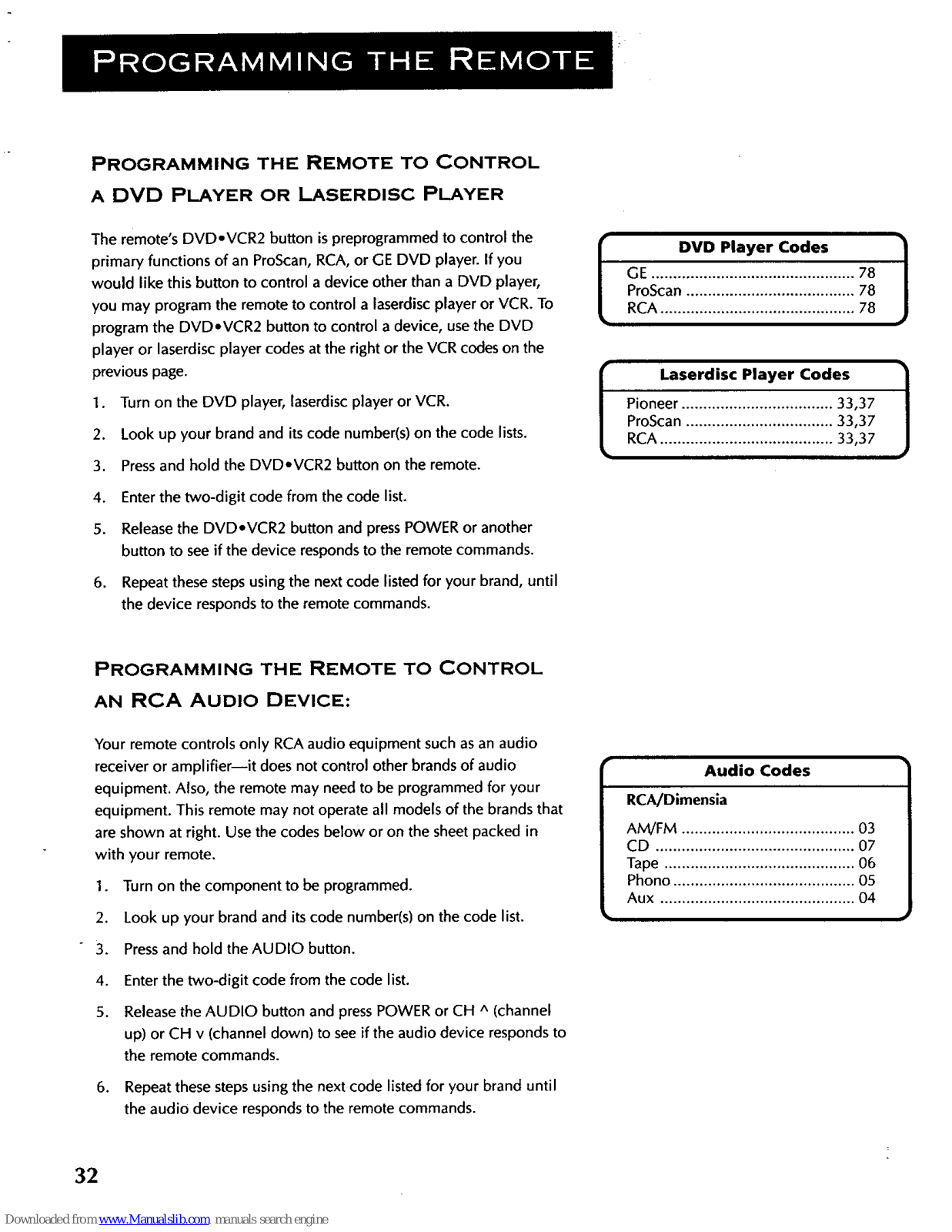

To Control a DVD Player or Laserdisc Player ............ 32
To Control an RCA Audio Device: ............................ 32

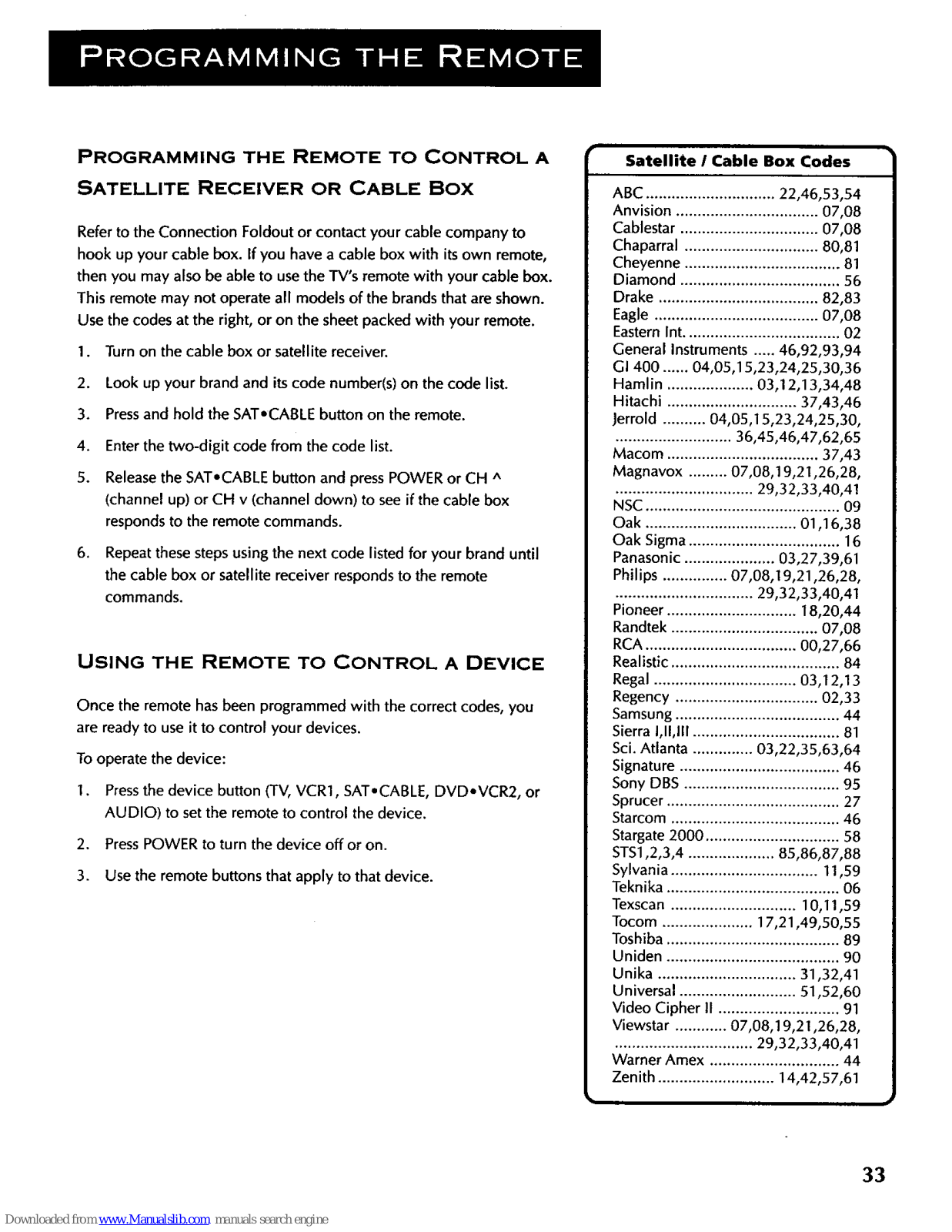

To Control a Satellite Receiver or Cable Box ............. 33
Using the Remote to Control a Device ........................... 33

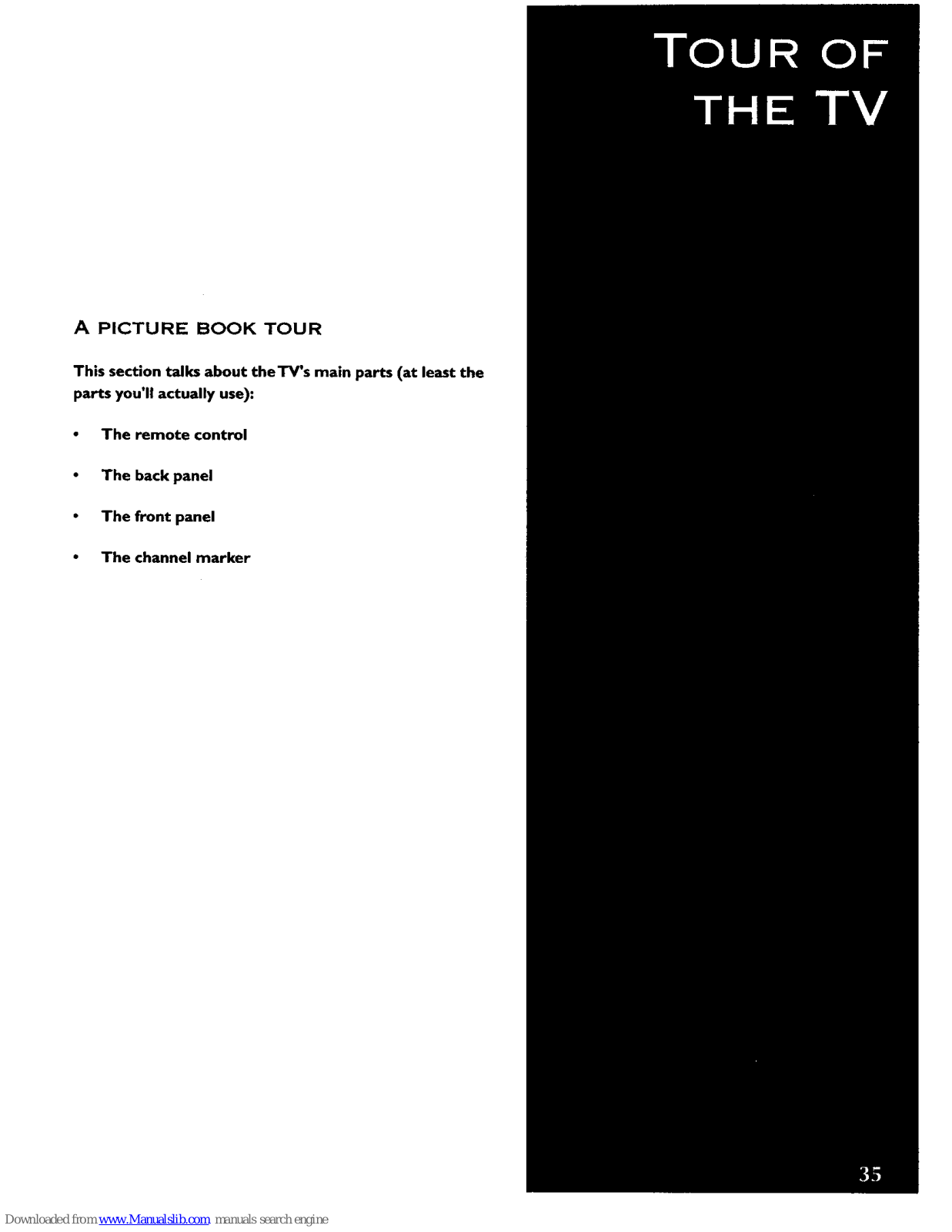

TOUR OF THE TV ............................. 35

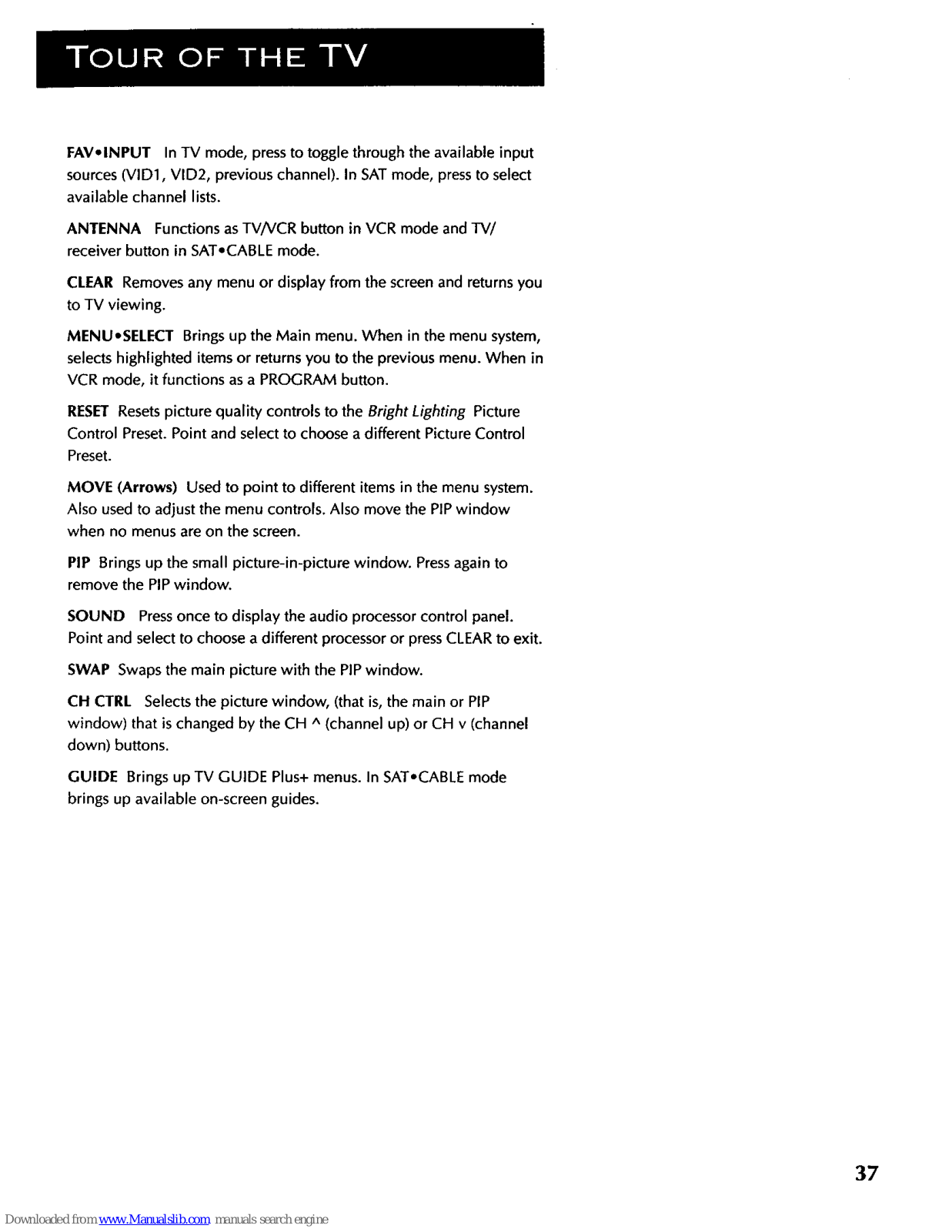

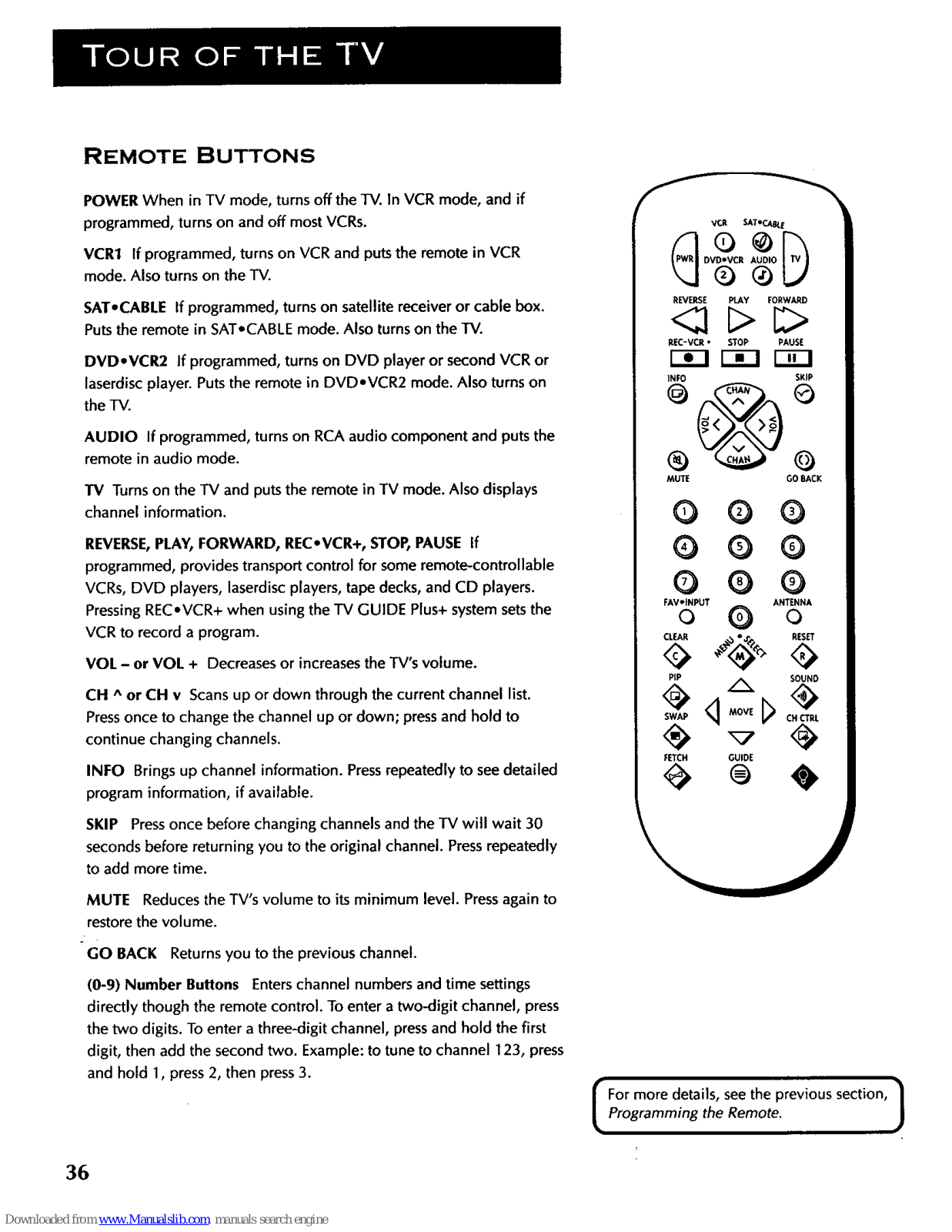

Remote Buttons ............................................................. 36

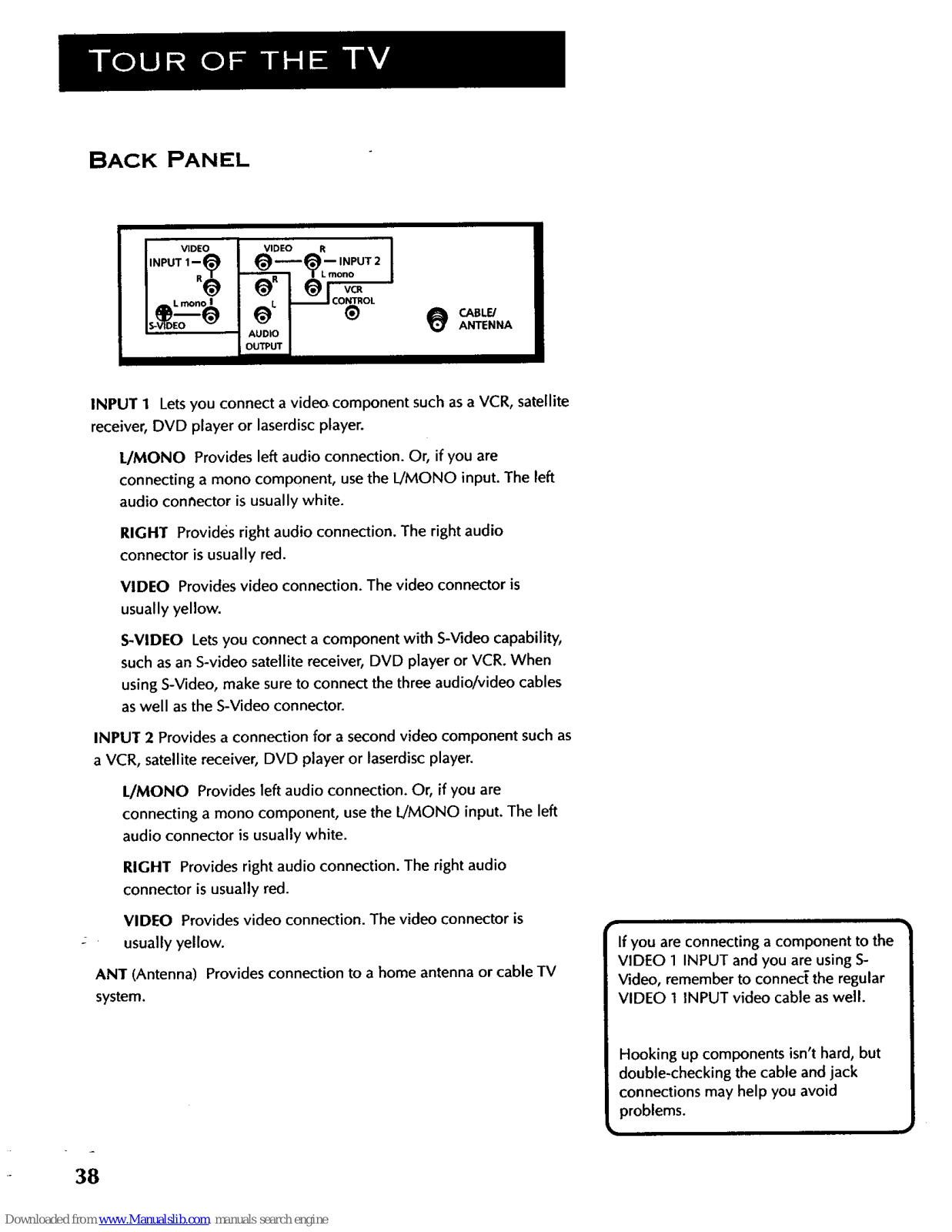

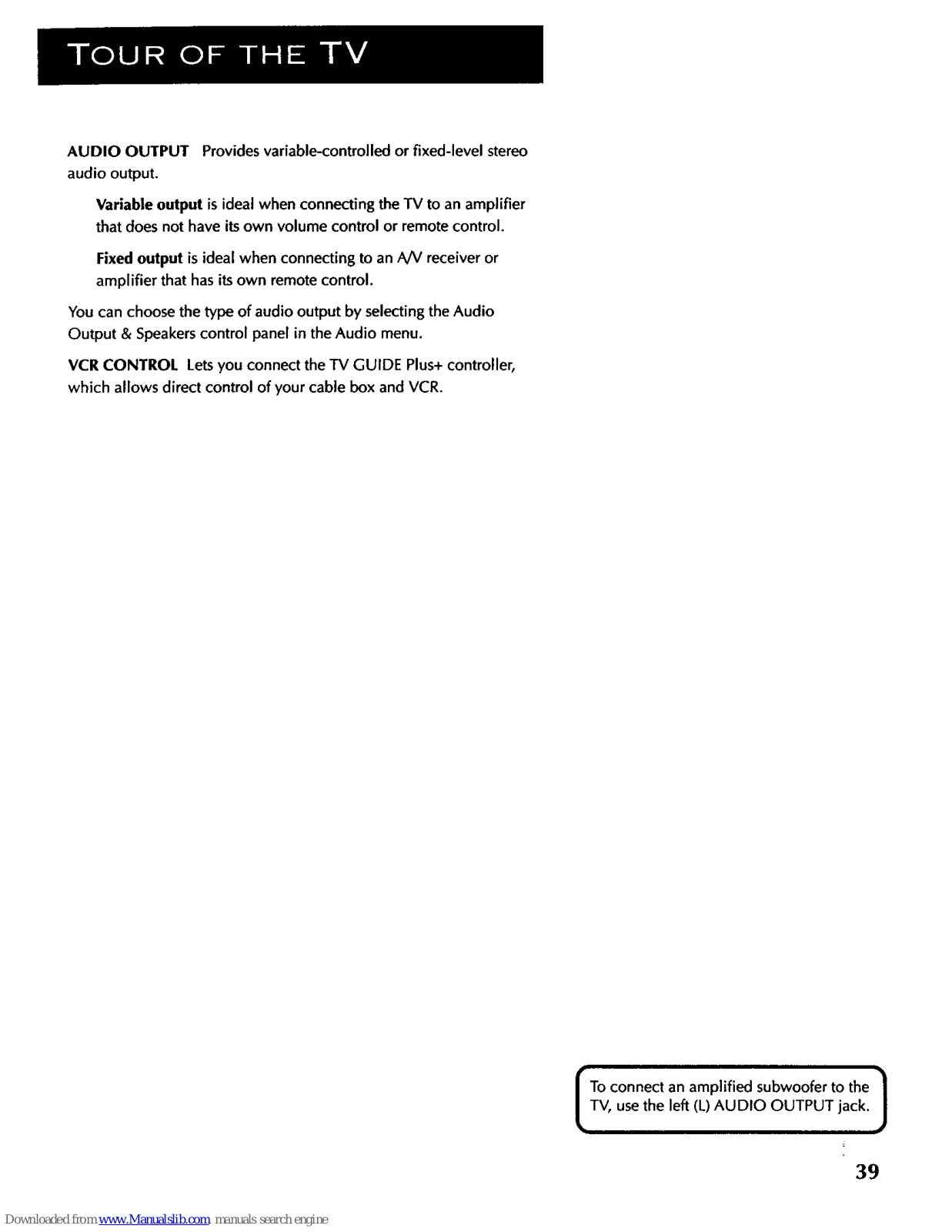

Back Panel ..................................................................... 38

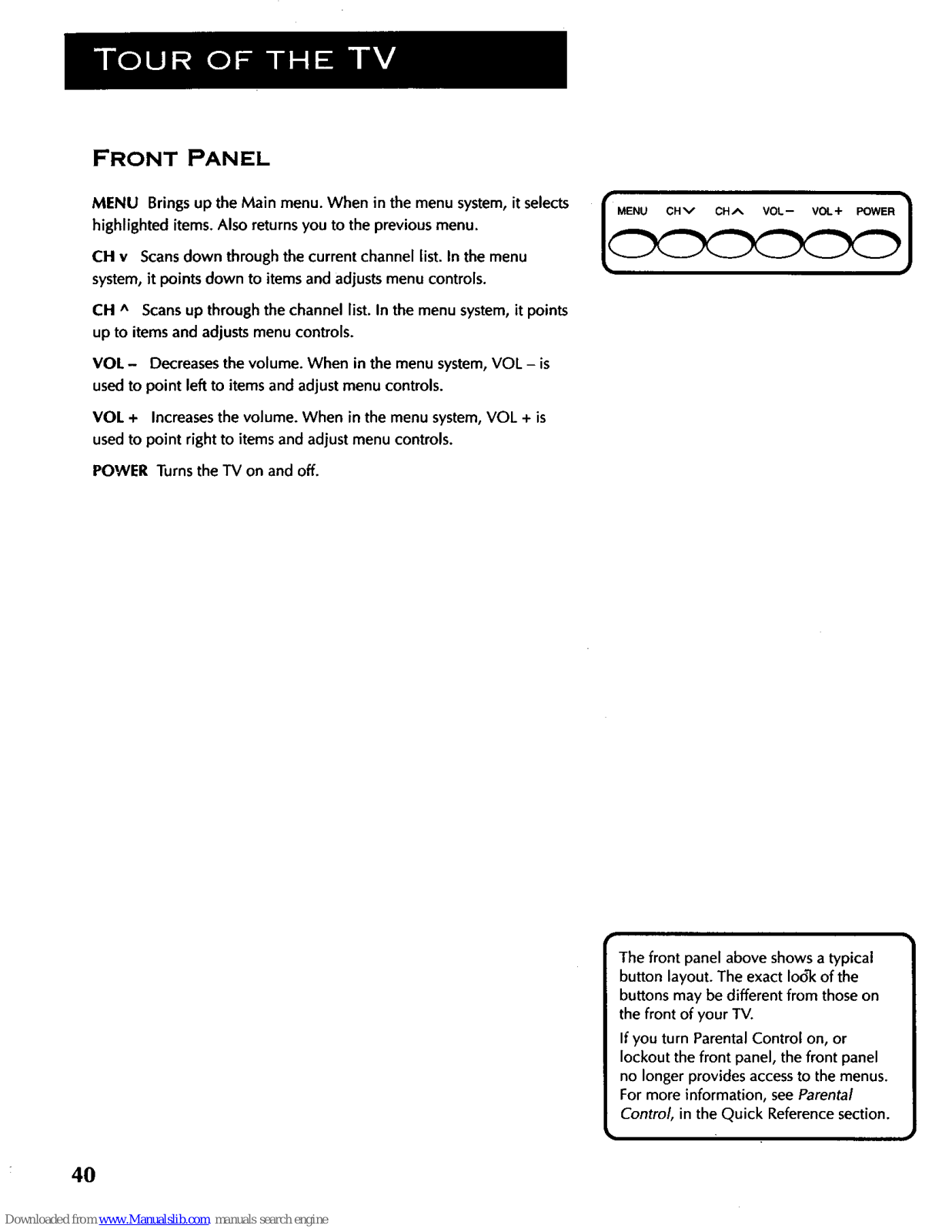

Front Panel .................................................................... 40

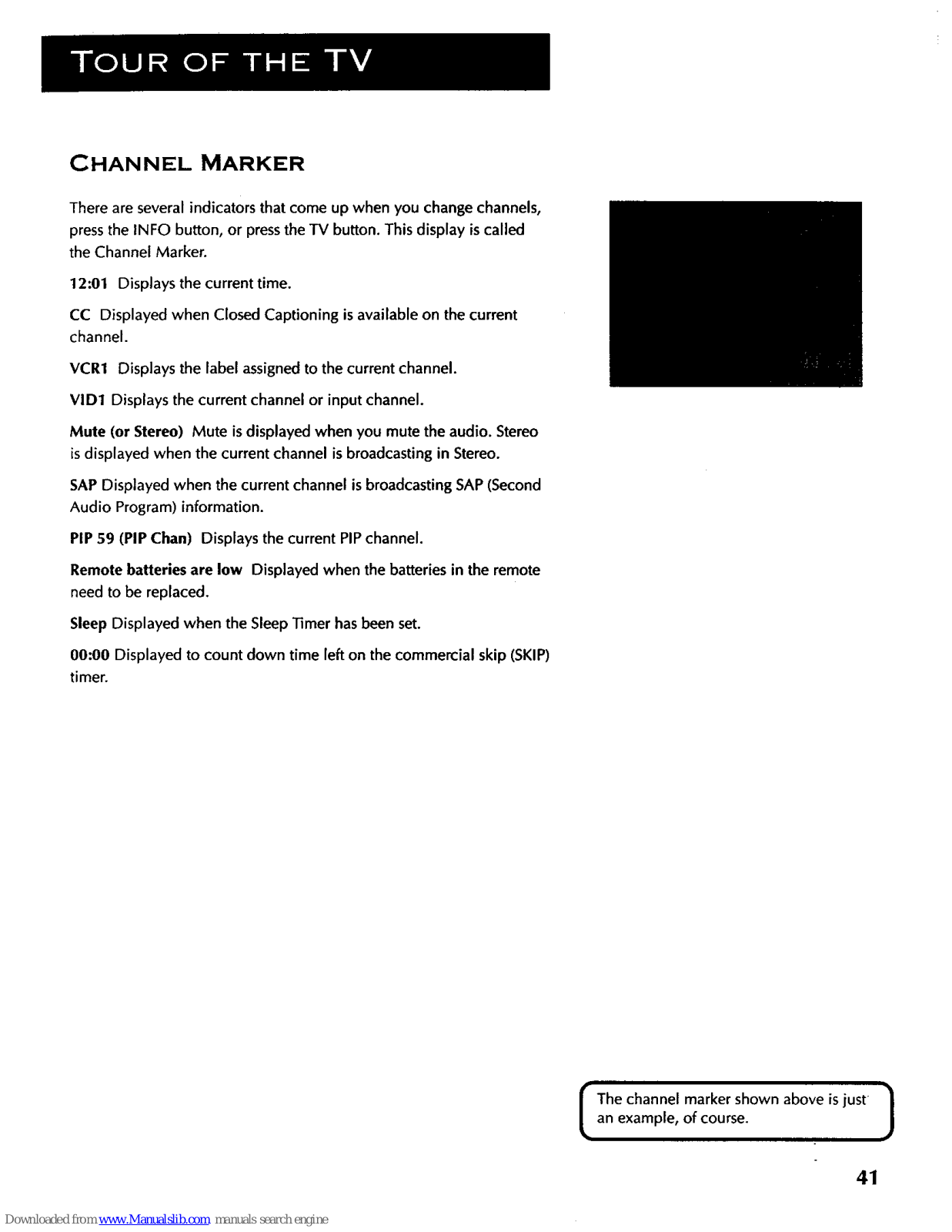

Channel Marker ............................................................. 41

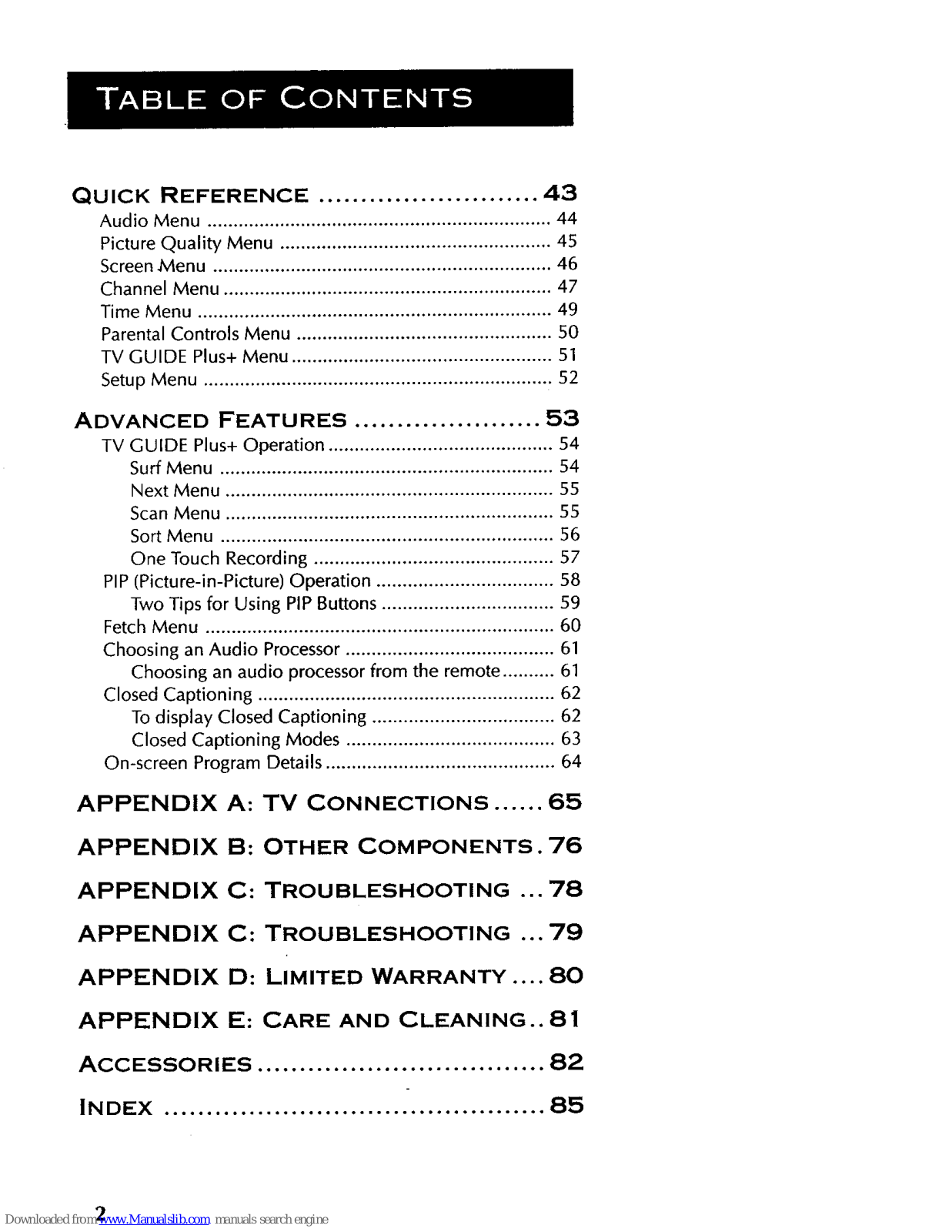

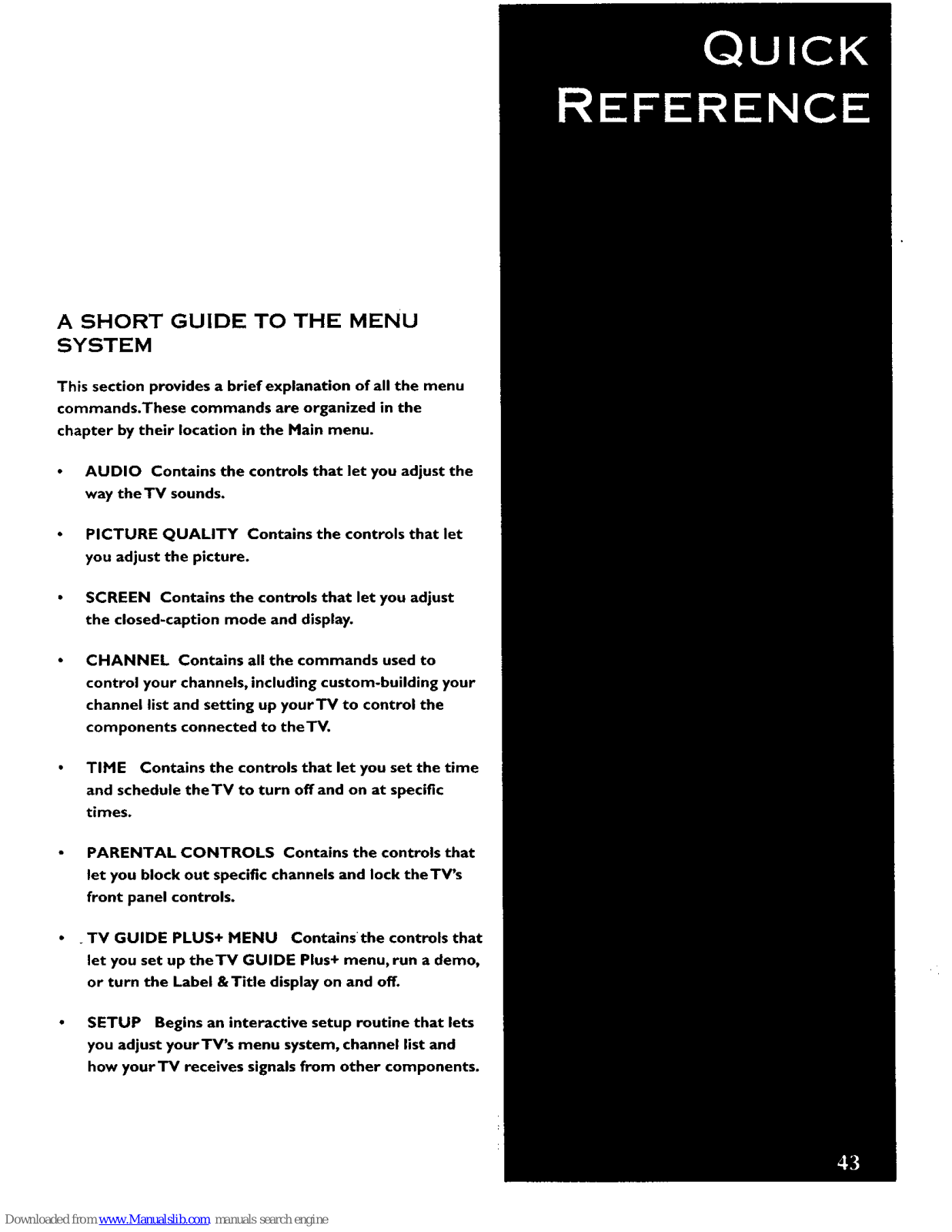

QUICK REFERENCE .......................... 43

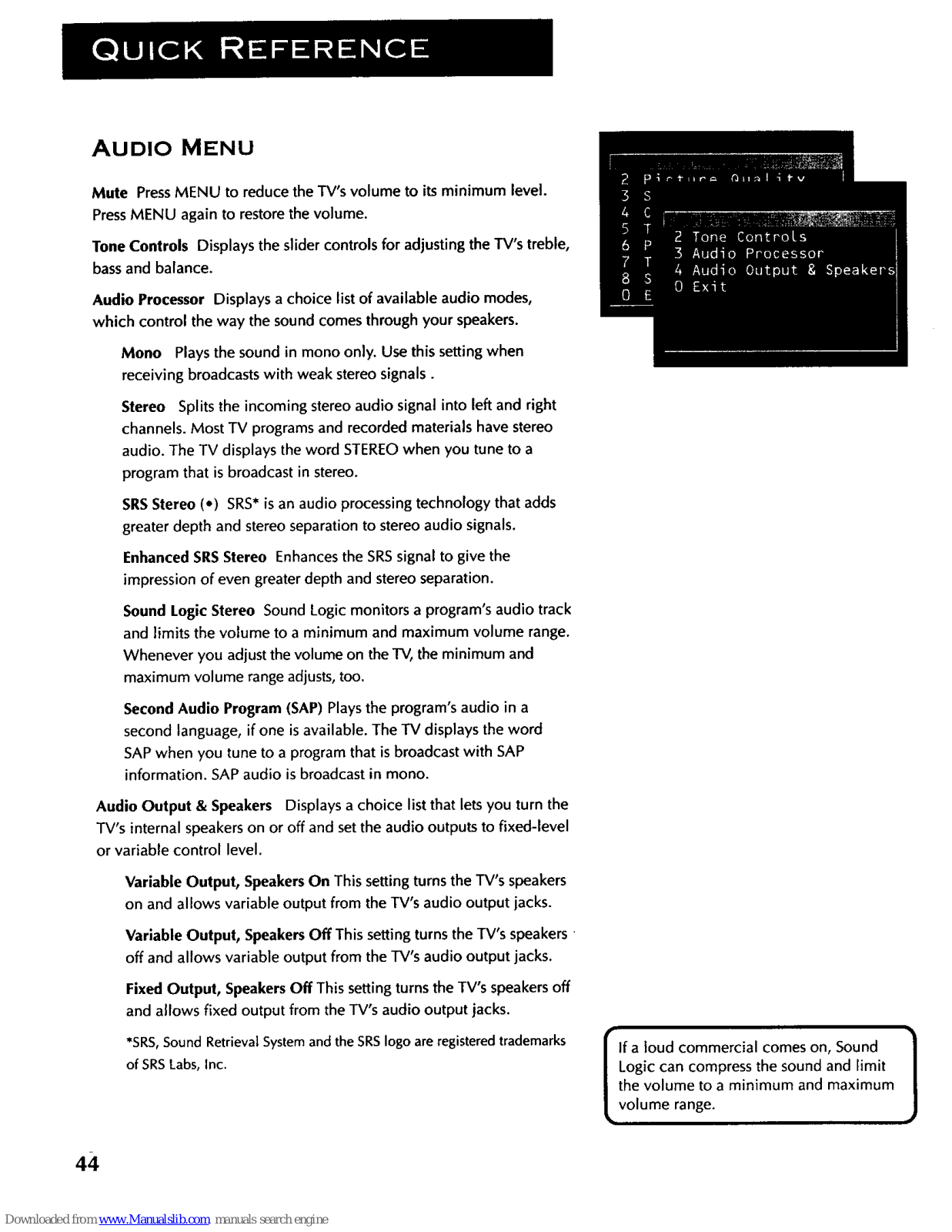

Audio Menu .................................................................. 44

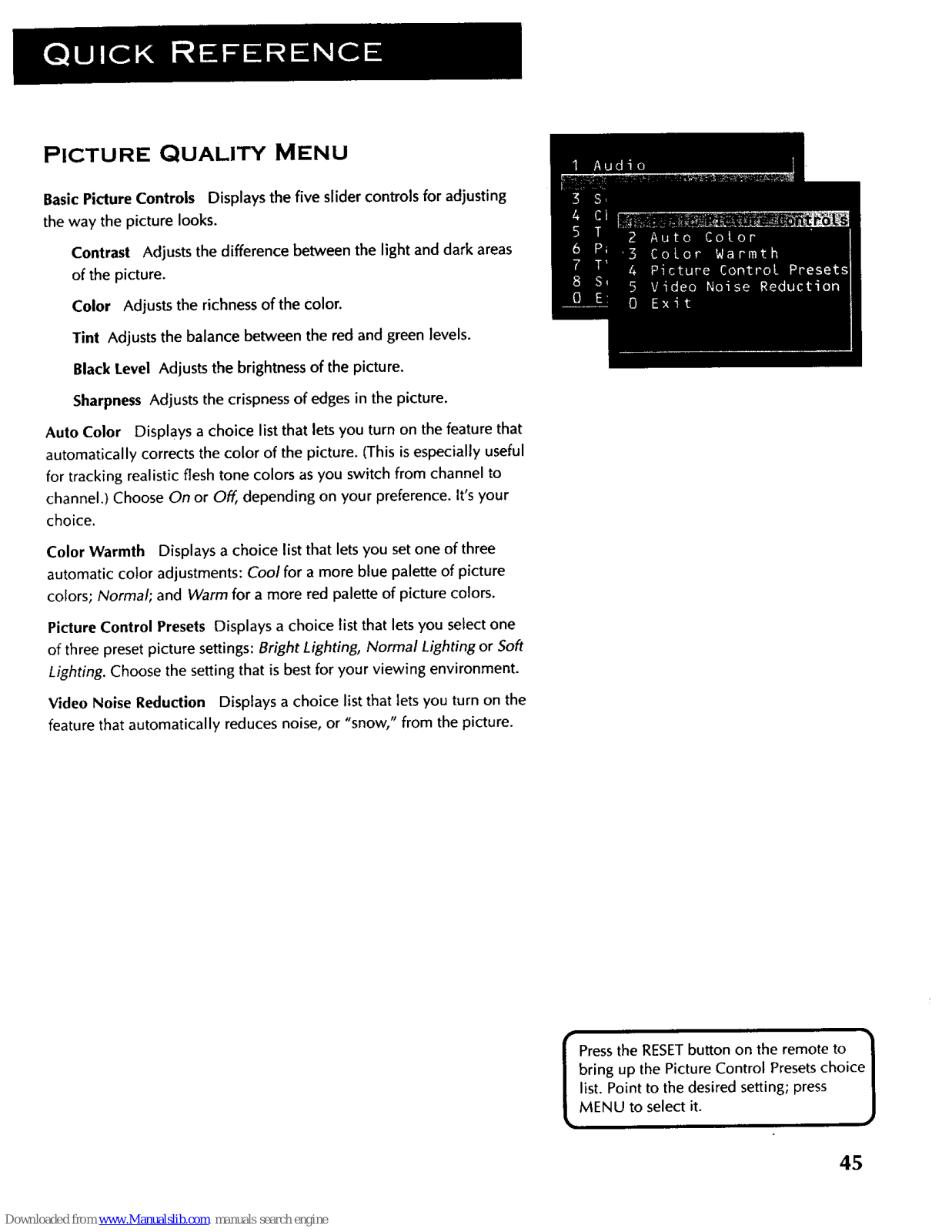

Picture Quality Menu .................................................... 45

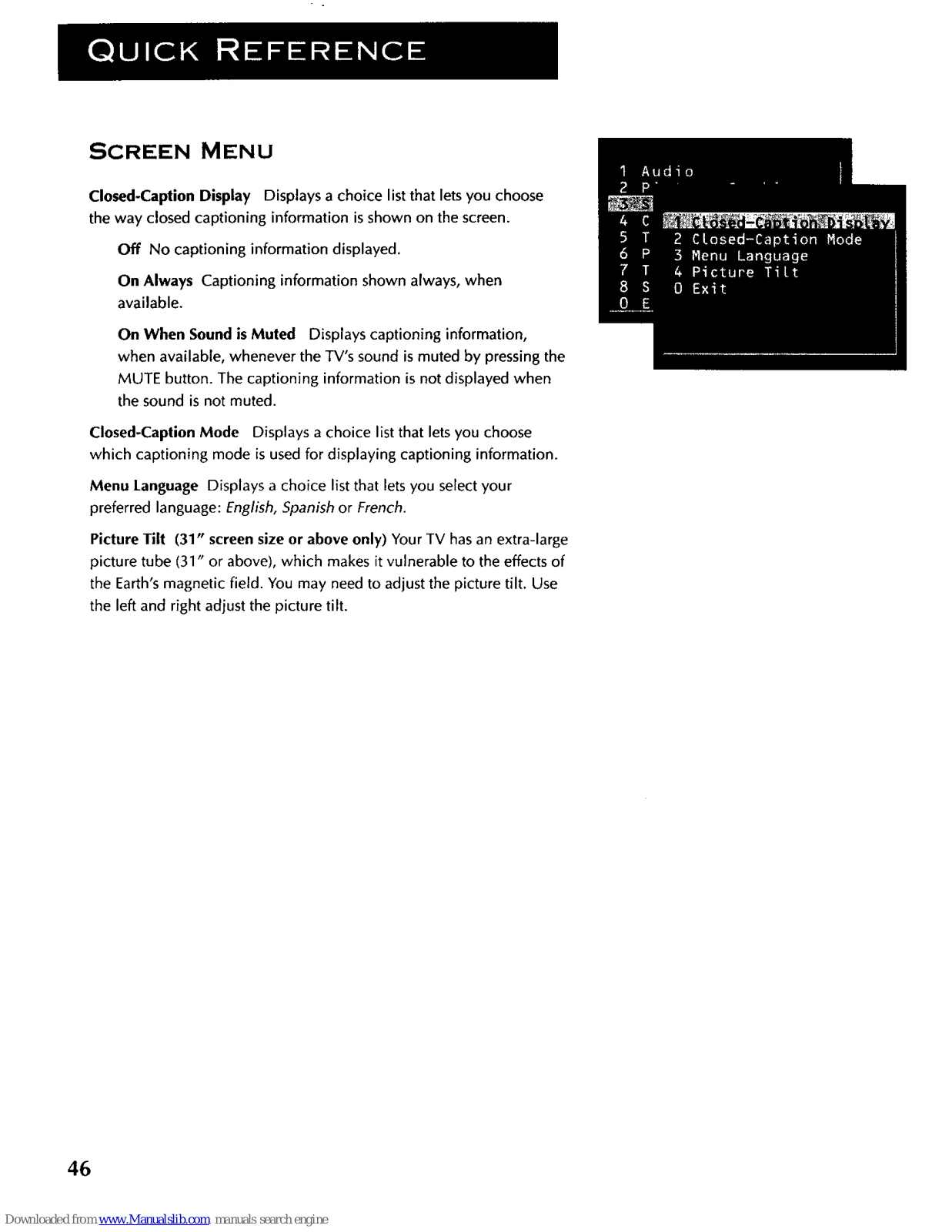

Screen Menu ................................................................. 46

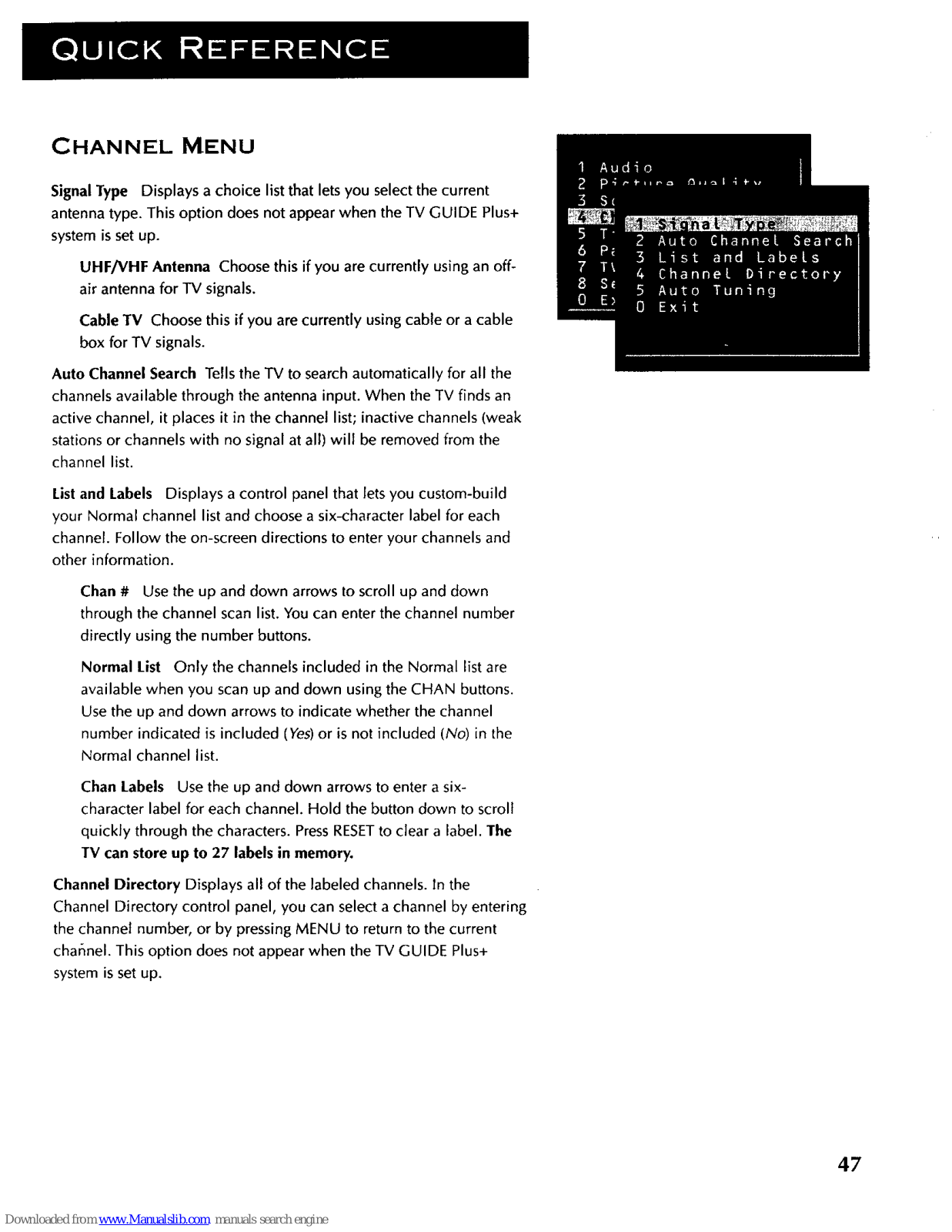

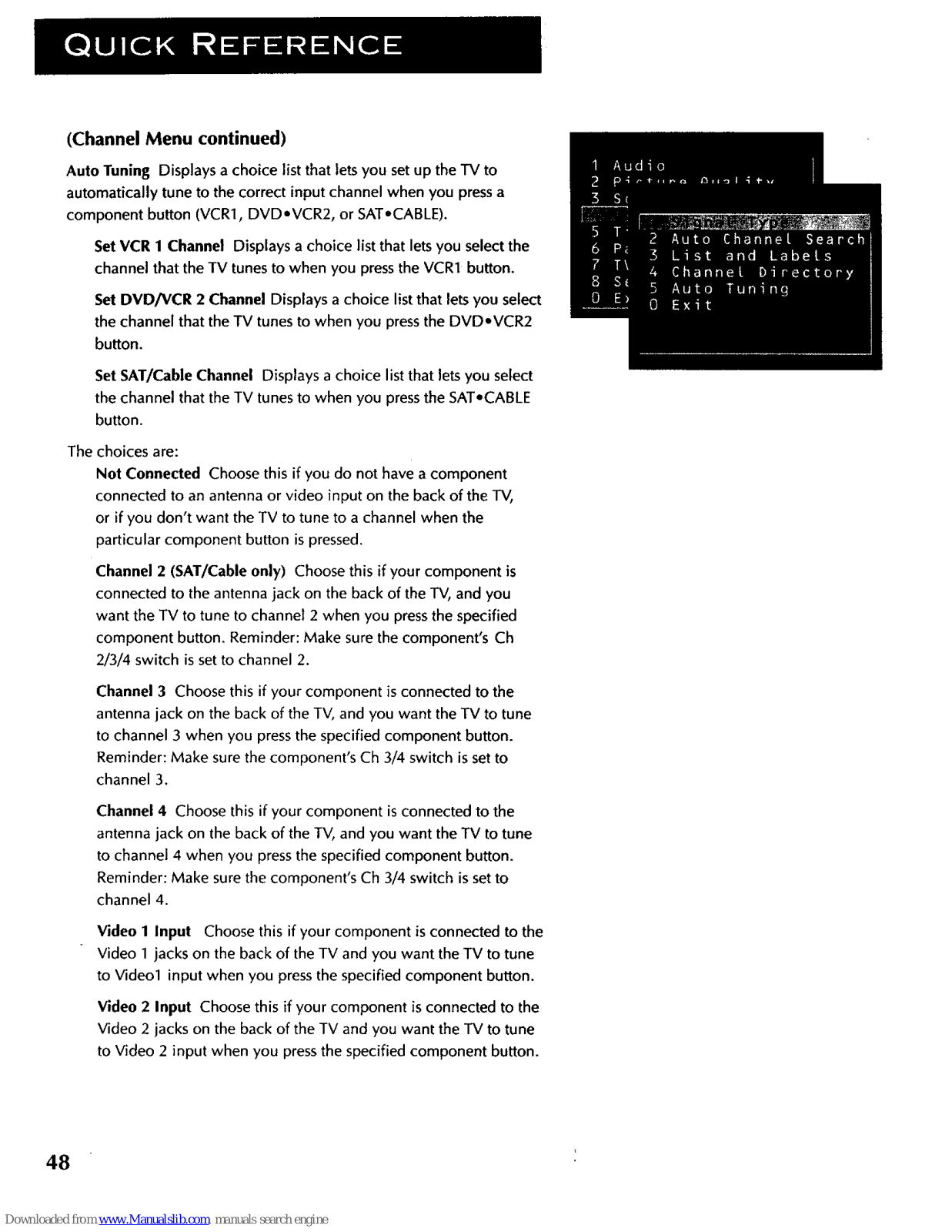

Channel Menu ............................................................... 47

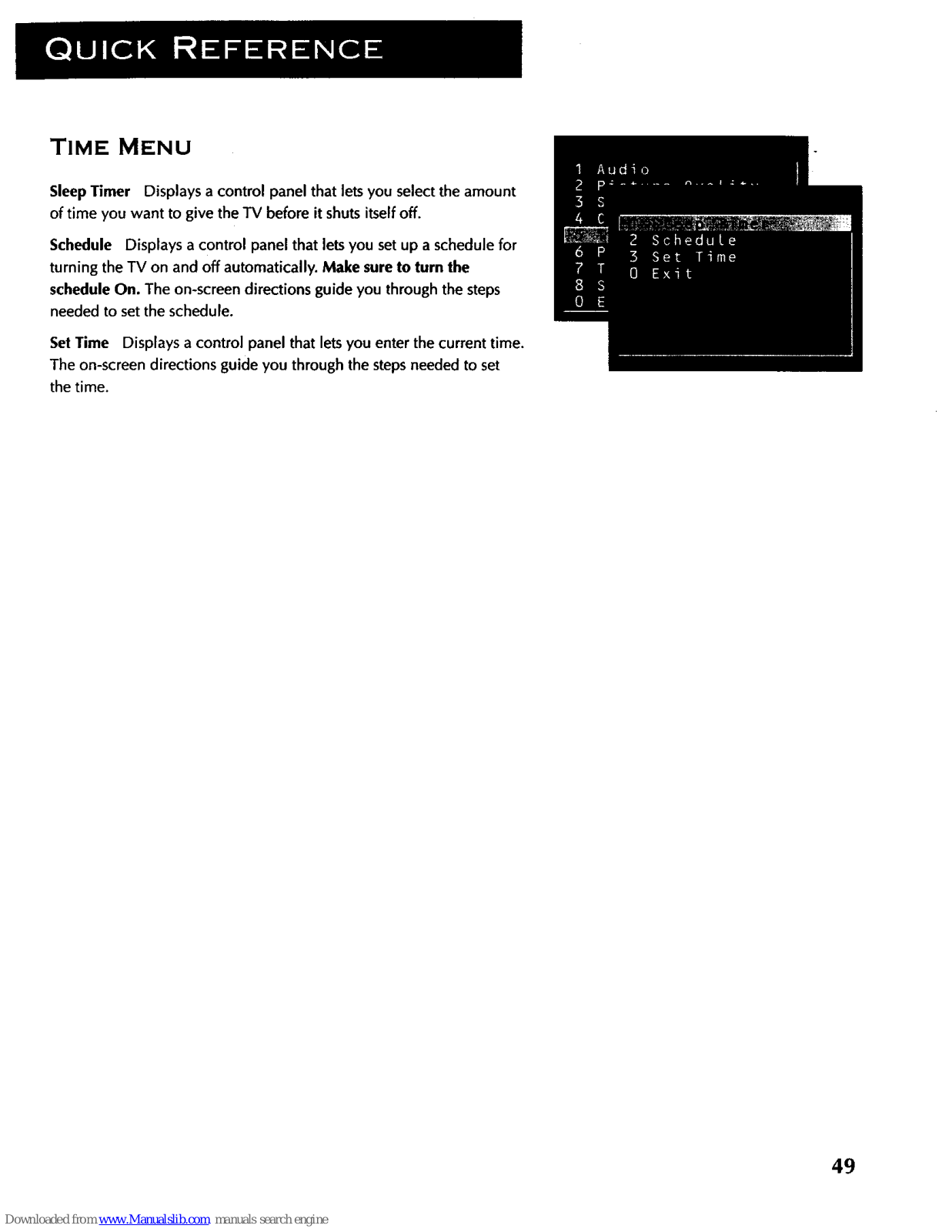

Time Menu .................................................................... 49

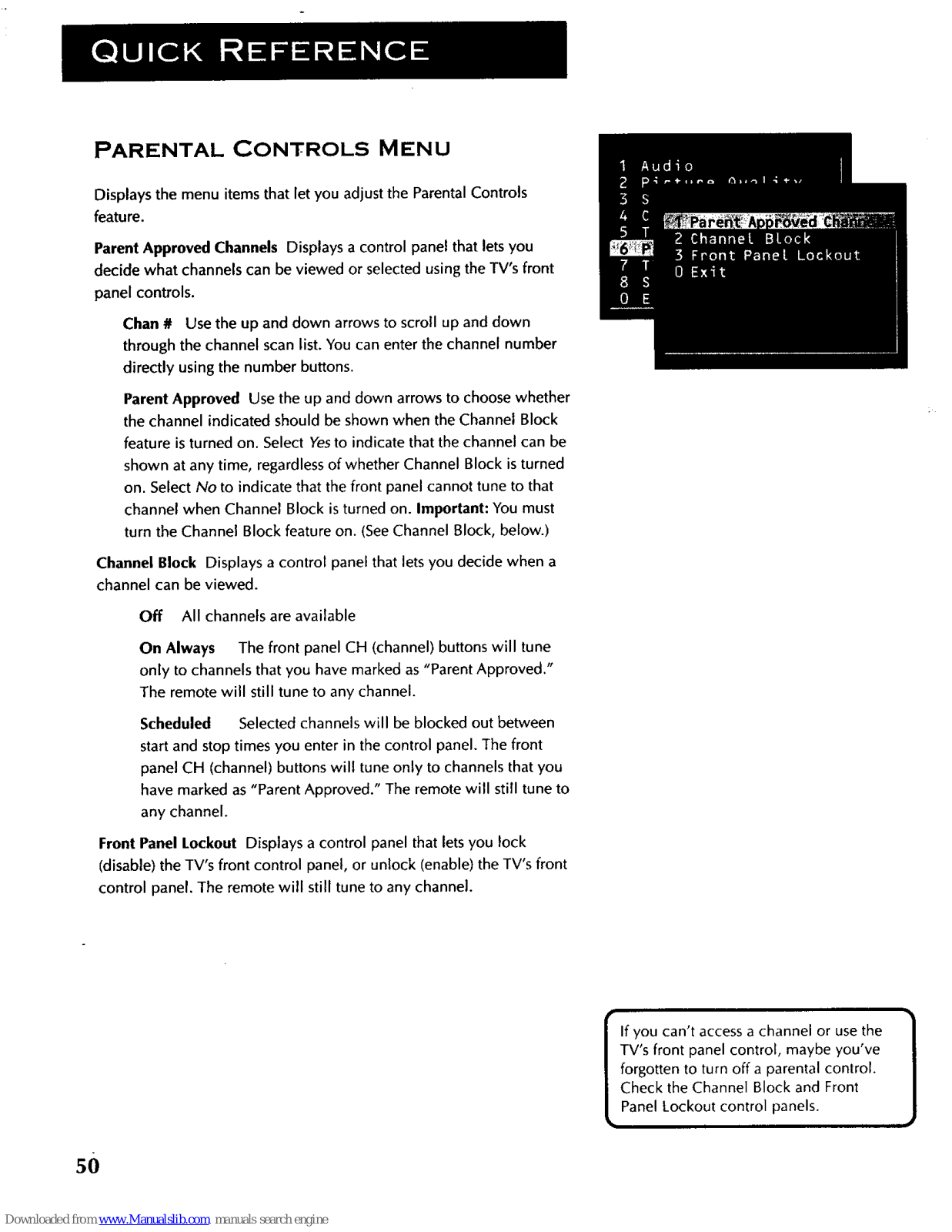

Parental Controls Menu ................................................. 50

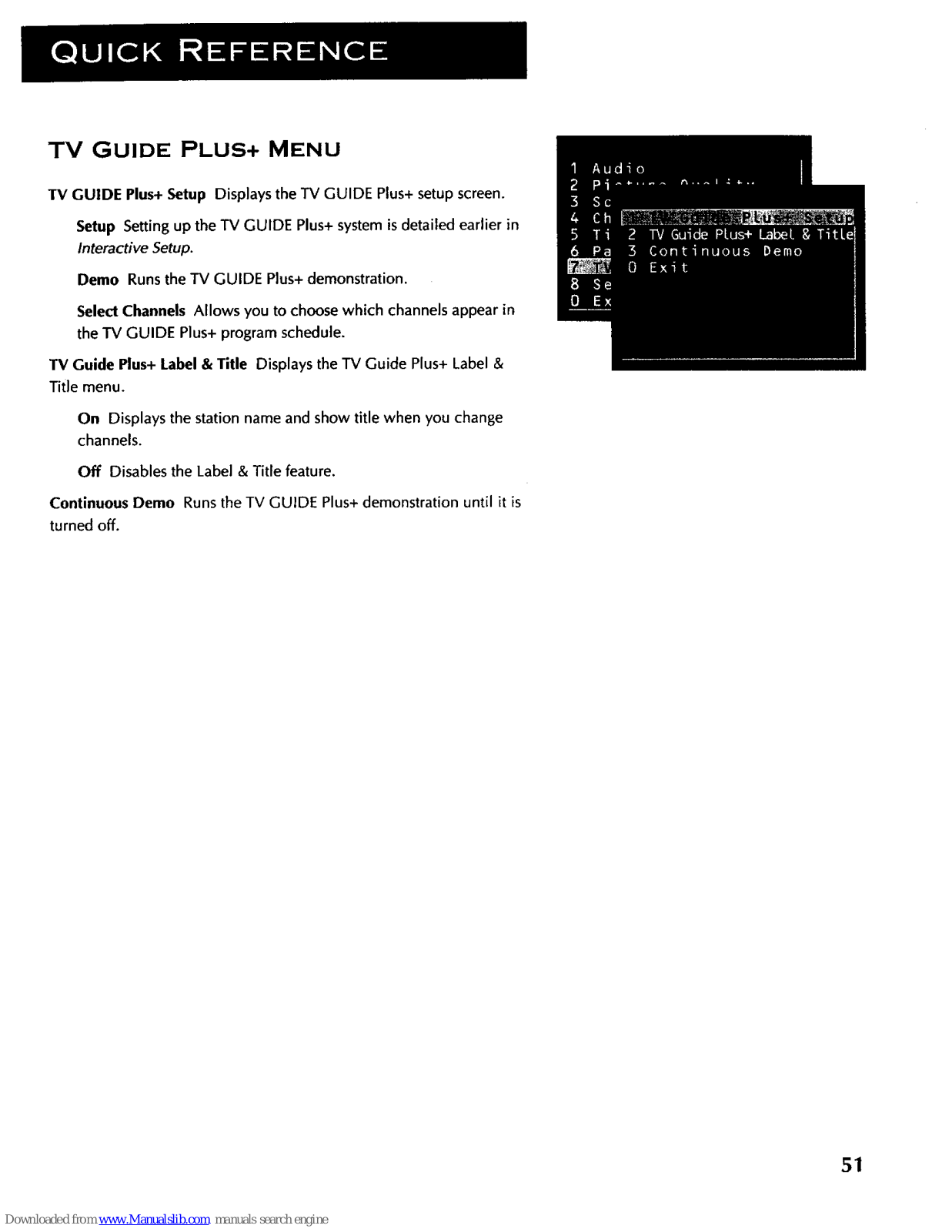

TV GUIDE Plus+ Menu .................................................. 51

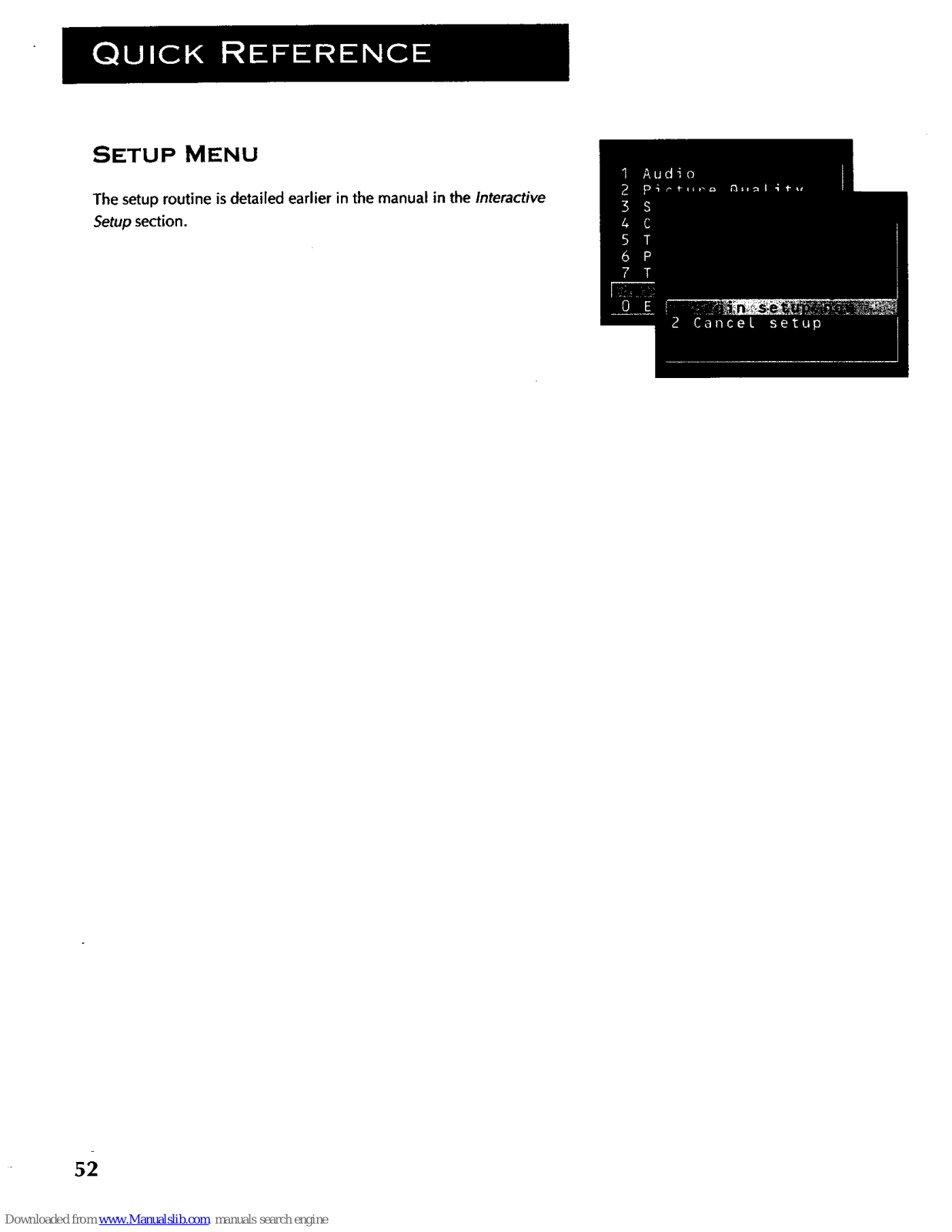

Setup Menu ................................................................... 52

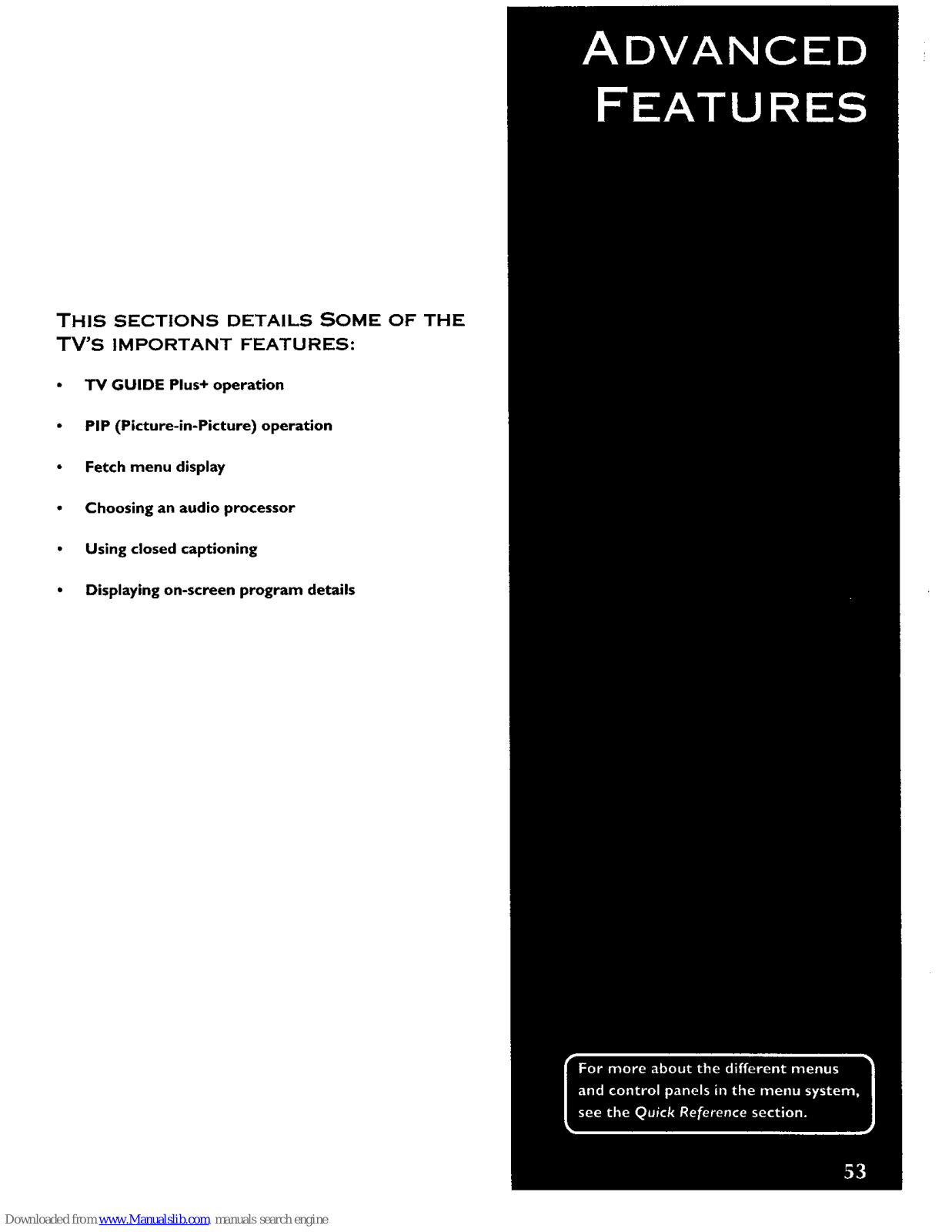

ADVANCED FEATURES ...................... 53

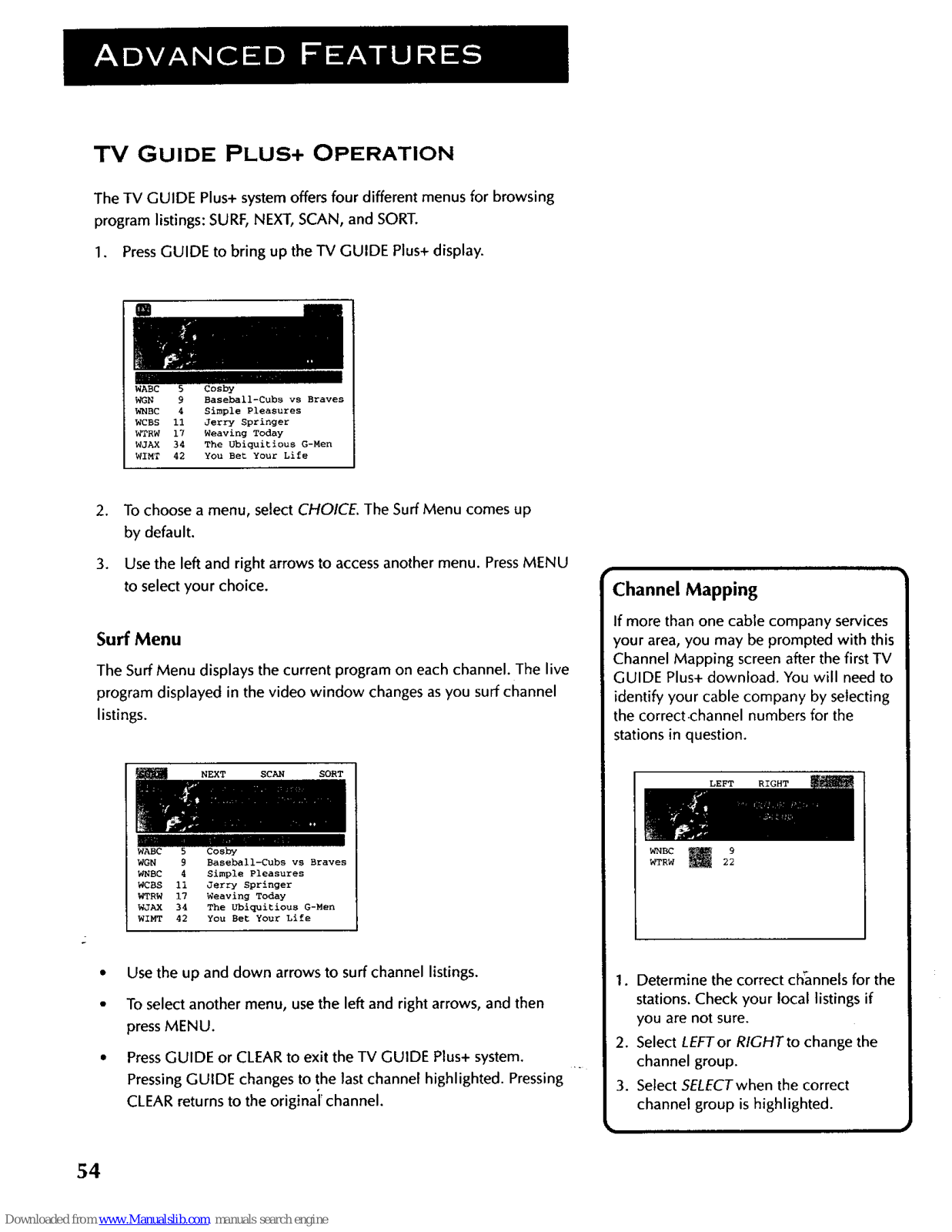

TV GUIDE Plus+ Operation ........................................... 54
Surf Menu ................................................................ 54

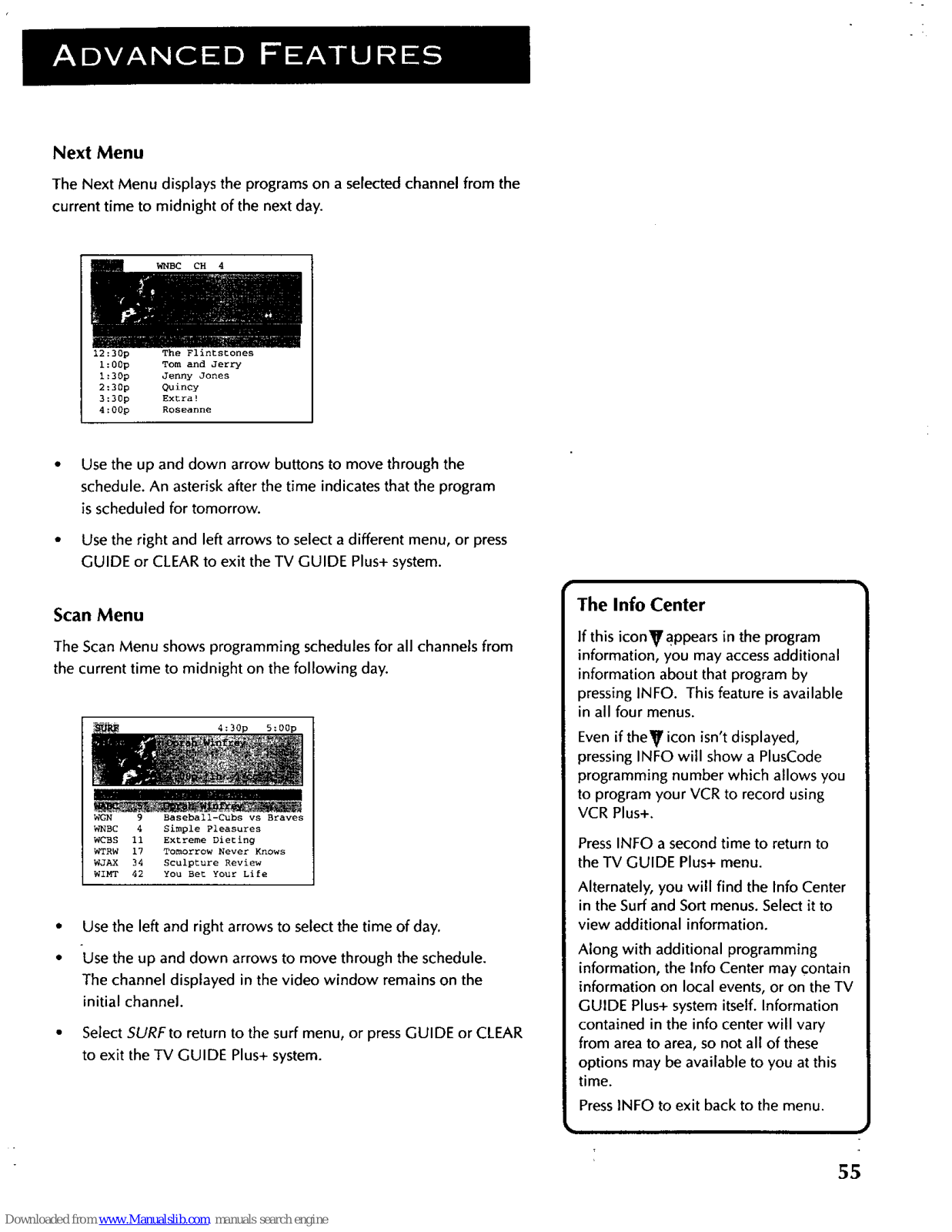

Next Menu ............................................................... 55
Scan Menu ............................................................... 55

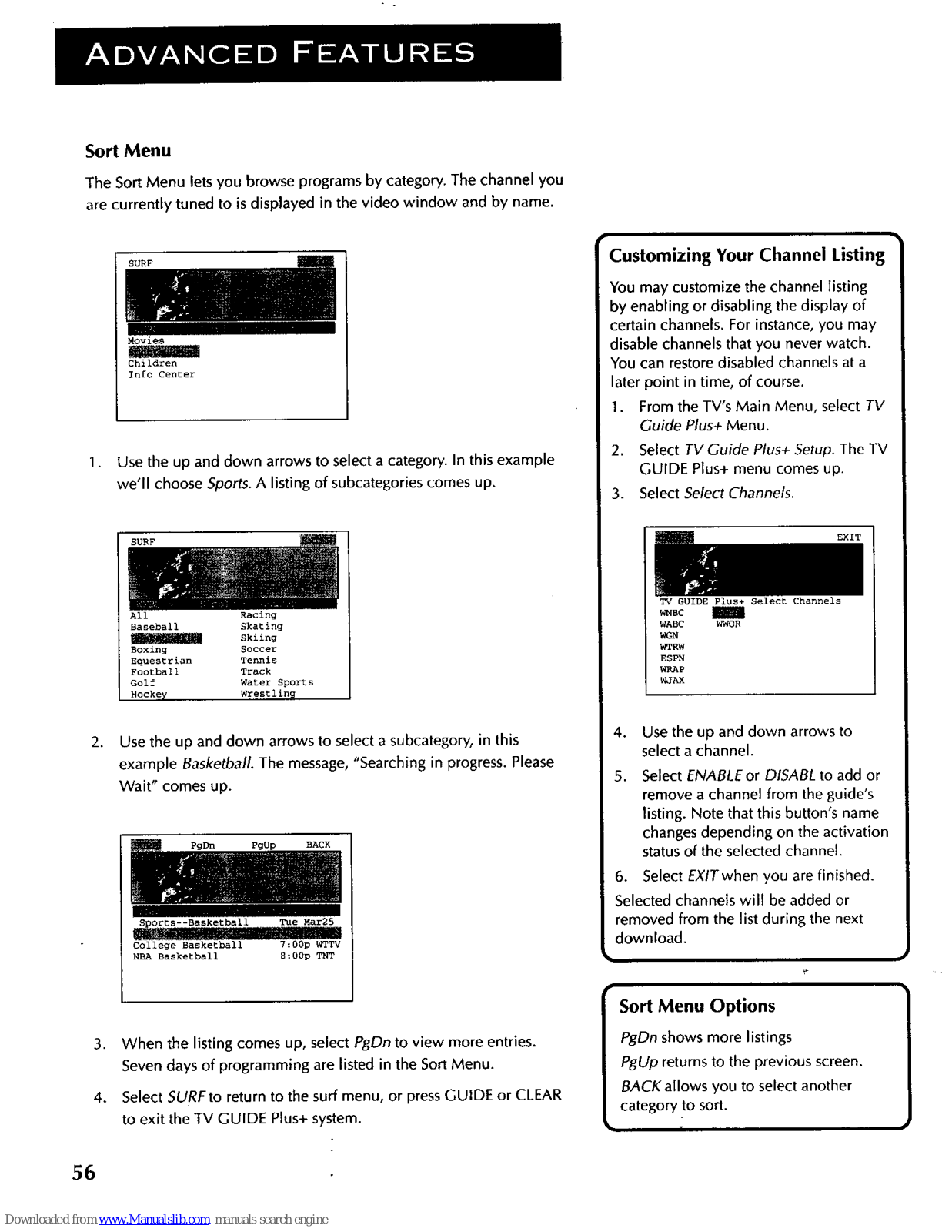

Sort Menu ................................................................ 56

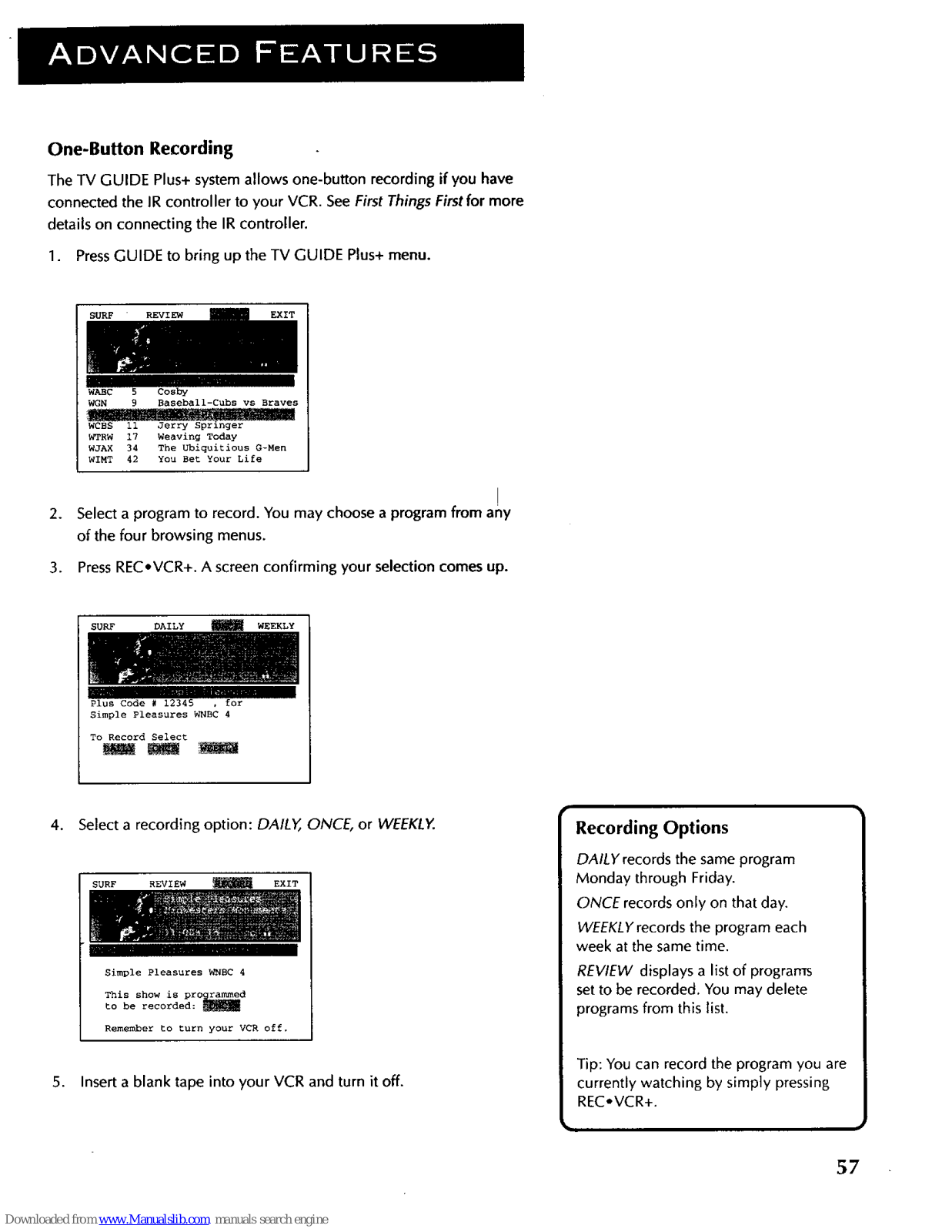

One Touch Recording .............................................. 57

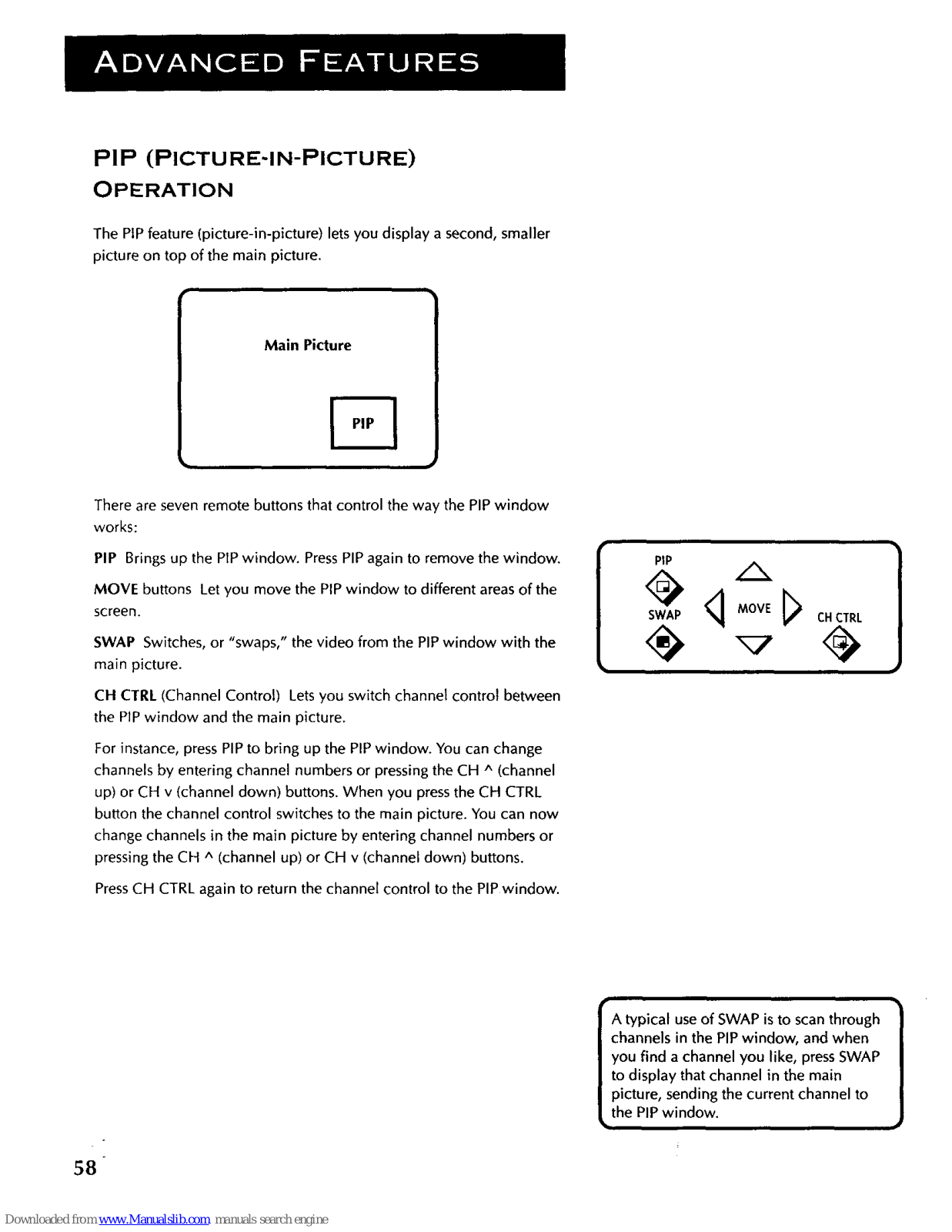

PIP (Picture-in-Picture) Operation .................................. 58

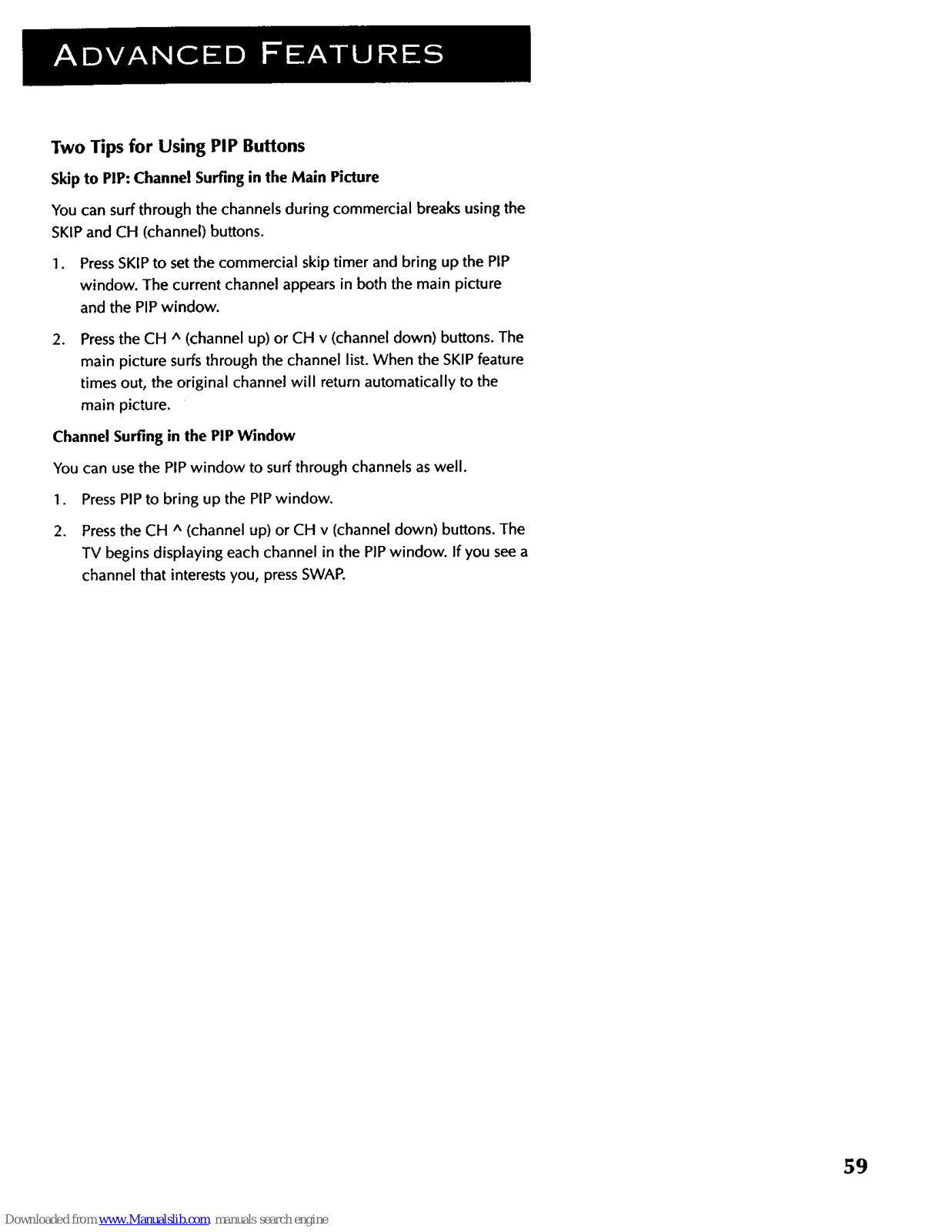

Two Tips for Using PIP Buttons ................................. 59

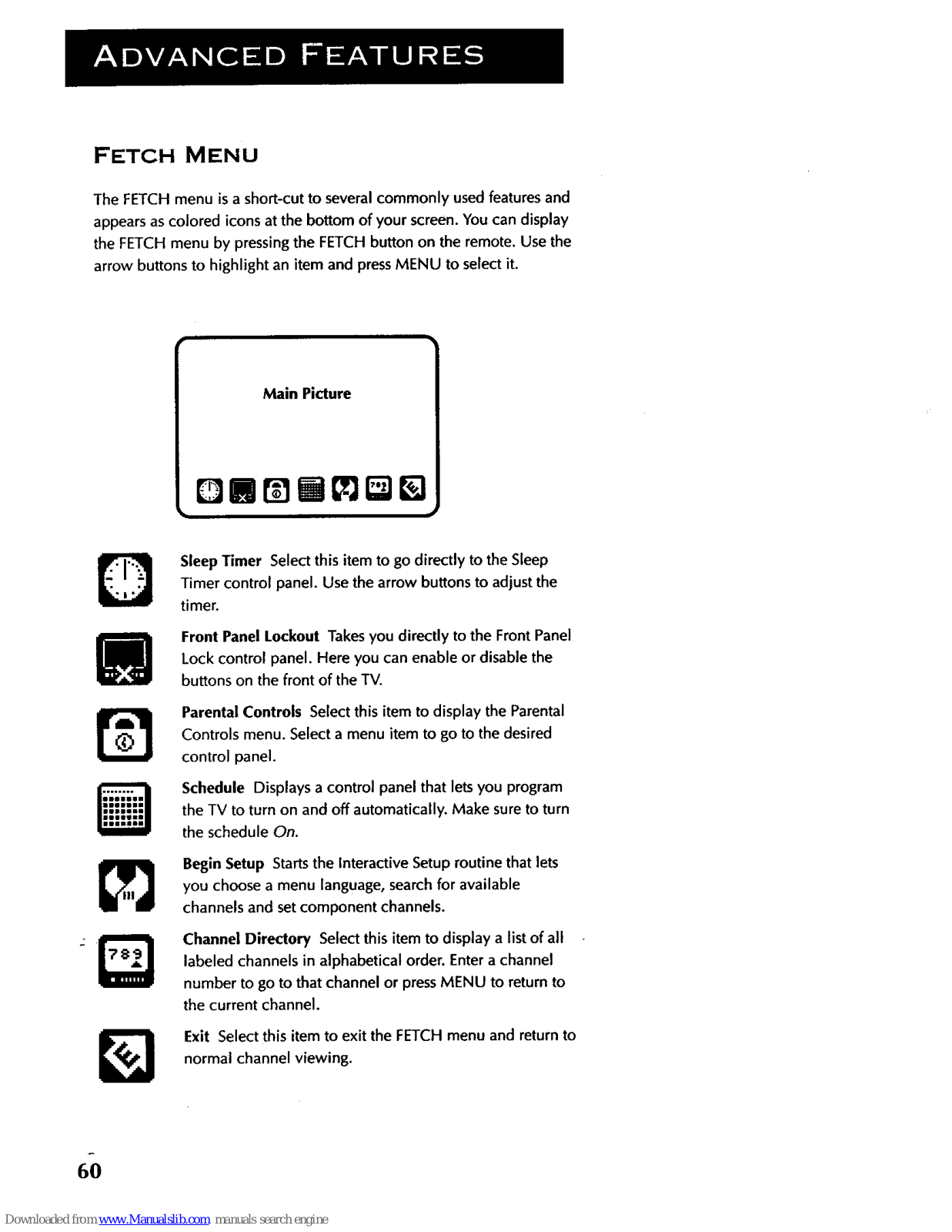

Fetch Menu ................................................................... 60

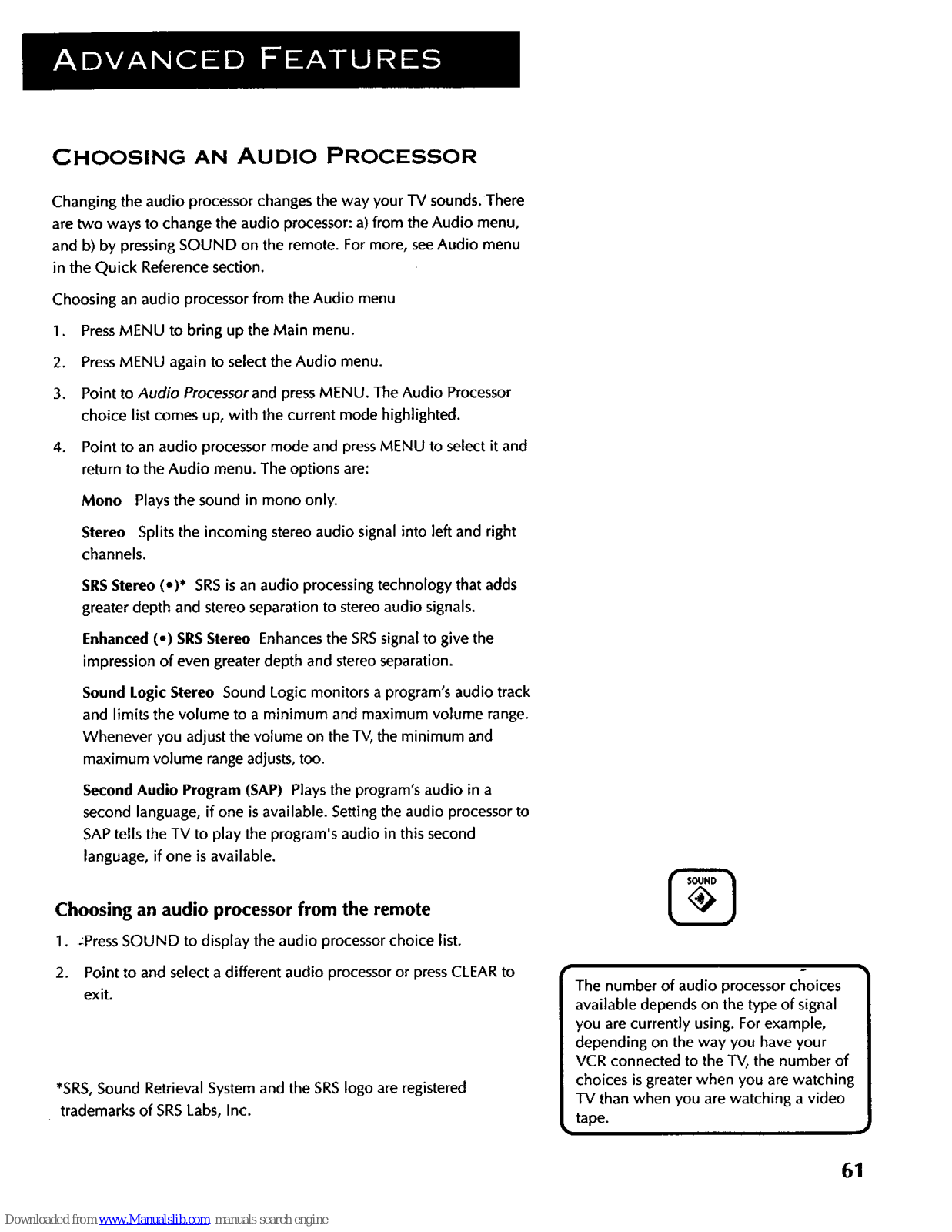

Choosing an Audio Processor ........................................ 61
Choosing an audio processor from the remote .......... 61

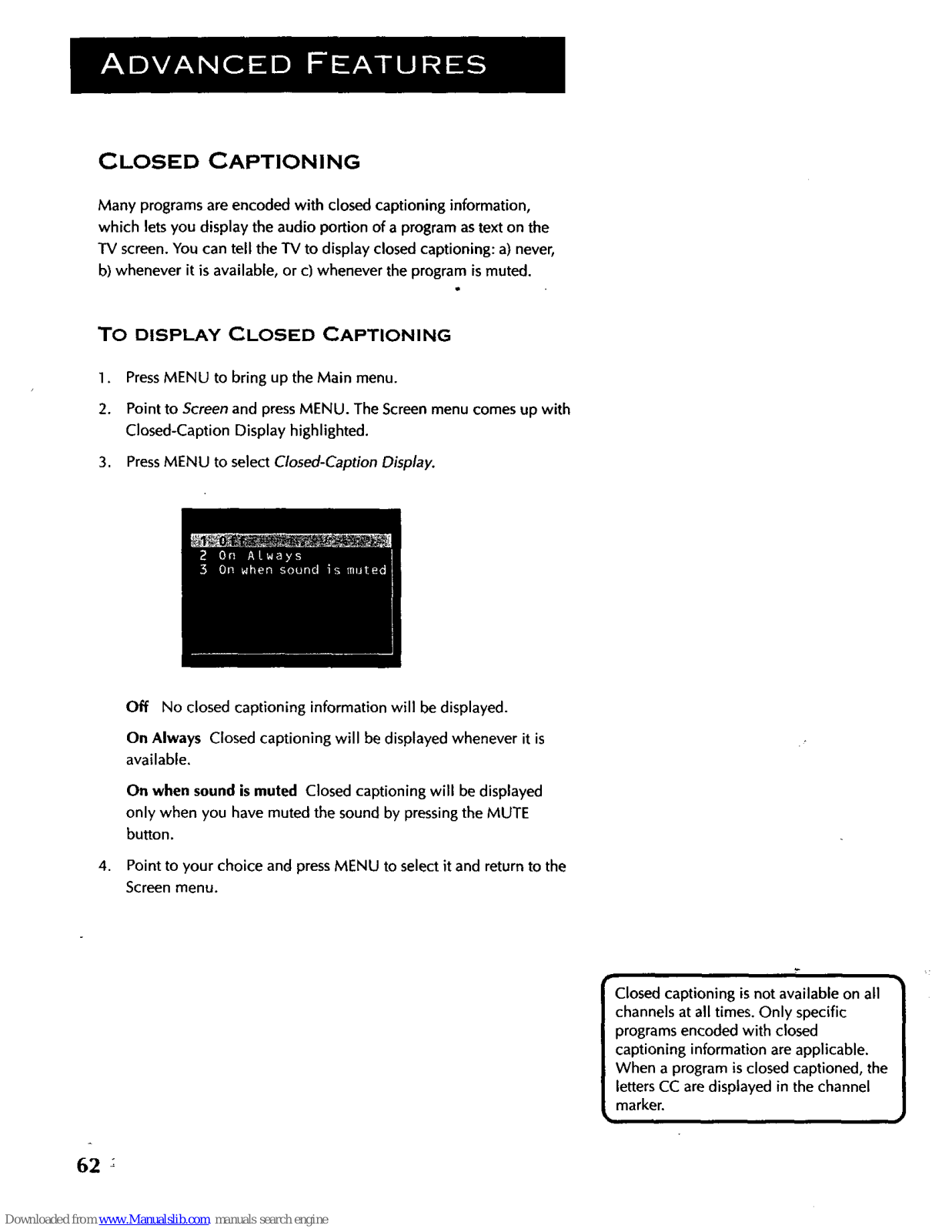

Closed Captioning ......................................................... 62
To display Closed Captioning ................................... 62

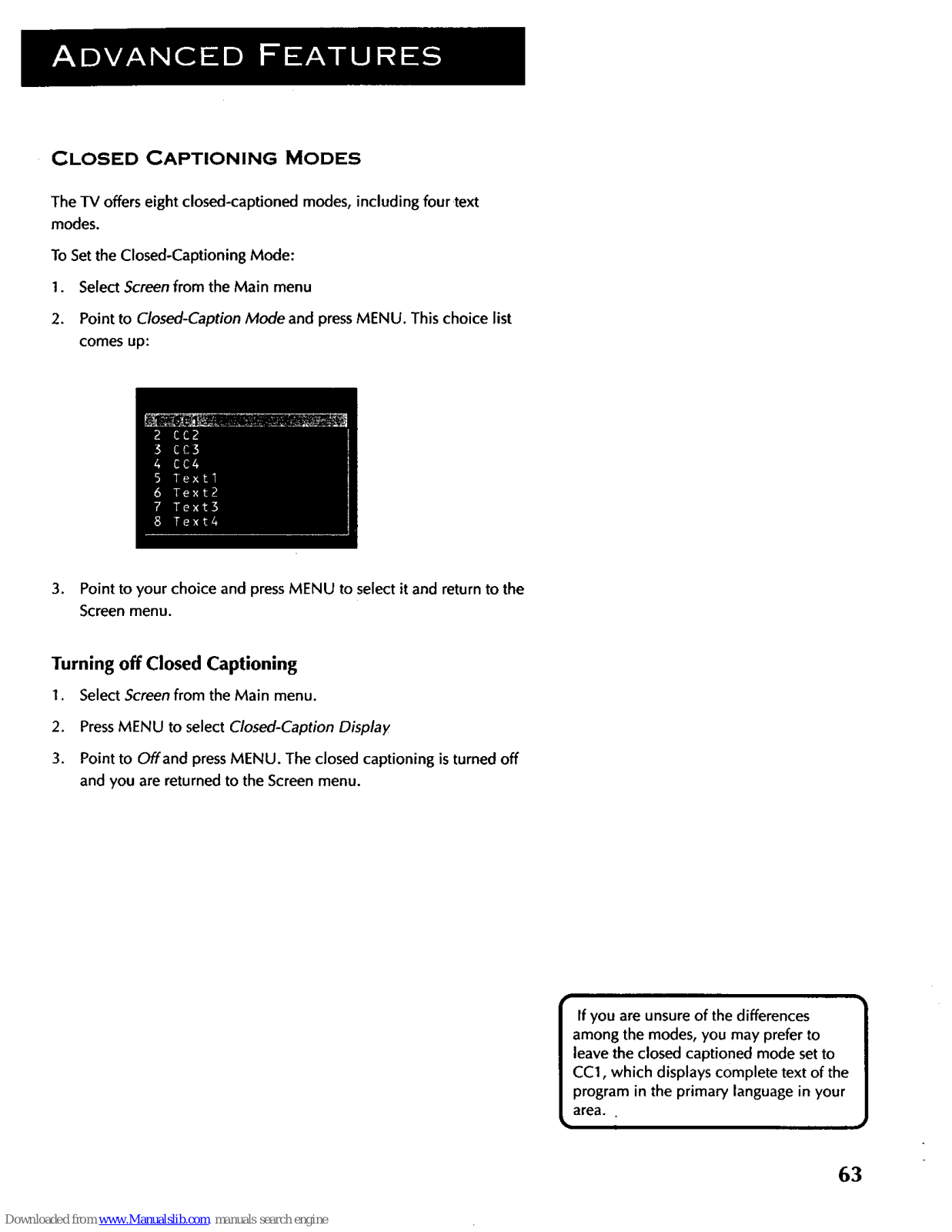

Closed Captioning Modes ........................................ 63

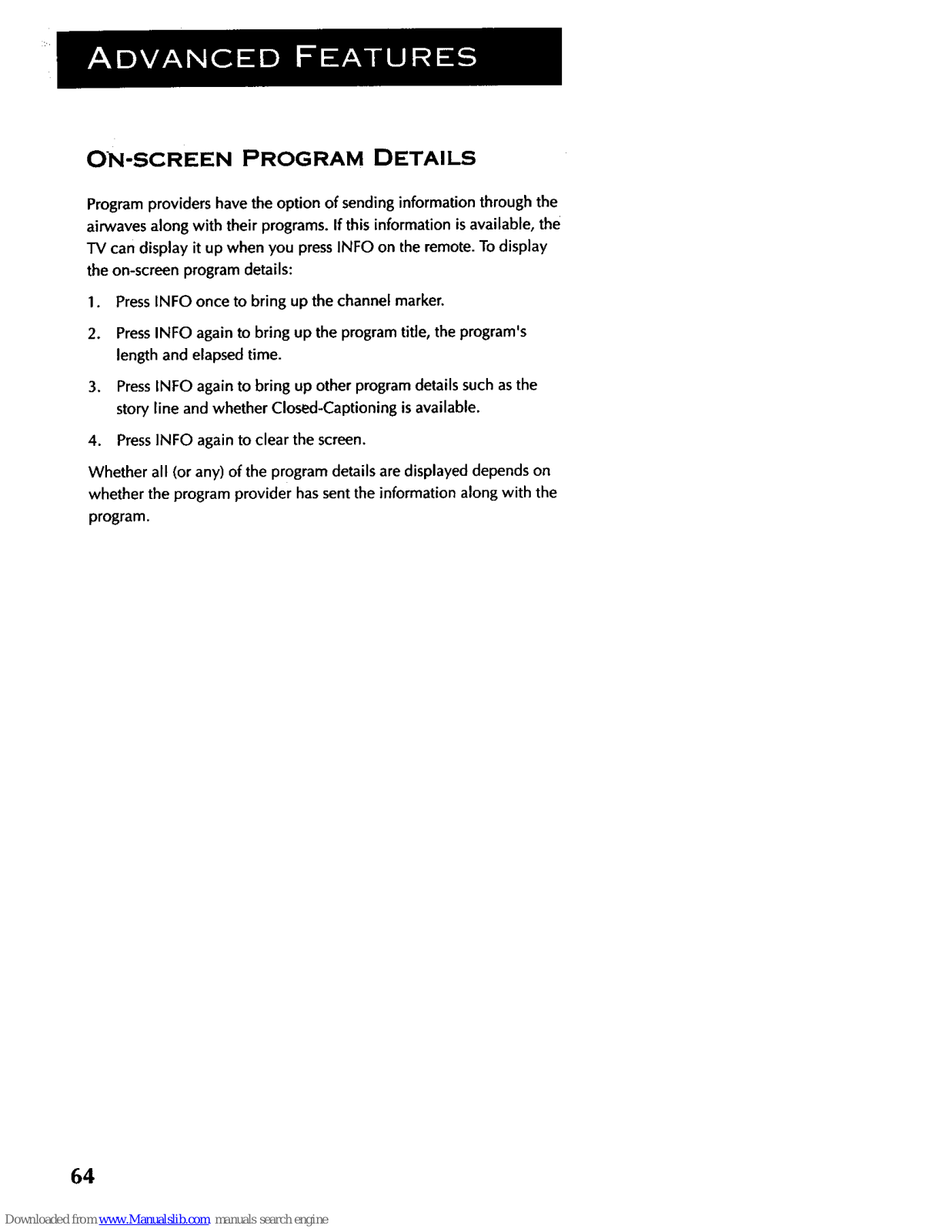

On-screen Program Details ............................................ 64

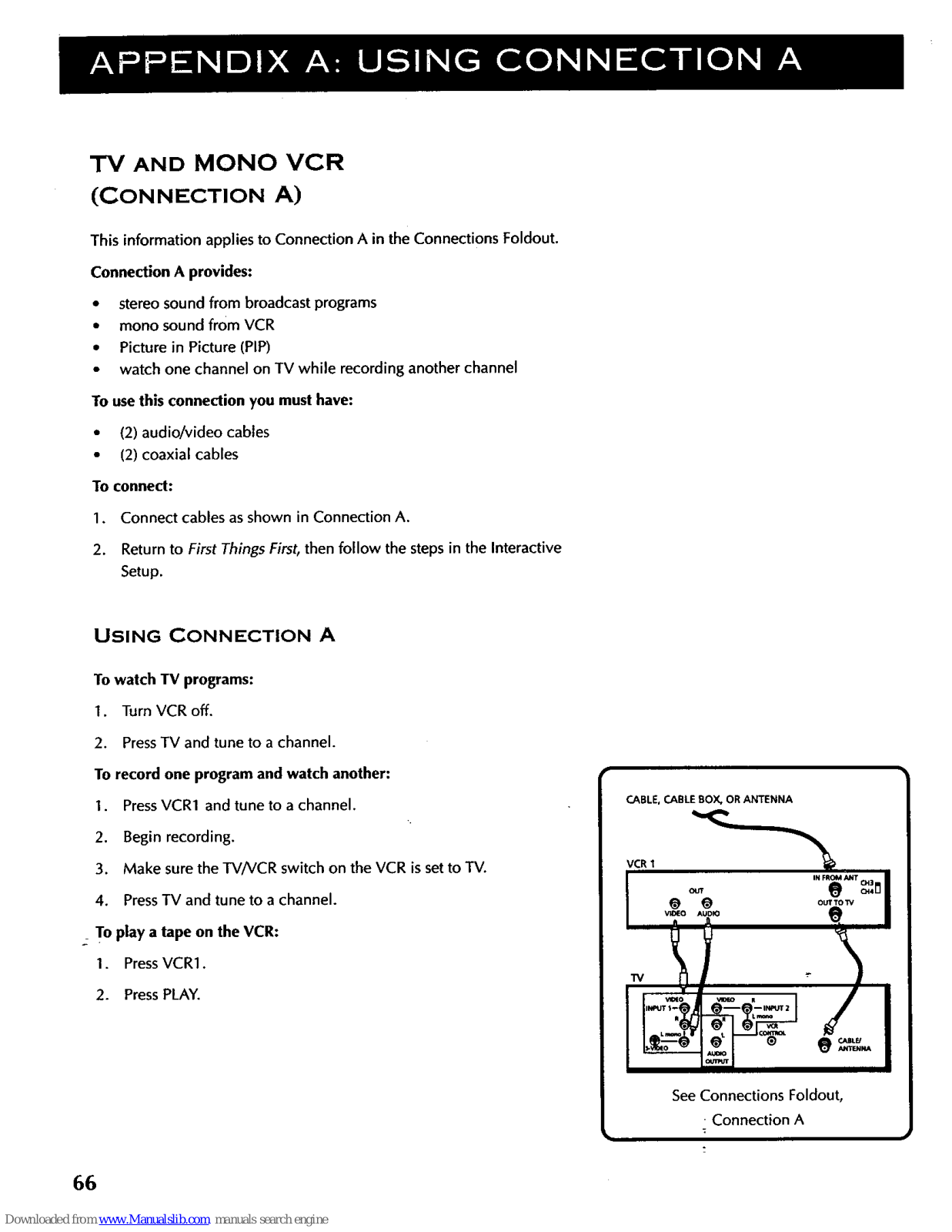

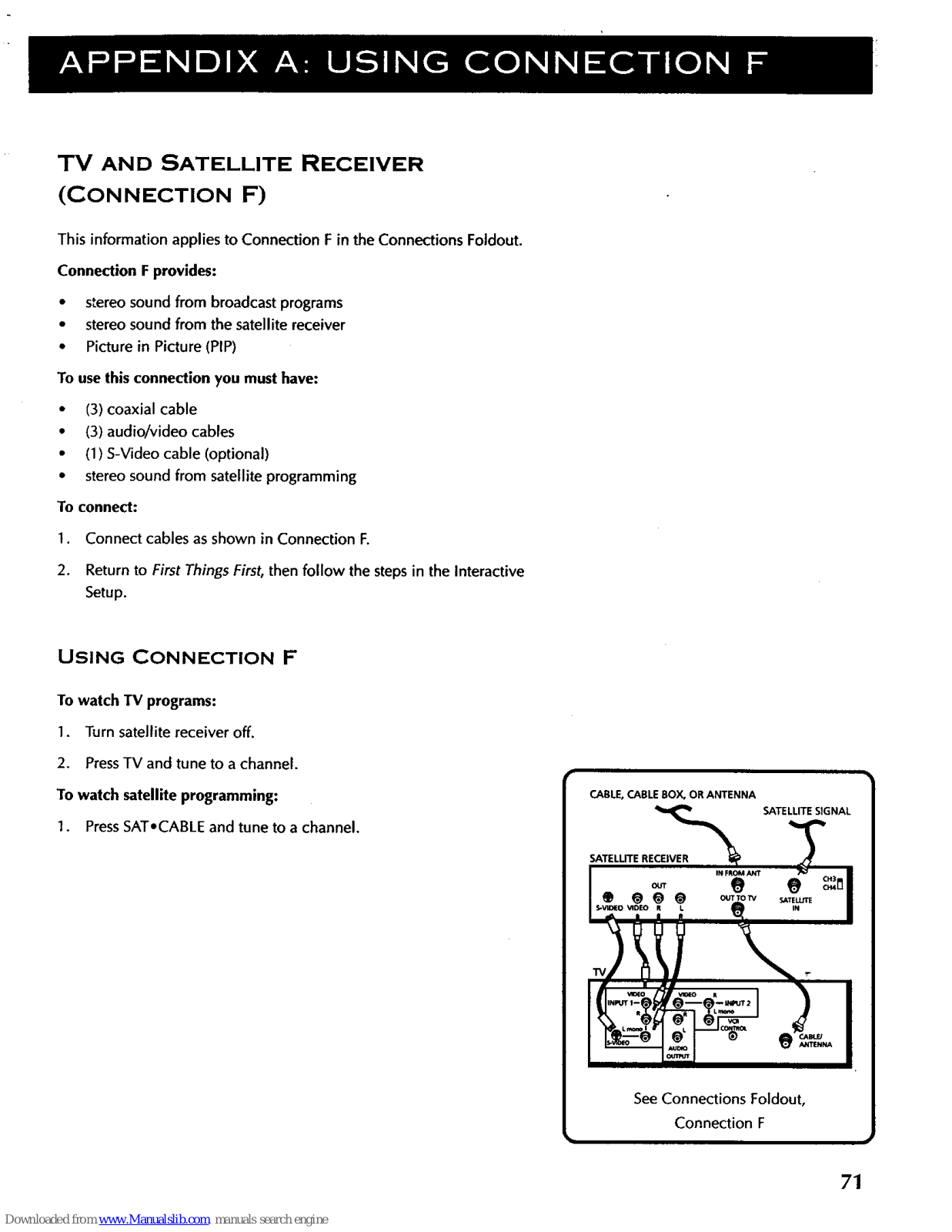

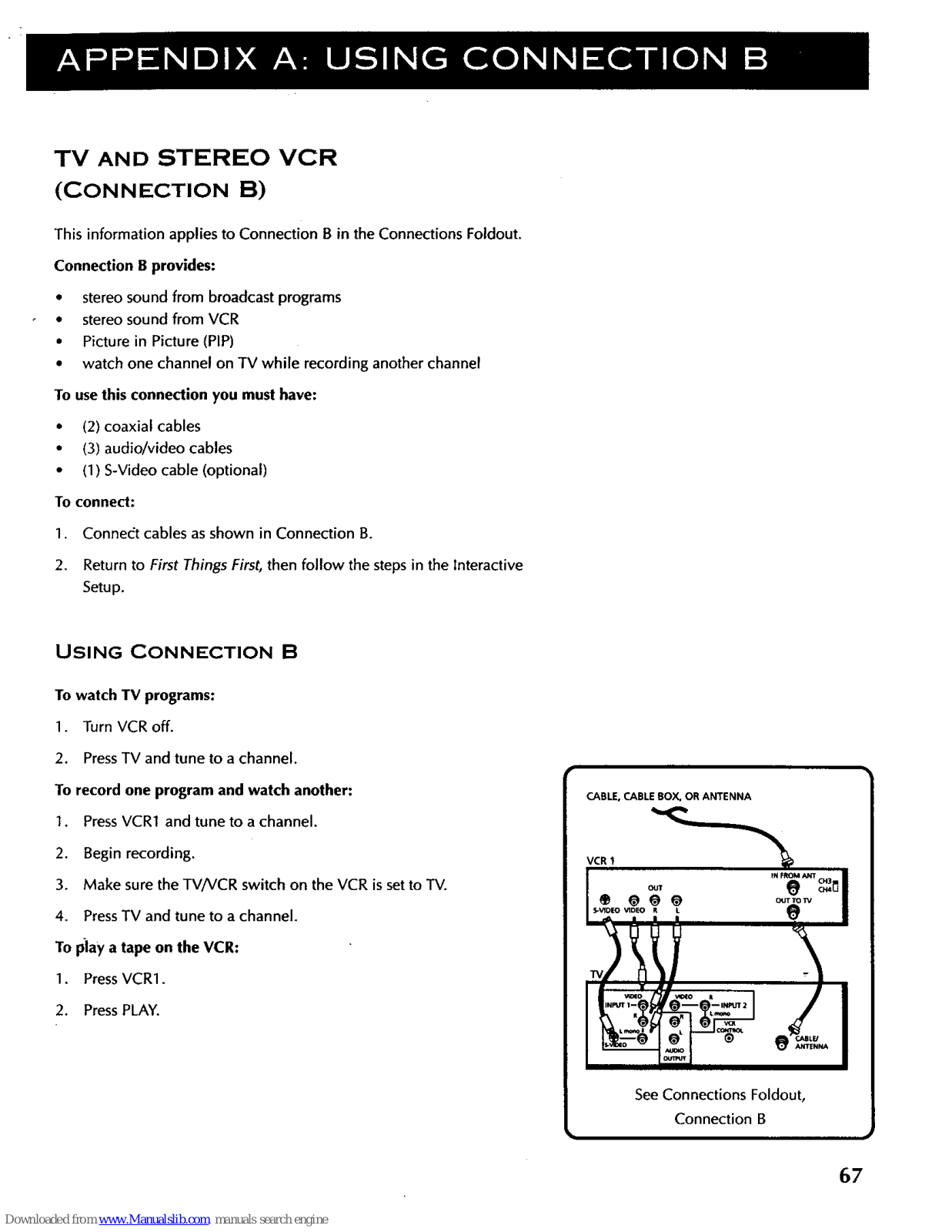

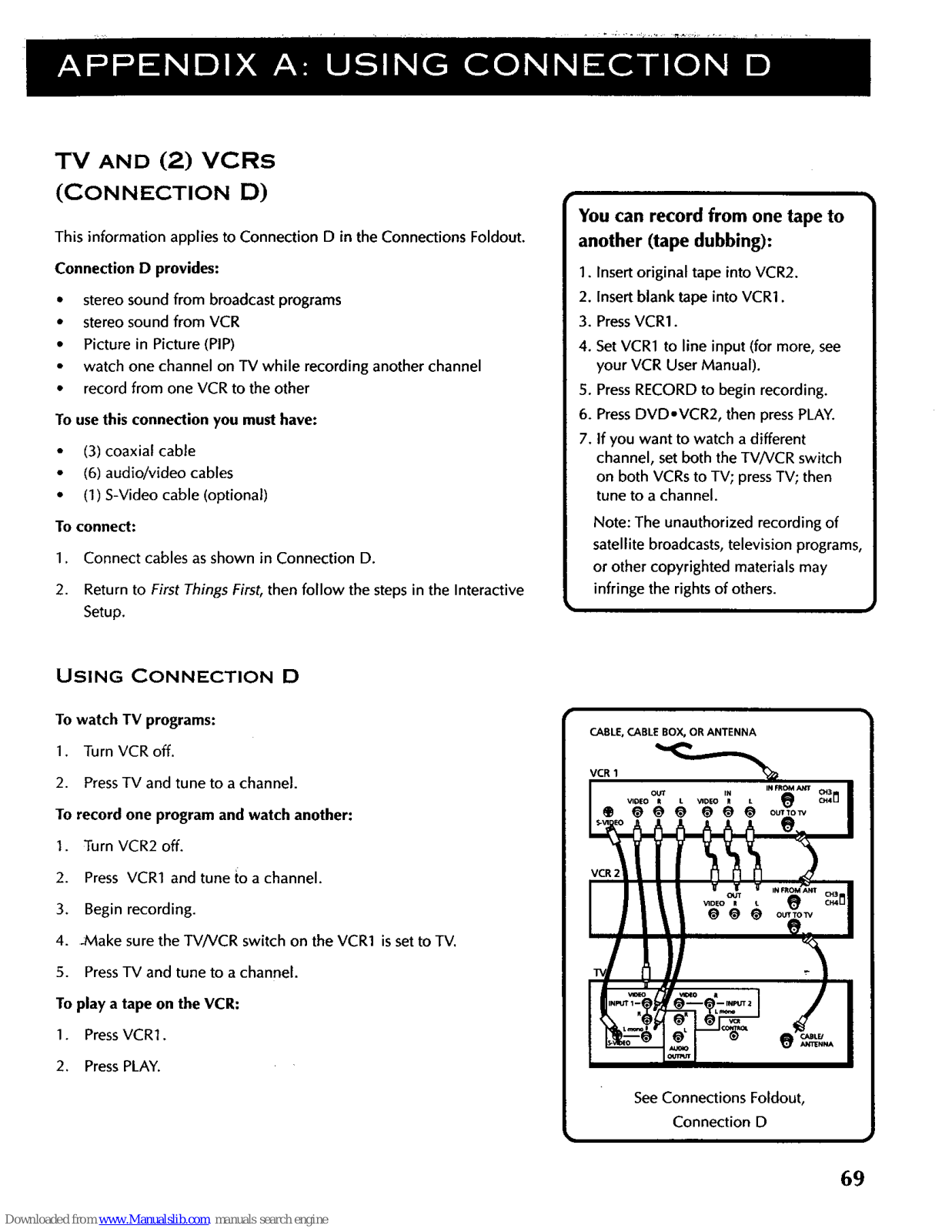

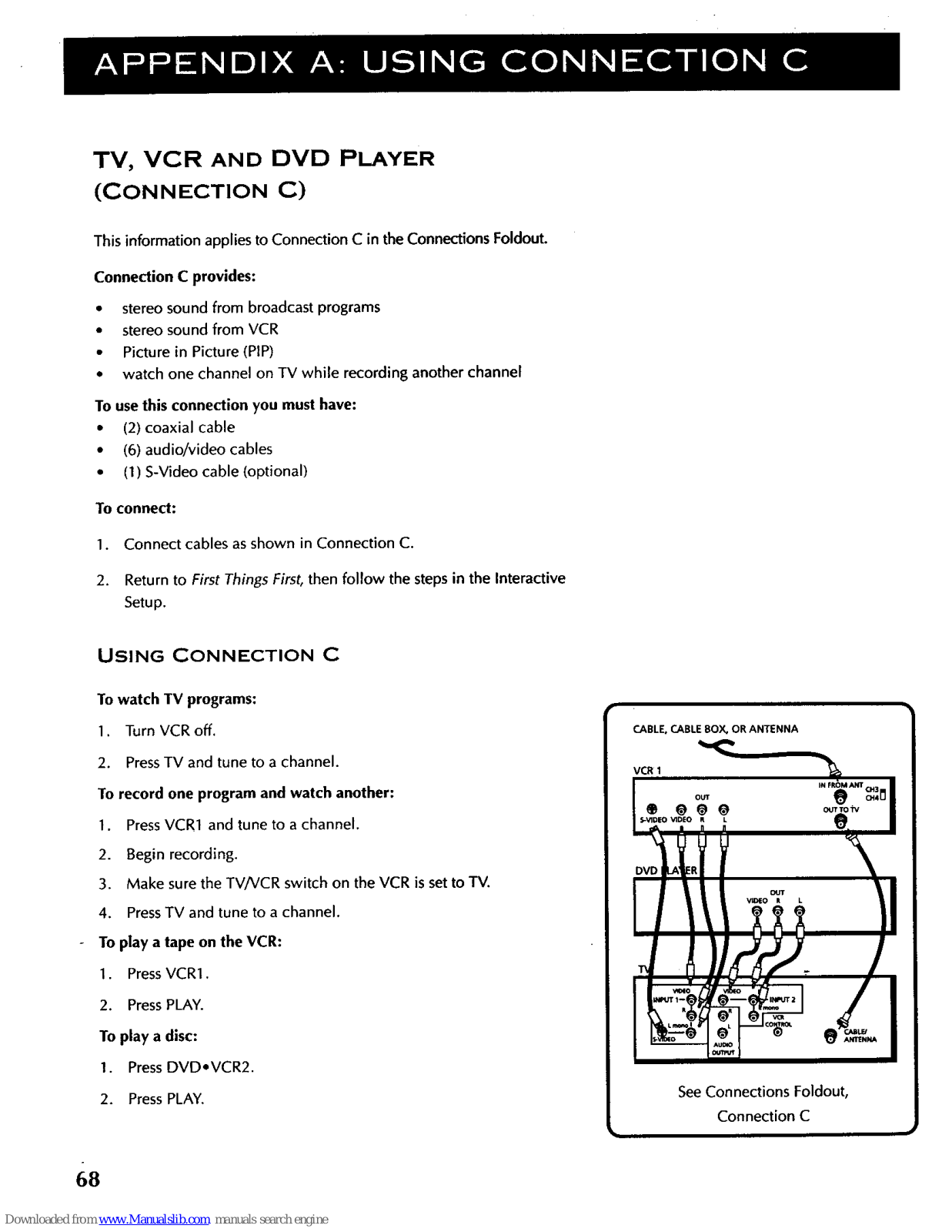

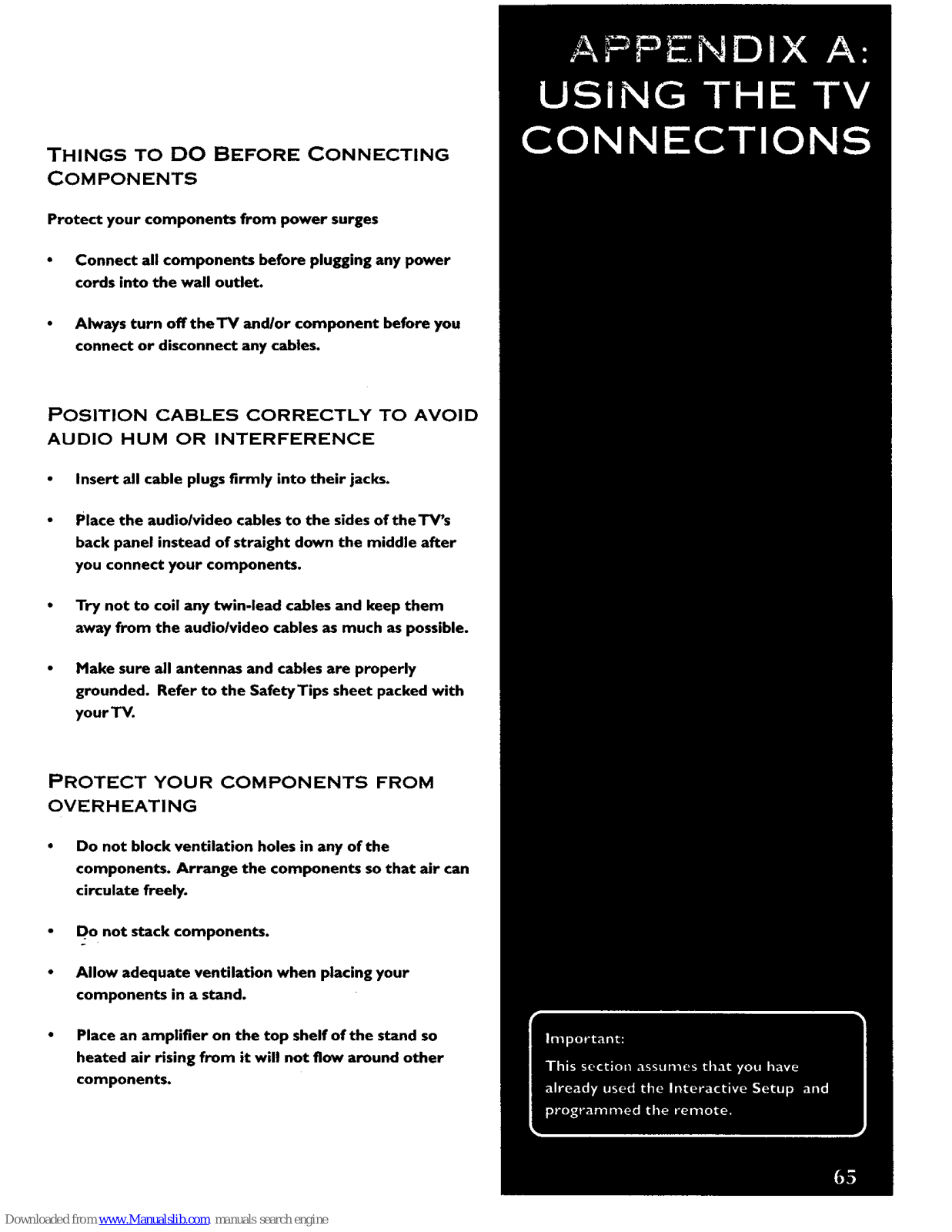

APPENDIX A: TV CONNECTIONS ...... 65

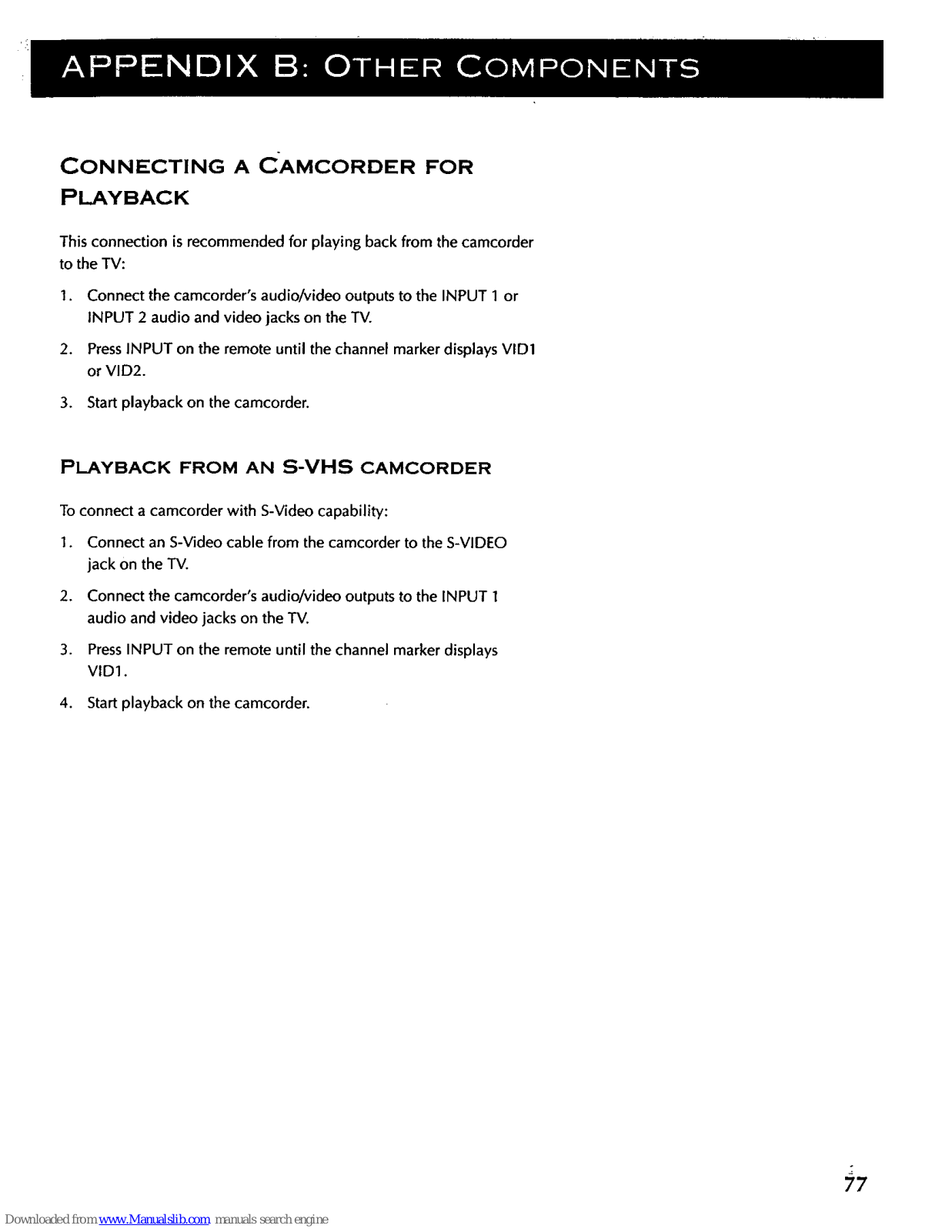

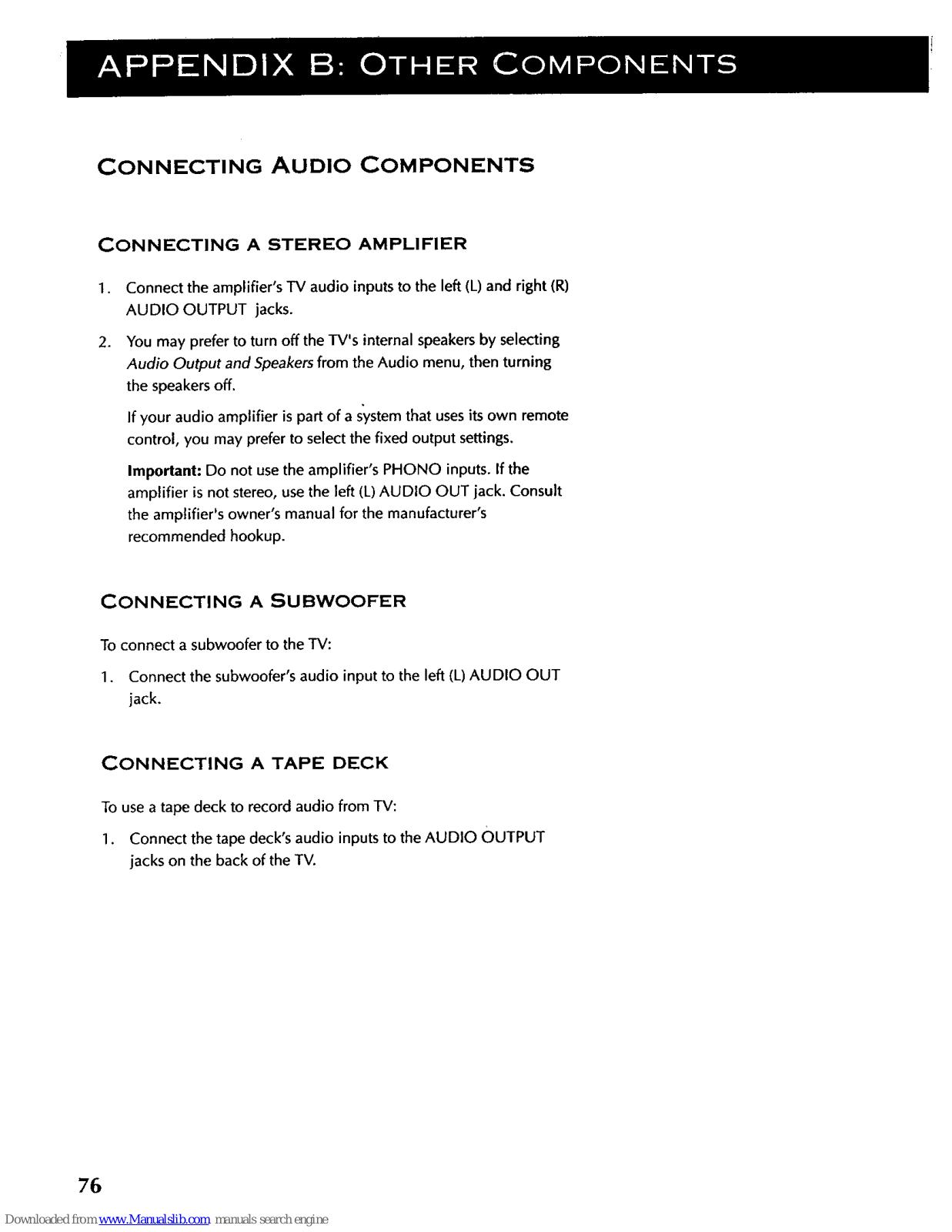

APPENDIX B: OTHER COMPONENTS. 76

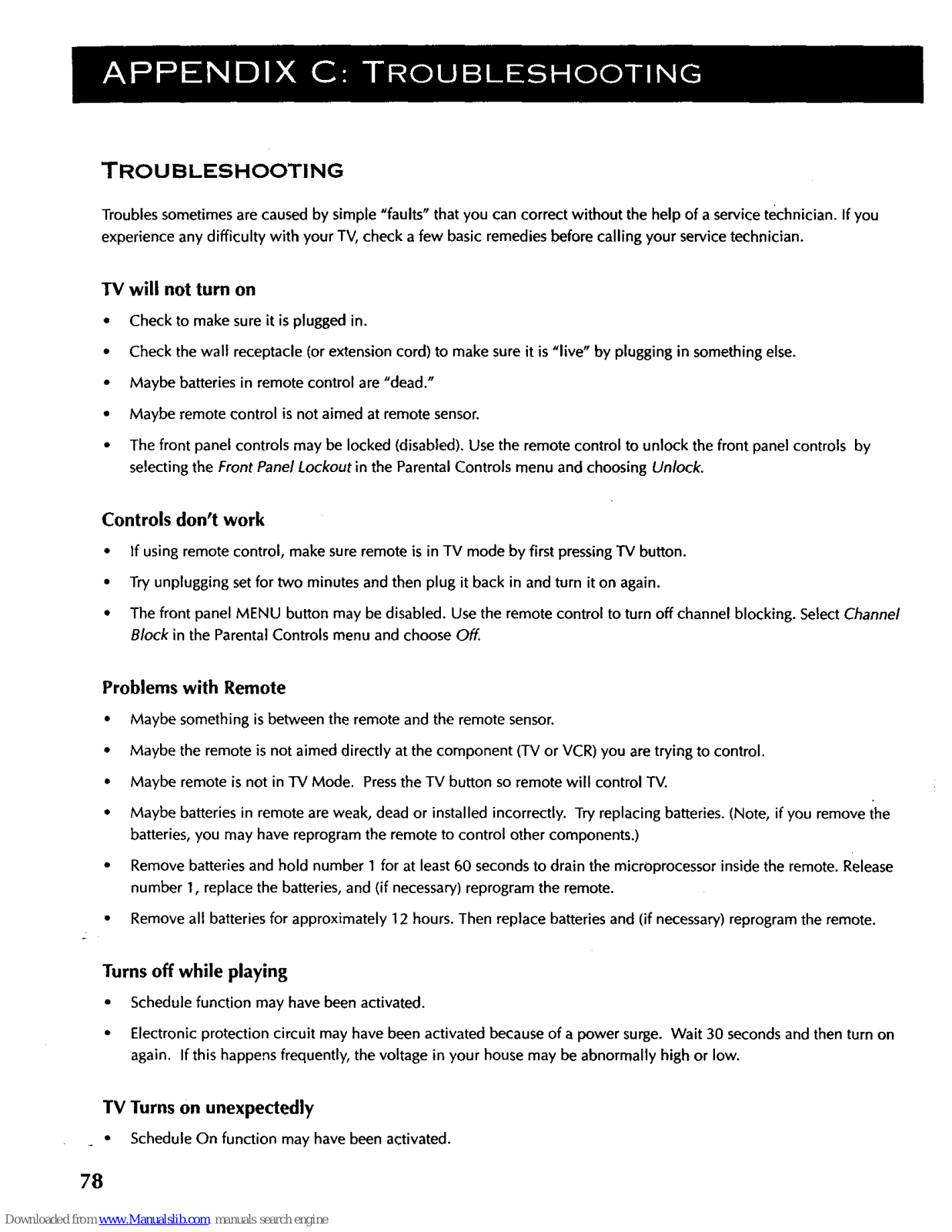

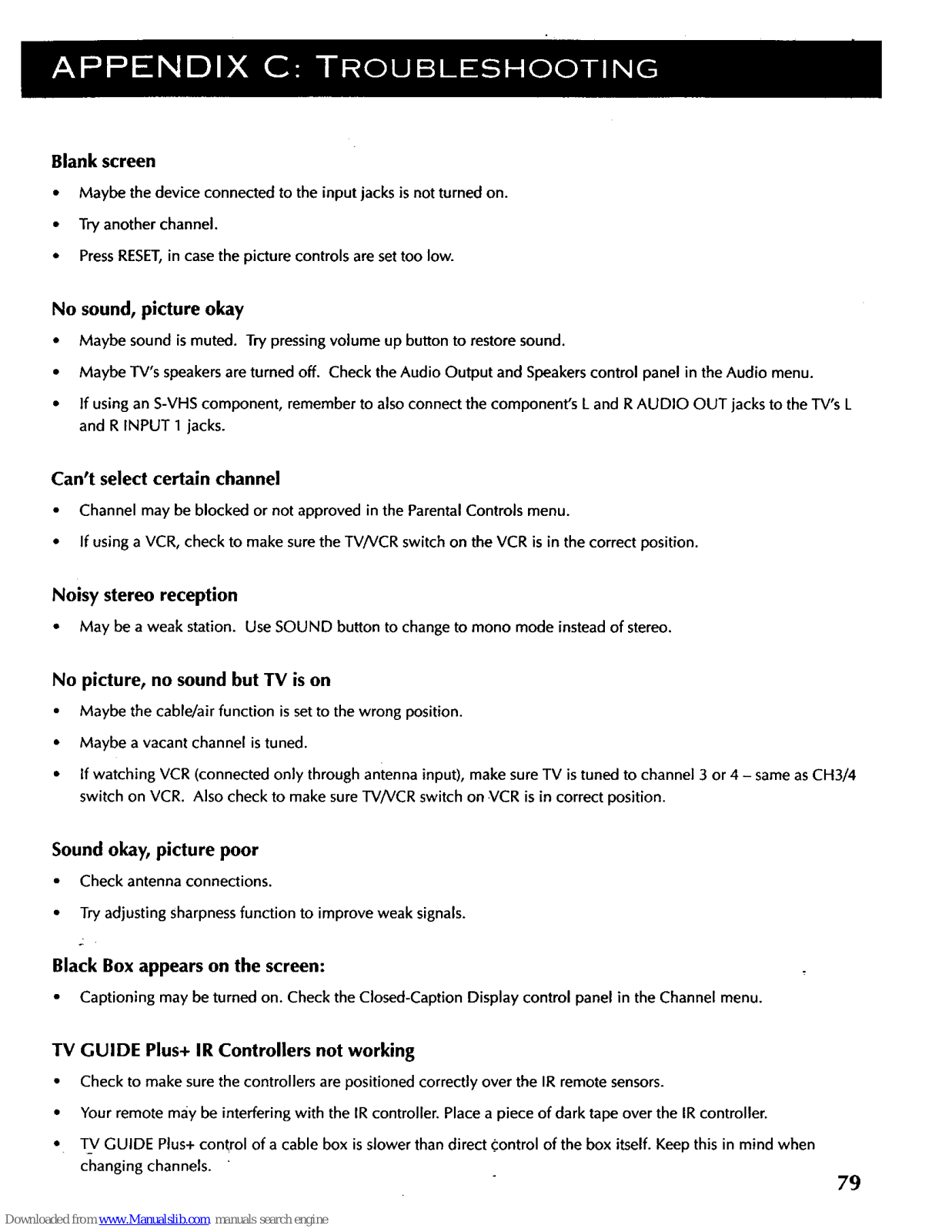

APPENDIX C: TROUBLESHOOTING ... 78
APPENDIX C: TROUBLESHOOTING ... 79

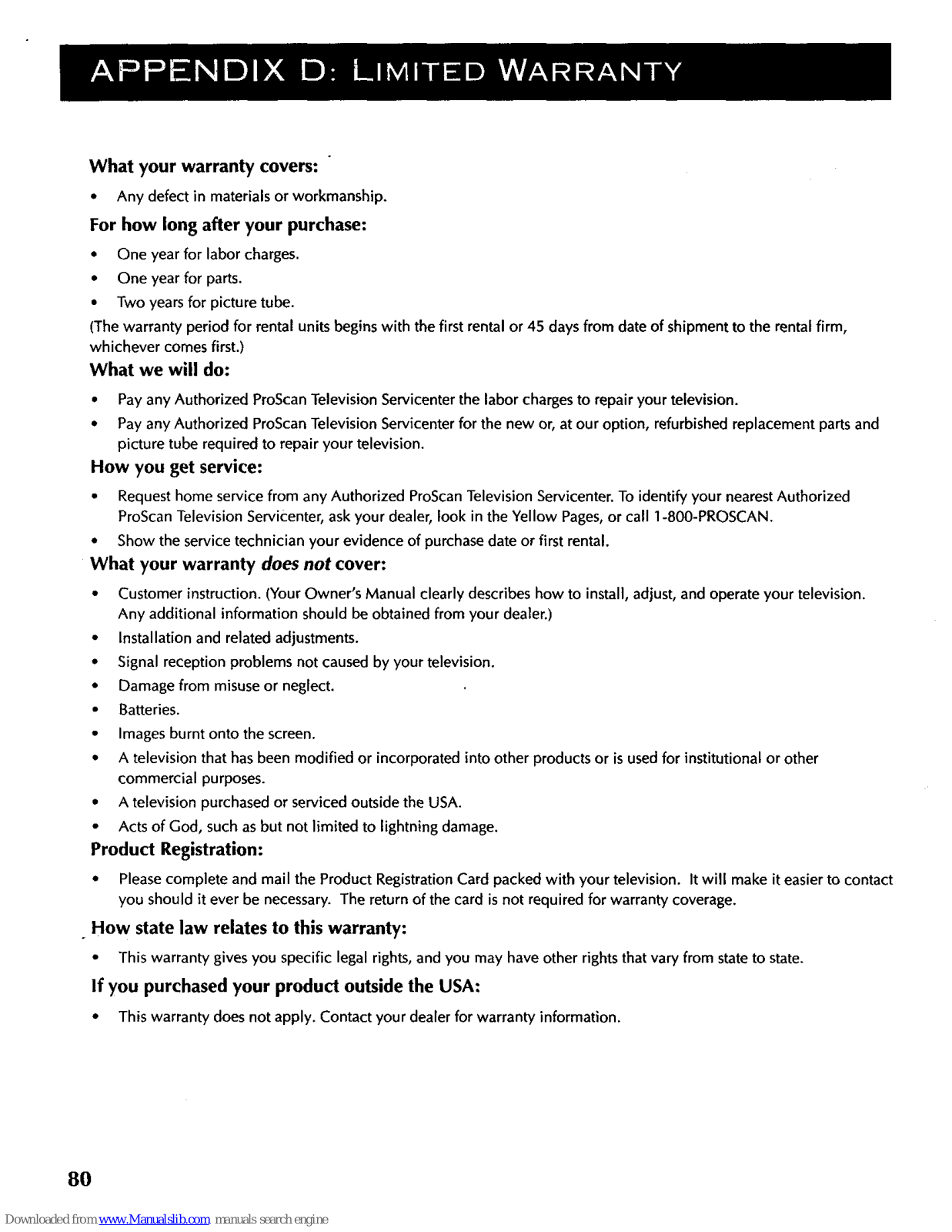

APPENDIX D: LIMITED WARRANTY .... 80

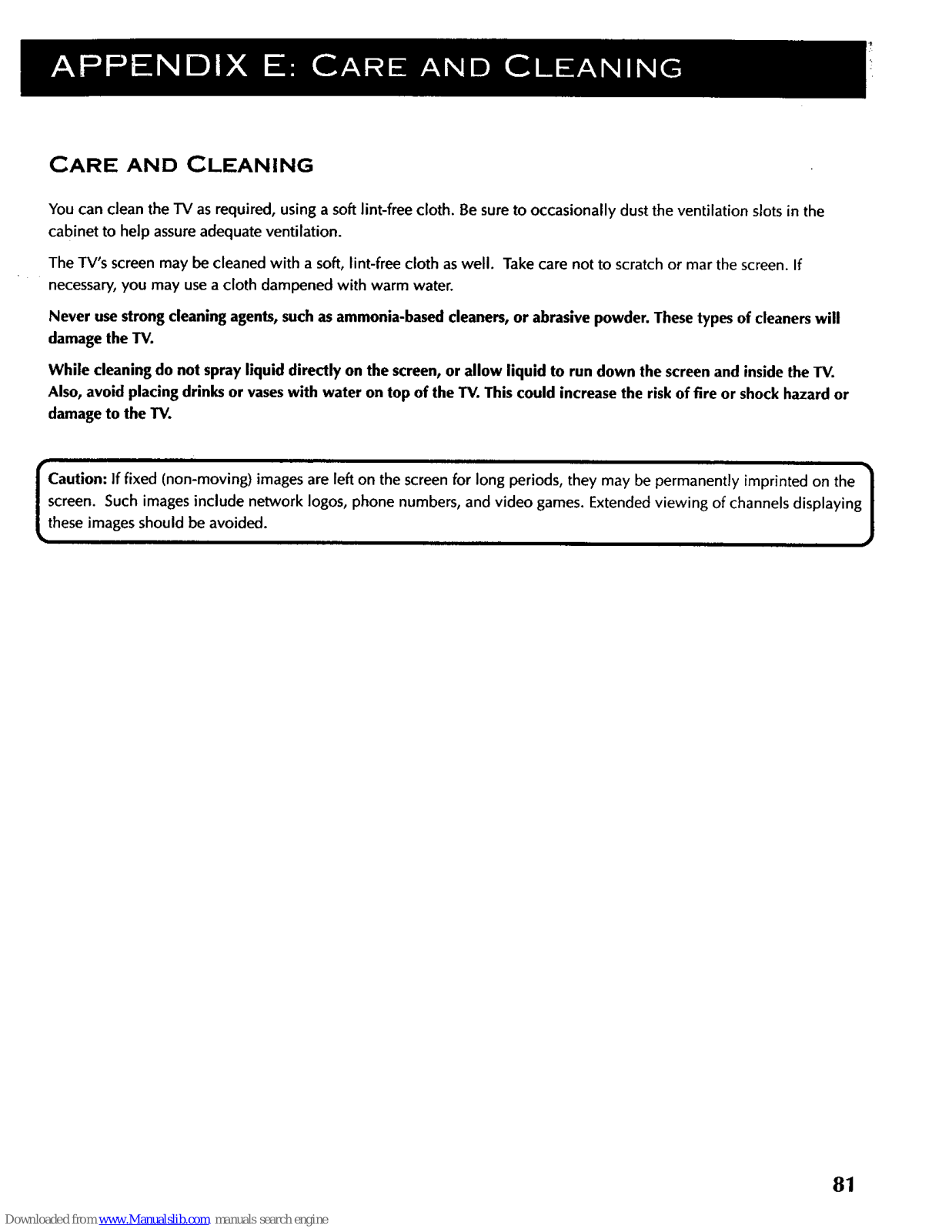

APPENDIX E: CARE AND CLEANING.. 81

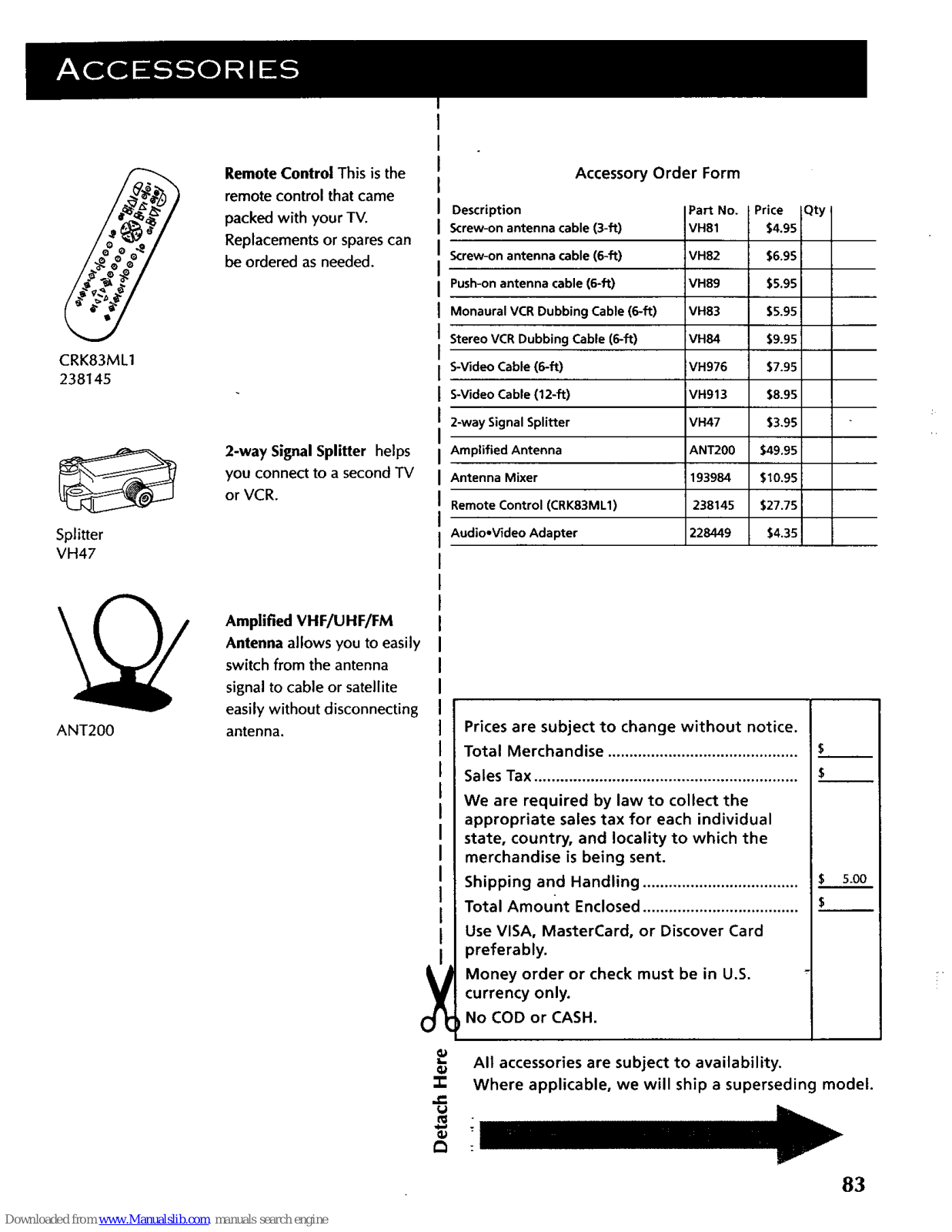

ACCESSORIES .................................. 82
INDEX ............................................. 85
2

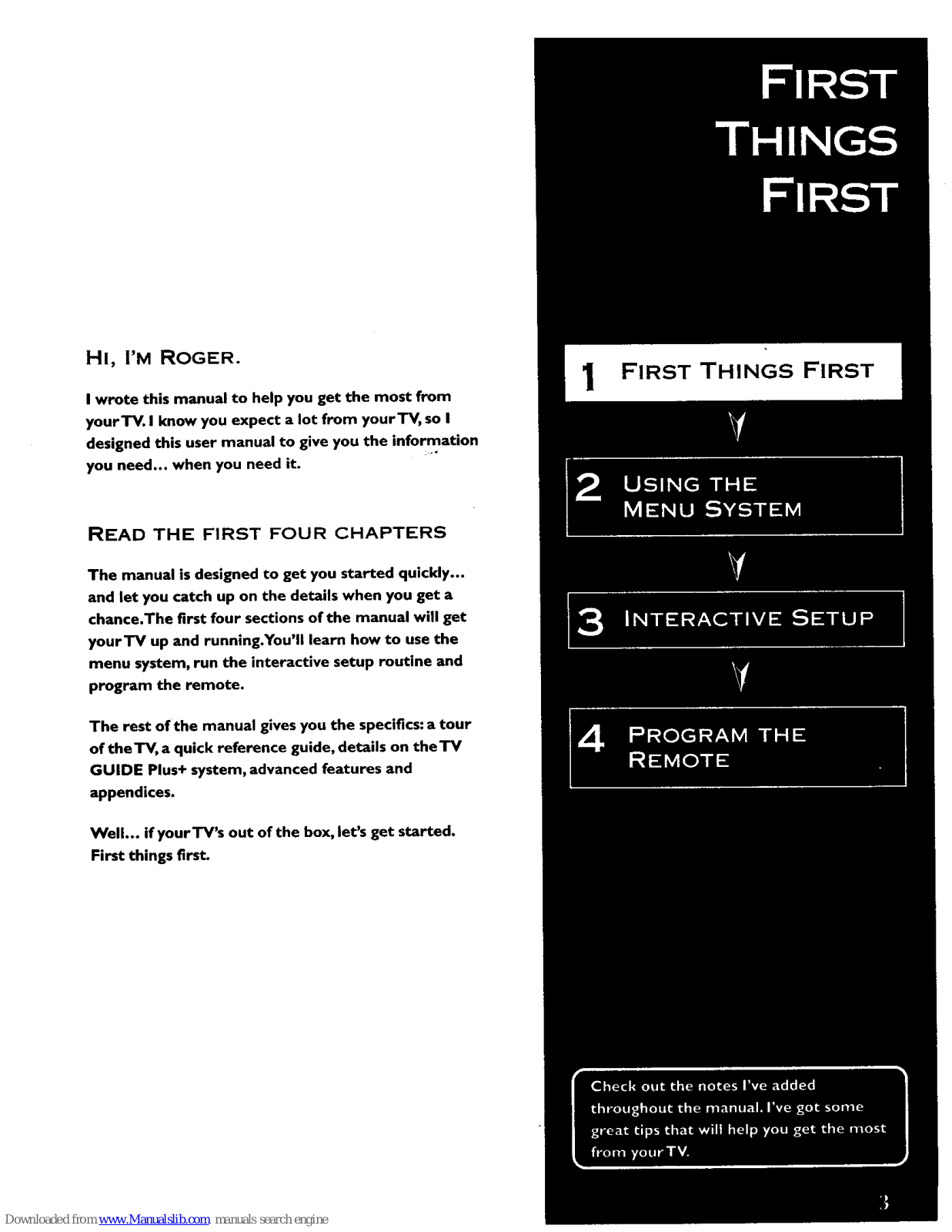

HI, I'M ROGER.
I wrote this manual to help you get the most from
yourTV. I know you expect a lot from yourTV, so I
designed this user manual to give you the information
you need.., when you need it.
READ THE FIRST FOUR CHAPTERS
The manual is designed co get you started quickly...
and let you catch up on the details when you get a
chance.The first four sections of the manual will get
yourTV up and running.You'll learn how to use the
menu system, run the interactive setup routine and
program the remote.
The rest of the manual gives you the specifics:a tour
of the'rV, a quick reference guide, details on theTV
GUIDE Plus+ system, advanced features and
appendices.
Well... if yourTV's out of the box, let's get started.
First things first.
1

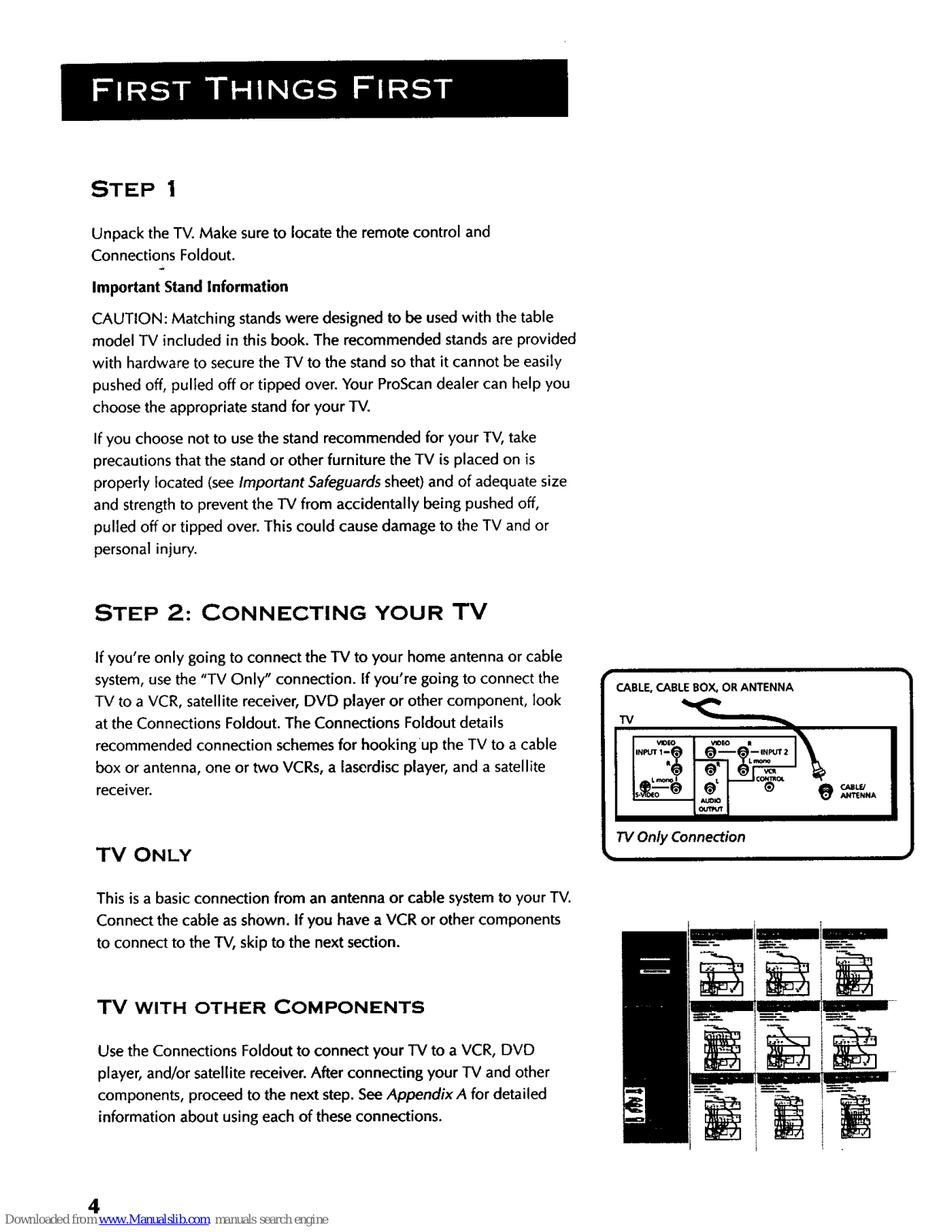

FIRST THINGS FIRST
STEP 1
Unpack the TV. Make sure to locate the remote control and
Connections Foldout.
Important Stand Information
CAUTION: Matching stands were designed to be used with the table
model TV included in this book. The recommended stands are provided
with hardware to secure the TV to the stand sothat it cannot be easily
pushed off, pulled off or tipped over. Your ProScan dealer can help you
choose the appropriate stand for your TV.
If you choose not to use the stand recommended foryour TV, take
precautions that the stand or other furniture the TV isplaced on is
properly located (see Important Safeguards sheet) and of adequate size
and strength to prevent the TV from accidentally being pushed off,
pulled off or tipped over. This could cause damage to the TV and or
personal injury.
STEP 2: CONNECTING YOUR TV
If you're only going to connect the TV to your home antenna or cable
system, use the "TV Only" connection. If you're going to connect the
TV to a VCR, satellite receiver, DVD player or other component, look
at the Connections Foldout. The Connections Foldout details
recommended connection schemes for hooking up the TV to a cable
box or antenna, one or two VCRs, a laserdisc player, and a satellite
receiver.
TV ONLY
This is a basic connection from an antenna or cable system to your TV.
Connect the cable asshown. If you have a VCR or other components
to connect to the TV, skip to the next section.
TV WITH OTHER COMPONENTS
Use the Connections Foldout to connect your TV to a VCR, DVD
player, and/or satellite receiver. After connecting your TV and other
components, proceed to the next step. See Appendix A for detailed
information about using each of these connections.
CABLE, CABLE BOX, OR ANTENNA
AN_NNA
TV Only Connection
•
4
If your components don't match those shown on the foldout, or if you
prefer a different connection, seeyour dealer or specific component
user manuals.

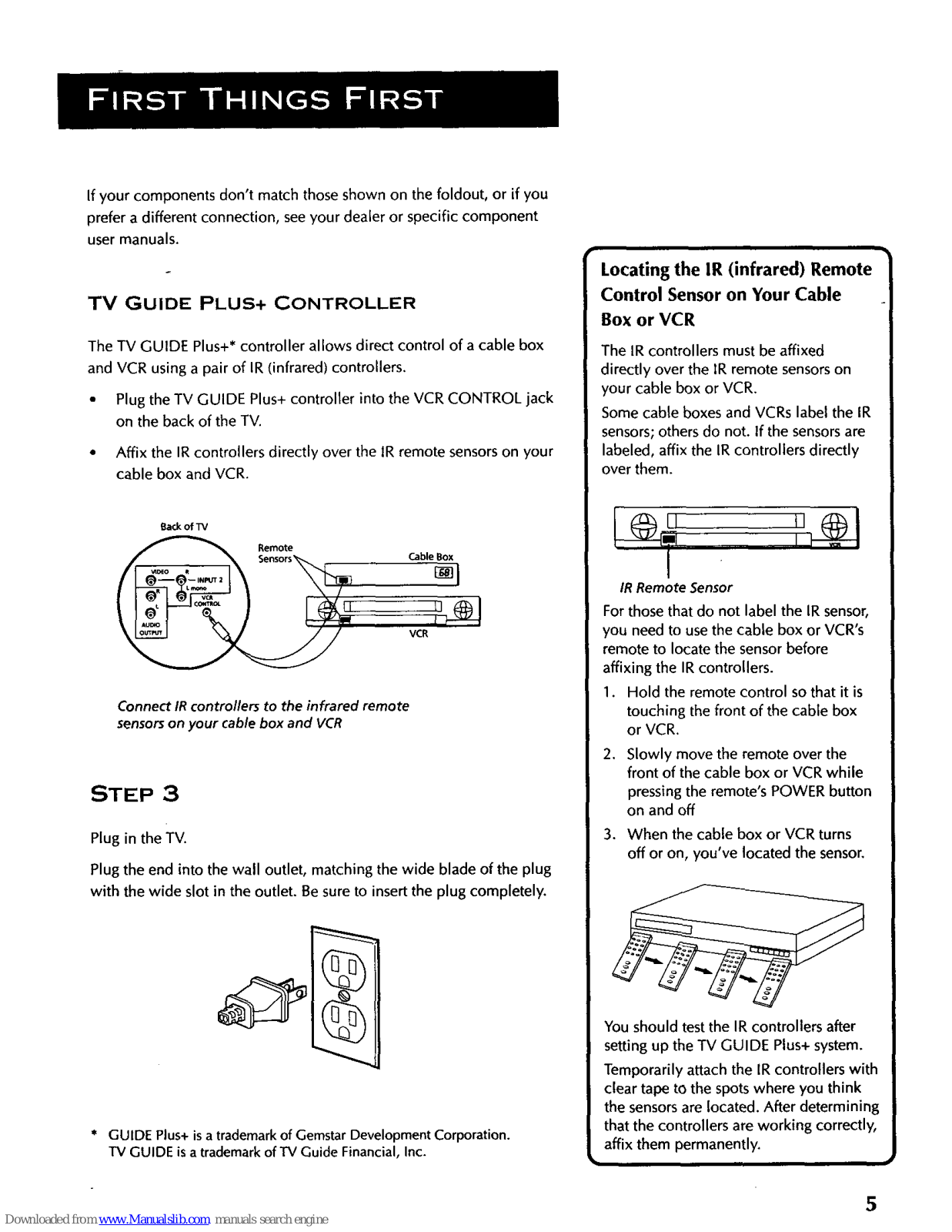

TV GUIDE PLUS+ CONTROLLER
The TV GUIDE Plus+* controller allows direct control of a cable box
and VCR using a pair of IR (infrared) controllers.
• Plug the TV GUIDE Plus+ controller into the VCR CONTROL jack
on the back of the TV.
• Affix the IR controllers directly over the lR remote sensors on your
cable box and VCR.
Back of TV
vcRI _J
Connect IR controllers to the infrared remote
sensors on your cable box and VCR
STEP 3
Plug in the TV.
Plug the end into the wall outlet, matching the wide blade of the plug
with the wide slot in the outlet. Be sure to insert the plug completely.
* GUIDE Plus+ is a trademark of Gemstar Development Corporation.
TV GUIDE is a trademark of'IV Guide Financial, Inc.
Locating the IR (infrared) Remote
Control Sensor on Your Cable
Box or VCR
The IR controllers must be affixed
directly over the IR remote sensorson
your cable box or VCR.
Some cable boxes and VCRs label the IR
sensors; others do not. If the sensors are
labeled, affix the IR controllers directly
over them.
IRRemoteSensor
Forthose that do not label the IR sensor,
you need to usethe cable box or VCR's
remote to locate the sensor before
affixing the IR controllers.
1. Hold the remote control so that it is
touching the front of the cable box
or VCR.
2. Slowly move the remote over the
front of the cable box or VCR while
pressing the remote's POWER button
on and off
3. When the cable box or VCR turns
off or on, you've located the sensor.
You should test the IR controllers after
setting up the TV GUIDE Plus+ system.
Temporarily attach the IR controllers with
clear tape to the spots where you think
the sensors are located. After determining
that the controllers are working correctly,
affix them permanently.
5

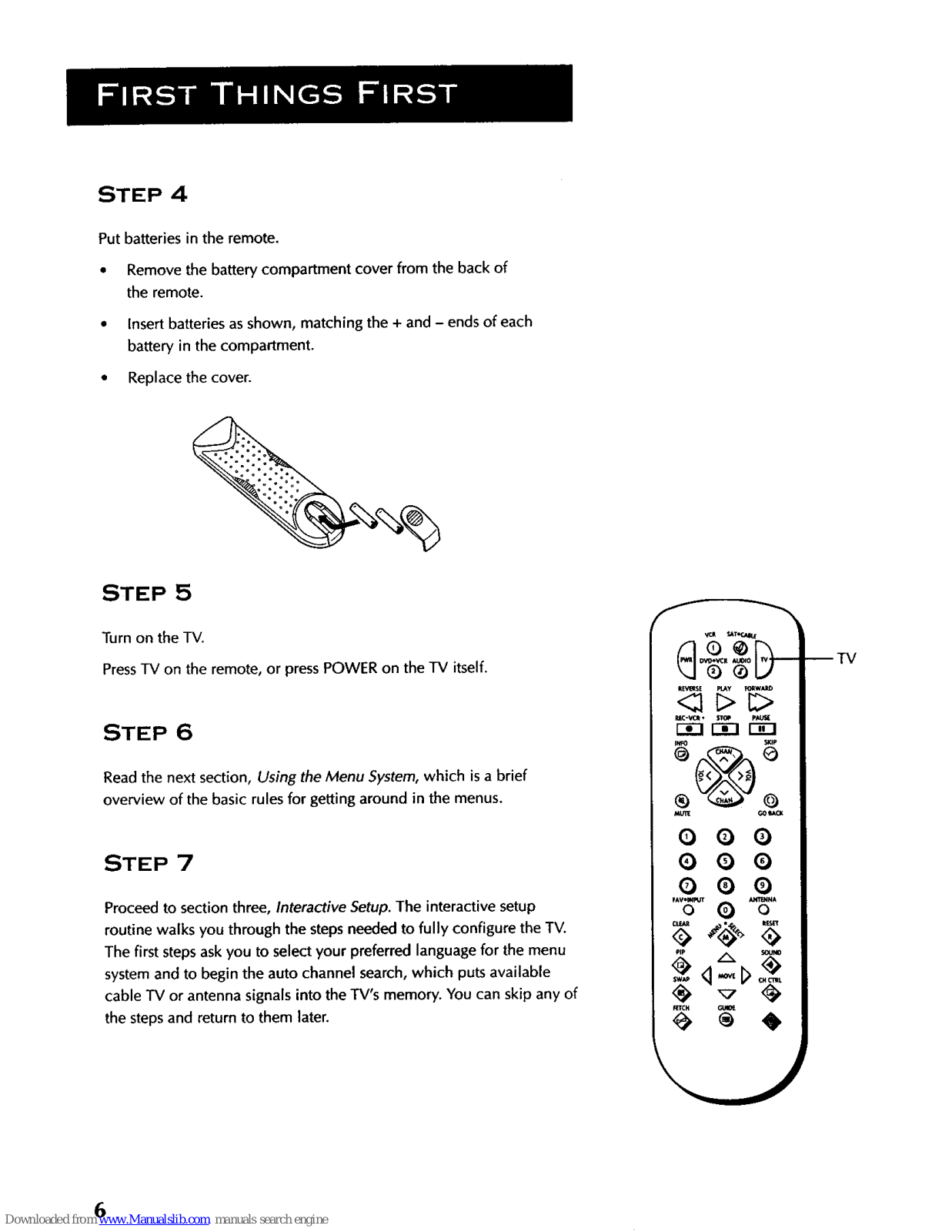

STEP 4
Put batteries in the remote.
• Remove the battery compartment cover from the back of
the remote.
• Insert batteries asshown, matching the + and - ends of each
battery in the compartment.
• Replace the cover.
STEP 5
Turn on the TV.
PressTV on the remote, or press POWER on the TV itself.
STEP 6
Readthe next section, Using the Menu System, which is a brief
overview of the basic rules for getting around in the menus.
STEP 7
Proceed to section three, Interactive Setup. The interactive setup
routine walks you through the steps needed to fully configure the TV.
The first steps ask you to select your preferred language for the menu
system and to begin the auto channel search, which puts available
cable TV or antenna signals into the TV's memory. You can skip any of
the stepsand return to them later.
REVISE _W_
r_-i r-,-i r-_
+@+
0 0 0
0 0 0
0 O0
FAV.m,_,UT _J4TI_NA
o 0 o
6
ONE RULE TO REMEMBER
You control and customize theTV by making changes to
various control panels in the menu system.The great
thing is,you only need to know one rule: point and select.
USING THE
MENU SYSTEM
THE MENU RULE: POINT AND SELECT
You only need to know one rule to usethe on-screen menus and
control I_aneis:point and select.
WHAT IS POINT AND SELECT?
The point and select method has two steps.
1. Point to a menu item using the MOVE arrows on the remote.
To point up or down, pressthe up or down arrows. To point left or
right, press the left or right arrows.
2. Seled a menu item by pressing MENU-SELECT.
Selecting an item tells the TV's menu system to go ahead and
make the change or go to a place you have indicated.
For example, to select the Channel menu from the Main menu:
1. PressMENU to bring up the Main menu.
2. Point to Channel by pressingthe down arrow until the word
Channel is highlighted.
Tip: You can also select a menu item by
enteringthe item number with the
number buttonson the remote.
PressCLEARat any time to remove all
displays from the screenand returnto TV
viewing.
Many VCR usermanuals refer to a
PROGRAM button. The MENUeSELECT
button on this remote works asa
PROGRAM button in VCR mode. The rest
of this manual refersto this button only as
MENU.
J
8

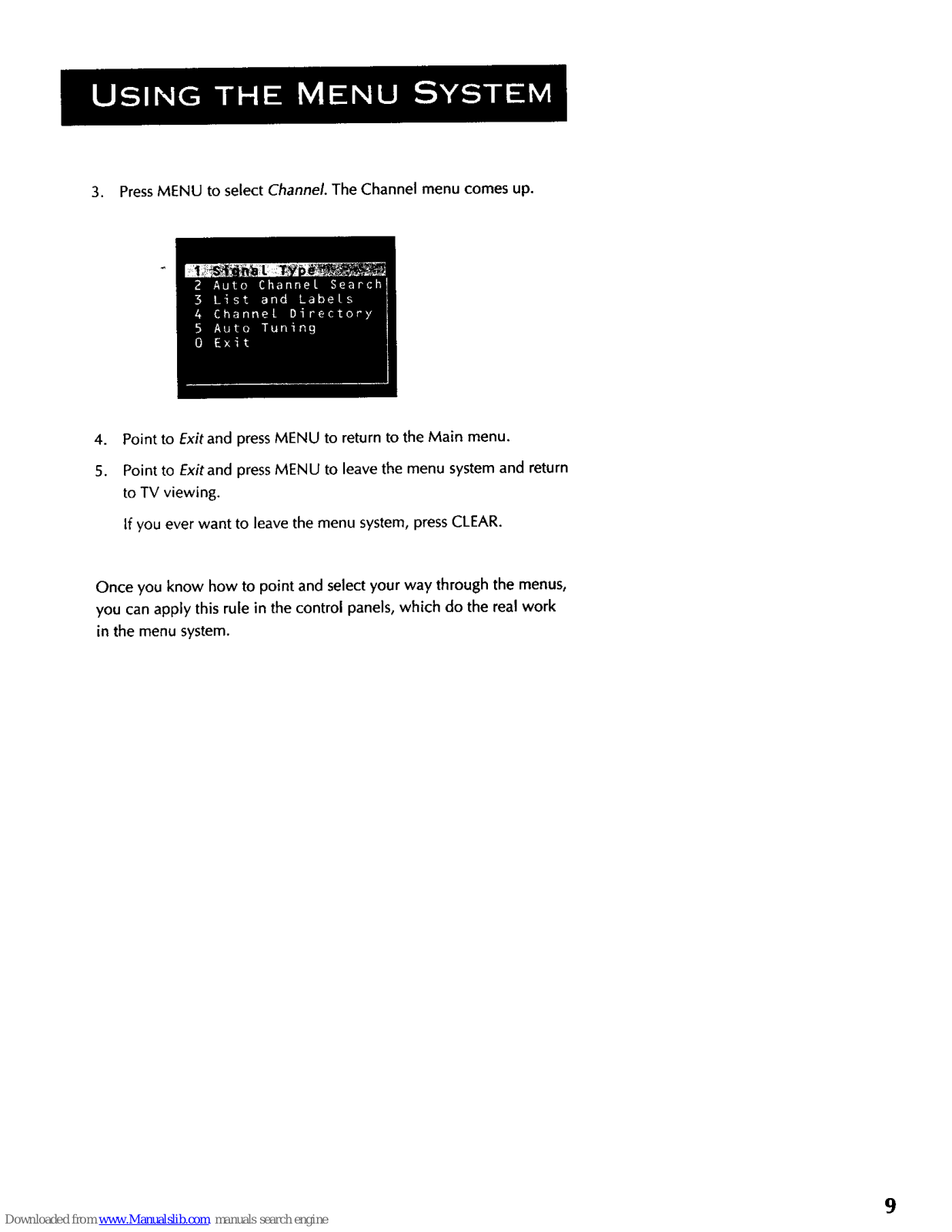

3. PressMENU to select Channel. The Channel menu comes up.
4. Point to Exit and press MENU to return to the Main menu.
5, Point to Exit and press MENU to leave the menu system and return
to TV viewing.
if you ever want to leave the menu system, press CLEAR.
Once you know how to point and select your way through the menus,
you can apply this rule in the control panels, which do the real work
in the menu system.
9
MENUS AND CONTROL PANELS
There are three parts to the menu system: menus, control panels, and
the TV GUIDE Plus+ system. But before you can use control panels or
the TV GUIDE Plus+ system, you first have to move through at least
one menu--the Main menu.
MENUS
The first menu is called the Main menu. To bring up the Main menu:
1. PressMENU on the remote or front panel:
Menus take you to another menu or a control panel. There are two
ways to make a choice in a menu:
• Point and select with the MOVE arrows and MENU.
• Pressa number button on the remote. Forexample, in the Main
menu press 3 to go straight to the Screen menu.
Exiting a menu
There are three ways to exit a menu:
• Pointto Exitand press MENU.
• Press0 on the remote.
• PressCLEAR. The on-screen displays are cleared from the screen
and you are returned to TV viewing.
Feel free to explore the menu system. If
you're ever unsure where you are in the
menu system, or you're just plain tired of
exploring, press CLEAR to remove the
menus from the screen and start over
again.
10
CONTROL PANELS
Control Panels do the work in the menu system: it's where you choose
a setting, ejnter a number, or adjust a level such astint or brightness.
There are three kinds of control panels: sliders, choice lists, and
numeric entry.
Sliders
Sliders are used to make adjustments to a particular control.
For example, to adjust the TV's contrast:
1. PressMENU to bring up the Main menu.
2. Point to Picture Quality and press MENU. The Picture Quality
menu comes up.
3. PressMENU to select Basic Picture Controls.
4. Pressthe right or left arrow to adjust the indicator line. Notice that
the picture changes asyou adjust the contrast.
Now that you know how the Contrast slider works, you know how all
sliders work.
{
You don't need to remember the names
of the control panel types. Once you've
learned how each type works, you'll be
able to use any part of the menu system.
}
11
CHOICE LISTS
Choice lists are used to choose a particular setting from a list of
settings. ]'he current setting in a choice list is always the highlighted
item.
For example, to indicate whether you're currently using a home
antenna or a cable TV signals:
1. PressMENU to bring up the Main menu.
2. Point to Channel and pressMENU. The Channel menu comes up.
3. Point to Signal Typeand press MENU. The Signal Type choice list
comes up with the current setting highlighted. For example:
4.
6.
Point to the correct setting for your connection and press MENU.
As soon as you select a choice, the TV saves your change, and
you are returned to the previous menu.
Point to Exitand press MENU to return to the Main menu.
Point to Exitand press MENU to return to TV viewing.
12
NUMERIC ENTRY
A numeric entry control panel is used to enter numbers or letters.
For example, to set the current time:
I. PressMENU to bring up the Main menu.
2. Point to Time and press MENU.
3. Point to Set Time and press MENU. The SetTime numeric entry
control panel comes up. Notice the pointer underneath the first
column.
4,
5.
6.
Pressthe up arrow to enter a number in that column.
Pressthe right arrow to move to the next column, then pressthe
up or down arrow to enter a number.
Repeat Step 5 until you have entered the hour and minute for the
current time. Notice that when you reach the last column,
pressing the up or down arrow changes whether the time reads
AM or PM.
7. When you have entered the correct time, press MENU. You are
returned to the Time menu.
8. Point to Exit and pressMENU to return to the Main menu.
9. Point to Exit and press MENU to return to TV viewing.
If the control panel is not set at the
current time, usethe left arrow to go back
over the columns and the up arrow to
make changes.
You can also enter numbers directly by
using the number buttons.
13
TV GUIDE PLUS+ MENUS
The TV GUIDE Plus+ system is an interactive on-screen program guide
that lists TV schedules for your area, and allows your TV direct control
of a cable box and VCR. Use of the system's menus differs slightly from
the point and select method described earlier.
I. PressGUIDE to bring up the TV GUIDE Plus+ menu.
'am Information
WGN 9 Baseball-Cubs vs Braves
WNBC 4 Simple Pleasures
WCBS ii J_rry Springer
WTRW 17 Weaving Today
WJAX 34 The Ubiquitious G-Men
WIMT 42 YOU Bet Your Life
Channel Listing
There are three sections to a TV GUIDE Plus+ menu:
• A row of menus or options across the top of the screen
• Program information
• Channel listing
Unlike your TV's other menus, TV GUIDE Plus+ menus usetwo
methods of pointing and selecting on the same screen---one for
menus or options, and one for program information.
To select menus or options:
• Pressthe right or left arrow to highlight your choice.
* PressMENU to select the highlighted item. MENU is used only
when selecting menus or options.
To make selections in the program listing:
', Pressthe up or down arrow to select a channel.
• PressGUIDE to exit the TV GUIDE Plus+ system. The "iV will
change to the channel you selected.
See Interactive Setup and Advanced Features for more information on
using the TV GUIDE Plus+ system.
TV GUIDE Plus+ screens illustrated in
this book are representations of what
you are likely to see. Not all channels,
programs, and "IV GUIDE Plus+ infor-
mation depicted will be available in
your area.
Currently, program information can
include title, brief description, time
program starts, length, and the
availability of closed captioning, stereo
and additional program information.
New features and options can be
downloaded to the TV GUIDE Plus+
system, so these too are subject to
change.
14
THERE'S AN ON-SCREEN SETUP
ROUTINE
Your TY has software that tells it what to do, just like a
computer-The interactive setup routine takes you
through the steps needed to configure theTV:
• Select a menu language
• Search for available channels
Set up theTV GUIDE Plus+ system
Set the time
Set theVCRI channel
Set the DVD/VCR2 channel
• Set the SATICABLE channel
Make the channel list and labels
3
INTERACTIVE SETUP
ENTERING SETUP
Setup is accessed through the Main menu:
I. PressMENU to bring up the Main menu.
2. Point to Setup and pressMENU. The first Setup screen comes up,
asking you to confirm that you want to begin.
3. PressMENU to begin the Setup routine.
SELECT A LANGUAGE
The first part of the setup routine asksyou to select your preferred
language for the menuing system.
I. Point to your preferred languagefor the menuing system.
2. PressMENU to select that language for the menuing system.
AUTO CHANNEL SEARCH
The next part of the setup routine asks-you if you want the TV to
search automatically for all channels available through your antenna
or cable TV system. This is sometimes called "autoprogramming."
16
1,
PressMENU to tell the TV to begin searching for channels. The
display gives you a progress report and tells you when it has
finished.
2. PressMENU to continue.
If you skip Auto Channel Search now,
you can access it later through the
Channe! menu. You can also put
channels in memory manually using List
& Labels. See Quick Reference for more
details.
TV GUIDE PLUS+ SYSTEM
The next step letsyou set up the TV GUIDE Plus+ system to display
your local program listings, and control your cable box and VCR
1'. 'Press MENU to bring up the TV GUIDE Plus+ initial menu.
Demo
Select Channels
* Exit
2. PressMENU to begin setup.
To complete TV GUIDE Plus+ setup, you
must have already connected the TV
GUIDE Plus+ controllers to your cable
box and VCR. Refer to First Things First
for more details.
17
The first two screens ask for information about where you live.
.!
Where do you live?
canada
3. Select your country.
Enter your zipcode
4. Enteryour ZIP code (Postal Code in Canada) using the numeric
keypad. If you make a mistake, press MENU to back up a number.
The next series of screens asksyou about your cable TV setup. If you
have a cable box, you will want to set the TV GUIDE Plus+ system to
control it. Otherwise, it may not be able to locate and download
program information. ".,
NO
Do yOU have cable?
5. Select YESif you have cable r NO if you do not.
i
• 1
Since the program information provided
by the TV GUIDE Plus+ system is based
on your locale, you will need to run
setup again if you move.
18
NO
DO you have a cable box?
6. Select YESif you have a cable box, or NO if you do not.
CANCEL EXIT
Turn o_ cable box
Enter cable box brand # from
brand table in your manual
7. Enter the code for your cable box's brand from the table on the
following pages.
When the TV GUIDE Plus+ system correctly identifies the brand and
model of your cable box, the cable box changes to channel 9.
NO EXIT
Testing code 1 2 - 0 1
Has your cable box
switched to channel 9?
8. Select YESif the cable box changed to channel 9, or NO if it did
not. If you select NO, the system will try another code.
Once the correct model of cable box has been identified, you will
need to set the cable box's output channel.
When the TV GUIDE Plus+ system
cannot recognize either your cable box
or VGR after several tries, a screen
reading, "Cable Box (VCR) tea failed...
Please consult manual and try again"
appears. If this happens, you should:
• Double check the codes listed in the
tables, Try entering another if one is
listed.
• Check to make sure the IR
controllers are positioned correctly.
19
CANCEL
9,
Select Cable Box Output Channel
Enter the channel you normally use to view channels through your
cable box--usually 3 or 4. Consult your cable box's instruction
book or your cable company if you are not sure. Choose 0 to use
VIDEO INPUT I.
The last series of screens asksabout your VCR setup.
NO
Do you have a VCR?
I 0. Select YESif you have a VCR, or NO if you do not.
Answering NO automatically skips forward to the end of TV GUIDE
Plus+ setup,
CANCEL EXIT
Tune VCR to 2 and turn it off
Enter VCR brand # from
brand table in your manual
1I. Tune your VCR to channel 2 and turn it off.
12. Enter the code for your VCR's brand from the table on the
following pages.
%
Channels 0-7 can be used for the |
cable box's output channel. "0" is
used for VIDEO INPUT I (INPUT 2
cannot be used); I-7 are regular TV
channels.
SeeAdvanced Featuresfor more details
on using the TV GUIDE Plus+ system to
control a cable box and VCR,
20
When the TV GUIDE Plus+ system correctly identifies the brand and
model of your VCR, the VCR's tuner changes to channel 9.
Testing code 1 2 - 0 1
Has your VCR
switched to channel 9?
13. Select YESif the VCR automatically changed to channel 9,or NO
if it did not. If you select NO, the system will try another code.
This screen comes up when you've successfully finished TVGUIDE
Plus+ setup.
Your TVGuide Plus+ will be
ready for use within 24 hours.
Always leave your cable box
ON and your VCR OFF,
14. Select EXITto continue with the remainder ofthe interactive
setup.
The TV GUIDE Plus+ system will be unavailable until it completes its
first download of program information.
When the power is turned off, the TV locates a "host channel" that
carries TV GUIDE Plus+ data containing program schedule and
channel mapping information. A channel map is the list of stations
and their respective channels. SeeAdvanced Featuresfor more details.
Downloads may be scheduled several times a day. The TV must be
turned off for TV GUIDE Plus+ data to download.
If more than one cable company
services your area, the TV GU'IDE Plus+
system may download a channel map
for each company.
After the TV completes its first down-
load, you will be prompted to
manually select the channel map.
See Advanced Featuresfor complete
instructions.
21
W GUIDE Plus+VCR Codes
Admiral ................................. 19
Akai ...................................... 15
Audio Dynamics ................... 11
Belcor ................................... 16
Bell&Howell ......................... 04
Broksonic .............................. 26
Candle .................................. 27
Canon ................................... 03
Capehart ............................... 16
Craig .......................... :.......... 17
Curtis .................................... 23
Daewoo ................................ 16
DBX ...................................... 11
Electrohome .......................... 08
Electron ................................ 01
Emerson ................................ 05
Fisher .................................... 04
Funai .................................... 14
GE ........................................ 01
Go Video .............................. 02
Goldstar ................................ 22
Grundig ................ _............... 03
Harman Kardon .................... 08
Hitachi .................................. 21
Images .................................. 02
JC Penney ............................. 25
Jenson................................... 31
JVC ....................................... 12
Kenwood .............................. 12
KLH ...................................... 17
Magnavox ............................. 07
Magnin ................................. 23
Marantz ................................ 11
Marta .................................... 22
Memorex .............................. 29
MGA ..................................... 08
Minolta ................................. 21
Mitsubishi ............................. 08
Montgomery Ward ................ 14
Movie Walker ....................... 14
b
MTC ..................................... 14
Multitech .............................. 14
NEC ...................................... 11
Nikko ............................... 16,22
Olympus ............................... 03
Optimus ................................ 27
Optonica .............................. 19
Orion .................................... 24
Panasonic ............................. 03
Pentax ................................... 21
Philco ................................... 28
Philips ................................... 28
Pilot ...................................... 22
Pioneer ................................. 21
ProScan ................................ 01
Quasar .................................. 03
Radio Shack!Realistic ............ 30
Randix .................................. 22
RCA ...................................... 01
Samsung ............................... 23
Sansui ................................... 20
Sanyo .................................... 04
Scott ..................................... 05
Sears..................................... 06
Sharp .................................... 19
Shintom ................................ 17
Shogun ................................. 23
Signature ............................... 19
Sony ..................................... 13
Sylvania ................................ 28
Symphonic ............................ 14
Tatung ................................... 31
Teac ...................................... 31
Teknika ................................. 18
Telefunken ............................ 05
TMK ...................................... 05
Toshiba ................................. 10
Totevision ............................. 23
Vector Research .................... 11
Zenith ................................... 09
The TV GUIDE Plus+ system may not operate all models of the |
brands listed in the tables on this page.
;
W GUIDE Plus+ Cable Box Codes
Archer ................................... 14
Cable Cinema ....................... 31
Cabletenna ........................... 31
Cableview ............................. 31
Century ................................. 27
Citizen .................................. 29
Curtis .................................... 04
Diamond .............................. 31
Eagle..................................... 09
Eastern.................................. t 3
GC Electronics ...................... 26
Gemini ................................. 1S
General Electric .................... 19
General Instrument ............... 01
Gerrard ................................. 27
Hamlin ............................ 06,13
Hitachi .................................. 16
Jasco..................................... 15
Jerrold ................................... 01
Macom ................................. 16
Magnavox ............................. 11
Matsushita ............................ 07
Movietime ............................ 17
NEC ...................................... 22
Novavision ........................... 04
NSC ...................................... 22
Oak ...................................... 05
Oak Sigma ............................ 05
Panasonic ............................. 07
Philips ................................... 10
Pioneer ................................. 02
Pulser .................................... 24
Quest .................................... 02
RCA ...................................... 07
Realistic ................................ 27
Recoton ................................ 27
Regal .................................... 06
Regency ................................ 13
Rembrant .............................. 26
L.L. Marx .............................. 23
Samsung ............................... 23
Scientific Atlanta ................... 04
Sheritech ............................... 12
Signal .................................... 11
Sprucer ................................. 07
Standard Components ........... 17
Stargate ................................. 24
Sylvania ................................ 08
Teknika ................................. 20
Telecaption ........................ ._..21
Teleview ............................... 22
Texscan ................................. 08
Tocom ................................... 18
Toshiba ................................. 30
Unika .................................... 26
Universal .............................. 25
Videoway .............................. 03
Vidtek ................................... 28
Viewstar ................................ 09
Zenith ................................... 03
22
SET THE TIME
The next step lets you set the time of day.
1. PressMENU to bring up the Set Time control panel.
2.
Use the left and right arrows to point to the hour and minutes spaces.
Use the up and down arrows to scroll through the numbers and
change from AM to PM.
3. PressMENU to continue.
23
SET THE VCR1 CHANNEL -
The next step lets you set the VCR1 channel. When you set the VCR1
channel, you're telling the TV what channel to tune to when you press
the VCR1 button on the remote.
For example, if you have a VCR connected to the Video I input jacks
on the back of the TV, you want the TV to tune to the Video 1 input
channel when you press the VCRI button. If you don't have a VCR1
component connected to the TV, skip this step or select Not
Connected from the VCR1 Channel choice list. (For more, see Auto
Tuning in the Quick Reference section.)
1. PressMENU to bring up the VCR1 choice list.
2.
Point to the choice that matches the way you have your VCR
connected to the TV.
If you used the Connections Foldout to hook up your TV, usethe
table shown at the right to select the VCR1 channel.
3. PressMENU to continue.
If you used
Connection A
Connection B
Connection C
Connection D

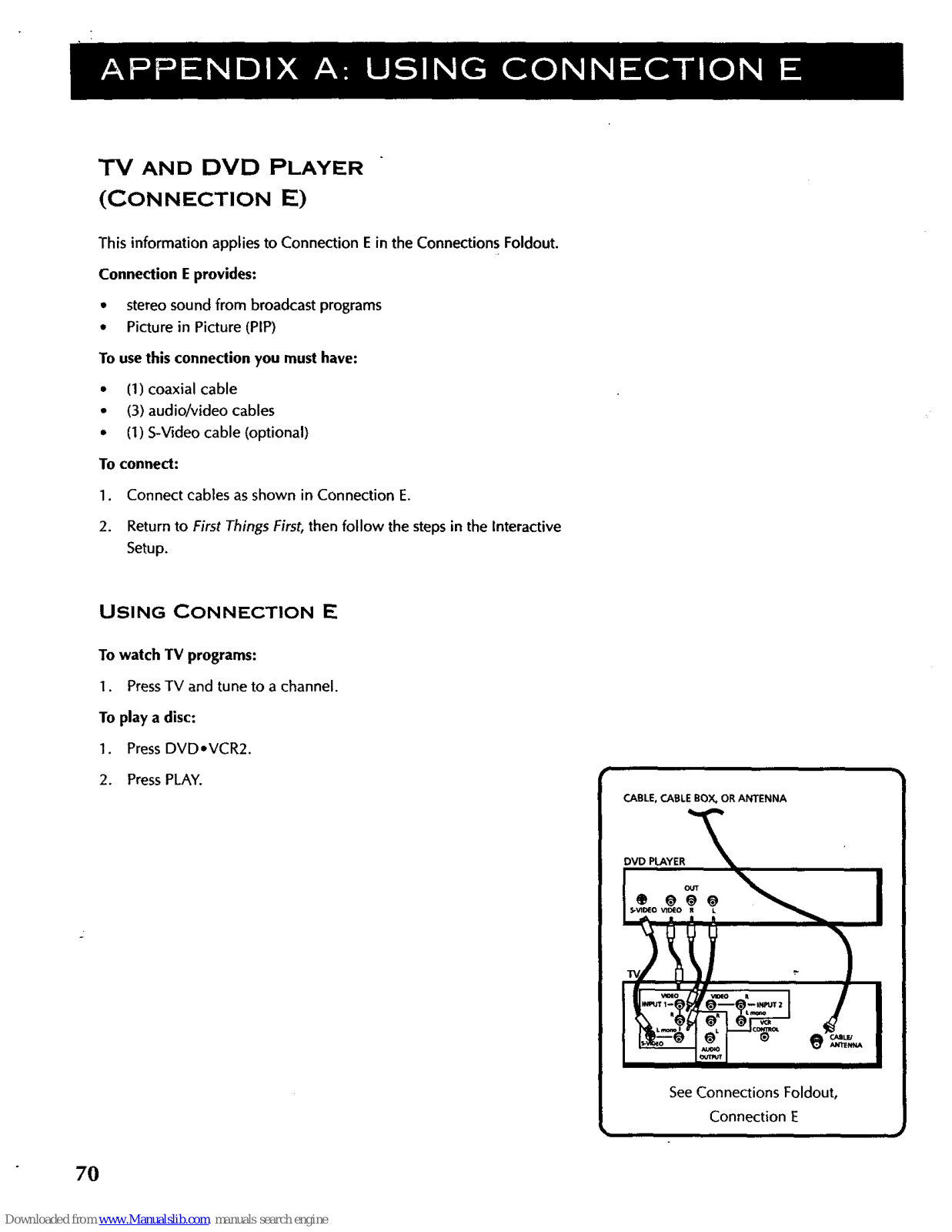

Connection E
Connection F

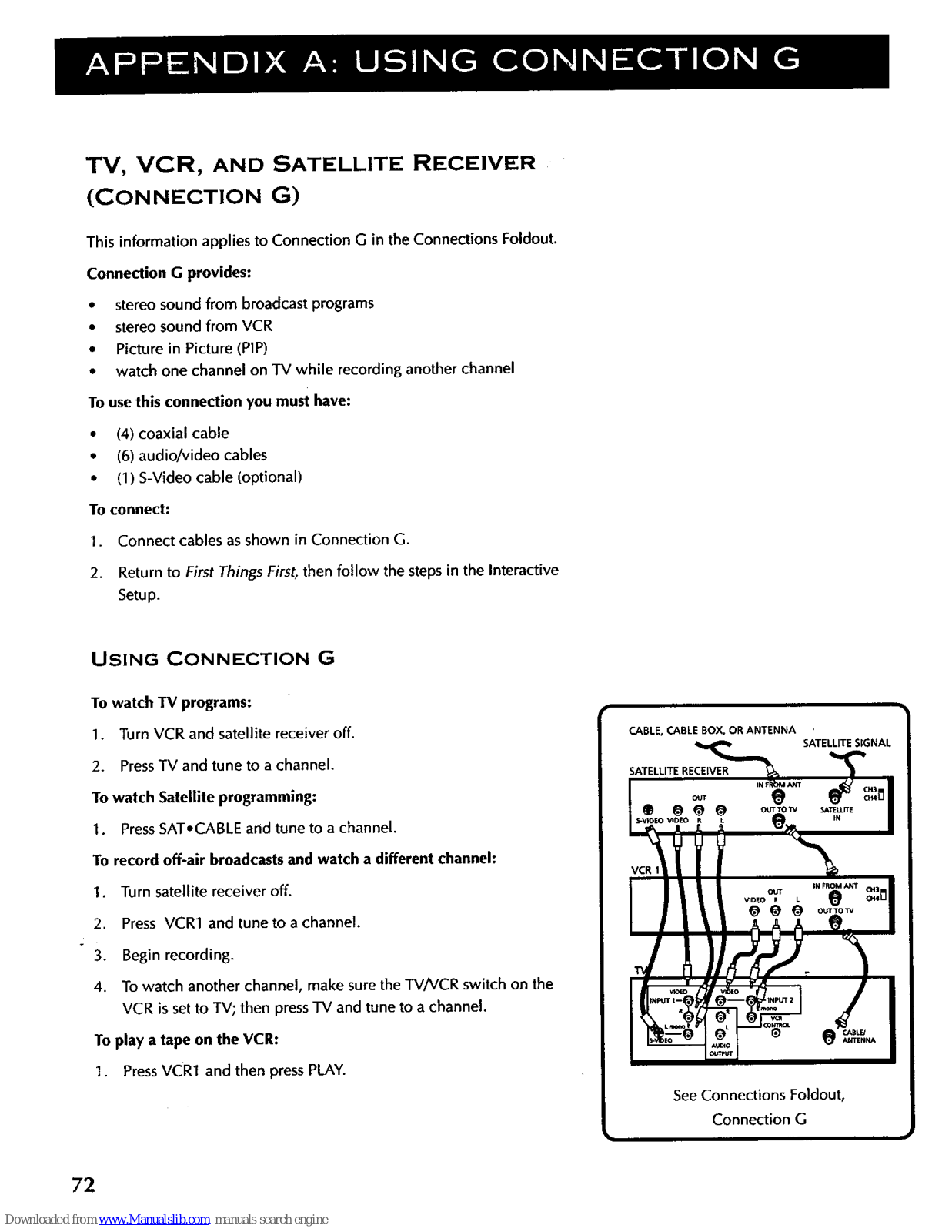

Connection G

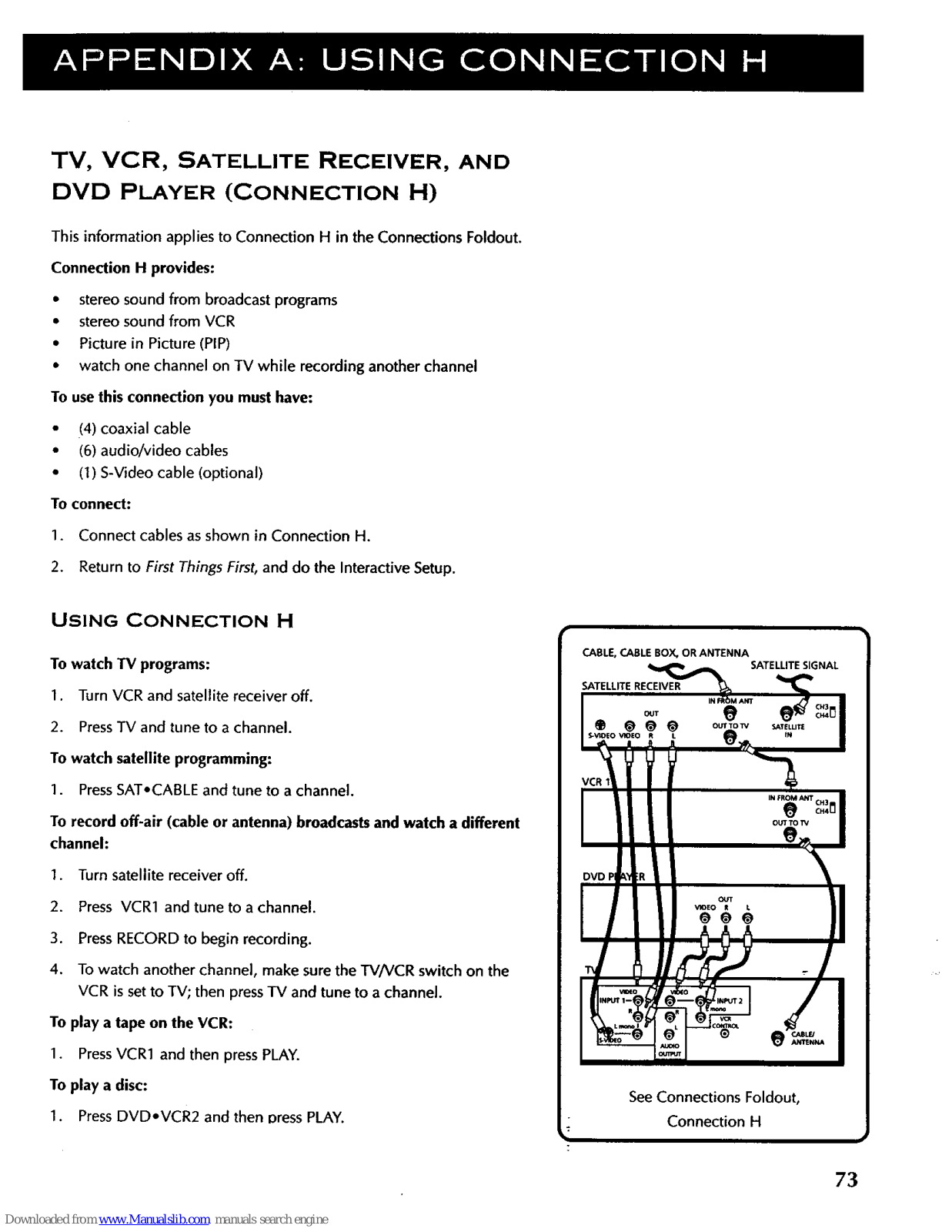

Connection H

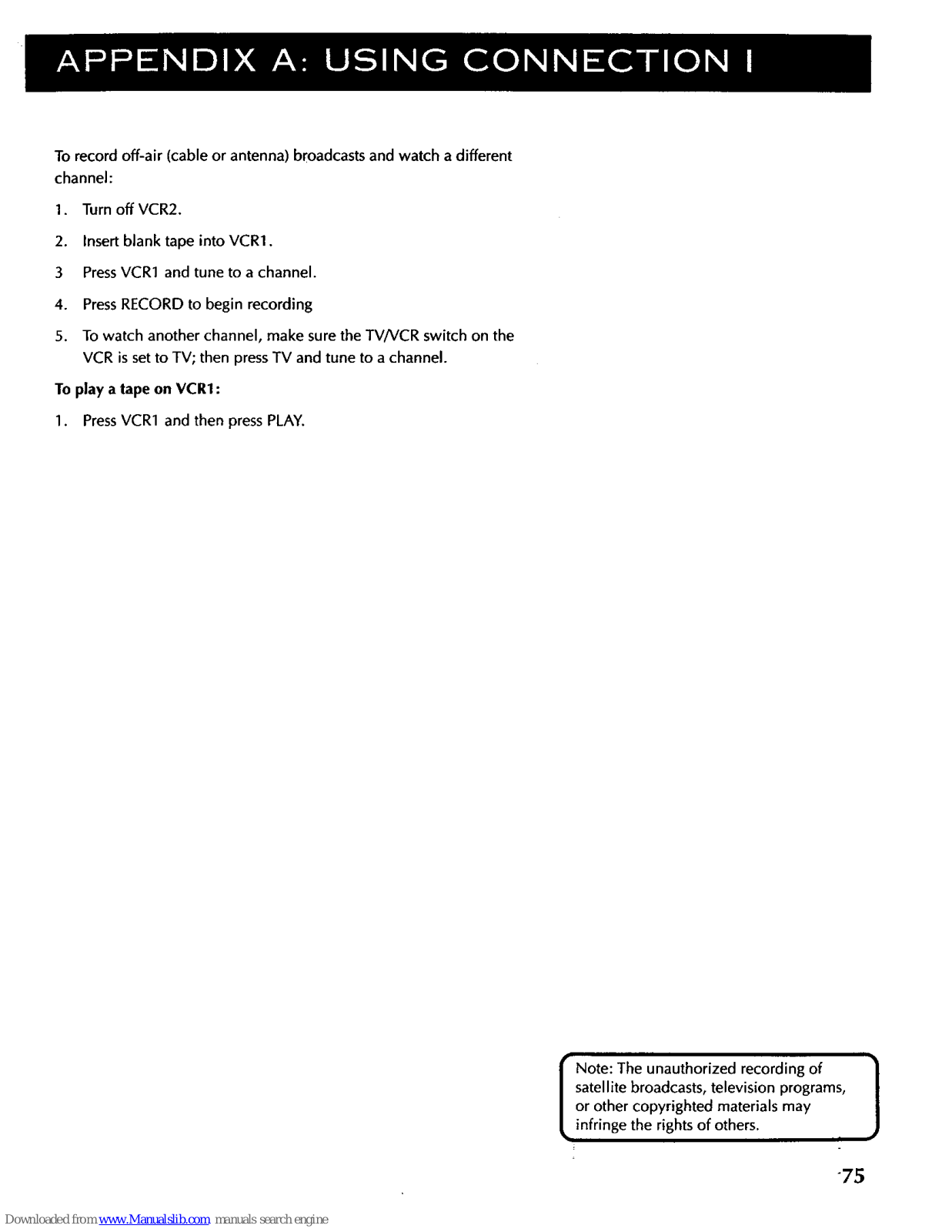

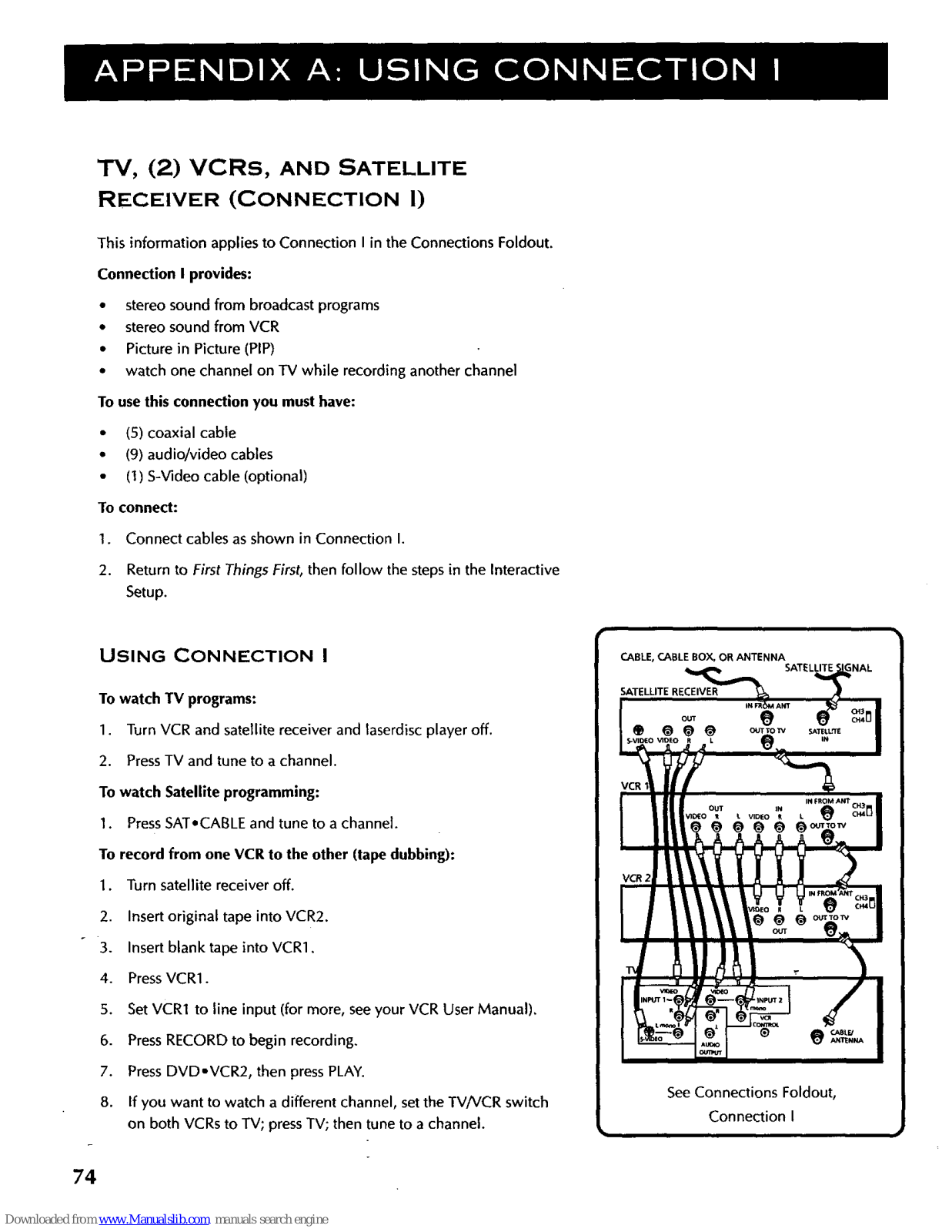

Connection I
Select
Video 1 Input
Video 1 Input
Video 1 Input
Video 1 Input
Not Connected
Not Connected
Video 2 Input
Channel 3*
Video 2 Input
* Or Channel 4, depending on
how your VCR's 3/4 switch is set.
.24
SET THE DVD/VCR2 CHANNEL
The next step lets you set the DVDNCR2 channel. When you setthe
DVDNCR2 channel, you're telling the TV what channel to tune to
when you press the DVD'.VCR2 button on the remote.
For example, if you have a DVD player connected to the Video 2 input
jacks on the back of the TV, you want the TV to tune to the Video 2
input channel when you pressDVDoVCR2. If you don't have a
DVDeVCR2 component connected to the TV, skip this step or select
Not Connected from the DVDNCR2 Channel choice list. (For more,
see Auto Tuning in the Quick Reference section.)
1. PressMENU to bring up the DVDNCR2 choice list.
2.
3.
Point to the choice that matches the way you have your DVD
player or second VCR connected to the TV.
If you used the Connections Foldout to hook up your "IV, use the
table at right to select the DVDNCR2 channel.
PressMENU to continue.
If you used
Connection A
Connection B
Connection C
Connection D
Connection E
Connection F
Connection G
Connection H
Connection I
Select
Not Connected
Not Connected
Video 2 Input
Channel 3*
Video t Input
Not Connected
Not Connected
Video 2 Input
Channel 3*
* Or Channel 4, depending on how
your VCR's 3/4 switch is set.
25
Loading...
