1
Contents
Contents
Caution
Safety Information
Unit and Accessories
Product Feature
Introduction
1. Front View
2. Rear View

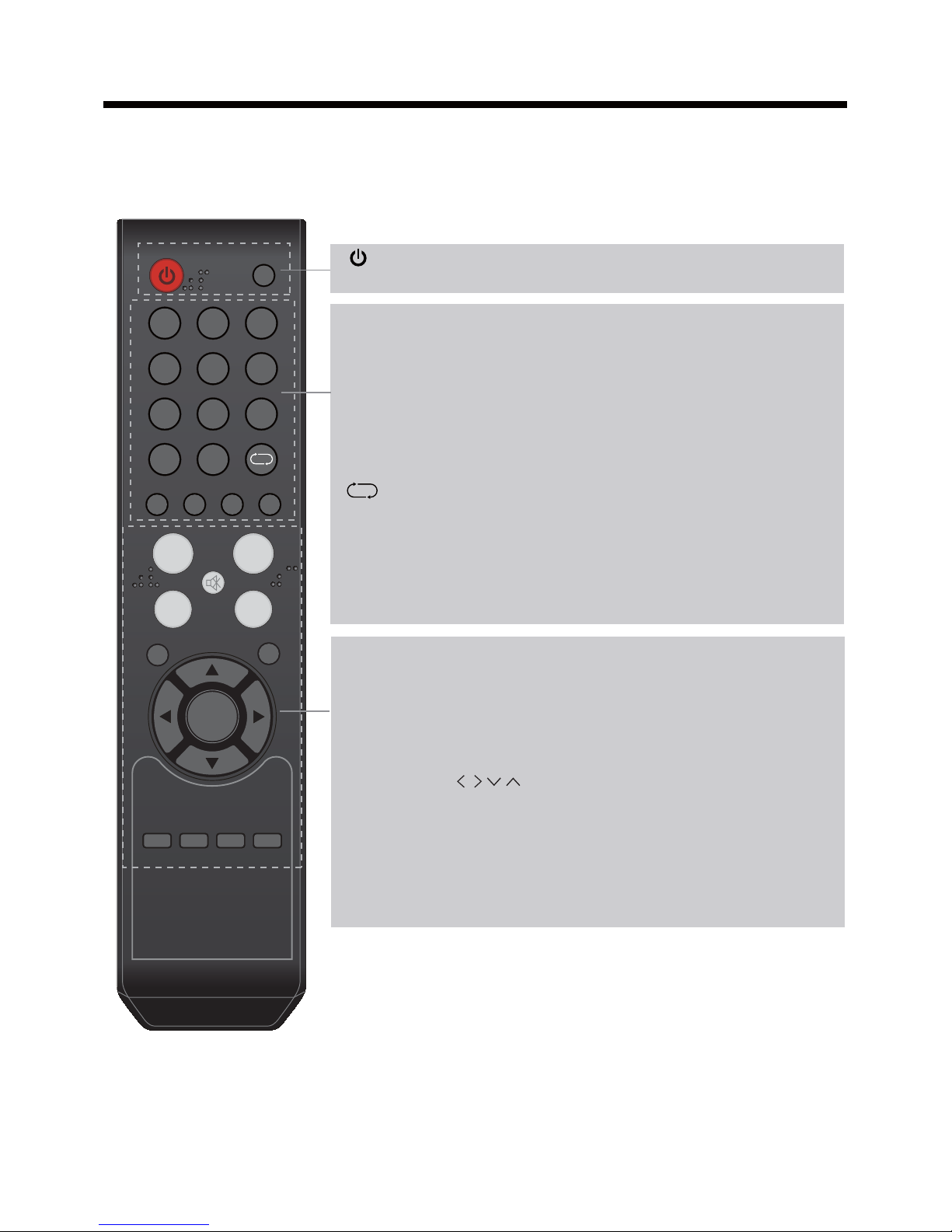

4. Remote Control
Basic Operation
OSD Menu

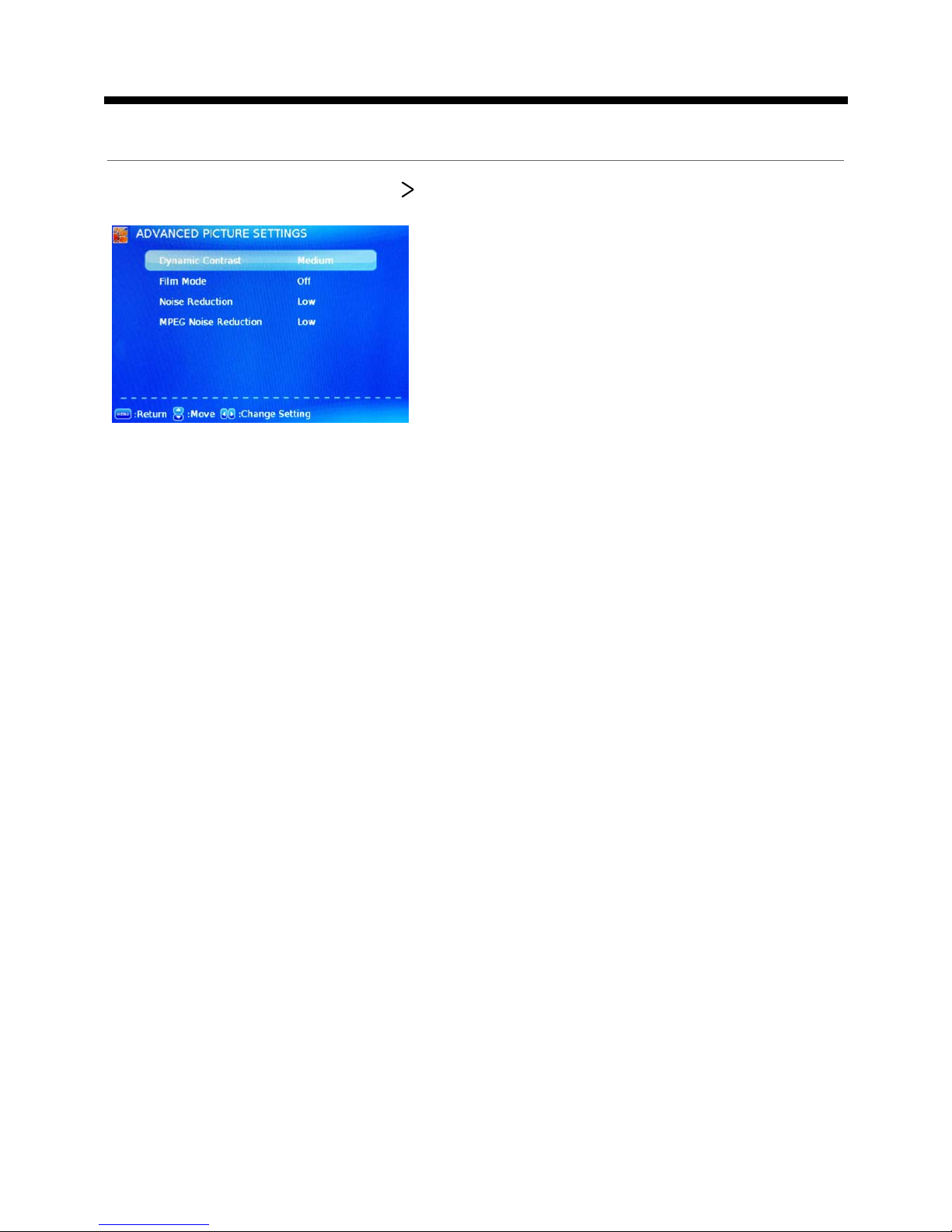

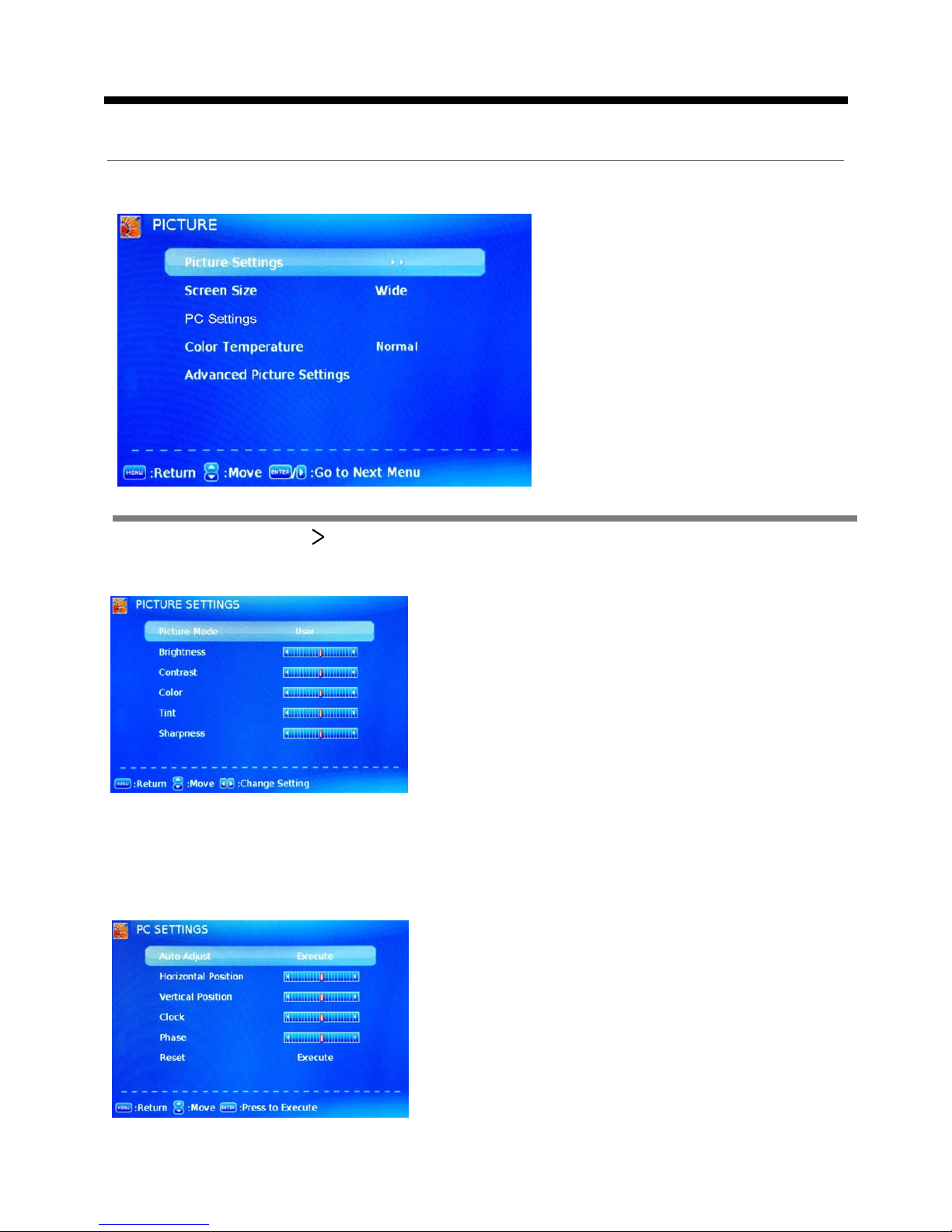

1. Picture menu

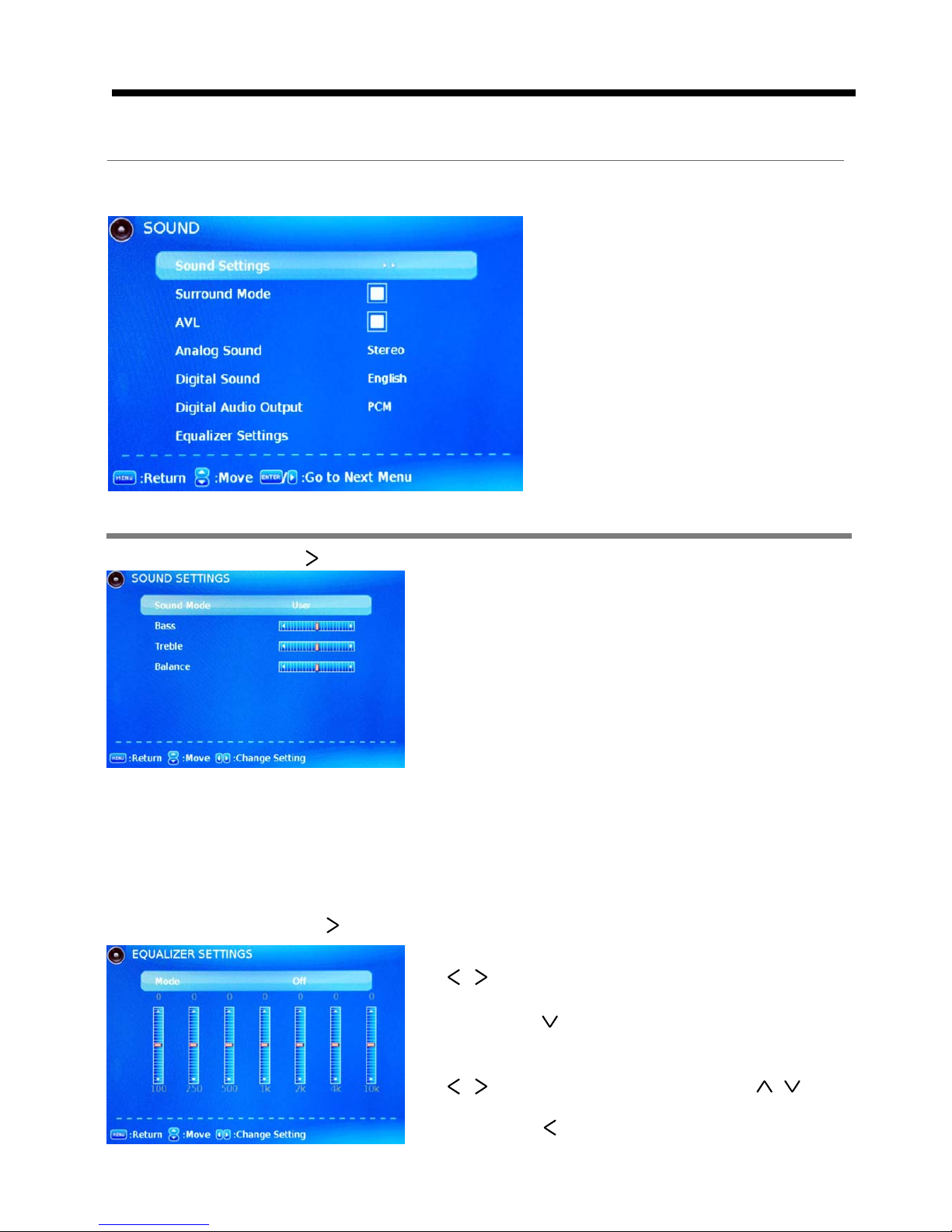

2. Sound menu

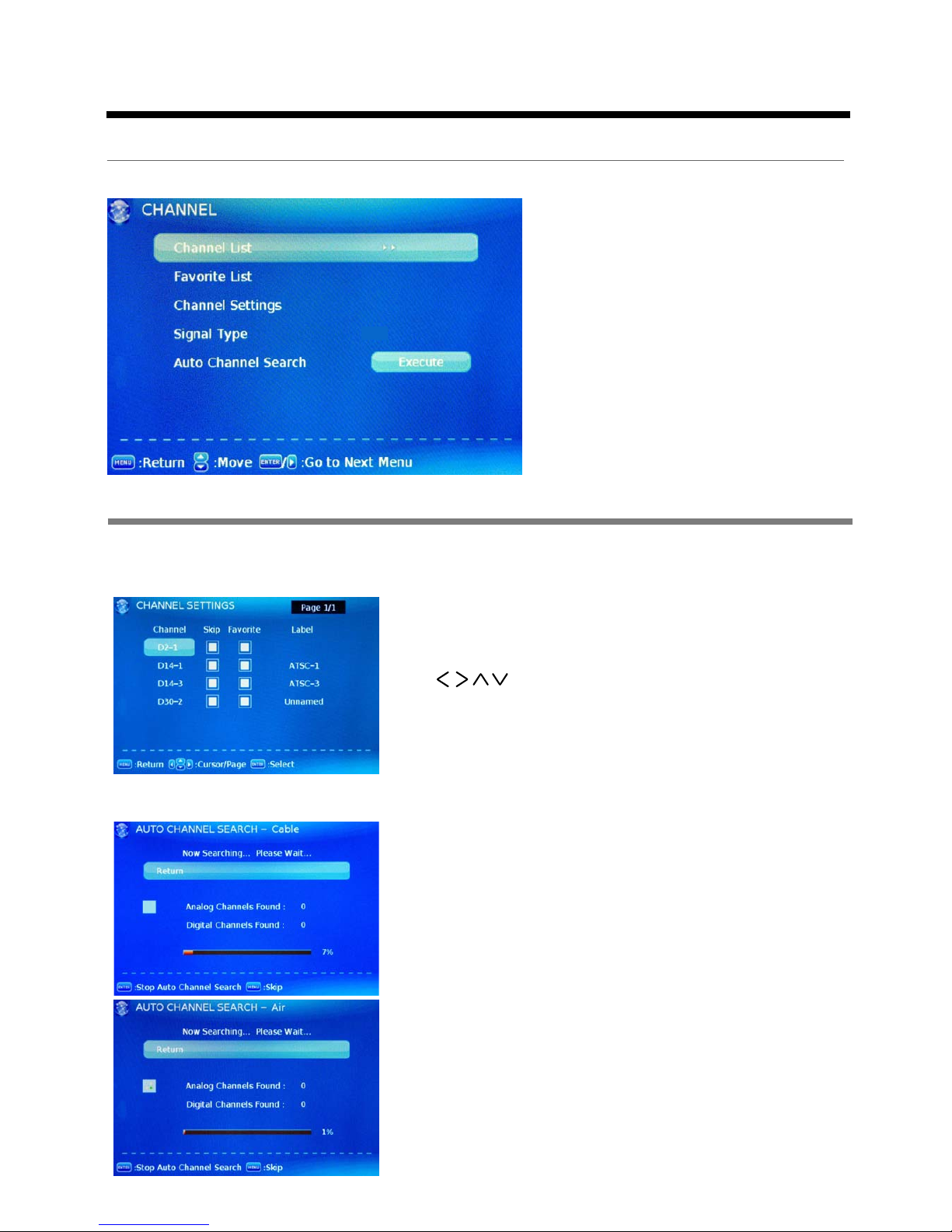

3. Channel menu

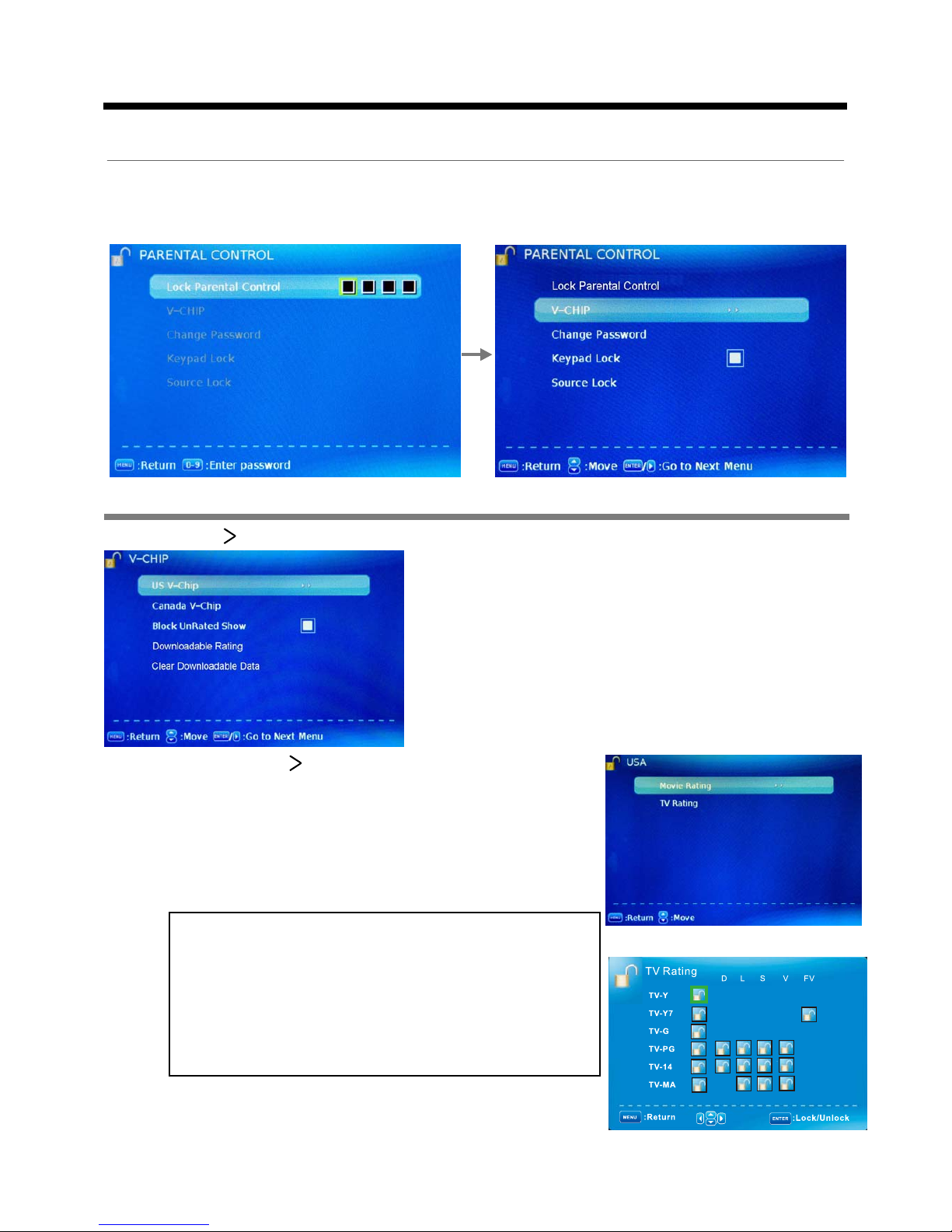

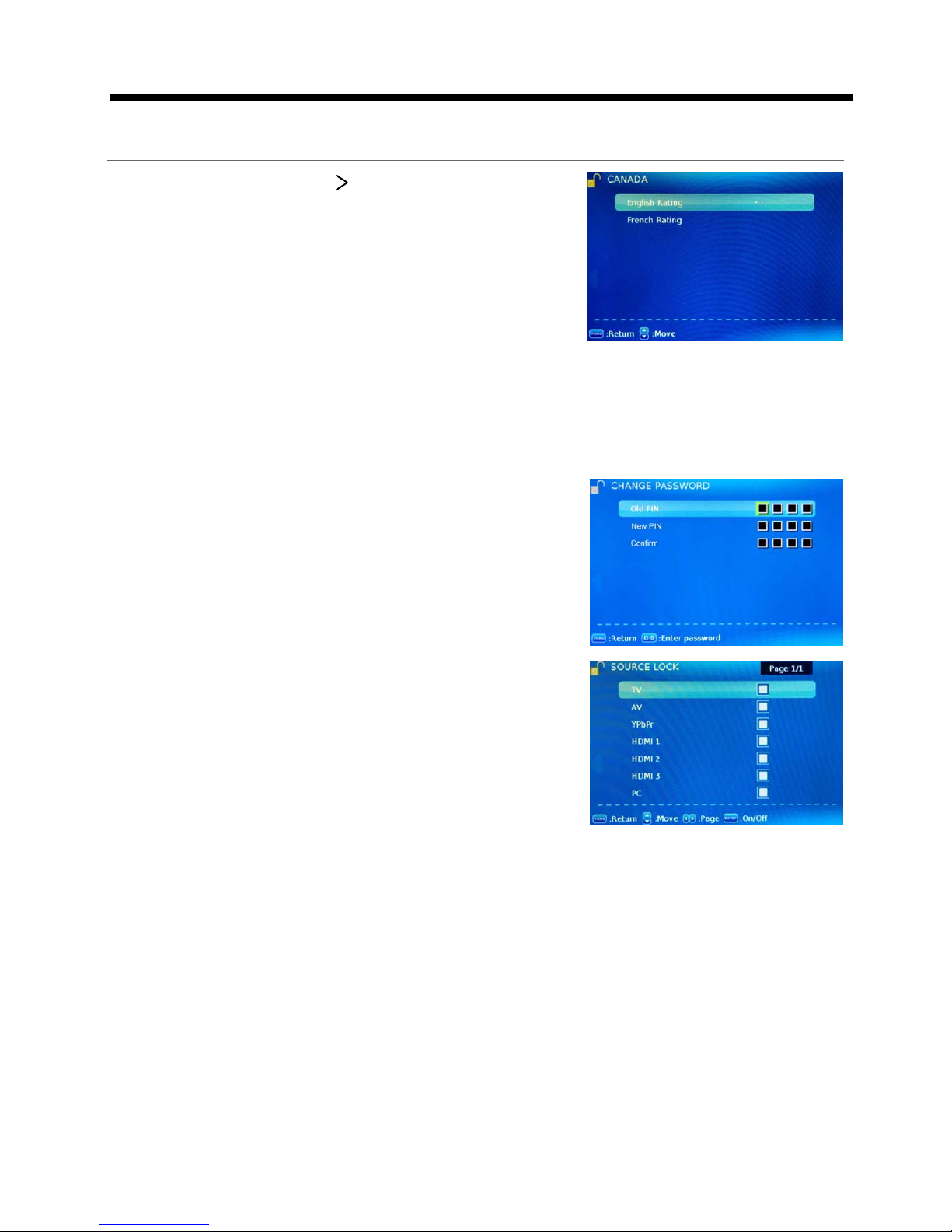

4. Parental Control menu

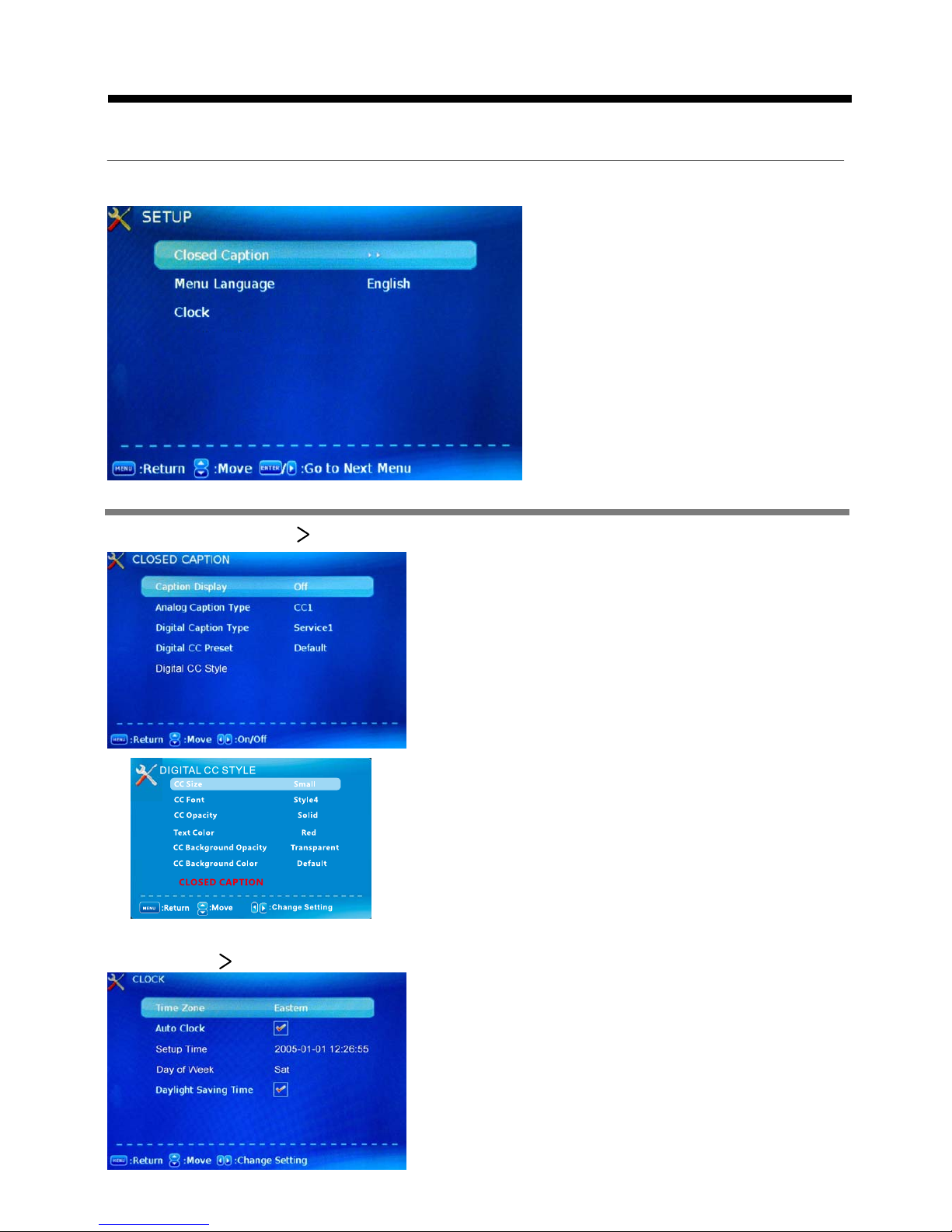

5. Setup menu

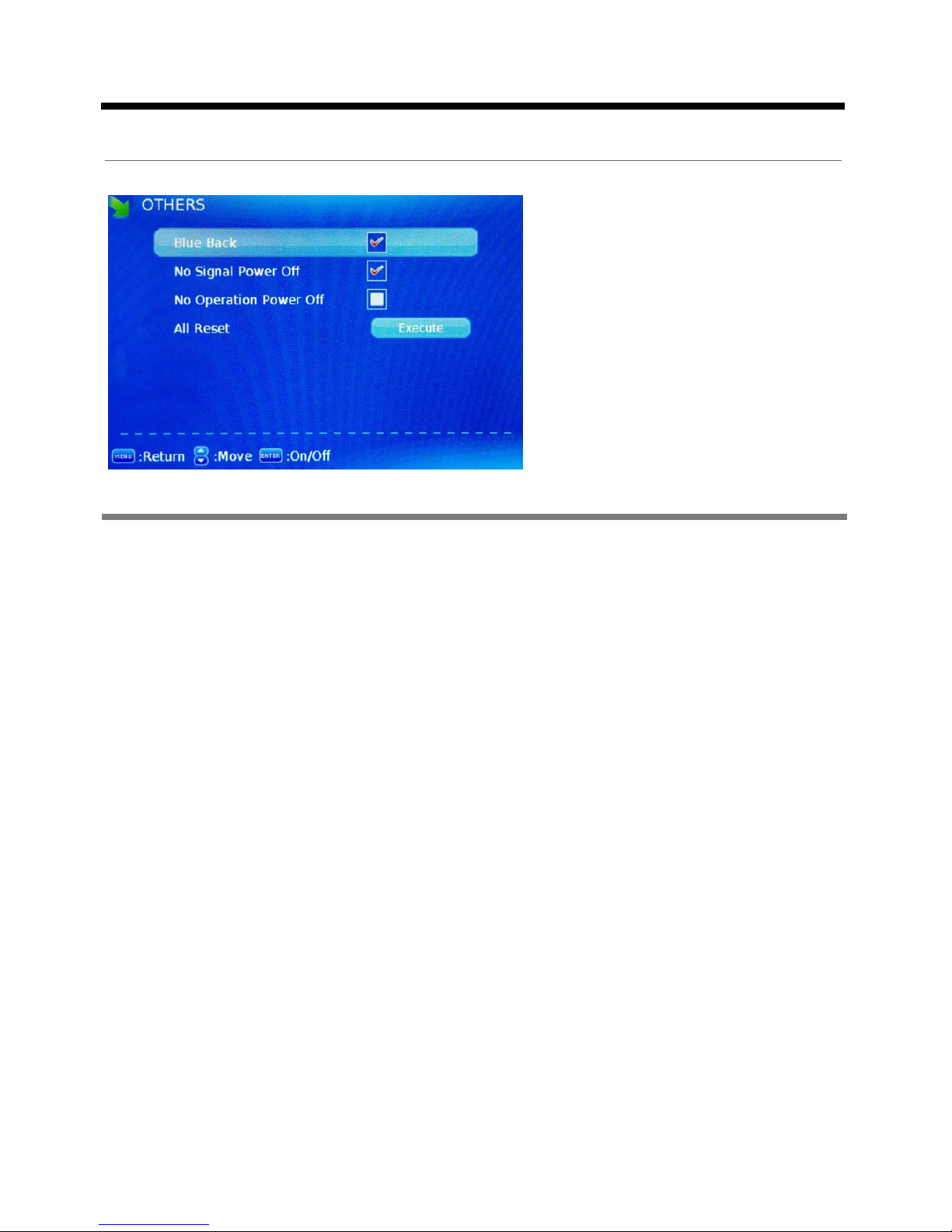

6. Others menu
Simple Troubleshooting
2
3
4
4
5-9
5
6
8-9
10
11-18
11-12
13
14
15-16
17
18
19
20

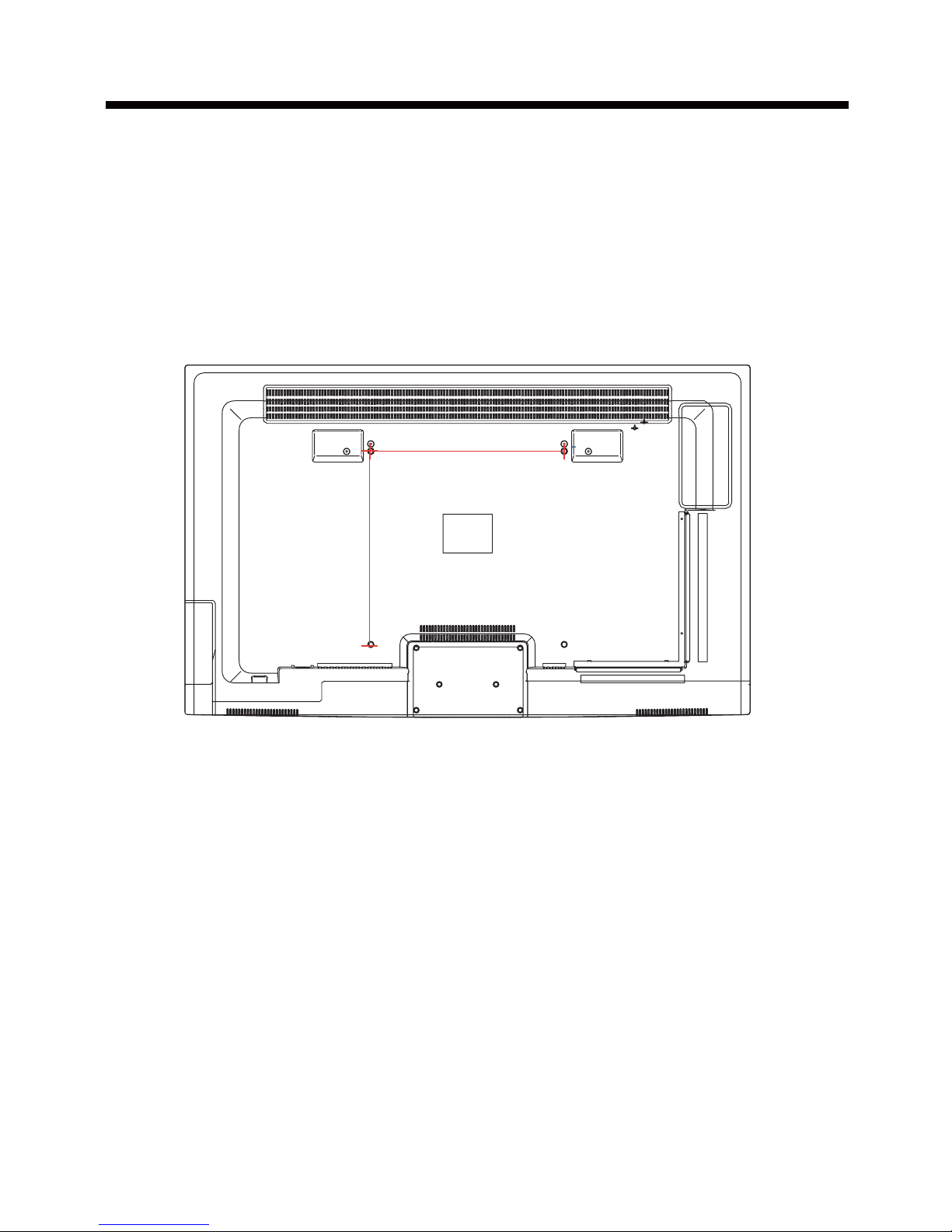

3. Instruction for Wall Mount 7

2
Caution
Caution
is intended to alert the user to the presence of un-insulated "dangerous
to constitute a risk of electric shock to the persons.
The exclamation point within an equilateral triangle is intend to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
Correct disposal of this Product
(Waste Electrical & Electronic Equipment (WEEE)
Your product is designed and manufactured with high quality materials and
components which can be recycled and reused.
This symbol means that electrical and electronic equipment, at their endof-life should be disposed of separately from your household waste.
Please dispose of this equipment at your local community waste collection/
recycling centre.
In the USA there are separate collection systems for used electrical and
electronic products. Please help us to conserve the environment we live
in!
This unit complies with America Safety directives.
This unit complies with FCC directives.

4
Unit and Accessories and Product Feature
Unit and Accessories
TV set
User's Manual
Remote Control and

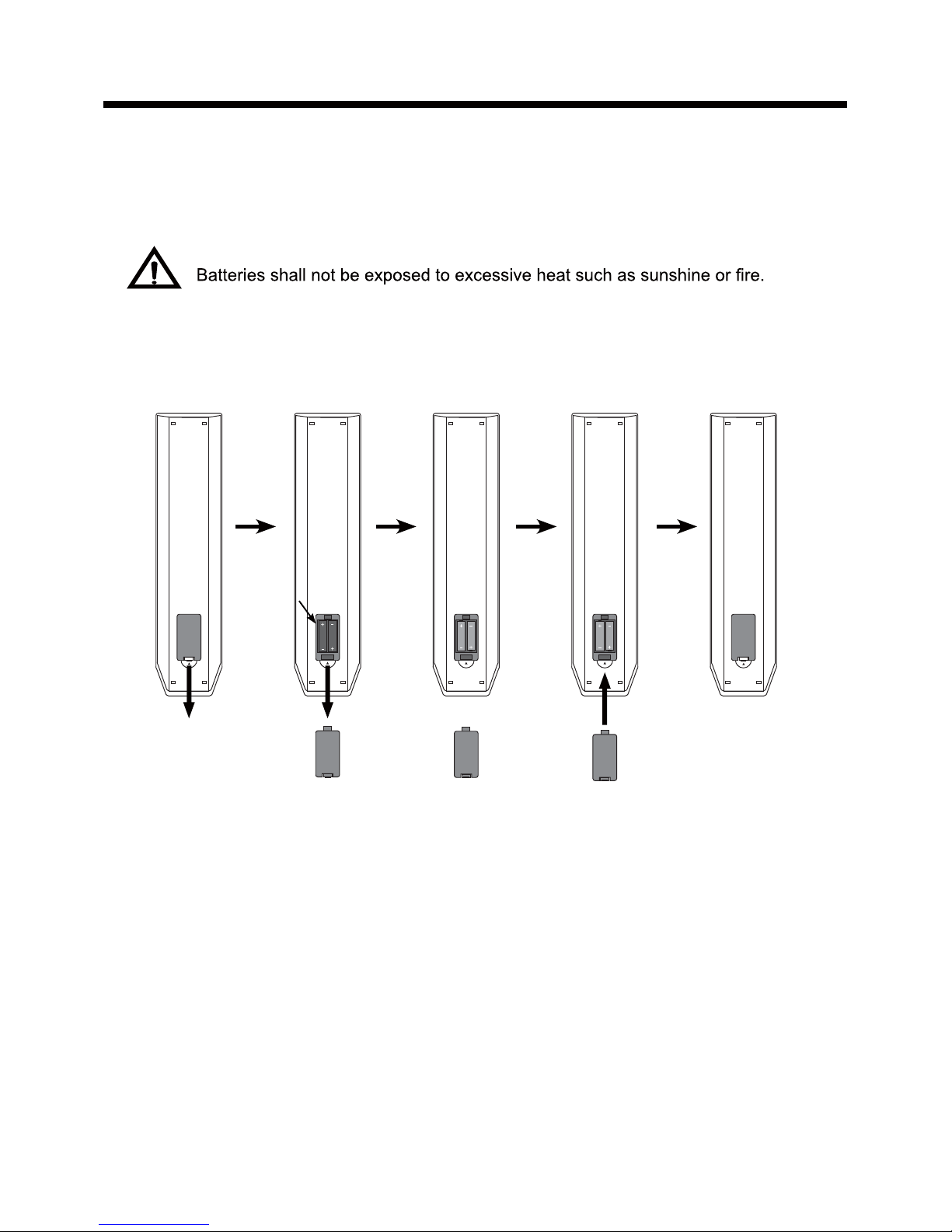

Batteries (AAA x2)
Product Feature
PICTURE SOUND SLEEP DISPLAY
INPUT
VOL+
VOL-
EXIT
MUTE
MENU
OK
CH+
CH-
123
456
789
0 -/--
FAV
CC EPG
MTS
50
Three HDMI inputs for true digital connections
HDMI is a trademark of HDMI Licensing LLC in the United States and other countries.
Stand Installation Guide
®
1920 x 1080 native resolution for Full-HD(1080p) performance
Power Cord
Instructions for fixing TV stand Note: the pictures below are only for reference
1. Put the stand on theTV set
2. Screw the stand in the positions with the screws supplied (6 x ST4 x 24F).
The parts
needed for installing the stand (supplied)
Installation
(Put your TV on the table with its rear cabinet facing upwards.)
Rear cabinet ofTV
Screws(6 x ST4 x 24F)
TV stand
Screws:6xST4X24F

5
Introduction
Introduction
1. Front View
1). (IR) Infrared Receiver: Receives IR signals from the remote control.
(Power on/Standby)LED Indicator: Press POWER to turn on and off.
Indicator on(Red) Standby mode
Indicator on(Green) Power on mode
2). The functions of the buttons:
INPUT: Press to display the input source menu.
MENU: Press to display the OSD menu,
press again to exit the menu.
CH^/v: Press to scan through channels.
VOL+/-: Press to adjust the volume.
POWER: Turn on/standby the TV set.
The effective receiving range for the signal is 5-8 metres from the front of the remote
control window, and 30
0
to the left or right side and 200 above or below the remote control
window.

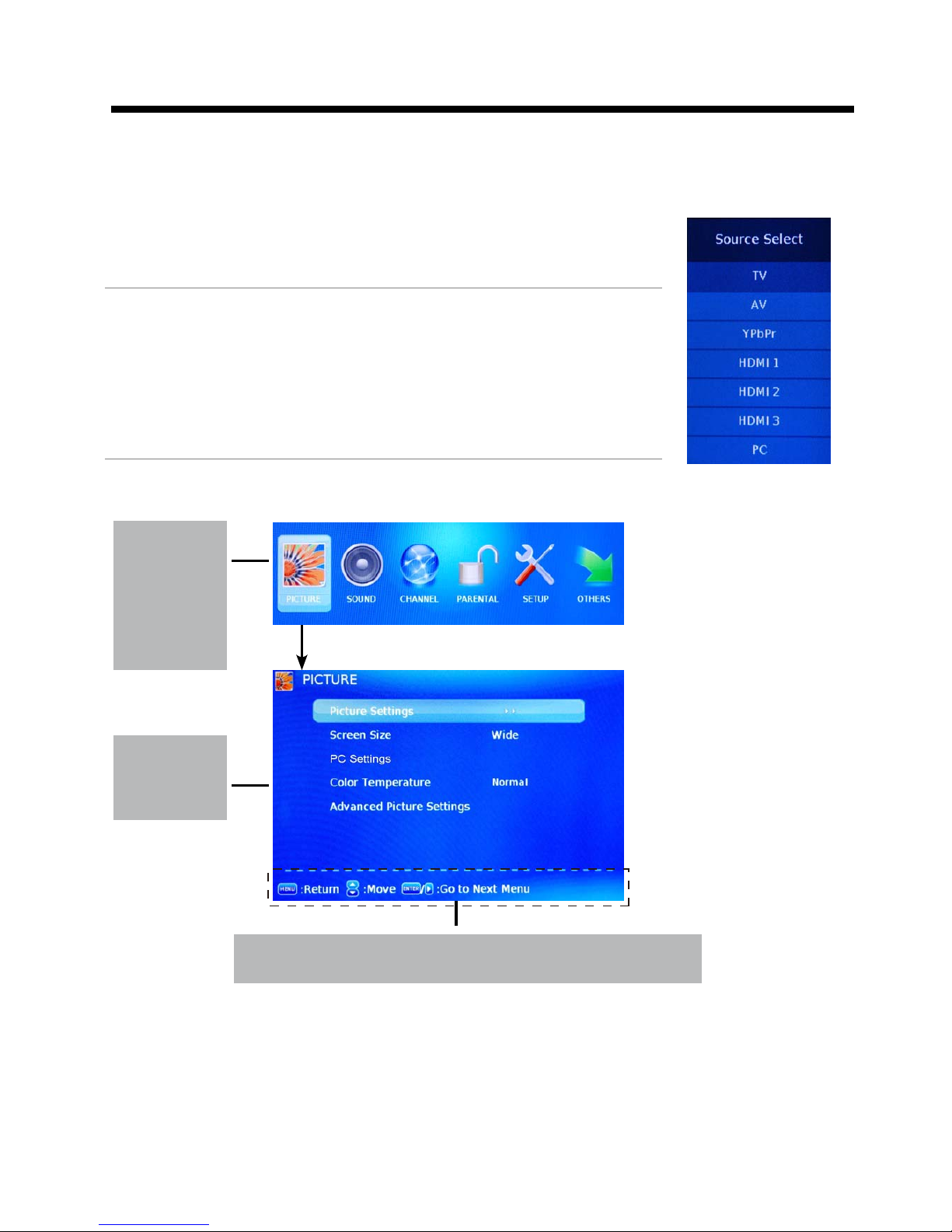

Press INPUT button on the TV set or remote control to
display the input source menu, and use CH+/- button on
the TV set or
/ button on remote control to select the
input source, press OK button on the remote control to
enter.
Note: Before you select the input source, make sure the
connections are prepared.
Power Indicator
Remote Control window
(Keep clear)

6
Introduction
2. Rear View
10). Headphone out
: Connect it to your headphone or audio equipments.
3).
2).
RF
: Connect antenna or cable 75 Ohm coaxial to receive TV signal.
1).
COAX : Digital audio output.
7).
YPbPr : Connect them to the component video output of video device.
: Connect it to the HDMI output of video device.
5).
HDMI1/2/3
L/R in
: Connect them to audio output of video device.
L/R in
: Connect them to audio output of video device.
9).
L/R out
: Connect them to audio equipments.
VIDEO : Connect it to video output of video device.
8).
6). Service
: For service use only.
AC POWER IN:
Connect to an earth 100-240V~ 50/60Hz outlet with the power cable.
11).
4).
AC POWER IN
COAX RF VGA HDMI 1 HDMI 2 HDMI 3
USB
(SERVICE)
PC-IN
YPbPrR L
RL
VIDEO R in L in
AUDIO OUT
HEADPHONE OUT
1 2
11
3 4 5 6 8 97 10
