PRO CAN
TION MANUAL
Model: 37LB30QD
CAUTION: Changes or modifications not
expressly approved by the party
responsible for compliance with the
FCC Rules could avoid the users'
authority to operate this equipment.
CAUTION: The monitor shall not be exposed to
dripping or splashing. No objects
filled with liquids, such as vases, shall
be placed on the Monitor
CAUTION: Do Not Place This TV on an
Unstable cart, stand, or table. The
TV may fail, causing serious injury
to a child or adult, and serious damage
to the TV. Use only with a cart or stand
recommended by the manufacturer, or
sold with the TV
CAUTION: Installation on concrete wait has passed
UL safety test.
WARNING: TO REDUCE THE RISK OF FIRE OF ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT
INSIDE THE ENCLOSURE.DO NOT OPEN THE CABINET. REFER SERVICING TO
QUALIFIED PERSONNEL ONLY.
WARNING: THE APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR
SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS,
SUCH AS VASES SHALL BE PLACED ON THE APPARATUS.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT.
CAUTION: THESE SERVICING INSTRUCTIONS ARE FOR USE BY QUALIFIED SERVICE
PERSONNELONLY.
TO REDUCE THE RISK OF ELECTRIC SHOCK_ DO NOT PERFORM ANY SERVICING
ACTIVITIES_ BUT CALL QUALIFIED ELECTRICIAN PERSONNEL.
CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED, PERLACE ONLY
WITH THE SAME OF EQUIVALENT TYPE
1
READ THESE INSTRUCTIONS
2
KEEP THESE INSTRUCTIONS
3
HEED ALL WARNINGS
4
FOLLOW ALL INSTRUCTIONS
5
DO NOT USE THIS APPARATUS NEAR
WATER
Do not use this TV near water. For exampte, do not use near
a bathtub, washbowl, kitchen sink or taundry tub, in a wet
basement, or near a swimming pool, and the like The TV set
shall not be exposed to dripping or splashing. No objects
filled with liquids, such as vases, shall be pIaced on the TV
set.
6,
CLEAN ONLY WITH DRY CLOTH
Unplug the TV from the wail outlet before cleaning Do
not use liquid cleaners or aerosol cleaners. Use a
damp cloth for cleaning
7.
DO NOT BLOCK ANY VENTILATION OPENINGS.
INSTALL IN ACCORDANCE WITH THE
MANUFACTURER'S INSTRUCTIONS.
Slots and openings in the cabinet back or bottom are
provided for ventilation, to ensure reliable operation of the TV
and to protect itfrom overheating These openings must not
be blocked or covered. The openings should never be
blocked by placing the TV on a bed, sofa, rug, or other
similar surface. This TV should never be placed near or over
a radiator or heat resource. This TV should not be placed in a
built-in instatlation such as a bookcase or rack unless proper
ventiIation is provided or the manufacturer's instructions
have been adhered to.
8. DO NOT INSTALL NEAR ANY HEAT SOURCES SUCH AS
RADIATORS, HEAT REGISTERS, STOVES, OR OTHER
APPARATUS (INCLUDE AMPLIFIERS) THAT PRODUCE
HEAT.
9. DO NOT DEFEAT THE SAFETY PURPOSE OF THE
GROUNDING-TYPE PLUG. A GROUNDING TYPE PLUG
HAS TWO BLADES AND A THIRD GROUNDING PRONG.
THE THIRD PRONG IS PROVIDED FOR YOUR SAFETY.
tF THE PROVIDED PLUG DOES NOT FIT INTO YOUR
OUTLET, CONSULT AN ELECTRICIAN FOR
REPLACEMENT OF THE OBSOLETE OUTLET.
10. PROTECT THE POWER CORD FROM BEING WALKED
ON OR PINCHED PARTICULARLY AT PLUGS,
CONVENIENCE RECEPTACLES, AND THE POINT
WHERE THEY EXIT FROM THE APPARATUS.
11.
ONLY USE ATTACHMENTS/ACCESSORIES SPECIFIED
BY THE MANUFACTURER.
12.
USE ONLY WITH CART, STAND, TRIPOD, BRACKET, OR
TABLE SPECIFIED BY THE MANUFACTURER, OR SOLD
WITH THE APPARATUS. WHEN A CART IS USED, USE
CAUTION WHEN MOVING THE CART/
APPARATUS COMBINATION TO AVOID
INJURY FROM TIP-OVER.
Do not place this TV on an unstable cart, stand, tripod,
bracket, or table. The TV may falI, causing serious injury to
someone, and serious damage to the appliance. A TV and
cart combination shoutd be moved with care. Quick stops,
excessive force, and uneven surfaces may cause the TV and
cart combination to overturn.
13. UNPLUG THIS APPARATUS DURING LIGHTNING
STORMS OR WHEN UNUSED FOR LONG PERIODS
OF TIME.
For added Protection for this TV receiver during a lightning
storm, or when it is left unattended and unused for long
period of time, unpIug it from the waII outIet and disconnect
the antenna or cable system. This wiii prevent damage to the
TV due to Lightning and power line surges.
14. REFER ALL SERVICING TO QUALIFIED SERVICE
PERSONNEL. SERVICING IS REQUIRED WHEN THE
APPARATUS HAS BEEN DAMAGED IN ANY WAY, SUCH
AS POWER-SUPPLY CORD OR PLUG IS DAMAGED,
LIQUID HAS BEEN SPILLED OR OBJECTS HAVE
FALLEN INTO THE APPARATUS, THE APPARATUS HAS
BEEN EXPOSED TO RAIN OR MOISTURE, DOES NOT
OPERATE NORMALLY, OR HAS BEEN DROPPED.
15. Wet Location Marking -CANADA
Worded: The TV shali not be exposed to dripping or splashing.
No objects filled with liquids, such as vases, shatt
be placed on the TV.
Note: All figures in the manual are for reference onty, ptease
refer to the actual units to determine their
appearance.
The front of the display panel has been
specially treated. Wipe the panel surface gently
using only a cleaning cloth or a soft, tint-free
cloth.
_fthe surface is particularly dirty, soak a soft, lint-free
cloth in a weak detergent solution and then remove
excess tiquid. Use this cloth to wipe the surface of
the disptay panet, and then wipe itwith a dry cloth,
Welcome to the bright and vivid world of Proscan TV set. We hope that you witt have many years of
enjoyment from your new select.
To obtain maximum benefit from your set. Please read this manual before making any adjustments and
retain them together with purchase receipt for future reference,
of the same type, until the surface is dry.
Do not scratch or hit the surface of the panel with
fingernails or other hard objects. Furthermore, avoid
contact with volatile substances such as insect
sprays, solvents and thinner; otherwise, the quality
of the surface may be adversely affected.
Please read ait the safety and operating instructions carefully before begin.
CAUTION AND WARNING ............................................................................. 1
IMPORTANT SAFTY INSTRUCTIONS ............................................................. 3
CLEANING AND MAINTENANCE ................................................................... 4
DEAR PROSCAN CUSTOMER ....................................................................... 4
SAFETY PRECAUTIONS ............................................................................... 7
INSTALLATION ............................................................................................................... 7
Preparation for using your new TV .................................................................................... 8
FRONT PANEL ............................................................................................................ 8
REAR PANEL ............................................................................................................... 9
CONNECTIONS AND EXTERNAL INPUT SETTINGS ......................................................... 10
Using the Remote control ............................................................................ 11
LEARNING ABOUT REMOTE CONTROL ........................................................................ 11
REMOTE CONTROL INSTRUCTIONS .............................................................................. 13
Basic operation .......................................................................................... 14
TURNING ON AND OFF THE TV .................................................................................... 14
CHOOSING TV CHANNEL ............................................................................................ 14
SELECTING INPUT SOURCE ........................................................................................ 15
VOLUME ADJUSTMENT. ................................................................................................................ 15
Setup menu operation ................................................................................. 16

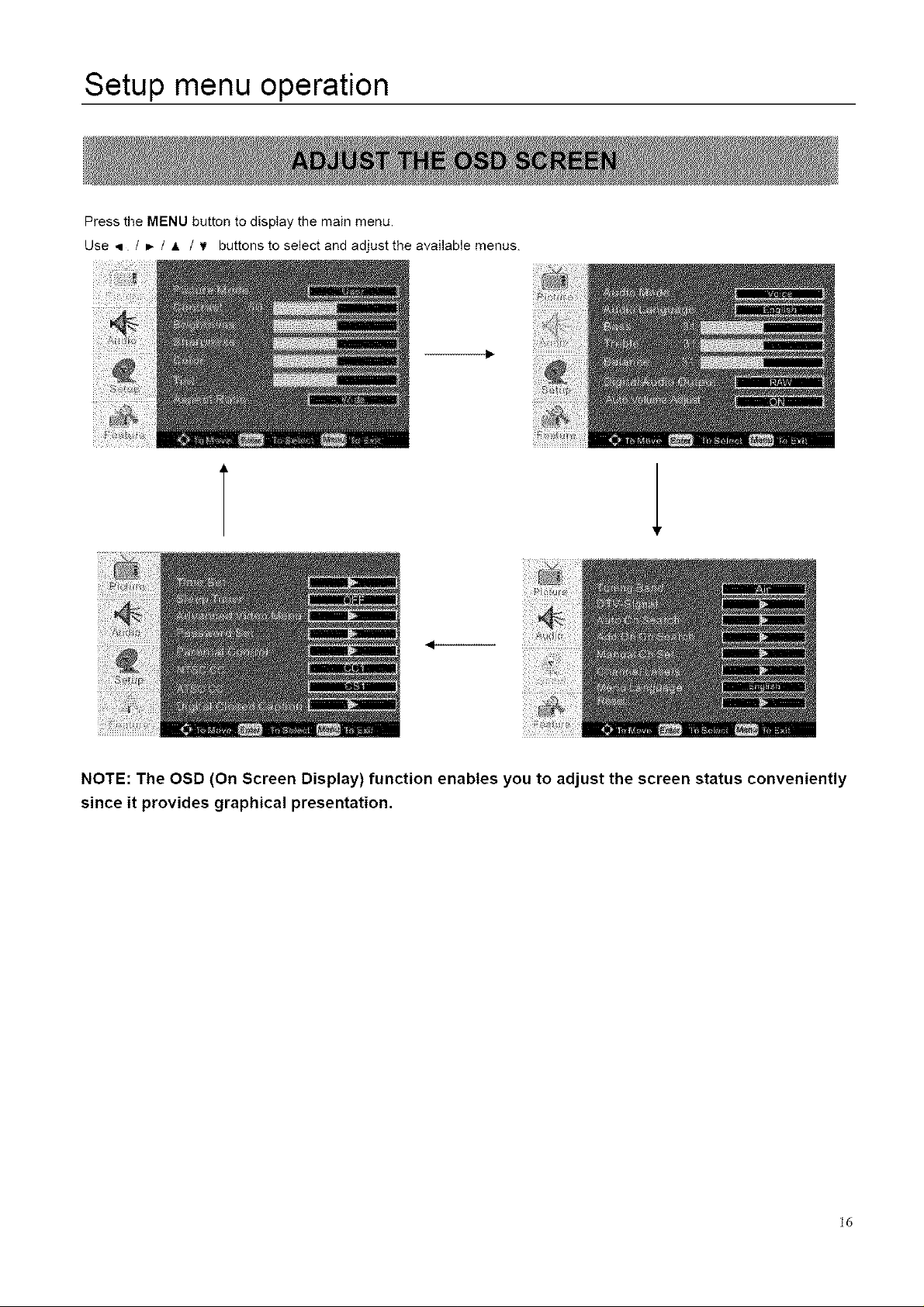

ADJUST THE OSD SCREEN ......................................................................................... 16
SELECT ON SCREEN LANGUAGE ............................................................................... 17
PICTURE MENU OPTIONS .......................................................................................... 17

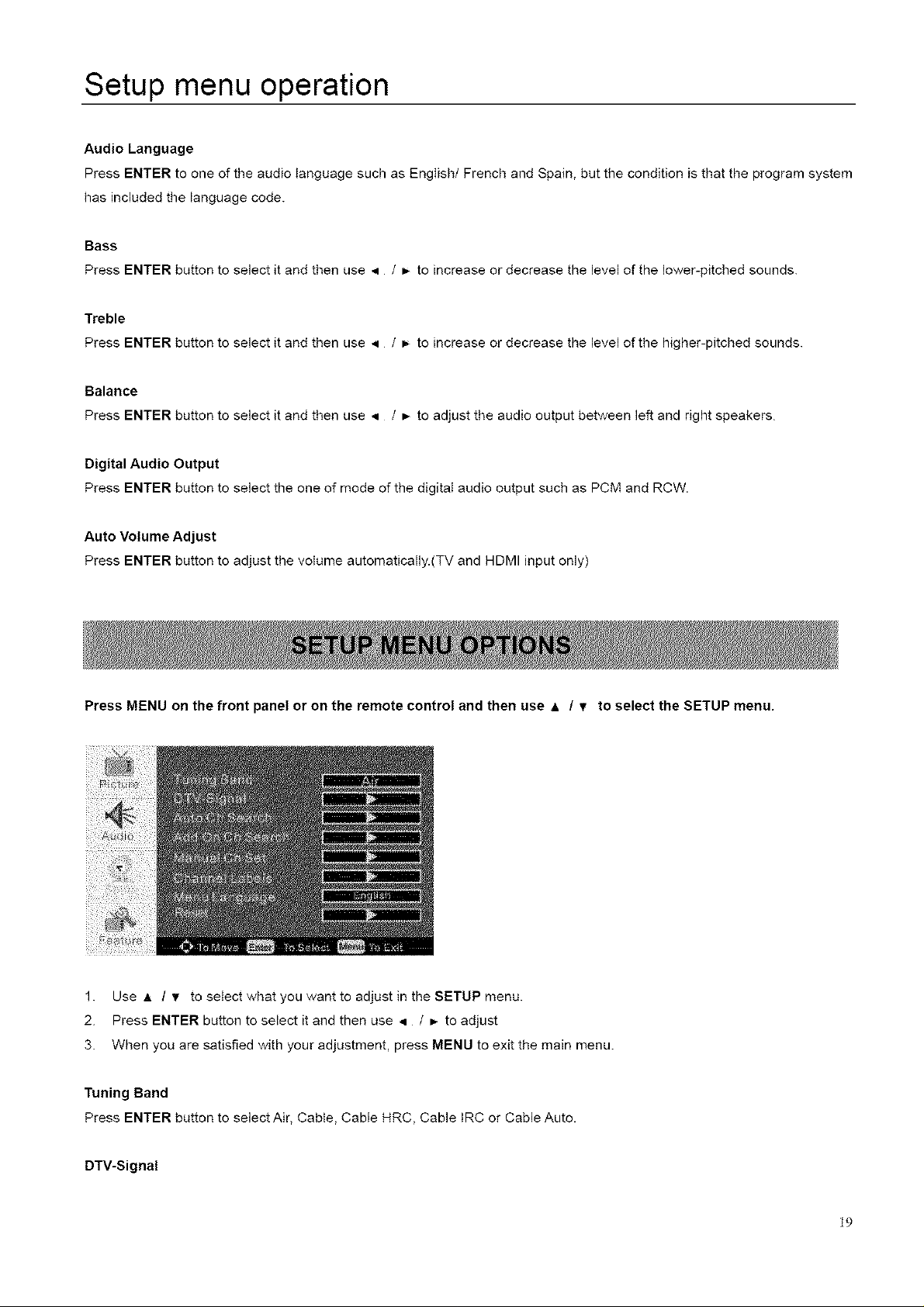

AUDIO MENU OPTIONS .............................................................................................. 18

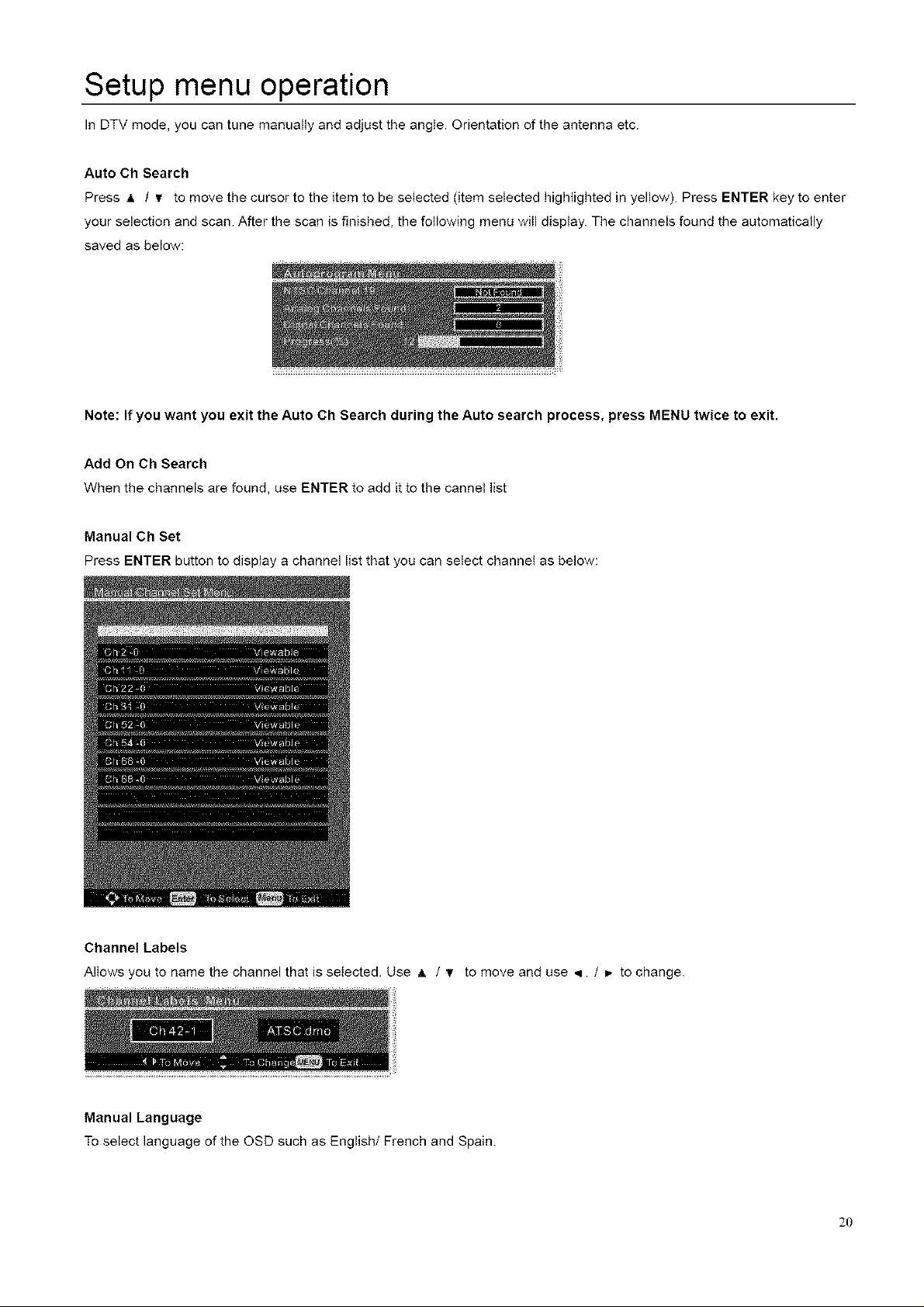

SETUP MENU OPTIONS ............................................................................................... 19

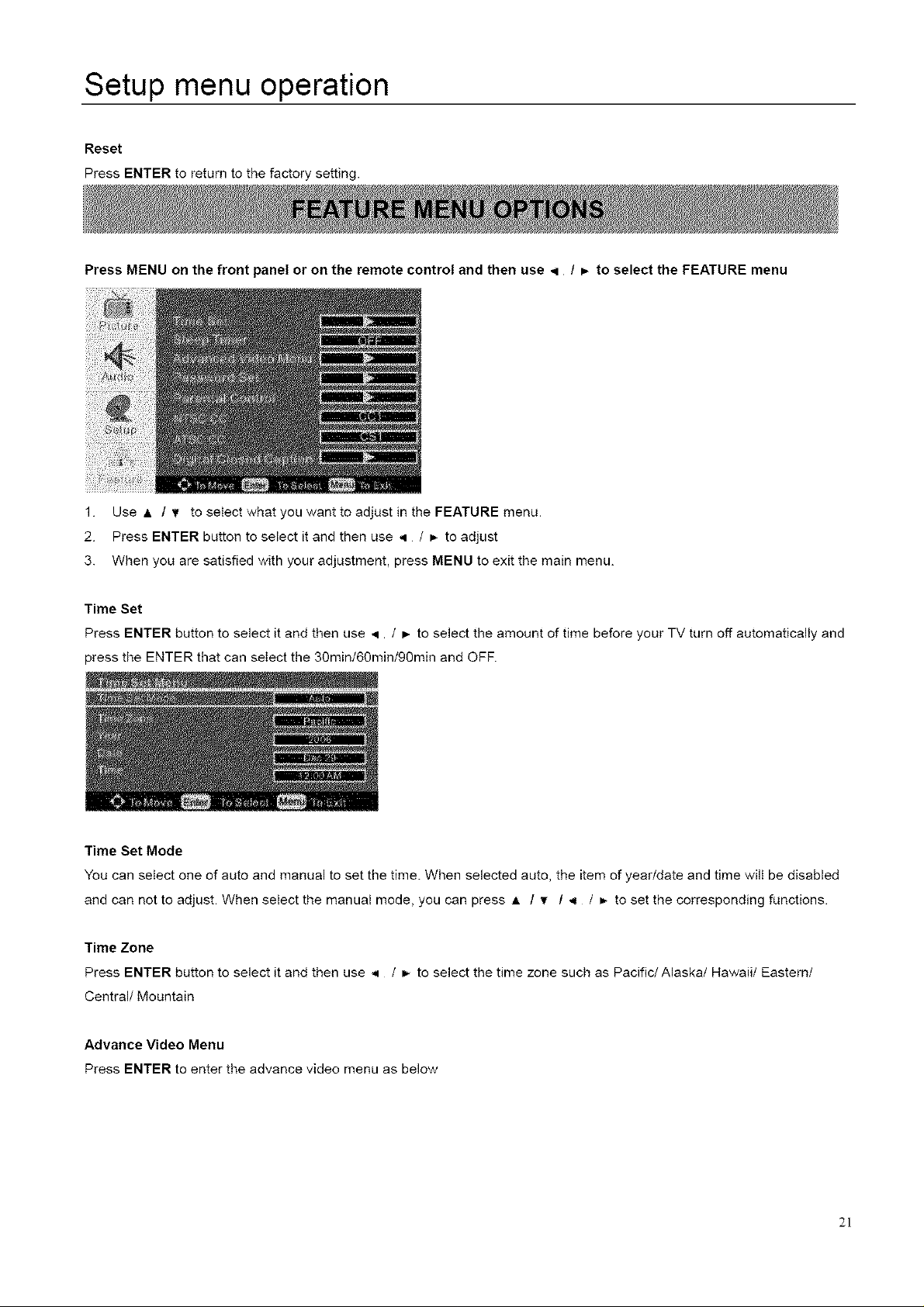

FEATURE MENU OPTIONS .......................................................................................... 21
VGA MENU OPTIONS .................................................................................................. 25
YPBPR MENU OPTIONS ............................................................................................. 26
HDMI MENU OPTIONS ................................................................................................ 27
THE DVD PLAYER ...................................................................................................... 28
APPENDIX-TROUBLE SHOOTING ................................................................. 33
Wall Mounting Specification ........................................................................................ 36

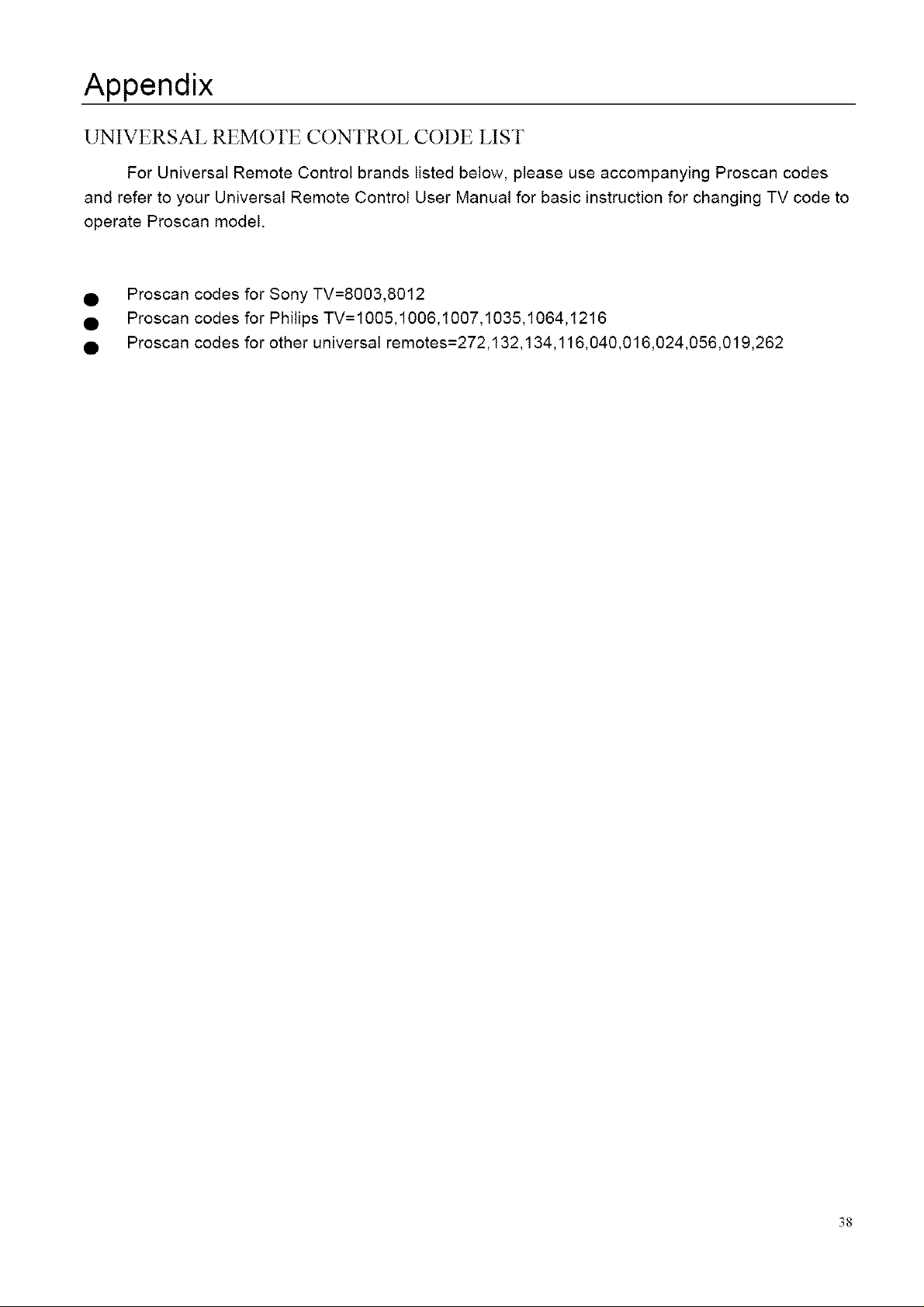

Universal Remote Controlk Code List ........................................................................... 37

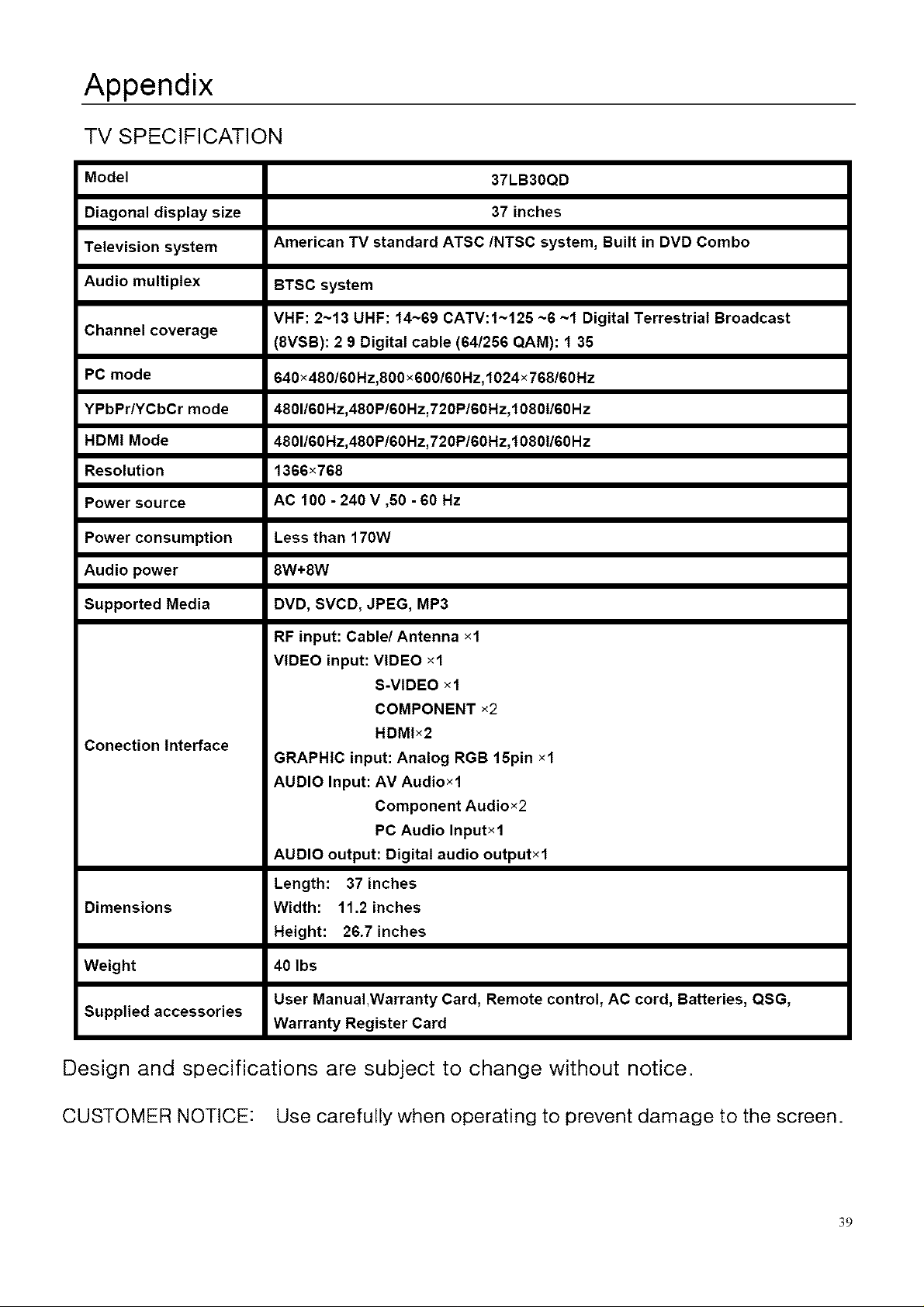

TV Specification ........................................................................................................ 38
Safety Precautions
,_WARNING
KEEP UNNEEDED SMALL PARTS AND OTHER OBJECTS OUT OF THE REACH OF
SMALL CHILDREN. THESE OBJECTS CAN BE ACCIDENTALLY SWALLOWED. ALSO,
BE CAREFUL ABOUT PACKAGING MATERIALS AND PLASTIC SHEETS.
Set up
Do not pIace the TV set on stoped or unstable surfaces.
Do not p_ace any objects on top of the TV set if water spi#s onto the TV set or foreign objects get inside it,
short-circuiting may occur which could result in fire or eIectbc shock If any foreign objects get inside the TV set,
ptease consult an Authorized Service Center
Do not cover the ventilation ho_es. Doing so may cause the TV set overheated and can cause fire or damage to the
TV set
Avoid installing this product near electronic equipment that is readily affected by etectromagnetic waves.
It may cause interference in image, sound, etc In particuIar, keep video equipment away from this
product.
AC Power Supply Cord
Securety insert the power cord plug as far as it wittgo. If the plug is not fully inserted, heat may be generated which
could cause fire. If the plug is damaged or the wall socket pIate is Ioose, they should not be used
Do not handte the power cord p_ugwith wet hands. Doing so may cause electric shocks
Do not do anything that might damage the power cable. When disconnecting the power cable, ho_dthe plug, not the
cable
Do not make any modifications to, place heavy objects on, place near hot objects, heat, bend, twist or forcefully pulI
the power cable. Doing so may cause damage to the power cabIe which can cause fire or electbc shock If damage
to the cable is suspected, have it repaired at an Authorized Service Center.
If the TV set will not be used for a long period of time, unplug the power cord from the walI outIet
If Problems Occur During Use
If a problem occurs (such as no picture or no sound), or if smoke or an abnormal odor is detected from the TV set,
unptug the power cord immediately. Continued use of the TV under these conditions might cause fire or permanent
damage to the unit. Have the TV evaIuated at an Authorized Service Center. Service to the TV by any unauthorized
personnel is strongly discouraged due to its high voltage dangerous nature. If water or foreign objects get inside the
TV set, if the TV set is dropped, or if the cabinet becomes damage& disconnect the power cord plug immediately.
Contact an Authorized Service Center for any repairs that need to be made
Safety Precautions
When using the TV set
Do not bring your hands, face or objects close to the ventilation holes of the TV set Top of the TV set is usuaIIy
very hot due to the high temperature of exhaust air being reIeased through the Ventilation holes Burns or personal
injuries can happen if any body parts are brought too close. Placing any object near the top of the TV could also
result in heat damage to the object as welI as to the TV if its ventiIation holes are blocked
Be sure to disconnect all cabIes before moving the TV set. Moving the TV with its cables attached might damage
the cables which, in turn, can cause fire or electric shock.
Disconnect the power pIug from the wail outlet as a safety precaution before carrying out any cleaning
electric shocks can result ifthis is not done.
Clean the power cable regularly to prevent it from becoming dusty. Built-up dust on the power cord plug can
increase humidity which might damage the insulation and cause fire. Unplug the cord from the wall outlet and
clean it with a dry cloth
This TV set radiates infrared rays; therefore, it may affect other infrared communication equipment InstaiI your
infrared sensor in a place away from direct or reflected light from your TV set.
Selecting a location for the TV
1 PIace the TV on the floor or on a sturdy platform in a location where light does not directly hit the screen
2 Place the TV far enough from the wails to allow proper ventilation Inadequate ventilation may cause
overheating, which may damage the TV.
Note: Please contact local dealer for watt mounting.
Optional External Equipment
For best performance, video cabIes should utilize 75 ohm coaxial shielded wire Cables are avaiIable from your
dealer or electronic supply store
Before you purchase any cables, be sure you know what type of output and input connectors your various
components require Also determine the length of cable you will need
Preparation for using your new TV
Familiarizing Yourself with the Main Hardware
(The picture of the product may vary depending on the model)
TV buttons:
a Volume up
b Volume down
c. Channel up
d Channel down
e Main Menu display and menu selection
f Select signal source (it changes to "ENTER" function when main menu displays )
g POWER ON/OFF button
DVD buttons:
A. STEP button
B. EJECT button
C. PREV button in DVD mode
D. NEXT button in DVD mode
E. ZOOM: Zoom the size of the screen
F STOP button
Preparation for using your new TV
Rear panel
(The picture of' the product may vaz'y depending on the model)
HDMI Input
Input1 : J
Input2: K
Component Input 1
Video : E, F, G
Audio : C, CI
Component Input 2
Video : EI,F1, G1
Audio : B, B1
Composite Input
Video : L
S-Video Input
- Video : M
- Audio: D, D1
VGA input
- Video : I
- Audio : H (3.5m plug)
Others
- Power Input:A
- COAX Digital Out: N
- ExternalAntenna: O
Preparation for using your new TV
Audio : D, DI
1 Checking Items before Connecting
Ptease check the list below before connecting the product to other devices
< Check items before connecting. >
Check the instruction manual when connecting external devices External products sometimes have different
buttons and locations
1 Do not connect the power unless every connection is well connected. The product may be damaged if
turned
on while still in the process of being connected.
2 Connect the left (white) and right (red) cables correctly to the sound cable.
3 Check the terminals to connect the product to on the rear panel
2: Connecting an Antenna
There are internal and external types of antenna.
< Connecting an Antenna>
Cable TV network
1
Use a coaxial cable to connect the rear panel of the TV's [AIR] or [CABLE] terminals and the wall
mount or extemat antenna.
2
When an Air signal is required, connect to the [AIR] terminal. If a Cable signal is required, connect to
the
[CABLE] terminal If both Air and Cable are available, and then connect both lAIR] and [CABLE]
terminals
3 Connect the TV power cord when connecting everything else.
< Caution >
Avoid bending the copper tip at the center of the coaxial cable
l0
Using the remote control
1. POWER: Power on/off
2. SLEEP:Press to select a preset time interval to
automatically shut the TV
3. ASPECT:Press to adjust the screen size.
4. DISPLAY:Press to Check your current mode.
5. INPUT:Press to Display a menu of all available input
sources, Also used to confirm your choice in the
on-screen menu.
6. FAV:Add/detete the current channel to your favorite
channel
7. MTS:tt dispIays"Audiot/Audio2" under digital signal
8. FAV.+:Press to view the next favorite channel.
9. FAV-:Press to viewthe previous favorite channel
10. Numeric Buttons:Press to change the channel directly
using the numeric buttons.
11. RECALL:Press to select between current channel and
the last channel.
12. -:When selecting a digital broadcast channel, press
the number, followed by "-'_button, followed by sub channel
numben
13. PICTURE: Press to change to a preset picture mode.
14. SOUND:Press to change to a preset sound mode.
15. Volume:Press to increase or decrease the volume.
16. Channel:Press to select next or previous active
channel
17. FREEZE:Press to freeze the current picture
18. MUTE:Press to temporarily switch the sound off.
19. EPG:One of signal channel EPG or MuIti channel EPG
20. UP/DOWN:Press to select on-screen menu items and
change menu values.
21. DTV:Press to change between Analog TV and Digital
TV
22. LEFT:Press to select on-screen menu items and
change menu values.
23. RIGHT:Press to select on-screen menu items and
change menu values.
24. CC:Press to seIect Caption
25. ENTER:Press to enter the menu.
26. MENU:Press to disptay the main on-screen menu
]]
Using the remote control
0
27 EJECT: Auto adjustion in PC mode. Eject the DVD
disc out of the DVD slot in DVD mode
28 STEP:Press the button to pause,then press the STEP
button to playback frame by frame.you can return to
normal playback at any time by pressing the STEP
button.
29 STOP: Press the STOP button once to stop playback.
Press the PLAY/PAUSE button to resume playback.
Press the STOP button twice to stop playback
completely.
30 PLAY/PAUSE: Play or pause the USB or card reader
31 PREV: Select previous chapter.
32 NEXT: Select next chapter.
33 FR: Scan backward play in normal speed
34 FF: Scan forward play in normal speed
35 ZOOM: Zoom the size of the screen
36 A-B:Back to previous page
37 DVD-M: To go back to the root menu.
38 TITLE:To select DVD title.
39 SETUP: Get into the SETUP Menu in DVD
40. REPEAT. For DVD play mode, press it repeatedly, the
function can be changed as follows:
CHAPTER-TITLE
41. SUBTITLE: Select caption when playing DVD or
SVCD that has multiple captions
42. AUDIO: During DVD or VCD playback, press it
repeatedly to select audio language.
4 ¸
---e
o
@
12
Using the remote control
< Inserting the batteries into the remote control >1 .Push the back of the remote control and )utl forward stightty.2.1nserttwo
AAA 15V batteries ensuring the correct polarity (+/-).3.Close the lid.
inserting the batteries
Caution: Use only Alkaline Batteries.
• If the remote control is not working, see the checkpoints below.
• Are the polarities of the batteries (+, -) correct?
• Are the batteries worn out?
• Is there an AC power failure?
• Is the power cable plugged in?
• Is any special fluorescent or neon sign board turned on?
< Remote Control Reception Angle>
Use the Remote control within a range of 7~10m and at an angle of 30': to either side of the receiver.
Remote Control TV Angle
Caution-Used batteries should be recycled and kept out of children's reach.-Do NOT use new and old batteries together.
Change both batteries at the same time.
-When not using the remote control over a long time, remove the batteries from the unit. Use only Alkaline batteries
13
Basic operation
TURN ON LCD TV
1. Connecting to the AC input cable to switch on LCD TV. At this time the TV will enter standby mode and indicator show
red.
2. User POWER button or @ button on the remote controlcan turn on LCD TV from standby mode.
TURN OFF LCD TV
1. Press POWER button or @ button on the remote control to enter standby mode. The indicator is red.
2. Wait 5 second after switch off LCD TV then you can turn on LCD TV again.
1.
Using the CH A / CH • on the front panel or on the remote control.
• Press CH A to increase channeI number.
• Press CH • to decrease channel number.
2.
Using 0-9 digital buttons and - button
You can select the channel number by pressing 0 to 9
3,
Example:
IN ANALOG SIGNAL:
Toselect channel (e.g. Channel 22): Press 2 -> 2 ->ENTER,It wiiI jump to 22-0 directly
IN DIGITAL SIGNAL:
Toselect digit channel (e.g. Channel 22-1 ): Press 2 -> 2 -> - > 1 ->ENTER,the program wilI appear immediately
NOTE: Sub channel number of analog channel is always zero. But when you in the digital signal, if you enter
physical channel number and not end with "ENTER", channel selection will be made if there is no operation within
a few seconds.
14
Basic operation
You can select the input source by pressing the INPUT on the remote control or on the front panel.
INPUT Menu
1. Press VOL+/- to adjust the volume.
2. If you want to switch the sound OFF, press the MUTE, will turn on CC display at the same time.
3. You can cancel this function by pressing MUTE or VOL+
15
Setup menu operation
Press the MENU button to display the main menu.
Use i / _ / A / _/ buttons to select and adjust the available menus.
t
NOTE: The OSD (On Screen Display) function enables you to adjust the screen status conveniently
since it provides graphical presentation.
ld
Setup menu operation
NOTE: If you use your LCD TV for the first time, you should select the language which will be used
for displaying menus and indications
• Press MENU to display the main menu.
• Press • / • repeatedty to select the SETUP MENU.
• Use,q./ _- and • / T to select MENU LANGUAGE.
Press ENTER button to select your desired language.
NOTE: In this manual, the OSD (On Screen Display) may be different from your TV's in colors.
Press the MENU on the front panel or on the remote control and then use • / • to select the PICTUREmenu.
1. Use • / • to select what you want to adjust in the PICTURE MODE.
2. Press ENTER button to adjust.
3. When you are satisfied with your adjustment. Press MENU to exit the main menu.
Picture Mode
Select the type of picture which best corresponds to your viewing requirements by selecting Picture Mode in PICTURE menu.
You may select the picture mode directly by pressing the PICTURE button on the remote control.
17
Setup menu operation
Contrast
Press ENTER button to select it and then use _ / _- to adjust the contrast of picture.
Brightness
Press ENTER button to select it and then use _ / _- to adjust the brightness of picture.
Sharpness
Press ENTER button to select it and then use _ / p, to adjust the sharpness level of picture.
Color
Press ENTER button to select it and then use _ / _* to adjust the color saturation
Tint ( NTSC Input only)
Press ENTER button to select itand then use _ / _ to adjust the tint of picture
Aspect Ratio
Press ENTER button to select the ratio of picture display such as Normal/Zoom/Wide and Cinema.
Press MENU on the front panel or on the remote control and then use A / • to select the AUDIO menu.
1. Use A / • to select what you want to adjust in the AUDIO menu.
2. Press ENTER button to select it and then use ,q. / b- to adjust
3. When you are satisfied with your adjustment, press MENU to exit the main menu.
Audio Mode
You can select the type of sound which best corresponds to your listening requirements by selecting sound in SOUND menu.
You may select the sound mode directly by pressing the SOUND button on the remote control.
18
Setup menu operation
Audio Language
Press ENTER to one of the audio language such as English/French and Spain, but the condition is that the program system
has included the language code.
Bass
Press ENTER button to seiect it and then use ,_ / J,-to increase or decrease the level of the lower-pitched sounds.
Treble
Press ENTER button to seiect it and then use _ / i,, toincreaseordecreasethelevelofthe higher-pitchedsounds.
Balance
Press ENTER button to select it and then use _ / b to adjust the audio output between left and right speakers.
Digital Audio Output
Press ENTER button to select the one of mode of the digital audio output such as PCM and RCW.
Auto Volume Adjust
Press ENTER button to adjust the voIume automatically.(TV and HDMI input only)
Press MENU on the front panel or on the remote control and then use & / Y to select the SETUP menu.
1. Use A / Y to seIect what you want to adjust in the SETUP menu.
2. Press ENTER button to select it and then use q / _- to adjust
3. When you are satisfied with your adjustment, press MENU to exit the main menu.
Tuning Band
Press ENTER button to select Air, Cable, Cable HRC, Cable IRC or Cable Auto.
DTV-Signal
19
Setup menu operation
In DTV mode, you can tune manually and adjust the angle. Orientation of the antenna etc.
Auto Ch Search
Press A / _ to move the cursor to the item to be seIected (item seIected highlighted in yellow). Press ENTER key to enter
your selection and scan. After the scan is finished, the following menu wiII disptay. The channels found the automatically
saved as below:
Note: If you want you exit the Auto Oh Search during the Auto search process, press MENU twice to exit.
Add On Ch Search
When the channels are found, use ENTER to add it to the cannel list
Manual Ch Set
Press ENTER button to display a channel list that you can seIect channeI as below:
Channel Labels
Allows you to name the channel that is selected. Use A / v to move and use • / _- to change.
Manual Language
To select language of the OSD such as English/French and Spain.
20
Setup menu operation
Reset
Press ENTER to return to the factory setting.
Press MENU on the front panel or on the remote control and then use < / _ to select the FEATURE menu
1. Use A / _/ to select what you want to adjust in the FEATURE menu.
2. Press ENTER button to select it and then use q / _ to adjust
3. When you are satisfied with your adjustment, press MENU to exit the main menu.
Time Set
Press ENTER button to select it and then use ,q / _- to select the amount of time before your TV turn off automatically and
press the ENTER that can select the 30min/60min/90min and OFF.
Time Set Mode
You can select one of auto and manual to set the time. When selected auto, the item of year/date and time will be disabled
and can not to adjust. When select the manual mode, you can press A / Y / _ / m-to set the corresponding functions.
Time Zone
Press ENTER button to select it and then use ,q / _ toselectthetimezonesuchasPacific/Alaska/Hawaii/Eastern/
Central/Mountain
Advance Video Menu
Press ENTER to enter the advance video menu as below
2]
Setup menu operation
Noise Reduction- Spatial: press 4. / _ to select on or off.
Noise Reduction -Speaker :press • / _- to select on or off.
Noise Reduction-Temporal: press *_ / _- to select on or off.
Auto Contrast Enhancement: press 4 / _- to select on or off.
CoIor Temperature: press • / _- to seIect one of Normal/Cool and Warm.
3D Y/C: press 4 / _ to select on or off.
Password Set
Press the ENTER to enter oId password menu, and then input the number of 0-9 as below, and you can change the password
when you input the new on twice.
Parental Control
Press ENTER to enter the sub-menu and then uses the o-g to enter the correct password and the Parental Control Menu will
display.
US Ratings
Press ENTER to enter the Parentat Control Menu as below
22
Setup menu operation
MPAA
Press ENTER to lock or unlock one of None/G/PG/PG-13/R/NC-17 and X
None - No restrictions
G - General Audience. This contains little or no violence, no strong language, and little or no sexual diaIog or situations.
PG - Children under 13 should be accompanied by an aduIt.
PG-13 - Parental guidance suggested. Children under 13 should be accompanied by an adult.
R - Restricted. Viewers shouId be 17 or older.
NC-17 - not classified. Viewers shouId be 17 or older.
TV Rating
Press ENTER to lock or unlock one of TV-MA/TV-14/TV-PG/TV-G/TV-Y7 and TV-Y.
TV-MA - Mature audiences only. This program may contain mature themes, profane language, graphic violence and explicit
and expIicit sexual content.
TV-14 - Parents strongIy cautioned. This program may contain sophisticated themes, sexual content, strong language and
more intense violence.
TV-PG - Parents guidance suggested. The program may contain infrequent coarse language, limited violence, some
suggestive sexual diaIog and situations.
TV-G - General audience. This contains little or no violence, no strong language, and little or no sexual dialog or situations.
TV-V7 - Directed for older children. Themes and elements in this program may incIude mild physical or comedic violence, or
may frighten children under the age of seven.
TV-Y - All children. The themes and elements in this program are specifically designed for a very young audience, including
children from ages two six.
Advanced Parental Lock
When select the ON for Advance Rating, the Advanced ParentaI Lock will display.
23
Setup menu operation
Canadian English
Press ENTER to lock or uniock one of E/C/C8+/G/PG/14+/18+.
E - Expect No restriction.
C - Children
C8+ - Viewers should be 8 or order.
G - General Audience.
PG - Parental guidance suggested.
14+ - Restricted. Viewers should be 14 or older.
18+ - Restricted. Viewers should be 18 or older.
Canadian French
Press ENTER to lock or unlock one of E/G/8 ans+/13 ans+/16 ans+ and 18 ans+.
E - Expect No restriction.
G - For all.
8 ans+ - Restricted. Viewers should be 8 or older.
13 ans+ - Restricted. Viewers should be 13 or older.
16 ans+ - Restricted. Viewers should be 16 or older.
18 ans+ - Restricted. Viewers should be 18 or older.
Digital Closed Captions
This menu allows you to set the closed caption, and press ENTER to enter Closed Caption Options menu as below:
24
Setup menu operation
Style:press *_ / _ toselectoneofAutomaticand Custom, whenyou select automatic, the other are disabIe and can notbe
adjusted.
Size: press q / _. to select one of Normal/Large and Small.
Font: press _ / _ to select one of Default and from Front 1to Font 7.
Text Color: press 4. / _ to select one of Red/Green/Yellow/Magenta/Cyan/Black and White.
Text Opacity: press 4 / _ to seIect one of the Solid/Flashing/Transparent/Translucent
Background Color: press *_ / _ to select one of Red/Green/Yellow/Magenta/Cyan/BIack and White.
Background Opacity: press •. / _- to select one of the Solid/Flashing/Transparent/Translucent
Edge Effect: press • / _- to select one of the None/Raised/Depressed/Uniform/Left Shadow/Right Shadow.
Edge Color: press 4 / _- to select one of Red/Green/Yellow/Magenta/Cyan/Black and White.
Press MENU on the front panel or on the remote control and then use < / _, to select the Feature menu in VGA
mode.
1. Use • / T to select what you want to adjust in the FEATURE menu.
2. Press ENTER button to select it and then use •. / _- to adjust
3. When you are satisfied with your adjustment, press MENU to exit the main menu.
VGA Set
Press • / _ button and then press ENTER to enter the VGA set menu as below
H-Pos
Press ENTER button to select it and then use ,i / b to adjust the horizontal position of the picture.
25
Setup menu operation
V-Pos
Press ENTER button to select it and then use • / _- to adjust the vertica( position of the picture.
Phase
Press ENTER button to select it and then use • / _- to adjust the phase of the picture.
Clock
Press ENTER button to select it and then use • / _- to adjust the clock of the picture.
Note:
Phase- This function allows you to remove any horizontal noise and clear or sharpen the image of characters.
Clock- This function is to minimize any vertical bars or stripes visible on the screen background. And the horizontal screen
size also will change.
Position- This function is to adjust the picture to Left/Right and Up/Down as you prefer.
Auto Adjust
Press ENTER button to select it and then use < / =*to do auto adjust that automatically adjusts the available options for the
best viewing configuration.
Setting
Press ENTER to do preset that can return to the factory setting.
Press MENU on the front panel or on the remote control and then use 4 / m.to select the Feature menu in Ypbpr
mode.
1. Use A / v to select what you want to adjust in the FEATURE menu.
2. Press ENTER button to select and then use q / _* to adjust
3. When you are satisfied with your adjustment, press MENU to exit the main menu.
Component Set
Press A / v/ button and then use ENTER to enter the VGA Set menu as below
26
Setup menu operation
Press MENU on the front panel or on the remote control and then use 4 / _ to select the Feature menu in HDMI
mode.
Time Set
Press & / !r button and then use ENTER the time set menu that allows you to set the time the TV will display.
Sleep timer
Press ENTER button to select it and then use q / ,, to adjust the amount of time before your TV turn off automatically and
press the ENTER that can select the 15min/30min/45min/60min/90min/120min/180min/240min and OFF.
Advance Video Menu
Press ENTER to enter the advance video menu.
27
Setup menu operation
Title: DVD Video discs are usually divided into several numbered sections called titles.
Chapter: A title comprises smaller numbered sections called chapters.
• Playing the DVD Player
!. Press the 'INPUT' button to select 'DVD' mode, if no disc is inserted yet, the display shows 'No Disc'.
2.Insert a DVD with the printed side facing towards the rear of the TV/DVD Player (see below)
CORRECT INCORRECT
backside of W
Note: The picture of the product may vary depending on the model
3.The TV will first display 'Loading', then change to 'DVD-video'. Most DVDs will show some preliminary
information then stop at a main menu screen.
4. Press PLAY/PAUSE to play it directly. Or press the DVD-MENU button to access the disc menu during
playback.
5.Use the direction button on the remote control to select the desired option. Press ENTER to select the
option or press the I_ button. Playback will now commence.
&After playback, press the EJECT button on remote control or EJECT button on TV/DVD to remove the
disc.
Note: No function" will sometimes appear on the screen after a button is pressed. This indicates that the
function is not supported at the current time.
28
Setup menu operation
Gettinq Started
Carefully remove the TV / DVD and all other items from the box. You may wish to store the
packaging for future use.
Please read these instructions thoroughly before use.
Compatible Discs
The DVD player supports the following disc formats:
_ 12cm DVD Video Discs.
12cm Compact Disc Audio Discs.
12cm Still High Resolution
WARNING! DO NOT INSERT OR PLAY 8CM DISCS, THEY WILL
GET STUCK.
• Basic Control Function
Play/Pause
1.Press the I_ button to play/pause the DVD. The screen wilt freeze its current picture when paused.
2. For resume play, press the I_ button.
Stop
• After pressing the • button to stop playback. 'Press Play Key To Continue' will be displayed on the top
left on the screen, also 'U' on the top right.
Press thel_ button to resume playback.
I Press the'•'button twice to stop playback completely. '•' Witl be displayed on the screen.
Fast Playback
You can search either forwards or backwards for a particular part of the DVD.
• To search forwards, press the _" buttons.
The playback speed is doubled and 'FORWARD X2' is displayed.
Each subsequent press of the i_._ button toggles among different speeds (_b, 2X - _'_" 4X -
_'_" 8X - _'_" 16X - _" 32X -PLAY),up to 32 times the normal speed.
Pressing the I_ buttons after" _" 32X' reverts to normal playback speed.
• To resume normal playback at any time, press thel_ buttons.
• To search backwards, press the "4_ button. This operates in the same way as the _'_" button but in
the reverse direction.
Subtitles
Most DVDs are recorded with subtitles and some have the subtitles available in different languages.
• To select subtitles, press the SUB-T button.
• If different languages are available, repeatedly press the SUB-T button until the language you require is
29
Setup menu operation
displayed.
Chapter Selection
During playback you can select different chapters of the DVD.
• Press DVD-M to the root menu.
• Press direction buttons or Next, PREVIOUS buttons to choose different chapters. Note: It is just for
reference.
• Press ENTER button to confirm.
Audio Configuration
Some DVDs are recorded with multiple audio channels. These can be used for different languages or
for commentaries.
• Repeatedly press the AUDIO button to select the desired audio channel.
Repeat Chapter/Title
• To repeat playback of a chapter, press the REPEAT button while the chapter is playing. 'Chapter' will be
displayed.
• To repeat playback of the title, press the REPEAT button twice.
'Title' will be displayed.
• To repeat playback of the title, press the REPEAT button three times.
'All' will be displayed.
• Press the REPEAT button four times to cancel repeat playback.
Note: Some discs do not support the repeat function, different disc shows different information.
General Setup Page
a. Press SETUP button on remote control during playing DVD, it will show following menu:
(When the DVD menu displayed ,the DVD system will auto pause. Press SETUP again, it will go on)'
30
Setup menu operation
.....: : : " " ii :i i ¸¸¸ i;;: :: : i ¸ ii i ;" "
_i_!_i_!_i_!_i_!_!_!i!_!_!_!i!_ii!_ii!_!_!i!_!i!_i!_ii!_i_!_!_!_i_ii!_!i!_!_!_!_!_!_!_i_!_i_!_!i!_!_!_!i!%_!i!_!i_!_!_!_!_i!_!_!i!_!i!_!i!_!_!_!_!_!_!_!_!_!_i_!_!_!_i_!_i_!_i_!_i_!_i_!_i_!_i_!_i_!_i_!_i_!_i_!_i_!_i_!_i_!_i_!_i_!_i_!_i_!_i_!_i_!_i_!_i_!_i_!_i_!_i_!_i_!_i_!_i_!_i_!_
b. Press "_'iA"to choose the items, then enter the desired item with ENTER button. It has been set
already when the desired item becomes red.
Note: Press Left button to get back the previous menu.
c. Press SETUP to exit the menu.
d. The items of the menu as below;
iiii!iiiili!_i!i:iiiiiii!i¸i_iliiiii_i!iiiiiiiill¸i_!_ii_!_ii!_i_i_ii_!i_!_:_ii_!ii!_i_i_!_i!_i_i!_i_ii_i_!i_!ii!iii_i_!_¸i!iii_iii!!i¸ii!iiii_i_iii_!_i¸_!iii_i_!_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_ii
TV Shape: set the Picture Shape:
OSD Lang.: Set the language of OSD menu. Default setting is English.
Last Memory: set it on to memorize the last stop point. During playing the DVD, you change to other mode.
When you come back to DVD mode, it can play automatically from the last stop point.
Audio Setup Page
a. Press SETUP button on remote control during playing DVD, Press "1_ _1" unti! it will show following
menu:
(When the DVD menu displayed ,the DVD system will auto pause. Press SETUP again, it will go on)'
31
Setup menu operation
! ii!!!!!!iiiil,I iliiiiii:i ,iiiiiii,ii!iiii,ii!i :ii!ii iii ii! i iiiii!ii!!!!! ii i i!i!!iii i ii !i!i!i!i!iiiiii!iiiiiii !!i ! i
b. Press "_'iJ,"to choose the items, then enter the desired item with ENTER button. It has been set
already when the desired item becomes red.
Note: Press Left button to get back the previous menu.
c. Press SETUP to exit the menu.
d. The items of the menu as below:
Downmix: choose the downmix mode. There is only one item--stereo.
Preference Page
a. Press SETUP button on remote control during playing DVD, Press "1_ _1" until Preference will show
following menu:
(When the DVD menu displayed ,the DVD system will auto pause. Press SETUP again, it will go on)'
b. Press "_'iJ,"to choose the items, then enter the desired item with ENTER button. It has been set
already when the desired item becomes red.
Note: Press Left button to get back the previous menu.
c. Press SETUP to exit the menu.
d. The items of the menu as below:
TV Type: Choose the TV system that is compatible with the color system of the TV.
Audio: Choose the default language you would prefer to for DVD titles.
Subtitle: Set the language of subtitle menu or turn off the Subtitle.
Note: not aft DVD discs are recorded or offer subtitles in multiple language.
32
Setup menu operation
Disc Menu: set the default language of Disc menu.
Parental: movies rated higher than the level set will not be played by selecting a certain access level. The
parental lock can only be changed after input the correct password.
Note: This function is available only when the discs have rating encoded on.
It will ask a password when you select a level except for Adult. The factory setting of the password is
136900.
Press Down button to the 'OK' after finishing input of the password, then press ENTER button to confirm
and go back to the previous menu.
Password: Reset the password. The password should be 4-digit, and the initial password is 136900(It is
also the supercode).
Note: Press Down button to the 'OK' after finishing input of the password, then press ENTER button to
confirm and go back to the previous menu.
If you forget the old password, you can always use the factory setting password '136900'.
Default: Default the factory' settings EXCEPT the password.
33
Appendix
Identifying Problems
Ifthere are any problems using the product, please first consult the list below. If the list beIow does not solve the problem, call our
Customer Service Center immediately.
Setup and Connection
The TV won't turn on Check your power cable connection.
• tcan't view the Basic channels. Check the connection of the antenna cable
• twant to view cable channels. Register with your local cable company then connect their receiver to your TV.
• twant to view satellite channels. Setup your Satellite parabola antenna then connect your satellite receiver to the TV.
• Digital broadcasting is not functioning Check your antenna cable connection. Check if the digital channel selection is correctly
connected to your antenna cable.
Menu and Remote Control
• The Remote Control isn't functioning well.
Change the batteries.
Check the polarity of the batteries.
Check the angle of the remote control from the product or ifthere are any obstacles between the remote control and the product.
Check if you have pressed the correct key for the correct option
Try to a bright light position near TV's which transmit a strong light source on TV <remote receiver> window
• 1cannot change channels with the remote control.
Press [TV/AV] and select <TV>.
Try to use the remote control for the cable or satellite receiver to change the channeI
• External input channels cannot be selected
Check your external input connection cabte.
• A Menu cannot be selected.
Check if the menu is grayed out, and if it is, that menu cannot be selected.
Screen
• Poor picture
Is the power cord unplugged? Make sure the power cable is plugged in correctly, and then press the power of the remote control
• Black picture
Check if external input mode is seIected
Press [external input selection] and select TV
• Lined and flickering picture
Try to fineIy adjust the channel.
Are there any TV waves flowing or cordless radio transmitting stations? Avoid using cordless phones, hairdryers or electrical
drills
34
Appendix
• Disfunctioning channels.
Check if the channel has been selected correctly.
Try changing the position of the antenna.
• Picture with white and black dots.
Check if your antenna is damaged or any connections are broken.
Replace your antenna
• Only certain channels are in black and white
Check if the program is being broadcast in black and white
Try to check the hue or contrast.
• The Sub-Screen is black.
Check the power of the external device connected to the TV.
tf the power cord is disconnected, the screen will be black
• Automatic turn-on is inactive.
When turning off your TV, you need to use the remote control or press the power button on the TV. (If you pull the plug on the
TV, the settings will be deleted.)
Sound
• Poor quality sound
Check if the program is in stereo. Stereo may not work well in areas with bad reception. Try using Mono for these areas.
• Sound is malfunctioning while using a cable
Check your sound connecting cable.
Check if other channels also have no sound
• I can see images, but there is no sound.
Press the volume buttons to increase the sound.
Try watching a video (if the video has sound, check your cable company) if there is no problem with the cable receiver, then
call our customer service.
Check if press MUTE on the remote control..
• There is a malfunction after the volume is increased
Try to adjust the external devices connected to the TV (Digital channel receiver, DTV, DVD, Cable channel receiver, video)
tf you can adjust your sound, try to balance the volume of the TV and the external device.
Channel
• The channels are not functioning.
Connect the antenna connectors again.
Set to memorize channels in the automatic channel setting again
Query the particular broadcasting station.
• A limited number of channels are not functioning.
Change the location or direction of the antenna.
Try to select a few channels using numbers and memorize them using the add/delete button.
Query the broadcasting station.
• Only UHF (14-69) Channels are unavailable.
Check if the antenna is able to receive UHF
Monitor
35
Appendix
• The PC Screen continually appears and disappears.
Check the connection between the TV and the computer and see if the connector is Iocked.
• A 'There is no signal "message appears.
This happens if the signal from the video card is exceeded for the maximum resolution or frequency of the TV. Try to set the
maximum resolution or frequency for the TV.
See if power save mode of the PC functions properly(This is deactivated when any key is pressed or the mouse is moved)
• The screen looks like there is water flowing on it.
Check the connector connected to the TV.
• The screen is unclear and blurry.
Change the frequency and phase adjustment. Change the Resolution and frequency to the standard limit.
• Unstable and flickering screen.
The resolution and frequency of the PC's Graphics Card should be set within the TV's range. Check the TV menu's current
mode and standard mode and set it up again.
• Some modes in standard mode are not working.
Check the compatibility of the video card.
tf it is not working for compatible hardware, try to upgrade the driver of the graphics card
36
Appendix
Wall Mounting Specification
Wall mounting(unit: mm) Screw Diameter(unit: ram) Screw Length(unit: mm)
405X200 M5 14
Remark: The specification of screw is just used on the back unit.
NOTE: Wall mount bracket is not included with TV and mounting of wall mount bracket to wall may
vary depending on brand and size of bracket. Customer should consult bracket mounting instructions
that came with wall mount for specific information on how to mount bracket to wall.
405ram
37
Appendix
UNIVERSAL REMOTE CONTROL CODE LIST
For Universal Remote Control brands listed below, please use accompanying Proscan codes
and refer to your Universal Remote Control User Manual for basic instruction for changing TV code to
operate Proscan model.
• Proscan codes for Sony TV=8003,8012
• Proscan codes for Philips TV=1005,1006,1007,1035,1064,1216
• Proscan codes for other universal remotes=272,132,134,116,040,016,024,056,019,262
38
Appendix
TV SPECIFICATION
Model 37LB30QD
Diagonal display size 37 inches
Television system American TV standard ATSC/NTSC system, Built in DVD Combo
Audio multiplex BTSC system
Channel coverage
PC mode 640x480/60Hz,800x600/60Hz,1024x768/60Hz
YPbPr/YCbCr mode 4801/60 Hz,480P/60 Hz,720P/60Hz,t0801/60 Hz
HDMI Mode 4801/60Hz,480P/60 Hz,720P/60Hz,t0801/60 Hz
Resolution 1366x768
Power source AC 100 - 240 V ,50 - 60 Hz
Power consumption Less than 170W
Audio power 8W+8W
Supported Media DVD, SVCD, JPEG, MP3
Conection Interface
VHF: 2~13 UHF: 14~69 CATV:l~125 ~6 ~1 Digital Terrestrial Broadcast
(8VSB): 2 9 Digital cable (641266 QAM): t 35
RF input: Cable/Antenna xl
VIDEO input: VIDEO xl
S-VIDEO xl
COMPONENT x2
HDMIx2
GRAPHIC input: Analog RGB 15pin xl
AUDIO Input: AV Audioxl
Component Audiox2
PC Audio Inputxl
AUDIO output: Digital audio outputxl
Length: 37 inches
Dimensions Width: 11.2 inches
Height: 26.7 inches
Weight 40 Ibs
User Manual,Warranty Card, Remote control, AC cord, Batteries, QSG,
Supplied accessories
Warranty Register Card
Design and specifications are subject to change without notice.
CUSTOMER NOTICE: Use carefully when operating to prevent damage to the screen.
39
Loading...
