ProScan 32LB30QD, 26LB30QD User Manual
PRO
C A N
INSTRUCTION MANUAL
Model: 26LB30QD
32LB30QD
CAUTION: Changes or modifications not
expressly approved by the party
responsible for compliance with the
FCC Rules could avoid the users'
authority to operate this equipment.
CAUTION: The monitor shall not be exposed to
dripping or splashing. No objects
filled with liquids, such as vases, shall
be placed on the Monitor
CAUTION: Do Not Place This TV on an
Unstable cart, stand, or table. The
TV may fail, causing serious injury
to a child or adult, and serious damage
to the TV. Use only with a cart or stand
recommended by the manufacturer, or
sold with the TV
CAUTION: Installation on concrete wait has passed
UL safety test,
WARNING: TO REDUCE THE RISK OF FIRE OF ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT
INSIDE THE ENCLOSURE.DO NOT OPEN THE CABINET. REFER SERVICING TO
QUALIFIED PERSONNEL ONLY.
WARNING: THE APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR _
SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, _ ;_
SUCH AS VASES SHALL BE PLACED ON THE APPARATUS.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT.
CAUTION: THESE SERVICING INSTRUCTIONS ARE FOR USE BY QUALIFIED SERVICE
PERSONNELONLY.
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT PERFORM ANY SERVICING
ACTIVITIES_ BUT CALL QUALIFIED ELECTRICIAN PERSONNEL.
CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED, PERLACE ONLY
WITH THE SAME OF EQUIVALENT TYPE
1 READ THESE INSTRUCTIONS
2 KEEP THESE INSTRUCTIONS
3 HEED ALL WARNINGS
4 FOLLOW ALL INSTRUCTIONS
5 DO NOT USE THIS APPARATUS NEAR
WATER
Do not use this TV near water. For exampte, do not use near
a bathtub, washbowl, kitchen sink or taundry tub, in a wet
basement, or near a swimming pool, and the like The TV set
shall not be exposed to dripping or splashing. No objects
filled with liquids, such as vases, shall be pIaced on the TV
6. (_EAN ONLY WITH DRY CLOTH
Unplug the TV from the wail outlet before cleaning Do
not use liquid cleaners or aerosol cleaners. Use a
damp cloth for cleaning
7. DO NOT BLOCK ANY VENTILATION OPENINGS.
INSTALL IN ACCORDANCE WITH THE
MANUFACTURER'S INSTRUCTIONS.
Stots and openings in the cabinet back or bottom are
provided for ventilation, to ensure reliable operation of the TV
and to protect itfrom overheating These openings must not
be blocked or covered. The openings should never be
blocked by placing the TV on a bed, sofa, rug, or other
similar surface. This TV should never be placed near or over
a radiator or heat resource. This TV should not be placed in a
built-in installation such as a bookcase or rack unless proper
ventiIation is provided or the manufacturer's instructions
have been adhered to.
8. DO NOT INSTALL NEAR ANY HEAT SOURCES SUCH AS
RADIATORS, HEAT REGISTERS, STOVES, OR OTHER
APPARATUS (INCLUDE AMPLIFIERS) THAT PRODUCE
HEAT.
9. DO NOT DEFEAT THE SAFETY PURPOSE OF THE
GROUNDING-TYPE PLUG. A GROUNDING TYPE PLUG
HAS TWO BLADES AND A THIRD GROUNDING PRONG.
THE THIRD PRONG IS PROVIDED FOR YOUR SAFETY.
IF THE PROVIDED PLUG DOES NOT FIT INTO YOUR
OUTLET, CONSULT AN ELECTRICIAN FOR
REPLACEMENT OF THE OBSOLETE OUTLET.
10. PROTECT THE POWER CORD FROM BEING WALKED
ON OR PINCHED PARTICULARLY AT PLUGS,
CONVENIENCE RECEPTACLES, AND THE POINT
WHERE THEY EXIT FROM THE APPARATUS.
11.
ONLY USE ATTACHMENTSIACCESSORIES SPECIFIED
BY THE MANUFACTURER.
12.
USE ONLY WITH CART, STAND, TRIPOD, BRACKET, OR
TABLE SPECIFIED BY THE MANUFACTURER, OR SOLD
WITH THE APPARATUS. WHEN A CART IS USED, USE
CAUTION WHEN MOVING THE CART/
APPARATUS COMBINATION TO AVOID
INJURY FROM TIP-OVER.
Do not place this TV on an unstabIe cart, stand, tripod,
bracket, or table. The TV may fall, causing serious injury to
someone, and serious damage to the appliance. A TV and
cart combination should be moved with care. Quick stops,
excessive force, and uneven surfaces may cause the TV and
cart combination to overturn.
13. UNPLUG THIS APPARATUS DURING LIGHTNING
STORMS OR WHEN UNUSED FOR LONG PERIODS
OF TIME.
For added Protection for this TV receiver during a lightning
storm, or when it is left unattended and unused for long
period of time, unplug it from the wall outlet and disconnect
the antenna or cable system. This wiil prevent damage to the
TV due to Lightning and power line surges.
14. REFER ALL SERVICING TO QUALIFIED SERVICE
PERSONNEL. SERVICING IS REQUIRED WHEN THE
APPARATUS HAS BEEN DAMAGED IN ANY WAY, SUCH
AS POWER-SUPPLY CORD OR PLUG IS DAMAGED,
LIQUID HAS BEEN SPILLED OR OBJECTS HAVE
FALLEN INTO THE APPARATUS, THE APPARATUS HAS
BEEN EXPOSED TO RAIN OR MOISTURE, DOES NOT
OPERATE NORMALLY, OR HAS BEEN DROPPED.
15. Wet Location Marking -CANADA
Worded: The TV shah not be exposed to dripping or splashing.
No objects filled with liquids, such as vases, shalI
be placed on the TV.
Note: All figures in the manual are for reference onty, please
refer to the actual units to determine their
appearance.
The front of the display panel has been
specially treated. Wipe the panel surface gently
using only a cleaning cloth or a soft, tint-free
cloth.
_fthe surface is particularly dirty, soak a soft, lint-free
cloth in a weak detergent solution and then remove
excess tiquid. Use this cloth to wipe the surface of
the disptay panet, and then wipe itwith a dry cloth,
Welcome to the bright and vivid world of Proscan TV set. We hope that you witt have many years of
enjoyment from your new select.
To obtain maximum benefit from your set. Please read this manual before making any adjustments and
retain them together with purchase receipt for future reference,
of the same type, until the surface is dry.
Do not scratch or hit the surface of the panel with
fingernails or other hard objects. Furthermore, avoid
contact with volatile substances such as insect
sprays, solvents and thinner; otherwise, the quality
of the surface may be adversely affected.
Please read ait the safety and operating instructions carefully before begin.
CAUTION AND WARNING ............................................................................. 1
IMPORTANT SAFTY INSTRUCTIONS ............................................................. 3
CLEANING AND MAINTENANCE ................................................................... 4
DEAR PROSCAN CUSTOMER ....................................................................... 4
SAFETY PRECAUTIONS ............................................................................... 7
INSTALLATION ............................................................................................................... 7
Preparation for using your new TV .................................................................................... 8
FRONT PANEL ............................................................................................................ 8
REAR PANEL ............................................................................................................... 9
CONNECTIONS AND EXTERNAL INPUT SETTINGS ......................................................... 10
Using the Remote control ............................................................................ 11
LEARNING ABOUT REMOTE CONTROL ........................................................................ 11
REMOTE CONTROL INSTRUCTIONS .............................................................................. 13
Basic operation .......................................................................................... 14
TURNING ON AND OFF THE TV .................................................................................... 14
CHOOSING TV CHANNEL ............................................................................................ 14
SELECTING INPUT SOURCE ........................................................................................ 15
VOLUME ADJUSTMENT. ................................................................................................................ 15
Setup menu operation ................................................................................. 16
ADJUST THE OSD SCREEN ......................................................................................... 16
SELECT ON SCREEN LANGUAGE ............................................................................... 17
PICTURE MENU OPTIONS .......................................................................................... 17
AUDIO MENU OPTIONS .............................................................................................. 18
SETUP MENU OPTIONS ............................................................................................... 19

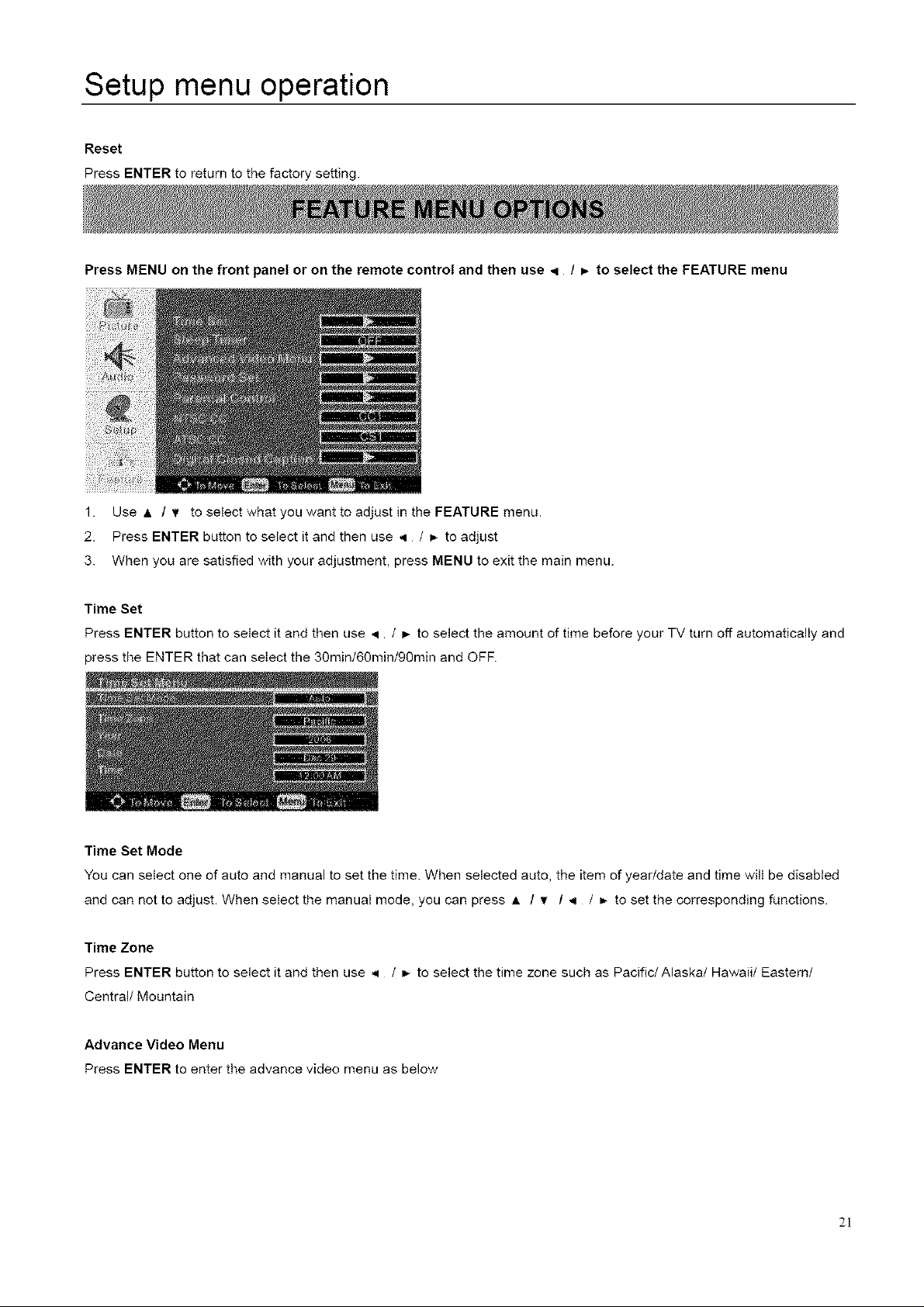

FEATURE MENU OPTIONS .......................................................................................... 21
VGA MENU OPTIONS .................................................................................................. 25
YPBPR MENU OPTIONS ............................................................................................. 26
HDMI MENU OPTIONS ................................................................................................ 27
THE DVD PLAYER ...................................................................................................... 28
APPENDIX-TROUBLE SHOOTING ................................................................. 33
Wall Mounting Specification ........................................................................................ 36
Universal Remote Controlk Code List ........................................................................... 37
TV Specification ........................................................................................................ 38
Safety Precautions
,_WARNING
KEEP UNNEEDED SMALL PARTS AND OTHER OBJECTS OUT OF THE REACH OF
SMALL CHILDREN. THESE OBJECTS CAN BE ACCIDENTALLY SWALLOWED. ALSO,
BE CAREFUL ABOUT PACKAGING MATERIALS AND PLASTIC SHEETS.
Set up
Do not pIace the TV set on stoped or unstable surfaces.
Do not p_ace any objects on top of the TV set if water spi#s onto the TV set or foreign objects get inside it,
short-circuiting may occur which could result in fire or eIectbc shock If any foreign objects get inside the TV set,
ptease consult an Authorized Service Center
Do not cover the ventilation ho_es. Doing so may cause the TV set overheated and can cause fire or damage to the
TV set
Avoid installing this product near electronic equipment that is readily affected by etectromagnetic waves.
It may cause interference in image, sound, etc In particuIar, keep video equipment away from this
product.
AC Power Supply Cord
Securety insert the power cord plug as far as it witt go. If the plug is not fully inserted, heat may be generated which
could cause fire. If the plug is damaged or the wall socket pIate is Ioose, they should not be used
Do not handte the power cord p_ugwith wet hands. Doing so may cause electric shocks
Do not do anything that might damage the power cable. When disconnecting the power cable, ho_d the plug, not the
cable
Do not make any modifications to, place heavy objects on, place near hot objects, heat, bend, twist or forcefully pulI
the power cable. Doing so may cause damage to the power cabIe which can cause fire or electbc shock If damage
to the cable is suspected, have it repaired at an Authorized Service Center.
If the TV set will not be used for a long period of time, unplug the power cord from the walI outIet
If Problems Occur During Use
If a problem occurs (such as no picture or no sound), or if smoke or an abnormal odor is detected from the TV set,
unptug the power cord immediately. Continued use of the TV under these conditions might cause fire or permanent
damage to the unit. Have the TV evaIuated at an Authorized Service Center. Service to the TV by any unauthorized
personnel is strongly discouraged due to its high voltage dangerous nature. If water or foreign objects get inside the
TV set, if the TV set is dropped, or if the cabinet becomes damage& disconnect the power cord plug immediately.
Contact an Authorized Service Center for any repairs that need to be made
Safety Precautions
When using the TV set
Do not bring your hands, face or objects close to the ventilation holes of the TV set Top of the TV set is usuaIIy
very hot due to the high temperature of exhaust air being reIeased through the Ventilation holes Burns or personal
injuries can happen if any body parts are brought too close. Placing any object near the top of the TV could also
result in heat damage to the object as welI as to the TV if its ventiIation holes are blocked
Be sure to disconnect all cabIes before moving the TV set. Moving the TV with its cables attached might damage
the cables which, in turn, can cause fire or electric shock.
Disconnect the power pIug from the wail outlet as a safety precaution before carrying out any cleaning
electric shocks can result ifthis is not done.
Clean the power cable regularly to prevent itfrom becoming dusty. Built-up dust on the power cord plug can
increase humidity which might damage the insulation and cause fire. Unplug the cord from the wall outlet and
clean it with a dry cloth
This TV set radiates infrared rays; therefore, it may affect other infrared communication equipment InstaiI your
infrared sensor in a place away from direct or reflected light from your TV set.
Selecting a location for the TV
1 PIace the TV on the floor or on a sturdy platform in a location where light does not directly hit the screen
2 Place the TV far enough from the wails to allow proper ventilation Inadequate ventilation may cause
overheating, which may damage the TV.
Note: Please contact local dealer for watt mounting.
Optional External Equipment
For best performance, video cabIes should utilize 75 ohm coaxial shielded wire Cables are avaiIable from your
dealer or electronic supply store
Before you purchase any cables, be sure you know what type of output and input connectors your various
components require Also determine the length of cable you will need
Preparation for using your new TV
Familiarizing Yourself with the Main Hardware
(The picture of the product may vary depending on the model)
TV buttons:
a Select signal input. (It changes to "ENTER" function when main menu displays )
b Main Menu display and menu selection
c. Channel down
d Channel up
e Volume down
f Volume up
g ON/OFF button
DVD buttons:
A. NEXT button in DVD mode
B. PREV button in DVD mode
C. ZOOM: Zoom the size of the screen
D. EJECT button
E. STEP button
F STOP button
Preparation for using your new TV
Rear panel
(The picture of' the product may vary depending on the model)
HDMI Input
Input1 : J
Input2: K
Component Input 1
Video : E, F, G
Audio : C, C1
Component Input 2
Video : El,F1, G1
Audio : B, B1
Composite Input
Video : L
Audio : D, D1
®
S-Video Input
- Video : M
- Audio : D, D1
VGA input
- Video : I
- Audio : H (3.5m plug)
Others
- Power Input:A
- COAX Digital Out: N
- ExternalAntenna: O
Preparation for using your new TV
1 Checking Items before Connecting
Please check the list below before connecting the product to other devices
< Check items before connecting. >
Check the instruction manual when connecting external devices External products sometimes have different
buttons and locations
1 Do not connect the power unless every connection is well connected. The product may be damaged if
turned
on while still in the process of being connected.
2 Connect the left (white) and right (red) cables correctly to the sound cable.
3 Check the terminals to connect the product to on the rear panel
2: Connecting an Antenna
There are internal and external types of antenna.
< Connecting an Antenna>
Cable TV network
1
Use a coaxial cable to connect the rear panel of the TV's [AIR] or [CABLE] terminals and the wall
mount or external antenna.
2
When an Air signal is required, connect to the [AIR] terminal. If a Cable signal is required, connect to
the
[CABLE] terminal if both Air and Cable are available, and then connect both lAIR] and [CABLE]
terminals
3 Connect the TV power cord when connecting everything else.
< Caution >
Avoid bending the copper tip at the center of the coaxial cable
]0
Using the remote control
1. POWER: Power on/off
2. SLEEP:Press to select a preset time interval to
automatically shut the TV
3. ASPECT:Press to adjust the screen size.
4. DISPLAY:Press to Check your current mode.
5. INPUT:Press to Display a menu of all available input
sources, Also used to confirm your choice in the
on-screen menu.
6. FAV:Add/detete the current channel to your favorite
channel
7. MTS:tt displays "Audiot/Audio2" under digital signal
8. FAV.+:Press to view the next favorite channel.
9. FAV-:Press to viewthe previous favorite channel
10. Numeric Buttons:Press to change the channel directly
using the numeric buttons.
11. RECALL:Press to select between current channel and
the last channel.
12. -:When selecting a digital broadcast channel, press
the number, followed by "-'_button, followed by sub channel
numben
13. PICTURE: Press to change to a preset picture mode.
14. SOUND:Press to change to a preset sound mode.
15. Volume:Press to increase or decrease the volume.
16. Channel:Press to select next or previous active
channet
17. FREEZE:Press to freeze the current picture
18. MUTE:Press to temporarily switch the sound off.
19. EPG:One of signal channel EPG or Multi channel EPG
20. UP/DOWN:Press to select on-screen menu items and
change menu values.
21. DTV:Press to change between Analog TV and Digital
TV
22. LEFT:Press to select on-screen menu items and
change menu vatues.
23. RIGHT:Press to select on-screen menu items and
change menu values.
24. CC:Press to setect Caption
25. ENTER:Press to enter the menu.
26. MENU:Press to display the main on-screen menu
]]
Loading...
