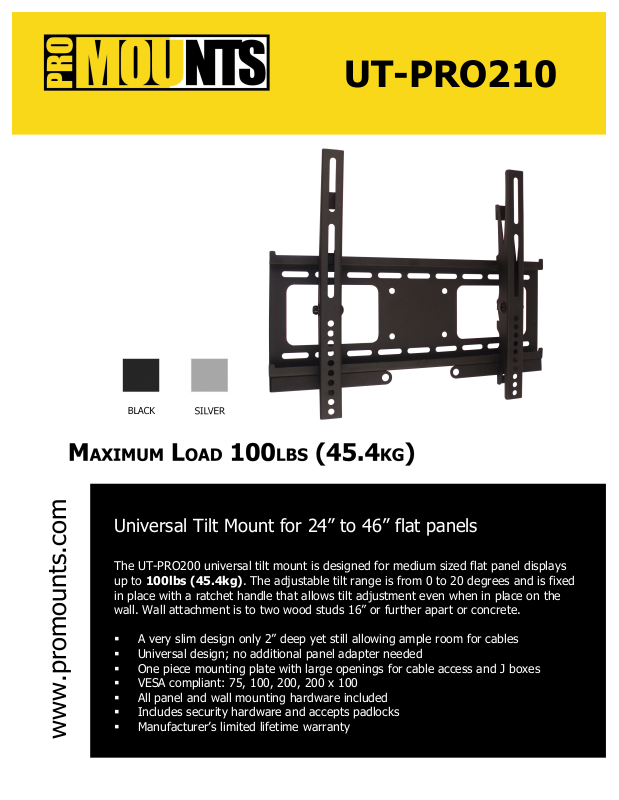

ProMounts UT-PRO210 User Manual

www.promounts.com

UT-PRO210

Universal Tilt Mount for 24” to 46” flat panels

The UT-PRO200 universal tilt mount is designed for medium sized flat panel displays
up to 100lbs (45.4kg). The adjustable tilt range is from 0 to 20 degrees and is fixed
in place with a ratchet handle that allows tilt adjustment even when in place on the
wall. Wall attachment is to two wood studs 16” or further apart or concrete.

 A very slim design only 2” deep yet still allowing ample room for cables
 Universal design; no additional panel adapter needed
 One piece mounting plate with large openings for cable access and J boxes
 VESA compliant: 75, 100, 200, 200 x 100
 All panel and wall mounting hardware included
 Includes security hardware and accepts padlocks
 Manufacturer’s limited lifetime warranty

www.promounts.com

The ProMount UT-PRO200 universal
mount is compatible with virtually all flat
panels within the specified weight and
size range.

UT-PRO210

Specifications

Post Assembly Adjustment

Horizontal L or R from center:

75 VESA: up to 8” (204mm)
100 VESA: up to 7.5” (191mm)
200 VESA: up to 5.5” (140mm)
Vertical: 2.5” (64mm)

Wall Mounting
Dual (2) wood studs up to 18” apart or concrete

Architects and Consultants: please contact ProMounts customer service for necessary drawings and files. For
complete high resolution images, technical specifications and drawings please visit www.promounts.com and click on
Download Center.

ProMounts: 5741 Buckingham Parkway, Unit C, Culver City, CA 90230 Phone: [phone], or 310 645 6400
Email: [e-mail] Fax: [phone] ProMounts is a division of Scadlock LLC

Fits most flat panels between 24” and 46”
Horizontal hole spacing: max 18” (457mm)
Vertical hole spacing from 2.5” to 15.4”
(64mm to 391mm)
Tilt: 0 to 20 degrees
VESA compliant: 75, 100, 200, 200 x 100

Weight

12.1lbs (5.5kg)
