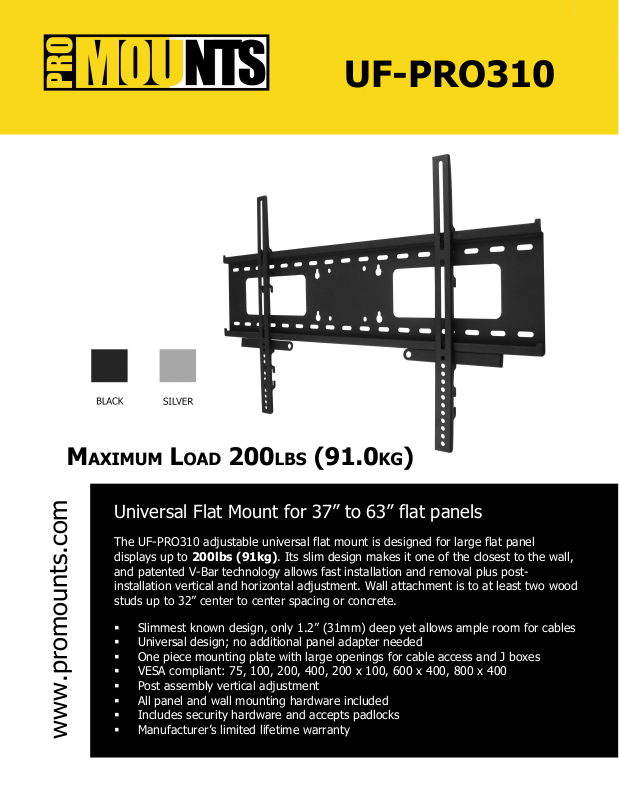

Page 1
UF-PRO310
Universal Flat Mount for 37” to 63” flat panels
The UF-PRO310 adjustable universal flat mount is designed for large flat panel
displays up to 200lbs (91kg). Its slim design makes it one of the closest to the wall,
and patented V-Bar technology allows fast installation and removal plus postinstallation vertical and horizontal adjustment. Wall attachment is to at least two wood
studs up to 32” center to center spacing or concrete.
Slimmest known design, only 1.2” (31mm) deep yet allows ample room for cables
Universal design; no additional panel adapter needed
One piece mounting plate with large openings for cable access and J boxes
VESA compliant: 75, 100, 200, 400, 200 x 100, 600 x 400, 800 x 400
Post assembly vertical adjustment
All panel and wall mounting hardware included
Includes security hardware and accepts padlocks
www.promounts.com
Manufacturer’s limited lifetime warranty
Page 2
p
UF-PRO310
The ProMount UF-PRO310 universal
mount is compatible with virtually all flat
panels within the specified weight and
size range.
Specifications Post Assembly Adjustment
Fits most flat panels between 37” and 63” Horizontal L or R from center:
Horizontal hole spacing max: 32.6” (829mm) 400 VESA: up to 8.5” (216mm)
Vertical hole spacing up to 20.9” (532mm) 600 VESA: up to 4.5” (114mm)
VESA compliant: 75, 100, 200, 400, 200 x 100 800 VESA: up to 0.5” (13mm)
600 x 400, 800 x 400 Vertical: 2.25” (57mm)
Weight
Estimated: 11lbs (5kg) Attach to at least two wood studs up to 32” on center
or two points on concrete 16” to 32” apart.
Dimensions
TBA
Architects and Consultants: please contact ProMounts customer service for necessary drawings and files. For
complete high resolution images, technical specifications and drawings please visit www.promounts.com and click on
Download Center.
ProMounts: 5741 Buckingham Parkway, Unit C, Culver City, CA 90230 Phone: 866 668 6872, or 310 645 6400
Email: [email protected] Fax: 310 645 0189 ProMounts is a division of Scadlock LLC
Wall Mounting
