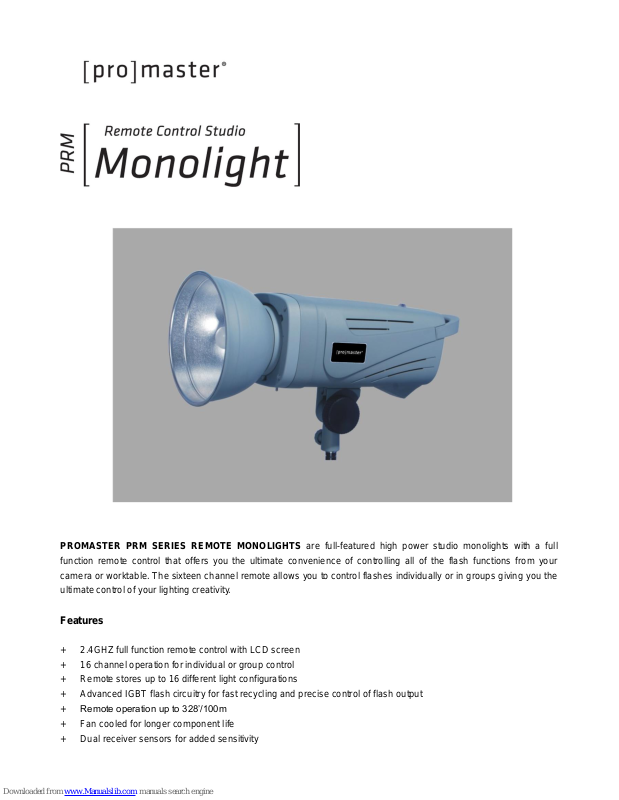

Promaster PRM-600, PRM-1000 Instruction Book

PROMASTER PRM SERIES REMOTE MONOLIGHTS are full-featured high power studio monolights with a full

function remote control that offers you the ultimate convenience of controlling all of the flash functions from your
camera or worktable. The sixteen channel remote allows you to control flashes individually or in groups giving you the
ultimate control of your lighting creativity.

Features

+ 2.4GHZ full function remote control with LCD screen
+ 16 channel operation for individual or group control
+ Remote stores up to 16 different light configurations
+ Advanced IGBT flash circuitry for fast recycling and precise control of flash output
+ Remote operation up to 328’/100m
+ Fan cooled for longer component life
+ Dual receiver sensors for added sensitivity

Light Parts Identification

A. Optical slave receiver
B. Flash test button
C. Channel selection button
D. Fuse compartment
E. Sync cord jack
F. AC input socket
G. Stand lock knob
H. Remote power button
I. Horizontal menu select button
J. Master power switch
K. Vertical select / power adjustment dial
L. Angle adjustment locking knob
M. Flash mode selection

N. Modeling lamp mode selection
O. Buzzer mode selection
P. Optical slave mode selection
Q. Flash counter
R. Flash output power display
S. Modeling light output display
T. Channel Display
U. Modeling light
V. Flash tube
W. Accessory mount release lever
X. Charging display bar
Y. Flash Indicator/Power Indicator (not shown)

NOTICE: Diagram above is shown with OPTIONAL standard reflector installed. Reflectors and other
accessories are available for separate purchase.
