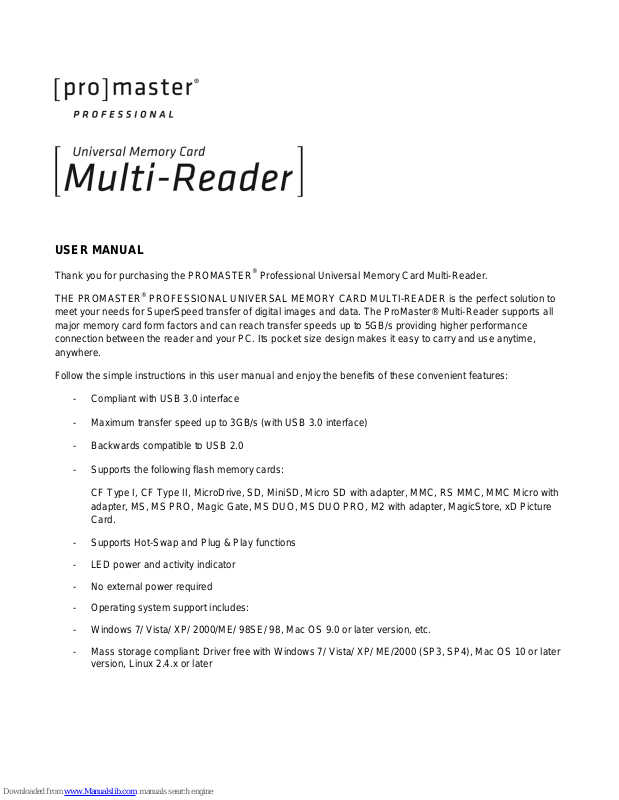

Promaster Multi-Reader User Manual

USER MANUAL

Thank you for purchasing the PROMASTER® Professional Universal Memory Card Multi-Reader.
THE PROMASTER

meet your needs for SuperSpeed transfer of digital images and data. The ProMaster® Multi-Reader supports all
major memory card form factors and can reach transfer speeds up to 5GB/s providing higher performance
connection between the reader and your PC. Its pocket size design makes it easy to carry and use anytime,
anywhere.

Follow the simple instructions in this user manual and enjoy the benefits of these convenient features:

- Compliant with USB 3.0 interfac e

- Maximum transfer speed up to 3GB/s (with USB 3.0 interface)

- Backwards compatible to USB 2.0

- Supports the following flash memory cards:
CF Type I, CF Type II, MicroDrive, SD, MiniSD, Micr o SD with ada pter , MMC, RS MMC, MM C Mic ro with

adapter, MS, MS PRO, Magic Gate, MS DUO, MS DUO PRO, M2 with adapter, MagicStore, xD Picture
Card.

- Supports Hot-Swap and Plug & Play functions

- LED power and activity indicator

- No external power required

®

PROFESSIONAL UNIVERSAL MEMORY CARD MULTI-READER is the perfect solution to

- Operating system support includes:

- Windows 7/ Vista/ XP/ 2000/ME/ 98SE/ 98, Mac OS 9.0 or later version, etc.

- Mass storage compliant: Driver free with Windows 7/ Vista/ XP/ ME/2000 (SP3, SP4), Mac OS 10 or later
version, Linux 2.4.x or later

INSTALLATION

Connect the Multi-Reader directly to any USB port on your computer or use the included USB cable.
IMPORTANT: To enable the SuperSpeed transfer capability, the reader must be connected to a USB 3.0
SuperSpeed port. This reader is compatible with older USB 2.0 connections but will not offer high speed transfers.

Double-click on "My Computer" to confirm that the two drive letters labeled Removable Disk appear.
Check that the internal blue power LED lights confirming a proper connection.
Insert your memory card in the appropriate reader slot to use the card reader function.

Double-click on the corresponding drive letter to read or write desired files to or from your computer or storage
card.

OPERATIONS GUIDE

OVERVIEW

The read and write commands for memory cards are the same as those used for moving data to and from any
other computer storage device, such as a USB drive or floppy disk. You simply plug the PROMASTER
Professional Universal Me mory Card Multi-Reader into any USB port of your PC or Mac and begin transferring
information stored on flash media cards to your computer and back.

OPERATING TIPS
Copying Files Between Memory Cards

In addition to moving data between your Reader/Writer and your computer, you may move data between card
types. Assuming an SD/MMC/MS/xD card was inserted, you could copy this data to a Compact Flash card also
inserted in the Multi-Reader.

®
