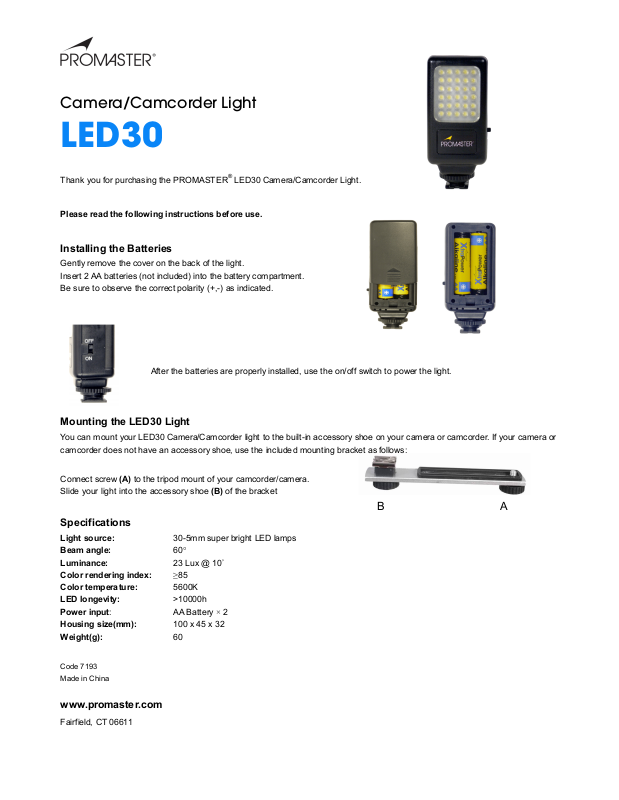

Camera/Camcorder Light
LED30
Thank you for purchasing the PROMASTER
Please read the following instructions before use.
Installing the Batteries
Gently remove the cover on the back of the light.
Insert 2 AA batteries (not included) into the battery compartment.
Be sure to observe the correct polarity (+,-) as indicated.
®
LED30 Camera/Camcorder Light.
After the batteries are properly installed, use the on/off switch to power the light .
Mounting the LED30 Light
You can m ount your LED30 Camera/Camcorder light to the built-in accessory shoe on your camera or camcorder. If your camera or
camcorder does not have an accessory shoe, use the inc luded mounting bracket as follows:
Connect screw (A) to the tripod mount of your camcorder/camera.
Slide your light into the accessory shoe (B) of the bracket
B A
Specifications
Light source: 30-5mm super bright LED lamps
Beam angle: 60°
Luminance: 23 Lux @ 10’
Color rendering index: ≥85
Color temperature: 5600K
LED longevity: >10000h
Power input: AA Battery × 2
Housing size(mm): 100 x 45 x 32
Weight(g): 60
Code 7193
Made in China
www.promaster.com
Fairfield, CT 06611
