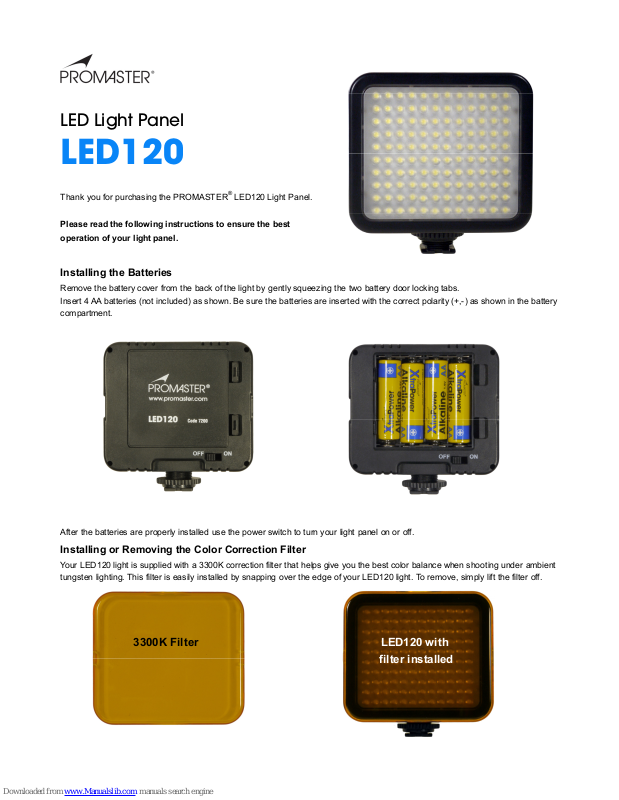

Promaster LED120 User Manual

LED Light Panel

LED120

Thank you for purchasing the PROMASTER

Please read the following instructions to ensure the best

operation of your light panel.

Installing the Batteries

Remove the battery cover from the back of the light by gently squeezing the two battery door locking tabs.
Insert 4 AA batteries (not included) as shown. Be sure the batteries are inserted with the correct polarity (+,-) as shown in the battery
compartment.

®

LED120 Light Panel.

After the batteries are properly installed use the power switch to turn your light panel on or off.

Installing or Removing the Color Correction Filter

Your LED120 light is supplied with a 3300K correction filter that helps give you the best color balance when shoot ing under ambient
tungsten lighting. This filter is easily installed by snapping over the edge of your LED120 light. To remove, simply lift the filter off.

3300K Filter LED120 with

filter installed

Using the Camera Bracket

B A

Attach the mounting screw (A) to the tripod mount of your camcorder/camera. Slide your light into the shoe (B) of the mounting
bracket.

Specifications

Light source: 120-5mm super bright LED lamps
Beam angle: 60°
Luminance: 51 Lux @ 10’
Color rendering index: ≥85
Color tempera ture: 5600K
LED longevity: >10000h
Power input: AA Battery × 4
Housing size(mm): 94 x 93 x 38
Weight(g): 140

Code 7200

Made in China

www.promaster.com

Fairfield, CT 06611
