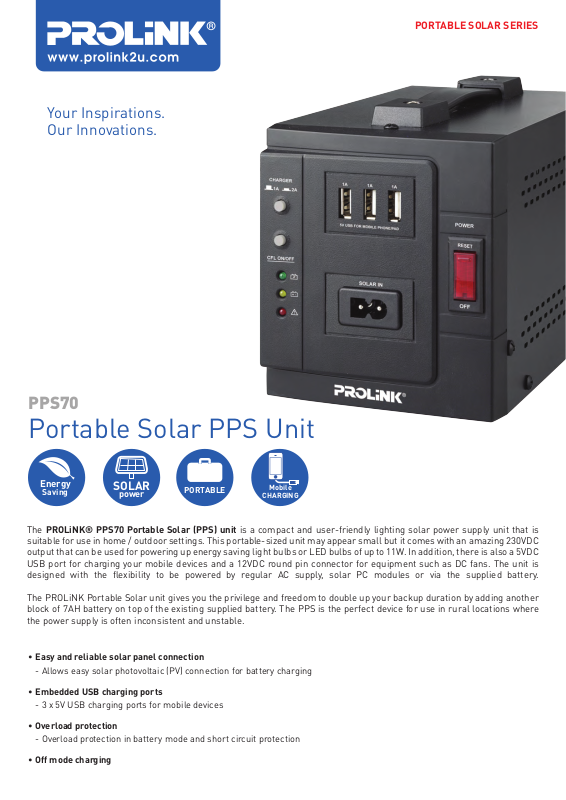

PROLiNK PPS70 User Manual

Your Inspirations. Our Innovations.

PORTABLE SOLAR SERIES

PPS70

Portable Solar PPS Unit

Energy

Saving

The PROLiNK® PPS70 Portable Solar (PPS) unit is a compact and user-friendly lighting solar power supply unit that is suitable for use in home / outdoor settings. This portable-sized unit may appear small but it comes with an amazing 230VDC output that can be used for powering up energy saving light bulbs or LED bulbs of up to 11W. In addition, there is also a 5VDC USB port for charging your mobile devices and a 12VDC round pin connector for equipment such as DC fans. The unit is designed with the ﬂexibility to be powered by regular AC supply, solar PC modules or via the supplied battery.

The PROLiNK Portable Solar unit gives you the privilege and freedom to double up your backup duration by adding another block of 7AH battery on top of the existing supplied battery. The PPS is the perfect device for use in rural locations where the power supply is often inconsistent and unstable.

• Easy and reliable solar panel connection

- Allows easy solar photovoltaic (PV) connection for battery charging

SOLAR

power

PORTABLE

Mobile

CHARGING

• Embedded USB charging ports

- 3 x 5V USB charging ports for mobile devices

• Overload protection

- Overload protection in battery mode and short circuit protection

• Off mode charging

Front View Back View

Legend:

1A/2A Charger Select

Energy Saving Lighting On/Off Switch

Charging Status Indicator

Battery Status Indicator

Fault Indicator

USB Charger Ports

PORTABLE SOLAR SERIES

Main Power Switch

PV Input

Energy Saving Light Output Receptacles

12VDC Output Connector

2A AC Fuse

AC Input

External Battery Connector

Speciﬁcations

Capacity

Input

Output

Battery

PV Input

Protection/

Monitoring

General

Voltage Range Frequency Phase

Output Voltage (AC Mode) Output Voltage (Batt Mode) Waveform

Battery Voltage Battery Capacity

PV Array Open Circuit Voltage (Maximum) Solar Charging Current (Maximum)

Short Circuit Protection Overload Protection

Alarm

Temperature Humidity

70W

230VAC 50 Hz or 60Hz (Auto-sensing) Single + GND

230VDC 160VDC ~ 230VDC ±10% DC Output

12VDC 7AH

30VDC

Yes Yes LED Indication

0°C ~ 40°C 0 ~ 90% relative Humidity (Non-condensing)

Physical

Dimension (DxHxH) mm Weight kgs

Authorised Distributor/ Reseller:

229 x 110 x 123.5

3.8

Compatible with:

(Intel CPU)

PROLiNK® is a trademark of Fida International (S) Pte Ltd and is manufactured under its authority. Microsoft®, Windows®, Windows® 98SE/ME/2000/XP/Vista/7/8 are either registered trademarks or trademarks of Microsoft Corporation. Mac and the Mac logo are trademarks of Apple, Inc., registered in the U.S. and other countries. Linux® is a registered trademark of Linus Torvalds and Linux penguin “Tux” created by Larry Ewing and The Gimp. All other brands, products, services, logos and company names mentioned herein are trademarks of their respective owners. All speciﬁcations, designs and contents are subjected to changes without prior notice. Images are for demonstration and may vary from actual products. © Copyright 2013. PROLiNK® All rights reserved.

System Requirements:

Windows XP/Vista/7/8, Mac, Linux
