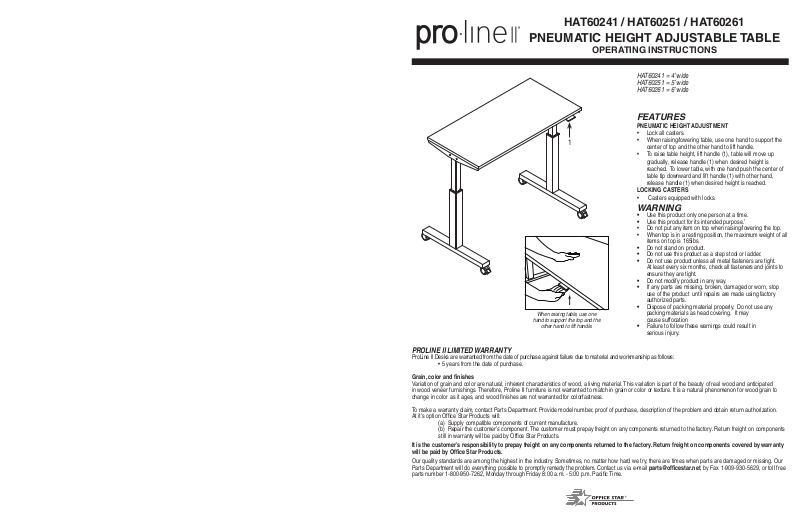

HAT60241 / HAT60251 / HAT60261
PNEUMATIC HEIGHT ADJUSTABLE TABLE
OPERATING INSTRUCTIONS
HAT60241 = 4’ wide
HAT60251 = 5’ wide
HAT60261 = 6’ wide
FEATURES
PNEUMATIC HEIGHT ADJUSTMENT
• Lock all casters.
1
When raising table, use one
hand to support the top and the
other hand to lift handle.
• When raising/lowering table, use one hand to support the
center of top and the other hand to lift handle.
• To raise table height, lift handle (1), table will move up
gradually, release handle (1) when desired height is
reached. To lower table, with one hand push the center of
table tip downward and lift handle (1) with other hand,
release handle (1) when desired height is reached.
LOCKING CASTERS
• Casters equipped with locks.
WARNING
• Use this product only one person at a time.
• Use this product for its intended purpose.’
• Do not put any item on top when raising/lowering the top.
• When top is in a resting position, the maximum weight of all
items on top is 165lbs.
• Do not stand on product.
• Do not use this product as a step stool or ladder.
• Do not use product unless all metal fasteners are tight.
At least every six months, check all fasteners and joints to
ensure they are tight.
• Do not modify product in any way.
• If any parts are missing, broken, damaged or worn, stop
use of the product until repairs are made using factory
authorized parts.
• Dispose of packing material properly. Do not use any
packing materials as head covering. It may
cause suffocation
• Failure to follow these warnings could result in
serious injury.
PROLINE II LIMITED WARRANTY
ProLine II Desks are warranted from the date of purchase against failure due to material and workmanship as follows:
• 5 years from the date of purchase.
Grain, color and finishes
Variation of grain and color are natural, inherent characteristics of wood, a living material. This variation is part of the beauty of real wood and anticipated
in wood veneer furnishings. Therefore, Proline II furniture is not warranted to match in grain or color or texture. It is a natural phenomenon for wood grain to
change in color as it ages, and wood finishes are not warranted for colorfastness.
To make a warranty claim, contact Parts Department. Provide model number, proof of purchase, description of the problem and obtain return authorization.
At it’s option Office Star Products will:
(a) Supply compatible components of current manufacture.
(b) Repair the customer’s component. The customer must prepay freight on any components returned to the factory. Return freight on components
still in warranty will be paid by Office Star Products.
It is the customer’s responsibility to prepay freight on any components returned to the factory. Return freight on components covered by warranty
will be paid by Office Star Products.
Our quality standards are among the highest in the industry. Sometimes, no matter how hard we try, there are times when parts are damaged or missing. Our
Parts Department will do everything possible to promptly remedy the problem. Contact us via e-mail parts@officestar.net, by Fax 1-909-930-5629, or toll free
parts number 1-800-950-7262, Monday through Friday 8:00 a.m. - 5:00 p.m. Pacific Time.
HAT60241 / HAT60251 / HAT60261
HAT60241 / HAT60251 / HAT60261
STEP 1
DETAIL A
plastic cap
PNEUMATIC HEIGHT ADJUSTABLE TABLE
ASSEMBLY INSTRUCTIONS
plastic cap
5
5
2
PART QTY
1. Table Top ...........................1
2. Leg Post. . . . . . . . . . . . . . . . . . . . . . . . . . . .2
3. Foot ...............................2
4. Top Support ........................ 2
5. Channel ............................1
6. Caster .............................1
7. Short Screw ........................18
8. Medium Bolt ........................16
9. Long Bolt ...........................8
10. Height Adjustment Lever ..............1
11. Allen Wrench (not shown) .............1
12. Key Wrench (not shown) ..............1
Phillips screwdriver also needed for
assembly (not provided)
STEP 3
7
PNEUMATIC HEIGHT ADJUSTABLE TABLE
ASSEMBLY INSTRUCTIONS
2
2
7
7
6
7
STEP 4
3
1
9
6
10
2
4
6
9
6
8
STEP 2
5
3
2
4
2
2
8
2
Remove all the parts from carton, separate them into part numbers indicated on the list and make sure part quantities are correct.
STEP 1 Remove plastic caps from ends of Channel (5). Attach Channel (5) between Leg Posts (2). To align rod with Leg Posts (2), squeeze lever to turn rod
into position. SEE DETAIL A. Secure Leg Posts (2) to Channel (5) using six Medium Bolts (8) for each Leg Post (2). DO NOT FULLY TIGHTEN BOLTS.
STEP 2 Attach Top Supports (4) to Leg Posts (2) using two Medium Bolts (8) for each Leg Post (2). FULLY ALL BOLTS USING ALLEN WRENCH (11).
STEP 3 Attach Leg Post (2) assembly to Table Top (1) using fourteen Short Screws (7). FULLY TIGHTEN SHORT SCREWS (7). Attach Height
Adjustment Lever (10) to Table Top (1) using four Medium Screws (7). FULLY TIGHTEN SHORT SCREWS (7).
STEP 4 Attach Feet (3) to Leg Posts (2) using four Long Bolts (9) for each Foot (3). FULLY TIGHTEN LONG BOLTS (9). Screw in two Casters (6) into each
Foot (3). FULLY TIGHTEN CASTERS (6) USING KEY WRENCH (12).
ATTENTION: MAKE SURE ALL BOLTS, SCREWS & CASTERS ARE FULLY TIGHTENED BEFORE USING TABLE.
© Office Star Products April 2016
