Proline PLF220A Instructions Manual

Larder Fridge

PLF220A

INSTRUCTIONS

This booklet contains the information you will require to install and operate your new
appliance.

It is important and worthwhile spending time to fully read this booklet so you will
understand how to operate the appliance safely and efficiently.
Please keep this booklet in a safe place so that you can refer to it when required.

Safety information

This information is provided in the interest of your safety. Please read the following
carefully before carrying out the installation or use of the appliance.

If you are discarding an old freezer or refrigerator with a lock / catch fitted to the
door, ensure that it is left in a disabled condition to prevent the entrapment of
children whilst playing.

As old refrigeration equipment may contain CFC’s which will damage the ozone layer,
when disposing of any refrigeration equipment please contact your local waste disposal
facility for advice on the correct method of disposal.

This appliance must only be used for its intended purpose i.e. the freezing and storage of
domestic edible foodstuffs and should not be used for any other purpose

If the mains cable requires replacement, this must only be undertaken by a suitably
qualified person, as special purpose tools are required.

Installation

Position the appliance and allow to stand for two to three hours before it is turned on for
the first time to allow the system to settle. Do not position next to any heat source e.g.
cooker, boiler or in direct sunlight etc.

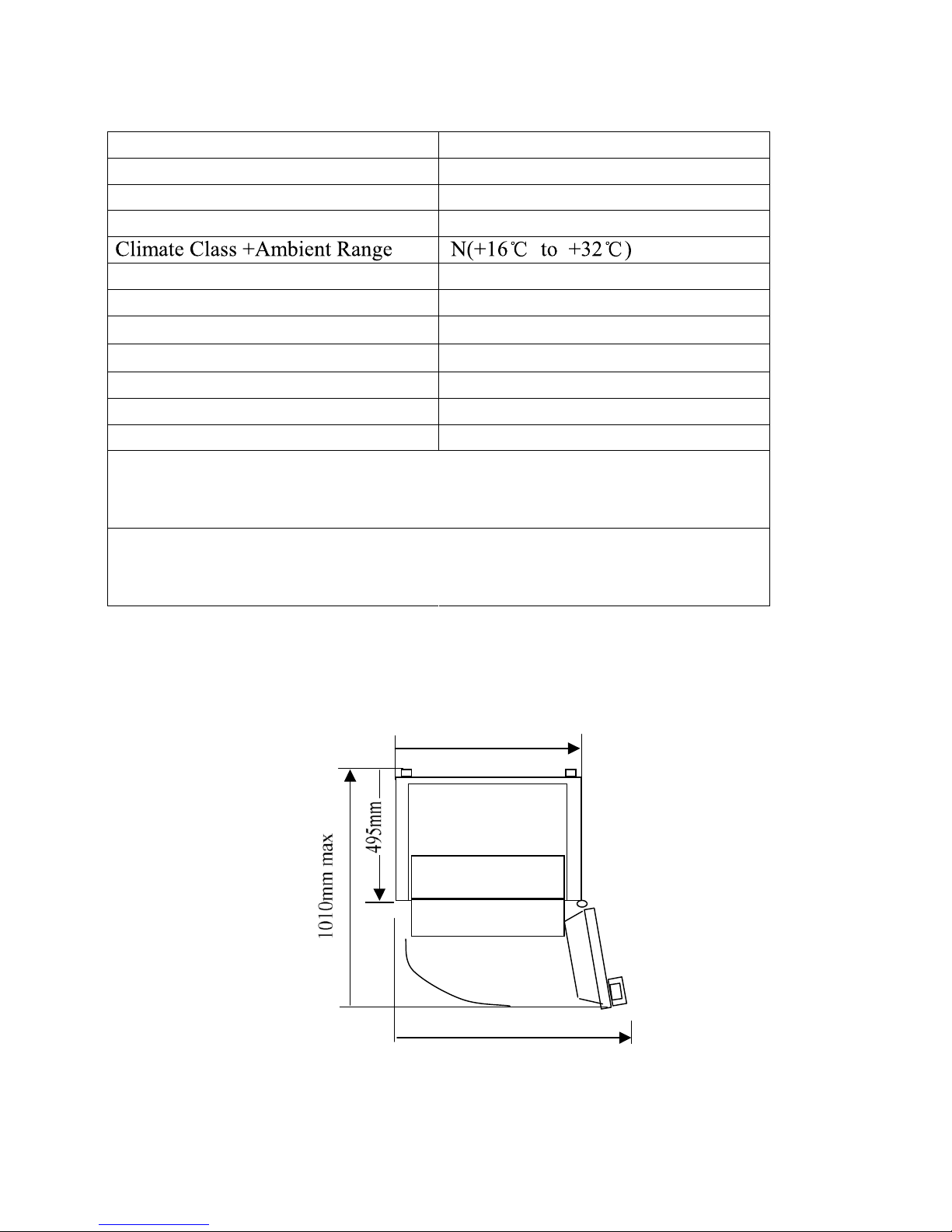

A clearance of 10 cm must be left between the sides of the appliance and any adjacent
cabinets or walls to allow for adequate air circulation. The appliance is not designed for
recessed installation (“building in”).

Install on a good firm level surface, and any unevenness of the floor should be
corrected prior to installation, slight unevenness can be overcome by adjusting the
front feet.

NOTE: If the appliance is positioned on a carpet, soft floor covering you should
re-adjust the front feet once the appliance has had time to settle.

WARNING:
This appliance is intended for domestic use only, any other use may invalidate the
warranty and might be dangerouus.

Thank you for buying this PROLINE larder fridge. To ensure that you get the best results from
your new fridge, please take time to read through these simple instructions in this booklet.

Please ensure that the packaging material is disposed of in accordance with the current
environmental requirements.
If the fridge is visibly damaged, do not connect it to the power supply; Contact the store
from were you purchased the appliance.

ELECTRICAL CONNECTION

For your safety please read the following information

Warning: This appliance must be earthed.

This appliance operates from a 13 amp 3-pin plug. The voltage rating is 230 volts and should be
protected by a 13-amp fuse in the plug.

The appliance is supplied with a rewireable 13 amp three Pin plug fitted with a 13-amp
fuse. Should the fuse require replacement, it must be replaced with a fuse rated at 13 amp
and approved to BS1362.

If the mains plug which is fitted is unsuitable for the socket outlet in your home or is removed for
any other reason, please follow the instructions below on how to wire a 13 amp 3 pin plug.

How to wire a 13 amp plug.

Important. The wires in the mains lead on this appliance are coloured in accordance with the

following cod

Green and Yellow – Earth
Blue – Neutral
Brown – Live

As the colours may not correspond with the markings
Identifying the terminals in your plug proceed as follows:
The Green and Yellow wire must be connected to the
terminal in the plug which is marked with the letter E or

with the earth symbol

or coloured green and yellow.
The Blue wire must be connected to the Terminal marked N
or coloured black.
The Brown wire must be connected to the Terminal marked
L or coloured red.

Make sure the mains cord is held securely under the cord clamp.

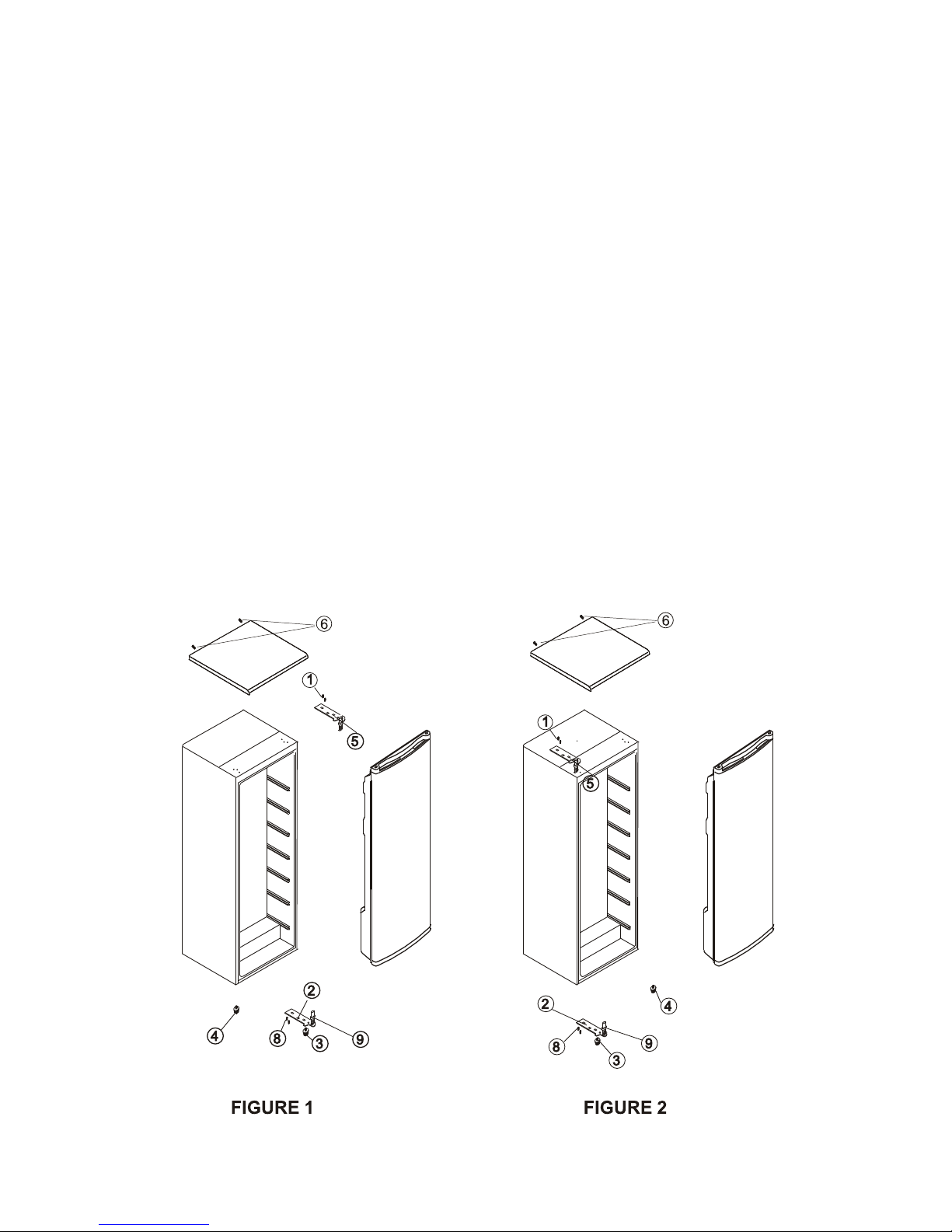

Name of parts

1

PARTS AND FEATURESPARTS AND FEATURES

Worktop Worktop

Crisper CoverCrisper Cover

Crisper BoxCrisper Box

ShelvesShelves

CabinetCabinet

Adjustable FootAdjustable Foot

7

Door Switch Door Switch

8

Door Assembly Door Assembly

9

Door Handle Door Handle

Door Balcony Door Balcony

Door GasketDoor Gasket

10

11

12

Control Unit

1

7

8

9

10

11

12

2

3

4

5

6
