PROLINE HANDY 14LIT User Manual [nl]

HANDY 14LIT

CORDLESS 2 IN 1 STICK+ HAND VACUUM

ASPIRATEUR BALAI 2 EN 1 SANS FIL

BEZEMSTOFZUIGER 2-IN-1

Catalogue

Page

English……………………………….………….. EG-1 – EG-13

French …………………………………………… FR-1 – FR-14

Netherlands …………………….………… NL-1 – NL-13

WARNINGS

This appliance is intended for



domestic household use only and should not be used for any o ther purpose or in any other application, such as for non‐domestic use or in a commercial environment.

The external flexible cable of the



transformer cannot be replaced, if the cord of this transformer is damaged, it is necessary to dispose the transformer and replaced by a transformer of the same model.

Regarding the detailed instructions



for the method and frequency of cleaning and the precautions during user maintenance, refer to the section“CleaningandMaintenance” on page

‐9 - EG‐12 of the manual.

EG-1

The battery must be removed from



the appliance before it is scrapped.

The appliance must be disconnected



from the supply mains when removing the battery.

The battery is to be disposed of



safely.

 Attention should be drawn to the

environmental aspects of battery disposal. Don’t throw used batteries in dustbin. Please contact your retailer in order to protect the environment.

The batteries (batteries installed)



shall not be exposed to excessive heat such as sunshine, fire or the like.

EG-2

Non‐rechargeable batteries are not to



be recharged.

This appliance can be used by



children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

 The appliance is only to be used with

the power supply unit provided with the appliance.

The appliance must only be supplied



EG-3

at safety extra low voltage corresponding to the marking on the appliance.

The plug must be removed from the



socket‐outlet before cleaning or maintaining the appliance.

Following objects are strictly banned,



otherwise the vacuum cleaner will be damaged or fire calamity will be caused, which bring such accidents as human body injuries:

 Don’t pick up large or sharp broken

such as glasses.

 Don’t pick up harming or erodent

liquids (solvent, corrosive, detergent…).

Don’t pick up inflammable or



EG-4

explosive substance such as gasoline or alcohol.

Don’t pick up/ vacuum burning or



glowing objects (cigarettes, matches, hot ashes).

IMPORTANT SAFETY INSTRUCTIONS

Carefully read the instructions before operating the appliance and keep them for future reference.

 Check that the voltage marked on the rating plate located on the power adapter is

the same as your mains supply.



The manufacturer will not accept responsibility for damage or injury caused by connecting to the wrong voltage.



Use this appliance only for its intended purpose as laid out in these instructions.

 Always disconnect the appliance from the power supply if it is left unattended and

before assembling, disassembling or cleaning.



Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.



Keep the appliance and the power cord awa y from direct radiant heat from the sun, from damp, from sharp edges and other dangers.



Do not use the appliance without the handheld vacuum cleaner firmly in place.

 Do not use the appliance with wet hands or feet.  Do not use the appliance or store it outdoors or expose the appliance to rain.  Use only original accessories recommended by the manufacturer.  Do not attempt to repair the appliance yourself, contact a qualified service agent

to carry out any repairs or maintenance or contact the store where you purchased the appliance.



Never immerse the appliance in water or any other liquid when cleaning.



If the appliance should become wet or damp, remove plug from the power supply immediately.



The plug shall be the main disconnect device and should remain operable at all times.



Extreme care shall be taken when cleaning on stairs.

Internal battery handling and usage

The appliance is supplied with rechargeable 14.4V, 2000mAh Li‐ion batteries incorporated in the appliance which are not accessible and cannot be replaced.

EG-5

Therefore when the product reaches the end of its useful life it must be disposed of at a recycling centre.

DESCRIPTION

1 2

1. On/Off button

2. button

3. Handle release button

4. Handheld vacuum cleaner release

5. Handheld vacuum cleaner

7. Floor brush

8. Flat suction nozzle

9. Small brush

10. Wall mounting base

11. Wall mounting holder

Suction power reducing

button

Handheld vacuum cleaner

on/off button

10 11

DUAL FUNCTIONALITY

Upright vacuuming Handheld vacuuming

EG-6

Your vacuum cleaner can be used in two different modes:



Upright vacuum cleaner for floors and carpets;



Handheld vacuum cleaner which canbecarriedwithyouwhilst cleaning hard‐to‐reach places.

ASSEMBLY FOR UPRIGHT VACUUMING

1. Swing the upright handle on the main vacuum cleaner upwards by turning the handle release button until it clicks into place in an upright position.

2. Attach the floor brush to the main vacuum cleaner body, aligning the connectors on the neck of the floor brush with the connector holes on the base of the main vacuum cleaner body.

3. Fit the handheld vacuum cleaner in place on the main vacuum cleaner body by first sliding the suction end into place then pushing the handle into place until a click is heard.

CHARGING THE APPLIANCE

The charging indicator light is composed of 4 blue light bars.

1. Connect the power adapter to the socket on the hand ‐held vacuum cleaner.

2. Plug the power adapter into the mains supply.



One blue light bar will flash, indicating the appliance is being charged.

3. The 4 blue light bars will illuminate when the appliance is fully charged.

USING THE APPLIANCE IN UPRIGHT MODE

Switch the appliance on by press either on the handle or the handheld vacuum cleaner.

EG-7

Attention:

 During operation, the blue light

 The floor brush can be used on bare floors and carpets.

 The LED headlights on the floor brush

will help illuminate your working area so you can easily spot hidden debris.

 When all blue light bars go out,

bars will also illuminate. The battery capacity will decrease thus the blue light bars will gradually reduce.

please recharge your appliance.



To reduce the suction power, press the handle. To restore normal suction power,

press

again.

HANDHELD VACUUM CLEANING

The handheld vacuum cleaner can be used to clean hard‐to‐reach areas. With the batteries fully charged, you are ready to begin cleaning.

1. To separate the handheld vacuum cleaner from t he main vacuum cleaner body, press the handheld vacuum cleaner release button.

2. Pull the handheld vacuum cleaner away from the main vacuum cleaner.

EG-8

3. Switch on the handheld vacuum cleaner by pressing .

4. After use, switch off the handheld vacuum cleaner by pressing

Using the attachments on the handheld vacuum cleaner

Push the flat suction nozzle or small brush into the suction inlet on the end of the handheld vacuum cleaner.

Flat suction nozzle for corners, stairs, etc.

Small brush for furniture, book shelf, curtain, etc.

CLEANING AND MAINTENANCE

Always switch off the appliance and unplug the power adapter from the mains socket before carrying out any maintenance or cleaning. Clean the outside of the appliance with a slightly damp cloth. Dry thoroughly. Never immerse in water. Do not use abrasive or chemical cleaning agents.

Dust container removal, disassembly and cleaning

The dust container is at the front end of the hand‐held vacuum cleaner. IMPORTANT: It is recommended to clean the dust container after vacuuming each

1. Press and hold the dust container release buttons and pull the dust container away from the handheld vacuum cleaner.

time.

EG-9

Dust container release buttons (on both sides)

2. Grasp the handle on the filter assembly and pull it out of the container.

Handle

3. Empty the dirt container upside down over a trash can.

Health Tip: If you suffer from allergies or asthma, take the dust container

4. To separate the HEPA filter from the filter assembly, grasp the handle of the filter assembly and then rotate the handle anticlockwise. Empty the filter cover.

outdoors to empty.

5. Wash the filter, filter cover and the container under running water. Dry thoroughly.

6. Replace the cleaned and dried HEPA filter into the filter cover and then turn it clockwise until it locks in place

7. Replace the filter assembly into the container.



Make sure the filter assembly is firmly and properly inserted into the container.

8. Replace the dust container to the handheld vacuum cleaner until a click is heard.

Cleaning the brush‐roll

The brush must be cleaned regularly. Make sure the appliance is switched off.

1. Detach the brush from the appliance.

2. Turn the brush upside down so that the brush‐roll is visible.

3. Press the brush‐roll release tab to open the brush‐roll cover.

EG-10

4. Grab one end of the brush‐roll and carefully lift it off the brush.

5. Remove hair, fibers and dust from the brush‐roll.

6. Reattach the brush‐roll.

7. Close the brush‐roll cover by pressing it until a click is heard.

Storage

For compact storage release button to fold the handle down.

Store the appliance with the handheld vacuum cleaner mounted in the front cavity of the appliance.

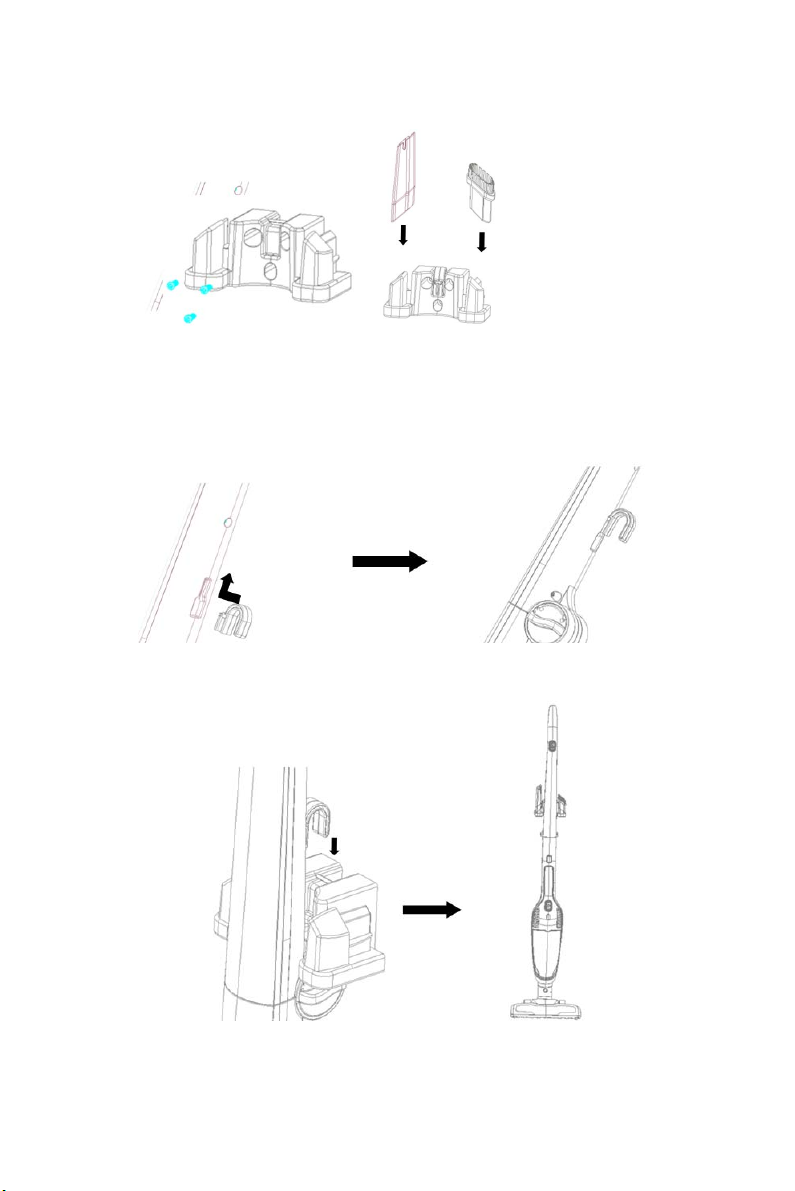

You can also hang the appliance on a wall for easy storage.

1. Fix the supplied wall mount base on a wall with the supplied screws. The small brush and flat suction nozzle can be attached to the wall mount base.

2. Slide the wall mount holder into the hook on the back of the appliance handle until a click is heard.

, turn the handle

EG-11
