Proline ESI 1050 User Operating Instructions Manual

Page 1
ESI 1050
electric cooker
USERS
OPERATING INSTRUCTIONS
Before operating this cooker,
please read these instructions carefully
Page 2
INTRODUCTION
CONTENTS
– Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 2
– Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ” 3-4-5
– Features and Technical Data . . . . . . . . . . . . . . . . . . . . . . . . ” 6
– How to use the hotplates . . . . . . . . . . . . . . . . . . . . . . . . . . ” 7
– How to use the oven and grill . . . . . . . . . . . . . . . . . . . . . . . ” 8
– Temperature recipe guide . . . . . . . . . . . . . . . . . . . . . . . . . . ” 9
– Care and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . ” 10
– After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ” 11
INTRODUCTION
Congratulations on your purchase of this PROLINE electric cooker which has been carefully designed and produced to give you many years of satisfactory use.
Before using this appliance it is essential that the following instructions are carefully read and fully understood. We would emphasize that the installation section must be fully complied with for both your safety and to ensure that you obtain the maximum benefits from your appliance.
Warning: This appliance must be earthed.
POWER CONNECTION
We strongly recommend that this cooker be installed by a qualified electrician. Use minimum 4 mm
2
cable.
The power supply to the cooker must be via a suitable double pole isolating switch.
Do not attempt to use a 13 Amp plug and socket.
All electrical wiring must be in compliance with the appropriate IEE and local electricity board regulations and carried out by a qualified electrician.
VOLTAGE
230 Volts AC - 50 Hz Maximum rated current : 7300 W
Page 3
LOCATION
The cooker has type “X” overheating protection so that it can be installed next to or below a cabinet using the dimensions given in the diagram as a minimum.
It is advisable that the kitchen furniture near the sides of the cooker is made of heat resistant material, minimum 75 °C.
The ESI 1050 has 4 adjustable feet to ensure that the cooker is level and will match the height of the adjacent work surfaces. To adjust the cooker for level/height simply screw or unscrew the feet.
400 mm
°C
E
S
I
1
0
5
0
650 mm
INSTALLATION
Page 4
°
C
ESI 1050
500
500
850
Adjustable feet
ELECTRICAL PLATES
1. 145 mm diameter (normal) 1000 W
2. 180 mm diameter (normal) 1500 W
3. 145 mm diameter (normal) 1000 W
4. 180 mm diameter (normal) 1500 W
OVEN
Oven rating - 2300 WGrill rating - 1900 W
Usable oven volume:
49 dm
3
CONTROL PANEL
5. Rear left plate (1) control knob
6. Front left plate (2) control knob
7. Front right plate (3) control knob
8. Rear right plate (4) control knob
9. Oven switch control knob
10. Oven thermostat control knob
11. Hotplate control lamp
12. Oven temperature control lamp
1243
10 9 5 6 7 8
12
11
FEATURES AND TECHNICAL DATA
Page 5
0
6
5
4
3
2
1
The hob is made of steel coated with a vitreous enamel to provide a durable and attractive surface. There are four solid plates clamped to the surface of the hob. All have a fixed stainless steel ring which may turn yellow after the plate is first used this is normal.
ELECTRIC PLATES:

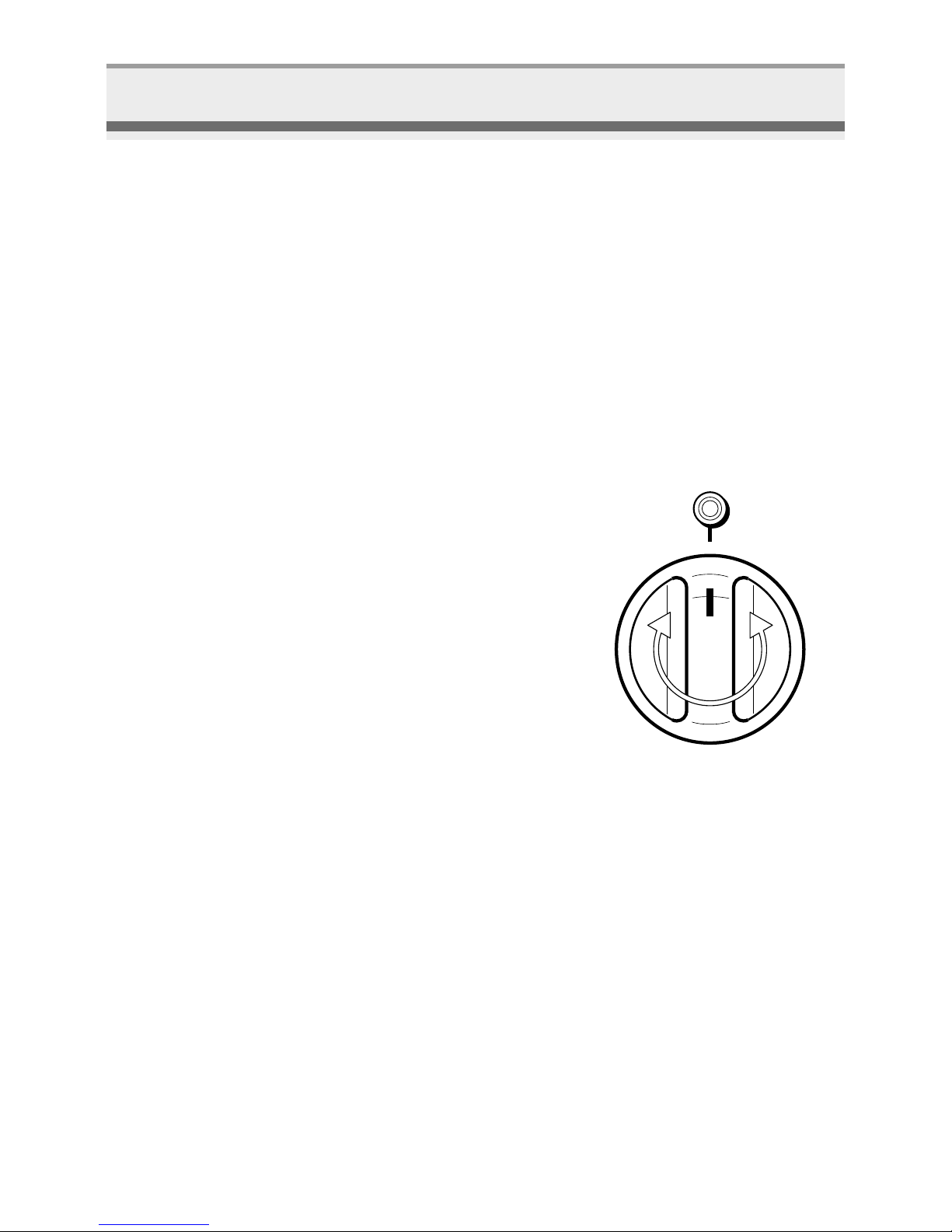

The higher the number set on the control knob, the higher the temperature that will be maintained on the plate. Each plate has seven working positions marked on the control knob. Zero is off and One to six are the various heat positions one is the lowest and six is the highest. When a ring is switched on the indicator light above the contro knob will glow.
- Position
0 Off
- Positions
1 - 6 Operating number
(indicator light on)
BOILING AND SIMMERING:
Boiling and simmering can be carried out on any of the four plates.
FRYING:
Generally frying is carried out on the larger plates. It is important not to leave frying unattended even for a short while. Do not use a chip-pan more than one third full of fat or oil.
REMEMBER:
Solid plates retain heat for up to five minutes after switching off. When boiling or frying, turn down the power setting when the operating temperature has been reached.
HOW TO USE THE HOTPLATES
Page 6
0
50
100
150
200
MAX
OVEN
Attention: The oven door becomes very hot during operation. Keep children and toddlers away from the cooker during use.
The oven has two heating elements, one at the base of the oven, and one at the top. Hot air rises, so the top of the oven is always the hottest.
The temperature in the middle of the oven is maintained at the temperature set by the control knob, and is slightly hotter above, slightly cooler below.
TEMPERATURE SELECTOR
OVEN TEMPERATURE INDICATOR LIGHT
FUNCTION SELECTOR
HOW TO USE THE OVEN AND GRILL
Page 7
DONT’S:
Pans with a ridged or recessed base must not be used. Likewise do not use an asbestos or wire mat or anything else under the pan. Never leave a plate switched on for long periods when not covered with a pan.
CHOICE OF PANS:
It is uneconomical to use pans smaller than the plate that has been selected. The plate is made of cast-iron and is heated uniformly over the whole surface, therefore any part of the plate not covered by the pan is wasting energy. Whilst almost any type of pan can be used, those with curved or distorted bases will waste energy. It is therefore recommend pans with flat bases particularly those with machine ground bases. Always dry the base of the pan before placing on the plate.
HOW TO USE THE HOTPLATES
Page 8
FUNCTION SELECTOR
Cook or grill by turning the FUNCTION SELECTOR until symbol on the control knob is in line with the indicato mark.
There are 4 positions
0 “OFF, GRILL, OVEN, a blank position and back
to OFF”.
CONVENTIONAL OVEN
Set the FUNCTION SELECTOR to oven, set the cooking temperature with the TEMPERATURE SELECTOR. The indicator light will illuminate.
It is advisable to preheat the oven until the set temperature has been reached i.e.: when the indicator light above the TEMPERATURE SELECTOR goes off. The light will cycle on and off during cooking in line with the oven temperature. During cooking, do not open the door unless it is absolutely necessary.
GRILLING
Always grill with the door closed.. Set the FUNCTION SELECTOR to the grill position and the TEMPERATURE
SELECTOR to the desired temperature. The temperature can be varied depending on the food being cooked. Before using the grill, pre-heat for about five minutes. Position the grill pan on the highest shelf position and keep checking the food as it could easily burn. To avoid possible smoking during grilling it is advisable to add a little water to the grill pan. The grill pan comes with a detachable handle which should always be used when removing the grill pan from the oven.
Note: It is recommended that grilling should be limited to no longer than 30 minutes.
HOW TO USE THE OVEN AND GRILL
Page 9
OVEN COOKING TEMPERATURES
APPROX. HEAT OF TYPE OF DISH TO COOK
TEMPERATURE THE OVEN
125°C Very cool Meringue,
(257°F) oven slow cooking foods.
125°C - 150°C Cool or Milk puddings, very rich fruit
(257°F - 300°F) slow oven cakes, eg., Christmas.
150°C Cool or Stews, casseroles, braising,
(300°F) slow oven rich fruit cakes, eg., Dundee.
150°C - 175°C Warm oven Biscuits, Low temperature roasting,
(300°F - 347°F) rich plain cakes eg., Madeira cake.
175°C Moderate Plain cakes, eg., Victoria
(347°F) oven sandwich, meat pies.
175°C - 200°C Fairly hot Small cakes, savoury flans,
(347°F - 392°F) oven fish.
200°C Hot oven Plain cakes and buns, swiss rolls,
(392°F) fruit pies. High temp. roasting
200°C - 225°C Moderately Bread and bread rolls etc., scones,
(392°F - 437°F) hot oven flaky and rough puff pastry,
yorkshire pudding
225°C Very hot Sausage rolls, mince pies, puff
(437°F) oven pastry
MAX Very hot Browning ready cooked dishes
oven
TEMPERATURE RECIPE GUIDE
Page 10
10
THE HOB:
Spillage on the hob can usually be removed by a damp soapy cloth. More obstinate stains can be removed by rubbing gently with a soapy scouring pad or mild household cleaner. Avoid scratching or scraping the surface. Always wipe the plates after use with a damp cloth and switch on momentarily to dry the plate. Occasionally wipe a trace of cooking oil over the plate to maintain its appearance.
SPILLAGE:
Any spillage should be dealt with as soon as possible to prevent it becoming baked on.
THE OVEN:
The oven interior and the chromium plated shelves and runners can be cleaned by a damp soapy cloth. Obstinate stains can be removed with scouring pads and a gentle, non-abrasive, liquid cleaner. Provided the oven is wiped over immediately after roasting, only the minimum of cleaning should be necessary.
DOOR GLASS:
The glass of the oven door can be cleaned with a soft, warm, soapy cloth, then wiped clean with cold water and polished with a soft clean cloth. Do not use scouring pads or anything abrasive on the oven door glass.
NOTE:
Any cleaners such as spray or stick cleaners which are used on enamel must have the VEDC (Vitreous Enamel Development Council) seal of approval and the manufacturers instructions must be followed.
Always switch the cooker off at the mains isolating switch before cleaning or touching any electrical part.
CARE AND MAINTENANCE
Page 11
11
Descriptions and illustrations in this booklet are given as simply indicative. The manufacturer reserves the right, considering the characteristics of the models described here, at any time and without noti­ce, to make eventual necessary modifications for their construction or for commercial needs.
AFTER SALES SERVICE
If the cooker is malfunctioning and service is required. Turn off the mains supply and contact your nearest COMET Service Centre.
Page 12
Code 110943
