Pro-ject Audio Debut SE-2 Owners manual

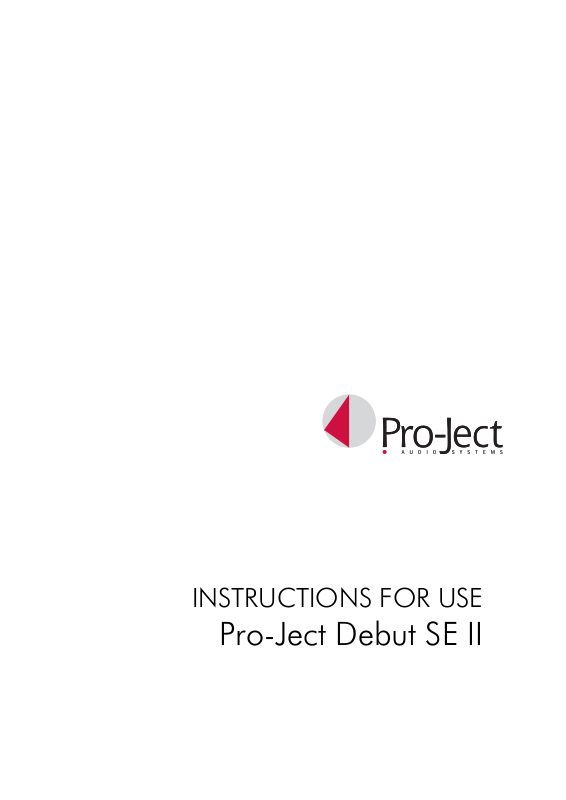

INSTRUCTIONS FOR USE

Pro-Ject Debut SE II

30 5

14 13

PRO-JECT DEBUT SE II

Controls, features and connections

1 Motor transportation screw (marked red) 2 Stepped drive pulley 3 Drive belt * 3a Hook * 4 Hub 5 Platter with felt mat * 6 Tonearm counterweight * 6a Downforce scale 7 Tonearm lift lever 8/18 Tonearm rest and removable transport lock 9 Tonearm tube 9a Tonearm base 10 Lid * 11 Lid hinges 12 Hinge fasteners 13 Power supply socket 14 Phono output sockets and earth connection 15 Anti-skating weight adjustment scale 16 Anti-skating weight * 17 Anti-skating weight support hoop 20 Power switch 21 Headshell with finger lift and fitted Ortofon 510 mk II cartridge 22 Motor 23 Single adapter * 24 Adjustable tip-toe feet with anti-scratch cups * Connection cable (not shown) * Power supply (not shown) *

Dear music lover, thank you for purchasing a PRO-JECT AUDIO record player.

In order to achieve maximum performance and reliability with this record player you should study these instructions for use carefully.

Warning of a hazard for the user, the unit or possible misuse.

Important notice.

** Your turntable has been delivered with a factory fitted and adjusted cartridge, please ignore the cartridge set up instructions unless changing the cartridge at a later date.

During assembly and adjustment of the deck small parts could be lost if not carefully placed in a suitable receptacle. Before starting assembly make yourself acquainted with the parts listed above and correspondingly numbered in the technical drawings above. Separately packed items are marked with an asterisk *.

Set-up

Make sure the surface you wish to use the turntable on is level (use a spirit level) before placing the turntable on it. Fit the platter (5) and felt mat over the spindle of the hub (4).

Level the plinth using a spirit level and the adjustable feet (24). Remove the two red transport screws (1) which secure the motor (22) during transportation.

Remove the transport lock (18) from the tonearm. Store it together with the two red motor transport screws (1) in the original packaging so they are available for any future transportation.

Fit the drive belt (3) around the hub (4) and the smaller diameter part of the motor pulley (2). Avoid getting sweat or grease on the belt as these will deteriorate the performance and reduce the belt's lifespan. Use absorbent kitchen paper to remove any oil or grease from the outer edge of the hub and the belt. Fit the platter (5) and felt mat over the spindle of the hub (4).
