Progress PI1545X User Manual [de]

User Manual

Benutzerinformation

Dishwasher

Geschirrspüler

PI1545X

2 Progress

CONTENTS

Safety information 2
Safety instructions 3
Product description 5
Control panel 6
Programmes 7
Settings 7

Before first use 9
Daily use 10
Hints and tips 11
Care and cleaning 13
Troubleshooting 14
Technical information 17

Subject to change without notice.

SAFETY INFORMATION

Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible
if an incorrect installation and use causes injuries and
damages. Always keep the instructions with the appliance for
future reference.

Children and vulnerable people safety

• This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved.

• Do not let children play with the appliance.

• Keep all detergents away from children.

Keep children and pets away from the appliance door when

•

it is open.
Cleaning and user maintenance shall not be made by

•

children without supervision.

General Safety

This appliance is intended to be used in household and

•

similar applications such as:

farm houses; staff kitchen areas in shops, offices and

–

other working environments;
by clients in hotels, motels, bed & breakfast and other

–

residential type environments.

Progress 3

• Do not change the specification of this appliance.

• The operating water pressure (minimum and maximum)

must be between 0.5 (0.05) / 8 (0.8) bar (Mpa)

• Obey the maximum number of 13 place settings.

• If the supply cord is damaged, it must be replaced by the

manufacturer, its Authorised Service Centre or similarly
qualified persons in order to avoid a hazard.

• Put knives and cutlery with sharp points in the cutlery basket

with the points down or in a horizontal position.

• Do not keep the appliance door open without supervision to

prevent to fall on it.

• Before maintenance, deactivate the appliance and

disconnect the mains plug from the mains socket.

• Do not use water spray and steam to clean the appliance.

• The ventilation openings in the base (if applicable) must not

be obstructed by a carpet.

• The appliance is to be connected to the water mains using

the new supplied hose-sets. Old hose sets must not be
reused.

SAFETY INSTRUCTIONS

Installation

• Remove all the packaging.

• Do not install or use a damaged
appliance.

• Do not install or use the appliance where
the temperature is less than 0 °C.

• Obey the installation instruction supplied
with the appliance.

• Make sure that the appliance is installed
below and adjacent to safe structures.

Electrical connection

WARNING! Risk of fire and

electrical shock.

• The appliance must be earthed.

• Make sure that the electrical information
on the rating plate agrees with the
power supply. If not, contact an
electrician.

• Always use a correctly installed
shockproof socket.

• Do not use multi-plug adapters and
extension cables.

• Make sure not to cause damage to the
mains plug and to the mains cable.
Should the mains cable need to be
replaced, this must be carried out by our
Authorised Service Centre.

• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.

• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.

• This appliance complies with the E.E.C.
Directives.

• Only for UK and Ireland. The appliance
has a 13 amp mains plug. If it is
necessary to change the fuse in the

4 Progress

mains plug, use fuse: 13 amp ASTA (BS

1362).

Water connection

• Make sure not to cause damage to the
water hoses.

• Before you connect the appliance to
new pipes or pipes not used for a long
time, let the water flow until it is clean.

• The first time you use the appliance,
make sure that there is no leakage.

• The water inlet hose has a safety valve
and a sheath with an inner mains cable.

WARNING! Dangerous
voltage.

• If the water inlet hose is damaged,
immediately disconnect the mains plug
from the mains socket. Contact the
Authorised Service Centre to replace the
water inlet hose.

Use

• Do not sit or stand on the open door.

• Dishwasher detergents are dangerous.
Obey the safety instructions on the
detergent packaging.

• Do not drink and play with the water in
the appliance.

• Do not remove the dishes from the
appliance until the programme is
completed. There can be detergent on
the dishes.

• The appliance can release hot steam if
you open the door while a programme
operates.

• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.

Service

• Contact the Authorised Service Centre
to repair the appliance. We recommend
only the use of original spare parts.

• When you contact the Authorised
Service Centre, ensure that you have the
following information that is available on
the rating plate.
Model :
PNC :
Serial Number :

Disposal

WARNING! Risk of injury or

suffocation.

• Disconnect the appliance from the mains
supply.

• Cut off the mains cable and discard it.

• Remove the door catch to prevent
children and pets to get closed in the
appliance.

PRODUCT DESCRIPTION

4

3

7

9

8

10

56

11

1

2

Progress 5

Upper spray arm

1

Lower spray arm

2

Filters

3

Rating plate

4

Salt container

5

Air vent

6

Rinse aid dispenser

7

Detergent dispenser

8

Cutlery basket

9

Lower basket

10

Upper basket

11

1 2 3

456

6 Progress

CONTROL PANEL

On/off indicator

1

Programme marker

2

Indicators

3

Delay button

4

Indicators

Indicator Description

Washing phase. It comes on when the washing phase and the rinsing phases
operate.

Drying phase. It comes on when the drying phase operates.

End indicator.

Salt indicator. It is always off while the programme operates.

Rinse aid indicator. It is always off while the programme operates.

Start button

5

Programme knob

6

PROGRAMMES

Progress 7

Programme Degree of

soil
Type of load

2)

3)

4)

1)

The pressure and the temperature of the water, the variations of the mains supply, the options and the quantity of

dishes can change the values.

2)

With this programme you have the most efficient use of water and energy consumption for crockery and cutlery

with normal soil. (This is the standard programme for test institutes).

3)

With this programme you can wash a load with fresh soil. It gives good washing results in a short time.

4)

Use this programme to quickly rinse the dishes. this prevents the remaining food to bond on the dishes and bad

odours to come out from the appliance. Do not use detergent with this programme.

Normal soil
Crockery and
cutlery

Heavy soil
Crockery, cut­lery, pots and
pans

Normal soil
Crockery and
cutlery

Fresh soil
Crockery and
cutlery

All • Prewash 14 0.1 4

Programme
phases

• Prewash

• Wash 50 °C

• Rinses

• Dry

• Prewash

• Wash 70 °C

• Rinses

• Dry

• Prewash

• Wash 65 °C

• Rinses

• Dry

• Wash 60 °C
or 65 °C

• Rinses

Consumption values

1)

Dura­tion
(min)

195 1.039 11

140 ­160

120 ­130

30 0.8 9

Energy
(kWh)

1.5 - 1.6 13 - 15

1.3 - 1.6 15 - 17

Water
(l)

Information for test institutes

For all the necessary information for test
performance, send an email to:

[e-mail]

SETTINGS

Programme selection mode and user mode

When the appliance is in programme
selection mode it is possible to set a
programme and to enter the user mode.

Write down the product number (PNC) that
is on the rating plate.

In user mode, the following settings
can be changed:

• The level of the water softener according
to the water hardness.

These settings will be saved until you
change them again.

8 Progress

How to set the programme selection mode

The appliance is in programme selection
mode when the on/off indicator comes on
and start indicator starts to flash.

When you activate the appliance, usually it
is in programme selection mode. However,
if this does not happen, you can set the
programme selection mode in the following
way:

Press and hold simultaneously Start and

detrimental effect on the washing results
and on the appliance.

The higher the content of these minerals,
the harder your water is. Water hardness is
measured in equivalent scales.

The water softener should be adjusted
according to the hardness of the water in
your area. Your local water authority can
advise you on the hardness of the water in
your area. It is important to set the right
level of the water softener to assure good
washing results.

Delay until the appliance is in programme
selection mode.

The water softener

The water softener removes minerals from
the water supply, which would have a

Water hardness

German de-

grees (°dH)

47 - 50 84 - 90 8.4 - 9.0 58 - 63 10

43 - 46 76 - 83 7.6 - 8.3 53 - 57 9

37 - 42 65 - 75 6.5 - 7.5 46 - 52 8

29 - 36 51 - 64 5.1 - 6.4 36 - 45 7

23 - 28 40 - 50 4.0 - 5.0 28 - 35 6

19 - 22 33 - 39 3.3 - 3.9 23 - 27

15 - 18 26 - 32 2.6 - 3.2 18 - 22 4

11 - 14 19 - 25 1.9 - 2.5 13 - 17 3

4 - 10 7 - 18 0.7 - 1.8 5 - 12 2

<4 <7 <0.7 < 5

1)

Factory setting.

2)

Do not use salt at this level.

French de­grees (°fH)

mmol/l Clarke de-

grees

Water softener

level

1)

5

2)

1

If you use multi-tablets containing salt and
the hardness of your water is lower than
21dH, you can set the lowest water
softener level. It deactivates the salt refill
indicator.

If you use standard detergent or multi­tablets without salt, set the proper

water hardness level to keep the salt
refill indicator active.

Progress 9

How to set the water softener level

The appliance must be in programme
selection mode.

1. Make sure that the programme marker

on the knob is aligned with the indicator
on/off .

2. To enter the user mode, press and hold
Delay. At the same time turn the knob

counterclockwise until the symbol of the
first programme is aligned with the
on/off indicator. Release Delay when
the indicators Start and on/off start to
flash.

BEFORE FIRST USE

1. Make sure that the current level of
the water softener agrees with the
hardness of the water supply. If not,
adjust the level of the water
softener.

2. Fill the salt container.

3. Fill the rinse aid dispenser.

4. Open the water tap.

5. Start a programme to remove any

processing residuals that can still be
inside the appliance. Do not use
detergent and do not load the baskets.

When you start a programme, the
appliance can take up to 5 minutes to
recharge the resin in the water softener. It
seems that the appliance is not working.
The washing phase starts only after this
procedure is completed. The procedure will
be repeated periodically.

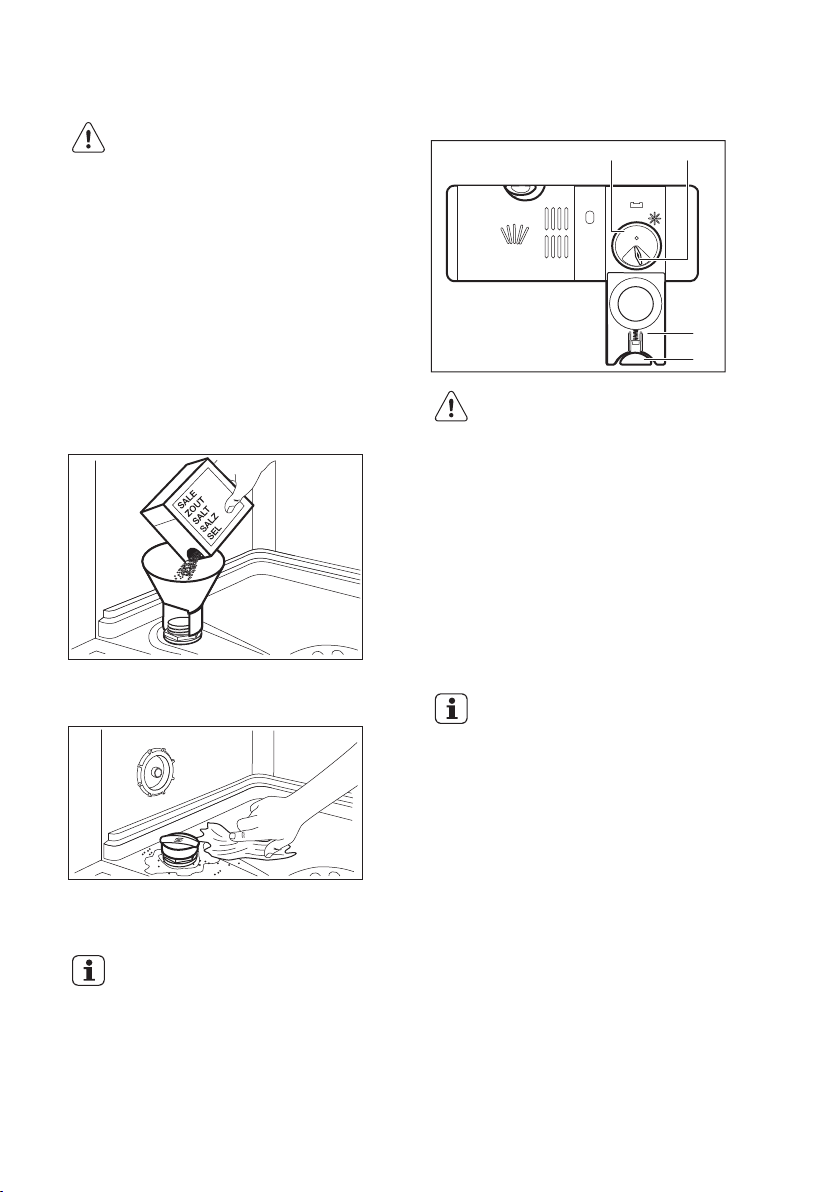

The salt container

CAUTION! Only use salt

specifically designed for
dishwashers.

The salt is used to recharge the resin in the
water softener and to assure good washing
results in the daily use.

3. Press Delay.

• The indicator

• The indicators Start and on/off

continues to flash.

• The intermittent flashing of
refers to the current set level, e.g. 5
flashes + pause + 5 flashes = level 5.

4. Press Delay again and again to change
the setting. Each time you press Delay
the level number increases. After level
10 you will start again from level 1.

5. Turn knob to on/off position to confirm
the setting.

starts to flash.

How to fill the salt container

1. Turn the cap of the salt container

counterclockwise and remove it.

2. Put 1 litre of water in the salt container
(Only for the first time).

3. Fill the salt container with dishwasher
salt.

4.

Remove the salt around the opening of
the salt container.

5. Turn the cap of the salt container
clockwise to close the salt container.

M

A

X

1

2

3

4

+

-

A

B

D

C

20

30

BA D

C

10 Progress

Water and salt can come out
from the salt container when
you fill it. Risk of corrosion. To
prevent it, after you fill the salt
container, start a programme.

How to fill the rinse aid dispenser

DAILY USE

1. Open the water tap.

2. Turn the knob until the symbol of the

programme you want to set is aligned
with the on/off indicator. Set the correct
programme for the type of load and the
degree of soil.

• If the salt indicators is on, fill the salt
container.

• If the rinse aid indicator is on, fill the
rinse aid dispenser.

3. Load the baskets.

4. Add the detergent.

5. Start the programme.

CAUTION! Only use rinse aid

specifically designed for
dishwashers.

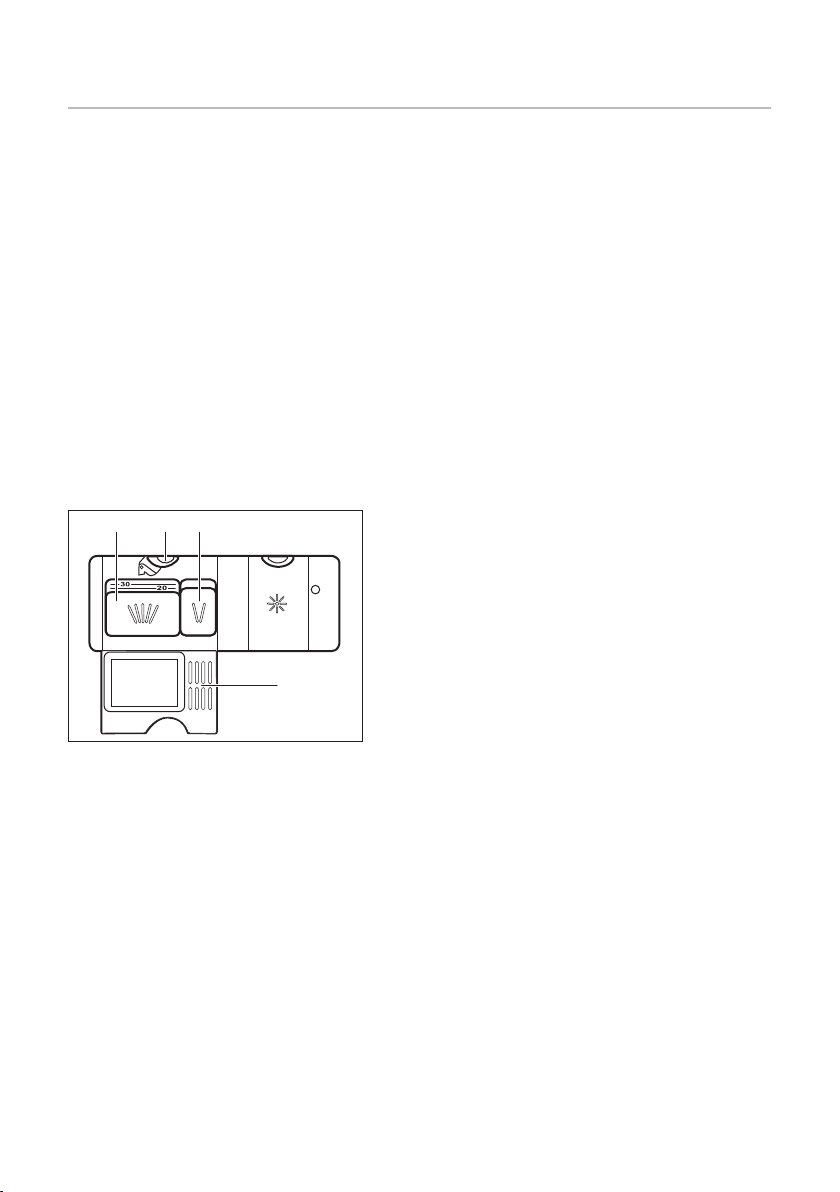

1. Press the release button (D) to open the
lid (C).

2. Pour the rinse aid in the dispenser (A)
until the liquid reaches the fill level
'max'.

3. Remove the spilled rinse aid with an
absorbent cloth to prevent too much
foam.

4. Close the lid. Make sure that the release
button locks into position.

You can turn the selector of the
released quantity (B) between
position 1 (lowest quantity) and
position 4 or 6 (highest quantity).

Using the detergent

1.

Press the release button (B) to open the
lid (C).

2.

Put the detergent, in powder or tablets,
in the compartment (A).

3.

If the programme has a prewash phase,
put a small quantity of detergent in the
compartment (D).

4.

Close the lid. Make sure that the release
button locks into position.

Progress 11

Using the multi-tablets

When you use tablets, that contain salt and
rinse aid, do not fill the salt container and
the rinse aid dispenser.

1. Adjust the water softener to the lowest

level.

2. Set the rinse aid dispenser to the lowest

position.

Setting and starting a programme

Starting a programme

1.

Open the water tap.

2.

Close the appliance door.

3.

Turn the knob until the symbol of a
programme you want to set is aligned
with the on/off indicator.

• On/off indicator comes on.

• Start indicator starts to flash.

4. Press Start.

• The programme starts .

• On/off indicator and start indicator
are on.

Starting a programme with delay start

1. Set the programme.

2. Press Delay to delay the start of the

programme of 3 hours.

The delay indicator comes on.

3. Press Start.
Start indicator comes on.
When the countdown is completed, the
programme starts.

Opening the door while the appliance operates

If you open the door while a programme is
running, the appliance stops. It may affect
the energy consumption and the
programme duration. When you close the
door, the appliance continues from the
point of interruption.

Cancelling the delay start while the countdown operates

1.

Press and hold Start and Delay until
the start indicator starts to flash.

2.

Press Start to start the programme.

Cancelling the programme

Press and hold Start and Delay until the
start indicator starts to flash.
Make sure that there is detergent in the
detergent dispenser before you start a new
programme.

End of the programme

When the programme is completed the
indicator is on. If you do not deactivate the
appliance within 5 minutes all indicators
goes off. This helps to decrease energy
consumption.

1. To deactivate the appliance, turn the

knob until the programme marker is
aligned with the on/off indicator.

2. Close the water tap.

HINTS AND TIPS

General

The following hints will ensure optimal
cleaning and drying results in daily use and
also help to protect the environment.

• Remove larger residues of food from the
dishes into the waste bin.

• Do not pre-rinse dishes by hand. When
needed, use the prewash programme (if

available) or select a programme with a
prewash phase.

• Always use the whole space of the
baskets.

• When loading the appliance, make sure
that the dishes can be completely
reached and washed by the water
released from the spray arm nozzles.
Make sure that items do not touch or
cover each other.

12 Progress

• You can use dishwasher detergent, rinse
aid and salt separately or you can use
the multi-tablets (e.g. ''3in1'', ''4in1'',
''All in 1''). Follow the instructions written
on the packaging.

• Select the programme according to the
type of load and degree of soil. With the
ECO programme you have the most
efficient use of water and energy
consumption for crockery and cutlery
with normal soil.

Using salt, rinse aid and detergent

• Only use salt, rinse aid and detergent for
dishwasher. Other products can cause
damage to the appliance.

• Multi-tablets are usually suitable in areas
with a water hardness up to 21 °dH. In
areas exceeding this limit, rinse aid and
salt must be used in addition to the
multi-tablets. However, in areas with
hard and very hard water we
recommend to use solo-detergent
(powder, gel, tablets without additional
functions), rinse aid and salt separately
for optimal cleaning and drying results.

• If you use multi-tablets you can select
the Multitab option (if available). This
option increases the cleaning and drying
results with the use of multi-tablets.

• Detergent tablets do not fully dissolve
with short programmes. To prevent
detergent residues on the tableware, we
recommend that you use the tablets with
long programmes.

• Do not use more than the correct
quantity of detergent. Refer to the
instructions on the detergent packaging.

What to do if you want to stop using multi-tablets

Before you start to use separately
detergent, salt and rinse aid do the
following procedure.

1. Set the highest level of the water

softener.

2. Make sure that the salt and rinse aid

containers are full.

3. Start the shortest programme with a

rinsing phase. Do not add detergent
and do not load the baskets.

4. When the programme is completed,

adjust the water softener according to
the water hardness in your area.

5. Adjust the released quantity of rinse aid.

Loading the baskets

• Only use the appliance to wash items
that are dishwasher-safe.

• Do not put in the appliance items made
of wood, horn, aluminium, pewter and
copper.

• Do not put in the appliance items that
can absorb water (sponges, household
cloths).

• Remove larger residues of food from the
dishes into the waste bin.

• Make soft the remaining burned food on
the items.

• Put hollow items (cups, glasses and
pans) with the opening down.

• Make sure that glasses do not touch
other glasses.

• Put cutlery and small items in the cutlery
basket.

• Put light items in the upper basket.
Make sure that the items do not move.

• Make sure that the spray arms can
move freely before you start a
programme.

Before starting a programme

Make sure that:

• The filters are clean and correctly
installed.

• The cap of the salt container is tight.

• The spray arms are not clogged.

• There is dishwasher salt and rinse aid
(unless you use multi- tablets).

• The position of the items in the baskets
is correct.

• The programme is applicable for the
type of load and for the degree of soil.

• The correct quantity of detergent is
used.
