ProForm PFTL995132 User Manual
www.proform.com
Model No. PFTL99513.2
Serial No.
Write the serial number in the space
above for reference.
Serial Number
Decal
ACTIVATE YOUR
WARRANTY
To register your product and
activate your warranty today,
go to www.proformservice.com/
registration.
USER’S MANUAL
CUSTOMER CARE
For service at any time, go to
www.proformservice.com.
Or call 1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–12 p.m. MT
Please do not contact the store.
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS ..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
HOW TO USE THE TREADMILL ..............................................................18

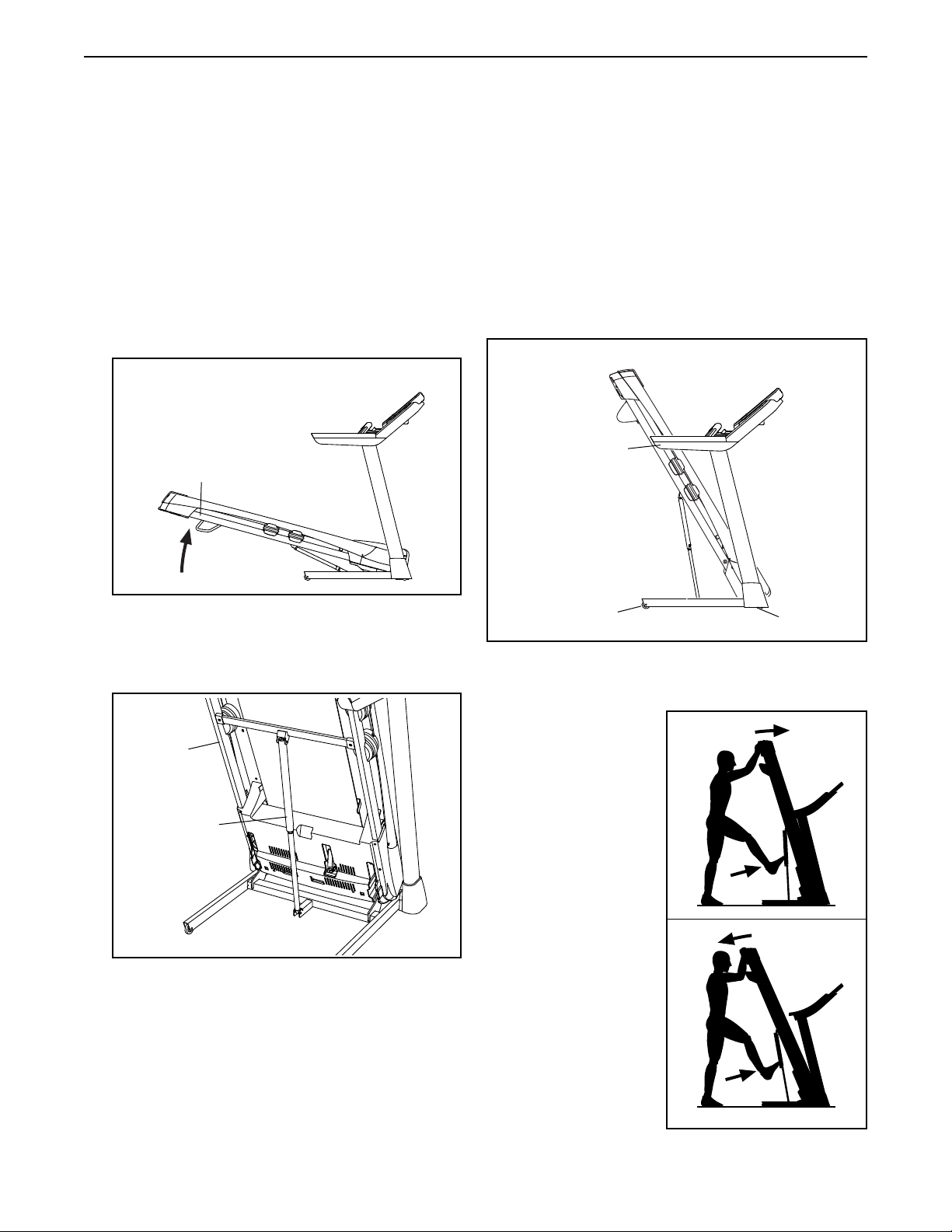

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
MAINTENANCE AND TROUBLESHOOTING .....................................................29

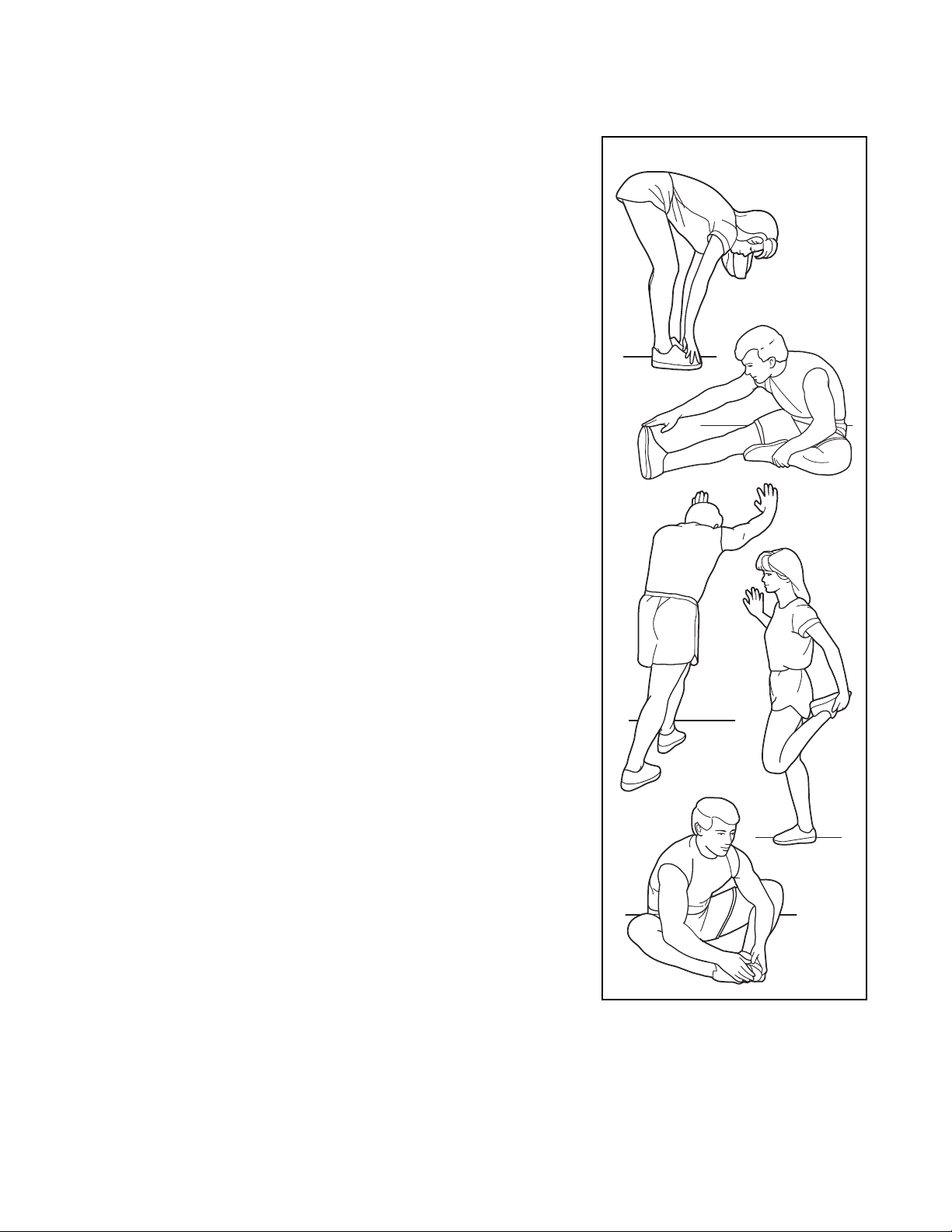

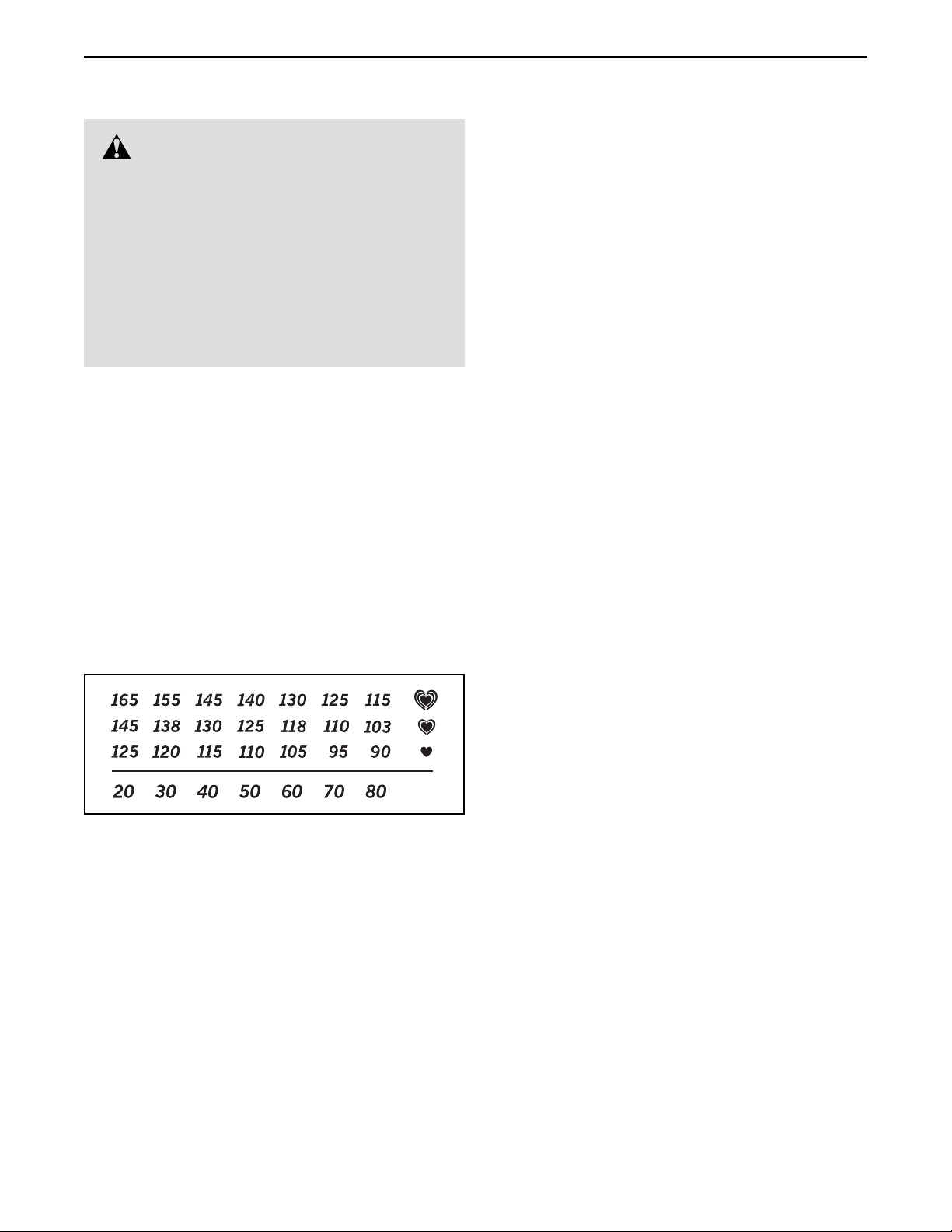

EXERCISE GUIDELINES ....................................................................32
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

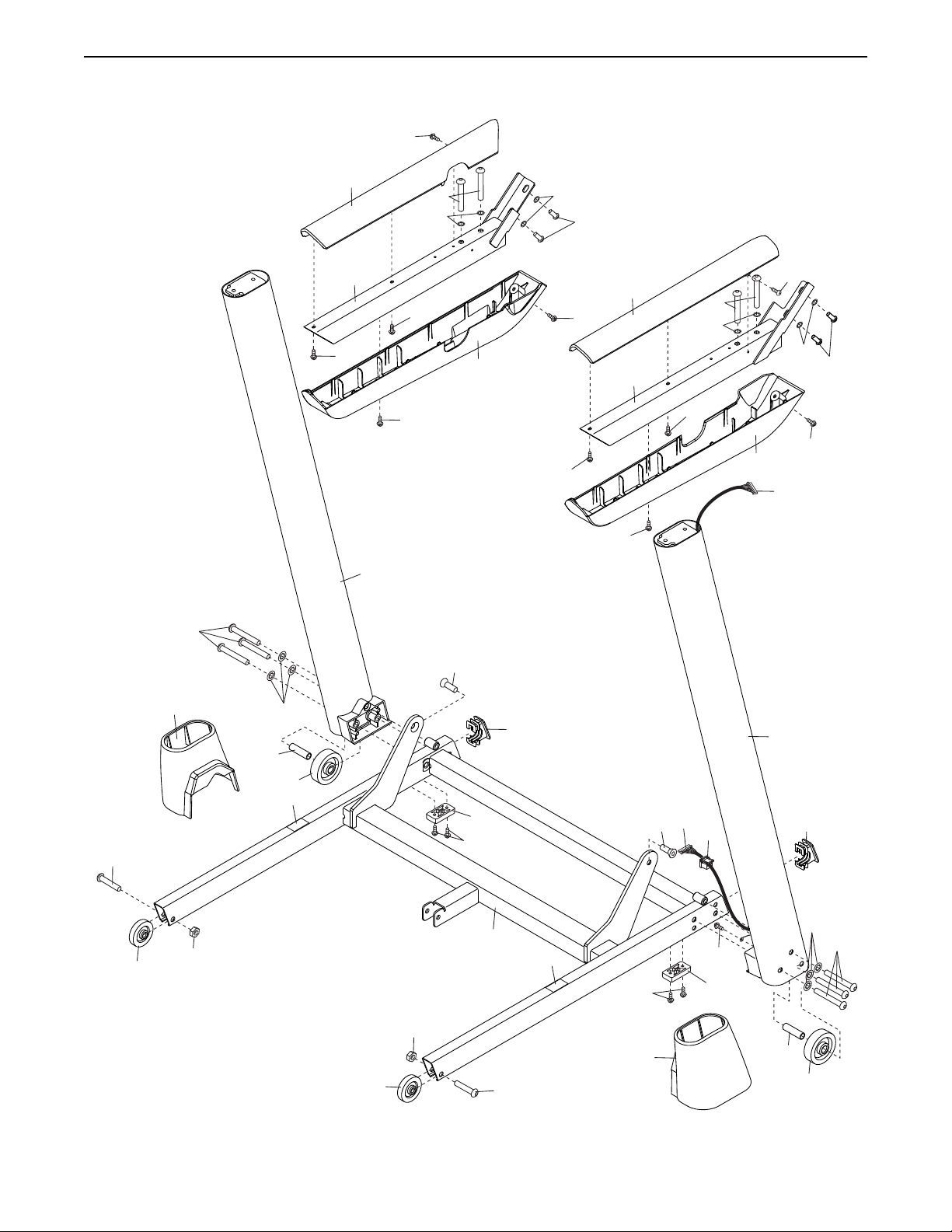

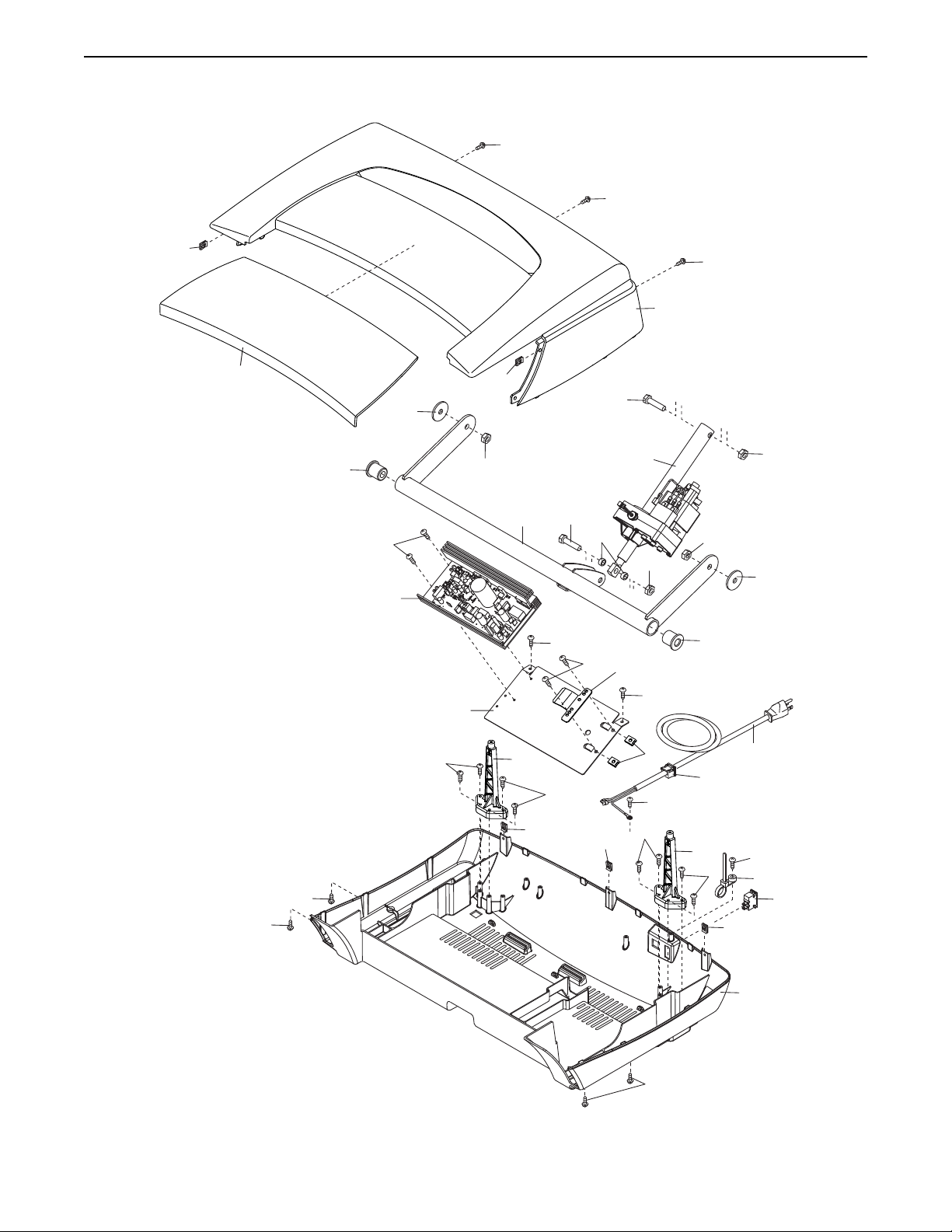

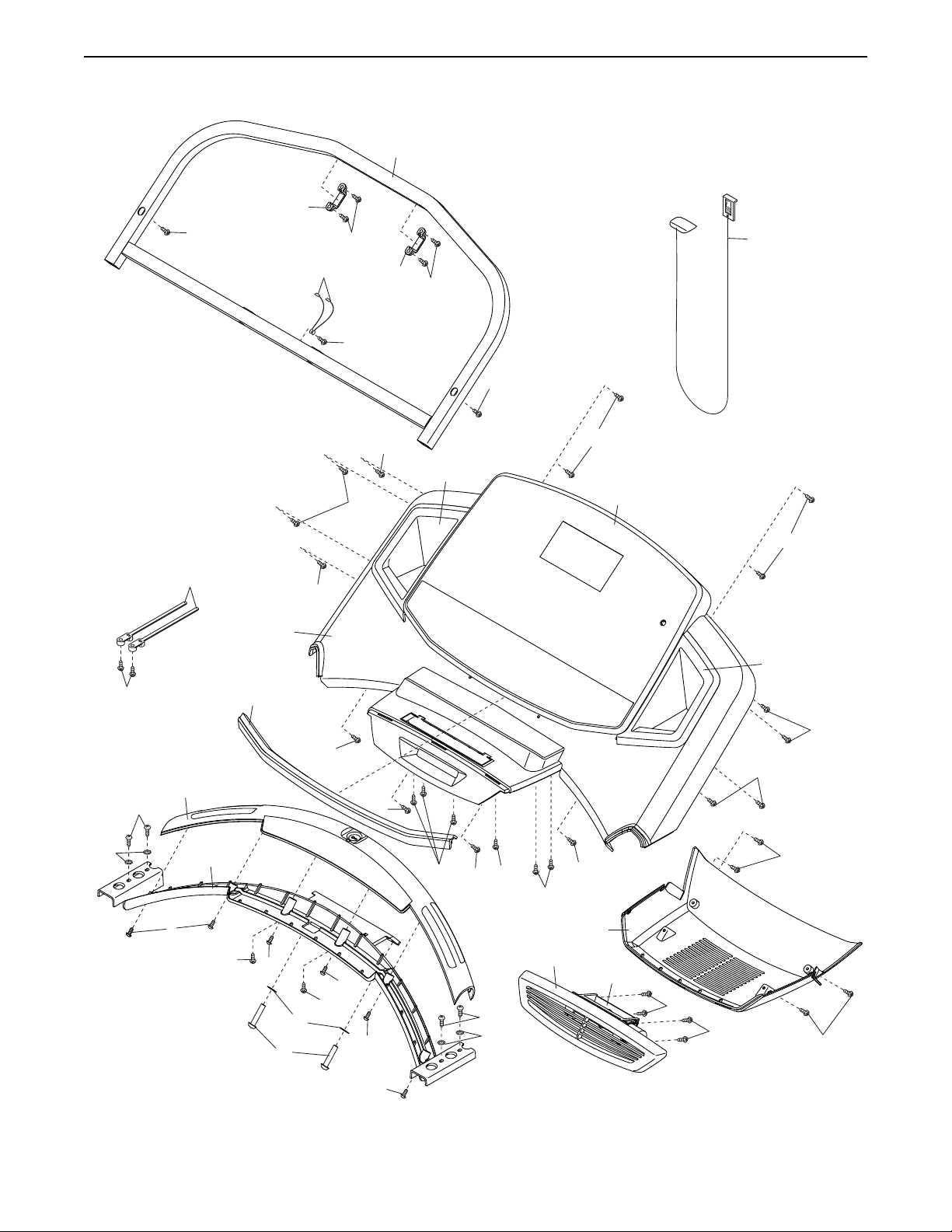

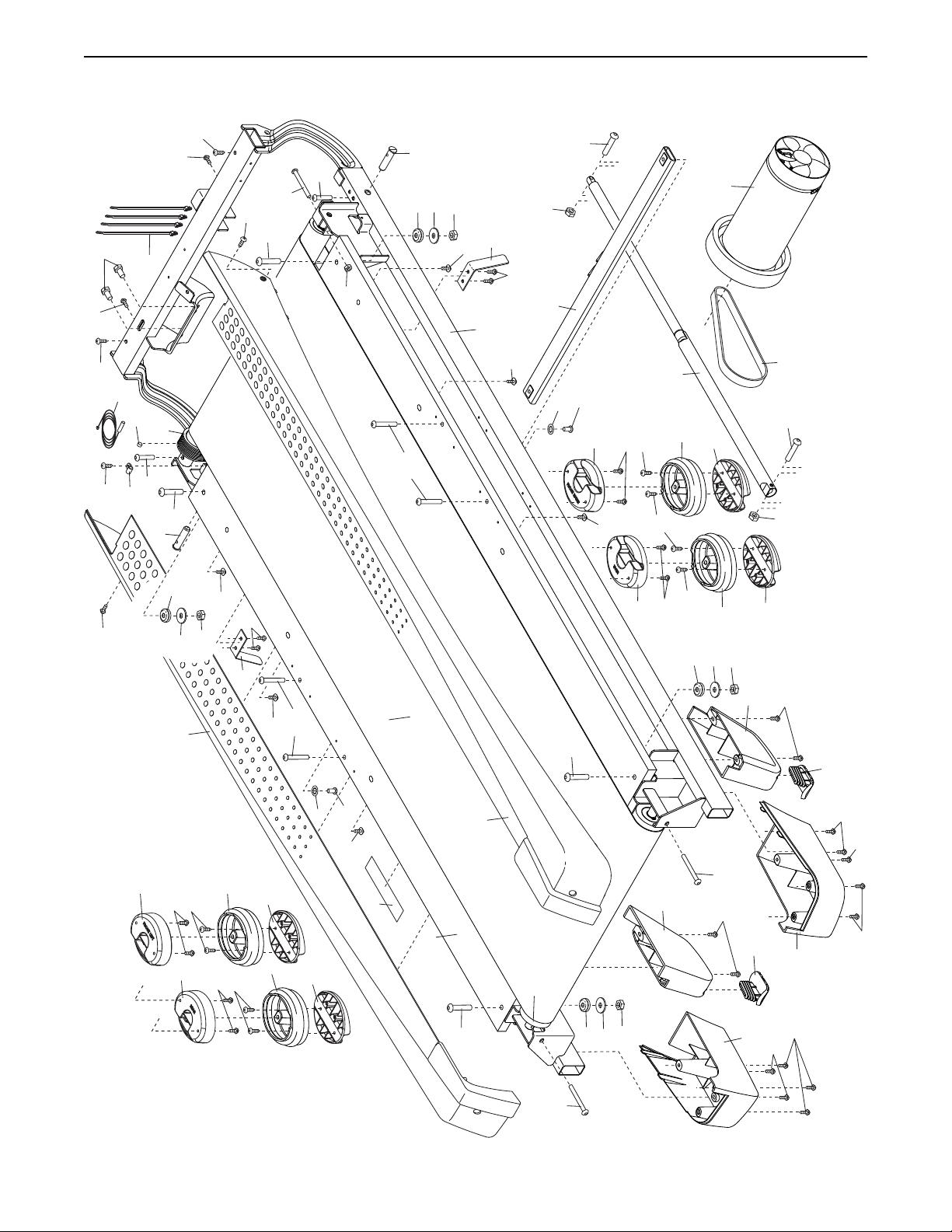

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
WARNING DECAL PLACEMENT
This drawing shows the locations of the warning
decals. If a decal is missing or illegible, call
the telephone number on the front cover of
this manual and request a free replacement
decal. Apply the decal in the location shown.
Note: The decals may not be shown at actual size.
PROFORM is a registered trademark of ICON Health & Fitness, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read
all important precautions and instructions in this manual and all warnings on your treadmill before
using your treadmill. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or persons
with pre-existing health problems.
3. Use the treadmill only as described in this
manual.
4. The treadmill is intended for home use only.
Do not use the treadmill in any commercial,
rental, or institutional setting.
5. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
6. Place the treadmill on a level surface, with
at least 8 ft. (2.4 m) of clearance behind it
and 2 ft. (0.6 m) on each side. Do not place
the treadmill on any surface that blocks air
openings. To protect the floor or carpet from
damage, place a mat under the treadmill.
7. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
8. Keep children under age 12 and pets away
from the treadmill at all times.

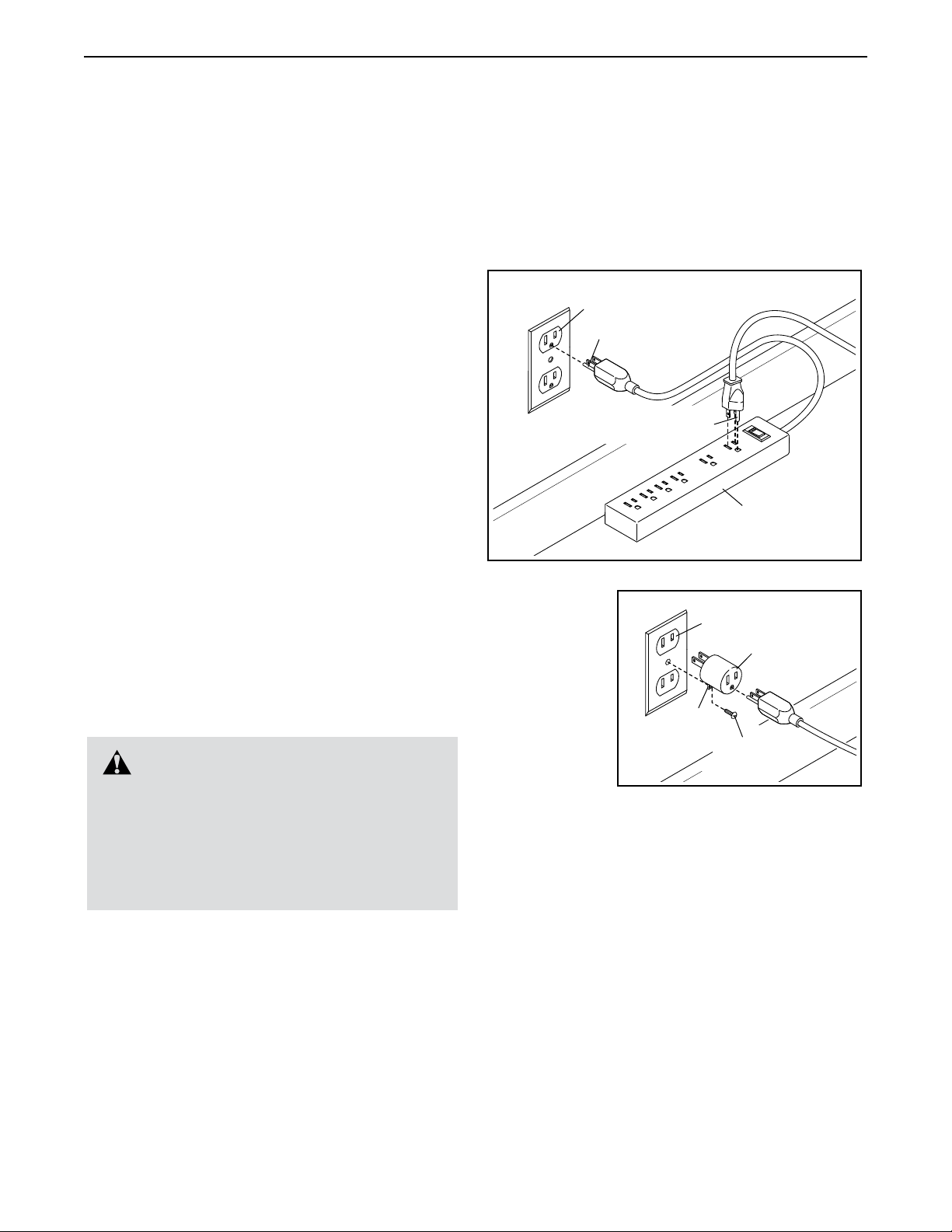

12. Plug the power cord into a surge suppressor
(not included), and plug the surge suppressor into an appropriate outlet (see page 18).
To avoid overloading the circuit, do not plug
other electrical devices, except for low-power
devices such as cell phone chargers, into
the surge suppressor or into an outlet on the
same circuit.
13. Use only a surge suppressor that meets all of
the specifications described on page 18. To
purchase a surge suppressor, see your local
PROFORM dealer, call the telephone number
on the front cover of this manual, or see your
local electronics store.
14. Failure to use a properly functioning surge
suppressor could result in damage to the
control system of the treadmill. If the control
system is damaged, the walking belt may
slow, accelerate, or stop unexpectedly, which
may result in a fall and serious injury.
15. Keep the power cord and the surge suppressor away from heated surfaces.
16. Never move the walking belt while the power
is turned off. Do not operate the treadmill
if the power cord or plug is damaged, or if
the treadmill is not working properly. (See
MAINTENANCE AND TROUBLESHOOTING
on page 29 if the treadmill is not working
properly.)
9. The treadmill should be used only by persons weighing 350 lbs. (159 kg) or less.
10. Never allow more than one person on the
treadmill at a time.
11. Wear appropriate exercise clothes while
using the treadmill. Do not wear loose
clothes that could become caught in the
treadmill. Athletic support clothes are recommended for both men and women. Always
wear athletic shoes. Never use the treadmill
with bare feet, wearing only stockings, or in
sandals.
17. Read, understand, and test the emergency
stop procedure before using the treadmill
(see HOW TO TURN ON THE POWER on
page 20). Always wear the clip while using the
treadmill.
18. Always stand on the foot rails when starting
or stopping the walking belt. Always hold the
handrails while using the treadmill.
19. When a person is walking on the treadmill,
the noise level of the treadmill will increase.
3
20. Keep fingers, hair, and clothing away from
the moving walking belt.
21. The treadmill is capable of high speeds.
Adjust the speed in small increments to
avoid sudden jumps in speed.
25. When folding or moving the treadmill, make
sure that the storage latch is holding the
frame securely in the storage position.
26. Never insert any object into any opening on
the treadmill.
22. The heart rate monitor is not a medical
device. Various factors, including the user’s
movement, may affect the accuracy of heart
rate readings. The heart rate monitor is
intended only as an exercise aid in determining heart rate trends in general.
23. Never leave the treadmill unattended while
it is running. Always remove the key, press
the power switch into the off position (see
the drawing on page 7 for the location of the
power switch), and unplug the power cord
when the treadmill is not in use.
24. Do not attempt to move the treadmill until it
is properly assembled. (See ASSEMBLY on
page 9, and HOW TO FOLD AND MOVE THE
TREADMILL on page 28.) You must be able
to safely lift 45 lbs. (20 kg) to raise, lower, or
move the treadmill.
SAVE THESE INSTRUCTIONS
27. Inspect and properly tighten all parts of the
treadmill regularly.
28. DANGER: Always unplug the power
cord immediately after use, before cleaning the treadmill, and before performing the
maintenance and adjustment procedures
described in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized service representative only.
29. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.
4
5
STANDARD SERVICE PLANS
all
6
BEFORE YOU BEGIN
Thank you for selecting the revolutionary
PROFORM® Power 995i treadmill. The Power 995i
treadmill offers an impressive selection of features
designed to make your workouts at home more effective and enjoyable. And when you’re not exercising, the
unique treadmill can be folded up, requiring less than
half the oor space of other treadmills.
For your benet, read this manual carefully before
using the treadmill. If you have questions after
Length: 6 ft. 6 in. (198 cm)
Width: 3 ft. (91 cm)
Heart Rate Monitor
Handrail
Upright
reading this manual, please see the front cover of this
manual. To help us assist you, please note the product
model number and serial number before contacting us.
The model number and the location of the serial number decal are shown on the front cover of this manual.
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
Console
Tray
Key/Clip
Walking Belt
Foot Rail
Idler Roller
Adjustment Screws
Power Switch
Power Cord
Platform Cushion
7
PART IDENTIFICATION CHART
Use the drawings below to identify small parts used for assembly. The number in parentheses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the key
number is the quantity used for assembly. Note: If a part is not in the hardware kit, check to see whether it is
pre-attached. Extra parts may be included.
#10 Star
Washer (5)–4
#8 x 1/2" Silver
Screw (10)–1
5/16" Star
Washer (11)–10
#8 x 1/2"
Screw (1)–10
5/16" x 2 1/2"
Screw (28)–4
3/8" x 4" Screw (7)–6
3/8" Star
Washer (13)–6
#10 x 3/4" Screw
(9)–4
8
ASSEMBLY
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you nish all assembly steps.
• After shipping, there may be an oily substance
on the exterior of the treadmill. This is normal. If
there is an oily substance on the treadmill, wipe
it off with a soft cloth and a mild, non-abrasive
cleaner.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
1. Go to www.proformservice.com/
registration on your computer and register
your product.
• activates your warranty
• saves you time if you ever need to contact
Customer Care
• To identify small parts, see page 8.
• Assembly requires the following tools:
the included hex key
one adjustable wrench
one Phillips screwdriver
To avoid damaging parts, do not use power tools.
1
• allows us to notify you of upgrades and offers
Note: If you do not have Internet access, call
Customer Care (see the front cover of this
manual) and register your product.
9
2. Make sure that the power cord is unplugged.
Press a Base Cap (74) into each side of the
Base (94).
Remove the tie securing the Upright Wire (81) to
the front of the Base (94).
2
Wire
Tie
81
A
81
Identify the Right Upright (90). Have a second
person hold the Right Upright near the Base
(94).
See the inset drawing. Tie the wire tie in the
Right Upright (90) securely around the end of the
Upright Wire (81). Then, insert the Upright Wire
into the lower end of the Right Upright as you
pull the other end of the wire tie out of the Right
Upright.
Then, remove and discard the indicated screw (A).
3. Lay the Right Upright (90) near the Base (94).
Press the Grommet (77) into the square hole in
the Right Upright. Make sure not to pinch the
ground wire.
90
74
3
Wire
Tie
74
90
94
Then, attach the ground wire to the Right Upright
(90) with a #8 x 1/2" Silver Screw (10) as shown.
94
Ground
Wire
10
90
77
Square
Hole
10
4. Insert a Wheel Spacer (63) into a Front Wheel
(62). Hold the Front Wheel inside the lower end
of the Right Upright (90), and insert a 3/8" x 4"
Screw (7) with a 3/8" Star Washer (13) into the
Right Upright and the Front Wheel.
Repeat this step on the other side of the
treadmill (not shown).
4
90
5. Place a piece of packing material (B) under
the right side of the Base (94). Hold the Right
Upright (90) against the Base. Make sure not
to pinch the Upright Wire (81).
Insert two 3/8" x 4" Screws (7) with two 3/8" Star
Washers (13) into the Right Upright (90), and
partially tighten the three Screws into the Base
(94); do not fully tighten the Screws yet.
Move the packing material (B) to the left side
of the Base (94) and attach the Left Upright
(not shown) in the same way. Note: There are
no wires on the left side.
Remove the packing material (B) from under-
neath the Base (94).
13
7
5
13
7
63
90
81
7
62
94
B
11

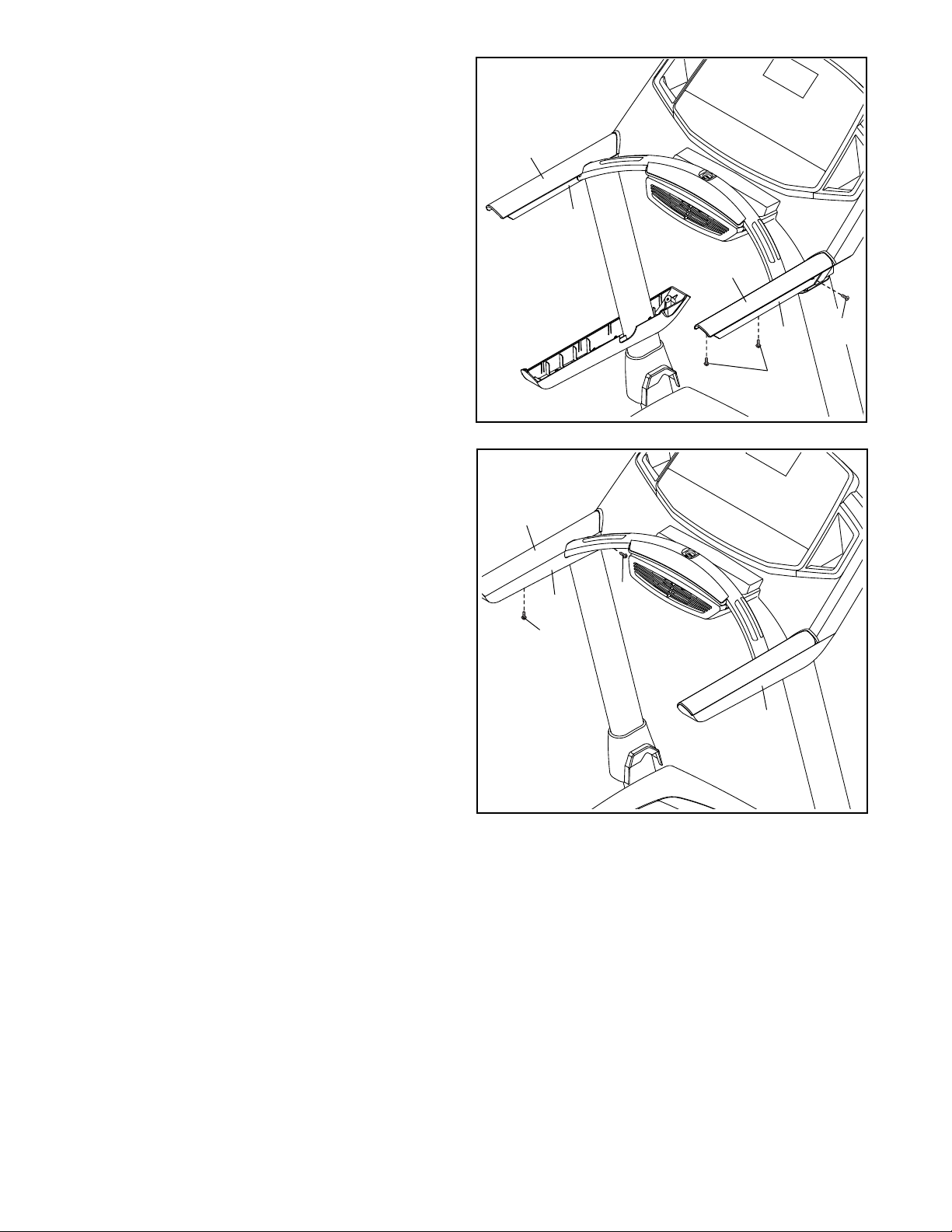

6. Identify the Left and Right Base Covers (82, 83).
Slide the Left Base Cover onto the Left Upright
(89), and slide the Right Base Cover onto the
Right Upright (90). Do not press the Base
Covers into place yet.
Identify the Right and Left Bottom Handrail
Covers (84, 85). Slide the Left Bottom Handrail
Cover onto the Left Upright (89), and slide the
Right Bottom Handrail Cover onto the Right
Upright (90).
6
89
85
82
90
84
83

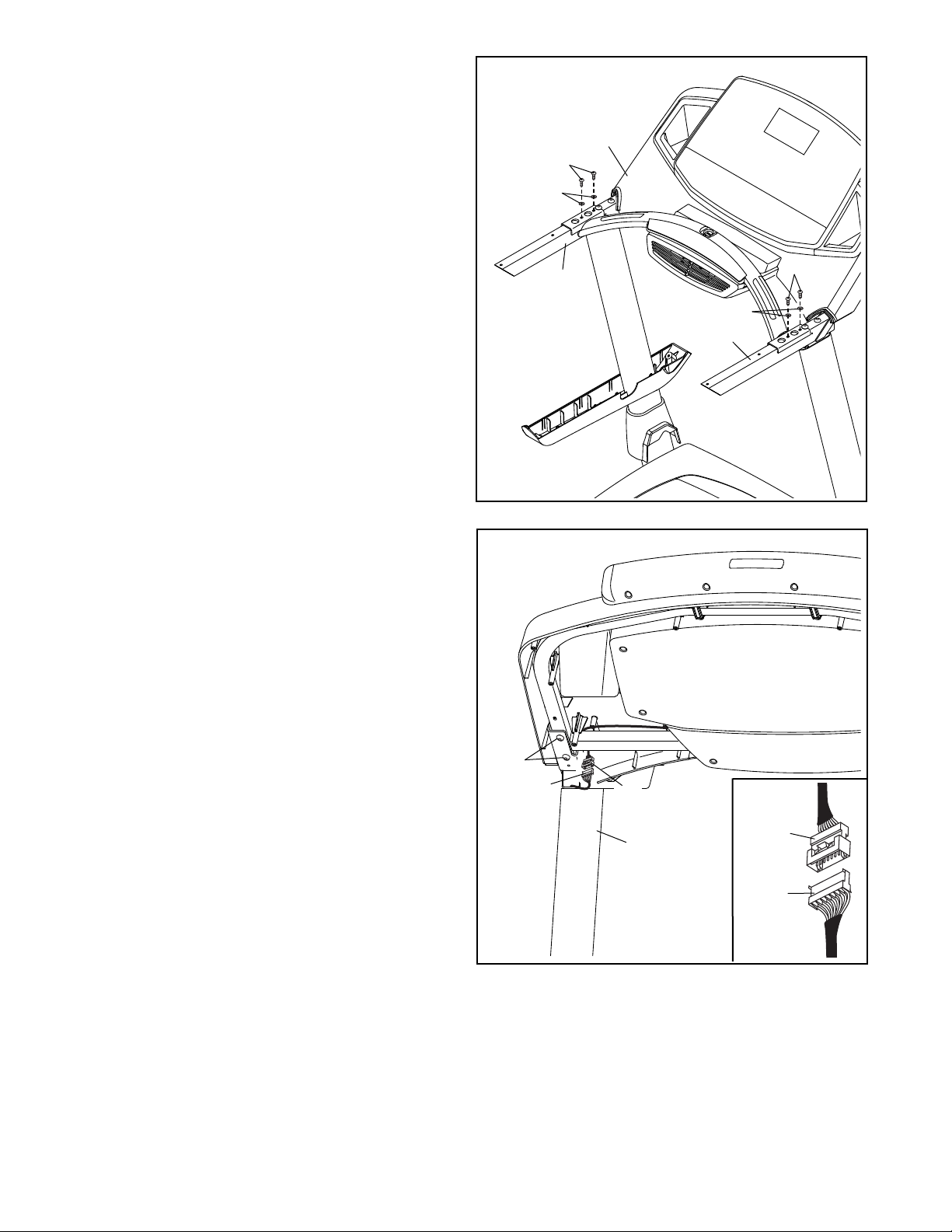

7. Hold the Right Handrail (87) near the Right
Upright (90). Insert the Upright Wire (81) through
the Right Handrail as shown, and then remove
the wire tie from the Upright Wire.
Next, attach the Right Handrail (87) to the Right
Upright (90) with two 5/16" x 2 1/2" Screws (28)
and two 5/16" Star Washers (11); firmly tighten
the Screws. Make sure not to pinch the
Upright Wire (81).
Then, attach the Left Handrail (86) to the Left
Upright (89) with two 5/16" x 2 1/2" Screws (28)
and two 5/16" Star Washers (11); firmly tighten
the Screws. Note: There are no wires on the left
side.
7
86
28
11
89
87
11
90
Wire
Tie
28
81
12
Loading...
