ProForm PFTL992140 User Manual

www.proform.com

Model No. PFTL99214.0 Serial No.

Write the serial number in the space above for reference.

Serial Number

Decal

ACTIVATE YOUR WARRANTY

To register your product and activate your warranty today, go to www.proformservice.com/ registration.

USER’S MANUAL

CUSTOMER CARE

For service at any time, go to www.proformservice.com.

Or call 1-888-533-1333 Mon.–Fri. 6 a.m.–6 p.m. MT Sat. 8 a.m.–12 p.m. MT

Please do not contact the store.

CAUTION

Read all precautions and instructions in this manual before using this equipment. Save this manual for future reference.

TABLE OF CONTENTS

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS ..................................................................3

BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

HOW TO USE THE TREADMILL ..............................................................20

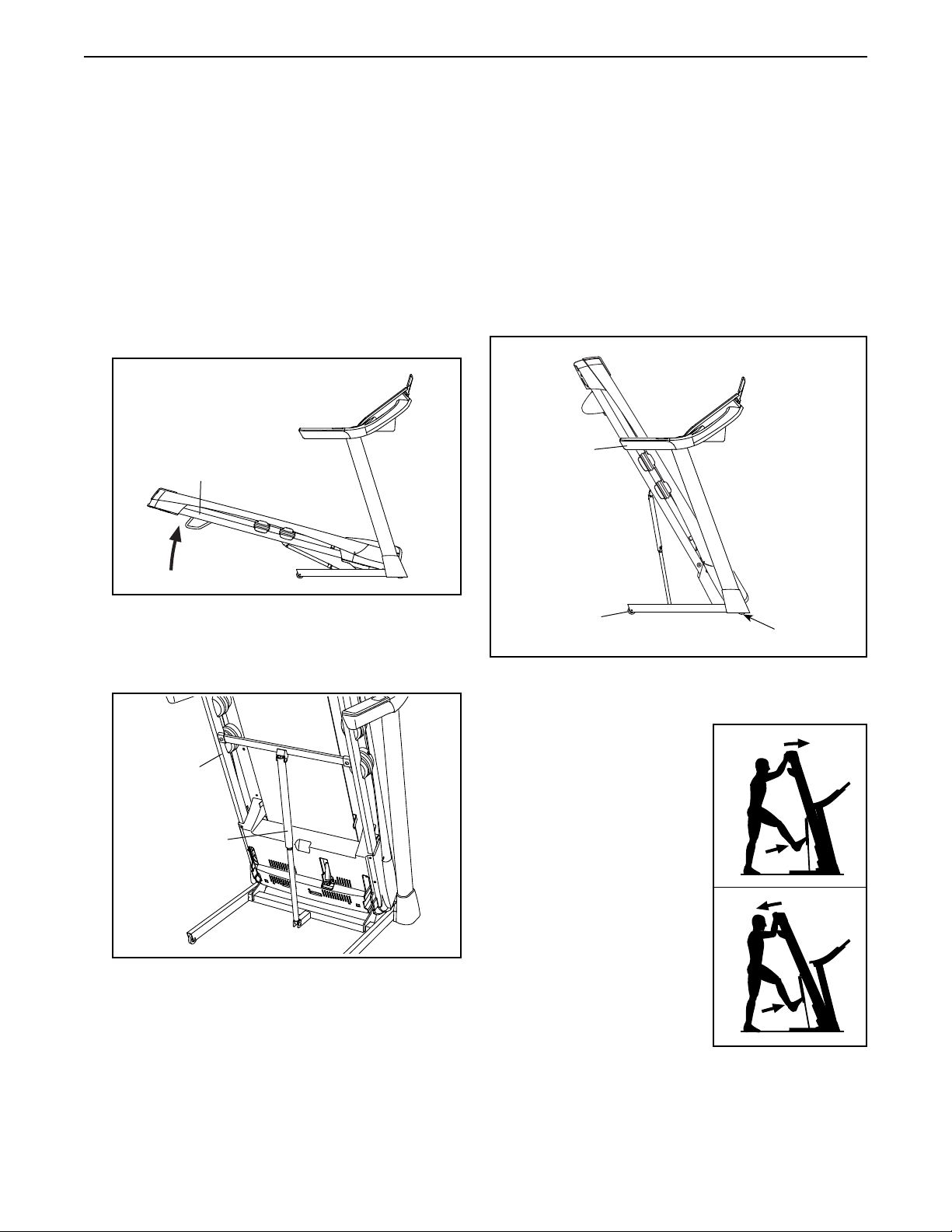

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

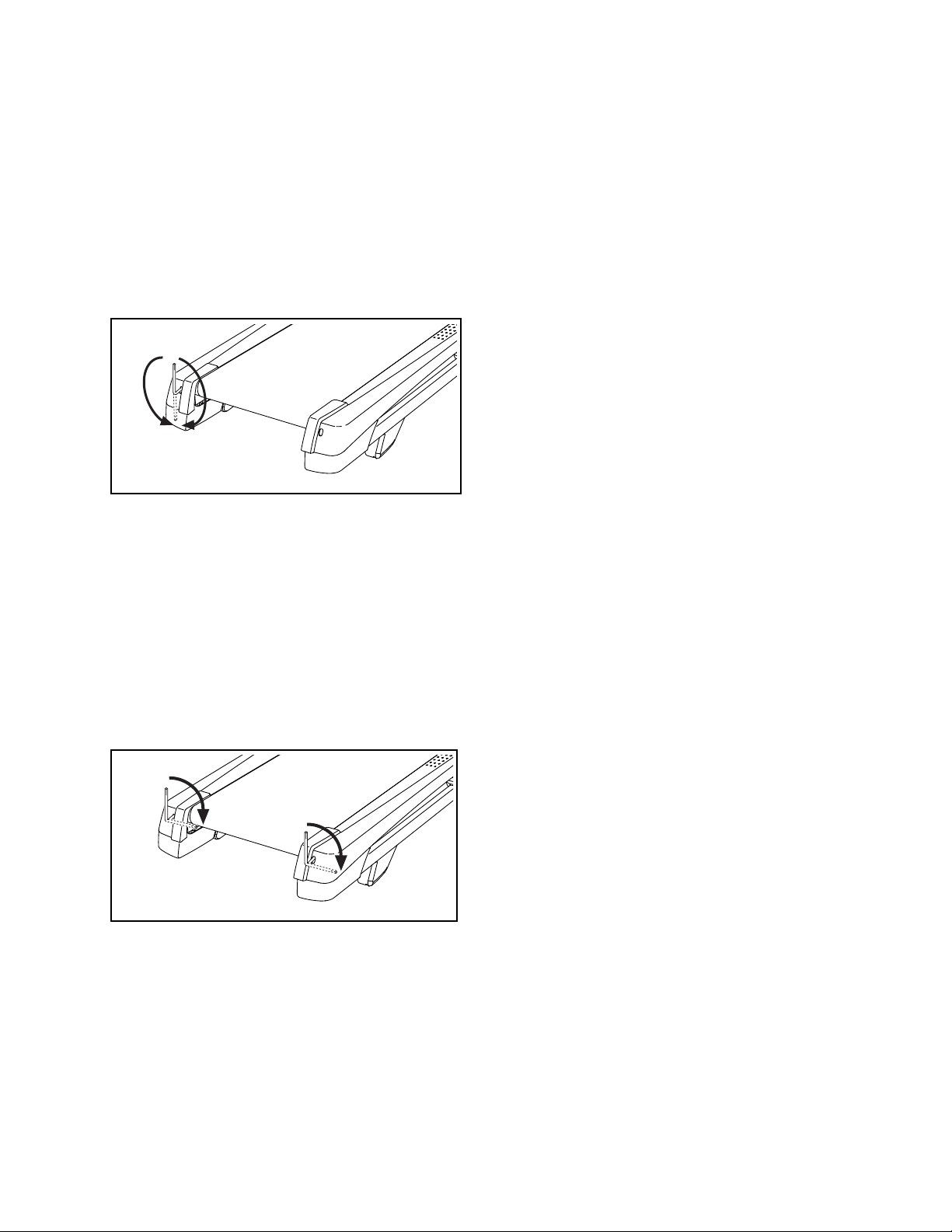

MAINTENANCE AND TROUBLESHOOTING .....................................................32

EXERCISE GUIDELINES ....................................................................35

PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

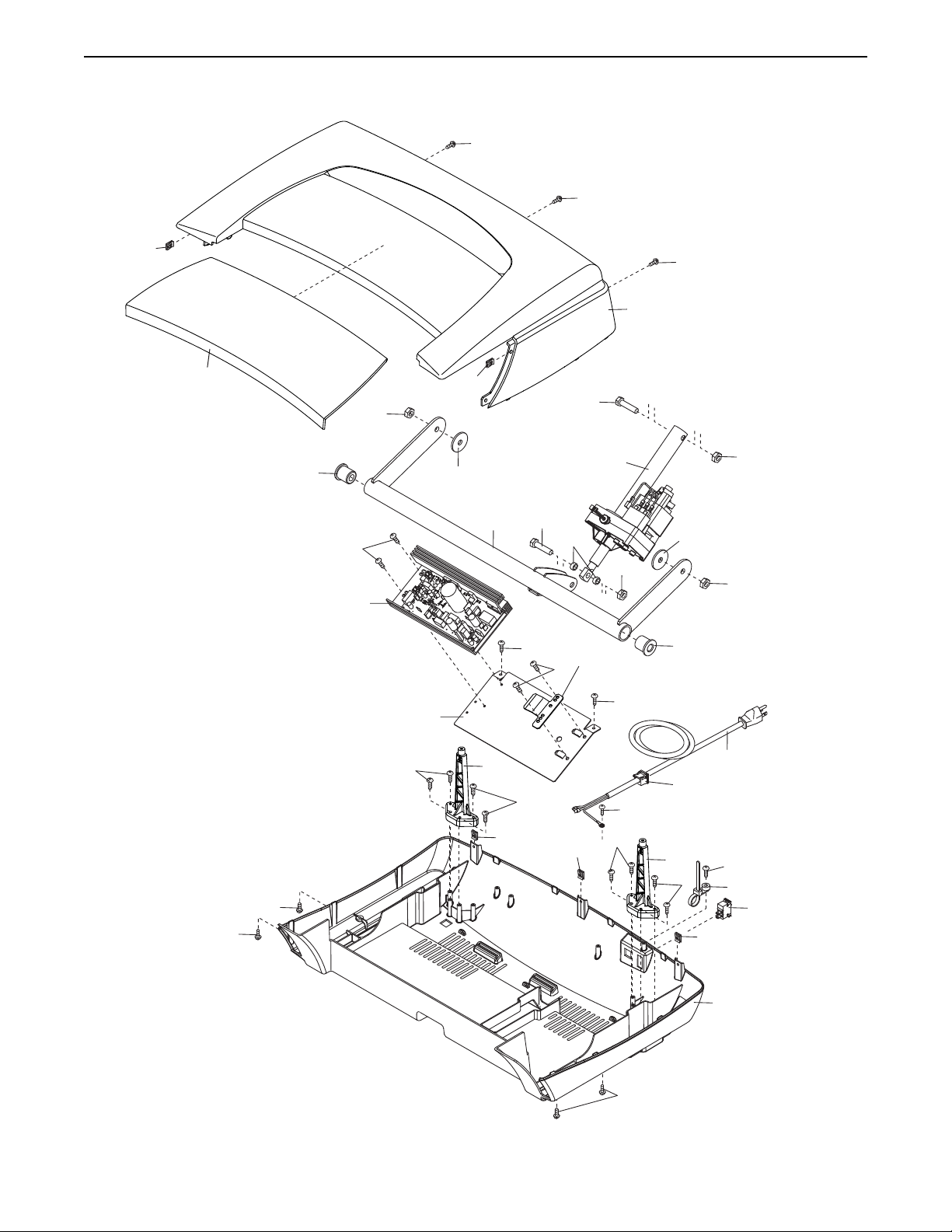

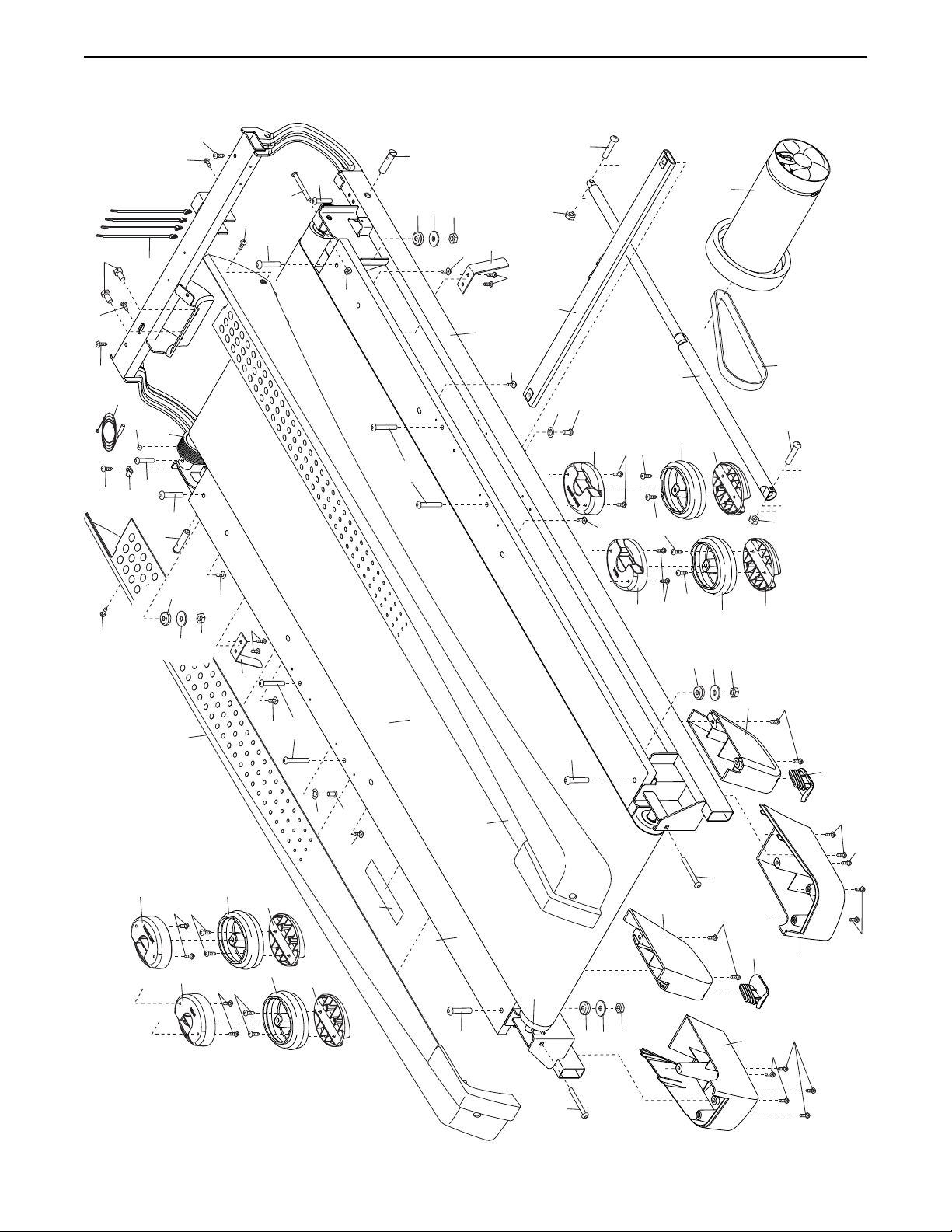

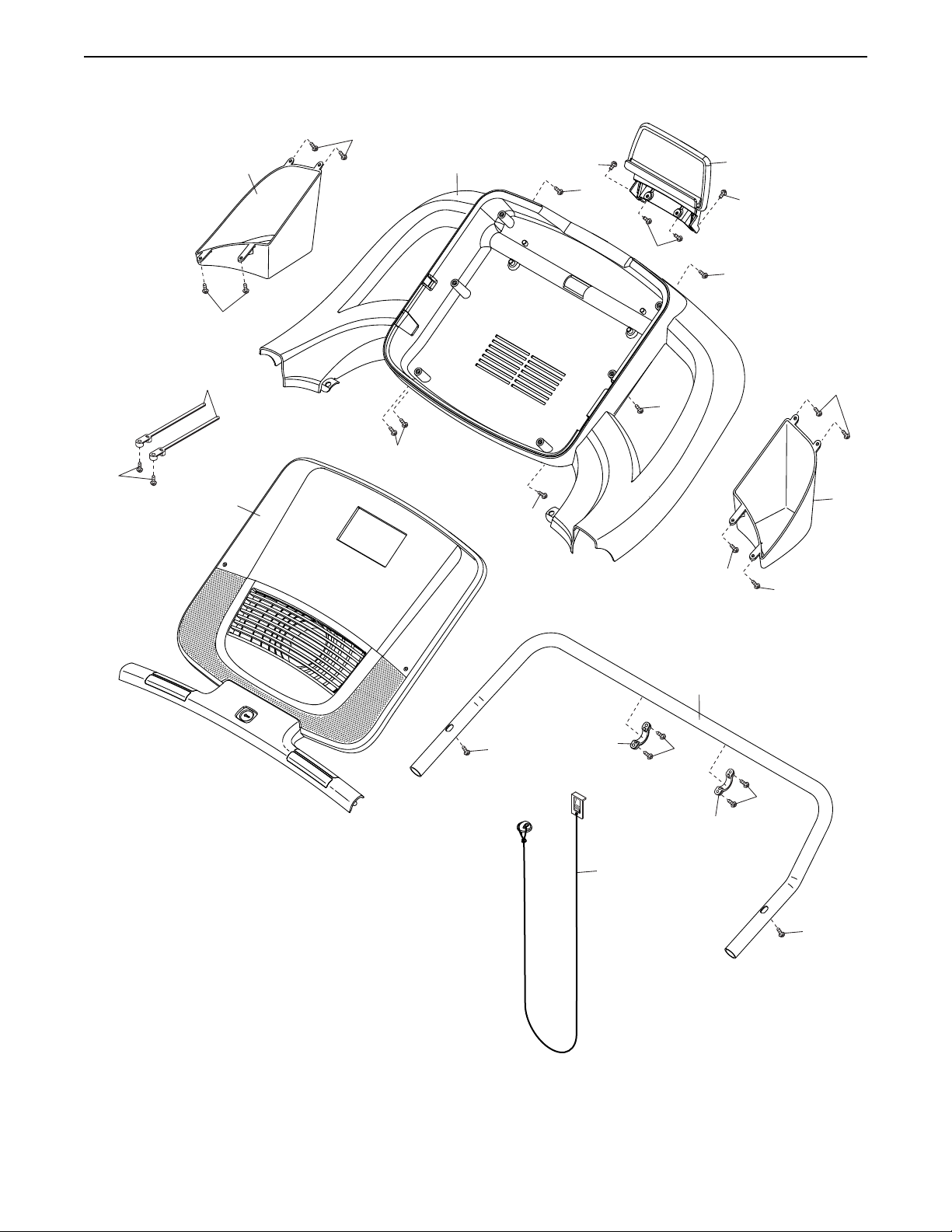

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

WARNING DECAL PLACEMENT

This drawing shows the locations of the warning decals. If a decal is missing or illegible, call

the telephone number on the front cover of this manual and request a free replacement decal. Apply the decal in the location shown.

Note: The decals may not be shown at actual size.

The BLUETOOTH® word mark and logos are registered trademarks of

Bluetooth SIG, Inc. and are used under license. Google Maps is a trademark of Google Inc.

PROFORM is a registered trademark of ICON Health & Fitness, Inc.

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read

all important precautions and instructions in this manual and all warnings on your treadmill before using your treadmill. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.

1. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings and precautions.

2. Before beginning any exercise program, consult your physician. This is especially important for persons over age 35 or persons with pre-existing health problems.

3. Use the treadmill only as described in this manual.

4. The treadmill is intended for home use only. Do not use the treadmill in any commercial, rental, or institutional setting.

5. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a garage or covered patio, or near water.

6. Place the treadmill on a level surface, with at least 8 ft. (2.4 m) of clearance behind it and 2 ft. (0.6 m) on each side. Do not place the treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.

7. Do not operate the treadmill where aerosol products are used or where oxygen is being administered.

8. Keep children under age 12 and pets away from the treadmill at all times.

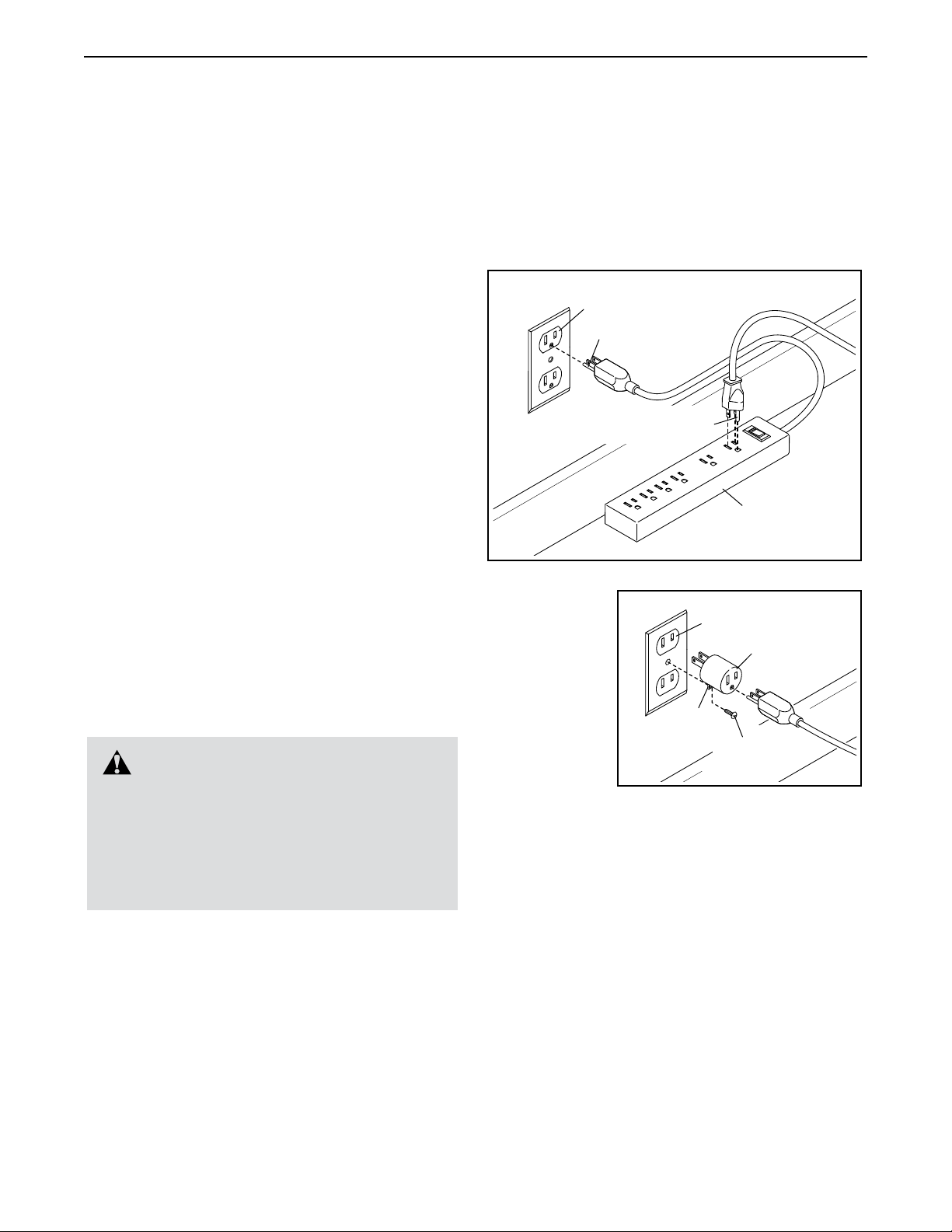

12. Plug the power cord into a surge suppressor (not included), and plug the surge suppressor into an appropriate outlet (see page 20). To avoid overloading the circuit, do not plug other electrical devices, except for low-power devices such as cell phone chargers, into the surge suppressor or into an outlet on the same circuit.

13. Use only a surge suppressor that meets all of the specifications described on page 20. To purchase a surge suppressor, see your local PROFORM dealer, call the telephone number on the front cover of this manual, or see your local electronics store.

14. Failure to use a properly functioning surge suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may slow, accelerate, or stop unexpectedly, which may result in a fall and serious injury.

15. Keep the power cord and the surge suppressor away from heated surfaces.

16. Never move the walking belt while the power is turned off. Do not operate the treadmill if the power cord or plug is damaged, or if the treadmill is not working properly. (See MAINTENANCE AND TROUBLESHOOTING on page 32 if the treadmill is not working properly.)

9. The treadmill should be used only by persons weighing 325 lbs. (147 kg) or less.

10. Never allow more than one person on the treadmill at a time.

11. Wear appropriate exercise clothes while using the treadmill. Do not wear loose clothes that could become caught in the treadmill. Athletic support clothes are recommended for both men and women. Always

wear athletic shoes. Never use the treadmill with bare feet, wearing only stockings, or in sandals.

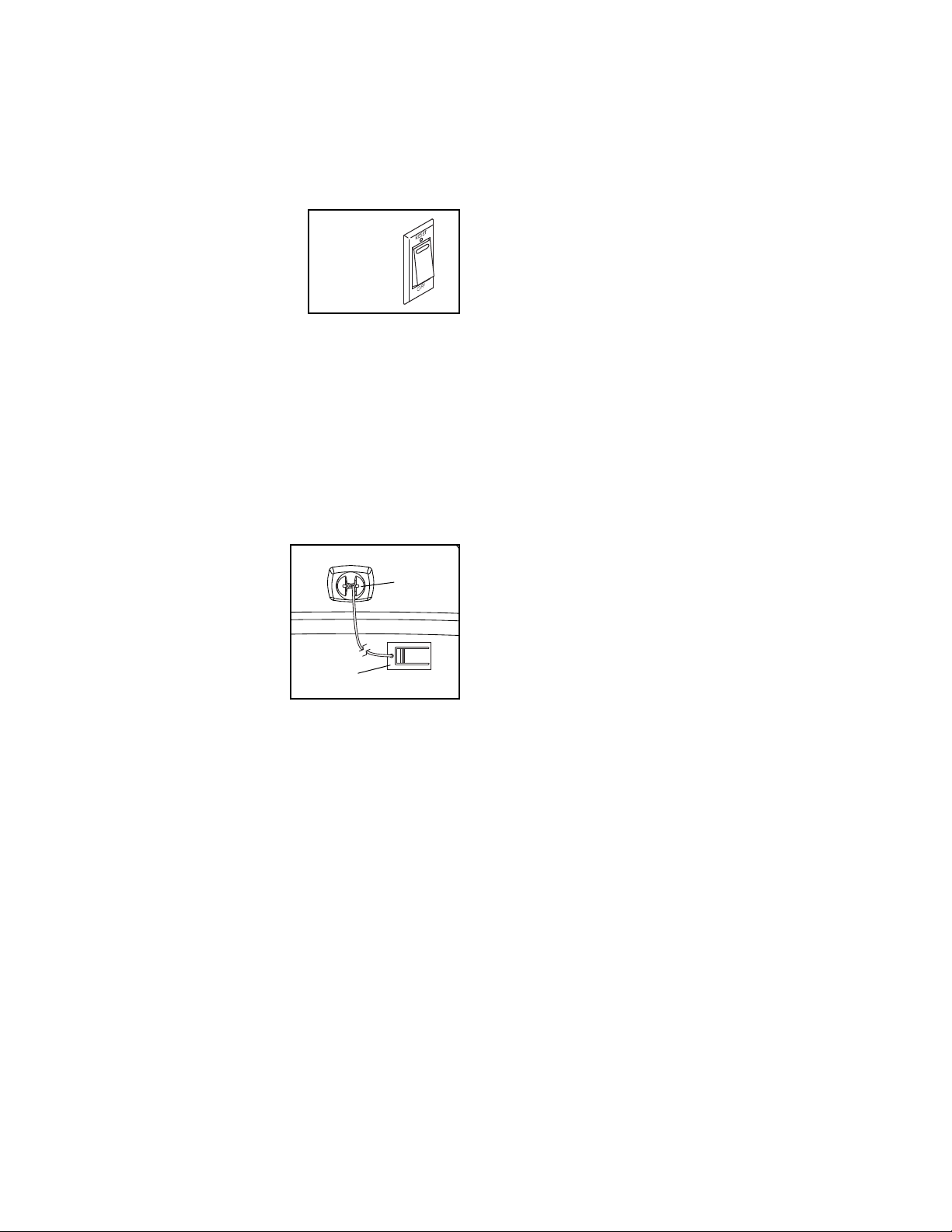

17. Read, understand, and test the emergency stop procedure before using the treadmill (see HOW TO TURN ON THE POWER on page 22). Always wear the clip while using the treadmill.

18. Always stand on the foot rails when starting or stopping the walking belt. Always hold the handrails while using the treadmill.

19. When a person is walking on the treadmill, the noise level of the treadmill will increase.

20. Keep fingers, hair, and clothing away from the moving walking belt.

26. Never insert any object into any opening on the treadmill.

21. The treadmill is capable of high speeds. Adjust the speed in small increments to avoid sudden jumps in speed.

22. The heart rate monitor is not a medical device. Various factors, including the user’s movement, may affect the accuracy of heart rate readings. The heart rate monitor is intended only as an exercise aid in determining heart rate trends in general.

23. Never leave the treadmill unattended while it is running. Always remove the key, press the power switch into the off position (see the drawing on page 7 for the location of the power switch), and unplug the power cord when the treadmill is not in use.

24. Do not attempt to move the treadmill until it is properly assembled. (See ASSEMBLY on page 9, and HOW TO FOLD AND MOVE THE TREADMILL on page 31.) You must be able to safely lift 45 lbs. (20 kg) to raise, lower, or move the treadmill.

25. When folding or moving the treadmill, make sure that the storage latch is holding the frame securely in the storage position.

27. Inspect and properly tighten all parts of the treadmill regularly.

28. DANGER: Always unplug the power

cord immediately after use, before cleaning the treadmill, and before performing the maintenance and adjustment procedures described in this manual. Never remove the motor hood unless instructed to do so by an authorized service representative. Servicing other than the procedures in this manual should be performed by an authorized service representative only.

29. Over exercising may result in serious injury or death. If you feel faint, if you become short of breath, or if you experience pain while exercising, stop immediately and cool down.

30. IMPORTANT: To satisfy exposure compliance requirements, the antenna and transmitter in the console must be at least 8 in. (20 cm) from all persons and must not be near or connected to any other antenna or transmitter. The treadmill console contains FCC ID OMCIABR12.

SAVE THESE INSTRUCTIONS

STANDARD SERVICE PLANS

all

BEFORE YOU BEGIN

Thank you for selecting the revolutionary PROFORM® SPORT 9.0 S treadmill. The SPORT 9.0 S treadmill offers an impressive selection of features designed to make your workouts at home more effective and enjoyable. And when you’re not exercising, the unique treadmill can be folded up, requiring less than half the oor space of other treadmills.

For your benet, read this manual carefully before using the treadmill. If you have questions after

Length: 6 ft. 9 in. (206 cm) Width: 3 ft. 1 in. (93 cm)

Heart Rate Monitor

Handrail

Upright

reading this manual, please see the front cover of this manual. To help us assist you, please note the product model number and serial number before contacting us. The model number and the location of the serial number decal are shown on the front cover of this manual.

Before reading further, please review the drawing below and familiarize yourself with the labeled parts.

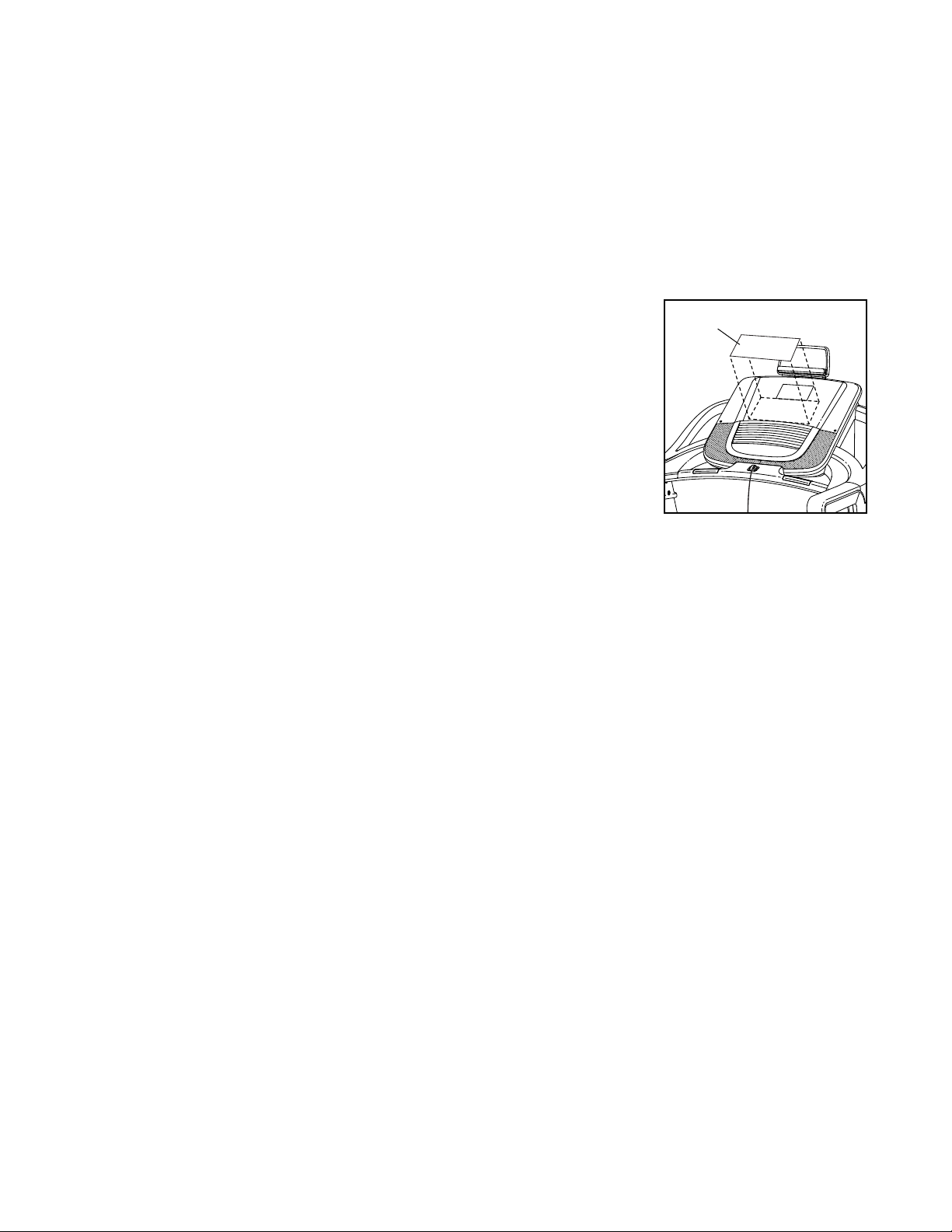

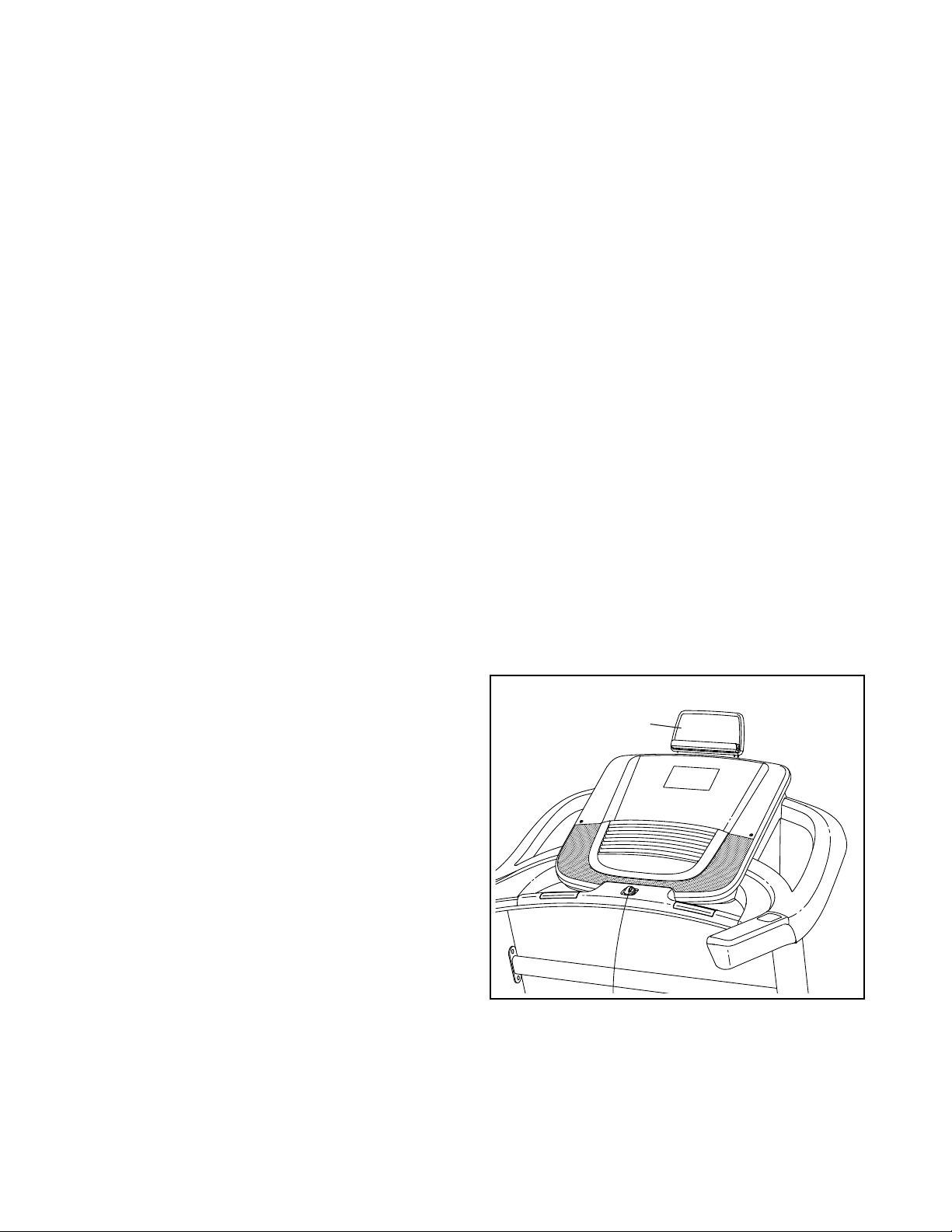

Tablet Holder

Console

Tray

Key/Clip

Walking Belt

Foot Rail

Idler Roller Adjustment Screws

Power Switch

Power Cord

Platform Cushions

#8 x 3/4" Screw

(2)–4

PART IDENTIFICATION CHART

Use the drawings below to identify small parts used for assembly. The number in parentheses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the key number is the quantity used for assembly. Note: If a part is not in the hardware kit, check to see whether it is

preattached. Extra parts may be included.

#10 Star

Washer (5)–2

#8 x 1/2" Machine

Screw (8)–4

5/16" Star

Washer (11)–14

#8 x 1/2" Silver

Screw (10)–1

5/16" x 2 1/2" Screw (28)–4

3/8" x 4" Screw (7)–6

Washer (13)–6

#8 x 1/2"

Screw (1)–12

3/8" Star

#10 x 3/4" Screw

(9)–2

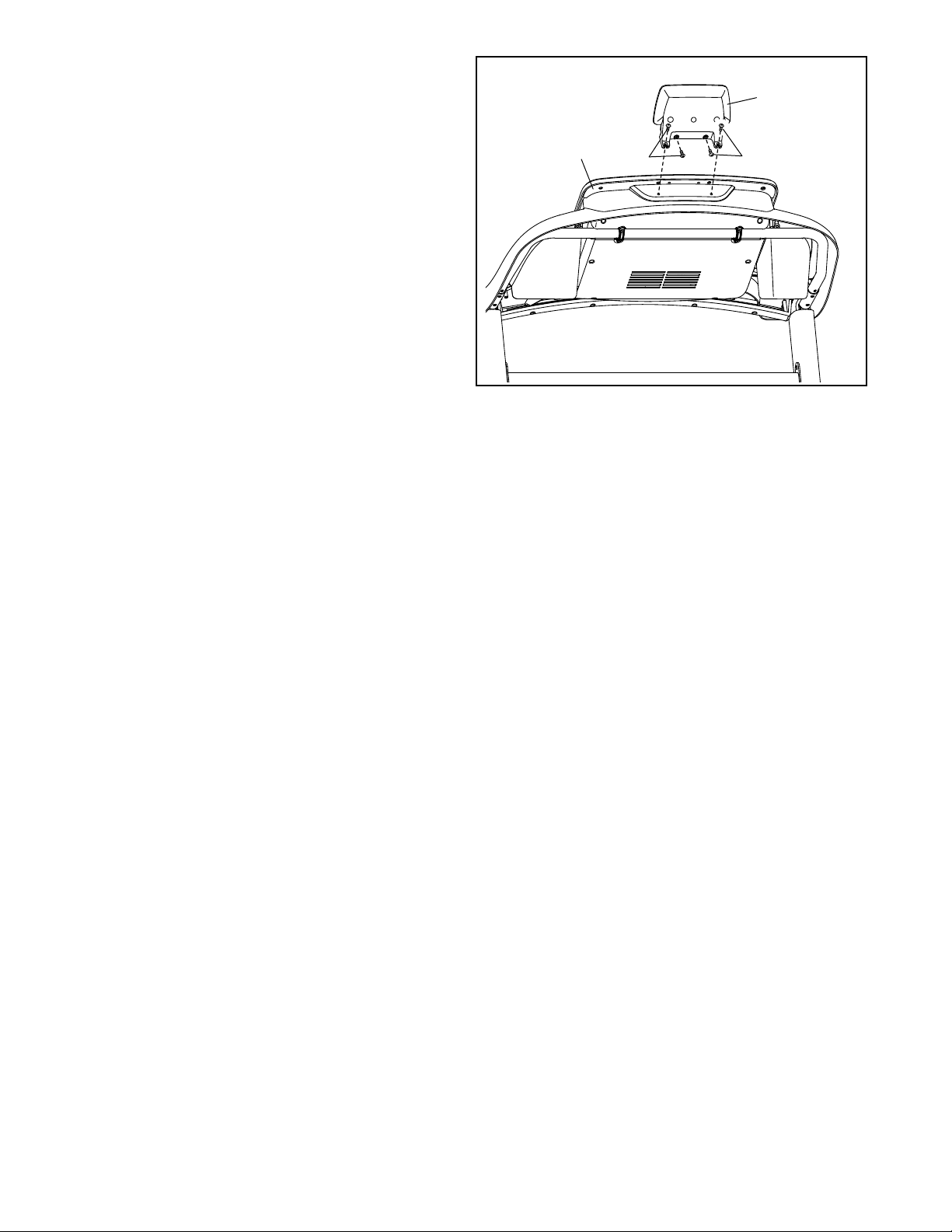

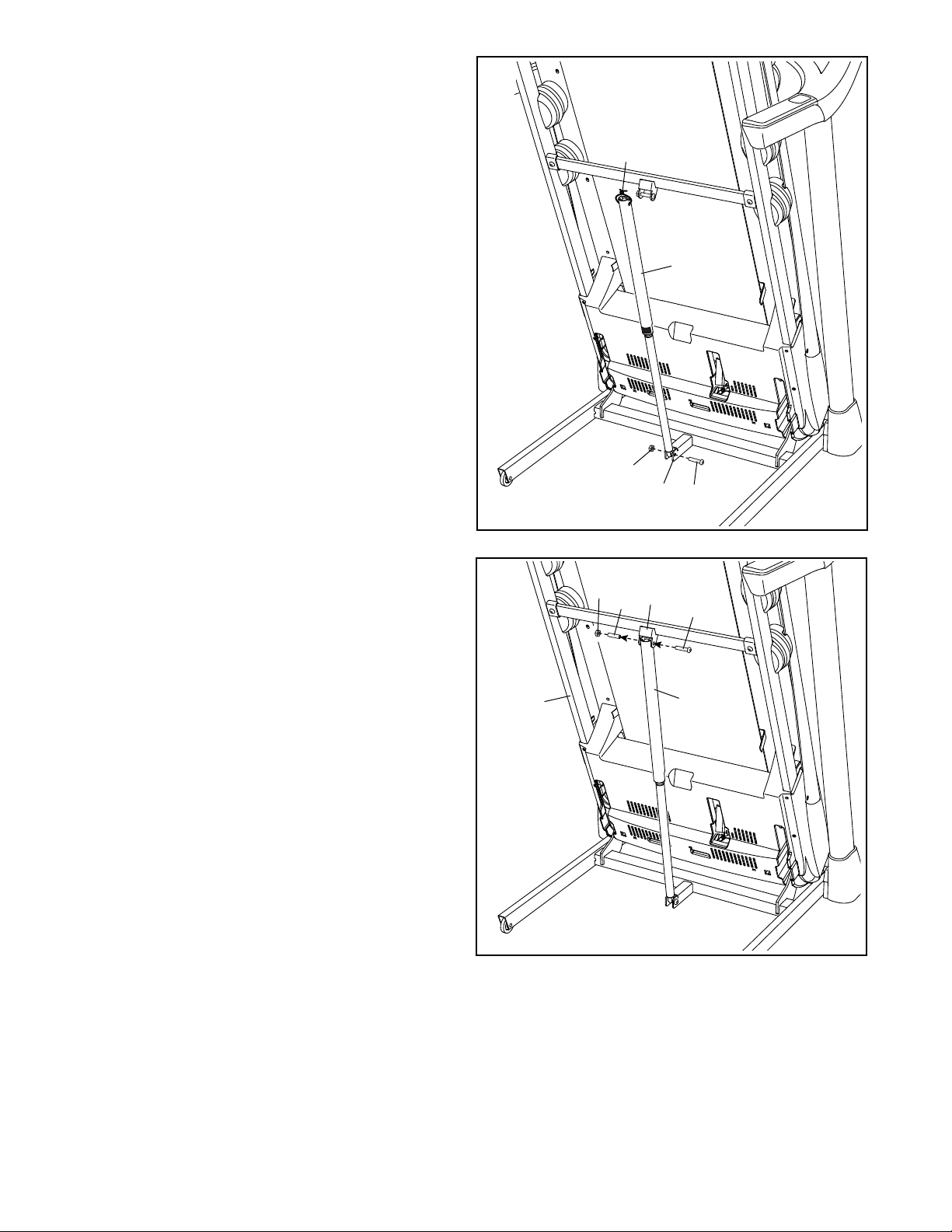

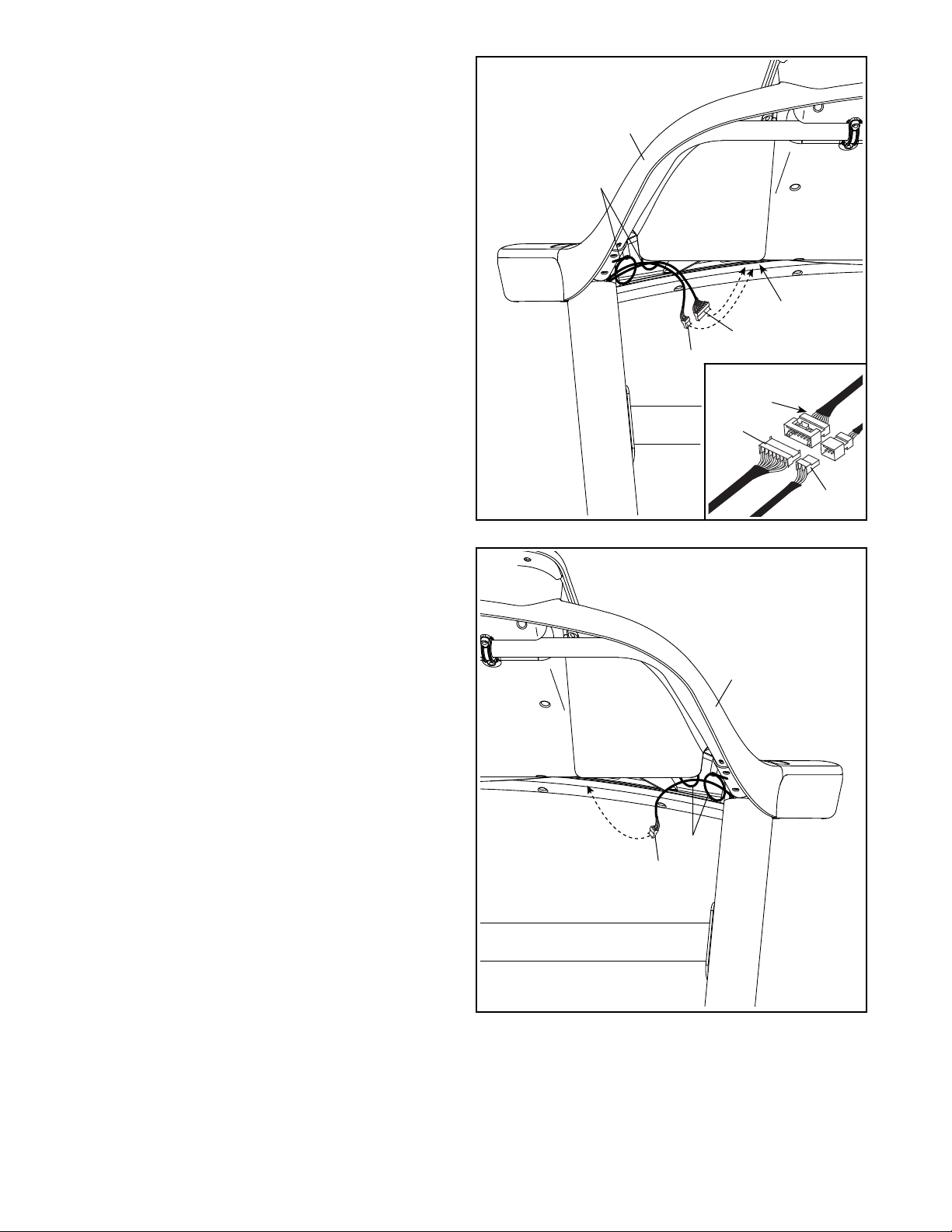

ASSEMBLY

• To hire an authorized service technician to assemble the treadmill, call 1-800-445-2480

• Assembly requires two persons.

• Place all parts in a cleared area and remove the packing materials. Do not dispose of the packing

materials until you nish all assembly steps.

• After shipping, there may be an oily substance on the exterior of the treadmill. This is normal. If there is an oily substance on the treadmill, wipe it off with a soft cloth and a mild, non-abrasive cleaner.

1. Go to www.proformservice.com/

registration on your computer and register your product.

• activates your warranty

• saves you time if you ever need to contact Customer Care

• Left parts are marked “L” or “Left” and right parts are marked “R” or “Right.”

• To identify small parts, see page 8.

• Assembly requires the following tools:

the included hex key

one adjustable wrench

one Phillips screwdriver

To avoid damaging parts, do not use power tools.

• allows us to notify you of upgrades and offers

Note: If you do not have Internet access, call

Customer Care (see the front cover of this manual) and register your product.

2. Make sure that the power cord is unplugged.

Press a Base Cap (74) into each side of the

Base (94).

Next, remove the tie securing the Upright Wire

(81) to the front of the Base (94).

Wire

Tie

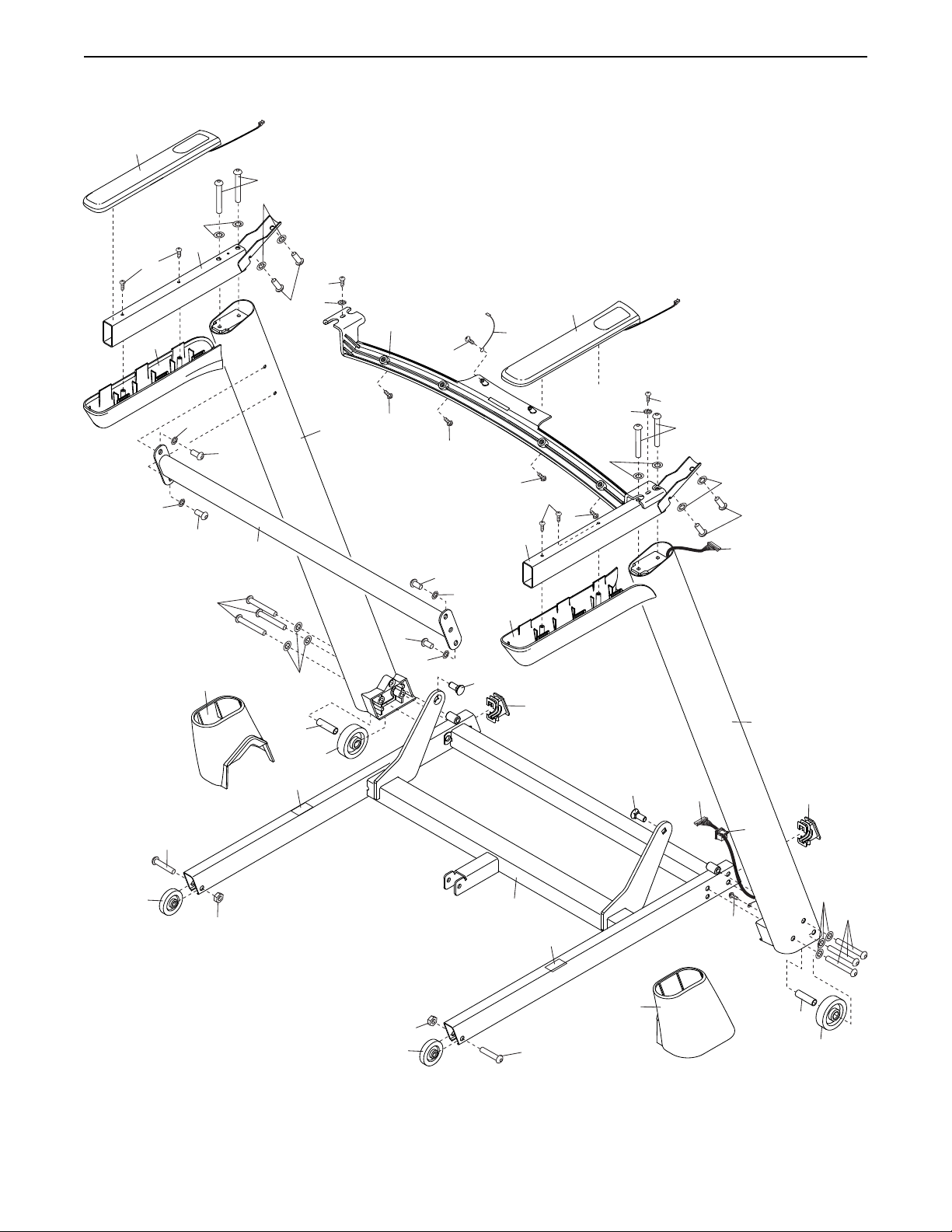

Identify the Right Upright (90). Have a second

person hold the Right Upright near the Base (94).

See the inset drawing. Tie the wire tie in the

Right Upright (90) securely around the end of the Upright Wire (81). Then, insert the Upright Wire into the lower end of the Right Upright as you pull the other end of the wire tie through the Right Upright.

3. Lay the Right Upright (90) near the Base (94). Press the Grommet (77) into the square hole in the Right Upright. Make sure not to pinch the

ground wire.

Wire

Tie

Then, attach the ground wire to the Right Upright

(90) with a #8 x 1/2" Silver Screw (10).

Ground

Wire

Square

Hole

4. Insert a Wheel Spacer (63) into a Front Wheel (62). Hold the Front Wheel inside the bottom of the Right Upright (90), and insert a 3/8" x 4" Screw (7) with a 3/8" Star Washer (13) into the Right Upright and the Front Wheel.

Repeat this step on the left side of the tread-

mill (not shown).

5. Place a piece of packing material (A) under the right side of the Base (94). Hold the Right Upright (90) against the Base. Make sure not

to pinch the Upright Wire (81).

Insert two 3/8" x 4" Screws (7) with two 3/8" Star

Washers (13) into the Right Upright (90), and partially tighten the three Screws into the Base (94); do not fully tighten the Screws yet.

Move the packing material (A) to the left side

of the Base (94) and attach the Left Upright (not shown) in the same way. Note: There are

no wires on the left side.

Then, remove the packing material (A) from

underneath the Base (94).

6. Remove and save the four indicated 5/16" x 3/4" Screws (4).

Identify the Left and Right Base Covers (82, 83).

Slide the Left Base Cover onto the Left Upright (89), and slide the Right Base Cover onto the Right Upright (90). Do not press the Base

Covers into place yet.

7. Identify the left handrail assembly (B). Attach the left handrail to the Left Upright (89) with two 5/16" x 2 1/2" Screws (28) and two 5/16" Star Washers (11); do not fully tighten the Screws

yet.

Then, remove and discard the indicated screw

(C).

8. Insert the Upright Wire (81) into the bottom of the right handrail assembly (D) and out of the front as shown.

Attach the Handrail (86) to the Right Upright

(90) with two 5/16" x 2 1/2" Screws (28) and two 5/16" Star Washers (11); do not fully tighten

the Screws yet. Make sure not to pinch the Upright Wire (81).

Then, remove and discard the indicated screw

(C).

9. Set the Console Base (64) face down on a soft surface to avoid scratching the Console Base. If there are ties securing the Pulse Crossbar (93) to the Console Base, remove the ties.

Remove and discard the four indicated screws

(E). Then, remove the Pulse Crossbar (93).

Remove and save the four 5/16" x 3/4"

Screws (4) and the six #8 x 3/4" Screws (2).

Then, lift out the two Console Clamps (41) and the Console Frame (18).

Tie

10. Identify the Right and Left Trays (27, 36).

Attach the Trays (27, 36) to the Console Base

(64) with eight #8 x 1/2" Screws (1); do not

overtighten the Screws.

Reattach the Console Frame (18) with the six #8

x 3/4" Screws (2) and the two Console Clamps (41) that you removed in step 9; do not over-

tighten the Screws.

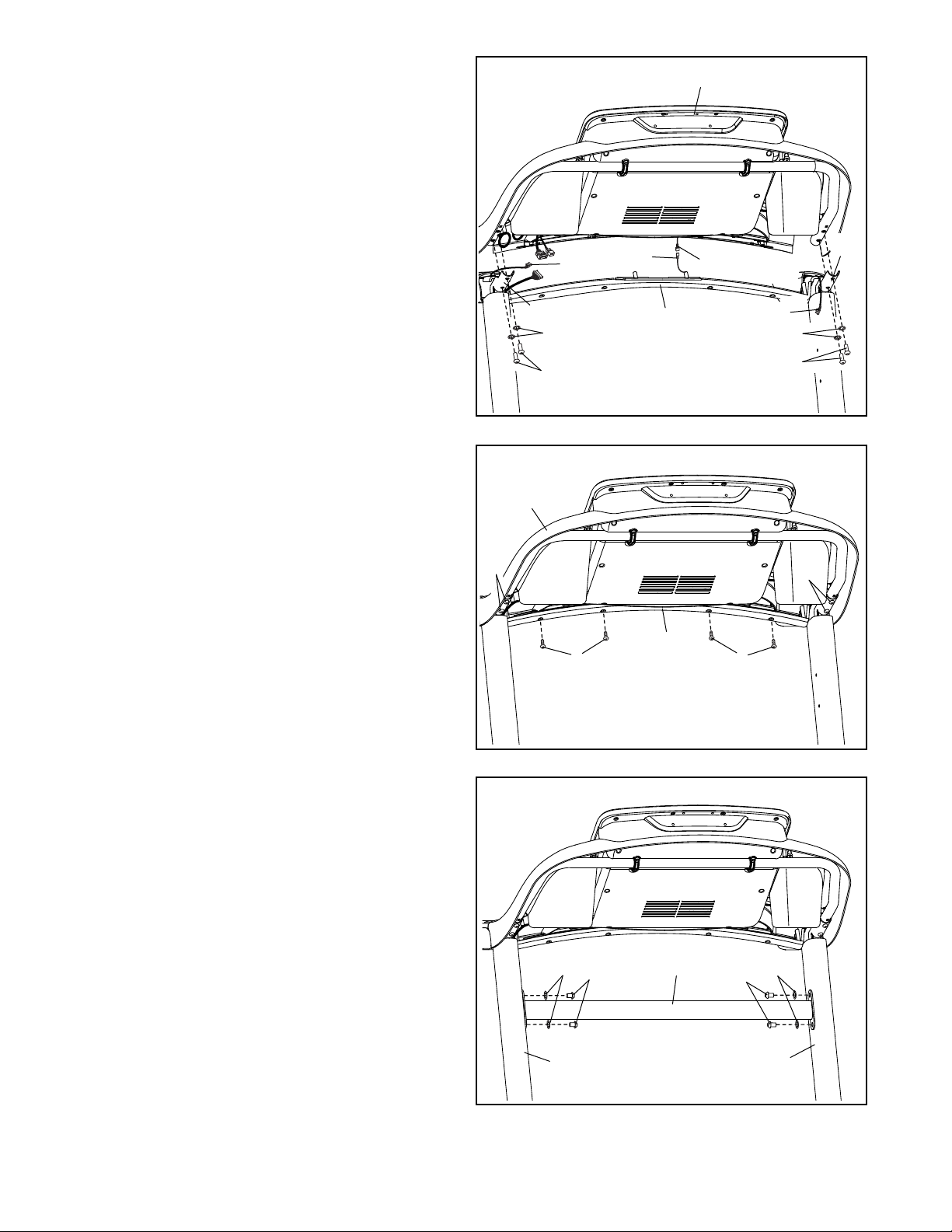

11. IMPORTANT: To avoid damaging the Pulse

Crossbar (93), do not use power tools and do not overtighten the #10 x 3/4" Screws (9).

Orient the Pulse Crossbar (93) as shown. Attach

the Pulse Crossbar to the Handrails (86) with two #10 x 3/4" Screws (9) and two #10 Star Washers (5); start both Screws, and then tighten them.

Make sure not to pinch the Upright Wire (81) or the handrail wires (F).

Next, firmly tighten the four 5/16" x 2 1/2"

Screws (28).

Then, remove the wire tie from the Upright Wire

(81).

Wire

Tie
