ProForm PFTL97908.0 User Manual
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
With Universal Dock for iPod
Model No. PFTL97908.0
Serial No.
Write the serial number in the space
above for reference.
Serial Number
Decal
®
QUESTIONS?
As a manufacturer, we are committed to providing complete customer satisfaction. If you have
questions, or if parts are missing,
PLEASE DO NOT CONTACT
THE STORE; please contact
Customer Care.
USER'S MANUAL
IMPORTANT: You must note the
product model number and
serial number (see the drawing
above) before contacting us:
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MST
Sat. 8 a.m.–4 p.m. MST
ON THE WEB:
www.proformservice.com
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
SSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
A
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

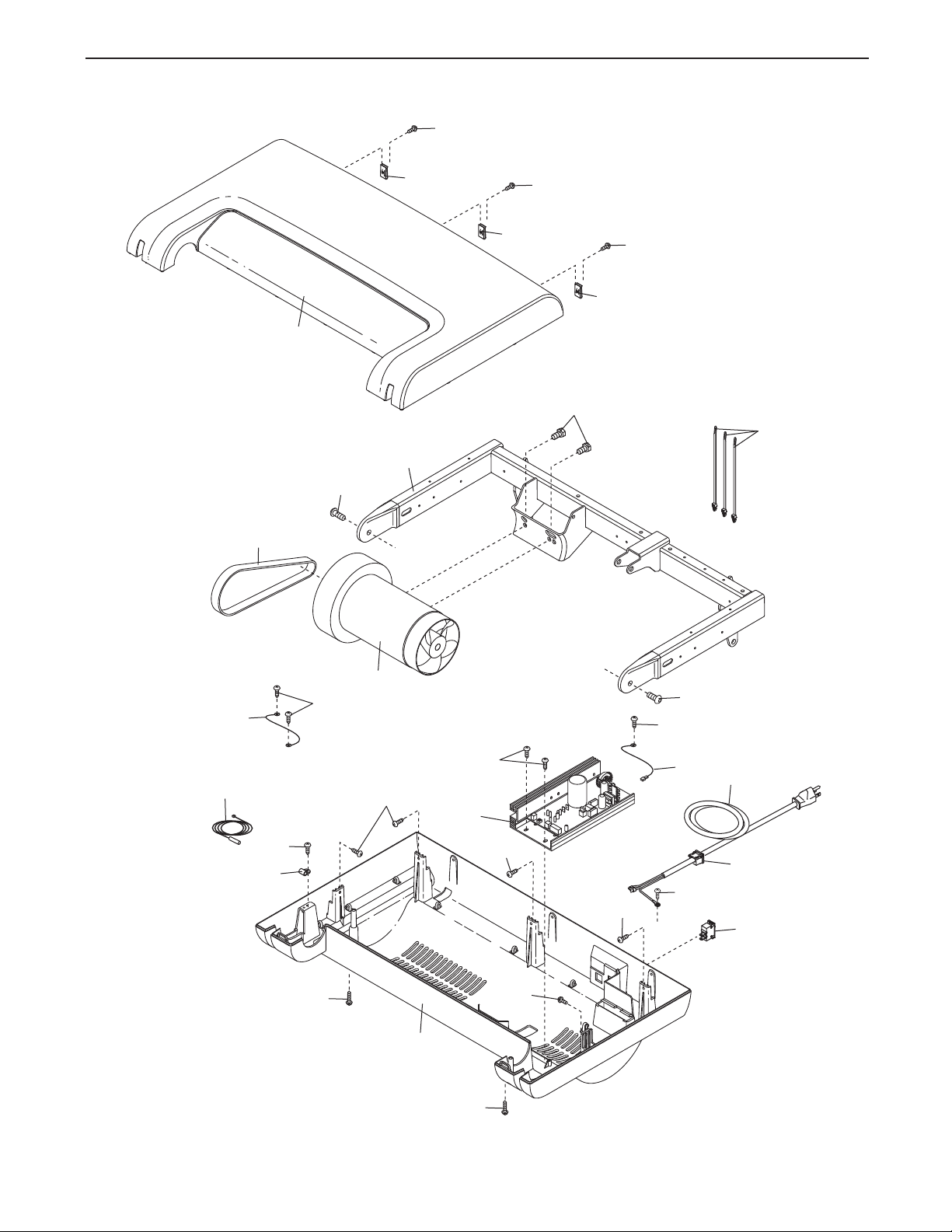

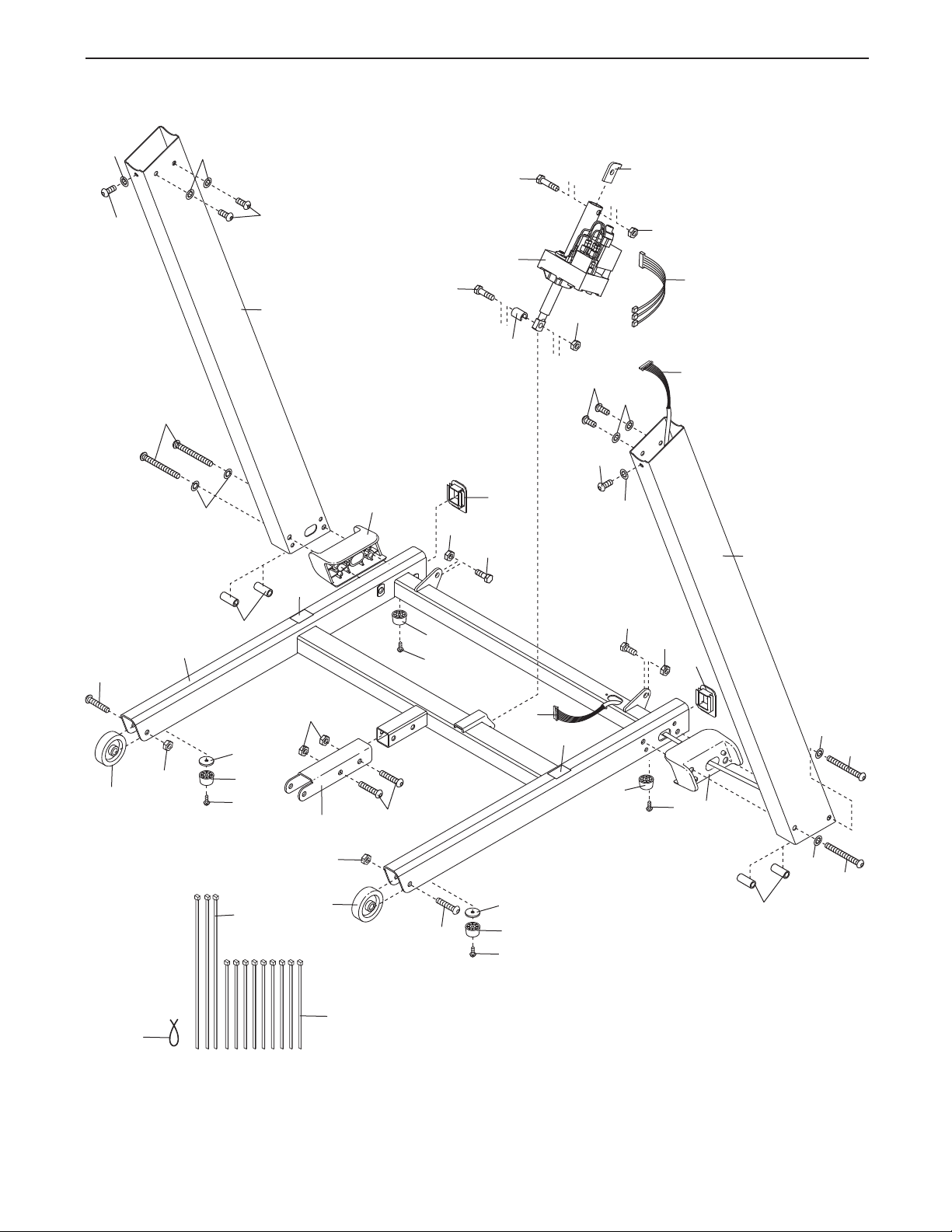

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

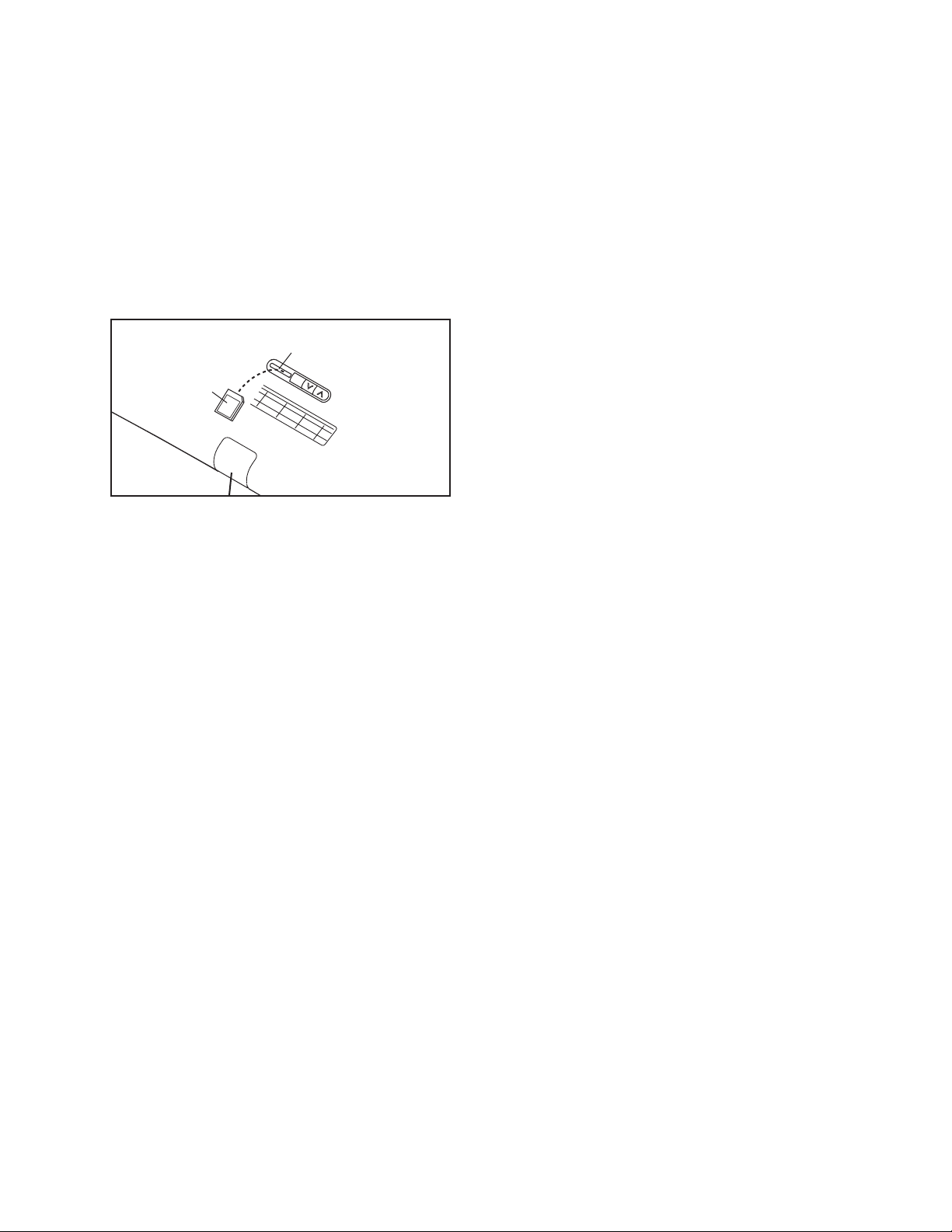

WARNING DECAL PLACEMENT
This drawing shows the locations of the warning decals. If a decal is missing or illegible,
call the telephone number on the front cover
of this manual and request a free replacement decal. Apply the decal in the location
shown. Note: The decals may not be shown at
actual size.
PROFORM is a registered trademark of ICON IP, Inc.
iPod®is a trademark of Apple Computer, Inc., registered in the U.S. and other countries.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and in-
structions in this manual and all warnings on your treadmill before using your treadmill. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of
his product.
t
1. Before beginning any exercise program, consult your physician. This is especially important for persons over age 35 or persons with
pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
3. Use the treadmill only as described.
4. Place the treadmill on a level surface, with at
least 8 ft. (2.4 m) of clearance behind it and 2
ft. (0.6 m) on each side. Do not place the
treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.
5. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
6. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
7. Keep children under age 12 and pets away
from the treadmill at all times.
of carrying 15 or more amps. No other appliance should be on the same circuit. Do not
use an extension cord.
12. Use only a single-outlet surge suppressor that
meets all of the specifications described on
page 12. To purchase a surge suppressor, see
your local PROFORM dealer or call the telephone number on the front cover of this manual and order part number 146148, or see your
local electronics store.
13. Failure to use a properly functioning surge
suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may slow,
accelerate, or stop unexpectedly, which may
result in a fall and serious injury.
14. Keep the power cord and the surge suppressor away from heated surfaces.
15. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See TROUBLESHOOTING on page 22 if the treadmill is
not working properly.)
8. The treadmill should be used only by persons weighing 325 lbs. (147 kg) or less.
9. Never allow more than one person on the
treadmill at a time.
10. Wear appropriate exercise clothes when
using the treadmill. Do not wear loose
clothes that could become caught in the
treadmill. Athletic support clothes are recommended for both men and women. Always
wear athletic shoes. Never use the treadmill
with bare feet, wearing only stockings, or in
sandals.
11. When connecting the power cord (see page
12), plug the power cord into a surge suppressor (not included) and plug the surge
suppressor into a grounded circuit capable
16. Read, understand, and test the emergency
stop procedure before using the treadmill (see
HOW TO TURN ON THE POWER on page 14).
17. Never start the treadmill while you are standing on the walking belt. Always hold the
handrails while using the treadmill.
18. The treadmill is capable of high speeds.
Adjust the speed in small increments to
avoid sudden jumps in speed.
19. The pulse sensor is not a medical device.
Various factors, including the user's movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
3
0. Never leave the treadmill unattended while it
2
is running. Always remove the key, unplug
the power cord, and switch the reset/off circuit breaker to the off position when the
treadmill is not in use. (See the drawing on
page 5 for the location of the circuit breaker.)
21. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 6, and HOW TO FOLD
AND MOVE THE TREADMILL on page 20.)
You must be able to safely lift 45 lbs. (20 kg)
to raise, lower, or move the treadmill.
22. When folding or moving the treadmill, make
sure that the storage latch is holding the
frame securely in the storage position.
23. Never insert any object into any opening on
the treadmill.
SAVE THESE INSTRUCTIONS
4. Inspect and properly tighten all parts of the
2
treadmill regularly.
25.
DANGER:Always unplug the power
cord immediately after use, before cleaning the
treadmill, and before performing the mainte-
ance and adjustment procedures described in
n
this manual. Never remove the motor hood unless instructed to do so by an authorized service representative. Servicing other than the
procedures in this manual should be performed
by an authorized service representative only.
26. This treadmill is intended for in-home use
only. Do not use this treadmill in a commercial, rental, or institutional setting.
4
BEFORE YOU BEGIN
Thank you for selecting the revolutionary PROFORM
780 CS treadmill with Universal Dock for iPod. The
80 CS treadmill with Universal Dock for iPod offers a
7
selection of features designed to make your workouts
at home more enjoyable and effective. And when
youʼre not exercising, the unique treadmill can be
folded up, requiring less than half the floor space of
other treadmills.
For your benefit, read this manual carefully before
using the treadmill. If you have questions after read-
ing this manual, please see the front cover of this man-
Speaker
Accessory Tray
Handrail
Upright
®
ual. To help us assist you, note the product model
number and serial number before contacting us. The
odel number and the location of the serial number
m
decal are shown on the front cover of this manual.
To avoid a registration fee for any service needed
under warranty, you must register the treadmill at
www.proformservice.com/registration.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Console
Pulse Sensor
Key/Clip
Walking Belt
Foot Rail
Rear Roller
Adjustment Bolts
Reset/Off
Circuit Breaker
Power Cord
Platform Cushion
5
ASSEMBLY
#8 x 3/4" Screw (1)–4
3/8" Nut (8)–3
Base Pad Spacer
(13)–2
3/8" Star
Washer (9)–4
5/16" Star
Washer (10)–6
1/4" Star
Washer (33)–2
#8 x 1" Tek Screw (2)–4
3/8" x 5" Bolt (6)–4
1/4" x 1 1/4" Bolt (5)–2
3/8" x 2" Bolt (4)–3
5/16" x 1 1/4" Bolt (7)–6
Bolt Spacer (90)–4
o hire an authorized service technician to assemble the treadmill, call 1-800-445-2480.
T
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking
elt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to
b
the top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild,
non-abrasive cleaner.
Assembly requires the included hex keys and your own Phillips screwdriver ,
adjustable wrench , rubber mallet , and needlenose pliers .
Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is
the key number of the part, from the PART LIST near the end of this manual. The number after the parentheses
is the quantity needed for assembly. Note: If a part is not in the parts bag, check to see if it is preattached to
one of the parts to be assembled. To avoid damaging plastic parts, do not use power tools for assembly.
Extra hardware may be included.
6
. Make sure that the power cord is unplugged.
1
ith the help of a second person, carefully tip
W
the treadmill onto its left side. Partially fold the
Frame (56) so that the treadmill is more stable;
do not fully fold the Frame yet.
1
8
3
B
A
Hole
Remove and discard the two indicated bolts (A)
and the shipping bracket (B).
Cut the ties securing the Upright Wire (38) to the
Base (83). Locate a tie in the indicated hole in
the Base, and use the tie to pull the Upright Wire
out of the hole.
Attach a Base Pad (81) to the Base (83) in the
location shown with a Base Pad Spacer (13) and
a #8 x 1" Tek Screw (2). Then, attach another
Base Pad (81) with only a #8 x 1" Tek Screw (2).
2. Remove the 3/8" Nut (8), the 3/8" x 2" Bolt (4),
and the shipping bracket (C) from the Base (83).
Attach a Wheel (84) with the Bolt and the Nut
that you just removed. Do not overtighten the
Nut; the Wheel must turn freely. Discard the
shipping bracket.
81
2
83
13
56
2
81
2
83
4
3. Identify the Right Upright (78) and the Right
Upright Spacer (79), which are marked with
stickers. Insert the Upright Wire (38) through the
Right Upright Spacer as shown. Set the Right
Upright Spacer on the Base (83). Be careful
not to pinch the Upright Wire.
Have a second person hold the Right Upright
(78) near the Base (83). See the inset drawing.
Tie the long tie in the Right Upright securely
around the end of the Upright Wire (38). Then,
pull the other end of the long tie until the Upright
Wire is routed completely through the Right
Upright.
84
C
8
3
78
38
79
83
38
38
Long Tie
78
Long
Tie
7
4. With the help of a second person, hold a Bolt
Spacer (90) inside the lower end of the Right
Upright (78). Insert a 3/8" x 5" Bolt (6) with a
3/8" Star Washer (9) into the Right Upright and
he Bolt Spacer. Repeat this step with a sec-
t
ond Bolt Spacer (90), 3/8" x 5" Bolt (6), and
3/8" Star Washer (9). Set the Right Upright into
the Right Upright Spacer (79).
4
78
79
6
9
77
Partially tighten the 3/8" x 5" Bolts (6); do not
fully tighten the Bolts yet.
Press a Base Endcap (77) into the Base (83).
5. With the help of a second person, carefully tip
the treadmill onto its right side. Partially fold the
Frame (56) so that the treadmill is more stable;
do not fully fold the Frame yet.
Remove and discard the two indicated bolts (A)
and the shipping bracket (B).
Attach a Base Pad (81) to the Base (83) in the
location shown with a #8 x 1" Tek Screw (2) and
a Base Pad Spacer (13). Then, attach another
Base Pad (81) with only a #8 x 1" Tek Screw (2).
Remove the 3/8" Nut (8), the 3/8" x 2" Bolt (4),
and the shipping bracket (C) from the Base (83).
Attach a Wheel (84) with the Bolt and the Nut
that you just removed. Do not overtighten the
Nut; the Wheel must turn freely. Discard the
shipping bracket.
90
38
83
5
A
81
2
B
83
56
4
13
84
81
2
8
C
6. Set the Left Upright Spacer (76) on the Base
(83). With the help of a second person, hold a
Bolt Spacer (90) inside the lower end of the Left
Upright (74). Insert a 3/8" x 5" Bolt (6) with a
3/8" Star Washer (9) into the Left Upright and
the Bolt Spacer. Repeat this step with a sec-
ond Bolt Spacer (90), 3/8" x 5" Bolt (6), and
3/8" Star Washer (9). Set the Left Upright into
the Left Upright Spacer.
Partially tighten the 3/8" x 5" Bolts (6); do not
fully tighten the Bolts yet.
Press a Base Endcap (77) into the Base (83).
With the help of a second person, tip the treadmill so that the Base (83) is flat on the floor.
6
6
76
9
77
90
74
83
8
7. Set the console assembly face down on a soft
surface to avoid scratching the console assembly. Hold the Right Handrail (95) near the console assembly. Next, insert the console wire into
he large hole in the Right Handrail and out of
t
the top as shown. If necessary, use needlenose
pliers to pull the console wire out.
ttach the Right Handrail (95) and the Left
A
Handrail (not shown) with four #8 x 3/4" Screws
(1) (only two are shown). Make sure that no
wires are pinched. Start all four Screws before tightening any of them; do not overtighten the Screws.
7
Console
Wire
1
95
Console
Assembly
8. Tighten a 1/4" x 1 1/4" Bolt (5) with a 1/4" Star
Washer (33) into the bracket and the Handrail
Crossbar (94) on each side of the console assembly (only one side is shown).
Remove the wire tie from the console wire.
9. Have a second person hold the console assembly near the Right Upright (78) and the Left
Upright (not shown). Connect the Upright Wire
(38) to the console wire. See the inset draw-
ing. The connectors should slide together
easily and snap into place. If they do not, turn
one connector and try again. IF THE CONNECTORS ARE NOT CONNECTED PROPERLY,
THE CONSOLE MAY BE DAMAGED WHEN
THE POWER IS TURNED ON. Then, remove
the long tie from the Upright Wire.
Set the console assembly on the Right Upright
(78) and the Left Upright (not shown). Be care-
ful not to pinch the wires.
8
Console
Assembly
9
Console
Assembly
Console
Wire
78
Console
Wire
38
94
Long
Tie
Wire
Tie
5
33
Console
Bracket
Wire
38
9
10. Attach the console assembly with six 5/16" x 1
1/4" Bolts (7) and six 5/16" Star Washers (10)
(only three are shown).
See steps 4 and 6. Tighten the 3/8" x 5" Bolts
6).
(
10
Console
Assembly
10
7
10
0
1
7
11. Identify the Storage Latch (53). Remove the tie
from the end of the tube. Make sure that the
sleeve has been slid over the indicated hole and
that the Latch Knob (54) is locked into the hole.
Pull on the sleeve to make sure that it is
locked into place.
12. Raise the Frame (56) to the position shown.
Have a second person hold the Frame until
this step is completed.
Orient the Storage Latch (53) so that the large
barrel and the Latch Knob (54) are in the positions shown.
Attach the Latch Bracket (14) and the Storage
Latch (53) to the Base (83) with two 3/8" x 2"
Bolts (4) and two 3/8" Nuts (8).
Attach the upper end of the Storage Latch (53)
to the bracket on the Frame (56) with a 3/8" x 2"
Bolt (4) and a 3/8" Nut (8). Note: It may be necessary to move the Frame back and forth to
align the Storage Latch with the bracket.
11
12
Tube
8
54
54
Sleeve
56
4
53
Large
Barrel
14
Hole
53
83
Lower the Frame (56) (see HOW TO LOWER
THE TREADMILL FOR USE on page 21).
8
4
10
Loading...
