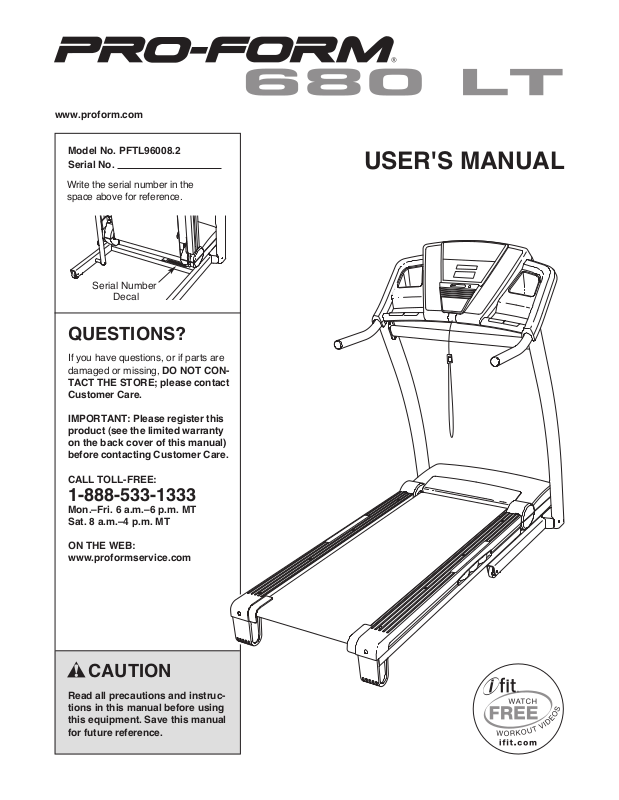

ProForm PFTL960082 User Manual
www.proform.com
Model No. PFTL96008.2
Serial No.
Write the serial number in the
space above for reference.
Serial Number
Decal
QUESTIONS?
If you have questions, or if parts are
damaged or missing, DO NOT CON-
TACT THE STORE; please contact
Customer Care.
USER'S MANUAL
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.proformservice.com
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
SSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
A
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
WARNING DECAL PLACEMENT
This drawing shows the locations of the warning
decals. If a decal is missing or illegible, call
the telephone number on the front cover of
this manual and request a free replacement
decal. Apply the decal in the location shown.
Note: The decals may not be shown at actual
size.
PROFORM is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and in-
structions in this manual and all warnings on your treadmill before using your treadmill. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of
his product.
t
1. Before beginning any exercise program, consult your physician. This is especially important for persons over age 35 or persons with
pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
3. Use the treadmill only as described.
4. Place the treadmill on a level surface, with at
least 8 ft. (2.4 m) of clearance behind it and 2
ft. (0.6 m) on each side. Do not place the
treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.
5. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
6. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
7. Keep children under age 12 and pets away
from the treadmill at all times.
carrying 15 or more amps. No other appliance
should be on the same circuit. Do not use an
extension cord.
12. Use only a single-outlet surge suppressor that
meets all of the specifications described on
page 13. To purchase a surge suppressor, see
your local PROFORM dealer or call the telephone number on the front cover of this manual and order part number 146148, or see your
local electronics store.
13. Failure to use a properly functioning surge
suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may slow,
accelerate, or stop unexpectedly, which may
result in a fall and serious injury.
14. Keep the power cord and the surge suppressor away from heated surfaces.
15. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See TROUBLESHOOTING on page 22 if the treadmill is
not working properly.)
8. The treadmill should be used only by persons
weighing 300 lbs. (136 kg) or less.
9. Never allow more than one person on the
treadmill at a time.
10. Wear appropriate exercise clothes when
using the treadmill. Do not wear loose clothes
that could become caught in the treadmill.
Athletic support clothes are recommended
for both men and women. Always wear ath-
letic shoes. Never use the treadmill with bare
feet, wearing only stockings, or in sandals.

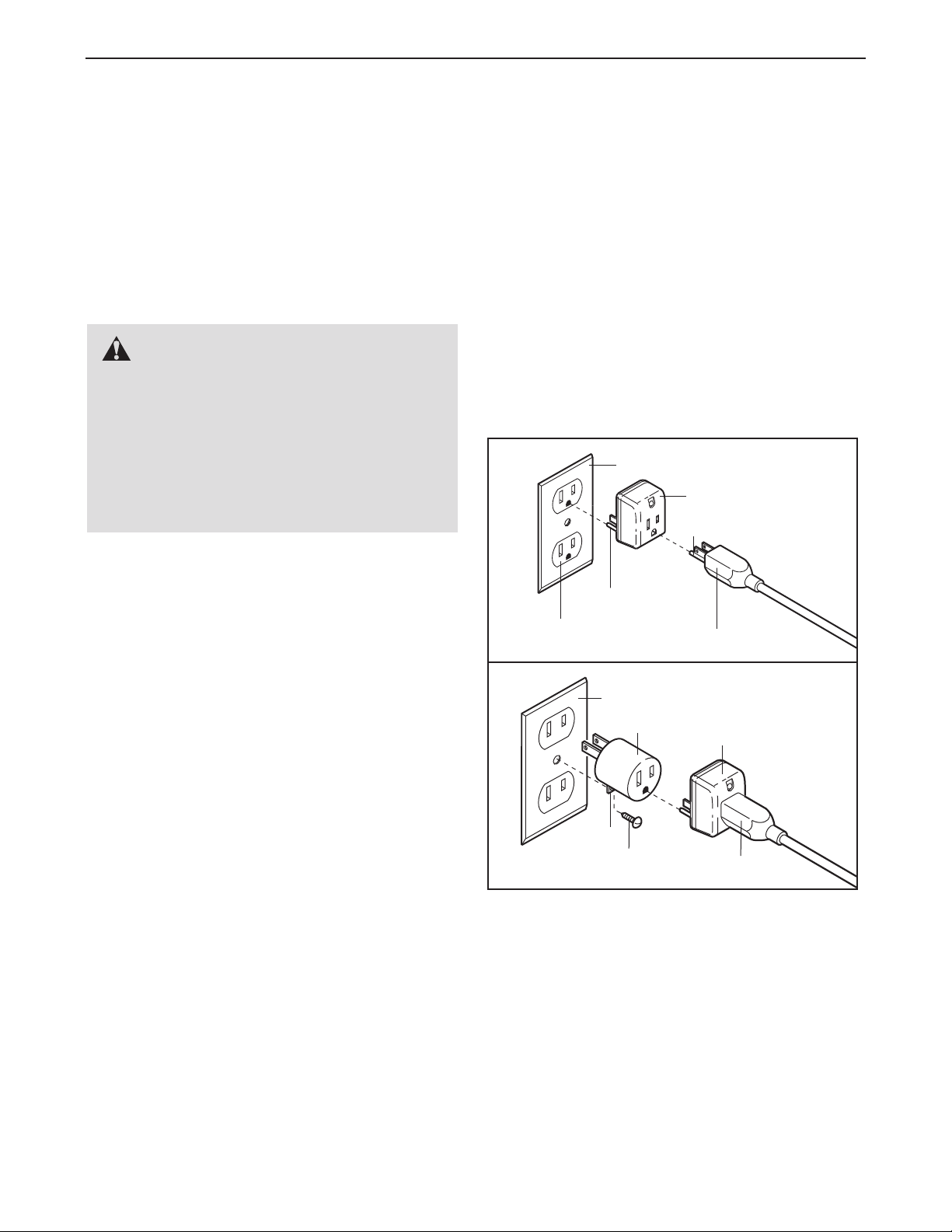

11. When connecting the power cord (see page
13), plug the power cord into a surge suppressor (not included) and plug the surge
suppressor into a grounded circuit capable of
16. Read, understand, and test the emergency
stop procedure before using the treadmill (see
HOW TO TURN ON THE POWER on page 15).
17. Never start the treadmill while you are standing on the walking belt. Always hold the
handrails while using the treadmill.
18. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
19. The pulse sensor is not a medical device.
Various factors, including the user's movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
3

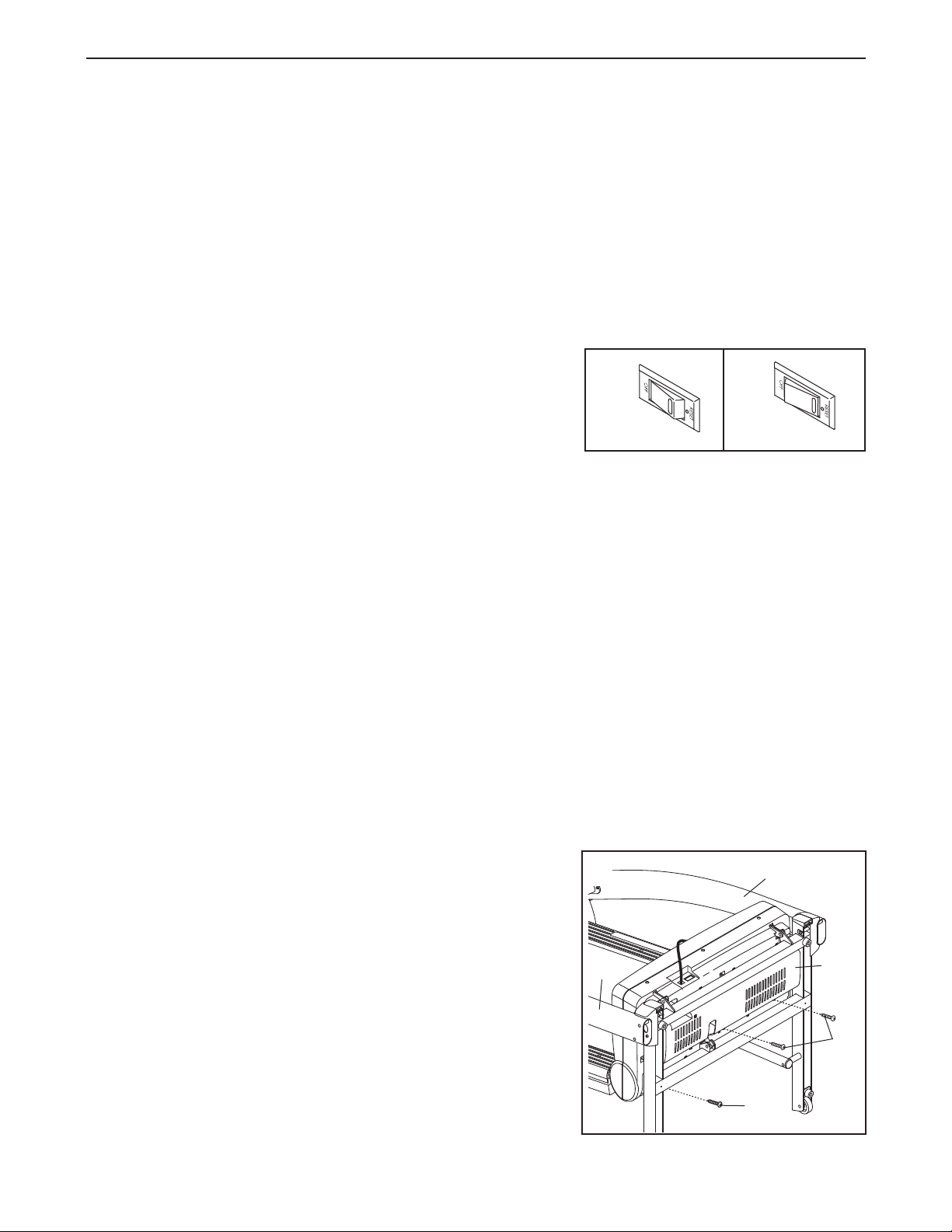

0. Never leave the treadmill unattended while it
2
is running. Always remove the key, unplug
the power cord, and switch the reset/off circuit breaker to the off position when the
treadmill is not in use. (See the drawing on
page 5 for the location of the circuit breaker.)
21. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 6, and HOW TO FOLD
AND MOVE THE TREADMILL on page 20.)
You must be able to safely lift 45 lbs. (20 kg)
to raise, lower, or move the treadmill.
22. When folding or moving the treadmill, make
sure that the storage latch is holding the
frame securely in the storage position.
23. Never insert any object into any opening on
the treadmill.
SAVE THESE INSTRUCTIONS
4. Inspect and properly tighten all parts of the
2
treadmill regularly.
25.
DANGER:Always unplug the power
cord immediately after use, before cleaning the
treadmill, and before performing the mainte-
ance and adjustment procedures described in
n
this manual. Never remove the motor hood unless instructed to do so by an authorized service representative. Servicing other than the
procedures in this manual should be performed
by an authorized service representative only.
26. This treadmill is intended for in-home use
only. Do not use this treadmill in a commercial, rental, or institutional setting.
4
BEFORE YOU BEGIN
hank you for selecting the revolutionary PROFORM
T
680 LT treadmill. The 680 LT treadmill offers an impressive selection of features designed to make your
workouts at home more enjoyable and effective. And
hen youʼre not exercising, the unique treadmill can be
w
folded up, requiring less than half the floor space of
other treadmills.
For your benefit, read this manual carefully before
using the treadmill. If you have questions after read-
Accessory Tray
Handrail
Upright
®
ng this manual, please see the front cover of this man-
i
ual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
ecal are shown on the front cover of this manual.
d
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Pulse Sensor
Console
Key/Clip
Walking Belt
Foot Rail
Idler Roller
Adjustment Bolts
Reset/Off
Circuit Breaker
Power Cord
Platform Cushion
5
ASSEMBLY
Base Foot
Spacer (89)–2
#8 x 3/4"
Screw (1)–4
3/8" Star
Washer (12)–4
1/4" Star
Washer (10)–2
#8 x 1" Tek Screw (2)–4
3/8" Locknut
(11)–3
5/16" Star
Washer (9)–6
3/8" x 2" Bolt (3)–3
3/8" x 4" Bolt (5)–4
5/16" x 3/4"
Bolt (4)–6
1/4" x 1 1/4" Bolt (6)–2
1/4" x 5/8"
Bolt (7)–4
3/8" x 1 3/4" Bolt (8)–1
o hire an authorized service technician to assemble the treadmill, call 1-800-445-2480.
T
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking
elt is coated with high-performance lubricant. During shipping, some lubricant may be transferred to the top of
b
the walking belt or the shipping carton. This is normal and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included hex keys and your own Phillips screwdriver , adjustable
wrench , needlenose pliers , scissors , and rubber mallet .
Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is
the key number of the part, from the PART LIST near the end of this manual. The number after the parentheses
is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it is preattached
to one of the parts to be assembled. To avoid damaging plastic parts, do not use power tools for assembly. Extra hardware may be included.
6
. Make sure that the power cord is unplugged.
1
ith the help of a second person, carefully tip
W
the treadmill onto its left side. Partially fold the
Frame (53) so that the treadmill is more stable;
do not fully fold the Frame yet.
Remove and discard the two indicated bolts (A)
and the shipping bracket (B).
1
60
A
8
8
2
B
86
Cut the shipping tie securing the Upright Wire
(86) to the Base (60). Locate a tie in the indicated hole in the Base, and use the tie to pull
the Upright Wire out of the hole.
Attach two Base Feet (88) to the Base (60) in the
locations shown with two #8 x 1" Tek Screws (2)
and two Base Foot Spacers (89). Then, attach
two Base Feet (88) with only #8 x 1" Tek Screws
(2).
2. Attach a Wheel (90) to the Base (60) with a 3/8"
x 2" Bolt (3) and a 3/8" Locknut (11). Do not
overtighten the Locknut; the Wheel must
turn freely.
Press a Base Cap (85) into the Base (60).
Hole
89
53
2
88
2
88
2
89
88
2
60
3
85
90
11
7
. Identify the Right Upright (79) and the Right
3
Upright Spacer (83), which are marked with
“Right” stickers. Insert the Upright Wire (86)
through the Right Upright Spacer as shown.
hen, set the Right Upright Spacer on the Base
T
(60).
Have a second person hold the Right Upright
79) near the Base (60). See the inset drawing.
(
Tie the wire tie in the Right Upright securely
around the end of the Upright Wire (86). Then,
pull the other end of the wire tie until the Upright
Wire is routed completely through the Right
Upright.
3
79
86
ire Tie
W
79
8
60
6
83
4. Hold a Bolt Spacer (84) inside the lower end of
the Right Upright (79). Insert a 3/8" x 4" Bolt (5)
with a 3/8" Star Washer (12) into the Right
Upright and the Bolt Spacer. Repeat this step
with a second Bolt Spacer (84), 3/8" x 4" Bolt
(5), and 3/8" Star Washer (12).
Hold the Right Upright (79) against the Right
Upright Spacer (83). Be careful not to pinch
the Upright Wire (86). Tighten the 3/8" x 4"
Bolts (5) until the heads of the Bolts touch the
Right Upright; do not fully tighten the Bolts
yet.
86
4
Wire
Tie
5
79
12
86
84
84
83
60
8
5. With the help of a second person, carefully tip
the treadmill onto its right side. Partially fold the
Frame (53) so the treadmill is more stable; do
ot fully fold the Frame yet.
n
emove and discard the two indicated bolts (A)
R
and the shipping bracket (B).
Attach a Wheel (90) to the Base (60) with a 3/8"
x 2" Bolt (3) and a 3/8" Locknut (11). Do not
overtighten the Locknut; the Wheel must
turn freely.
5
A
5
8
B
53
3
Press a Base Cap (85) into the Base (60).
6. Hold a Bolt Spacer (84) inside the lower end of
the Left Upright (77). Insert a 3/8" x 4" Bolt (5)
with a 3/8" Star Washer (12) into the Left
Upright and the Bolt Spacer. Repeat this step
with a second Bolt Spacer (84), 3/8" x 4" Bolt
(5), and 3/8" Star Washer (12).
Hold the Left Upright Spacer (82) and the Left
Upright (77) against the Base (60). Tighten the
3/8" x 4" Bolts (5) until the heads of the Bolts
touch the Left Upright; do not fully tighten the
Bolts yet.
With the help of a second person, tip the treadmill so that the Base is flat on the floor.
60
90
11
6
5
12
82
84
84
60
77

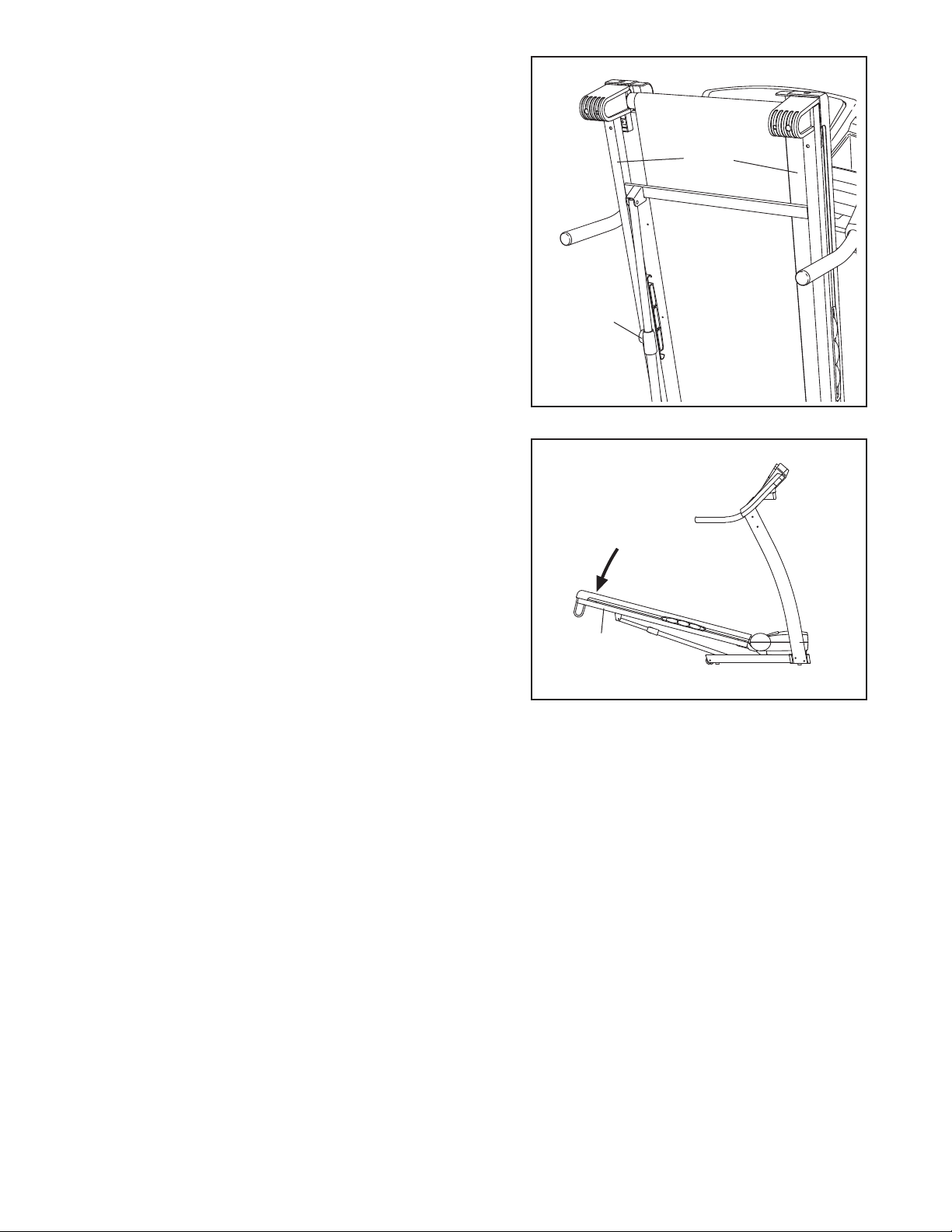

7. Orient the Crossbar (78) so that the indicated
bump is in the position shown. Attach the
Crossbar to the Left Upright (77) and the Right
Upright (79) with four 1/4" x 5/8" Bolts (7); do
not fully tighten the Bolts yet.
7
7
78
7
Bump
77
79
9

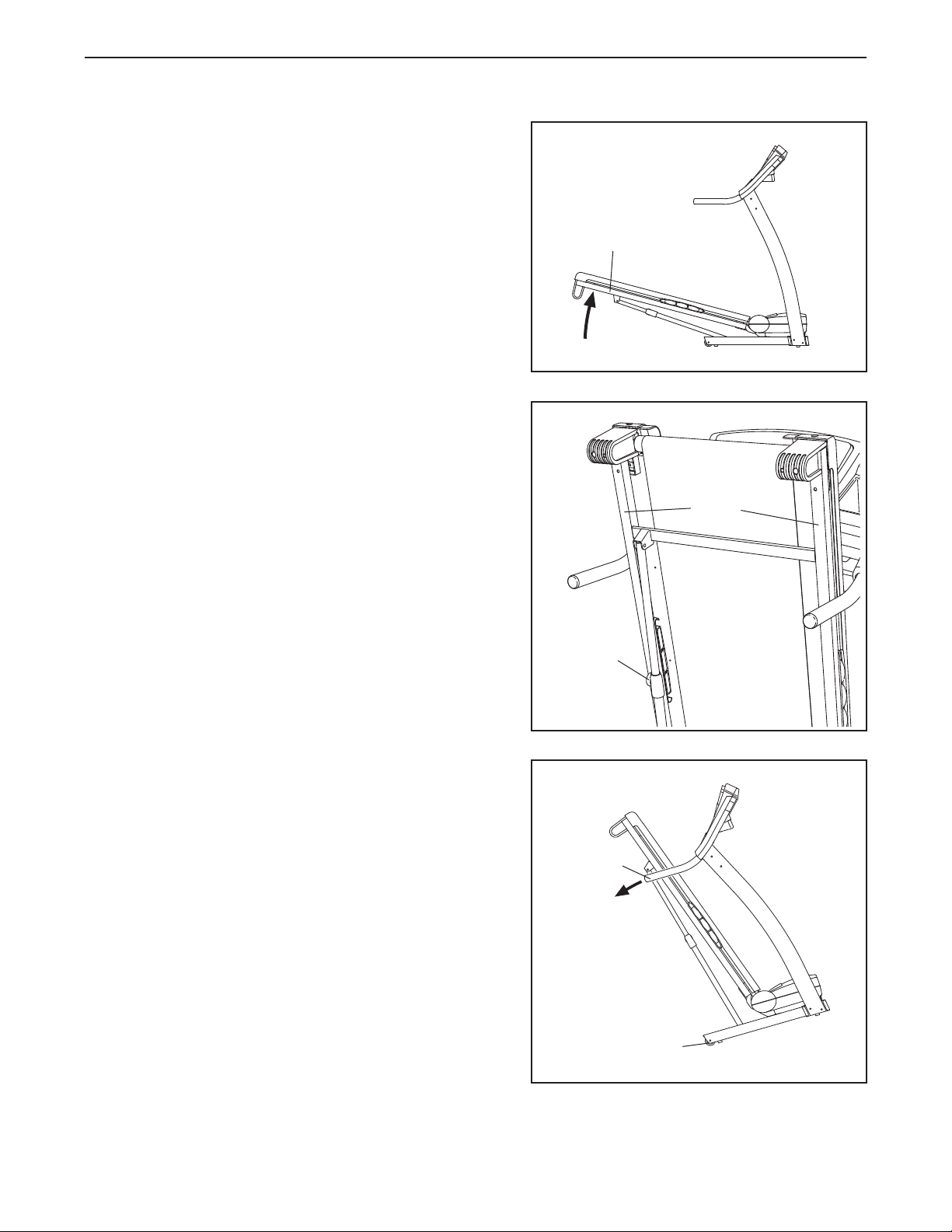

8. Identify the Left Handrail (101). Remove the tie
from the bracket on the Left Handrail.
8
Set the Left Handrail (101) on the Left Upright
77). Attach the Left Handrail with three 5/16" x
(
3/4" Bolts (4) and three 5/16" Star Washers (9);
do not fully tighten the Bolts yet.
101
Tie
4
9
4
77
9. Remove the tie from the bracket on the Right
Handrail (105).
Have a second person hold the Right Handrail
(105) near the Right Upright (79).
Insert the Upright Wire (86) into the bottom of
the Right Handrail (105) and pull it out of the
hole in the top of the Right Handrail.
Attach the Right Handrail (105) to the Right
Upright (79) with three 5/16" x 3/4" Bolts (4) and
three 5/16" Star Washers (9); do not fully
tighten the Bolts yet. Be careful not to pinch
the Upright Wire (86).
9
86
Hole
Tie
4
9
4
79
105
10
Loading...
