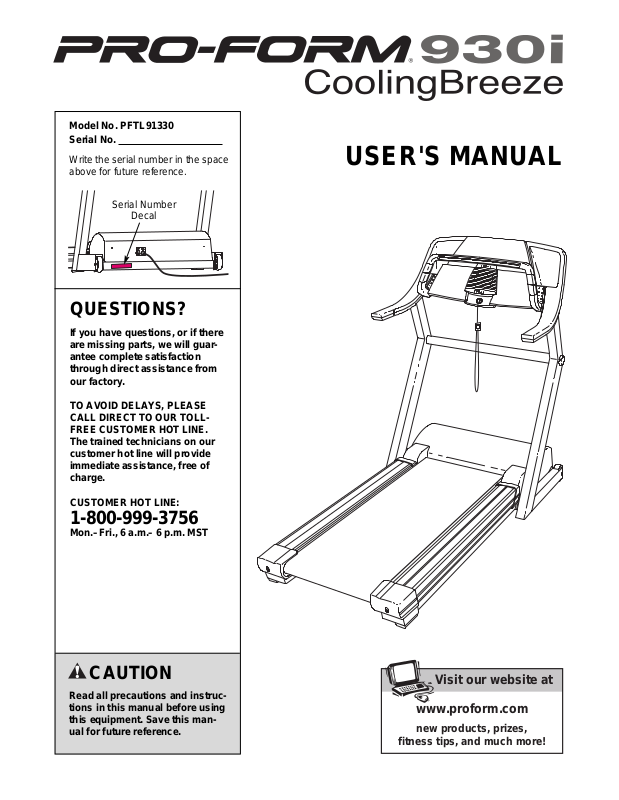

ProForm PFTL91330 User Manual
Model No. PFTL91330
Serial No.
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual for future reference.
Write the serial number in the space
above for future reference.
QUESTIONS?
If you have questions, or if there
are missing parts, we will guarantee complete satisfaction
through direct assistance from
our factory.
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLLFREE CUSTOMER HOT LINE.
The trained technicians on our
customer hot line will provide
immediate assistance, free of
charge.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.–Fri., 6 a.m.– 6 p.m. MST
USER'S MANUAL
Serial Number
Decal
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
2
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
TREADMILL OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

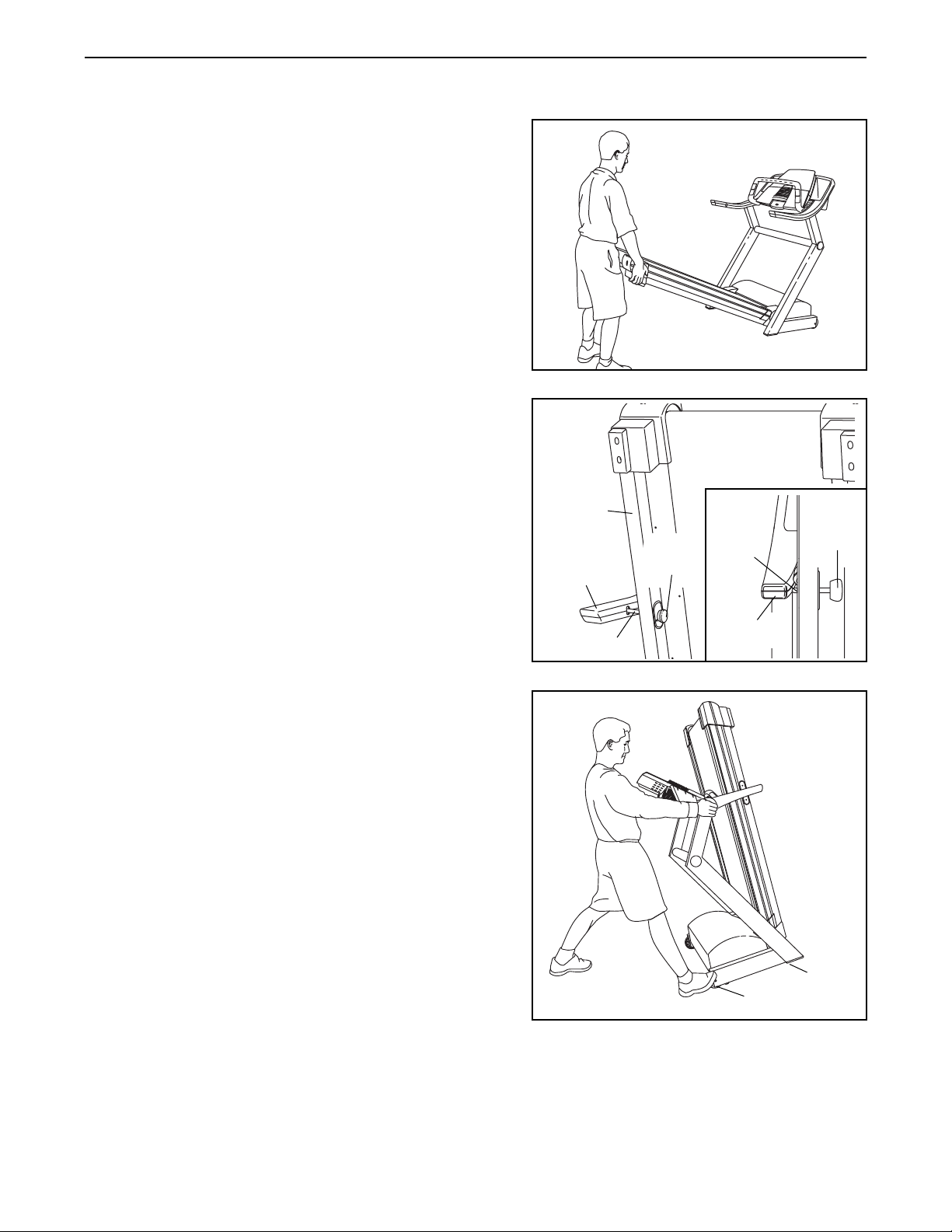

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

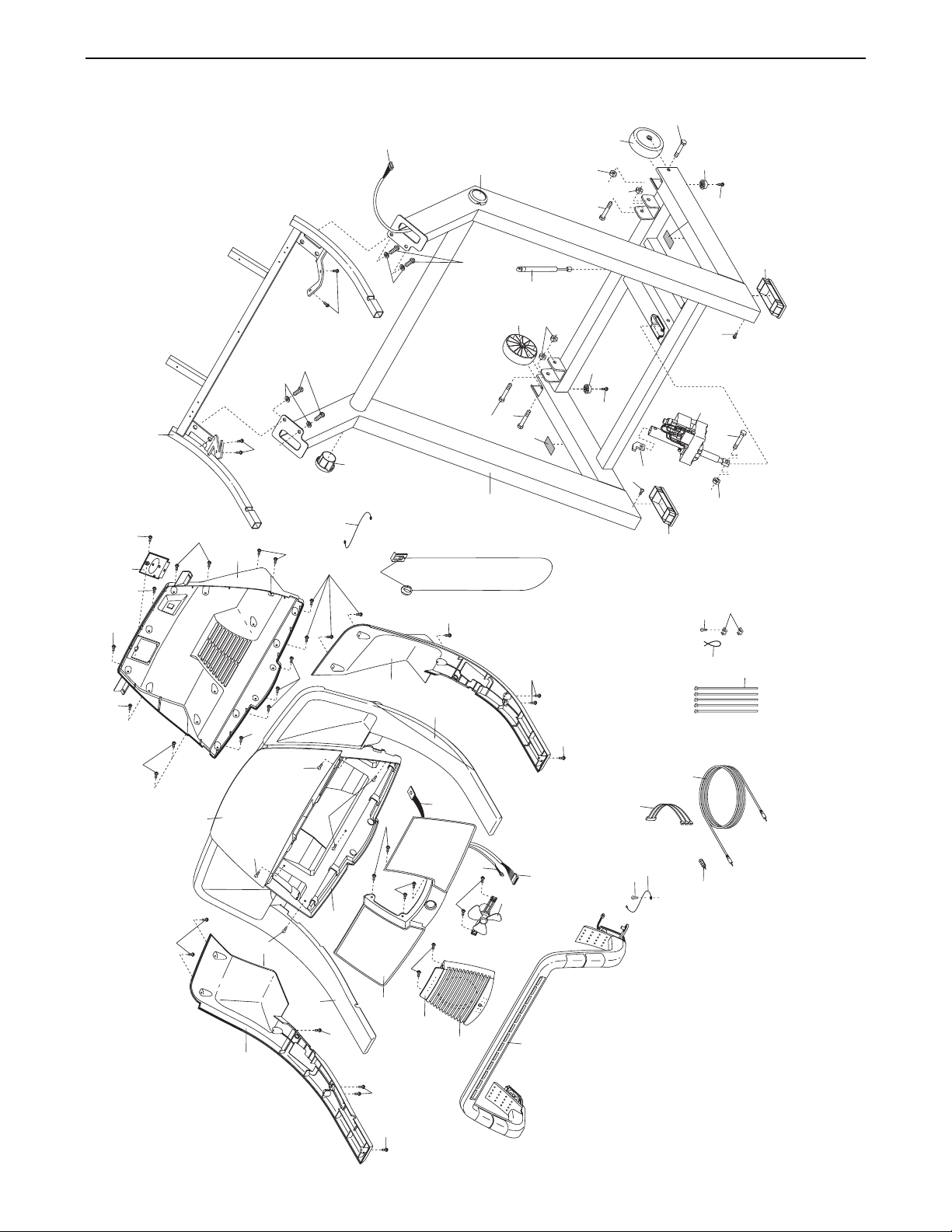

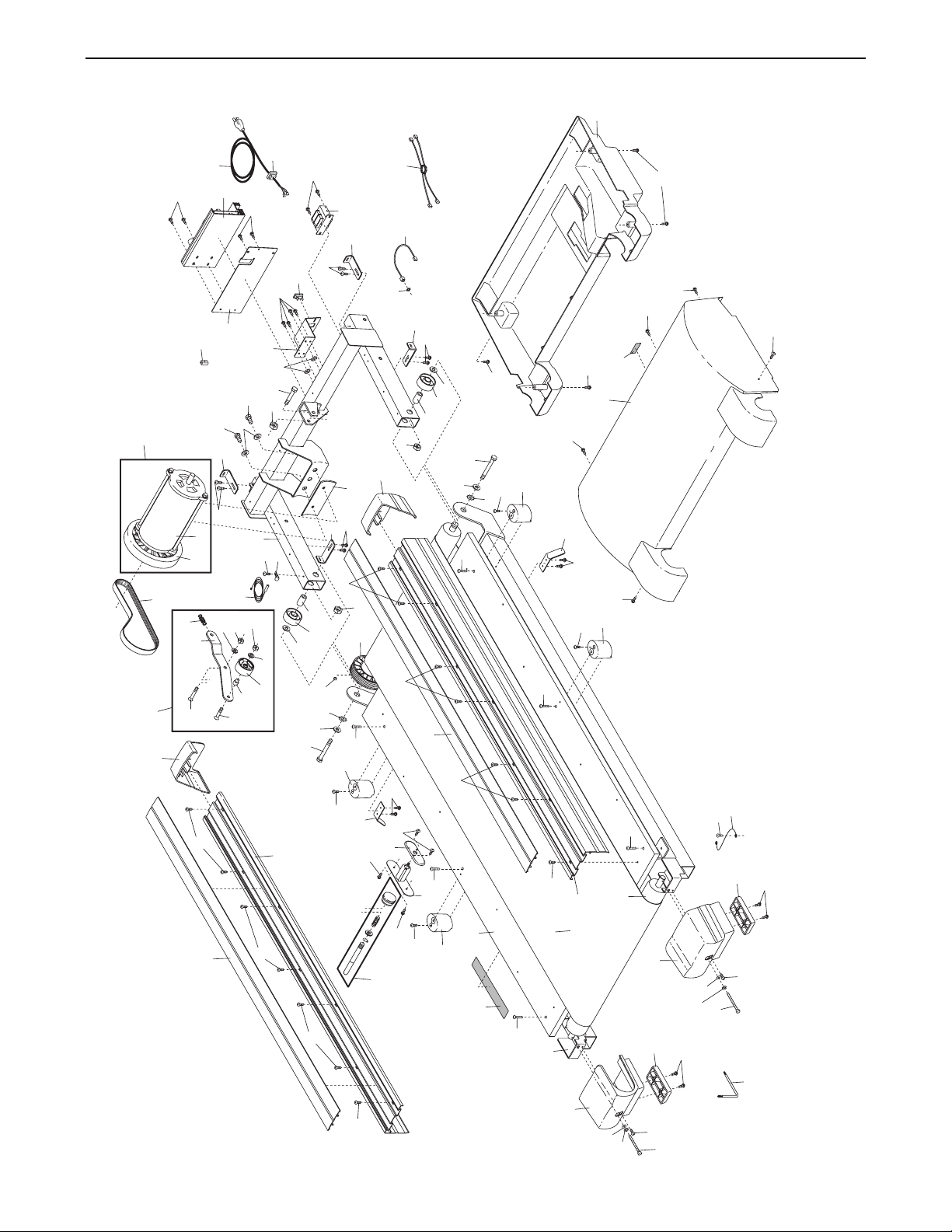

Note: An EXPLODED DRAWING is attached in the center of this manual.
PROFORM is a registered trademark of ICON Health & Fitness, Inc.
3
WARNING:To reduce the risk of burns, fire, electric shock, or injury to persons, read the
following important precautions and information before operating the treadmill.
1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
2. Use the treadmill only as described in this
manual.
3. Place the treadmill on a level surface, with at
least eight feet of clearance behind it and two
feet on each side. Do not place the treadmill
on any surface that blocks air openings. To
protect the floor or carpet from damage, place
a mat under the treadmill.
4. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
5. Do not operate the treadmill where aerosol
products are used or oxygen is administered.
6. Keep children under the age of 12 and pets
away from the treadmill at all times.
7. The treadmill should not be used by persons
weighing more than 250 pounds. Never allow
more than one person on the treadmill at a time.
8. Wear appropriate exercise clothes when
using the treadmill. Do not wear loose clothes
that could become caught in the treadmill.
Athletic support clothes are recommended
for both men and women. Always wear ath-
letic shoes. Never use the treadmill with bare
feet, wearing only stockings, or in sandals.
9. When connecting the power cord (see page 8),
plug the power cord into a surge suppressor
(not included) and plug the surge suppressor
into a grounded circuit capable of carrying 15
or more amps. No other appliance should be on
the same circuit. Do not use an extension cord.
10.Use only a single-outlet surge suppressor that
meets all of the specifications described on
page 8. To purchase a surge suppressor, see
your local PROFORM dealer or call 1-800-8063651 and order part number 146148.
11.Failure to use a properly functioning surge
suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may change
speed or stop unexpectedly, which may result
in a fall and serious injury.
12.Keep the power cord and the surge suppressor away from heated surfaces.
13.Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See
BEFORE YOU BEGIN on page 5 if the treadmill is not working properly.)
14.Never start the treadmill while you are standing on the walking belt. Always hold the
handrails while using the treadmill. Never use
the Lightspeed bar as a handlebar.
15.The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
16.The pulse sensor is not a medical device.
Various factors, including the user's movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
17.Never leave the treadmill unattended while it
is running. Always remove the key, unplug
the power cord and switch the reset/off circuit
breaker to the off position when the treadmill
is not in use. (See the drawing on page 5 for
the location of the circuit breaker.)
18.Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 6, and HOW TO FOLD
AND MOVE THE TREADMILL on page 22.)
You must be able to safely lift 45 pounds (20
kg) to raise, lower, or move the treadmill.
19.When folding or moving the treadmill, make
sure that the storage latch is fully closed.
IMPORTANT PRECAUTIONS
20.When using iFIT.com CDs and videos, an
electronic “chirping” sound will alert you
when the speed and/or incline of the treadmill
is about to change. Always listen for the
“chirp” and be prepared for speed and/or incline changes. In some instances, the speed
and/or incline may change before the personal trainer describes the change.
21. When using iFIT.com CDs and videos, you can
manually override the speed and incline settings at any time by pressing the speed and incline buttons. However, when the next “chirp”
is heard, the speed and/or incline will change
to the next settings of the CD or video program.
22.Always remove iFIT.com CDs and videos from
your CD player or VCR when you are not
using them.
23.Inspect and properly tighten all parts of the
treadmill every three months.
24.Never drop or insert any object into any opening.
25.
DANGER:Always unplug the power
cord immediately after use, before cleaning
the treadmill, and before performing the maintenance and adjustment procedures described in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized service
representative only.
26.The treadmill is intended for in-home use
only. Do not use the treadmill in any
commercial, rental, or institutional setting.
WARNING:Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS
4
The decals shown below have been placed on your treadmill. If a decal is missing,
or if it is not legible, please call our Customer Service Department toll-free at
1-800-999-3756 to order a free replacement decal. Apply the decal in the location
shown. Note: The decals are not shown at actual size.
5
Congratulations for purchasing the PROFORM®930i
treadmill. The 930i treadmill offers an impressive array
of features to help you achieve your fitness goals in
the convenience of your home. From the advanced
console to the cushioned walking platform, the 930i
treadmill is designed to make each workout more effective and enjoyable. And when you’re not exercising,
the treadmill can be folded away, taking less than half
the floor space of conventional treadmills.
For your benefit, read this manual carefully before
using the treadmill. If you have questions after read-
ing this manual, call our Customer Service Department
toll-free at 1-800-999-3756, Monday through Friday, 6
a.m. until 6 p.m. Mountain Time (excluding holidays).
To help us assist you, please note the product model
number and serial number before calling. The model
number is PFTL91330. The serial number can be
found on a decal attached to the treadmill (see the
front cover of this manual for the location).
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
BEFORE YOU BEGIN
Handrail
Console
Book Holder
Tray
Key/Clip
Reset/Off
Circuit Breaker
Walking Belt
Foot Rail
Power Cord
BACK
RIGHT SIDE
Rear Roller
Adjustment Bolts
Fan
Handgrip Pulse Sensor
ASSEMBLY
Assembly requires two persons. Place the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until the treadmill is assembled.
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a
small amount of lubricant may be transferred to the top of the walking belt, the sides of the walking platform, or
the shipping carton. This does not affect treadmill performance. If there is lubricant on top of the walking belt or
on the sides of the walking platform, wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included allen wrench and your own phillips screwdriver .
1. With the help of a second person, carefully raise the
Uprights (65) to a vertical position.
Have the second person hold the console assembly near
the Uprights (65) as shown. Look under the console assembly and locate the Console Wire Harness (71).
Cut the plastic ties securing the Upright Wire Harness
(85) to the right Upright (65). Connect the Upright Wire
Harness to the Console Wire Harness (71). Make sure to
connect the connectors properly (see the inset drawing). The connectors should slide together easily and
snap into place. If the connectors do not slide together
easily and snap into place, turn one connector and try
again. IF THE CONNECTORS ARE NOT CONNECTED
PROPERLY, THE CONSOLE MAY BE DAMAGED
WHEN THE POWER IS TURNED ON.
65
85
71
1
2. Insert the excess Wire Harnesses (71, 85) into the right
Upright (65).
Set the console assembly on the Uprights (65). While a
second person holds the console assembly, attach the
console assembly with four Console Bolts (99) and four
Console Washers (69) as shown. Firmly tighten the
Console Bolts.
Console
Assembly
Console
Assembly
69
71, 85
69
99
99
65
2
6
85
71
7
5. Make sure that all parts are properly tightened before you use the treadmill. Place a mat beneath the
treadmill to protect the floor or carpet. For your benefit, we recommend that you familiarize yourself with
the TROUBLESHOOTING section on pages 23 and 24.
68
5
Collar
20
55
Knob
105
3
Small
Holes
3. With the help of a second person, raise the treadmill
Frame (55). Hold the Latch Housing (68) and the Latch
Housing Cover (5) against the sides of the Frame as
shown. Loosely thread the two blunt-tipped 1/2” Screws
(105) into the Latch Housing Cover and the Latch Housing
as shown. Do not tighten the Screws yet.
Remove the knob from the pin. Make sure that the collar
and the spring are on the pin. The collar should be on the
side of the spring shown. Insert the pin into the Latch
Housing (68), and tighten the knob back onto it.
Align the pin with the hole in the Left Handgrip (63) by sliding the Latch Housing (68) up or down. Make sure that the
pin can be inserted fully into the hole. Hold the Latch
Housing in place as you tighten two 1/2” Tek Screws (20)
into the Latch Housing and the Frame (55). Then, tighten
the 1/2” Screws (105). Note: It may be necessary to pull
on the knob to access and tighten the Screws.
Hole
63
Spring
Pin
4
Console
Assembly
4. Remove the backing from the indicated tape on the console
assembly. Press the Book Holder (23) firmly onto the tape.
23
Tape
105
20
8
THE PERFORMANT LUBETMWALKING BELT
Your treadmill features a walking belt coated with
PERFORMANT LUBE
TM
, a high-performance lubricant.
IMPORTANT: Never apply silicone spray or other
substances to the walking belt or the walking platform. Such substances will deteriorate the walking
belt and cause excessive wear.
HOW TO PLUG IN THE POWER CORD
Your treadmill, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your home’s power.
Voltage surges, spikes, and noise interference can
result from weather conditions or from other appliances
being turned on or off. To decrease the possibility of
your treadmill being damaged, always use a surge
suppressor with your treadmill (see drawing 1 at
the right). To purchase a surge suppressor, see
your local PROFORM dealer or call 1-800-806-3651
and order part number 146148.
Use only a single-outlet surge suppressor that is
UL 1449 listed as a transient voltage surge suppressor (TVSS). The surge suppressor must have a
UL suppressed voltage rating of 400 volts or less
and a minimum surge dissipation of 450 joules.
The surge suppressor must be electrically rated
for 120 volts AC and 15 amps. There must be a
monitoring light on the surge suppressor to indicate whether it is functioning properly. Failure to
use a properly functioning surge suppressor could
result in damage to the control system of the
treadmill. If the control system is damaged, the
walking belt may change speed or stop unexpectedly, which may result in a fall and serious injury.
This product must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having
an equipment-grounding conductor and a grounding
plug. Plug the power cord into a surge suppressor,
and plug the surge suppressor into an appropriate
outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
Important: The treadmill is not compatible with
GFCI-equipped outlets.
This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illustrated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge suppressor to a 2-pole
receptacle as shown in drawing 2 if a properly
grounded outlet is not available.
The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place
by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a qualified electrician to determine if the outlet box cover is
grounded before using an adapter.
DANGER:Improper connection
of the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or serviceman if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the product—if it will
not fit the outlet, have a proper outlet
installed by a qualified electrician.
1
2
Grounded Outlet Box
Grounded Outlet Box
Grounding Plug
Surge Suppressor
Surge Suppressor
Grounding Pin
Adapter
Lug
Metal Screw
Grounded Outlet
Grounding Pin
TREADMILL OPERATION
9
FEATURES OF THE CONSOLE
The treadmill console offers an impressive array of
features designed to help you get the most from your
workouts.
When the manual mode of the console is selected, the
speed and incline of the treadmill can be changed with
the touch of a button. As you exercise, the console will

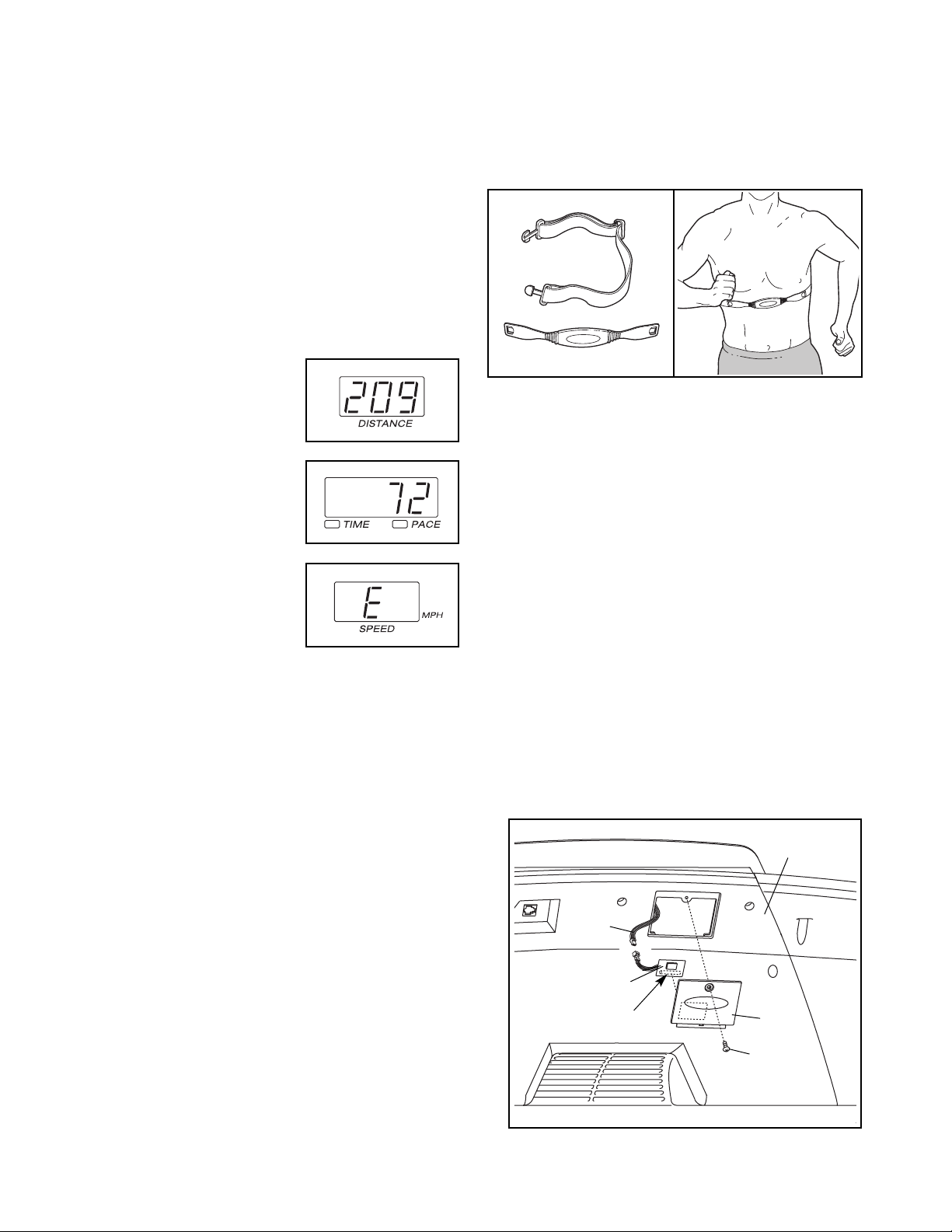

display instant exercise feedback. You can even measure your heart rate using the handgrip pulse sensor or
the optional chest pulse sensor (see page 21).
The console also offers eight personal trainer programs.
Each program automatically controls the speed and incline of the treadmill as it guides you through an effective workout. Two heart rate programs are also offered.
Each program adjusts the speed and incline of the
treadmill to keep your heart rate near a target heart rate
while you exercise. Note: The heart rate programs require the use of the optional chest pulse sensor.

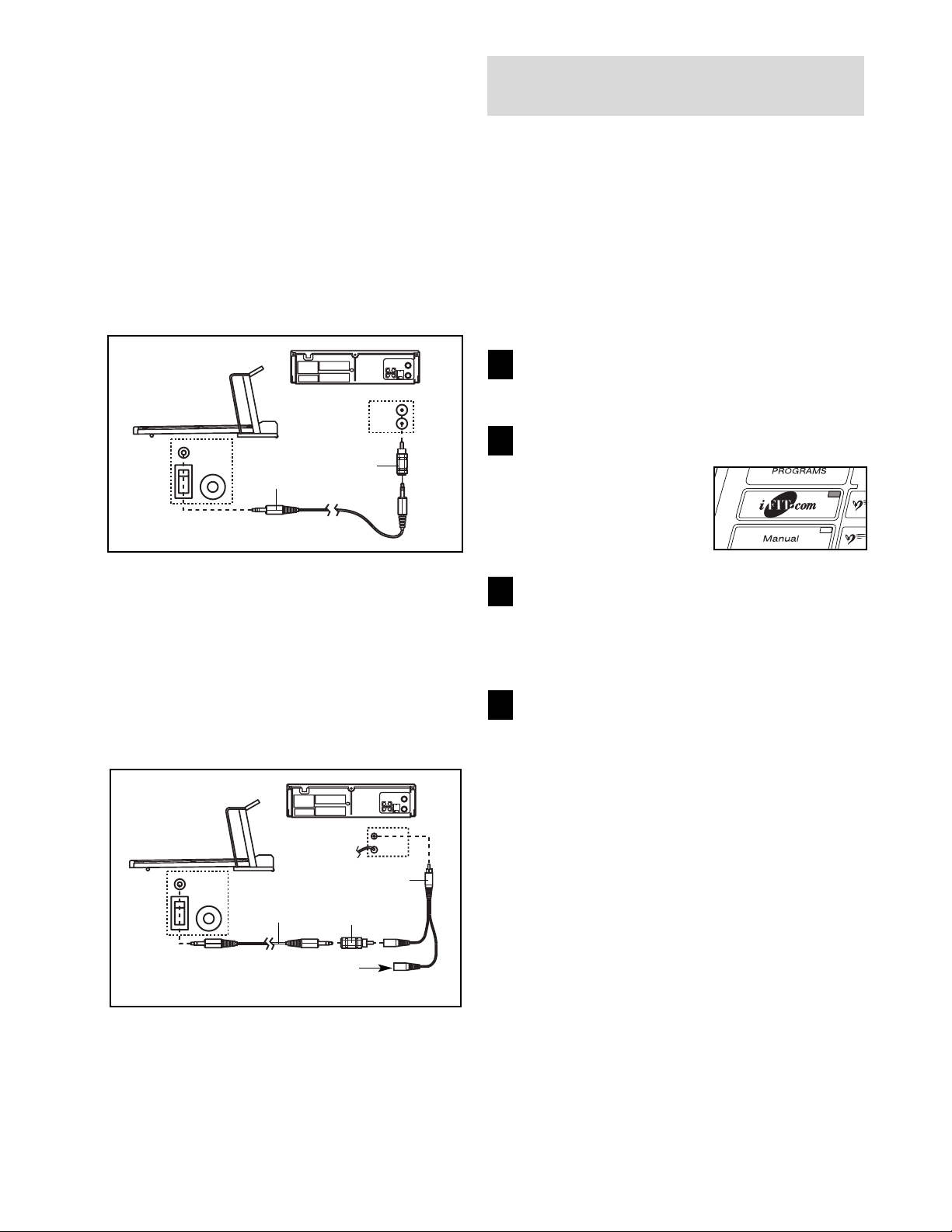

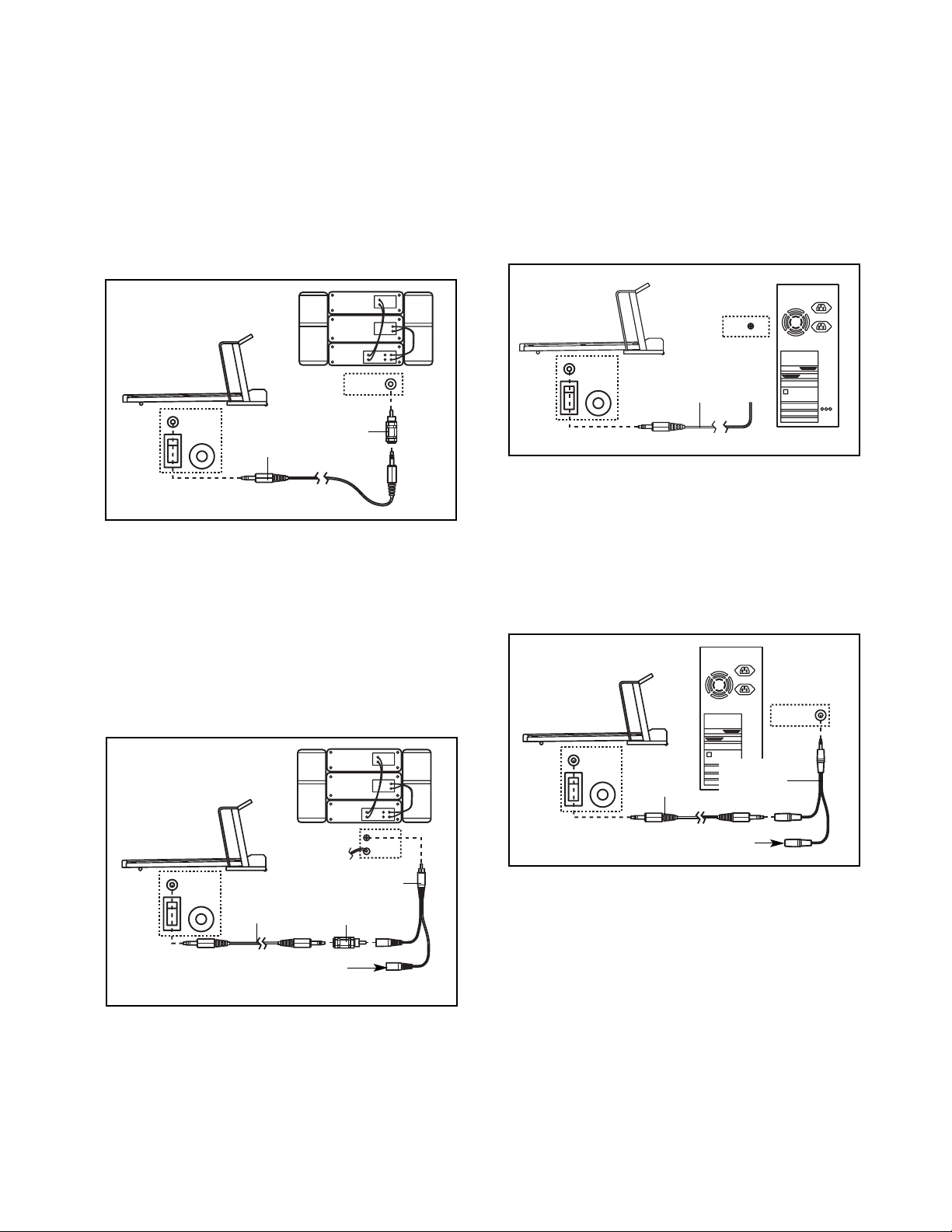

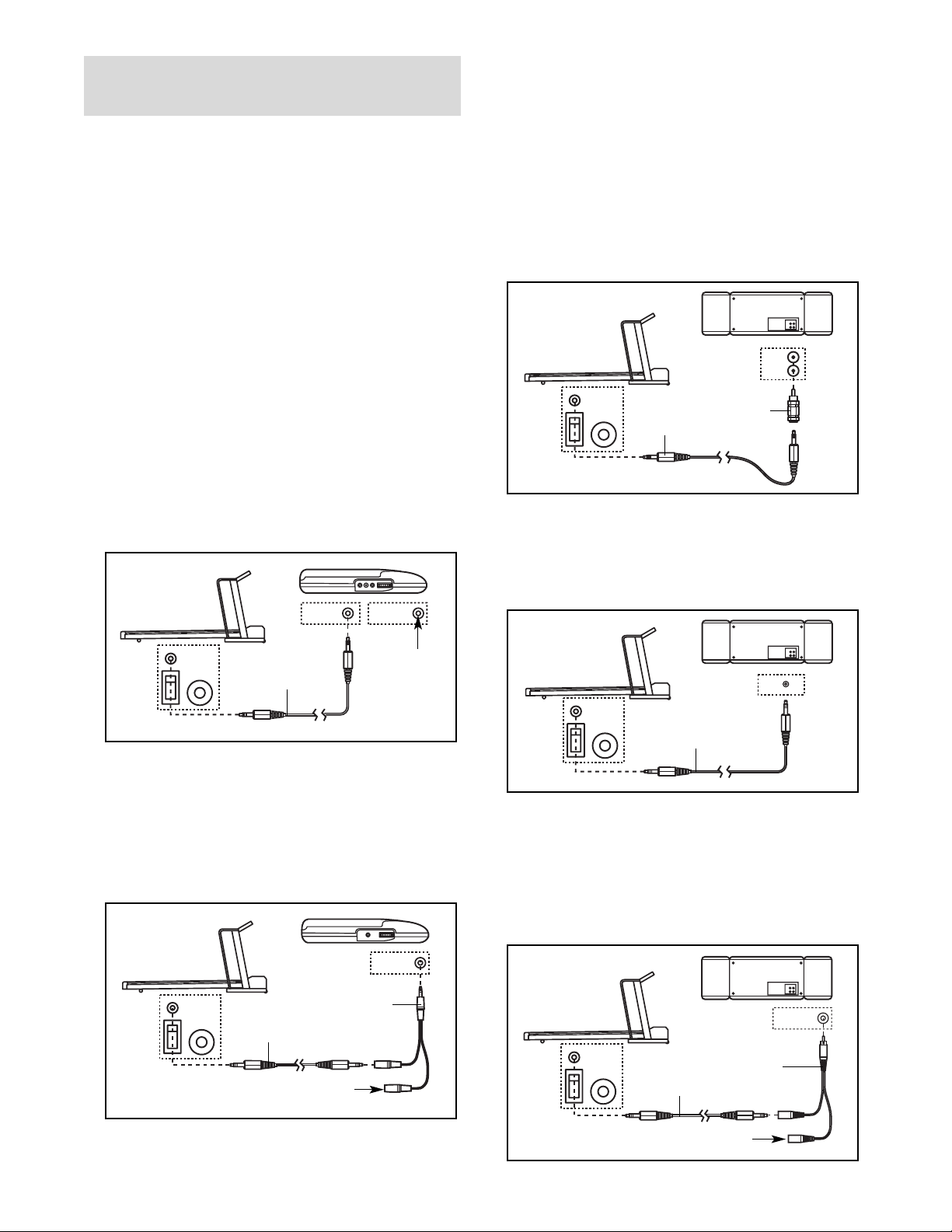

The console also features new iFIT.com interactive
technology. Having iFIT.com technology is like having a
personal trainer in your home. Using the included audio
cable, you can connect the treadmill to your home
stereo, portable stereo, computer, or VCR and play
special iFIT.com CD and video programs (iFIT.com
CDs and videocassettes are available separately).
iFIT.com CD and video programs automatically control
the speed and incline of the treadmill as a personal
trainer coaches you through every step of your workout. High-energy music provides added motivation. To
purchase iFIT.com CDs or videocassettes, call tollfree 1-800-735-0768.
With the treadmill connected to your computer, you
can also go to our Web site at www.iFIT.com and access programs directly from the internet. Additional options are soon to be available. See www.iFIT.com for
more information.

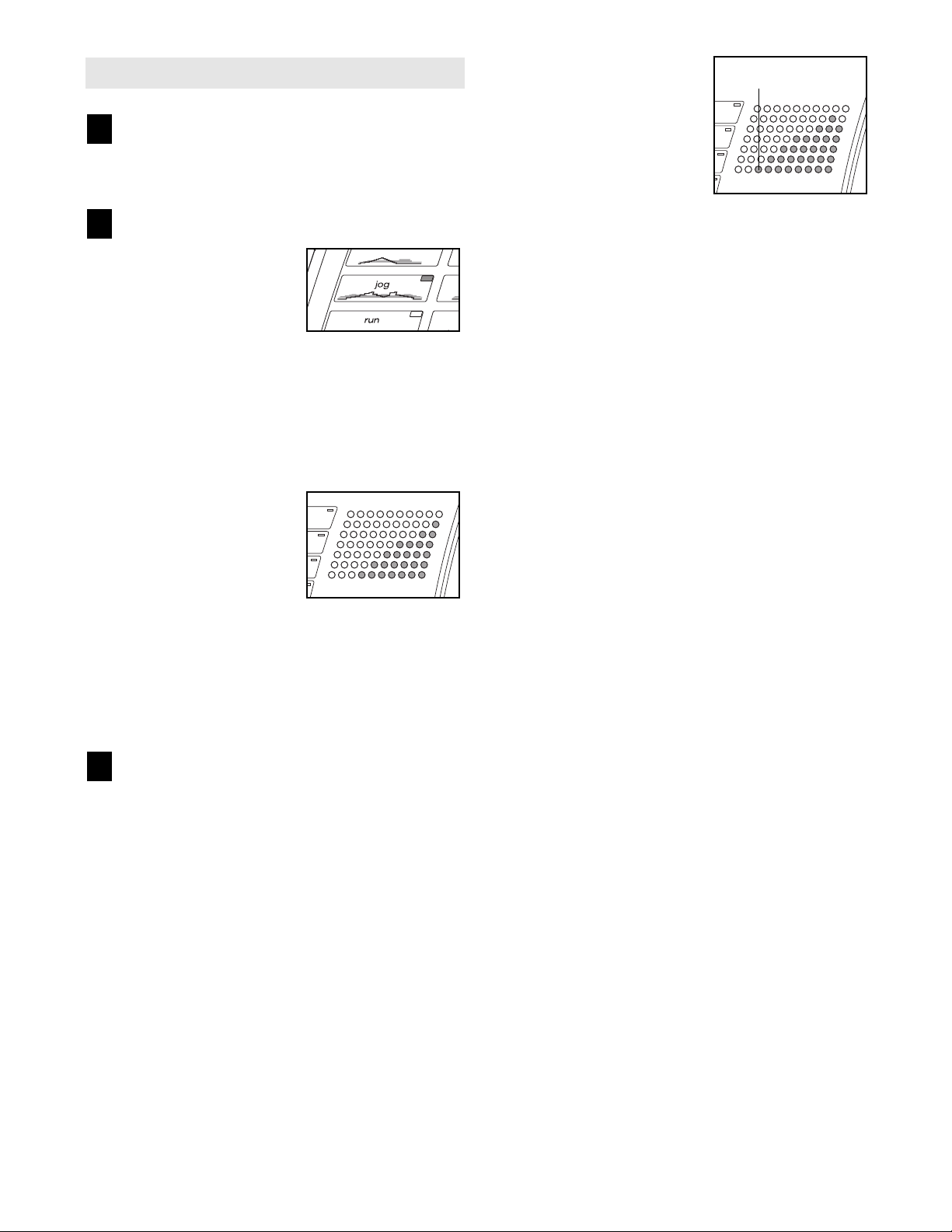

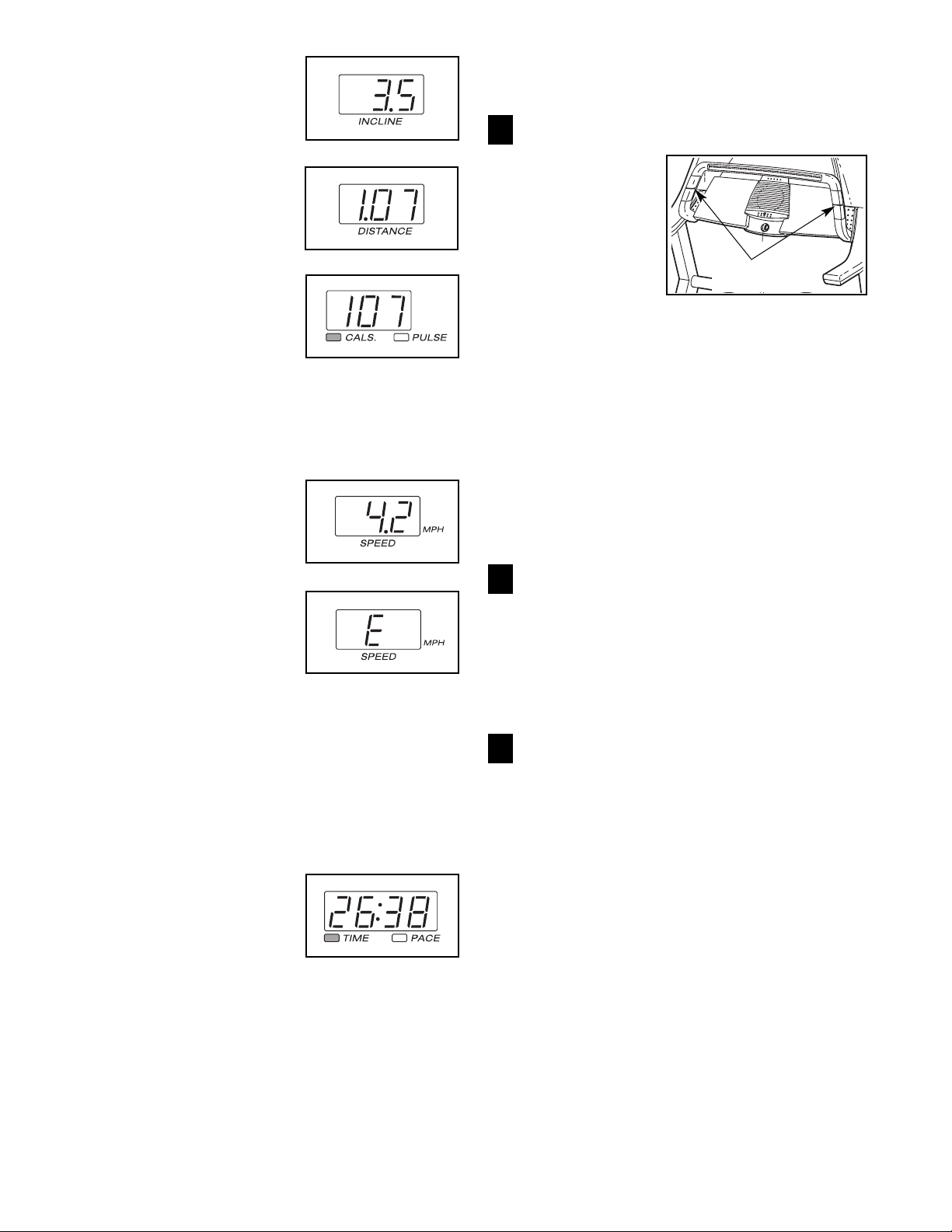

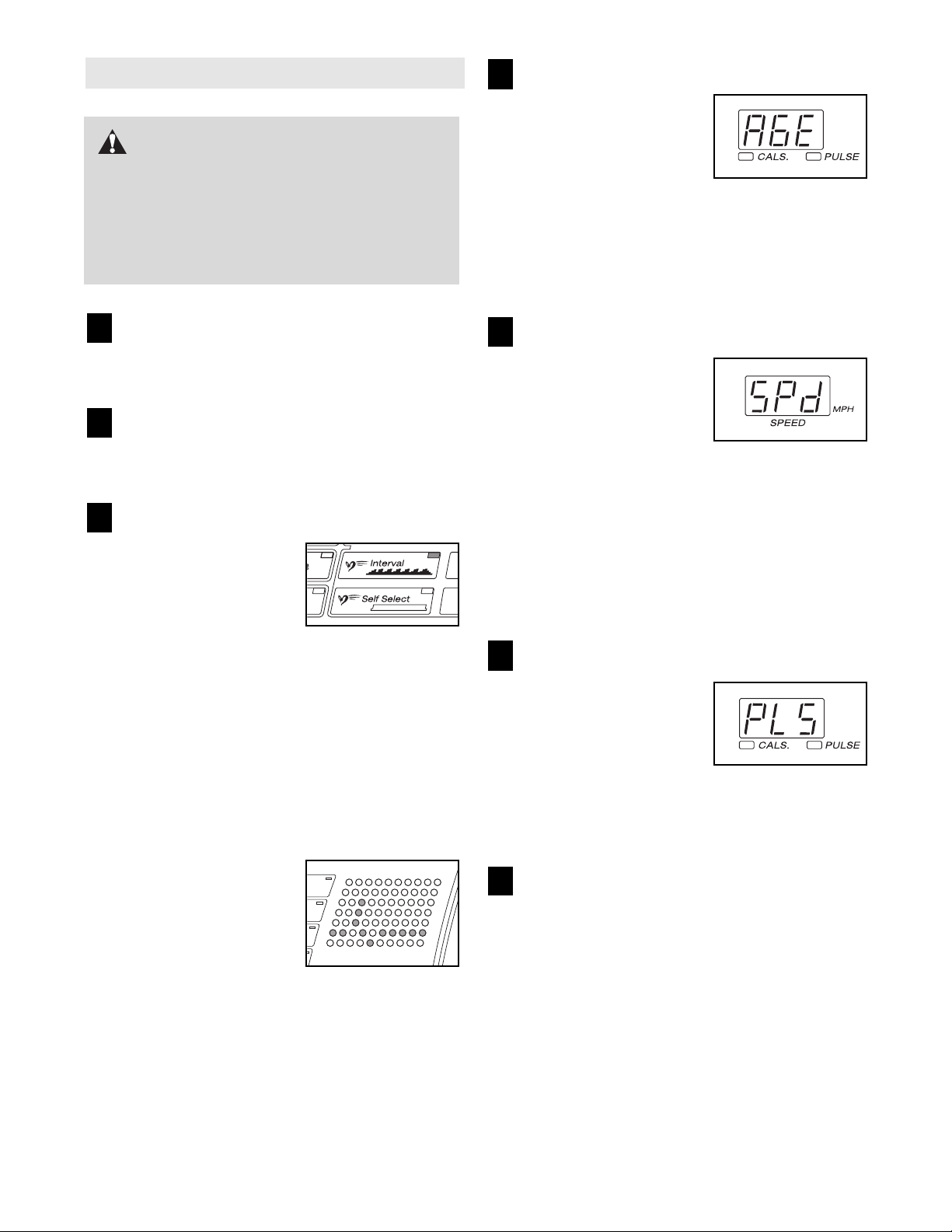

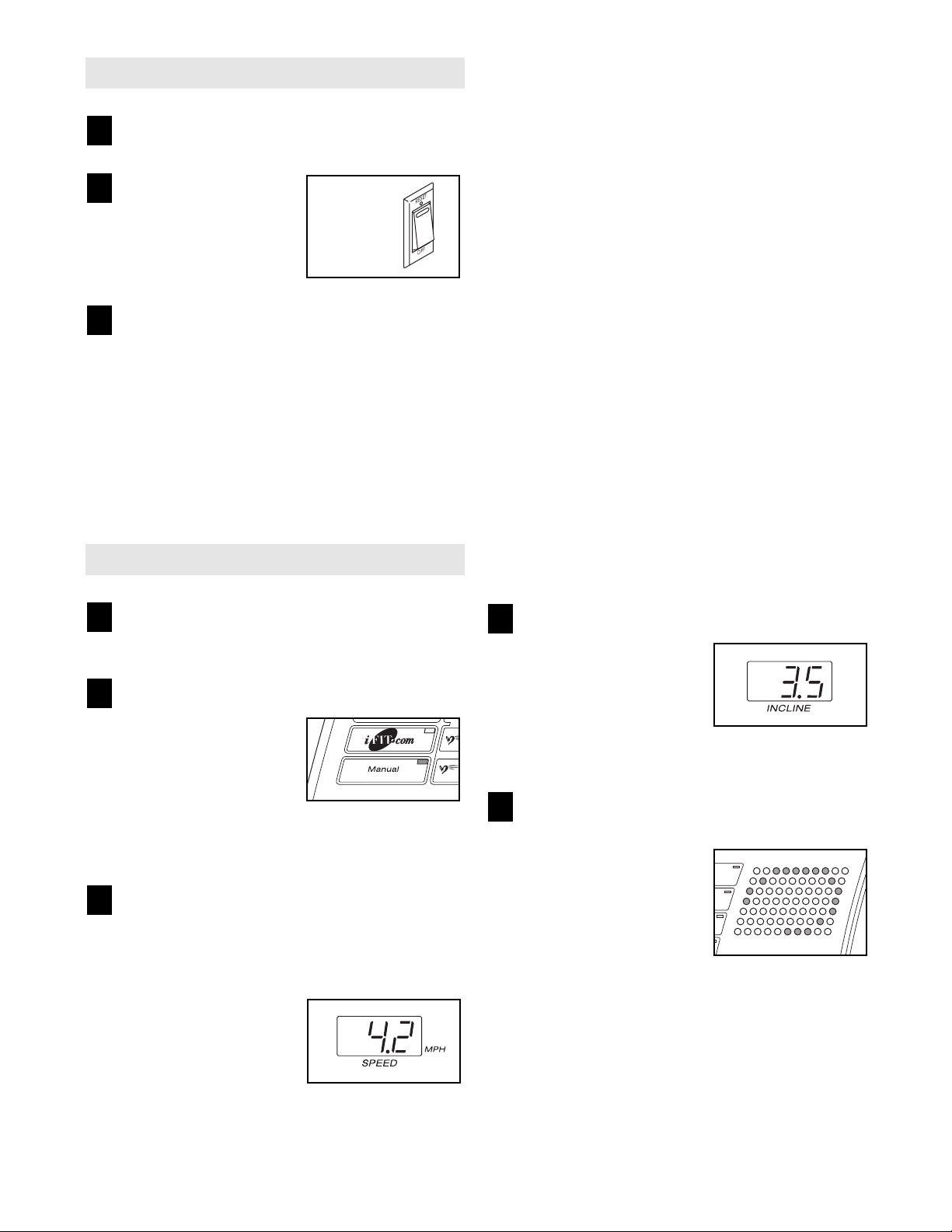

To use the manual mode of the console, follow the
steps beginning on page 10. To use a personal trainer
program, see page 12. To use a heart rate program,
see page 14. To use an iFIT.com CD or video program, see page 18. To use an iFIT.com program directly from our Web site, see page 20.
Clip
Key
Note: If there are thin sheets of clear
plastic on the console, remove them.
Loading...
