ProForm PFTL590101 User Manual

www.proform.com

Model No. PFTL59010.1
Serial No.

Write the serial number in the space
above for reference.

Serial Number

Decal

QUESTIONS?

If you have questions, or if parts
are damaged or missing, DO NOT

CONTACT THE STORE; please
contact Customer Care.

IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.

USER’S MANUAL

CALL TOLL-FREE:

1-888-533-1333

Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–12 p.m. MT

ON THE WEB:
www.proformservice.com

CAUTION

Read all precautions and instruc­tions in this manual before using
this equipment. Keep this manual
for future reference.

256836

TABLE OF CONTENTS

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS ..................................................................3

BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

OPERATION AND ADJUSTMENT .............................................................13

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

TROUBLESHOOTING ......................................................................22

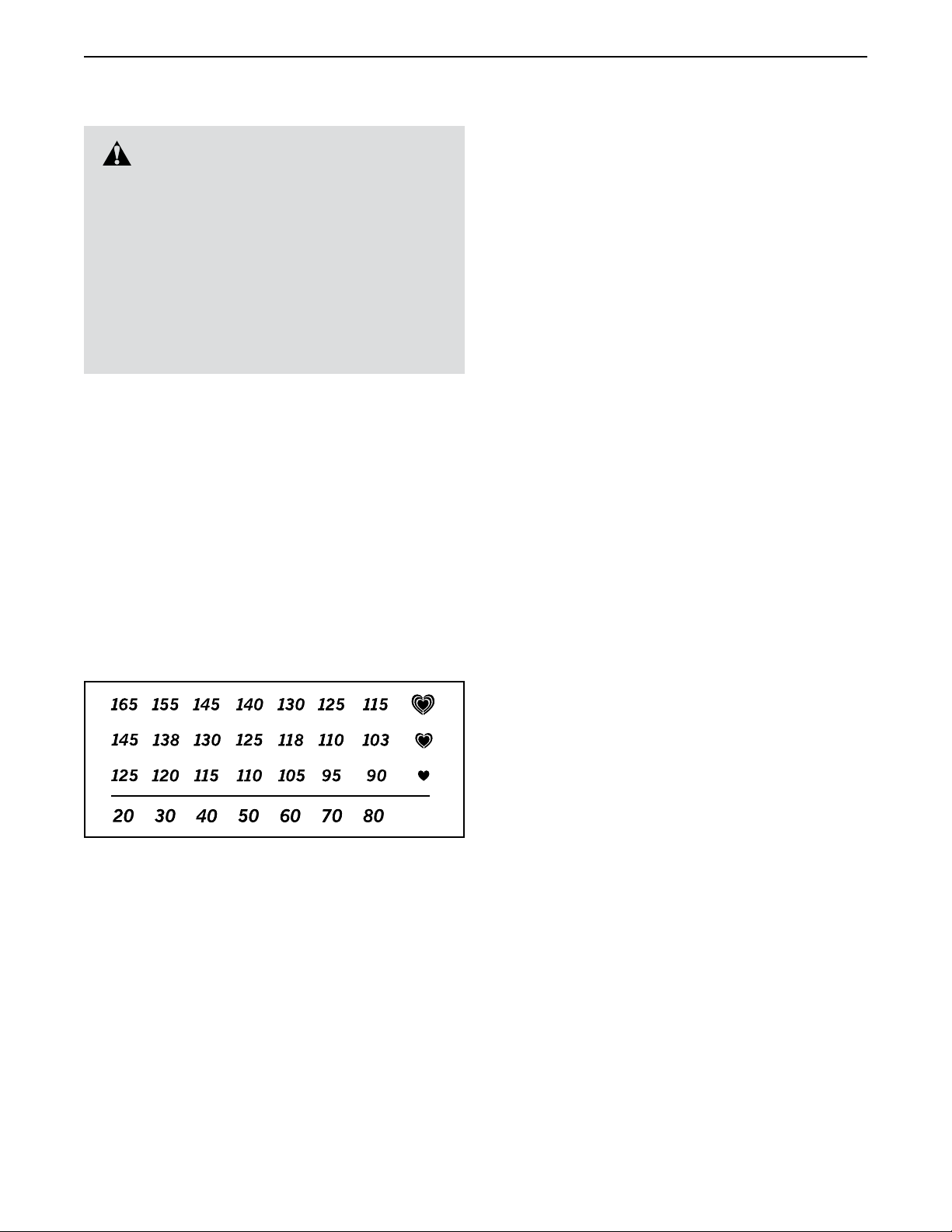

EXERCISE GUIDELINES ....................................................................25

PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

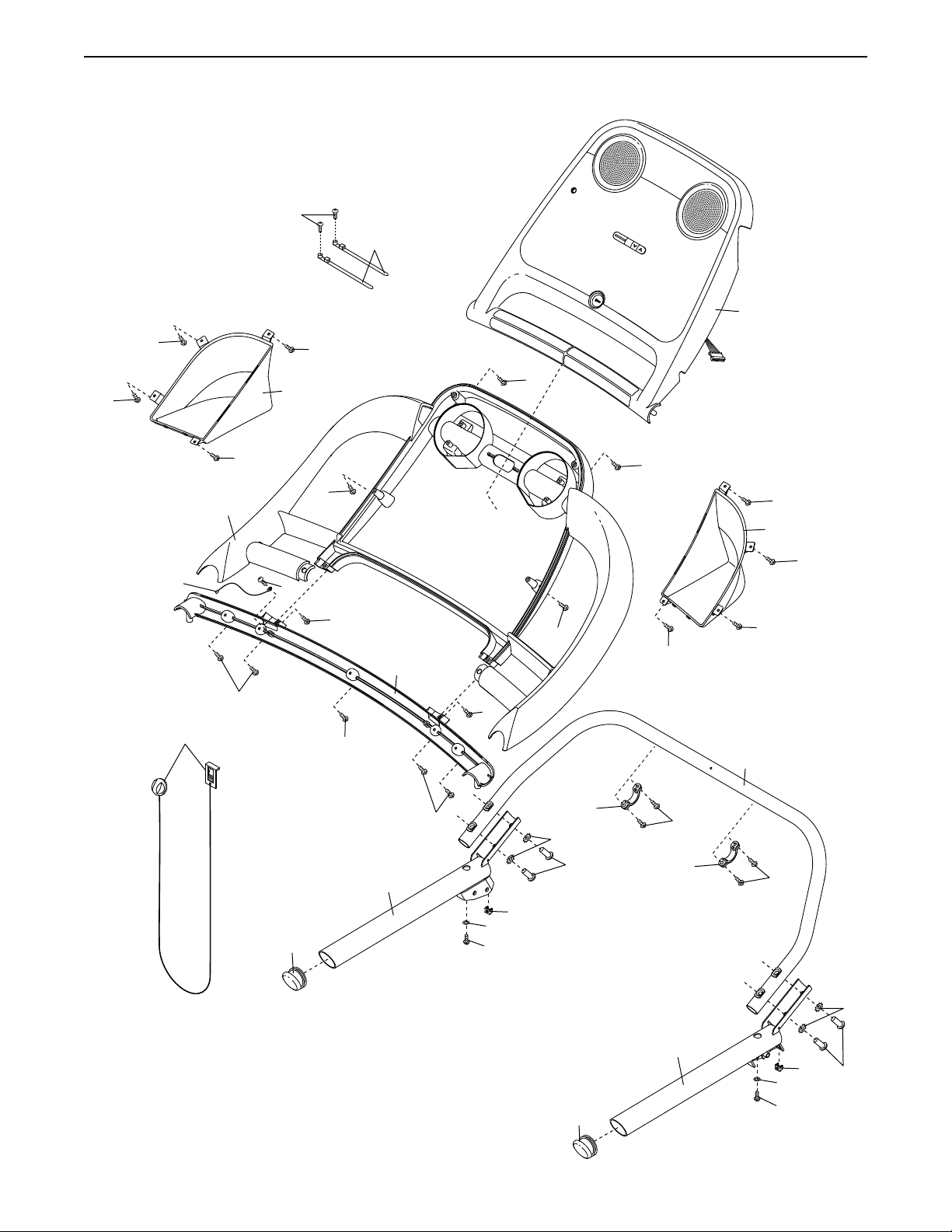

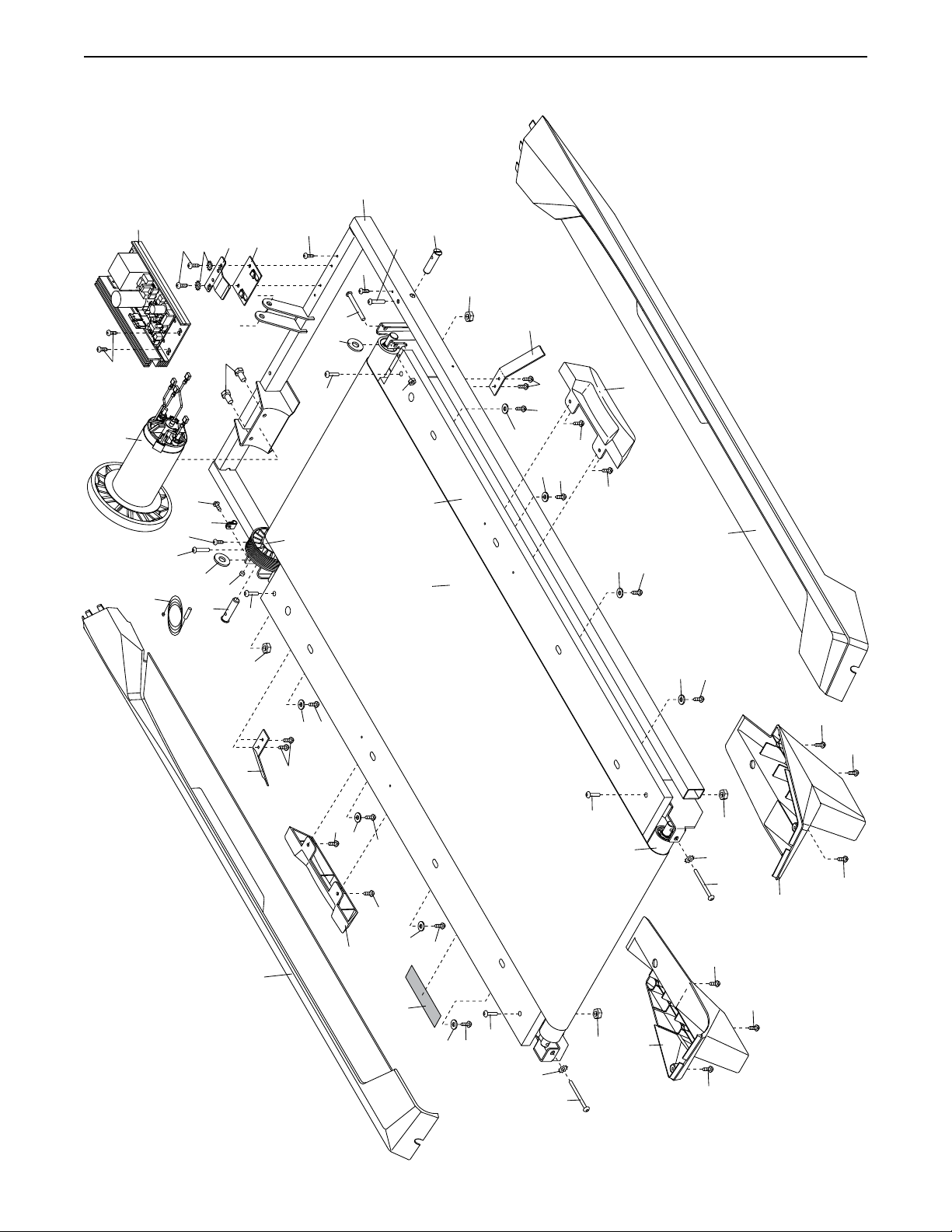

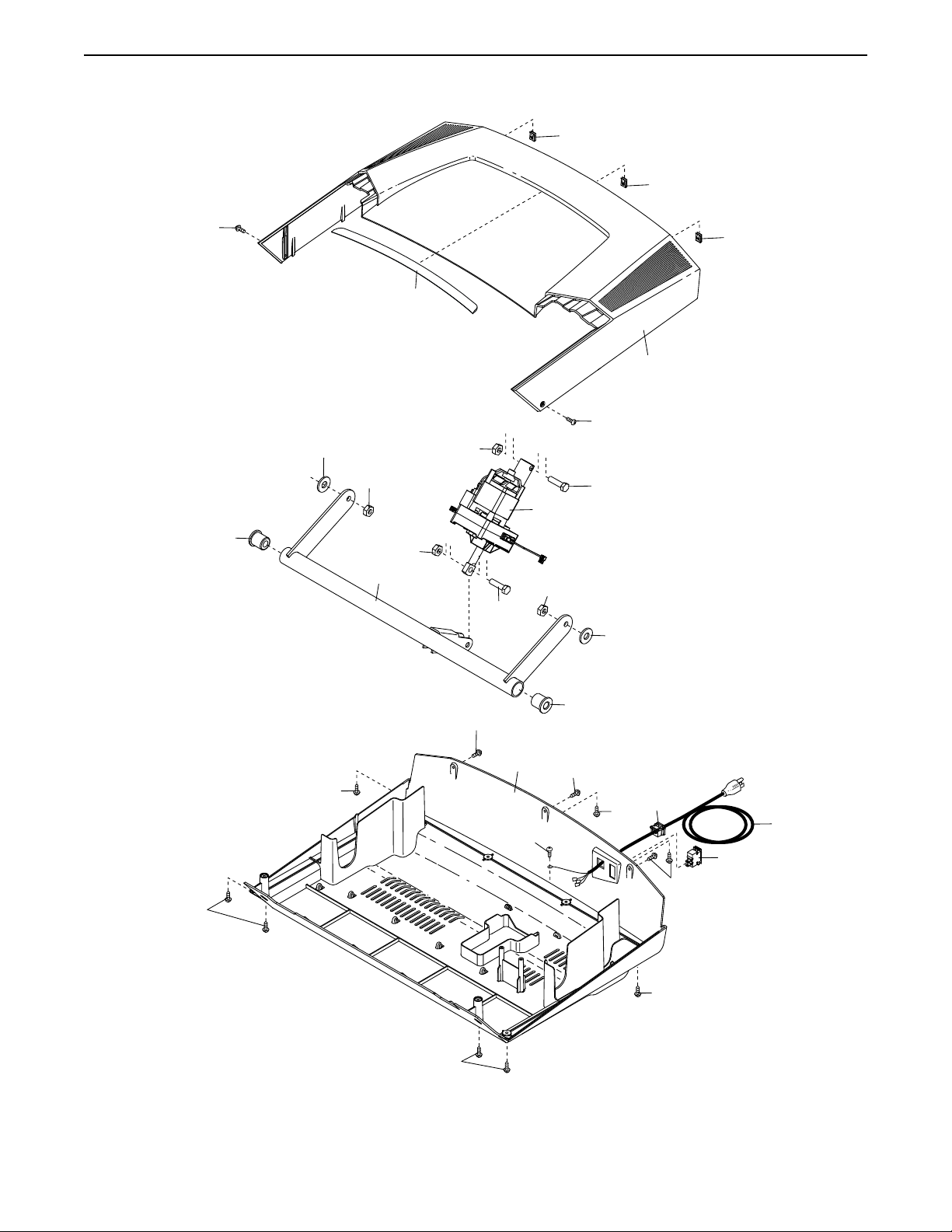

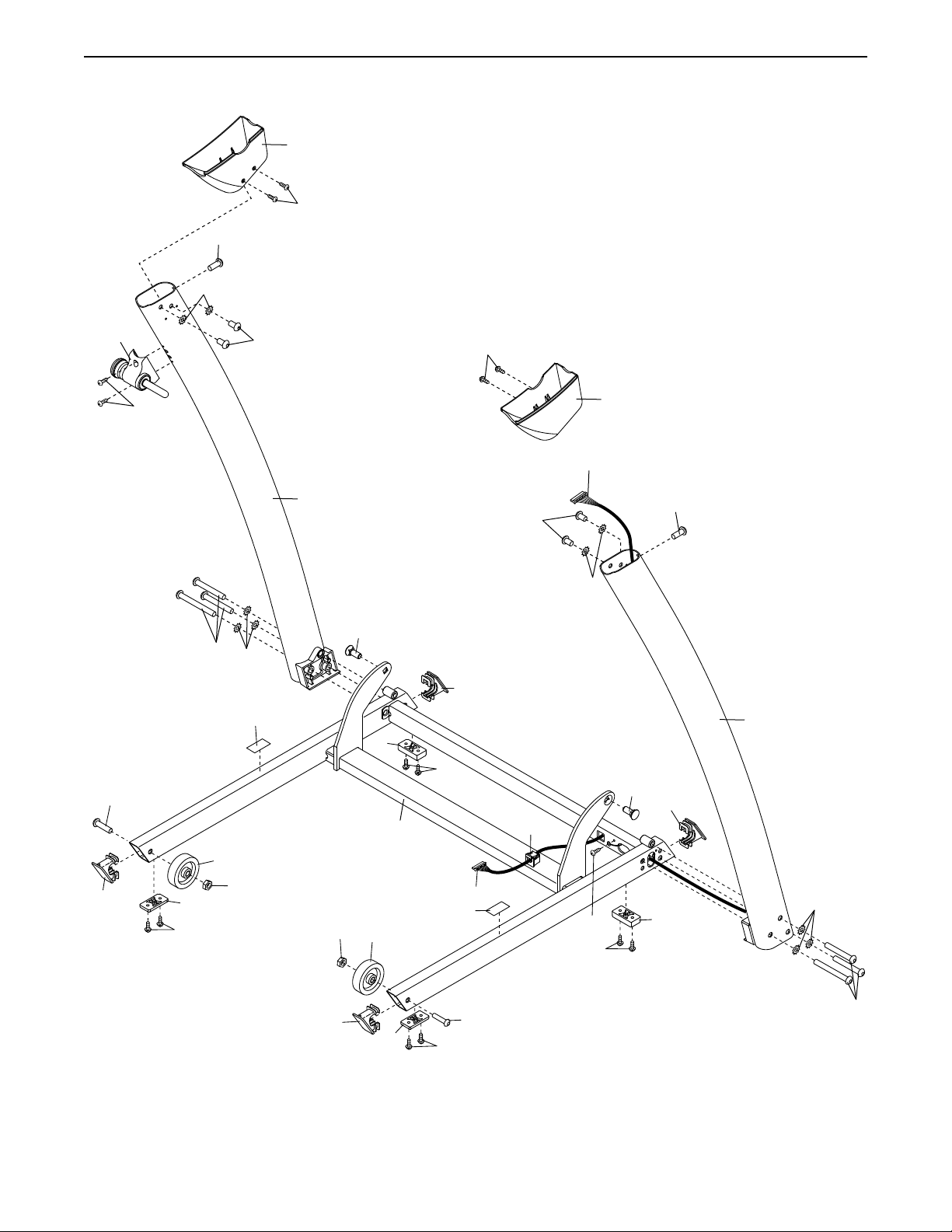

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

WARNING DECAL PLACEMENT

This drawing shows the location(s) of
the warning decal(s). If a decal is miss-

ing or illegible, call the telephone
number on the front cover of this
manual and request a free replace­ment decal. Apply the decal in the lo­cation shown. Note: The decal(s) may

not be shown at actual size.

PROFORM is a registered trademark of ICON Health & Fitness, Inc.

2

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of burns, re, electric shock, or injury to persons, read

all important precautions and instructions in this manual and all warnings on your treadmill before
using your treadmill. ICON assumes no responsibility for personal injury or property damage sus­tained by or through the use of this product.

1. Before beginning any exercise program, con­sult your physician. This is especially impor­tant for persons over age 35 or persons with
pre-existing health problems.

2. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.

3. Use the treadmill only as described.

4. Keep the treadmill indoors, away from mois­ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.

5. Place the treadmill on a level surface, with
at least 8 ft. (2.4 m) of clearance behind it
and 2 ft. (0.6 m) on each side. Do not place
the treadmill on any surface that blocks air

openings. To protect the oor or carpet from

damage, place a mat under the treadmill.

6. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.

7. Keep children under age 12 and pets away
from the treadmill at all times.

8. The treadmill should be used only by per­sons weighing 300 lbs. (136 kg) or less.

9. Never allow more than one person on the
treadmill at a time.

10. Wear appropriate exercise clothes while us­ing the treadmill. Do not wear loose clothes
that could become caught in the treadmill.
Athletic support clothes are recommended
for both men and women. Always wear ath-

letic shoes. Never use the treadmill with bare
feet, wearing only stockings, or in sandals.

devices such as cell phone chargers, into
the surge suppressor or into an outlet on the
same circuit.

12. Use only a surge suppressor that meets all of
the specifications described on page 13. To
purchase a surge suppressor, see your local
PROFORM dealer, call the telephone number
on the front cover of this manual, or see your
local electronics store.

13. Failure to use a properly functioning surge
suppressor could result in damage to the
control system of the treadmill. If the control
system is damaged, the walking belt may
slow, accelerate, or stop unexpectedly, which
may result in a fall and serious injury.

14. Keep the power cord and the surge suppres­sor away from heated surfaces.

15. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See TROU­BLESHOOTING on page 22 if the treadmill is
not working properly.)

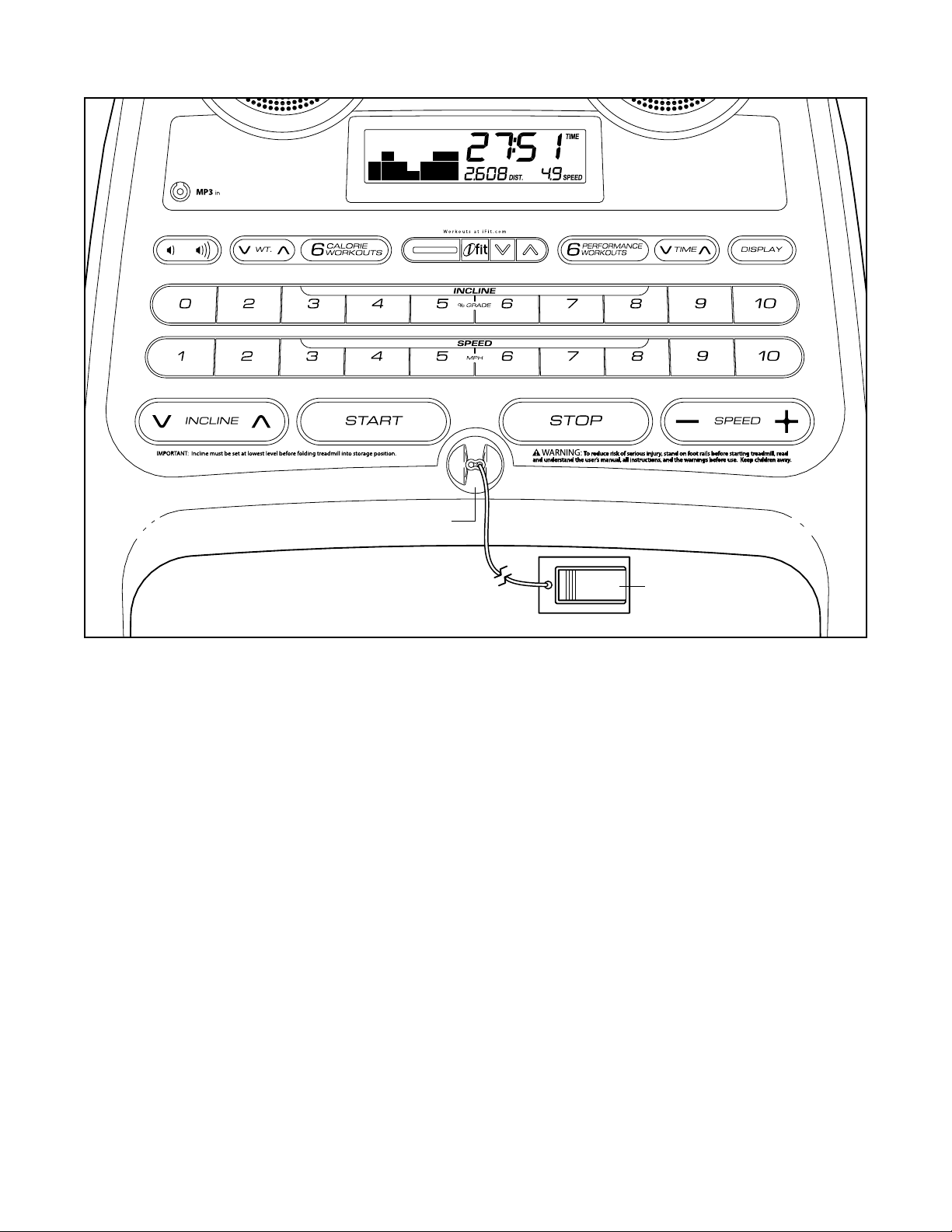

16. Read, understand, and test the emergency
stop procedure before using the treadmill (see
HOW TO TURN ON THE POWER on page 15).
Always wear the clip while using the treadmill.

17. Always stand on the foot rails when starting
or stopping the walking belt. Always hold the
handrails while using the treadmill.

18. When a person is walking on the treadmill,
the noise level of the treadmill will increase.

19. Keep ngers, hair, and clothing away from

the moving walking belt.

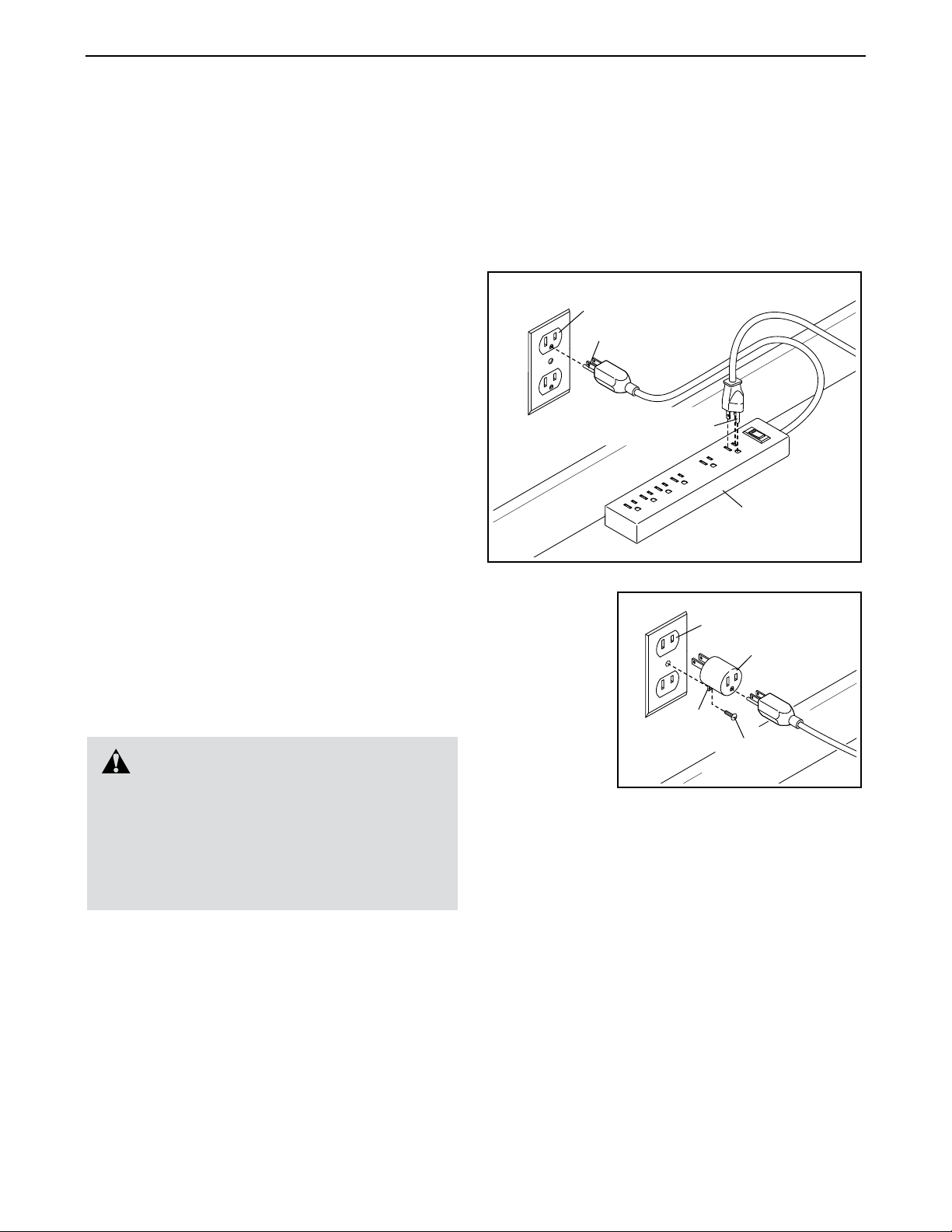

11. Plug the power cord into a surge suppressor
(not included), and plug the surge suppres­sor into an appropriate outlet (see page 13).
To avoid overloading the circuit, do not plug
other electrical devices, except for low-power

20. The treadmill is capable of high speeds. Ad­just the speed in small increments to avoid
sudden jumps in speed.

3

21. The heart rate monitor is not a medical

device. Various factors, including the user’s

movement, may affect the accuracy of heart
rate readings. The heart rate monitor is in­tended only as an exercise aid in determining
heart rate trends in general.

22. Never leave the treadmill unattended while
it is running. Always remove the key, unplug
the power cord, and press the power switch
into the off position when the treadmill is not
in use. (See the drawing on page 5 for the
location of the power switch.)

23. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 7 and HOW TO FOLD
AND MOVE THE TREADMILL on page 21.)
You must be able to safely lift 45 lbs. (20 kg)
to raise, lower, or move the treadmill.

25. Never insert any object into any opening on
the treadmill.

26. Inspect and properly tighten all parts of the
treadmill regularly.

27. DANGER: Always unplug the power

cord immediately after use, before clean­ing the treadmill, and before performing the
maintenance and adjustment procedures
described in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servic­ing other than the procedures in this manual
should be performed by an authorized ser­vice representative only.

28. This treadmill is intended for home use only.
Do not use this treadmill in a commercial,
rental, or institutional setting.

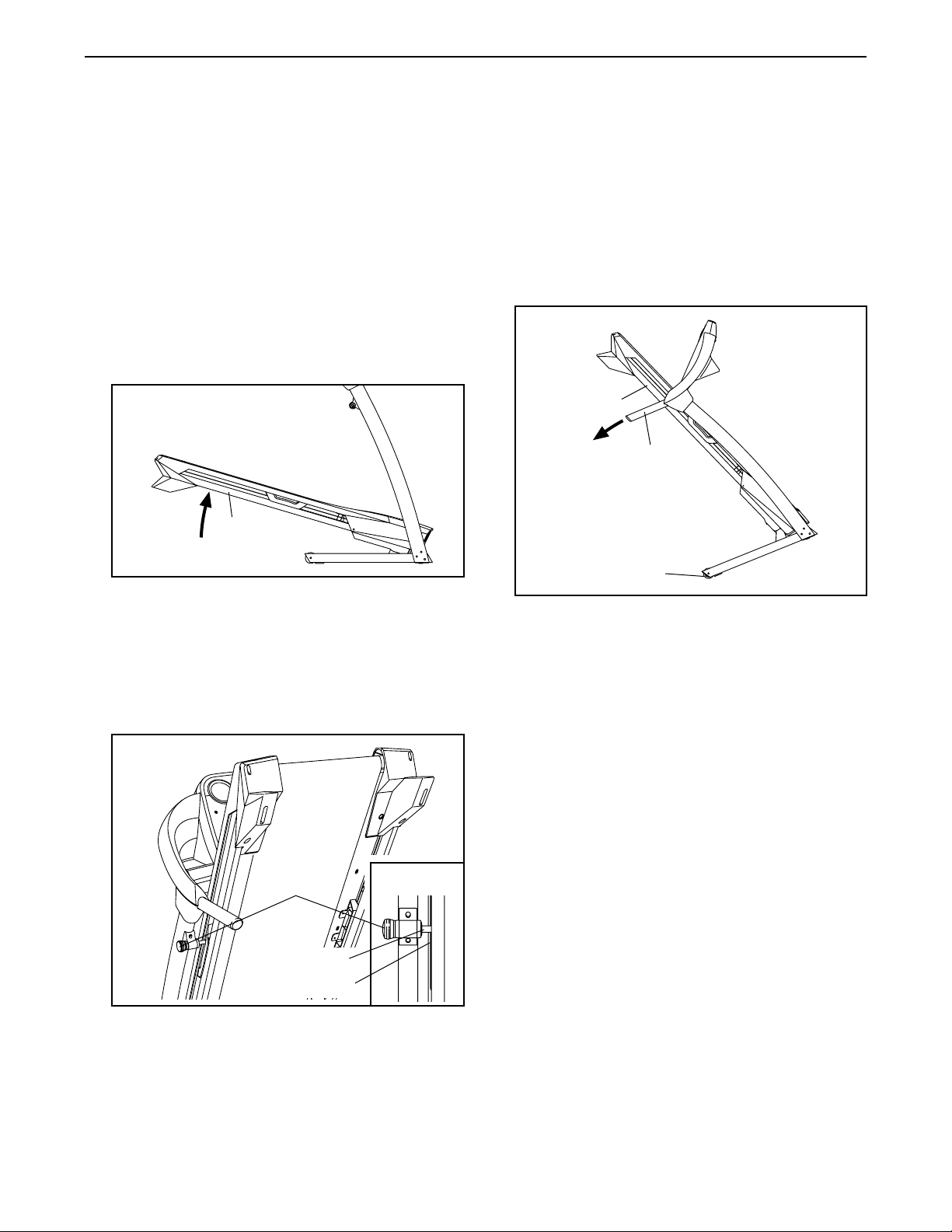

24. When folding or moving the treadmill, make
sure that the storage latch is holding the
frame securely in the storage position.

SAVE THESE INSTRUCTIONS

29. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.

4

BEFORE YOU BEGIN

Thank you for selecting the new PROFORM® 415 LT
treadmill. The 415 LT treadmill provides an impressive
selection of features designed to make your workouts
at home more effective and enjoyable.

For your benefit, read this manual carefully before you
use the treadmill. If you have questions after reading
this manual, please see the back cover of this manual.

Length: 5 ft. 10 in. (178 cm)
Width: 2 ft. 9 in. (84 cm)

Handrail

Storage Latch

To help us assist you, note the product model number
and serial number before contacting us. The model
number and the location of the serial number decal are
shown on the front cover of this manual.

Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.

Console

Accessory Tray

Heart Rate Monitor

Key/Clip

Walking Belt

Foot Rail

Idler Roller
Adjustment Screws

Hood

Power Switch

Wheel

Platform Cushion

5

PART IDENTIFICATION CHART

Use the drawings below to identify small parts used for assembly. The number in parentheses below each draw­ing is the key number of the part, from the PART LIST near the end of this manual. The number following the key
number is the quantity used for assembly. Note: If a part is not in the hardware kit, check to see whether it is

preattached. Extra hardware may be included.

1/4" Star

Washer (8)–2

#10 x 1/2" Screw

(86)—2

M8 x 25mm

Screw (5)–6

M8 Star

Washer (6)–8

M4.2 x 16mm
Screw (56)–4

3/8" Star

Washer (3)–6

M5 x 16mm

Screw (23)–2

3/8" x 3 1/4" Screw (2)–6

M4.2 x 10mm
Screw (65)–8

5/16" x 5/8"

Screw (79)–4

6

ASSEMBLY

• To hire a service technician to assemble this prod­uct in your home, call 1-800-445-2480.

• Assembly requires two persons.

• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing

materials until you nish all assembly steps.

• The underside of the walking belt is coated with
high-performance lubricant. After shipping, there
may be some lubricant on top of the walking belt
or on the shipping carton. This is normal. If there
is lubricant on top of the walking belt, wipe it off
with a soft cloth and a mild, non-abrasive cleaner.

1. Make sure that the power cord is unplugged.

Remove and discard the two screws (A) and the

shipping bracket (B) from the right side of the
Base (74). Then, remove and discard the screws
and shipping bracket (not shown) from the left
side of the Base.

• To identify small parts, see page 6.

• Assembly requires the following tools:

the included hex keys

one Phillips screwdriver

scissors

• To avoid damaging parts, do not use power tools.

1

B

2. Locate the Upright Wire (63) bundled around the
front of the Base (74). Cut the plastic tie securing
the Upright Wire. Pull the end of the Upright Wire
out of the indicated hole.

See the inset drawing. Cut the plastic tie near

the Upright Wire (63). Be careful not to dam-

age the Upright Wire.

A

74

2

52

Hole

74

63

Cut

Tie

Cut

63

7

3. Identify the Right Upright (76), which is marked
“Right.” Have a second person hold the Right
Upright near the Base (74).

3

See the inset drawing. Tie the wire tie in the

Right Upright (76) securely around the end of
the Upright Wire (63). Then, insert the Upright
Wire into the lower end of the Right Upright as
you pull the other end of the wire tie through the
Right Upright.

4. Hold the Right Upright (76) against the Base
(74). Be careful not to pinch the Upright Wire

(63).

Wire Tie

4

63

76

63

Wire

Tie

76

74

Insert a 3/8" x 3 1/4" Screw (2) with a 3/8" Star

Washer (3) into the top hole in the Right Upright
(76). Then, partially tighten the Screw into the
Base (74).

Partially tighten two more 3/8" x 3 1/4" Screws

(2) with two 3/8" Star Washers (3) into the Right
Upright (76) and the Base (74); do not fully

tighten the Screws yet.

74

63

76

3

3

2

8

5. Hold the Left Upright (66) against the Base (74).

Insert a 3/8" x 3 1/4" Screw (2) with a 3/8" Star

Washer (3) into the top hole in the Left Upright
(66). Then, partially tighten the Screw into the
Base (74).

Partially tighten two more 3/8" x 3 1/4" Screws

(2) with two 3/8" Star Washers (3) into the Left
Upright (66) and the Base (74); do not fully

tighten the Screws yet.

5

66

74

6. Identify the Left and Right Upright Covers (88,

89). Slide the Left Upright Cover onto the Left
Upright (66) as shown. Slide the Right Upright
Cover onto the Right Upright (76) as shown.

88

3

63

66

76

89

2

6

9

7. Set the console assembly face down on a soft
surface to avoid scratching the console.

7

65

Loosen the four #8 x 1" Screws (7). Carefully

pivot the Console Frame (61) to the position
shown. Identify the Left and Right Accessory
Trays (90, 60). Attach the Accessory Trays to
the console assembly with eight M4.2 x 10mm
Screws (65).

Carefully pivot the Console Frame (61) back

down to the console assembly.

8. Identify the Right Handrail (64). Remove the tie
from the Right Handrail. If necessary, press the
M8 Cage Nut (85) back into place.

Hold the Right Handrail (64) near the console

assembly. Route the console wire around
the side of the Right Handrail as shown, and
through the slot in the Right Handrail.

65

90

60

7

61

8

23

8

Console Assembly

Console

Wire

85

5

Tie

6

If necessary, adjust the Console Frame (61) to

align the holes in the Right Handrail (64) with
the holes in the Console Frame.

Attach the Right Handrail (64) to the Console

Frame (61) and the console assembly with two
M8 x 25mm Screws (5), two M8 Star Washers
(6), and an M5 x 16mm Screw (23) with a 1/4"
Star Washer (8). Make sure that the console

wire is not pinched. Start all three Screws
before tightening any of them.

Attach the Left Handrail (not shown) as de-

scribed above. Note: There is not a wire on

the left side.

Tighten the #8 x 1" Screws (7). Be careful not

to overtighten the Screws.

Console

Assembly

Slot

64

61

7

10

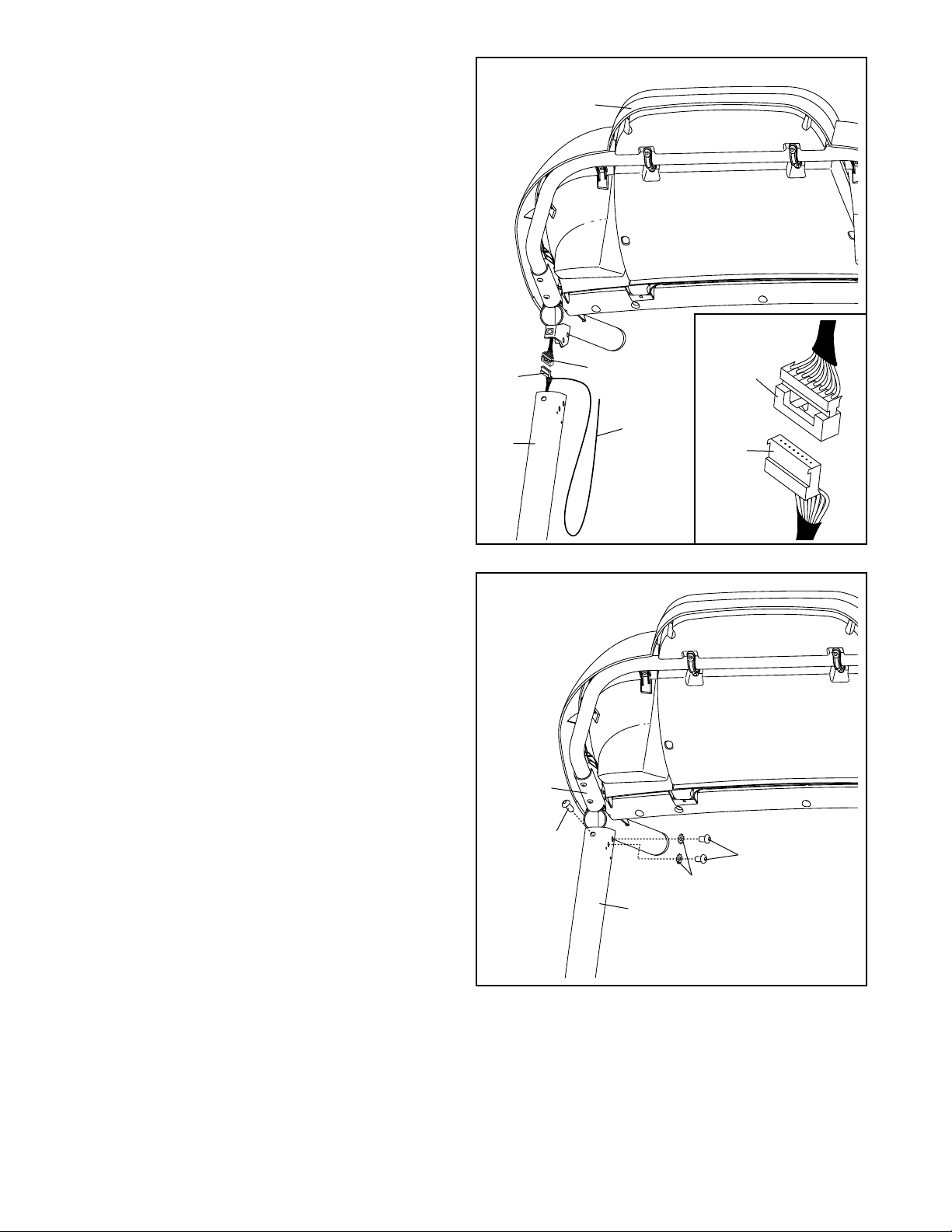

9. Have a second person hold the console assem­bly near the Right Upright (76).

Connect the Upright Wire (63) to the console

wire. See the inset drawing. The connectors

should slide together easily and snap into
place. If they do not, turn one connector and
try again. IF THE CONNECTORS ARE NOT
CONNECTED PROPERLY, THE CONSOLE
MAY BE DAMAGED WHEN THE POWER IS
TURNED ON. Remove the long tie from the

Upright Wire and the tie from the console wire.
Then, insert the connectors into the Right Upright
(76).

9

Console

Assembly

Set the console assembly on the Right Upright

(76) and the Left Upright (not shown). Make sure

that no wires are pinched.

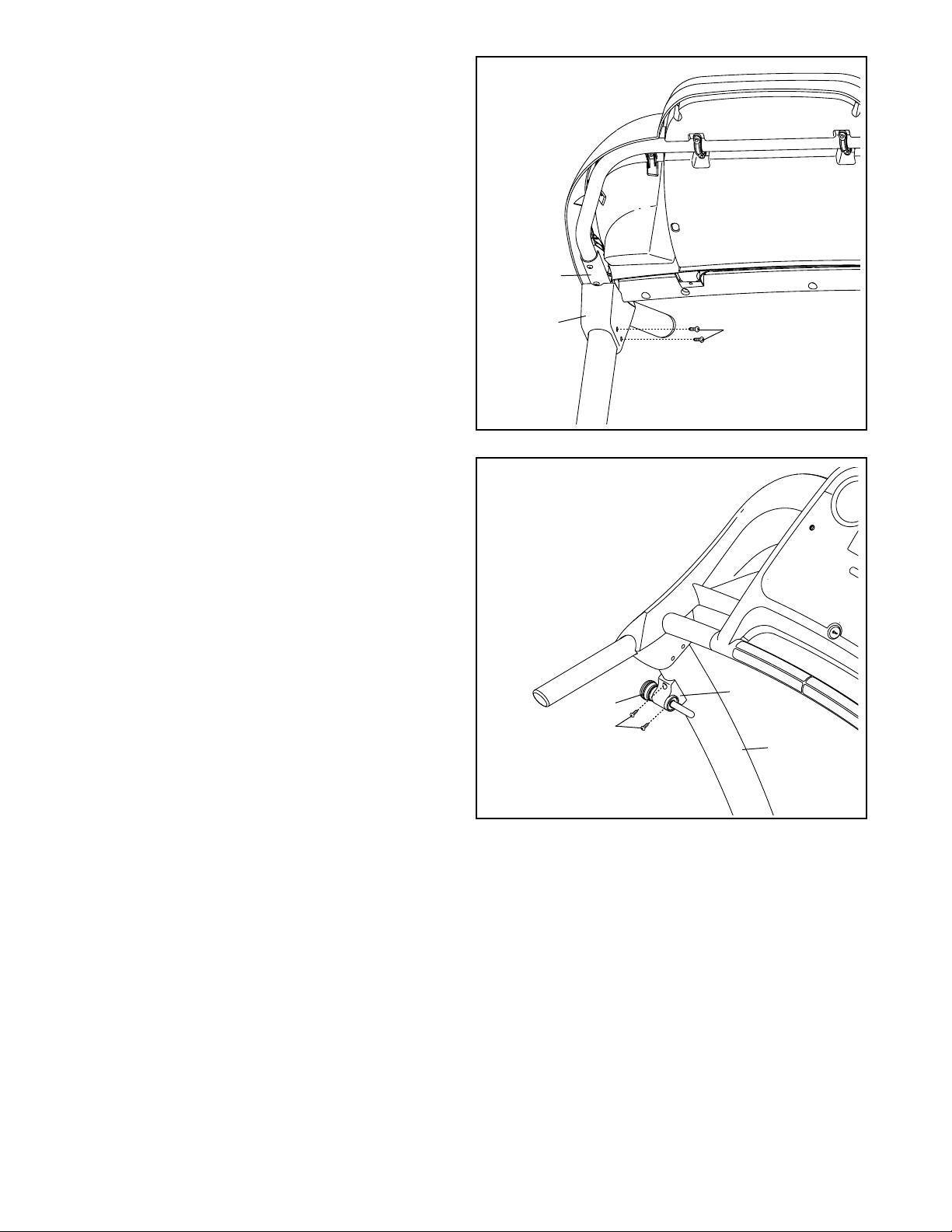

10. Start an M8 x 25mm Screw (5) and two 5/16"
x 5/8" Screws (79) with two M8 Star Washers
(6) into the Right Upright (76) and the Right
Handrail (64) as shown. Do not tighten the
Screws yet.

Attach the Left Handrail (not shown) as de-

scribed above. Then, firmly tighten all six

Screws.

10

76

63

64

Console Wire

Long

Tie

Console

Wire

63

11

5

79

6

76

11. Slide the Right Upright Cover (89) up against
the Right Handrail (64). Attach the Right Upright
Cover with two M4.2 x 16mm Screws (56). Be
careful not to overtighten the Screws.

Attach the Left Upright Cover (not shown) as de-

scribed above.

See steps 4 and 5. Tighten the six 3/8" x 3 1/4"

Screws (2).

11

64

12. Attach the Latch Pin Assembly (68) to the Left
Upright (66) with two #10 x 1/2" Screws (86);

make sure that the knob is on the indicated
side. Start both Screws, and then tighten
them. Be careful not to overtighten the
Screws.

12

89

Knob

86

56

68

66

13. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic

on the treadmill decals, remove the plastic. To protect the oor or carpet, place a mat under the treadmill. To

avoid damage to the console, keep the treadmill out of direct sunlight. Keep the included hex keys in a secure
place; one of the hex keys is used to adjust the walking belt (see pages 23 and 24). Note: Extra hardware
may be included.

12

OPERATION AND ADJUSTMENT

HOW TO CONNECT THE POWER CORD

Use a Surge Suppressor

Your treadmill, like other electronic equipment, can be

damaged by sudden voltage changes in your home’s

power. Voltage surges, spikes, and noise interference
can result from weather conditions or from other appli­ances being turned on or off. To decrease the risk of

damaging the treadmill, always use a surge sup­pressor with the treadmill. To purchase a surge
suppressor, see precaution 12 on page 3.

Use only a surge suppressor that is UL 1449 listed
as a transient voltage surge suppressor (TVSS). The
surge suppressor must have a UL suppressed voltage
rating of 400 volts or less and a minimum surge dis­sipation of 450 joules. The surge suppressor must also
be electrically rated for 120 volts AC and 15 amps.
There must be a monitoring light on the surge sup­pressor to indicate whether it is functioning properly.

Failure to use a properly functioning surge sup­pressor could result in damage to the control sys­tem of the treadmill and serious injury to users.

nominal 120-volt circuit capable of carrying 15 or
more amps. To avoid overloading the circuit, do
not plug other electrical devices, except for low­power devices such as cell phone chargers, into
the surge suppressor or into an outlet on the same
circuit. IMPORTANT: The treadmill may not be
compatible with AFCI-equipped outlets.

1

Grounded Outlet

Grounding Pin

Grounding Pin

Surge

Suppressor

Plug in the Power Cord

The treadmill must be grounded. If it should mal-

function or break down, grounding provides a path of
least resistance for electric current to reduce the risk
of electric shock. The treadmill power cord has a plug
with a grounding pin (see drawing 1 on this page).

DANGER: Improper connection

of the power cord increases the risk of elec­tric shock. Do not modify the plug—if it will
not fit an outlet, have a proper outlet installed
by a qualified electrician. If you are unsure
whether the treadmill is properly grounded,
contact a qualified electrician.

Plug the power cord into a surge suppressor, and plug
the surge suppressor into an appropriate outlet that is
properly installed and grounded in accordance with all
local codes and ordinances. The outlet must be on a

A temporary
adapter may
be used to
connect the
surge sup­pressor to a
2-pole recep­tacle if a prop­erly grounded
outlet is not
available. The
lug or wire
extending from the adapter must be connected with a
metal screw to a permanent ground such as a properly
grounded outlet box cover. Some 2-pole receptacle

outlet box covers are not grounded. Before using
an adapter, contact a qualified electrician to de­termine whether the outlet box cover is grounded.
The temporary adapter should be used only until
a properly grounded outlet can be installed by a
qualified electrician.

2

2-pole Receptacle

Adapter

Lug

Metal

Screw

13

CONSOLE DIAGRAM

Key

FEATURES OF THE CONSOLE

The treadmill console offers an impressive array of
features designed to make your workouts more effec­tive and enjoyable. When you use the manual mode,
you can change the speed and incline of the treadmill
with the touch of a button. As you exercise, the con­sole will display instant exercise feedback. You can
even measure your heart rate using the handgrip heart
rate monitor.

In addition, the console features six calorie workouts
and six performance workouts. Each workout automati­cally controls the speed and incline of the treadmill as
it guides you through an effective exercise session.

The console also features the new iFit interactive work­out system. The iFit system enables the console to ac­cept iFit interactive workout cards containing workouts
designed to help you achieve specific fitness goals.
For example, lose unwanted pounds with the 8-week
weight loss workout, or train for a long-distance run
with the marathon workout. iFit workouts automati-

Clip

cally control the treadmill while the voice of a personal
trainer coaches you through every step of your work­out. To purchase iFit cards at any time, go to

www.iFit.com or call the telephone number on the
front cover of this manual. iFit cards are also avail­able at select stores.

You can even listen to your favorite workout music or

audio books with the console’s stereo sound system

while you exercise.

To turn on the power, see page 15. To use the man­ual mode, see page 15. To use a calorie workout,

see page 17. To use a performance workout, see
page 18. To use an iFit workout, see page 19. To
use the information mode, see page 20.

Note: The console can display speed and distance
in either miles or kilometers. To find out which unit of
measurement is selected or to change the unit of mea­surement, see THE INFORMATION MODE on page

20. Note: For simplicity, all instructions in this section
refer to miles.

14

HOW TO TURN ON THE POWER

HOW TO USE THE MANUAL MODE

IMPORTANT: If the treadmill has been exposed to
cold temperatures, allow it to warm to room tem­perature before turning on the power. If you do not
do this, you may damage the console displays or
other electrical components.

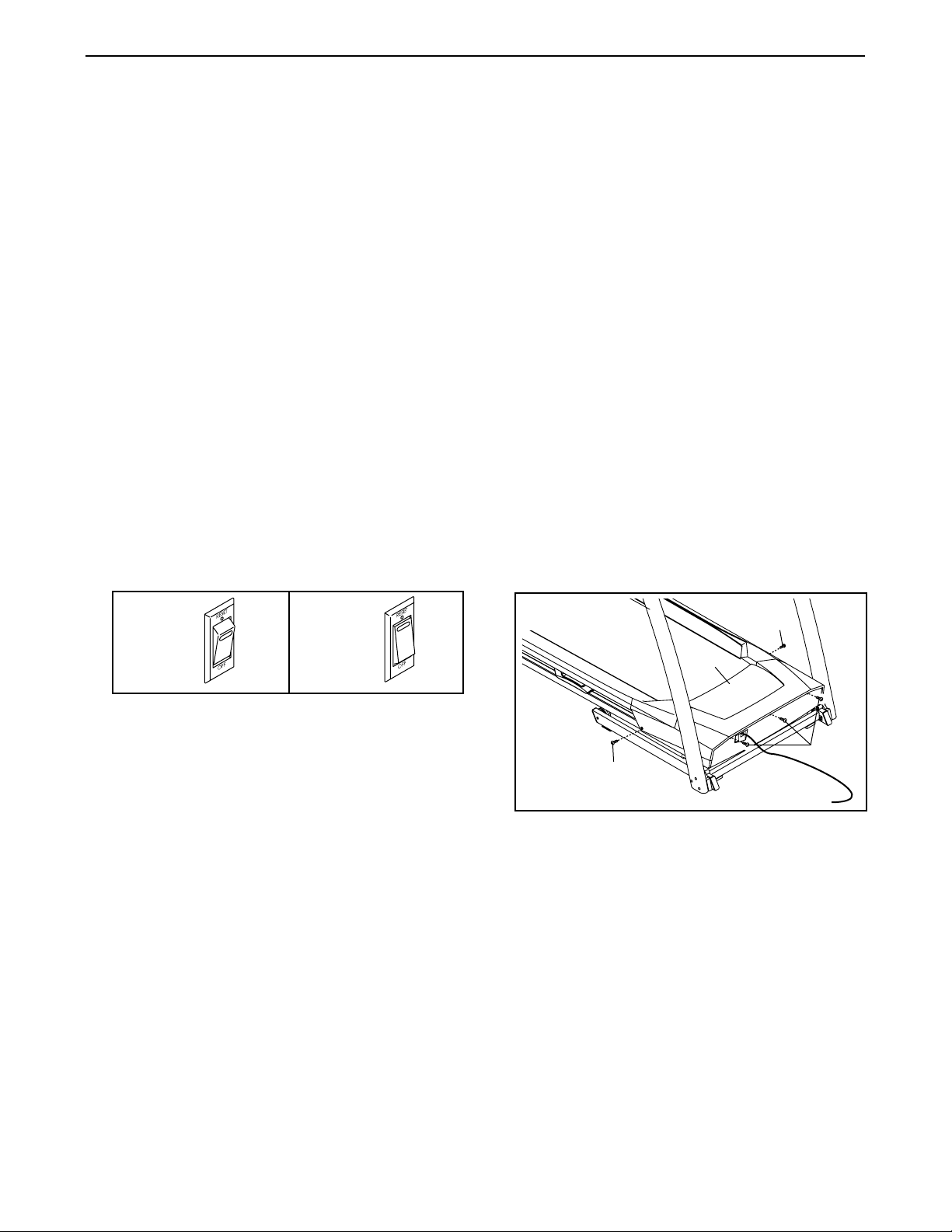

Plug in the power cord (see
page 13). Next, locate the
power switch on the tread­mill frame near the power
cord. Press the power switch
into the reset position.

IMPORTANT: The console features a display demo
mode, designed to be used if the treadmill is dis­played in a store. If the displays light as soon as
you plug in the power cord and press the power
switch into the reset position, the demo mode is
turned on. To turn off the demo mode, hold down
the Stop button for a few seconds. If the displays
remain lit, see THE INFORMATION MODE on page
20 to turn off the demo mode.

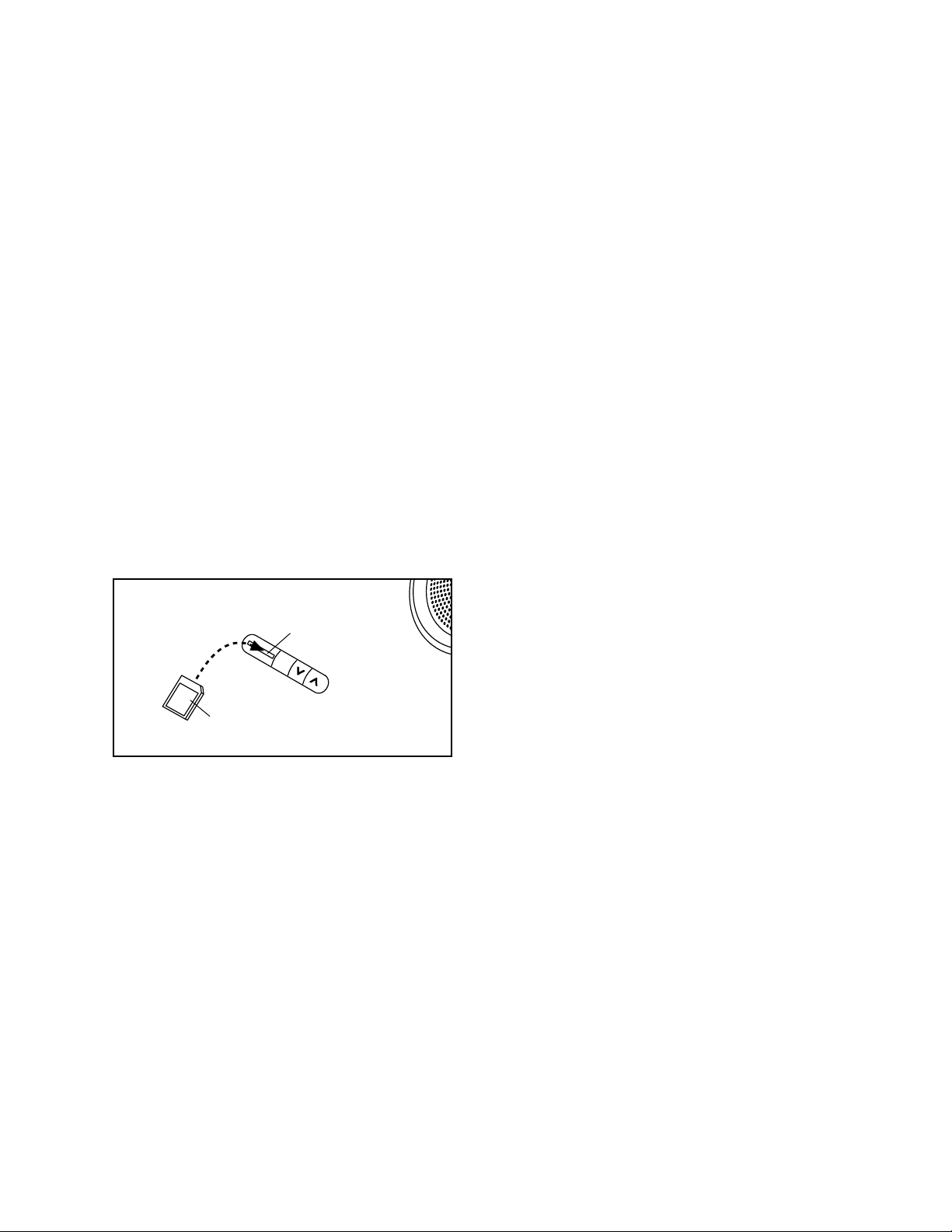

Next, stand on the foot rails of the treadmill. Find the
clip attached to the key (see the drawing on page 14)
and slide the clip onto the waistband of your clothes.
Then, insert the key into the console. After a moment,
the displays will light. IMPORTANT: In an emergency

situation, the key can be pulled from the console,
causing the walking belt to slow to a stop. Test the
clip by carefully taking a few steps backward; if the
key is not pulled from the console, adjust the posi­tion of the clip.

IMPORTANT: If there are sheets of plastic on the
console, remove the plastic. To prevent damage
to the walking platform, wear clean athletic shoes
while using the treadmill. The first time you use
the treadmill, observe the alignment of the walking
belt, and center the walking belt if necessary (see
page 24).

Reset

1. Insert the key into the console.

See HOW TO TURN ON THE POWER at the left.

2. Select the manual mode.

When the key is inserted, the manual mode will be

selected. If a preset workout has been selected,
remove the key and then reinsert it.

3. Enter your weight if desired.

For the most accurate calorie count, enter your

weight into the console by pressing the Wt. in­crease and decrease buttons repeatedly. Note:
Once you have entered your weight, your weight
will be saved in memory.

4. Start the walking belt.

To start the walking belt, press the Start button, the

Speed increase button, or one of the Speed but­tons numbered 1 through 10.

If you press the Start button or the Speed increase

button, the walking belt will begin to move at 1 mph.
As you exercise, change the speed of the walking
belt as desired by pressing the Speed increase and
decrease buttons. Each time you press one of the
buttons, the speed setting will change by 0.1 mph;
if you hold down the button, the speed setting will
change in increments of 0.5 mph. Note: After you
press a button, it may take a moment for the walk­ing belt to reach the selected speed setting.

If you press one of the numbered Speed buttons,

the walking belt will gradually change speed until it
reaches the selected speed setting.

To stop the walking belt, press the Stop button.

The time will begin to flash in the display. To re­start the walking belt, press the Start button or the
Speed increase button.

15

5. Change the incline of the treadmill as desired.

To change the incline of the treadmill, press the

Incline increase or decrease buttons or one of the
numbered Incline buttons. Each time you press
a button, the incline will change by 0.5 percent. If
you press one of the numbered Incline buttons, the
treadmill will adjust to the selected incline setting.
Note: After you press a button, it may take a mo­ment for the treadmill to reach the selected incline
setting.

that you have walked or run, the approximate num­ber of calories that you have burned, or the speed
of the walking belt. Press the Display button re­peatedly until the upper display shows the informa­tion that you are most interested in viewing. Note:
While information is shown in the upper display,
the same information will not be shown in the lower
displays.

To reset the displays, press the Stop button, re-

move the key, and then reinsert the key.

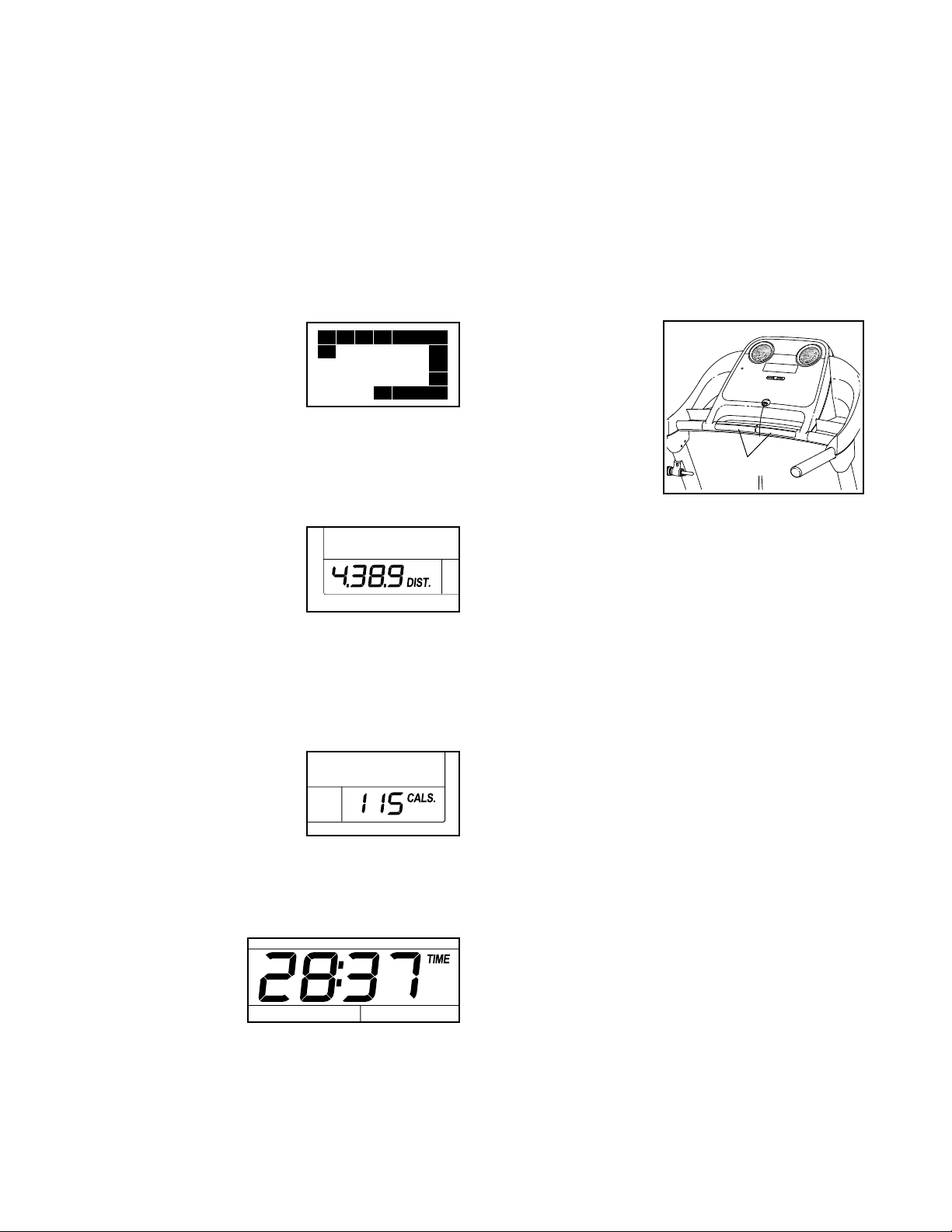

6. Follow your progress with the displays.

The track—When

the manual mode is
selected, a track rep­resenting 1/4 mile (400
m) will appear in the dis­play. As you walk or run
on the treadmill, the indicators around the track will
appear in succession until the entire track appears.
The track will then disappear and the indicators will
again begin to appear in succession.

The lower left dis-

play—As you exercise,

the lower left display can
show the elapsed time
and the distance that
you have walked or run.
The lower left display will also show the incline of
the treadmill each time the incline level changes.
Note: When a workout is selected, the lower left
display will show the time remaining in the workout
instead of the elapsed time.

The lower right dis-

play—The lower right
display can show the
approximate number of
calories that you have
burned and the speed of
the walking belt. The display also shows your heart
rate when you use the handgrip heart rate monitor
(see step 7).

The upper

display—The
upper display
can show the
elapsed time,
the distance

7. Measure your heart rate if desired.

Before using

the handgrip
heart rate moni­tor, remove the
sheets of plastic
from the metal
contacts on the
pulse bar. In ad­dition, make sure
that your hands
are clean.

To measure your heart rate, stand on the foot

rails and hold the pulse bar with your palms on the
metal contacts; avoid moving your hands. When
your pulse is detected, a heart symbol in the lower

right display will ash each time your heart beats,

one or two dashes will appear, and then your heart
rate will be shown. For the most accurate heart

rate reading, continue to hold the contacts for
about 15 seconds.

8. When you are finished exercising, remove the
key from the console.

Step onto the foot rails, press the Stop button, and

adjust the incline of the treadmill to zero. The
incline must be at zero or you may damage the
treadmill when you fold it to the storage posi­tion. Next, remove the key from the console and

put it in a secure place.

When you are finished using the treadmill, press

the power switch into the off position and unplug
the power cord. IMPORTANT: If you do not do

this, the treadmill’s electrical components may

wear prematurely.

Contacts

16

HOW TO USE A CALORIE WORKOUT

1. Insert the key into the console.

See HOW TO TURN ON THE POWER on page 15.

2. Select a calorie workout.

To select a calorie workout, press the Calorie

Workouts button repeatedly until the desired work­out appears in the display.

When you select a calorie workout, the incline level

of the workout will ash in the lower left display, the
speed setting will ash in the lower right display,

and then the workout duration will appear in the
upper display. In addition, a prole of the speed set­tings of the workout will scroll across the display.

3. Enter your weight if desired.

For the most accurate calorie count, enter your

weight into the console by pressing the Wt. in­crease and decrease buttons repeatedly. Note:
Once you have entered your weight, your weight
will be saved in memory.

4. Start the workout.

Press the Start button or the Speed increase button

to start the workout. A moment after you press the
button, the treadmill will automatically adjust to the

rst speed and incline settings of the workout. Hold

the handrails and begin walking.

Each workout is divided into one-minute segments.

One speed setting and one incline setting are
programmed for each segment. Note: The same
speed setting and/or incline setting may be pro­grammed for consecutive segments.

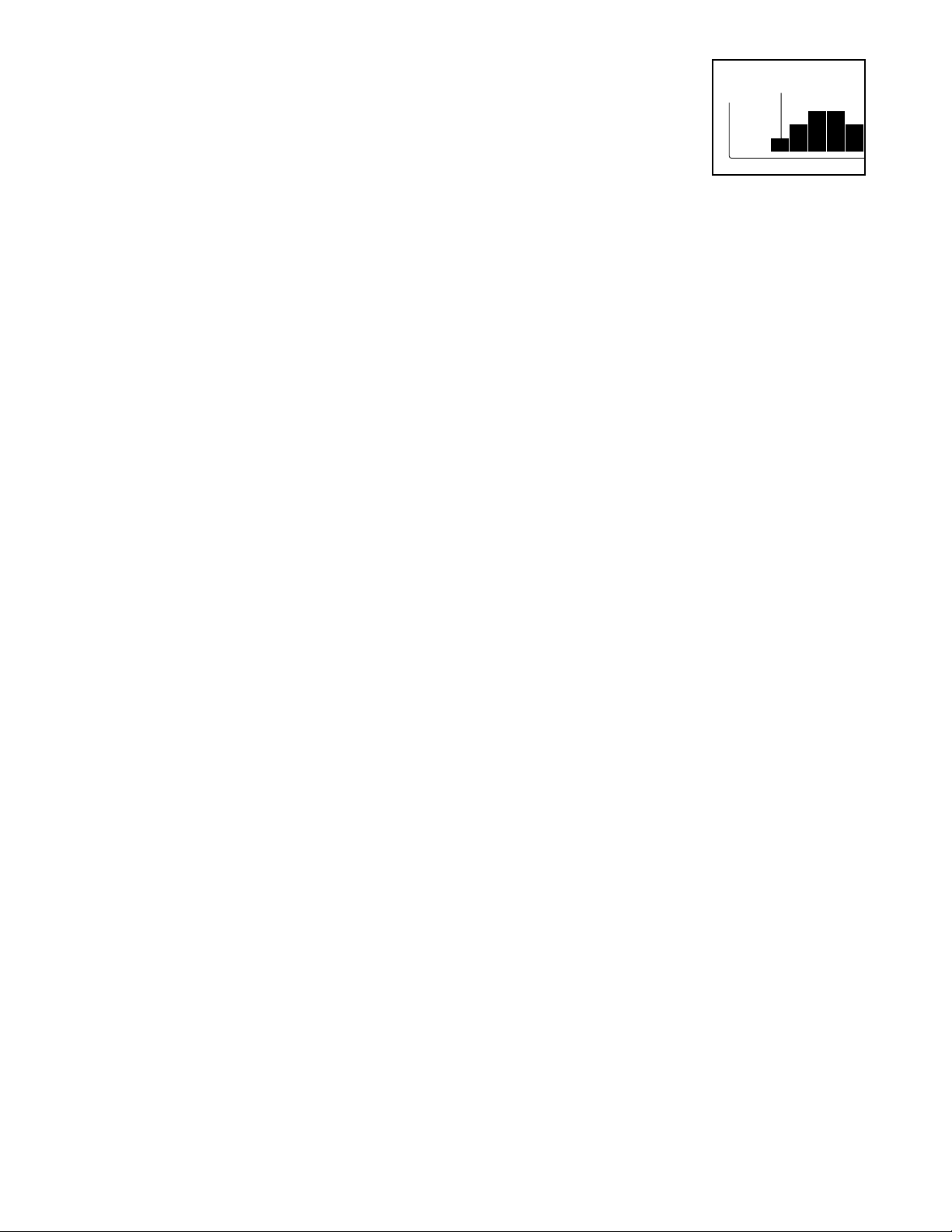

During the workout, the prole will show your prog-

ress. The ashing segment of the prole represents

the current segment of the workout. The height of

the ashing segment indicates the speed setting

for the current segment. At the end of each seg-

ment, a series of tones
will sound. If a different
speed and/or incline set­ting is programmed for
the next segment, the
speed and/or incline set­ting will ash in the dis­play to alert you and the
treadmill will automatically adjust to the new speed
and/or incline setting.

The workout will continue in this way until the last

segment of the prole ashes in the display and the

last segment ends. The walking belt will then slow
to a stop.

If the speed or incline setting is too high or too low

at any time during the workout, you can manu­ally override the setting by pressing the Speed or
Incline buttons; however, when the next segment

of the workout begins, the treadmill will auto­matically adjust to the speed and incline set­tings for the next segment.

To stop the workout at any time, press the Stop

button. To restart the workout, press the Start but­ton or the Speed increase button. The walking belt
will begin to move at 1 mph. When the next seg­ment of the workout begins, the treadmill will auto­matically adjust to the speed and incline settings
for the next segment.

5. Follow your progress with the displays.

See step 6 on page 16.

6. Measure your heart rate if desired.

See step 7 on page 16.

7. When you are nished exercising, remove the

key from the console.

See step 8 on page 16.

Current Segment

17

HOW TO USE A PERFORMANCE WORKOUT

1. Insert the key into the console.

See HOW TO TURN ON THE POWER on page 15.

2. Select a performance workout.

To select a performance workout, press the

Performance Workouts button repeatedly until the
desired workout appears in the display.

When you select a performance workout, the maxi-

mum incline level of the workout will ash in the

lower left display, the maximum speed setting will
ash in the lower right display, and then the work­out duration will appear in the upper display. In ad-

dition, a prole of the speed settings of the workout

will scroll across the display.

3. Enter your weight if desired.

For the most accurate calorie count, enter your

weight into the console by pressing the Wt. in­crease and decrease buttons repeatedly. Note:
Once you have entered your weight, your weight
will be saved in memory.

4. Select the duration of the workout if desired.

If you have selected a performance workout, you

can set the duration of the workout to a time be­tween 15 and 45 minutes, in increments of 5 min­utes. To set the duration of the workout press the
Time increase or decrease button until the desired
time is selected. The new workout settings will ap­pear in the displays.

5. Start the workout.

Press the Start button or the Speed increase button

to start the workout. A moment after you press the
button, the treadmill will automatically adjust to the

rst speed and incline settings of the workout. Hold

the handrails and begin walking.

Each workout is divided into 30 one-minute seg-

ments, unless you have changed the duration of
the workout (see step 4). One speed setting and
one incline setting are programmed for each seg­ment. Note: The same speed setting and/or incline
setting may be programmed for consecutive
segments.

During the workout, the

prole will show your
progress. The ashing
segment of the prole

represents the current
segment of the workout.

The height of the ashing

segment indicates the
speed setting for the current segment. At the end of
each segment, a series of tones will sound. If a dif­ferent speed and/or incline setting is programmed
for the next segment, the speed and/or incline

setting will ash in the display to alert you and the

treadmill will automatically adjust to the new speed
and/or incline setting.

The workout will continue in this way until the last

segment of the prole ashes in the display and the

last segment ends. The walking belt will then slow
to a stop.

If the speed or incline setting is too high or too low

at any time during the workout, you can manu­ally override the setting by pressing the Speed or
Incline buttons; however, when the next segment

of the workout begins, the treadmill will auto­matically adjust to the speed and incline set­tings for the next segment.

To stop the workout at any time, press the Stop

button. To restart the workout, press the Start but­ton or the Speed increase button. The walking belt
will begin to move at 1 mph. When the next seg­ment of the workout begins, the treadmill will auto­matically adjust to the speed and incline settings
for the next segment.

6. Follow your progress with the displays.

See step 6 on page 16.

7. Measure your heart rate if desired.

See step 7 on page 16.

8. When you are nished exercising, remove the

key from the console.

See step 8 on page 16.

Current Segment

18

HOW TO USE AN IFIT WORKOUT

3. Start the workout.

To purchase iFit cards, go to www.iFit.com or call the
telephone number on the front cover of this manual.
iFit cards are also available at select stores.

1. Insert the key into the console.

See HOW TO TURN ON THE POWER on page

15.

2. Insert an iFit card and select a workout.

To use an iFit workout, insert an iFit card into the

iFit slot; make sure that the iFit card is oriented so
the metal contacts are face-down and are inserted
into the iFit slot.

Next, select an iFit workout by pressing the iFit in-

crease or decrease button. When an iFit workout is
selected, the maximum incline level of the workout

will ash in the lower left display, the maximum
speed setting will ash in the lower right display,

and then the workout duration will appear in the

upper display. In addition, a prole of the speed

settings of the workout will scroll across the
display.

Press the Start button or the Speed increase but-

ton to start the workout. A moment after you press
the button, the treadmill will automatically adjust to

the rst speed and incline settings of the workout.

Hold the handrails and begin walking.

During the workout, a personal trainer will guide

you through the workout.

If the speed or incline setting for the current seg-

ment is too high or too low, you can override the
setting by pressing the Speed or Incline buttons;

however, when the next segment begins, the
treadmill will automatically adjust to the speed
and incline settings for the next segment.

To stop the workout at any time, press the Stop

button. To restart the workout, press the Start but­ton. The walking belt will begin to move at 1 mph.
When the next segment of the workout begins, the
treadmill will automatically adjust to the speed and
incline settings for the next segment.

4. Follow your progress with the displays.

See step 6 on page 16.

iFit Slot

iFit Card

Each iFit workout is divided into several one-min-

ute segments. One speed setting and one incline
setting are programmed for each segment. Note:
The same speed setting and/or incline setting may
be programmed for consecutive segments.

5. Measure your heart rate if desired.

See step 7 on page 16.

6. When you are finished exercising, remove the
key from the console.

See step 8 on page 16.

CAUTION: Always remove iFit cards from the

iFit slot when you are not using them.

19

THE INFORMATION MODE

The console features an information mode that keeps
track of the total distance that the walking belt has
moved and the total number of hours that the treadmill
has been used. The information mode also allows you
to select a measurement system of miles or kilometers,
and to turn on and turn off the display demo mode.

To select the information mode, hold down the Stop
button while inserting the key into the console and then
release the Stop button. When the information mode is
selected, the following information will be shown:

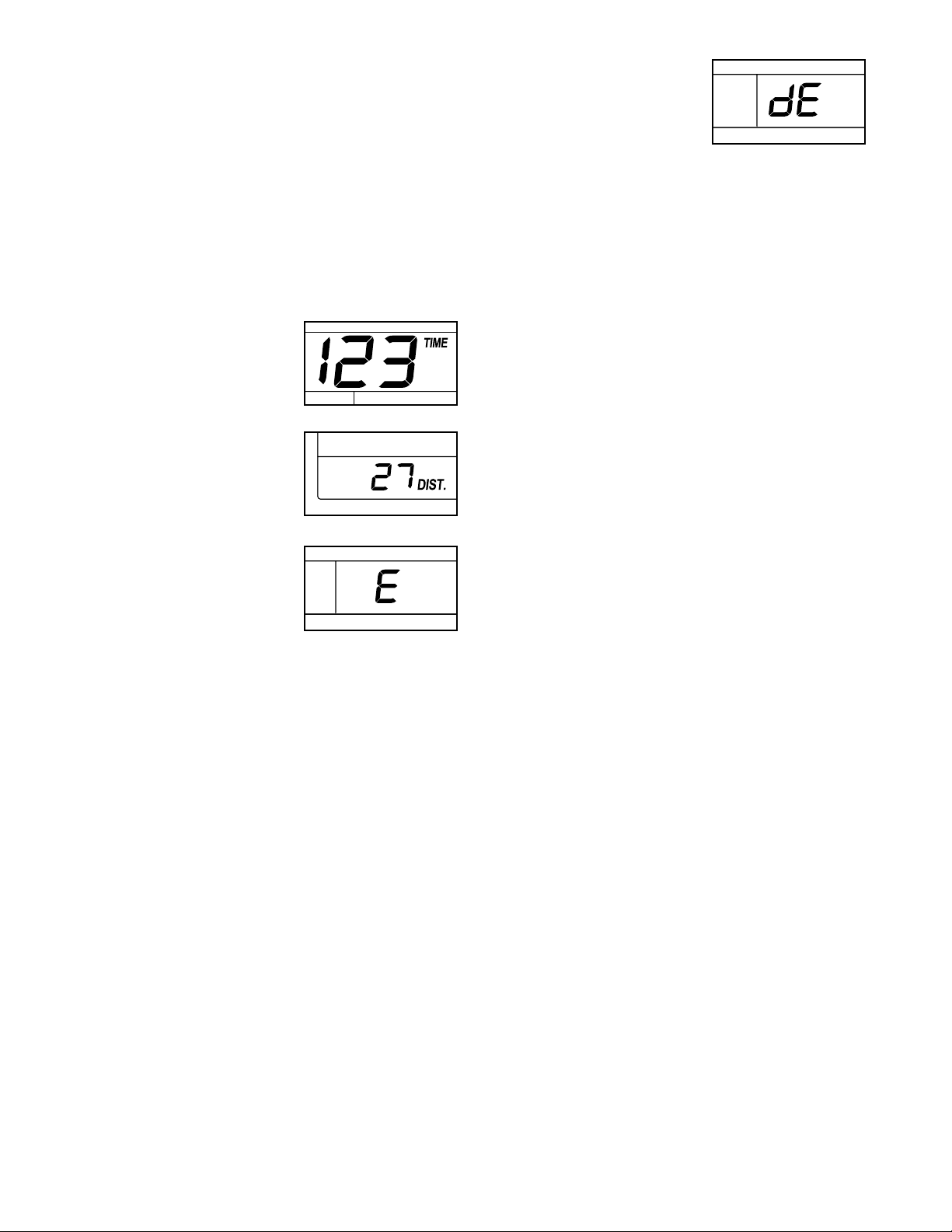

The upper display will show
the total number of hours
the treadmill has been used.

The lower left display will
show the total number of
miles (or kilometers) that
the walking belt has moved.

An “E” for English miles or
an “M” for metric kilometers
will appear in the lower right
display. Press the Speed
increase button to change
the unit of measurement if
desired.

The console features a display demo mode, designed
to be used if the treadmill is displayed in a store. While
the demo mode is turned on, the console will function
normally when you plug in the power cord, press the

power switch into the reset
position, and insert the key
into the console. However,
when you remove the key,
the displays will remain lit,
although the buttons will not
function. If the demo mode
is turned on, a “d” will appear in the lower right display
while the information mode is selected. To turn on or
turn off the demo mode, press the Speed decrease
button.

To exit the information mode, remove the key from the
console.

HOW TO USE THE SOUND SYSTEM

To play music or audio books through the console’s

stereo speakers, you must connect your MP3 player,
CD player, or other personal audio player to the con­sole through the MP3 jack.

To use the audio jack, plug your audio wire into the
audio jack on the top of the console. Then plug your
audio wire into a jack on your MP3 player, CD player,
or other personal audio player. Make sure that your
audio wire is fully plugged in.

Next, press the play button on your MP3 player, CD
player, or other personal audio player. Adjust the vol­ume on your personal audio player.

If you are using a personal CD player and the CD
skips, set the CD player on the oor or another at sur­face instead of on the console.

20

HOW TO FOLD AND MOVE THE TREADMILL

HOW TO FOLD THE TREADMILL

Before folding the treadmill, adjust the incline to
zero position. If you do not do this, you may damage
the treadmill when you fold it. Remove the key and
unplug the power cord. CAUTION: You must be able
to safely lift 45 lbs. (20 kg) to raise, lower, or move
the treadmill.

1. Hold the metal frame rmly in the location shown

by the arrow below. CAUTION: Do not hold the
frame by the plastic foot rails. Bend your legs
and keep your back straight.

1

Frame

HOW TO MOVE THE TREADMILL

Before moving the treadmill, fold it as described at the
left. CAUTION: Make sure that the latch pin is fully

inserted into the platform cushion. Moving the
treadmill may require two people.

1. Hold the frame and one of the handrails, and place
one foot against a wheel.

1

Frame

Handrail

Wheel

2. Hold the frame rmly with your right hand. Pull the
latch knob to the left and hold it. Raise the frame
until the hole in the platform cushion is aligned with
the latch pin. Then, slowly release the latch knob;

make sure that the latch pin is fully inserted
into the platform cushion.

2

Latch
Knob

Latch Pin

Platform Cushion

To protect the oor or carpet, place a mat under the

treadmill. Keep the treadmill out of direct sunlight.
Do not leave the treadmill in the storage position in
temperatures above 85° F (30° C).

Engaged

2. Pull back on the handrail until the treadmill will roll
on the wheels, and carefully move it to the desired
location. CAUTION: Do not move the treadmill

without tipping it back, do not pull on the frame,
and do not move the treadmill over an uneven
surface.

3. Place one foot against a wheel, and carefully lower
the treadmill.

HOW TO LOWER THE TREADMILL FOR USE

1. See drawing 2. Hold the upper end of the treadmill
with your right hand. Pull the latch knob to the left
and hold it. Next, lower the frame until it is past
the latch pin. Make sure that the pin does not hit
against the foot rail. Then, release the latch knob.

2. See drawing 1 at the left. Hold the metal frame

rmly with both hands, and lower it to the oor.

CAUTION: Do not hold the frame by the plastic
foot rails, and do not drop the frame. Bend your
legs and keep your back straight.

21

TROUBLESHOOTING

Most treadmill problems can be solved by following
the simple steps below. Find the symptom that
applies, and follow the steps listed. If further assis­tance is needed, see the front cover of this manual.

SYMPTOM: The power does not turn on

a. Make sure that the power cord is plugged into a

surge suppressor and that the surge suppressor
is plugged into a properly-grounded outlet (see
page 13). Use only a surge suppressor that meets
all of the specications described on page 13.

IMPORTANT: The treadmill is not compatible
with GFCI-equipped outlets and may not be
compatible with AFCI-equipped outlets.

b. After the power cord has been plugged in, make

sure that the key is inserted into the console.

c. Check the power switch located on the treadmill

frame near the power cord. If the switch protrudes
as shown, the switch has tripped. To reset the

power switch, wait for ve minutes and then press

the switch back in.

c. Remove the key from the console, and then

reinsert it.

d. If the treadmill still will not run, please see the front

cover of this manual.

SYMPTOM: The console displays remain lit when
you remove the key from the console

a. The console features a display demo mode, de-

signed to be used if the treadmill is displayed in a
store. If the displays remain lit when you remove
the key, the demo mode is turned on. To turn off
the demo mode, hold down the Stop button for a
few seconds. If the displays are still lit, see THE
INFORMATION MODE on page 20 to turn off the
demo mode.

SYMPTOM: The displays of the console do not
function properly

a. Remove the key from the console and UNPLUG

THE POWER CORD. Next, remove the ve indi-

cated #8 x 3/4" Screws (4).

c

Tripped

SYMPTOM: The power turns off during use

a. Check the power switch (see the drawing above).

If the switch has tripped, wait for ve minutes and

then press the switch back in.

b. Make sure that the power cord is plugged in. If the

power cord is plugged in, unplug it, wait for ve

minutes, and then plug it back in.

Reset

a

4

48

4

4

Carefully lift the Motor Hood (48) upward, and then

slide it forward and off. Make sure that the Motor
Hood does not get caught by the tabs on the sides
of the Motor Hood.

22

Locate the Reed Switch (33) and the Magnet (32)

on the right side of the Pulley (31). Turn the Pulley
until the Magnet is aligned with the Reed Switch.

Make sure that the gap between the Magnet
and the Reed Switch is about 1/8 in. (3 mm).

If necessary, loosen the #8 x 3/4" Truss Head
Screw (14), move the Reed Switch slightly, and
then retighten the Screw. Carefully slide the Motor
Hood (not shown) back on by lining up the guides.
Reattach the Motor Hood with the ve #8 x 3/4"
Screws (not shown). Then, plug in the power cord,
insert the key, and run the treadmill for a few min­utes to check for a correct speed reading.

Front

View

1/8 in.

32

31

33

14

b. If the walking belt is overtightened, treadmill per-

formance may decrease and the walking belt may
become damaged. Remove the key and UNPLUG
THE POWER CORD. Using the hex key, turn both
idler roller screws counterclockwise, 1/4 of a turn.
When the walking belt is properly tightened, you
should be able to lift each edge of the walking belt
2 to 3 in. (5 to 7 cm) off the walking platform. Be
careful to keep the walking belt centered. Then,
plug in the power cord, insert the key, and run the
treadmill for a few minutes. Repeat until the walk­ing belt is properly tightened.

b

2–3 in.

SYMPTOM: The incline of the treadmill does not
change correctly

a. Hold down the Stop button and the Speed increase

button, insert the key into the console, and then
release the Stop button and the Speed increase
button. Press the Stop button and then press the
Incline increase or decrease button. The treadmill
will automatically rise to the maximum incline level
and then return to the minimum level. This will re­calibrate the incline system. If the incline does not
begin calibrating, press the Stop button again, and
then press the Incline increase or decrease button
again. When the incline is calibrated, remove the
key from the console.

SYMPTOM: The walking belt slows when walked on

a. Use only a surge suppressor that meets all of the

specications described on page 13.

Idler Roller Screws

c. Your treadmill features a walking belt coated with

high-performance lubricant. IMPORTANT: Never

apply silicone spray or other substances to the
walking belt or the walking platform unless in­structed to do so by an authorized service rep­resentative. Such substances may deteriorate
the walking belt and cause excessive wear. If

you suspect that the walking belt needs more lubri­cant, see the front cover of this manual.

d. If the walking belt still slows when walked on, see

the front cover of this manual.

23

SYMPTOM: The walking belt is off-center or slips
when walked on

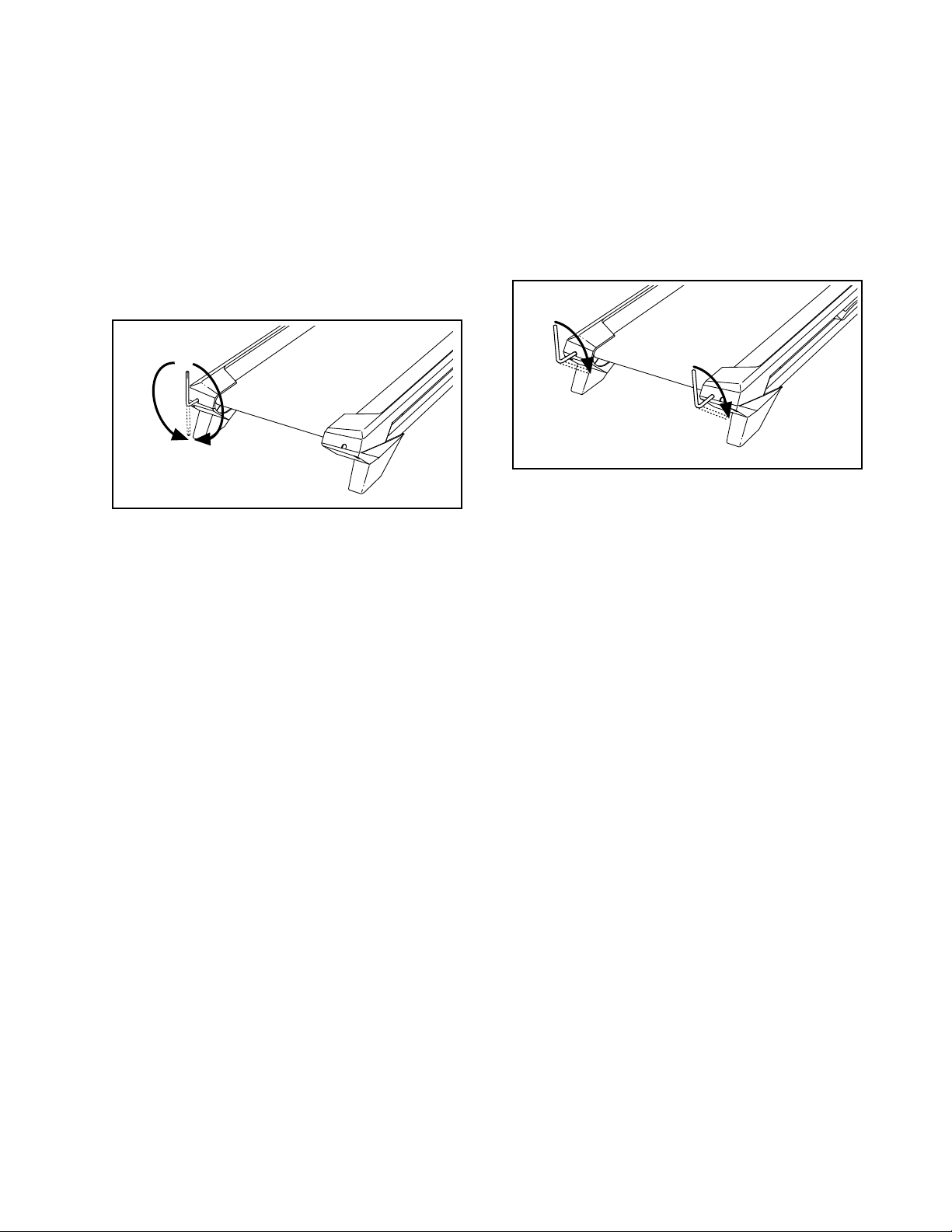

a. If the walking belt is off-center, rst remove the

key and UNPLUG THE POWER CORD. If the
walking belt has shifted to the left, use the hex
key to turn the left idler roller screw clockwise 1/2
of a turn; if the walking belt has shifted to the
right, turn the left idler roller screw counterclock­wise 1/2 of a turn. Be careful not to overtighten the
walking belt. Then, plug in the power cord, insert
the key, and run the treadmill for a few minutes.
Repeat until the walking belt is centered.

a

b. If the walking belt slips when walked on, rst re-

move the key and UNPLUG THE POWER CORD.
Using the hex key, turn both idler roller screws
clockwise, 1/4 of a turn. When the walking belt is
correctly tightened, you should be able to lift each
edge of the walking belt 2 to 3 in. (5 to 7 cm) off
the walking platform. Be careful to keep the walk­ing belt centered. Then, plug in the power cord,
insert the key, and carefully walk on the treadmill
for a few minutes. Repeat until the walking belt is
properly tightened.

b

24

EXERCISE GUIDELINES

WARNING: Before beginning this

or any exercise program, consult your physi­cian. This is especially important for persons
over age 35 or persons with pre-existing
health problems.

The heart rate monitor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The heart rate monitor is
intended only as an exercise aid in determin­ing heart rate trends in general.

These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper inten­sity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.

Burning Fat—To burn fat effectively, you must exer­cise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.

Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until your
heart rate is near the highest number in your training
zone.

WORKOUT GUIDELINES

Warming Up—Start with 5 to 10 minutes of stretch-

ing and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.

Training Zone Exercise—Exercise for 20 to 30 min­utes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise; never hold your breath.

To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the near­est ten years). The three numbers listed above your
age define your "training zone." The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.

Cooling Down—Finish with 5 to 10 minutes of stretch­ing. Stretching increases the flexibility of your muscles
and helps to prevent post-exercise problems.

EXERCISE FREQUENCY

To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exer­cise, you may complete up to five workouts each week,
if desired. Remember, the key to success is to make
exercise a regular and enjoyable part of your everyday
life.

25

SUGGESTED STRETCHES

The correct form for several basic stretches is shown at the right. Move slowly as you stretch —never bounce.

1. Toe Touch Stretch

Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach down
toward your toes as far as possible. Hold for 15 counts, then relax.
Repeat 3 times. Stretches: Hamstrings, back of knees and back.

2. Hamstring Stretch

Sit with one leg extended. Bring the sole of the opposite foot toward
you and rest it against the inner thigh of your extended leg. Reach
toward your toes as far as possible. Hold for 15 counts, then relax.
Repeat 3 times for each leg. Stretches: Hamstrings, lower back and
groin.

3. Calf/Achilles Stretch

With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your back foot

at on the oor. Bend your front leg, lean forward and move your

hips toward the wall. Hold for 15 counts, then relax. Repeat 3 times
for each leg. To cause further stretching of the achilles tendons,
bend your back leg as well. Stretches: Calves, achilles tendons and
ankles.

4. Quadriceps Stretch

1

2

3

4

With one hand against a wall for balance, reach back and grasp one
foot with your other hand. Bring your heel as close to your buttocks
as possible. Hold for 15 counts, then relax. Repeat 3 times for each
leg. Stretches: Quadriceps and hip muscles.

5. Inner Thigh Stretch

Sit with the soles of your feet together and your knees outward.
Pull your feet toward your groin area as far as possible. Hold for 15
counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip
muscles.

5

26

PART LIST

Key No. Qty. Description Key No. Qty. Description

Model No. PFTL59010.1 R0914A

1 8 #8 x 1/2" Ground Screw
2 6 3/8" x 3 1/4" Screw
3 6 3/8" Star Washer
4 15 #8 x 3/4" Screw
5 6 M8 x 25mm Screw
6 8 M8 Star Washer
7 4 #8 x 1" Screw
8 2 1/4" Star Washer
9 2 3/8" x 2 1/2" Bolt
10 1 1/4" Nut
11 3 1/4" x 2 1/2"
12 2 3/8" x 1" Bolt
13 3 Hood Clip
14 19 #8 x 3/4" Truss Head Screw
15 1 3/8" x 1 3/4" Bolt
16 6 3/8" Jam Nut
17 2 1/4" Motor Screw
18 4 #8 x 1/2" Screw
19 4 5/16" x 1 1/2" Bolt
20 4 5/16" Nut
21 2 Handrail Cap
22 2 #8 Star Washer
23 2 M5 x 16mm Screw
24 2 Drive Roller Washer
25 2 1/4" x 1 1/4" Screw
26 2 Incline Frame Washer
27 1 Left Foot Rail
28 2 Platform Cushion
29 1 Caution Decal
30 2 Belt Guide
31 1 Drive Roller/Pulley
32 1 Magnet
33 1 Reed Switch
34 1 Reed Switch Clamp
35 1 Drive Motor
36 1 Controller
37 1 Controller Plate
38 1 Frame
39 1 Walking Platform
40 1 Walking Belt
41 1 Right Foot Rail
42 1 Idler Roller
43 1 Left Rear Foot
44 1 Console Clamp
45 1 Hood Accent
46 1 Right Rear Foot
47 1 Console Ground Wire

48 1 Motor Hood
49 1 Incline Motor
50 2 Lift Frame Bushing
51 1 Lift Frame
52 1 Belly Pan
53 1 Power Cord Grommet
54 1 Power Cord
55 1 Power Switch
56 4 M4.2 x 16mm Screw
57 1 Console
58 1 Console Base
59 1 Left Handrail
60 1 Right Tray
61 1 Console Frame
62 1 Key/Clip
63 1 Upright Wire
64 1 Right Handrail
65 8 M4.2 x 10mm Screw
66 1 Left Upright
67 2 1/4" Star Washer
68 1 Latch Pin Assembly
69 2 Warning Decal
70 4 Base Cap
71 2 Thick Base Pad
72 2 Thin Base Pad
73 1 Upright Grommet
74 1 Base
75 2 Wheel
76 1 Right Upright
77 2 Lift Frame Pin
78 2 M4.2 x 16mm Screw
79 4 5/16" x 5/8" Screw
80 9 M4.2 x 19mm Screw
81 2 Wire Tie
82 1 Pulse Crossbar
83 2 Console Clamp
84 2 M4 x 45mm Screw
85 2 M8 Cage Nut
86 2 #10 x 1/2" Screw
87 8 #10 Flat Washer
88 1 Left Upright Cover
89 1 Right Upright Cover
90 1 Left Tray
91 8 M4.2 x 19mm Tek Screw
92 1 3/8" x 1 1/2" Bolt

* – User’s Manual

Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.

27

EXPLODED DRAWING A

38

Model No. PFTL59010.1 R0914A

4

35

36

33

25

37

44

1

22

17

14

34

1

24

32

77

19

20

1

1

11

24

19

31

25

10

39

40

77

20

87

30

87

18

14

14

14

14

87

28

14

87

41

14

30

27

18

87

14

14

87

28

14

14

87

29

14

87

14

19

67

11

19

20

42

43

14

67

14

20

11

14

14

14

46

14

28

EXPLODED DRAWING B

Model No. PFTL59010.1 R0914A

13

13

4

45

48

4

26

16

50

16

51

16

15

49

16

92

26

13

50

4

52

4

4

4

4

53

4

1

55

4

4

54

29

EXPLODED DRAWING C

88

56

5

6

Model No. PFTL59010.1 R0914A

68

9

86

79

66

12

2

3

69

71

74

56

89

63

5

79

6

70

76

91

12

70

73

70

72

91

75

16

70

16

75

72

91

69

63

9

30

1

91

3

71

2

EXPLODED DRAWING D

78

81

Model No. PFTL59010.1 R0914A

57

65

65

47

62

58

65

80

90

1

65

84

80

80

82

80

80

84

80

65

60

65

65

65

61

21

59

80

31

8

23

85

83

6

5

21

64

7

83

7

6

85

8

23

5

ORDERING REPLACEMENT PARTS

To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:

• the model number and serial number of the product (see the front cover of this manual)

• the name of the product (see the front cover of this manual)

• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED DRAWING
near the end of this manual)

LIMITED WARRANTY

IMPORTANT: You must register this product within 30 days of the purchase date to avoid added
fees for service needed under warranty. Go to www.proformservice.com/registration.

ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and
material, under normal use and service conditions. The drive motor is warranted for ten (10) years from the
date of purchase. Parts and labor are warranted for ninety (90) days from the date of purchase.

This warranty extends only to the original purchaser (customer). ICON’s obligation under this warranty is
limited to repairing or replacing, at ICON’s option, the product through one of its authorized service centers.

All repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped

to a service center, freight charges to and from the service center will be the customer’s responsibility. If

replacement parts are shipped while the product is under warranty, the customer will be responsible for a
minimal handling charge. For in-home service, the customer will be responsible for a minimal trip charge.
This warranty does not extend to freight damage to the product. This warranty will automatically be voided
if the product is used as a store display model, if the product is purchased or transported outside the USA,
if all instructions in this manual are not followed, if the product is abused or improperly or abnormally used,

or if the product is used for commercial or rental purposes. No other warranty beyond that specically set

forth above is authorized by ICON.

ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in con­nection with the use or performance of the product; damages with respect to any economic loss, loss of

property, loss of revenues or prots, loss of enjoyment or use, or costs of removal or installation; or other

consequential damages of any kind. Some states do not allow the exclusion or limitation of incidental or
consequential damages. Accordingly, the above limitation may not apply to the customer.

The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of

merchantability or tness for a particular purpose are limited in their scope and duration to the terms set

forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to the customer.

This warranty provides specic legal rights; the customer may have other rights that vary from state to state.

ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813

Part No. 365729 R0914A Printed in China © 2014 ICON Health & Fitness, Inc.
