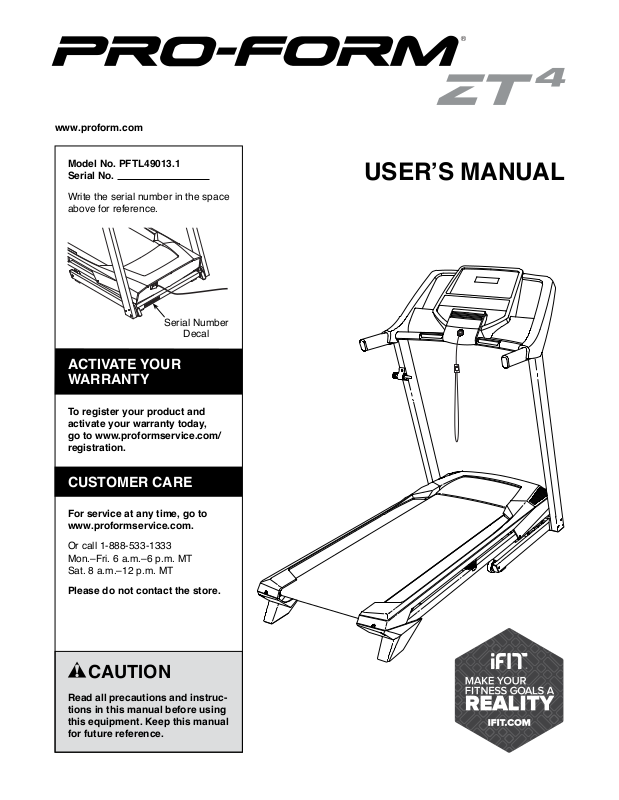

ProForm PFTL490131 User Manual

Download

Page 1

www.proform.com

Model No. PFTL49013.1 Serial No.

Write the serial number in the space above for reference.

Serial Number

Decal

ACTIVATE YOUR WARRANTY

To register your product and activate your warranty today, go to www.proformservice.com/ registration.

USER’S MANUAL

CUSTOMER CARE

For service at any time, go to www.proformservice.com.

Or call 1-888-533-1333 Mon.–Fri. 6 a.m.–6 p.m. MT Sat. 8 a.m.–12 p.m. MT

Please do not contact the store.

CAUTION

Read all precautions and instructions in this manual before using this equipment. Keep this manual for future reference.

Page 2

TABLE OF CONTENTS

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS ..................................................................3

BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

HOW TO USE THE TREADMILL ..............................................................14

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

MAINTENANCE AND TROUBLESHOOTING .....................................................21

EXERCISE GUIDELINES ....................................................................23

PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

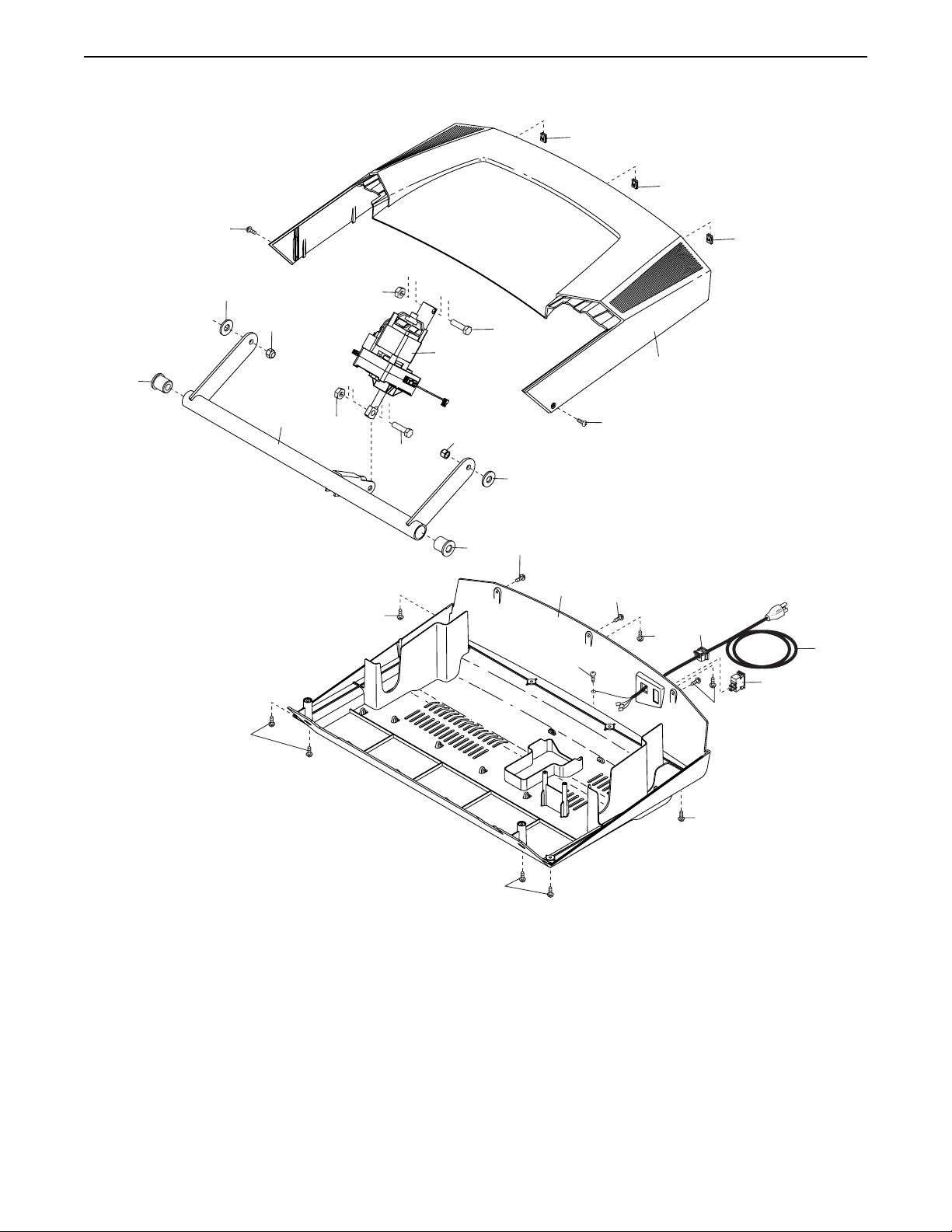

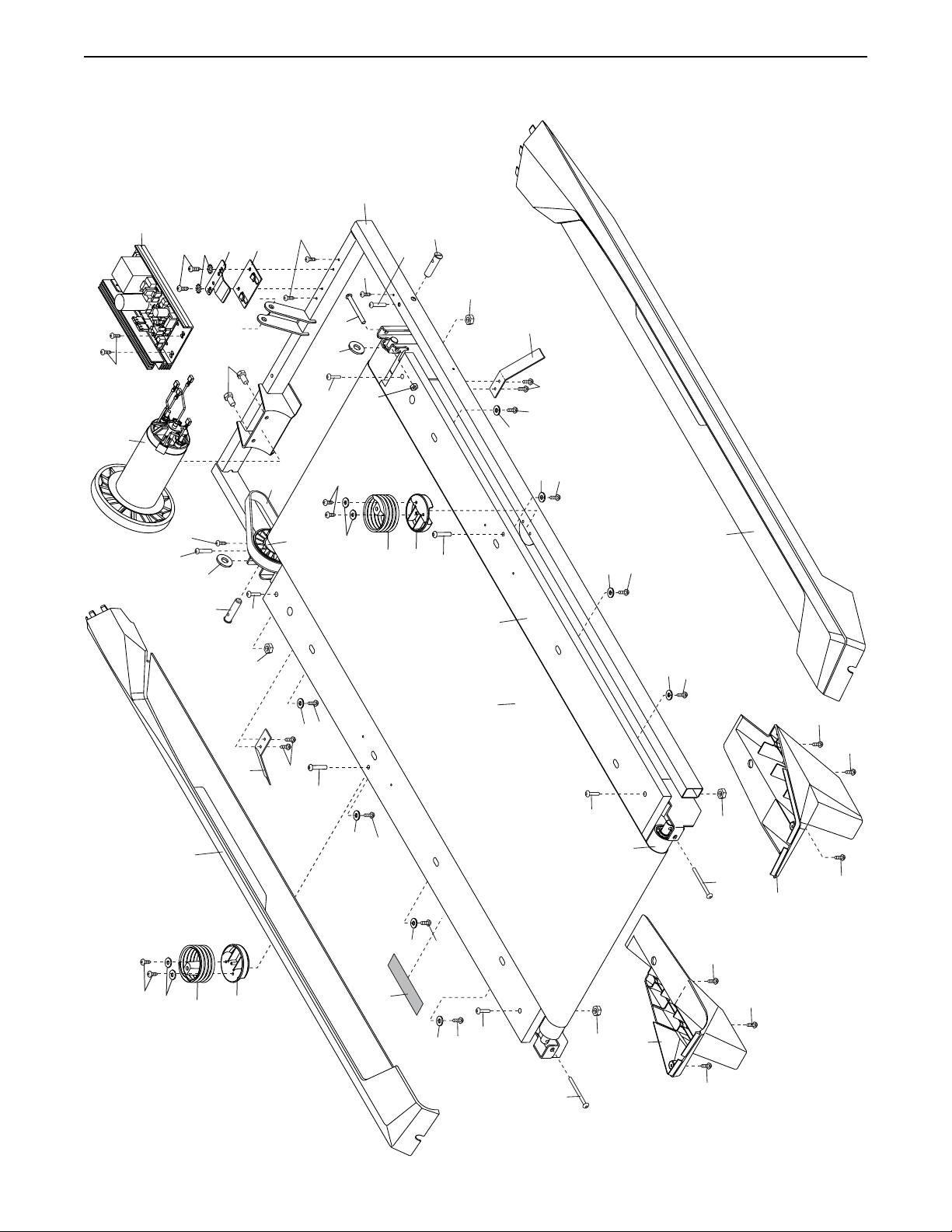

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

WARNING DECAL PLACEMENT

This drawing shows the locations of the warning decals. If a decal is missing

or illegible, call the telephone number on the front cover of this manual and request a free replacement decal. Apply the decal in the location shown. Note:

The decals may not be shown at actual size.

PROFORM is a registered trademark of ICON Health & Fitness, Inc.

Page 3

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read

all important precautions and instructions in this manual and all warnings on your treadmill before using your treadmill. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.

1. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings and precautions.

2. Before beginning any exercise program, consult your physician. This is especially important for persons over age 35 or persons with pre-existing health problems.

3. Use the treadmill only as described in this manual.

4. The treadmill is intended for home use only. Do not use the treadmill in any commercial, rental, or institutional setting.

5. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a garage or covered patio, or near water.

6. Place the treadmill on a level surface, with at least 8 ft. (2.4 m) of clearance behind it and 2 ft. (0.6 m) on each side. Do not place the treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.

7. Do not operate the treadmill where aerosol products are used or where oxygen is being administered.

8. Keep children under age 12 and pets away from the treadmill at all times.

12. Plug the power cord into a surge suppressor (not included), and plug the surge suppressor into an appropriate outlet (see page 14). To avoid overloading the circuit, do not plug other electrical devices, except for low-power devices such as cell phone chargers, into the surge suppressor or into an outlet on the same circuit.

13. Use only a surge suppressor that meets all of the specifications described on page 14. To purchase a surge suppressor, see your local PROFORM dealer, call the telephone number on the front cover of this manual, or see your local electronics store.

14. Failure to use a properly functioning surge suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may slow, accelerate, or stop unexpectedly, which may result in a fall and serious injury.

15. Keep the power cord and the surge suppressor away from heated surfaces.

16. Never move the walking belt while the power is turned off. Do not operate the treadmill if the power cord or plug is damaged, or if the treadmill is not working properly. (See MAINTENANCE AND TROUBLESHOOTING on page 21 if the treadmill is not working properly.)

9. The treadmill should be used only by persons weighing 300 lbs. (136 kg) or less.

10. Never allow more than one person on the treadmill at a time.

11. Wear appropriate exercise clothes while using the treadmill. Do not wear loose clothes that could become caught in the treadmill. Athletic support clothes are recommended for both men and women. Always

wear athletic shoes. Never use the treadmill with bare feet, wearing only stockings, or in sandals.

17. Read, understand, and test the emergency stop procedure before using the treadmill (see HOW TO TURN ON THE POWER on page 16). Always wear the clip while using the treadmill.

18. Always stand on the foot rails when starting or stopping the walking belt. Always hold the handrails while using the treadmill.

19. When a person is walking on the treadmill, the noise level of the treadmill will increase.

Page 4

20. Keep fingers, hair, and clothing away from the moving walking belt.

21. The treadmill is capable of high speeds. Adjust the speed in small increments to avoid sudden jumps in speed.

25. When folding or moving the treadmill, make sure that the storage latch is holding the frame securely in the storage position.

26. Do not change the incline of the treadmill by placing objects under the treadmill.

22. The heart rate monitor is not a medical device. Various factors, including the user’s movement, may affect the accuracy of heart rate readings. The heart rate monitor is intended only as an exercise aid in determining heart rate trends in general.

23. Never leave the treadmill unattended while it is running. Always remove the key, press the power switch into the off position (see the drawing on page 6 for the location of the power switch), and unplug the power cord when the treadmill is not in use.

24. Do not attempt to move the treadmill until it is properly assembled. (See ASSEMBLY on page 8 and HOW TO FOLD AND MOVE THE TREADMILL on page 20.) You must be able to safely lift 45 lbs. (20 kg) to move the treadmill.

SAVE THESE INSTRUCTIONS

27. Never insert any object into any opening on the treadmill.

28. Inspect and properly tighten all parts of the treadmill regularly.

29. DANGER: Always unplug the power

cord immediately after use, before cleaning the treadmill, and before performing the maintenance and adjustment procedures described in this manual. Never remove the motor hood unless instructed to do so by an authorized service representative. Servicing other than the procedures in this manual should be performed by an authorized service representative only.

30. Over exercising may result in serious injury or death. If you feel faint, if you become short of breath, or if you experience pain while exercising, stop immediately and cool down.

Page 5

STANDARD SERVICE PLANS

all

Page 6

BEFORE YOU BEGIN

Thank you for selecting the new PROFORM® ZT4 treadmill. The ZT4 treadmill provides an impressive selection of features designed to make your workouts at home more effective and enjoyable.

For your benefit, read this manual carefully before you use the treadmill. If you have questions after

reading this manual, please see the front cover of this

Length: 5 ft. 10 in. (178 cm) Width: 2 ft. 9 in. (84 cm)

Handrail

Storage Latch

manual. To help us assist you, note the product model number and serial number before contacting us. The model number and the location of the serial number decal are shown on the front cover of this manual.

Before reading further, please familiarize yourself with the parts that are labeled in the drawing below.

Console

Accessory Tray

Heart Rate Monitor

Key/Clip

Walking Belt

Foot Rail

Idler Roller Adjustment Screws

Motor Hood

Power Switch

Power Cord

Wheel

Platform Cushion

Page 7

PART IDENTIFICATION CHART

Use the drawings below to identify small parts used for assembly. The number in parentheses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the key number is the quantity used for assembly. Note: If a part is not in the hardware kit, check to see whether it is

preattached. Extra parts may be included.

Washer (23)–4

#8 x 1/2" Ground

Screw (1)–1

5/16" x 3/4"

Screw (5)–2

#10 Star

5/16" Star

Washer (6)–4

#8 x 3/4" Screw

(4)–10

5/16" x 3" Screw (7)–2

3/8" x 3 1/4" Screw (2)–6

3/8" Star

Washer (3)–6

#10 x 3/4" Screw

(8)–6

Page 8

ASSEMBLY

• To hire an authorized service technician to assemble the treadmill, call 1-800-445-2480.

• Assembly requires two persons.

• Place all parts in a cleared area and remove the packing materials. Do not dispose of the packing

materials until you nish all assembly steps.

• After shipping, there may be an oily substance on the exterior of the treadmill. This is normal. If there is an oily substance on the treadmill, wipe it off with a soft cloth and a mild, non-abrasive cleaner.

1. Go to www.proformservice.com/

registration on your computer and register your product.

• activates your warranty

• saves you time if you ever need to contact Customer Care

• Left parts are marked “L” or “Left” and right parts are marked “R” or “Right.”

• To identify small parts, see page 7.

• Assembly requires the following tools:

the included hex key

one Phillips screwdriver

To avoid damaging parts, do not use power tools.

• allows us to notify you of upgrades and offers

Note: If you do not have Internet access, call

Customer Care (see the front cover of this manual) and register your product.

2. Make sure that the power cord is unplugged.

Remove and discard the two screws (A) and the

shipping bracket (B) on the right side of the Base (74). Then, remove and discard the screws

and the shipping bracket (not shown) on the left side of the Base.

Next, remove the tie securing the Upright Wire

(63).

Then, press a Base Cap (70) into each side of

the Base (74) (only one side is shown).

Tie

Page 9

3. Identify the Right Upright (76). Have a second person hold the Right Upright near the Base (74).

See the inset drawing. Tie the wire tie in the

Right Upright (76) securely around the end of the Upright Wire (63). Then, insert the Upright Wire into the lower end of the Right Upright as you pull the other end of the wire tie out of the top of the Right Upright.

Wire

Tie

Wire

Tie

4. Lay the Right Upright (76) near the Base (74) as shown. Attach the ground wire to the Base with a #8 x 1/2" Ground Screw (1).

Then, press the Upright Grommet (73) into the

square hole in the Right Upright (76).

Ground

Wire

Square

Hole

Page 10

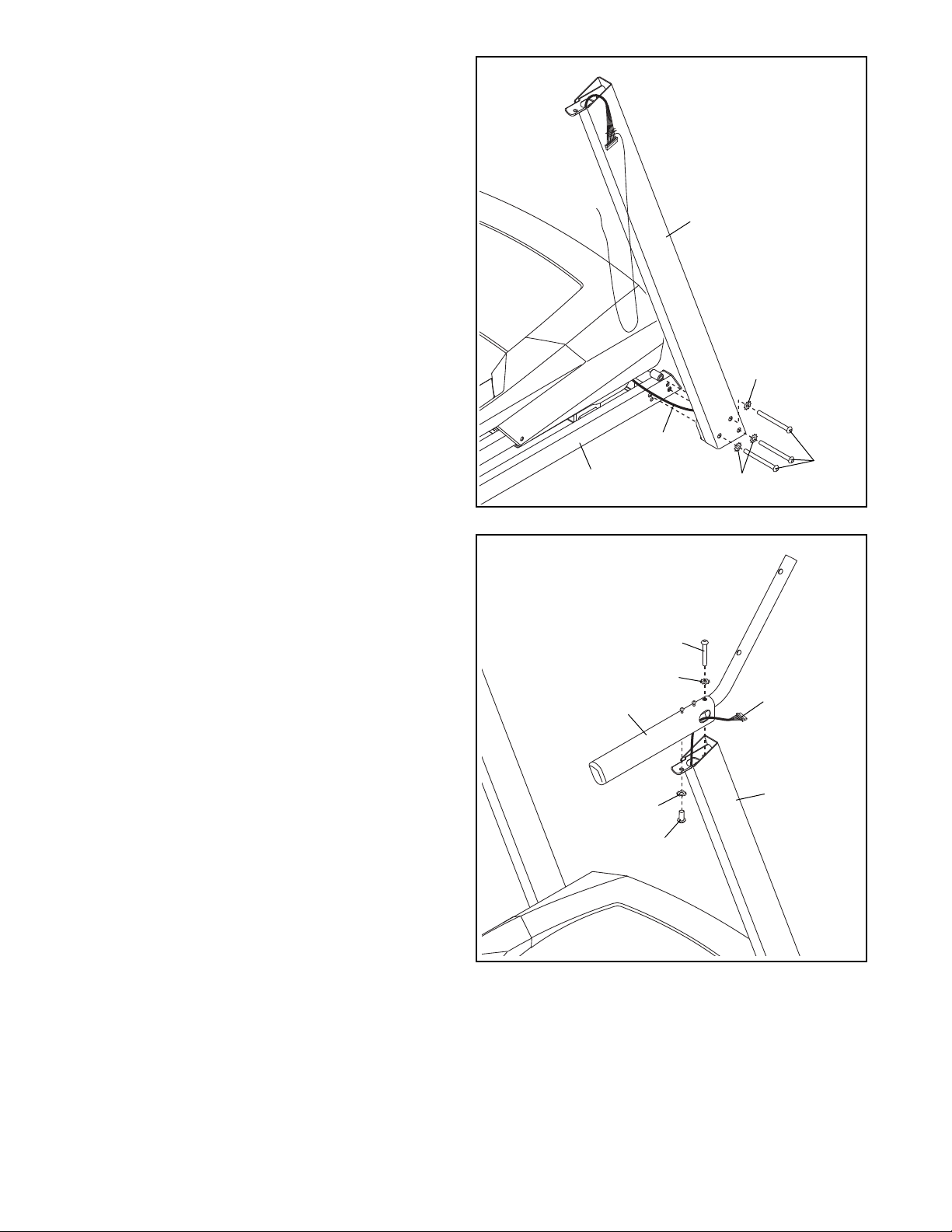

5. Hold the Right Upright (76) against the Base (74). Be careful not to pinch the Upright

Wire (63).

Insert a 3/8" x 3 1/4" Screw (2) with a 3/8" Star

Washer (3) into the top hole in the Right Upright (76), and partially tighten the Screw into the Base (74).

Then, partially tighten two more 3/8" x 3 1/4"

Screws (2) with two 3/8" Star Washers (3) into the Right Upright (76) and the Base (74); do not

fully tighten the Screws yet.

Attach the Left Upright (not shown) in the

same way. Note: There are no wires on the left

side.

6. Identify the Right Handrail (64). Have a second person hold the Right Handrail near the Right Upright (76).

Route the Upright Wire (63) into the bottom of

the Right Handrail (64) and out of the hole in the Right Handrail.

Be careful not to pinch the Upright Wire (63).

Partially tighten a 5/16" x 3/4" Screw (5) with a 5/16" Star Washer (6) into the Right Upright (76) and the Right Handrail (64). Then, partially tighten a 5/16" x 3" Screw (7) with a 5/16" Star Washer (6) into the Right Handrail and the Right Upright; do not fully tighten the Screws yet.

Attach the Left Handrail (not shown) in the

same way. Note: There are no wires on the left

side.

Page 11

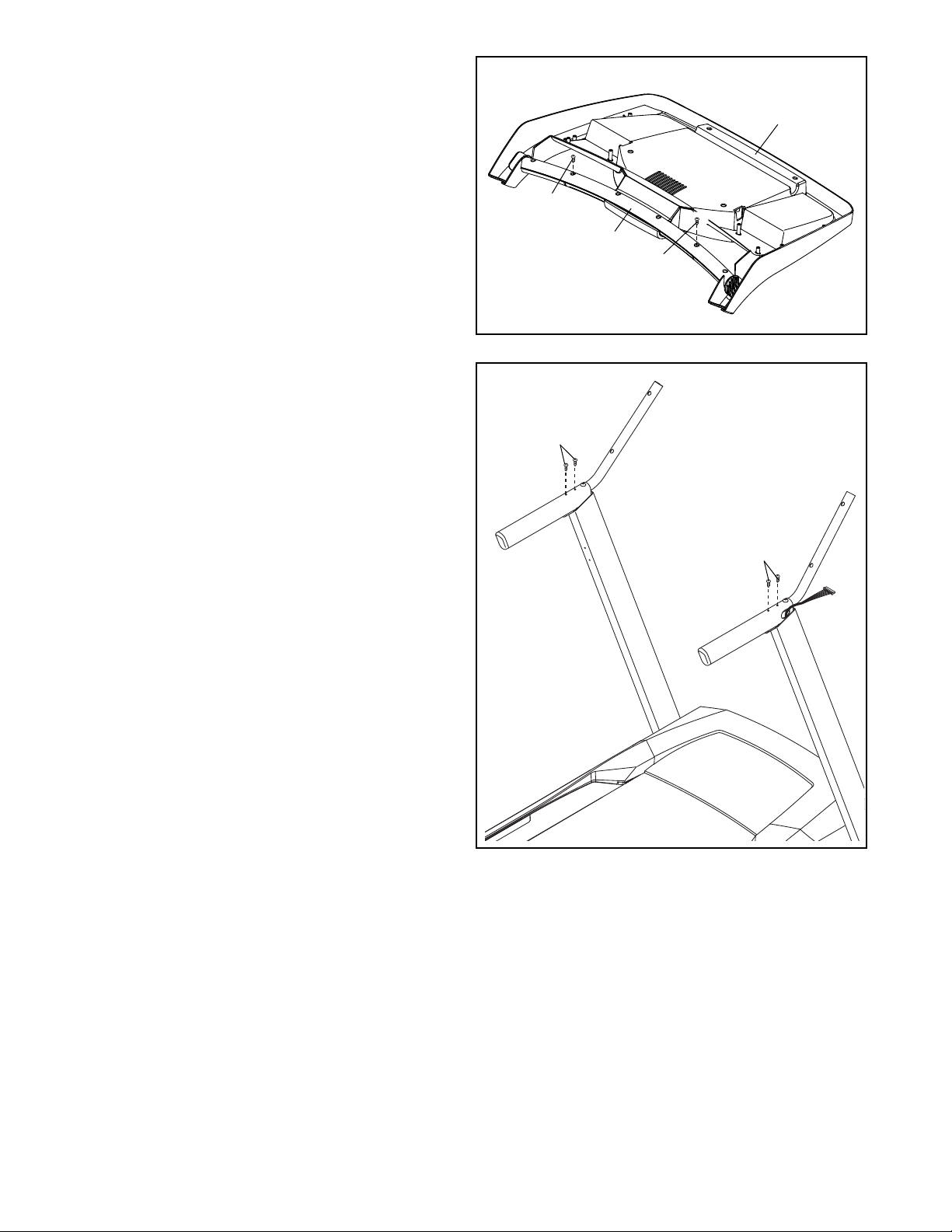

7. Set the console assembly face down on a soft surface to avoid scratching the console assembly.

Remove and discard the two indicated screws

(C). Then, remove the Console Crossbar (61).

Console

Assembly

8. Remove and discard the four indicated screws (D).

Page 12

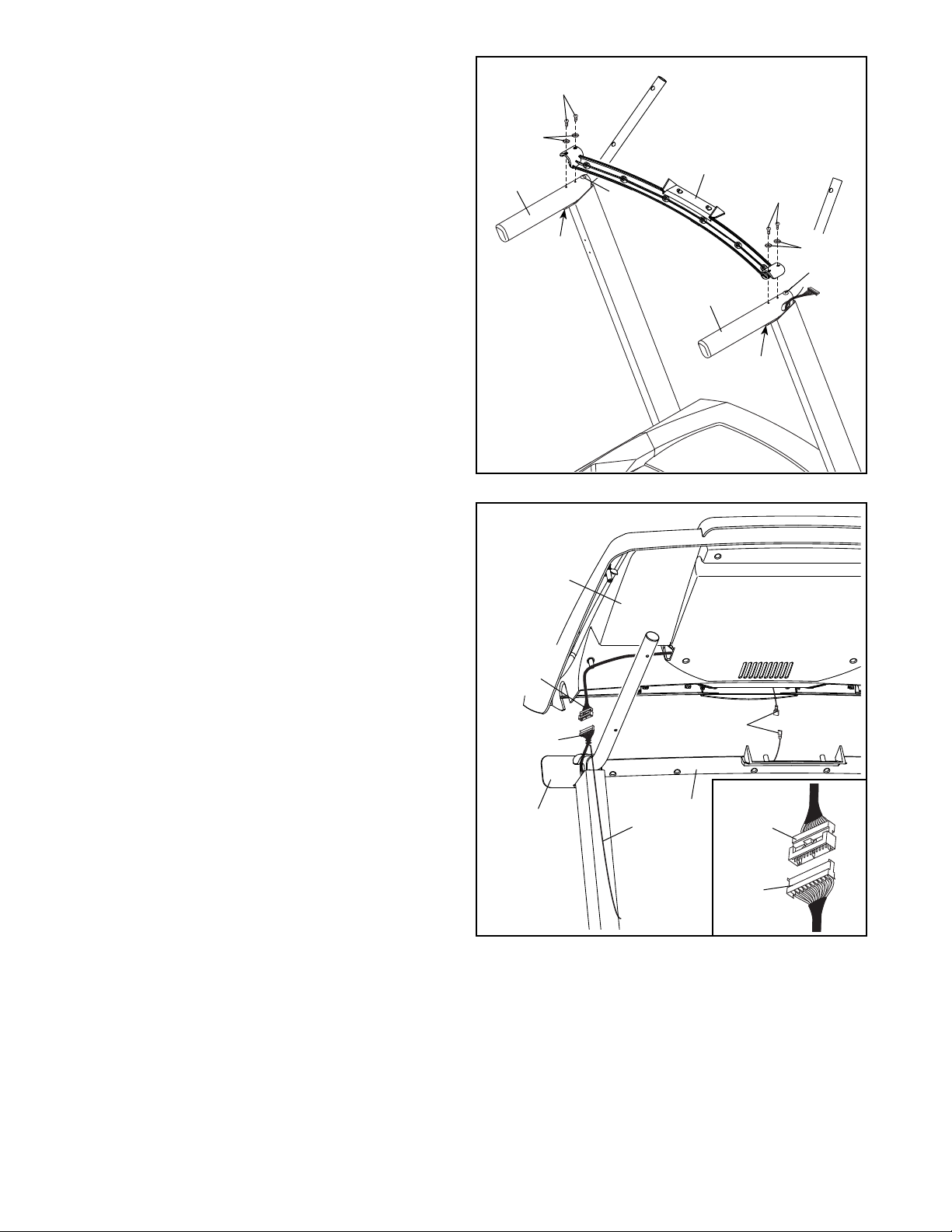

9. Attach the Console Crossbar (61) to the Left and Right Handrails (59, 64) with four #10 x 3/4" Screws (8) and four #10 Star Washers (23);

start all four Screws, and then tighten them.

Then, rmly tighten the two 5/16" x 3/4"

Screws (5) and the two 5/16" x 3" Screws (7).

10. With the help of a second person, hold the console assembly near the Right Handrail (64).

See the inset drawing. Connect the Upright

Wire (63) to the console wire. The connectors

should slide together easily and snap into place. If they do not, turn one connector and try again. IF YOU DO NOT CONNECT THE CONNECTORS PROPERLY, THE CONSOLE MAY BECOME DAMAGED WHEN YOU TURN ON THE POWER. Next, remove the wire tie from

the Upright Wire.

Then, connect the console wire to the ground

wire on the Console Crossbar (61).

Console

Assembly

Console

Wire

Ground

Wires

Wire

Tie

Console

Wire

Page 13

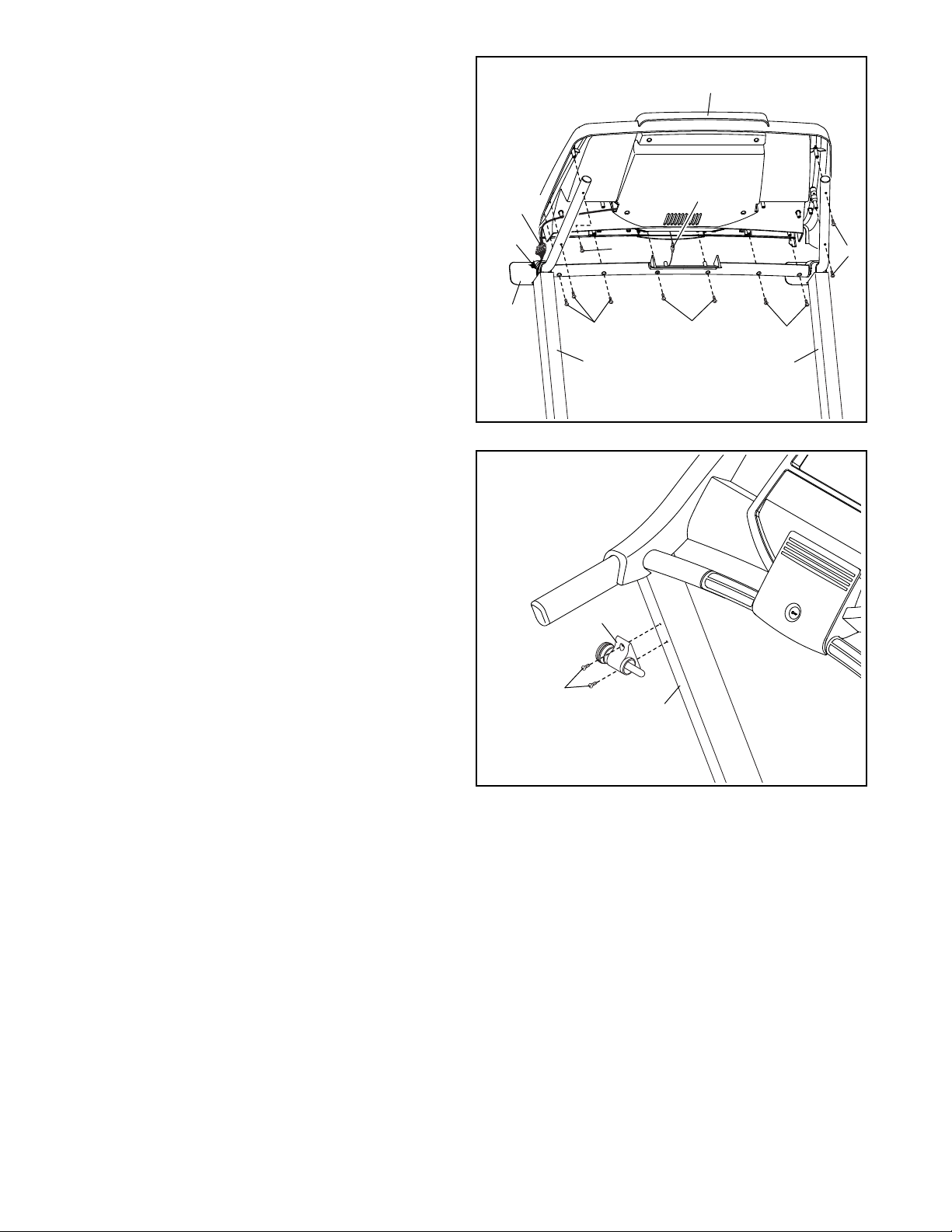

11. Insert the wires into the Right Handrail (64) through the indicated hole as you set the console assembly on the Left and Right Uprights (66, 76). Make sure that no wires are pinched.

Attach the console assembly with ten #8 x 3/4"

Screws (4); start all ten Screws, and then

tighten them. Do not overtighten the Screws.

See step 5. Firmly tighten the six 3/8" x 3 1/4"

Screws (2).

Wires

Hole

Console Assembly

Wires

12. Orient the Latch Assembly (67) as shown. Attach the Latch Assembly to the Left Upright (66) with two #10 x 3/4" Screws (8); start both

Screws, and then tighten them.

13. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic

on the treadmill decals, remove the plastic. To protect the oor or carpet, place a mat under the treadmill.

Note: Extra hardware may be included. Keep the included hex keys in a secure place; one of the hex keys is used to adjust the walking belt (see page 22).

Page 14

HOW TO USE THE TREADMILL

HOW TO CONNECT THE POWER CORD

Use a Surge Suppressor

Your treadmill, like other electronic equipment, can be damaged by sudden voltage changes in your home’s power. Voltage surges, spikes, and noise interference can result from weather conditions or from other appliances being turned on or off. To decrease the

risk of damaging the treadmill, always use a surge suppressor with the treadmill. To purchase a surge suppressor, see precaution 13 on page 3.

Use only a surge suppressor that is UL 1449 listed as a transient voltage surge suppressor (TVSS). The surge suppressor must have a UL suppressed voltage rating of 400 volts or less and a minimum surge dissipation of 450 joules. The surge suppressor must also be electrically rated for 120 volts AC and 15 amps. There must be a monitoring light on the surge suppressor to indicate whether it is functioning properly. Failure to use a

properly functioning surge suppressor could result in damage to the control system of the treadmill and serious injury to users.

more amps. To avoid overloading the circuit, do not plug other electrical devices, except for lowpower devices such as cell phone chargers, into the surge suppressor or into an outlet on the same circuit. IMPORTANT: If the treadmill is connected to an AFCI-equipped outlet and your circuit breaker trips repeatedly when the treadmill is used, see the front cover of this manual to purchase an arc filter.

Grounded Outlet

Grounding Pin

Surge

Suppressor

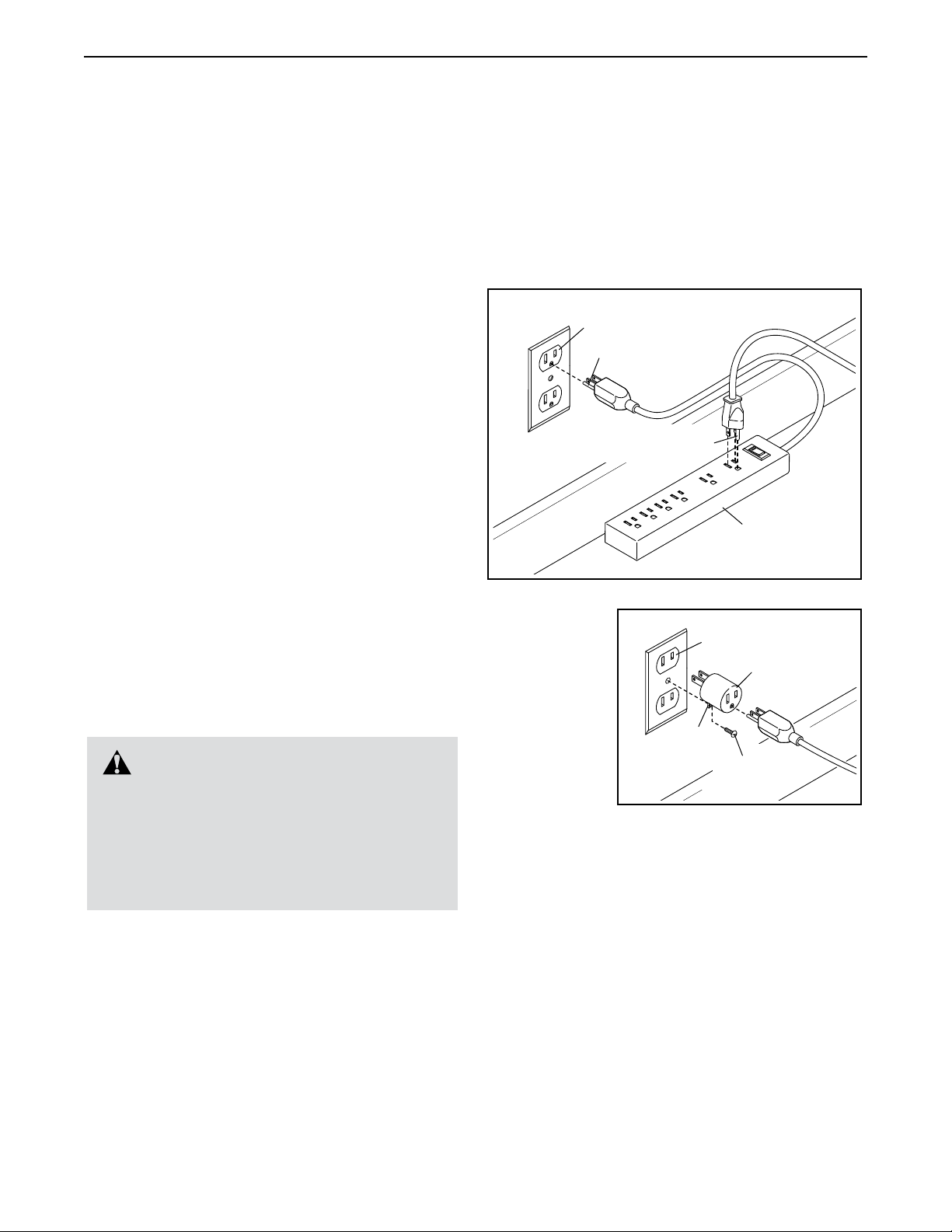

Plug in the Power Cord

The treadmill must be grounded. If it should malfunc-

tion or break down, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. The treadmill power cord has a plug with a grounding pin (see drawing 1 on this page).

DANGER: Improper connection

of the power cord increases the risk of electric shock. Do not modify the plug—if it will not fit an outlet, have a proper outlet installed by a qualified electrician. If you are unsure whether the treadmill is properly grounded, contact a qualified electrician.

Plug the power cord into a surge suppressor, and plug the surge suppressor into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. The outlet must be on a

nominal 120-volt circuit capable of carrying 15 or

A temporary adapter may be used to connect the surge suppressor to a 2-pole receptacle if a properly grounded outlet is not available.

The lug or wire extending from the adapter must be connected with a metal screw to a permanent ground such as a properly grounded outlet box cover.

Some 2-pole receptacle outlet box covers are not grounded. Before using an adapter, contact a qualified electrician to determine whether the outlet box cover is grounded. The temporary adapter should be used only until a properly grounded outlet can be installed by a qualified electrician.

2-pole Receptacle

Adapter

Lug

Metal

Screw

Page 15

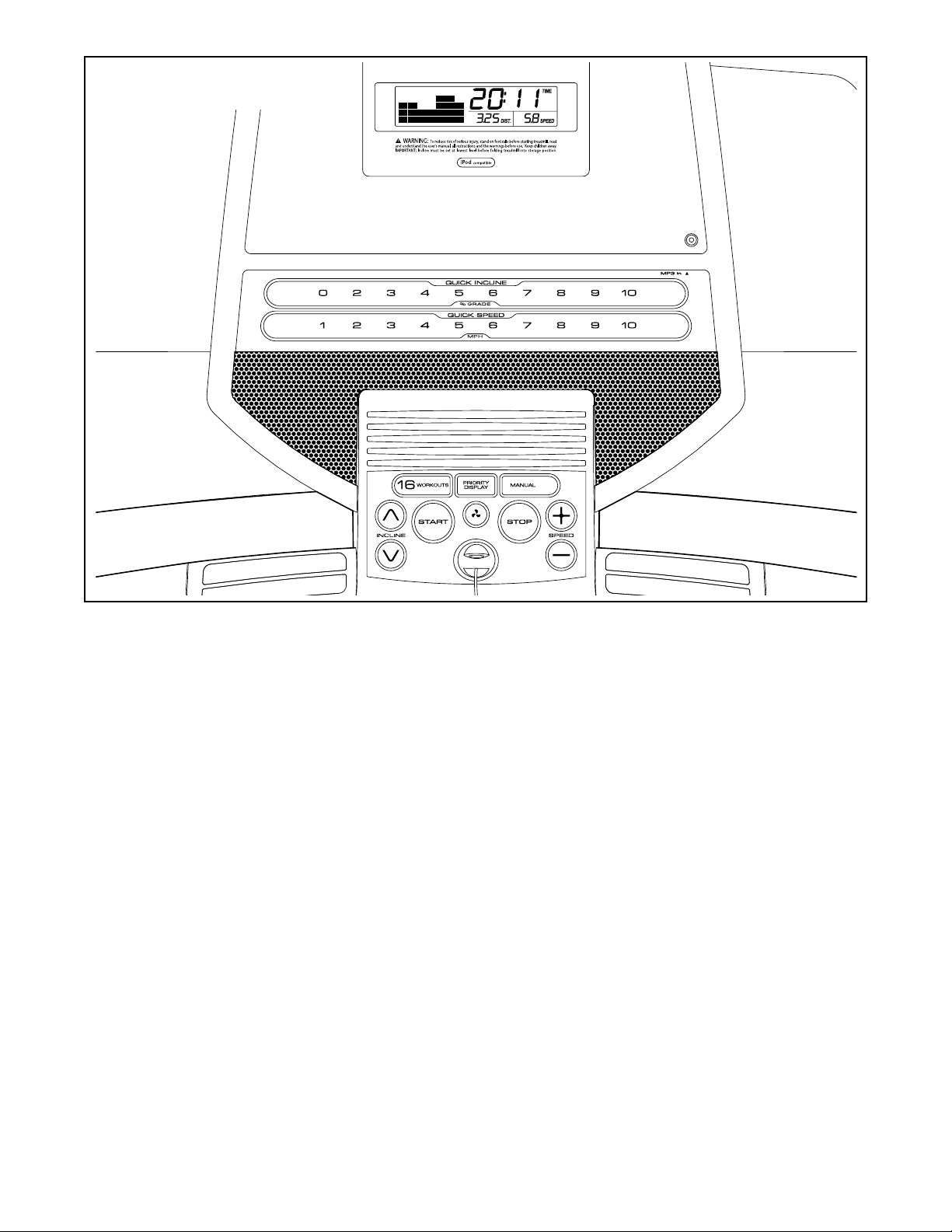

CONSOLE DIAGRAM

FEATURES OF THE CONSOLE

The treadmill console offers a selection of features designed to make your workouts more effective and enjoyable. When you select the manual mode of the console, you can change the speed and incline of the treadmill with the touch of a button. As you exercise, the console will display continuous exercise feedback. You can even measure your heart rate using the built-in handgrip heart rate monitor.

The console also features a selection of preset workouts designed to help you to burn calories and enhance your cardiovascular system. Each workout controls the speed and incline of the treadmill as it guides you through an effective exercise session.

You can even listen to your favorite workout music or audio books with the console’s sound system while you exercise.

To turn on the power, see page 16. To use the manual mode, see page 16. To use a preset workout, see page 18. To use the information mode, see page 19. To use the sound system, see page 19.

IMPORTANT: If there is a sheet of plastic on the face of the console, remove the plastic. To prevent damage to the walking platform, wear clean athletic

shoes while using the treadmill. The rst time the

treadmill is used, observe the alignment of the walking belt, and center the walking belt if necessary (see page 22).

Note: The console can display speed and distance in either miles or kilometers. To nd which unit of measurement is selected, see THE INFORMATION MODE on page 19. For simplicity, all instructions in this section refer to miles.

Page 16

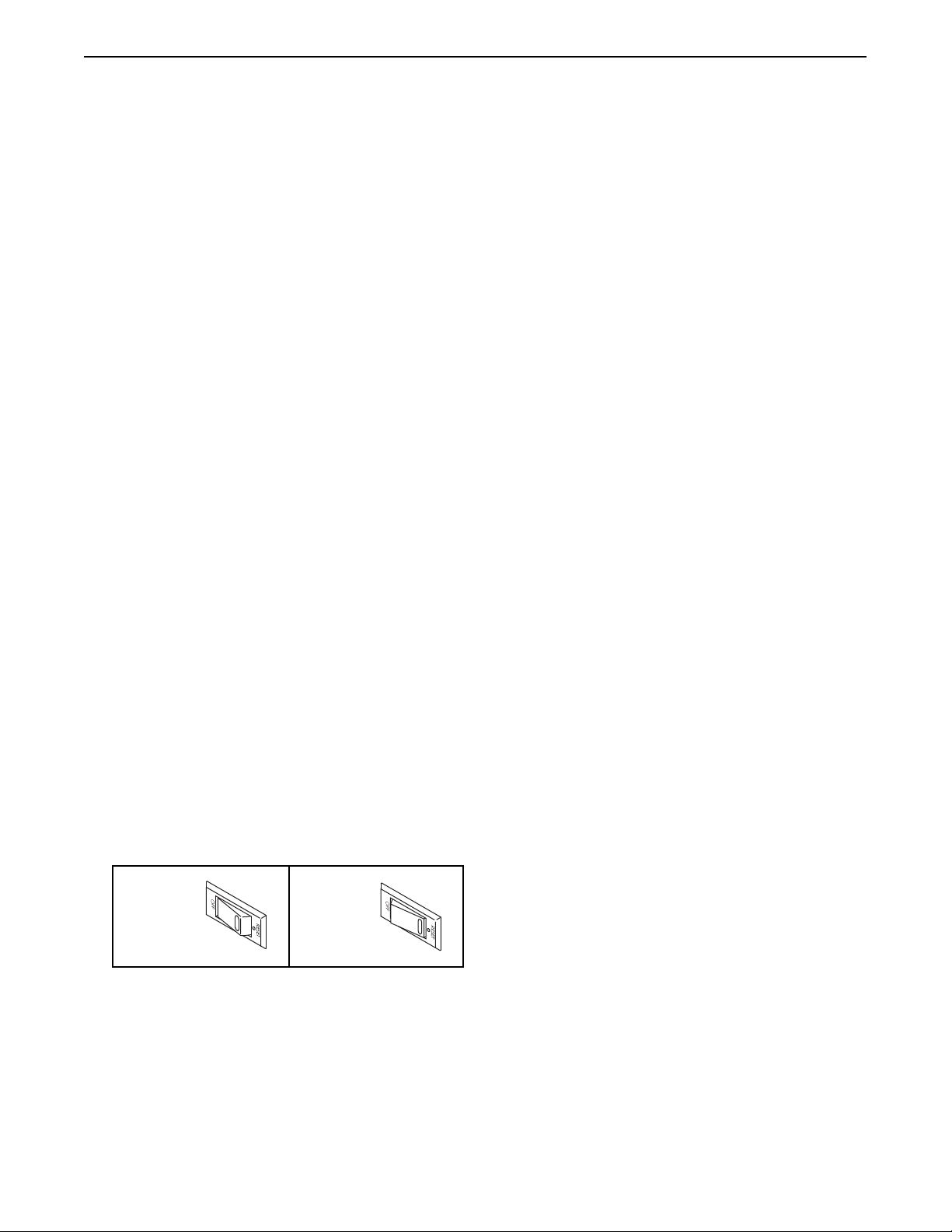

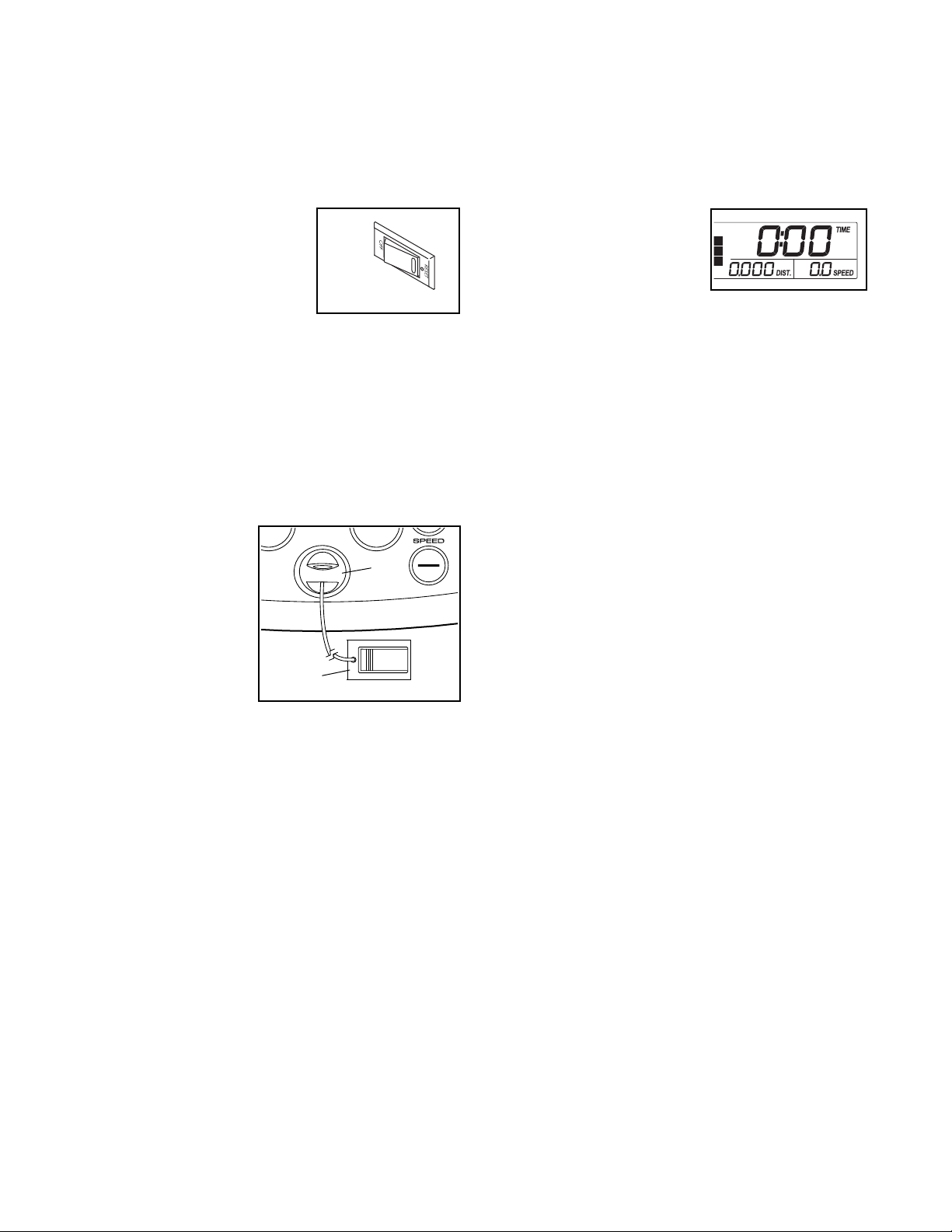

HOW TO TURN ON THE POWER

HOW TO USE THE MANUAL MODE

IMPORTANT: If the treadmill has been exposed to cold temperatures, allow it to warm to room temperature before you turn on the power. If you do not do this, you may damage the console displays or other electrical components.

Plug in the power cord (see page 14). Next, locate the power switch on the treadmill frame near the power cord. Make sure that the switch is in the reset position.

IMPORTANT: The console features a display demo mode, designed to be used if the treadmill is displayed in a store. If the displays light as soon as you plug in the power cord and press the power switch into the reset position, the demo mode is turned on. To turn off the demo mode, hold down the Stop button for a few seconds. If the displays remain lit, see THE INFORMATION MODE on page 19 to turn off the demo mode.

Next, stand on the foot rails of the treadmill. Find the clip attached to the key (see the drawing at the right) and slide the clip onto the waistband of your clothes. Then, insert the key into the console. After a moment, the displays will light. IMPORTANT: In an

emergency, the key can be pulled from the console, causing the walking belt to slow to a stop. Test the clip by carefully taking a few steps backward; if the key is not pulled from the console, adjust the position of the clip.

Clip

Reset

Key

1. Insert the key into the console.

See HOW TO TURN ON THE POWER at the left.

2. Select the manual mode.

When the key is

inserted, the manual mode will be selected. If you have selected a workout, remove the key from the console, and then reinsert it. Only zeros should appear in the displays.

3. Start the walking belt.

To start the walking belt, press the Start button, the

Speed increase button, or one of the ten numbered Quick Speed buttons.

If you press the Start button or the Speed increase

button, the walking belt will begin to move at 1 mph. As you exercise, change the speed of the walking belt as desired by pressing the Speed increase and decrease buttons. Each time you press one of the buttons, the speed setting will change by 0.1 mph; if you hold down the button, the speed setting will change in increments of

0.5 mph.

If you press one of the numbered Quick Speed but-

tons, the walking belt will gradually change speed until it reaches the selected speed setting.

To stop the walking belt, press the Stop button.

The time will begin to ash in the display. To restart

the walking belt, press the Start button, the Speed increase button, or one of the ten numbered Quick Speed buttons.

Page 17

4. Change the incline of the treadmill as desired.

To change the incline of the treadmill, press the

Incline increase and decrease buttons or one of the numbered Quick Incline buttons. Each time you press the Incline increase or decrease button, the incline setting will change by 0.5 percent. If you press one of the numbered Quick Incline buttons, the incline will gradually change until it reaches the selected incline setting.

Press the Priority Display button repeatedly until

the upper display shows the information that you are most interested in viewing. Note: While information is shown in the upper display, the same information will not be shown in the lower left or lower right display.

To reset the displays, press the Stop button, re-

move the key, and then reinsert the key.

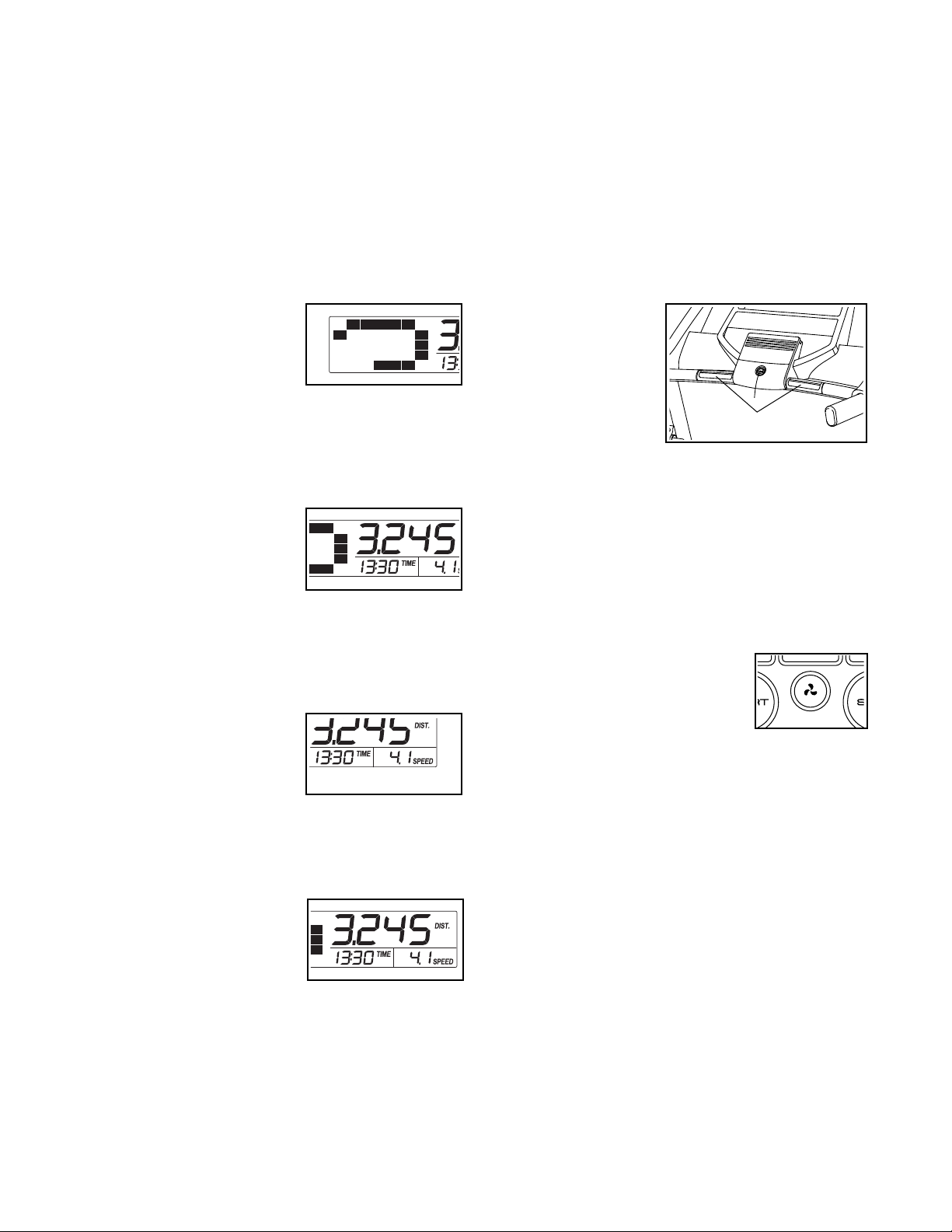

5. Follow your progress with the displays.

When you select the

manual mode, a track representing 1/4 mile (400 m) will appear in the matrix. As you walk or run on the treadmill, the indicators around the track will appear in succession until the entire track appears. The track will then disappear and the indicators will again begin to appear in succession.

The lower left display

can show the elapsed time and the distance that you have walked or run during your workout. Each time you change the incline, the display will show the incline setting for a few seconds. Note: When a workout is selected, the display will show the time remaining in the workout instead of the elapsed time.

The lower right display

can show the speed of the walking belt and the approximate number of calories that you have burned during your workout. The display will also show your heart rate when you use the handgrip heart rate monitor (see step 6).

The upper display can

show the elapsed time, the distance that you have walked or run, the approximate number of calories you have burned, or the speed of the walking belt.

6. Measure your heart rate if desired.

Before using the

handgrip heart rate monitor, remove the sheets of plastic from the metal contacts. In addition, make sure that your hands are clean.

To measure your heart rate, stand on the foot

rails and place your hands on the metal contacts— avoid moving your hands. When your pulse is detected, your heart rate will be shown. For the most accurate heart rate reading, continue to hold the contacts for about 15 seconds.

7. Turn on the fan if desired.

The fan features two speed

settings. Press the fan button repeatedly to select High or Low or to turn off the fan.

8. When you are nished exercising, remove the

key from the console.

Step onto the foot rails, press the Stop button,

and adjust the incline of the treadmill to zero.

The incline must be at zero when you fold the treadmill to the storage position, or you may damage the treadmill. Next, remove the key from

the console and put it in a secure place.

When you are nished using the treadmill, press

the power switch into the off position and unplug the power cord. IMPORTANT: If you do not do

this, the treadmill’s electrical components may wear prematurely.

Contacts

Page 18

HOW TO USE A PRESET WORKOUT

1. Insert the key into the console.

See HOW TO TURN ON THE POWER on page 16.

ash. If a different speed and/or incline setting is

programmed for the next segment, the speed and/

or incline setting will ash in the display to alert you.

The treadmill will then automatically adjust to the speed and incline settings for the next segment.

2. Select a preset workout.

To select a preset workout, press the 16 Workouts

button repeatedly until the desired workout appears in the display.

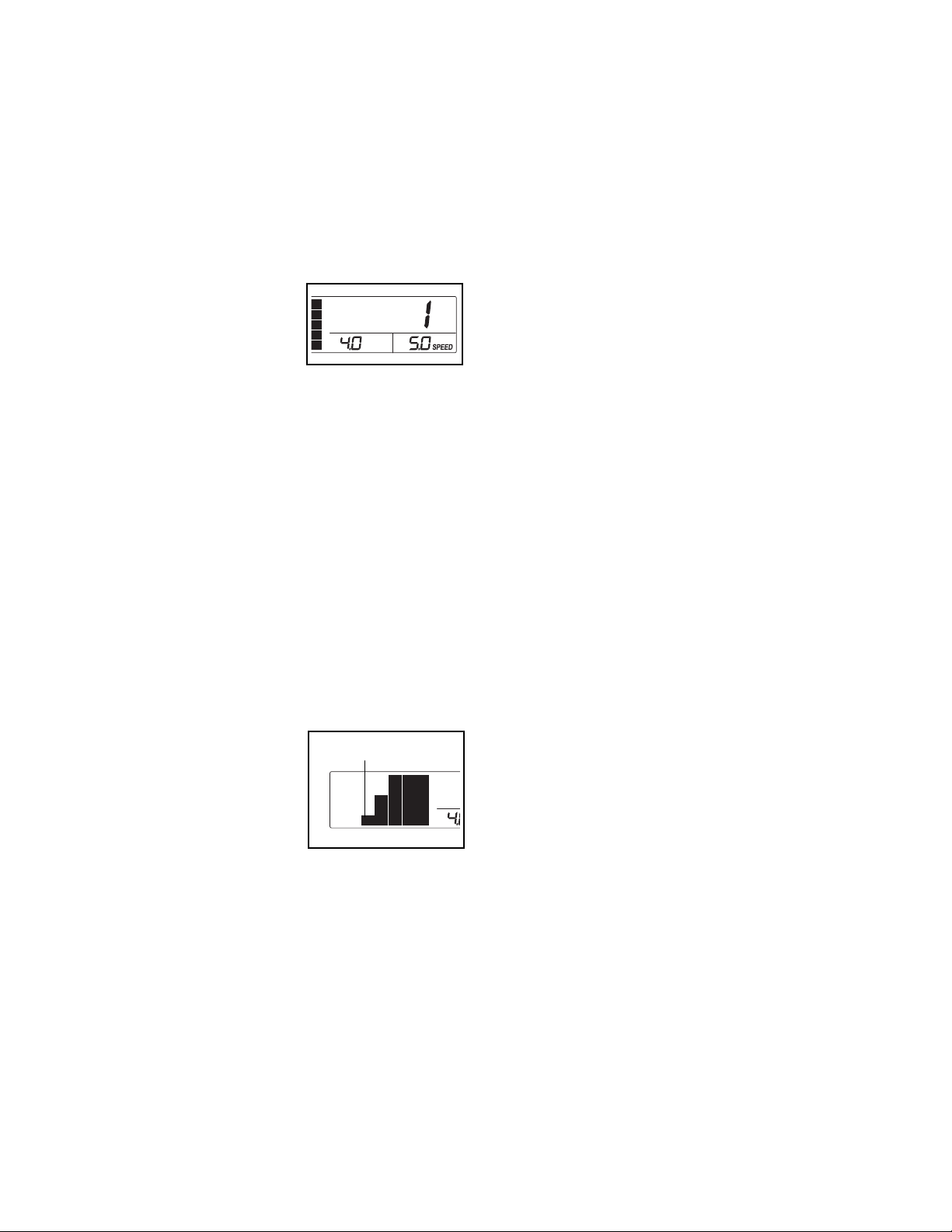

When you select a

workout, the maximum speed and incline settings of the workout will

ash in the displays for

a few seconds; then the display will show the duration of the workout. A pro-

le of the speed settings of the workout will scroll

across the matrix.

3. Start the walking belt.

Press the Start button or the Speed increase but-

ton to start the workout. A moment after you press the button, the treadmill will automatically adjust to

the rst speed and incline settings for the workout.

Hold the handrails and begin walking.

Each workout is divided into 30 one-minute seg-

ments. One speed setting and one incline setting are programmed for each segment. Note: The same speed and incline settings may be programmed for consecutive segments.

During the workout, the

prole will show your progress. The ashing segment of the prole

represents the current segment of the workout. The height of the ashing segment indicates the speed setting for the current segment. At the end of each segment, a series of tones will sound

and the next segment of the prole will begin to

Current Segment

The workout will continue in this way until the last

segment of the prole ashes in the display and the

last segment ends. The walking belt will then slow to a stop.

If the speed or incline setting for the current seg-

ment is too high or too low, you can manually override the setting by pressing the Speed and Incline buttons; however, when the current segment of

the workout ends, the treadmill will automatically adjust to the speed and incline settings for the next segment.

To stop the workout at any time, press the Stop

button. To restart the workout, press the Start button or the Speed increase button. The walking belt will begin to move at 1 mph. When the next segment of the workout begins, the treadmill will automatically adjust to the speed and incline settings for that segment.

4. Follow your progress with the displays.

See step 5 on page 17.

5. Measure your heart rate if desired.

See step 6 on page 17.

6. Turn on the fan if desired.

See step 7 on page 17.

7. When you are nished exercising, remove the

key from the console.

See step 8 on page 17.

Page 19

THE INFORMATION MODE

HOW TO USE THE SOUND SYSTEM

The console features an information mode that keeps track of treadmill usage information and allows you to select a unit of measurement for the console. You can also turn on and turn off the display demo mode.

To select the information mode, insert the key into the console while holding down the Stop button. Then, release the Stop button. When the information mode is selected, the following information will be shown:

The upper display will show the total number of hours that the treadmill has been used.

The lower left display will show the total number of miles or kilometers that the walking belt has moved.

An “E” for English miles or an “M” for metric kilometers will appear in the lower right display. Press the Speed increase button to change the unit of measurement, if desired.

The console features a display demo mode, designed to be used if the treadmill is displayed in a store. While the demo mode is turned on, the console will function normally when you plug in the power cord, press the power switch into the reset position, and insert the key into the console. However, when you remove the key, the displays will remain lit, although the buttons will not function. If the demo mode is turned on, a “d” will appear in the lower right display while the information mode is selected. To turn on or turn off the demo mode, press the Speed decrease button.

To play music or audio books through the console sound system while you exercise, plug a 3.5 mm male to 3.5 mm male audio cable (not included) into the jack on the console and into a jack on your MP3 player, CD player, or other personal audio player; make sure

that the audio cable is fully plugged in. Note: To purchase an audio cable, see your local electronics store.

Next, press the play button on your personal audio player. Adjust the volume level using the volume control on your personal audio player.

If you are using a personal CD player and the CD

skips, set the CD player on the oor or another at

surface instead of on the console.

To exit the information mode, remove the key from the console.

Page 20

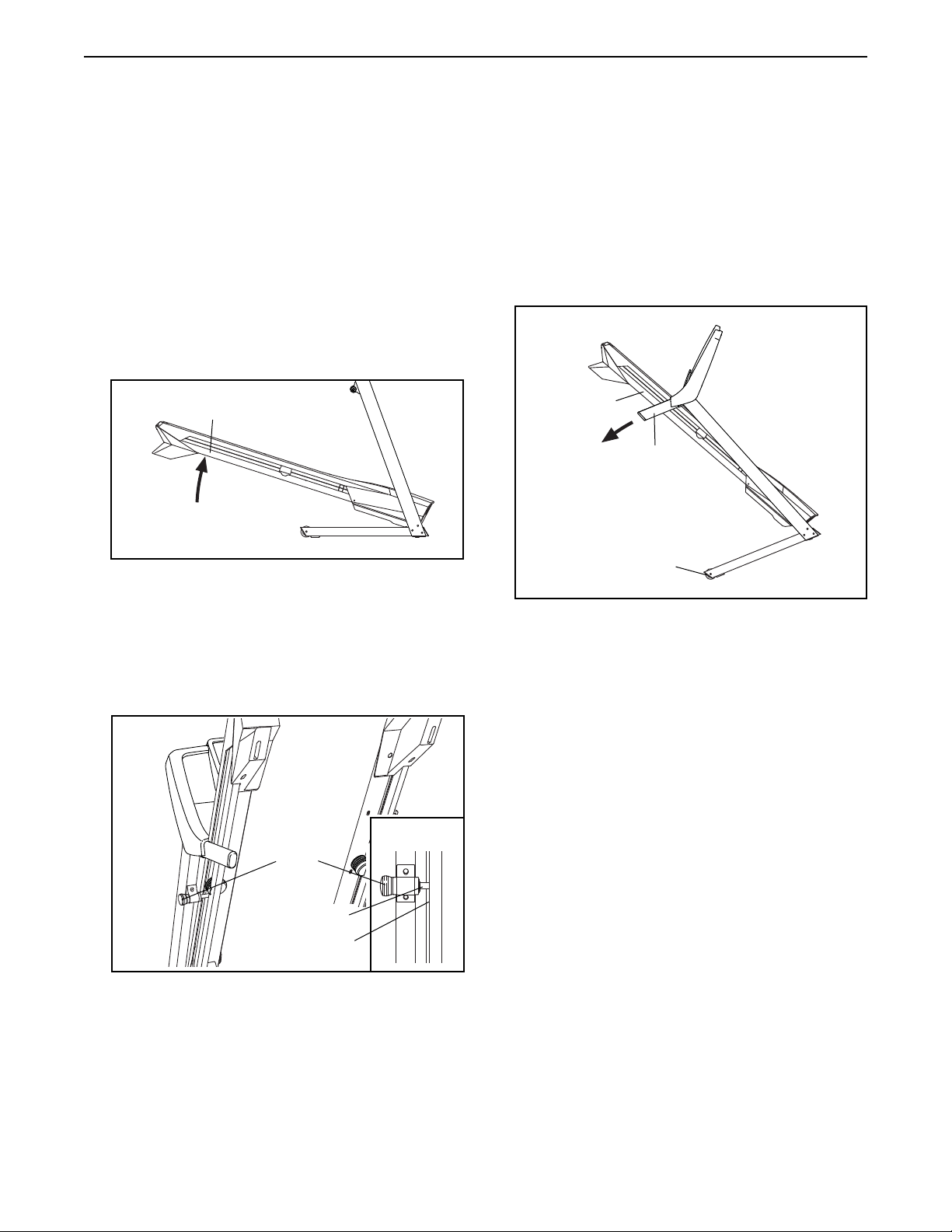

HOW TO FOLD AND MOVE THE TREADMILL

HOW TO FOLD THE TREADMILL

Before folding the treadmill, adjust the incline to zero. If you do not do this, you may damage the treadmill when you fold it. Remove the key and unplug the power cord. CAUTION: You must be able to safely lift 45 lbs. (20 kg) to raise, lower, or move the treadmill.

1. Hold the metal frame rmly in the location shown

by the arrow below. CAUTION: Do not hold the frame by the plastic foot rails. Bend your legs and keep your back straight.

Frame

2. Hold the frame rmly with your right hand. Pull the

latch knob to the left and hold it. Raise the frame until the walking platform is past the latch pin. Then, slowly release the latch knob; make sure

that the latch pin is resting securely against the walking platform.

HOW TO MOVE THE TREADMILL

Before moving the treadmill, fold it as described at the left. CAUTION: Make sure that the latch pin is rest-

ing securely against the walking platform. Moving the treadmill may require two people.

1. Hold the frame and one of the handrails, and place one foot against a wheel.

Frame

Handrail

Wheel

2. Pull back on the handrail until the treadmill will roll on the wheels, and carefully move it to the desired location. CAUTION: Do not move the treadmill

without tipping it back, do not pull on the frame, and do not move the treadmill over an uneven surface.

Latch Knob

Latch Pin

Walking Platform

To protect the oor or carpet, place a mat under the

treadmill. Keep the treadmill out of direct sunlight. Do not leave the treadmill in the storage position in temperatures above 85° F (30° C).

Engaged

3. Place one foot against a wheel, and carefully lower the treadmill.

HOW TO LOWER THE TREADMILL FOR USE

1. See drawing 2. Hold the upper end of the treadmill with your right hand. Pull the latch knob to the left and hold it. Next, lower the frame until it is past the latch pin. Make sure that the pin does not hit against the walking platform. Then, release the latch knob.

2. See drawing 1 at the left. Hold the metal frame

rmly with both hands, and lower it to the oor.

CAUTION: Do not hold the frame by the plastic foot rails, and do not drop the frame. Bend your legs and keep your back straight.

Page 21

MAINTENANCE AND TROUBLESHOOTING

MAINTENANCE

Regularly clean the treadmill and keep the walking belt clean and dry. First, press the power switch into the off position and unplug the power cord. Wipe exterior parts of the treadmill with a damp cloth and a small amount of mild soap. IMPORTANT: Do not spray

liquids directly onto the treadmill. To avoid damage to the console, keep liquids away from the console.

Then, thoroughly dry the treadmill with a soft towel.

TROUBLESHOOTING

Most treadmill problems can be solved by following the simple steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, see the front cover of this manual.

SYMPTOM: The power does not turn on

a. Make sure that the power cord is plugged into a

surge suppressor and that the surge suppressor is plugged into a properly grounded outlet (see page 14). Use only a surge suppressor that meets all of the specications described on page 14.

IMPORTANT: If the treadmill is connected to an AFCI-equipped outlet and your circuit breaker trips repeatedly when the treadmill is used, see the front cover of this manual to purchase an

arc lter.

SYMPTOM: The power turns off during use

a. Check the power switch (see drawing c at the left).

If the switch has tripped, wait for ve minutes and

then press the switch back in.

b. Make sure that the power cord is plugged in. If the

power cord is plugged in, unplug it, wait for ve

minutes, and then plug it back in.

c. Remove the key from the console, and then

reinsert it.

d. If the treadmill still will not run, please see the front

cover of this manual.

SYMPTOM: The console displays remain lit when you remove the key from the console

a. The console features a display demo mode,

designed to be used if the treadmill is displayed in a store. If the displays remain lit when you remove the key, the demo mode is turned on. To turn off the demo mode, hold down the Stop button for a few seconds. If the displays are still lit, see THE INFORMATION MODE on page 19 to turn off the demo mode.

SYMPTOM: The incline of the treadmill does not change correctly

b. After the power cord has been plugged in, make

sure that the key is inserted into the console.

c. Check the power switch located on the treadmill

frame near the power cord. If the switch protrudes as shown, the switch has tripped. To reset the

power switch, wait for ve minutes and then press

the switch back in.

Tripped

Reset

a. Hold down the Stop button and the Speed increase

button, insert the key into the console, and then release the Stop button and the Speed increase button. Next, press the Stop button and then press the Incline increase or decrease button. The treadmill will automatically rise to the maximum incline level and then return to the minimum level. This will recalibrate the incline system. If the incline system does not begin calibrating, press the Stop button again, and then press the Incline increase or decrease button again. When the incline system is calibrated, remove the key from the console.

Page 22

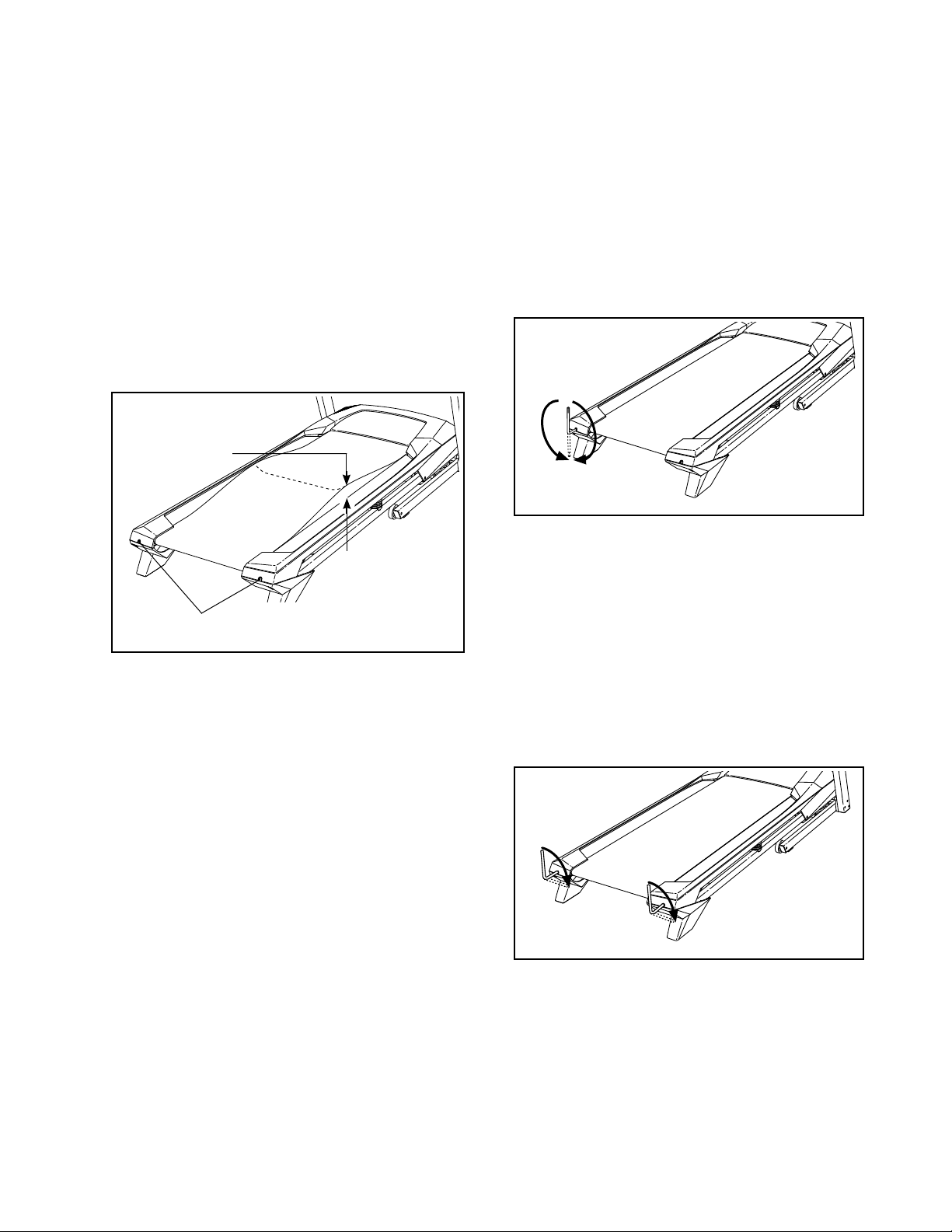

SYMPTOM: The walking belt slows when walked on

a. Use only a surge suppressor that meets all of the

specications described on page 14.

b. If the walking belt is overtightened, treadmill per-

formance may decrease and the walking belt may become damaged. Remove the key and UNPLUG THE POWER CORD. Using the hex key, turn both idler roller screws counterclockwise, 1/4 of a turn. When the walking belt is properly tightened, you should be able to lift each edge of the walking belt 2 to 3 in. (5 to 7 cm) off the walking platform. Be careful to keep the walking belt centered. Then, plug in the power cord, insert the key, and run the treadmill for a few minutes. Repeat until the walking belt is properly tightened.

2–3 in.

SYMPTOM: The walking belt is off-center or slips when walked on

a. If the walking belt is off-center, rst remove the

key and UNPLUG THE POWER CORD. If the walking belt has shifted to the left, use the hex key to turn the left idler roller screw clockwise 1/2 of a turn; if the walking belt has shifted to the right, turn the left idler roller screw counterclockwise 1/2 of a turn. Be careful not to overtighten the walking belt. Then, plug in the power cord, insert the key, and run the treadmill for a few minutes. Repeat until the walking belt is centered.

Idler Roller Screws

c. Your treadmill features a walking belt coated with

high-performance lubricant. IMPORTANT: Never

apply silicone spray or other substances to the walking belt or the walking platform unless instructed to do so by an authorized service representative. Such substances may deteriorate the walking belt and cause excessive wear.

If you suspect that the walking belt needs more lubricant, see the front cover of this manual.

d. If the walking belt still slows when walked on, see

the front cover of this manual.

b. If the walking belt slips when walked on, rst

remove the key and UNPLUG THE POWER CORD. Using the hex key, turn both idler roller screws clockwise, 1/4 of a turn. When the walking belt is correctly tightened, you should be able to lift each edge of the walking belt 2 to 3 in. (5 to 7 cm) off the walking platform. Be careful to keep the walking belt centered. Then, plug in the power cord, insert the key, and carefully walk on the treadmill for a few minutes. Repeat until the walking belt is properly tightened.

Page 23

EXERCISE GUIDELINES

WARNING: Before beginning this

or any exercise program, consult your physician. This is especially important for persons over age 35 or persons with pre-existing health problems.

The heart rate monitor is not a medical device. Various factors may affect the accuracy of heart rate readings. The heart rate monitor is intended only as an exercise aid in determining heart rate trends in general.

These guidelines will help you to plan your exercise program. For detailed exercise information, obtain a reputable book or consult your physician. Remember, proper nutrition and adequate rest are essential for successful results.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your heart rate as a guide to find the proper intensity level. The chart below shows recommended heart rates for fat burning and aerobic exercise.

Burning Fat—To burn fat effectively, you must exercise at a low intensity level for a sustained period of time. During the first few minutes of exercise, your body uses carbohydrate calories for energy. Only after the first few minutes of exercise does your body begin to use stored fat calories for energy. If your goal is to burn fat, adjust the intensity of your exercise until your heart rate is near the lowest number in your training zone. For maximum fat burning, exercise with your heart rate near the middle number in your training zone.

Aerobic Exercise—If your goal is to strengthen your cardiovascular system, you must perform aerobic exercise, which is activity that requires large amounts of oxygen for prolonged periods of time. For aerobic exercise, adjust the intensity of your exercise until your heart rate is near the highest number in your training zone.

WORKOUT GUIDELINES

Warming Up—Start with 5 to 10 minutes of stretch-

ing and light exercise. A warm-up increases your body temperature, heart rate, and circulation in preparation for exercise.

Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During the first few weeks of your exercise program, do not keep your heart rate in your training zone for longer than 20 minutes.) Breathe regularly and deeply as you exercise; never hold your breath.

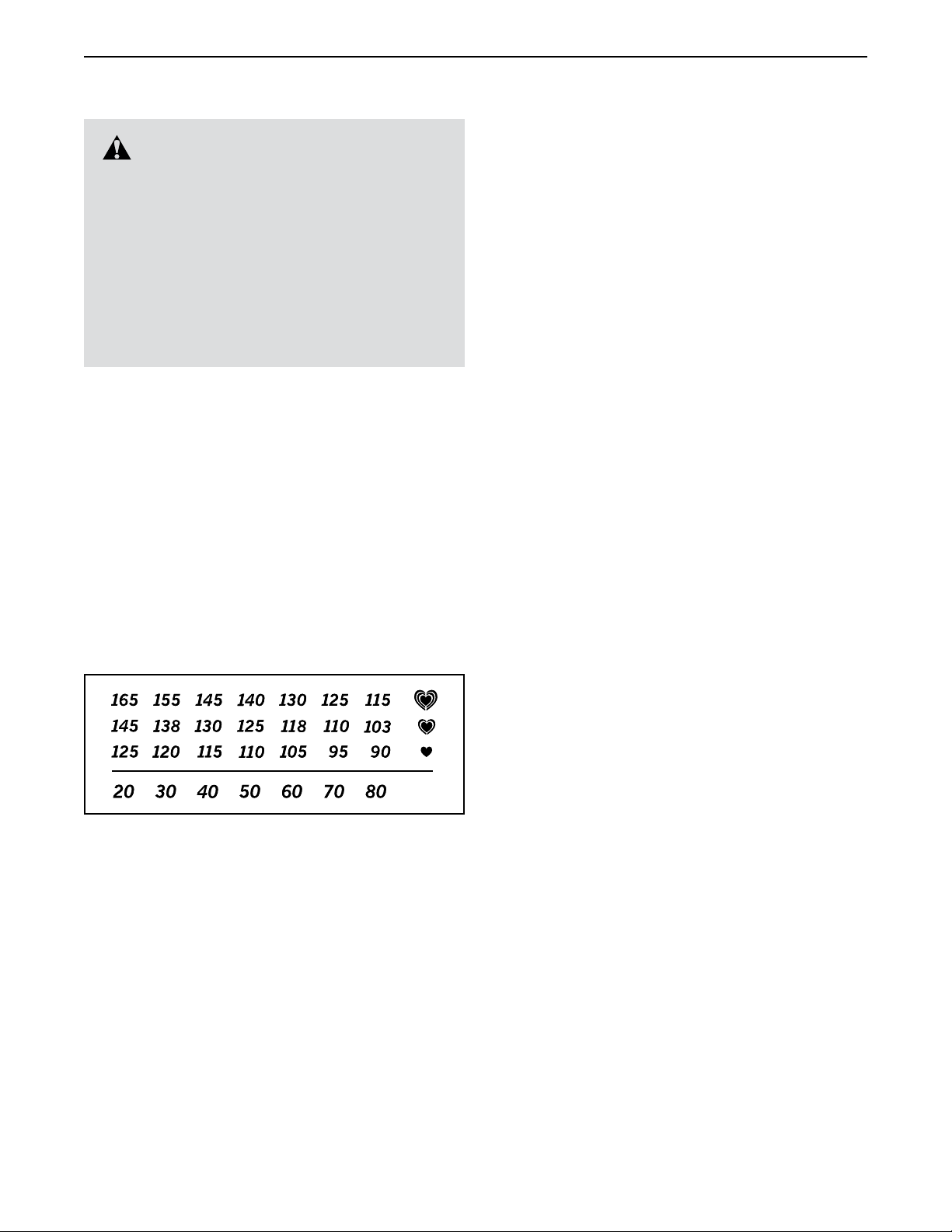

To find the proper intensity level, find your age at the bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your age define your “training zone.” The lowest number is the heart rate for fat burning, the middle number is the heart rate for maximum fat burning, and the highest number is the heart rate for aerobic exercise.

Cooling Down—Finish with 5 to 10 minutes of stretching. Stretching increases the flexibility of your muscles and helps to prevent post-exercise problems.

EXERCISE FREQUENCY

To maintain or improve your condition, complete three workouts each week, with at least one day of rest between workouts. After a few months of regular exercise, you may complete up to five workouts each week, if desired. Remember, the key to success is to make exercise a regular and enjoyable part of your everyday life.

Page 24

PART LIST

Key No. Qty. Description Key No. Qty. Description

Model No. PFTL49013.1 R0215A

1 9 #8 x 1/2" Ground Screw 2 6 3/8" x 3 1/4" Screw 3 6 3/8" Star Washer 4 35 #8 x 3/4" Screw 5 2 5/16" x 3/4" Screw 6 4 5/16" Star Washer 7 2 5/16" x 3" Screw 8 6 #10 x 3/4" Screw 9 2 3/8" x 2 1/2" Bolt 10 4 3/8" Nut 11 3 M6 x 55mm Screw 12 2 3/8" x 1" Bolt 13 3 Hood Clip 14 18 #8 x 3/4" Truss Head Screw 15 1 3/8" x 1 3/4" Bolt 16 2 3/8" Jam Nut 17 2 1/4" x 3/8" Screw 18 4 #8 x 1/2" Screw 19 4 5/16" x 1 1/2" Bolt 20 4 5/16" Nut 21 2 #8 x 1/2" Pan Head Screw 22 2 #8 Star Washer 23 4 #10 Star Washer 24 2 Drive Roller Washer 25 2 1/4" x 1 1/4" Screw 26 2 Incline Frame Washer 27 1 Left Foot Rail 28 2 Platform Cushion 29 1 Caution Decal 30 2 Belt Guide 31 1 Drive Roller/Pulley 32 1 3/8" x 1 1/2" Bolt 33 2 Round Handrail Cap 34 8 #8 x 3/4" Tek Screw 35 1 Drive Motor 36 1 Controller 37 1 Controller Plate 38 1 Frame 39 1 Walking Platform 40 1 Walking Belt 41 1 Right Foot Rail

42 1 Idler Roller 43 1 Left Rear Foot 44 4 Wire Tie 45 1 Drive Motor Belt 46 1 Right Rear Foot 47 8 #10 Flat Washer 48 1 Motor Hood 49 1 Incline Motor 50 2 Lift Frame Bushing 51 1 Lift Frame 52 1 Belly Pan 53 1 Power Cord Grommet 54 1 Power Cord 55 1 Power Switch 56 2 Console Spacer 57 1 Console 58 1 Console Base 59 1 Left Handrail 60 2 Handrail Cap 61 1 Console Crossbar 62 1 Key/Clip 63 1 Upright Wire 64 1 Right Handrail 65 2 Lift Frame Pin 66 1 Left Upright 67 1 Latch Assembly 68 4 M5 Washer 69 2 Warning Decal 70 4 Base Cap 71 2 Thick Base Pad 72 2 Thin Base Pad 73 2 Upright Grommet 74 1 Base 75 2 Wheel 76 1 Right Upright 77 2 Cushion Bottom 78 1 M6 Nut 79 2 1/4" x 1 1/4" Screw 80 1 Controller Clamp * – User’s Manual

Note: Specifications are subject to change without notice. For information about ordering replacement parts, see the back cover of this manual. *These parts are not illustrated.

Page 25

EXPLODED DRAWING A

Model No. PFTL49013.1 R0215A

Page 26

EXPLODED DRAWING B

Model No. PFTL49013.1 R0215A

Page 27

EXPLODED DRAWING C

Model No. PFTL49013.1 R0215A

Page 28

ORDERING REPLACEMENT PARTS

To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to provide the following information when contacting us:

• the model number and serial number of the product (see the front cover of this manual)

• the name of the product (see the front cover of this manual)

• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED DRAWING near the end of this manual)

LIMITED WARRANTY

IMPORTANT: To protect your tness equipment with an extended service plan, see page 5.

ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and

material, under normal use and service conditions. The frame and drive motor are warranted for ve

(5) years from the date of purchase. Parts and labor are warranted for ninety (90) days from the date of purchase.

This warranty extends only to the original purchaser (customer). ICON’s obligation under this warranty is limited to repairing or replacing, at ICON’s option, the product through one of its authorized service centers. All repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped to a service center, freight charges to and from the service center will be the customer’s responsibility. If replacement parts are shipped while the product is under warranty, the customer will be responsible for a minimal handling charge. For in-home service, the customer will be responsible for a minimal trip charge. This warranty does not extend to freight damage to the product. This warranty will automatically be voided if the product is used as a store display model, if the product is purchased or transported outside the USA, if all instructions in this manual are not followed, if the product is abused or improperly or abnormally used,

or if the product is used for commercial or rental purposes. No other warranty beyond that specically set

forth above is authorized by ICON.

ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in connection with the use or performance of the product; damages with respect to any economic loss, loss of

property, loss of revenues or prots, loss of enjoyment or use, or costs of removal or installation; or other

consequential damages of any kind. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to the customer.

The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of

merchantability or tness for a particular purpose are limited in their scope and duration to the terms set

forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply to the customer.

This warranty provides specic legal rights; the customer may have other rights that vary from state to

state.

ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813
