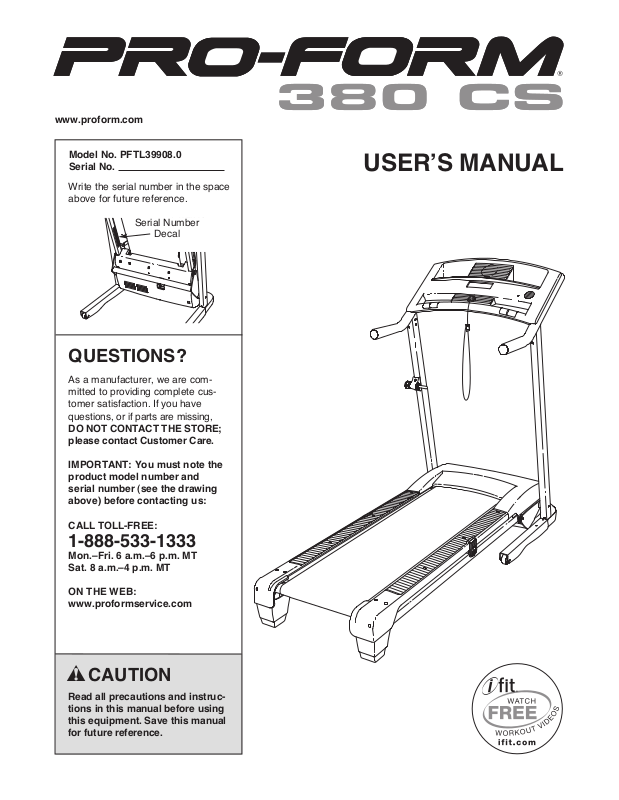

ProForm PFTL39908.0 User Manual
ww.proform.com
w
Model No. PFTL39908.0
Serial No.
Write the serial number in the space
above for future reference.
Serial Number
Decal
QUESTIONS?
As a manufacturer, we are committed to providing complete customer satisfaction. If you have
questions, or if parts are missing,
DO NOT CONTACT THE STORE;
please contact Customer Care.
USERʼS MANUAL
IMPORTANT: You must note the
product model number and
serial number (see the drawing
above) before contacting us:
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.proformservice.com
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
TABLE OF CONTENTS
ARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
W
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
WARNING DECAL PLACEMENT
This drawing shows the locations of the warning decals. If a decal is missing or illegible, call the
telephone number on the front cover of this
manual and request a free replacement decal.
Apply the decal in the location shown. Note: The
decals may not be shown at actual size.
PROFORM is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and in-
structions in this manual and all warnings on your treadmill before using your treadmill. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of
his product.
t
1. Before beginning any exercise program, consult your physician. This is especially important for persons over age 35 or persons with
pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
3. Use the treadmill only as described.
4. Place the treadmill on a level surface, with at
least 8 ft. (2.4 m) of clearance behind it and 2
ft. (0.6 m) on each side. Do not place the
treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.
5. Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
6. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
7. Keep children under age 12 and pets away
from the treadmill at all times.
8. The treadmill should not be used by persons
weighing more than 250 lbs. (113 kg).
9. Never allow more than one person on the
treadmill at a time.
10. Wear appropriate exercise clothes when
using the treadmill. Do not wear loose clothes
that could become caught in the treadmill.
Athletic support clothes are recommended for
both men and women. Always wear athletic
shoes; never use the treadmill with bare feet,
wearing only stockings, or in sandals.
11. When connecting the power cord (see page 12),
plug the power cord into a surge suppressor
(not included) and plug the surge suppressor
into a grounded circuit capable of carrying 15
or more amps. No other appliance should be on
the same circuit. Do not use an extension cord.
12. Use only a single-outlet surge suppressor that
meets all of the specifications described on
page 12. To purchase a surge suppressor, see
your local PROFORM dealer or call the telephone number on the front cover of this manual and order part number 146148, or see your
local electronics store.
13. Failure to use a properly functioning surge
suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may slow,
accelerate, or stop unexpectedly, which may
result in a fall and serious injury.
14. Keep the power cord and the surge suppressor away from heated surfaces.
15. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See TROUBLESHOOTING on page 19 if the treadmill is
not working properly.)
16. Read, understand, and test the emergency
stop procedure before using the treadmill (see
HOW TO TURN ON THE POWER on page 14).
17. Never start the treadmill while you are standing on the walking belt. Always hold the
handrails while using the treadmill.
18. The pulse sensor is not a medical device.
Various factors, including your movement,
may affect the accuracy of heart rate readings.
The pulse sensor is intended only as an exercise aid in determining heart rate trends in
general.
3
19. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
udden jumps in speed.
s
20. Never leave the treadmill unattended while it
is running. Always remove the key, unplug
he power cord, and switch the reset/off cir-
t
cuit breaker to the off position when the
treadmill is not in use. (See the drawing on
page 5 for the location of the circuit breaker.)
21. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 6 and HOW TO FOLD
AND MOVE THE TREADMILL on page 18.)
You must be able to safely lift 45 lbs. (20 kg)
to raise, lower, or move the treadmill.
22. When folding or moving the treadmill, make
sure that the storage latch is holding the
frame securely in the storage position.
23. Do not change the incline of the treadmill by
placing objects under the treadmill.
24. Inspect and properly tighten all parts of the
treadmill regularly.
5. Never drop or insert any object into any
2
opening on the treadmill.
26. This treadmill is intended for in-home use
only. Do not use this treadmill in a commercial, rental, or institutional setting.
DANGER: Always unplug the power
27.
cord immediately after use, before cleaning
the treadmill, and before performing the maintenance and adjustment procedures described in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized service
representative only.
SAVE THESE INSTRUCTIONS
4
BEFORE YOU BEGIN
Thank you for selecting the revolutionary PROFORM
380 CS treadmill. The 380 CS treadmill offers an im-
ressive selection of features designed to make your
p
workouts at home more enjoyable and effective. And
hen youʼre not exercising, the unique treadmill can be
w
folded up, requiring less than half the floor space of
other treadmills.
For your benefit, read this manual carefully before
using the treadmill. If you have questions after read-
ing this manual, please see the front cover of this man-
Accessory Tray
Handrail
®
ual. To help us assist you, note the product model
number and serial number before contacting us. The
odel number and the location of the serial number
m
decal are shown on the front cover of this manual.
To avoid a registration fee for any service needed
under warranty, you must register the treadmill at
www.proformservice.com/registration.
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
Fan
Console
Key/Clip
Storage Latch
Walking Belt
Foot Rail
Idler Roller
Adjustment Bolts
Hood
Reset/Off
Circuit Breaker
Power Cord
Wheel
5
ASSEMBLY
M10 Flat Washer
(14)–2
M8 x 15mm
Bolt (8)–6
M10 Star
Washer (9)–6
M8 Star
Washer (5)–6
M4.2 x 19mm
Screw (10)–6
M5 Star
Washer (7)–2
M10 x 75mm Bolt (2)–4
M10 x 60mm Bolt (1)–2
M5 x 16mm
Screw (85)–2
M4 x 10mm
Ground Screw (84)–1
#8 x 1" Tek Screw
(26)–6
M8.5 Washer
(32)–4
Extension Leg Nut
(43)–4
M8 x 58mm Bolt (13)–4
ssembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
A
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking
belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to
the top of the walking belt or the shipping carton. This is a normal condition. If there is lubricant on top of the walk-
ng belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
i
Assembly requires the included hex keys and your own Phillips screwdriver ,
adjustable wrench , scissors , and rubber mallet .
Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is
the key number of the part, from the PART LIST near the end of this manual. The number after the parentheses
is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it is preattached to
one of the parts to be assembled. To avoid damaging plastic parts, do not use power tools for assembly.
Extra hardware may be included.
1. Make sure that the power cord is unplugged.
Position the Base (52) and the two Extension
Legs (45) upside-down as shown.
Attach six Base Pads (63) to the Base (52) and
the Extension Legs (45) with six #8 x 1" Tek
Screws (26).
1
26
63
26
63
6
52
63
26
45
26
63
26
63
26
63
2. Have a second person hold the Base (52) in the
position shown.
dentify the Left Upright (53) (the Right Upright
I
[54] has a large hole near the lower end).
Orient the Left Upright (53) so the indicated
small holes are on top as shown. Attach the
Left Upright to the Base (52) with two M10 x
75mm Bolts (2) and two M10 Star Washers (9);
do not tighten the Bolts yet.
2
mall
S
Holes
53
Large
Hole
54
2
Attach the Right Upright (54) to the Base (52)
in the same way.
3. Attach each Extension Leg (45) to the Base (52)
with two M8 x 58mm Bolts (13), two M8.5
Washers (32), and two Extension Leg Nuts (43).
Note: The heads of the wheel bolts should be
on the outside of the Extension Legs.
Lower the Base (52) so that it is flat on the floor.
3
Bolt Head
13
32
45
43
13
52
9
2
32
52
9
45
43
4. Position the Base (52) as close to the front of the
treadmill as possible, as shown.
See the upper inset drawing. Locate the wire
tie in the lower end of the Right Upright (54). Tie
the wire tie securely around the end of the Wire
Harness (39). Then, locate the other end of the
wire tie in the upper end of the Right Upright.
Pull the upper end of the wire tie until the Wire
Harness is extending from the upper end of the
Right Upright. Secure the Wire Harness to the
Right Upright so that it will not fall inside.

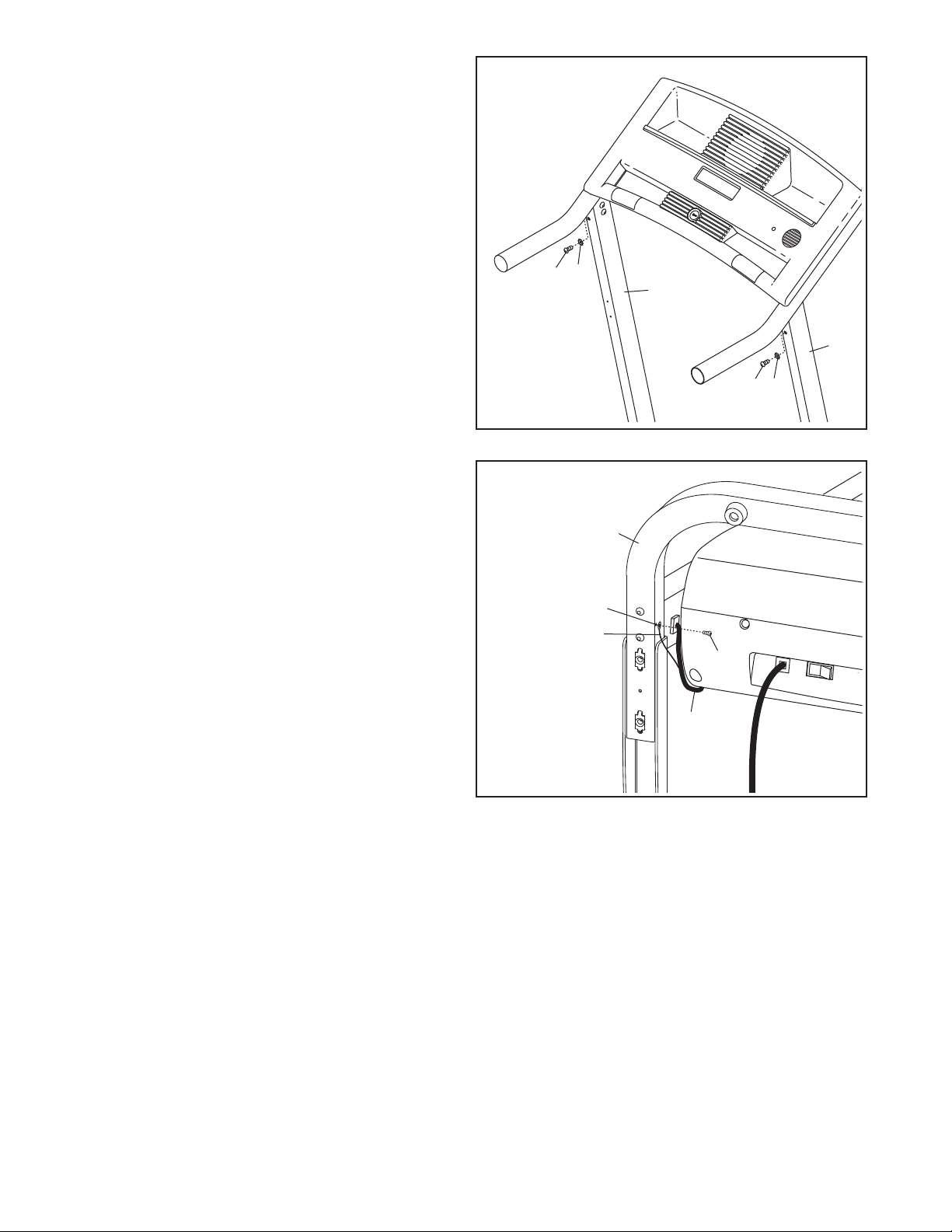

See the lower inset drawing. Press the indicated Grommet (49) into the Right Upright (54).
4
39
39
54
52
54
Wire Tie
54
49
7

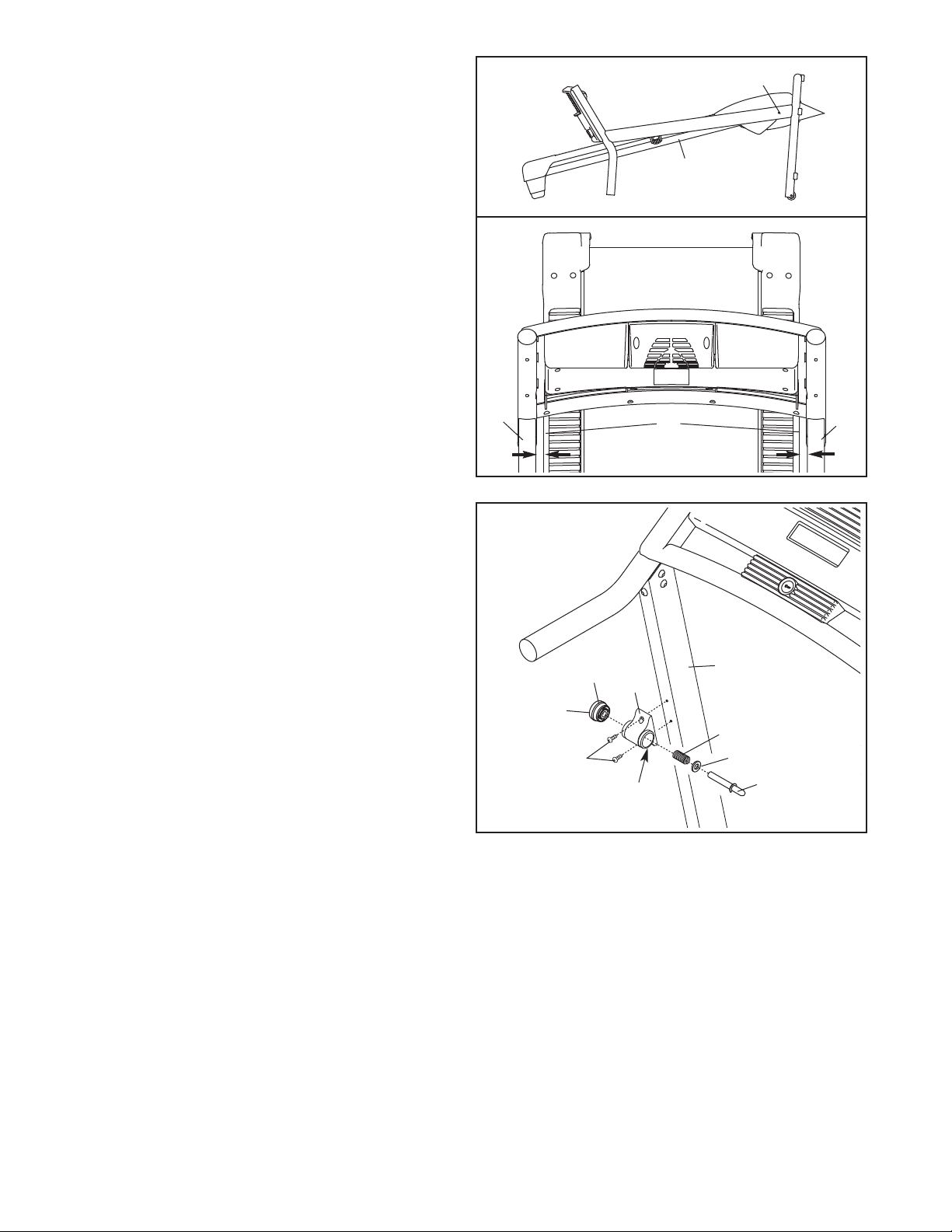

5. See the left inset drawing. Identify the two
Frame Spacers (11). Open the included packet
of grease, and apply grease to both sides of both
rame Spacers. Then, identify the outer side of
F
each Frame Spacer.
Hold a Frame Spacer (11) between the Right
Upright (54) and the Lift Frame (23), with the
outer side of the Frame Spacer facing the
Right Upright.
With the help of a second person, raise the front
of the treadmill. Attach the Lift Frame (23) to the
Right Upright (54) with an M10 x 60mm Bolt (1),
an M10 Flat Washer (14), and an M10 Star
Washer (9); do not tighten the Bolt yet.
5
54
9
11
14
23
1
6. See the left inset drawing. Identify the outer
side of the remaining Frame Spacer (11).
Hold the Frame Spacer (11) between the Left
Upright (53) and the Lift Frame (23), with the
outer side of the Frame Spacer facing the
Left Upright. Attach the Left Upright to the Lift
Frame with an M10 x 60mm Bolt (1), an M10 Flat
Washer (14), and an M10 Star Washer (9); do
not tighten the Bolt yet.
11
Inner
Side
11
Outer
Side
6
53
9
23
Top View
9
14
1
54
14
1
11
Inner
Side
Outer
Side
11
23
1
Top View
14
9
53
11
23
8
7. Set the Console Assembly (91) face down on a
oft surface to avoid scratching the Console
s
Assembly. Hold the Right Handrail (33), which
has a large hole in one side, near the Console.
ext, insert the console wire and the tie into the
N
hole in the side of the Right Handrail (33). Using
needlenose pliers, pull the console wire out of
the hole near the bracket on the Right Handrail.
Then, set the Right Handrail (33) on the Console
Assembly (91). Make sure that no wires are
pinched. Start an M5 x 16mm Screw (85) with a
M5 Star Washer (7) into the Right Handrail, and
then start two M4.2 x 19mm Screws (10) into the
Right Handrail. Tighten the M5 x 16mm Screw
and then tighten the two M4.2 x 19mm
Screws; do not overtighten the Screws.
Attach the Left Handrail (not shown) to the
Console Assembly (91) in the same way.
Note: There are no wires on the left side.
7
Bracket
33
C
ie
T
Large
Hole
91
onsole
Wire
85
7
10
8. Remove the plastic ties from the Right Handrail
(33) and the Left Handrail (not shown). Press the
two Cage Nuts (105) back into place if necessary
(only one side is shown). With the help of a second
person, hold the Console Assembly (91) near the
Right Upright (54).
Connect the Wire Harness (39) to the console
wire. See the inset drawing. The connectors
should slide together easily and snap into
place. If they do not, turn one connector and try
again. IF THE CONNECTORS ARE NOT CONNECTED PROPERLY, THE CONSOLE MAY
BE DAMAGED WHEN THE POWER IS
TURNED ON. Next, remove the wire tie from the
Wire Harness. Insert the connectors and the excess wire downward into the Right Upright (54).
9. Attach the Console Assembly (91) to the Uprights
(53, 54) with four M8 x 15mm Bolts (8) and four
M8 Star Washers (5); do not fully tighten the
Bolts yet. Make sure that no wires are
pinched.
8
105
Tie
Console
Wire
Wire
Tie
91
39
33
39
54
9
91
8
5
54
8
5
53
9
Loading...
