ProForm PFTL395091 User Manual
www.proform.com
Model No. PFTL39509.1
Serial No.
Write the serial number in the space
above for future reference.
Serial Number
Decal
QUESTIONS?
If you have questions, or if parts are
damaged or missing, DO NOT CON-
TACT THE STORE; please contact
Customer Care.
USER'S MANUAL
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.proformservice.com
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
PERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
O
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
WARNING DECAL PLACEMENT
This drawing shows the locations of the warning
decals. If a decal is missing or illegible, call
the telephone number on the front cover of
this manual and request a free replacement
decal. Apply the decal in the location shown.
Note: The decals may not be shown at actual
size.
PROFORM is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and in-
tructions in this manual and all warnings on your treadmill before using your treadmill. ICON as-
s
sumes no responsibility for personal injury or property damage sustained by or through the use of
this product.
1. Before beginning any exercise program, consult your physician. This is especially important for persons over age 35 or persons with
pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
3. Use the treadmill only as described.
4. Place the treadmill on a level surface, with at
least 8 ft. (2 m) of clearance behind it and 2 ft.
(0.5 m) on each side. Do not place the treadmill on any surface that blocks air openings.
To protect the floor or carpet from damage,
place a mat under the treadmill.
5. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
6. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
7. Keep children under age 12 and pets away
from the treadmill at all times.
8. The treadmill should be used only by persons
weighing 275 lbs. (125 kg) or less.
9. Never allow more than one person on the
treadmill at a time.
10. Wear appropriate exercise clothes when
using the treadmill. Do not wear loose clothes
that could become caught in the treadmill.
Athletic support clothes are recommended
for both men and women. Always wear ath-
letic shoes. Never use the treadmill with bare
feet, wearing only stockings, or in sandals.

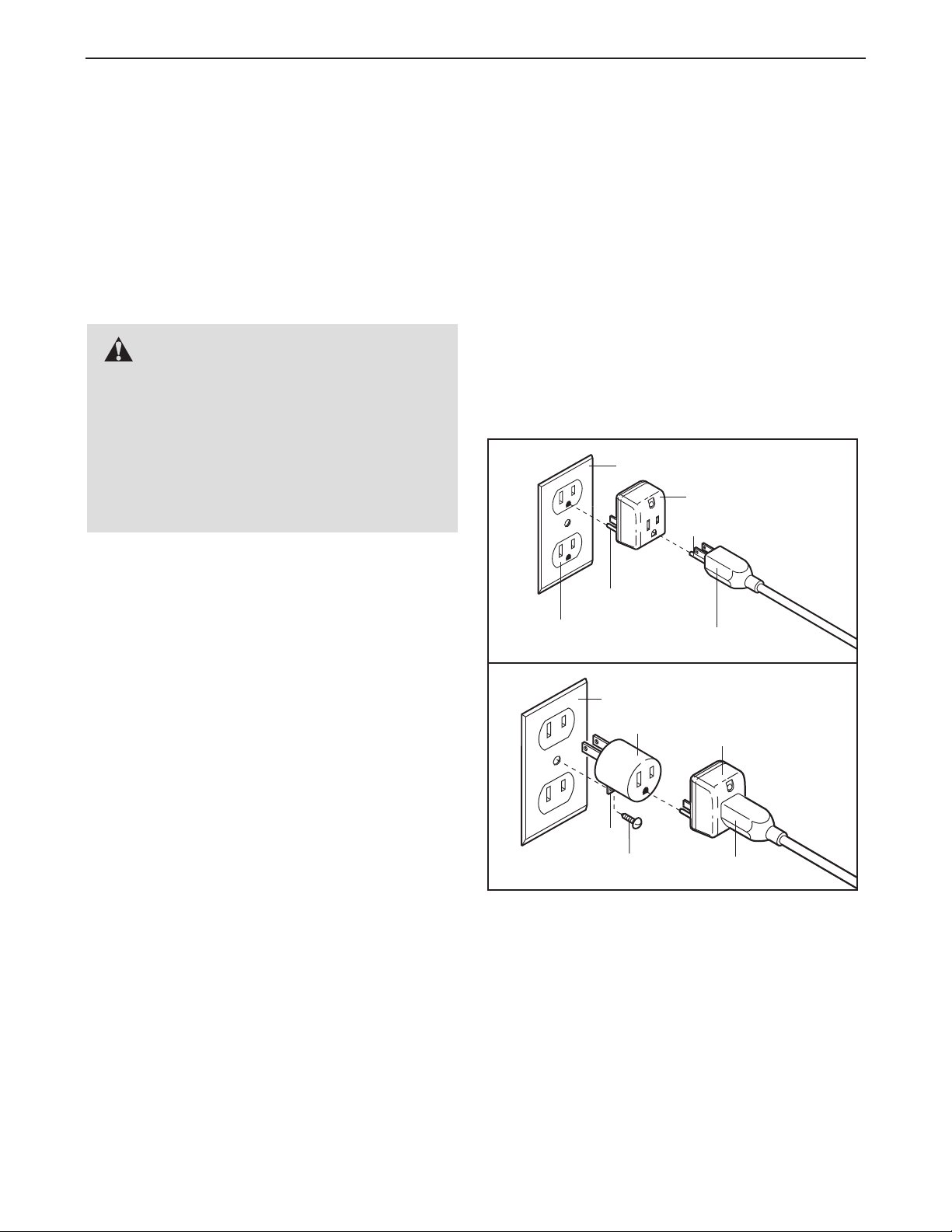

11. When connecting the power cord (see page
12), plug the power cord into a surge suppressor (not included) and plug the surge sup-
pressor into a grounded circuit capable of carrying 15 or more amps. No other appliance
should be on the same circuit. Do not use an
extension cord.
12.Use only a single-outlet surge suppressor that
meets all of the specifications described on
page 12. To purchase a surge suppressor, see
your local PROFORM dealer or call the telephone number on the front cover of this manual and order part number 146148, or see your
local electronics store.
13. Failure to use a properly functioning surge
suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may slow,
accelerate, or stop unexpectedly, which may
result in a fall and serious injury.
14. Keep the power cord and the surge suppressor away from heated surfaces.
15. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See TROUBLESHOOTING on page 20 if the treadmill is
not working properly.)
16. Read, understand, and test the emergency
stop procedure before using the treadmill (see
HOW TO TURN ON THE POWER on page 14).
17. Never start the treadmill while you are standing on the walking belt. Always hold the
handrails while using the treadmill.
18. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
19. Never leave the treadmill unattended while it
is running. Always remove the key and unplug
the power cord when the treadmill is not in
use.
3
0. The pulse sensor is not a medical device.
2
Various factors, including the user's move-
ent, may affect the accuracy of heart rate
m
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
21. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 6, and HOW TO FOLD
AND MOVE THE TREADMILL on page 18.)
You must be able to safely lift 45 lbs. (20 kg)
to raise, lower, or move the treadmill.
22. When folding or moving the treadmill, make
sure that the storage latch is holding the
frame securely in the storage position.
23. Inspect and properly tighten all parts of the
treadmill regularly.
24. Never insert any object into any opening on
the treadmill.
25.
DANGER: Always unplug the power
cord immediately after use, before cleaning
the treadmill, and before performing the
maintenance and adjustment procedures described in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized service representative only.
26. This treadmill is intended for in-home use
only. Do not use this treadmill in a commercial, rental, or institutional setting.
27. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
SAVE THESE INSTRUCTIONS
4
BEFORE YOU BEGIN
Thank you for selecting the new PROFORM®6.0 ZT
readmill. The 6.0 ZT treadmill offers a selection of fea-
t
tures designed to make your workouts at home more
effective. And when youʼre not exercising, the unique
treadmill can be folded up, requiring less than half the
loor space of other treadmills.
f
For your benefit, read this manual carefully before
using the treadmill. If you have questions after read-
Accessory Tray
Handrail
Storage Latch
ing this manual, please see the front cover of this man-
al. To help us assist you, note the product model
u
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
Fan
Console
Key/Clip
Upright
Walking Belt
Foot Rail
Idler Roller
Adjustment Bolts
Reset/Off
Circuit Breaker
Power Cord
Platform Cushion
5
ASSEMBLY
3/8" Nut (47)–4
#8 x 3/4"
Screw (2)–6
3/8" Flat Washer
(33)–2
5/16" x 2 1/4" Bolt (20)–4
#8 x 1/2" Ground
Screw (27)–2
Wheel Spacer
(44)–4
1/4" x 1/2"
Bolt (22)–2
1/4" Star
Washer
(21)–2
3/8" Star
Washer
(39)–4
5/16" Star
Washer
(19)–4
3/8" x 2 1/4" Bolt (5)–6
3/8" x 2 1/2" Bolt (32)–2
To hire an authorized service technician to assemble the treadmill, call 1-800-445-2480. Assembly re-
uires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not dispose of
q
the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is coated
with high-performance lubricant. During shipping, some lubricant may be transferred to the top of the walking belt
or the shipping carton. This is normal and does not affect treadmill performance. If there is lubricant on top of the
alking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
w
Assembly requires the included hex keys and your own Phillips screwdriver , rubber
mallet , adjustable wrench , wire cutters , and needlenose pliers .
Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is
the key number of the part, from the PART LIST near the end of this manual. The number after the parentheses
is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it is preattached
to one of the parts to be assembled. To avoid damaging plastic parts, do not use power tools for assembly. Extra hardware may be included.
1. Orient the Base (48) as shown.
Identify the Right Upright (36), which has a
square hole near the lower end.
Orient the Right Upright (36) as shown, and
attach it to the Base (48) with two 3/8" x 2 1/4"
Bolts (5) and two 3/8" Star Washers (39); do
not tighten the Bolts yet.
1
6
48
36
Square
Hole
39
5
39
5
. Orient the Left Upright (31) as shown, and at-
2
tach it to the Base (48) with two 3/8" x 2 1/4"
Bolts (5) and two 3/8" Star Washers (39); do
not tighten the Bolts yet.
2
Latch
Holes
48
31
39
3. Attach a Wheel (45) to each side of the Base
(48) with a 3/8" x 2 1/4" Bolt (5), two Wheel
Spacers (44), and a 3/8" Nut (47) as shown. Do
not overtighten the Bolts; the Wheels should
turn freely.
4. Raise the Uprights (31, 36) so that the Base (48)
is flat on the floor and positioned as shown.
Cut the tie holding the Upright Wire (28) in a bundle.
See the far right drawing. Tie the wire tie in the
Right Upright (36) around the end of the Upright
Wire (28). Then, pull the other end of the wire tie
until the Upright Wire is extending from the
upper end of the Right Upright.
3
4
45
44
5
Wire Tie
31
28
44
47
48
36
Large
Hole
44
47
36
45
28
39
5
44
5
Make sure that the end of the Upright Wire
(28) does not fall into the Right Upright (36).
Wire
Tie
48
7
5. See the left inset drawing. Identify the two
Frame Spacers (34). Open the included grease
packet, and apply grease to both sides of both
rame Spacers. Then, identify the outer side of
F
each Frame Spacer.
5
6
3
Hold a Frame Spacer (34) between the Right
Upright (36) and the Lift Frame (59), with the
outer side of the Frame Spacer facing the
Right Upright. Attach the Right Upright to the
Lift Frame with a 3/8" x 2 1/2" Bolt (32), a 3/8"
Flat Washer (33), and a 3/8" Nut (47); do not
tighten the Bolt yet.
34
Outer
Side
59
34
59
47
47
34
33
33
32
36
32

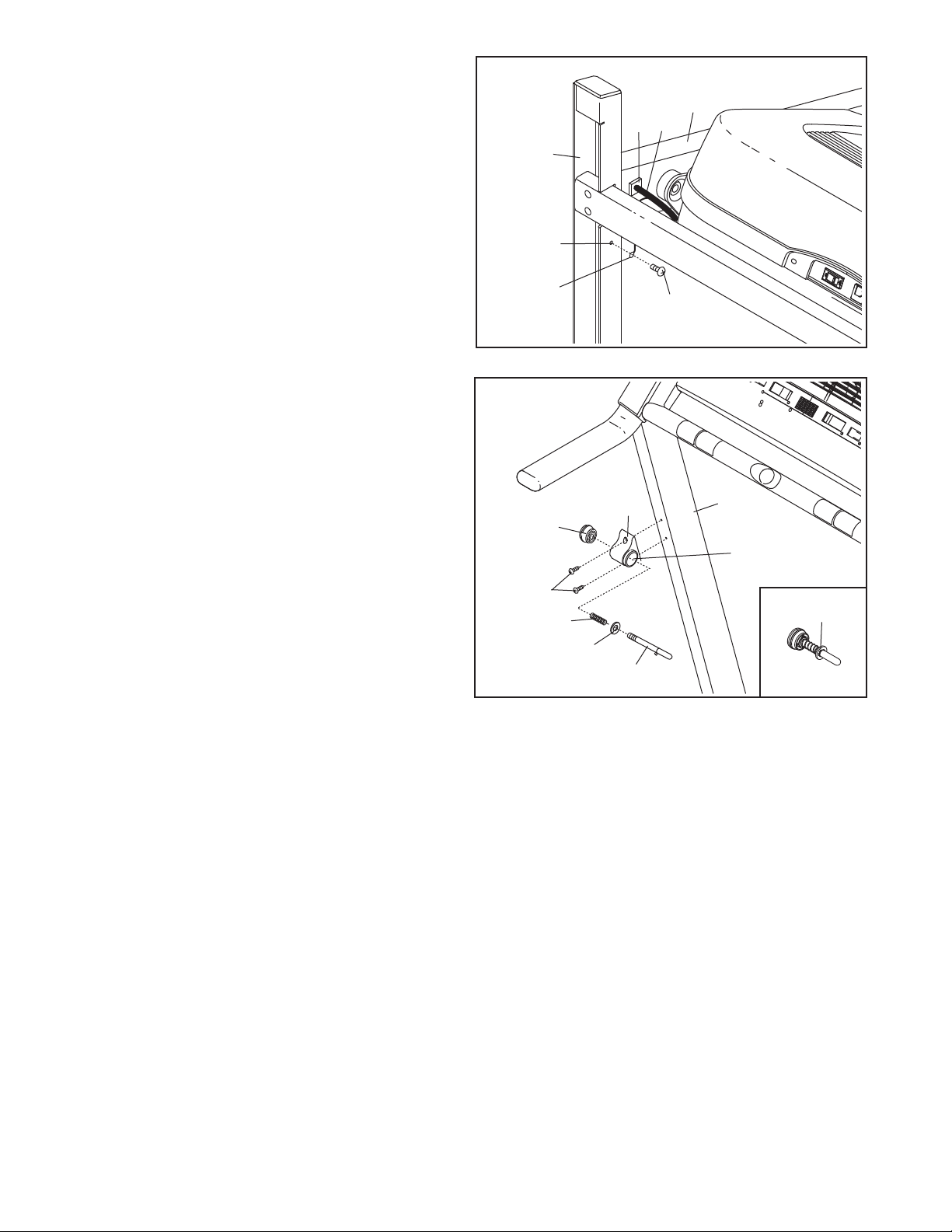

6. See the left inset drawing. Identify the outer
side of the remaining Frame Spacer (34).
Hold the Frame Spacer (34) between the Left
Upright (31) and the Lift Frame (59), with the
outer side of the Frame Spacer facing the
Left Upright. Attach the Left Upright to the Lift
Frame with a 3/8" x 2 1/2" Bolt (32), a 3/8" Flat
Washer (33), and a 3/8" Nut (47); do not
tighten the Bolt yet.
6
32
34
33
34
31
47
Outer
Side
Inner
Side
59
32
31
47
33
34
59
8
7. Route the Upright Wire (28) through one of the
Handrails (18) as shown.
ttach the Handrail (18) to the Right Upright (36)
A
with two 5/16" x 2 1/4" Bolts (20) and two 5/16"
tar Washers (19). Be careful not to pinch the
S
Upright Wire (28).
7
20
18
19
31
0
2
28
Attach the other Handrail (18) to the Left Upright
(31) with two 5/16" x 2 1/4" Bolts (20) and two
5/16" Star Washers (19). Firmly tighten the
four Bolts.
8. Insert the included plastic tie (A) through the indicated hole in the right Handrail (18). Make
sure that the Upright Wire (28) is secured to
the inside of the Handrail as shown. Then,
tighten the plastic tie.
Remove the wire tie from the Upright Wire (28).
19
18
8
28
A
18
36
Hole
Wire Tie
9. While another person holds the Console Base
(26) near the right Handrail (18), attach the
ground wire on the Console Base to the right
Handrail with a #8 x 1/2" Ground Screw (27).
Connect the wire harness on the Console Base
(26) to the Upright Wire (28) as shown in the
inset drawing. If the connectors are oriented
correctly, they will slide together easily and
snap into place. If they do not, turn one con-
nector and try again. IF THE CONNECTOR IS
NOT INSERTED PROPERLY, THE CONSOLE
MAY BE DAMAGED WHEN THE POWER IS
TURNED ON.
9
Wire
Harness
28
27
26
Ground
Wire
Wire
Harness
18
28
9
Loading...
