ProForm PFTL39211 User Manual

Serial Number

Decal

USER'S MANUAL

Model No. PFTL39211
Serial No.

CAUTION

Read all precautions and instruc­tions in this manual before using
this equipment. Save this manual
for future reference.

QUESTIONS?

If you have questions, or if there
are missing parts, we will guar­antee complete satisfaction
through direct assistance from
our factory.

TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLL­FREE CUSTOMER HOT LINE.
The trained technicians on our
Customer Hot Line will provide
immediate assistance, free of
charge to you.

CUSTOMER HOT LINE:

1-800-999-3756

Mon.–Fri., 6 a.m.–6 p.m. MST

Visit our website at

www.proform.com

new products, prizes,

fitness tips, and much more!

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

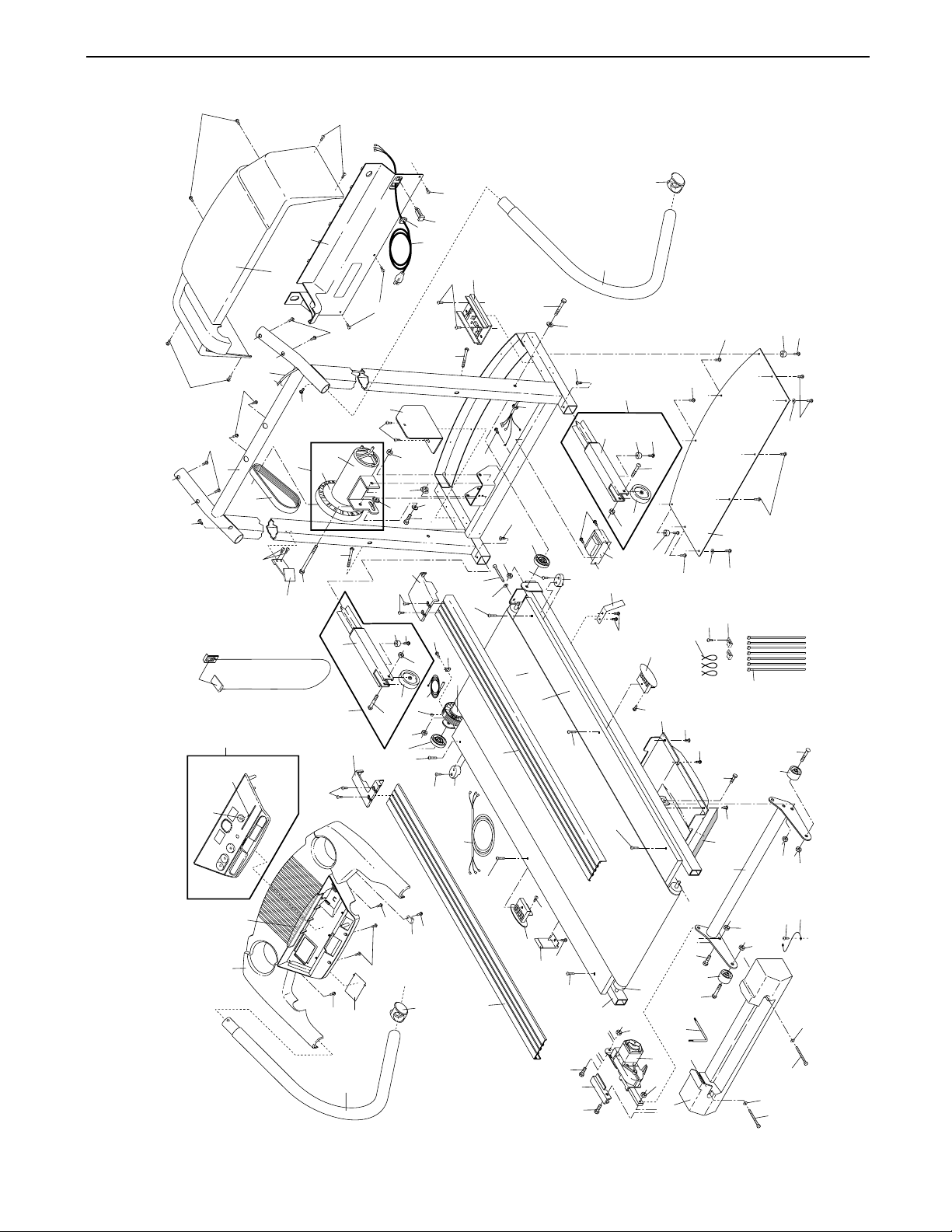

Note: An EXPLODED DRAWING and a PART LIST are attached in the center of this manual.

1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.

2. Use the treadmill only as described.

3. Place the treadmill on a level surface, with at
least eight feet of clearance behind it and two
feet on each side. Do not place the treadmill
on any surface that blocks air openings. To
protect the floor or carpet from damage, place
a mat under the treadmill.

4. Keep the treadmill indoors, away from mois­ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.

5. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.

6. Keep children under the age of 12 and pets
away from the treadmill at all times.

7. The treadmill should be used only by persons
weighing 250 pounds or less.

8. Never allow more than one person on the
treadmill at a time.

9. Wear appropriate exercise clothes when
using the treadmill. Do not wear loose clothes
that could become caught in the treadmill.
Athletic support clothes are recommended for
both men and women. Always wear athletic
shoes. Never use the treadmill with bare feet,
wearing only stockings, or in sandals.

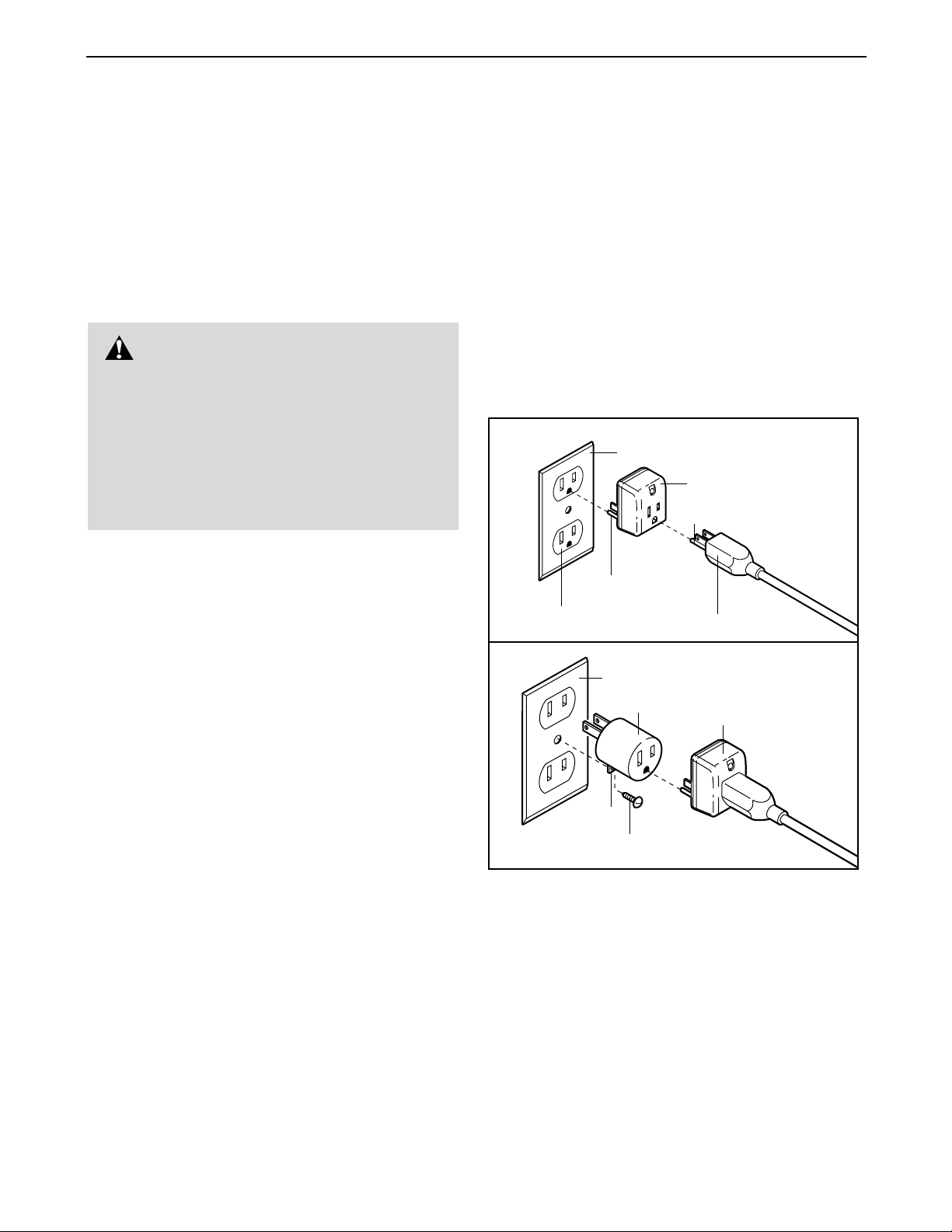

10. When connecting the power cord (see page 7),
plug the power cord into a surge suppressor
(not included) and plug the surge suppressor
into a grounded circuit capable of carrying 15
or more amps. No other appliance should be on
the same circuit. Do not use an extension cord.

11. Use only a single-outlet surge suppressor that
meets all of the specifications described on
page 7. To purchase a surge suppressor, see
your local PROFORM dealer or call 1-800-806­3651 and order part number 146148.

12. Failure to use a properly functioning surge
suppressor could result in damage to the con­trol system of the treadmill. If the control sys­tem is damaged, the walking belt may change
speed or stop unexpectedly, which may result
in a fall and serious injury.

13. Keep the power cord and the surge suppres­sor away from heated surfaces.

WARNING:To reduce the risk of burns, fire, electric shock, or injury to persons, read the

following important precautions and information before operating the treadmill.

IMPORTANT PRECAUTIONS

2

The decal shown has been placed on your treadmill. If the decal
is missing, or if it is illegible, please call our Customer Service
Department, toll-free, to order a free replacement decal (see the
front cover of this manual). Apply the decal in the location
shown.

Note: The decal is shown at 38% of actual size.

14. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See BE­FORE YOU BEGIN on page 4 if the treadmill
is not working properly.)

15. Never start the treadmill while you are stand­ing on the walking belt. Always hold the
handrails while using the treadmill.

16. The treadmill is capable of high speeds.
Adjust the speed in small increments to
avoid sudden jumps in speed.

17. Never leave the treadmill unattended while it
is running. Always remove the key and un­plug the power cord when the treadmill is not
in use.

18. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 5, and HOW TO FOLD
AND MOVE THE TREADMILL on page 10.)
You must be able to safely lift 45 pounds (20

kg) to raise, lower, or move the treadmill.

19. When folding or moving the treadmill, make
sure that the storage latch is fully closed.

20. Inspect and properly tighten all parts of the
treadmill regularly.

21. Never insert any object into any opening.

22.

DANGER:Always unplug the power

cord immediately after use, before cleaning
the treadmill, and before performing the
maintenance and adjustment procedures de­scribed in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized ser­vice representative only.

23. This treadmill is intended for in-home use
only. Do not use this treadmill in a commer­cial, rental, or institutional setting.

WARNING:Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.

SAVE THESE INSTRUCTIONS

3

Congratulations for selecting the new PROFORM®485
Pi treadmill. The 485 Pi treadmill combines advanced
technology with innovative design to help you get the
most from your exercise in the convenience and pri­vacy of your home. And when you’re not exercising, the
unique 485 Pi treadmill can be folded up, requiring less
than half the floor space of other treadmills.

For your benefit, read this manual carefully before
using the treadmill. If you have questions after read-

ing this manual, please call our Customer Service

Department toll-free at 1-800-999-3756, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time (ex­cluding holidays). To help us assist you, please note
the product model number and serial number before
calling. The model number of the treadmill is
PFTL39211. The serial number can be found on a
decal attached to the treadmill (see the front cover of
this manual for the location).

Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.

BEFORE YOU BEGIN

4

Handrail

Upright

Storage Latch

Key/Clip

Circuit Breaker

Walking Belt

Cushioned Walking Platform

for maximum exercise comfort

Foot Rail

Power Cord

BACK

RIGHT SIDE

Rear Roller
Adjustment Bolts

Console

Bookrack

Water Bottle Holder

(Bottle not included)

Incline Leg

5

1. Carefully raise the Uprights (11) until the treadmill is in
the position shown.

Insert one of the Extension Legs (34) into the treadmill
as shown. (Note: It may be helpful to tip the Uprights [11]
in the direction shown by the arrow as you insert the
Extension Leg.) Make sure that the Base Pad (40) is on
the indicated side of the Extension Leg. Attach the
Extension Leg with an Extension Leg Screw (53). Be

sure to push on the head of the Extension Leg Screw
while tightening it. Attach the other Extension Leg (not

shown) in the same way.

11

1

ASSEMBLY

Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Assembly requires the included allen wrench
and your own phillips screwdriver and wire cutters .

Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a
small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal
condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off
the lubricant with a soft cloth and a mild, non-abrasive cleaner.

11

53

34

40

2. Slide a Handrail Cap (41) onto one of the Handrails (1)
as shown. Insert the Handrail (1) into the tube at the top
of the left Upright (11). Finger tighten a Handrail Bolt (78)
at an angle (see the inset drawing) into the Upright and
the Handrail. Make sure that the Handrail Cap (41) is
around the Upright.

Press the top of the Handrail (1) into the left Upright (11).
Align the hole in the Handrail with the hole in the Upright,
and tighten a Handrail Screw (53) into the Upright and
the Handrail. Then, tighten the Handrail Bolt (78).

Attach the other Handrail (1) as described above.

11

1

53

41

78

78

41

53

1

Holes

2

78

11

1

Handrail Bolt (78)–2

Extension Leg Screw/Handrail Screw (53)–4

Console Screw (88)–6

Small Screw (13)–2

6

5. Make sure that all parts are properly tightened before you use the treadmill. Keep the included allen
wrench in a secure place. The allen wrench is used to adjust the walking belt (see page 13). To protect the
floor or carpet, place a mat under the treadmill.

3. Place the Console Base (46) on the tubes on the Uprights
(11). Pull out the two Wires (21) just enough to connect
them to the two connectors in the Console Base. Make a
loop with the indicated plastic tie and insert the end
through the tie holder on the bottom of the Console Base.
Plug the Wire that has a red connector into the corre­sponding connector in the Console Base. The connectors
should fit together without being forced; if they do not, ro­tate the red connector on the Wire and try again. Do not
force the connectors together. Next, plug the other
Wire into the other connector on the Console Base.

Important: Make sure that both Wires are fully in­serted. WARNING: Do not disconnect or connect the
Wires while the treadmill power cord is plugged in. Pull

the plastic tie tight and cut off the end.
Refer to drawing 3b. Thread six Console Screws (88) into

the Uprights (11) and the Console Base (46). After all six
Console Screws have been started, tighten the Screws

until they are snug. Do not overtighten the Screws.

88

46

11

11

88

88

11

21

46

21

3a

3b

4. Attach the Storage Latch (14) to the left Upright (11) with
two Small Screws (13). Be careful not to overtighten

the Screws.

13

11

14

4

Tie
