Serial Number
Decal

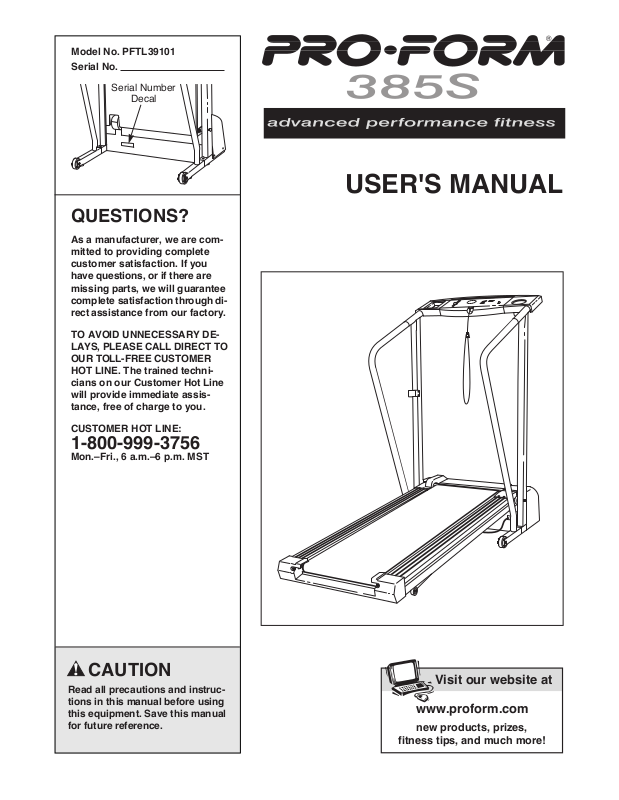

USER'S MANUAL
Model No. PFTL39101
Serial No.
QUESTIONS?
As a manufacturer, we are committed to providing complete
customer satisfaction. If you
have questions, or if there are
missing parts, we will guarantee
complete satisfaction through direct assistance from our factory.
TO AVOID UNNECESSARY DELAYS, PLEASE CALL DIRECT TO
OUR TOLL-FREE CUSTOMER
HOT LINE. The trained technicians on our Customer Hot Line
will provide immediate assistance, free of charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.ÐFri., 6 a.m.Ð6 p.m. MST
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
TROUBLE-SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
Note: An EXPLODED DRAWING and a PART LIST are attached in the center of this manual. Save the
EXPLODED DRAWING and PART LIST for future reference.
1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
2. Use the treadmill only as described.
3. Place the treadmill on a level surface, with
eight feet of clearance behind it. Do not place
the treadmill on a surface that blocks any air
openings. To protect the floor or carpet from
damage, place a mat under the treadmill.
4. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
5. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
6. Keep children under the age of 12 and pets
away from the treadmill at all times.
7. The treadmill should be used only by persons
weighing 250 pounds or less.
8. Never allow more than one person on the
treadmill at a time.
9. Wear appropriate exercise clothing when
using the treadmill. Do not wear loose clothing that could become caught in the treadmill.
Athletic support clothes are recommended for
both men and women. Always wear athletic
shoes. Never use the treadmill with bare feet,
wearing only stockings, or in sandals.
10. When connecting the power cord (see page 7),
plug the power cord into a surge suppressor
(not included) and plug the surge suppressor
into a grounded circuit capable of carrying 15
or more amps. No other appliance should be on
the same circuit. Do not use an extension cord.
11. Use only a single-outlet surge suppressor that
is UL 1449 listed as a transient voltage surge
suppressor (TVSS). The surge suppressor
must have a UL suppressed voltage rating of
400 volts or less and a minimum surge dissipation of 450 joules. The surge suppressor
must be electrically rated for 120 volts AC and
15 amps. To purchase a surge suppressor, see
your local PROFORM dealer or call 1-800-9993756 and order part number 146148.
12. Keep the power cord and the surge suppressor away from heated surfaces.
13. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See BEFORE YOU BEGIN on page 4 if the treadmill is
not working properly.)
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the
following important precautions and information before operating the treadmill.
IMPORTANT PRECAUTIONS
2
The decal shown at the right has been placed on your treadmill.
If the decal is missing, or if it is not legible, please call our
Customer Service Department, toll-free, to order a free replacement decal (see ORDERING REPLACEMENT PARTS on the back
cover of this manual). Apply the decal in the location shown.
Note: Decal is shown at 38% of actual size.
14. Never start the treadmill while you are
standing on the walking belt. Always hold
the handrails while using the treadmill.
15. The treadmill is capable of high speeds.
Adjust the speed in small increments to
avoid sudden jumps in speed.
16. Never leave the treadmill unattended while
it is running. Always remove the key and unplug the power cord when the treadmill is
not in use.
17. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 5, and HOW TO FOLD
AND MOVE THE TREADMILL on page 10.)
You must be able to safely lift 45 pounds (20
kg) to raise, lower, or move the treadmill.
18. When folding or moving the treadmill, make
sure that the storage latch is fully closed.
19. Inspect and tighten all parts of the treadmill
every three months.
20. Never drop or insert any object into any
opening.
21. DANGER: Always unplug the power
cord immediately after use, before cleaning
the treadmill, and before performing the
maintenance and adjustment procedures
described in this manual. Never remove the
motor hood unless instructed to do so by
an authorized service representative.
Servicing other than the procedures in this
manual should be performed by an authorized service representative only.
22. This treadmill is intended for in-home use
only. Do not use this treadmill in any commercial, rental, or institutional setting.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS
3
Thank you for selecting the new PROFORM¨385S
treadmill. The 385S treadmill combines advanced technology with innovative design to let you enjoy an excellent form of cardiovascular exercise in the convenience
and privacy of your home. And when youÕre not exercising, the unique 385S can be folded up, requiring less
than half the floor space of other treadmills.
For your benefit, read this manual carefully before
using the treadmill. If you have additional questions,
please call our Customer Service Department toll-free
at 1-800-999-3756, Monday through Friday, 6 a.m.
until 6 p.m. Mountain Time (excluding holidays). To
help us assist you, please note the product model
number and serial number before calling. The model
number of the treadmill is PFTL39101. The serial number can be found on a decal attached to the treadmill
(see the front cover of this manual for the location).
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
BEFORE YOU BEGIN
Handrail
Upright
Storage Latch
Key/Clip
Circuit Breaker
Walking Belt
Cushioned Walking Platform
for maximum exercise comfort
Foot Rail
Power
Cord
BACK
RIGHT SIDE
Rear Roller
Adjustment Bolt
Water Bottle Holder
(Water Bottle is not
included)
Towel Rack
Accessory Tray
Incline Leg
4
ASSEMBLY
Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Refer to the drawings below to identify the parts
used in assembly. Assembly requires the following tools: The included allen wrench and your own
phillips screwdriver and mallet .
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a
small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal
condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off
the lubricant with a soft cloth and a mild, non-abrasive cleaner.
1. With the help of a second person, carefully raise the
Uprights (14) until the treadmill is in the position shown.
Extension Leg Screw (34)Ð2
Handrail Washer (32)Ð2
Latch Screw (88)Ð2
Handrail Bolt (15)Ð2
Handrail Screw (13)Ð4
14
1
5
2
2. Insert a Handrail Bolt (15) with a Handrail Washer (32)
into one of the Extension Legs (41) as shown. Thread a
Handrail Bolt four turns into the lower end of one of the
Handrails (2).
Attach the other Extension Leg (41) to the other Handrail
(2) in the same way.
32
41
2
15
4. Slide the upper end of a Handrail (2) and then the attached Extension Leg (41) into the right Upright (14) as
shown. (Note: As you insert the Extension Leg, it may be
helpful to tip the Uprights [14] forward and tap the
Extension Leg with a mallet.) Tighten two of the four
Handrail Screws (13) into the Handrail.
Refer to the inset drawing. Tighten an Extension Leg
Screw (34) into the right Upright (14) as shown. Be sure
to push on the head of the Extension Leg Screw
while tightening it.
Attach the other Handrail (2) to the left Upright (14) as
described above.
6. Attach the Storage Latch (12) to the left Upright (14) with
the Latch Spacer (23) and two Latch Screws (88). Be
careful not to overtighten the Latch Screws.
7. Make sure that all parts are tightened before you use
the treadmill. Keep the included allen wrench in a se-
cure place. The allen wrench is used to adjust the walking belt (see page 13). To protect the floor, place a mat
under the treadmill.
14
13
14
41
13
2
2
4
88
14
12
23
6
5. With the help of a second person, carefully tip the
Uprights (14) down as shown.
Tighten the two Handrail Bolts (15) in the Extension Legs
(41). Refer to drawing 4. Make sure that the four Handrail
Screws (13) are tightened.
With the help of a second person, carefully tip the
Uprights (14) back to the upright position.
15
41
41
14
15
5
6
2
3. Slide a Rubber Ring (74) onto the post on each Upright
(14). Refer to the inset drawing. Make sure that each
Rubber Ring is turned so the tapered side is facing
the thickest part of the post.
74
74
Post
Post
14
14
3
Tapered Side
34
14
OPERATION AND ADJUSTMENT
THE PERFORMANT LUBETMWALKING BELT
Your treadmill features a walking belt coated with
PERFORMANT LUBETM, a high-performance lubricant.
IMPORTANT: Never apply silicone spray or other
substances to the walking belt or the walking platform. Such substances will deteriorate the walking
belt and cause excessive wear.
HOW TO PLUG IN THE POWER CORD
Your treadmill, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your homeÕs power.
Voltage surges, spikes, and noise interference can
result from weather conditions or from other appliances
being turned on or off. To decrease the possibility of
your treadmill being damaged, always use a surge
suppressor with your treadmill (see drawing 1 at
the right).
To purchase a surge suppressor, see your local
PROFORM dealer or call 1-800-999-3756 and order
part number 146148. Use only a single-outlet surge
suppressor that is UL 1449 listed as a transient voltage
surge suppressor (TVSS). The surge suppressor must
have a UL suppressed voltage rating of 400 volts or
less and a minimum surge dissipation of 450 joules.
The surge suppressor must be electrically rated for
120 volts AC and 15 amps.
This product must be grounded. If it should malfunction or break down, grounding provides a path of least
resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having
an equipment-grounding conductor and a grounding
plug. Plug the power cord into a surge suppressor,
and plug the surge suppressor into an appropriate
outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
Important: The treadmill is not compatible with
GFCI-equipped outlets.
This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illustrated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge suppressor to a 2-pole
receptacle as shown in drawing 2 if a properly
grounded outlet is not available.
The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place
by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a qualified electrician to determine if the outlet box cover is
grounded before using an adapter.
DANGER: Improper connection
of the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or serviceman if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the productÑif it will
not fit the outlet, have a proper outlet
installed by a qualified electrician.
1
2
Grounded Outlet Box
Grounded Outlet Box
Grounding Plug
Surge Suppressor
Surge Suppressor
Grounding Pin
Adapter
Lug
Metal Screw
Grounded Outlet
Grounding Pin
7
8
CAUTION: Before operating the
console, read the following precautions.
¥ Do not stand on the walking belt when turning
on the power.
¥ Always wear the clip (see the drawing above)
while using the treadmill. When the key is removed from the console, the walking belt will
stop.
¥ Adjust the speed in small increments.
¥ The training zones marked beside the speed
control are general guidelines only. See page
14 for more information.
¥ To reduce the possibility of electric shock,
keep the console dry. Avoid spilling liquids on
the console. Use only a sealable water bottle.
BATTERY INSTALLATION
The console requires two "AA" batteries (not included). Alkaline batteries are recommended. To install batteries, open the battery cover as shown below.
Press two batteries into the battery compartment, with
the negative (Ð) ends of the batteries touching the
springs. Close the battery cover, push up on the tab,
and then push the tab forward as shown. Be sure that
the tab locks into place.
STEP-BY-STEP CONSOLE OPERATION
Before operating the console, make sure that the
power cord is properly plugged in. (See HOW TO
PLUG IN THE POWER CORD on page 7.)
Next, step onto the foot rails of the treadmill. Find the
clip attached to the key (see the drawing above), and
slide the clip onto the waistband of your clothing. Test
the clip by carefully taking a few steps backward
until the key is pulled from the console. If the key
is not pulled from the console, adjust the position
of the clip as needed.
Follow the steps on page 9 to operate the console.
DIAGRAM OF THE CONSOLE
Clip
Key
Speed Control
Displays
LED Track
Incline Control
Battery
Cover Tab
Batteries
Battery Cover
If there is a thin sheet of
clear plastic on the face
of the console, remove it.
9
Insert the key fully into the power switch.
Inserting the key will
not turn on the displays. The displays will
turn on when the
ON/RESET button is
pressed or when the
walking belt is started.
Note: If you just installed batteries, the displays
will already be on.
Reset the speed control.
Slide the speed control
down to the RESET
position. Note: Each
time the walking belt
is stopped, the speed
control must be
moved to the RESET
position before the
walking belt can be
restarted.
Start the walking belt.
After you have moved the speed control to the
RESET position, slowly slide it upward until the
walking belt begins to move at slow speed.
Carefully step onto the walking belt and begin exercising. Change the speed of the walking belt as
desired by sliding the speed control.
To stop the walking belt, step onto the foot rails
and slide the speed control to the RESET position.
Adjust the incline of the treadmill as desired.
To change the incline of
the treadmill, press the
top or bottom of the incline control until the
desired incline level is
reached.
Monitor your progress with the LED track and
the two displays.
The LED TrackÑThe
LED track in the center
of the console represent a distance of 1/4
mile. As you exercise,
the indicators around
the track will light one
at a time until you have completed 1/4 mile. The
first indicator beside the arrow will then light and a
new lap will begin.
CALS/F-CALS/SPEED
displayÑThis display
shows the approximate
numbers of calories and
fat calories you have
burned. (See FAT
BURNING on page 14.)
In addition, the display shows the speed of the
walking belt, in miles per hour. Every seven seconds, the display will change from one number to
the next. Arrows in the display will indicate which
number is currently shown.
TIME/DISTANCE
displayÑThis display
shows the elapsed time
and distance that you
have walked or run, in
miles. Every seven seconds, the display will
change from one number to the other. Arrows in
the display will indicate which number is currently
shown.
To reset the displays at
any time, press the
ON/RESET button.
When you are finished exercising, stop the
walking belt and remove the key.
Step onto the foot rails, stop the walking belt and
remove the key from the console. The displays will
turn off about five minutes after the key is removed. Note: Any time that the walking belt is
stopped and the ON/RESET button is not
pressed for five minutes, the displays will automatically turn off to conserve the batteries.
6
5
4
3
2
1
Arrow
Arrow
HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL FOR STORAGE
Before folding the treadmill, unplug the power cord. Caution:
You must be able to safely lift 45 pounds (20 kg) in order
to raise, lower, or move the treadmill.

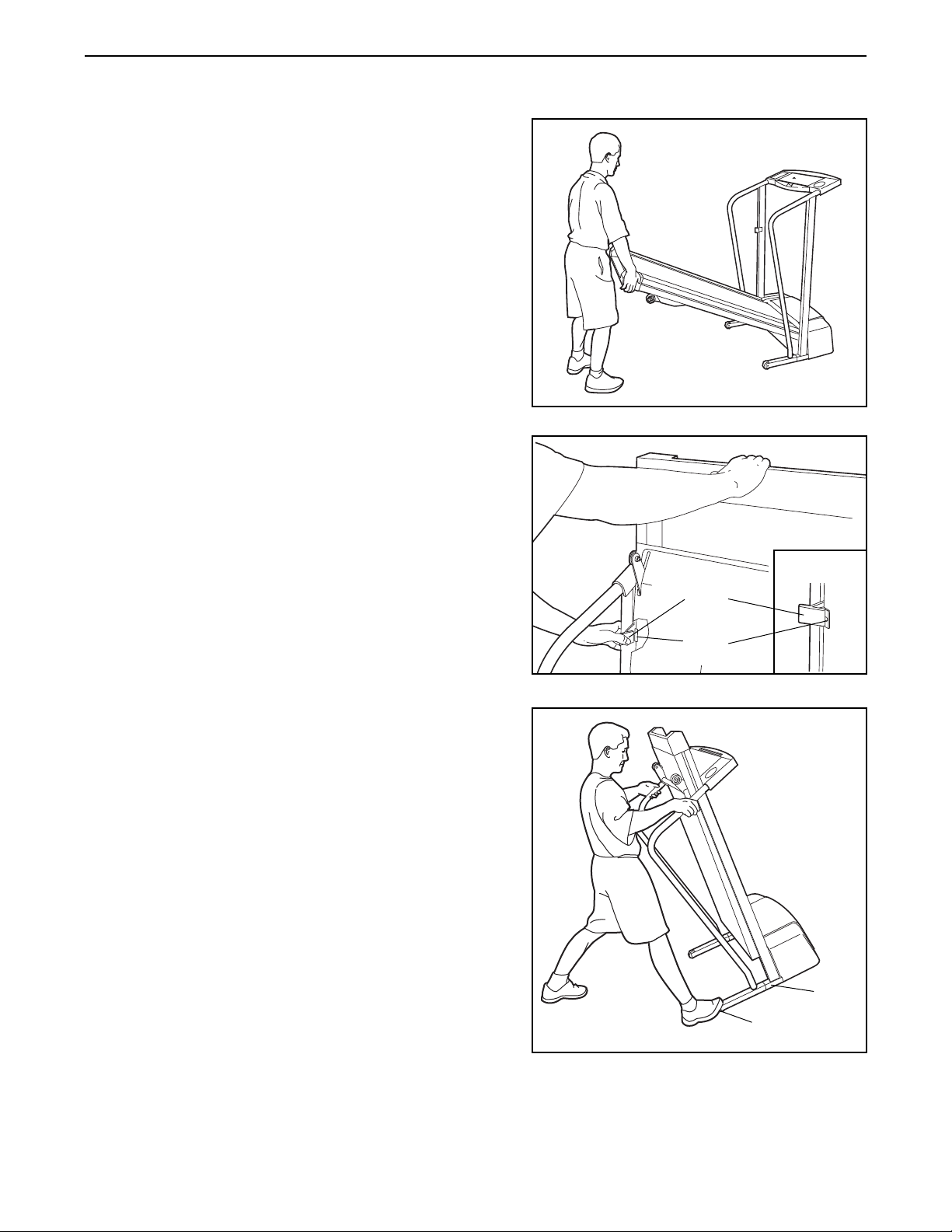

1. Hold the treadmill with your hands in the locations shown
at the right. To decrease the possibility of injury, bend
your legs and keep your back straight. As you raise
the treadmill, make sure to lift with your legs rather
than your back. Raise the treadmill about halfway to the
vertical position.
2. Move your right hand to the position shown and hold the
treadmill firmly. Raise the treadmill until the storage latch
closes over the catch. Make sure that the storage latch
is fully engaged over the catch.
To protect the floor or carpet from damage, place a
mat under the treadmill. Keep the treadmill out of
direct sunlight. Do not leave the treadmill in the storage position in temperatures above 85¡ Fahrenheit.
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the storage position as described above. Make sure that the stor-
age latch is closed fully over the catch.
1. Hold the upper ends of the handrails. Place one foot on
the base as shown.
2. Tilt the treadmill back until it rolls freely on the front
wheels. Carefully move the treadmill to the desired location. To reduce the risk of injury, use extreme caution
while moving the treadmill. Do not move the treadmill
over an uneven
surface.
3. Place one foot on the base, and carefully lower the tread-
mill until it is resting in the storage position.
Base
Front Wheels
10
Engaged
Storage
Latch
Catch
11
HOW TO LOWER THE TREADMILL FOR USE
1. Hold the upper end of the treadmill with your right hand as
shown. Using your left thumb, press the storage latch and
hold it. Pivot the treadmill until the frame and foot rail are
past the storage latch.
2. Hold the treadmill firmly with both hands, and lower the
treadmill to the floor. Do not drop the treadmill frame
to the floor. To decrease the possibility of injury,
bend your legs and keep your back straight.
Unlatched
Storage
Latch
TROUBLE-SHOOTING
Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and
follow the steps listed. If further assistance is needed, please call our Customer Service Department tollfree at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays).
1. SYMPTOM: THE POWER DOES NOT TURN ON
a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor is plugged
into a properly grounded outlet (see page 7). Use only a single-outlet surge suppressor that is UL 1449
listed as a transient voltage surge suppressor (TVSS). The surge suppressor must have a UL suppressed
voltage rating of 400 volts or less and a minimum surge dissipation of 450 joules. The surge suppressor
must be electrically rated for 120 volts AC and 15 amps. Important: The treadmill is not compatible with
GFCI-equipped outlets.
b. After the power cord has been plugged in, make sure that the key is fully inserted into the console.

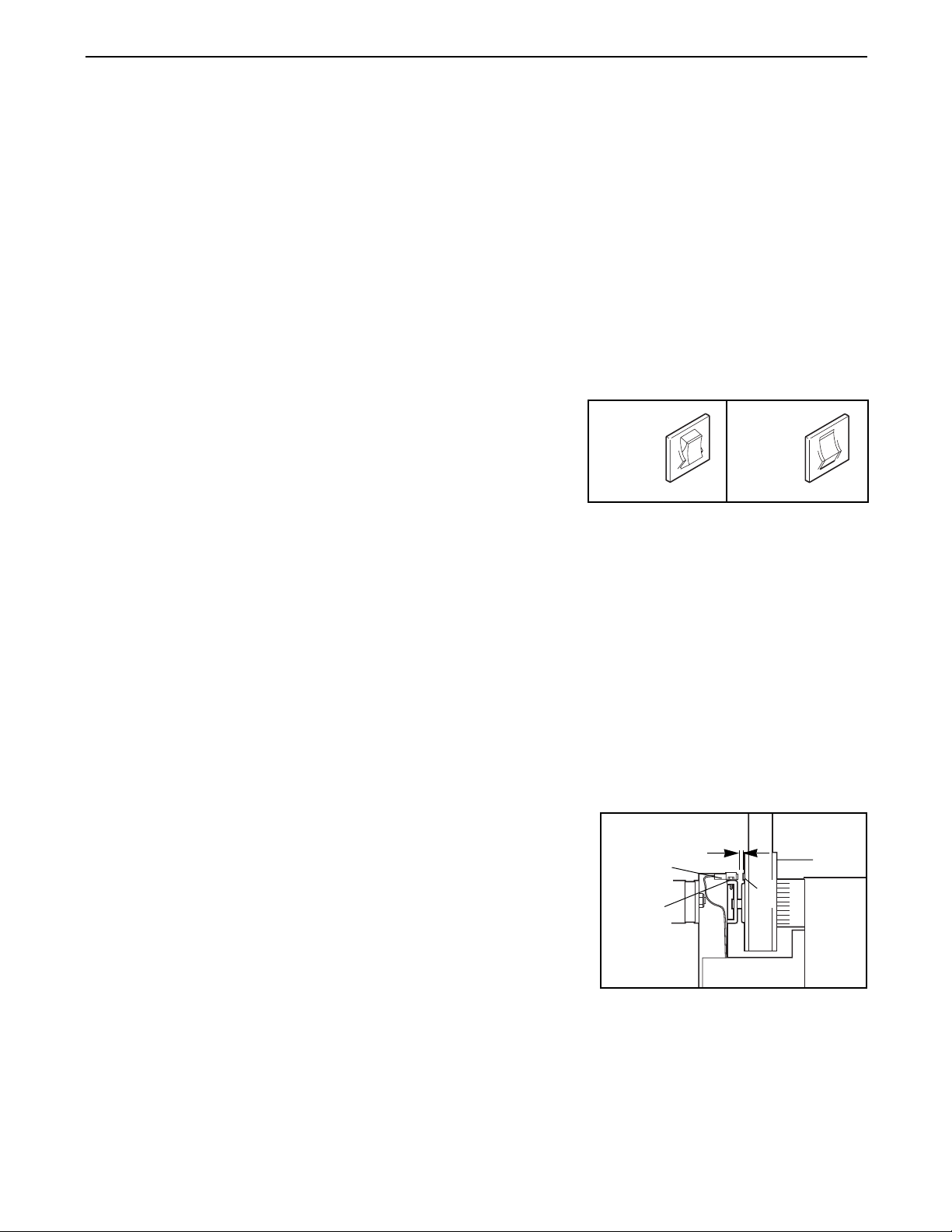

c. Check the circuit breaker located on the treadmill near the
power cord. If the switch protrudes as shown, the circuit
breaker has tripped. To reset the circuit breaker, wait for five
minutes and then press the switch back in.
2. SYMPTOM: THE POWER TURNS OFF DURING USE
a. Check the circuit breaker located on the treadmill frame near the power cord (see 1. c. above). If the circuit
breaker has tripped, wait for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in.
c. Remove the key from the console. Reinsert the key fully into the console.
d. If the treadmill still will not run, please call our Customer Service Department, toll-free.
3. SYMPTOM: THE DISPLAYS OF THE CONSOLE DO NOT FUNCTION PROPERLY
a. Check the batteries in the console. See BATTERY INSTALLATION on page 8. Most problems are the result
of drained batteries.
b. Remove the key from the console and UNPLUG THE POWER
CORD. Remove the screws from the hood. Carefully remove the
hood. Locate the Reed Switch (86) and the Magnet (87) on the
left side of the Pulley (85). Turn the Pulley until the Magnet is
aligned with the Reed Switch. Make sure that the gap between
the Magnet and the Reed Switch is about 1/8Ó. If necessary,
loosen the Screw (82) and move the Reed Switch slightly.
Retighten the Screw. Re-attach the hood, and run the treadmill
for a few minutes to check for a correct speed reading.
Tripped
Tripped
Reset
c
87
86
82
Top
View
1/8Ó
85
12
Reset

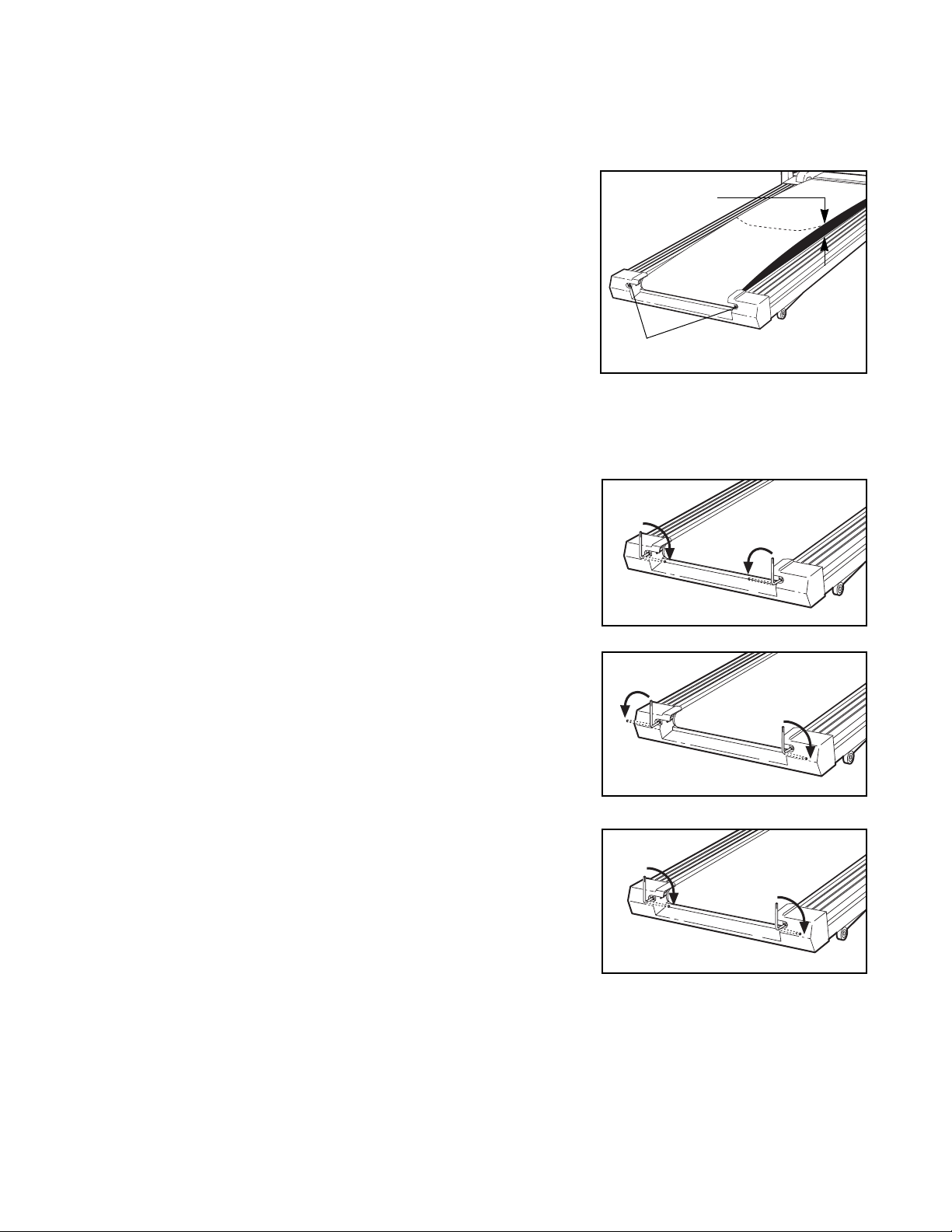

4. SYMPTOM: THE WALKING BELT SLOWS WHEN WALKED ON
a. Use only a single-outlet surge suppressor that is UL 1449 listed as a transient voltage surge suppressor
(TVSS). The surge suppressor must have a UL suppressed voltage rating of 400 volts or less and a minimum
surge dissipation of 450 joules. The surge suppressor must be electrically rated for 120 volts AC and 15 amps.
b. If the walking belt is overtightened, treadmill performance may
decrease and the walking belt may be permanently damaged.
Remove the key and UNPLUG THE POWER CORD. Using the
allen wrench, turn both rear roller adjustment bolts counterclockwise, 1/4 of a turn. When the walking belt is properly tightened,
you should be able to lift each side of the walking belt 2 to 3
inches off the walking platform. The center of the walking belt
should just touch the walking platform. Be careful to keep the
walking belt centered. Plug in the power cord, insert the key and
run the treadmill for a few minutes. Repeat until the walking belt
is properly tightened.
c. If the walking belt still slows when walked on, please call our Customer Service Department, toll-free.
5. SYMPTOM: THE WALKING BELT IS OFF-CENTER
a. If the walking belt has shifted to the left, first remove the key
and UNPLUG THE POWER CORD. Using the allen wrench,
turn the left rear roller adjustment bolt clockwise, and the right
bolt counterclockwise, 1/4 of a turn each. Be careful not to overtighten the walking belt. Plug in the power cord, insert the key
and run the treadmill for a few minutes. Repeat until the walking
belt is centered.
b. If the walking belt has shifted to the right, first remove the
key and UNPLUG THE POWER CORD. Using the allen wrench,
turn the left rear roller adjustment bolt counterclockwise, and the
right bolt clockwise, 1/4 of a turn each. Be careful not to overtighten the walking belt. Plug in the power cord, insert the key
and run the treadmill for a few minutes. Repeat until the walking
belt is centered.
c. If the walking belt slips when walked on, first remove the key
and UNPLUG THE POWER CORD. Using the allen wrench,
turn both rear roller adjustment bolts clockwise, 1/4 of a turn.
When the walking belt is correctly tightened, you should be able
to lift each side of the walking belt 2 to 3 inches off the walking
platform. Be careful to keep the walking belt centered. Plug in
the power cord, insert the key and run the treadmill for a few
minutes. Repeat until the walking belt is properly tightened.
b
c
a
Rear Roller Adjustment Bolts
2ÓÐ3Ó
b
13
CONDITIONING GUIDELINES
The following guidelines will help you to plan your exercise program. RememberÑthese are general guidelines only. For more detailed exercise information, obtain a reputable book or consult your physician.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the desired
results is to exercise with the proper intensity. The
proper intensity level can be found by using your heart
rate as a guide. The chart below shows recommended
heart rates for fat burning and aerobic exercise.
To find the proper heart rate for you, first find your age
at the bottom of the chart (ages are rounded off to the
nearest ten years). Next, find the three numbers at the
top of your age. The three numbers are your Òtraining
zone.Ó The lower two numbers are recommended
heart rates for fat burning; the higher number is the
recommended heart rate for aerobic exercise.
Fat Burning
To burn fat effectively, you must exercise at a relatively
low intensity level for a sustained period of time. During
the first few minutes of exercise, your body uses easily
accessible carbohydrate calories for energy. Only after
the first few minutes does your body begin to use
stored fat calories for energy. If your goal is to burn fat,
adjust the speed and incline of the treadmill until your
heart rate is near one of the lower two numbers in your
training zone. It may also be helpful to set the speed
control on the console to FAT BURN to help you maintain the proper intensity level. (See page 9.)
Aerobic Exercise
If your goal is to strengthen your cardiovascular system, your exercise must be Òaerobic.Ó Aerobic exercise
is activity that requires large amounts of oxygen for
prolonged periods of time. This increases the demand
on the heart to pump blood to the muscles, and on the
lungs to oxygenate the blood. For aerobic exercise,
adjust the speed and incline of the treadmill until your
heart rate is near the highest number in your training
zone. It may also be helpful to set the speed control on
the console to AEROBIC to help you maintain the
proper intensity level. (See page 9.)
High Performance Athletic Conditioning
If your goal is high performance athletic conditioning,
set the speed control on the console to PERFORMANCE to help you maintain the proper intensity level.
(See page 9.) Note: During the first few weeks of your
exercise program, keep your heart rate near the low
end of your training zone.
HOW TO MEASURE YOUR HEART RATE
To measure your
heart rate, stop exercising and place
two fingers on your
wrist as shown.
Take a six-second
heartbeat count,
and multiply the result by ten to find
your heart rate. (A six-second count is used because
your heart rate drops quickly when you stop exercising.) If your heart rate is too high or too low, adjust the
speed or incline of the treadmill accordingly.
WORKOUT GUIDELINES
A well-rounded workout includes the following three
important parts:
A Warm-up
Start each workout with 5 to 10 minutes of stretching
and light exercise (see SUGGESTED STRETCHES on
page 15). A proper warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
WARNING: Before beginning
this or any exercise program, consult your
physician. This is especially important for individuals over the age of 35 or individuals
with pre-existing health problems.
14
Training Zone Exercise
After warming up, increase the intensity of your exercise until your pulse is in your training zone for 20 to
60 minutes. (During the first few weeks of your exercise program, do not keep your pulse in your training
zone for longer than 20 minutes.) Breathe regularly
and deeply as you exerciseÑnever hold your breath.
A Cool-down
Finish each workout with 5 to 10 minutes of stretching
to cool down. This will increase the flexibility of your
muscles and will help to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest between workouts. After a few months, you may complete up to five workouts each week if desired.
The key to success is to make exercise a regular and
enjoyable part of your everyday life.
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right.
Move slowly as you stretchÑnever bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach
down toward your toes as far as possible. Hold for 15 counts,
then relax. Repeat 3 times. Stretches: Hamstrings, back of knees,
and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot toward you and rest it against the inner thigh of your extended leg.
Reach toward your toes as far as possible. Hold for 15 counts,
then relax. Repeat 3 times for each leg. Stretches: Hamstrings,
lower back, and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your back
foot flat on the floor. Bend your front leg, lean forward and move
your hips toward the wall. Hold for 15 counts, then relax. Repeat
3 times for each leg. To cause further stretching of the achilles
tendons, bend your back leg as well. Stretches: Calves, achilles
tendons, and ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp
one foot with your other hand. Bring your heel as close to your
buttocks as possible. Hold for 15 counts, then relax. Repeat 3
times for both legs. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward.
Pull your feet toward your groin area as far as possible. Hold for
15 counts, then relax. Repeat 3 times. Stretches: Quadriceps and
hip muscles.
1
2
3
4
5
15
PART LISTÑModel No. PFTL39101 R1000A
Key No. Qty. Description Key No. Qty. Description
1 1 Key/Clip
2 2 Handrail
3 6 Electronic Screw
4 2 Hood Screw (Front)
5 2 Rear Isolator Screw
6 1 Console Base
7 1 Speed Control Knob
8 1 Speed Potentiometer
9 2 Battery Cover
10 18 Isolator Screw
11* 1 Console Assembly
12 1 Storage Latch
13 4 Handrail Screw
14 1 Upright
15 2 Handrail Bolt
16 5 Washer
17 1 Motor Belt
18 1 Motor Pivot Nut
19* 1 Motor/Pulley/Flywheel/Fan
20 1 Pulley/Flywheel/Fan
21 1 Motor
22 4 Motor Tension Bolt/Incline Bolt
23 1 Storage Latch Spacer
24 1 Motor Tension Star Washer
25 1 Motor Swivel Bolt
26 1 Wire Harness
27 2 Ground Wire Screw
28 1 Hood
29 1 Hood Shield
30 10 Screw
31 1 Latch Decal
32 8 Frame Pivot Washer
33 2 Frame Pivot Bolt
34 2 Extension Leg Screw
35 4 Belt Guide Screw
36 4 Base Pad
37 2 Wheel Bolt
38 2 Wheel
39 8 Wheel Nut/Base Pivot Nut
40 1 Controller
41 2 Extension Leg
42 1 Circuit Breaker
43 1 Power Cord Grommet
44 1 Power Cord
45 1 Upright Spacer (Left)
46 4 Isolator
47 4 Belly Pan Fastener
48 1 Choke
49 1 Motor Locknut
50 2 Belt Guide
51 1 Belly Pan
52 2 Releasable Tie
53 1 Cable Tie Clamp
54 1 Motor Belly Pan
55 1 7 1/2Ó Cable Tie
56 4 8Ó Cable Tie
57 1 Incline Motor Bolt
58 1 Incline Bracket
59 6 Console Screw
60 1 Endcap (Right)
61 1 Incline Motor
62 3 Incline Leg Nut
63* 2 Extension Leg Assembly
64 2 Incline Wheel Bolt
65 2 Incline Wheel
66 1 1Ó Grommet
67 1 Endcap (Left)
68 1 Ground Wire
69 1 Incline Leg
70 1 Frame
71 2 Rear Roller Adj. Bolt
72 1 Rear Roller Endcap
73 1 Allen Wrench
74 2 Rubber Ring
75 2 Foot Rail
76 1 Rear Roller
77 4 Platform Screw
78 1 Catch
79 1 Walking Platform
80 1 Walking Belt
81 1 Front Roller Adjustment Bolt
82 1 Clip Screw
83 1 Motor Tension Washer
84 1 Sensor Clip
85 1 Front Roller/Pulley
86 1 Reed Switch
87 1 Magnet
88 8 Latch Screw/Endcap Screw/
Console Base Screw
89 1 Incline Wire
# 1 8Ó White Wire, M/F
# 1 4Ó Red Wire, M/F
# 1 4Ó Blue Wire, M/F
# 1 UserÕs Manual
* Includes all parts shown in the box
# These parts are not illustrated
46
10
46
10
30
29
42
30
88
88
67
60
88
59
59
59
35
64
31
51
73
72
71
16
71
16
47
27
68
47
22
65
69
62
64
65
39
22
39
61
57
58
62
22
39
10
36
30
30
30
54
30
30
36
30
30
30
16
16
89
1
6
7
8
9
11*
41
12
88
17
18
19*
25
21
20
22
83
24
36
30
84
37
39
86
38
87
85
45
77
77
16
81
2
33
34
56
27
53
52
35
50
48
3
23
34
79
80
77
77
5
76
78
30
32
49
5
55
39
16
70
40
3
43
44
39
46
10
46
10
82
75
26
88
74
74
75
63*
14
50
3
66
36
30
37
38
39
63*
41
32
15
13
2
32
15
10
28
4
4
10
23
32
32
32
13
EXPLODED DRAWINGÑModel No. PFTL39101 R1000A
Part No. 170715 R1000A Printed in USA © 2000 ICON Health & Fitness, Inc.
ORDERING REPLACEMENT PARTS
To order replacement parts, call our Customer Service Department toll-free at 1-800-999-3756, Monday through
Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). When ordering parts, please be prepared to give
the following information:
¥ The MODEL NUMBER OF THE PRODUCT (PFTL39101).
¥ The NAME OF THE PRODUCT (PROFORM¨385S treadmill).
¥ The SERIAL NUMBER OF THE PRODUCT (see the front cover of this manual).
¥ The KEY NUMBER AND DESCRIPTION OF THE PART(S) (see the EXPLODED DRAWING and PART LIST
attached in the center of this manual).
If possible, place the treadmill near your telephone for easy reference when calling.
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of ninety (90) days from the date of purchase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing or repairing, at ICON's option, the product at one of its authorized service centers. All
products for which warranty claim is made must be received by ICON at one of its authorized service
centers with all freight and other transportation charges prepaid, accompanied by sufficient proof of purchase. All returns must be pre-authorized by ICON. This warranty does not extend to any product or
damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal
usage or repairs not provided by an ICON authorized service center, to products used for commercial or
rental purposes, or to products used as store display models. No other warranty beyond that specifically
set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss
of property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly,
the above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
PROFORM is a registered trademark of ICON Health & Fitness, Inc.
Loading...
