Model No. PFTL311040
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
Serial No.
Serial Number
Decal
QUESTIONS?
If you have questions, or if there
are missing or damaged parts,
we will guarantee complete satisfaction through direct assistance from our factory.
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLLFREE CUSTOMER HOT LINE.
The trained technicians on our
Customer Hot Line will provide
immediate assistance, free of
charge to you.
USER'S MANUAL
CUSTOMER HOT LINE:
1-888-533-1333
Mon.–Fri., 6 a.m.–6 p.m. MST
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

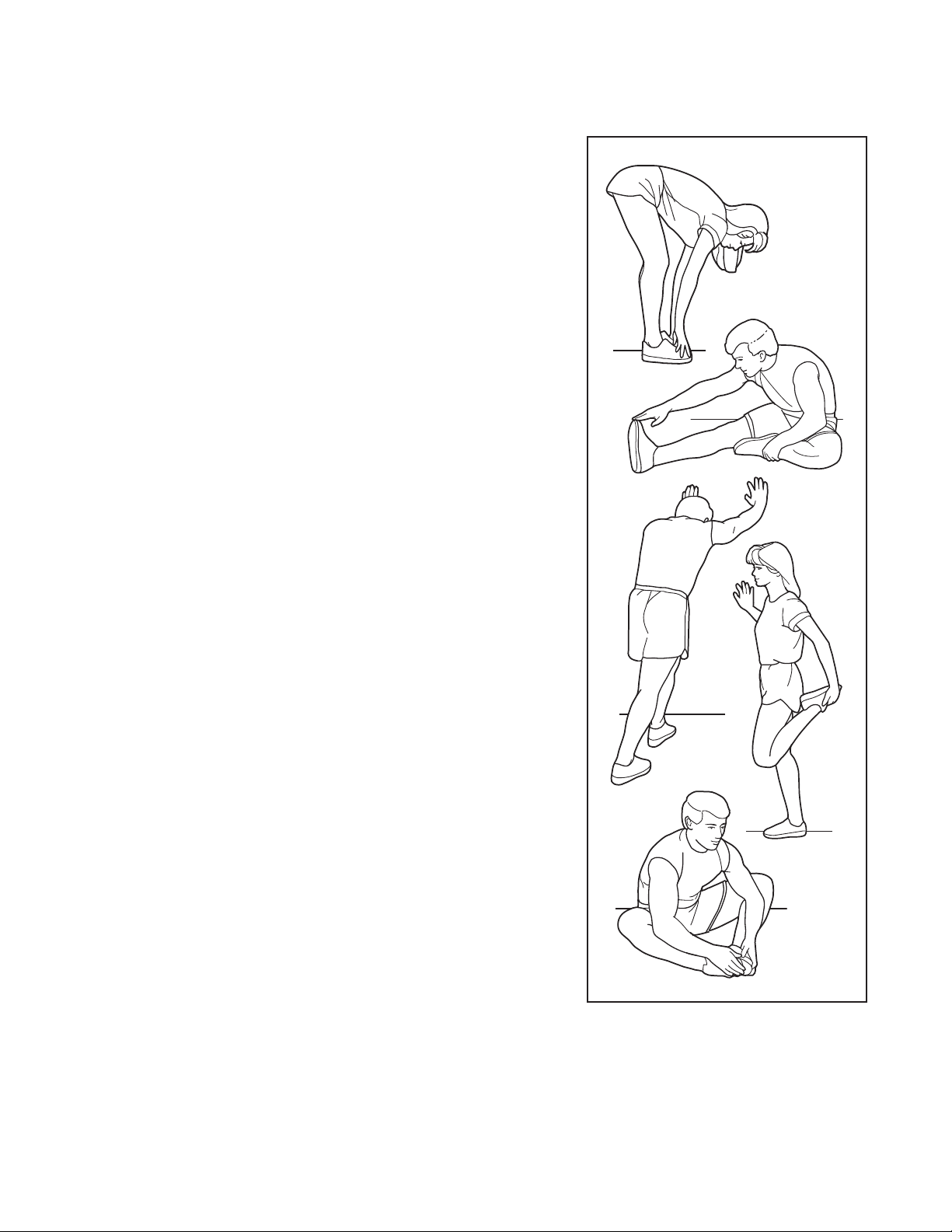

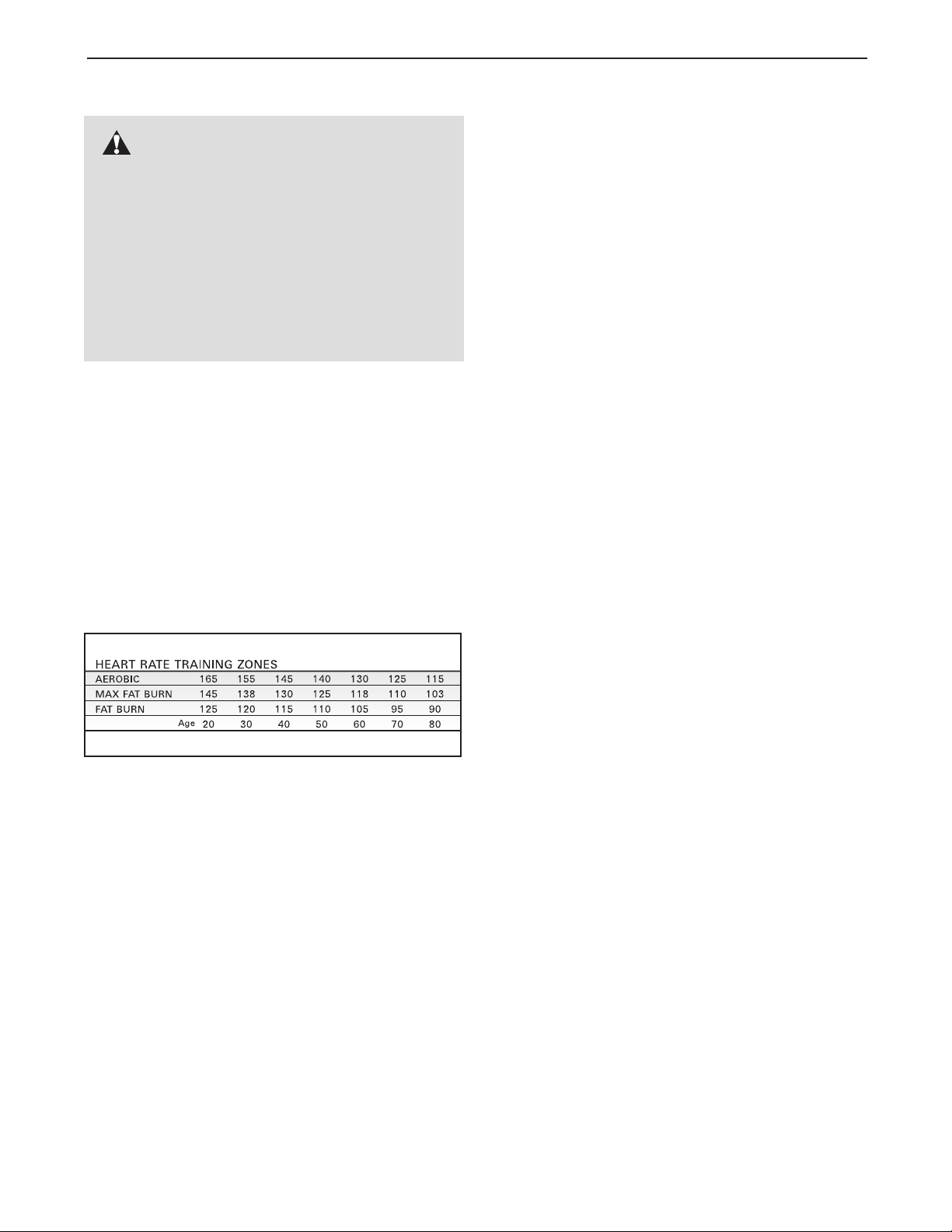

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
Note: An EXPLODED DRAWING and a PART LIST are attached in the center of this manual.
PROFORM is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the
following important precautions and information before operating the treadmill.
1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
2. Use the treadmill only as described.
3. Place the treadmill on a level surface, with at
least eight feet of clearance behind it and two
feet on each side. Do not place the treadmill
on any surface that blocks air openings. To
protect the floor or carpet from damage, place
a mat under the treadmill.
4. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
5. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
6. Keep children under the age of 12 and pets
away from the treadmill at all times.
7. The treadmill should be used only by persons
weighing 250 pounds or less.
8. Never allow more than one person on the
treadmill at a time.
9. Wear appropriate exercise clothes when
using the treadmill. Do not wear loose clothes
that could become caught in the treadmill.
Athletic support clothes are recommended for
both men and women.
shoes. Never use the treadmill with bare feet,
wearing only stockings, or in sandals.
10. When connecting the power cord (see page 10),
plug the power cord into a surge suppressor
(not included) and plug the surge suppressor
into a grounded circuit capable of carrying 15
or more amps. No other appliance should be on
the same circuit. Do not use an extension cord.
11. Use only a single-outlet surge suppressor that
meets all of the specifications described on
page 10. To purchase a surge suppressor, see
your local PROFORM dealer or call 1-888-5331333 and order part number 146148.
Always wear athletic
12. Failure to use a properly functioning surge
suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may change
speed or stop unexpectedly, which may result
in a fall and serious injury.
13. Keep the power cord and the surge suppressor away from heated surfaces.
14. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See BEFORE YOU BEGIN on page 5 if the treadmill is
not working properly.)
15. Never start the treadmill while you are standing on the walking belt. Always hold the
handrails while using the treadmill.
16. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
17. The pulse sensor is not a medical device.
Various factors, including your movement,
may affect the accuracy of heart rate readings.
The sensor is intended only as an exercise aid
in determining heart rate trends in general.
18. Do not use the hand weights at speeds faster
than walking speeds. Using weights and not
holding the handrails may compromise your
ability to maintain your balance. Exercises
using weights should be attempted only by
experienced users.
19. Never leave the treadmill unattended while it
is running. Always remove the key and unplug
the power cord when the treadmill is not in
use.
20. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 6, and HOW TO FOLD
TREADMILL on page 13.)
MOVE
AND
You must be able to safely lift 45 pounds (20
kg) to raise, lower, or move the treadmill.
THE
3
21. When folding or moving the treadmill, make
sure that the storage latch is fully closed.
Inspect and properly tighten all parts of the
22.
treadmill regularly.
23. Never insert any object into any opening.
maintenance and adjustment procedures described in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized service representative only.
24. DANGER: Always unplug the power
cord immediately after use, before cleaning
the treadmill, and before performing the
25. This treadmill is intended for in-home use
only. Do not use this treadmill in a commercial, rental, or institutional setting.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS
The decals shown here have been placed on your treadmill. If a decal is missing, or
if it is not legible, call toll-free 1-888-533-1333 and order a free replacement decal.
Apply the decal in the location shown. Note: The decals are not shown at actual
size.
4
BEFORE YOU BEGIN
Thank you for selecting the new
mill. The 345 treadmill combines advanced technology
with innovative design to help you get the most from
your exercise in the convenience of your home. And
when you’re not exercising, the 345 treadmill can be
folded up, requiring less than half the floor space of
other treadmills.
For your benefit, read this manual carefully before
using the treadmill. If you have questions after read-
ing this manual, call our Customer Service Department
Accessory Tray
Handrail
PROFORM
®
345 tread
-
toll-free at 1-888-533-1333, Monday through Friday, 6
a.m. until 6 p.m. Mountain Time (excluding holidays).
To help us assist you, please note the product model
number and serial number before calling. The model
number of the treadmill is PFTL311040. The serial
number can be found on a decal attached to the treadmill (see the front cover of this manual for the location).
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
Console
Key/Clip
Upright
Fan
Storage Latch
Walking Belt
Foot Rail
BACK
Rear Roller
Adjustment Bolts
Reset/Off
Circuit Breaker
Power Cord
RIGHT SIDE
Cushioned Walking Platform
for maximum exercise comfort
5
ASSEMBLY
3/4” Screw (2)–10
Wheel Nut (32)–2
2” Bolt (64)–2
Silver Ground
Screw (75)–1
1” Tek Screw (39)–6
Handrail Bolt (37)–2
1/2” Screw (48)–6
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed.
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a
small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal
condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off
the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included allen wrenches and your own phillips screwdriver ,
rubber mallet , and adjustable wrench .
For help identifying the assembly hardware, see the drawings below. If a part is not in the parts bag, first
check to see if it has been pre-assembled.
1. Make sure that the power cord is unplugged.
With the help of another person, carefully raise the
Uprights (69) to the vertical position. Insert one of the
Extension Legs (63) into the treadmill as shown. (Note: It
may be helpful to tip the Uprights as you insert the
Extension Leg.) Make sure that the Base Pad (61) is
under the Extension Leg.
Insert
the other Extension Leg (not shown) in the same
way.
6
1
69
63
61
With the help of another person, carefully lower the
2.
Uprights (69) as shown. Note: It may be helpful to place
one foot on one of the Extension Legs (63) as you tip the
Uprights. Make sure that the Extension Legs remain
in the Uprights.
2
69
66
64
39
Attach each Extension Leg (63) with two 1” Tek Screws
(39) and a Round Base Pad (57) as shown. Attach the
lower Tek Screw, without the Round Base Pad, first.
Attach two more Round Base Pads (57) to the base of
the Uprights (69) with two 1” Tek Screws (39). Note: One
replacement Round Base Pad may be included. If a
Round Base Pad becomes worn and needs to be replaced, use the replacement Round Base Pad.
Attach the two Wheels (66) with two 2” Bolts (64) and
two Wheel Nuts (32) as shown.
Bolts;
3. With the help of a second person, raise the Uprights (69)
to the vertical position.
Insert the tab on one of the Handrail Brackets (101) into
the slot in the right Upright (69). Attach the Handrail
Bracket with a 3/4” Screw (2). Attach the other Handrail
Bracket to the left Upright (not shown) as described
above.
the Wheels should be able to spin freely.
Do not overtighten the
32
66
64
69
63
3
101
Tab
32
57
57
39
39
69
Slot
63
57
57
39
4. Identify the Right Handrail (72), which has a large hole in
the left side. Feed the Upright Wire (42) into the indi
cated hole in the bottom of the Right Handrail and out of
the large hole in the side. Note: It may be helpful to use
needlenose pliers to pull the Wire Harness out of the
hole.
Press a Handrail Cap (102) onto the lower end of the
Right Handrail (72) as shown. Set the Right Handrail on
the right Upright (69), and slide the lower end of the
Right Handrail onto the right Handrail Bracket (40).
Attach the Right Handrail (72) with an Upright Bolt (37) in
the upper end and a 3/4” Screw (2) in the lower end.
Attach the Left Handrail (71) as described above. Note:
There is not a wire harness on the left side.
-
2
4
71
37
42
37
102
2
2
72
Hole
Hole
69
40
7
6. Hold the Console Base (47) near the Left Handrail (71).
Attach the end of the ground wire on the Console Base
to the indicated small hole in the Left Handrail with the
Silver Ground Screw (75).
5
Ground
Wire
47
Small
Hole
71
75
6. Touch the Right Handrail (72) to discharge any static.
Press the end of the Upright Wire (42) into the socket in the
bottom of the Console Base (47). The connector should
slide easily into the socket and snap into place. If the
connector does not slide easily and snap into place, turn
the connector and then insert it.
7. Set the Console Base (47) on the Right Handrail (72) and
the Left Handrail (71). Attach the Console Base with four
3/4” Screws (2). Start all four Screws before tightening
them; do not overtighten the Screws.
6
7
72
72
42
47
47
71
2
2
8
8. Press the Upright Wire (42) into the slot in the underside
of the Console Base (47) in the indicated area. Cover the
Upright Wire with the Right Grip Plate (36).
not to pinch the Upright Wire. Tighten three 1/2”
Screws (48) into the Right Grip Plate and the Console
Base.
Attach the Left Grip Plate (32) over the ground wire and
the other wires with three 1/2” Screws (48). Be careful
not to pinch any of the Wires.
Be careful
8
Slot
42
36
47
Ground
Wire
32
48
9. Attach the Storage Latch (29) and the Latch Spacer (44)
to the left Upright (69) with two 3/4” Screws (2) as shown.
Do not overtighten the Screws.
10.Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may
be included. Keep the included allen wrenches in a secure place. The large allen wrench is used to adjust the
walking belt (see page 16). To protect the floor or carpet, place a mat under the treadmill.
9
69
29
48
44
2
9
OPERATION AND ADJUSTMENT
PRE-LUBRICATED WALKING BELT
THE
Your treadmill features a walking belt coated with highperformance lubricant. IMPORTANT: Never apply sil-
icone spray or other substances to the walking
belt or the walking platform. Such substances will
deteriorate the walking belt and cause excessive
wear.
HOW TO PLUG IN THE POWER CORD
DANGER: Improper connection
of the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or serviceman if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the product—if it will
not fit the outlet, have a proper outlet
installed by a qualified electrician.
Your treadmill, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your home’s power.
Voltage surges, spikes, and noise interference can
result from weather conditions or from other appliances
being turned on or off. To decrease the possibility of
your treadmill being damaged, always use a surge
suppressor with your treadmill (see drawing 1 at
the right). To purchase a surge suppressor, see
your local PROFORM dealer or call 1-888-533-1333
and order part number 146148, or see your local
electronics store.
an equipment-grounding conductor and a grounding
plug.
Plug the power cord into a surge suppressor,
and plug the surge suppressor into an appropriate
outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
Important: The treadmill is not compatible with
GFCI-equipped outlets.
This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illustrated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge suppressor to a 2-pole
receptacle as shown in drawing 2 if a properly
grounded outlet is not available.
1
Grounded Outlet Box
Surge Suppressor
Grounding Pin
Grounding Pin
Grounded Outlet
2
Grounded Outlet Box
Adapter
Grounding Plug
Surge Suppressor
Use only a single-outlet surge suppressor that is
UL 1449 listed as a transient voltage surge suppressor (TVSS). The surge suppressor must have a
UL suppressed voltage rating of 400 volts or less
and a minimum surge dissipation of 450 joules.
The surge suppressor must be electrically rated
for 120 volts AC and 15 amps. There must be a
monitoring light on the surge suppressor to indicate whether it is functioning properly. Failure to
use a properly functioning surge suppressor could
result in damage to the control system of the
treadmill. If the control system is damaged, the
walking belt may change speed or stop unexpectedly, which may result in a fall and serious injury.
This product must be grounded.
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having
If it should malfunc-
Lug
Metal Screw
The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place
by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a qualified elec
trician to determine if the outlet box cover is
grounded before using an adapter.
10
-
CONSOLE DIAGRAM
Pulse Sensor
CAUTION: Before operating the
console, read the following precautions.
• Do not stand on the walking belt when turning on the power.
• Always wear the clip (see the drawing
above) while operating the treadmill.
• Adjust the speed in small increments to
avoid sudden jumps in speed.
• To reduce the possibility of electric shock,
keep the console dry. Avoid spilling liquids
on the console and place only a sealed
water bottle in the accessory trays.
STEP-BY-STEP CONSOLE OPERATION
Key
Note: If there is a thin sheet
Clip
slide the clip onto the waistband of your clothes.
Insert the key into the console. A tone will sound and
the three displays will light. Test the clip by carefully
taking a few steps backward until the key is pulled
from the console. If the key is not pulled from the
console, adjust the position of the clip.
Follow the steps below to operate the console.
Insert the key into the console.
of plastic on the console,
remove the plastic.
1
When the key is inserted, a tone will sound and
the three displays will light.
button to start
Press the Speed
2
belt.
A moment after the button is pressed, the walking
belt will begin to move. Hold the handrails
begin walking.
+
the walking
and
Before operating the console, make sure that the
power cord is properly plugged in (see page 10).
In addition, make sure that
the reset/off circuit breaker,
located on the treadmill frame
near the power cord, is in the
reset position.
Next, stand on the foot rails of the treadmill. Find the
clip attached to the key (see the drawing above), and
Reset
As you exercise, change the speed of the walking
belt as desired by pressing the Speed + and –
buttons. Each time a button is pressed, the speed
setting will change by 0.1 mph; if a button is held
down, the speed setting will change in increments
of 0.5 mph. To change the speed setting quickly,
press the Quick Speed buttons. Note: The con
sole can display speed and distance in either
miles or kilometers (see SPEED DISPLAY on
page 12). For simplicity, all instructions in this
section refer to miles.
1
1
-
To stop the walking belt, press the Stop button.
The Time/Distance display will begin to flash.
Note: During the first few minutes that the treadmill
is used, inspect the alignment of the walking belt,
and align it if necessary (see page 15).
Change the incline of the treadmill as desired.
3
To change the incline of the treadmill, press either
of the Incline buttons until the desired incline level
is reached.
Follow your progress with the three displays.
4
Fat Calories/Calories/
Pulse display
display shows the approximate numbers of fat
calories and calories you
have burned (see FAT
BURNING on page 17).
The display will change
from one number to the other every few seconds,
as shown by the mode indicators. This display will
also show your heart rate when you use the pulse
sensor (see step 5).
Time/Distance
display—This display
shows the elapsed time
and the distance that
you have walked or run.
The display will change
from one number to the
other every few seconds, as shown by the mode
indicators. Note: When the Stop button is pressed,
this display will flash.
Speed display—This
display shows the speed
of the walking belt.
—This
Mode Indicator
the Speed display. Press the Speed + button to
change the unit of measurement. When the desired unit of measurement is selected, remove the
key and then reinsert it.
To reset the displays, press the Stop button, remove the key, and then reinsert the key.
Measure your heart rate if desired.
5
To measure your
heart rate, stand on
the foot rails and
place your thumb
on the pulse sen-
Do not press
sor.
too hard, or the
circulation in your
thumb will be restricted and your pulse will not
be detected. After a few seconds, the heart-
shaped indicator in the Fat Calories/Calories/
Pulse display will begin to flash, and then your
heart rate will be shown. Hold your thumb on the
pulse sensor for about 15 seconds for the most accurate reading.
If the displayed heart rate appears to be too high
or too low, or if your heart rate is not displayed, lift
your thumb off the pulse sensor for a few seconds.
Then, place your thumb on the pulse sensor as described above. Remember to stand still while measuring your heart rate.
Turn on the fan if desired.
6
To turn on the fan, press the fan button on the left
side of the console. To turn on the fan at high
speed, press the button a second time. To turn off
the fan, press the button a third time. Note: A few
minutes after the walking belt is stopped, the fan
will automatically turn off.
When you are finished exercising, remove the
7
key.
Note: The console can
display speed and distance in either miles or
ters. To change
kilome
the unit of measurement, hold down the
Stop button while inserting the key into the console. An “E” for English
miles or an “M” for metric kilometers will appear in
12
Step onto the foot rails, press the Stop button, and
remove the key from the console. Keep the key in a
ove the
secure place.
the off position and unplug the power cord.
M
reset/off circuit breaker to
HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL FOR STORAGE
Before folding the treadmill, adjust the incline to the
lowest position. If this is not done, the treadmill may be permanently damaged.
You must be able to safely lift 45 pounds (20 kg) to raise,
lower, or move the treadmill.
1. Hold the treadmill with your hands in the locations shown at
the right.
legs and keep your back straight. As you raise the treadmill, make sure to lift with your legs rather than your
back.
tion.
2. Move your right hand to the position shown and hold the
treadmill firmly. Using your left thumb, press the storage latch
to the left. Raise the treadmill until the storage latch closes
over the catch. Make sure that the storage latch is fully
engaged over the catch.
To decrease the possibility of injury, bend your
Raise the treadmill about halfway to the vertical posi-
Next, unplug the power cord. CAUTION:
To protect the floor or carpet from damage, place a mat
under the treadmill. Keep the treadmill out of direct sunlight. Do not leave the treadmill in the storage position in
temperatures above 85° Fahrenheit.
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the storage
position as described above. Make sure that the frame is se-
curely held by the storage latch.
1. Hold the upper ends of the handrails. Place one foot on the
base as shown.
2. Tilt the treadmill back until it rolls freely on the front wheels.
Carefully move the treadmill to the desired location.
duce the risk of injury, use extreme caution while moving the treadmill. Do not move the treadmill over an uneven surface.
Place one foot on the base, and carefully lower the treadmill
3.
until it is resting in the storage position.
To re
-
Engaged
Storage
Latch
Catch
Base
Front Wheels
13
HOW TO LOWER THE TREADMILL FOR USE
1. Hold the upper end of the treadmill with your right hand.
Press the storage latch to the left. Pivot the treadmill down
until the frame and foot rail are past the storage latch.
2. Hold the treadmill firmly with both hands, and lower the tread-
mill to the floor. Do not drop the treadmill frame to the
floor. To decrease the possibility of injury, bend your legs
and keep your back straight.
Storage
Latch
Catch
14

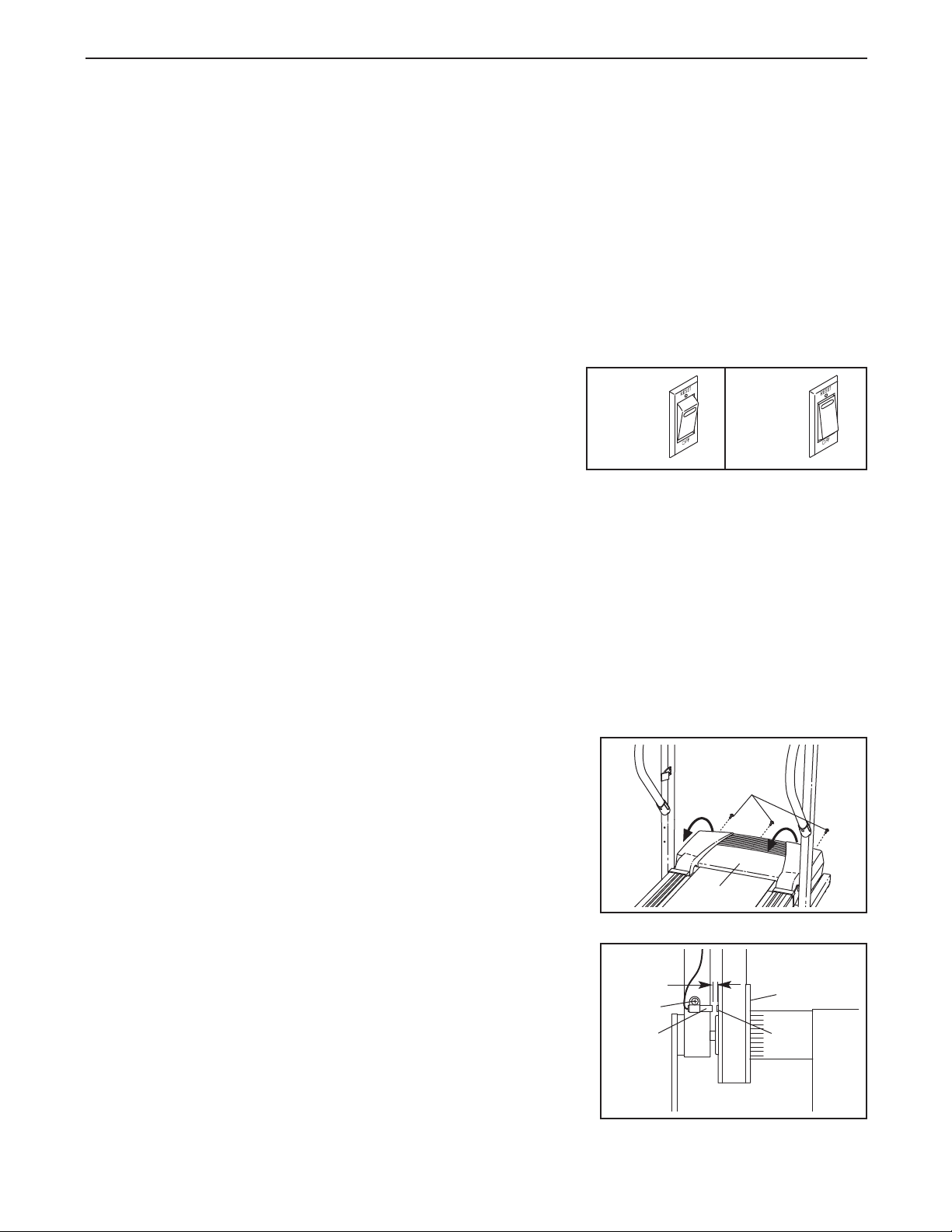

TROUBLESHOOTING
Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and
follow the steps listed. If further assistance is needed, please call our Customer Service Department tollfree at 1-888-533-1333, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays).
PROBLEM: The power does not turn on
SOLUTION:
PROBLEM: The power turns off during use
SOLUTION: a. Check the circuit breaker located on the treadmill frame near the power cord (see the drawing
a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor
is plugged into a properly grounded outlet (see page 10). Use only a single-outlet surge suppressor that meets all of the specifications described on page 10. Important: The treadmill is not compatible with GFCI-equipped outlets.
b. After the power cord has been plugged in, make sure that the key is fully inserted into the console.
c. Check the reset/off circuit breaker located on the
treadmill frame near the power cord. If the switch
protrudes as shown, the circuit breaker has tripped.
To reset the circuit breaker, wait for five minutes
and then press the switch back in.
above). If the circuit breaker has tripped, wait for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for
five minutes, and then plug it back in.
c. Remove the key from the console. Reinsert the key fully into the console.
d. If the treadmill still will not run, please call our Customer Service Department.
c
Tripped
Reset
PROBLEM: The displays of the console do not function properly
SOLUTION: a. Remove the key from the console and UNPLUG THE
POWER CORD. Remove the Screws (58) from the
Hood (1), and carefully pivot the Hood off.
Locate the Reed Switch (10) and the Magnet (18) on
the left side of the Pulley (17). Turn the Pulley until the
Magnet is aligned with the Reed Switch. Make sure
that the gap between the Magnet and the Reed
Switch is about 1/8”. If necessary, loosen the Screw
(2), move the Reed Switch slightly, and then retighten
the Screw. Reattach the Hood, and run the treadmill
for a few minutes to check for a correct speed reading.
a
View
1/8”
10
Top
58
1
17
2
18
15
PROBLEM: The walking belt slows when walked on
Use only a single-outlet surge suppressor that meets all of the specifications described on page 10.
SOLUTION:
PROBLEM: The walking belt is off-center or slips when walked on
a.
If the walking belt is overtightened, treadmill perfor-
b.
mance may decrease and the walking belt may become damaged. Remove the key and
POWER CORD. Using the allen wrench, turn both
rear roller adjustment bolts counterclockwise, 1/4 of a
turn. When the walking belt is properly tightened, you
should be able to lift each side of the walking belt 2 to
3 inches off the walking platform. Be careful to keep
the walking belt centered. Plug in the power cord, insert the key, and run the treadmill for a few minutes.
Repeat until the walking belt is properly tightened.
c. If the walking belt still slows when walked on, please call our Customer Service Department.
UNPLUG THE
b
2”–3”
Rear Roller Adjustment Bolts
SOLUTION:
a. If the walking belt is off-center, first remove the key
and UNPLUG THE POWER CORD. If the walking
belt has shifted to the left, use the allen wrench to
turn the left rear roller bolt clockwise 1/2 of a turn; if
the walking belt has shifted to the right, turn the
left bolt counterclockwise 1/2 of a turn. Be careful not
to overtighten the walking belt. Plug in the power
cord, insert the key, and run the treadmill for a few
minutes. Repeat until the walking belt is centered.
b. If the walking belt slips when walked on, first remove
the key and
the allen wrench, turn both rear roller bolts clockwise
1/4 of a turn. When the walking belt is correctly tightened, you should be able to lift each side of the walking belt 2 to 3 inches off the walking platform. Be
careful to keep the walking belt centered. Plug in the
power cord, insert the key, and carefully walk on the
treadmill for a few minutes. Repeat until the walking
belt is properly tightened.
UNPLUG THE POWER CORD. Using
a
b
16
CONDITIONING GUIDELINES
WARNING: Before beginning this
or any exercise program, consult your physician. This is especially important for individu
als over the age of 35 or individuals with preexisting health problems.
The pulse sensor is not a medical device.
Various factors, including your movement,
may affect the accuracy of heart rate readings.
The sensor is intended only as an exercise aid
in determining heart rate trends in general.
The following guidelines will help you to plan your exercise program. For more detailed exercise information, obtain a reputable book or consult your physician.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. The chart below shows recommended heart rates for fat burning and aerobic exercise.
-
ergy. Only after the first few minutes does your body
begin to use stored fat calories for energy. If your goal
is to burn fat, adjust the speed and incline of the tread
mill until your heart rate is near the lowest number in
your training zone.
For maximum fat burning, adjust the speed and incline
of the treadmill until your heart rate is near the middle
number in your training zone.
Aerobic Exercise
If your goal is to strengthen your cardiovascular system, your exercise must be “aerobic.” Aerobic exercise
is activity that requires large amounts of oxygen for
prolonged periods of time. This increases the demand
on the heart to pump blood to the muscles, and on the
lungs to oxygenate the blood. For aerobic exercise,
adjust the speed and incline of the treadmill until your
heart rate is near the highest number in your training
zone.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A Warm-up—Start each workout with 5 to 10 minutes
of stretching and light exercise. A proper warm-up increases your body temperature, heart rate and circulation in preparation for exercise.
-
To find the proper heart rate for you, first find your age
near the bottom of the chart (ages are rounded off to
the nearest ten years). Next, find the three numbers
above your age. The three numbers define your “training zone.” The lower two numbers are recommended
heart rates for fat burning; the higher number is the
recommended heart rate for aerobic exercise.
To measure your heart rate during exercise, use the
pulse sensor.
Fat Burning
To burn fat effectively, you must exercise at a relatively
low intensity level for a sustained period of time.
During the first few minutes of exercise, your body
uses easily accessible carbohydrate calories for en-
Training Zone Exercise—After warming up, increase
the intensity of your exercise until your pulse is in your
training zone for 20 to 60 minutes. (During the first few
weeks of your exercise program, do not keep your
pulse in your training zone for longer than 20 minutes.)
Breathe regularly and deeply as you exercise—never
hold your breath.
A Cool-down—Finish each workout with 5 to 10 minutes of stretching to cool down. This will increase the
flexibility of your muscles and will help prevent postexercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest between workouts. After a few months, you may complete up to five workouts each week if desired. The key
to success is to make exercise a regular and enjoyable
part of your everyday life.
17
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach
down toward your toes as far as possible. Hold for 15 counts, then
relax. Repeat 3 times. Stretches: Hamstrings, back of knees and
back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot toward
you and rest it against the inner thigh of your extended leg. Reach
toward your toes as far as possible. Hold for 15 counts, then relax.
Repeat 3 times for each leg. Stretches: Hamstrings, lower back and
groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your back
foot flat on the floor. Bend your front leg, lean forward and move
your hips toward the wall. Hold for 15 counts, then relax. Repeat 3
times for each leg. To cause further stretching of the achilles tendons, bend your back leg as well. Stretches: Calves, achilles tendons and ankles.
4. Quadriceps Stretch
1
2
3
4
With one hand against a wall for balance, reach back and grasp one
foot with your other hand. Bring your heel as close to your buttocks
as possible. Hold for 15 counts, then relax. Repeat 3 times for each
leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward. Pull
your feet toward your groin area as far as possible. Hold for 15
counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip
muscles.
5
18
NOTES
19
PART LIST—Model No. PFTL311040 R0904A
Key
Qty. Description
No.
1 1 Hood
2 21 3/4” Screw
3 1 Motor Belt
4 1 Motor Tension Bolt
5 5 3/8” Washer
6 1 Motor Star Washer
7 1 Flywheel
8 1 Motor
9* 1 Motor Assembly
10 1 Reed Switch
11 1 Latch Warning Decal
12 2 Frame Spacer
13 7 Frame Pivot
Nut/Motor Nut
14 2 Frame Pivot Bolt
15 6 Walking Platform
Screw
16 1 Right Foot Rail
17 1 Front Roller/Pulley
18 1 Magnet
19 1 Motor Pivot Bolt
20 2 Motor Bracket Bolt
21 1 Right Foot Rail
Endcap
22 2 Belly Pan Clip
23 1 Front Roller
Adjustment Bolt
24 1 Isolator SCrew
25 1 Fan Grill (Front)
26 2 Platform Nut
27 1 Fan Grill (Back)
28 1 Motor Tension Nut
29 1 Storage Latch
30 1 Latch Catch
31 2 Rear Endcap Pad
32 2 Wheel Nut
33 2 Static Decal
34
35 1 Electronic Bracket
36 1 Right Grip Plate
37 2 Handrail Bolt
1 Left Grip Plate
Key
Qty. Description
No.
38 2 Washer
39 6 1” Tek Screw
40 2 Fan Screw
41 1 5/32” Allen Wrench
42 1 Upright Wire
43 1 Console
44 1 Latch Spacer
45 4 Isolator
46 1 Book Holder
47 1 Console Base
48 6 1/2” Screw
49 9 Hood Screw/
Endcap Screw
50 1 Key/Clip
51 1 Incline Motor
52 1 Incline Bracket
53 1 Incline Motor
Bolt (lower)
54 2 Incline Pivot Bolt
55 1 Motor Mount Bracket
56 1 Motor Controller Wire
57 2 Thick Base Pad
58 9 3/4” Tek Screw
59 1 Controller
60 1 Lift Frame
61 2 Base Pad
62 2 Warning Decal
63 2 Extension Leg
64 2 2” Bolt
65 2 Base Endcap
66 2 Wheel
67 5 Fan Cover Screw
68 4 8” Cable Tie
69 1 Base
70 1 Grommet
71 1 Left Handrail
72 1 Right Handrail
73
74 1 Left Foot Rail Endcap
75 1 Silver Ground Screw
76 1 Isolator Insert
1 Choke
Key
Qty. Description
No.
77 2 Wire Tie Screw
78 1 Reset/Off Switch
79 1 Power Cord
80 1 Power Cord Grommet
81 1 Belly Pan
82 2 Belt Guide
83 4 Belt Guide Screw
84 1 Fan
85 1 Rear Roller
86 1 Frame
87 4 Releasable Tie
88 1 Warning Decal
89 2 Cable Tie Clamp
90 1 Outlet Plate
91 1 Sensor Clip
92 2 Rear Roller
Adjustable Bolt
93 1 Right Rear Endcap
94 1 Allen Wrench
95 1 Left Rear Endcap
96 1 Walking Belt
97 1 Walking Platform
98 1 Left Foot Rail
99 2 U-Nut
100 2 Thin Base Pad
101 2 Handrail Bracket
102 2 Handrail Cap
# 1 8” Black Wire, 2 Ring
# 1 6” Black Wire, 2 Ring
# 1 4” Black Wire, 2F
# 1 4” Black Wire, M/F
# 1 6” Green Wire, F/R
# 1 4” White Wire, M/F
# 1 4” Blue Wire, 2F
# 1 4 ” Red Wire, M/F
# 1 User’s Manual
*Includes all parts shown in the box
#These parts are not illustrated
72
2
2
2
2
31
48
48
2
29
44
2
67
67
28
10
2
12
19
13
13
60
23
2
13
12
14
21
16
18
17
14
15
74
98
82
83
97
15
96
86
15
95
92
38
92
38
93
81
58
83
82
58
79
80
39
69
39
13
53
57
39
39
57
51
54
13
62
63
64
32
66
58
89
77
68
85
65
42
67
70
15
94
41
49
11
22
22
56
71
35
33
3
4
5
6
7
8
9*
55
20
58
30
42
75
58
61
58
61
26
26
59
37
37
2
47
46
100
36
34
88
99
99
50
52
43
1
49
49
13
54
13
54
49
22
45
49
31
73
26
78
90
67
49
49
49
49
49
49
49
49
58
58
26
90
91
27
63
65
62
15
15
45
45
40
84
25
24
24
24
45
24
26
26
2
100
2
101
2
102
2
2
102
101
EXPLODED DRAWING—Model No. PFTL311040 R0904A
HOW TO ORDER REPLACEMENT PARTS
To order replacement parts, call our Customer Service Department toll-free at 1-888-533-1333, Monday through
Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). Before calling, please note the following
information:
The MODEL NUMBER of the product (PFTL311040)
•
• The NAME of the product (PROFORM®345 treadmill)
• The SERIAL NUMBER of the product (see the front cover of this manual)
• The KEY NUMBER AND DESCRIPTION OF THE PART(S) (see the EXPLODED DRAWING and the PART
LIST attached in the center of this manual)
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and
material, under normal use and service conditions. The motor is warranted for three (3) years after the
date of purchase. Parts and labor are warranted for ninety (90) days after the date of purchase.
This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to
replacing or repairing, at ICON's option, the product through one of its authorized service centers. All repairs for which warranty claims are made must be pre-authorized by ICON. This warranty does not extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse,
improper or abnormal usage or repairs not provided by an ICON authorized service center; products
used for commercial or rental purposes; or products used as store display models. No other warranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss
of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
Part No. 216861 R0904A
Printed in USA
© 2004 ICON IP, Inc.
Loading...
