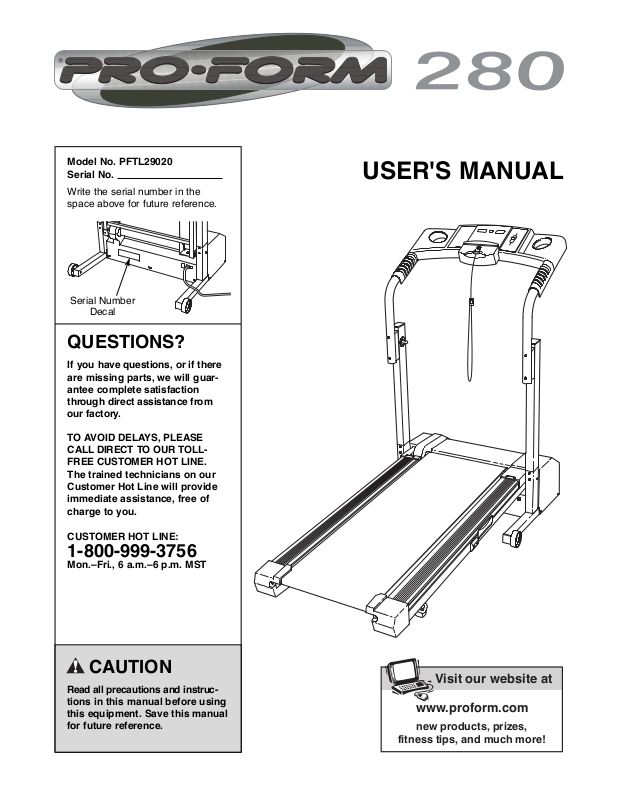

ProForm PFTL29020 User Manual
Model No. PFTL29020
Serial No.
Write the serial number in the
space above for future reference.
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
USER'S MANUAL
Serial Number
Decal
QUESTIONS?
If you have questions, or if there
are missing parts, we will guarantee complete satisfaction
through direct assistance from
our factory.
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLLFREE CUSTOMER HOT LINE.
The trained technicians on our
Customer Hot Line will provide
immediate assistance, free of
charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.–Fri., 6 a.m.–6 p.m. MST
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
2
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

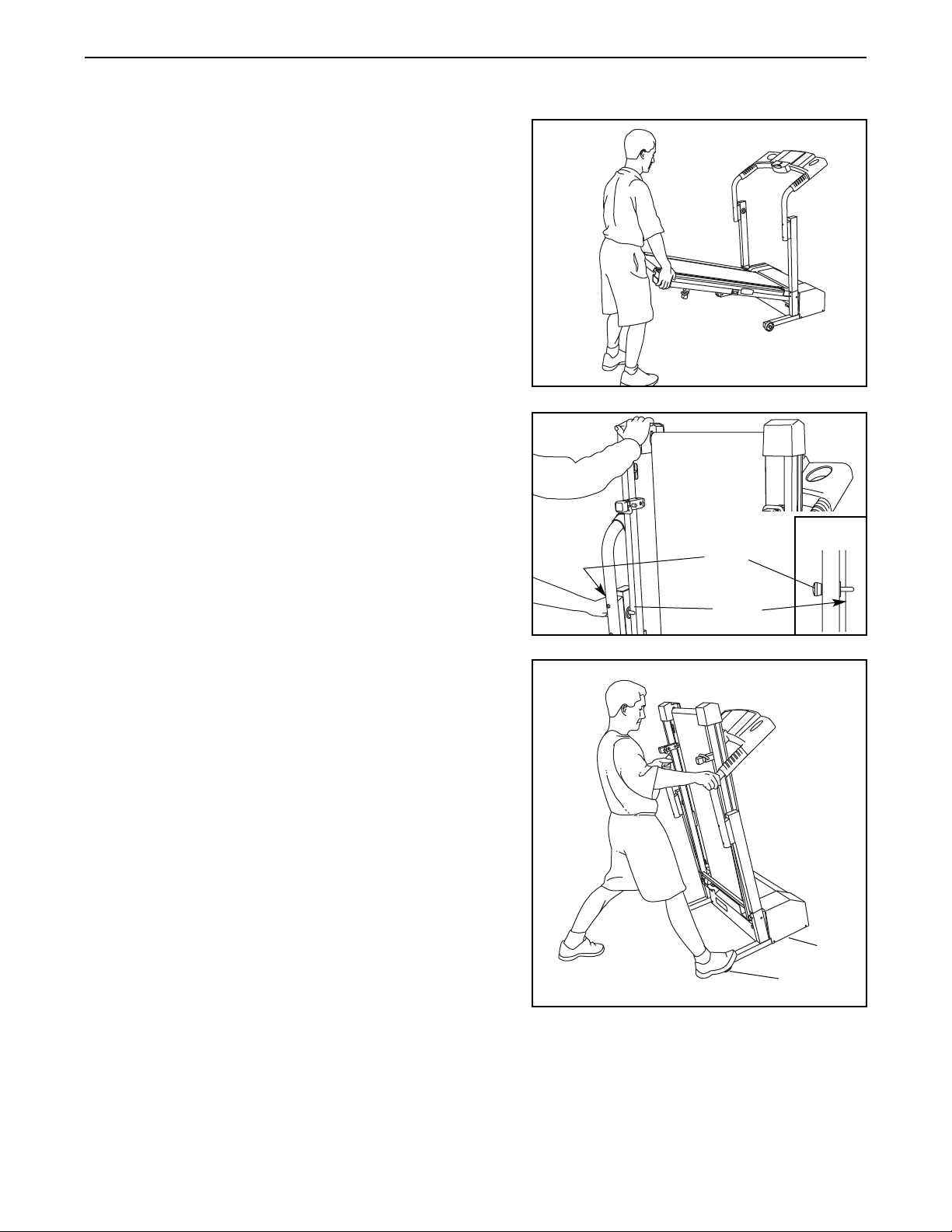

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
MAINTENANCE AND TROUBLE-SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

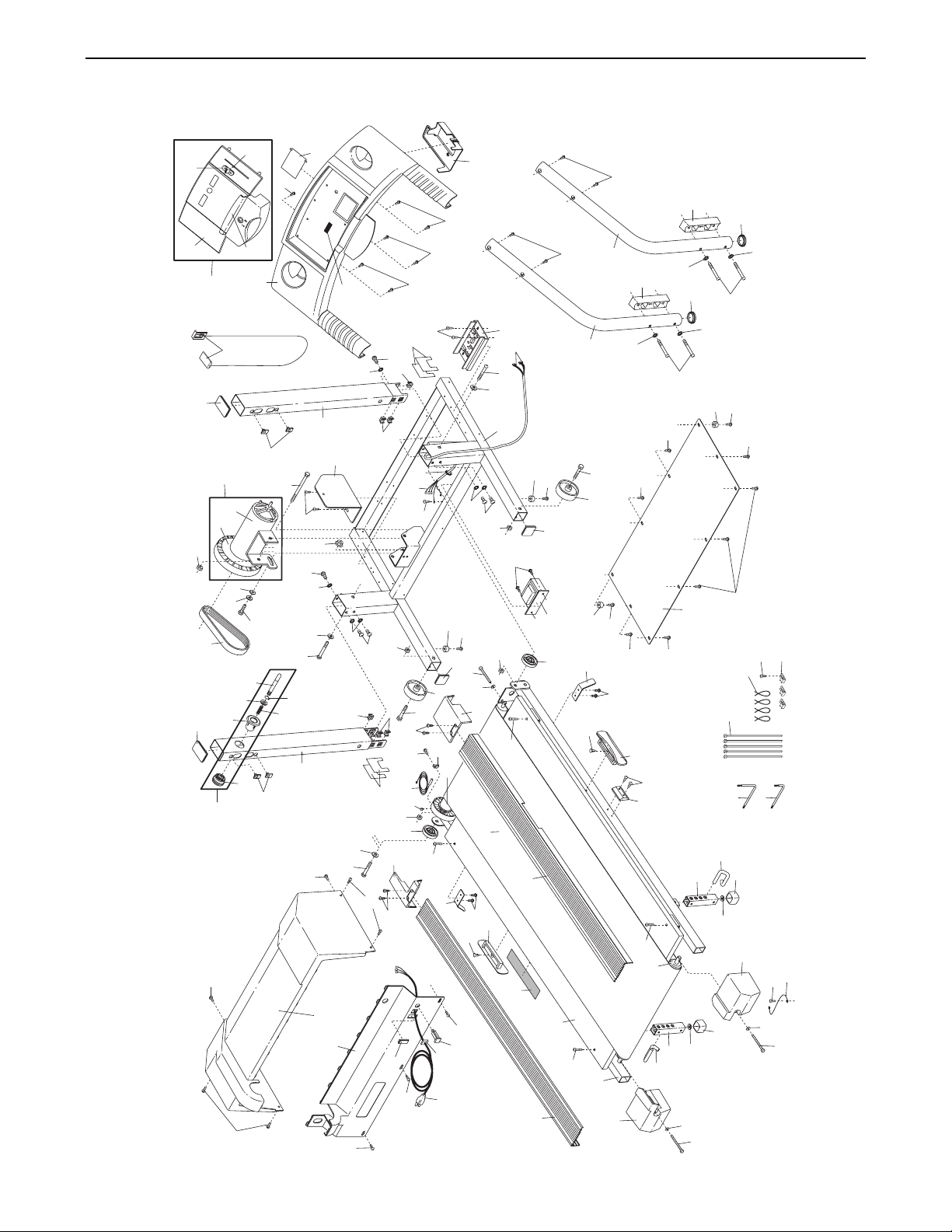

Note: A PART IDENTIFICATION CHART, an EXPLODED DRAWING, and a PART LIST are attached in the
center of this manual.
1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
2. Use the treadmill only as described.
3. Place the treadmill on a level surface, with at
least eight feet of clearance behind it and two
feet on each side. Do not place the treadmill
on any surface that blocks air openings. To
protect the floor or carpet from damage,
place a mat under the treadmill.
4. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
5. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
6. Keep children under the age of 12 and pets
away from the treadmill at all times.
7. The treadmill should not be used by persons
weighing more than 250 pounds.
8. Never allow more than one person on the
treadmill at a time.
9. Wear appropriate exercise clothing when
using the treadmill. Do not wear loose clothing that could become caught in the treadmill. Athletic support clothes are recommended for both men and women. Always wear
athletic shoes. Never use the treadmill with
bare feet, wearing only stockings, or in sandals.

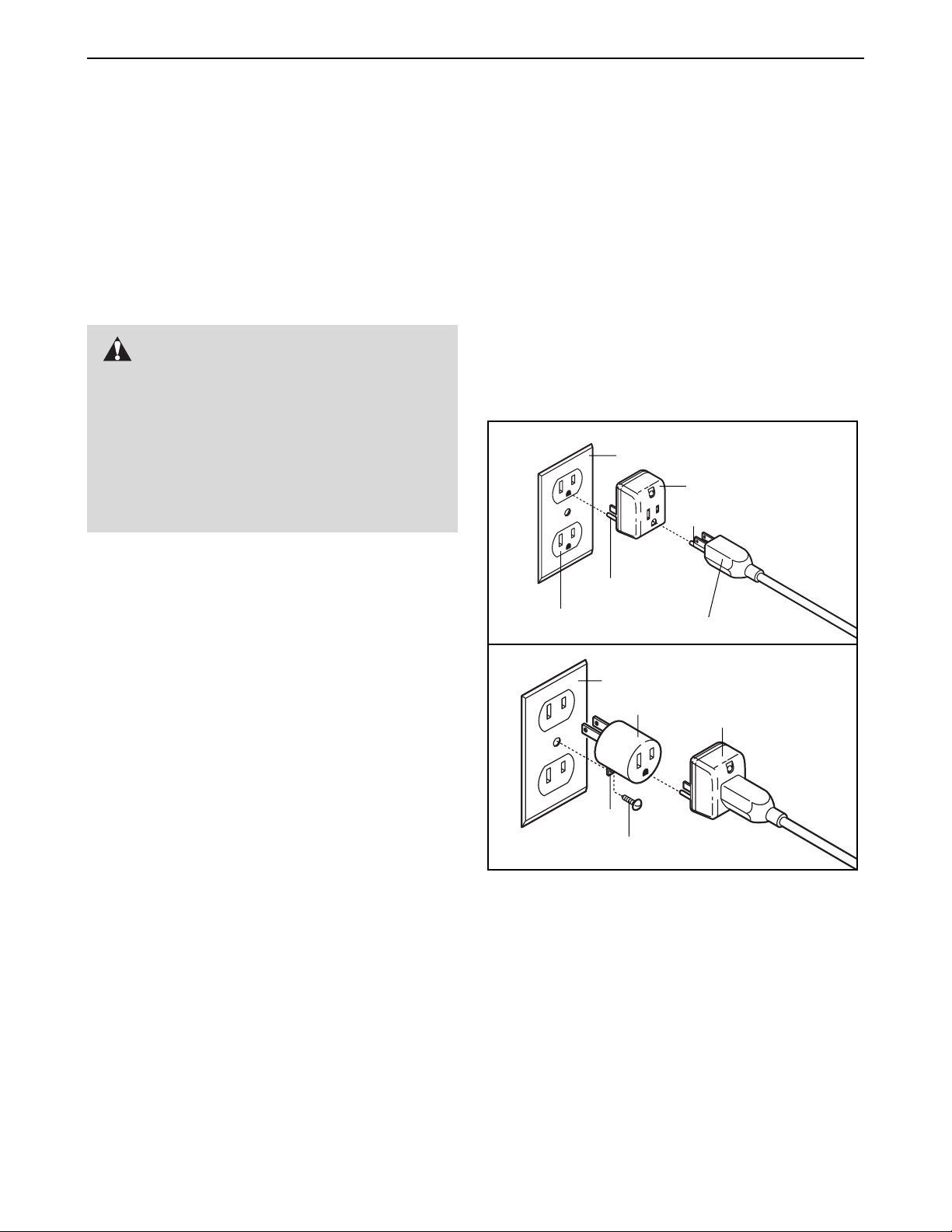

10. When connecting the power cord (see page 8),
plug the power cord into a surge suppressor
(not included) and plug the surge suppressor
into a grounded circuit capable of carrying 15
or more amps. No other appliance should be
on the same circuit. Do not use an extension
cord.
11. Use only a single-outlet surge suppressor that
meets all of the specifications described on
page 8. To purchase a surge suppressor, see
your local PROFORM dealer or call 1-800-8063651 and order part number 146148.
12. Failure to use a properly functioning surge
suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may change
speed or stop unexpectedly, which may result
in a fall and serious injury.
13. Keep the power cord and the surge suppressor away from heated surfaces.
14. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See page 4
if the treadmill is not working properly.)
15. Never start the treadmill while you are standing on the walking belt. Always hold the
handrails while using the treadmill.
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read
the following important precautions and information before operating the treadmill.
IMPORTANT PRECAUTIONS
16. The treadmill is capable of high speeds.
Adjust the speed in small increments to
avoid sudden jumps in speed.
17. Never leave the treadmill unattended while it is
running. Always remove the key and unplug
the power cord when the treadmill is not in
use.
18. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 5, and HOW TO MOVE
THE TREADMILL on page 11.) You must be
able to safely lift 45 pounds (20 kg) in order
to raise, lower, or move the treadmill.
19. Do not change the incline of the treadmill by
placing objects under the treadmill.
20. When folding or moving the treadmill, make
sure that the storage latch is fully closed.
21. Inspect and properly tighten all parts of the
treadmill regularly.
22. Never drop or insert any object into any
opening.
23.
DANGER: Always unplug the power
cord immediately after use, before cleaning
the treadmill, and before performing the
maintenance and adjustment procedures
described in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized service representative only.
24. This treadmill is intended for in-home use
only. Do not use this treadmill in any commercial, rental, or institutional setting.
3
WARNING: Before beginning this or any exercise program, consult your physician.
This is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS
The decals shown have been placed on your treadmill. If a decal is missing, or if
it is not legible, please call our Customer Service Department, toll-free, to order
a free replacement decal (see ORDERING REPLACEMENT PARTS on the back
cover of this manual). Apply the decal in the location shown. Note: The decals
are not shown at actual size.
¥Hazardous Voltage
¥Risk of Electric Shock
¥Unplug Treadmill before Assemb
/Disassembly.
4
BEFORE YOU BEGIN
Handrails
Console
Lock Knob
Key/Clip
Circuit Breaker
Walking Belt
Foot Rails
Incline Leg
Incline Pin
Power Cord
FRONT
BACK
RIGHT SIDE
Rear Roller
Adjustment Bolts
Water Bottle Holder
(Bottle not included)
Uprights
Thank you for selecting the PROFORM®280 treadmill.
The 280 treadmill combines advanced technology with
innovative design to let you enjoy an excellent form of
cardiovascular exercise in the convenience and privacy
of your home. And when you’re not exercising, the
unique 280 treadmill can be folded up, requiring less
than half the floor space of other treadmills.
For your benefit, read this manual carefully before
using the treadmill. If you have questions after read-
ing this manual, please call our Customer Service
Department toll-free at 1-800-999-3756, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time
(excluding holidays). To help us assist you, please note
the product model number and serial number before
calling. The model number of the treadmill is
PFTL29020. The serial number can be found on a
decal attached to the treadmill (see the front cover of
this manual for the location).
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
5
ASSEMBLY
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed.
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a
small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply
wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included allen wrenches and your own phillips screwdriver ,
rubber mallet , wire cutters , adjustable wrench , and needlenose
pliers .

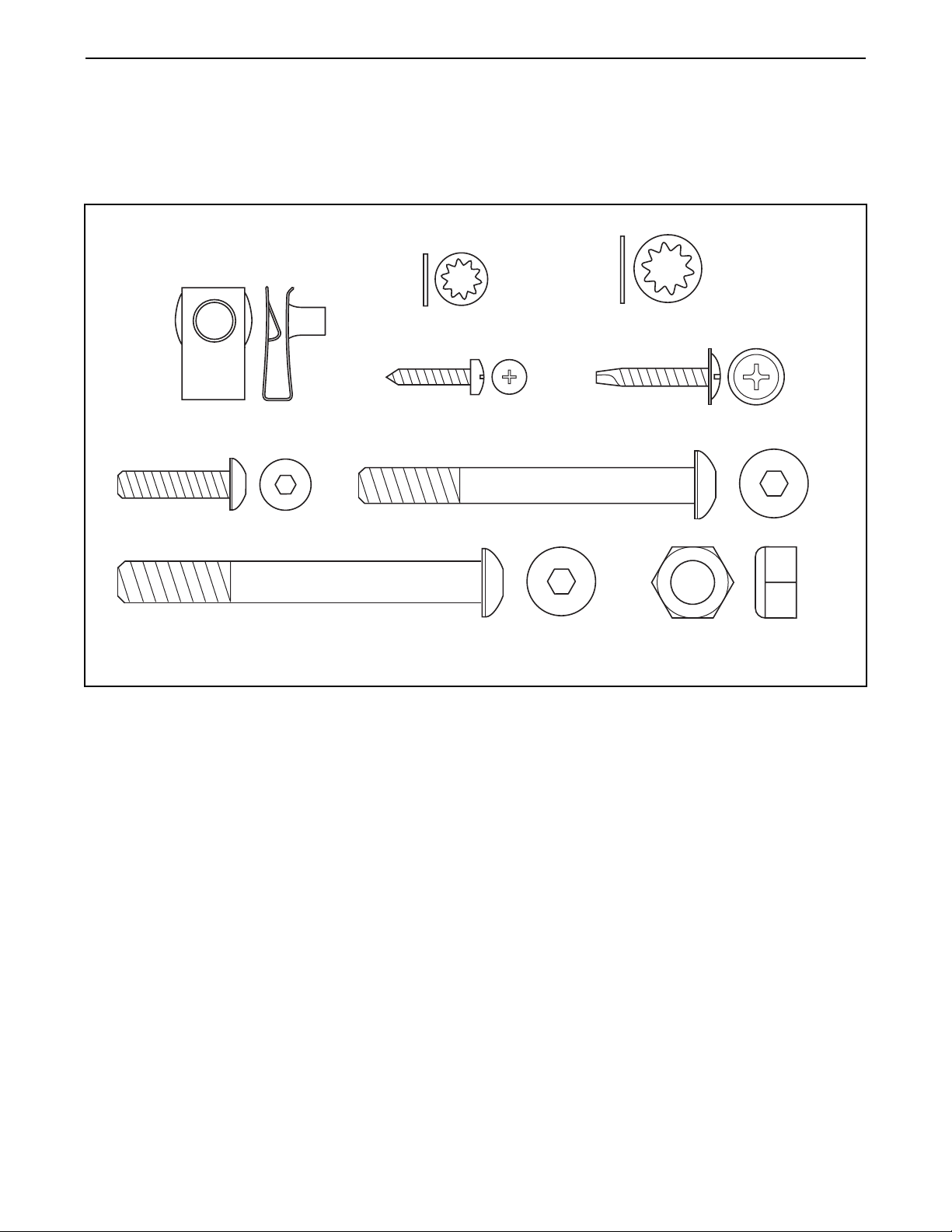

To identify small parts during assembly, use the PART IDENTIFICATION CHART in the center of this manual.
2. With the help of a second person, tip the treadmill down
to the position shown.
Attach a Wheel (42) to each side of the Base (38) with a
Wheel Bolt (41) and a Wheel Nut (61) as shown.
Refer to the inset drawing. Clip two U-nuts (10) over the
two round holes in each of the Uprights (14, 15) as
shown.
Identify the Right Upright (15) and the Left Upright (14)
(there is a large hole in the side of the Left Upright).
While a second person holds the Right Upright near the
Wire Harness (53), insert the end of the Wire Harness
into the lower end of the Right Upright and out of the
hole near the upper end as shown. If there are plastic
ties in the lower ends of the Uprights, remove them.
1. Make sure that the power cord is unplugged.
With the help of a second person, carefully tip the
treadmill onto one side. Partially fold the Frame (84) so
that the treadmill is more stable. Do not fully fold the
treadmill until it is completely assembled.
Attach four Base Pads (33) to the Base (38) with four 1”
Tek Screws (31).
84
38
33
33
33
31
31
1
31
15
14
61
41
42
38
53
2
Hole
10
14, 15
¥Hazardous Voltage
¥Risk of Electric Shock
¥Unplug Treadmill before Assembly
/Disassembly.
6
5
53
Ties
5
4
4
87
5

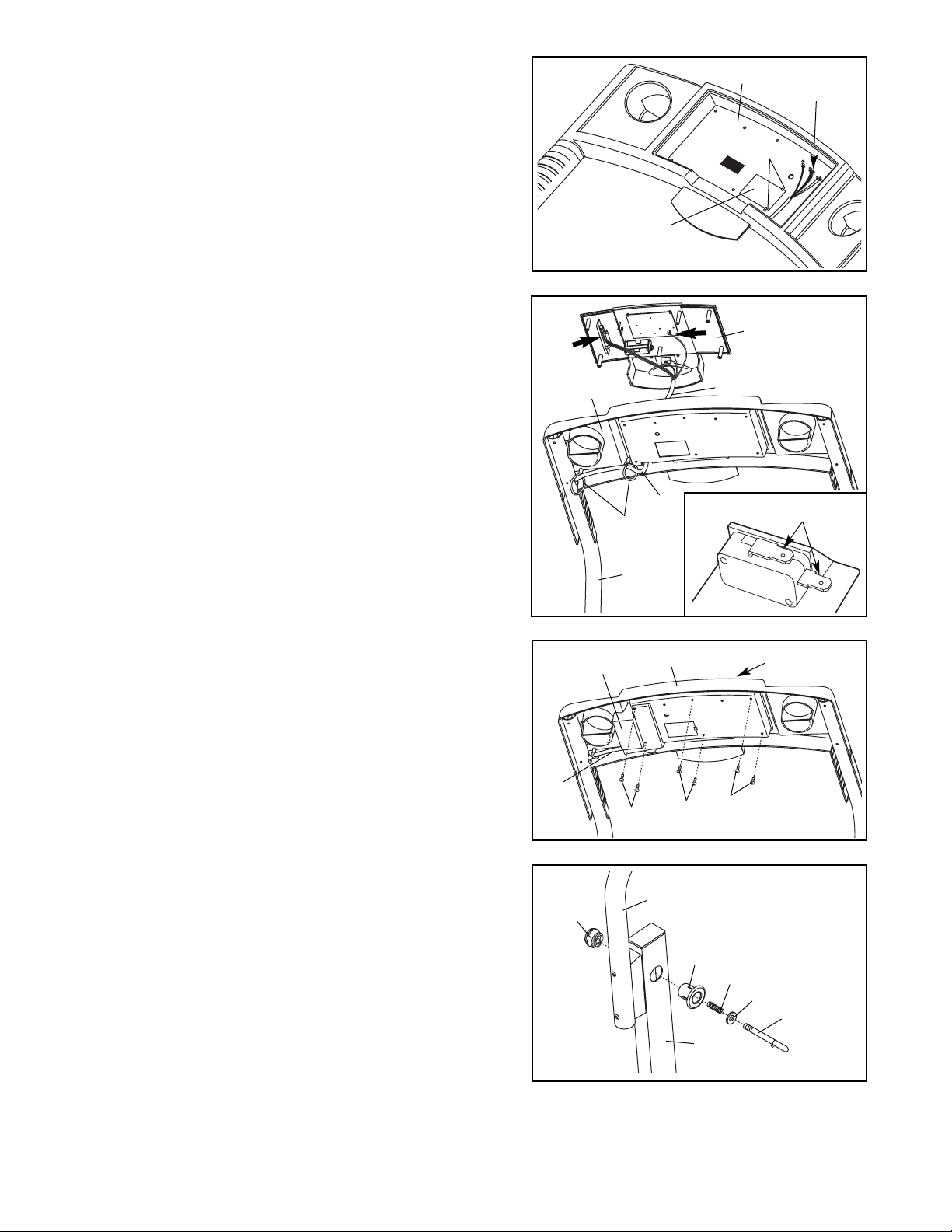

5. Set the Console Base (87) on the Handrails (4). Thread
four 3/4” Screws (5) into the Handrails and the Console
Base. After you have started all four Screws, tighten
the Screws until they are snug; do not overtighten
the Screws.
Insert the Wire Harness (53) through the two indicated
plastic ties on the Console Base (87) and then through
the hole in the bottom of the Console Base.
3. Insert a Plastic Shim (9) into each side of the post on
the right side of the Base (38). Next, orient the Right
Upright (15) as shown, and insert it into the Base. Make
sure that the Wire Harness (53) does not fall into the
Right Upright. Be careful to avoid pinching the Wire
Harness. Note: If necessary, tap the Right Upright with
a rubber mallet until it is fully seated in the Base. If the
Right Upright cannot be fully seated, remove the outer
Plastic Shim and then insert the Right Upright.
Attach the Right Upright (15) to the Base (38) with three
1” Bolts (16) and three Star Washers (2). Do not tight-
en the Bolts yet.
Assemble the Left Upright (not shown) in the same way.
15
The holes must
be on this side.
53
9
16
2
3
2
38
16
4. Hold a Handrail Spacer (3) with the arrow between the
two holes pointing upward. Thread the Wire Harness
(53) through the upper hole in the Handrail Spacer.
Next, insert the Wire Harness into a Handrail (4) and out
of the indicated hole in the side of the Handrail. If necessary, use needlenose pliers to pull the Wire Harness out
of the hole.
Hold the Handrail Spacer (3) and the Handrail (4)
against the right Upright (15). Attach the Handrail and
the Handrail Spacer with two Handrail Bolts (1) and
5/16” Star Washers (101) as shown. Make sure that the
Wire Harness (53) is not in the way of the Handrail
Bolts. Do not tighten the Handrail Bolts yet.
Attach the other Handrail (not shown) to the Left Upright
(14) as described above. Note: There is not a Wire
Harness in the Left Upright.
53
1
14
101
4
53
3
15
4
