USER'S MANUAL
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Keep this manual
for future reference.
Serial Number
Decal
Model No. PFEX44277.0
Serial No.
QUESTIONS?
As a manufacturer, we are committed to providing complete
customer satisfaction. If you
have questions, or if parts are
damaged or missing, PLEASE
CONTACT OUR CUSTOMER
SERVICE DEPARTMENT
DIRECTLY.
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri., 6 a.m.–6 p.m. MST
ON THE WEB:
www.proformservice.com
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
2
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
HOW TO OPERATE THE EXERCISE CYCLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
1. Read all instructions in this manual and all
warnings on the exercise cycle before using
the exercise cycle. Use the exercise cycle
only as described in this manual.
2. It is the responsibility of the owner to ensure
that all users of the exercise cycle are adequately informed of all precautions.
3. The exercise cycle is intended for home use
only. Do not use the exercise cycle in
a commercial, rental, or institutional setting.
4. Keep the exercise cycle indoors, away from
moisture and dust. Place the exercise cycle
on a level surface, with a mat beneath it to
protect the floor or carpet. Make sure that
there is enough clearance around the exercise cycle to mount, dismount, and use the
exercise cycle.
5. Inspect and properly tighten all parts regularly. Replace any worn parts immediately.
6. Keep children under the age of 12 and pets
away from the exercise cycle at all times.
7. Wear appropriate clothes while exercising; do
not wear loose clothes that could become
caught on the exercise cycle. Always wear
athletic shoes for foot protection.
8. The exercise cycle should not be used by
persons weighing more than 250 pounds.
9. The pulse sensor is not a medical device.
Various factors, including the user's movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
10.Always keep your back straight while using
the exercise cycle; do not arch your back.
11. If you feel pain or dizziness while exercising,
stop immediately and cool down.
12.The warning decal shown on page 3 has been
placed on the exercise cycle. If the decal is
missing or illegible, please call the toll-free
telephone number on the front cover of this
manual and order a free replacement decal.
Apply the decal in the location shown.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
IMPORTANT PRECAUTIONS
WARNING:
To reduce the risk of serious injury, read the following important precau-
tions before using the exercise cycle.
3
Congratulations for selecting the new PROFORM®465
RE exercise cycle. Cycling is one of the most effective
exercises for increasing cardiovascular fitness, building
endurance, and toning the entire body. The 465 RE
exercise cycle offers an impressive array of features
to let you enjoy this healthful exercise in the convenience and privacy of your home.
For your benefit, read this manual carefully before
you use the exercise cycle. If you have questions
after reading this manual, please see the front cover
of this manual. To help us assist you, note the product
model number and serial number before calling. The
model number is PFEX44277.0. The serial number
can be found on a decal attached to the exercise cycle
(see the front cover of this manual).
To avoid a registration fee for any service needed
under warranty, you must register the exercise
cycle at www.proformservice.com/registration.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
*No water bottle is included
Pulse Sensor
Seat
Handlebar
Game Controller
Pedal/Strap
Wheel
Leveling Foot
Upright Knob

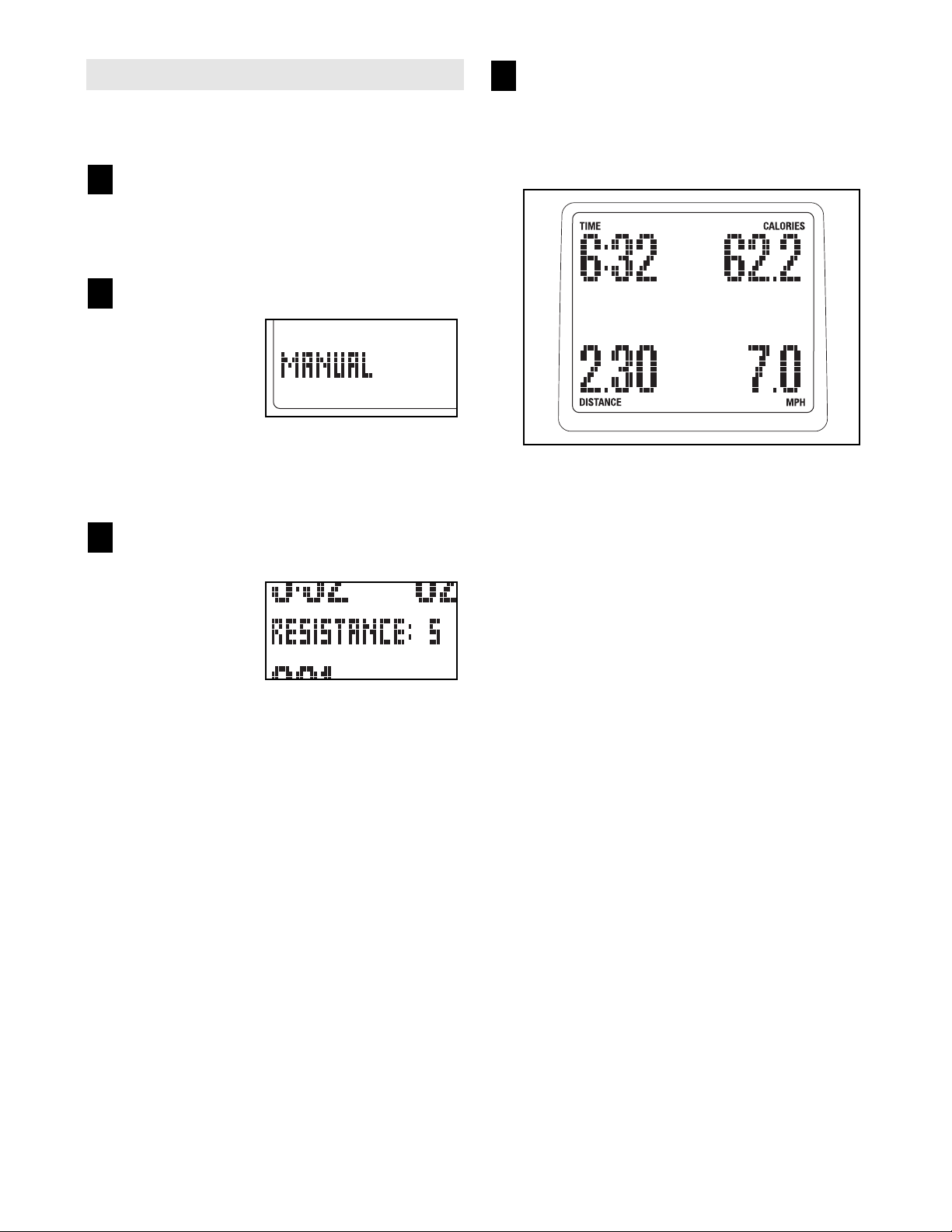

Console
Backrest
Handle
Water Bottle Holder*
BEFORE YOU BEGIN
4
ASSEMBLY
To hire an authorized service technician to assemble the exercise cycle, call toll-free 1-800-445-2480.
Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires the included tools and your own adjustable wrench and Phillips screwdriver .
Use the part drawings below to identify the small parts used in assembly. The number in parentheses below
each drawing is the key number of the part, from the PART LIST on page 21. The number following the parentheses is the quantity needed for assembly. Note: Some small parts may have been preattached. If a part is
not in the parts bag, check to see if it has been preattached.
1. Orient the Left Front Stabilizer (15) with the Wheel (17)
positioned as shown. Attach the Left Front Stabilizer to
the left side of the Frame (1) with three M8 x 16mm
Button Screws (54) and three M8 Split Washers (55).
Attach the Right Front Stabilizer (not shown) to the
right side of the Frame (1) in the same way.
15
54
1
1
55
55
54
17
M4 x 16mm
M6 Washer
(44)–7
M8 Split
Washer (55)–14
Round Head
Screw (80)–4
M8 x 16mm Button
Screw (54)–6
M8 x 19mm Button
Screw (77)–4
M6 x 42mm Button
Screw (81)–4
M10 x 63mm Bolt Set (62)–1
M6 x 38mm Button
Screw (72)–3
M8 x 50mm Button
Screw (52)–4
5
2. While another person lifts the rear of the Frame (1),
attach the Rear Stabilizer (16) to the Frame with four
M8 x 50mm Button Screws (52) and four M8 Split
Washers (55).
52
16
1
4
2
Avoid pinching
and damaging
the wires.
1
4. While another person holds the Upright (2) near the
Frame (1), use the wire tie in the Upright to pull the
Upper and Main Wire Harnesses (42, 43) through the
Upright. See the inset drawing. Tie the wire tie to the
ends of the Wire Harnesses. Then, pull the other end
of the wire tie upward out of the top of the Upright.
Attach the Upright (2) to the Frame (1) with an
M10 x 63mm Bolt Set (62). Be careful to avoid pinch-
ing the Wire Harnesses (42, 43).
2
52
55
55
62
43
62
42, 43
42
3
7
1
3. Tighten the Upright Knob (7) into the Frame (1).
Wire Tie
6
6. While another person holds the Console (4) near the
Upright (2), connect the console wire harnesses to the
Upper and Main Wire Harnesses (42, 43). Insert the
excess wire downward into the Upright.
Attach the Console (4) to the Upright (2) with four
M4 x 16mm Round Head Screws (80). Be careful to
avoid pinching the Wire Harnesses (42, 43).
2
6
4
80
43
Console
Wire
Harnesses
80
Avoid pinching and
damaging the wires.
42
5. The Console (4) requires four “D” batteries (not included); alkaline batteries are recommended. Remove the
battery cover from the back of the Console. Next,
insert four batteries into the battery compartment;
make sure that the batteries are oriented as shown
by the diagram inside the battery compartment.
Then, reattach the battery cover.
Note: The Console (4) can be operated with an
optional power supply instead of batteries. To pur-
chase a power supply, call the telephone number
on the front cover of this manual. Plug one end of
the power supply into the jack on the console. Plug
the other end of the power supply into an appropriate
outlet that is properly installed in accordance with all
local codes and ordinances.
5
4
Batteries
Battery
Cover
Batteries
7
7. Attach the Seat (9) and the Backrest Bracket (3) to the
Seat Bracket (11) with four M6 x 42mm Button
Screws (81) and four M6 Washers (44) as shown.
Start all four Button Screws before you tighten any
of them.
7
11
44
44
81
81
3
9
8. Attach the Backrest (8) to the Backrest Bracket (3)
with three M6 x 38mm Button Screws (72) and three
M6 Washers (44). Start all three Button Screws
before you tighten any of them.
8
3
44
44
8
44
72
72
8
10. Identify the Left Pedal (22), which is marked with an
“L.” Using an adjustable wrench, firmly tighten the
Left Pedal
counterclockwise
into the Left Crank
Arm (24). Tighten the Right Pedal (not shown)
clock-
wise
into the Right Crank Arm (not shown). Important:
Tighten both Pedals as firmly as possible. After
using the exercise cycle for one week, retighten
the Pedals.
Adjust the Left Pedal Strap (25) to the desired position, and press the end of the Left Pedal Strap onto
the tab on the Left Pedal (22). Adjust the Right
Pedal Strap (not shown) in the same way.
10
11. Make sure that all parts are properly tightened before you use the exercise cycle. Note: After assembly is
completed, some extra parts may be left over. Place a mat beneath the exercise cycle to protect the floor.
9. Push the seat handle down. Pull the Seat Carriage
(41) towards the back of the exercise cycle until it
stops. Then, pull up on the seat handle to lock the Seat
Carriage in place.
While another person holds the Seat Bracket (11) near
the Seat Carriage (41), connect the Right Controller
Wire (82), which has a tag attached, to the wire on the
Rear Wire Harness (51) that has a tag attached. Then,
connect the Left Controller Wire (61) to the other wire
on the Rear Wire Harness. Make sure that the con-
nectors on the Controller Wires (61, 82) are positioned side by side under the plastic cover on the
Seat Bracket.
Be careful to avoid pinching and damaging the
wires. Attach the Seat Bracket (11) to the Seat
Carriage (41) with four M8 x 19mm Button Screws (77)
and four M8 Split Washers (55).
22
25
24
11
61
41
51
82
77
77
Plastic
Cover
Seat
Handle
55
55
9
Avoid pinching and
damaging the wires.
