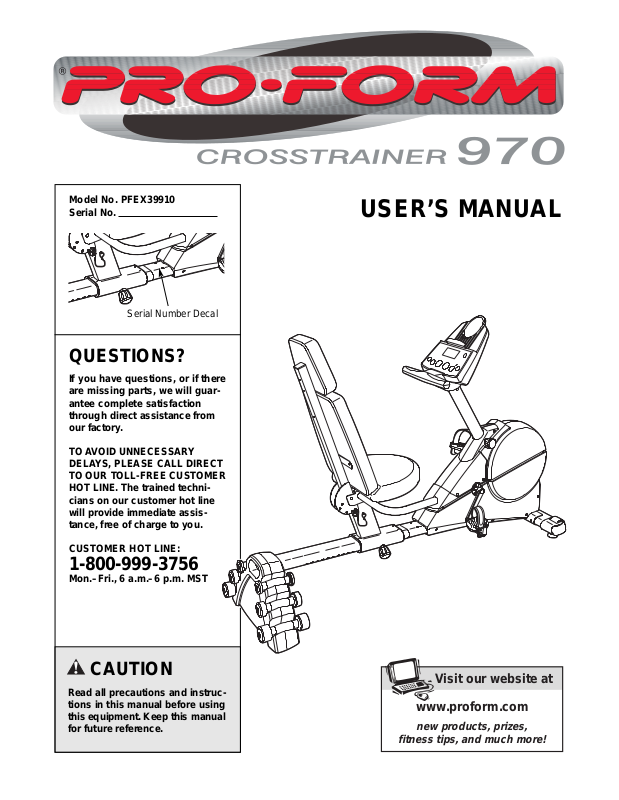

CAUTION
Read all precautions and instructions in this manual before using
this equipment. Keep this manual
for future reference.
Model No. PFEX39910
Serial No.
Serial Number Decal
QUESTIONS?
If you have questions, or if there
are missing parts, we will guarantee complete satisfaction
through direct assistance from
our factory.
TO AVOID UNNECESSARY
DELAYS, PLEASE CALL DIRECT
TO OUR TOLL-FREE CUSTOMER
HOT LINE. The trained technicians on our customer hot line
will provide immediate assistance, free of charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.–Fri., 6 a.m.–6 p.m. MST
USER’S MANUAL
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
HOW TO USE THE RECUMBENT CYCLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
RECUMBENT CYCLE EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
WEIGHT BENCH EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
2
IMPORTANT PRECAUTIONS
WARNING:To reduce the risk of serious injury, read the following important precau-
tions before using the crosstrainer.
1. Read all instructions in this manual before
using the crosstrainer.
2. It is the responsibility of the owner to ensure
that all users of the crosstrainer are adequately informed of all precautions.
3. The crosstrainer is intended for home use
only. Do not use the crosstrainer in a commercial, rental, or institutional setting.
4. Place the crosstrainer on a level surface,
with a mat beneath it to protect the floor or
carpet. Keep the crosstrainer indoors, away
from moisture and dust.
5. Inspect and properly tighten all parts regularly. Replace any worn parts immediately.
6. Keep children under age 12 and pets away
from the crosstrainer at all times.
7. The crosstrainer should not be used by persons weighing more than 250 pounds.
8. Wear appropriate exercise clothing when
using the crosstrainer; do not wear clothing
that could become caught on the crosstrainer. Always wear shoes for foot protection.
9. Before using the weight bench, always
adjust the seat to the farthest forward position. Never sit on the backrest or the headrest; doing so could cause the crosstrainer
to tip, resulting in injury.
10. Keep your back straight when using the
crosstrainer; do not arch your back.
11. The crosstrainer includes three pairs of
hand weights. Do not use other weights with
the crosstrainer.
12. When you stop pedaling, allow the pedals to
slowly come to a stop.
13. The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determining heart rate trends in general.
14. If you feel pain or dizziness while exercising,
stop immediately and begin cooling down.
WARNING:Before beginning this or any exercise program, consult your physician.
This is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. ICON assumes no responsibility for personal injury or
property damage sustained by or through the use of this product.
3
BEFORE YOU BEGIN
Congratulations for selecting the new PROFORM
®
970 crosstrainer. The unique PROFORM®970 combines a comfortable recumbent cycle with a convenient weight bench to let you enjoy both aerobic exercise and strength training exercise in the convenience
of your home.
For your benefit, read this manual carefully before
you use the crosstrainer. If you have questions after
reading the manual, please call our Customer Service
Department toll-free at 1-800-999-3756, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time
(excluding holidays). To help us assist you, please
note the product model number and serial number
before calling. The model number is PFEX39910. The
serial number can be found on a decal attached to the
crosstrainer (see the front cover of this manual for the
location of the decal).
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Handgrip Pulse Sensor
Seat Handle
Adjustment Knob
Hand Weights
Note: The
decals are
not shown at
actual size.
Wheel
Pedal/Strap
Console
Book Rack
Water Bottle Holder
Adjustment Pin
Headrest
Backrest
CAUTION Decal 1
CAUTION
Decal 2
CAUTION
Decal 3
Seat
Leveling Foot
Adjustment Knob
CAUTION: The decals shown below are found on the crosstrainer in the locations indicated above. If a decal is missing
or illegible, call toll-free 1-800-999-3756 to order a free
replacement decal. Apply the decal in the location shown.
2 31
4
ASSEMBLY
Assembly requires two persons. Place all parts of the crosstrainer in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed. In addition to the included
allen wrenches, assembly requires a phillips screwdriver , an adjustable wrench
and a rubber mallet .
As you assemble the crosstrainer, use the drawings below to identify the small parts used in assembly. The
number in parenthesis below each drawing refers to the key number of the part, from the PART LIST on page
22. The second number refers to the quantity used in assembly. Note: Some small parts may have been pre-
assembled for shipping. If a part is not in the parts bag, check to see if it has been pre-assembled.
M10 Nylon Black
Locknut (63)–2
M4 x 16mm
Screw (73)–1
M10 x 27mm Button
Screw (76)–3
M10 Zinc Nylon
Locknut (66)–2
M6 x 16mm
Screw (87)–5
M10 x 45mm Button
Screw (74)–2
M10 x 112mm Carriage Bolt (65)–2
M10 Zinc Split
Washer (85)–2
M10 Black Split
Washer (77)–3
M6 x 50mm Screw
(69)–3
M10 x 52mm Button Bolt (68)–2
M6 Flat
Washer (71)–3
5
1. While another person lifts the front of the Frame (1)
slightly, attach the Front Stabilizer (2) to the Frame
with two M10 x 112mm Carriage Bolts (65) and two
M10 Nylon Black Locknuts (63). Make sure that the
Front Stabilizer is turned so the Wheels (30) are
not touching the floor.
2
63
30
30
65
1
1
2. Orient the Frame Rail (3) as shown, with the hexago-
nal holes in the indicated position. Insert the end of the
Frame Rail into the Rear Stabilizer Covers (7, 8) as
shown. Attach the Rear Stabilizer Covers with two M10
x 45mm Button Screws (74).
3
3
7, 8
7, 8
74
3. Locate the Knob (not shown) on the Seat Carriage (4).
Turn the Knob counterclockwise two or three turns to
loosen it. Next, pull the Knob, slide the Seat Carriage
onto the Frame Rail (3), and then release the Knob.
Make sure that the Seat Carriage is oriented as shown.
Move the Seat Carriage back and forth slightly until
it locks into position. Then, tighten the Knob.
Slide the Frame Rail (3) onto the indicated round tubes
on the Frame (1). Attach the Frame Rail with two M10
x 52mm Button Bolts (68), two M10 Zinc Split Washers
(85), and two M10 Zinc Nylon Locknuts (66).
Set the six Hand Weights (not shown) on the Rear
Stabilizer Covers (7, 8) as shown on page 3.
4. Tap an Axle Cap (52) onto one end of the Seat Axle (51).
With the help of a second person, slide the Backrest
Frame (5) onto the top of the Seat Carriage (4). Next,
slide the bracket on the Seat Frame (6) over the
rounded brackets on the Backrest Frame. Align the
indicated holes in the Seat Frame, the Backrest
Frame, and the Seat Carriage, and insert the Seat Axle
(51) into the holes. Then, tap the other Axle Cap (52)
onto the Seat Axle.
Pivot the Backrest Frame (5) up until it is nearly vertical.
Insert the Adjustment Pin (29) into the lowest hole in
the rounded brackets on the Backrest Frame and
through the corresponding hole in the Seat Carriage (4).
6
5
52
51
4
29
4
2
68
85
Align
these
holes
52
3
1
66
Knob
Hexagonal
Holes
4
6
15
Metal
Tube
6. Attach the Backrest (10) to the Backrest Frame (5)
with two M6 x 16mm Screws (87), an M6 x 50mm
Screw (69), and an M6 Flat Washer (71).
Attach the Headrest (11) to the Backrest Frame (5)
with two M6 x 50mm Screws (69) and two M6 Flat
Washers (71).
8. Connect the wire harness on the Handgrip Pulse
Sensor (15) to the indicated wire harness on the
Console (16). Insert both wire harnesses into the opening in the bottom of the Console. Then, insert the metal
tube on the Handgrip Pulse Sensor into the opening in
the bottom of the Console. Be careful not to pinch the
wire harnesses.
Refer to the inset drawing. Tighten an M4 x 16mm Screw
(73) into the indicated bracket on the Console (16) and
into the metal tube on the Handgrip Pulse Sensor (15).
7
8
35
13
Slot
36
Knob
16
73
5. Attach the Seat (12) to the Seat Frame (6) with three
M6 x 16mm Screws (87).
5
6
7. While another person holds the Upright (13) in the
position shown, connect the Upper Wire Harness (35)
to the Lower Wire Harness (36). Carefully pull the
upper end of the Upper Wire Harness to remove
any slack from the Wire Harnesses.
Turn the Knob (not shown) on the right side of the
Frame (1) counterclockwise two or three turns to loosen
it. Next, pull the Knob, insert the Upright (13) into the
Frame, and then release the Knob. Move the Upright
up and down slightly until it locks into position. Be
careful to avoid pinching the Wire Harnesses (35,
36). Tighten the indicated M6 x 25.4mm Button Screw
(79) into the slot in the side of the Upright.
79
12
6
87
87
11
10
5
69
71
71
69
87
73
16
1
15
7
12.Make sure that all parts of the crosstrainer are properly tightened. Note: Some hardware may be left
over after assembly is completed. To protect the floor or carpet from damage, place a mat under the
crosstrainer.
10. While another person holds the Console (16) in the
position shown, connect the wire harness on the
Console to the Upper Wire Harness (35). Insert the
excess wire harness into the Upright (13).
Attach the Console (16) to the Upright (13) with three
M10 x 27mm Button Screws (76) and three M10
Black Split Washers (77). Be careful to avoid pinch-
ing the wire harnesses.
9. The Console (16) requires four “D” batteries (not
included); alkaline batteries are recommended. Press
the tab on the battery cover, and lift off the battery
cover. Insert four batteries into the battery compartment. Make sure that the batteries are oriented as
shown by the diagram inside the battery compartment. Reattach the battery cover.
11. Identify the Left Pedal (24), which is marked with an
“L.” Using an adjustable wrench, firmly tighten the
Left Pedal
counterclockwise
into the Left Crank Arm
(42). Tighten the Right Pedal (not shown)
clockwise
into the Right Crank Arm (not shown) in the same
way. Important: Tighten both Pedals as firmly as
possible. After using the crosstrainer for one
week, retighten the Pedals. For the best performance, the Pedals must be kept properly tightened.
Adjust the Left Pedal Strap (25) to the desired position
and press the end of the Strap onto the tab on the Left
Pedal (24). Adjust the Right Pedal Strap (not shown)
in the same way.
16
Tab
Batteries
Battery
Cover
9
16
35
76
76
Wire Harness
77
77
76
10
11
24
Tab
42
25
13
INSTALLING THE RECEIVER FOR THE OPTIONAL CHEST PULSE SENSOR
If you purchase the optional chest pulse sensor (refer to page 20), follow the steps below to install the receiver
and the jumper wire included with the chest pulse sensor.
1. Remove the four indicated screws from the back of the
Console (16). Lift off the front of the Console.
2. Plug the jumper wire (A) into the indicated jack on the
Console (16). Connect the other end of the jumper wire
to the wire on the receiver (B).
Next, peel the paper off the adhesive pad on the back
of the receiver (B). Orient the receiver as shown, and
press it onto the Console (16) in the indicated location.
Refer to step 1 above. Reattach the front of the
Console (16) with the four screws. Make sure that no
wires are pinched.
8
B
16
Jack
16
Screws
Lift
Here
1
A
Cylinder
2
9
HOW TO USE THE RECUMBENT CYCLE
HOW TO ADJUST THE BACKREST
When the recumbent cycle is used,
the backrest should
be in the upright
position. To adjust
the backrest, first
pull out the adjustment pin. Raise the
backrest until it is
nearly vertical, and
then insert the
adjustment pin into
the indicated hole
in the rounded
brackets and the
corresponding hole
in the seat carriage.
HOW TO ADJUST THE SEAT
For effective exercise, the seat
should be in the
proper position. As
you pedal, there
should be a slight
bend in your knees
when the pedals
are in the farthest
position. To adjust
the seat, first turn
the indicated
adjustment knob
counterclockwise
two or three turns
to loosen it (if the knob is not loosened enough, it may
scratch the rail). Next, pull the knob, slide the seat carriage to the desired position, and then release the
knob. Move the seat carriage back and forth slightly
until it locks into position. Then, turn the knob clockwise until it is tight.
HOW TO ADJUST THE UPRIGHT
The upright can be
adjusted to the
height that is the
most comfortable for
you. To adjust the
upright, first turn the
indicated adjustment knob counterclockwise two or
three turns to
loosen it (if the knob
is not loosened enough, it may scratch the upright).
Next, pull the knob, slide the upright to the desired
height, and then release the knob. Move the upright
up and down slightly until it locks into position.
Then, turn the knob clockwise until it is tight. IMPORTANT: After you adjust the upright, make sure that
your knees will not touch the handgrip pulse sensor when you pedal.
HOW TO ADJUST THE PEDAL STRAPS
To adjust the pedal
straps, first pull the
ends of the straps
off the tabs on the
pedals. Adjust the
straps to the
desired positions,
and then press the
ends of the straps
back onto the tabs.
HOW TO USE THE HAND WEIGHTS
The included hand weights can be used for a variety
of strength training exercises with the weight bench
(refer to page 20). In addition, the hand weights can
be used with the recumbent cycle. As you pedal, press
the hand weights over your head, raise the hand
weights out to your sides until your hands are level
with your shoulders, or do arm curls with the hand
weights.
Strap
Tab
Back-
rest
Pin
Brackets
Seat
Carriage
Seat
Carriage
Rail
Knob
Upright
Knob
The crosstrainer features a recumbent cycle for aerobic exercise, and a convenient weight bench for strength
training exercise. To use the recumbent cycle, refer to pages 9 to 19. To use the weight bench, refer to page 20.
10
FEATURES OF THE CONSOLE
The advanced console offers a selection of features
designed to make your workouts more enjoyable and
effective. When the manual mode of the console is
selected, the resistance of the crosstrainer can be
adjusted with a touch of a button. As you exercise, the
console will provide continuous exercise feedback.
You can even measure your heart rate using the builtin handgrip pulse sensor. (For information about an
optional chest pulse sensor, refer to page 18.)
The console also offers eight Smart workout programs.
Each program automatically changes the resistance of
the crosstrainer and prompts you to increase or
decrease your pace as it guides you through an effective workout.
The console also features new iFIT.com interactive
technology. IFIT.com technology is like having a personal trainer right in your home. Using a stereo audio
cable (available at electronics stores), you can connect
the crosstrainer to your home stereo, portable stereo,
or computer and play special iFIT.com CD programs
(CDs are available separately). IFIT.com CD programs
automatically control the resistance of the crosstrainer
and prompt you to vary your pace as a personal trainer coaches you through every step of your workout.
High-energy music provides added motivation. Each
CD features two programs designed by certified personal trainers.
In addition, you can connect the crosstrainer to your
VCR and TV and play iFIT.com video programs (videocassettes are available separately). Video programs
offer the same benefits as iFIT.com CD programs, but
add the excitement of working out with a class and an
instructor.
With the crosstrainer connected to your computer, you
can also go to our new Web site at www.iFIT.com and
access audio programs and video programs directly
from the internet.
For information about the availability of iFIT.com
CDs or videocassettes, call toll-free 1-800-884-0620.
E
G
H
F
K
I
J
A B C D
11
CONSOLE DESCRIPTION
Refer to the drawing on page 10. Note: If there is a
thin sheet of clear plastic on the face of the console, remove it.
A. Exercise feedback display—This display features
seven modes that give you instant exercise feedback: your current speed, the elapsed time (or the
time remaining in a Smart program), the distance
that you have pedaled, the resistance level, the
approximate number of calories you have burned,
your power output in watts, and your heart rate
(when you use the handgrip pulse sensor or the
optional chest pulse sensor [refer to page 18 for
information about the chest pulse sensor]). If the
scan mode is selected, the display will change from
one mode to the next every six seconds. Or, you
can select a single mode for continuous display.
Note: The console can show speed and distance
in either miles or kilometers. To change the unit
of measurement, hold down the On/Reset button
for six seconds. The mode indicators (see E
below) will show which unit of measurement is
selected. When the batteries are replaced, it may
be necessary to reselect the desired unit of measurement.
B. Increase and decrease arrows—During Smart pro-
grams and iFIT.com programs, these arrows will
prompt you to increase or decrease your pace to
match the target pace.
C. Manual mode/program indicators—When a Smart
program is selected, the upper right corner of the
display will show a 1, 2, 3, 4, 5, 6, 7, or 8, depending on which Smart program is selected. When the
iFIT.com mode is selected, the upper right corner
will show the letters IF. When the manual mode is
selected, the upper right corner will be blank.
D. Program profiles—These profiles show how the
resistance of the crosstrainer and the target pace
will change during Smart programs. For example,
profile number 6 shows that during Smart program
6, the resistance will gradually increase during the
first half of the program, and then gradually
decrease during the last half; the target pace will
alternately increase and decrease throughout the
program.
E. Feedback mode indicators—These indicators show
which feedback mode (scan, speed, time, distance,
resistance level, calories, watts, or heart rate) is
currently shown. Note: When the distance is
shown, the word Miles or the letters Kms will
appear; when your speed is shown, the letters MPH
or Km/H will appear.
F. Pace indicators—When the manual mode is select-
ed, only the left pace indicator will appear. This indicator shows your exercise pace. As you increase or
decrease your pace, the indicator will increase or
decrease in height. W h e n a S m art program or the
iFIT.com mode is selected, both pace indicators will
appear. The left indicator will show your actual
exercise pace, and the right indicator will show the
current target pace. During the program, the target
pace will periodically change; as the right indicator
changes in height, simply adjust your pace so that
both indicators are at the same height. Important:
The target pace is a
goal
pace. Your actual pace
may be slower than the target pace, especially
during the first few months of your exercise
program. Make sure to exercise at a pace that is
comfortable for you.
G. On/Reset button—When the console is off, pressing
this button will turn on the display. When the console
is on, pressing this button will reset the display.
This button is also used to select the unit of measurement for speed and distance (see Aat the left).
H. Display Mode button—This button is used to select
the feedback modes. The modes will be selected in
the following order: scan, speed, time, distance,
resistance level, calories, watts, and heart rate
(when the handgrip pulse sensor or the optional
chest pulse sensor is used).
I. + and – buttons—These buttons control the resis-
tance of the crosstrainer. There are ten resistance
levels; level 10 is the most challenging.
J. Program button—This button is used to select the
manual mode and Smart programs.
K. IFIT.com button—This button is used to select the
iFIT.com mode. The indicator on the button will light
when the iFIT.com mode is selected.
To use the manual mode of the console, refer to
page 12. To use a Smart program, refer to page 13.
To use iFIT.com CDs or videos, refer to page 17. To
use a program directly from our Web site, refer to
page 18.
12
Turn on the console.
Note: The console requires four “D” batteries (not
included). If you have not installed batteries, refer
to step 9 on page 7 and install batteries.
To turn on the console, press the On/Reset button
or begin pedaling.
Select the manual mode.
Each time the
console is
turned on, the
manual mode
will be selected. If a Smart
program or the
iFIT.com mode
has been selected, select the manual mode by
pressing the Program button repeatedly until the
upper right corner of the display is blank.
Begin exercising and adjust the resistance of
the crosstrainer.
As you exercise, adjust the resistance of the
crosstrainer as desired by pressing the + and –
buttons. There are ten resistance levels; level 10
is the most challenging. Note: After the buttons
are pressed, it will take a few seconds for the
selected setting to be reached.
Follow your progress with the feedback modes
and the left bar graph.
When the console is turned
on, the scan
mode will be
selected. As
you exercise,
the display will
show your current speed, the elapsed time, the distance that
you have pedaled, the current resistance level,
the approximate number of calories you have
burned, and your power output in watts. In addition, your heart rate will be shown when you use
the handgrip pulse sensor (refer to step 5 at the
right) or the optional chest pulse sensor (refer to
page 18). Note: Each time the resistance level
changes, the console will show the resistance
level for six seconds. When a Smart program is
selected, the display will show the
time remaining
in the program instead of the elapsed time.
In addition, the left pace indicator will appear in the
display to show your exercise pace. As you
increase or decrease your pace, the indicator will
increase or decrease in height.
If desired, you can select a single feedback mode
for continuous display. Press the Display Mode
button repeatedly until only the MPH (or Km/H),
Time, Miles (or Kms), Resist., Cals., or Watts
indicator appears in the display. Make sure that
the Scan indicator does not appear.
Measure your heart rate if desired.
Note: If there are thin sheets of plastic on the
metal contacts on the handgrip pulse sensor,
peel off the plastic.
To use the handgrip pulse sensor, place your
hands on the
metal contacts.
Your palms must
be on the upper
contacts and
your fingers
must be touching the lower contacts. Avoid moving your hands. When your pulse is detected, the
heart-shaped indicator in the display will flash
each time your heart beats. After a moment, two
dashes (– –) will appear and then your heart rate
will be shown.
For the most accurate heart rate reading, continue
to hold the handgrips for about 15 seconds. Note:
When you first hold the handgrips, the display will
show your heart rate continuously for 15 seconds. The display will then show your heart rate
along with the other feedback modes.
When you are finished exercising, the console
will automatically turn off after five minutes.
If the pedals are not moved and the console buttons are not pressed for five minutes, the con-
sole will automatically turn off to conserve
the batteries.
6
5
4
3
2
1
HOW TO USE THE MANUAL MODE
This corner
should be blank
Metal
Contacts
13
Turn on the console.
Refer to step 1 on page 12.
Select one of the eight Smart programs.
Each time the
console is turned
on, the manual
mode will be
selected. To
select a Smart
program, press
the Program button repeatedly until the number 1, 2, 3, 4, 5, 6, 7,
or 8 appears in the upper right corner of the display.
The profiles on the right side of the console show
how the resistance of the crosstrainer and the target pace will change during the Smart programs.
For example, profile number 6 shows that during
Smart program 6, the resistance will gradually
increase during the first half of the program, and
then gradually decrease during the last half; the
target pace will alternately increase and decrease
throughout the program.
Start the program.
To start the program, simply begin exercising.
Each Smart program consists of either twenty or
thirty, one-minute periods. One resistance setting
and one pace setting are programmed for each
period. (The same resistance setting and/or pace
setting may be programmed for consecutive periods.)
During the program, the resistance of the
crosstrainer will automatically change as shown
by the applicable profile on the console. If the current resistance level is too high or too low, you
can change the resistance level by pressing the +
and – buttons. However, when the current period
of the program is completed, the resistance level
will automatically change if a different resistance
setting is programmed for the next period.
The target pace
settings for the
program will be
shown by the
right pace indicator in the display.
(The left indicator
will show your
actual exercise pace.) As the right indicator
changes in height during the program, simply
adjust your pace so that both indicators are at the
same height. If your pace is slower than the current target pace, the increase arrow will appear in
the display to prompt you to increase your pace; if
your pace is faster than the target pace, the
decrease arrow will appear. Important: The tar-
get pace settings for the program are intended
only to provide a goal. Your actual pace may
be slower than the target pace settings, especially during the first few months of your exercise program. Make sure to exercise at a pace
that is comfortable for you.
During the program, the display will show the time
remaining in the program. If you continue exercising after the program is completed, the display
will continue to show your exercise feedback.
Follow your progress with the feedback modes.
Refer to step 4 on page 12.
Measure your heart rate if desired.
See step 5 on page 12.
When you are finished exercising, the console
will automatically turn off after five minutes.
Refer to step 6 on page 12.
6
5
4
3
2
1
HOW TO USE A SMART PROGRAM
Increase Arrow
14
HOW TO CONNECT YOUR CD PLAYER, VCR,
OR COMPUTER
To use iFIT.com CD’s, the crosstrainer must be con-
nected to your portable CD player, portable stereo,
home stereo, or computer with CD player. See pages
14 to 16 for connecting instructions. To use iFIT.com
videocassettes, the crosstrainer must be connected
to your VCR. See page 16 for connecting instructions.
To use iFIT.com programs directly from our Web
site, the crosstrainer must be connected to your home
computer. See page 15 for connecting instructions.
HOW TO CONNECT YOUR PORTABLE CD PLAYER
Note: If your CD player has separate LINE OUT
and PHONES jacks, see instruction A below. If
your CD player has only one jack, see instruction B.
A. Plug one end of a 1/8” to 1/8” stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into the LINE OUT jack on your CD player.
Plug your headphones into the PHONES jack.
B. Plug one end of a 1/8” to 1/8” stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into a 1/8” Y-adapter (available at electronics
stores). Plug the Y-adapter into the PHONES jack
on your CD player. Plug your headphones into the
other side of the Y-adapter.
HOW TO CONNECT YOUR PORTABLE STEREO
Note: If your stereo has an RCA-type AUDIO OUT
jack, see instruction A below. If your stereo has a
1/8” LINE OUT jack, see instruction B. If your
stereo has only a PHONES jack, see instruction C.
A. Plug one end of a 1/8”-to-RCA stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into the AUDIO OUT jack on your stereo.
B. Refer to the drawing above. Plug one end of a 1/8”
to 1/8” stereo audio cable (available at electronics
stores) into the jack beneath the console. Plug the
other end of the cable into the LINE OUT jack on
your stereo.
C. Plug one end of a 1/8” to 1/8” stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into a 1/8” Y-adapter (available at electronics
stores). Plug the Y-adapter into the PHONES jack
on your stereo. Plug your headphones into the
other side of the Y-adapter.
Audio
Cable
Head-
phones
A
Audio
Cable
1/8”
Y-adapter
Headphones
B
Audio Cable
A/B
Audio
Cable
C
1/8”
Y-adapter
Headphones
LINE OUT
PHONES
LINE OUT
PHONES
PHONES
AUDIO OUT
RIGHT
LEFT
LINE OUT
PHONES
PHONES
15
HOW TO CONNECT YOUR HOME STEREO
Note: If your stereo has an unused LINE OUT jack,
see instruction A below. If the LINE OUT jack is
being used, see instruction B.
A. Plug one end of a 1/8” to RCA stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into the LINE OUT jack on your stereo.
B. Plug one end of a 1/8” to RCA stereo audio cable
(available at electronics stores) into the jack beneath
the console. Plug the other end of the cable into an
RCA Y-adapter (available at electronics stores).
Next, remove the wire that is currently plugged into
the LINE OUT jack on your stereo and plug the wire
into the unused side of the Y-adapter. Plug the Yadapter into the LINE OUT jack on your stereo.
HOW TO CONNECT YOUR COMPUTER
Note: If your computer has a 1/8” LINE OUT jack,
see instruction A. If your computer has only a
PHONES jack, see instruction B.
A. Plug one end of a 1/8” to 1/8” stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into the LINE OUT jack on your computer.
B. Plug one end of a 1/8” to 1/8” stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into a 1/8” Y-adapter (available at electronics
stores). Plug the Y-adapter into the PHONES jack
on your computer. Plug your headphones or speakers into the other side of the Y-adapter.
Audio Cable
A
Audio
Cable
RCA
Y-adapter
Wire removed from
LINE OUT jack
B
Audio
Cable
A
Audio Cable
B
1/8”
Y-adapter
Headphones/Speakers
CD
VCR
Amp
LINE OUT
LINE OUT
LINE OUT
CD
VCR
Amp
LINE OUT
PHONES
16
HOW TO CONNECT YOUR VCR
Note: If your VCR has an unused AUDIO OUT jack,
see instruction A below. If the AUDIO OUT jack is
being used, see instruction B. If you have a TV
with a built-in VCR, see instruction B. If your VCR
is connected to your home stereo, see HOW TO
CONNECT YOUR HOME STEREO on page 15.
A. Plug one end of a 1/8” to RCA stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into the AUDIO OUT jack on your VCR.
B. Plug one end of a 1/8” to RCA stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into an RCA Y-adapter (available at electronics stores). Next, remove the wire that is currently
plugged into the AUDIO OUT jack on your VCR
and plug the wire into the unused side of the Yadapter. Plug the Y-adapter into the AUDIO OUT
jack on your VCR.
Audio Cable
A
B
Wire removed from
AUDIO OUT jack
RCA
Y-adapter
Audio
Cable
ANT. IN
VIDEO AUDIO
IN
RF OUT
CH
34
OUT
VIDEO AUDIO
IN
CH
34
OUT
AUDIO OUT
RIGHT
LEFT
ANT. IN
RF OUT
17
To use iFIT.com CDs or videocassettes, the crosstrainer must be connected to your portable CD player,
portable stereo, home stereo, computer with CD player, or VCR. See HOW TO CONNECT YOUR CD
PLAYER, VCR, OR COMPUTER on page 14. Note:
For information about the availability of iFIT.com
CDs or videocassettes, call toll-free 1-800-884-0620.
Follow the steps below to use an iFIT.com CD or
video program.
Turn on the console.
Refer to step 1 on page 12.
Select the iFIT.com mode.
Each time the
console is
turned on, the
manual mode
will be selected.
To select the
iFIT.com mode,
press the
iFIT.com button. The indicator on the button will
light and the letters IF will appear in the upper
right corner of the display.
Insert the iFIT.com CD or videocassette.
If you are using an iFIT.com CD, insert the CD
into your CD player. If you are using an iFIT.com
videocassette, insert the videocassette into your
VCR.
Press the play button on your CD player or
VCR.
A moment after the play button is pressed, your
personal trainer will begin guiding you through
your workout. Simply follow your personal trainer’s
instructions.
The program will function in almost the same way
as a Smart program (refer to step 3 on page 13).
However, an electronic “chirping” sound will alert
you when the resistance and/or the target pace is
about to change.
Note: If the resistance and/or the target pace
does not change when a “chirp” is heard:
• Make sure that the indicator on the iFIT.com
button is lit.
• Adjust the volume of your CD player or VCR.
If the volume is too high or too low, the console may not detect the program signals.
• Make sure that the audio cable is properly
connected and that it is fully plugged in.
Follow your progress with the feedback modes.
Refer to step 4 on page 12.
Measure your heart rate if desired.
Refer to step 5 on page 12.
When you are finished exercising, the console
will automatically turn off after five minutes.
Refer to step 6 on page 12.
7
6
5
4
3
2
1
HOW TO USE IFIT.COM CD AND VIDEO
PROGRAMS
18
HOW TO USE PROGRAMS DIRECTLY FROM
OUR WEB SITE
Our Web site at www.iFIT.com allows you to play
iFIT.com audio and video programs directly from the
internet. To use programs from our Web site, the
crosstrainer must be connected to your home computer. See HOW TO CONNECT YOUR COMPUTER on
page 15. In addition, you must have an internet connection and an internet service provider. A list of specific system requirements will be found on our Web
site.
Follow the steps below to use a program from our
Web site.
Turn on the console.
Refer to step 1 on page 12.
Select the iFIT.com mode.
Each time the
console is
turned on, the
manual mode
will be selected.
To select the
iFIT.com mode,
press the
iFIT.com button. The indicator on the button will
light and the letters IF will appear in the upper
right corner of the display.
Go to your computer and start an internet
connection.
Start your Web browser, if necessary, and go
to our Web site at www.iFIT.com.
Follow the desired links on our Web site to
select a program.
Read and follow the on-line instructions for using
a program.
Follow the on-line instructions to start the
program.
When you start the program, an on-screen countdown will begin.
Return to the crosstrainer and begin exercising.
When the on-screen countdown ends, the program will begin. The program will function in
almost the same way as a Smart program (refer to
step 3 on page 13). However, an electronic “chirping” sound will alert you when the resistance
and/or the target pace is about to change.
Follow your progress with the feedback modes.
Refer to step 4 on page 12.
Measure your heart rate if desired.
Refer to step 5 on page 12.
When you are finished exercising, the console
will automatically turn off after five minutes.
Refer to step 6 on page 12.
THE OPTIONAL CHEST PULSE SENSOR
The optional chest pulse sensor provides hands-free
operation and continuously monitors your heart rate
during your workouts on the recumbent cycle. To pur-
chase the optional chest pulse sensor, call tollfree 1-800-999-3756.
10
9
8
7
6
5
4
3
2
1
19
RECUMBENT CYCLE EXERCISE GUIDELINES
The following guidelines will help you to plan your
workouts using the recumbent cycle. Remember that
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. The chart below shows recommended heart rates for fat burning, maximum fat
burning, and cardiovascular (aerobic) exercise.
To find the proper heart rate for you, first find your age
on the bottom line of the chart (ages are rounded off
to the nearest ten years). Next, find the three numbers
above your age. The three numbers are your “training
zone.” The lower two numbers are recommended
heart rates for fat burning; the highest number is the
recommended heart rate for aerobic exercise.
Fat Burning
To burn fat effectively, you must exercise at a relatively low intensity level for a sustained period of time.
During the first few minutes of exercise, your body
uses easily accessible
carbohydrate
calories for ener-
gy. Only after the first few minutes of exercise does
your body begin to use stored
fat
calories for energy.
If your goal is to burn fat, adjust the intensity of your
exercise until your heart rate is near the lowest number in your training zone as you exercise. For maximum fat burning, adjust the intensity of your exercise
until your heart rate is near the middle number in your
training zone as you exercise.
Aerobic Exercise
If your goal is to strengthen your cardiovascular system, your exercise must be “aerobic.” Aerobic exercise is activity that requires large amounts of oxygen
for prolonged periods of time. This increases the
demand on the heart to pump blood to the muscles,
and on the lungs to oxygenate the blood. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone as you exercise.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A warm-up, consisting of 5 to 10 minutes of stretching
and light exercise. Aproper warm-up increases your
body temperature, heart rate, and circulation in preparation for exercise.
Training zone exercise, consisting of 20 to 30 minutes of exercising with your heart rate in your training
zone. (During the first few weeks of your exercise
program, do not keep your heart rate in your training
zone for longer than 20 minutes.)
A cool-down, with 5 to 10 minutes of stretching. This
will increase the flexibility of your muscles and will
help to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, plan three
workouts on the recumbent cycle each week. After a
few months of regular exercise, you may complete up
to five workouts each week if desired. Note: You may
wish to use the recumbent cycle and the weight
bench on alternating days. For example, plan aerobic
workouts on Monday, Wednesday, and Friday, and
plan weight training workouts on Tuesday, Thursday,
and Saturday. Make sure to rest for at least one full
day each week to give your body time to regenerate.
CAUTION: It is very important to avoid overdoing
it during the first few months of your exercise program, and to progress at your own pace.
WARNING:
Before beginning this or any exercise program, consult your physician. This is especially important for persons over the age of 35
or persons with pre-existing health problems.
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determining heart rate trends in general.
20
WEIGHT BENCH EXERCISE GUIDELINES
HOW TO ADJUST THE BACKREST
The backrest can be adjusted to any of four positions:
the inclined (upright) position, the semi-inclined position, the flat position, and the declined position.
To adjust the backrest, first adjust the seat to the
farthest forward position (see HOW TO ADJUST
THE SEAT on page 9). Next, pull out the adjustment
pin. Pivot the backrest to the desired position, and
then insert the pin into one of the holes in the rounded
brackets and the corresponding hole in the seat carriage (see the inset drawing). Note: When the backrest
is in the declined position, the seat will also be declined.
CAUTION: Never sit on the backrest or the headrest; doing so could cause the crosstrainer to tip,
resulting in injury.
STRENGTH TRAINING GUIDELINES
The weight bench can be used for a variety of exercises designed to trim, tone, and strengthen the body.
Please read these guidelines before using the weight
bench.
It is recommended that your strength training program
include 3 workouts each week. Note: You may wish to
use the weight bench and the recumbent cycle on
alternating days. For example, plan weight training
workouts on Tuesday, Thursday, and Saturday, and
plan aerobic workouts on Monday, Wednesday, and
Friday. Make sure to rest for at least one full day each
week to give your body time to regenerate. CAUTION:
It is very important to avoid overdoing it during the
first few months of your exercise program, and to
progress at your own pace.
Begin each workout with five to eight minutes of
stretching and light exercise to warm up. Aproper
warm-up increases your body temperature, heart rate,
and circulation in preparation for exercise.
After warming up, perform a selection of weight training exercises. The chart on the backrest shows four
exercises that can be performed. Consult a reputable
book to find other exercises that can be performed
using hand weights and a weight bench. To give balance to your workouts, vary the exercises from workout to workout. Begin with 1 set of 12 repetitions for
each exercise. (A “repetition” is one complete cycle of
an exercise, such as one sit-up. A“set” is a series of
repetitions performed without a pause.) As your fitness
level increases, perform 2 or 3 sets for each exercise.
Always rest for at least 1 minute after each set. When
you can complete 3 sets of 12 repetitions without difficulty, you may choose to use heavier weights.
CAUTION: The crosstrainer includes three pairs of
hand weights. Do not use other weights with the
crosstrainer.
Finish each workout with five to eight minutes of
stretching to cool down. This will increase your flexibility
and will help to prevent soreness.
EXERCISE FORM
For the best results, correct form is important.
Maintaining proper form means moving through the full
range of motion for each exercise, and moving only
the appropriate parts of the body. Make sure to perform each exercise with a smooth, steady motion.
Exhale as you exert yourself, and inhale as you return
to the starting position; never hold your breath.
STAYING MOTIVATED
For motivation, try listening to music or watching television while you exercise. Use a calendar to keep a
record of your workouts, and record key body measurements at the end of every month. Remember, the
key to lasting results is to make exercise a regular and
enjoyable part of your daily life.
WARNING: Before beginning any
exercise program, consult your physician.
This is especially important for persons over
the age of 35 or persons with pre-existing
health problems.
Backrest
Seat
Decline
Flat
Semi-inclined
Brackets
Inclined
Pin
21
Inspect and tighten all parts of the crosstrainer regularly. Replace any worn parts immediately.
To clean the crosstrainer, use a damp cloth and a
small amount of mild soap. Important: To avoid
damage to the console, keep liquids away from
the console and keep the console out of direct
sunlight.
BATTERY REPLACEMENT
If the console display becomes dim, the batteries
should be replaced; most console problems are the
result of low batteries. Refer to assembly step 9 on
page 7 for replacement instructions. Note: The console requires four “D” batteries.
HOW TO LEVEL THE CROSSTRAINER
After the
crosstrainer has
been moved to
the location
where it will be
used, make sure
that both ends of
front stabilizer
are touching the
floor. If the
crosstrainer
rocks slightly during use, turn one or both of the leveling feet under the front stabilizer until the rocking
motion is eliminated.
HANDGRIP PULSE SENSOR TROUBLE-SHOOTING
• Avoid moving your hands while using the handgrip
pulse sensor. Excessive movement may interfere
with heart rate readings.
• Do not hold the metal contacts too tightly; doing so
may interfere with heart rate readings.
• For the most accurate heart rate reading, hold the
metal contacts for about 15 seconds.
• For optimal performance of the handgrip pulse sensor, keep the metal contacts clean. The contacts
can be cleaned with a soft cloth—never use alcohol,
abrasives, or chemicals.
HOW TO MOVE THE CROSSTRAINER
Before moving the crosstrainer, remove the hand
weights and adjust the seat to the position shown in
the drawing below. Then, stand behind the crosstrainer, hold the rail in the indicated location, and lift the
rail until the crosstrainer can be moved on the front
wheels. Carefully move the crosstrainer to the desired
location and then lower it. CAUTION: To decrease
the possibility of injury, bend your legs and keep
your back straight as you lift the rail and move the
crosstrainer; make sure to lift with your legs
rather than your back.
MAINTENANCE AND TROUBLESHOOTING
Wheel
Lift
Here
Leveling Foot
22
Note: # indicates a non-illustrated part. Specifications are subject to change without notice.
1 1 Frame
2 1 Front Stabilizer
3 1 Frame Extension
4 1 Seat Carriage
5 1 Backrest Frame
6 1 Seat Frame
7 1 Rear Stabilizer Cover
8 1 Front Stabilizer Cover
9 1 Rear Stabilizer
10 1 Seat Back
11 1 Headrest
12 1 Seat
13 1 Upright
14 1 Upright Bushing
15 1 Handgrip Pulse Sensor
16 1 Console
17 1 Left Side Shield
18 1 Right Side Shield
19 1 Side Shield Cover
20 2 Seat Carriage Bushing
21 2 Small Hand Weight
22 2 Medium Hand Weight
23 2 Large Hand Weight
24 1 Left Pedal
25 1 Left Pedal Strap
26 1 Right Pedal
27 1 Right Pedal Strap
28 2 Adjustment Knob
29 1 Adjustment Pin
30 2 Wheel
31 1 Left Front Endcap
32 1 Right Front Endcap
33 2 Adjustment Foot
34 1 Adjustment Motor
35 1 Upper Wire Harness
36 1 Lower Wire Harness
37 1 Flywheel
38 1 Magnet
39 1 Flywheel Axle
40 2 Flywheel Bearing
41 1 “C” Magnet
42 1 Left Crank Arm
43 1 Reed Switch/Wire
44 1 Crank Bearing Assembly
45 1 Crank Shaft
46 1 Adjustment Cable
47 1 Return Spring
48 1 Idler Arm
49 1 Idler Wheel
50 1 Backrest Frame Endcap
51 1 Seat Axle
52 2 Axle Cap
53 1 “J” Bolt
54 1 Pulley
55 1 Idler Bolt
56 2 Flange Screw
57 1 Right Crank Arm
58 2 M6 Eye Bolt
59 2 “U” Bracket
60 4 M6 Nut
61 4 M8 Nylon Locknut
62 2 Flywheel Washer
63 3 M10 Black Nylon Locknut
64 1 Idler Washer
65 2 M10 x 112mm Carriage Bolt
66 2 M10 Zinc Nylon Locknut
67 1 “C” Magnet Bolt
68 2 M10 x 52mm Button Bolt
69 3 M6 x 50mm Screw
70 8 M5 x 6mm Screw
71 3 M6 Flat Washer
72 5 M4 x 25mm Screw
73 6 M4 x 16mm Screw
74 2 M10 x 45mm Button Screw
75 4 M4 x 38mm Screw
76 3 M10 x 27mm Button Screw
77 3 M10 Black Split Washer
78 2 M5 Nut
79 1 M6 x 25.4mm Button Screw
80 2 M6 x 72mm Button Screw
81 4 M5 x 12mm Screw
82 1 Reed Switch Clamp
83 2 Push Nut
84 2 M4 x 12mm Screw
85 2 M10 Zinc Split Washer
86 4 M5 Nylon Locknut
87 5 M6 x 16mm Screw
88 1 M6 x 25mm Bolt
89 1 Belt
# 1 User’s Manual
# 1 Allen Wrench
Key No. Qty. Description Key No. Qty. Description
PART LIST—Model No. PFEX39910 R1001A
EXPLODED DRAWING—Model No. PFEX39910 R1001A
23
72
76
89
73
77
16
18
30
73
77
61
72
53
36
27
55
15
73
48
13
35
14
81
80
26
28
32
65
56
64
49
34
11
83
63
50
79
57
33
69
85
52
60
67
87
29
28
20
20
70
84
19
22
23
7
21
4
70
9
8
74
84
17
70
5
70
10
87
3
66
1
75
41
61
44
42
56
39
78
78
75
47
46
24
25
71
71
52
51
6
73
58
38
68
61
62
87
82
40
85
43
88
45
63
12
44
54
63
86
86
2
59
60
33
30
65
37
31
60
40
59
58
62
61
73
Part No. 178934 R1001A Printed in China © 2001 ICON Health & Fitness, Inc.
HOW TO ORDER REPLACEMENT PARTS
To order replacement parts, simply call our Customer Service Department toll-free at 1-800-999-3756, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be
prepared to give the following information when calling:
• The MODEL NUMBER of the product (PFEX39910)
• The NAME of the product (PROFORM
®
970 crosstrainer)
• The SERIAL NUMBER of the product (see the front cover of this manual)
• The KEY NUMBER and DESCRIPTION of the part(s) (see page 22 of this manual).
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of ninety (90) days from the date of purchase. This warranty extends only to the original purchaser. ICON’s obligation under this warranty is limited to replacing or repairing, at ICON’s option, the product at one of its authorized service centers. All
products for which warranty claim is made must be received by ICON at one of its authorized service centers with all freight and other transportation charges prepaid, accompanied by sufficient proof of purchase.
All returns must be pre-authorized by ICON. This warranty does not extend to any product or damage to
a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or
repairs not provided by an ICON authorized service center, to products used for commercial or rental purposes, or to products used as store display models. No other warranty beyond that specifically set forth
above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss
of property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth
herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above
limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON Health & Fitness, Inc. 1500 S. 1000 W., Logan, UT 84321-9813
PROFORM is a registered trademark of ICON Health & Fitness, Inc.
Loading...
