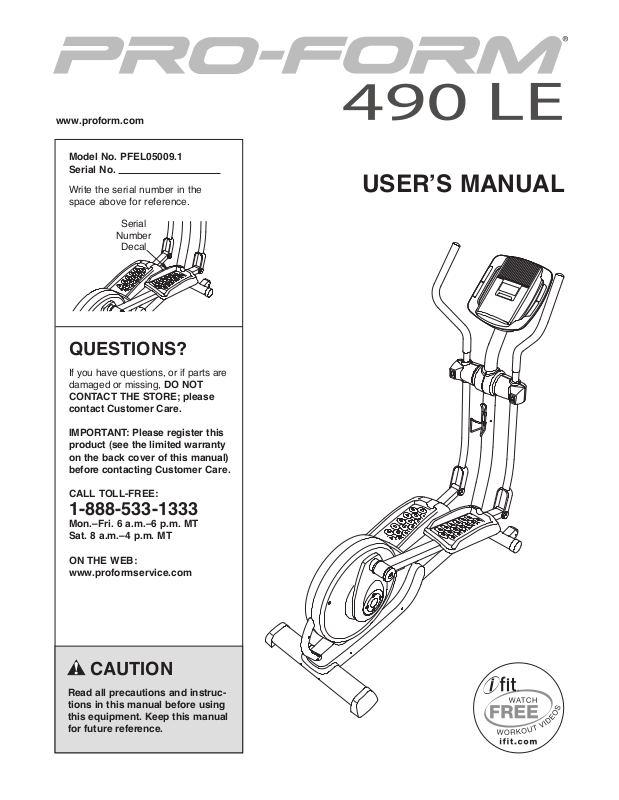

www.proform.com
Model No. PFEL05009.1
Serial No.
Write the serial number in the
space above for reference.
Serial
Number
Decal
QUESTIONS?
If you have questions, or if parts are
damaged or missing, DO NOT
CONTACT THE STORE; please
contact Customer Care.
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
USERʼS MANUAL
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.proformservice.com
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Keep this manual
for future reference.
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
MPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
I
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO USE THE ELLIPTICAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the
warning decal(s). If a decal is missing or
illegible, see the front cover of this
manual and request a free replacement
decal. Apply the decal in the location
shown. Note: The decal(s) may not be
shown at actual size.
PROFORM is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your elliptical before using your elliptical. ICON
assumes no responsibility for personal injury or property damage sustained by or through the use of
his product.
t
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or
persons with pre-existing health problems.
2. Use the elliptical only as described in this
manual.
3. It is the responsibility of the owner to ensure
that all users of the elliptical are adequately
informed of all precautions.
4. The elliptical is intended for home use only.
Do not use the elliptical in a commercial,
rental, or institutional setting.
5. Keep the elliptical indoors, away from
moisture and dust. Do not put the elliptical in
a garage or covered patio, or near water.
6. Place the elliptical on a level surface, with at
least 3 ft. (0.9 m) of clearance in the front
and rear of the elliptical and 2 ft. (0.6 m) on
each side. To protect the floor or carpet from
damage, place a mat under the elliptical.
9. The elliptical should not be used by persons
weighing more than 250 lbs. (113 kg).
10. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the elliptical. Always wear athletic
shoes for foot protection while exercising.
11. Hold the handlebars or the upper body arms
when mounting, dismounting, or using the
elliptical.
12. The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in
determining heart rate trends in general.
13. The elliptical does not have a freewheel; the
pedals will continue to move until the
flywheel stops. Reduce your pedaling speed
in a controlled way.
14. Keep your back straight while using the
elliptical; do not arch your back.
7. Inspect and properly tighten all parts
regularly. Replace any worn parts
immediately.
8. Keep children under age 12 and pets away
from the elliptical at all times.
15. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
3
BEFORE YOU BEGIN
Thank you for purchasing the PROFORM®490 LE
elliptical. The 490 LE elliptical provides an array of
features designed to make your workouts at home
ore effective and enjoyable.
m
or your benefit, read this manual carefully before
F
you use the elliptical. If you have questions after
reading this manual, please see the front cover of this
Handlebar
Console
Water Bottle Holder*
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
ecal are shown on the front cover of this manual.
d
efore reading further, please familiarize yourself with
B
the parts that are labeled in the drawing below.
Fan
Handgrip Pulse Sensor
Storage Magnet
Crank Arm
Handle
Leveling Foot
Wheel
Pedal
Pedal Arm Latch
Storage Latch
*Water bottle is not included
4
M10 x 127mm Button Screw (83)–2
M10 Locknut
(81)–2
M8 Jam Nut
(79)–5
M8 Washer
(88)–6
Wave Washer
(111)–2
M8 x 23mm Button
Screw (84)–4
M8 Split
Washer
(90)–3
M8 x 41mm Button
Bolt (78)–4
M4 x 16mm
Round Head
Screw (101)–8
M4 x 32mm
Round Head
Screw (105)–6
M8 x 23mm Shoulder
Screw (115)–4
M8 x 69mm Button
Bolt (80)–1
M10 x 80mm Carriage
Bolt (82)–2
Hub Screw (87)–8
M4 Split
Washer
(112)–8
M4
Washer
(102)–8
M4 x 47mm Screw
(108)–2
M4 x 16mm
Blunt Screw
(104)–8
ASSEMBLY
To hire an authorized service technician to assemble the elliptical, call 1-800-445-2480.
ssembly requires two persons. Place all parts of the elliptical in a cleared area and remove the packing
A
materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s), assembly requires a Phillips screwdriver , an adjustable
wrench , and a rubber mallet .
Use the drawings below to identify small parts. The number in parentheses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the parentheses is the
quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it has been pre-
assembled.
5
1.
To make assembly easier, read the
information on page 5 before you
egin.
b
1
While another person lifts the Base (1),
ttach the Front Stabilizer (6) to the Base
a
with two M10 x 80mm Carriage Bolts (82)
and two M10 Locknuts (81).
2. Remove the indicated screw and the shipping bracket from the Base (1). Discard the
screw and the shipping bracket.
Next, tighten the Base Foot (26) into the
Base (1).
82
2
6
81
81
1
26
Screw
1
Shipping
Bracket
6
3. Attach the Rear Stabilizer (7) to the Frame
(2) with two M10 x 127mm Button Screws
(83).
3
83
Next, hold the handle on the Frame (2),
ress the Latch Button (68), and lower the
p
Frame until the Rear Stabilizer (7) rests on
the floor.
4. Hold a Hub Cover (75) and a Crank Arm
(36) against the Crank (45).
7
andle
H
2
68
4
Align the holes in the Hub Cover (75) and
the Crank Arm (36) with the unused holes in
the Crank (45).
Insert four Hub Screws (87) into the Hub
Cover (75) and the Crank Arm (36), and finger tighten the Hub Screws into the Crank
(45). Tighten one Hub Screw, and then
tighten the Hub Screw across from the
first Hub Screw. Then, tighten the
remaining two Hub Screws.
Repeat this step on the right side of the
elliptical.
Make sure that the Crank Arms (36) are
oriented with the Crank Bushing Sleeves
(43) in the positions shown. Note: There
are no Pulley Screws (98) on the right side.
87
75
36
87
45
98
43
43
36
7
5. While another person holds the Upright (3)
near the Base (1), connect the Upper Wire
Harness (48) to the Lower Wire Harness
49).
(
ip: Avoid pinching the wires. Insert the
T
Upright (3) into the Base (1). Attach the
Upright with an M8 x 69mm Button Bolt
(80), an M8 Split Washer (90), and an M8
Jam Nut (79). Do not tighten the Button
Bolt yet; make sure that the Jam Nut is
in the hexagonal hole in the Base.
Next, finger tighten two M8 x 23mm Button
Screws (84) and two M8 Split Washers (90)
into the Base (1). Do not tighten the
Button Screws yet.
Attach the Water Bottle Holder (22) to the
Base (1) with two M4 x 16mm Blunt Screws
(104).
5
Avoid pinching
the wires
3
48
80
90
90
84
49
79
1
90
84
104
22
6. Identify the Left Upright Cover (17), which is
marked with a “Left” sticker, and hold it
against the left side of the Upright (3).
Attach the Left Upright Cover (17) with two
M4 x 16mm Round Head Screws (101).
Attach the Right Upright Cover (39) in
the same way.
6
39
3
101
17
101
8
7. The Console (5) can use four D batteries
(not included); alkaline batteries are recommended. IMPORTANT: If the Console has
been exposed to cold temperatures,
allow it to warm to room temperature
before inserting batteries. Otherwise,
you may damage the console displays or
other electronic components. Remove
the battery cover, insert the batteries into
the battery compartment, and reattach the
battery cover. Make sure to orient the bat-
teries as shown by the diagram inside
the battery compartment.
To purchase an optional AC adapter,
contact the store where you purchased
this product or call the telephone number on the cover of this manual. To avoid
damaging the console, use only a manufacturer-supplied AC adapter. Plug one
end of the AC adapter into the jack on the
console; plug the other end into an outlet
installed in accordance with all local codes
and ordinances.
7
Cover
atteries
B
5
8. While another person holds the Console (5)
near the Upright (3), connect the wire harness on the Console to the Upper Wire
Harness (48).
Insert the excess wire harness into the
Upright (3).
Tip: Avoid pinching the wires. Attach the
Console (5) to the Upright (3) with four M4 x
16mm Round Head Screws (101).
8
5
48
101
Wire
Harness
3
Avoid pinching
the wires
9
9. Identify the Left Upper Body Arm (8) and
the Left Upper Body Leg (11), which are
marked with “Left” stickers, and orient them
s shown.
a
nsert the Left Upper Body Arm (8) into the
I
Left Upper Body Leg (11).
Attach the Left Upper Body Arm (8) with two
M8 x 41mm Button Bolts (78) and two M8
Jam Nuts (79). Make sure that the Jam
Nuts are in the hexagonal holes in the
Left Upper Body Leg (11).
Attach the Right Upper Body Arm (9) to
the Right Upper Body Leg (12) in the
same way.
9
9
8
Hexagonal
Holes
79
79
78
10. Apply a generous amount of the included
grease to the Pivot Axle (74). Insert the
Pivot Axle into the Upright (3) and center it.
Orient the Left Upper Body Leg (11) as
shown, and slide it onto the left end of the
Pivot Axle (74). Slide the Right Upper Body
Leg (12) onto the right end of the Pivot
Axle.
Tighten an M8 x 23mm Button Screw (84)
with an M8 Washer (88) and a Wave
Washer (111) into each end of the Pivot
Axle (74). Make sure that the Wave
Washers are on the ends of the Pivot
Axle.
10
84
88
111
74
11
Grease
11
78
12
84
3
88
111
12
10
11. Hold the Left Front Handlebar Cover (18)
and the Left Rear Handlebar Cover (19)
around the Left Upper Body Leg (11).
Attach the Handlebar Covers (18, 19) with
hree M4 x 32mm Round Head Screws
t
(105).
1
1
Attach the Right Front Handlebar Cover
(20) and the Right Rear Handlebar Cover
(21) in the same way.
12. Identify the Left Pedal (13) and the Left
Pedal Arm (14), which are marked with
“Left” stickers.
Attach the Left Pedal (13) to the Left Pedal
Arm (14) with an M4 x 47mm Screw (108),
three M4 x 16mm Blunt Screws (104), four
M4 Split Washers (112), and four M4
Washers (102).
Attach the Right Pedal (not shown) to
the Right Pedal Arm (not shown) in the
same way.
12
105
112
104
102
18
11
108
112
102
13
0
2
21
12
19
14
11
104
13. Apply a small amount of grease to one of
the Pedal Arm Axles (32).
ext, slide an M8 Washer (88) and a Pedal
N
Arm Cover (31) onto an M8 x 23mm
houlder Screw (115), and turn the
S
Shoulder Screw a few turns into the Pedal
Arm Axle (32).
While another person holds the front end of
the Left Pedal Arm (14) inside the bracket
on the Left Upper Body Leg (11), insert the
Pedal Arm Axle (32) into both parts.
Slide an M8 Washer (88) and a Pedal Arm
Cover (31) onto another M8 x 23mm
Shoulder Screw (115), and turn the
Shoulder Screw a few turns into the Pedal
Arm Axle. Tighten both Shoulder Screws.
13
115
1
88
32
1
31
Grease
31
88
12
115
Repeat this step to attach the Right
Pedal Arm (not shown) to the Right
Upper Body Leg (12).
14. Lift the latch on the underside of the Left
Pedal Arm (14), and set the Left Pedal Arm
on the left Crank Bushing Sleeve (43).
Release the lever, and make sure that the
Left Pedal Arm (14) is securely connected
to the Crank Bushing Sleeve (43).
Connect the Right Pedal Arm (not
shown) in the same way.
See step 5. Tighten the M8 x 69mm Button
Bolt (80) and the two M8 x 23mm Button
Screws (84).
15. Make sure that all parts of the elliptical are properly tightened. Note: Some hardware may be left over
after assembly is completed. To protect the floor or carpet from damage, place a mat under the elliptical.
14
14
Latch
14
43
12
HOW TO USE THE ELLIPTICAL
HOW TO FOLD AND UNFOLD THE ELLIPTICAL
When the elliptical is not in use, the frame can be
olded out of the way. First, lift the latch under each
f
pedal arm, and lift the pedal arms off the sleeves on
the crank arms.
Crank
Arm
Pedal Arm
Latch
Sleeve
Next, raise the pedal arms until they touch the magnets on the upper body arms; the magnets will hold
the pedal arms in place. Then, hold the handle and lift
the frame until it locks in a vertical position.
HOW TO MOVE THE ELLIPTICAL
To move the elliptical, first fold it as described at the
eft. Next, stand in front of the elliptical, hold the han-
l
dle on the upright, and place one foot against the
center of the front stabilizer. Pull the handle until the
elliptical will roll on the front wheels. Carefully move
the elliptical to the desired position, and then lower it.
Handle
Place
your foot
here
Pedal Arm
Handle
Frame
Latch
Button
To use the elliptical, first hold the handle, press the
latch button, and lower the frame.
Next, pull the pedal arms off the magnets on the upper
body arms. Then, lift the latches under the pedal
arms, and set the pedal arms on the sleeves on the
crank arms. Release the latches, and make sure that
the pedal arms are securely connected to the crank
arms.
Magnet
HOW TO LEVEL THE ELLIPTICAL
If the elliptical
rocks slightly on
your floor during
use, turn one or
both of the leveling feet beneath
the rear stabilizer
until the rocking
motion is eliminated.
Leveling
Feet
13
HOW TO EXERCISE ON THE ELLIPTICAL
To mount the elliptical, hold the handlebars and step
nto the pedal that is in the lowest position. Next,
o
step onto the other pedal. Push the pedals until they
egin to move with a continuous motion.
b
Note: The crank arms can turn in either direction.
It is recommended that you turn the crank arms in
the direction shown by the arrow; however, for
variety, you can turn the crank arms in the opposite direction.
To dismount the elliptical, wait until the pedals come
to a complete stop. Note: The elliptical does not
have a free wheel; the pedals will continue to
move until the flywheel stops. When the pedals are
stationary, step off the highest pedal first. Then, step
off the lowest pedal.
Handlebars
Pedals
Crank Arm
14
CONSOLE DIAGRAM
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
When you select the manual mode of the console, you
can change the resistance of the pedals with the touch
of a button. As you exercise, the console will provide
continuous exercise feedback. You can even measure
your heart rate using the handgrip pulse sensor.
The console also offers two timed workouts. Each
workout automatically changes the resistance of the
pedals and prompts you to increase or decrease your
pedaling pace as it guides you through an effective
workout.
In addition, the console features six calorie workouts
designed to help you burn 150, 200, 300, 350, 400, or
500 calories. Each workout automatically changes the
resistance of the pedals and prompts you to increase
or decrease your pedaling pace while counting the
calories you burn.
The console features the iFit interactive workout system, which enables the console to accept iFit cards
containing workouts designed to help you achieve
specific fitness goals. For example, lose unwanted
pounds with the 8-week Weight Loss workout. iFit
workouts control the resistance of the pedals while the
voice of a personal trainer coaches you through your
workouts. iFit cards are available separately. To pur-
chase iFit cards, go to www.iFit.com or see the
front cover of this manual. iFit cards are also
available at select stores.
You can even connect your MP3 player or CD player
to the console sound system and listen to your favorite
music or audio books while you exercise.
To use the manual mode, see page 16. To use a
timed workout, see page 18. To use a calorie workout, see page 19. To use an iFit workout, see page
20. To use the sound system, see page 20.
Note: Before using the console, make sure that batteries are installed (see step 7 on page 9). If there is a
sheet of plastic on the display, remove the plastic.
15
HOW TO USE THE MANUAL MODE
1. Press any button on the console or begin
edaling to turn on the console.
p
hen you turn on the console, the display and the
W
target pacer coach will turn on. The console will
then be ready for use.
The lower right
display can show your
pedaling pace in revo-
utions per minute
l
(rpm) and the resis-
ance level of the
t
pedals. The display will change modes every few
seconds.
2. Select the manual mode.
When you turn on the console, the manual mode
will be selected. If you have selected a workout,
reselect the manual mode by pressing any of the
Quick Time and Calorie Workouts buttons repeatedly until a track appears in the left display.
3. Begin pedaling and change the resistance of
the pedals as desired.
As you pedal, change
the resistance of the
pedals by pressing the
Quick Resistance buttons.
Note: After you press the buttons, it will take a
moment for the pedals to reach the selected resistance level.
4. Follow your progress with the displays.
The display will also show your heart rate when
you use the handgrip pulse sensor (see step 5 on
page 17).
The left display will
show a track representing 640 revolutions
(400 meters). As you
exercise, indicators will
appear in succession
around the track until
the entire track
appears. The track will then disappear and the
indicators will again begin to appear in succession.
To change the display mode, press the Display
button repeatedly until the desired exercise information appears in the upper or lower right display.
After several seconds, the display will change
modes automatically as before.
To view the trip distance, press the Odometer button. The information will appear in the display for a
few seconds. To reset the trip distance, hold down
the Odometer button for a few seconds. To view
the total distance pedaled since the elliptical was
purchased, press the Odometer button a second
time.
Note: The number on the right side of the display
multiplied by the number on the left side equals
the trip distance or the total distance.
The upper right
display can show the
elapsed time, the distance (total number of
revolutions) you have
pedaled, the approximate number of calories you have burned, and the
approximate number of grams of carbs you have
burned. The display will change modes every few
seconds.
To adjust the volume level of the console, first
press and hold down the Display button until the
display becomes blank. When you release the
Display button, the volume level will then appear in
the display. Press the 20 Min and 30 Min buttons
to select a volume level. Then, press the Display
button.
16
5. Measure your heart rate if desired.
6. Turn on the fan if desired.
If there are
heets of plastic
s
on the metal con-
acts on the
t
handgrip pulse
sensor, remove
the plastic. In
addition, make
sure that your
hands are clean.
To measure your
heart rate, hold the handgrip pulse sensor with
your palms resting against the metal contacts.
Avoid moving your hands or gripping the contacts tightly.
When your pulse is detected, a heart-shaped symbol will flash in the display each time your heart
beats and then your heart rate will be shown. For
the most accurate heart rate reading, hold the contacts for at least 15 seconds.
If your heart rate is not shown, make sure that
your hands are positioned as described. Be careful not to move your hands excessively or to
squeeze the metal contacts tightly. For optimal
performance, clean the metal contacts using a soft
cloth; never use alcohol, abrasives, or chemi-
cals to clean the contacts.
Contacts
The fan has high, low, and auto speed settings;
hile the auto mode is selected, the speed of the
w
fan will automatically increase or decrease as you
ncrease or decrease your pedaling speed. Press
i
the Fan button repeatedly to select a fan speed or
to turn off the fan. Note: If the pedals do not move
for about thirty seconds, the fan will turn off automatically.
Pivot the thumb tab
on the right side of
the fan to adjust
the fan angle.
7. When you are finished exercising, the console
will turn off automatically.
If the pedals do not move for several seconds, a
series of tones will sound and the console will
pause.
If the pedals do not move for about five minutes,
the console will turn off and the displays will be
reset.
Thumb Tab
17
HOW TO USE A TIMED WORKOUT
1. Press any button on the console or begin
edaling to turn on the console.
p
ee step 1 on page 16.
S
2. Select a timed workout.
During the workout, the target pacer coach will
prompt you to keep your pedaling pace near the
target pace setting for the current segment.
To select a timed workout, press the 20 Min or 30
Min button.
When you select a timed workout, the name of the
workout and the maximum resistance level will
appear in the display for a few seconds. A profile
of the resistance levels of the workout will also
scroll across the left side of the display.
3. Begin pedaling to start the workout.
Each workout is divided into 20 or 30 one-minute
segments. One resistance level and one target
pace setting is programmed for each segment.
Note: The same resistance level and/or target
pace setting may be programmed for consecutive
segments.
During the workout, the workout profile will show
your progress (see the drawing above). The flashing segment of the profile represents the current
segment of the workout. The height of the flashing
segment indicates the resistance level for the current segment.
When a left indicator lights, increase your pace;
when a right indicator lights, decrease your pace.
When the center indicator lights, maintain your
current pace. IMPORTANT: The target pacer
coach is intended only to provide motivation.
Make sure to pedal at a pace that is comfortable for you.
If the resistance level for the current segment is
too high or too low, you can manually override the
resistance level by pressing the Quick Resistance
buttons. However, when the current segment
ends, the resistance of the pedals will automatically adjust to the resistance level for the next
segment.
If you stop pedaling for several seconds, a series
of tones will sound and the workout will pause. To
restart the workout, simply resume pedaling.
The workout will continue until the last segment of
the workout ends.
4. Follow your progress with the displays.
See step 4 on page 16.
5. Measure your heart rate if desired.
See step 5 on page 17.
6. Turn on the fan if desired.
See step 6 on page 17.
At the end of each segment of the workout, a
series of tones will sound and the next segment of
the profile will begin to flash.
If a different resistance level is programmed for
the next segment, the resistance level will appear
in the display for a few seconds to alert you. The
resistance of the pedals will then change.
7. When you are finished exercising, the console
will turn off automatically.
See step 7 on page 17.
18
HOW TO USE A CALORIE WORKOUT
1. Press any button on the console or begin
edaling to turn on the console.
p
ee step 1 on page 16.
S
2. Select a calorie workout.
To select a calorie workout, press the 150 Cals,
200 Cals, 300 Cals, 350 Cals, 400 Cals, or 500
Cals button.
When you select a calorie workout, the name of
the workout and the maximum resistance level will
appear in the display for a few seconds. A profile
of the resistance levels of the workout will also
scroll across the left side of the display.
3. Begin pedaling to start the workout.
Each calorie workout will help you burn 150, 200,
300, 350, 400, or 500 calories. During each workout, the console will count the approximate
number of calories you have burned.
Each workout is divided into 20, 25, 30, or 45 oneminute segments. One resistance level and one
target pace setting is programmed for each segment. Note: The same resistance level and/or
target pace setting may be programmed for consecutive segments.
If a different resistance level is programmed for
the next segment, the resistance level will appear
in the display for a few seconds to alert you. The
esistance of the pedals will then change.
r
uring the workout, the target pacer coach will
D
prompt you to keep your pedaling pace near the
target pace setting for the current segment.
When a left indicator lights, increase your pace;
when a right indicator lights, decrease your pace.
When the center indicator lights, maintain your
current pace. IMPORTANT: The target pacer
coach is intended only to provide motivation.
Make sure to pedal at a pace that is comfortable for you.
If the resistance level for the current segment is
too high or too low, you can manually override the
resistance level by pressing the Quick Resistance
buttons. However, when the current segment
ends, the resistance of the pedals will automatically adjust to the resistance level for the next
segment.
If you stop pedaling for several seconds, a series
of tones will sound and the workout will pause. To
restart the workout, simply resume pedaling.
The workout will continue until the last segment of
the workout ends.
4. Follow your progress with the displays.
See step 4 on page 16.
5. Measure your heart rate if desired.
During the workout, the workout profile will show
your progress (see the drawing above). The flashing segment of the profile represents the current
segment of the workout. The height of the flashing
segment indicates the resistance level for the current segment.
At the end of each segment of the workout, a
series of tones will sound and the next segment of
the profile will begin to flash.
See step 5 on page 17.
6. Turn on the fan if desired.
See step 6 on page 17.
7. When you are finished exercising, the console
will turn off automatically.
See step 7 on page 17.
19
HOW TO USE AN IFIT WORKOUT
HOW TO USE THE SOUND SYSTEM
iFit cards are available separately. To purchase iFit
ards, go to www.iFit.com or see the front cover of this
c
manual. iFit cards are also available at select stores.
1. Press any button on the console or begin
pedaling to turn on the console.
See step 1 on page 16.
2. Insert an iFit card and select a workout.
To use an iFit workout, insert an iFit card into the
iFit slot; make sure that the iFit card is oriented so
the metal contacts are face down and are facing
the slot. When the iFit card is properly inserted,
the indicator next to the slot will turn on and the
word IFIT will appear in the display.
iFit Slot
iFit Card
To play music or audio books through the console
ound system while you exercise, plug the included
s
audio cable into the jack on the console and into a
ack on your MP3 player or CD player; make sure
j
that the audio cable is fully plugged in.
Next, press the play button on your MP3 player or CD
player. Adjust the volume level using the volume control on your MP3 player or CD player.
Note: You can also adjust the volume of the console
as described in step 4 on page 16.
Next, select the desired workout on the iFit card
by pressing the increase and decrease buttons
next to the iFit slot.
A moment after you select a workout, the voice of
a personal trainer will begin guiding you through
your workout. iFit workouts work in the same way
as timed workouts. To use the workout, see steps
3 to 7 on page 18.
3. When you are finished exercising, remove the
iFit card.
Remove the iFit card when you are finished exercising. Store the iFit card in a secure place.
20
MAINTENANCE AND TROUBLESHOOTING
Inspect and tighten all parts of the elliptical regularly.
eplace any worn parts immediately.
R
To clean the elliptical, use a damp cloth and a small
amount of mild soap. IMPORTANT: To avoid damage
o the console, keep liquids away from the con-
t
sole and keep the console out of direct sunlight.
BATTERY REPLACEMENT
If the console displays become dim, the batteries
should be replaced; most console problems are the
result of low batteries. See assembly step 7 on page 9
for replacement instructions.
If the handgrip pulse sensor does not function properly, see step 5 on page 17.
HOW TO LEVEL THE ELLIPTICAL
If the elliptical rocks slightly on your floor during use,
turn one or both of the leveling feet beneath the rear
stabilizer until the rocking motion is eliminated.
Base
Foot
Leveling
Feet
HOW TO ELIMINATE FLEXING IN THE CENTER OF
THE ELLIPTICAL
If the elliptical flexes in the center during use, turn the
base foot (see the drawing above) until the flexing is
eliminated.
21
EXERCISE GUIDELINES
WARNING: B
or any exercise program, consult your physician. This is especially important for persons
over the age of 35 or persons with pre-existing health problems.
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determining heart rate trends in general.
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
efore beginning this
urning Fat—To burn fat effectively, you must exer-
B
cise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
he first few minutes of exercise does your body begin
t
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretching
and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise–never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of
stretching. Stretching increases the flexibility of your
muscles and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exercise, you may complete up to five workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.
22
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach
down toward your toes as far as possible. Hold for 15 counts, then
relax. Repeat 3 times. Stretches: Hamstrings, back of knees and
back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot
toward you and rest it against the inner thigh of your extended leg.
Reach toward your toes as far as possible. Hold for 15 counts,
then relax. Repeat 3 times for each leg. Stretches: Hamstrings,
lower back and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your back
foot flat on the floor. Bend your front leg, lean forward and move
your hips toward the wall. Hold for 15 counts, then relax. Repeat 3
times for each leg. To cause further stretching of the achilles tendons, bend your back leg as well. Stretches: Calves, achilles
tendons and ankles.
4. Quadriceps Stretch
1
2
3
4
With one hand against a wall for balance, reach back and grasp
one foot with your other hand. Bring your heel as close to your
buttocks as possible. Hold for 15 counts, then relax. Repeat 3
times for each leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward.
Pull your feet toward your groin area as far as possible. Hold for
15 counts, then relax. Repeat 3 times. Stretches: Quadriceps and
hip muscles.
5
23
PART LIST Model No. PFEL05009.1 R1011A
Key No. Qty. Description Key No. Qty. Description
11Base
2
31Upright
41Upright Cap
51Console
61Front Stabilizer
71Rear Stabilizer
81Left Upper Body Arm
91Right Upper Body Arm
10 2 Handlebar Cap
11 1 Left Upper Body Leg
12 1 Right Upper Body Leg
13 1 Left Pedal
14 1 Left Pedal Arm
15 1 Right Pedal
16 1 Right Pedal Arm
17 1 Left Upright Cover
18 1 Left Front Handlebar Cover
19 1 Left Rear Handlebar Cover
20 1 Right Front Handlebar Cover
21 1 Right Rear Handlebar Cover
22 1 Water Bottle Holder
23 2 Front Stabilizer Cap
24 2 Rear Stabilizer Cap
25 2 Wheel
26 1 Base Foot
27 2 Leveling Foot
28 1 Left Shield
29 1 Right Shield
30 6 Upper Body Bushing
31 4 Pedal Arm Cover
32 2 Pedal Arm Axle
33 4 Pedal Arm Bushing
34 1 Base Axle
35 2 Base Bushing
36 2 Crank Arm
37 2 Inner Crank Cover
38 1 Crank Hub
39 1 Right Upright Cover
40 1 Pulley
41 2 Crank Bushing Cover
42 4 Crank Bushing
43 2 Crank Bushing Sleeve
44 2 Crank Bearing Set
45 1 Crank
46 1 Crank Spacer
47 2 Crank Snap Ring
48 1 Upper Wire Harness
49 1 Lower Wire Harness
50 1 Reed Switch/Wire
1 Frame
51 1 Drive Belt
2 1 Flywheel
5
53 1 C-magnet
54 1 Pillow Block
55 2 Magnet
56 1 Spring
57 1 Idler
58 1 Idler Bracket
59 1 Clamp
60 1 Audio Cable
61 1 Base Pin
62 2 Latch Bracket Spacer
63 2 Hairpin Cotter Pin
64 1 Latch Bracket
65 1 Pivot Bracket
66 2 Pivot Bracket Spacer
67 1 Frame Pin
68 1 Latch Button
69 1 Roll Pin
70 1 Motor
71 1 Resistance Cable Pulley
72 1 Resistance Cable Set
73 2 Foam Grip
74 1 Pivot Axle
75 2 Hub Cover
76 2 Outer Crank Cover
77 2 Flywheel Bracket
78 4 M8 x 41mm Button Bolt
79 7 M8 Jam Nut
80 1 M8 x 69mm Button Bolt
81 4 M10 Locknut
82 2 M10 x 80mm Carriage Bolt
83 2 M10 x 127mm Button Screw
84 6 M8 x 23mm Button Screw
85 1 M6 x 10mm Button Screw
86 1 Crank Screw
87 8 Hub Screw
88 10 M8 Washer
89 2 M10 x 60mm Button Screw
90 3 M8 Split Washer
91 1 Flywheel Spacer
92 1 Flywheel Washer
93 1 Flywheel Snap Ring
94 4 Pillow Block Screw
95 1 Stop Screw
96 1 M8 x 35mm Screw
97 1 E-clip
98 4 Pulley Screw
99 2 Crank Washer
100 2 M4 x 25mm Screw
24
ey No. Qty. Description Key No. Qty. Description
K
101 8 M4 x 16mm Round Head Screw
102 12 M4 Washer
03 26 M4 x 16mm Screw
1
104 8 M4 x 16mm Blunt Screw
105 6 M4 x 32mm Round Head Screw
106 2 M8 x 31mm Shoulder Screw
107 4 M4 x 12mm Screw
108 2 M4 x 47mm Screw
109 2 Large Wave Washer
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
110 2 M8 Small Washer
111 2 Wave Washer
12 8 M4 Split Washer
1
113 1 M10 Washer
114 1 M6 Nut
115 4 M8 x 23mm Shoulder Screw
*–Userʼs Manual
*–Assembly Tool
*–Grease Packet
25
EXPLODED DRAWING A Model No. PFEL05009.1 R1011A
1
5
6
8
9
10
10
11
12
13
14
15
16
17
39
18
19
20
21
22
23
23
25
25
26
30
30
30
30
30
30
31
31
32
33
33
31
33
32
33
31
34
35
35
80
78
101
101
79
105
105
88
84
79
84
101
101
74
105
79
78
88
84
104
115
115
88
84
115
115
84
88
89
82
81
81
81
89
48
49
84
73
73
88
88
88
88
90
90
90
111
111
4
3
101
112
104
104
108
112
102
104
104
108
112
112
112
102
102
6
0
26
66
2
7
24
24
27
27
28
29
75
76
36
99
87
106
37
40
41
42
42
43
103
103
103
107
107
103
38
43
42
42
41
106
36
75
37
83
87
87
76
103
103
103
103
86
99
44
98
98
44
46
47
47
103
100
103
51
50
52
53
54
56
94
94
94
79
92
93
91
57
58
59
103
85
96
61
62
62
63
64
63
65
66
67
68
69
113
97
70
95
103
79
71
72
100
103
103
102
102
107
88
88
109
109
114
103
110
110
77
77
55
55
45
EXPLODED DRAWING B Model No. PFEL05009.1 R1011A
27
ORDERING REPLACEMENT PARTS
o order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
T
provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED
DRAWING near the end of this manual)
LIMITED WARRANTY
IMPORTANT: You must register this product within 30 days of the purchase date to avoid added
fees for service needed under warranty. Go to www.proformservice.com/registration.
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and
material, under normal use and service conditions. The frame is warranted for five (5) years from the date
of purchase. Parts and labor are warranted for ninety (90) days from the date of purchase.
This warranty extends only to the original purchaser (customer). ICONʼs obligation under this warranty is
limited to repairing or replacing, at ICONʼs option, the product through one of its authorized service centers. All repairs for which warranty claims are made must be preauthorized by ICON. If the product is
shipped to a service center, freight charges to and from the service center will be the customerʼs responsibility. If replacement parts are shipped while the product is under warranty, the customer will be
responsible for a minimal handling charge. For in-home service, the customer will be responsible for a
minimal trip charge. This warranty does not extend to freight damage to the product. This warranty will
automatically be voided if the product is used as a store display model, if the product is purchased or
transported outside the USA, if all instructions in this manual are not followed, if the product is abused or
improperly or abnormally used, or if the product is used for commercial or rental purposes. No other warranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in connection with the use or performance of the product; damages with respect to any economic loss, loss of
property, loss of revenues or profits, loss of enjoyment or use, or costs of removal or installation; or other
consequential damages of any kind. Some states do not allow the exclusion or limitation of incidental or
consequential damages. Accordingly, the above limitation may not apply to the customer.
The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of
merchantability or fitness for a particular purpose are limited in their scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to the customer.
This warranty provides specific legal rights; the customer may have other rights that vary from state to state.
ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813
Part No. 304871 R1011A Printed in USA © 2011 ICON IP, Inc.
Loading...
