www.proform.com
Model No. PFEL04910.1
Serial No.
Write the serial number in the space
above for reference.
Serial
Number
Decal
ACTIVATE YOUR
WARRANTY
To register your product and
activate your warranty today,
go to www.proformservice.com/
registration.
CUSTOMER CARE
USER’S MANUAL
For service at any time, go to
www.proformservice.com.
Or call 1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–12 p.m. MT
Please do not contact the store.
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Keep this manual
for future reference.
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
HOW TO USE THE ELLIPTICAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

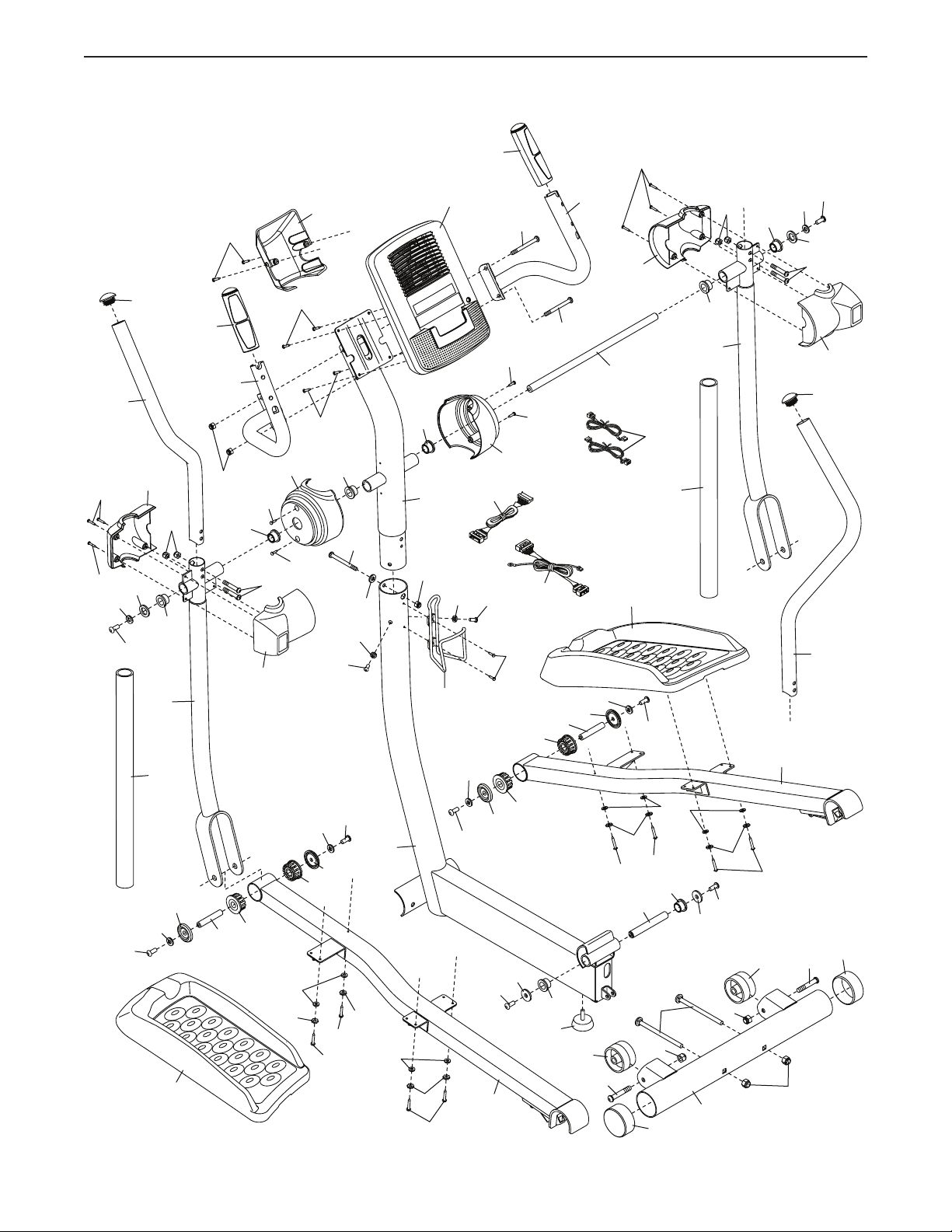

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning decal(s).
If a decal is missing or illegible, see the front cover
of this manual and request a free replacement decal.
Apply the decal in the location shown. Note: The
decal(s) may not be shown at actual size.
PROFORM is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your elliptical before using your elliptical. ICON
assumes no responsibility for personal injury or property damage sustained by or through the use of
this product.
1. It is the responsibility of the owner to ensure
that all users of the elliptical are adequately
informed of all precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or persons
with pre-existing health problems.
3. Use the elliptical only as described in this
manual.
4. The elliptical is intended for home use only.
Do not use the elliptical in a commercial,
rental, or institutional setting.
5. Keep the elliptical indoors, away from moisture and dust. Do not put the elliptical in a
garage or covered patio, or near water.
6. Place the elliptical on a level surface, with at
least 3 ft. (0.9 m) of clearance in the front and
rear of the elliptical and 2 ft. (0.6 m) on each
side. To protect the floor or carpet from damage, place a mat under the elliptical.
9. The elliptical should not be used by persons
weighing more than 250 lbs. (113 kg).
10. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the elliptical. Always wear athletic
shoes for foot protection while exercising.
11. Hold the handlebars or the upper body arms
when mounting, dismounting, or using the
elliptical.
12. The heart rate monitor is not a medical
device. Various factors may affect the accuracy of heart rate readings. The heart rate
monitor is intended only as an exercise aid in
determining heart rate trends in general.
13. The elliptical does not have a freewheel; the
pedals will continue to move until the flywheel stops. Reduce your pedaling speed in
a controlled way.
14. Keep your back straight while using the elliptical; do not arch your back.
7. Inspect and properly tighten all parts regularly. Replace any worn parts immediately.
8. Keep children under age 12 and pets away
from the elliptical at all times.
15. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
3
STANDARD SERVICE PLANS
all
4
BEFORE YOU BEGIN
Thank you for purchasing the PROFORM® 500 LE
elliptical. The 500 LE elliptical provides an array of features designed to make your workouts at home more
effective and enjoyable.
For your benefi t, read this manual carefully before
you use the elliptical. If you have questions after
reading this manual, please see the front cover of this
Length: 5 ft. 8 in. (173 cm)
Width: 2 ft. 3 in. (69 cm)
Upper Body Arm
Water Bottle Holder*
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Fan
Console
Heart Rate Monitor
Storage Magnet
Crank Arm
Handle
Leveling Foot
Wheel
Pedal
Pedal Arm Latch
Storage Latch
*Water bottle is not included
5
PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.
M4 Split
Washer
(112)–8
M4 x 16mm
Blunt Screw
(104)–8
Hub Screw
M4
Washer
(102)–8
(87)–8
M8 x 69mm Bolt (80)–1
M8 Split
Washer
(90)–3
M4 x 16mm
Round Head
Screw (101)–10
M8 x 23mm Shoulder
Wave Washer
(111)–2
Screw (115)–4
M8 Washer
(88)–6
M4 x 32mm
Round Head
Screw (105)–6
M8 x 23mm
Screw (84)–4
M8 Jam Nut
(79)–7
M4 x 47mm
Screw (108)–2
M8 x 41mm
Bolt (78)–4
M8 x 80mm Bolt (116)–2
M10 Locknut
(81)–2
M10 x 80mm Carriage Bolt (82)–2
M10 x 127mm Screw (83)–2
6
ASSEMBLY
• To hire an authorized service technician to
assemble this product, call 1-800-445-2480.
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you fi nish all assembly steps.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 6.
1. Go to www.proform.com/registration on
your computer and register your product.
• activates your warranty
• saves you time if you ever need to contact
Customer Care
• allows us to notify you of upgrades and
offers
• In addition to the included tool(s), assembly
requires the following tool(s):
one Phillips screwdriver
one adjustable wrench
one rubber mallet
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
1
Note: If you do not have Internet access, call
Customer Care (see the front cover of this
manual) and register your product.
2. While a second person lifts the Base (1),
attach the Front Stabilizer (6) to the Base
with two M10 x 80mm Carriage Bolts (82)
and two M10 Locknuts (81).
2
82
6
81
81
1
7
3. Remove the indicated screw and the shipping bracket from the Base (1). Discard the
screw and the shipping bracket.
Next, tighten the Base Foot (26) into the
Base (1).
3
4. Attach the Rear Stabilizer (7) to the Frame
(2) with two M10 x 127mm Screws (83).
Next, hold the handle on the Frame (2),
press the Latch Button (68), and lower the
Frame until the Rear Stabilizer (7) rests on
the floor.
1
Shipping
Bracket
26
Screw
4
83
7
Handle
2
68
8
5. Hold a Hub Cover (75) and a Crank Arm (36)
against the Crank (45).
Align the holes in the Hub Cover (75) and
the Crank Arm (36) with the unused holes in
the left side of the Crank (45).
Insert four Hub Screws (87) into the Hub
Cover (75) and the Crank Arm (36), and
finger tighten the Hub Screws into the Crank
(45). Tighten one Hub Screw, and then
tighten the Hub Screw across from the
first Hub Screw. Then, tighten the remaining two Hub Screws.
Repeat this step on the right side of the
elliptical.
5
43
98
45
36
75
87
36
Make sure that the Crank Arms (36) are
oriented with the Crank Bushing Sleeves
(43) in the positions shown. Note: There
are no Pulley Screws (98) on the right side.
6. While a second person holds the
Upright (3) near the Base (1), connect the
Upper Wire Harness (48) to the Lower Wire
Harness (49).
Tip: Avoid pinching the wires. Insert the
Upright (3) into the Base (1).
Attach the Upright (3) with an M8 x 69mm
Bolt (80), an M8 Split Washer (90), and an
M8 Jam Nut (79). Do not tighten the Bolt
yet; make sure that the Jam Nut is in the
hexagonal hole in the Base.
Next, finger tighten two M8 x 23mm Screws
(84) and two M8 Split Washers (90) into the
Base (1). Do not tighten the Screws yet.
Attach the Water Bottle Holder (22) to
the Base (1) with two M4 x 16mm Blunt
Screws (104).
87
43
6
Avoid pinching
the wires
3
48
80
90
90
84
49
79
1
22
90
84
104
9
7. Identify the Left Upright Cover (17) and hold
it against the left side of the Upright (3).
Attach the Left Upright Cover (17) with two
M4 x 16mm Round Head Screws (101).
Attach the Right Upright Cover (39) in the
same way.
7
39
3
101
17
101
8. Identify the Left and Right Handlebars (119,
120) and orient them as shown.
Tip: Avoid pinching the Pulse Wires (118).
Attach the Left and Right Handlebars (119,
120) to the Upright (3) with two M8 x 80mm
Bolts (116) and two M8 Jam Nuts (79).
8
116
3
120
119
116
118
79
118
Avoid pinching
the wires
10
9. Insert the Pulse Wires (118) upward through
the Upright (3) as shown.
9
3
118
118
10. While a second person holds the Console
(5) near the Upright (3), connect the wires on
the Console to the Upper Wire Harness (48)
and to the Pulse Wires (118).
Insert the excess wire into the Upright (3) or
into the Console (5).
Tip: Avoid pinching the wires. Attach the
Console (5) to the Upright (3) with four M4 x
16mm Round Head Screws (101).
11. Attach the Upright Cap (4) to the
Console (5) with two M4 x 16mm Round
Head Screws (101).
10
11
101
5
118
3
48
Avoid pinching
the wires
5
11
4
101
12. Identify the Left Upper Body Arm (8) and the
Left Upper Body Leg (11) and orient them as
shown.
Insert the Left Upper Body Arm (8) into the
Left Upper Body Leg (11).
Attach the Left Upper Body Arm (8) with two
M8 x 41mm Bolts (78) and two M8 Jam Nuts
(79). Make sure that the Jam Nuts are in
the hexagonal holes in the Left Upper
Body Leg (11).
Attach the Right Upper Body Arm (9)
to the Right Upper Body Leg (12) in the
same way.
12
Hexagonal
Holes
79
9
8
79
78
13. Using a small plastic bag to keep your
fingers clean, apply a generous amount of
the included grease to the Pivot Axle (74).
Insert the Pivot Axle into the Upright (3) and
center it.
Orient the Left Upper Body Leg (11) as
shown, and slide it onto the left end of the
Pivot Axle (74). Slide the Right Upper Body
Leg (12) onto the right end of the Pivot Axle.
Tighten an M8 x 23mm Screw (84) with
an M8 Washer (88) and a Wave Washer
(111) into each end of the Pivot Axle (74) at
the same time. Make sure that the Wave
Washers are on the ends of the Pivot
Axle.
13
84
88
111
74
11
Grease
11
78
12
3
88
111
12
84
12
14. Hold the Left Front Arm Cover (18) and the
Left Rear Arm Cover (19) around the Left
Upper Body Leg (11).
Attach the Arm Covers (18, 19) with three
M4 x 32mm Round Head Screws (105).
Attach the Right Front Arm Cover (20)
and the Right Rear Arm Cover (21) in the
same way.
14
20
105
21
12
18
15. Identify the Left Pedal (13) and the Left
Pedal Arm (14).
Attach the Left Pedal (13) to the Left Pedal
Arm (14) with an M4 x 47mm Screw (108),
three M4 x 16mm Blunt Screws (104),
four M4 Split Washers (112), and four M4
Washers (102).
Attach the Right Pedal (not shown) to the
Right Pedal Arm (not shown) in the same
way.
15
102
112
104
11
19
13
14
102
108
112
104
13
16. Apply a small amount of grease to one of the
Pedal Arm Axles (32).
Next, slide an M8 Washer (88) and a
Pedal Arm Cover (31) onto an M8 x 23mm
Shoulder Screw (115), and turn the Shoulder
Screw a few turns into the Pedal Arm Axle
(32).
16
While a second person holds the front end
of the Left Pedal Arm (14) inside the bracket
on the Left Upper Body Leg (11), insert the
Pedal Arm Axle (32) into both parts.
Slide an M8 Washer (88) and a Pedal
Arm Cover (31) onto another M8 x 23mm
Shoulder Screw (115), and turn the Shoulder
Screw a few turns into the Pedal Arm Axle.
Tighten both Shoulder Screws at the
same time.
Repeat this step to attach the Right Pedal
Arm (not shown) to the Right Upper Body
Leg (12).
17. Lift the latch on the underside of the Left
Pedal Arm (14), and set the Left Pedal Arm
on the left Crank Bushing Sleeve (43).
Release the lever, and make sure that the
Left Pedal Arm (14) is securely connected to
the Crank Bushing Sleeve (43).
17
115
11
88
32
31
Grease
31
88
12
115
14
Connect the Right Pedal Arm (not shown)
in the same way.
See step 6. Tighten the M8 x 69mm Bolt
(80) and the two M8 x 23mm Screws (84).
14
Latch
43
14
18. See the upper drawing. Plug the Power
Adapter (60) into the receptacle on the
Console (5).
To plug the Power Adapter (60) into an
outlet, see HOW TO PLUG IN THE POWER
ADAPTER on page 16.
See the lower drawing. Note: The Console
(5) can also be operated with four D batteries (not included); alkaline batteries are
recommended. Do not use old and new
batteries together or alkaline, standard, and
rechargeable batteries together. Remove
the screws, remove the battery covers, and
insert the batteries into the battery compartments. Make sure to orient the batteries
as shown by the diagrams inside the
battery compartments. Then, reattach the
battery covers.
18
60
Screws
5
Battery
Covers
Batteries
Batteries
5
19. Make sure that all parts of the elliptical are properly tightened. Note: Extra parts may be included. To
protect the floor or carpet from damage, place a mat under the elliptical.
15
HOW TO USE THE ELLIPTICAL
HOW TO PLUG IN THE POWER ADAPTER
IMPORTANT: If the elliptical has been exposed to
cold temperatures, allow it to warm to room temperature before you plug in the power adapter. If
you do not do this, you may damage the console
displays or other electronic components.
Plug the power
adapter into the
receptacle on the
console. Then,
plug the power
adapter into an
appropriate outlet
that is properly
installed in accordance with all
local codes and ordinances.
HOW TO FOLD AND UNFOLD THE ELLIPTICAL
When the elliptical is not in use, the frame can be
folded out of the way. First, lift the latch under each
pedal arm, and lift the pedal arms off the sleeves on
the crank arms.
Power Adapter
Pedal Arm
Handle
Frame
Latch
Button
To use the elliptical, first hold the handle, press the
latch button, and lower the frame.
Next, pull the pedal arms off the magnets on the upper
body arms. Then, lift the latches under the pedal
arms, and set the pedal arms on the sleeves on the
crank arms. Release the latches, and make sure that
the pedal arms are securely connected to the crank
arms.
HOW TO MOVE THE ELLIPTICAL
Magnet
Crank
Arm
Pedal Arm
Latch
Sleeve
Next, raise the pedal arms until they touch the magnets on the upper body arms; the magnets will hold the
pedal arms in place. Then, hold the handle and lift the
frame until it locks in a vertical position.
To move the elliptical, first fold it as described at
the left. Next, stand in front of the elliptical, hold the
upright, and place one foot against the center of the
front stabilizer. Pull the upright until the elliptical will roll
on the front wheels. Carefully move the elliptical to the
desired position, and then lower it.
Upright
Place
your foot
here
16
HOW TO EXERCISE ON THE ELLIPTICAL
To mount the elliptical, hold the upper body arms or the
handlebars and step onto the pedal that is in the lowest
position. Next, step onto the other pedal. Push the pedals until they begin to move with a continuous motion.
Handlebars
Note: The crank arms can turn in either direction.
It is recommended that you turn the crank arms
in the direction shown by the arrow; however, for
variety, you can turn the crank arms in the opposite
direction.
To dismount the elliptical, wait until the pedals come to
a complete stop. Note: The elliptical does not have
a free wheel; the pedals will continue to move until
the fl ywheel stops. When the pedals are stationary,
step off the highest pedal fi rst. Then, step off the low-
est pedal.
Upper Body Arms
Crank Arm
Pedals
HOW TO LEVEL THE ELLIPTICAL
If the elliptical
rocks slightly on
your fl oor dur-
ing use, turn
one or both of
the leveling feet
beneath the rear
stabilizer until the
rocking motion is
eliminated.
Leveling
Feet
17

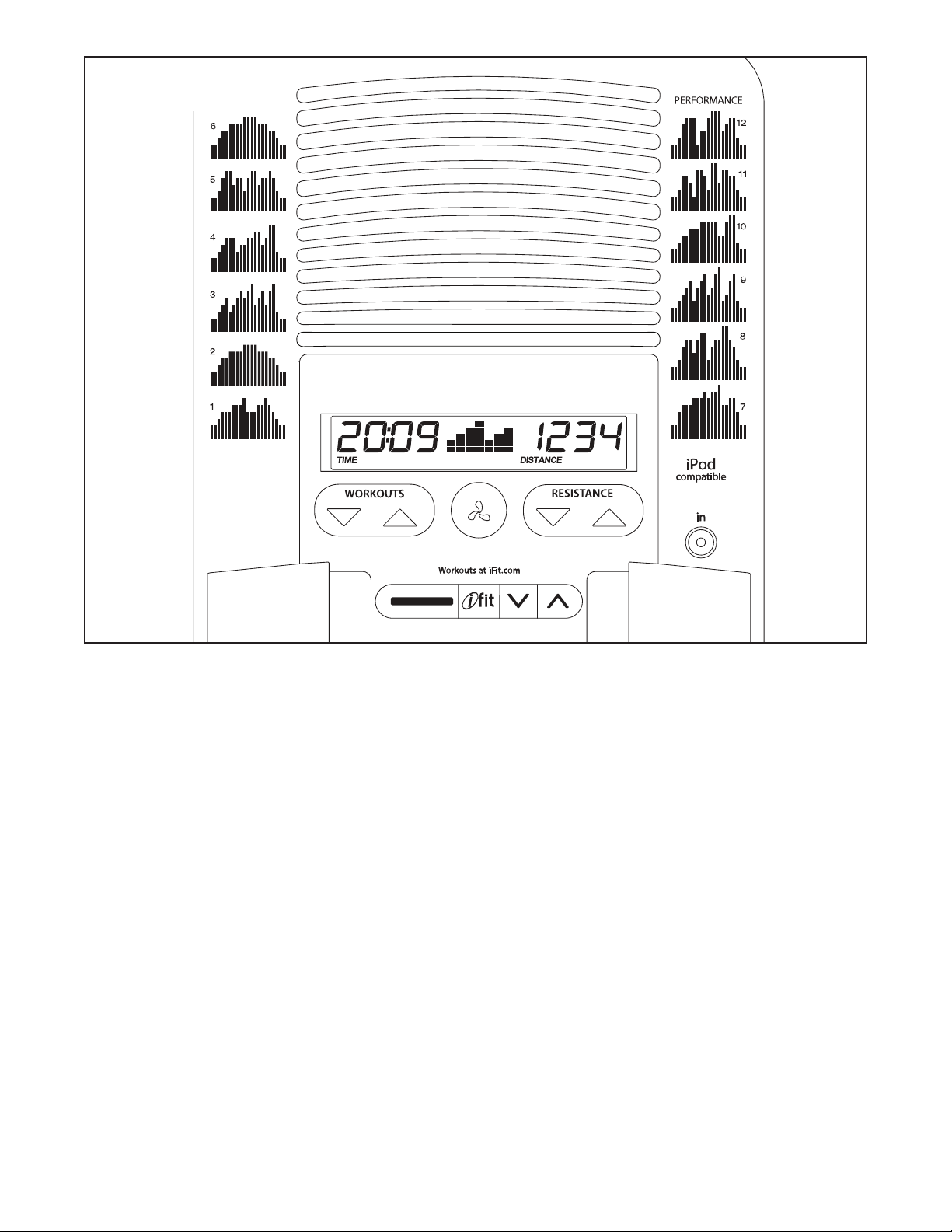

CONSOLE DIAGRAM
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
When you use the manual mode of the console, you
can change the resistance of the pedals with the touch
of a button. As you exercise, the console will provide
continuous exercise feedback. You can even measure
your heart rate using the handgrip heart rate monitor.
The console offers twelve preset workouts—six weight
loss and six performance workouts. Each preset workout automatically changes the resistance of the pedals
as it guides you through an effective workout.
The console features the iFit interactive workout system, which enables the console to accept iFit cards
containing workouts designed to help you achieve
specific fitness goals.
For example, lose unwanted pounds with the 8-week
Weight Loss workout. iFit workouts control the resistance of the pedals while the voice of a personal trainer
coaches you through your workouts. iFit cards are
available separately. To purchase iFit cards, go to
www.iFit.com or call the telephone number on the
front cover of this manual. iFit cards are also available at select stores.
You can even connect your MP3 player or CD player
to the console sound system and listen to your favorite
music or audio books while you exercise.
To use the manual mode, see page 19. To use a
preset workout, see page 20. To use an iFit workout, see page 21. To use the sound system, see
page 22.
Note: If there is a sheet of plastic on the display,
remove the plastic.
18
HOW TO USE THE MANUAL MODE
4. Follow your progress with the display.
1. Turn on the console.
Press any button or begin pedaling to turn on the
console.
When you turn on the console, the display will turn
on. A tone will sound and the console will be ready
for use.
2. Select the manual mode.
When you turn on the console, the manual mode
will be selected.
If you have selected a workout, reselect the manual
mode by pressing the Workouts increase or
decrease button repeatedly until a track appears in
the center display.
Track
3. Begin pedaling and change the resistance of
the pedals as desired.
As you pedal, change the
resistance of the pedals by
pressing the Resistance
increase and decrease
buttons.
Note: After you press the buttons, it will take a
moment for the pedals to reach the selected resistance level.
The left display—This
display can show the
elapsed time and the
approximate number
of calories you have
burned. The display will
change modes every few seconds.
Note: During a workout, the display will show the
time remaining in the workout.
The left display will also show your heart rate
when you use the handgrip heart rate monitor (see
step 5).
The center
display—This display
will show the resistance
level of the pedals for
a few seconds each
time the resistance level
changes.
This display will also
show a track representing 640 revolutions (1/4
mile or 400 m). As you
exercise, indicators will
appear in succession
around the track until the entire track appears. The
track will then disappear and the indicators will
again begin to appear in succession.
The right display—
This display can show
the distance (total number of revolutions) you
have pedaled and your
pedaling pace in revolutions per minute (rpm). The display will change
modes every few seconds.
19
5. Measure your heart rate if desired.
HOW TO USE A PRESET WORKOUT
If there are sheets
of plastic on the
metal contacts
on the handgrip
heart rate monitor, remove the
plastic. In addition, make sure
that your hands
are clean. To
measure your
heart rate, hold the
handgrip heart rate monitor with your palms resting
against the metal contacts. Avoid moving your
hands or gripping the contacts tightly.
When your pulse is detected, a heart-shaped
symbol will flash in the display and then your heart
rate will be shown. For the most accurate heart rate
reading, hold the contacts for at least 15 seconds.
If your heart rate is not shown, make sure that your
hands are positioned as described. Be careful not
to move your hands excessively or to squeeze the
metal contacts tightly. For optimal performance,
clean the metal contacts using a soft cloth; never
use alcohol, abrasives, or chemicals to clean
the contacts.
Contacts
1. Turn on the console.
See step 1 on page 19.
2. Select a preset workout.
To select a preset workout, press the Workouts
increase or decrease button repeatedly until the
number of the desired workout appears in the right
display.
When you select a preset workout, the duration of
the workout will appear in the left display, the maximum resistance level for the workout will flash in
the center display, and the number of the workout
will appear in the right display.
After a few seconds, a profile of the resistance
levels of the workout will scroll across the center
display.
6. Turn on the fan if desired.
The fan has high and low speed settings. Press the
Fan button repeatedly to select a fan speed or to
turn off the fan.
Note: If the pedals do not move for about thirty
seconds, the fan will turn off automatically.
7. When you are finished exercising, the console
will turn off automatically.
If the pedals do not move for several seconds, a
series of tones will sound, the console will pause,
and the time will flash in the display.
If the pedals do not move for several minutes, the
console will turn off and the display will be reset.
Profi le
Note: Complete profiles of the preset workouts are
printed on the sides of the console.
3. Begin pedaling to start the workout.
Each workout is divided into several one-minute
segments. One resistance level is programmed for
each segment. Note: The same resistance level
may be programmed for consecutive segments.
During the workout, the workout profile will show
your progress (see the drawing above). The flashing segment of the profile represents the current
segment of the workout. The height of the flashing
segment indicates the resistance level for the current segment.
20
At the end of each segment of the workout, a
series of tones will sound and the next segment of
the profile will begin to flash. If a different resistance level is programmed for the next segment,
the resistance level will flash in the display for a
few seconds to alert you. The resistance of the
pedals will then change.
If the resistance level for the current segment is too
high or too low, you can manually override the setting by pressing the Resistance buttons. However,
when the current segment ends, the pedals will
automatically adjust to the resistance level for the
next segment.
If you stop pedaling for several seconds, a series of
tones will sound and the workout will pause.
To resume the workout, simply resume pedaling.
The workout will continue until the last segment
of the profile flashes and the last segment of the
workout ends.
Note: If you continue to pedal after the workout is
completed, the display will continue to show exercise feedback; however, the display will not show
the time until you select the manual mode or a new
workout.
HOW TO USE AN IFIT WORKOUT
iFit cards are available separately. To purchase iFit
cards, go to www.iFit.com or see the front cover of this
manual. iFit cards are also available at select stores.
1. Turn on the console.
See step 1 on page 19.
2.
Insert an iFit card and select a workout.
To use an iFit workout, insert an iFit card into the
iFit slot; make sure that the iFit card is oriented so
the metal contacts are face down and are facing
the slot. When the iFit card is properly inserted, the
indicator next to the slot will turn on.
iFit Slot
iFit Card
4. Follow your progress with the display.
See step 4 on page 19.
5. Measure your heart rate if desired.
See step 5 on page 20.
6. Turn on the fan if desired.
See step 6 on page 20.
7. When you are finished exercising, the console
will turn off automatically.
See step 7 on page 20.
Next, select the desired workout on the iFit card by
pressing the increase and decrease buttons next to
the iFit slot.
The duration of the workout will appear in the left
display, the maximum resistance level for the workout will flash in the center display, and the number
of the workout will appear in the right display.
A moment after you select a workout, the voice of a
personal trainer will begin guiding you through your
workout. iFit workouts function in the same way as
preset workouts. To use the workout, see steps 3 to
7 on page 20.
3.
When you are finished exercising, remove the
iFit card.
Remove the iFit card when you are finished exer-
cising. Store the iFit card in a secure place.
21
HOW TO USE THE SOUND SYSTEM
To play music or audio books through the console
sound system while you exercise, plug a 3.5 mm male
to 3.5 mm male audio cable (not included) into the jack
on the console and into a jack on your MP3 player,
CD player, or other personal audio player; make sure
that the audio cable is fully plugged in. Note: To
purchase an audio cable, see your local electronics
store.
Next, press the play button on your personal audio
player. Adjust the volume level using the volume control on your personal audio player.
MAINTENANCE AND TROUBLESHOOTING
MAINTENANCE
Inspect and tighten all parts of the elliptical regularly.
Replace any worn parts immediately.
To clean the elliptical, use a damp cloth and a small
amount of mild soap. IMPORTANT: To avoid damage
to the console, keep liquids away from the console
and keep the console out of direct sunlight.
CONSOLE TROUBLESHOOTING
If the console does not turn on, make sure that the
power adapter is fully plugged in.
Most console problems are the result of low batteries;
see assembly step 18 on page 15 for replacement
instructions.
If the handgrip heart rate monitor does not function
properly, see step 5 on page 21.
HOW TO LEVEL THE ELLIPTICAL
If the elliptical rocks slightly on your floor during use,
turn one or both of the leveling feet beneath the rear
stabilizer until the rocking motion is eliminated.
Base
Foot
Leveling
Feet
HOW TO ELIMINATE FLEXING IN THE CENTER OF
THE ELLIPTICAL
If the elliptical flexes in the center during use, turn the
base foot (see the drawing above) until the flexing is
eliminated.
22
EXERCISE GUIDELINES
WARNING: Before beginning this
or any exercise program, consult your physician. This is especially important for persons
over age 35 or persons with pre-existing
health problems.
The heart rate monitor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The heart rate monitor is
intended only as an exercise aid in determining heart rate trends in general.
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
Burning Fat—To burn fat effectively, you must exercise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until your
heart rate is near the highest number in your training
zone.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretch-
ing and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise ; never hold your breath.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
Cooling Down—Finish with 5 to 10 minutes of stretching. Stretching increases the flexibility of your muscles
and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exercise, you may complete up to five workouts each week,
if desired. Remember, the key to success is to make
exercise a regular and enjoyable part of your everyday
life.
23
PART LIST
K e y N o . Q t y . D e s c r i p t i o n K e y N o . Q t y . D e s c r i p t i o n
Model No. PFEL04910.1 R1213A
1 1 Base
2 1 Frame
3 1 Upright
4 1 Upright Cap
5 1 Console
6 1 Front Stabilizer
7 1 Rear Stabilizer
8 1 Left Upper Body Arm
9 1 Right Upper Body Arm
10 2 Arm Cap
11 1 Left Upper Body Leg
12 1 Right Upper Body Leg
13 1 Left Pedal
14 1 Left Pedal Arm
15 1 Right Pedal
16 1 Right Pedal Arm
17 1 Left Upright Cover
18 1 Left Front Arm Cover
19 1 Left Rear Arm Cover
20 1 Right Front Arm Cover
21 1 Right Rear Arm Cover
22 1 Water Bottle Holder
23 2 Front Stabilizer Cap
24 2 Rear Stabilizer Cap
25 2 Wheel
26 1 Base Foot
27 2 Leveling Foot
28 1 Left Shield
29 1 Right Shield
30 6 Upper Body Bushing
31 4 Pedal Arm Cover
32 2 Pedal Arm Axle
33 4 Pedal Arm Bushing
34 1 Base Axle
35 2 Base Bushing
36 2 Crank Arm
37 2 Inner Crank Cover
38 1 Crank Hub
39 1 Right Upright Cover
40 1 Pulley
41 2 Crank Bushing Cover
42 4 Crank Bushing
43 2 Crank Bushing Sleeve
44 2 Crank Bearing Set
45 1 Crank
46 1 Crank Spacer
47 2 Crank Snap Ring
48 1 Upper Wire Harness
49 1 Lower Wire Harness
50 1 Reed Switch/Wire
51 1 Drive Belt
52 1 Flywheel
53 1 C-magnet
54 1 Pillow Block
55 2 Magnet
56 1 Spring
57 1 Idler
58 1 Idler Bracket
59 1 Clamp
60 1 Power Adapter
61 1 Base Pin
62 2 Latch Bracket Spacer
63 2 Hairpin Cotter Pin
64 1 Latch Bracket
65 1 Pivot Bracket
66 2 Pivot Bracket Spacer
67 1 Frame Pin
68 1 Latch Button
69 1 Roll Pin
70 1 Resistance Motor
71 1 Resistance Cable Pulley
72 1 Resistance Cable Set
73 2 Foam Grip
74 1 Pivot Axle
75 2 Hub Cover
76 2 Outer Crank Cover
77 2 Flywheel Bracket
78 4 M8 x 41mm Bolt
79 9 M8 Jam Nut
80 1 M8 x 69mm Bolt
81 4 M10 Locknut
82 2 M10 x 80mm Carriage Bolt
83 2 M10 x 127mm Screw
84 6 M8 x 23mm Screw
85 1 M6 x 10mm Screw
86 1 Crank Screw
87 8 Hub Screw
88 10 M8 Washer
89 2 M10 x 60mm Screw
90 3 M8 Split Washer
91 1 Flywheel Spacer
92 1 Flywheel Washer
93 1 Flywheel Snap Ring
94 4 Pillow Block Screw
95 1 Stop Screw
96 1 M8 x 35mm Screw
97 1 E-clip
98 4 Pulley Screw
99 2 Crank Washer
100 2 M4 x 25mm Screw
101 10 M4 x 16mm Round Head Screw
102 12 M4 Washer
24
K e y N o . Q t y . D e s c r i p t i o n K e y N o . Q t y . D e s c r i p t i o n
103 24 M4 x 16mm Screw
104 8 M4 x 16mm Blunt Screw
105 6 M4 x 32mm Round Head Screw
106 2 M8 x 31mm Shoulder Screw
107 4 M4 x 12mm Screw
108 2 M4 x 47mm Screw
109 2 Large Wave Washer
110 2 M8 Small Washer
111 2 Wave Washer
112 8 M4 Split Washer
113 1 M10 Washer
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
114 1 M6 Nut
115 4 M8 x 23mm Shoulder Screw
116 2 M8 x 80mm Bolt
117 2 Pulse Grip
118 2 Pulse Wire
119 1 Left Handlebar
120 1 Right Handlebar
121 2 M4 x 13mm Flange Screw
* – User’s Manual
* – Assembly Tool
* – Grease Packet
25
EXPLODED DRAWING A
Model No. PFEL04910.1 R1213A
105
105
88
8
111
84
10
18
11
73
79
30
117
101
119
79
30
101
78
19
17
101
101
4
101
30
84
80
90
90
30
79
117
49
116
32
120
31
5
116
101
101
39
22
90
48
84
104
33
88
3
88
74
20
15
105
115
118
73
30
12
79
30
16
88
84
111
78
21
10
9
115
88
13
31
32
33
102
112
88
33
31
108
104
115
112
102
112
34
104
82
81
23
102
35
88
112
104
84
23
89
25
81
81
6
33
31
112
104
115
108
88
84
35
26
25
89
14
1
26
EXPLODED DRAWING B
Model No. PFEL04910.1 R1213A
103
100
94
103
77
52
51
54
91
28
77
56
94
85
94
92
110
58
63
96
97
93
79
53
64
61
113
62
63
29
103
72
57
50
69
66
67
59
65
68
55
121
98
71
121
110
47
79
70
102
103
102
47
2
95
114
66
62
100
107
38
44
88
87
103
41
106
42
109
75
103
76
43
42
99
107
107
36
103
103
37
45
103
103
103
60
46
40
24
36
103
37
103
86
27
55
7
98
44
99
42
76
43
42
75
109
83
106
88
41
87
87
24
27
27
ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED
DRAWING near the end of this manual)
LIMITED WARRANTY
IMPORTANT: To protect your fitness equipment with an extended service plan, see page 4.
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and
material, under normal use and service conditions. The frame is warranted for fi ve (5) years from the date
of purchase. Parts and labor are warranted for ninety (90) days from the date of purchase.
This warranty extends only to the original purchaser (customer). ICON’s obligation under this warranty is
limited to repairing or replacing, at ICON’s option, the product through one of its authorized service centers.
All repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped
to a service center, freight charges to and from the service center will be the customer’s responsibility. If
replacement parts are shipped while the product is under warranty, the customer will be responsible for a
minimal handling charge. For in-home service, the customer will be responsible for a minimal trip charge.
This warranty does not extend to freight damage to the product. This warranty will automatically be voided
if the product is used as a store display model, if the product is purchased or transported outside the USA,
if all instructions in this manual are not followed, if the product is abused or improperly or abnormally used,
or if the product is used for commercial or rental purposes. No other warranty beyond that specifi cally set
forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in connection with the use or performance of the product; damages with respect to any economic loss, loss of
property, loss of revenues or profi ts, loss of enjoyment or use, or costs of removal or installation; or other
consequential damages of any kind. Some states do not allow the exclusion or limitation of incidental or
consequential damages. Accordingly, the above limitation may not apply to the customer.
The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of
merchantability or fi tness for a particular purpose are limited in their scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to the customer.
This warranty provides specifi c legal rights; the customer may have other rights that vary from state to state.
ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813
Part No. 349491 R1213A Printed in China © 2013 ICON IP, Inc.
Loading...
