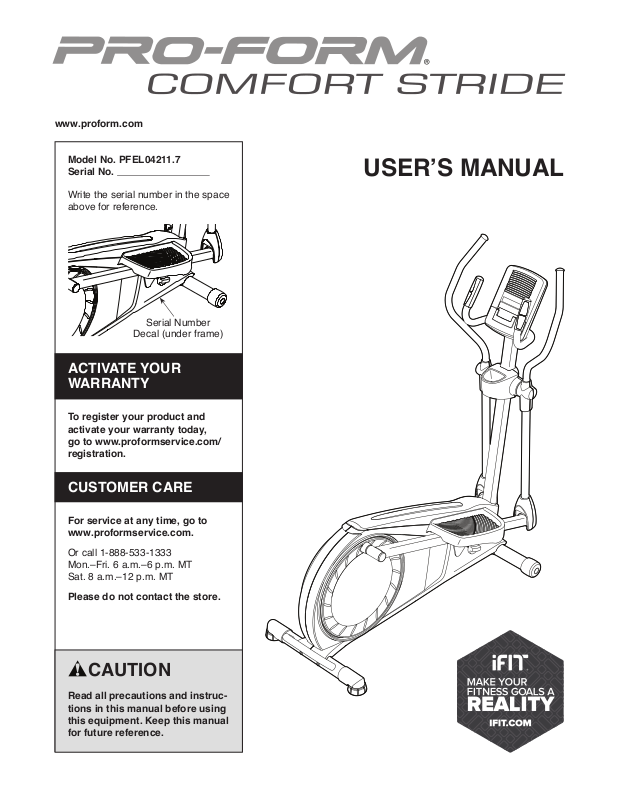

www.proform.com
Model No. PFEL04211.7
Serial No.
Write the serial number in the space
above for reference.
Serial Number
Decal (under frame)
ACTIVATE YOUR
WARRANTY
USER’S MANUAL
To register your product and
activate your warranty today,
go to www.proformservice.com/
registration.
CUSTOMER CARE
For service at any time, go to
www.proformservice.com.
Or call 1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–12 p.m. MT
Please do not contact the store.
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Keep this manual
for future reference.
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
HOW TO USE THE ELLIPTICAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning decal(s).
If a decal is missing or illegible, see the front cover
of this manual and request a free replacement decal.
Apply the decal in the location shown. Note: The
decal(s) may not be shown at actual size.
PROFORM is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your elliptical before using your elliptical. ICON
assumes no responsibility for personal injury or property damage sustained by or through the use of
this product.
1. It is the responsibility of the owner to ensure
that all users of the elliptical are adequately
informed of all precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or persons with pre-existing health problems.
3. Use the elliptical only as described in this
manual.
4. The elliptical is intended for home use only.
Do not use the elliptical in a commercial,
rental, or institutional setting.
5. Keep the elliptical indoors, away from moisture and dust. Do not put the elliptical in a
garage or covered patio, or near water.
6. Place the elliptical on a level surface, with at
least 3 ft. (0.9 m) of clearance in the front and
rear of the elliptical and 2 ft. (0.6 m) on each
side. To protect the floor or carpet from damage, place a mat under the elliptical.
9. The elliptical should not be used by persons
weighing more than 250 lbs. (113 kg).
10. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the elliptical. Always wear athletic
shoes for foot protection while exercising.
11. Hold the handlebars or the upper body arms
when mounting, dismounting, or using the
elliptical.
12. The heart rate monitor is not a medical
device. Various factors may affect the accuracy of heart rate readings. The heart rate
monitor is intended only as an exercise aid
in determining heart rate trends in general.
13. The elliptical does not have a freewheel; the
pedals will continue to move until the flywheel stops. Reduce your pedaling speed in
a controlled way.
14. Keep your back straight while using the elliptical; do not arch your back.
7. Inspect and properly tighten all parts regularly. Replace any worn parts immediately.
8. Keep children under age 12 and pets away
from the elliptical at all times.
15. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
3
STANDARD SERVICE PLANS
all
4
BEFORE YOU BEGIN
Thank you for selecting the revolutionary PROFORM®
COMFORT STRIDE elliptical. The COMFORT STRIDE
elliptical provides an impressive selection of features
designed to make your workouts at home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the elliptical. If you have questions after
Length: 6 ft. 2 in. (188 cm)
Width: 2 ft. 1 in. (64 cm)
Upper Body Arm
Accessory Tray
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Console
Heart Rate Monitor
Handlebar
Disc
Handle
Leveling Foot
Pedal
Wheel
Pedal Knob
5
PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.
M8 Jam Nut
(77)–4
M8 x 18mm
Screw (85)–2
M8 Washer
(33)–6
M8 x 20mm
Screw (80)–4
M4 x 16mm
M10 Split
Washer (78)–5
Bolt Set (31)–2
M10 x 85mm Screw (82)–4
Screw (83)–7
M8 x 45mm Bolt (76)–4
M4 x 48mm
Screw (34)–2
M10 x 20mm
Screw (79)–8
6
ASSEMBLY
• To hire an authorized service technician to
assemble this product, call 1-800-445-2480.
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you fi nish all assembly steps.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 6.
1. Go to www.proformservice.com/registration
on your computer and register your product.
• activates your warranty
• saves you time if you ever need to contact
Customer Care
• allows us to notify you of upgrades and offers
• In addition to the included tool(s), assembly
requires the following tools:
one adjustable wrench
one Phillips screwdriver
one rubber mallet
Assembly may be easier if you have your own set
of wrenches. To avoid damaging parts, do not use
power tools.
1
Note: If you do not have Internet access, call
Customer Care (see the front cover of this
manual) and register your product.
2. While a second person lifts the rear of the Frame
(1), attach the Rear Stabilizer (70) to the Frame
with two M10 x 85mm Screws (82).
2
70
1
82
7
3. Orient the Front Stabilizer (73) as indicated by
the sticker.
While a second person lifts the front of the
Frame (1), attach the Front Stabilizer (73) to the
Frame with two M10 x 85mm Screws (82).
3
73
1
82
4. Orient the Upright (2) and the Shield Cover (37)
as shown. Slide the Shield Cover upward onto
the Upright.
Have a second person hold the Upright (2) and
the Shield Cover (37) near the Frame (1).
Locate the wire tie in the lower end of the Upright
(2). Tie the wire tie to the Main Wire (42). Then,
pull the upper end of the wire tie until the Main
Wire is routed through the Upright.
Tip: To prevent the Main Wire (42) from fall-
ing into the Upright (2), secure the Main Wire
with the wire tie.
4
Wire Tie
2
37
Wire Tie
42
1
8
5. Tip: Avoid pinching the wires. Slide the
Upright (2) onto the Frame (1).
Have a second person hold the Shield Cover
(37) out of the way.
Attach the Upright (2) with five M10 x 20mm
Screws (79) and five M10 Split Washers (78).
Tip: Start all five Screws, and then tighten
them.
Press the Shield Cover (37) into the Left and
Right Shields (44, 45).
5
Avoid pinching
the wires
37
2
6. Orient the Handlebar (39) as shown. Have a
second person hold the Handlebar near the
Upright (2).
Locate the Sensor Wires (28) in the Handlebar
(39). Insert the right Sensor Wire into the right
side of the Upright, and insert the left Sensor
Wire into the left side of the Upright. Then, pull
the Sensor Wires upward out of the top of the
Upright.
Tip: Avoid pinching the wires. Attach the
Handlebar (39) to the Upright (2) with three M10
x 20mm Screws (79).
44, 45
6
2
39
79
28
78
1
79
Avoid pinching
the wires
78
79
79
9
7. The Console (4) can use four D batteries (not
included); alkaline batteries are recommended.
Do not use old and new batteries together or
alkaline, standard, and rechargeable batteries together. IMPORTANT: If the Console has
been exposed to cold temperatures, allow
it to warm to room temperature before you
insert batteries. Otherwise, you may damage the console display or other electronic
components. Remove the screws, remove
the battery covers, and insert batteries into the
battery compartments. Make sure to orient the
batteries as shown by the diagrams inside
the battery compartments. Then, reattach the
battery covers.
7
Screws
Battery
Covers
Batteries
To purchase an optional power adapter, call
the telephone number on the cover of this
manual. To avoid damaging the console,
use only a manufacturer-supplied regulated
power adapter. Plug one end of the power
adapter into the receptacle on the console; plug
the other end into an outlet installed in accordance with all local codes and ordinances.
8. Untie and discard the wire tie on the Main
Wire (42).
While a second person holds the Console (4)
near the Upright (2), connect the wires on the
Console to the Main Wire (42) and to the Sensor
Wires (28).
Insert the excess wire into the Upright (2).
Tip: Avoid pinching the wires. Attach the
Console (4) to the Upright (2) with four M4 x
16mm Screws (83).
4
8
4
28
Avoid pinching
the wires
42
2
83
10

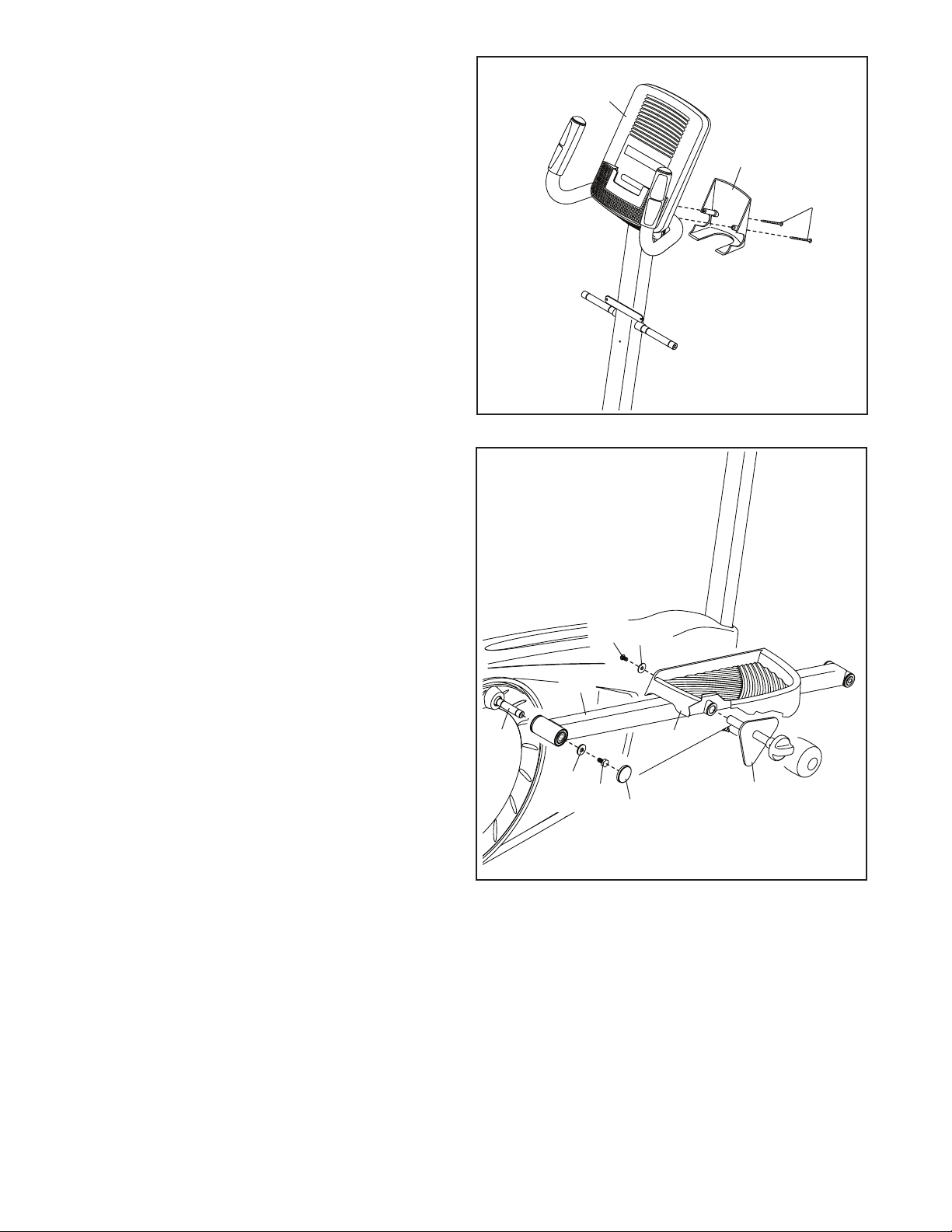

9. Attach the Console Cover (32) to the Console (4)
with two M4 x 48mm Screws (34).
9
4
32
34
10. Identify the Right Pedal Arm (49).
Slide the Right Pedal Arm (49) onto the Right
Crank Arm (25). Attach the Right Pedal Arm with
an M8 x 18mm Screw (85) and an M8 Washer
(33). Then, press a Pedal Arm Cap (30) onto the
Right Pedal Arm.
While a second person lifts the back of the Right
Pedal (13), insert one of the Cam Axles (75)
into the Right Pedal Arm (49). Attach the Cam
Axle with an M8 x 20mm Screw (80) and an M8
Washer (33). Do not overtighten the Screw;
the Cam Axle should turn freely.
Repeat this step on the other side of the
elliptical.
10
25
33
49
85
80
33
13
75
30
11
11. Identify the Right Upper Body Arm (9).
Orient the Right Upper Body Arm (9) and one of
the Upper Body Legs (6) as shown. Insert the
Right Upper Body Arm into the Upper Body Leg.
Attach the Right Upper Body Arm (9) to the
Upper Body Leg (6) with two M8 x 45mm Bolts
(76) and two M8 Jam Nuts (77). Make sure that
the Jam Nuts are inside the hexagonal holes.
Do not fully tighten the Bolts yet.
11
8
9
Attach the Left Upper Body Arm (8) to the
other Upper Body Leg (6) in the same way.
12. Using a small plastic bag to keep your fingers
clean, apply a generous amount of the included
grease to the axle on the right side of the
Upright (2).
12
76
Hexagonal
77
76
6
Holes
77
6
Slide the Right Upper Body Arm (9) onto the
Upright (2).
Attach the Right Upper Body Arm (9) with an M8
x 20mm Screw (80) and an M8 Washer (33).
Repeat this step on the other side of the
elliptical.
12
2
Grease
9
33
80
13. Apply a small amount of grease to a Bolt
Set (31).
13
Hold the end of the Right Pedal Arm (49) inside
the bracket on the right Upper Body Leg (6).
Attach the right Upper Body Leg (6) to the Right
Pedal Arm (49) with the Bolt Set (31).
Repeat this step on the other side of the
elliptical.
Tighten the M8 x 45mm Bolts (76).
14. Identify a Pivot Cover A (19), which has hooks,
and a Pivot Cover B (22), which has tabs.
76
76
6
31
31
49
Grease
14
Attach a Pivot Cover A (19) and a Pivot Cover
B (22) around the Right Upper Body Arm (9) by
pressing the hooks on the Pivot Cover A onto the
tabs on the Pivot Cover B.
Repeat this step on the other side of the
elliptical.
Tip: Make sure that the Pivot Covers (19, 22)
are positioned as shown.
8
22
19
19
9
22
Hook
13

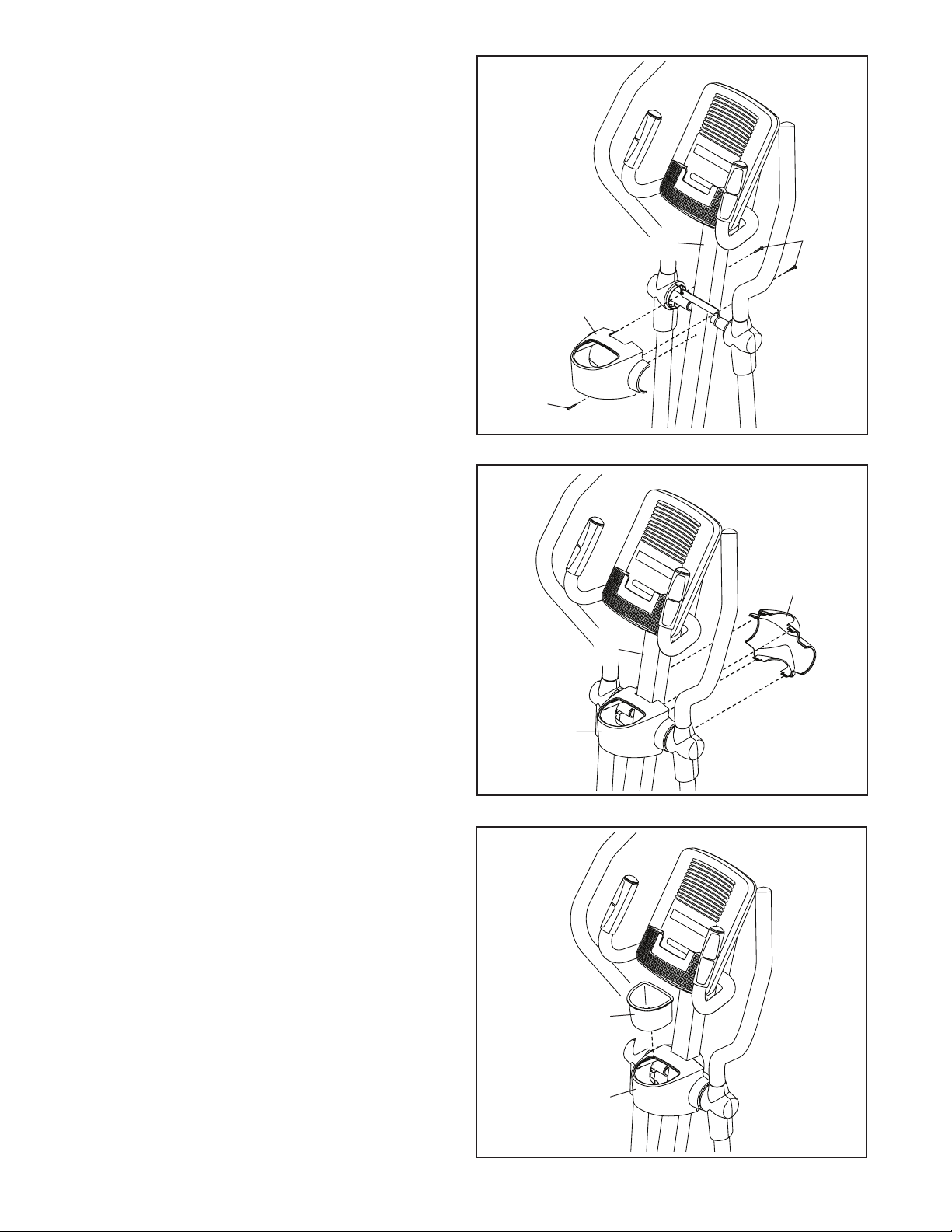

15. Attach the Rear Upright Cover (3) to the Upright
(2) with three M4 x 16mm Screws (83).
15
16. Attach the Front Upright Cover (16) around the
Upright (2) by pressing the hooks on the Front
Upright Cover onto the tabs on the Rear Upright
Cover (3).
16
83
2
3
2
83
16
17. Insert the Accessory Tray (5) into the Rear
Upright Cover (3).
3
17
5
3
14
18. Attach a Front Leg Cover (20) and a Rear Leg
Cover (21) around the right Upper Body Leg (6)
by pressing the hooks on the Front Leg Cover
onto the tabs on the Rear Leg Cover.
Repeat this step on the other side of the
elliptical.
18
6
20
21
19. Make sure that all parts of the elliptical are properly tightened. Note: Extra parts may be included. To
protect the floor or carpet from damage, place a mat under the elliptical.
15
HOW TO USE THE ELLIPTICAL
HOW TO MOVE THE ELLIPTICAL
Due to the size and weight of the elliptical, moving
it requires two persons. Stand in front of the elliptical,
hold the upright, and place one foot against one of the
wheels. Pull on the upright and have a second person
lift the handle on the rear stabilizer until the elliptical
will roll on the wheels. Carefully move the elliptical to
the desired location, and then lower it to the floor.
Upright
HOW TO LEVEL THE ELLIPTICAL
If the elliptical rocks
slightly on your floor
during use, turn one or
both of the leveling feet
beneath the rear stabilizer until the rocking
motion is eliminated.
Leveling Feet
HOW TO ADJUST THE POSITIONS OF THE PEDALS
Each pedal can be adjusted to several positions. To
adjust each pedal, lift the pedal and turn the pedal
knob beneath the pedal. Make sure to adjust both
pedals to the same position.
Pedal
Lift here
Place
your foot
here
Wheel
Pedal
Knob
16
HOW TO EXERCISE ON THE ELLIPTICAL
To mount the elliptical, hold the handlebars or the
upper body arms and step onto the pedal that is in the
lower position. Then, step onto the other pedal.
Push the pedals until they begin to move with a
continuous motion. Note: The pedal discs can turn
in either direction. It is recommended that you
move the pedal discs in the direction shown by the
arrow; however, for variety, you can turn the pedal
discs in the opposite direction.
To dismount the elliptical, wait until the pedals come to
a complete stop. Note: The elliptical does not have
a free wheel; the pedals will continue to move until
the flywheel stops. When the pedals are stationary,
step off the higher pedal first. Then, step off the lower
pedal.
Upper Body Arms
Handlebars
Pedals
17
CONSOLE DIAGRAM
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
When you use the manual mode of the console, you
can change the resistance of the pedals with the touch
of a button. As you exercise, the console will provide
continuous exercise feedback. You can even measure
your heart rate using the handgrip heart rate monitor.
The console also offers twelve preset workouts. Each
preset workout automatically changes the resistance
of the pedals as it guides you through an effective
workout.
The console also features the iFit interactive workout
system, which enables the console to accept iFit cards
containing workouts designed to help you achieve
specific fitness goals.
For example, lose unwanted pounds with the 8-week
Weight Loss workout. iFit workouts control the resistance of the pedals while the voice of a personal trainer
coaches you through your workouts. iFit cards are
available separately. To purchase iFit cards, go to
www.iFit.com or call the telephone number on the
front cover of this manual. iFit cards are also available at select stores.
You can even connect your MP3 player or CD player
to the console sound system and listen to your favorite
music or audio books while you exercise.
To use the manual mode, see page 19. To use a
preset workout, see page 20. To use an iFit workout, see page 21. To use the sound system, see
page 21.
Note: Before using the console, make sure that batteries are installed (see assembly step 7 on page 10).
If there is a sheet of plastic on the display, remove the
plastic.
18

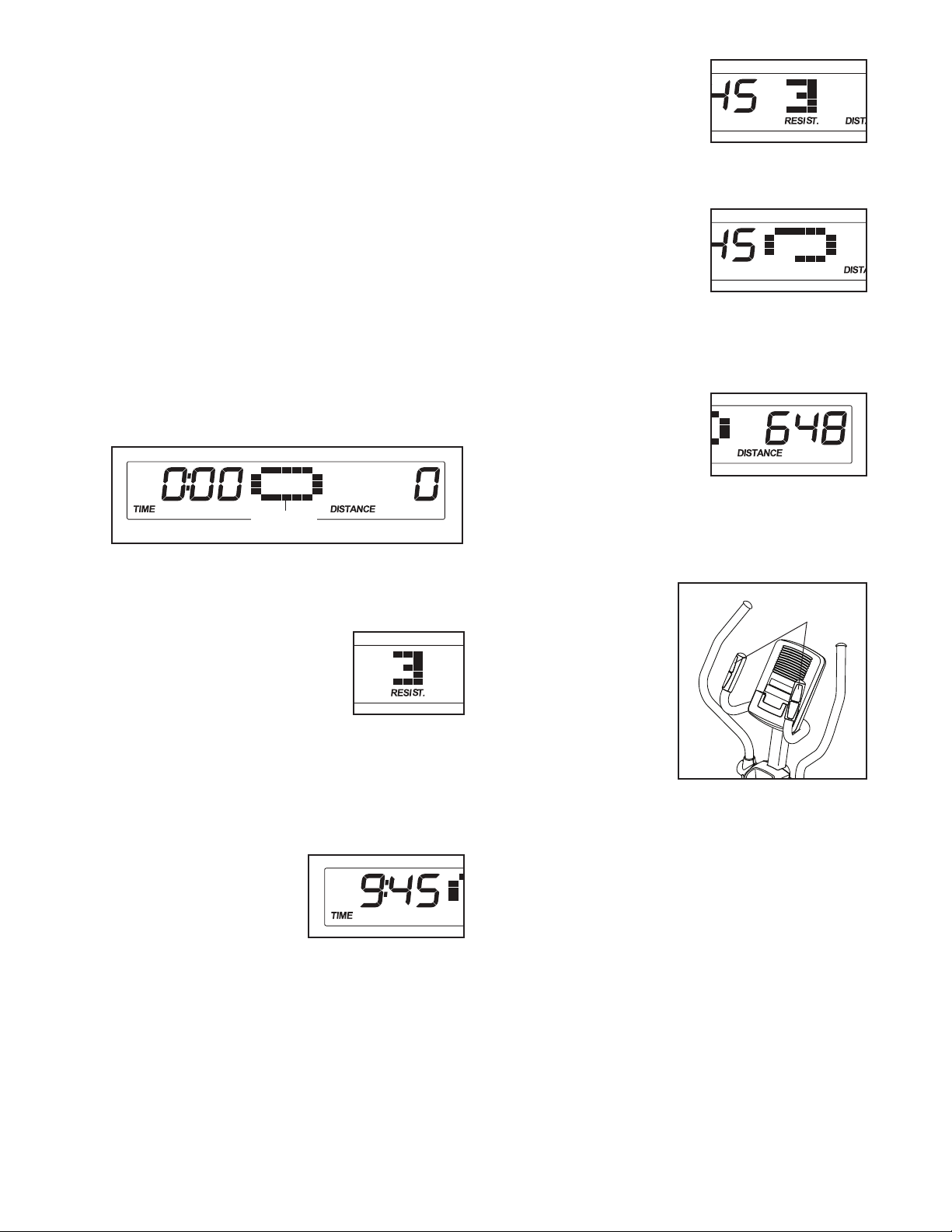

HOW TO USE THE MANUAL MODE
1. Turn on the console.
Press any button or begin pedaling to turn on the
console.
When you turn on the console, the display will turn
on, a tone will sound, and the console will be ready
for use.
2. Select the manual mode.
When you turn on the console, the manual mode
will be selected.
If you have selected a workout, reselect the manual
mode by pressing the Workouts increase or
decrease button repeatedly until a track appears in
the center display.
Track
The center
display—This display
will show the resistance
level of the pedals for
a few seconds each
time the resistance level
changes.
This display will also
show a track representing 1/4 mile (400 m). As
you exercise, indicators
will appear in succession around the track
until the entire track appears. The track will then
disappear and the indicators will again begin to
appear in succession.
The right display—
This display can show
the distance you have
pedaled in total revolutions. The display will
change modes every
few seconds.
3. Begin pedaling and change the resistance of
the pedals as desired.
As you pedal, change the
resistance of the pedals by
pressing the Resistance
increase and decrease
buttons.
Note: After you press the buttons, it will take a
moment for the pedals to reach the selected resistance level.
4. Follow your progress with the display.
The left display—This
display can show the
elapsed time and the
approximate number
of calories you have
burned. The display will
change modes every few seconds.
Note: During a preset workout, the display will
show the time remaining in the workout.
The left display will also show your heart rate when
you use the handgrip heart rate monitor (see step 5
on page 19).
5. Measure your heart rate if desired.
If there are sheets
of plastic on the
metal contacts
on the handgrip
heart rate monitor,
remove the plastic. In addition,
make sure that
your hands are
clean. To measure
your heart rate,
hold the handgrip
heart rate monitor with your palms resting against
the contacts. Avoid moving your hands or grip-
ping the contacts tightly.
When your pulse is detected, a heart-shaped
symbol will flash in the display and then your heart
rate will be shown. For the most accurate heart rate
reading, hold the contacts for at least 15 seconds.
If your heart rate is not shown, make sure that your
hands are positioned as described. Be careful not
to move your hands excessively or to squeeze the
contacts tightly. For optimal performance, clean
the contacts using a soft cloth; never use alcohol,
abrasives, or chemicals to clean the contacts.
Contacts
19
6. Turn on the fan if desired.
The fan has high and low speed settings. Press the
Fan button repeatedly to select a fan speed or to
turn off the fan.
Note: If the pedals do not move for about thirty
seconds, the fan will turn off automatically.
7. When you are finished exercising, the console
will turn off automatically.
If the pedals do not move for several seconds, a
series of tones will sound, the console will pause,
and the time will flash in the display.
After a few seconds, a profile of the resistance
levels of the workout will scroll across the center
display.
Profile
Note: Complete profiles of the preset workouts are
printed on the sides of the console.
3. Begin pedaling to start the workout.
If the pedals do not move for several minutes, the
console will turn off and the display will be reset.
HOW TO USE A PRESET WORKOUT
1. Turn on the console.
Press any button or begin pedaling to turn on the
console.
2. Select a preset workout.
To select a preset workout, press the Workouts
increase or decrease button repeatedly until the
number of the desired workout appears in the right
display.
When you select a preset workout, the duration of
the workout will appear in the left display, the maximum resistance level for the workout will flash in
the center display, and the number of the workout
will appear in the right display.
Each workout is divided into several one-minute
segments. One resistance level is programmed for
each segment. Note: The same resistance level
may be programmed for consecutive segments.
During the workout, the workout profile will show
your progress (see the drawing on page 20).
The flashing segment of the profile represents the
current segment of the workout. The height of the
flashing segment indicates the resistance level for
the current segment.
At the end of each segment of the workout, a
series of tones will sound and the next segment of
the profile will begin to flash. If a different resistance level is programmed for the next segment,
the resistance level will flash in the display for a
few seconds to alert you. The resistance of the
pedals will then change.
If the resistance level for the current segment is
too high or too low, you can manually override
the setting by pressing the Resistance buttons.
IMPORTANT: When the current segment of the
workout ends, the pedals will automatically
adjust to the resistance level programmed for
the next segment.
20
If you stop pedaling for several seconds, a series of
tones will sound and the workout will pause.
To restart the workout, simply resume pedaling.
The workout will continue until the last segment
of the profile flashes and the last segment of the
workout ends.
Note: If you continue to pedal after the workout is
completed, the display will continue to show exercise feedback; however, the display will not show
the elapsed time until you select the manual mode
or a new workout.
4. Follow your progress with the display.
See step 4 on page 19.
5. Measure your heart rate if desired.
iFit Slot
iFit Card
Next, select the desired workout on the iFit card by
pressing the increase and decrease buttons next to
the iFit slot.
The duration of the workout will appear in the left
display, the maximum resistance level for the workout will flash in the center display, and the number
of the workout will appear in the right display.
See step 5 on page 19.
6. Turn on the fan if desired.
See step 6 on page 20.
7. When you are finished exercising, the console
will turn off automatically.
See step 7 on page 20.
HOW TO USE AN IFIT WORKOUT
iFit cards are available separately. To purchase iFit
cards, go to www.iFit.com or see the front cover of this
manual. iFit cards are also available at select stores.
1. Turn on the console.
Press any button or begin pedaling to turn on the
console.
2.
Insert an iFit card and select a workout.
To use an iFit workout, insert an iFit card into the
iFit slot; make sure that the iFit card is oriented so
the metal contacts are face down and are facing
the slot. When the iFit card is properly inserted, the
indicator next to the slot will turn on.
A moment after you select a workout, the voice of a
personal trainer will begin guiding you through your
workout. iFit workouts function in the same way as
preset workouts. To use the workout, see steps 3 to
7 starting on page 20.
3.
When you are finished exercising, remove the
iFit card.
Remove the iFit card when you are finished exer-
cising. Store the iFit card in a secure place.
HOW TO USE THE SOUND SYSTEM
To play music or audio books through the console
sound system while you exercise, plug a 3.5 mm male
to 3.5 mm male audio cable (not included) into the jack
on the console and into a jack on your MP3 player,
CD player, or other personal audio player; make sure
that the audio cable is fully plugged in. Note: To
purchase an audio cable, see your local electronics
store.
Next, press the play button on your personal audio
player. Adjust the volume level using the volume control on your personal audio player.
21
MAINTENANCE AND TROUBLESHOOTING
MAINTENANCE
Inspect and tighten all parts of the elliptical regularly.
Replace any worn parts immediately.
To clean the elliptical, use a damp cloth and a small
amount of mild soap. IMPORTANT: To avoid damage
to the console, keep liquids away from the console
and keep the console out of direct sunlight.
CONSOLE TROUBLESHOOTING
Most console problems are the result of low batteries.
See assembly step 7 on page 10 for replacement
instructions.
If the console does not display your heart rate when
you use the handgrip heart rate monitor, see step 5 on
page 19.
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted.
Note: For clarity, the right pedal disc is not shown in the
drawing below. It is not necessary to remove the right
pedal disc.
Locate the Reed Switch (58). Loosen, but do not
remove, the M4 x 16mm Screw (83).
86
83
41
58
To adjust the reed switch, you must first remove the
Shield Cover (37). Using a flat screwdriver, release the
tabs along the sides of the Shield Cover, and then lift
the Shield Cover away from the frame.
37
Next, rotate the Pulley (86) until a Magnet (41) is
aligned with the Reed Switch (58). Slide the Reed
Switch slightly toward or away from the Magnet. Then,
retighten the M4 x 16mm Screw (83).
Rotate the Pulley (86) for a moment. Repeat these
actions until the console displays correct feedback.
When the reed switch is correctly adjusted, reattach
the shield cover.
22
HOW TO ADJUST THE DRIVE BELT
If you can feel the pedals slip while you are pedaling,
even when the resistance is adjusted to the highest
level, the drive belt may need to be adjusted.
To adjust the drive belt, you must remove the shield
cover and the left shield (see the instructions below).
46
See EXPLODED DRAWING B on page 27. Using a
flat screwdriver, release the tabs along the sides of the
Shield Cover (37), and then lift the Shield Cover away
from the frame.
Next, remove the M4 x 16mm Screws (83) and the M4
x 12mm Self-tapping Screws (64) from the Left and
Right Shields (44, 45). Make sure to note which size
of Screw you remove from each hole. Then, gently
move the Left Shield out of the way.
Loosen the Pivot Screw (88). Then, tighten the Drive
Belt Adjustment Screw (72) until the Drive Belt (46) is
tight.
When the Drive Belt (46) is tight, tighten the Pivot
Screw (88).
Then, reattach the left shield and the shield cover.
88
72
FCC INFORMATION
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC CAUTION: To assure continued compliance, use only shielded interface cables when connecting to
computer or peripheral devices. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.
23
EXERCISE GUIDELINES
WARNING: Before beginning this
or any exercise program, consult your physician. This is especially important for persons
over age 35 or persons with pre-existing
health problems.
The heart rate monitor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The heart rate monitor is
intended only as an exercise aid in determining heart rate trends in general.
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
Burning Fat—To burn fat effectively, you must exercise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until your
heart rate is near the highest number in your training
zone.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretch-
ing and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise ; never hold your breath.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
Cooling Down—Finish with 5 to 10 minutes of stretching. Stretching increases the flexibility of your muscles
and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exercise, you may complete up to five workouts each week,
if desired. Remember, the key to success is to make
exercise a regular and enjoyable part of your everyday
life.
24
PART LIST
K e y N o . Q t y . D e s c r i p t i o n K e y N o . Q t y . D e s c r i p t i o n
Model No. PFEL04211.7 R0114A
1 1 Frame
2 1 Upright
3 1 Rear Upright Cover
4 1 Console
5 1 Accessory Tray
6 2 Upper Body Leg
7 2 Short Bumper
8 1 Left Upper Body Arm
9 1 Right Upper Body Arm
10 2 Foam Grip
11 2 Upper Body Arm Cap
12 1 Left Pedal
13 1 Right Pedal
14 1 Left Pedal Arm
15 1 Left Pedal Bracket
16 1 Front Upright Cover
17 4 Pivot Bushing
18 10 Pedal Disc Mount
19 2 Pivot Cover A
20 2 Front Leg Cover
21 2 Rear Leg Cover
22 2 Pivot Cover B
23 4 Pedal Arm Bushing
24 1 Crank
25 1 Right Crank Arm
26 2 Pedal Disc
27 1 Crank Arm Spacer
28 2 Sensor Wire
29 4 Bearing
30 2 Pedal Arm Cap
31 2 Bolt Set
32 1 Console Cover
33 6 M8 Washer
34 2 M4 x 48mm Screw
35 1 Right Pedal Bracket
36 2 Pedal Bracket Spring
37 1 Shield Cover
38 2 Crank Bearing
39 1 Handlebar
40 2 Spacer
41 2 Magnet
42 1 Main Wire
43 2 M6 Washer
44 1 Left Shield
45 1 Right Shield
46 1 Drive Belt
47 2 Leveling Foot
48 2 Stabilizer Cap
49 1 Right Pedal Arm
50 2 Wheel
51 1 Eddy Mechanism
52 1 Idler
53 2 M10 x 104mm Screw
54 1 Resistance Motor
55 2 M4 x 16mm Machine Screw
56 4 Cam Axle Bushing
57 1 Clamp
58 1 Reed Switch/Wire
59 4 M8 x 15mm Screw
60 1 Key
61 1 M8 Locknut
62 1 M6 x 16mm Screw
63 2 Shoulder Screw
64 2 M4 x 12mm Self-tapping Screw
65 1 Left Crank Arm
66 1 Idler Bolt
67 1 Key Screw
68 1 Crank Arm Bolt
69 4 Resistance Motor Screw
70 1 Rear Stabilizer
71 2 Long Bumper
72 1 Drive Belt Adjustment Screw
73 1 Front Stabilizer
74 2 Sensor
75 2 Cam Axle
76 4 M8 x 45mm Bolt
77 6 M8 Jam Nut
78 5 M10 Split Washer
79 8 M10 x 20mm Screw
80 4 M8 x 20mm Screw
81 2 Pedal Knob
82 4 M10 x 85mm Screw
83 20 M4 x 16mm Screw
84 8 #10 x 16mm Screw
85 2 M8 x 18mm Screw
86 1 Pulley
87 1 M4 x 16mm Ground Screw
88 1 Pivot Screw
89 4 M8 x 10mm Screw
90 2 M8 Thrust Washer
91 1 Fastener
* – User’s Manual
* – Assembly Tool
* – Grease Packet
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
25
EXPLODED DRAWING A
Model No. PFEL04211.7 R0114A
11
74
28
39
79
83
9
32
79
22
34
17
83
17
33
16
80
19
77
84
23
80
31
56
33
49
81
75
55
56
30
85
33
29
20
6
31
21
76
2
7
13
10
79
53
36
35
71
79
78
11
5
36
53
20
79
31
71
31
15
23
84
55
81
83
7
12
4
77
3
6
76
21
19
17
10
8
80
17
33
22
78
78
79
23
56
75
30
29
80
33
56
14
29
29
33
85
26
EXPLODED DRAWING B
Model No. PFEL04211.7 R0114A
46
37
90
50
63
77
51
82
90
73
69
50
54
88
43
66
1
52
57
83
63
45
87
64
72
38
40
42
58
83
83
48
67
68
25
60
62
43
61
83
83
83
83
83
44
83
64
59
41
24
86
27
83
89
65
40
89
26
38
91
41
48
47
70
82
47
26
83
18
18
18
18
27
ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED
DRAWING near the end of this manual)
LIMITED WARRANTY
IMPORTANT: To protect your fitness equipment with an extended service plan, see page 4.
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and
material, under normal use and service conditions. The frame is warranted for fi ve (5) years from the date
of purchase. Parts and labor are warranted for ninety (90) days from the date of purchase.
This warranty extends only to the original purchaser (customer). ICON’s obligation under this warranty is
limited to repairing or replacing, at ICON’s option, the product through one of its authorized service centers.
All repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped
to a service center, freight charges to and from the service center will be the customer’s responsibility. If
replacement parts are shipped while the product is under warranty, the customer will be responsible for a
minimal handling charge. For in-home service, the customer will be responsible for a minimal trip charge.
This warranty does not extend to freight damage to the product. This warranty will automatically be voided
if the product is used as a store display model, if the product is purchased or transported outside the USA,
if all instructions in this manual are not followed, if the product is abused or improperly or abnormally used,
or if the product is used for commercial or rental purposes. No other warranty beyond that specifi cally set
forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in connection with the use or performance of the product; damages with respect to any economic loss, loss of
property, loss of revenues or profi ts, loss of enjoyment or use, or costs of removal or installation; or other
consequential damages of any kind. Some states do not allow the exclusion or limitation of incidental or
consequential damages. Accordingly, the above limitation may not apply to the customer.
The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of
merchantability or fi tness for a particular purpose are limited in their scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to the customer.
This warranty provides specifi c legal rights; the customer may have other rights that vary from state to state.
ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813
Part No. 358229 R0114A Printed in China © 2014 ICON IP, Inc.
Loading...
