Pro-Form PFEL03916 User Manual

Download

www.proform.com

Model No. PFEL03916.0 Serial No.

Write the serial number in the space above for reference.

Serial

Number

Decal

ACTIVATE YOUR WARRANTY

To register your product and activate your warranty today, go to www.proformservice.com/ registration.

USER’S MANUAL

CUSTOMER CARE

For service at any time, go to www.proformservice.com.

Or call 1-888-533-1333 Mon.–Fri. 6 a.m.–6 p.m. MT Sat. 8 a.m.–12 p.m. MT

Please do not contact the store.

CAUTION

Read all precautions and instructions in this manual before using this equipment. Keep this manual for future reference.

TABLE OF CONTENTS

258868 258869 258870 258871 258872

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS ..................................................................3

BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

HOW TO USE THE ELLIPTICAL ..............................................................15

FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

MAINTENANCE AND TROUBLESHOOTING .....................................................25

EXERCISE GUIDELINES ....................................................................27

PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

WARNING DECAL PLACEMENT

This drawing shows the location(s) of the warning decal(s). If a decal is missing or illegible, see

the front cover of this manual and request a free replacement decal. Apply the decal in the location shown. Note: The decal(s) may not be

shown at actual size.

IFIT and PROFORM are registered trademarks of ICON Health & Fitness, Inc. App Store is a trademark of Apple Inc., registered in the U.S. and other countries. Android and Google Play are trademarks of Google Inc. The BLUETOOTH® word mark and logos are registered trademarks of Bluetooth SIG, Inc. and are used under license. IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on your elliptical before using your elliptical. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.

1. It is the responsibility of the owner to ensure that all users of the elliptical are adequately informed of all precautions.

2. Before beginning any exercise program, consult your physician. This is especially important for persons over age 35 or persons with pre-existing health problems.

3. The elliptical is not intended for use by persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, unless they are given supervision or instruction about use of the elliptical by someone responsible for their safety.

4. Use the elliptical only as described in this manual.

5. The elliptical is intended for home use only. Do not use the elliptical in a commercial, rental, or institutional setting.

6. Keep the elliptical indoors, away from moisture and dust. Do not put the elliptical in a garage or covered patio, or near water.

7. Place the elliptical on a level surface, with at least 3 ft. (0.9 m) of clearance in the front and rear of the elliptical and 2 ft. (0.6 m) on each side. To protect the floor or carpet from damage, place a mat under the elliptical.

8. Inspect and properly tighten all parts each time the elliptical is used. Replace any worn parts immediately.

9. Keep children under age 13 and pets away from the elliptical at all times.

10. The elliptical should not be used by persons weighing more than 250 lbs. (113 kg).

11. Wear appropriate clothes while exercising; do not wear loose clothes that could become caught on the elliptical. Always wear athletic shoes for foot protection while exercising.

12. Hold the handlebars or the upper body arms when mounting, dismounting, or using the elliptical.

13. The heart rate monitor is not a medical device. Various factors may affect the accuracy of heart rate readings. The heart rate monitor is intended only as an exercise aid in determining heart rate trends in general.

14. The elliptical does not have a freewheel; the pedals will continue to move until the flywheel stops. Reduce your pedaling speed in a controlled way.

15. Keep your back straight while using the elliptical; do not arch your back.

16. Over exercising may result in serious injury or death. If you feel faint, if you become short of breath, or if you experience pain while exercising, stop immediately and cool down.

STANDARD SERVICE PLANS

BEFORE YOU BEGIN

Thank you for selecting the revolutionary PROFORM® 250 I elliptical. The 250 I elliptical provides an impressive selection of features designed to make your workouts at home more effective and enjoyable.

For your benefit, read this manual carefully before you use the elliptical. If you have questions after

reading this manual, please see the front cover of this

Length: 5 ft. 9 in. (175 cm) Width: 2 ft. 2 in. (66 cm)

Handlebar

Fan

manual. To help us assist you, note the product model number and serial number before contacting us. The model number and the location of the serial number decal are shown on the front cover of this manual.

Before reading further, please familiarize yourself with the parts that are labeled in the drawing below.

Tablet Holder

Upper Body Arm

Console

Heart Rate Monitor

Pedal

Roller

Leveling Foot

Accessory Tray

Wheel

Track

PART IDENTIFICATION CHART

Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it

has been preassembled. Extra parts may be included.

M8 Washer

(63)–6

M8 Locknut

(60)–6

M6 Bolt Set (67)–2

M10 x 20mm

Screw (74)–5

M10 Washer

(64)–6

M10 Locknut

(91)–1

M10 x 38mm Screw (75)–2

M4 x 16mm

Screw (56)–4

M10 Split

Washer (80)–2

M8 x 20mm

Screw (61)–6

M10 Curved

Washer (62)–2

M4 x 16mm Self-tapping

Screw (57)–12

M8 x 38mm Bolt

M10 x 53mm Screw (73)–1

#8 x 15mm

Screw (93)–4

(59)–6

M10 x 60mm Bolt (72)–1

M10 x 100mm Screw (76)–2

ASSEMBLY

• To hire an authorized service technician to assemble this product, call 1-800-445-2480.

• Assembly requires two persons.

• Place all parts in a cleared area and remove the packing materials. Do not dispose of the packing

materials until you nish all assembly steps.

• Left parts are marked “L” or “Left” and right parts are marked “R” or “Right.”

1. Go to www.proformservice.com/registration

on your computer and register your product.

• activates your warranty

• saves you time if you ever need to contact Customer Care

• allows us to notify you of upgrades and offers

Note: If you do not have internet access, call

Customer Care (see the front cover of this manual) and register your product.

• To identify small parts, see page 6.

• In addition to the included tool(s), assembly requires the following tools:

one Phillips screwdriver

Assembly may be easier if you have a set of wrenches. To avoid damaging parts, do not use power tools.

2. With the help of a second person, place some of the packing materials (not shown) under the front of the Frame (1). Have the second per-

son hold the Frame to prevent it from tipping while you complete this step.

Attach the Front Stabilizer (12) to the Frame (1)

with two M10 x 100mm Screws (76).

Then, remove the packing materials from under

the Frame (1).

3. With the help of a second person, place some of the packing materials (not shown) under the rear of the Frame (1).

Attach the Track (11) to the Frame (1) with four

M10 x 20mm Screws (74), two M10 x 38mm Screws (75), and six M10 Washers (64) as shown; start all of the Screws, and then

tighten them.

Then, remove the packing materials from under

the Frame (1).

4. Orient the Upright (2) and the Accessory Tray (50) as shown. Slide the Accessory Tray upward onto the Upright.

Have a second person hold the Upright (2) near

the Frame (1).

Locate the wire tie (A) in the Upright (2). Tie the

lower end of the wire tie to the Main Wire (32). Then, pull the upper end of the wire tie until the Main Wire is routed through the Upright.

Tip: Secure the Main Wire (32) to the Upright

(2) with the wire tie (A) to prevent it from falling into the Upright.

5. Tip: Avoid pinching the Main Wire (32). Slide the Upright (2) onto the Frame (1).

Attach the Upright (2) with an M10 x 53mm

Screw (73), an M10 x 20mm Screw (74), two M10 Split Washers (80), and two M10 Curved Washers (62) as shown; do not fully tighten

the Screws yet.

Avoid pinching the

Main Wire (32)

Finish attaching the Upright (2) with an

M10 x 60mm Bolt (72) and an M10 Locknut (91);

do not fully tighten the Bolt yet. Make sure that the Locknut is in the hexagonal hole (B).

Do not press the Accessory Tray (50) into

place yet.

6. Insert the Upright Axle (18) into the Upright (2) and center it.

Using a plastic bag to keep your fingers clean,

apply some of the included grease to both ends of the Upright Axle (18).

Grease

7. Identify the Right Upper Body Arm (3) and the Right Upper Body Leg (5), and orient them as shown.

Insert the Right Upper Body Arm (3) into the

Right Upper Body Leg (5). Attach the Right Upper Body Arm with three M8 x 38mm Bolts (59) and three M8 Locknuts (60); make sure

that the Locknuts are in the hexagonal holes (C). Start all of the Bolts, and then tighten them.

Attach the Left Upper Body Arm (4) to the

Left Upper Body Leg (6) in the same way.

8. Slide the Right Upper Body Arm (3) onto the right side of the Upright Axle (18).

Slide the Left Upper Body Arm (4) onto the left

side of the Upright Axle (18).

Tighten an M8 x 20mm Screw (61) and an M8

Washer (63) into each end of the Upright Axle (18) at the same time.

9. Identify a set of Pivot Covers A and B (85, 86) and orient them as shown.

Press the Pivot Covers A and B (85, 86) together

around the Right Upper Body Arm (3) and Right Upper Body Leg (5). Attach them with four M4 x 16mm Self-tapping Screws (57); start all

of the Screws, and then tighten them.

Repeat this step on the other side of the

elliptical.

10. Identify the Front and Rear Upright Covers (51, 54) and orient them as shown.

Press the Front and Rear Upright Covers

(51, 54) together around the Upright (2) and attach them with four M4 x 16mm Self-tapping Screws (57); start all of the Screws, and then

tighten them.

11. Apply grease to the right Crank Arm (13).

Identify the Right Roller Arm (7) and orient it as

shown.

Attach the Right Roller Arm (7) to the right Crank

Arm (13) with an M8 x 20mm Screw (61), an Axle Cover (44), and an M8 Washer (63).

Attach the Left Roller Arm (8) in the same

way.

Grease

12. Apply grease to the axle on the Right Roller Arm (7).

Then, identify the Right Pedal Arm (9), orient

it as shown, and slide it onto the Right Roller Arm (7).

Attach the Right Pedal Arm (9) with an

M8 x 20mm Screw (61), an Axle Cover (44), and an M8 Washer (63).

Attach the Left Pedal Arm (10) to the Left

Roller Arm (8) in the same way.

Grease

13. Apply grease to an M6 Bolt Set (67).

Attach the Right Pedal Arm (9) to the Right

Upper Body Leg (5) with the M6 Bolt Set (67).

Attach the Left Pedal Arm (10) to the Left

Upper Body Leg (6) in the same way.

14. The Console (30) can use four D batteries (not included); alkaline batteries are recommended. Do not use old and new batteries together or alkaline, standard, and rechargeable batteries together. IMPORTANT: If the Console has

been exposed to cold temperatures, allow it to warm to room temperature before you insert batteries. Otherwise, you may damage the console displays or other electronic components. Remove the screws (D) and the

battery covers (E), insert batteries into the battery compartments, and then reattach the battery covers. Make sure to orient the batteries as

shown by the diagrams inside the battery compartments.

Grease

To purchase an optional power adapter, call

the telephone number on the cover of this manual. To avoid damaging the console, use only a manufacturer-supplied regulated power adapter. Plug one end of the power

adapter into the receptacle (F) inside the indicated battery compartment, and route the power adapter through the notch (G) in the battery cover. Then, plug the other end into an outlet installed in accordance with all local codes and ordinances.

15. Attach the Tablet Holder (92) to the back of the Console (30) with four #8 x 15mm Screws (93);

start all of the Screws, and then tighten them.

16. Remove and discard the wire tie on the Main Wire (32).

While a second person holds the Console (30)

near the Upright (2), plug the Main Wire (32) and the Pulse Wire (31) into the matching receptacles on the back of the Console.

The connectors on the Main Wire (32) and

the Pulse Wire (31) should slide easily into the receptacles and snap into place. If a con-

nector does not slide easily into a receptacle, turn the connector and try again. If you do not

connect the connectors properly, the console may become damaged.

Then, insert the excess wire into the Upright (2).

Tip: Avoid pinching the wires. Attach the

Console (30) to the Upright (2) with four M4 x 16mm Screws (56) start all of the Screws,

and then tighten them.

See step 5. Tighten the M10 x 53mm Screw

(73), the M10 x 20mm Screw (74), and the M10 x 60mm Bolt (72). Then, press the Accessory Tray (50) into place.

Avoid pinching

the wires

17. Make sure that all parts are properly tightened before you use the elliptical. Extra parts may be included. Place a mat beneath the elliptical to protect the floor.

HOW TO USE THE ELLIPTICAL

HOW TO MOVE THE ELLIPTICAL

Due to the size and weight of the elliptical, moving it requires two persons. Stand in front of the elliptical,

hold the upright, and place one foot against one of the wheels. Pull on the upright, and have a second person lift the track until the elliptical will roll on the wheels. Carefully move the elliptical to the desired location, and then lower it to the floor.

Pull on

the upright

Place

your foot

here

Lift

here

HOW TO LEVEL THE ELLIPTICAL

If the elliptical rocks slightly on your floor during use, turn one or both of the leveling feet beneath the rear of the frame until the rocking motion is eliminated.

HOW TO USE THE TABLET HOLDER

IMPORTANT: The tablet holder is designed for use with most full-size tablets. Do not place any other electronic device or object into the tablet holder.

To insert a tablet or smart phone into the tablet holder, set the bottom edge of the tablet or smart phone in the tray. Make sure

that the tablet or smart phone is firmly secured in the tablet holder.

Reverse these actions to remove the tablet or smart phone from the tablet holder.

Leveling

Feet

HOW TO EXERCISE ON THE ELLIPTICAL

To mount the elliptical, hold the handlebars or the upper body arms and step onto the pedal that is in the lower position. Then, step onto the other pedal. Push the pedals until they begin to move with a continuous motion. Note: The pedals can turn in either direc-

tion. It is recommended that you turn the pedals in the direction shown by the arrow; however, for variety, you can turn the pedals in the opposite direction.

To dismount the elliptical, wait until the pedals come to a complete stop. Note: The elliptical does not have

a free wheel; the pedals will continue to move until the flywheel stops. When the pedals are stationary,

step off the higher pedal first. Then, step off the lower pedal.

Upper

Body Arms

Handlebars

Pedals

CONSOLE DIAGRAM

FEATURES OF THE CONSOLE

The advanced console offers an array of features designed to make your workouts more effective and enjoyable.

When you use the manual mode of the console, you can change the resistance of the pedals with the touch of a button. As you exercise, the console will provide continuous exercise feedback. You can even measure your heart rate using the handgrip heart rate monitor or a compatible heart rate monitor. See page 22 for

information about purchasing an optional chest heart rate monitor.

You can also connect your smart device to the console and use an iFit® app to record and track your workout information.

Lose unwanted pounds with the progressive 8-week weight-loss program. Each workout in the program controls the resistance of the pedals as it guides you through an effective workout.

The console also offers a selection of preset workouts. Each preset workout automatically changes the resistance of the pedals and prompts you to maintain a target speed as it guides you through an effective workout.

You can even connect your personal audio player to the console sound system and listen to your favorite music or audio books while you exercise.

To use the manual mode, see page 18. To use an 8-week weight-loss workout, see page 20. To use a preset workout, see page 21.

To use the sound system, see page 22. To connect your smart device to the console, see page

22. To connect your heart rate monitor to the console, see page 23. To use the settings mode,

see page 23.

Note: Before using the console, make sure that batteries are installed (see assembly step 14 on page

13). If there is a sheet of plastic on the display, remove the plastic.

HOW TO USE THE MANUAL MODE

1. Turn on the console.

Press any button or begin pedaling to turn on the

console.

When you turn on the console, the displays will turn

on, a tone will sound, and the console will be ready for use.

2. Select the manual mode.

When you turn on the

console, the manual mode will be selected automatically.

If you have selected a

workout, reselect the manual mode by pressing the Manual button.

3. Begin pedaling and change the resistance of the pedals as desired.

As you pedal, change the

resistance of the pedals by pressing the Resistance increase and decrease buttons.

Note: After you press the buttons, it will take a

moment for the pedals to reach the selected resistance level.

4. Follow your progress with the displays.

The upper display—This

display will show your pedaling speed in revolutions per minute (RPM) and your power output in watts. The display will change every few seconds.

This display will also show the resistance level

of the pedals for a few seconds each time the resistance level changes.

This display will also show

your heart rate (BPM) when you use the handgrip heart rate monitor or a compatible heart rate monitor (see step 5).

The center display—This

display will show the distance (Dist.) you have pedaled in miles or kilometers and the elapsed time. The display will change every few seconds.

Note: During a preset workout, the display will

show the time remaining in the workout instead of the elapsed time.

The lower display—This

display will show your pedaling speed in miles per hour or kilometers per hour and the approximate number of calories (Cals.) you have burned. The display will change every few seconds.

The speed meter—This

display will provide a visual representation of your pedaling speed. As you increase or decrease your pedaling speed, bars will appear or disappear in the speed meter.

Note: During a preset workout, this display will

show a target speed zone for each segment of the workout.

Change the volume level

of the console by pressing the volume increase and decrease buttons.

To pause the console, stop pedaling. When the

console is paused, the displays will pause. To continue your workout, simply resume pedaling.

To reset the displays to zero, press the On/Reset

button.

Note: The console can show pedaling speed and

distance in either miles or kilometers. To change the unit of measurement, see THE SETTINGS MODE on page 23.

When your pulse is detected, your heart rate will be

shown in the upper display. For the most accurate

heart rate reading, hold the contacts for at least 15 seconds.

If your heart rate is not shown, make sure that your

hands are positioned as described. Be careful not to move your hands excessively or to squeeze the contacts tightly. For optimal performance, clean the contacts using a soft cloth; never use alcohol,

abrasives, or chemicals to clean the contacts.

5. Measure your heart rate if desired.

You can measure your heart rate using either

the handgrip heart rate monitor or a compatible heart rate monitor. For information about purchasing an optional chest heart rate monitor, see page 22.

The console is compatible with all BLUETOOTH®

Smart heart rate monitors. To connect your heart rate monitor to the console, see page 23.

Note: If you use both heart rate monitors at the

same time, the BLUETOOTH Smart heart rate monitor will have priority.

If there are sheets

of plastic on the metal contacts on the handgrip heart rate monitor, remove the plastic. In addition, make sure that your hands are clean.

To measure your heart rate, hold the handgrip heart rate monitor with your palms resting against the contacts. Avoid moving your hands or gripping the contacts tightly.

Contacts

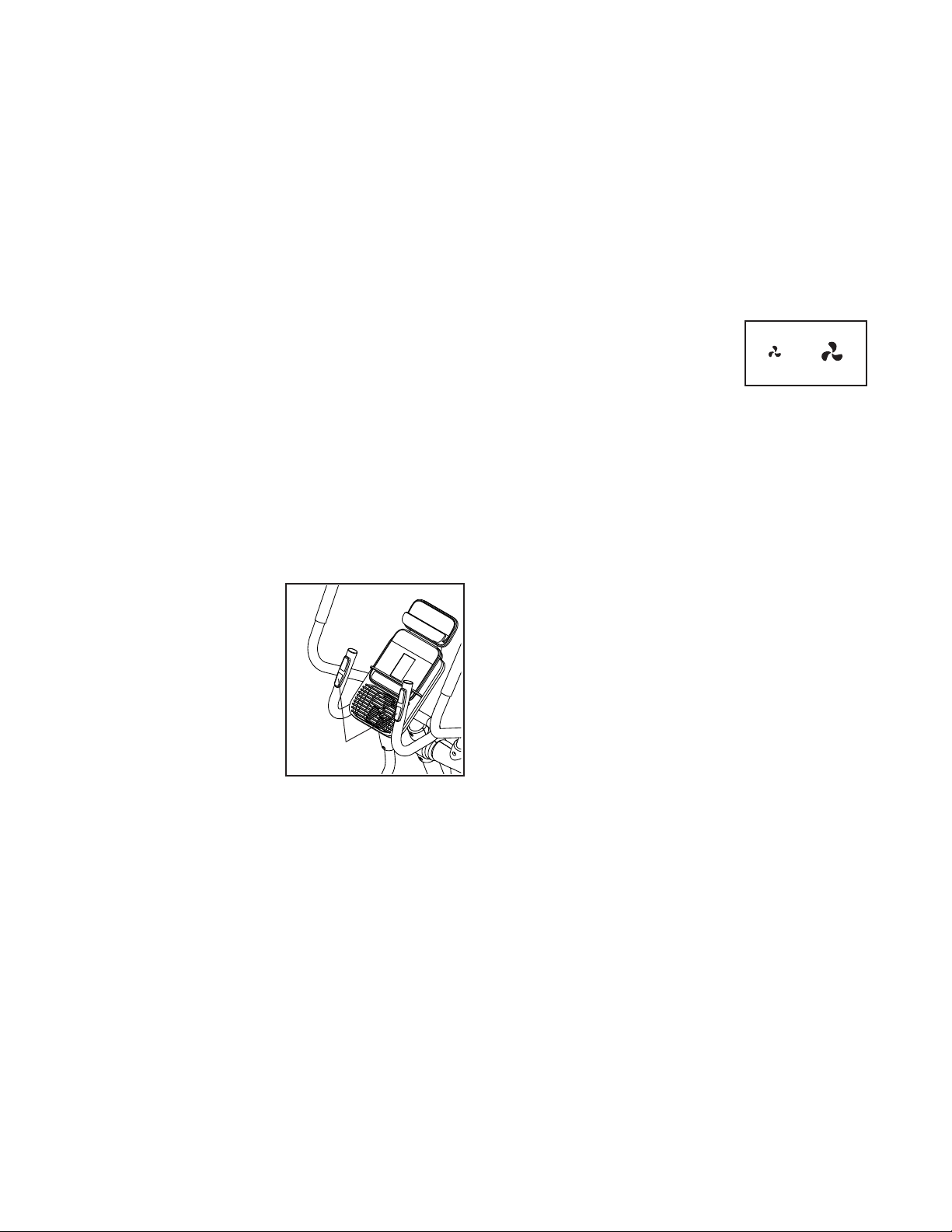

6. Turn on the fan if desired.

The fan has several speed

settings. Press the fan increase and decrease buttons repeatedly to select a fan speed or to turn off the fan.

Note: If the pedals do not move for about 30

seconds, the fan will turn off automatically.

7. When you are finished exercising, the console will turn off automatically.

If the pedals do not move for several seconds, a

series of tones will sound, the console will pause, and displays will pause.

If the pedals do not move for several minutes, the

console will turn off and the displays will be reset.

HOW TO USE AN 8-WEEK WEIGHT-LOSS WORKOUT

1. Turn on the console.

Press any button or begin pedaling to turn on the

console.

When you turn on the console, the displays will turn

on, a tone will sound, and the console will be ready for use.

2. Select the desired week of the program.

To select the desired week

of the program, press the Select Week button repeatedly until the number of the desired week appears in the display.

3. Select the desired day of the program.

There are three day workouts

for each week of the program. To select the desired day of the program, press the Select Day button repeatedly until the number of the desired day appears in lower display. The duration of the workout will appear in the center display.

4. Start the workout.

Press the Start button and begin pedaling to start

the workout.

The speed meter will

show two flashing bars that represent the target speed zone for the segment; the target speed zone includes a range of speeds that are within a few RPMs of the target speed for the segment. The solid bars represent your actual pedaling speed.

As you exercise, keep your pedaling speed within

the target speed zone for the current segment by increasing or decreasing your pedaling speed or by increasing or decreasing the resistance of the pedals.

IMPORTANT: The target speed is intended only

to provide motivation. Make sure to pedal at a speed and a resistance level that is comfortable for you.

If the resistance level for the current segment is

too high or too low, you can manually override the setting by pressing the Resistance buttons.

IMPORTANT: When the current segment of the workout ends, the pedals will automatically adjust to the resistance level programmed for the next segment.

If you stop pedaling for several seconds, a series of

tones will sound and the workout will pause.

To restart the workout, simply resume pedaling.

The workout will continue until the last segment of the workout ends.

Target

Zone

Each workout is divided into one-minute segments.

One resistance level and one target speed are programmed for each segment. Note: The same resistance level and/or target speed may be programmed for consecutive segments.

At the end of each segment of the workout, a

series of tones will sound. The resistance level for the next segment will appear in the upper display for a few seconds to alert you. The resistance of the pedals will then change.

5. Follow your progress with the displays.

See step 4 on page 18.

6. Measure your heart rate if desired.

See step 5 on page 19.

7. Turn on the fan if desired.

See step 6 on page 19.

8. When you are finished exercising, the console will turn off automatically.

See step 7 on page 19.

HOW TO USE A PRESET WORKOUT

1. Turn on the console.

Press any button or begin pedaling to turn on the

console.

When you turn on the console, the displays will turn

on, a tone will sound, and the console will be ready for use.

As you exercise, keep your pedaling speed

within the target zone for the current segment by increasing or decreasing your pedaling speed or by increasing or decreasing the resistance of the pedals.

IMPORTANT: The target speed is intended only

to provide motivation. Make sure to pedal at a speed and a resistance level that is comfortable for you.

2. Select a preset workout.

To select a preset work-

out, press the Wt. Loss or Intensity button repeatedly until the number of the desired workout appears in the lower display.

3. Start the workout.

Begin pedaling to start the workout.

Each workout is divided into one-minute segments.

One resistance level and one target speed are programmed for each segment. Note: The same resistance level and/or target speed may be programmed for consecutive segments.

At the end of each segment of the workout, a

series of tones will sound. The resistance level for the next segment will appear in the upper display for a few seconds to alert you. The resistance of the pedals will then change.

If the resistance level for the current segment is

too high or too low, you can manually override the setting by pressing the Resistance buttons.

IMPORTANT: When the current segment of the workout ends, the pedals will automatically adjust to the resistance level programmed for the next segment.

If you stop pedaling for several seconds, a series of

tones will sound and the workout will pause.

To restart the workout, simply resume pedaling.

The workout will continue until the last segment of the workout ends.

4. Follow your progress with the displays.

See step 4 on page 17.

5. Measure your heart rate if desired.

See step 5 on page 18.

6. Turn on the fan if desired.

The speed meter will

Target Speed

Zone

See step 6 on page 18.

7. When you are finished exercising, the console will turn off automatically.

See step 7 on page 18.

HOW TO USE THE SOUND SYSTEM

To play music or audio books through the console sound system while you exercise, plug a 3.5 mm male to 3.5 mm male audio cable (not included) into the jack on the console and into a jack on your personal audio player; make sure that the audio cable is fully

plugged in. Note: To purchase an audio cable, see your local electronics store.

Next, press the play button on your personal audio player. Adjust the volume level using the volume increase and decrease buttons on the console or the volume control on your personal audio player.

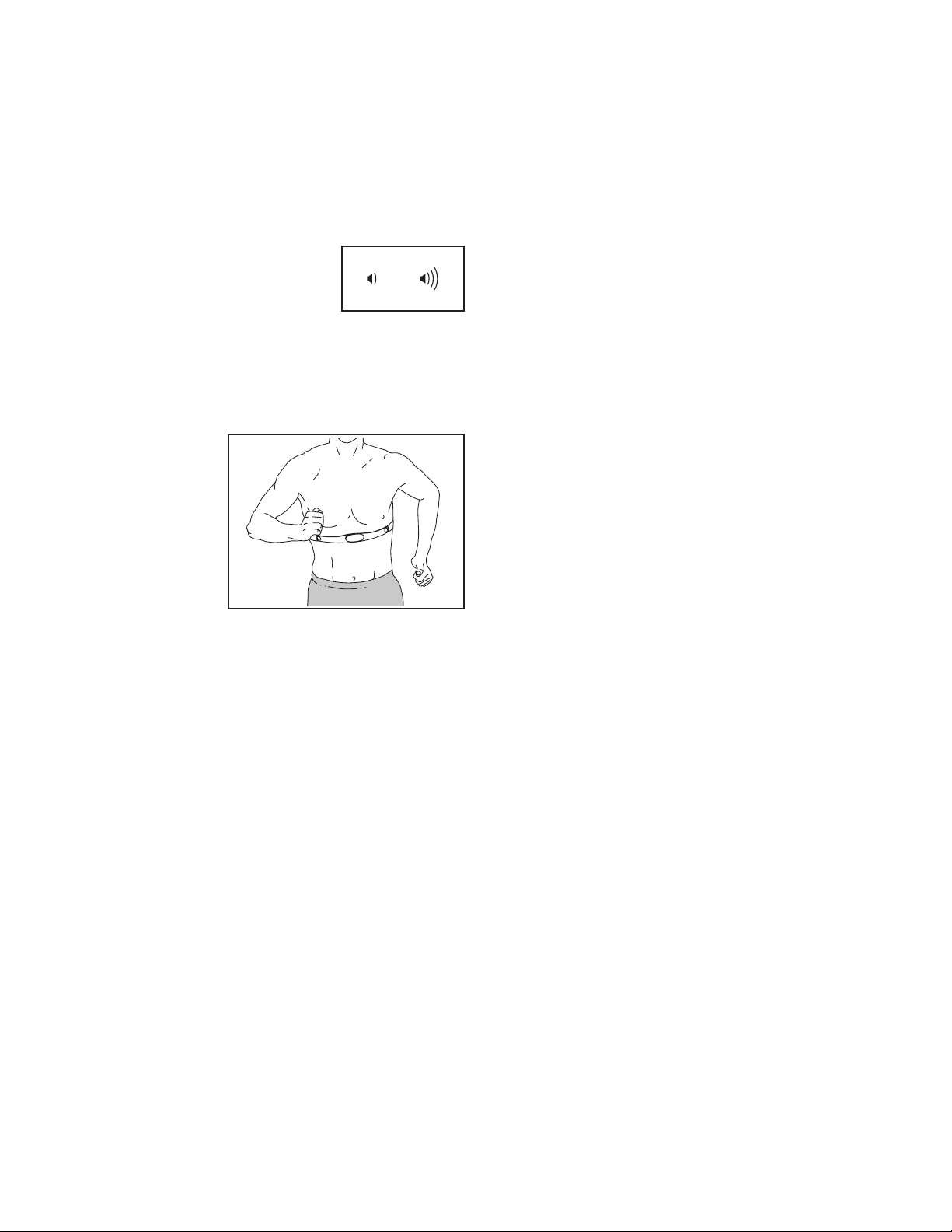

THE OPTIONAL CHEST HEART RATE MONITOR

HOW TO CONNECT YOUR SMART DEVICE TO THE CONSOLE

The console supports BLUETOOTH connections to smart devices via the iFit app and to compatible heart rate monitors. Note: Other BLUETOOTH connections are not supported.

1. Download and install the iFit app on your smart device.

On your iOS® or Android™ smart device, open the

App Store℠ or the Google Play™ store, search for

the free iFit app, and then install the app on your smart device. Make sure that the BLUETOOTH option is enabled on your smart device.

Then, open the iFit app and follow the instructions

to set up an iFit account and customize settings.

Whether your goal is to burn fat or to strengthen your cardiovascular system, the key to achieving the best results is to maintain the proper heart rate during your workouts. The optional chest heart rate monitor will enable you to continuously monitor your heart rate while you exercise, helping you to reach your personal fitness goals. To purchase a chest heart rate moni-

tor, please see the front cover of this manual.

Note: The console is compatible with all BLUETOOTH Smart heart rate monitors.

2. Connect your smart device to the console.

Follow the instructions in the iFit app to connect

your smart device to the console.

When a connection is established, the LED on the

console will flash blue. Press the IFit Sync button on the console to confirm the connection; the LED on the console will then turn solid blue.

3. Record and track your workout information.

Follow the instructions in the iFit app to record and

track your workout information.

4. Disconnect your smart device from the console if desired.

To disconnect your smart device from the console,

press and hold the IFit Sync button on the console for 5 seconds.

Note: All BLUETOOTH connections between the

console and other devices (including any smart devices, heart rate monitors, and so forth) will be disconnected.

HOW TO CONNECT YOUR HEART RATE MONITOR TO THE CONSOLE

The console is compatible with all BLUETOOTH Smart heart rate monitors.

THE SETTINGS MODE

The console features a settings mode that allows you to select a unit of measurement for the console and to view console usage information.

To connect your BLUETOOTH Smart heart rate monitor to the console, press the IFit Sync button on the console. When a connection is established, the LED on the console will flash red twice.

Note: If there is more than one compatible heart rate monitor near the console, the console will connect to the heart rate monitor with the strongest signal.

To disconnect your heart rate monitor from the console, press and hold the IFit Sync button on the console for 5 seconds.

Note: All BLUETOOTH connections between the console and other devices (including any smart devices, heart rate monitors, and so forth) will be disconnected.

To select the settings mode, press and hold down the On/Reset button until the settings mode information appears in the display.

The console can show pedaling speed and distance in either miles or kilometers. The upper display will show the selected unit of measurement. An E for English miles or an M for metric kilometers will appear in the display. To change the unit of measurement, press the Intensity button repeatedly.

Note: When you replace the batteries, it may be necessary to reselect the unit of measurement.

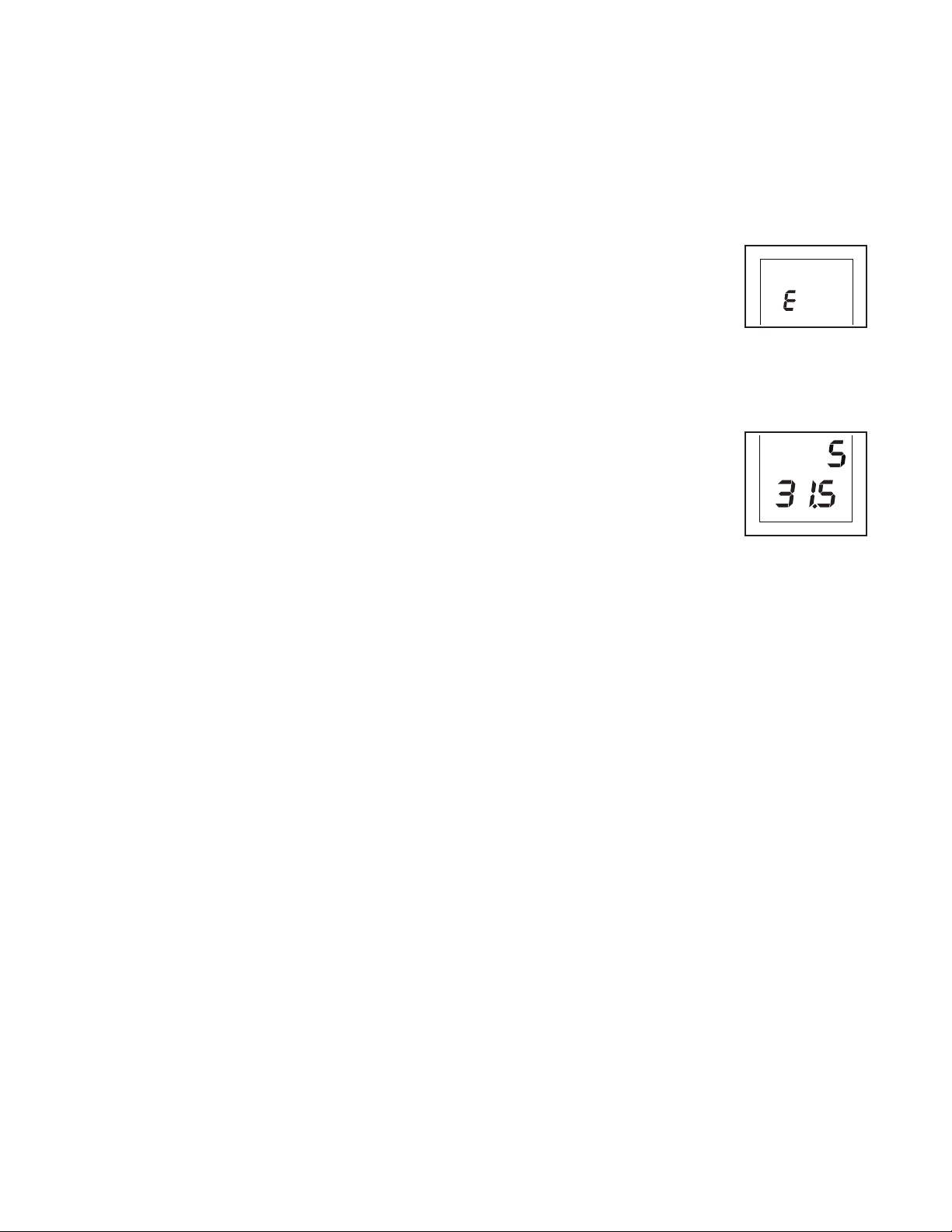

Press the Wt. Loss button to view the total distance and the total time. The center display will show the total time (in hours) that the console has been used since the elliptical was purchased. The lower display will show the total distance (in miles or kilometers) that the elliptical has been pedaled.

To exit the settings mode, press the Wt. Loss button repeatedly.

FCC INFORMATION

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC CAUTION: To assure continued compliance, use only shielded interface cables when connecting to computer or peripheral devices. Changes or modifications not expressly approved by the party respon-

sible for compliance could void the user’s authority to operate this equipment.

MAINTENANCE AND TROUBLESHOOTING

MAINTENANCE

Regular maintenance is important for optimal performance and to reduce wear. Inspect and properly tighten all parts each time the elliptical is used. Replace any worn parts immediately.

To clean the elliptical, use a damp cloth and a small amount of mild soap. IMPORTANT: To avoid damage

to the console, keep liquids away from the console and keep the console out of direct sunlight.

CONSOLE TROUBLESHOOTING

Most console problems are the result of low batteries. To replace the batteries, see assembly step 14 on page 13.

If the console does not display your heart rate when you use the handgrip heart rate monitor, see step 5 on page 19.

HOW TO LEVEL THE ELLIPTICAL

If the elliptical rocks slightly on your floor during use, see HOW TO LEVEL THE ELLIPTICAL on page 15.

HOW TO GREASE THE ROLLERS

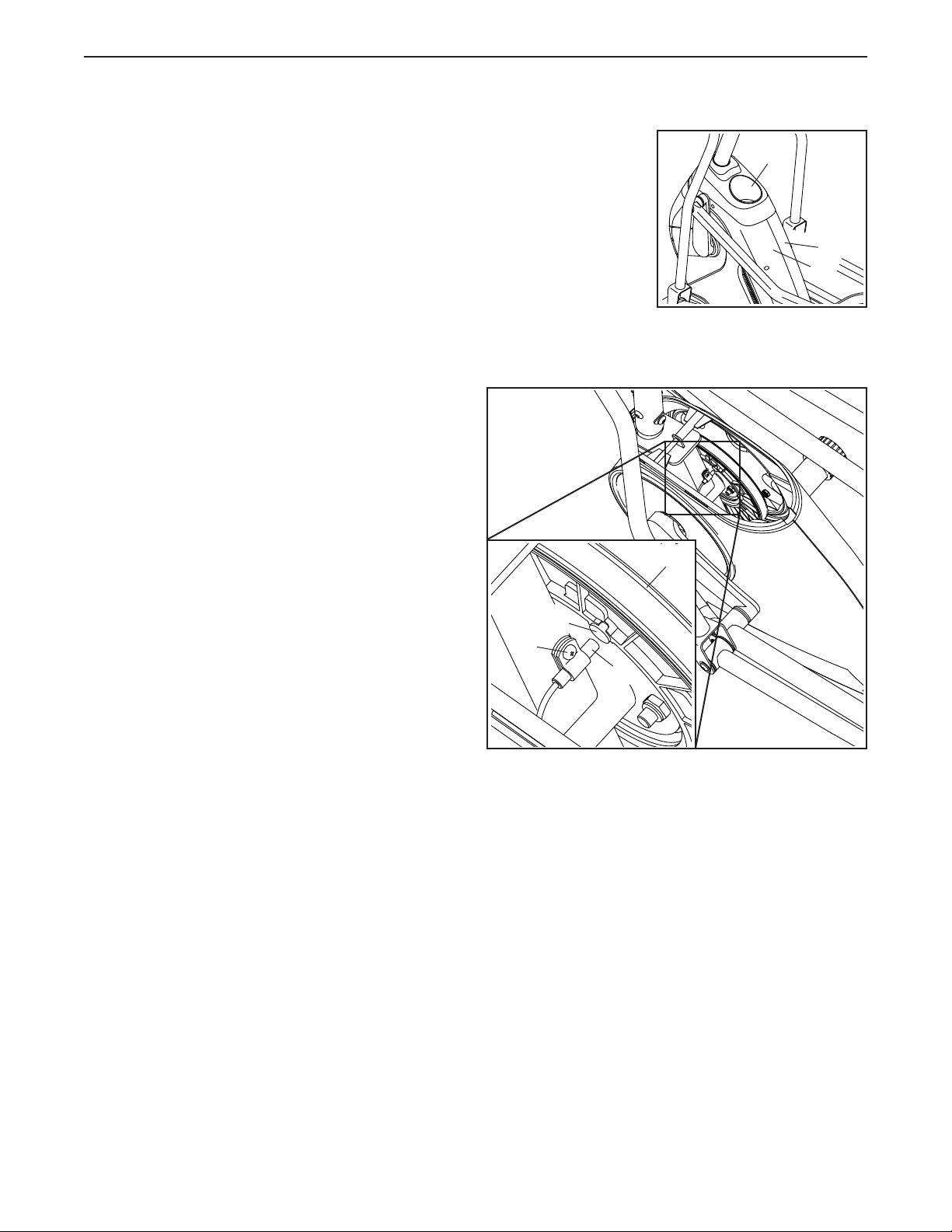

To adjust the reed switch, first use a standard screwdriver and carefully pry the Accessory Tray (50) upward off the Right and Left Shields (48, 49).

Next, locate the Reed Switch (33). Turn the Pulley (15) until a Magnet (65) is aligned with the Reed Switch.

See the EXPLODED DRAWING near the end of this manual. If the Rollers (16) squeak when moving on the

Track (11), apply a small amount of the included PTFE grease to a paper towel. Next, spread a thin layer of grease evenly along the Track where the Rollers move. Then, wipe off any excess grease.

HOW TO ADJUST THE REED SWITCH

If the console does not display correct feedback, the reed switch should be adjusted.

Slightly loosen the indicated M4 x 16mm Screw (56). Slide the Reed Switch (33) slightly closer to or away from the Magnet (65), and then retighten the Screw. Then, rock the Pulley (15) forward and backward just enough that the Magnet passes the Reed Switch repeatedly.

Repeat these actions until the console displays correct feedback. When the reed switch is correctly adjusted, reattach the accessory tray.

HOW TO ADJUST THE DRIVE BELT

If the pedals slip while you are pedaling, even while the resistance is adjusted to the highest level, the drive belt may need to be adjusted.

To adjust the drive belt, first use a standard screwdriver and carefully pry the Accessory Tray (50) upward off the Right and Left Shields (48, 49).

Next, remove the M6 Bolt Set (67) from the Right Upper Body Leg (5) and the Right Pedal Arm (9). Then, gently move the Right Pedal Arm out of the way.

See EXPLODED DRAWING A on page 30. Identify the Right and Left Shields (48, 49). Remove the M4 x 16mm Screws (56) and the M4 x 16mm Selftapping Screws (57) from the Right and Left Shields; make sure to note the location of each Screw. Then, gently remove the Right Shield.

Next, locate and loosen the M6 x 20mm Screw (25). Tighten the M10 x 55mm Screw (20) until the Drive Belt (55) is tight. Then, retighten the Screw.

52, 53

Then, remove the M8 x 20mm Screw (61), the Axle Cover (44), and the M8 Washer (not shown) from the Right Roller Arm (7) and the right Crank Arm (not shown). Gently move the Right Roller Arm out of the way. Then, use a standard screwdriver and gently pry the Outer and Inner Crank Covers (52, 53) off the right Crank Arm.

Then, reattach the parts that you removed.

EXERCISE GUIDELINES

WARNING: Before beginning this

or any exercise program, consult your physician. This is especially important for persons over age 35 or persons with pre-existing health problems.

The heart rate monitor is not a medical device. Various factors may affect the accuracy of heart rate readings. The heart rate monitor is intended only as an exercise aid in determining heart rate trends in general.

These guidelines will help you to plan your exercise program. For detailed exercise information, obtain a reputable book or consult your physician. Remember, proper nutrition and adequate rest are essential for successful results.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your heart rate as a guide to find the proper intensity level. The chart below shows recommended heart rates for fat burning and aerobic exercise.

Burning Fat—To burn fat effectively, you must exercise at a low intensity level for a sustained period of time. During the first few minutes of exercise, your body uses carbohydrate calories for energy. Only after the first few minutes of exercise does your body begin to use stored fat calories for energy. If your goal is to burn fat, adjust the intensity of your exercise until your heart rate is near the lowest number in your training zone. For maximum fat burning, exercise with your heart rate near the middle number in your training zone.

Aerobic Exercise—If your goal is to strengthen your cardiovascular system, you must perform aerobic exercise, which is activity that requires large amounts of oxygen for prolonged periods of time. For aerobic exercise, adjust the intensity of your exercise until your heart rate is near the highest number in your training zone.

WORKOUT GUIDELINES

Warming Up—Start with 5 to 10 minutes of stretch-

ing and light exercise. A warm-up increases your body temperature, heart rate, and circulation in preparation for exercise.

Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During the first few weeks of your exercise program, do not keep your heart rate in your training zone for longer than 20 minutes.) Breathe regularly and deeply as you exercise ; never hold your breath.

To find the proper intensity level, find your age at the bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your age define your “training zone.” The lowest number is the heart rate for fat burning, the middle number is the heart rate for maximum fat burning, and the highest number is the heart rate for aerobic exercise.

Cooling Down—Finish with 5 to 10 minutes of stretching. Stretching increases the flexibility of your muscles and helps to prevent post-exercise problems.

EXERCISE FREQUENCY

To maintain or improve your condition, complete three workouts each week, with at least one day of rest between workouts. After a few months of regular exercise, you may complete up to five workouts each week, if desired. Remember, the key to success is to make exercise a regular and enjoyable part of your everyday life.

SUGGESTED STRETCHES

The correct form for several basic stretches is shown at the right. Move slowly as you stretch; never bounce.

1. Toe Touch Stretch

Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible. Hold for 15 counts, then relax. Repeat 3 times. Stretches: Hamstrings, back of knees and back.

2. Hamstring Stretch

Sit with one leg extended. Bring the sole of the opposite foot toward you and rest it against the inner thigh of your extended leg. Reach toward your toes as far as possible. Hold for 15 counts, then relax. Repeat 3 times for each leg. Stretches: Hamstrings, lower back and groin.

3. Calf/Achilles Stretch

With one leg in front of the other, reach forward and place your hands against a wall. Keep your back leg straight and your back foot flat on the floor. Bend your front leg, lean forward and move your hips toward the wall. Hold for 15 counts, then relax. Repeat 3 times for each leg. To cause further stretching of the achilles tendons, bend your back leg as well. Stretches: Calves, achilles tendons and ankles.

4. Quadriceps Stretch

With one hand against a wall for balance, reach back and grasp one foot with your other hand. Bring your heel as close to your buttocks as possible. Hold for 15 counts, then relax. Repeat 3 times for each leg. Stretches: Quadriceps and hip muscles.

5. Inner Thigh Stretch

Sit with the soles of your feet together and your knees outward. Pull your feet toward your groin area as far as possible. Hold for 15 counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip muscles.

PART LIST

Key No. Qty. Description Key No. Qty. Description

Model No. PFEL03916.0 R0816B

1 1 Frame 2 1 Upright 3 1 Right Upper Body Arm 4 1 Left Upper Body Arm 5 1 Right Upper Body Leg 6 1 Left Upper Body Leg 7 1 Right Roller Arm 8 1 Left Roller Arm 9 1 Right Pedal Arm 10 1 Left Pedal Arm 11 1 Track 12 1 Front Stabilizer 13 2 Crank Arm 14 1 Crank 15 1 Pulley 16 2 Roller 17 4 Roller Spacer 18 1 Upright Axle 19 4 Bushing C 20 1 M10 x 55mm Screw 21 3 Crank Spacer 22 2 Pulse Sensor 23 1 Eddy Mechanism 24 1 Idler 25 1 M6 x 20mm Screw 26 1 M6 Washer 27 1 M6 x 20mm Shoulder Screw 28 2 M10 Nut 29 1 Resistance Motor 30 1 Console 31 1 Pulse Wire 32 1 Main Wire 33 1 Reed Switch/Wire 34 2 Bearing 35 1 Clamp 36 4 Bushing A 37 4 Bushing B 38 4 Leveling Foot 39 2 Foot 40 2 Handlebar Cap 41 2 Foam Grip 42 2 Dome Cap 43 2 Front Stabilizer Cap 44 4 Axle Cover 45 2 Rear Stabilizer Cap 46 1 Right Pedal 47 1 Left Pedal 48 1 Right Shield 49 1 Left Shield

50 1 Accessory Tray 51 1 Front Upright Cover 52 2 Outer Crank Cover 53 2 Inner Crank Cover 54 1 Rear Upright Cover 55 1 Drive Belt 56 15 M4 x 16mm Screw 57 20 M4 x 16mm Self-tapping Screw 58 1 M4 x 12mm Bright Screw 59 6 M8 x 38mm Bolt 60 10 M8 Locknut 61 10 M8 x 20mm Screw 62 2 M10 Curved Washer 63 6 M8 Washer 64 6 M10 Washer 65 2 Magnet 66 2 5/16” x 25mm Screw 67 2 M6 Bolt Set 68 2 M4 x 19mm Screw 69 4 M8 Split Washer 70 2 M5 Bolt Set 71 1 Collar 72 1 M10 x 60mm Bolt 73 1 M10 x 53mm Screw 74 5 M10 x 20mm Screw 75 2 M10 x 38mm Screw 76 2 M10 x 100mm Screw 77 2 M10 Large Locknut 78 1 M5 x 10mm Screw 79 10 #10 x 14mm Screw 80 2 M10 Split Washer 81 2 Track Cap 82 2 Pedal Arm Cap 83 6 Bushing D 84 8 M4 x 12mm Screw 85 2 Pivot Cover A 86 2 Pivot Cover B 87 2 Left Roller Cover 88 2 Right Roller Cover 89 2 Wheel 90 2 M10 x 45mm Bolt 91 1 M10 Locknut 92 1 Tablet Holder 93 4 #8 x 15mm Screw * – Assembly Tool * – Grease Packet * – PTFE Grease Packet

* – User’s Manual

Note: Specifications are subject to change without notice. For information about ordering replacement parts, see the back cover of this manual. *These parts are not illustrated.

EXPLODED DRAWING A

Model No. PFEL03916.0 R0816B

EXPLODED DRAWING B

Model No. PFEL03916.0 R0816B

ORDERING REPLACEMENT PARTS

To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to provide the following information when contacting us:

• the model number and serial number of the product (see the front cover of this manual)

• the name of the product (see the front cover of this manual)

• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED DRAWING near the end of this manual)

LIMITED WARRANTY

IMPORTANT: To protect your fitness equipment with an extended service plan, see page 4.

ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and

material, under normal use and service conditions. The frame is warranted for ve (5) years from the date

of purchase. Parts and labor are warranted for ninety (90) days from the date of purchase.

This warranty extends only to the original purchaser (customer). ICON’s obligation under this warranty is limited to repairing or replacing, at ICON’s option, the product through one of its authorized service centers.

All repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped

to a service center, freight charges to and from the service center will be the customer’s responsibility. If

replacement parts are shipped while the product is under warranty, the customer will be responsible for a minimal handling charge. For in-home service, the customer will be responsible for a minimal trip charge. This warranty does not extend to freight damage to the product. This warranty will automatically be voided if the product is used as a store display model, if the product is purchased or transported outside the USA, if all instructions in this manual are not followed, if the product is abused or improperly or abnormally used,

or if the product is used for commercial or rental purposes. No other warranty beyond that specically set

forth above is authorized by ICON.

ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in connection with the use or performance of the product; damages with respect to any economic loss, loss of

property, loss of revenues or prots, loss of enjoyment or use, or costs of removal or installation; or other

consequential damages of any kind. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to the customer.

The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of

merchantability or tness for a particular purpose are limited in their scope and duration to the terms set

forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply to the customer.

This warranty provides specic legal rights; the customer may have other rights that vary from state to state.

ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813

Pro-Form PFEL03916 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
