www.proform.com
Model No. PFEL03009.1
Serial No.
Write the serial number in the
space above for reference.
Serial Number
Decal
QUESTIONS?
If you have questions, or if parts are
damaged or missing, DO NOT
CONTACT THE STORE; please
contact Customer Care.
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
USERʼS MANUAL
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.proformservice.com
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Keep this manual
for future reference.
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
MPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
I
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO USE THE ELLIPTICAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

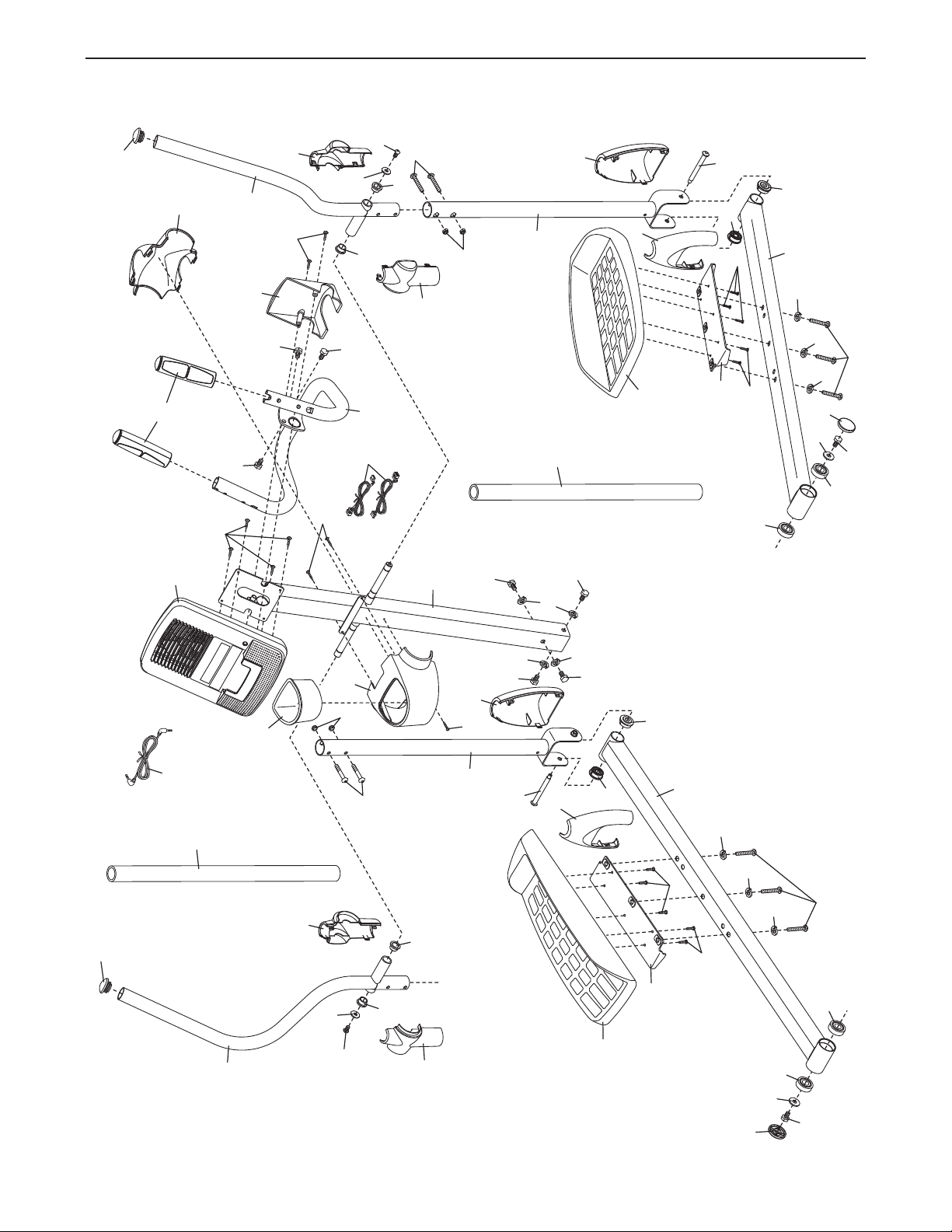

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, see
the front cover of this manual and request a
free replacement decal. Apply the decal in the
location shown. Note: The decal(s) may not be
shown at actual size.
PROFORM is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and
nstructions in this manual and all warnings on your elliptical before using your elliptical. ICON
i
assumes no responsibility for personal injury or property damage sustained by or through the use of
this product.
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or
persons with pre-existing health problems.
2. Use the elliptical only as described in this
manual.
3. It is the responsibility of the owner to ensure
that all users of the elliptical are adequately
informed of all precautions.
4. The elliptical is intended for home use only.
Do not use the elliptical in a commercial,
rental, or institutional setting.
5. Keep the elliptical indoors, away from
moisture and dust. Do not put the elliptical in
a garage or covered patio, or near water.
6. Place the elliptical on a level surface, with a
mat beneath it to protect the floor or carpet.
Make sure that there is at least 3 ft. (0.9 m) of
clearance in the front and rear of the elliptical
and 2 ft. (0.6 m) on each side.
9. The elliptical should not be used by persons
weighing more than 250 lbs. (113 kg).
10. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the elliptical. Always wear athletic
shoes for foot protection while exercising.
11. Hold the handlebars or the upper body arms
when mounting, dismounting, or using the
elliptical.
12. The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in
determining heart rate trends in general.
13. The elliptical does not have a freewheel; the
pedals will continue to move until the
flywheel stops. Reduce your pedaling speed
in a controlled way.
14. Keep your back straight while using the
elliptical; do not arch your back.
7. Inspect and properly tighten all parts
regularly. Replace any worn parts
immediately.
8. Keep children under age 12 and pets away
from the elliptical at all times.
15. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
3
BEFORE YOU BEGIN
Thank you for purchasing the PROFORM®ZE 3 elliptical. The ZE 3 elliptical provides an array of features
designed to make your workouts at home more effec-
ive and enjoyable.
t
or your benefit, read this manual carefully before
F
you use the elliptical. If you have questions after
reading this manual, please see the front cover of this
Upper Body Arm
Pulse Sensor
Handlebar
Water Bottle Holder*
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
ecal are shown on the front cover of this manual.
d
efore reading further, please familiarize yourself with
B
the parts that are labeled in the drawing below.
Fan
Console
Pedal Disc
Handle
Leveling Foot
Wheel
Pedal
*Water bottle is not included
4
ASSEMBLY
M10 x 48mm Patch
Screw (75)–6
M10 x 20mm Patch
Screw (79)–7
M8 x 20mm
Patch Screw
(80)–2
M4 x 48mm
Screw (89)–2
M8 x 45mm Button
Bolt (76)–4
M10 x 85mm Patch Screw (82)–4
M4 x 16mm
Screw (92)–7
Shoulder Patch Bolt (31)–2
M8 Washer
(33)–2
M10 Split
Washer (78)–10
M8 Jam Nut
(77)–4
Assembly requires two persons. Place all parts of the elliptical in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s), assembly requires a Phillips screwdriver .
See the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following
the key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if
it has been preassembled. To avoid damaging parts, do not use power tools for assembly.
5
1.
To make assembly easier, read the information on page 5 before you begin.
While a second person lifts the rear of the
rame (1), attach the Rear Stabilizer (70) to the
F
Frame with two M10 x 85mm Patch Screws
(82).
1
70
1
82
2. Orient the Front Stabilizer (73) so that the
“Front” sticker is facing away from the front of
the Frame (1).
While a second person lifts the front of the
Frame (1), attach the Front Stabilizer (73) to the
Frame with two M10 x 85mm Patch Screws
(82).
2
73
1
82
6
3. Orient the Upright (2) and the Top Shield Cover
(37) as shown. Slide the Top Shield Cover
upward onto the Upright.
3
Have a second person hold the Upright (2) near
he Frame (1).
t
See the inset drawing. Locate the wire tie in
the Upright (2). Tie the lower end of the wire tie
to the Wire Harness (42). Next, pull the upper
end of the wire tie upward out of the top of the
Upright.
Tip: To prevent the Wire Harness (42) from
falling into the Upright (2), secure the Wire
Harness with the wire tie.
42
37
1
Wire
Tie
2
2
Wire Tie
42
4. Slide the Upright (2) onto the Frame (1). Tip:
Have a second person hold the Top Shield
Cover (37) out of the way.
Tip: Avoid pinching the Wire Harness (42).
Attach the Upright (2) with four M10 x 20mm
Patch Screws (79) and four M10 Split Washers
(78).
Slide the Top Shield Cover (37) downward and
press it into the Frame (1).
4
Avoid pinching the
Wire Harness (42)
79
78
37
42
1
2
79
78
1
7

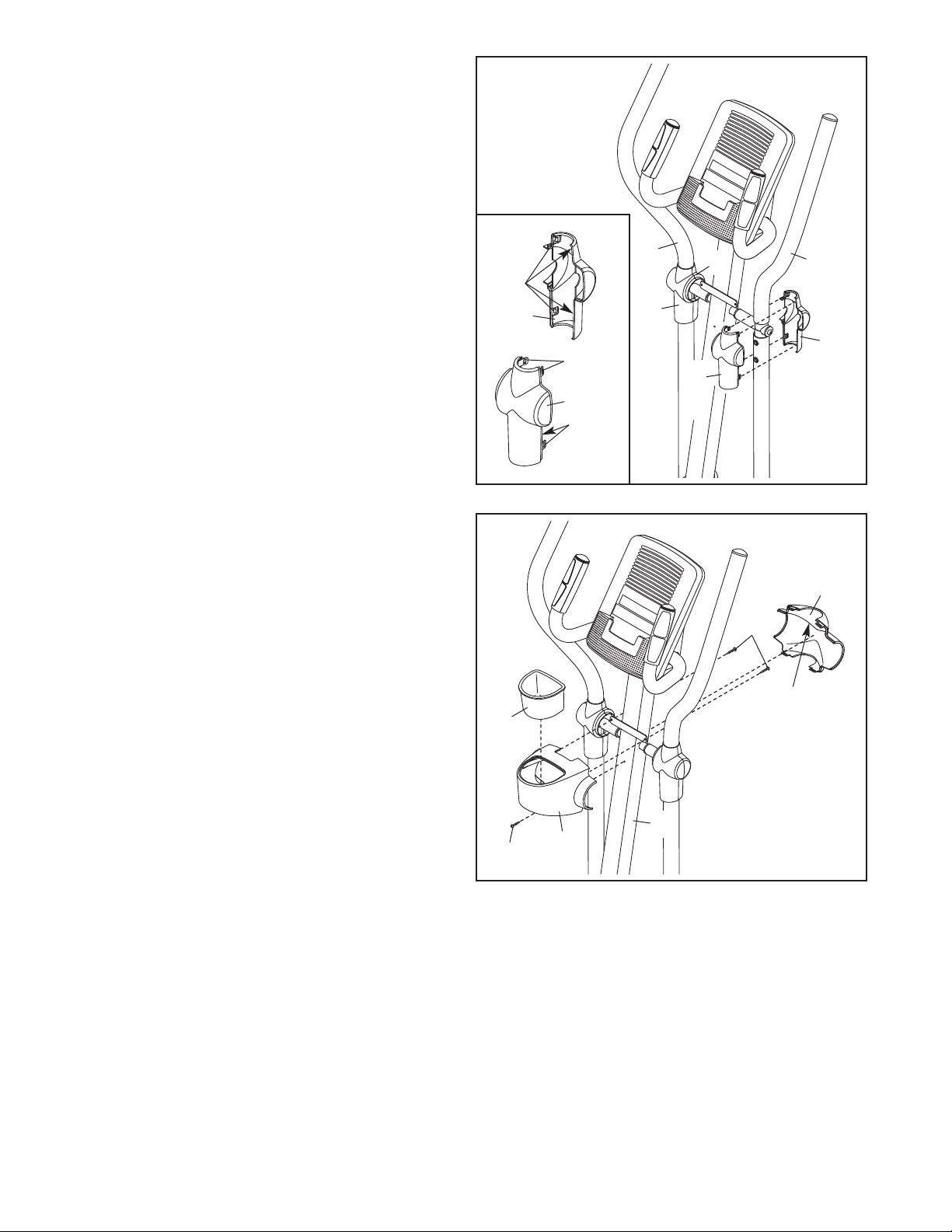

5. See the upper drawing. To avoid pinching or
damaging the Pulse Wires (28) while you
assemble the Handlebar (39), perform the fol-
owing actions:
l
nsert the end of the left Pulse Wire (28) inside
I
the left side of the Handlebar (39).
Then, insert the end of the right Pulse Wire (28)
inside the right side of the Handlebar (39).
See the lower drawing. Have a second person
hold the Handlebar (39) in place around the
Upright (2).
5
39
28
Tip: Avoid pinching the wires. Attach the
Handlebar (39) to the Upright (2) with three M10
x 20mm Patch Screws (79).
28
79
2
39
Avoid pinching
the wires
79
8
6. The Console (4) can use four D batteries (not
included); alkaline batteries are recommended.
IMPORTANT: If the Console has been
xposed to cold temperatures, allow it to
e
warm to room temperature before inserting
atteries. Otherwise, you may damage the
b
console displays or other electronic components. Remove the screws, remove the battery
covers, and insert the batteries into the battery
compartments. Make sure to orient the batter-
ies as shown by the diagrams inside the battery compartments. Then, reattach the battery
covers.
6
Screws
Battery
Covers
Batteries
To purchase an optional power adapter, call
the telephone number on the front cover of
this manual. To avoid damaging the console,
use only a manufacturer-supplied power
adapter. Plug one end of the power adapter
into the receptacle on the console; plug the
other end into an outlet installed in accordance
with all local codes and ordinances.
7. Untie and discard the wire tie attached to the
Wire Harness (42).
Locate the Pulse Wires (28) inside the left and
right sides of the Handlebar (39) and pull them
upward out of the Upright (2).
While a second person holds the Console (4)
near the Upright (2), connect the wires on the
Console to the Wire Harness (42) and to the
Pulse Wires (28).
Insert the excess wires into the Upright (2).
Batteries
4
7
4
42
28
2
92
92
39
Tip: Avoid pinching the wires. Attach the
Console (4) to the Upright (2) with four M4 x
16mm Screws (92).
Avoid
pinching
the wires
9
8. Attach the Console Cover (32) to the back of
the Console (4) with two M4 x 48mm Screws
(89).
8
4
32
9
8
9. Identify the Left and Right Upper Body Arms (8,
9), which are marked with “Left” and “Right”
stickers.
Orient the Left Upper Body Arm (8) and an
Upper Body Leg (6) as shown. Make sure that
the hexagonal holes are in the indicated
location.
Insert the Left Upper Body Arm (8) into the
Upper Body Leg (6).
Attach the Left Upper Body Arm (8) with two M8
x 45mm Button Bolts (76) and two M8 Jam Nuts
(77). Make sure that the Jam Nuts are in the
hexagonal holes. Do not tighten the Button
Bolts yet.
Attach the Right Upper Body Arm (9) to the
other Upper Body Leg (6) in the same way.
9
8
9
77
76
6
Hexagonal
Holes
77
76
10
6
10. Apply a generous amount of the included
grease to the axles on the Upright (2).
rient the Left and Right Upper Body Arms (8,
O
9) as shown, and slide them onto the left and
ight sides of the Upright (2).
r
Attach each Upper Body Arm (8, 9) with an M8
x 20mm Patch Screw (80) and an M8 Washer
(33).
10
8
80
33
Grease
2
9
33
80
11. Apply a small amount of grease to a Shoulder
Patch Bolt (31).
While a second person holds the front end of
the Right Pedal Arm (49) inside the bracket on
the right Upper Body Leg (6), insert the
Shoulder Patch Bolt (31) through the right
Upper Body Leg and the Right Pedal Arm.
Tighten the Shoulder Patch Bolt (31) into the
welded nut on the right Upper Body Leg (6).
Repeat this step to attach the Left Pedal Arm
(not shown) to the left Upper Body Leg (6).
Tighten the M8 x 45mm Button Bolts (76).
11
76
76
6
6
Grease
31
49
11
12. See the inset drawing. Identify a Pivot Cover A
(19), which has hooks, and a Pivot Cover B
(22), which has tabs.
Press a Pivot Cover A (19) and a Pivot Cover B
22) together around the Right Upper Body Arm
(
(9).
Repeat this step for the other side of the
elliptical.
Tip: Make sure that the Pivot Covers (19, 22)
are positioned as shown.
12
Tabs
22
Hooks
19
Hooks
22
8
19
19
9
22
13. Attach the Rear Upright Cover (3) to the Upright
(2) with three M4 x 16mm Screws (92).
Orient the Front Upright Cover (16) so that the
indicated arrow is pointing upward.
Press the Front Upright Cover (16) into the
Rear Upright Cover (3).
Press the Water Bottle Holder (5) into the Rear
Upright Cover (3).
13
5
92
16
92
Arrow
2
3
12
14. Press a Front Leg Cover (20) and a Rear Leg
Cover (21) together around the right Upper
Body Leg (6).
Repeat this step for the other side of the
lliptical.
e
14
6
20
21
15. Identify the Right Pedal (13), which is marked
with a “Right” sticker.
Attach the Right Pedal (13) to the Right Pedal
Arm (49) with three M10 x 48mm Patch Screws
(75) and three M10 Split Washers (78). Make
sure to use the center hole and the two
outer holes to attach the Right Pedal.
Attach the Left Pedal (not shown) to the Left
Pedal Arm (not shown) in the same way.
15
13
49
78
75
13
16. Press the Rear Shield Cover (59) onto the Left
and Right Shields (44, 45).
17. Make sure that all parts of the elliptical are properly tightened. Note: Some hardware may be left over
after assembly is completed. To protect the floor or carpet from damage, place a mat under the elliptical.
16
59
44
5
4
14
HOW TO USE THE ELLIPTICAL
HOW TO MOVE THE ELLIPTICAL
Due to the size and weight of the elliptical, moving
t requires two persons. Stand in front of the ellipti-
i
cal, hold the upright, and place one foot against one of
the front wheels. Pull on the upright and have a second person lift the handle until the elliptical will roll on
the wheels. Carefully move the elliptical to the desired
location, and then lower it to the floor.
Upright
HOW TO EXERCISE ON THE ELLIPTICAL
To mount the elliptical, hold the handlebars or the
pper body arms and step onto the pedal that is in the
u
lowest position. Then, step onto the other pedal.
Upper Body Arms
Handlebars
Pedal
Disc
Pedals
Handle
HOW TO LEVEL THE ELLIPTICAL
If the elliptical
rocks slightly on
your floor during
use, turn one or
both of the leveling feet beneath
the rear stabilizer until the rocking motion is
eliminated.
Leveling
Feet
Place
your foot
here
Push the pedals until they begin to move with a continuous motion. Note: The pedal discs can turn in
either direction. It is recommended that you move
the pedal discs in the direction shown by the
arrow; however, for variety, you can turn the pedal
discs in the opposite direction.
To dismount the elliptical, wait until the pedals come to
a complete stop. Note: The elliptical does not have
a free wheel; the pedals will continue to move until
the flywheel stops. When the pedals are stationary,
step off the highest pedal first. Then, step off the lowest pedal.
15
CONSOLE DIAGRAM
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
When you use the manual mode of the console, you
can change the resistance of the pedals with the touch
of a button. As you exercise, the console will provide
continuous exercise feedback. You can even measure
your heart rate using the handgrip pulse sensor.
The console offers twelve preset workouts. Each preset workout automatically changes the resistance of
the pedals as it guides you through an effective workout.
You can even connect your MP3 player or CD player
to the console sound system and listen to your favorite
music or audio books while you exercise.
To use the manual mode, see page 17. To use a
preset workout, see page 19. To use the sound
system, see page 20.
Note: Before using the console, make sure that batteries are installed (see assembly step 6 on page 9). If
there is a sheet of plastic on the display, remove the
plastic.
16
HOW TO USE THE MANUAL MODE
4. Follow your progress with the display.
1. Turn on the console.
Press any button or begin pedaling to turn on the
onsole.
c
When you turn on the console, the display will turn
on. A tone will sound and the console will be ready
for use.
2. Select the manual mode.
When you turn on the console, the manual mode
will be selected.
If you have selected a workout, reselect the manual mode by pressing the Workouts increase or
decrease button repeatedly until a track appears in
the center display.
Track
3. Begin pedaling and change the resistance of
the pedals as desired.
As you pedal, change the
resistance of the pedals by
pressing the Resistance
increase and decrease buttons.
The left display–This
isplay can show the
d
elapsed time and the
pproximate number of
a
calories you have
burned. The display will
change modes every
few seconds.
Note: During a workout, the display will show the
time remaining in the workout.
The left display will also show your heart rate when
you use the handgrip pulse sensor (see step 5 on
page 18).
The center
display–This display will
show the resistance
level of the pedals for a
few seconds each time
the resistance level
changes.
This display will also
show a track representing 640 revolutions (1/4
mile or 400 meters). As
you exercise, indicators
will appear in succession around the track
until the entire track appears. The track will then
disappear and the indicators will again begin to
appear in succession.
Note: After you press the buttons, it will take a
moment for the pedals to reach the selected resistance level.
The right display–This
display can show the
distance (total number
of revolutions) you have
pedaled and your pedaling pace in revolutions
per minute (rpm). The
display will change modes every few seconds.
17
. Measure your heart rate if desired.
5
If there are sheets
of clear plastic on
he metal con-
t
tacts on the hand-
rip pulse sensor,
g
remove the plastic. In addition,
make sure that
your hands are
clean. To measure
your heart rate,
hold the handgrip
pulse sensor with your palms resting against the
metal contacts. Avoid moving your hands or
gripping the contacts tightly.
When your pulse is detected, a heart-shaped symbol will flash in the display and then your heart rate
will be shown. For the most accurate heart rate
reading, hold the contacts for at least 15 seconds.
Contacts
f your heart rate is not shown, make sure that your
I
hands are positioned as described. Be careful not
to move your hands excessively or to squeeze the
metal contacts tightly. For optimal performance,
lean the metal contacts using a soft cloth; never
c
use alcohol, abrasives, or chemicals to clean
he contacts.
t
6. Turn on the fan if desired.
The fan has high and low speed settings. Press
the Fan button repeatedly to select a fan speed or
to turn off the fan.
Note: If the pedals do not move for about thirty
seconds, the fan will turn off automatically.
7. When you are finished exercising, the console
will turn off automatically.
If the pedals do not move for several seconds, a
series of tones will sound, the console will pause,
and the time will flash in the display.
If the pedals do not move for several minutes, the
console will turn off and the display will be reset.
18
HOW TO USE A PRESET WORKOUT
1. Turn on the console.
See step 1 on page 17.
2. Select a preset workout.
At the end of each segment of the workout, a
series of tones will sound and the next segment of
the profile will begin to flash. If a different resis-
ance level is programmed for the next segment,
t
the resistance level will flash in the display for a
ew seconds to alert you. The resistance of the
f
pedals will then change.
To select a preset workout, press the Workouts
increase or decrease button repeatedly until the
number of the desired workout appears in the right
display.
When you select a preset workout, the duration of
the workout will appear in the left display, the maximum resistance level for the workout will flash in
the center display, and the number of the workout
will appear in the right display.
After a few seconds, a profile of the resistance levels of the workout will scroll across the center display.
If the resistance level for the current segment is
too high or too low, you can manually override the
setting by pressing the Resistance buttons.
However, when the current segment ends, the pedals will automatically adjust to the resistance level
for the next segment.
If you stop pedaling for several seconds, a series
of tones will sound and the workout will pause.
To restart the workout, simply resume pedaling.
The workout will continue until the last segment of
the profile flashes and the last segment of the
workout ends.
Note: If you continue to pedal after the workout is
completed, the display will continue to show exercise feedback; however, the display will not show
the elapsed time until you select the manual mode
or a new workout.
4. Follow your progress with the display.
See step 4 on page 17.
Profile
Note: Complete profiles of the preset workouts are
printed on the sides of the console.
3. Begin pedaling to start the workout.
Each workout is divided into 30 one-minute segments. One resistance level is programmed for
each segment. Note: The same resistance level
may be programmed for consecutive segments.
During the workout, the workout profile will show
your progress (see the drawing above). The flashing segment of the profile represents the current
segment of the workout. The height of the flashing
segment indicates the resistance level for the current segment.
5. Measure your heart rate if desired.
See step 5 on page 18.
6. Turn on the fan if desired.
See step 6 on page 18.
7. When you are finished exercising, the console
will turn off automatically.
See step 7 on page 18.
19
OW TO USE THE SOUND SYSTEM
H
To play music or audio books through the console
sound system while you exercise, plug the audio cable
nto the jack on the console and into the jack on your
i
MP3 player or CD player; make sure that the audio
cable is fully plugged in.
ext, press the play button on your MP3 player or CD
N
player. Adjust the volume level using the volume control on your MP3 player or CD player.
20
MAINTENANCE AND TROUBLESHOOTING
Inspect and tighten all parts of the elliptical regularly.
eplace any worn parts immediately.
R
To clean the elliptical, use a damp cloth and a small
amount of mild soap. IMPORTANT: To avoid damage
o the console, keep liquids away from the con-
t
sole and keep the console out of direct sunlight.
CONSOLE TROUBLESHOOTING
If the console displays become dim, the batteries
should be replaced; most console problems are the
result of low batteries. See assembly step 6 on page 9
for replacement instructions.
If the handgrip pulse sensor does not function properly, see step 5 on page 18.
14
92
44
92
92

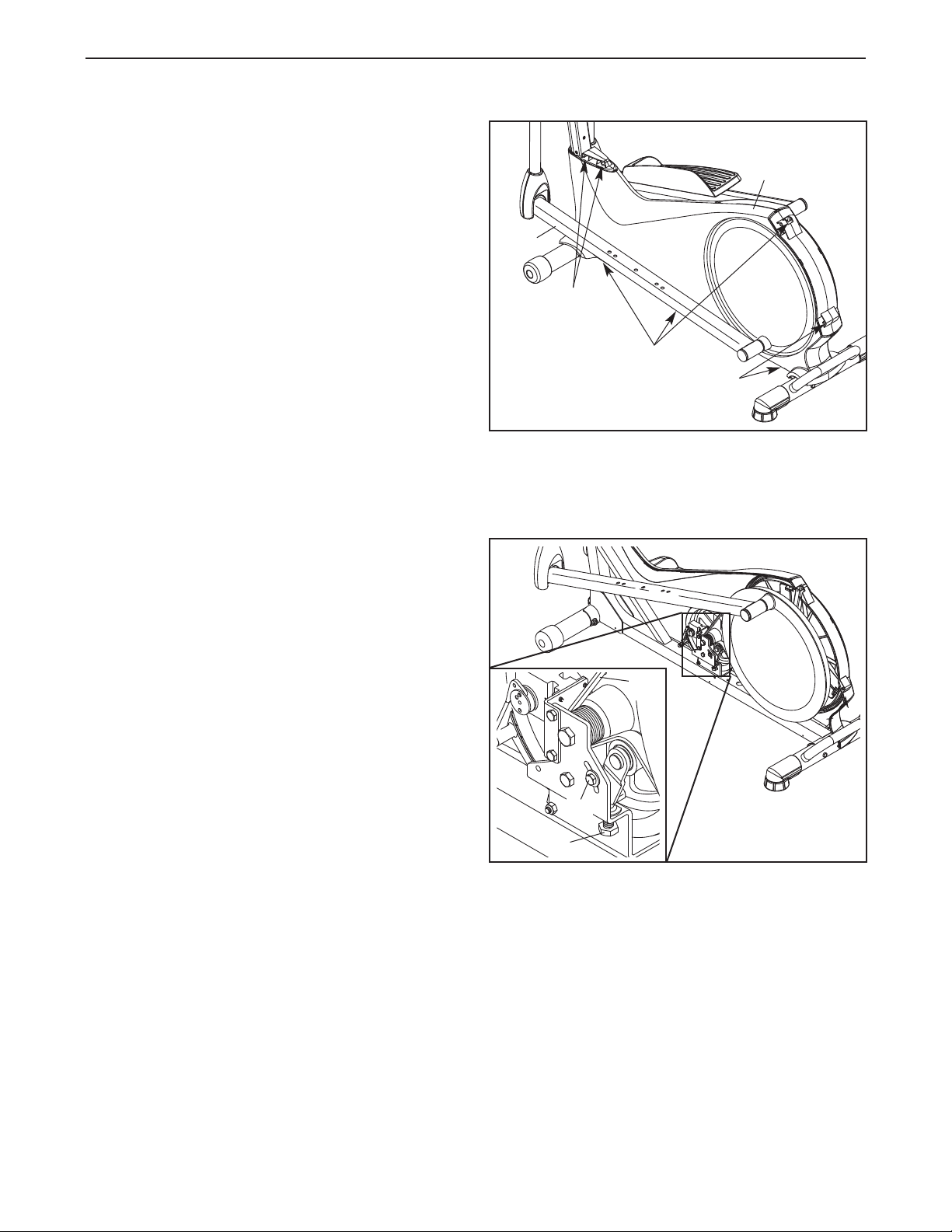

HOW TO ADJUST THE DRIVE BELT
If you can feel the pedals slip while you are pedaling,
even when the resistance is adjusted to the highest
level, the drive belt may need to be adjusted.
To adjust the drive belt, you must remove the left
pedal, the top shield cover, the rear shield cover, and
the left shield.
First, see step 15 on page 13 and remove the left
pedal.
Next, see step 16 on page 14 and remove the rear
shield cover.
Then, see step 4 on page 7 and release the top shield
cover from the left shield. Slide the top shield cover
upward.
Remove the M4 x 16mm Screws (92) from the Left
Shield (44) and then gently move the Left Shield outward over the Left Pedal Arm (14).
Next, loosen the Pivot Screw (88). Then, tighten the
Drive Belt Adjustment Screw (72) until the Drive Belt
(46) is tight.
46
88
72
When the Drive Belt (46) is tight, tighten the Pivot
Screw (88).
Then, reattach the left shield, the rear shield cover, the
top shield cover, and the left pedal.
21
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted.
To adjust the reed switch, you must remove the right
disc cover and the right pedal disc.
Using a flat screwdriver, remove the right Disc Cover
(18).
27
81
Locate the Reed Switch (58). Loosen, but do not
emove, the M4 x 16mm Screw (92).
r
92
58
24
18
Then, remove the M8 x 12mm Screws (81) from the
Right Pedal Disc (27), and gently rotate the Right
Pedal Disc out of the way.
41
Next, rotate the Crank Assembly (24) until a Magnet
(41) is aligned with the Reed Switch (58). Slide the
Reed Switch slightly toward or away from the Magnet.
Then, retighten the M4 x 16mm Screw (92).
Rotate the Crank Assembly (24) for a moment. Repeat
these actions until the console displays correct feedback.
When the reed switch is correctly adjusted, reattach
the right pedal disc and the right disc cover.
22
EXERCISE GUIDELINES
WARNING: B
or any exercise program, consult your physician. This is especially important for persons
over age 35 or persons with pre-existing
health problems.
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determining heart rate trends in general.
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
efore beginning this
urning Fat—To burn fat effectively, you must exer-
B
cise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
he first few minutes of exercise does your body begin
t
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretching
and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise–never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of
stretching. Stretching increases the flexibility of your
muscles and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exercise, you may complete up to five workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.
23
UGGESTED STRETCHES
S
he correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce.
T
1. Toe Touch Stretch
tand with your knees bent slightly and slowly bend forward from
S
your hips. Allow your back and shoulders to relax as you reach
own toward your toes as far as possible. Hold for 15 counts, then
d
relax. Repeat 3 times. Stretches: Hamstrings, back of knees and
back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot
toward you and rest it against the inner thigh of your extended leg.
Reach toward your toes as far as possible. Hold for 15 counts,
then relax. Repeat 3 times for each leg. Stretches: Hamstrings,
lower back and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your back
foot flat on the floor. Bend your front leg, lean forward and move
your hips toward the wall. Hold for 15 counts, then relax. Repeat 3
times for each leg. To cause further stretching of the achilles tendons, bend your back leg as well. Stretches: Calves, achilles tendons and ankles.
4. Quadriceps Stretch
1
2
3
4
With one hand against a wall for balance, reach back and grasp
one foot with your other hand. Bring your heel as close to your
buttocks as possible. Hold for 15 counts, then relax. Repeat 3
times for each leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward.
Pull your feet toward your groin area as far as possible. Hold for
15 counts, then relax. Repeat 3 times. Stretches: Quadriceps and
hip muscles.
5
24
PART LIST Model No. PFEL03009.1 R1110A
Key No. Qty. Description Key No. Qty. Description
11Frame
21Upright
3
41Console
51Water Bottle Holder
62Upper Body Leg
71Resistance Wheel
81Left Upper Body Arm
91Right Upper Body Arm
10 2 Foam Grip
11 2 Upper Cap
12 1 Left Pedal
13 1 Right Pedal
14 1 Left Pedal Arm
15 2 Pedal Bracket
16 1 Front Upright Cover
17 4 Pivot Bushing
18 2 Disc Cover
19 2 Pivot Cover A
20 2 Front Leg Cover
21 2 Rear Leg Cover
22 2 Pivot Cover B
23 4 Bushing Set
24 1 Crank
25 1 Right Crank Arm
26 1 Left Pedal Disc
27 1 Right Pedal Disc
28 2 Pulse Wire
29 4 Bearing
30 2 Pedal Arm Cap
31 2 Shoulder Patch Bolt
32 1 Console Cover
33 4 M8 Washer
34 1 Adjustment Block
35 1 M5 Washer
36 1 Small Snap Ring
37 1 Top Shield Cover
38 2 Crank Bearing
39 1 Handlebar
40 2 Snap Ring
41 2 Magnet
42 1 Wire Harness
43 2 M6 Washer
44 1 Left Shield
45 1 Right Shield
46 1 Drive Belt
47 2 Leveling Foot
48 2 Stabilizer Cap
49 1 Right Pedal Arm
50 2 Wheel
51 1 Flywheel
52 1 Idler
1 Rear Upright Cover
53 1 C-magnet
54 1 Resistance Motor
5 1 Motor Bracket
5
56 1 Adjustment Arm
57 1 Clamp
58 1 Reed Switch/Wire
59 1 Rear Shield Cover
60 1 Key
61 1 M8 Locknut
62 1 M6 x 16mm Screw
63 2 Shoulder Screw
64 1 Flywheel Axle
65 1 C-magnet Bolt
66 1 Idler Bolt
67 1 Key Screw
68 1 Crank Arm Screw
69 4 Resistance Motor Bolt
70 1 Rear Stabilizer
71 2 Motor Bracket Screw
72 1 Drive Belt Adjustment Screw
73 1 Front Stabilizer
74 1 M6 Locknut
75 6 M10 x 48mm Patch Screw
76 4 M8 x 45mm Button Bolt
77 6 M8 Jam Nut
78 10 M10 Split Washer
79 7 M10 x 20mm Patch Screw
80 2 M8 x 20mm Patch Screw
81 8 M8 x 12mm Screw
82 4 M10 x 85mm Patch Screw
83 1 M5 x 7mm Screw
84 10 #10 x 16mm Screw
85 2 M8 x 18mm Hex Screw
86 1 Pulley
87 1 M3.5 x 12mm Screw
88 1 Pivot Screw
89 2 M4 x 48mm Screw
90 1 M4 x 16mm Ground Screw
91 2 Adjustment Nut
92 21 M4 x 16mm Screw
93 2 Pulse Sensor/Wire
94 1 Flywheel Bearing
95 1 Audio Cable
96 1 Left Crank Arm
97 1 Crank Arm Spacer
98 4 M8 x 10mm Screw
99 4 M8 x 15mm Screw
*–Userʼs Manual
*–Assembly Tool
*–Grease Packet
*–Wire Tie
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
25
EXPLODED DRAWING A Model No. PFEL03009.1 R1110A
29
29
30
85
33
29
29
33
85
30
84
84
15
13
21
20
20
21
15
84
84
49
31
75
75
23
23
31
6
6
12
23
23
79
78
79
79
78
78
79
22
19
19
22
17
17
33
80
17
17
33
80
76
77
76
77
8
11
9
11
5
10
10
2
4
32
79
79
79
92
92
92
89
3
16
93
14
78
78
78
78
78
78
39
28
95
26
18
18
25
57
92
58
38
40
72
61
60
43
62
67
68
92
64
92
92
92
92
92
45
46
90
50
50
63
63
65
48
48
47
47
37
59
70
73
82
82
42
1
74
77
51
77
53
55
54
69
7
87
56
66
83
71
71
34
35
36
88
43
94
91
38
41
41
26
92
92
92
92
44
24
92
40
92
96
97
81
81
98
98
99
99
86
52
27
81
81
EXPLODED DRAWING B Model No. PFEL03009.1 R1110A
27
ORDERING REPLACEMENT PARTS
o order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
T
provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED
DRAWING near the end of this manual)
LIMITED WARRANTY
IMPORTANT: You must register this product within 30 days of the purchase date to avoid added
fees for service needed under warranty. Go to www.proformservice.com/registration.
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and
material, under normal use and service conditions. The frame is warranted for five (5) years from the date
of purchase. Parts and labor are warranted for ninety (90) days from the date of purchase.
This warranty extends only to the original purchaser. ICONʼs obligation under this warranty is limited to
repairing or replacing, at ICONʼs option, the product through one of its authorized service centers. All
repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped to
a service center, freight charges to and from the service center will be the customerʼs responsibility. For
replacement parts shipped while the product is under warranty, the customer will be responsible for a minimal handling charge. For in-home service, the customer will be responsible for a minimal trip charge. This
warranty does not extend to any damage to a product caused by or attributable to freight damage, abuse,
misuse, improper or abnormal usage, or repairs not provided by an ICON authorized service center; to
products used for commercial or rental purposes or as store display models; or to products transported
or purchased outside the US. No other warranty beyond that specifically set forth above is authorized by
ICON.
ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in connection with the use or performance of the product; damages with respect to any economic loss, loss of
property, loss of revenues or profits, loss of enjoyment or use, or costs of removal or installation; or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of
merchantability or fitness for a particular purpose are limited in their scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights that vary from state to state.
ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813
Part No. 306380 R1110A Printed in China © 2010 ICON IP, Inc.
Loading...
