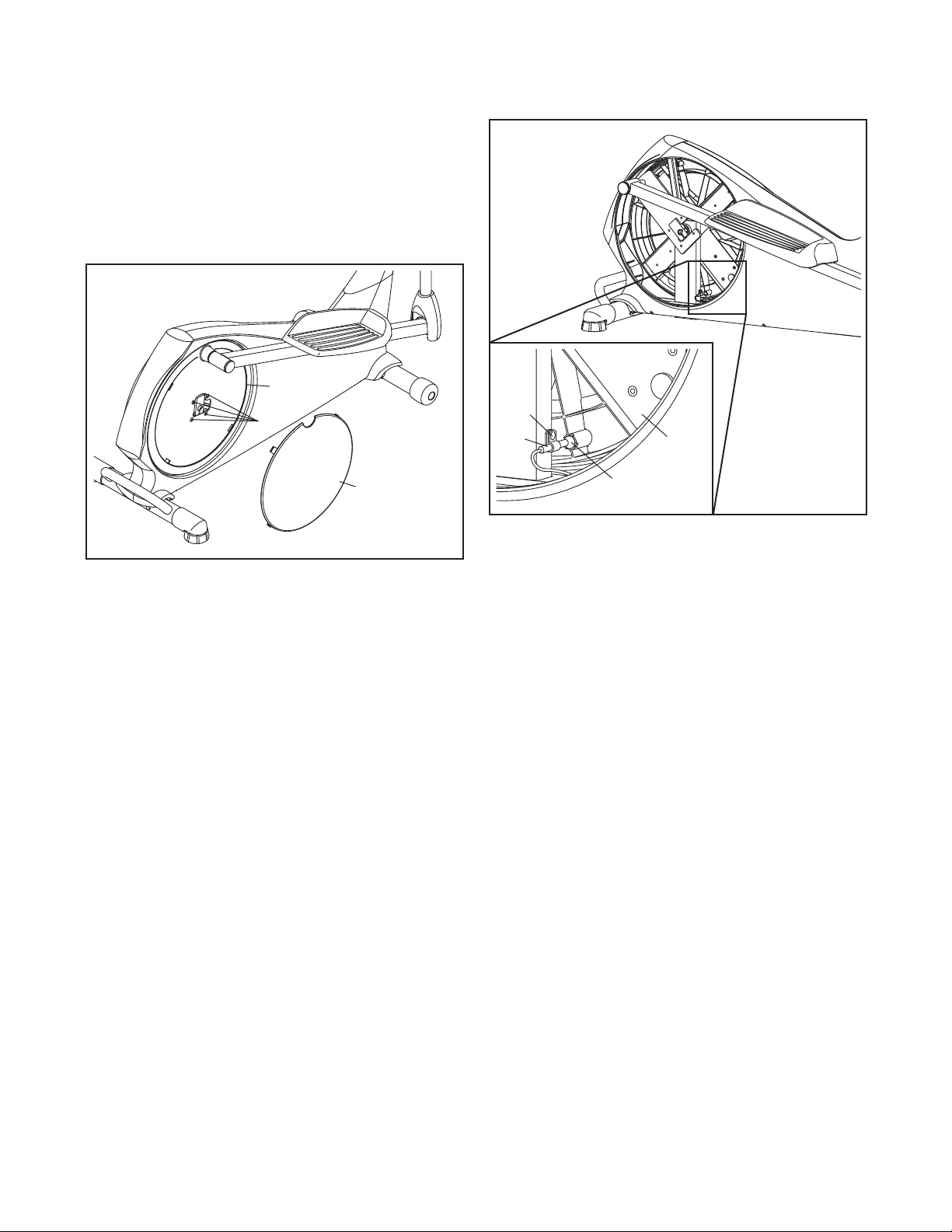

This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, see
the front cover of this manual and request a
free replacement decal. Apply the decal in the
location shown. Note: The decal(s) may not be
shown at actual size.
PROFORM is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your elliptical exerciser before using your elliptical
exerciser. ICON assumes no responsibility for personal injury or property damage sustained by or
hrough the use of this product.
t
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or persons with pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of the elliptical exerciser are
adequately informed of all precautions.
3. Your elliptical exerciser is intended for home
use only. Do not use your elliptical exerciser
in a commercial, rental, or institutional setting.
4. Keep your elliptical exerciser indoors, away
from moisture and dust. Place your elliptical
exerciser on a level surface, with a mat
beneath it to protect the floor or carpet. Make
sure that there is at least 3 ft. (0.9 m) of clearance in the front and rear of your elliptical
exerciser and 2 ft. (0.6 m) on each side.
5. Inspect and properly tighten all parts regularly. Replace any worn parts immediately.
6. Keep children under age 12 and pets away
from your elliptical exerciser at all times.
7. Your elliptical exerciser should not be used
by persons weighing more than 250 lbs.
(113 kg).
8. Wear appropriate exercise clothes when
exercising; do not wear loose clothes that
could become caught on your elliptical exerciser. Always wear athletic shoes for foot
protection.
9. Hold the handgrip pulse sensor or the upper
body arms when mounting, dismounting, or
using your elliptical exerciser.
10. Keep your back straight while using your
elliptical exerciser; do not arch your back.
11. The pulse sensor is not a medical device.
Various factors, including the userʼs movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
12. When you stop exercising, allow the pedals
to slowly come to a stop.
13. If you feel pain or dizziness while exercising,
stop immediately and cool down.
14. Use your elliptical exerciser only as
described in this manual.
3
BEFORE YOU BEGIN
Thank you for purchasing the PROFORM®ZE 3 elliptical exerciser. The ZE 3 elliptical exerciser provides an
array of features designed to make your workouts at
ome more effective and enjoyable.
h
or your benefit, read this manual carefully before
F
you use the elliptical exerciser. If you have ques-
tions after reading this manual, please see the front
Upper Body Arm
Pulse Sensor
Handlebar
Water Bottle Holder*
cover of this manual. To help us assist you, note the
product model number and serial number before contacting us. The model number and the location of the
erial number decal are shown on the front cover of
s
this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Fan
Console
Pedal Disc
Handle
Leveling Foot
Wheel
Pedal
*Water bottle is not included
4
ASSEMBLY
M10 x 48mm Patch
Screw (75)–6
M10 x 20mm Patch
Screw (79)–7
M8 x 20mm
Patch Screw
(80)–2
M4 x 48mm
Screw (89)–2
M8 x 45mm Button
Bolt (76)–4
M10 x 85mm Patch Screw (82)–4
M4 x 16mm
Screw (92)–7
Shoulder Patch Bolt (31)–2
M8 Washer
(33)–2
M10 Split
Washer (78)–10
M8 Jam Nut
(77)–4
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s), assembly requires a Phillips screwdriver.
As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parentheses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The
number following the parentheses is the quantity needed for assembly. Note: If a part is not in the hardware
kit, check to see if it has been preassembled.
5
1.
To make assembly easier, read the information on page 5 before you begin.
While a second person lifts the rear of the
rame (1), attach the Rear Stabilizer (70) to the
F
Frame with two M10 x 85mm Patch Screws
(82).
1
70
1
82
2. Orient the Front Stabilizer (73) so that the
“Front” sticker is facing away from the front of
the Frame (1).
While a second person lifts the front of the
Frame (1), attach the Front Stabilizer (73) to the
Frame with two M10 x 85mm Patch Screws
(82).
2
73
1
82
6

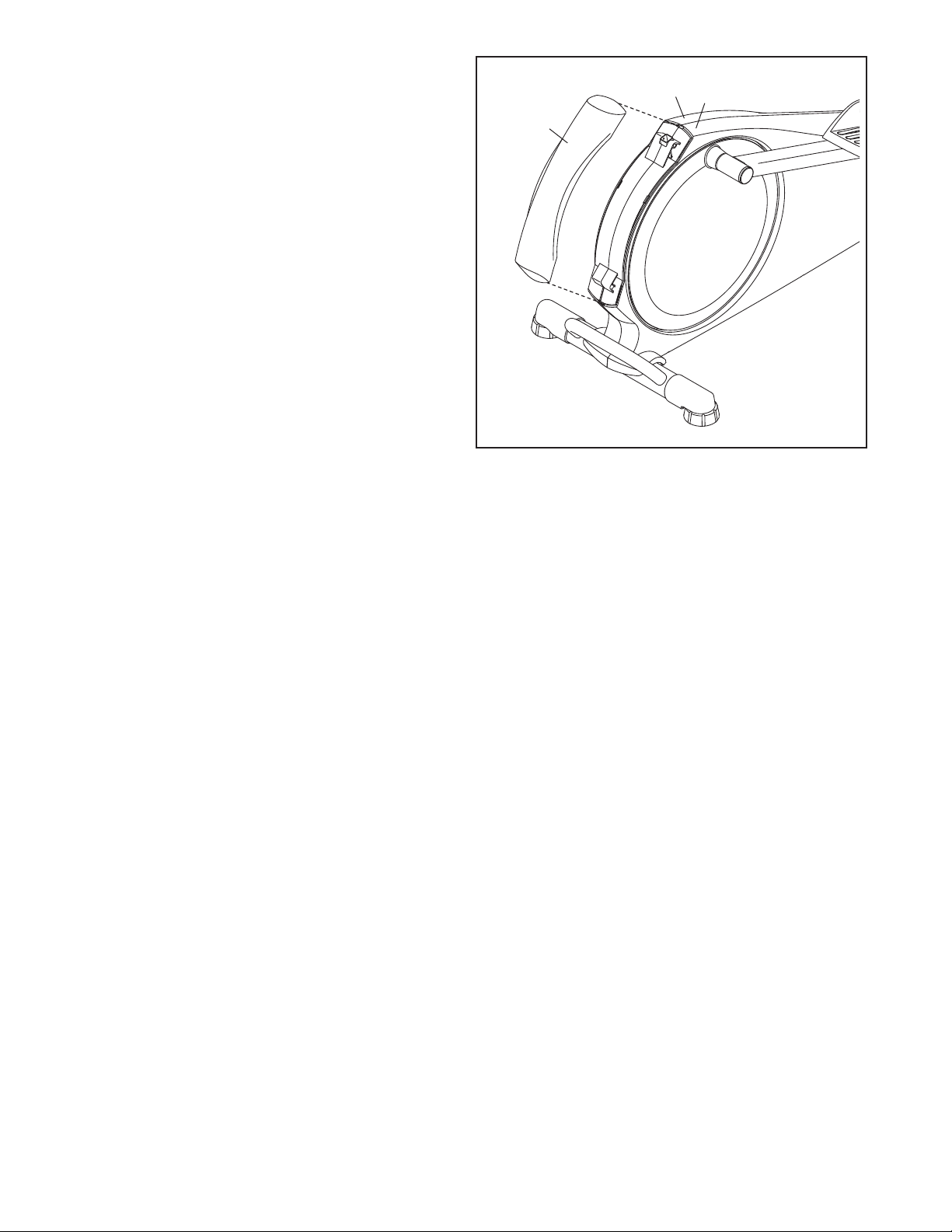

3. Orient the Upright (2) and the Top Shield Cover
(37) as shown. Slide the Top Shield Cover
upward onto the Upright.
3
Have a second person hold the Upright (2) near
he Frame (1).
t
See the inset drawing. Locate the wire tie in
the Upright (2). Tie the lower end of the wire tie
to the Wire Harness (42). Next, pull the upper
end of the wire tie upward out of the top of the
Upright. Then, untie and discard the wire tie.
Tip: To prevent the Wire Harness (42) from
falling into the Upright (2), secure the Wire
Harness with a rubber band or a piece of
tape.
42
37
1
Wire
Tie
2
2
Wire Tie
42
4. Slide the Upright (2) onto the Frame (1). Tip:
Have a second person hold the Top Shield
Cover (37) out of the way.
Tip: Avoid pinching the Wire Harness (42).
Attach the Upright (2) with four M10 x 20mm
Patch Screws (79) and four M10 Split Washers
(78).
Slide the Top Shield Cover (37) downward and
press it into the Frame (1).
4
Avoid pinching the
Wire Harness (42)
79
78
37
42
1
2
79
78
1
7
5. See the upper drawing. To avoid pinching or
damaging the Pulse Wires (28) while you
assemble the Handlebar (39), perform the fol-
owing actions:
l
nsert the end of the left Pulse Wire (28) inside
I
the left side of the Handlebar (39).
Then, insert the end of the right Pulse Wire (28)
inside the right side of the Handlebar (39).
See the lower drawing. Have a second person
hold the Handlebar (39) in place around the
Upright (2).
5
39
28
Tip: Avoid pinching the wires. Attach the
Handlebar (39) to the Upright (2) with three M10
x 20mm Patch Screws (79).
28
79
2
39
Avoid pinching
the wires
79
8
6. The Console (4) can use four D batteries (not
included); alkaline batteries are recommended.
IMPORTANT: If the Console has been
xposed to cold temperatures, allow it to
e
warm to room temperature before inserting
atteries. Otherwise, you may damage the
b
console displays or other electronic components. Remove the screws, remove the battery
covers, insert the batteries into the battery compartments, and reattach the battery covers.
Make sure to orient the batteries as shown
by the diagrams inside the battery compartments.
6
Screws
Battery
Covers
Batteries
To purchase an optional AC adapter, contact
the store where you purchased this product
or call the telephone number on the front
cover of this manual. To avoid damaging the
console, use only a manufacturer-supplied
AC adapter. Plug one end of the AC adapter
into the jack on the console; plug the other end
into an outlet installed in accordance with all
local codes and ordinances.

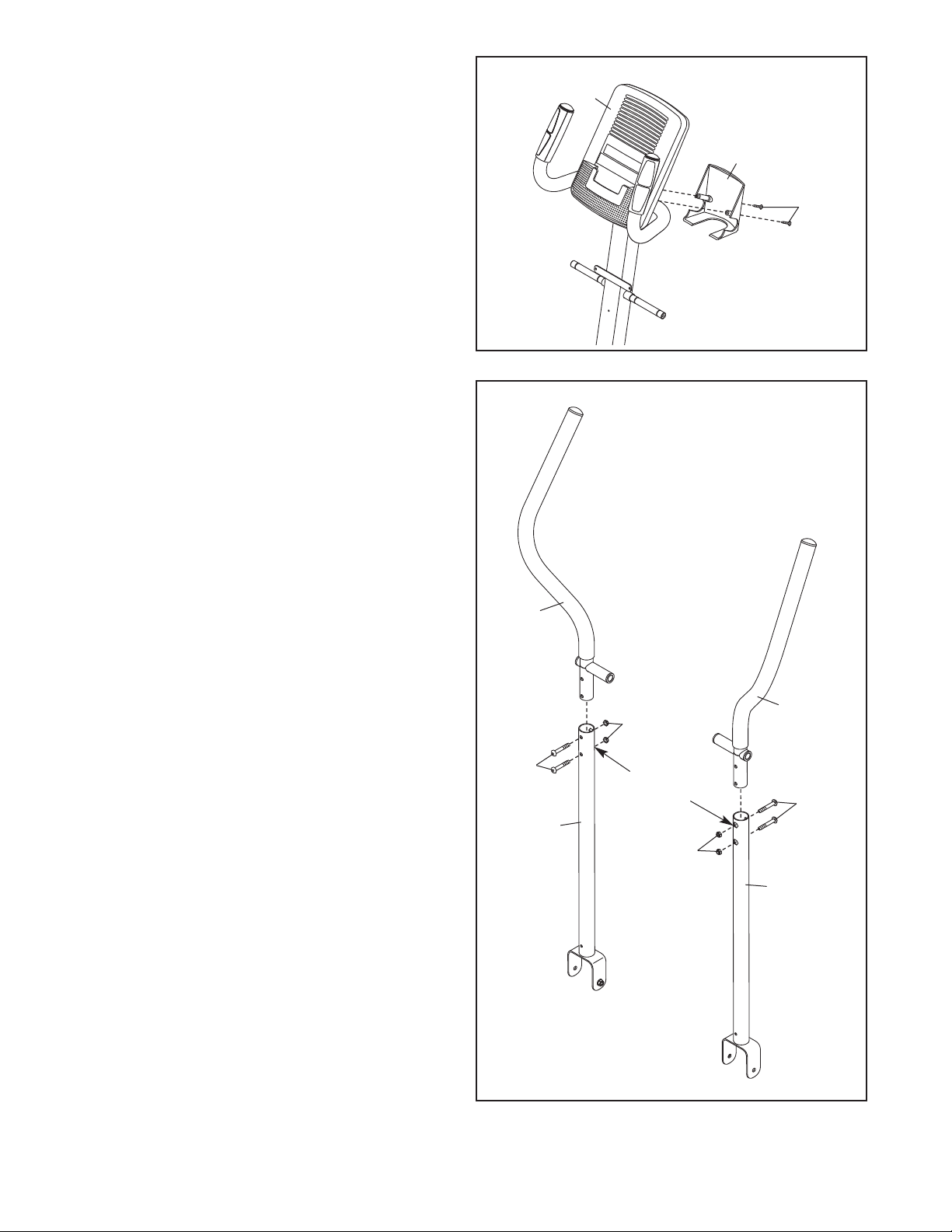

7. Locate the Pulse Wires (28) inside the left and
right sides of the Handlebar (39) and pull them
upward out of the Upright (2).
While a second person holds the Console (4)
near the Upright (2), connect the console wires
to the Wire Harness (42) and to the Pulse Wires
(28).
Insert the excess wires into the Upright (2).
Tip: Avoid pinching the wires. Attach the
Console (4) to the Upright (2) with four M4 x
16mm Screws (92).
Batteries
4
7
4
Console Wires
42
28
2
92
92
39
Avoid
pinching
the wires
9
