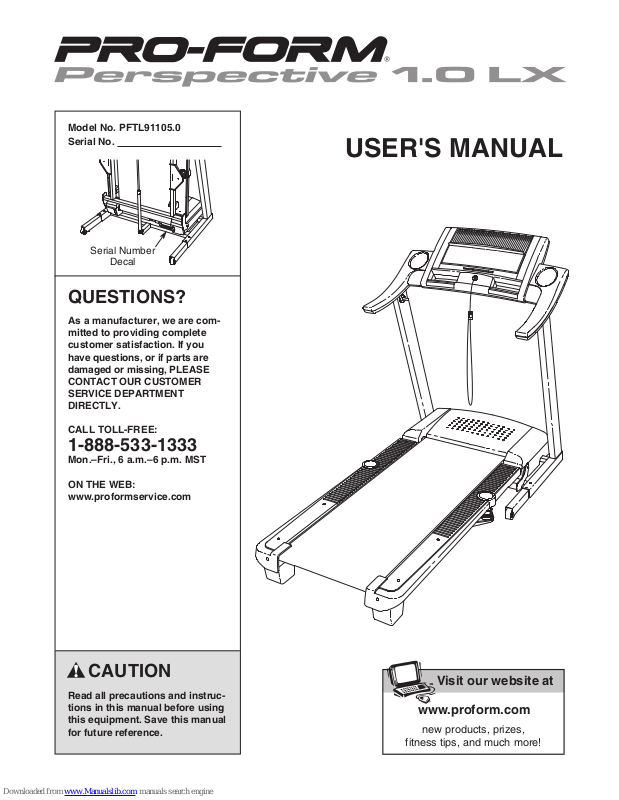

odel No. PFTL91105.0
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
M
Serial No.
Serial Number
Decal
QUESTIONS?
As a manufacturer, we are committed to providing complete
customer satisfaction. If you
have questions, or if parts are
damaged or missing, PLEASE
CONTACT OUR CUSTOMER
SERVICE DEPARTMENT
DIRECTLY.
USER'S MANUAL
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri., 6 a.m.–6 p.m. MST
ON THE WEB:
www.proformservice.com
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
Note: An EXPLODED DRAWING is attached in the center of this manual.
PROFORM is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: T
following important precautions and information before operating the treadmill.
1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
2. Use the treadmill only as described.
3. Place the treadmill on a level surface, with at
least eight feet of clearance behind it and two
feet on each side. Do not place the treadmill
on any surface that blocks air openings. To
protect the floor or carpet from damage, place
a mat under the treadmill.
4. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
5. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
6. Keep children under the age of 12 and pets
away from the treadmill at all times.
7. The treadmill should be used only by persons
weighing 300 pounds or less.
o reduce the risk of burns, fire, electric shock, or injury to persons, read the
on page 12. To purchase a surge suppressor,
see your local PROFORM dealer or call the
toll-free telephone number on the front cover
of this manual and order part number 146148,
or see your local electronics store.
12. Failure to use a properly functioning surge
suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may change
speed, accelerate, or stop unexpectedly,
which may result in a fall and serious injury.
13. Keep the power cord and the surge suppressor away from heated surfaces.
14. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See TROUBLESHOOTING on page 26 if the treadmill is
not working properly.)
15. Read, understand, and test the emergency
stop procedure before using the treadmill (see
HOW TO TURN ON THE POWER on page 14).
8. Never allow more than one person on the
treadmill at a time.
Wear appropriate exercise clothes when
9.
using the treadmill. Do not wear loose clothes
that could become caught in the treadmill.
Athletic support clothes are recommended for
both men and women.
Always wear athletic
shoes. Never use the treadmill with bare feet,
wearing only stockings, or in sandals.
10. When connecting the power cord (see page
12), plug the power cord into a surge suppressor (not included) and plug the surge
suppressor into a grounded circuit capable of
carrying 15 or more amps. No other appliance
should be on the same circuit. Do not use an
extension cord.
11. Use only a single-outlet surge suppressor
that meets all of the specifications described
16. Never start the treadmill while you are standing on the walking belt. Always hold the
handrails while using the treadmill.
17. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
18. The pulse sensor is not a medical device.
Various factors, including the user's movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
19. Never leave the treadmill unattended while it
is running. Always remove the key, unplug
the power cord, and switch the reset/off cir
cuit breaker to the off position when the
treadmill is not in use. (See the drawing on
page 6 for the location of the circuit breaker.)
-
3
0. Do not attempt to raise, lower, or move the
2
treadmill until it is properly assembled. (See
SSEMBLY on page 7, and HOW TO FOLD
A
AND MOVE THE TREADMILL on page 24.)
You must be able to safely lift 45 pounds (20
kg) to raise, lower, or move the treadmill.
21. When folding or moving the treadmill, make
sure that the storage latch is fully closed.
22. Inspect and properly tighten all parts of the
treadmill regularly.
23. Never insert any object into any opening.
24. DANGER: Always unplug the power
cord immediately after use, before cleaning the
treadmill, and before performing the mainte
nance and adjustment procedures described in
this manual. Never remove the motor hood unless instructed to do so by an authorized service representative. Servicing other than the
procedures in this manual should be performed
by an authorized service representative only.
25. The treadmill is intended for in-home use
only. Do not use the treadmill in any
commercial, rental, or institutional setting.
7. An outside antenna system should not be lo-
2
cated in the vicinity of overhead power lines
r other electric light or power circuits, or
o
where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep
from touching such power lines or circuits, as
contact with them might be fatal.
28. To reduce the risk of electric shock, do not remove the cover or the back of the television.
There are no user serviceable parts inside.
Refer servicing to qualified service personnel.
29. Upon completion of any service or repairs to
the treadmill or the television, ask the service
technician to perform safety checks to confirm that the unit is in proper operating condition.
2
• Use No. 10 AWG (5.3mm
) copper, No. 8
AWG (8.4mm2) aluminum, No. 17 AWG
(1.0mm2) copper-clad steel or bronze wire,
or larger as a ground wire.
• Secure an antenna lead-in and ground wires
to the house with stand-off insulators
spaced from 4 to 6 feet (1.22 to 1.83m)
apart.
26. If an outside antenna or cable system is connected, be sure that the antenna or cable system is grounded to provide some protection
against voltage surges and built-up static
charges. Section 810 of the National
Electrical Code, ANSI/NFPA No. 70-1984, provides information with respect to proper
grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit,
connection to grounding electrodes, and requirements for the grounding electrode.
• Mount an antenna discharge unit as close
as possible to where the lead-in enters the
house.
• Use a jumper wire not smaller than No. 6
AWG (13.3mm2) copper, or the equivalent
when a separate antenna-grounding electrode is used. See NEC Section 810-21 (j).
Note to CATV system installer: This reminder is
provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides
guidelines for proper grounding and, in particu
lar, specifies that the cable ground shall be connected to the grounding system of the building,
as close to the point of cable entry as practical.
4
ower Lines
P
Service
Entrance
Conductors
Service
Entrance
Equipment
Ground
Clamp
To External Antenna
Terminal of Treadmill
Ground
Wire
Standoff
nsulators
I
Mast
Antenna
Lead-in Wire
Antenna
Discharge Unit
Power Service Grounding
Electrode System (e.g.
Interior Metal Water Pipe)
Ground
Clamps
Bonding
Jumper
Optional Antenna Grounding Electrode Driven 8
Feet (2.44m) Into The Earth (If Required By Local
Codes). See NEC Section 810–21 (f).
Ground Wire
Ground
Clamps
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS
The decals shown here have been placed on the treadmill. If
a decal is missing, or if it is not legible, call the toll-free telephone number on the front cover of this manual and order a
free replacement decal. Apply the decal in the location
shown.
5
BEFORE YOU BEGIN
hank you for selecting the revolutionary PROFORM
T
ERSPECTIVE 1.0 LX treadmill. The PERSPECTIVE
P
1.0 LX treadmill offers an impressive array of features
designed to make your workouts at home more enjoyable and effective. And when you’re not exercising, the
unique PERSPECTIVE 1.0 LX treadmill can be folded
up, requiring less than half the floor space of other
treadmills.
For your benefit, read this manual carefully before
you use the treadmill. If you have questions after
reading this manual, please see the front cover of this
Console
Handrail
Storage Latch
®
anual. To help us assist you, note the product model
m
umber and serial number before calling. The model
n
number of the treadmill is PFTL91105.0. The serial
number can be found on a decal attached to the treadmill (see the front cover of this manual for the location).
To avoid a registration fee for any service needed
under warranty, you must register the treadmill at
www.proformservice.com/registration.
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
Water Bottle Holder
(no bottle is included)
Key/Clip
Fan
Upright
Walking Belt
Foot Rail
BACK
Rear Roller
Adjustment Bolts
Reset/Off
Circuit Breaker
Cushioned Walking Platform
for maximum exercise comfort
RIGHT SIDE
6
ASSEMBLY
1” Tek Screw (22)–4
Star Washer (8)–8
Console Bolt (64)–4
Extension Leg Nut (67)–4
L
Extension Leg Bolt (65)–4
o hire an authorized service technician to assemble the treadmill, call toll-free 1-800-445-2480.
T
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is
coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the
top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild,
non-abrasive cleaner.
Assembly requires the included allen wrench and your own phillips screwdriver and
wire cutters .
Use the drawings below to identify the hardware used during assembly. Note: If a part is not in the parts bag,
check to see if it has been preattached to one of the parts to be assembled. To avoid damaging plastic
parts, do not use power tools for assembly.
1. Make sure that the power cord is unplugged.
With the help of a second person, carefully tip the
treadmill onto its left side as shown. Partially fold the
Frame (58) so the treadmill is more stable. Do not fully
fold the treadmill until it is completely assembled.
Attach four Base Pads (82) (only two are shown) to the
base of the Uprights (84) with four 1” Tek Screws (22).
Insert an Extension Leg (89) into the base of the Uprights
(84) as shown. Hold two Extension Leg Nuts (67) in the
bottom of the Extension Leg. Next, insert two Extension
Leg Bolts (65) with Star Washers (8) into the top of the
Extension Leg, and firmly tighten the Extension Leg Bolts
into the Extension Leg Nuts.
With the help of a second person, carefully
mill onto its other side. Attach the other Extension Leg
(not shown) as described above.
tip the tread-
1
65
89
58
8
82
84
82
22
67
7
2. With the help of a second person, carefully raise the
Uprights (84) to a vertical position.
2
Have the second person hold the console assembly near
he Uprights (84) as shown. Look under the console as-
t
sembly and locate the Console Wire Harness (78).
Cut the plastic ties securing the Upright Wire Harness
(77) to the right Upright (84). Next, connect the Upright
Wire Harness to the Console Wire Harness (78). Make
sure to connect the connectors properly (see the
inset drawing). The connectors should slide together
easily and snap into place.
If the connectors do not
slide together easily and snap into place, turn one connector and then try again.
IF THE CONNECTORS ARE
NOT CONNECTED PROPERLY, THE CONSOLE MAY
BE DAMAGED WHEN THE POWER IS TURNED ON.
3. Look under the console assembly and locate the TV
cable.
Cut the plastic ties securing the Upright TV Cable (104) to
the left Upright (84). Connect the Upright TV Cable to the
TV cable on the console assembly.
Console
ssembly
A
78
77
78
84
77
3
Console
Assembly
4. Insert the Console Wire Harness (78) and the TV cable
into the
Uprights (84)
Set the console assembly on the Uprights (84).
.
Be careful to avoid pinching the Console Wire Harness (78)
and the TV cable. While a second person holds the con
sole assembly, attach it with four Console Bolts (64) and
four Star Washers (8) as shown; start all four Console
Bolts and then firmly tighten them.
TV Cable
104
84
4
Console
Assembly
-
78
TV
Cable
8
64
8
64
84
84
8
. Press the Latch Housing (73) into the left Upright (84).
5
Use a rubber mallet, if necessary, to fully insert the Latch
Housing.
emove the knob from the pin. Make sure that the collar
R
and the spring are on the pin. (Note: If there are two collars, place one on each side of the spring.) Next, insert
the pin into the Latch Housing (73). Then, tighten the
knob back onto the pin.
5
Knob
Spring
73
C
ollar
Plug in the power cord as described on page 12, and
turn on the power as described on page 14. Note: The
treadmill may automatically rise to the maximum incline
level and then return to the minimum level.
6. Place the treadmill in the storage position (see HOW TO
FOLD AND MOVE THE TREADMILL on page 24).
Next, place the cylinder end of the Shock (92) near the
bracket on the base of the Uprights (84).
See the two small inset drawings. Using your fingernail
or the end of a screwdriver, press on the end of the
Shock Pin (25) to loosen it from the Shock (92). Next, rotate the Shock Pin and pull it out of the Shock. Be care-
ful to avoid losing the Shock Pin.
See drawing 5a. Press the cylinder end of the Shock (92)
onto the ball on the bracket. Next, insert the end of the
Shock Pin (25) through two of the small holes in the end
of the Shock. Then, rotate the Shock Pin until it clips onto
the Shock.
6
5a
92
84
92
25
84
25
Bracket
Cylinder
Pin
25
25
Bracket
7. Raise the Shock (92) to a vertical position. Remove the
Shock Pin (25) from the raised end of the Shock as described in step 6. If necessary, rotate the Shock to align
the end of the Shock with the ball on the bracket on the
Frame (58).
Next, press the Incline increase and decrease buttons
until the ball on the bracket is aligned with end of the
Shock (92). Then, press the end of the Shock onto the
ball. Note: It may be necessary to press the end of the
Shock onto the ball while the Frame is moving.
See drawing 7a. Insert the Shock Pin (25) into the two in
dicated small holes in the end of the Shock (92). Then,
rotate the Shock Pin until it clips onto the Shock. Note:
Extra Shock Pins are included.
Press the Incline decrease button until the treadmill
is at the lowest incline level.
Then, unplug the power
cord.
9
7
58
Bracket
25
92
7a
-
Holes
92
25
. Note the location of the 75 ohm antenna terminal on the
8
8
treadmill. For the television to operate properly, an an-
enna, a CATV cable, or a VCR must be connected to the
t
75 ohm antenna terminal (see page 11).
75 Ohm Antenna
Terminal
9. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of clear
plastic on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the treadmill. Note: Extra hardware may be included. Keep the included allen wrench in a secure place; the allen
wrench is used to adjust the walking belt (see page 27).
If you purchase the optional chest pulse sensor (see page 23), follow the steps below to install the receiver
included with the chest pulse sensor.
1. Make sure that the key is removed from the con-
sole and that the power cord is unplugged.
Remove the indicated Screws (3) from the back of the
Console Base (85).
2. Connect the wire on the receiver (A) to the indicated
wire on the Console (34). Hold the receiver so the
small cylinder is oriented as shown. Next, remove
the tape from the back of the receiver, and press the
receiver onto the Console Base (85) in the location
shown.
3. Make sure that no wires are pinched. Reattach the
Console (34) with the Screws (3). Discard the other
wires included with the receiver.
Wire
34
Small Cylinder
A
3
3
85
3
3
10
Before the personal television can be used, you must connect an antenna, a 75 ohm CATV cable, or a VCR
to the 75 ohm antenna terminal on the treadmill frame. Note: No antenna, cable, or adapter is included.
HOW TO CONNECT AN ANTENNA
Indoor Antenna
1. Place a VHF
antenna in the
desired location. Connect
the 300 ohm
flat wire from
the antenna to
a 300 ohm to
75 ohm
adapter.
2. Push the 300
ohm to 75 ohm
adapter onto
the 75 ohm antenna terminal
on the treadmill
frame near the
power cord.
300 to 75 Ohm Adapter
VHF
Antenna
300 to 75 Ohm
Adapter
75 Ohm
Terminal
S
crewdriver
VHF 300
Ohm Flat
Wire
300 Ohm Flat Wire
1. See the large drawing near the bottom of this page.
Connect the 300 ohm flat wire from the antenna to a
300 ohm to 75 ohm adapter.
2. Push the 300 ohm to 75 ohm adapter onto the 75
ohm antenna terminal on the treadmill frame near
the power cord.
75 Ohm CATV Cable
1. See the large drawing near the bottom of this page.
Connect the 75 ohm CATV cable from the antenna
to the 75 ohm antenna terminal on the treadmill
frame near the power cord.
HOW TO CONNECT A 75 OHM CATV CABLE
1. Connect a 75 ohm
CATV cable to the 75
ohm antenna terminal
on the treadmill frame
near the power cord.
75 Ohm CATV Cable
75 Ohm Terminal
Outdoor Antenna
Note: Outdoor antennas are subject to weathering that
can reduce signal quality. Inspect your antenna and
the lead-in wiring before connecting the antenna.
Combination
VHF/UHF Antennas
300 Ohm
Flat Wire
300 to 75
Ohm Adapter
75 Ohm
Terminal
75 Ohm CATV Cable
75 Ohm
CATV Cable
HOW TO CONNECT A VCR
1. Connect one end of a 75 ohm CATV cable to the
video output jack on your VCR.
2. Plug in the power cord of your VCR. See your VCR
user’s manual for proper grounding instructions.
3. Connect the 75 ohm CATV cable to the 75 ohm an-
tenna terminal on the treadmill frame near the power
cord.
Note: To operate the television with your VCR, make
sure that the VCR is turned on, that channel 3 or 4 is selected, and that a videocassette is playing.
1
1
OPERATION AND ADJUSTMENT
HE PRE-LUBRICATED WALKING BELT
T
Your treadmill features a walking belt coated with highperformance lubricant. IMPORTANT: Never apply sil-
icone spray or other substances to the walking
belt or the walking platform. Such substances will
deteriorate the walking belt and cause excessive
wear.
HOW TO PLUG IN THE POWER CORD
DANGER: Improper connection
of the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or serviceman if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the product—if it will
not fit the outlet, have a proper outlet
installed by a qualified electrician.
Your treadmill, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your home’s power.
Voltage surges, spikes, and noise interference can
result from weather conditions or from other appliances
being turned on or off. To decrease the possibility of
your treadmill being damaged, always use a surge
suppressor with your treadmill (see drawing 1 at
the right). To purchase a surge suppressor, see
your local PROFORM dealer or call the toll-free
telephone number on the front cover of this manual and order part number 146148, or see your local
electronics store.
ric shock. This product is equipped with a cord having
t
an equipment-grounding conductor and a grounding
plug.
Plug the power cord into a surge suppressor,
and plug the surge suppressor into an appropriate
outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
Important: The treadmill is not compatible with
GFCI-equipped outlets.
This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illustrated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge suppressor to a 2-pole
receptacle as shown in drawing 2 if a properly
grounded outlet is not available.
1
Grounded Outlet Box
Surge Suppressor
Grounding Pin
Grounding Pin
Grounded Outlet
2
Grounded Outlet Box
Adapter
Grounding Plug
Surge Suppressor
Use only a single-outlet surge suppressor that is
UL 1449 listed as a transient voltage surge suppressor (TVSS). The surge suppressor must have a
UL suppressed voltage rating of 400 volts or less
and a minimum surge dissipation of 450 joules.
The surge suppressor must be electrically rated for
120 volts AC and 15 amps. There must be a monitoring light on the surge suppressor to indicate
whether it is functioning properly. Failure to use a
properly functioning surge suppressor could result
in damage to the control system of the treadmill. If
the control system is damaged, the walking belt
may change speed, accelerate or stop unexpectedly, which may result in a fall and serious injury.
This product must be grounded.
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of elec-
If it should malfunc-
Lug
Metal Screw
The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place
by a metal screw.
covers are not grounded. Contact a qualified electrician to determine if the outlet box cover is
grounded before using an adapter.
Some 2-pole receptacle outlet box
12
Key
Clip
FEATURES OF THE CONSOLE
The treadmill console offers an impressive array of
features designed to make your workouts more effective and enjoyable. When the manual mode of the console is selected, the speed and incline of the treadmill
can be changed with the touch of a button. As you exercise, the console will display continuous exercise
feedback. You can even measure your heart rate using
the handgrip pulse sensor or the optional chest pulse
sensor (see page 23 for information about the optional
chest pulse sensor).
In addition, the console offers eight preset programs.
Each program automatically controls the speed and incline of the treadmill as it guides you through an effective workout. You can even create custom workout programs and store them in memory for future use.
Two heart rate programs are also offered. Each program automatically adjusts the speed and incline of the
treadmill to keep your heart rate near target heart rate
settings while you exercise. Note: The heart rate programs require the use of the optional chest pulse sensor.
Whether you select the manual mode or a program,
you can enjoy the shows of your choice on the personal television while you get in shape.
To use the manual mode of the console, follow the
steps beginning on page 14. To use a preset program,
see page 16. To use a heart rate program, see page
18. To create and use a custom program, see pages
20 and 21.
To operate the personal television, see
page 22.
Note: If there is a sheet of clear plastic on the face of
the console, peel off the plastic. To prevent damage to
the walking platform, wear clean athletic shoes while
using the treadmill. The first time the treadmill is used,
observe the alignment of the walking belt, and center
the walking belt if necessary (see page 27).
13
OW TO TURN ON THE POWER
H
Plug in the power cord (see page 12).
Next, locate the reset/off
circuit breaker near the
power cord. Make sure that
the circuit breaker is in the
reset position.
Next, stand on the foot rails of the treadmill. Find the
clip attached to the key (see the drawing on page 13)
and attach the clip securely to the waistband of your
clothes. Then, insert the key into the console. After a
moment, the displays will light, and after a few seconds, the television will turn on.
emergency situation, the key can be pulled from
the console, causing the walking belt to slow to a
stop. Test the clip by carefully taking a few steps
backward until the key is pulled from the console.
If the key is not pulled from the console, adjust the
position of the clip as needed.
HOW TO USE THE MANUAL MODE
Insert the key into the console.
eset
R
osition
P
Important: In an
1
See HOW TO TURN ON THE POWER above.
Select the manual mode.
2
When the key is inserted,
the manual mode will be selected. If you have selected
a program, reselect the
manual mode by pressing
the Programs (PRGM.) button repeatedly until a track
appears in the left display.
the walking belt.
Start
3
To start the walking belt, press the Start button,
the Speed increase button, or one of the twelve
numbered Speed buttons.
If the Start button or the Speed increase button is
pressed, the walking belt will begin to move at 1
ph. As you exercise, change the speed of the
m
walking belt as desired by pressing the Speed in-
rease and decrease buttons. Each time a button
c
is pressed, the speed setting will change by 0.1
mph; if a button is held down, the speed setting
will change in increments of 0.5 mph. Note: After
the buttons are pressed, it may take a moment for
the walking belt to reach the selected speed setting.
If one of the numbered Speed buttons is pressed,
the walking belt will gradually increase in speed
until it reaches the selected speed setting.
To stop the walking belt, press the Stop button.
The time will begin to flash in the left display. To
restart the walking belt, press the Start button, the
Speed increase button, or one of the numbered
Speed buttons.
Change the incline of the treadmill as desired.
4
To change the incline of the treadmill, press the
Incline buttons. Each time a button is pressed, the
incline will change by 0.5%. To change the incline
setting quickly, press the numbered Incline buttons.
Note: After the buttons are pressed, it may take a
moment for the treadmill to reach the selected incline setting.
Follow your progress with the two displays.
5
The left display—This dis-
play will show the elapsed
time. Note: When a program
is selected (except for heart
rate program 10 or a custom
program), this display will
show the time remaining in
the program instead of the
elapsed time.
When the manual mode is selected, the left display
will also show a track. As you exercise, the indicators around the
until the entire track appears. The track will then
disappear the indicators will again begin to appear
in succession.
track will appear in succession
14
The right display—This
display will show the dis-
ance that you have walked
t
or run, the speed of the
alking belt, the incline
w
level of the treadmill, your
pace (in minutes per mile),
and the approximate numbers of
calories
(see FAT BURNING on page 29). This display
will also show your heart rate when you use the
handgrip pulse sensor or the optional chest pulse
sensor.
Note: The console can display speed and distance in either miles or kilometers. The letters
“MPH” or “Km/H” will appear in the right display to
show which unit of measurement is selected. To
change the unit of measurement, see HOW TO
USE THE INFORMATION MODE on page 22.
simplicity, all instructions in this section refer
to miles.
To reset the displays, press the Stop button, remove the key, and then reinsert the key.
Measure your heart rate if desired.
calories
you have burned
and
fat
6
Note: If you use the handgrip pulse sensor and
the optional chest pulse sensor at the same time,
the console will not display your heart rate accurately.
For
Next, hold the handgrip pulse sensor with your
palms resting on the metal contacts; avoid mov-
ng your hands.
i
heart-shaped indicator in the right display will
lash each time your heart beats, one or two
f
dashes (– –) will appear, and then your heart rate
will be shown.
reading, continue to hold the contacts for
about 15 seconds.
Turn on the fan if desired.
When your pulse is detected, the
For the most accurate heart rate
7
To turn on the fan, press the Fan button. To turn
on the fan at high speed, press the button a second time. To turn off the fan, press the button a
third time. Note: If the fan is on when the walking
belt is stopped, the fan will automatically turn off
after a few minutes.
When you are finished exercising, remove the
8
key from the console.
Step onto the foot rails, press the Stop button, and
adjust the incline of the treadmill to the lowest
setting. The incline must be at the lowest setting
when the treadmill is folded to the storage position or the treadmill will become damaged. Next,
remove the key from the console and put it in a secure place. Note: If the displays remain lit after
the key is removed, the console is in the
“demo” mode. See HOW TO USE THE INFORMATION MODE on page 22 and turn off the
demo mode.
Before using
the handgrip
pulse sensor,
remove the
sheets of clear
plastic from the
metal contacts.
In addition,
make sure that
your hands are clean.
When you are finished using the treadmill,
switch the reset/off circuit breaker to the “off”
position and unplug the power cord.
Contacts
15
OW TO USE A PRESET PROGRAM
H
nsert the key into the console.
I
1
ee HOW TO TURN ON THE POWER on
S
page 14.
Select a preset program.
2
To select a preset program,
press the Program (PRGM.)
button repeatedly until
“P-1,” “P-2,” “P-3,” “P-4,”
“P-5,” “P-6,” “P-7,” or “P-8”
appears in the right display.
When a preset program is
selected, the maximum
speed setting of the program and the maximum incline setting will flash in the
right display for a few seconds. The left display will
show how long the program
will last. A profile of the
speed settings of the program will scroll across the
matrix in the left display.
Press the Start button or the Speed increase
3
button to start the program.
A moment after the button is pressed, the treadmill will automatically adjust to the first speed and
incline settings of the program. Hold the handrails
and begin walking.
Each preset program is divided into either 30 or 50
one-minute segments. One
speed setting and one incline setting are programmed for each segment.
(Note: The same speed setting and/or incline setting
may be programmed for two
or more consecutive segments.) The speed setting
for the first segment will be
shown in the flashing
Current Segment column of the matrix. (The incline settings are not shown in the matrix.) The
speed settings for the next few segments will be
shown in the columns at the right.
Current
Segment
Column
When only three seconds remain in the first segment of the program, both the Current Segment
olumn and the column to the right will flash, and
c
a series of tones will sound. If the speed and/or in-
line of the treadmill is about to change, the speed
c
setting and/or the incline setting will flash in the
right display to alert you. When the first segment
ends,
all speed settings in the matrix will move
one column to the left
second segment will then be shown in the flashing
Current Segment column, and the treadmill will
automatically adjust to the speed and incline settings for the second segment. Note: If all of the indicators in the Current Segment column are lit
after the speed settings have moved to the left,
the speed settings may move downward
only the highest indicators appear in the matrix. If
some indicators in the Current Segment column
are not lit when the speed settings move to the left
again, the speed settings will move back up.
The program will continue in this way until the
speed setting for the last segment is shown in the
Current Segment column and the last segment
ends. The walking belt will then slow to a stop.
If the speed or incline setting is too high or too low
at any time during the program, you can manually
override the setting by pressing the Speed or
Incline buttons. Every few times a Speed button is
pressed, an additional indicator will appear or disappear in the Current Segment column. (If any of
the columns to the right of the Current Segment
column have the same number of indicators as the
Current Segment column, an additional indicator
may appear or disappear in those columns as
Note: When the next segment of the pro-
well.)
gram begins, the treadmill will automatically
adjust to the speed and incline settings for the
next segment.
To stop the program at any time, press the Stop
button. The time will begin to
play. To restart the program, press the Start
or the Speed increase button. The walking belt will
begin to move at 1 mph. When the next segment
of the program begins, the treadmill will automati
cally adjust to the speed and incline settings for the
next segment.
. The speed setting for the
so that
flash in the left dis-
button
-
16
ollow your progress with the displays.
F
4
See step 5 on page 14.
Measure your heart rate if desired.
5
See step 6 on page 15.
Turn on the fan if desired.
6
See step 7 on page 15.
When you are finished exercising, remove the
7
key from the console.
When the program ends, make sure that the incline of the treadmill is at the lowest setting.
Next, remove the key from the console and put it in
a secure place. Note: If the displays and various
ndicators remain lit after the key is removed,
i
the console is in the “demo” mode. See HOW
O USE THE INFORMATION MODE on page 22
T
and turn off the demo mode.
When you are finished using the treadmill,
switch the reset/off circuit breaker to the “off”
position and unplug the power cord.
17
OW TO USE A HEART RATE PROGRAM
H
During heart rate program 9, your heart rate will reach
pproximately 85% of your
a
heart rate.
rate is calculated by subtracting your age from 220.
For example, if you are 30 years old, your age-predicted maximum heart rate is 190 beats per minute).
During heart rate program 10, your heart rate will remain near a target heart rate setting that you select
(Note: Your age-predicted maximum heart
ge-predicted maximum
a
.
If heart rate program 10 is
selected, a pulse symbol will
croll across the matrix in the
s
left display. Each time a
eartbeat is detected, a peak
h
will appear.
Enter a target heart rate setting for the
4
program.
CAUTION: If you have heart prob-
lems, or if you are over 60 years of age and
have been inactive, do not use the heart rate
programs. If you are taking medication regularly, consult your physician to find whether
the medication will affect your exercise heart
rate.
Follow the steps below to use a heart rate program.
Note: You must wear the optional chest pulse sensor to use a heart rate program. While using the
chest pulse sensor, do not use the handgrip pulse
sensor.
Put on the chest pulse sensor.
1
See page 23.
Insert the key into the console.
2
See HOW TO TURN ON THE POWER on
page 14.
Select a heart rate program.
3
To select a heart rate program, press the Program
(PRGM.) button repeatedly until “P-9” or “P-10”
appears in the right display.
If heart rate program 9 is
selected,
will appear in the left display
and the maximum target
heart rate setting of the program will begin to flash. If
desired, change the maximum target heart rate setting
by pressing the increase or
decrease button below the
matrix
Note: If the maximum target heart rate setting is
changed, the intensity level of the entire program
will change.
If heart rate program 10 is selected, the word
“RATE” will appear in the left display and the target heart rate setting for the program will begin to
flash. If desired, change the target heart rate setting by pressing the increase or decrease button
below the matrix (see EXERCISE INTENSITY on
page 29).
Press the Start button or the Speed increase
5
button to start the program.
A moment after the button is pressed, the treadmill will automatically adjust to the first speed and
incline settings of the program. Hold the handrails
and begin walking.
the word “RATE”
(see EXERCISE INTENSITY on page 29).
If heart rate program 9 is
selected, a profile of the
target heart rate settings of
the program will appear in
the matrix in the left display.
Heart rate program 9 is divided into 30 oneminute segments. One target heart rate setting is
programmed for each segment. (The same target
heart rate setting may be programmed for two or
more consecutive segments.)
Heart rate program 10 is divided into several
one-minute segments. The same target heart rate
setting is programmed for all segments. Note: For
a shorter workout, simply stop the program before
it ends.
18
If heart rate program 9 is
selected, the target heart
ate setting for the first seg-
r
ment will be shown in the
lashing Current Segment
f
column of the matrix. The
target heart rate settings for
the next several segments
will be shown in the
columns to the right. When
only three seconds remain
in the first segment of the
program, both the Current
Segment column and the column to the right will
flash and a series of tones will sound.
When the first segment ends,
settings will move one column to the left.
get heart rate setting for the second segment will
then be shown in the flashing Current Segment
column.
During both heart rate programs, the console
will regularly compare your heart rate to the target
heart rate setting for the current segment. If your
heart rate is too far below or above the target
heart rate setting, the speed of the walking belt
will automatically increase or decrease to bring
your heart rate closer to the target heart rate setting.
Current
Segment
Column
all target heart rate
The tar-
setting with the Speed or Incline buttons. However,
when the console compares your heart rate to the
arget heart rate setting, the speed of the treadmill
t
may automatically change to bring your heart rate
loser to the target heart rate setting.
c
If your pulse is not detected during the program,
the letters “PLS” will flash in the right display and
the speed of the treadmill may automatically decrease.
To stop the program at any time, press the Stop
button. To restart the program, press the Start button or the Speed increase button. The walking belt
will begin to move at 1 mph. When the console
compares your heart rate to the target heart rate
setting, the speed of the treadmill may automatically change to bring your heart rate closer to the
target heart rate setting.
Follow your progress with the displays.
6
See step 5 on page 14.
Turn on the fan if desired.
7
See step 7 on page 15.
When you are finished exercising, remove the
8
key from the console.
If the speed or incline setting is too high or too low
at any time during the program, you can adjust the
See step 7 on page 17.
19
OW TO CREATE A CUSTOM PROGRAM
H
nsert the key into the console.
I
1
ee HOW TO TURN ON THE POWER on page
S
14.
tings are not shown in the matrix.) To program a
speed setting and an incline setting for the first
egment, simply adjust the speed and incline of
s
the treadmill as desired by pressing the Speed
nd Incline buttons. Every few times a Speed but-
a
ton is pressed, an additional indicator will appear
or disappear in the Current Segment column.
Select a custom program.
2
To select a custom program, press the Programs
(PRGM.) button repeatedly until “P-11” or “P-12”
appears in the right display.
If the custom program has
not yet been defined, three
columns of indicators will
scroll across the matrix in
the left display.
than three columns of indicators appear, see HOW
TO USE A CUSTOM PROGRAM on page 21.
Press the Start button or the Speed increase
3
button and program the desired speed and incline settings.
A moment after the button is pressed, the walking
belt will begin to move. Hold the handrails and
begin walking.
See the matrix in the left
display. Each custom program is divided into oneminute segments. One
speed setting and one incline setting can be programmed for each segment. The speed setting for
the first segment will be
shown in the flashing
Current Segment column of
the matrix. (The incline set
If more
Current
Segment
-
Column
When the first segment of the program ends, the
current speed setting and the current incline setting will be stored in memory.
of indicators will then move one column to the left,
and the speed setting for the second segment will
be shown in the flashing Current Segment column.
Program a speed setting and an incline setting for
the second segment as described above.
Continue programming speed and incline settings
for as many segments as desired; custom programs can have up to forty segments. When you
are finished with your workout, press the Stop button twice. The speed and incline settings that you
have programmed and the number of segments
that you have programmed will then be saved in
memory.
When you are finished exercising, remove the
4
key from the console.
See step 7 on page 17.
The three columns
20
OW TO USE A CUSTOM PROGRAM
H
nsert the key into the console.
I
1
ee HOW TO TURN ON THE POWER on
S
page 14.
Select a custom program.
2
To select a custom program, press the Program
(PRGM.) button repeatedly until “P-11” or “P-12”
appears in the right display.
ries of tones will sound, the speed setting and the
incline setting will flash in the right display, and
peed settings will move one column to the left.
s
The speed setting for the second segment will then
e shown in the flashing Current Segment column
b
and the treadmill will automatically adjust to the
second speed and incline settings that you programmed previously.
The program will continue until the speed setting
for the last segment is shown in the Current
Segment column and the last segment ends. The
walking belt will then slow to a stop.
all
When a custom program is selected, the maximum speed setting of the program and the maximum incline setting will flash in the right display for
a few seconds. The left display will show how long
the program will last. A profile of the speed settings of the program will scroll across the matrix in
the left display.
indicators appear, see HOW TO CREATE A
CUSTOM PROGRAM on page 20.
Press the Start button or the Speed increase
3
button to start the program.
A moment after the button is pressed, the treadmill will automatically adjust to the first speed and
incline settings that you programmed previously.
Hold the handrails and begin walking.
Each custom program is divided into several oneminute segments. One
speed setting and one incline setting are programmed for each segment.
The speed setting for the
first segment will be shown
in the flashing Current
Segment column of the matrix. (The incline settings are
not shown in the matrix.)
The speed settings for the
next few
to the right.
Note: If only three columns of
Current
Segment
Column
segments will be shown in the columns
If desired, you can redefine the program while
using it.
during the current segment, simply press the
Speed or Incline buttons. When the current segment
ends, the new setting will be saved in memory. To
increase the length of the program,
the program ends. Then, press the Start button, and
program speed and incline settings for as many additional segments as desired. When you have
added as many segments as desired, press the
Stop button twice.
program, press the Stop button twice at any time
before the program ends.
To stop the program at any time, press the Stop
button. The time will begin to flash in the left display. To restart the program, press the Start button or the Speed increase button.
Follow your progress with the displays.
To change the speed or incline setting
first wait until
To decrease the length of the
4
See step 5 on page 14.
Measure your heart rate if desired.
5
See step 6 on page 15.
Turn on the fan if desired.
6
See step 7 on page 15.
When you are finished exercising, remove the
7
key from the console.
When only three seconds remain in the first segment of the program, both the Current Segment
column and the column to the right will flash, a se-
See step 7 on page 17.
21
OW TO OPERATE THE PERSONAL TELEVISION
H
OW TO USE THE INFORMATION MODE
H
IMPORTANT: Before operating the television, you
must connect an antenna, a 75 ohm CATV cable, or
a VCR to the 75 ohm antenna terminal on the tread-
ill. See page 11 for instructions.
m
Follow the steps below to operate the television.
Insert the key into the console.
1
See HOW TO TURN ON THE POWER on page
14.
Turn on the television.
2
When the key is inserted, the television will automatically turn on. If you have turned off the television, turn it on by pressing the On/Off button.
Press the Channel (CHAN.) buttons to select
3
the desired channel.
When the television is turned on, the screen will
show the last channel that was selected. To select
a different channel, press the Channel buttons.
The selected channel number will appear on the
screen for a few seconds. Note: The television is
equipped with a channel memorizing function that
allows you to go directly from the current channel
to the next channel saved in memory. Before
channels can be selected in this way, they must
be saved in the television’s memory. See HOW
TO USE THE INFORMATION MODE at the right.
Press the Volume (VOL.) buttons to adjust the
4
volume.
When either Volume button is pressed, the vol
ume level indicator will appear on the screen for a
few seconds. To temporarily mute the sound,
press the Mute button. Press the Mute button
again to listen to the television. Note: To use ear
phones or headphones (not included), plug them
into the headphone jack on the console.
When you are finished using the television,
5
ress the On/Off button.
p
-
The console features an information mode that allows
you to view treadmill usage information, select a sys-
em of measurement for the console, and turn on and
t
urn off the demo mode. The information mode also al-
t
lows you to adjust the settings of the television and to
save channels into the television’s memory.
Follow the steps below to use the information mode.
Hold down the Stop button while inserting the
1
key into the console.
When the information mode
is selected, the upper part of
the right display will show the
total number of miles or kilometers that the walking belt
has moved, and the lower
part of the display will show
the total number of hours that
the treadmill has been used.
In addition, the right display will show the letter “E”
for English miles or the letter “M” for metric kilometers. Press the Speed increase button to change
the unit of measurement if desired.
IMPORTANT: If the letter “d” appears in the right
display, the “demo” mode is selected. This mode
is intended to be used only when a treadmill is
displayed in a store. When the demo mode is selected, the power cord can be plugged in, the key
can be removed from the console, and the displays and indicators on the console will automatically light in a preset sequence. The buttons on
the console will not function. If a “d” appears in
the right display when the information mode is
selected, press the Speed decrease button.
Press the On/Off button and adjust the
2
-
brightness, contrast, color, sharpness, and/or
hue of the television.
A few seconds after the On/Off button is pressed,
the brightness level indicator will appear on the television screen. Press the Volume buttons repeatedly
to adjust the brightness setting if desired.
Press the On/Off button to turn off the television.
Removing the key from the console will also
Note:
turn off the television.
Next, press the Channel buttons repeatedly until the
contrast, color, sharpness, or hue level indicator appears. Adjust each setting, if desired, by pressing
the Volume buttons.
22
Press the On/Off button again and add or
3
delete channels.
After all valid channels available in your area have
been saved into the television’s memory (see step
below), you can manually add channels or
5
delete unwanted channels.
your area. When no broadcast signal is detected
on a channel, the channel will be skipped. When a
roadcast signal is detected, the channel will be
b
saved into memory and the next channel will be
elected. This process will continue until the high-
s
est channel is reached.
while the television is scanning channels.
Do not remove the key
To add or delete a channel, first press the
Channel buttons until the desired channel number
appears on the screen. Then, press the Volume
increase button to add the channel, or the Volume
decrease button to delete the channel. Continue
this process until you have added all desired
channels and deleted all unwanted channels.
Press the On/Off button again and select an
4
antenna connection or a cable connection.
After the On/Off button is pressed, press the
Volume decrease button to select the Air setting,
the Volume increase button to select the Standard
Cable setting, the Channel decrease button to select the Cable IRC setting, or the Channel increase button to select the Cable HRC setting.
Note: The setting that you select will
on the screen. If you have connected an antenna
to the treadmill, the Air setting should be selected.
If you have connected a CATV cable, one of the
three Cable settings should be selected; try all
three Cable settings, if necessary, to find the best
setting.
not appear
When you are finished using the information
6
mode, remove the key.
To exit the information mode at any time (except
while the television is scanning channels), remove
the key from the console.
THE OPTIONAL CHEST PULSE SENSOR
An optional chest pulse sensor provides hands-free
operation and allows you to use the console’s heart
rate programs. To purchase the optional chest
pulse sensor, call the toll-free telephone number
on the front cover of this manual.
Press the On/Off button again and save
5
channels into the television’s memory.
When the On/Off button is pressed, the television
will begin scanning all of the channels available in
23
HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL FOR STORAGE
Before folding the treadmill, adjust the incline to the
lowest position. If this is not done, the treadmill may be per-
anently damaged. Next, unplug the power cord. CAUTION:
m
You must be able to safely lift 45 pounds (20 kg) to raise,
lower, or move the treadmill.
1. Hold the metal frame firmly in the location shown by the
arrow at the right. CAUTION: To decrease the possibility
of injury, do not lift the frame by the plastic foot rails.
Make sure you bend your legs and keep your back
straight. As you raise the frame, make sure to lift with
your legs rather than your back.
halfway to the vertical position.
2. Move your right hand to the position shown and hold the
treadmill firmly. Using your left hand, pull the latch knob to
the left and hold it. Raise the frame until the catch is past the
latch pin. Then, slowly release the latch knob.
that the catch is securely held by the latch pin.
Raise the frame about
Make sure
Frame
To protect the floor or carpet from damage, place a mat
under the treadmill. Keep the treadmill out of direct sunlight. Do not leave the treadmill in the storage position in
temperatures above 85° Fahrenheit.
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the storage
position as described above. Make sure that the catch is se-
curely held by the latch pin.
1. Hold the upper ends of the handrails. Place one foot against
one of the wheels.
2. Tilt the treadmill back until it rolls freely on the front wheels.
Carefully move the treadmill to the desired location. To re-
duce the risk of injury, use extreme caution while moving the treadmill.
even surface.
3. Place one foot against one of the wheels, and carefully lower
the treadmill until it is resting in the storage position.
Do not move the treadmill over an un
-
Wheel
Catch
Latch Knob
Latch Pin
Engaged
Base
24
HOW TO LOWER THE TREADMILL FOR USE
1. Hold the upper end of the treadmill with your right hand. Pull
the latch knob to the left and hold it. Pivot the frame down
until the catch is past the latch pin.
2.
Hold the metal frame firmly with both hands, and lower it
to the floor. CAUTION: To decrease the possibility of in-
jury, do not lower the frame by gripping only the plastic
foot rails. Do not drop the frame to the floor. Make sure to
bend your legs and keep your back straight.
Catch
Open
Latch Knob
Latch Pin
Frame
25
TROUBLESHOOTING
Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and
follow the steps listed. If further assistance is needed, please see the front cover of this manual.
PROBLEM: The power does not turn on
SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor
is plugged into a properly grounded outlet (see page 12). Use only a single-outlet surge suppressor that meets all of the specifications described on page 12. Important: The treadmill is not compatible with GFCI-equipped outlets.
b. After the power cord has been plugged in, make sure that the key is fully inserted into the console.
c. Check the reset/off circuit breaker located on the
treadmill frame near the power cord. If the switch
protrudes as shown, the circuit breaker has
tripped. To reset the circuit breaker, wait for five
minutes, and then press the switch back in.
PROBLEM: The power turns off during use
SOLUTION: a. Check the reset/off circuit breaker (see the drawing above). If the circuit breaker has tripped, wait
for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for
five minutes, and then plug it back in.
c. Remove the key from the console. Reinsert the key into the console.
d. If the treadmill still will not run, see the front cover of this manual.
PROBLEM: The incline of the treadmill does not change correctly
SOLUTION:
PROBLEM: The display of the console does not function properly
a. With the key in the console, press one of the Incline buttons. While the incline is changing, re-
move the key.
maximum incline level and then return to the minimum level. This will recalibrate the incline system.
After a few seconds, re-insert the key. The treadmill will automatically rise to the
c
Tripped
Reset
SOLUTION: a. Remove the key from the console and UNPLUG THE
POWER CORD
carefully tip the Uprights (84) down as shown. Next,
remove the three Screws (3) and the three Hood
Screws (7). Note: A phillips screwdriver with a shaft at
least 5” long is required.
. With the help of a second person,
26
a
3
7
3
84
With the help of a second person, carefully raise the
Uprights (84) to the position shown. Carefully pivot the
ood (41) off.
H
41
84
Locate the Reed Switch (63) and the Magnet (46) on
the left side of the Pulley (47). Turn the Pulley until the
Magnet is aligned with the Reed Switch. Make sure
Top
View
1/8”
that the gap between the Magnet and the Reed
Switch is about 1/8”.
(3), move the Reed Switch slightly, and then retighten
If necessary, loosen the Screw
46
63
3
the Screw. Reattach the Hood, and run the treadmill
for a few minutes to check for a correct speed reading.
47
PROBLEM: The walking belt slows when walked on
SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 12.
b. If the walking belt is overtightened, treadmill perfor-
mance may decrease and the walking belt may become damaged. Remove the key and
UNPLUG THE
b
2”–3 “
POWER CORD. Using the allen wrench, turn both
rear roller bolts counterclockwise, 1/4 of a turn. When
the walking belt is properly tightened, you should be
able to lift each edge of the walking belt 2 to 3 inches
off the walking platform. Be careful to keep the walking belt centered. Then, plug in the power cord, insert
the key, and run the treadmill for a few minutes.
Rear Roller Bolts
Repeat until the walking belt is properly tightened.
PROBLEM:
SOLUTION:
c. If the walking belt still slows when walked on, see the front cover of this manual.
The walking belt is off-center or slips when walked on
a. If the walking belt is off-center, first remove the key
and
UNPLUG THE POWER CORD. If the walking
a
belt has shifted to the left, use the allen wrench to
turn the left rear roller bolt clockwise 1/2 of a turn;
if
the walking belt has shifted to the right, turn the
bolt counterclockwise 1/2 of a turn. Be careful not
left
to overtighten the walking belt.
Then, plug in the
power cord, insert the key, and run the treadmill for a
few minutes. Repeat until the walking belt is centered.
b.
If the walking belt slips when walked on, first remove the key and UNPLUG THE POWER CORD.
b
Using the allen wrench, turn both rear roller bolts
clockwise, 1/4 of a turn. When the walking belt is correctly tightened, you should be able to lift each edge
of the walking belt 2 to 3 inches off the walking platform. Be careful to keep the walking belt centered.
Then, plug in the power cord, insert the key, and carefully walk on the treadmill for a few minutes. Repeat
until the walking belt is properly tightened.
27
PROBLEM: Television reception is poor
OLUTION: a
S
. For the television to operate properly, good reception is necessary. If you are using an antenna,
make sure that it is properly connected and adjusted for optimal reception. (See HOW TO CON-
ECT AN ANTENNA on page 11.)
N
b. Check for the problems listed below and follow the applicable instructions.
• Ignition (black spots or horizontal streaks that appear or a picture that flutters or drifts)—Usually
this is caused by interference from automobile ignition systems, neon lamps, electric drifts, or
other electric appliances. Try changing the position of the treadmill or other electric appliances to
correct the problem.
• Ghosts—Ghosts are caused by the television signal following two paths—one is the direct path
and the other is reflected from tall buildings, hills, or other objects. Change the direction or position of the antenna to improve reception.
• Blue Screen—If the treadmill is located in the fringe area of a television station where the signal is
weak, the picture may be of poor quality or a blue screen may appear. If the signal is weak, it may
be necessary to install an external antenna to improve the picture.
Note: If one of these symptoms appears when the cable from a CATV company is connected, the
symptom may be caused by the local company broadcast.
28
CONDITIONING GUIDELINES
WARNING: Before beginning this
or any exercise program, consult your physi-
ian. This is especially important for individu-
c
als over the age of 35 or individuals with preexisting health problems.
The pulse sensor is not a medical device.
Various factors, including your movement,
may affect the accuracy of heart rate readings.
The sensor is intended only as an exercise aid
in determining heart rate trends in general.
The following guidelines will help you to plan your exercise program. For more detailed exercise information, obtain a reputable book or consult your physician.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. The chart below shows recommended heart rates for fat burning and aerobic exercise.
is to burn fat, adjust the speed and incline of the treadmill until your heart rate is near the lowest number in
our training zone.
y
For maximum fat burning, adjust the speed and incline
of the treadmill until your heart rate is near the middle
number in your training zone.
Aerobic Exercise
If your goal is to strengthen your cardiovascular system, your exercise must be “aerobic.” Aerobic exercise
is activity that requires large amounts of oxygen for
prolonged periods of time. This increases the demand
on the heart to pump blood to the muscles, and on the
lungs to oxygenate the blood. For aerobic exercise,
adjust the speed and incline of the treadmill until your
heart rate is near the highest number in your training
zone.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A Warm-up—Start each workout with 5 to 10 minutes
of stretching and light exercise. A proper warm-up increases your body temperature, heart rate and circulation in preparation for exercise.
To find the proper heart rate for you, first find your age
near the bottom of the chart (ages are rounded off to
the nearest ten years). Next, find the three numbers
above your age. The three numbers define your “training zone.” The lower two numbers are recommended
heart rates for fat burning; the higher number is the
recommended heart rate for aerobic exercise.
Fat Burning
To burn fat effectively, you must exercise at a relatively
low intensity level for a sustained period of time.
During the first few minutes of exercise, your body
uses easily accessible
ergy. Only after the first few minutes does your body
begin to use stored
carbohydrate calories
fat calories
for energy. If your goal
for en-
Training Zone Exercise—After warming up, increase
the intensity of your exercise until your heart rate is in
your training zone for 20 to 60 minutes. (During the
first few weeks of your exercise program, do not keep
your heart rate in your training zone for longer than 20
minutes.) Breathe regularly and deeply as you exercise—never hold your breath.
A Cool-down—Finish each workout with 5 to 10 min
utes of stretching to cool down. This will increase the
flexibility of your muscles and will help prevent postexercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest between workouts. After a few months, you may complete up to five workouts each week if desired. The key
to success is to make exercise a regular and enjoyable
part of your everyday life.
-
29
SUGGESTED STRETCHES
he correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce.
T
. Toe Touch Stretch
1
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach
down toward your toes as far as possible. Hold for 15 counts, then
relax. Repeat 3 times. Stretches: Hamstrings, back of knees and
back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot toward
you and rest it against the inner thigh of your extended leg. Reach
toward your toes as far as possible. Hold for 15 counts, then relax.
Repeat 3 times for each leg. Stretches: Hamstrings, lower back and
groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your back foot
flat on the floor. Bend your front leg, lean forward and move your
hips toward the wall. Hold for 15 counts, then relax. Repeat 3 times
for each leg. To cause further stretching of the achilles tendons,
bend your back leg as well. Stretches: Calves, achilles tendons and
ankles.
4. Quadriceps Stretch
1
2
3
4
With one hand against a wall for balance, reach back and grasp one
foot with your other hand. Bring your heel as close to your buttocks
as possible. Hold for 15 counts, then relax. Repeat 3 times for each
leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward. Pull
your feet toward your groin area as far as possible. Hold for 15
counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip
muscles.
5
30
PART LIST—Model No. PFTL91105.0 R0506A
To locate the parts listed below, see the EXPLODED DRAWING attached in the center of this manual.
ey No. Qty. Description Key No. Qty. Description
K
1 2 Isolator Decal
2 10 3/4” Tek Screw
3 40 Screw
4 1 Catch
5 8 Foot Rail Screw
6 2 Front Isolator
7 2 Isolator Washer
8 8 Star Washer
9 2 Platform Bolt, Back
10 2 Platform Bolt, Front
11 4 Belt Guide Screw
12 2 Belt Guide
13 1 Left Handrail
14 1 Right Handrail
15 2 Frame Pivot Bolt
16 1 Left Foot Rail
17 1 Right Foot Rail
18 4 Console Frame U-nut
19 1 Static Decal
20 1 Console Frame Support
21 1 Latch Pin Assembly
22 4 1” Tek Screw
23 1 Console Ground Wire
24 2 Motor Bolt
25 2 Shock Clip
26 1 Motor Belt
27 1 Drive Motor
28 2 Frame Washer
29 1 U-nut
30 1 Filter Wire
31 2 Lift Frame Bolt
32 8 Lock Nut
33 16 1/2” Screw
34 1 Console
35
36 1 Power Cord
37
38 1 Controller
39
40 2 Rear Roller Star Washer
41 1 Hood
42 1 Front Roller Bushing
43 1 Lift Frame
44 2 Upright Endcap
45 1 Front Roller Bolt
46
47 1 Front Roller
48 1 Walking Belt
49 1 Walking Platform
50 1 Motor Cover
51 1 Rear Roller
52 1
53 2
54 1 Right Rear Endcap
55 1 Allen Wrench
56 1 Incline Stop Bracket
2 Fan Screw
Console Fan
1
Electronics Bracket
1
Magnet
1
Left Rear Endcap
Rear Roller Bolt
57 1 Ground Wire
58 1 Frame
59 1 Belly Pan
60 1 Reed Switch Bracket
61 1 Reed Switch Clip
62 1 Front Roller Nut
63 1 Reed Switch
64 4 Console Bolt
65 4 Extension Leg Bolt
66 4 Star Washer
67 4 Extension Leg Nut
68 2 Caution Decal
69 1 Warning Decal
70 2 Platform Nut
71 10 Cable Tie
72 1 Cotter Pin, Bottom
73 1 Latch Housing
74 2 Tie Clamp
75 3 Releasable Tie
76 1 Access Door
77 1 Upright Wire Harness
78 1 Console Wire Harness
79 1 Key/Clip
80 2 Front Wheel
81 2 Wheel Bolt
82 6 Base Pad
83 10 3/4” Screw
84 1 Upright
85 1 Console Base
86 1 Cotter Pin, Top
87 2 Hair Pin Cotter Pin
88 1 Incline Motor
89 2 Extension Leg
90 2 Rear Roller Bracket
91 2 Isolator
92 1 Shock
93 2
94 2 Isolator Bolt, Bottom
95 1
96 1 Idler Arm Spacer
97 1 Idler Arm
98 1 Idler Arm Spring
99 1 Idler Arm Washer
100 1 Idler Arm Nut
101 1 Idler Arm Pulley
102
103 5 Hood Cover Screw
104 1 Upright TV Cable
105 2 Cable Nut
# 1 6” Blue Wire, 2F
# 1 4” Red Wire, M/F
#
“#” indicates a non-illustrated part.
Specifications are subject to change without notice.
Isolator Bracket Cover
Idler Arm Pivot Bolt
Pulley Bolt
1
User’s Manual
1
31
16
63
2
3
59
60
83
2
33
61
83
83
2
2
2
3
41
5
9
12
11
15
10
46
28
47
10
49
48
9
58
51
53
40
52
54
33
57
53
12
15
43
28
55
70
70
32
32
62
45
11
66
69
4
3
27
26
5
5
5
83
42
83
93
94
1
1
93
94
5
5
90
90
91
6
3
6
3
24
40
17
91
33
36
101
95
102
98
97
99
96
100
29
50
33
33
38
39
33
66
103
103
103
103
103
2
2
7
7
83
3
30
5
5
104
105
EXPLODED DRAWING—Model No. PFTL91105.0 R0506A
84
73
3
76
77
82
22
82
22
79
75
33
74
71
68
68
72
87
86
88
56
37
35
35
18
18
65
8
8
65
31
32
3
44
3
44
31
32
3
3
14
13
3
3
3
3
3
3
3
34
8
8
64
64
8
64
8
21
64
20
3
3
3
85
78
92
33
23
25
33
77
81
32
80
81
32
80
67
67
82
2
82
2
89
89
19
82
22
82
22
87
104
EXPLODED DRAWING—Model No. PFTL91105.0 R0506A
ORDERING REPLACEMENT PARTS
o order replacement parts, see the front cover of this manual. To help us assist you, please be prepared to give
T
the following information:
• the MODEL NUMBER of the product (PFTL91105.0)
• the NAME of the product (PROFORM PERSPECTIVE 1.0 LX treadmill)
• the SERIAL NUMBER of the product (see the front cover of this manual)
• the KEY NUMBER and DESCRIPTION of the part(s) (see the EXPLODED DRAWING in the center of this
manual and the PART LIST on page 31)
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and
material under normal use and service conditions. The drive motor is warranted for fifteen (15) years
after the date of purchase. Parts and labor are warranted for ninety (90) days after the date of purchase.
This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to
replacing or repairing, at ICON's option, the product through one of its authorized service centers. All repairs for which warranty claims are made must be pre-authorized by ICON. If the product is shipped to a
service center, freight charges to and from the service center will be the customer’s responsibility. For inhome service, the customer will be responsible for a minimal trip charge. This warranty does not extend
to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an ICON authorized service center; products used
for commercial or rental purposes; or products used as store display models. No other warranty beyond
that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss
of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
Part No. 233053 R0506A Printed in USA © 2006 ICON IP, Inc.
Loading...
