Pro-Form Performance 1050 PETL10714.0 User Manual

Model No. PETL10714.0 Serial No.

Write the serial number in the space above for reference.

Serial Number

Decal

CUSTOMER SERVICE

UNITED KINGDOM Call: 08457 089 009 From Ireland: 053 92 36102 Website: www.iconsupport.eu E-mail: csuk@iconeurope.com Write:

ICON Health & Fitness, Ltd. c/o HI Group PLC Express Way CASTLEFORD WF10 5QJ UNITED KINGDOM

USER’S MANUAL

AUSTRALIA Call: 1800 993 770 E-mail: australiacc@iconfitness.com Write:

ICON Health & Fitness PO Box 635 WINSTON HILLS NSW 2153 AUSTRALIA

CAUTION

Read all precautions and instructions in this manual before using this equipment. Save this manual for future reference.

www.iconeurope.com

TABLE OF CONTENTS

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS ..................................................................3

BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

THE CHEST HEART RATE MONITOR. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

HOW TO USE THE TREADMILL ..............................................................17

HOW TO FOLD AND MOVE THE TREADMILL ...................................................25

MAINTENANCE AND TROUBLESHOOTING .....................................................26

EXERCISE GUIDELINES ....................................................................29

PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

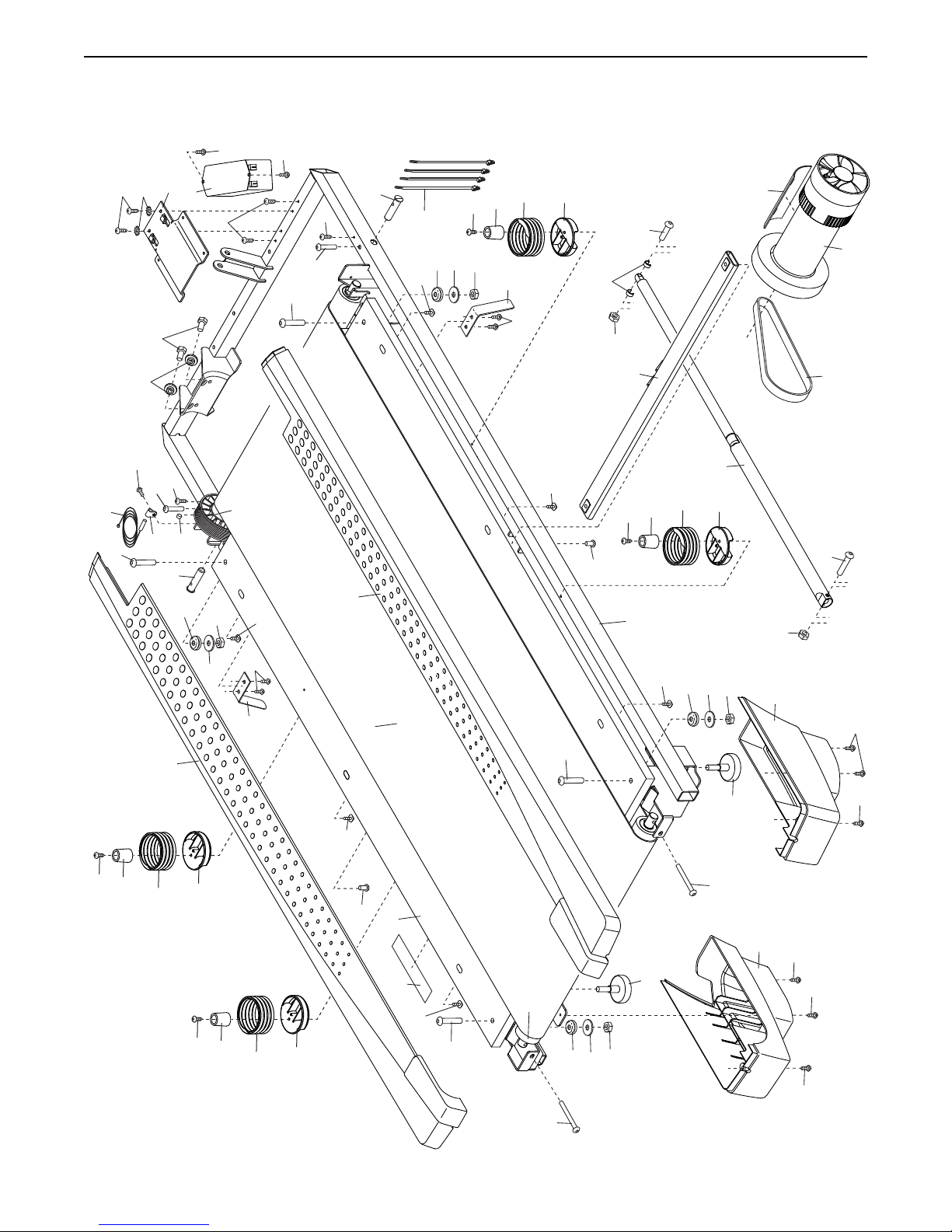

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

RECYCLING INFORMATION ......................................................... Back Cover

WARNING DECAL PLACEMENT

This drawing shows the locations of the warning decals. If a decal is missing or illegible, call

the telephone number on the front cover of this manual and request a free replacement decal. Apply the decal in the location shown.

Note: The decals may not be shown at actual size.

PROFORM is a registered trademark of ICON IP, Inc.

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read

all important precautions and instructions in this manual and all warnings on your treadmill before using your treadmill. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.

1. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings and precautions.

2. Before beginning any exercise program, consult your physician. This is especially important for persons over age 35 or persons with pre-existing health problems.

3. Use the treadmill only as described in this manual.

4. The treadmill is intended for home use only. Do not use the treadmill in any commercial, rental, or institutional setting.

5. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a garage or covered patio, or near water.

6. Place the treadmill on a level surface, with at least 8 ft. (2.4 m) of clearance behind it and 2 ft. (0.6 m) on each side. Do not place the treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.

12. When connecting the power cord (see page

17), plug the power cord into an earthed circuit. No other appliance should be on the same circuit. When replacing the fuse in the power cord adapter, insert an ASTA-approved BS1362, 13-amp fuse into the fuse carrier.

13. If an extension cord is needed, use only a 3-conductor, 14-gauge (1 mm2) cord that is no longer than 5 ft. (1.5 m).

14. Keep the power cord away from heated surfaces.

15. Never move the walking belt while the power is turned off. Do not operate the treadmill if the power cord or plug is damaged, or if the treadmill is not working properly. (See MAINTENANCE AND TROUBLESHOOTING on page 26 if the treadmill is not working properly.)

16. Read, understand, and test the emergency stop procedure before using the treadmill (see HOW TO TURN ON THE POWER on page 19).

7. Do not operate the treadmill where aerosol products are used or where oxygen is being administered.

8. Keep children under age 12 and pets away from the treadmill at all times.

9. The treadmill should be used only by persons weighing 330 lbs. (150 kg) or less.

10. Never allow more than one person on the treadmill at a time.

11. Wear appropriate exercise clothes while using the treadmill. Do not wear loose clothes that could become caught in the treadmill. Athletic support clothes are recommended for both men and women. Always

wear athletic shoes. Never use the treadmill with bare feet, wearing only stockings, or in sandals.

17. Never start the treadmill while you are standing on the walking belt. Always hold the handrails while using the treadmill.

18. The treadmill is capable of high speeds. Adjust the speed in small increments to avoid sudden jumps in speed.

19. The heart rate monitor is not a medical device. Various factors, including the user’s movement, may affect the accuracy of heart rate readings. The heart rate monitor is intended only as an exercise aid in determining heart rate trends in general.

20. Never leave the treadmill unattended while it is running. Always remove the key, press the power switch into the off position (see the drawing on page 5 for the location of the power switch), and unplug the power cord when the treadmill is not in use.

21. Do not attempt to move the treadmill until it is properly assembled. (See ASSEMBLY on page 7 and HOW TO FOLD AND MOVE THE TREADMILL on page 25.) You must be able to safely lift 45 lbs. (20 kg) to move the treadmill.

22. When folding or moving the treadmill, make sure that the storage latch is holding the frame securely in the storage position.

26. DANGER: Always unplug the power

cord immediately after use, before cleaning the treadmill, and before performing the maintenance and adjustment procedures described in this manual. Never remove the motor hood unless instructed to do so by an authorized service representative. Servicing other than the procedures in this manual should be performed by an authorized service representative only.

23. Do not change the incline of the treadmill by placing objects under the treadmill.

24. Never insert any object into any opening on the treadmill.

25. Inspect and properly tighten all parts of the treadmill regularly.

SAVE THESE INSTRUCTIONS

27. Over exercising may result in serious injury or death. If you feel faint or if you experience pain while exercising, stop immediately and cool down.

BEFORE YOU BEGIN

Thank you for selecting the new PROFORM® PERFORMANCE 1050 treadmill. The PERFORMANCE 1050 treadmill provides an impressive selection of features designed to make your workouts at home more effective and enjoyable.

For your benefit, read this manual carefully before you use the treadmill. If you have questions after

Length: 6 ft. 1 in. (185 cm) Width: 3 ft. (91 cm)

Handrail

reading this manual, please see the front cover of this manual. To help us assist you, note the product model number and serial number before contacting us. The model number and the location of the serial number decal are shown on the front cover of this manual.

Before reading further, please familiarize yourself with the parts that are labeled in the drawing below.

Console

Heart Rate Monitor

Key/Clip

Walking Belt

Foot Rail

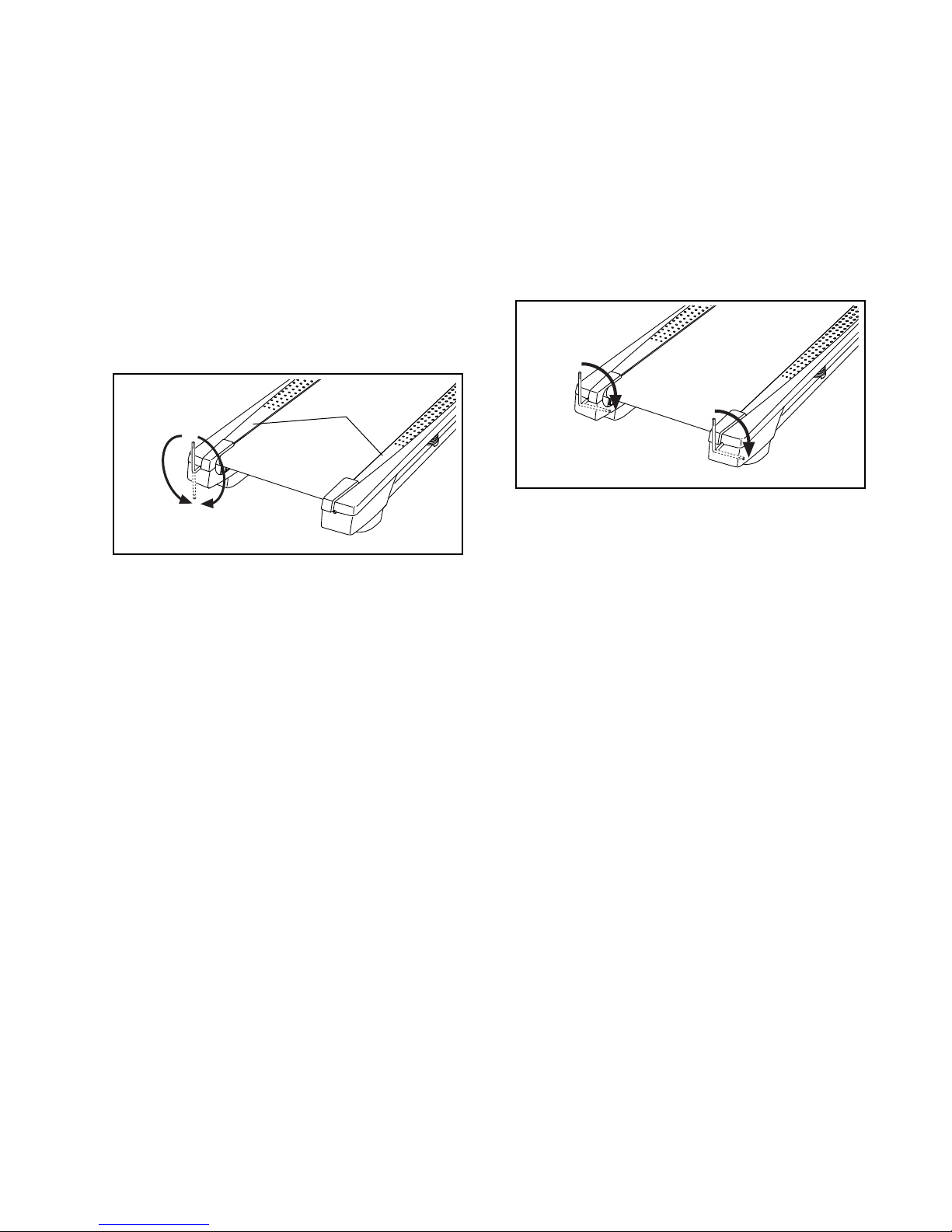

Idler Roller Adjustment Screws

Motor Hood

Power Switch

Wheel

Platform Cushions

PART IDENTIFICATION CHART

Use the drawings below to identify small parts used for assembly. The number in parentheses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the key number is the quantity used for assembly. Note: If a part is not in the hardware kit, check to see whether it is

preattached. Extra parts may be included.

1/4" Star

Washer (26)–8

#8 x 1/2" Silver

Screw (10)–1

Latch Spacer

(98)–2

5/16" x 2 1/4" Screw (28)–4

5/16" Star

Washer (11)–4

#8 x 1/2" Screw

(1)–8

5/16" x 3/4"

Screw (93)–2

3/8" Star

Washer (13)–6

#8 x 3/4" Screw

(4)–8

5/16" x 2 1/4"

Shoulder Bolt (95)–1

5/16" Nut (34)–2

#10 x 3/4" Screw

(9)–4

5/16" x 1 3/4"

Bolt (94)–1

3/8" x 4" Screw (7)–6

ASSEMBLY

• Assembly requires two persons.

• Place all parts in a cleared area and remove the packing materials. Do not dispose of the packing

materials until you nish all assembly steps.

• After shipping, there may be an oily substance on the exterior of the treadmill. This is normal. If there is an oily substance on the treadmill, wipe it off with a soft cloth and a mild, non-abrasive cleaner.

1. Go to www.iconsupport.eu on your computer

and register your product.

• activates your warranty

• saves you time if you ever need to contact Customer Service

• allows us to notify you of upgrades and offers

Note: If you do not have Internet access, call

Customer Service (see the front cover of this manual) and register your product.

• Left parts are marked “L” or “Left” and right parts are marked “R” or “Right.”

• To identify small parts, see page 6.

• Assembly requires the following tools:

the included hex keys

one Phillips screwdriver

To avoid damaging parts, do not use power tools.

2. Make sure that the power cord is unplugged.

Press a Base Cap (74) into each side of the

Base (85).

Identify the Right Upright (90). Have a second

person hold the Right Upright near the Base (85).

See the inset drawing. Tie the wire tie in the

Right Upright (90) securely around the end of the Upright Wire (81). Then, insert the Upright Wire into the lower end of the Right Upright as you pull the other end of the wire tie out of the Right Upright.

Wire

Tie

Wire

Tie

3. Lay the Right Upright (90) near the Base (85). Press the Grommet (77) into the square hole in the Right Upright. Make sure not to pinch the

ground wire.

Then, attach the ground wire to the Right Upright

(90) with a #8 x 1/2" Silver Screw (10).

Ground

Wire

Square

Hole

4. Hold the Right Upright (90) against the Base (85). Be careful not to pinch the wires. Partially tighten three 3/8" x 4" Screws (7) with three 3/8" Star Washers (13) into the Right Upright and the Base; do not fully tighten the

Screws yet.

Attach the Left Upright (not shown) in the

same way. Note: There are no wires on the left

side.

Wires

5. Identify the Left and Right Base Covers (82, 83). Slide the Left and Right Base Covers onto the Left and Right Uprights (89, 90) as shown.

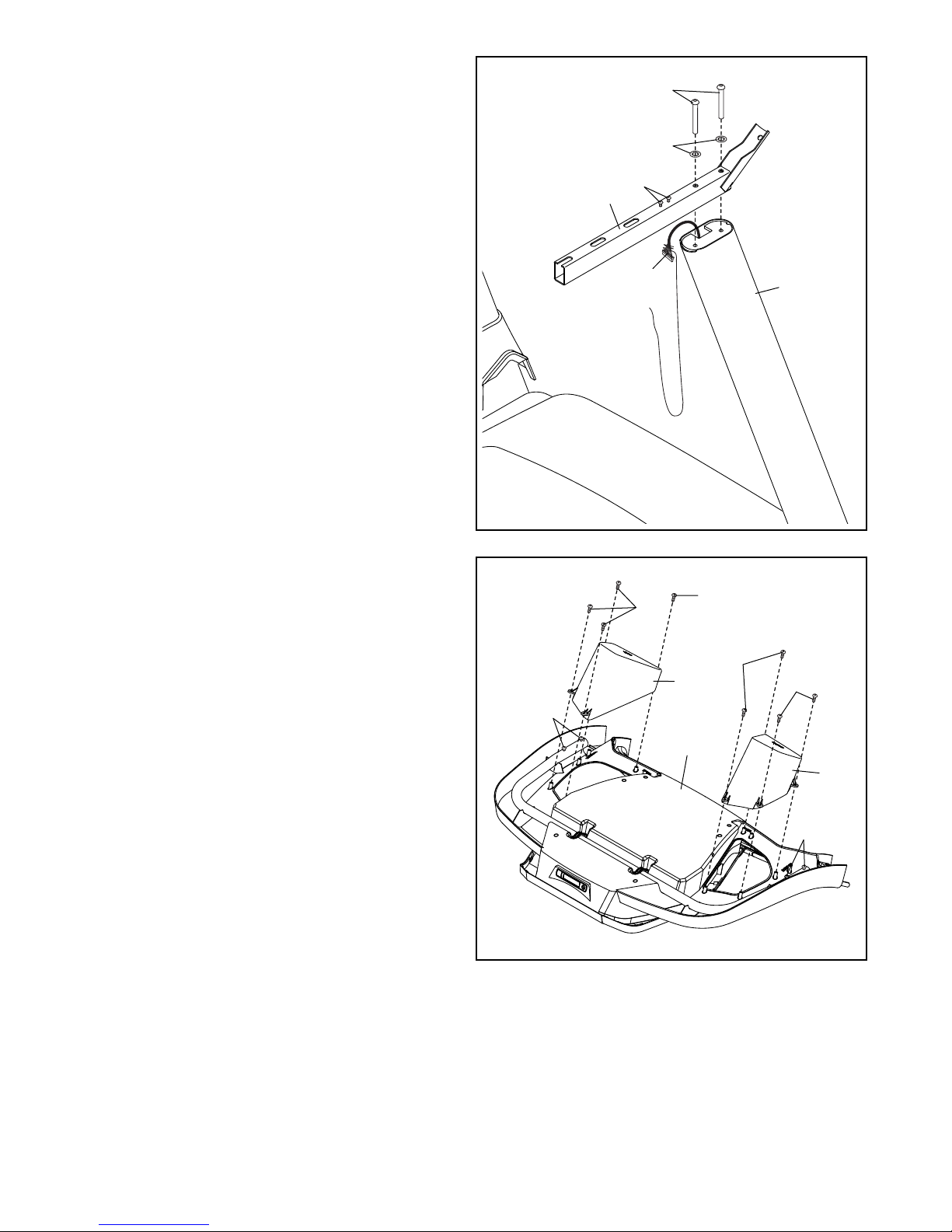

6 . Set a Handrail (84) onto the Right Upright (90).

Make sure that the Upright Wire (81) is not pinched.

Attach the Handrail (84) with two 5/16" x 2 1/4"

Screws (28) and two 5/16" Star Washers (11).

Start both Screws, and then tighten them.

Attach the other Handrail (not shown) in the

same way. Note: There is no wire on the left

side.

Remove and discard the two indicated screws

(A) from both Handrails (84) (only one side is shown).

7. Set the console assembly face down on a soft surface to avoid scratching the console assembly. Remove and save the four 1/4" x 1/2"

Screws (2).

Identify the Left Tray (36). Attach the Left Tray

with four #8 x 1/2" Screws (1). Start all four Screws, and then tighten them. Be careful not

to overtighten the Screws.

Attach the Right Tray (27) in the same way.

Console

Assembly

8. With the help of a second person, hold the console assembly near the right Handrail (84) and the left Handrail (not shown).

See the inset drawing. Connect the Upright

Wire (81) to the console wire. The connectors

should slide together easily and snap into place. If they do not, turn one connector and try again. IF YOU DO NOT CONNECT THE CONNECTORS PROPERLY, THE CONSOLE MAY BECOME DAMAGED WHEN YOU TURN ON THE POWER. Then, remove the wire tie from

the Upright Wire.

Console

Assembly

Console

Wire

Console

Wire

Tie

Wire

9. Set the console assembly on the Handrails (84). Make sure that no wires are pinched. Insert the excess Upright Wire (81) into the Right Upright (90).

Attach the console assembly to the brackets

on the Handrails (84) with the four 1/4" x 1/2" Screws (2) that you removed in step 7 and four 1/4" Star Washers (26). Do not tighten the Screws yet.

Console Assembly

10. IMPORTANT: To avoid damaging the Pulse Crossbar (5), do not use power tools and do not overtighten the #10 x 3/4" Screws (9).

Tighten four #10 x 3/4" Screws (9) with four 1/4"

Star Washers (26) into the Pulse Crossbar (5) and the Handrails (84). Start all four Screws,

and then tighten them.

See step 9. Tighten the four 1/4" x 1/2"

Screws (2).

11. Identify the Left and Right Handrail Inserts (79,

31).

Attach the Left Handrail Insert (79) to the left

Handrail (84) with three #8 x 3/4" Screws (4).

Note: Slide the Left Handrail Insert up against the console assembly before tightening the Screws.

Attach the Right Handrail Insert (31) in the

same way.

Console

Assembly

Console

Assembly

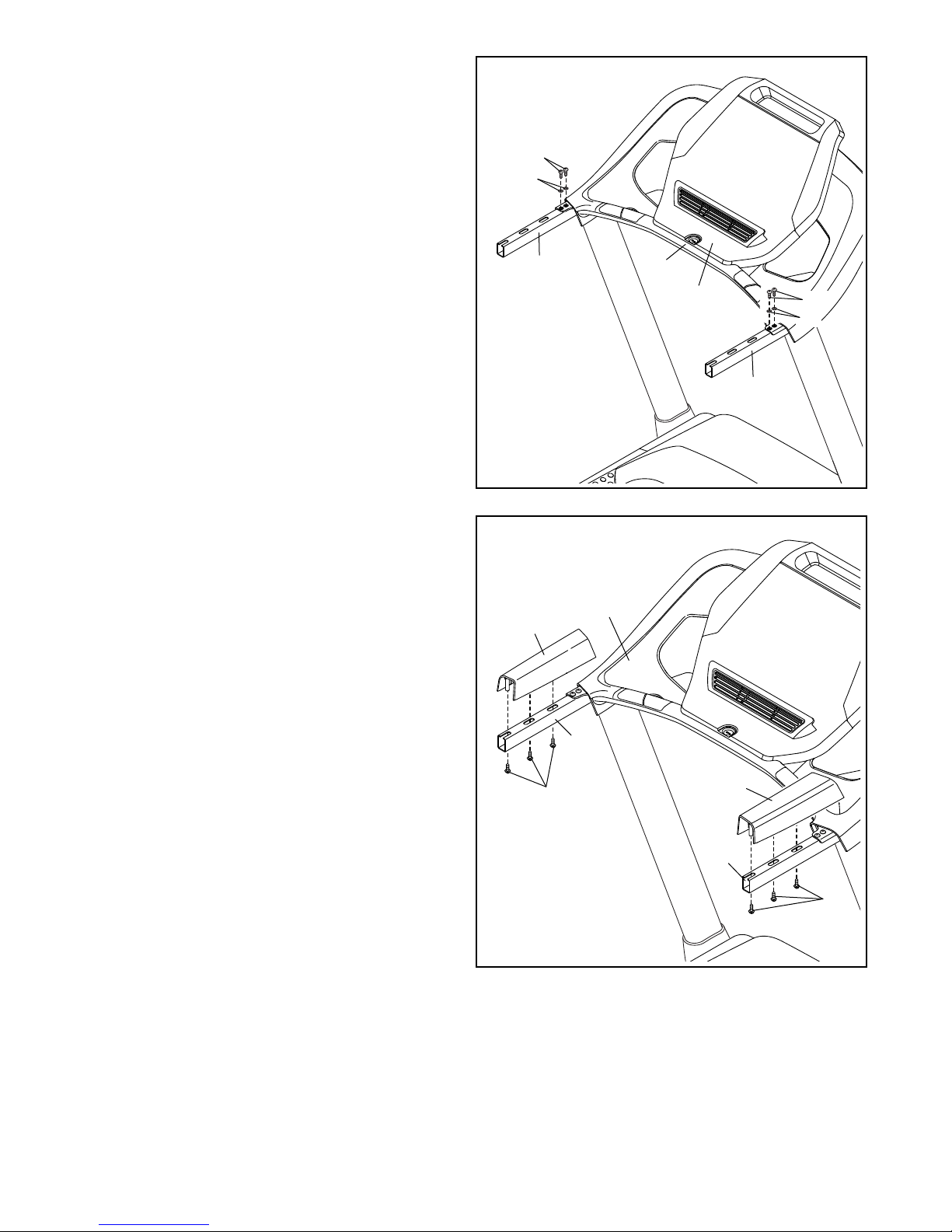

12. Identify the Left and Right Handrail Covers (87,

8).

Slide the Left Handrail Cover (87) up against the

console assembly and tighten a #8 x 3/4" Screw (4) into the bottom of the Left Handrail Cover. Be

careful not to overtighten the Screw.

Attach the Right Handrail Cover (8) in the

same way.

13 . Note: If it is assembled on a smooth surface,

the treadmill may roll forward during this step.

Console

Assembly

Raise the Frame (56) to the upright position.

Have a second person hold the Frame until step 16 is completed.

Orient the Latch Crossbar (97) as shown. Make

sure that the “This side toward belt” sticker (B) is facing the treadmill. Attach the Latch

Crossbar to the brackets on the Frame (56) with two 5/16" x 3/4" Screws (93).

Brackets

14. Orient the Storage Latch (96) so that the decals are facing away from the treadmill as shown.

Attach the lower end of the Storage Latch (96) to

the bracket on the Base (85) with a 5/16" x 1 3/4" Bolt (94), two Latch Spacers (98), and a 5/16" Nut (34) as shown.

Tie

Raise the Storage Latch (96) to a vertical posi-

tion. Then, remove the tie from the top of the Storage Latch.

15. Attach the upper end of the Storage Latch (96) to the bracket on the Latch Crossbar (97) with a 5/16" x 2 1/4" Shoulder Bolt (95) and a 5/16" Nut (34).

Lower the Frame (56) (see HOW TO LOWER

THE TREADMILL FOR USE on page 25).

Decals

16. Firmly tighten all six 3/8" x 4" Screws (7). Then, slide the Left and Right Base Covers (82, 83) downward.

17. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the treadmill. To avoid damage to the console, keep the treadmill out of direct sunlight. Keep the included hex key in a secure place; the hex key is used to adjust the walking belt (see pages 27 and 28). Note: Extra hardware may be included.

THE CHEST HEART RATE MONITOR

HOW TO PUT ON THE HEART RATE MONITOR

The heart rate monitor consists of a chest strap and a sensor. Insert the tab on one end of the chest strap into the hole in one end of the sensor as shown. Then, press the end of the sensor under the buckle on the chest strap. The tab should be flush with the front of the sensor.

The heart rate monitor must be worn under your clothes, tight against your skin. Wrap the heart rate monitor around your chest in the location shown. Make sure that the logo is rightside-up. Then, attach the other end of the chest strap to the sensor. Adjust the length of the chest strap, if necessary.

Pull the sensor away from your body a few inches and locate the two electrode areas, which are covered by shallow ridges. Using saline solution such as saliva or contact lens solution, wet the electrode areas. Then, return the sensor to a position against your chest.

CARE AND MAINTENANCE

• Thoroughly dry the sensor with a soft towel after each use. Moisture may keep the sensor activated, shortening the life of the battery.

• Store the heart rate monitor in a warm, dry place. Do not store the heart rate monitor in a plastic bag or other container that may trap moisture.

Tabs

Chest

Strap

Sensor

Tab

Sensor

Buckle

• Do not expose the heart rate monitor to direct sunlight for extended periods of time; do not expose it to temperatures above 122° F (50° C) or below 14° F (-10° C).

• Do not excessively bend or stretch the sensor when using or storing the heart rate monitor.

• To clean the sensor, use a damp cloth and a small amount of mild soap. Then, wipe the sensor with a damp cloth and thoroughly dry it with a soft towel. Never use alcohol, abrasives, or chemicals to clean the sensor. Hand wash and air dry the chest strap.

TROUBLESHOOTING

If the heart rate monitor does not function properly, try the steps below.

• Make sure that you are wearing the heart rate monitor as described at the left. If the heart rate monitor does not function when positioned as described, move it slightly lower or higher on your chest.

• If heart rate readings are not displayed until you begin perspiring, rewet the electrode areas.

• For the console to display heart rate readings, you must be within arm’s length of the console.

• If there is a battery cover on the back of the sensor, replace the battery with a new battery of the same type.

• The heart rate monitor is designed to work with people who have normal heart rhythms. Heart rate reading problems may be caused by medical conditions such as premature ventricular contractions (pvcs), tachycardia bursts, and arrhythmia.

• The operation of the heart rate monitor can be affected by magnetic interference from high power lines or other sources. If you suspect that magnetic interference is causing a problem, try relocating the fitness equipment.

HOW TO USE THE TREADMILL

FR/SP

AUS

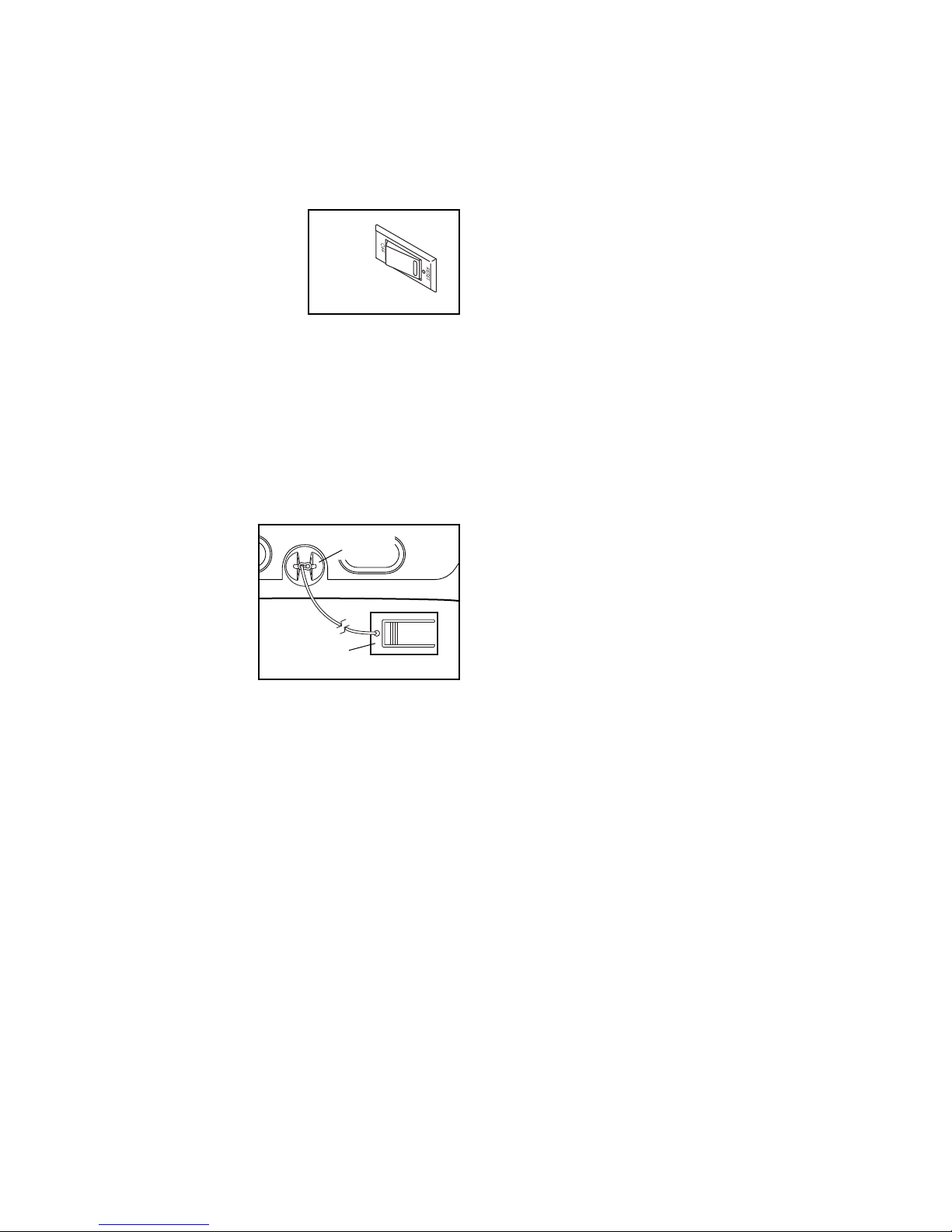

HOW TO PLUG IN THE POWER CORD

This product must be earthed. If it should malfunc-

tion or break down, earthing provides a path of least resistance for electric current to reduce the risk of electric shock. This product’s power cord has an equipment-earthing conductor and an earthing plug.

IMPORTANT: If the power cord is damaged, it must be replaced with a manufacturer-recommended power cord.

DANGER: Improper connection of

the equipment-earthing conductor can result in an increased risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the product is properly earthed. Do not modify the plug provided with the product—if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

Follow the steps below to plug in the power cord.

1. Plug the indicated end of the power cord into the socket on the treadmill.

Socket on Treadmill

Power Cord

2. Plug the power cord into an appropriate outlet that is properly installed and earthed in accordance with all local codes and ordinances.

Outlet

Australia

Outlet

CONSOLE DIAGRAM

FEATURES OF THE CONSOLE

The treadmill console offers an impressive array of features designed to make your workouts more effective and enjoyable. When you use the manual mode, you can change the speed and incline of the treadmill with the touch of a button. As you exercise, the console will display instant exercise feedback. You can even measure your heart rate using the handgrip heart rate monitor or the chest heart rate monitor.

In addition, the console features a selection of onboard workouts. Each workout automatically controls the speed and incline of the treadmill as it guides you through an effective exercise session.

The console also features an iFit mode that enables the treadmill to communicate with your wireless network through an optional iFit module. With the iFit mode, you can download personalized workouts, create your own workouts, track your workout results, race against other iFit users, and access many other features. To purchase an iFit module at any time, go

to www.iFit.com or call the telephone number on the front cover of this manual.

You can even listen to your favorite workout music or audio books with the console’s stereo sound system while you exercise.

To turn on the power, see page 19. To use the manual mode, see page 19. To use an onboard workout, see page 21. To use an iFit workout, see page 22. To use the sound system, see page 23. To use the information mode, see page 23.

Note: The console can display speed and distance in either miles or kilometers. To nd which unit of measurement is selected, see THE INFORMATION MODE on page 23. For simplicity, all instructions in this section refer to kilometers.

IMPORTANT: If there are sheets of plastic on the console, remove the plastic. To prevent damage to the walking platform, wear clean athletic shoes

while using the treadmill. The rst time you use

the treadmill, observe the alignment of the walking belt, and center the walking belt if necessary (see page 28).

HOW TO TURN ON THE POWER

ETPE10714

(PETL10714)

HOW TO USE THE MANUAL MODE

IMPORTANT: If the treadmill has been exposed to cold temperatures, allow it to warm to room temperature before you turn on the power. If you do not do this, you may damage the console displays or other electrical components.

Plug in the power cord (see page 17). Next, locate the power switch on the treadmill frame near the power cord. Press the power switch into the reset position.

IMPORTANT: The console features a display demo mode, designed to be used if the treadmill is displayed in a store. If the displays light as soon as you plug in the power cord and press the power switch into the reset position, the demo mode is turned on. To turn off the demo mode, hold down the Stop button for a few seconds. If the displays remain lit, see THE INFORMATION MODE on page 23 to turn off the demo mode.

Next, stand on the foot rails of the treadmill. Find the clip attached to the key and slide the clip onto the waistband of your clothes. Then, insert the key into the console. After a moment, the displays will light. IMPORTANT: In an emergency,

the key can be pulled from the console, causing the walking belt to slow to a stop. Test the clip by carefully taking a few steps backward; if the key is not pulled from the console, adjust the position of the clip.

Reset

Key

Clip

1. Insert the key into the console.

See HOW TO TURN ON THE POWER at the left.

2. Select the manual mode.

Press the Manual button on the console. If you

are not connected to iFit, the manual mode will be selected automatically.

3. Start the walking belt.

To start the walking belt, press the Start button, the

Speed increase button, or one of the Quick Speed buttons numbered 2 through 20.

If you press the Start button or the Speed increase

button, the walking belt will begin to move at 2 Km/H. As you exercise, change the speed of the walking belt as desired by pressing the Speed increase and decrease buttons. Each time you press one of the buttons, the speed setting will change by 0.1 Km/H; if you hold down the button, the speed setting will change in increments of

0.5 Km/H. Note: After you press the button, it may take a moment for the walking belt to reach the selected speed setting.

If you press one of the numbered Quick Speed but-

tons, the walking belt will gradually change speed until it reaches the selected speed setting.

To stop the walking belt, press the Stop button.

The time will begin to ash in the display. To restart

the walking belt, press the Start button or the Speed increase button.

4. Change the incline of the treadmill as desired.

To change the incline of the treadmill, press the

Incline increase or decrease button or one of the Quick Incline buttons numbered 1 through 10. Each time you press one of the buttons, the treadmill will gradually adjust to the selected incline setting.

5. Follow your progress with the displays.

6. Measure your heart rate if desired.

The matrix—When

you select the manual mode, the matrix will display a track that represents 400 m (1/4 mile). As you exercise, the indicators around the track will appear in succession until the entire track appears. The track will then disappear and the indicators will again begin to appear in succession.

The Incline/Calories

display—This display will show the approximate number of calories you have burned. The display will also show the incline of the treadmill for a few seconds each time the incline of the treadmill changes.

The Time/Pulse

display—This display

will show the elapsed time. The display will also show your heart rate when you use the handgrip heart rate monitor (see step 6).

The Distance/Speed

display—This display can show the distance that you have walked or run. The display will also show the speed of the walking belt for a few seconds each time the speed changes.

Note: If you use the handgrip heart rate moni-

tor and the chest heart rate monitor at the same time, the console will not display your heart rate accurately. For information about the chest

heart rate monitor, see page 16.

Before using

the handgrip heart rate monitor, remove the sheets of plastic from the metal contacts on the pulse bar. In addition, make sure that your hands are clean.

To measure your heart rate, stand on the foot

rails and hold the pulse bar with your palms on the metal contacts; avoid moving your hands. When your pulse is detected, several dashes will appear and then your heart rate will be shown. For the

most accurate heart rate reading, continue to hold the contacts for about 15 seconds.

7. Turn on the fan if desired.

The fan features multiple speed set-

tings. Press the fan increase or decrease button to select a fan speed or to turn off the fan. Note: If the fan is on when the walking belt is stopped, the fan will turn off automatically after a few minutes.

Contacts

The Center display—This display will show work-

out instructions.

Press the Home button to return to the start mode

(see THE INFORMATION MODE on page 23 to set the start mode). If necessary, press the Home button again.

When an iFit module is connected to iFit.com, the

iFit symbol will light.

To reset the displays, press the Stop button,

remove the key, and then reinsert the key.

8. When you are nished exercising, remove the

key from the console.

Step onto the foot rails, press the Stop button, and

adjust the incline of the treadmill to zero. The incline must be at zero or you may damage the treadmill when you fold it to the storage position. Next, remove the key from the console and

put it in a secure place.

When you are nished using the treadmill, press

the power switch into the off position and unplug the power cord. IMPORTANT: If you do not do

this, the treadmill’s electrical components may wear prematurely.

HOW TO USE AN ONBOARD WORKOUT

1. Insert the key into the console.

See HOW TO TURN ON THE POWER on page 19.

2. Select an onboard workout.

To select an onboard workout, press the Calorie

button, the Intensity button, the Speed button, or the Incline button repeatedly until the desired workout appears in the display.

When you select an onboard workout, the displays

will show the maximum incline, the duration, the maximum speed, and the name of the workout. In addition, a prole of the speed settings of the workout will appear in the matrix. If you select a calorie workout, the approximate number of calories you will burn will appear in the name of the workout.

3. Start the workout.

Press the Start button or the Speed increase but-

ton to start the workout. A moment after you press the button, the treadmill will automatically adjust to

the rst speed and incline settings of the workout.

Hold the handrails and begin walking. Note: If you select a speed workout, the exercise session will begin with a three-minute warm-up segment before the speed workout begins.

Each workout is divided into segments. One speed

setting and one incline setting are programmed for each segment. Note: The same speed setting and/ or incline setting may be programmed for consecutive segments.

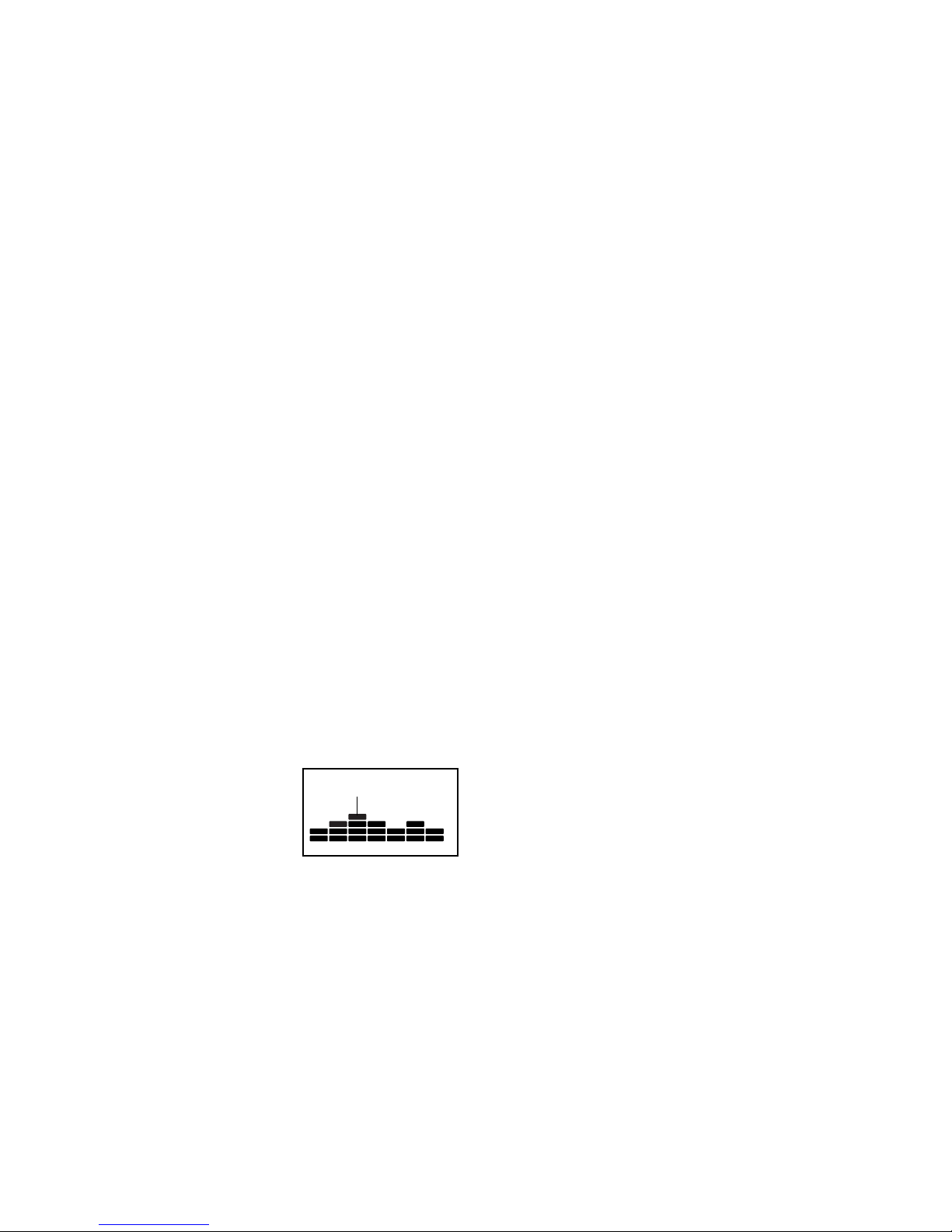

During the workout, the

prole will show your progress. The ashing segment of the prole

represents the current segment of the work-

out. The height of the ashing segment indicates

the speed setting for the current segment. At the end of each segment, a series of tones will sound

and the next segment of the prole will begin to ash. If a new speed and/or incline setting is

programmed for the next segment, the new speed and/or incline setting will appear in the displays for a few seconds and the treadmill will automatically adjust to the new speed and/or incline setting.

Current Segment

The workout will continue in this way until the last

segment of the prole ashes in the display and the

last segment ends. The walking belt will then slow to a stop.

Note: The calorie goal is an estimate of the

number of calories that you will burn during the workout. The actual number of calories that you burn will depend on various factors such as your weight. In addition, if you manually change the speed or incline of the treadmill during the workout, the number of calories you burn will be affected.

If the speed or incline setting is too high or too low

at any time during the workout, you can manually override the setting by pressing the Speed or Incline buttons; however, when the next segment

of the workout begins, the treadmill will automatically adjust to the speed and incline settings for the next segment.

To stop the workout at any time, press the Stop

button. The time will begin to ash in the display.

To resume the workout, press the Start button or the Speed increase button. The walking belt will begin to move at 2 Km/H. When the next segment of the workout begins, the treadmill will automatically adjust to the speed and incline settings for the next segment.

4. Follow your progress with the displays.

See step 5 on page 20. The Time/Pulse display

will show the time remaining instead of the elapsed time.

5. Measure your heart rate if desired.

See step 6 on page 20.

6. Turn on the fan if desired.

See step 7 on page 20.

7. When you are nished exercising, remove the

key from the console.

See step 8 on page 20.

HOW TO USE AN IFIT WORKOUT

Note: To use an iFit workout, you must have an optional iFit module. To purchase an iFit module at

any time, go to www.iFit.com or call the telephone number on the front cover of this manual. You must

also have access to a computer with a USB port and an internet connection. In addition, you must have access to a wireless network including an 802.11b/g/n router with SSID broadcast enabled (hidden networks are not supported). An iFit.com membership is also required.

1. Insert the key into the console.

See HOW TO TURN ON THE POWER on page 19.

2. Insert the iFit module into the console.

When you select an iFit workout, the display will

show the name, duration, maximum speed setting, and distance of the workout. The display will also show the approximate number of calories you will burn during the workout and a profile of the speed settings of the workout.

If you select a competition workout, the display may

count down to the beginning of the race.

5. Start the workout.

See step 3 on page 21.

During some workouts, an audio coach may guide

you through your workout. You can select a setting for your audio coach (see THE INFORMATION MODE on page 23).

To insert the iFit module, see the instructions in-

cluded with the iFit module.

IMPORTANT: To satisfy exposure compliance

requirements, the antenna and transmitter in the iFit module must be at least 8 in. (20 cm) from all persons and must not be near or connected to any other antenna or transmitter.

3. Select a user.

If more than one user is registered, you can switch

users in the iFit main screen. Press the increase and decrease buttons next to the Enter button to select a user.

4. Select an iFit workout.

To download an iFit workout in your schedule,

press the Map, Train, or Lose Wt. button to download the next workout of that type in your schedule. To compete in a race that you have previously scheduled, press the Compete button.

To re-run a recent iFit workout from your sched-

ule, first press the Track button. Next, press the increase and decrease buttons to select the desired workout. Then, press the Enter button to start the workout.

To stop the workout at any time, press the Stop

button. The time will begin to ash in the display.

To resume the workout, press the Start button or the Speed increase button. The walking belt will begin to move at the speed setting for the rst segment of the workout. When the next segment of the workout begins, the treadmill will automatically adjust to the speed and incline settings for the next segment.

6. Follow your progress with the displays.

See step 5 on page 20.

7. Measure your heart rate if desired.

See step 6 on page 20.

8. Turn on the fan if desired.

See step 7 on page 20.

9. When you are nished exercising, remove the

key from the console.

See step 8 on page 20.

For more information about the iFit mode, go to www.iFit.com.

For more information about the iFit workouts,

please see www.iFit.com.

HOW TO USE THE SOUND SYSTEM

THE INFORMATION MODE

To play music or audio books through the console sound system while you exercise, plug a 3.5 mm male to 3.5 mm male audio cable (not included) into the jack on the console and into a jack on your MP3 player, CD player, or other personal audio player; make sure

that the audio cable is fully plugged in. Note: To purchase an audio cable, see your local electronics store.

Next, press the play button on your personal audio player. Adjust the volume level using the volume increase and decrease buttons on the console or the volume control on your personal audio player.

If you are using a personal CD player and the CD

skips, set the CD player on the oor or another at

surface instead of on the console.

The console features an information mode that keeps track of treadmill information and allows you to personalize console settings.

1. Select the information mode.

To select the information mode, hold down the Stop

button while inserting the key into the console, and then release the Stop button. When the information mode is selected, the following information will be shown:

The Time/Pulse display will show the total number

of hours the treadmill has been used.

The Distance/Speed display will show the total

number of kilometers (or miles) that the walking belt has moved.

2. Select the optional screens.

While the information mode is selected, press the

decrease button next to the Home button to select each of the following screens in the center display:

UNITS—To change the unit of measurement, press

the Enter button or the Speed increase button. To view distance in miles, select ENGLISH. To view distance in kilometers, select METRIC.

DEMO MODE—The console features a display

demo mode, designed to be used if the treadmill is displayed in a store. While the demo mode is turned on, the console will function normally when you plug in the power cord, press the power switch into the reset position, and insert the key into the console. However, when you remove the key, the displays will remain lit, although the buttons will not function. If the demo mode is turned on, the word ON will appear in the center display. To turn on or turn off the demo mode, press the Enter button or the Speed decrease button.

CONTRAST LVL—Press the Incline increase and

decrease buttons to adjust the contrast level of the displays.

If a module is connected, you may also select

the following screens:

MODULE—If an iFit module is connected, the

display will show the word WIFI. If a USB module is connected, the display will show the word USB/SD.

TRAINER VOICE—To turn on or turn off the audio

coach, press the Enter button.

If an iFit module is connected, you may also

select the following screens:

START MODE—The start mode will appear when

you insert the key into the console. Press the Enter button to select the manual mode or the iFit mode as the start mode.

the network SSID, the network encryption type, the wireless signal strength, the IP address of the module, the number of registered users and their names, and the results of the DNS lookup. To return to the information mode, remove the key from the console and repeat the instructions near the beginning of this page.

SEND/OBTAIN DATA—To send and receive work-

outs, workout logs, and updates, press the Enter button. When the process is finished, the words TRANSFERS DONE will appear in the display.

3. Exit the information mode.

CHECK WIFI—Press the Enter button. The center

display will show the software version number,

To exit the information mode, remove the key from

the console.

HOW TO FOLD AND MOVE THE TREADMILL

HOW TO FOLD THE TREADMILL

To avoid damaging the treadmill, adjust the incline to zero before you fold the treadmill. Then, remove the key and unplug the power cord. CAUTION: You must be able to safely lift 45 lbs. (20 kg) to raise, lower, or move the treadmill.

1. Hold the metal frame firmly in the location shown

by the arrow below. CAUTION: Do not hold the

frame by the plastic foot rails. Bend your legs and keep your back straight as you raise the frame about halfway to the vertical position.

Frame

HOW TO MOVE THE TREADMILL

Before moving the treadmill, fold it as described at the left. CAUTION: Make sure that the latch knob is

locked in the storage position. Moving the treadmill may require two people.

1. Hold the frame and one of the handrails, and place

one foot against a wheel.

Frame

Handrail

Wheel

2. Raise the frame until the storage latch locks in the

storage position. CAUTION: Make sure that the

storage latch locks.

Latch

To protect the oor or carpet, place a mat under the

treadmill. Keep the treadmill out of direct sunlight. Do not leave the treadmill in the storage position in temperatures above 85° F (30° C).

Frame

2. Pull back on the handrail until the treadmill will roll

on the wheels, and carefully move it to the desired location. CAUTION: Do not move the tread-

mill without tipping it back, do not pull on the frame, and do not move the treadmill over an uneven surface.

3. Place one foot against a wheel, and carefully lower

the treadmill.

HOW TO LOWER THE TREADMILL FOR USE

1. Press on the

upper end of the treadmill frame with your hands, press the storage latch with your foot in the location shown, and then allow the frame to lower to the floor.

Storage

Latch

MAINTENANCE AND TROUBLESHOOTING

MAINTENANCE

Regularly clean the treadmill and keep the walking belt clean and dry. First, press the power switch into the off position and unplug the power cord. Wipe exterior parts of the treadmill with a damp cloth, and a small amount of mild soap. IMPORTANT: Do not spray liquids directly onto the treadmill. To avoid damage to the console, keep liquids away from the console. Then, thoroughly dry the treadmill with a soft towel.

TROUBLESHOOTING

Most treadmill problems can be solved by following the simple steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, see the front cover of this manual.

SYMPTOM: The power does not turn on

a. Make sure that the power cord is plugged into a

properly earthed outlet (see page 17). If an extension cord is needed, use only a 3-conductor, 14-gauge (1 mm2) cord that is no longer than 5 ft. (1.5 m).

b. After the power cord has been plugged in, make

sure that the key is inserted into the console.

c. Check the power switch located on the treadmill

frame near the power cord. If the switch protrudes as shown, the switch has tripped. To reset the power switch, wait for five minutes and then press the switch back in.

SYMPTOM: The console displays remain lit when you remove the key from the console

a. The console features a display demo mode,

designed to be used if the treadmill is displayed in a store. If the displays remain lit when you remove the key, the demo mode is turned on. To turn off the demo mode, hold down the Stop button for a few seconds. If the displays are still lit, see THE INFORMATION MODE on page 23 to turn off the demo mode.

SYMPTOM: The power turns off during use

a. Check the power switch (see drawing c at the left).

If the switch has tripped, wait for five minutes and then press the switch back in.

b. Make sure that the power cord is plugged in. If the

power cord is plugged in, unplug it, wait for five minutes, and then plug it back in.

c. Remove the key from the console, and then

reinsert it.

d. If the treadmill still will not run, please see the front

cover of this manual.

SYMPTOM: The displays of the console do not function properly

a. Remove the key from the console and UNPLUG

THE POWER CORD. Next, remove the ve #8 x

3/4" Screws (4), and carefully pivot off the Motor Hood (65).

Tripped

Reset

Next, locate the Reed Switch (52) and the Magnet

(50) on the left side of the Pulley (49). Turn the Pulley until the Magnet is aligned with the Reed Switch. Make sure that the gap between the

Magnet and the Reed Switch is about 1/8 in. (3 mm). If necessary, loosen the #8 x 3/4" Truss Head

Screw (14), move the Reed Switch slightly, and then retighten the Screw. Reattach the Motor Hood (not shown), and run the treadmill for a few minutes to check for a correct speed reading.

Top

View

1/8 in.

52 14

b. If the walking belt is overtightened, treadmill per-

formance may decrease and the walking belt may become damaged. Remove the key and UNPLUG THE POWER CORD. Using the hex key, turn both idler roller screws counterclockwise, 1/4 of a turn. When the walking belt is properly tightened, you should be able to lift each edge of the walking belt 2 to 3 in. (5 to 7 cm) off the walking platform. Be careful to keep the walking belt centered. Then, plug in the power cord, insert the key, and run the treadmill for a few minutes. Repeat until the walking belt is properly tightened.

2–3 in.

SYMPTOM: The incline of the treadmill does not change correctly

a. Hold down the Stop button and the Speed increase

button, insert the key into the console, and then release the Stop button and the Speed increase button. Next, press the Stop button, and then press the Incline increase or decrease button. The treadmill will automatically rise to the maximum incline level and then return to the minimum level. This will recalibrate the incline system. If the incline system does not begin calibrating, press the Stop button again, and then press the Incline increase or decrease button again. When the incline system is calibrated, remove the key from the console.

SYMPTOM: The walking belt slows when walked on

a. If an extension cord is needed, use only a 3-con-

ductor, 14-gauge (1 mm2) cord that is no longer than 5 ft. (1.5 m).

Idler Roller Screws

c. Your treadmill features a walking belt coated with

high-performance lubricant. IMPORTANT: Never

apply silicone spray or other substances to the walking belt or the walking platform unless instructed to do so by an authorized service representative. Such substances may deteriorate the walking belt and cause excessive wear.

If you suspect that the walking belt needs more lubricant, see the front cover of this manual.

d. If the walking belt still slows when walked on, see

the front cover of this manual.

SYMPTOM: The walking belt is not centered between the foot rails

IMPORTANT: If the walking belt rubs against the foot rails, the walking belt may become damaged.

a. First, remove the key and UNPLUG THE POWER

CORD. If the walking belt has shifted to the left,

use the hex key to turn the left idler roller screw clockwise 1/2 of a turn; if the walking belt has shifted to the right, turn the left idler roller screw counterclockwise 1/2 of a turn. Be careful not to overtighten the walking belt. Then, plug in the power cord, insert the key, and run the treadmill for a few minutes. Repeat until the walking belt is centered.

Foot Rails

SYMPTOM: The walking belt slips when walked on

a. First, remove the key and UNPLUG THE POWER

CORD. Using the hex key, turn both idler roller

screws clockwise, 1/4 of a turn. When the walking belt is correctly tightened, you should be able to lift each edge of the walking belt 2 to 3 in. (5 to 7 cm) off the walking platform. Be careful to keep the walking belt centered. Then, plug in the power cord, insert the key, and carefully walk on the treadmill for a few minutes. Repeat until the walking belt is properly tightened.

EXERCISE GUIDELINES

WARNING: Before beginning this

or any exercise program, consult your physician. This is especially important for persons over age 35 or persons with pre-existing health problems.

The heart rate monitor is not a medical device. Various factors may affect the accuracy of heart rate readings. The heart rate monitor is intended only as an exercise aid in determining heart rate trends in general.

These guidelines will help you to plan your exercise program. For detailed exercise information, obtain a reputable book or consult your physician. Remember, proper nutrition and adequate rest are essential for successful results.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your heart rate as a guide to find the proper intensity level. The chart below shows recommended heart rates for fat burning and aerobic exercise.

Burning Fat—To burn fat effectively, you must exercise at a low intensity level for a sustained period of time. During the first few minutes of exercise, your body uses carbohydrate calories for energy. Only after the first few minutes of exercise does your body begin to use stored fat calories for energy. If your goal is to burn fat, adjust the intensity of your exercise until your heart rate is near the lowest number in your training zone. For maximum fat burning, exercise with your heart rate near the middle number in your training zone.

Aerobic Exercise—If your goal is to strengthen your cardiovascular system, you must perform aerobic exercise, which is activity that requires large amounts of oxygen for prolonged periods of time. For aerobic exercise, adjust the intensity of your exercise until your heart rate is near the highest number in your training zone.

WORKOUT GUIDELINES

Warming Up—Start with 5 to 10 minutes of stretch-

ing and light exercise. A warm-up increases your body temperature, heart rate, and circulation in preparation for exercise.

Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During the first few weeks of your exercise program, do not keep your heart rate in your training zone for longer than 20 minutes.) Breathe regularly and deeply as you exercise; never hold your breath.

To find the proper intensity level, find your age at the bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your age define your “training zone.” The lowest number is the heart rate for fat burning, the middle number is the heart rate for maximum fat burning, and the highest number is the heart rate for aerobic exercise.

Cooling Down—Finish with 5 to 10 minutes of stretching. Stretching increases the flexibility of your muscles and helps to prevent post-exercise problems.

EXERCISE FREQUENCY

To maintain or improve your condition, complete three workouts each week, with at least one day of rest between workouts. After a few months of regular exercise, you may complete up to five workouts each week, if desired. Remember, the key to success is to make exercise a regular and enjoyable part of your everyday life.

PART LIST

Key No. Qty. Description Key No. Qty. Description

Model No. PETL10714.0 R0114A

1 8 #8 x 1/2" Screw 2 4 1/4" x 1/2" Screw 3 2 Base Pad 4 35 #8 x 3/4" Screw 5 1 Pulse Crossbar 6 1 Filter 7 6 3/8" x 4" Screw 8 1 Right Handrail Cover 9 4 #10 x 3/4" Screw 10 11 #8 x 1/2" Silver Screw 11 4 5/16" Star Washer 12 4 #8 x 1" Tek Screw 13 6 3/8" Star Washer 14 11 #8 x 3/4" Truss Head Screw 15 2 1/4" x 2 1/2" Screw 16 1 3/8" x 1 1/2" Bolt 17 2 3/8" x 1 1/2" Wheel Bolt 18 1 Console Frame 19 4 #8 x 7/16" Screw 20 2 5/16" Motor Screw 21 2 3/8" Pin 22 2 3/8" x 1" Bolt 23 4 5/16" x 1 3/4" Shoulder Bolt 24 2 #8 Star Washer 25 4 #8 x 1" Screw 26 8 1/4" Star Washer 27 1 Right Tray 28 4 5/16" x 2 1/4" Screw 29 1 3/8" x 1 3/4" Hex Head Bolt 30 4 5/16" Flat Washer 31 1 Right Handrail Insert 32 2 Incline Motor Spacer 33 6 3/8" Jam Nut 34 6 5/16" Nut 35 4 Small Cushion 36 1 Left Tray 37 6 #8 x 5/8" Screw 38 2 Wheel 39 4 Isolator 40 2 Rear Foot 41 1 Receptacle 42 1 Left Foot Rail 43 1 Caution Decal 44 1 Walking Platform 45 1 Walking Belt 46 2 Belt Guide 47 1 Right Rear Foot

48 4 Cable Tie 49 1 Drive Roller/Pulley 50 1 Magnet 51 1 Reed Switch Clip 52 1 Reed Switch 53 2 1/4" x 1 1/4" Screw 54 1 Drive Motor 55 1 Motor Belt 56 1 Frame 57 1 Left Rear Foot 58 1 Console Ground Wire 59 4 Rubber Cushion 60 1 Right Foot Rail 61 1 Idler Roller 62 1 Motor Plate 63 1 Motor Bushing 64 1 Console Base 65 1 Motor Hood 66 4 Cushion Bottom 67 2 Incline Frame Spacer 68 5 Hood Clip 69 1 Incline Motor 70 1 Incline Frame 71 2 Frame Spacer 72 1 Controller 73 1 Controller Plate 74 2 Base Cap 75 1 Power Switch 76 1 Power Cord 77 2 Grommet 78 1 Belly Pan 79 1 Left Handrail Insert 80 1 Console 81 1 Upright Wire 82 1 Left Base Cover 83 1 Right Base Cover 84 2 Handrail 85 1 Base 86 2 Wire Tie 87 1 Left Handrail Cover 88 1 Key/Clip 89 1 Left Upright 90 1 Right Upright 91 2 Warning Decal 92 2 Console Clamp 93 2 5/16" x 3/4" Screw 94 1 5/16" x 1 3/4" Bolt

Key No. Qty. Description Key No. Qty. Description

95 1 5/16" x 2 1/4" Shoulder Bolt 96 1 Storage Latch 97 1 Latch Crossbar

Note: Specifications are subject to change without notice. For information about ordering replacement parts, see the back cover of this manual. *These parts are not illustrated.

98 2 Latch Spacer 99 2 Base Pad Spacer * – User’s Manual

EXPLODED DRAWING A

Model No. PETL10714.0 R0114A

EXPLODED DRAWING B

Model No. PETL10714.0 R0114A

EXPLODED DRAWING C

Model No. PETL10714.0 R0114A

EXPLODED DRAWING D

Model No. PETL10714.0 R0114A

ORDERING REPLACEMENT PARTS

To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to provide the following information when contacting us:

• the model number and serial number of the product (see the front cover of this manual)

• the name of the product (see the front cover of this manual)

• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED DRAWING near the end of this manual)

RECYCLING INFORMATION

This electronic product must not be disposed of in municipal waste. To preserve the environment, this product must be recycled after its useful life as required by law.

Please use recycling facilities that are authorized to collect this type of waste in your area. In doing so, you will help to conserve natural resources and improve European standards of environmental protection. If you require more information about safe and correct disposal methods, please contact your local city office or the establishment where you purchased this product.

Pro-Form Performance 1050 PETL10714.0 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
