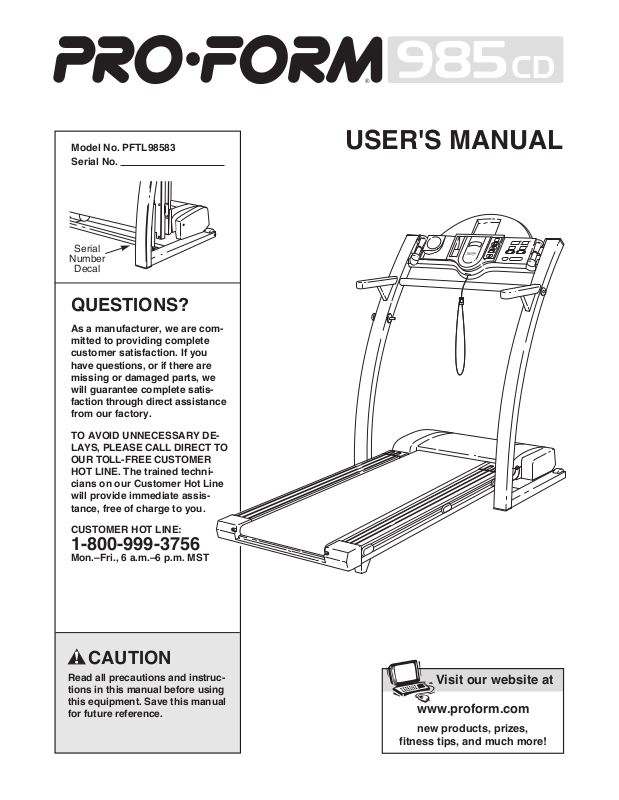

ProForm PFTL98583, PCTL98583 User Manual

Page 1
Serial
Number
Decal
Model No. PFTL98583 Serial No.
QUESTIONS?
As a manufacturer, we are com­mitted to providing complete customer satisfaction. If you have questions, or if there are missing or damaged parts, we will guarantee complete satis­faction through direct assistance from our factory.
TO AVOID UNNECESSARY DE­LAYS, PLEASE CALL DIRECT TO OUR TOLL-FREE CUSTOMER HOT LINE. The trained techni­cians on our Customer Hot Line will provide immediate assis­tance, free of charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.ÐFri., 6 a.m.Ð6 p.m. MST
CAUTION
Read all precautions and instruc­tions in this manual before using this equipment. Save this manual for future reference.
USER'S MANUAL
¨
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
Page 2
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

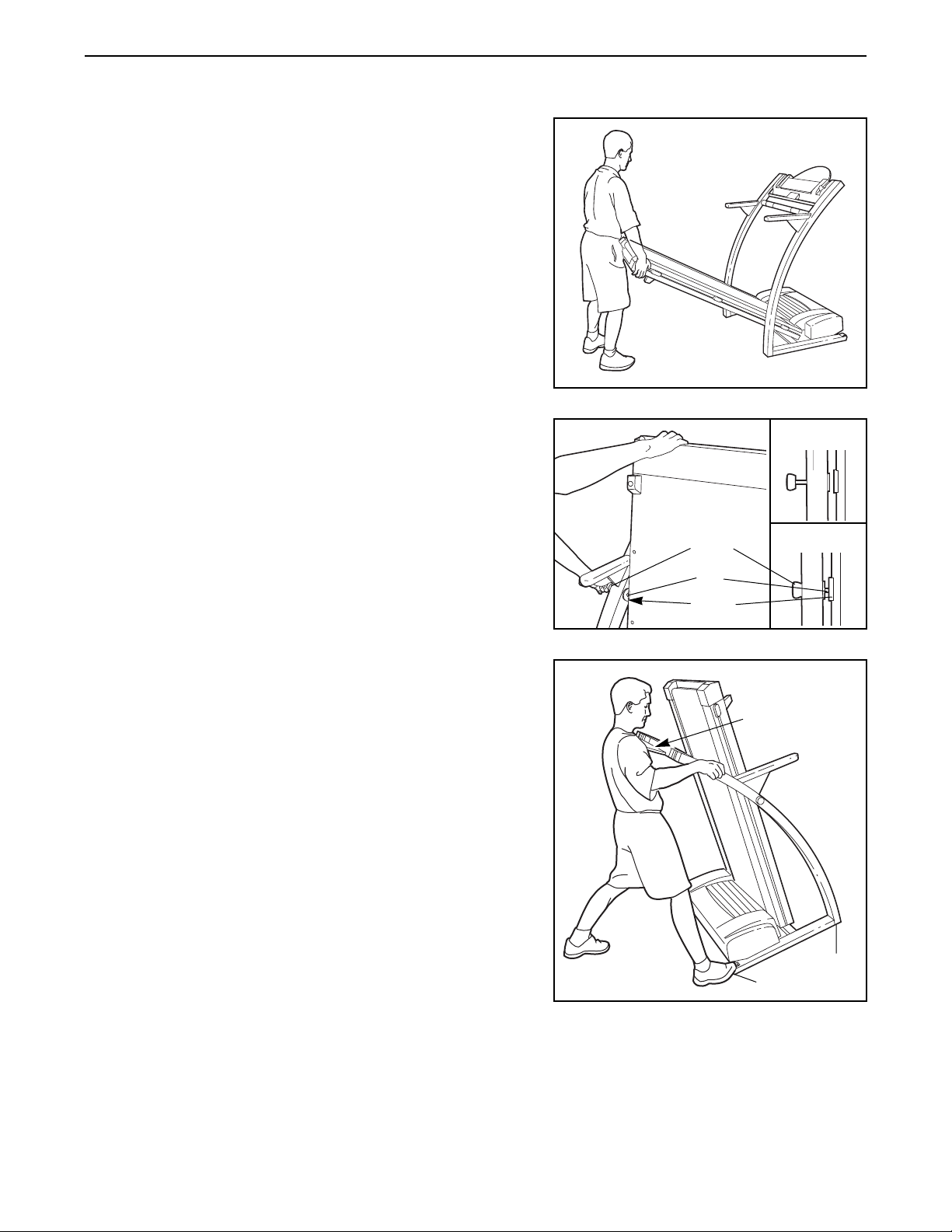

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

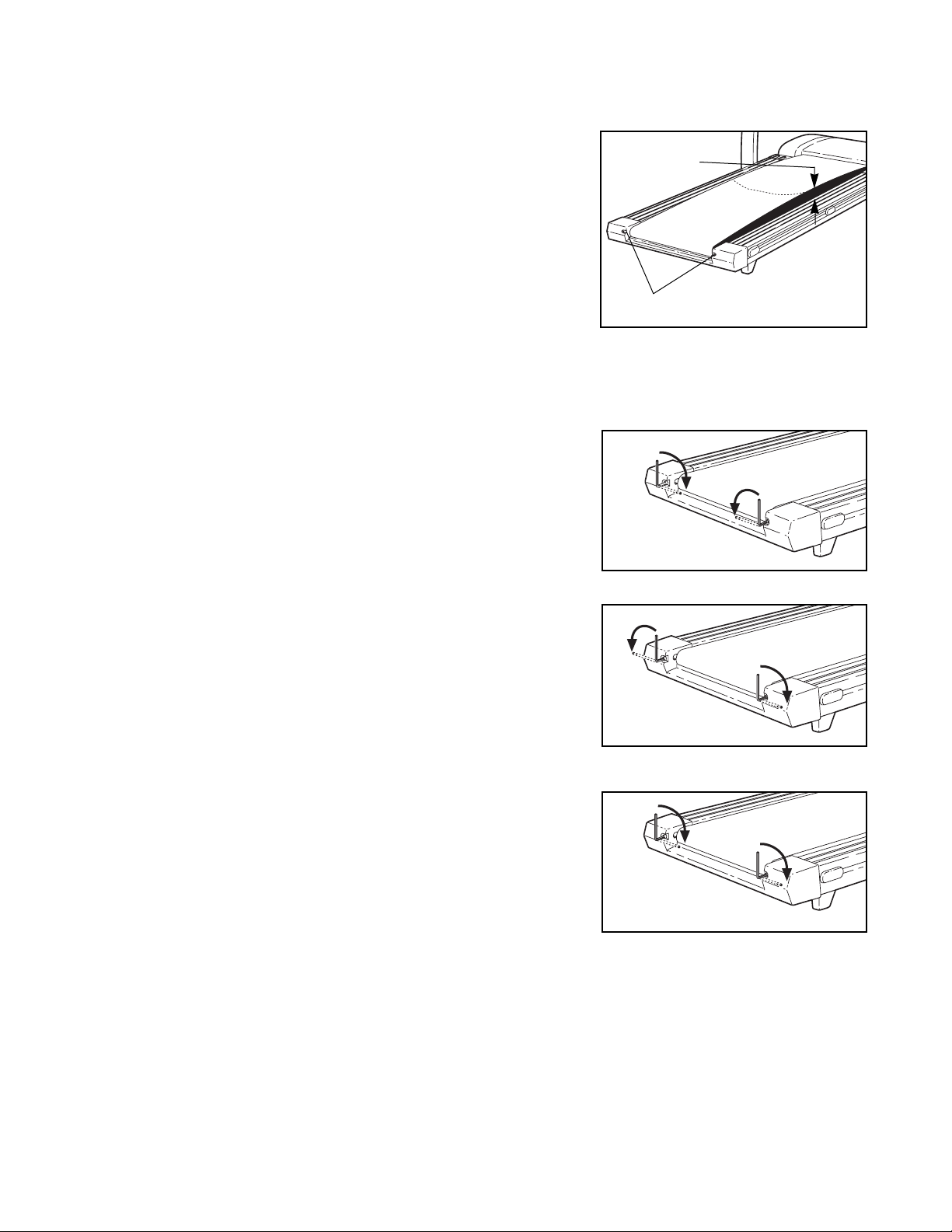

MAINTENANCE AND TROUBLE-SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

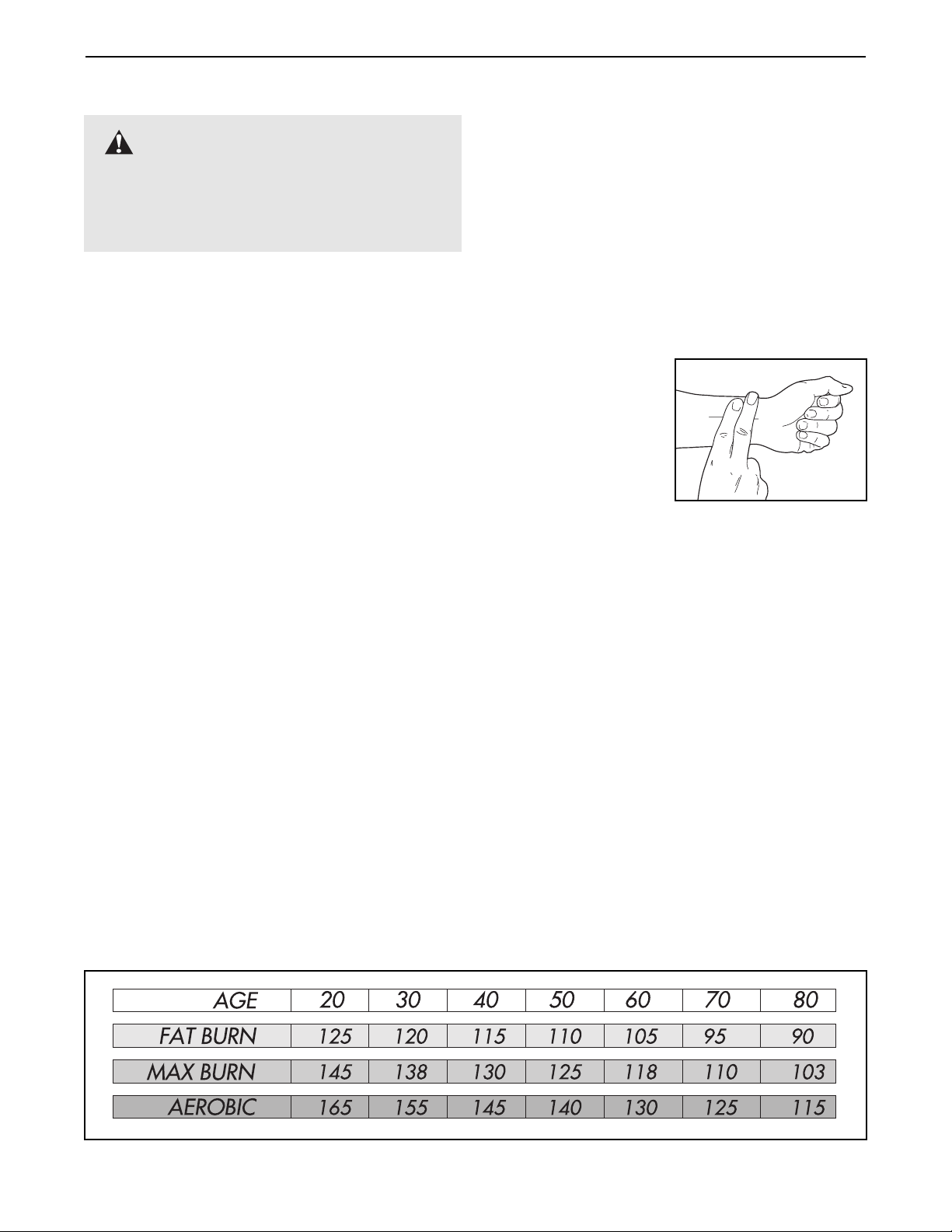

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

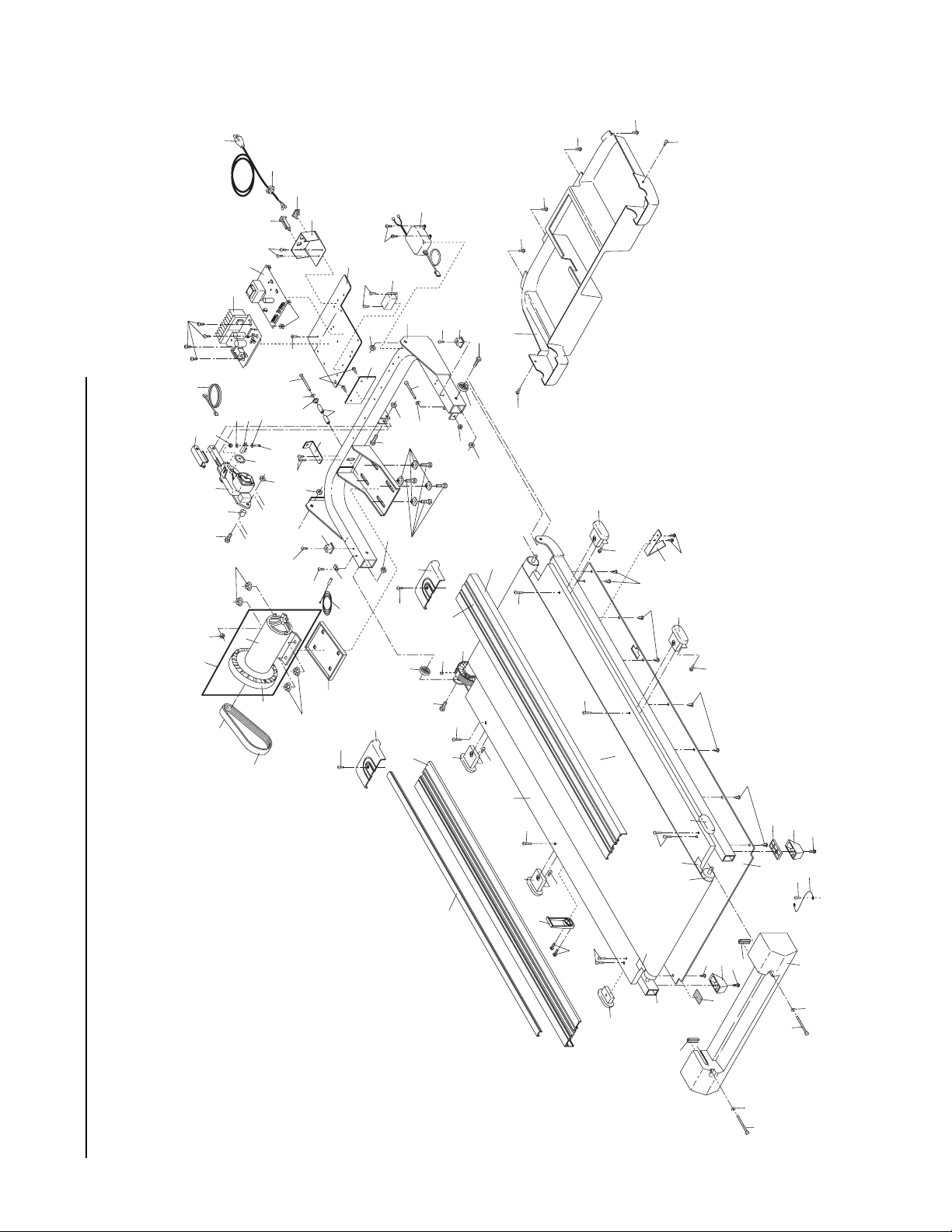

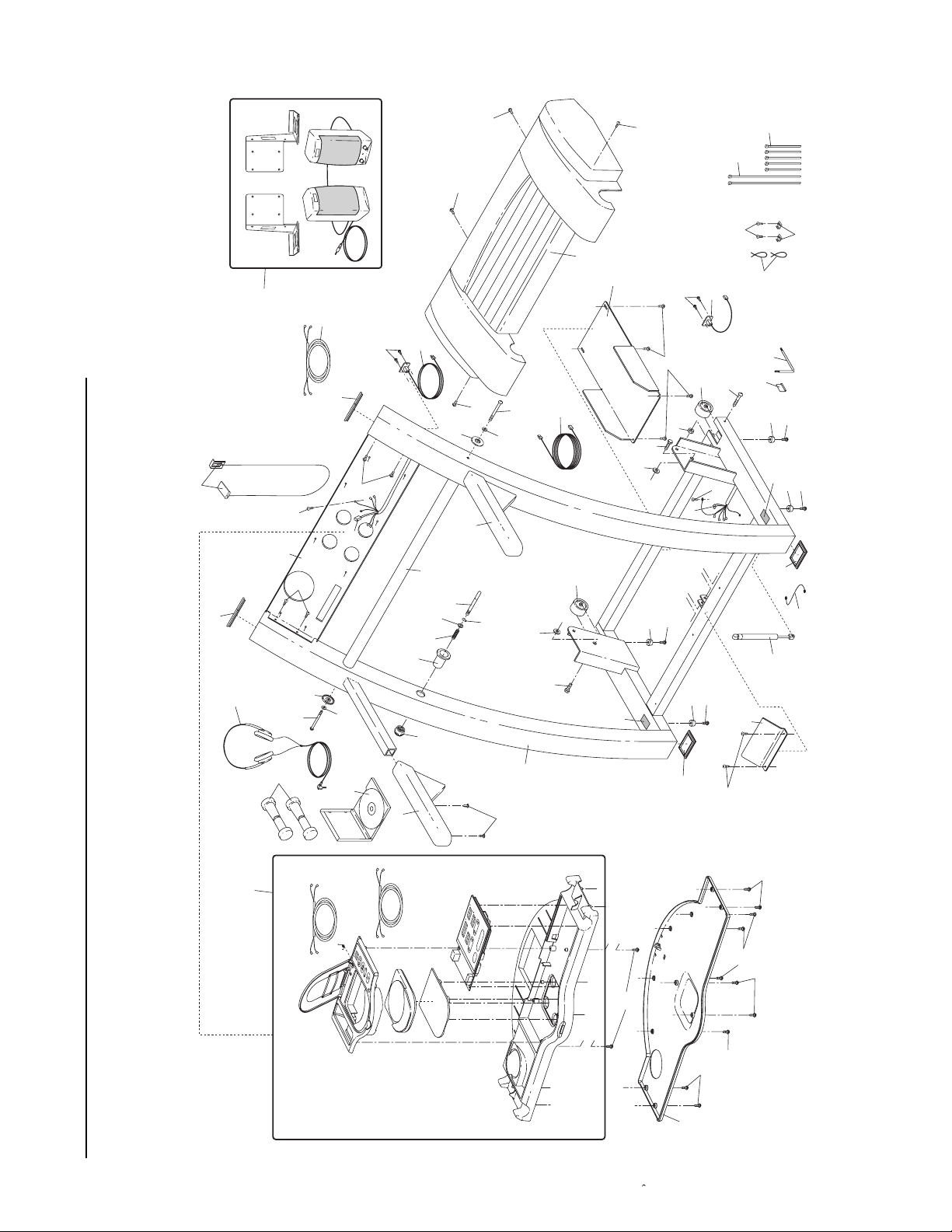

Note: An EXPLODED DRAWING is attached in the center of this manual.
¨
2
Page 3
3
1. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings and precautions.
2. Use the treadmill only as described in this manual.
3. Place the treadmill on a level surface, with at least eight feet of clearance behind it. Do not place the treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.
4. Keep the treadmill indoors, away from mois­ture and dust. Do not put the treadmill in a garage or covered patio, or near water.
5. Do not operate the treadmill where aerosol products are used or where oxygen is being administered.
6. Keep children under the age of 12 and pets away from the treadmill at all times.
7. The treadmill should not be used by persons weighing more than 250 pounds.
8. Never allow more than one person on the treadmill at a time.
9. Wear appropriate exercise clothing when using the treadmill. Do not wear loose cloth­ing that could become caught in the treadmill. Athletic support clothes are recommended for both men and women. Always wear athletic
shoes. Never use the treadmill with bare feet, wearing only stockings, or in sandals.
10. When connecting the power cord (see page 7), plug the power cord into a surge protector (not included) and plug the surge protector into a grounded circuit capable of carrying 15 or more amps. No other appliance should be on the same circuit. Do not use an extension cord.
11. Use only a UL-listed surge protector, rated at
15 amps, with a 14-gauge cord of five feet or less in length. Do not use an extension cord.
12. Keep the power cord and the surge protector away from heated surfaces.
13. Never move the walking belt while the power is turned off. Do not operate the treadmill if the power cord or plug is damaged, or if the treadmill is not working properly. (See BEFORE YOU BEGIN on page 5 if the tread­mill is not working properly.)
14. Never start the treadmill while you are standing on the walking belt.
15. Always hold the handrails while running on the treadmill. When walking, hold the handrails or use the included hand weights.
16. CD workout programs make optional use of the included hand weights. Using weights and not holding the handrails may compromise your ability to maintain your balance. Exercises using weights should be attempted only by experienced users.
17. The treadmill is capable of high speeds. Adjust the speed in small increments to avoid sudden jumps in speed.
18. During CD workout programs, an electronic ÒchirpingÓ sound will alert you when the speed and/or incline of the treadmill is about to change. Always listen for the ÒchirpÓ and be prepared for speed and/or incline changes. In some instances, the speed and/or incline will change before the personal trainer de­scribes the change.
19. During a CD workout program, you can manu­ally override the speed and incline settings at any time by pressing the speed and incline buttons. However, when the next ÒchirpÓ is heard, the speed and/or incline will change back to the programmed settings.
DANGER: To reduce the risk of burns, fire, electric shock, or injury to persons, read the
following important precautions and information before operating the treadmill.
IMPORTANT PRECAUTIONS
Page 4
20. Never leave the treadmill unattended while it is running. Always remove the key, unplug the power cord and move the on/off switch to the off position when the treadmill is not in use. (See the drawing on page 5 for the loca­tion of the on/off switch.)
21. Do not attempt to raise, lower, or move the treadmill until it is properly assembled. (See ASSEMBLY on page 6, and HOW TO MOVE THE TREADMILL on page 13.) You must be able to safely lift 45 pounds (20 kg) in order to raise, lower, or move the treadmill.
22. Do not change the incline of the treadmill by placing objects under the treadmill.
23. When folding or moving the treadmill, make sure that the storage latch is fully closed.
24. Inspect and tighten all parts of the treadmill regularly.
25. Never drop or insert any object into any opening.
26. DANGER: Always unplug the power
cord immediately after use, before cleaning the treadmill, and before performing the main­tenance and adjustment procedures de­scribed in this manual. Never remove the motor hood unless instructed to do so by an authorized service representative. Servicing other than the procedures in this manual should be performed by an authorized service representative only.
27. This treadmill is intended for in-home use only. Do not use this treadmill in any commer­cial, rental, or institutional setting.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS
The decals shown have been placed on your treadmill. If a decal is missing, or if it is not legible, please call our Customer Service Department, toll-free, to order a free replacement decal (see ORDERING REPLACEMENT PARTS on the back cover of this manual). Apply the decal in the location shown.
4
Page 5
Congratulations for selecting the innovative PROFORM
¨
985 CD treadmill. The 985 CD treadmill features revo­lutionary CD COACH technology and an impressive array of other features to help you get the most from every workout. And when youÕre not exercising, the unique 985 CD treadmill can be folded up, requiring less than half the floor space of other treadmills.
For your benefit, read this manual carefully before using the treadmill. If you have additional questions,
please call our Customer Service Department toll-free
at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please note the product model number and serial number before calling. The model number of the treadmill is PFTL98583. The serial num­ber can be found on a decal attached to the treadmill (see the front cover of this manual for the location).
Before reading further, please review the drawing below and familiarize yourself with the parts that are labeled.
BEFORE YOU BEGIN
Handrails
Hand Weights
Accessory Tray
Storage Latch
Book Holder
Key/Clip
Circuit
Breaker
On/Off Switch
Walking Belt
Cushioned Walking Platform
Front
Wheel
Foot Rails
Power
Cord
Rear Roller Adjustment Bolts
Water Bottle Holder (Bottle not included)
RIGHT SIDELEFT SIDE
CD Case Holder
5
Page 6
6
ASSEMBLY
Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. A phillips screwdriver (not included) may be needed for assembly.
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
1. With the help of a second person, carefully raise the Uprights (15) until the treadmill is in the position shown.
2. Make sure that the Lock Knob Sleeve (93) is fully in­serted into the left Upright (15).
Remove the Lock Knob (92) from the Lock Pin (97). Make sure that the Lock Pin Collar (95) and the Spring (94) are on the Lock Pin. Insert the Lock Pin into the left Upright (15) and tighten the Lock Knob onto it.
3. Refer to drawing 1 above and locate the two Rear Feet
(120). If there is a space between either of the Feet and the floor, hold the treadmill with both hands and raise the treadmill to the storage position as described on page 13.
Next, remove the Screw (75) and the Rear Foot (120) that was raised off the floor. Snap the Rear Foot Spacer (102) onto the Rear Foot. Reattach the Rear Foot to the Frame (79) with the Screw.
Hold the treadmill firmly with both hands and lower the treadmill as described on page 13.
15
1
95
97
93
94
92
15
2
4. Make sure that all parts are tightened before you use the treadmill. Place a mat under the treadmill to protect the floor or carpet. Note: Keep the included allen wrench in a secure location. The allen wrench is used to adjust the walking belt (see page 15).
3
120
102
79
75
120
Page 7
7
OPERATION AND ADJUSTMENT
THE PERFORMANT LUBETMWALKING BELT
Your treadmill features a walking belt coated with PERFORMANT LUBETM, a high-performance lubricant.
IMPORTANT: Never apply silicone spray or other substances to the walking belt or the walking plat­form. They will deteriorate the walking belt and cause excessive wear.
HOW TO PLUG IN THE POWER CORD
Your treadmill, like any other type of sophisticated electronic equipment, can be seriously damaged by sudden voltage changes in your homeÕs power. Voltage surges, spikes, and noise interference can re­sult from weather conditions or from other appliances being turned on or off.
To decrease the pos­sibility of your tread­mill being damaged, always use a surge protector (not in­cluded) with your treadmill.
Surge protectors are sold at most hardware stores and department stores. Use only a UL­listed surge protector, rated at 15 amps, with a 14-gauge cord of five feet or less in length.
This product must be grounded. If it should
malfunction or break down, grounding pro­vides a path of least re­sistance for electric cur­rent to reduce the risk of
electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. Plug the power cord into a surge
protector, and plug the surge protector into an ap­propriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illus­trated in drawing 1 below. A temporary adapter that looks like the adapter illustrated in drawing 2 may be used to connect the surge protector to a 2-pole recep­tacle as shown in drawing 2 if a properly grounded out­let is not available.
The temporary adapter should be used only until a properly grounded outlet (drawing 1) can be installed by a qualified electrician.
The green-colored rigid ear, lug, or the like extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adapter is used it must be held in place by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a qualified elec­trician to determine if the outlet box cover is grounded before using an adapter.
DANGER: Improper connection
of the equipment-grounding conductor can result in an increased risk of electric shock. Check with a qualified electrician or service­man if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the productÑif it will not fit the outlet, have a proper outlet in­stalled by a qualified electrician.
1
2
Grounded Outlet Box
Grounded Outlet Box
Grounding Plug
Treadmill Power Cord
Grounding Plug
Grounding Plug
Grounding Pin
Surge Protector
Grounding Pin
Grounding Pin
Adapter
Lug
Metal Screw
Grounded Outlet
Page 8
8
Clip
Program Display
Console Displays
Headphone Jack
Stop
Button
Key
Lift here to open
CD player
CAUTION: Before operating the
console, read the following precautions.
¥ Do not stand on the walking belt when turn-
ing on the power.
¥ Always wear the clip (see the drawing above)
while operating the treadmill.
¥ Adjust the speed in small increments in
order to avoid sudden jumps in speed.
¥ To reduce the possibility of electric shock, keep
the console dry. Avoid spilling liquids on the console and place only a sealed water bottle in the water bottle holder.
¥ Use only the included headphones with the
console. Do not plug in or unplug the head­phones while the key is in the console.
¥ Before using the CD program mode, read the
instructions included with the CD as well as the instructions on pages 10 and 11 of this manual.
FEATURES OF THE CONSOLE
The PROFORM¨985 CD console offers an impressive array of features to help you get the most from your workouts. When the manual mode of the console is selected, the speed and incline of the treadmill can be changed with a touch of a button. As you exercise, four displays will provide continuous exercise feedback.
The console also features revolutionary PROFORM
¨
CD COACH technology. This breakthrough technology allows the console to play specially-designed CD's that interactively adjust the speed and incline of the treadmill while a personal trainer coaches you through every step of your workout. The CDÕs include high­energy music for added motivation. And with the included hand weights, you can add upper-body exercise to your workouts.
The included CDÕs feature two different 30-minute workout programsÑone program that targets fat­burning and one program that focuses on interval training for aerobic conditioning. Each program was specially designed by our AFAª certified personal trainer. A selection of other CDÕs is also available. Refer to the card accompanying this treadmill to pur­chase additional CDÕs.
Note: The console can display speed and distance in miles or kilometers (see HOW TO SELECT MILES OR KILOMETERS on page 12). For simplicity, all instruc­tions in this manual refer to miles.

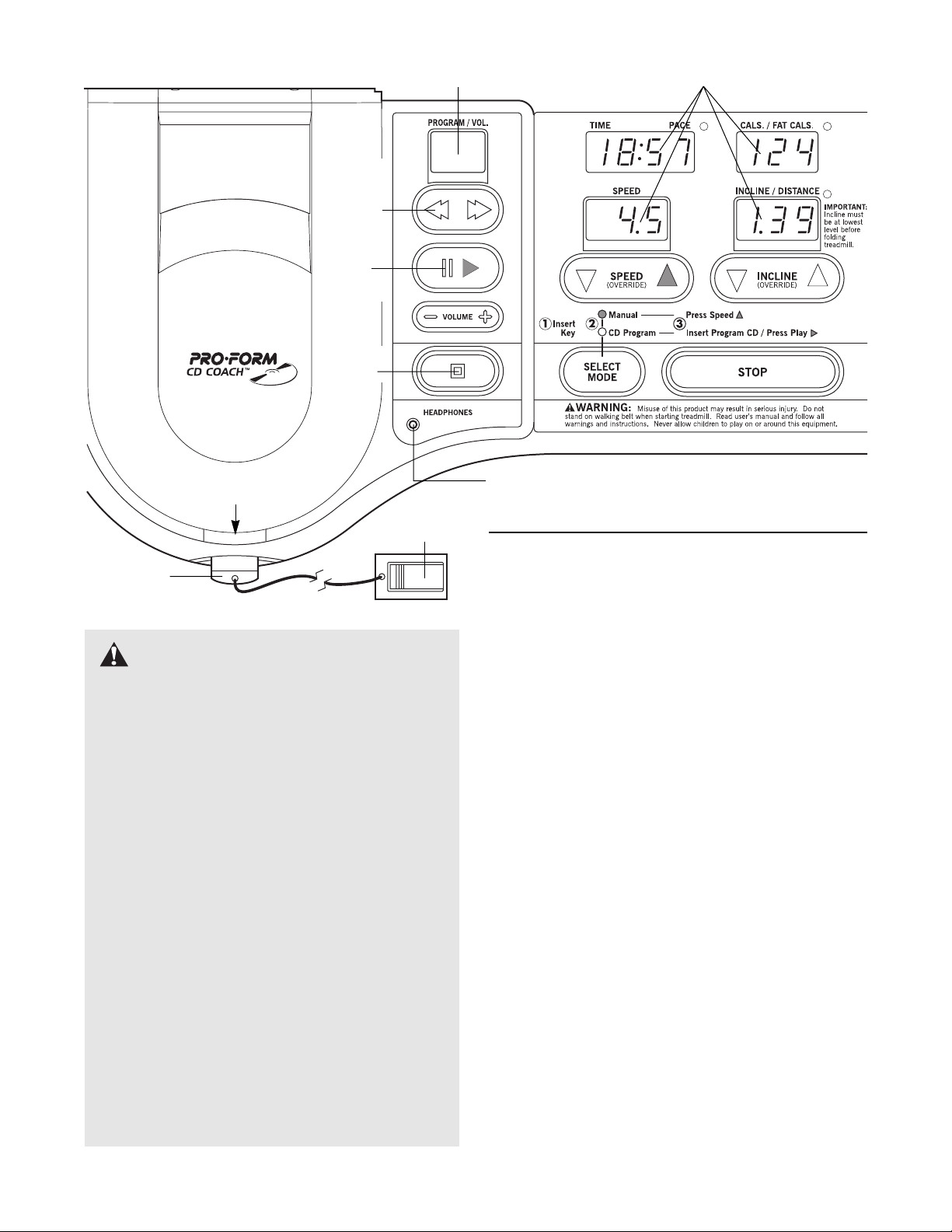

CONSOLE DIAGRAM
Pause/
Play
Buttons
Program
Select
Buttons
Page 9
9
Before using the console, make sure that the power cord is properly plugged in. (See HOW TO PLUG IN THE POWER CORD on page 7.) In addition, make sure that the on/off switch, located near the power cord, is in the on position.
When you are ready to begin exercising, step onto the foot rails of the treadmill. Find the clip attached to the key and slide the clip onto the waistband of your clothing.

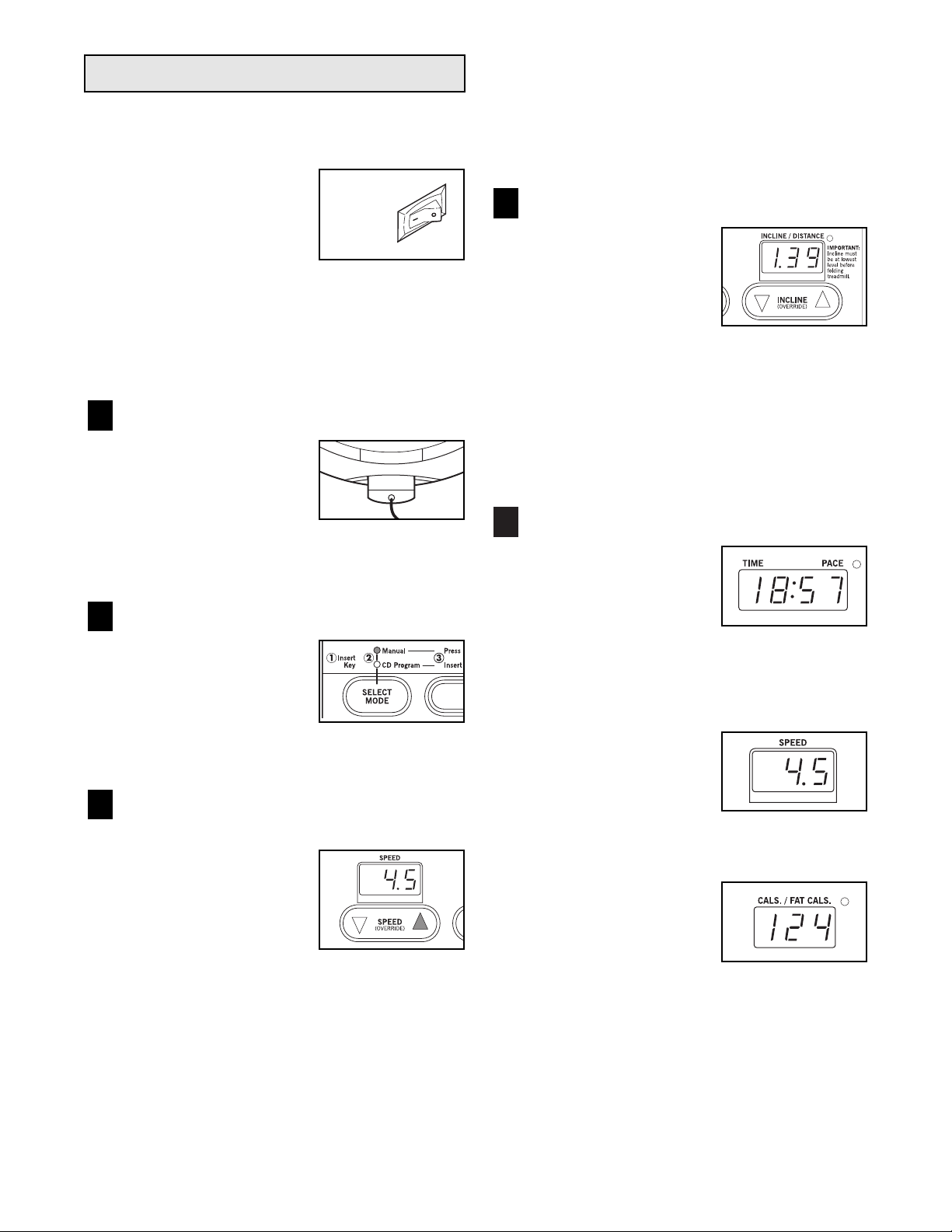

Follow the steps below to operate the console.
Insert the key into the console.
A moment after the key is inserted, the four displays and the manual indicator will light. In addition, a number will appear in the CD display for five sec­onds. This number indicates the current volume set­ting of the CD player.
Select the manual mode.
When the key is inserted, the manual mode will au­tomatically be selected. If you have selected the CD program mode, press the SELECT MODE button to select the manual mode.
Press the SPEED ▲button to start the walking
belt.
A moment after the but­ton is pressed, the walk­ing belt will begin to move at 1.0 mph. Hold the handrails and begin walking.
As you exercise, change the speed of the walking belt as desired by pressing the SPEED buttons. Each time one of the buttons is pressed, the speed will change by 0.1 mph. If the buttons are held down, the speed will change in increments of
0.5 mph. The speed range is 0.5 mph to 10.0 mph.
To stop the walking belt, press the STOP button. The four displays will pause and the TIME/PACE display will begin to flash. To restart the walking belt, press the SPEED ▲button. To stop the walk­ing belt and reset the displays, press the STOP button, remove the key, and then reinsert the key.
Adjust the incline as desired.
To vary the intensity of your exercise, change the incline of the tread­mill as desired by press­ing the INCLINE buttons. Each time one of the buttons is pressed, the incline will change by 0.5%. The incline range is
1.5% to 10%. Note: When one of the INCLINE but­tons is pressed, the INCLINE/DISTANCE display will show the incline setting for seven seconds. After the buttons are pressed, it may take a moment for the treadmill to reach the se­lected incline setting.
Follow your progress with the four displays.
TIME/PACE displayÑ
This display shows the elapsed time and your current pace (pace is measured in minutes per mile). Every seven sec­onds, the display will change from one number to the other. The PACE indicator will light when your pace is shown.
SPEED displayÑThis display shows the speed of the walking belt, in miles per hour or kilome­ters per hour. (See HOW TO SELECT MILES OR KILOMETERS on page
12.)
CALORIES/FAT CALO­RIES displayÑThis dis-
play shows the numbers of calories and fat calo­ries you have burned (see FAT BURNING on page 16 for an explanation of fat calories). Every seven seconds, the display will change from one number to the other. The FAT CALS indicator will light when the number of fat calories is shown.
5
4
3
2
1
HOW TO USE THE MANUAL MODE
On
Position
Page 10
10

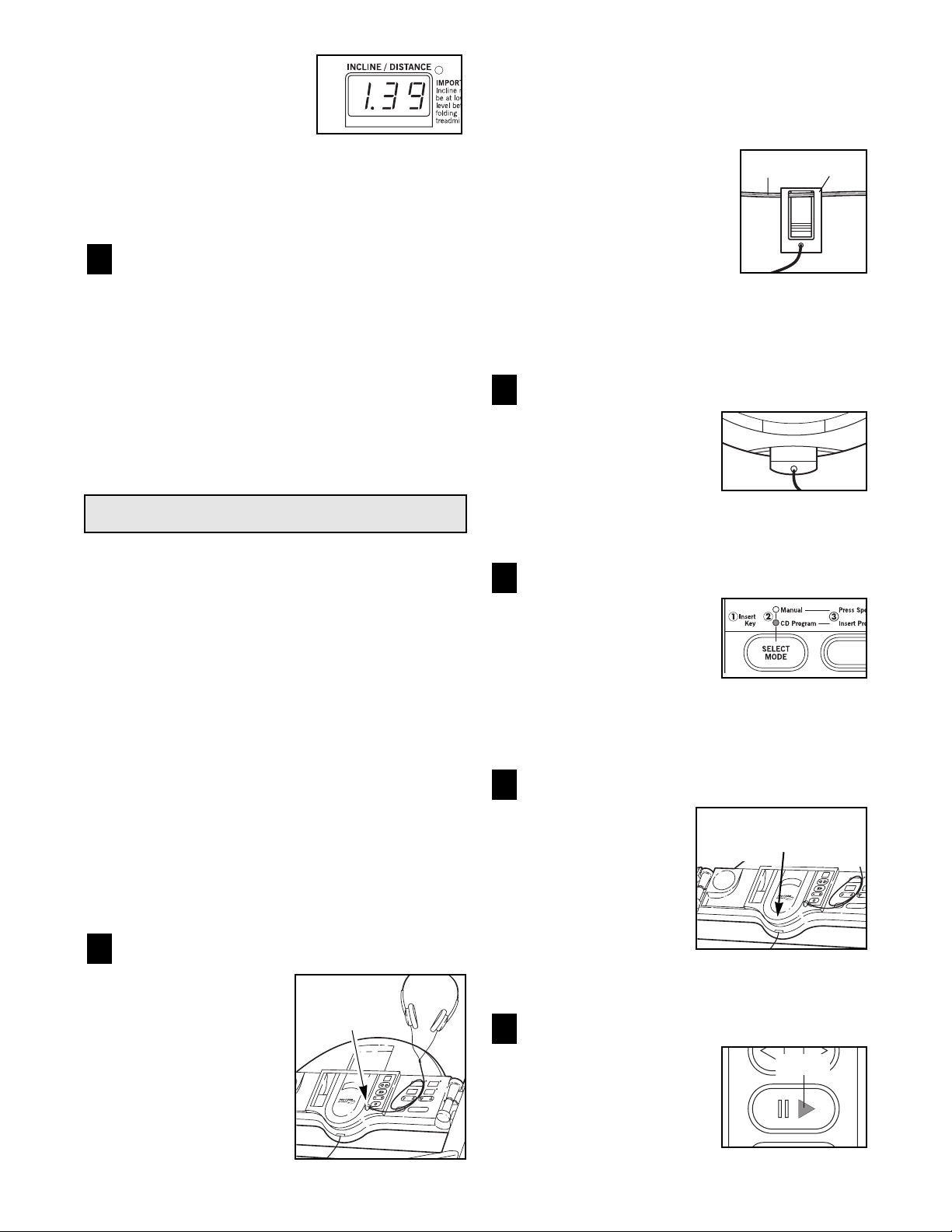

INCLINE/DISTANCE displayÑThis display
shows the distance that the walking belt has moved and the incline level of the treadmill. Every seven seconds, the display will change from one number to the other. The DISTANCE indicator will light when the dis­tance is shown.
When you are finished exercising, stop the walking belt and remove the key.
Step onto the foot rails and press the STOP button. Next, change the incline of the treadmill to 1.5%.
The incline must be at 1.5% when the treadmill is folded to the storage position or the tread­mill will be damaged.
Remove the key from the console and put it in a secure place. In addition, move the on/off switch to the off position and unplug the power cord.
When you use a CD workout program, a certified per­sonal trainer will guide you through your workout as the CD interactively controls the speed and incline of the treadmill. The included ÒRhythm MixÓ CDÕs contain two workout programs:
¥ Fat Burning (Level 1)ÑThis 30-minute workout
reaches a maximum speed of 4.2 mph and has an average speed of 3.4 mph. The maximum incline level is 9% and the average incline level is 3%. Note: All programs are designated level 1 or level 2; level 2 programs provide more intense workouts.
¥ Interval Training (Level 2)ÑThis 30-minute workout
reaches a maximum speed of 6.0 mph and has an average speed of 3.9 mph. The maximum incline level is 8% and the average incline level is 3.5%.
Follow the steps below to use a CD workout program.
Put on the headphones.
Plug the included headphones fully into the jack on the con­sole. Next, put on the headphones.
CAUTION: Use only the included head­phones with the console. Do not plug in or unplug
the headphones while the key is in the console. If the headphones become unplugged during exercise, stop the treadmill and remove the key before plugging the headphones back in.
To keep the headphone wire out of the way, slide the wire into the clip, as shown in the inset drawing.

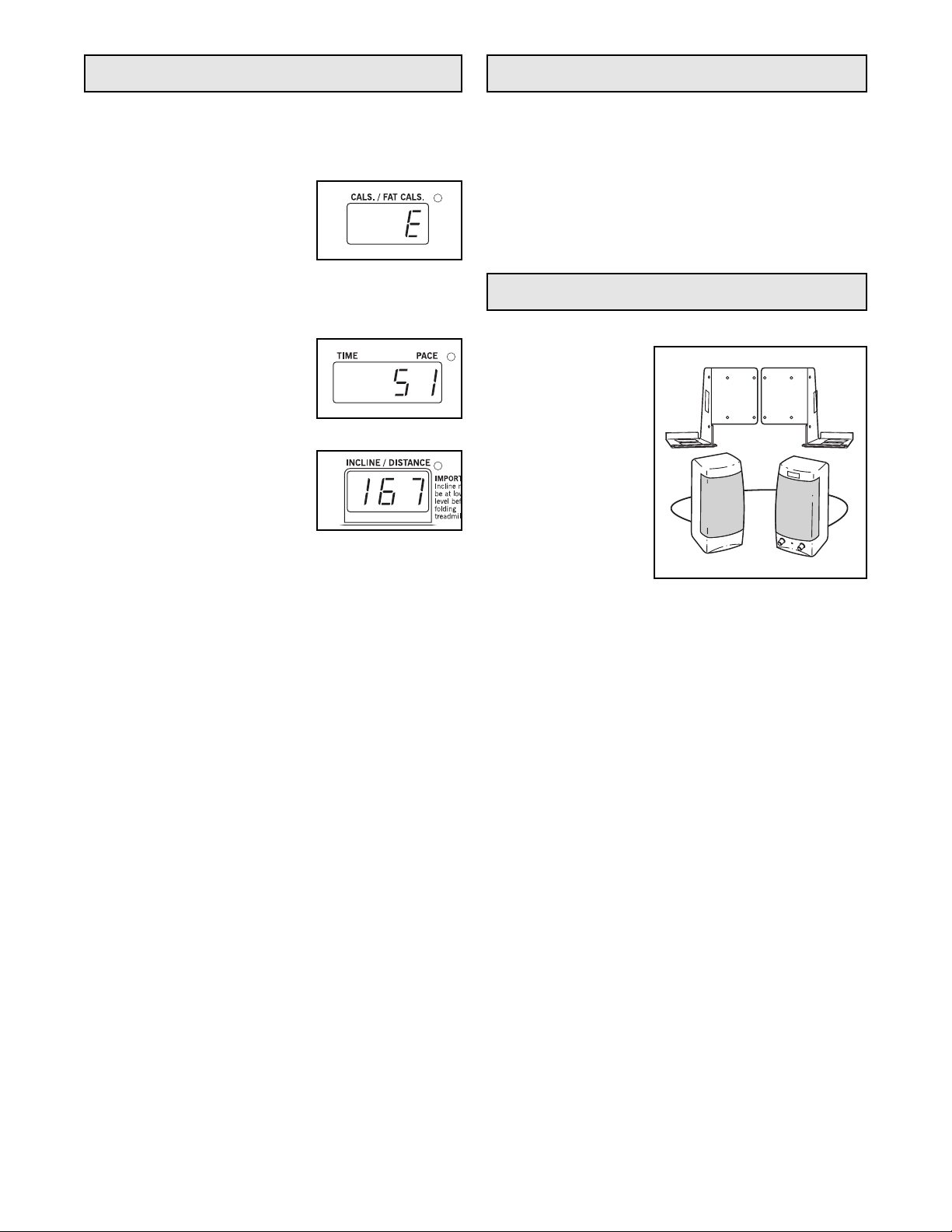

Note: If you have pur­chased optional stereo speakers, you may disre­gard this step and go to step 2. To purchase speakers, refer to the card accompanying this treadmill.
Insert the key into the console.
A moment after the key is inserted, the four displays and the manual indicator will light. In addition, the current volume setting of the CD player will appear for five seconds in the CD display.
Select the CD program mode.
When the key is inserted, the manual mode will be selected. Press the SE­LECT MODE button to select the CD program mode. Note: The incline of the treadmill will auto­matically change to 1.5% when this mode is se­lected.
Insert Disc 1 into the CD player.
Lift the lid of the CD player in the indicated location. Carefully insert Disc 1 into the CD player and close the lid. Note: Lifting the lid during a CD workout program will stop the CD player and the walking belt.
Press the play button.
A moment after the play button is pressed, your personal trainer will begin guiding you through your workout. Simply follow the instructions.
5
4
3
2
1
6
HOW TO USE THE CD PROGRAM MODE
Headphone
Jack
Play
Wire
Clip
Lift here to open the
CD player
Page 11
11

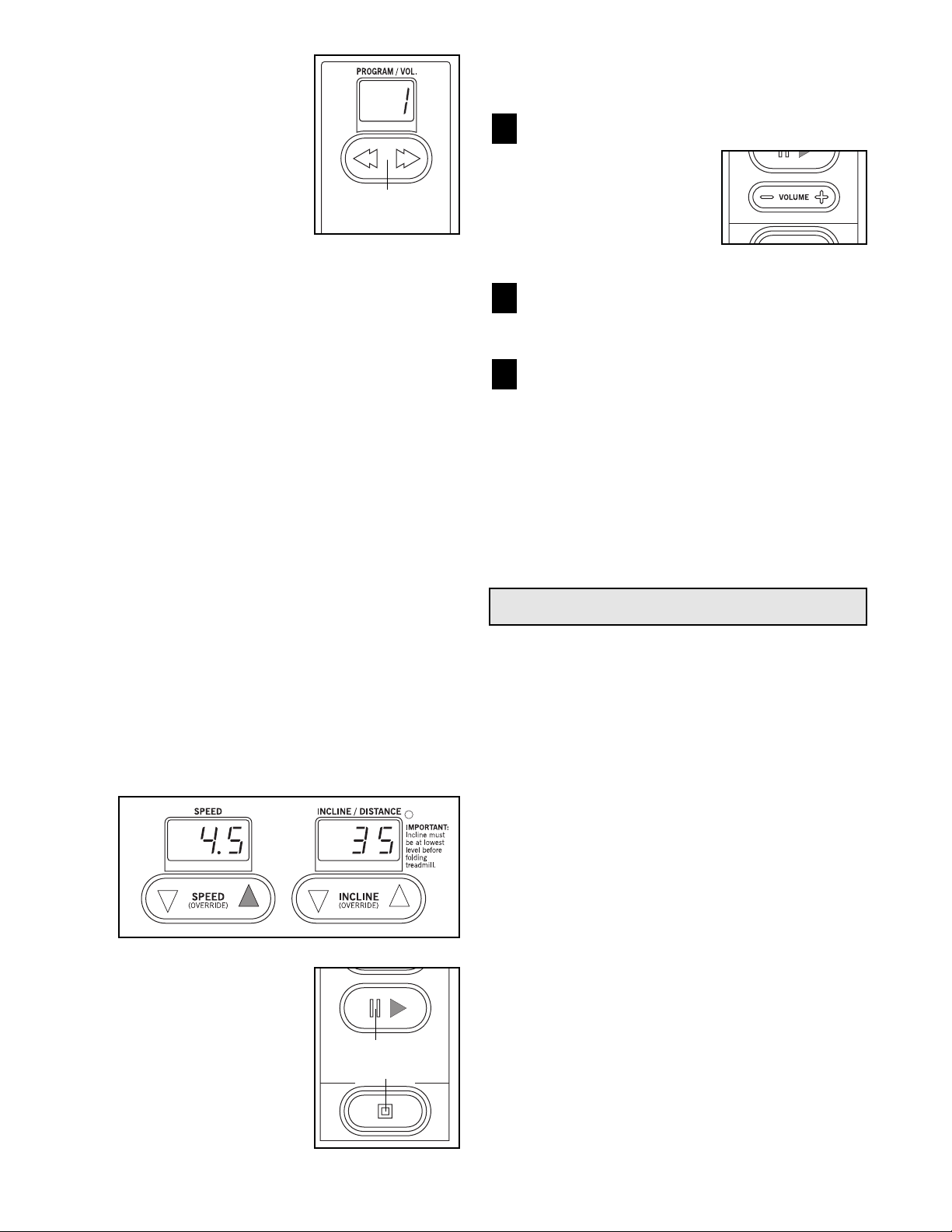

When Disc 1 begins playing, a Ò1Ó will appear in the CD display. During track 1 of Disc 1, your personal trainer will demonstrate CD COACH technology.
CAUTION: Be sure to listen to track 1 on Disc 1 before using the two workout programs.
Track 2 on Disc 1 is the Fat Burning program. Track 2 will begin after track 1, and can also be selected with the program select buttons. When either of the buttons is pressed, an indicator will move around the CD display for a few seconds and then the number Ò2Ó will appear. CAUTION: To scan
forward or backward during a program, stand on the foot rails and hold down the program select buttons.
Track 1 on Disc 2 is the Interval program. To use this program, insert Disc 2 into the CD player.
During each program, an electronic ÒchirpingÓ sound will alert you when the speed and/or incline of the treadmill is about to change. CAUTION: Always
listen for the ÒchirpÓ and be prepared for speed and/or incline changes. In some instances, the speed and/or incline will change before the personal trainer describes the change.
If the speed and incline settings are too high or too low, you can manually override the settings at any time by pressing the SPEED and INCLINE but­tons. However, when the next ÒchirpÓ is heard,
the speed and incline will change back to the programmed settings.
To pause the program, press the pause button. The four displays will pause, the TIME/PACE display will begin to flash, and the letters ÒPAÓ will appear in the CD display. To restart the program, press the play button. When the next chirp is heard, the
walking belt will begin to move. To stop the program before it is completed, press the STOP button.
Adjust the volume if desired.
To adjust the volume, press the VOLUME but­tons. The current volume setting will appear in the CD display. There are ten volume settings.
Follow your progress with the four displays.
See step 5 on page 9.
When the program is completed, remove the key.
Make sure that the incline of the treadmill is at
1.5%. The incline must be at 1.5% when the
treadmill is folded to the storage position or the treadmill will be damaged.
Remove the key from the console and put it in a secure place. In addition, move the on/off switch to the off position and unplug the power cord.
If desired, you can play your own music CDÕs in the CD player. To play music CDÕs, the console must be in the manual mode (see HOW TO USE THE MANUAL MODE on page 9). Note: Do not play music CDÕs longer than 55 minutes. While music CDÕs are playing, the number of the current track will not be shown in the CD display; an indicator will move repeatedly around the CD display.
8
7
6
Program Select
Buttons
Stop
Pause
HOW TO PLAY YOUR OWN MUSIC CDÕS
Page 12
The console can display speed and distance in miles or kilometers. To check the unit of measurement, hold down the STOP button while inserting the key into the con­sole. The CALORIES/FAT CALORIES display will show an ÒE,Ó for English miles, or an ÒM,Ó for Metric kilometers. To change the unit of measurement, press the SPEED
button.
While the unit of measure­ment is displayed, the TIME/ PACE display will show the total number of hours that the treadmill has been used.
In addition, the INCLINE/DIS­TANCE display will show the total number of miles that the walking belt has moved.
When you are finished viewing the unit of measure­ment, total time, and total distance, remove the key from the console.
A variety of exciting CD's is available for purchase. Each CD set includes two new 30-minute workout programs.
To purchase additional CDÕs, refer to the card accom­panying this treadmill.
If you want to use CD workout pro­grams or listen to music CDÕs without headphones, your treadmill can be up­graded with optional stereo speakers.
The stereo speakers mount directly to your treadmill and connect easily to the integral CD player.
To purchase the stereo speaker kit, refer to the card accompanying this treadmill.
12
HOW TO PURCHASE STEREO SPEAKERS
HOW TO PURCHASE ADDITIONAL CDÕSHOW TO SELECT MILES OR KILOMETERS
Kirk Niebergall
Page 13
HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL FOR STORAGE
Before folding the treadmill, adjust the incline to the lowest position. If this is not done, the treadmill may be per­manently damaged. Next, unplug the power cord. CAU­TION: You must be able to safely lift 45 pounds (20 kg) in order to raise, lower, or move the treadmill.
1. Hold the treadmill with your hands in the locations shown at
the right. CAUTION: To decrease the possibility of injury,
bend your legs and keep your back straight. As you raise the treadmill, make sure to lift with your legs rather than your back. Raise the treadmill about halfway to the
vertical position.
2. Move your right hand to the position shown and hold the treadmill firmly. Using your left hand, pull the latch knob to the left and hold it. Raise the treadmill until the latch pin is aligned with the hole in the catch. Insert the latch pin into the catch. Make sure that the latch pin is fully inserted
into the catch.
To protect the floor or carpet from damage, place a mat under the treadmill. Keep the treadmill out of direct sunlight. Do not leave the treadmill in the storage position in temperatures above 85¡ Fahrenheit.
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the storage position as described above. Make sure that the latch pin is
fully inserted into the catch.
1. Hold the treadmill as shown and place one foot against a wheel. Do not hold or push on the book holder or the
book holder may be damaged.
2. Tilt the treadmill back until it rolls freely on the front wheels. Carefully move the treadmill to the desired location. Never
move the treadmill without tipping it back. To reduce the risk of injury, use extreme caution while moving the treadmill. Do not attempt to move the treadmill over an uneven surface.
3. Place one foot on the base, and carefully lower the treadmill until it is resting in the storage position.
HOW TO LOWER THE TREADMILL FOR USE
1. Refer to drawing 2 above. Hold the treadmill with your right hand as shown. Using your left hand, pull the latch knob to the left and hold it. Pivot the treadmill down until the frame is past the pin. Slowly release the latch knob.
2. Refer to drawing 1. Hold the treadmill firmly with both hands, and lower the treadmill to the floor. CAUTION:
To decrease the possibility of injury, bend your legs and keep your back straight.
Latch Knob
Pin
Catch
Closed
Open
Book Holder
Base
Front Wheels
1
2
13
Page 14
14

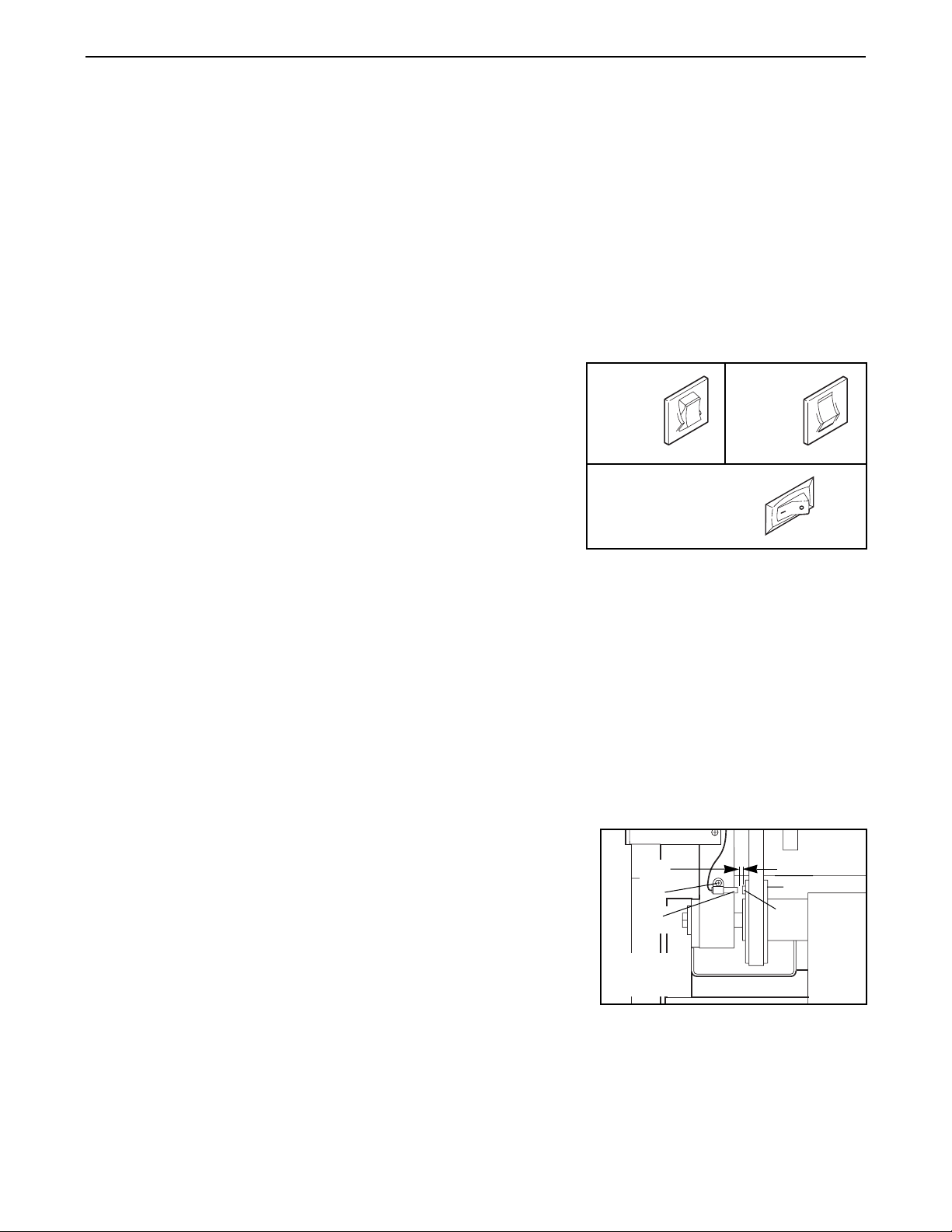

MAINTENANCE AND TROUBLE-SHOOTING
Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please call our Customer Service Department toll­free at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays).
1. SYMPTOM: The power does not turn on
a. Make sure that the power cord is plugged into a surge protector, and that the surge protector is plugged into
a properly grounded outlet. (See HOW TO PLUG IN THE POWER CORD on page 7.) Use only a UL-listed surge protector, rated at 15 amps, with a 14-gauge cord of five feet or less in length.
b. After the power cord has been plugged in, make sure that the key is inserted into the console as far as it will
go. See step 1 on page 9.
c. Check the circuit breaker located on the treadmill near the
power cord. If the switch protrudes as shown, the circuit breaker has tripped. To reset the circuit breaker, wait for five minutes and then press the switch back in.
d. Check the on/off switch located on the treadmill near the
power cord. The switch must be in the on position.
2. SYMPTOM: The power turns off during use
a. Check the circuit breaker located on the treadmill frame near the power cord (see 1. c. above). If the circuit
breaker has tripped, wait for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in.
c. Remove the key from the console. Reinsert the key fully into the console. See step 1 on page 9.
d. Make sure that the on/off switch is in the on position.
e. If the treadmill still will not run, please call our Customer Service Department, toll-free.
3. SYMPTOM: The displays of the console do not function properly
a. Remove the key from the console and UNPLUG THE POWER
CORD. Remove the screws from the hood. Carefully remove the
hood. Locate the Reed Switch (26) and the Magnet (107) on the left side of the Pulley (12). Turn the Pulley until the Magnet is aligned with the Reed Switch. Make sure that the gap between the Magnet and the Reed Switch is about 1/8Ó. If necessary, loosen the Reed Switch Screw (121) and move the Reed Switch slightly. Retighten the Screw. Re-attach the hood, and run the treadmill for a few minutes to check for a correct speed reading.
Tripped
Tripped
c
Reset
On
Position
d
107
26
121
Top
View
1/8Ó
12
Reset
Page 15
4. SYMPTOM: The walking belt slows when walked on
a. Use only a UL-listed surge protector, rated at 15 amps, with a 14-gauge cord of five feet or less in length.
b. If the walking belt is overtightened, treadmill performance may
decrease and the walking belt may be permanently damaged. Remove the key and UNPLUG THE POWER CORD. Using the allen wrench, turn both rear roller adjustment bolts counterclock­wise, 1/4 of a turn. When the walking belt is properly tightened, you should be able to lift each side of the walking belt 3 to 4 inches off the walking platform. Be careful to keep the walking belt centered. Plug in the power cord, insert the key and run the treadmill for a few minutes. Repeat until the walking belt is prop­erly tightened.
c. If the walking belt still slows when walked on, please call our toll-
free Customer Service Department.
5. SYMPTOM: The walking belt is off-center
a. If the walking belt has shifted to the left, first remove the key and
UNPLUG THE POWER CORD. Using the allen wrench, turn the left rear roller adjustment bolt clockwise, and the right bolt coun­terclockwise, 1/4 of a turn each. Be careful not to overtighten the walking belt. Plug in the power cord, insert the key and run the treadmill for a few minutes. Repeat until the walking belt is cen­tered.
b. If the walking belt has shifted to the right, first remove the key
and UNPLUG THE POWER CORD. Using the allen wrench, turn the left rear roller adjustment bolt counterclockwise, and the right bolt clockwise, 1/4 of a turn each. Be careful not to overtighten the walking belt. Plug in the power cord, insert the key and run the treadmill for a few minutes. Repeat until the walking belt is centered.
6. SYMPTOM: The walking belt slips when walked on
a. If the walking belt slips when walked on, first remove the key and
UNPLUG THE POWER CORD. Using the allen wrench, turn both rear roller adjustment bolts clockwise, 1/4 of a turn. When the walking belt is correctly tightened, you should be able to lift each side of the walking belt 3 to 4 inches off the walking plat­form. Be careful to keep the walking belt centered. Plug in the power cord, insert the key and carefully walk on the treadmill for a few minutes. Repeat until the walking belt is properly tightened.
7. SYMPTOM: Audio is heard in only one side of the headphones
a. Make sure that the headphones are fully plugged into the headphone jack on the console.
8. SYMPTOM: The CD player spins but no audio is heard
a. Press the STOP button, wait for five seconds, remove the key from the console, and unplug the power cord.
Wait for at least fifteen seconds before plugging in the power cord and re-inserting the key.
Rear Roller Adjustment Bolts
3ÓÐ4Ó
b
b
a
a
15
Page 16
16
The following guidelines will help you to plan your ex­ercise program. For more information about exercise, consult your physician or obtain a reputable book.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your cardiovascular system, the key to achieving the desired results is to exercise with the proper intensity. The proper intensity level can be found by using your heart rate as a guide. The chart at the bottom of this page shows recommended heart rates for fat burning and aerobic exercise.
To find the proper heart rate for you, first find your age at the top of the chart (ages are rounded off to the nearest ten years). Next, find the three numbers below your age. The three numbers define your Òtraining zone.Ó The lowest two numbers are recommended heart rates for fat burning, and the highest number is the recommended heart rate for aerobic exercise.
Fat Burning
To burn fat effectively, you must exercise at a relatively low intensity level for a sustained period of time. During the first few minutes of exercise, your body uses easily accessible carbohydrate calories for energy. Only after the first few minutes does your body begin to use stored fat calories for energy. If your goal is to burn fat, adjust the speed and incline of the treadmill until your heart rate is near the lowest number in your training zone.
For maximum fat burning, adjust the speed and incline until your heart rate is near the middle number in your training zone.
Aerobic Exercise
If your goal is to strengthen your cardiovascular system, your exercise must be Òaerobic.Ó Aerobic exercise is activity that requires large amounts of oxygen for pro­longed periods of time. This increases the demand on the heart to pump blood to the muscles, and on the lungs to oxygenate the blood. For aerobic exercise, adjust the speed and incline until your heart rate is near the highest number in your training zone.
HOW TO MEASURE YOU HEART RATE
To measure your heart rate, stop exercising and place two fingers on your wrist as shown. Take a six­second heartbeat count, and multiply the result by ten to find your heart rate. (A six­second count is used because your heart rate drops quickly when you stop exercising.) If your heart rate is too high or too low, ad­just the speed or incline of the treadmill accordingly.
WORKOUT GUIDELINES
Each workout should include three parts: (1) a warm­up, (2) training zone exercise, and (3) a cool-down.
Warming Up
Begin each workout with five to ten minutes of stretch­ing and light exercise to warm up. A proper warm-up increases your body temperature, heart rate and circu­lation in preparation for exercise.
Training Zone Exercise
After warming up, increase the intensity of your exer­cise until your heart rate is in your training zone for 20 to 30 minutes. Breathe regularly and deeply as you exerciseÑnever hold your breath.
CONDITIONING GUIDELINES
WARNING: Before beginning
this or any exercise program, consult your physician. This is especially important for individuals over the age of 35 or individuals with pre-existing health problems.
Page 17
17
Cooling Down
End each workout with five to ten minutes of stretching to cool down. This will develop muscle flexibility and will help to prevent post-exercise problems.
Exercise Frequency
To maintain or improve your condition, complete three workouts each week, with at least one day of rest be­tween workouts. After a few months, you may com­plete up to five workouts each week if desired.
The key to success is to make exercise a regular and enjoyable part of your everyday life.

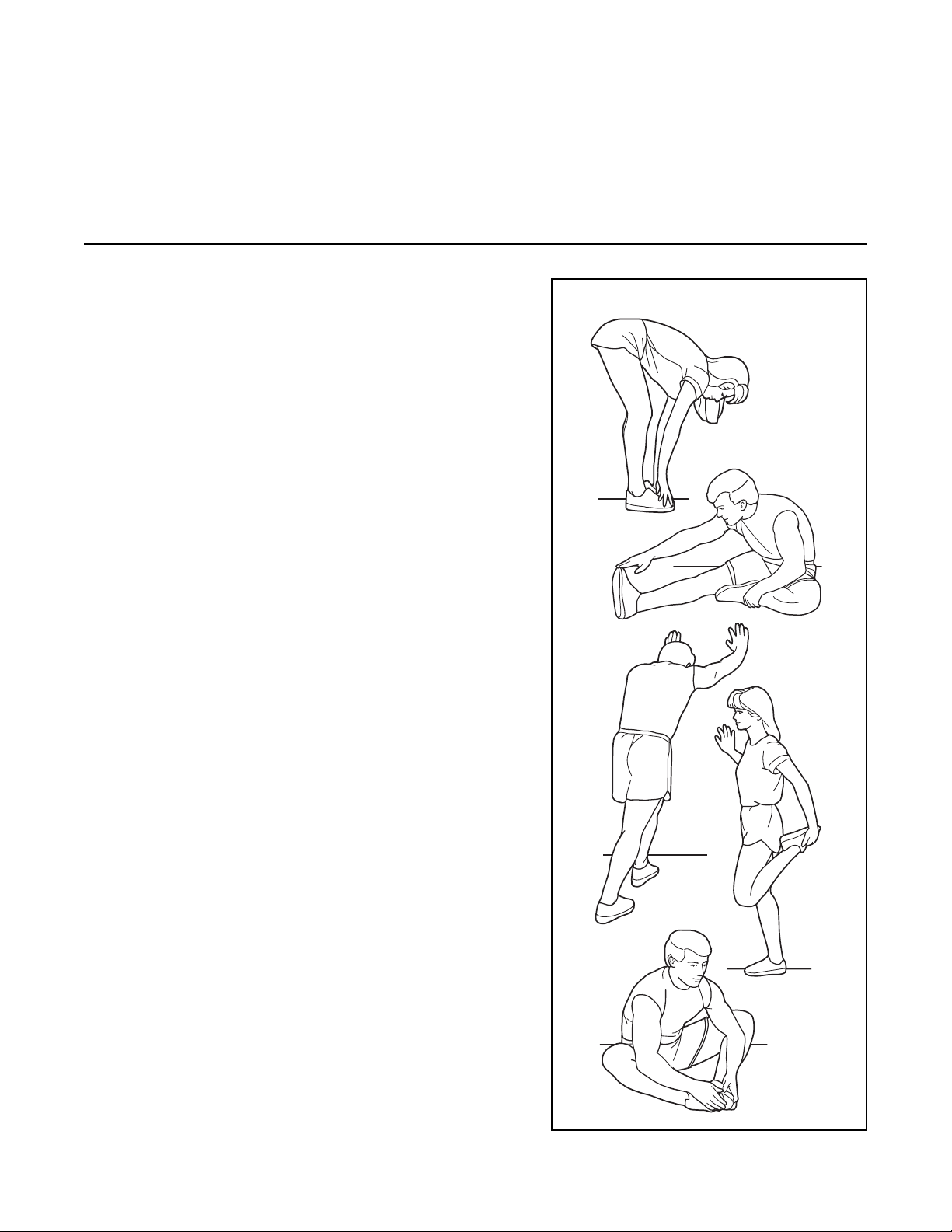

SUGGESTED STRETCHES
The correct form for several basic stretches is shown in the drawings at the right. Move slowly as you stretchÑnever bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible. Hold for 15 counts, then relax. Repeat 3 times. Stretches: Hamstrings, back of knees and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot toward you and rest it against the inner thigh of your extended leg. Reach toward your toes as far as possible. Hold for 15 counts, then relax. Repeat 3 times for both legs. Stretches: Hamstrings, lower back and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your hands against a wall. Keep your back leg straight and your back foot flat on the floor. Bend your front leg, lean forward and move your hips toward the wall. Hold for 15 counts, then relax. Repeat 3 times for both legs. To cause further stretching of the achilles tendons, bend your back leg as well. Stretches: Calves, achilles tendons and ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp one foot with your other hand. Bring your heel as close to your buttocks as possible. Hold for 15 counts, then relax. Repeat 3 times for both legs. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward. Pull your feet toward your groin area as far as possible. Hold for 15 counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip muscles.
1
2
3
4
5
Page 18
18
PART LISTÑModel No. PFTL98583 R0799A
1 2 Center Track 2 2 Foot Rail 3 1 Left Foot Rail Cap 4 1 Front Roller Adjustment Nut 5 4 Isolator 6 4 Bumper 7 4 Platform Screw 8 1 Walking Platform
9 2 Frame Pivot Bolt 10 2 Frame Pivot Spacer 11 1 Walking Belt 12 1 Front Roller/Pulley 13 16 Small Screw 14 1 Motor Belt 15 1 Upright/Base 16 1 Incline Frame 17 1 Hood Bracket (long) 18 1 Front Roller/Pulley 19 1 50Ó Power Wire Harness 20 1 Motor Tension Spacer 21 8 Nut 22 1 Lift Motor Shield 23 2 Incline Motor Bolt 24 1 Allen Wrench 25 1 Incline Motor 26 1 Reed Switch 27 4 Jack Screw 28 1 Upright Ground Screw 29 1 50Ó Wire Harness 30 2 Wheel Bolt 31 2 Front Wheel 32 2 Hood Anchor 33 4 Motor Nut 34 1 Pulley/Flywheel/Fan 35 1 Motor 36 4 Motor Bolt 37 4 Motor Isolator 38 1 Motor Tension Bolt 39 1 Console Ground Screw 40 2 Incline Pivot Bolt 41 1 Motor Hood 42 1 Incline Motor Shield 43 2 Incline Pivot Washer 44 3 Adj. Washer 45* 1 Motor/Pulley/Fly./Fan 46 1 Front Roller Adj. Bolt 47 1 Transformer 48 1 Electronics Bracket 49 1 Controller 50 1 Electronics Shield 51 1 Power Supply
52 4 Plastic Stand-off 53 1 Power Cord 54 1 Grommet 55 1 On/Off Switch 56 1 Circuit Breaker 57 1 Outlet Bracket 58 2 Motor Tension Bushing 59 2 Belt Guide 60 1 Shock 61 1 Front Belly Pan 62 1 Right Foot Rail Cap 63 22 Plastic Fastener 64 1 Console Base 65 6 3/4Ó Console Screw 66 1 Crossbar Handrail 67 2 Rear Isolator 68 1 Belly Pan 69 4 Console Plate Screw 70 4 Hood Screw 71 1 Key/Clip 72 2 Cap Screw 73 1 Rear Endcap 74** 1 Optional Speaker Kit 75 10 Bumper Screw/Belly Pan Screw 76 2 Rear Roller Adj. Bolt 77 2 Caution Decal 78 1 Latch Decal 79 1 Frame 80 4 Rear Deck Screw 81 1 Console Plate 82 1 Latch Catch 83 1 Rear Roller 84 1 Motor Isolator 85 2 Cable Tie 86 11 Cable Tie Screw/Shield Screw 87 2 Cable Tie Clamp 88 2 8Ó Cable Tie 89 5 4Ó Cable Tie 90 1 Upright Wire Harness 91 2 Handrail Foam 92 1 Lock Knob 93 1 Lock Knob Sleeve 94 1 Spring 95 1 Lock Pin Collar 96 1 Pin Clip 97 1 Lock Pin 98 8 Isolator Screw
99 2 Rhythm Mix CD Set 100 2 Crossbar Plastic Washer 101 1 4Ó Wire Harness 102 2 Rear Endcap Spacer
Key
No. Qty. Description
Key No. Qty. Description
To identify parts listed below, refer to the EXPLODED DRAWING attached in the center of this manual.
Page 19
Key
No. Qty. Description
Key No. Qty. Description
103 2 Crossbar Washer 104 10 Console Fastener 105 4 Upright Endcap 106 1 20Ó Wire Harness 107 1 Magnet 108 1 Console Base Back 109* 1 Console Assembly 110 1 Reed Switch Clip 111 1 Incline Motor Spacer 112 1 Optic Disk 113 1 Optic Switch Nut 114 2 Optic Switch Washer 115 1 Optic Switch Bolt 116 1 Optic Switch 117 2 2lbs. Hand Weight 118 2 Roller Guard 119 1 Head Phone 120 2 Rear Foot 121 1 Ground Wire 122 1 Ground Wire Screw
123 1 Incline Stop Bracket 124 2 Crossbar Bolt
# 1 12Ó Blue Pigtail Wire # 1 8Ó Blue Wire, 2 Female # 1 4Ó Blue Wire, Male/Female # 2 12Ó Green Wire, Female/Ring # 1 10Ó Green Ground Wire # 1 8Ó Green Ground Wire/2 Ring # 1 12Ó White Pigtail Wire # 2 8Ó White Wire, 2 Female # 1 4Ó Black Wire, 2 Female # 1 9Ó Wire Harness # 1 8Ó Wire Harness # 1 User's Manual
# These parts are not illustrated * Includes all parts shown in the box
** For more information about the optional speaker kit,
see page 12.
Specifications are subject to change without notice. For information about ordering replacement parts, see the back cover of this manual.
19
Page 20
98
82
13
59
13
32
32
13
2
54
55
13
57
13
56
48
13
49
21
123
23
25
111
115
17
13
23
21
46
44
9
10
21
16
36
72
21
21
86
110
26
33
14
33
45*
34
72
3
62
10
43
18
9
5
7
98
7
5
98
1
8
11
7
7
5
86
98
63
63
5
98
63
63
120
75
122
121
73
67
76
75
120
63
68
118
83
78
118
67
86
86
61
21
114
116
114
112
113
35
44
76
44
80
80
86
79
52
51
1
2
39
38
4
37
86
86
50
53
128
84
13
13
132
20
20
20
102
44
58
47
13
EXPLODED DRAWINGÑModel No. PFTL98583 R0799A
Page 21
104
104
108
104
65
65
65
24
6
75
29
40
43
43
40
70
70
70
41
60
86
85
87
89
75
42
71
88
30
21
31
6
75
90
31
70
105
28
6
75
105
6
75
86
22
105
105
15
117
90
109*
74**
119
106
99
19
101
27
27
29
124
100
124
69
69
100
66
103
103
132
39
29
92
93
94
95
96
97
77
77
63
91
91
Kirk
Niebergall
EXPLODED DRAWINGÑModel No. PFTL98583 R0799A
Page 22
155984 J02059-C R0799A Printed in USA © 1999 ICON Health & Fitness, Inc.
ORDERING REPLACEMENT PARTS
To order replacement parts, call our Customer Service Department toll-free at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). When ordering parts, please be prepared to give the following information:
¥ The MODEL NUMBER OF THE PRODUCT (PFTL98583).
¥ The NAME OF THE PRODUCT (PROFORM¨985 CD treadmill).
¥ The SERIAL NUMBER OF THE PRODUCT (see the front cover of this manual).
¥ The KEY NUMBER AND DESCRIPTION OF THE PART(S) (see the PART LIST on pages 18 and 19 and the
EXPLODED DRAWING attached to the center of this manual).
If possible, place the treadmill near your telephone for easy reference when calling.
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of ninety (90) days from the date of pur­chase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is lim­ited to replacing or repairing, at ICON's option, the product at one of its authorized service centers. All products for which warranty claim is made must be received by ICON at one of its authorized service centers with all freight and other transportation charges prepaid, accompanied by sufficient proof of pur­chase. All returns must be pre-authorized by ICON. This warranty does not extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an ICON authorized service center, to products used for commercial or rental purposes, or to products used as store display models. No other warranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con­nection with the use or performance of the product or damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of in­cidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
Loading...
