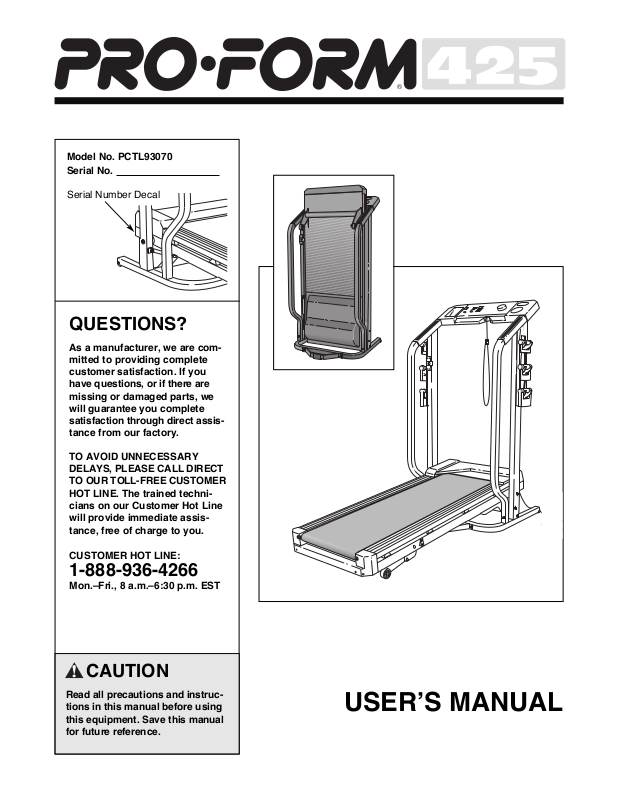

ProForm PCTL93070 User Manual

Page 1

USER’S MANUAL

Model No. PCTL93070 Serial No.

QUESTIONS?

As a manufacturer, we are committed to providing complete customer satisfaction. If you have questions, or if there are missing or damaged parts, we will guarantee you complete satisfaction through direct assistance from our factory.

TO AVOID UNNECESSARY DELAYS, PLEASE CALL DIRECT TO OUR TOLL-FREE CUSTOMER HOT LINE. The trained technicians on our Customer Hot Line will provide immediate assistance, free of charge to you.

CUSTOMER HOT LINE:

1-888-936-4266

Mon.–Fri., 8 a.m.–6:30 p.m. EST

Serial Number Decal

CAUTION

Read all precautions and instructions in this manual before using this equipment. Save this manual for future reference.

Page 2

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

TROUBLE-SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

CUSTOMER RECORD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

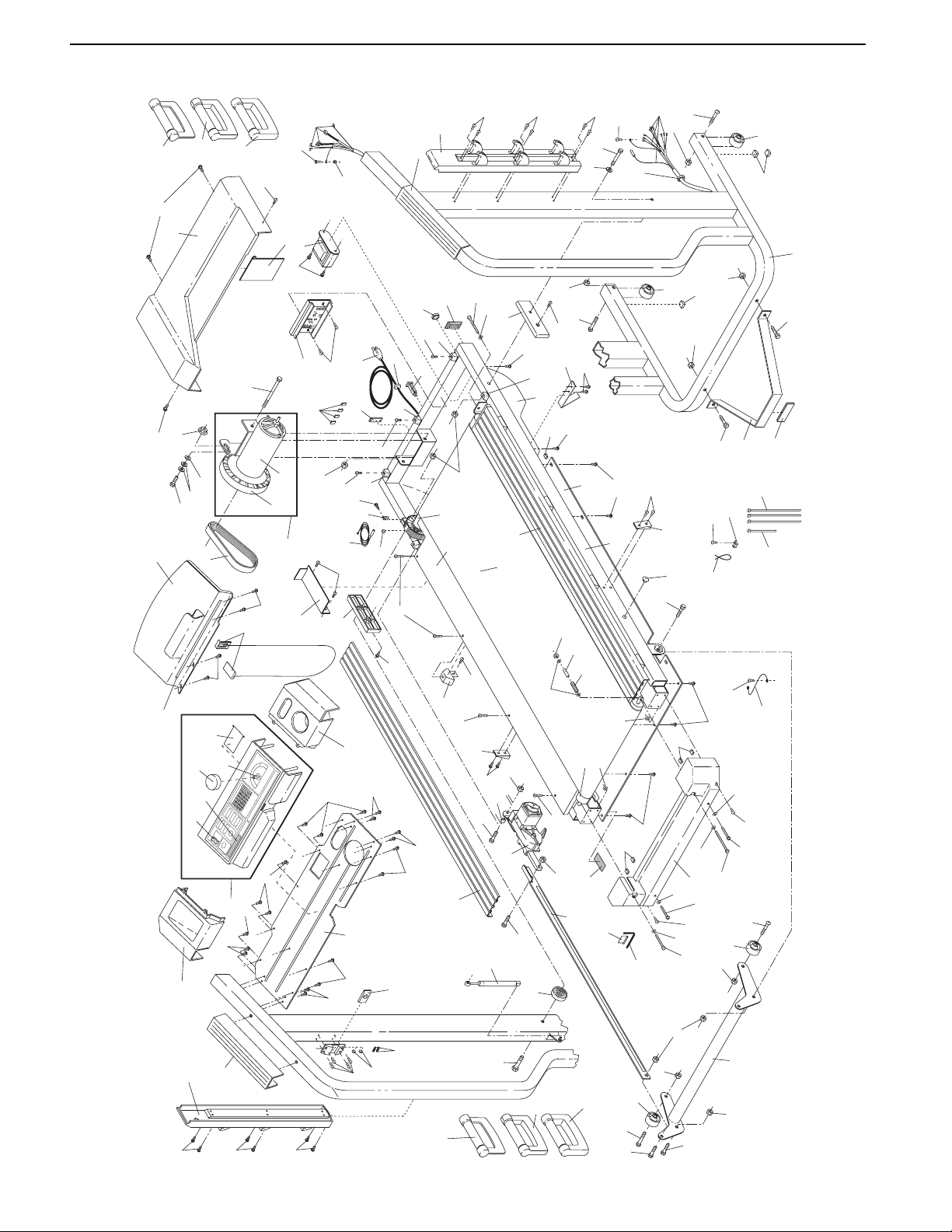

Note: An EXPLODED DRAWING and a PART LIST are attached in the center of this manual.

1. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings and precautions.

2. Use the treadmill only as described.

3. Place the treadmill on a level surface, with 8 feet of clearance behind it. Do not place the treadmill on a surface that blocks any air openings. To protect the floor or carpet from damage, place a mat under the treadmill.

4. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a garage or covered patio, or near water.

5. Do not operate the treadmill where aerosol products are used or where oxygen is being administered.

6. Keep children under 12 and pets away from the treadmill at all times.

7. The treadmill should be used only by persons weighing 250 pounds or less.

8. Never allow more than one person on the treadmill at a time.

9. Wear appropriate exercise clothing when using the treadmill. Do not wear loose clothing that could become caught in the treadmill. Athletic support clothes are recommended for

both men and women. Always wear athletic shoes. Never use the treadmill with bare feet, wearing only stockings, or in sandals.

10. When connecting the power cord (see HOW TO PLUG IN THE POWER CORD on page 7), plug the power cord into a surge protector (not included) and plug the surge protector into a grounded circuit capable of carrying 15 or more amps. No other appliance should be on the same circuit.

11. Use only a CUL-listed surge protector, rated at 15 amps, with a 14-gauge cord of 5 feet or less in length. Do not use an extension cord.

12. Keep the power cord and the surge protector away from heated surfaces.

13. Never move the walking belt while the power is turned off. Do not operate the treadmill if the power cord or plug is damaged, or if the treadmill is not working properly. (See BEFORE YOU BEGIN on page 4 if the treadmill is not working properly.)

14. Never start the treadmill while you are standing on the walking belt. Always hold the handrails while using the treadmill.

15. The treadmill is capable of high speeds.

Adjust the speed in small increments to avoid sudden jumps in speed.

IMPORTANT PRECAUTIONS

WARNING:

To reduce the risk of burns, fire, electric shock, or injury to persons, read the

following important precautions and information before operating the treadmill.

Page 3

16. To reduce the possibility of the treadmill overheating, do not operate the treadmill continuously for longer than 1 hour.

17. The pulse sensor is not a medical device. Various factors, including the user's movement, may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determining heart rate trends in general.

18. Never leave the treadmill unattended while it is running. Always remove the key when the treadmill is not in use.

19. You must be able to safely lift 45 pounds (20

kg) to raise, lower, or move the treadmill.

20. When folding or moving the treadmill, make sure that the storage latch is fully closed.

21. Inspect and tighten all parts of the treadmill every three months.

22. Never insert any object into any opening.

23. Always unplug the power cord before performing the maintenance and adjustment procedures described in this manual. Never remove the motor hood unless instructed to do so by an authorized service representative. Servicing other than the procedures in this manual should be performed by an authorized service representative only.

24. This treadmill is intended for in-home use only. Do not use this treadmill in any commercial, rental, or institutional setting.

25. Do not perform exercises with the hand weights at speeds higher than a walk. Using weights and not holding the handrails may compromise your ability to maintain your

balance. Exercises using weights should be attempted only by experienced users.

WARNING: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.

SAVE THESE INSTRUCTIONS

The decals shown below have been placed on your treadmill. If one of the decals is missing, or if it is not legible, please call our Customer Service Department, toll-free, to order a free replacement decal (see ORDERING REPLACEMENT PARTS on page 17 of this manual). Apply the decal in the location shown.

Page 4

Thank you for selecting the PROFORM®425 treadmill. The PROFORM®425 treadmill combines advanced technology with innovative design to let you enjoy an excellent form of cardiovascular exercise in the convenience and privacy of your home. And when you’re not exercising, the unique PROFORM

425 can be folded up, requiring less than half the floor space of other treadmills.

For your benefit, read this manual carefully before using the treadmill. If you have additional questions,

please call our Customer Service Department toll-free

at 1-888-936-4266, Monday through Friday, 8 a.m. until 6:30 p.m. Eastern Standard Time (excluding holidays). To help us assist you, please note the product model number and serial number before calling. The model number of the treadmill is PCTL93070. The serial number can be found on a decal attached to the treadmill (see the front cover of this manual for the location).

Before reading further, please review the drawing below and familiarize yourself with the labeled parts.

BEFORE YOU BEGIN

Handrails

Console

Incline Control

Storage Latch

Speed Control

Key/Clip

Circuit Breaker

Walking Belt

Cushioned Walking Platform for maximum exercise comfort

Foot Rails

Power Cord

FRONT

BACK

LEFT SIDE

RIGHT SIDE

Rear Roller

Adjustment Bolt

Water Bottle

Holder (Bottle is

not included)

Towel Rack

Accessory Tray

Incline Leg

Weight Rack with

Hand Weights

Page 5

ASSEMBLY

Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not dispose of the packing materials until assembly is completed. Assembly requires two adjustable wrenches

and a phillips screwdriver (not included).

1. Attach two Base Pads (57) to the bottom of the Base

(59) in the indicated locations. Note: One extra Base Pad is included.

2. Firmly hold the left or right handrail as shown. Raise the

handrails until the Base (59) and the front Wheels (56) are resting on the floor.

Remove the six Weight Rack Screws (106) and the metal plate (not shown) from the right side of the Base (59). Discard the metal plate.

Attach a Weight Rack (110) to the right side of the Base (59) with the six Weight Rack Screws (106).

Attach the other Weight Rack (110) to the left side of the Base (59) in the same manner (not shown).

3. Make sure that there is a Frame Guide (52) on the left

side of the Frame (23). If there is not, attach the Frame Guide with two screws (100) as shown. Make sure that

the thick end of the Frame Guide is at the bottom.

4. Next, the treadmill should be raised to the storage posi-

tion. Hold the treadmill with your hands in the locations shown at the right. To decrease the possibility of in-

jury, bend your legs and keep your back straight. As you raise the treadmill, make sure to lift with your legs rather than your back. Raise the treadmill about

halfway to the vertical position.

100

Thick end

Handrails

110

106

Page 6

5. Move your right hand to the position shown at the right,

and hold the treadmill firmly. Raise the treadmill until the Storage Latch (50) closes over the Frame Guide (52) (see the inset drawing). Make sure that the Storage

Latch closes fully over the Frame Guide.

6. Slide the Stabilizer Pad (63) onto the bottom of the

Stabilizer (64) in the indicated location.

Attach the Stabilizer (64) to the Base (59) with two Stabilizer Bolts (62) and two Stabilizer Nuts (61) as shown.

Before moving the treadmill, see HOW TO MOVE THE TREADMILL on page 11.

7. Refer to assembly drawing 5 at the top of this page.

Hold the upper end of the treadmill with your right hand as shown. Using your left thumb, slide the Storage Latch (50) to the left. Pivot the treadmill slightly until the Frame Guide (52) is past the Storage Latch.

Hold the treadmill with both hands in the locations shown at the right. Lower the treadmill to the floor. To

decrease the possibility of injury, bend your legs and keep your back straight.

8. To attach the Book Rack (4) to the Console (2), first re-

move the backing from the Tape (60). Align the holes in the Book Rack with those in the Console. Attach the Book Rack to the Console with the four Screws (100) as shown.

9. Remove the backing from the Adhesive Clip (77). Press

the Adhesive Clip onto the Rear Roller Cover (78) in the indicated location. Press the Allen Wrench (76) into the Adhesive Clip.

10.Make sure that all parts are tightened before you use the

treadmill. Note: To protect the floor or carpet, place a

mat under the treadmill.

Closed

100

Page 7

OPERATION AND ADJUSTMENT

THE PERFORMANT LUBETMWALKING BELT

Your treadmill features a walking belt coated with PERFORMANT LUBE

, a high-performance lubricant.

IMPORTANT: Never apply silicone spray or other substances to the walking belt or the walking platform. They will deteriorate the walking belt and cause excessive wear.

HOW TO PLUG IN THE POWER CORD

Your treadmill, like any other type of sophisticated electronic equipment, can be seriously damaged by sudden voltage changes in your home’s power. Voltage surges, spikes, and noise interference can result from weather conditions or from other appliances being turned on or off.

To decrease the possibility of your treadmill being damaged, always use a surge protector (not included) with your treadmill.

Surge protectors are sold at most hardware stores and department stores. Use only a CULlisted surge protector, rated at 15 amps, with a 14-gauge cord of five feet or less in length.

This product must be grounded. If it should

malfunction or break down, grounding provides a path of least resistance for electric current to reduce the risk of

electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. Plug the power cord into a surge

protector, and plug the surge protector into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illustrated in drawing 1 below. A temporary adapter that looks like the adapter illustrated in drawing 2 may be used to connect the surge protector to a 2-pole receptacle as shown in drawing 2 if a properly grounded outlet is not available.

The temporary adapter should be used only until a properly grounded outlet (drawing 1) can be installed by a qualified electrician.

The green-colored rigid ear, lug, or the like extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adapter is used it must be held in place by a metal screw. Some 2-pole receptacle outlet box

covers are not grounded. Contact a qualified electrician to determine if the outlet box cover is grounded before using an adapter.

DANGER: Improper connection

of the equipment-grounding conductor can result in an increased risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product—if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

Grounded Outlet Box

Grounding Plug

Treadmill Power Cord

Grounding Plug

Grounding Pin

Surge Protector

Grounding Pin

Adapter

Lug

Metal Screw

Grounded Outlet

Page 8

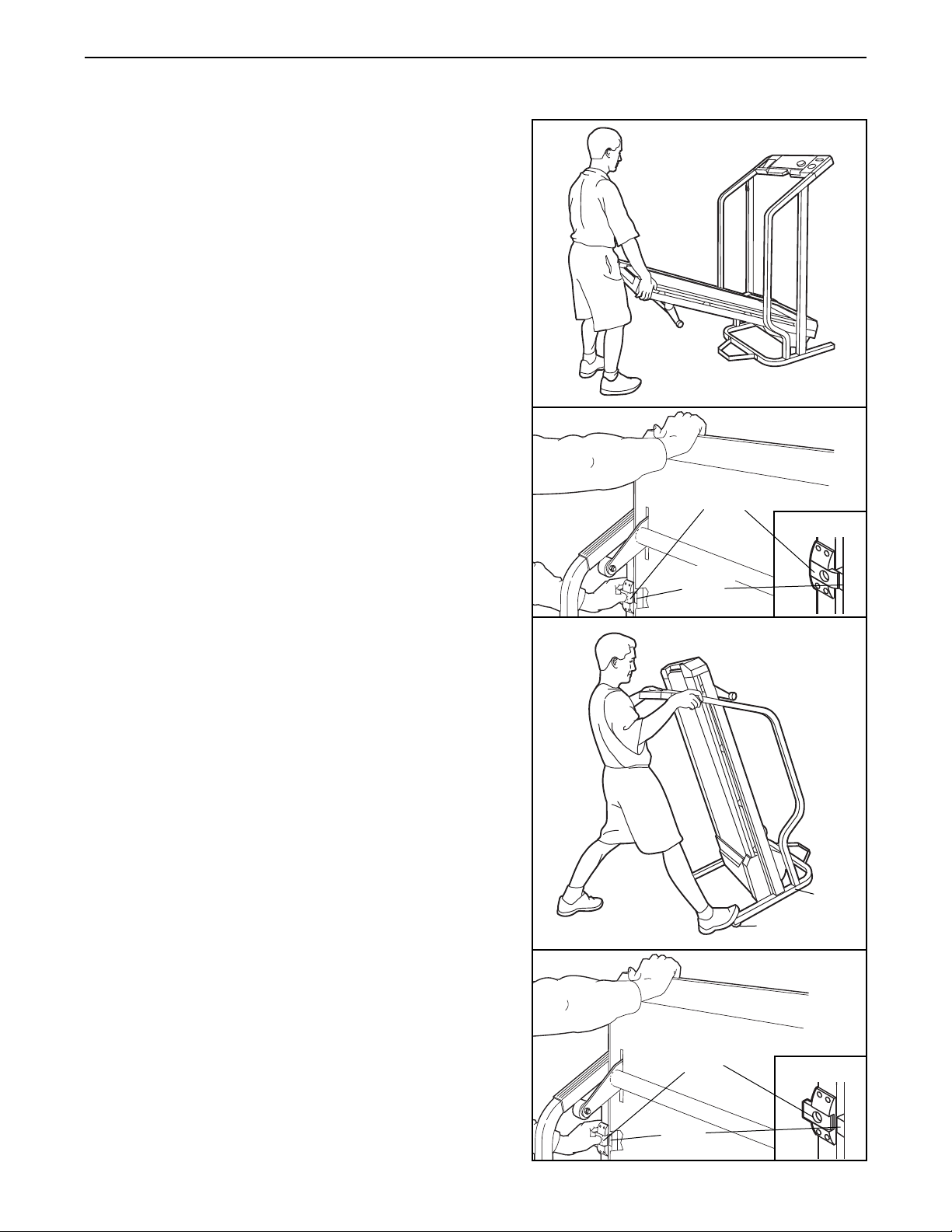

HOW TO FOLD AND MOVE THE TREADMILL

HOW TO FOLD THE TREADMILL FOR STORAGE

Before folding the treadmill, unplug the power cord. Caution: You must be able to safely lift 45 pounds (20 kg) in order to raise, lower, or move the treadmill.

1. Hold the treadmill with your hands in the locations shown

at the right. To decrease the possibility of injury, bend

your legs and keep your back straight. As you raise the treadmill, make sure to lift with your legs rather than your back. Raise the treadmill about halfway to the

vertical position.

2. Move your right hand to the position shown at the right,

and hold the treadmill firmly. Raise the treadmill until the storage latch closes over the frame guide. Make sure

that the storage latch closes fully over the frame guide.

To protect the floor or carpet from damage, place a mat under the treadmill. Keep the treadmill out of direct sunlight. Do not leave the treadmill in the storage position in temperatures above 85° Fahrenheit.

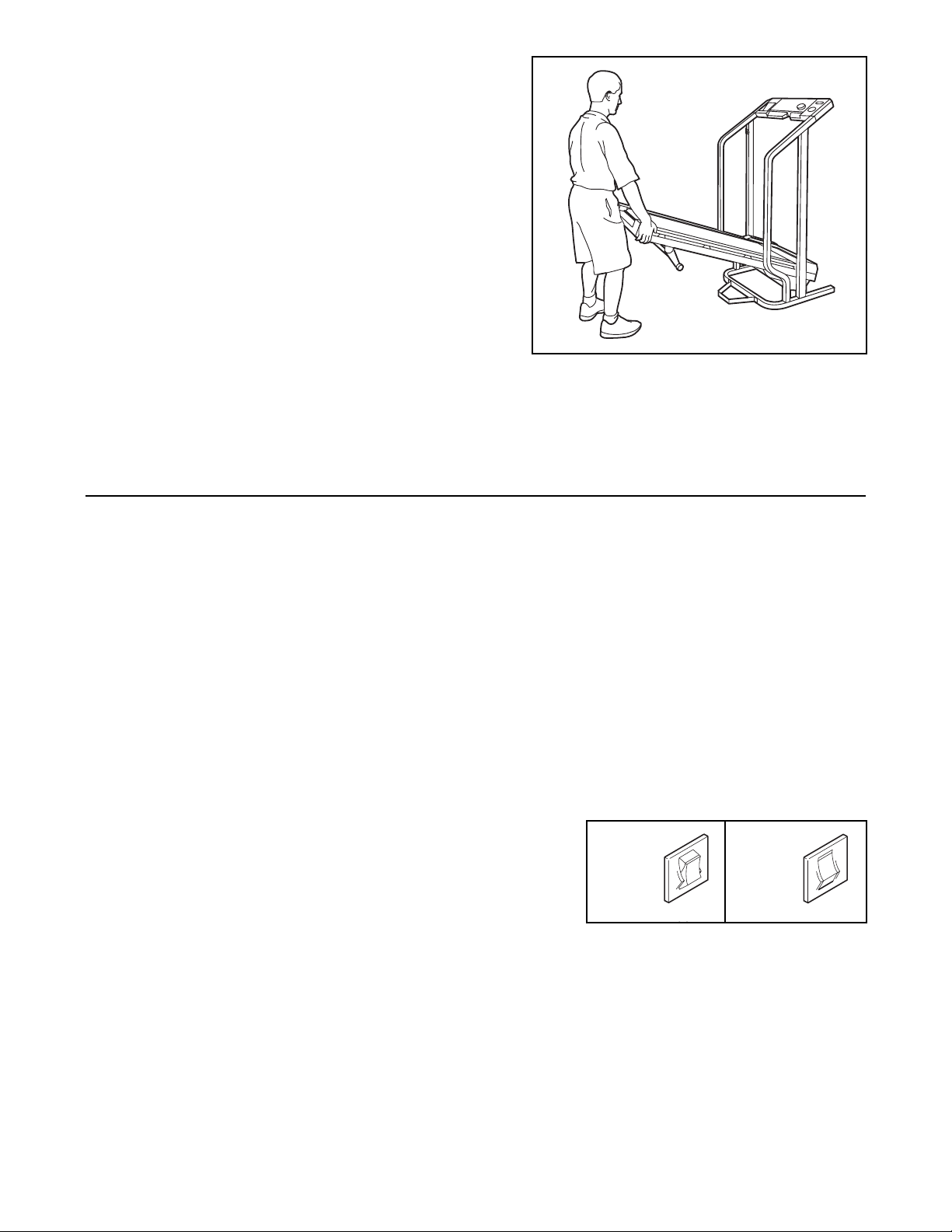

HOW TO MOVE THE TREADMILL

Before moving the treadmill, convert the treadmill to the storage position as described above. Make sure that the stor-

age latch is closed fully over the frame guide.

1. Hold the upper ends of the handrails. Place one foot on

the base as shown.

2. Tilt the treadmill back until it rolls freely on the front wheels.

Carefully move the treadmill to the desired location. Never

move the treadmill without tipping it back, or the base pads may come off. To reduce the risk of injury, use extreme caution while moving the treadmill. Do not attempt to move the treadmill over an uneven surface.

3. Place one foot on the base, and carefully lower the tread-

mill until it is resting in the storage position.

HOW TO LOWER THE TREADMILL FOR USE

1. Hold the upper end of the treadmill with your right hand as

shown. Using your left thumb, slide open the storage latch. Pivot the treadmill slightly until the frame guide is past the storage latch.

Base

Front Wheels

Storage Latch

Storage

Latch

Frame

Guide

Frame Guide

Closed

Open

Page 9

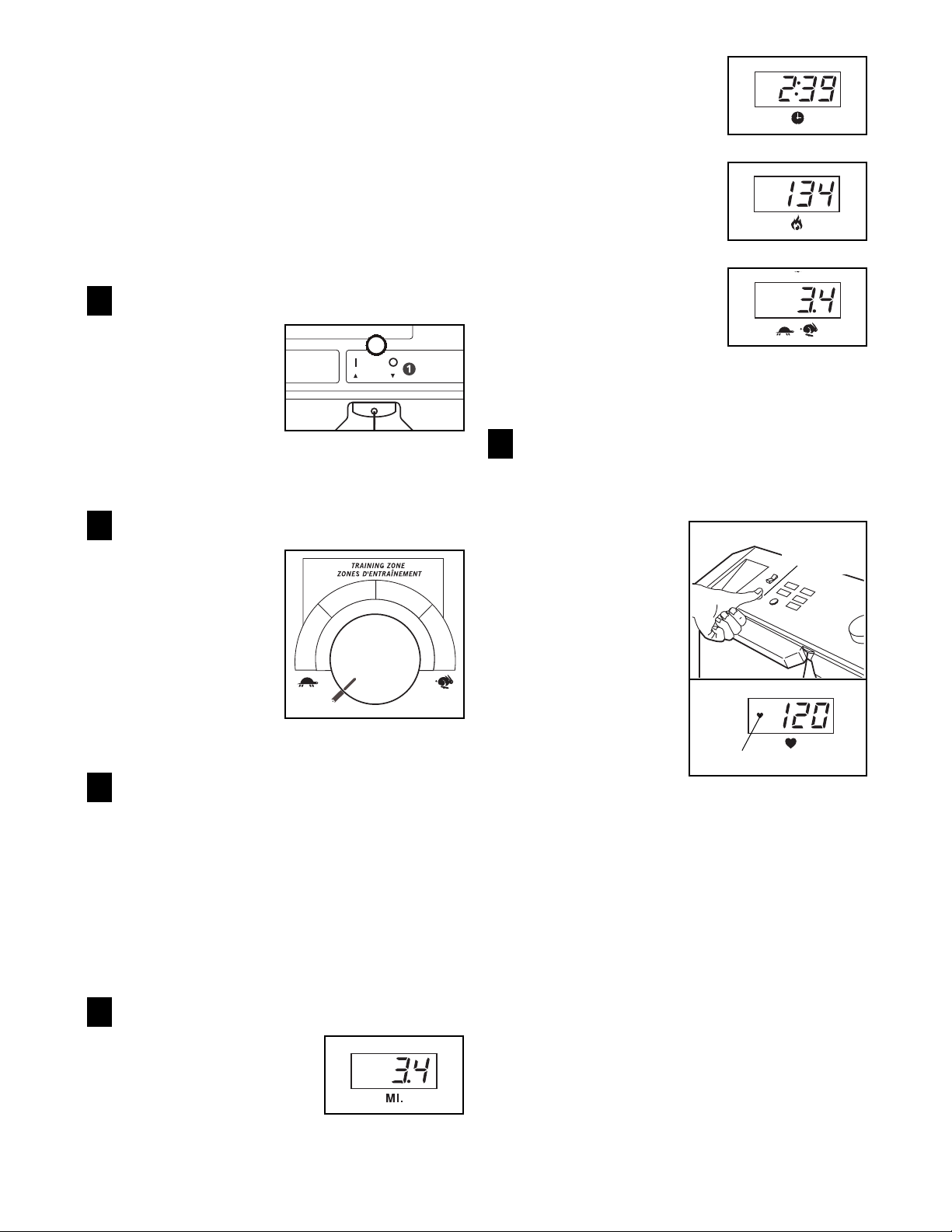

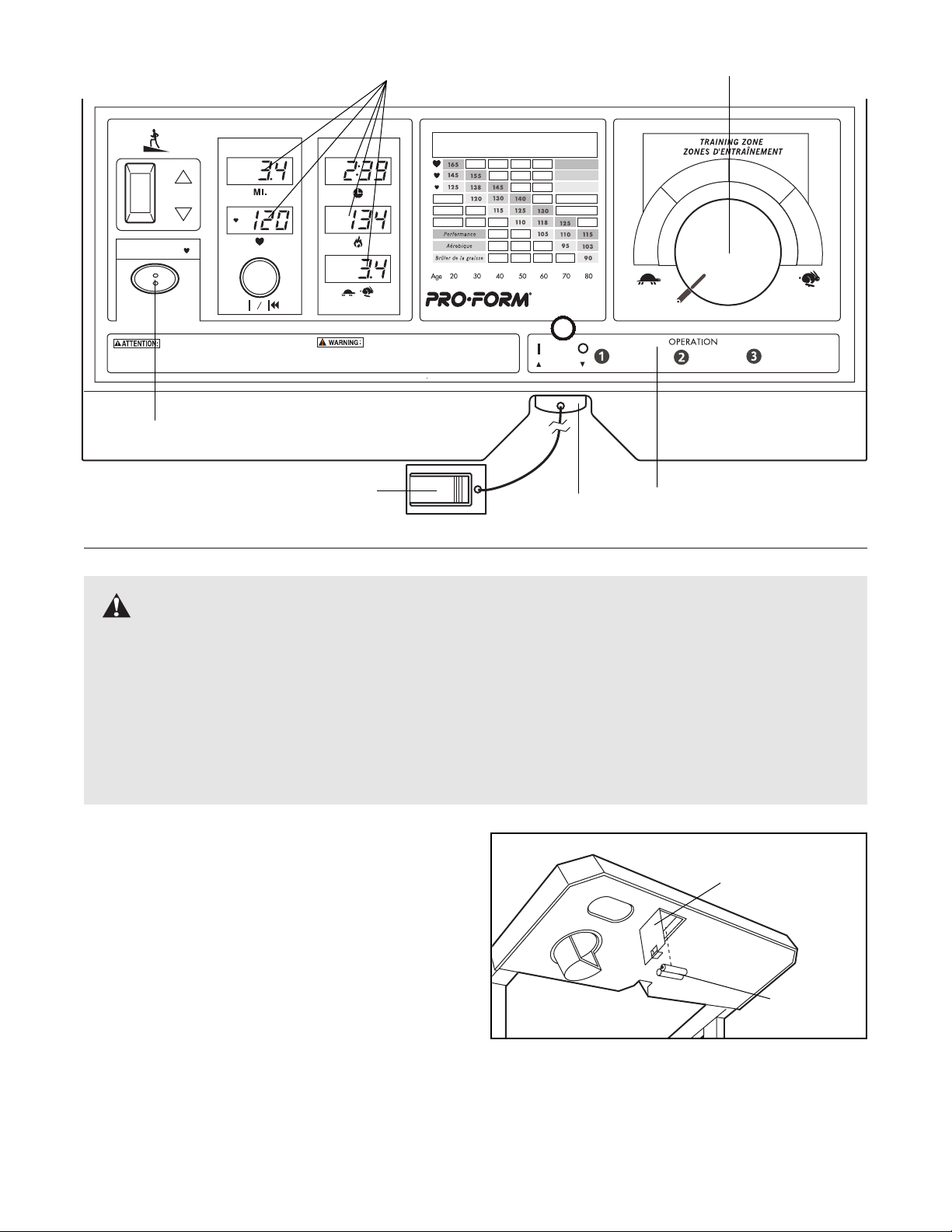

STEP BY STEP CONSOLE OPERATION

Before operating the console, make sure that the power cord is properly plugged in. (See HOW TO PLUG IN THE POWER CORD on page 7.)

Step onto the foot rails of the treadmill. Next, find the clip attached to the key (see the drawing on page 8). Slide the clip onto the waistband of your clothing

Follow the steps below to operate the console.

Insert the key fully into the power switch.

Inserting the key will not turn on the displays. The displays will turn on when the ON/RESET (or ON/CLEAR) button is pressed or when the walking belt is started. Note: If you just installed batteries, the displays will already be on.

Reset the speed control.

Turn the speed control counterclockwise to the RESET position. Note: Each

time the walking belt is stopped, the speed control must be turned to the RESET position before the walking belt can be restarted.

Start the walking belt.

After you have turned the speed control to the RESET position, slowly turn it clockwise until the walking belt begins to move at slow speed. Carefully step onto the walking belt and begin exercising. Change the speed of the walking belt as desired by turning the speed control.

To stop the walking belt, step onto the foot rails and turn the speed control to the RESET position.

Follow your progress with the monitor displays.

DISTANCE display—

This display shows the total distance that you have walked or run, in miles.

TIME display—This display shows the total time that you have walked or run on the treadmill.

CALORIES display—This display shows the approximate number of calories you have burned.

SPEED display—This display shows the speed of the walking belt, in miles per hour.

The displays can be reset, if desired, by pressing the ON/RESET button.

Measure your pulse, if desired.

To use the pulse sensor, stand on the foot rails and place your thumb on the pulse sensor as shown. The pulse sensor is pressureactivated; fully press down the pulse sensor. Do not press

too hard, or the circulation in your thumb will be restricted, and your pulse will not be detected. Next,

slightly raise your thumb until the heart-shaped indicator in the PULSE display flashes steadily. Hold your thumb at this level. After 5 to 10 seconds, your pulse will be shown. Hold your thumb on the sensor for another 15 seconds for the most accurate reading.If the displayed pulse appears to be too high or too low, or if your pulse is not displayed, lift your thumb off the sensor and allow the display to reset. Press down again on the sensor as described above.

Make sure that your thumb is positioned as shown, and that you are applying the proper amount of pressure to the pulse sensor. Try the sensor several times until you become familiar with it. Remember to stand still while measuring your pulse.

RES

Pulse

Sensor

Indicator

INSERT KEY

INSEREZ LA CL

RESET REMISE À ZERO

Page 10

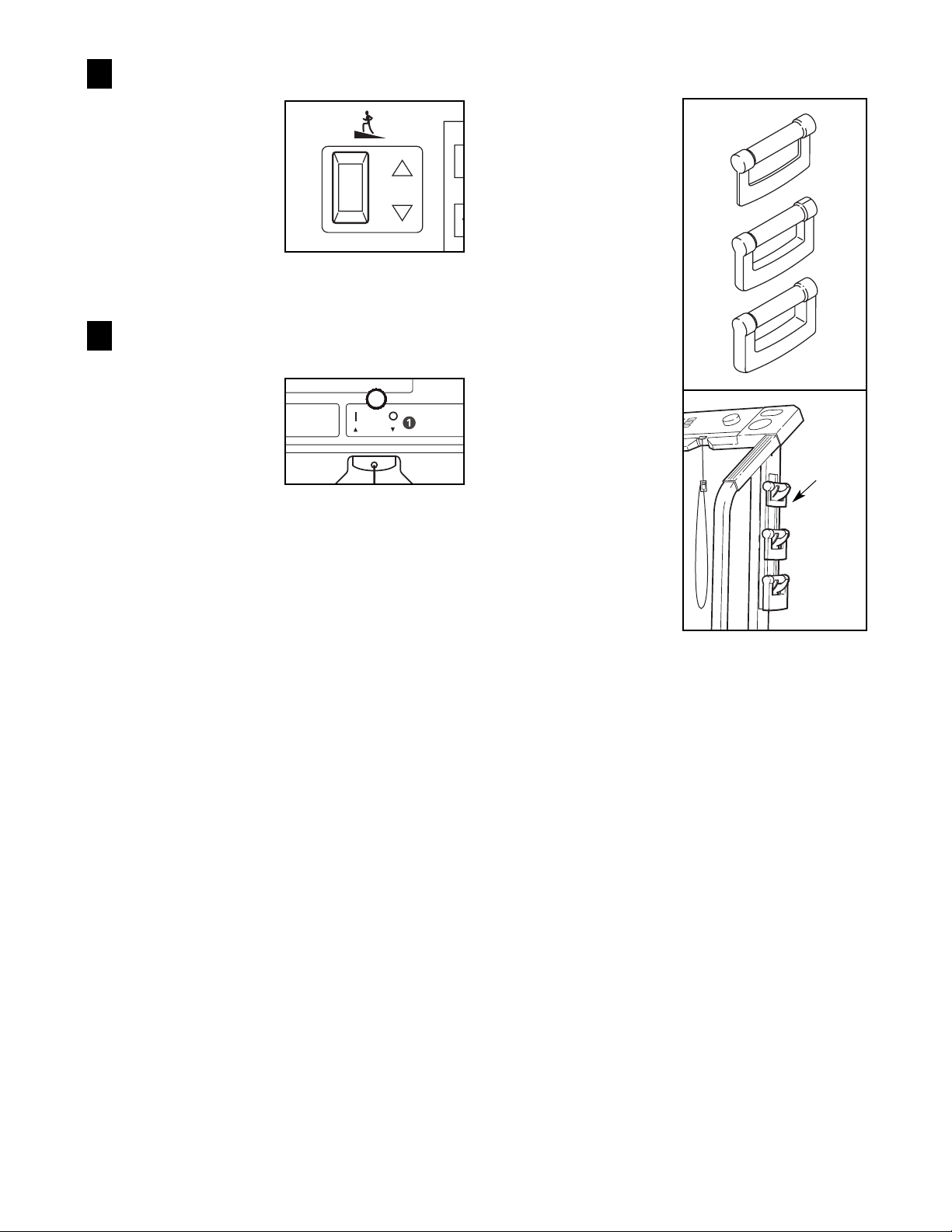

Change the incline of the treadmill, if desired.

To increase or decrease the incline, hold down the top or bottom of the incline button. Important:

Do not change the incline of the treadmill by placing objects under the treadmill. Change the incline only as described above.

When you are finished exercising, stop the walking belt and remove the key.

Step onto the foot rails, stop the walking belt, and remove the key from the console. Store the key in a secure place. After the key

is removed, the displays will remain on for about five minutes.

Note: Any time that the walking belt is stopped and no console buttons are pressed for five minutes, the displays will automatically turn off.

HOW TO USE THE HAND WEIGHTS

The included hand weights let you add upper body exercise to your workouts. As you walk on the treadmill, hold the 2-pound weights at your sides or press the weights above your head. To increase the intensity of your exercise, use the 4-pound or 6pound weights.

WARNING: Do not use the hand weights at speeds higher than a walk. Using weights and not holding the handrails may compromise your ability to maintain your balance. Exercises using weights should be attempted only by experienced users.

The hand weights can be stored in the handy weight rack on the base.

RES

Weight

Rack

Ceci n’est pas un appareil reconnu

INSERT KEY

INSEREZ LA CL

Page 11

CAUTION: Before operating the con-

sole, read the following precautions.

• Do not stand on the walking belt when turning on the power.

• Always wear the clip (see the drawing above) while operating the treadmill. When the key is removed from the console, the walking belt will stop.

• Adjust the speed in small increments.

• The training zones marked around the speed control are general guidelines only. See pages 14 and 15 for more information.

• To reduce the possibility of electric shock, keep the console dry. Avoid spilling liquids on the console. Use only a sealed water bottle.

BATTERY INSTALLATION

The console requires two “AA” batteries (not included); alkaline batteries are recommended. To install batteries, open the battery cover as shown in the drawing at the right.

Press two batteries into the battery compartment, with the negative (–) ends of the batteries touching the springs. Close the battery cover.

DIAGRAM OF THE CONSOLE

Pulse Sensor

Clip

Key

Speed Control

Displays

Note: If there is a thin sheet of clear plastic on the face of the console, remove it.

Batteries

Battery Cover

Ceci n’est pas un appareil reconnu

par les autorités médicales.

This is not a medically

certified device.

HEART RATE TRAINING ZONES

NIVEAUX D’ENTRAINEMENT PAR RAPPORT AU RYTHME CARDIAQUE

Performance

Aerobic

Fat Burn

E R

Appuyer délicatement sur la touche pour obtenir une lecture de votre pulsation. Pour de meilleurs

résultats, ne pas bouger.

Press button lightly for

pulse reading. For best results,

hold still.

• Le mauvais usage de ce tapis roulant peut causer

roulant en marche lorsque vous êtres sur le tapis. • Lisez le manuel de l’utilisateur et suivez les précautions et les instructions d’opérations.

• Gardez les enfants éloignés du tapis roulant en tout temps. • Gardez tout liquide éloigné de la console électronique.

des blessures graves.• Ne mettez jamais le tapis

starting treadmill. • Read User’s Manual and follow warnings and operating instructions. • Never allow children to play on or around treadmill. • To prevent electrical shock and damage to electrical components, keep fluids off console.

• Misuse of this product may cause serious injury. • Don’t stand on walking belt when

INSERT KEY

INSEREZ LA CLE

RESET

REMISE À ZERO

RESET REMISE À ZERO

SET

REGLAGE DE LA VITESSE

SERVICE À LA CLIENTELE

CUSTOMER HOT LINE

1-888-936-4266

Page 12

2. Hold the treadmill firmly with both hands, and lower the

treadmill to the floor. To decrease the possibility of in-

jury, bend your legs and keep your back straight.

TROUBLE-SHOOTING

Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please call our Customer Service Department tollfree at 1-888-936-4266, Monday through Friday, 8 a.m.–6:30 p.m. Eastern Standard Time (excluding holidays).

1. SYMPTOM: THE POWER DOES NOT TURN ON

a. Make sure that the power cord is plugged into a surge protector, and that the surge protector is plugged into

a properly grounded outlet. (See HOW TO PLUG IN THE POWER CORD on page 7.) Use only a CUL-listed surge protector, rated at 15 amps, with a 14-gauge cord of five feet or less in length.

b. After the power cord has been plugged in, make sure that the key is fully inserted into the console. (See step

1 on page 9.)

c. Check the circuit breaker located on the treadmill near the

power cord. If the switch protrudes as shown, the circuit breaker has tripped. To reset the circuit breaker, wait for five minutes and then press the switch back in.

2. SYMPTOM: THE POWER TURNS OFF DURING USE

a. Check the circuit breaker located on the treadmill frame near the power cord (see 1. c. above). If the circuit

breaker has tripped, wait for five minutes and then press the switch back in.

b. Make sure that the power cord is plugged in.

c. Remove the key from the console. Reinsert the key fully into the console. (See step 1 on page 9.)

d. If the treadmill still will not run, please call our Customer Service Department, toll-free.

Tripped

Reset

Tripped

Reset

Page 13

3. SYMPTOM: THE DISPLAYS OF THE CONSOLE DO NOT FUNCTION PROPERLY

a. Check the batteries in the console. (See BATTERY INSTALLATION on page 8.) Most problems are the re-

sult of drained batteries.

4. SYMPTOM: THE WALKING BELT SLOWS WHEN WALKED ON

a. Use only a CUL-listed surge protector, rated at 15 amps, with a 14-gauge cord of five feet or less in length.

b. If the walking belt still slows when walked on, please call our Customer Service Department, toll-free.

5. SYMPTOM: THE WALKING BELT IS OFF-CENTER WHEN WALKED ON

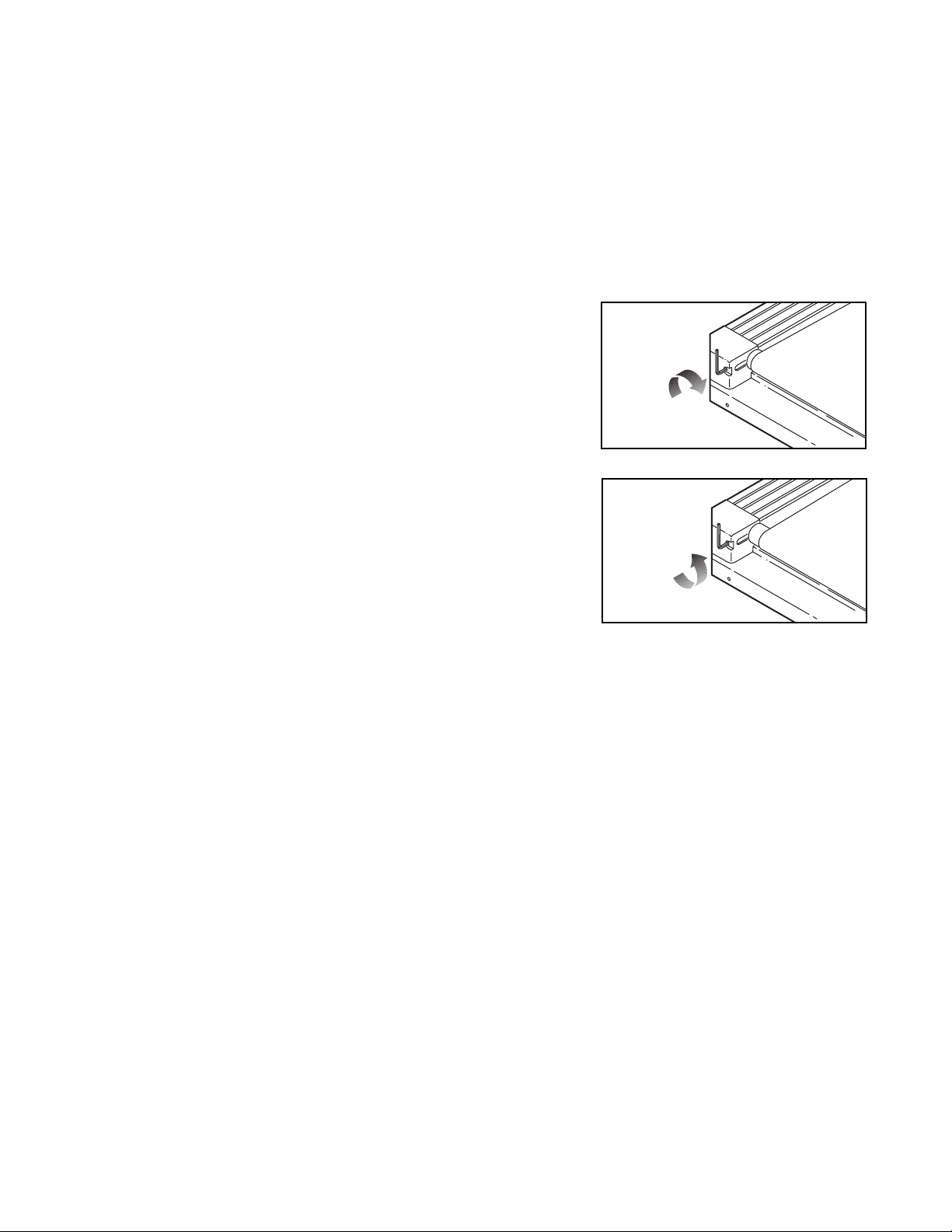

a. If the walking belt has shifted to the left, first remove the key and

UNPLUG THE POWER CORD. Using the allen wrench, turn the left rear roller adjustment bolt clockwise 1/4 of a turn. Plug in the power cord, insert the key and run the treadmill for a few minutes. Repeat until the walking belt is centered.

b. If the walking belt has shifted to the right, first remove the key

and UNPLUG THE POWER CORD. Using the allen wrench, turn the left rear roller adjustment bolt counterclockwise 1/4 of a turn. Plug in the power cord, insert the key and run the treadmill for a few minutes. Repeat until the walking belt is centered.

6. SYMPTOM: THE TREADMILL SITS UNEVENLY ON THE FLOOR

a. Make sure that the two base pads and the stabilizer pad are attached to the treadmill (see assembly steps 1

and 6 on pages 5 and 6).

Page 14

CONDITIONING GUIDELINES

The following guidelines will help you to plan your exercise program. Remember—these are general guidelines only. For more detailed exercise information, obtain a reputable book or consult your physician.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your cardiovascular system, the key to achieving the desired results is to exercise with the proper intensity. The proper intensity level can be found by using your heart rate as a guide. The chart below shows recommended heart rates for fat burning and aerobic exercise. (This chart is also found on the console.)

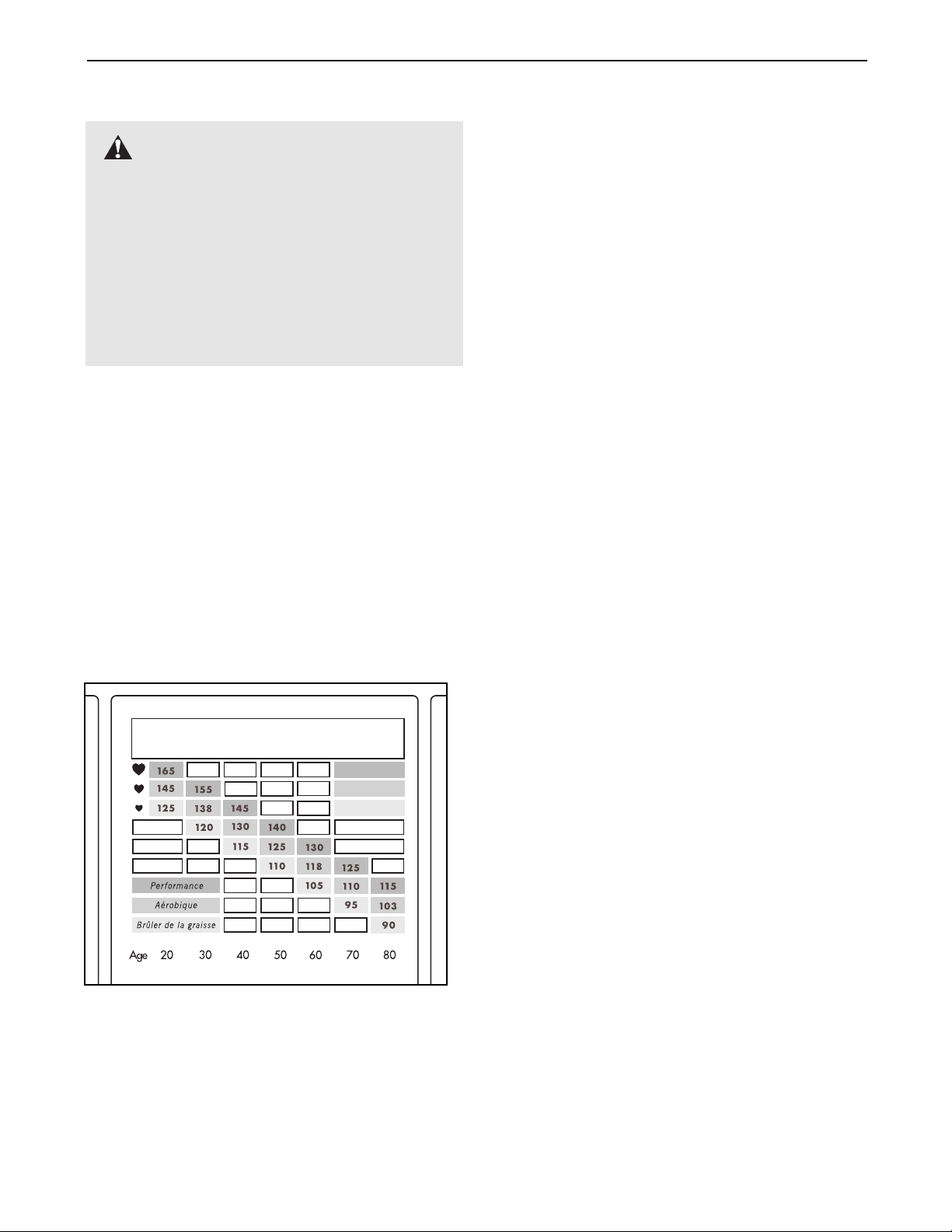

To find the proper heart rate for you, first find your age at the bottom of chart (ages are rounded off to the nearest ten years). Next, find the three numbers above your age. The three numbers are your “training zone.” The bottom two numbers are recommended heart rates for fat burning; the top number is the recommended heart rate for aerobic exercise.

To measure your heart rate during exercise, use the pulse sensor on the console. (See page 9.) If your heart rate is too high or too low, adjust the speed or incline of the treadmill until your heart rate is at the proper level.

Fat Burning

To burn fat effectively, you must exercise at a relatively low intensity level for a sustained period of time. During the first few minutes of exercise, your body uses easily accessible carbohydrate calories for energy. Only after the first few minutes does your body begin to use stored fat calories for energy. If your goal is to burn fat, adjust the speed and incline of the treadmill until your heart rate is near the first or second number in your training zone. It may also be helpful to set the speed control on the console to FAT BURN to help you maintain the proper intensity level. (See page 9.)

Aerobic Exercise

If your goal is to strengthen your cardiovascular system, your exercise must be “aerobic.” Aerobic exercise is activity that requires large amounts of oxygen for prolonged periods of time. This increases the demand on the heart to pump blood to the muscles, and on the lungs to oxygenate the blood. For aerobic exercise, adjust the speed and incline of the treadmill until your heart rate is near the last number in your training zone. It may also be helpful to set the speed control on the console to AEROBIC to help you maintain the proper intensity level. (See page 9.)

High Performance Athletic Conditioning

If your goal is high performance athletic conditioning, set the speed control on the console to PERFORMANCE to help you maintain the proper intensity level. (See page 9.) Note: During the first few weeks of your exercise program, keep your heart rate near the low end of your training zone.

WORKOUT GUIDELINES

A well-rounded workout includes three phases:

Warm-up

Start each workout by warming up for 5 to 10 minutes. Begin with slow, controlled stretches, and progress to more rhythmic stretches to increase the body temperature, heart rate, and circulation in preparation for strenuous exercise. Stretching also guards against muscle, tendon and ligament sprains.

WARNING: Before beginning

this or any exercise program, consult your physician. This is especially important for individuals over the age of 35 or individuals with pre-existing health problems.

The pulse sensor is not a medical device. Various factors, including your movement, may affect the accuracy of heart rate readings. The sensor is intended only as an exercise aid in determining heart rate trends in general.

NIVEAUX D’ENTRAINEMENT PAR RAPPORT AU RYTHME CARDIAQUE

HEART RATE TRAINING ZONES

Performance

Aerobic

Fat Burn

Page 15

Training Zone Exercise

After warming up, increase the intensity of your exercise until your pulse is in your training zone for 20 to 60 minutes. (During the first few weeks of your exercise program, do not keep your pulse in your training zone for longer than 20 minutes.) Breathe regularly and deeply as you exercise—never hold your breath.

Cool-down

Finish each workout with 5 to 10 minutes of stretching

to cool down. This will increase the flexibility of your muscles and will help to prevent post-exercise problems.

Exercise Frequency

To maintain or improve your condition, complete three workouts each week, with at least one day of rest between workouts. After a few months, you may complete up to five workouts each week if desired.

The key to success is to make exercise a regular and enjoyable part of your everyday life.

SUGGESTED STRETCHES

The correct form for several basic stretches is shown in the drawings below. Move slowly as you stretch—never bounce.

1. Toe Touch Stretch

Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible. Hold for 15 counts, then relax. Repeat 3 times. Stretches: Hamstrings, back of knees and back.

2. Hamstring Stretch

Sit with one leg extended. Bring the sole of the opposite foot toward you and rest it against the inner thigh of your extended leg. Reach toward your toes as far as possible. Hold for 15 counts, then relax. Repeat 3 times for both legs. Stretches: Hamstrings, lower back and groin.

3. Calf/Achilles Stretch

With one leg in front of the other, reach forward and place your hands against a wall. Keep your back leg straight and your back foot flat on the floor. Bend your front leg, lean forward and move your hips toward the wall. Hold for 15 counts, then relax. Repeat 3 times for both legs. To cause further stretching of the achilles tendons, bend your back leg as well. Stretches: Calves, achilles tendons and ankles.

4. Quadriceps Stretch

With one hand against a wall for balance, reach back and grasp one foot with your other hand. Bring your heel as close to your buttocks as possible. Hold for 15 counts, then relax. Repeat 3 times for both legs. Stretches: Quadriceps and hip muscles.

5. Inner Thigh Stretch

Sit with the soles of your feet together and your knees outward. Pull your feet toward your groin area as far as possible. Hold for 15 counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip muscles.

Page 16

CUSTOMER RECORD

Model No.: Serial No.:

Retailer Name: Purchase Date:

Retailer Address:

Page 17

ORDERING REPLACEMENT PARTS

To order replacement parts, call our Customer Service Department toll-free at 1-888-936-4266, Monday through Friday, 8 a.m. until 6:30 p.m. Eastern Standard Time (excluding holidays). When ordering parts, please be prepared to give the following information:

• The MODEL NUMBER OF THE PRODUCT (PCTL93070).

• The NAME OF THE PRODUCT (PROFORM

425 treadmill).

• The SERIAL NUMBER OF THE PRODUCT (see the front cover of this manual).

• The KEY NUMBER OF THE PART(S) (see the EXPLODED DRAWING and PART LIST attached to the center of this manual).

• The DESCRIPTION OF THE PART(S) (see the EXPLODED DRAWING and PART LIST attached to the center of this manual).

If possible, place the treadmill near your telephone for easy reference when calling.

ICON of Canada Inc. 900 de l’Industrie St-Jérôme, Québec Canada, J7Y 4B8

PLACE

STAMP

HERE

Page 18

LIMITED WARRANTY

ICON OF/DU CANADA INC., (ICON), warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of ninety (90) days from the date of purchase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing or repairing, at ICON's option, the product at one of its authorized service centers. All products for which warranty claim is made must be received by ICON at one of its authorized service centers with all freight and other transportation charges prepaid, accompanied by sufficient proof of purchase. All returns must be pre-authorized by ICON. This warranty does not extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an ICON authorized service center, to products used for commercial or rental purposes, or to products used as store display models. No other warranty beyond that specifically set forth above is authorized by ICON.

ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other consequential damages of whatsoever nature. Some provinces do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you. The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein. Some provinces do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply to you.

This warranty gives you specific legal rights. You may also have other rights which vary from province to province or so specified by the retailer of your equipment.

ICON OF/DU CANADA, 900 de l’Industrie, St. Jerôme, QC J7Y 4B8

IMPORTANT: MAIL WITHIN 14 DAYS OF PURCHASE NAME: ADDRESS: COUNTY: MODEL NO. RETAILER NAME:

PHONE:

POSTCODE:

SERIAL NO. PURCHASE DATE:

RETAILER ADDRESS:

1) Primary user(s) of product:

❏ Male ❏ Female ❏ Family

2) Age of primary user:

❏ 0–24 ❏ 35–44 ❏ 55–64 ❏ 25–34 ❏ 45–54 ❏ 65 and over

3) Annual household income:

❏ 0–9,999 ❏ 15,000–19,999 ❏ 10,000–14,999 ❏ 20,000+

4) How many times a week do you exercise?

❏ Less than 3 times ❏ 3 times or more

5) Have you ever purchased an ICON product before?

❏ Yes ❏ No

6) Where did you first see or hear about ICON products?

❏ Magazine ❏ Friend/relative ❏ Newspaper Ad ❏ Store ❏ Other

7) What was the primary reason for purchasing this ICON product?

❏ Store Employee ❏ Television Ads ❏ Colour ❏ Electronic Features ❏ Magazine Ads ❏ Price ❏ Product Design ❏ Product Innovation ❏ Other Features

8) Did you consider purchasing fitness equipment from another manufacturer?

❏ No ❏ Yes

What other Manufacturer?

9) Based on your impression of what you have purchased, would you buy another ICON product?

❏ Yes ❏ No ❏ No Opinion

If not, what other brand name equipment would you purchase?

10) What other type of exercise equipment do you own?

❏ Bicycle ❏ Exercise Cycle ❏ Treadmill ❏ Home Gym ❏ Weight Bench ❏ Stepper ❏ Cardio Glide ❏ Other

11) Which type of magazines do you read regularly?

❏ Sports ❏ Fitness ❏ Motoring ❏ Business ❏ Computer ❏ General

12) Do you wish to be sent further bulletins about ICON products?

❏ Yes ❏ No

THANK YOU FOR YOUR TIME

PRODUCT WARRANTY REGISTRATION

™

of/du Canada Inc.

Page 19

REMOVE THIS PART LIST/EXPLODED

REMOVE THIS EXPLODED DRAWING

AND PART LIST FROM THE MANUAL

Save this EXPLODED DRAWING and PART LIST for future reference.

Note: Specifications are subject to change without notice. For information about ordering replacement parts, see the back cover of the User’s Manual.

DRAWING FROM THE MANUAL!

Page 20

PART LIST—Model No. PCTL93070 R0499A

1 2 Handrail Cover

2* 1 Console

3 8 Console Plate

Screw 4 1 Book Rack 5 1 Frame Plug 6 1 Console Plate 7 1 Speed Knob 8 1 Speed

Potentiometer 9 1 Right Console

Attachment

10 1 Warning Decal 11 1 Key/Clip 12 1 Motor Belt 13 1 Power Cord 14 2 Motor Tension

Washer

15 1 Star Washer 16 4 Incline Wheel Nut 17 1 Motor Tension Nut 18 1 Motor Hood 19 27 Small Screw 20 1 Motor Pivot Bolt 21 1 Choke 22 1 Ground Wire Bolt 23 1 Frame 24 2 Cover Screw 25 1 Wire Harness 26 2 Cover Washer 27 6 Cover Clip 28 5 Hood Anchor 29 1 Ground Wire 30 1 Circuit Breaker 31 1 Grommet 32 4 Wire Clip 33 1 Right Foot Rail

34* 1 Motor/Pulley/

Flywheel/Fan

35 1 Pulley/Flywheel/ Fan 36 1 Motor 37 1 Reed Switch Wire 38 2 Cover Nut 39 1 Magnet 40 1 4” Cable Tie 41 1 Ground Wire Nut

42 1 Front Roller Adj.

Bolt 43 5 Adjustment Washer 44 1 Reed Switch Clip 45 2 Upright Spacer 46 2 Base Wheel Bolt 47 22 Belly Pan Screw 48 1 Belly Pan 49 2 Belt Guide 50 1 Storage Latch 51 2 Storage Latch

Spring 52 2 Frame Guide 53 1 Frame Cover 54 2 Wire Harness

Grommet 55 2 Upright Pivot Bolt 56 2 Base Wheel 57 3 Base Pad 58 3 Upright Bolt/ Motor

Tension Bolt 59 1 Base 60 1 Book Rack Tape 61 2 Stabilizer Nut 62 2 Stabilizer Bolt 63 1 Stabilizer Pad 64 1 Stabilizer 65 1 Incline Motor Bolt 66 1 Incline Motor

Spacer 67 1 Incline Motor 68 1 Incline Extension 69 2 Latch Pad 70 2 Incline Wheel Bolt 71 1 Incline Leg 72 2 Incline Leg Wheel 73 8 Incline Leg Nut/

Motor Pivot Nut 74 1 Long Adjustment

Bolt 75 1 Short Adjustment

Bolt 76 1 Allen Wrench 77 1 Adhesive Clip 78 1 Rear Roller Cover 79 1 Rear Roller

80 1 Roller Tension

Spring 81 1 Spring Sleeve 82 1 Belt Tension Nut 83 1 Left Foot Rail

w/Fastener 84 1 Walking Belt 85 1 Walking Platform 86 8 Platform Screw 87 8 Isolator 88 1 Left Console

Attachment 89 1 Shock 90 1 Front Roller/Pulley 91 1 Releasable Cable

Tie 92 1 Storage Latch

Bracket 93 1 Controller 94 1 Incline Motor Guard 95 2 Incline Leg Pivot

Bolt 96 2 Frame Endcap 97 1 Cable Tie Clamp 98 4 8” Cable Tie 99 1 Battery Cover

100 20 Screw 101 1 Motor Guard 102 1 Latch Decal 103 1 Incline Control 104 1 Round Plug 105 5 Anchor Screw 106 12 Weight Rack Screw 107 2 2-lb Weight 108 2 4-lb Weight 109 2 6-lb Weight 110 2 Weight Rack

# 1 8” White Wire, 2

Female

# 1 8” Blue Wire, 2

Female

# 1 User’s Manual

* Includes all parts shown in the

box

# These parts are not illustrated

Key

No. Qty. Description

Key

No. Qty. Description

Key

No. Qty. Description

Page 21

EXPLODED DRAWING––Model No. PCTL93070 R0499A

100

101

34*

105

100

105

100

108

107

103

109

100

106

110

105

100

106

104

102

100

104

100

106

111

106

100

107

108

109
