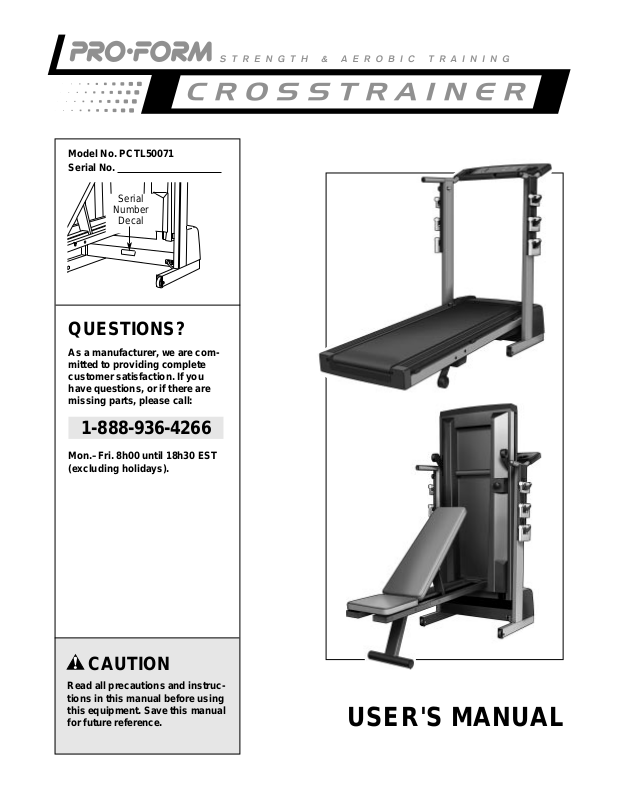

USER'S MANUAL
Model No. PCTL50071
Serial No.
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
Serial
Number
Decal
QUESTIONS?
As a manufacturer, we are committed to providing complete
customer satisfaction. If you
have questions, or if there are
missing parts, please call:
1-888-936-4266
Mon.–Fri. 8h00 until 18h30 EST
(excluding holidays).
2
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
HOW TO EXERCISE ON THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
HOW TO OPERATE THE WEIGHT BENCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
HOW TO EXERCISE ON THE WEIGHT BENCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
MAINTENANCE AND TROUBLE-SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
HOW TO MOVE THE CROSSTRAINER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
CUSTOMER RECORD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Note: An EXPLODED DRAWING is attached in the centre of this manual. Save the EXPLODED DRAWING for
future reference.
1. It is the responsibility of the owner to
ensure that all users of the CROSSTRAINER
are adequately informed of all warnings and
precautions.
2. Use the CROSSTRAINER only as described
in this manual.
3. Place the CROSSTRAINER on a level
surface, with eight feet of clearance behind
it. Do not place the CROSSTRAINER on a
surface that blocks any air openings. To protect the floor or carpet from damage, place a
mat under the CROSSTRAINER.
4. Keep the CROSSTRAINER indoors, away
from moisture and dust. Do not put the
CROSSTRAINER in a garage or covered
patio, or near water.
5. Do not operate the CROSSTRAINER where
aerosol products are used or where oxygen
is being administered.
6. Keep children under 12 and pets away from
the CROSSTRAINER at all times.
7. The CROSSTRAINER should be used only by
persons weighing 250 pounds or less.
8. The CROSSTRAINER should never be used
by more than one person at a time.
9. Wear appropriate exercise clothing when
using the CROSSTRAINER. Do not wear
loose clothing that could become caught in
the treadmill. Athletic support clothes are
recommended for both men and women.
10. Always wear athletic shoes when using the
CROSSTRAINER. Never use the CROSSTRAINER with bare feet, wearing only
stockings, or in sandals.
11. Inspect and tighten all parts of the CROSS-
TRAINER regularly.
12. When connecting the power cord (see page
8), plug the power cord into a surge
suppressor (not included) and plug the
surge suppressor into a grounded circuit capable of carrying 15 or more amps. No other
appliance should be on the same
circuit. Do not use an extension cord.
13. Use only a CUL-listed surge protector, rated
at 15 amps, with a 14-gauge cord of five feet
or less in length. Do not use an extension
cord.
14. Keep the power cord away from heated
surfaces.
15. Never move the walking belt while the power
is turned off. Do not operate the
CROSSTRAINER if the power cord or plug is
damaged, or if the CROSSTRAINER is not
working properly. (See BEFORE YOU BEGIN
on page 5 if the CROSSTRAINER is not
working properly.)
16. Never start the treadmill while you are standing on the walking belt. Always hold the
handrails while using the treadmill.
17. The CROSSTRAINER is capable of high
speeds. Adjust the speed in small increments to avoid sudden jumps in speed.
18. To reduce the possibility of the treadmill
overheating, do not operate the treadmill
continuously for longer than one hour.
19. Never leave the treadmill unattended while it
is running. Always remove the key when the
treadmill is not in use.
20. Do not attempt to raise, lower, or move the
CROSSTRAINER until it is properly assembled.
21. You must be able to safely lift 45 pounds (20
kg) in order to raise, lower, or move the
CROSSTRAINER.
WARNING:To reduce the risk of burns, fire, electric shock, or injury to persons, read the
following important precautions and information before operating the PROFORM®CROSSTRAINER.
IMPORTANT PRECAUTIONS
3
4
22. The CROSSTRAINER includes three pairs of
hand weights. Do not use any other weights
with the CROSSTRAINER.
23. Before moving the CROSSTRAINER, make
sure that the bench and treadmill are folded
to the storage position, and that the lock pins
are fully engaged (see HOW TO FOLD THE
TREADMILL TO THE STORAGE POSITION on
page 11, and HOW TO FOLD THE BENCH TO
THE STORAGE POSITION on page 15).
24. Never insert any object into any opening.
25. Always unplug the power cord before performing the maintenance and adjustment
procedures described in this manual. Never
remove the motor hood unless instructed to
do so by an authorised service representative. Servicing other than the procedures in
this manual should be performed only by an
authorised service representative.
26. The CROSSTRAINER is intended for in-home
use only. Do not use the CROSSTRAINER in
any commercial, rental, or institutional
setting.
WARNING:Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS
The decal shown at the right has been
placed on the CROSSTRAINER. If the
decal is missing, or if it is not legible,
please call our Customer Service
Department, toll-free, to order a free
replacement decal (see ORDERING
REPLACEMENT PARTS on page 23 of
this manual). Apply the decal in the location shown.
Congratulations for purchasing the revolutionary
CROSSTRAINER from PROFORM
®
. The unique
CROSSTRAINER offers both aerobic exercise and
strength training exercise to help you achieve total
fitness in the convenience of your home. And when
you’re not exercising, the CROSSTRAINER can be
folded up, taking a fraction of the space needed for
both a treadmill and a bench.
For your benefit, read this manual before using the
CROSSTRAINER. If you have additional questions,
please call our Customer Service Department at
1-888-936-4266, Monday through Friday, 8h00 until
18h00 Eastern Time (excluding holidays). To help us
assist you, please note the product model number and
serial number before calling. The model number of the
treadmill is PCTL50071. The serial number can be
found on a decal attached to the CROSSTRAINER
(see the front cover of this manual for the location).
Before reading further, please review the drawing
below and familiarise yourself with the parts that are
labelled.
BEFORE YOU BEGIN
Handrail
Lock Pin
Key/
Clip
Weight
Rack
Hand
Weight
Backrest
Seat
Support
Bench Knob
Circuit
Breaker
Walking Belt
Cushioned Walking Platform
Foot Rail
Rear Roller
Adjustment Bolts
Water Bottle
Holder (Bottle is
not included)
Towel Rack
Accessory Tray
Incline Leg
5
6
ASSEMBLY
Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Assembly requires a phillips screwdriver
(not included).
1. With the help of a second person, carefully raise the
Uprights (102) until the CROSSTRAINER is in the position shown at the right.
102
3. Slide the Lock Pin Collar (84) and the Spring (83) onto
the Lock Pin (87). Insert the Lock Pin into the left
Upright (102) and the Left Weight Rack (82). Tighten
the Treadmill Knob (78) onto the Lock Pin.
3
87
83
84
82
102
78
2. Locate the Left Weight Rack (82), which can be identified by the hole near the top. Attach the Left Weight
Rack to the left Upright (102) with six Weight Rack
Screws (77).
Attach the Right Weight Rack to the right Upright in the
same manner (not shown).
77
82
102
Hole
77
1
2
77
4. Put a 2-lb. Weight (79) on the upper hooks on the Right
Weight Rack (99). Put a 4-lb. Weight (80) on the centre
hooks on the Right Weight Rack. Put a 6-lb. Weight
(81) on the lower hooks on the Right Weight Rack.
Put the remaining Weights on the Left Weight Rack
(not shown).
5. Remove the backing from the Adhesive Clip (121).
Press the Adhesive Clip onto the base of the Uprights
(102) in the indicated location. Press the Allen Wrench
(116) into the Adhesive Clip.
6. Make sure that all parts of the CROSSTRAINER are properly tightened. To protect the floor or carpet
from damage, place a mat under the CROSSTRAINER.
4
5
79
80
81
99
116
102
121
7
8
OPERATION AND ADJUSTMENT
THE PERFORMANT LUBETMWALKING BELT
Your treadmill features a walking belt coated with
PERFORMANT LUBE
TM
, a high-performance lubricant.
IMPORTANT: Never apply silicone spray or other
substances to the walking belt or the walking platform. They will deteriorate the walking belt and
cause excessive wear.
HOW TO PLUG IN THE POWER CORD
Your treadmill, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your home’s power.
Voltage surges, spikes, and noise interference can result from weather conditions or from other appliances
being turned on or off.
To decrease the possibility of your treadmill being damaged,
always use a surge
protector (not included) with your
treadmill.
Surge protectors are
sold at most hardware
stores and department
stores. Use only a CULlisted surge protector,
rated at 15 amps, with a
14-gauge cord of five
feet or less in length.
This product must be
grounded. If it should
malfunction or break
down, grounding provides a path of least resistance for electric current to reduce the risk of
electric shock. This product is equipped with a cord
having an equipment-grounding conductor and a
grounding plug. Plug the power cord into a surge
protector, and plug the surge protector into an appropriate outlet that is properly installed and
grounded in accordance with all local codes and
ordinances.
This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illustrated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge protector to a 2-pole receptacle as shown in drawing 2 if a properly grounded outlet is not available.
The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place
by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a qualified electrician to determine if the outlet box cover is
grounded before using an adapter.
DANGER:Improper connection
of the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or serviceman if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the product—if it will
not fit the outlet, have a proper outlet installed by a qualified electrician.
1
2
Grounded Outlet Box
Grounded Outlet Box
Grounding Plug
Treadmill Power Cord
Grounding Plug
Grounding Plug
Grounding Pin
Surge Protector
Grounding Pin
Grounding Pin
Adapter
Lug
Metal Screw
Grounded Outlet
9
HOW TO LOWER THE TREADMILL FOR USE
To use the treadmill, the bench must be folded to the
storage position. See HOW TO FOLD THE BENCH
TO THE STORAGE POSITION on page 15.
Caution: You must be able to safely lift 45 pounds
(20 kg) in order to lower the treadmill.
To lower the
treadmill, hold
the upper end
of the treadmill
with your right
hand as shown.
Hold the treadmill knob with
your left hand
and pull it to
the left. Pivot
the treadmill
down a few
inches.
Next, hold the treadmill with both hands as shown
below and lower the treadmill to the floor. To decrease
the possibility of injury, bend your legs and keep
your back straight.
THE PERFORMANT LUBE
TM
WALKING BELT
The CROSSTRAINER features a walking belt coated
with PERFORMANT LUBETM, a high-performance
lubricant. IMPORTANT: Never apply silicone spray
or other substances to the walking belt or the
walking platform. Such substances will deteriorate
the walking belt and cause excessive wear.
BATTERY INSTALLATION
The console requires three "AA" batteries (not
included) for operation. Alkaline batteries are recommended.
To install
batteries, first
open the battery cover
under the
console as
shown. Next,
press three
batteries into
the battery
compartment.
Make sure that
the negative ends of the batteries (marked “–”) are
touching the springs in the battery compartment.
Close the battery cover.
Note: If there is a thin sheet of clear film on the face of
the console, remove it.
Batteries
Battery Cover
Treadmill
Knob
CAUTION:
Before operating the
console, read the following precautions.
• Do not stand on the walking belt when turning on the power.
• Always wear the clip (see the drawing on
page 10) while using the CROSSTRAINER.
When the key is removed from the console,
the walking belt will stop.
• The CROSSTRAINER is capable of high
speeds. Adjust the speed in small increments.
• The training zones marked beside the
speed control are general guidelines only.
See page 12 for more information.
• To reduce the possibility of electric shock,
keep the console dry. Avoid spilling liquids
on the console. Use only a sealable water
bottle.
10
DIAGRAM OF THE CONSOLE
Clip
Key
Speed Control
Monitor Displays
LED Track
STEP BY STEP CONSOLE OPERATION
Step onto the foot rails of the treadmill. Find the clip
attached to the key (see the drawing above), and slide
the clip onto the waistband of your clothing. Follow the
steps below and on page 11 to operate the console.
Insert the key fully into the power switch.
When the key is inserted, the first indicator
in the LED track will
light. The four displays
will not turn on until the
ON/RESET button is
pressed or the walking
belt is started. Note: If you just installed batteries,
the displays will already be on.
Reset the speed control.
Slide the speed control
down to the RESET
position. Note: Each
time the walking belt
is stopped, the
speed control must
be moved to the
RESET position before the walking belt
can be restarted.
Start the walking belt.
After you have moved the speed control to the
RESET position, slide it slowly upward until the
walking belt begins to move at slow speed.
Carefully begin walking on the walking belt.
Change the speed of the walking belt as desired
by sliding the speed control. To stop the walking
belt, step onto the foot rails and slide the speed
control to the RESET position.
Change the incline of the treadmill, if desired.
To increase or decrease the
incline, hold down the top or
bottom of the incline button.
Important: Do not change
the incline of the treadmill
by placing objects under
the treadmill. Change the
incline only as described
above.
Important: Before folding the treadmill, adjust
the incline to the lowest position.
1
Note: If there is a thin sheet of clear
plastic on the console, remove it.
2
3
4
Follow your progress with the LED track and the
four monitor displays.
The LED
Track—The LED
track in the centre of the console
represent a distance of 1/4 mile.
As you exercise,
the indicators
around the track
will light one at a time until you have completed 1/4
mile. The first indicator above the word START will
then light and another lap will begin.
The TIME display—
This display shows the
total time that you
have walked or run on
the treadmill.
The DISTANCE display—This display
shows the total distance that you have
walked or run, in miles.
The SPEED display—
This display shows the
speed of the walking
belt, in miles per hour.
The CALORIES/
FAT CALORIES
display—This display
shows the approximate
numbers of calories and
fat calories you have
burned. (See FAT
BURNING on page 12.) Every seven seconds, the
display will change from one number to the other.
Arrows in the display will indicate which number is
currently shown.
Note: The displays can be reset by pressing the
ON/RESET button.
When you are finished exercising, stop the
walking belt and remove the key.
Step onto the foot rails, stop the walking belt, and
remove the key from the console. Store the key in a
secure place. After the key is removed, the dis-
plays will remain on for about five minutes.
Note: Any time that the walking belt is stopped
and no console buttons are pressed for five
minutes, the displays will automatically turn off.
HOW TO FOLD THE TREADMILL TO THE STORAGE
POSITION
Before folding the treadmill, unplug the power cord.
Caution: You must be able to safely lift 45 pounds
(20 kg) in order to raise the treadmill.
Hold the treadmill in the locations shown below. To decrease the possibility of injury, bend your legs and
keep your back straight. As you raise the treadmill,
make sure to lift with your legs rather than your
back. Raise the treadmill until it is almost vertical.
Next, hold the
upper end of
the treadmill
with your right
hand as shown.
Using your left
hand, pull the
treadmill knob
to the left. Pivot
the treadmill
until the lock
pin is aligned
with the hole in
the side of the
treadmill frame
(refer to the
inset drawing).
Slowly release the knob. Make sure that the lock pin is
inserted into the hole in the treadmill frame.
Note: To protect the floor or carpet from damage,
place a mat under the CROSSTRAINER. Keep the
CROSSTRAINER out of direct sunlight. Do not leave
the CROSSTRAINER in the storage position in temperatures above 85° Fahrenheit.
Lock Pin
Treadmill
Knob
11
Arrow
6
5
12
HOW TO EXERCISE ON THE TREADMILL
The following guidelines will help you to plan your exercise program. Remember—these are general guidelines only.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. The chart below shows recommended heart rates for fat burning and aerobic
exercise.
To find the proper heart rate for you, first find your age
on the left side of the chart (ages are rounded off to
the nearest ten years). Next, find the three numbers to
the right of your age. The three numbers are your
“training zone.” The lower two numbers are recommended heart rates for fat burning; the higher number
is the recommended heart rate for aerobic exercise.
Fat Burning
To burn fat effectively, you must exercise at a relatively
low intensity level for a sustained period of time. During
the first few minutes of exercise, your body uses easily
accessible carbohydrate calories for energy. Only after
the first few minutes does your body begin to use
stored fat calories for energy. If your goal is to burn fat,
adjust the speed and incline of the treadmill until your
heart rate is near one of the lower two numbers in your
training zone. It may also be helpful to set the speed
control on the console to FAT BURN to help you maintain the proper intensity level. (See page 10.)
Aerobic Exercise
If your goal is to strengthen your cardiovascular system, your exercise must be “aerobic.” Aerobic exercise
is activity that requires large amounts of oxygen for
prolonged periods of time. This increases the demand
on the heart to pump blood to the muscles, and on the
lungs to oxygenate the blood. For aerobic exercise,
adjust the speed and incline of the treadmill until your
heart rate is near the highest number in your training
zone. It may also be helpful to set the speed control on
the console to AEROBIC to help you maintain the
proper intensity level. (See page 10.)
High Performance Athletic Conditioning
If your goal is high performance athletic conditioning,
set the speed control on the console to PERFORMANCE to help you maintain the proper intensity level.
(See page 10.) Note: During the first few weeks of your
exercise program, keep your heart rate near the low
end of your training zone.
HOW TO MEASURE YOUR HEART RATE
To measure your
heart rate, stop
exercising and
place two fingers
on your wrist as
shown. Take a
six-second heartbeat count, and
multiply the result
by ten to find your
heart rate. (A six-second count is used because your
heart rate drops quickly when you stop exercising.) If
your heart rate is too high or too low, adjust the speed
or incline of the treadmill accordingly.
WORKOUT GUIDELINES
A well-rounded workout includes the following three
important parts:
A Warm-up
Start each workout with 5 to 8 minutes of stretching
and light exercise (see SUGGESTED STRETCHES on
page 14). A proper warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
WARNING:Before beginning
this or any exercise program, consult your
physician. This is especially important for individuals over the age of 35 or individuals
with pre-existing health problems.
Training Zone Exercise
After warming up, increase the intensity of your exercise until your heart rate is in your training zone for 20
to 60 minutes. (During the first few weeks of your exercise program, do not keep your heart rate in your training zone for longer than 20 minutes.) Breathe regularly
and deeply as you exercise—do not hold your breath.
A Cool-down
Finish each workout with 5 to 8 minutes of stretching
to cool down. This will increase the flexibility of your
muscles and will help to prevent post-exercise problems.
Exercise Frequency
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest between workouts. After a few months, you may complete up to five workouts each week if desired.
The key to success is to make exercise a regular and
enjoyable part of your everyday life.
13
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward
from your hips. Allow your back and shoulders to relax as you
reach down toward your toes as far as possible. Hold for 15
counts, then relax. Repeat 3 times. Stretches: Hamstrings,
back of knees, and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot
toward you and rest it against the inner thigh of your extended
leg. Reach toward your toes as far as possible. Hold for 15
counts, then relax. Repeat 3 times for each leg. Stretches:
Hamstrings, lower back, and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your
back foot flat on the floor. Bend your front leg, lean forward and
move your hips toward the wall. Hold for 15 counts, then relax.
Repeat 3 times for each leg. To cause further stretching of the
achilles tendons, bend your back leg as well. Stretches:
Calves, achilles tendons, and ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and
grasp one foot with your other hand. Bring your heel as close
to your buttocks as possible. Hold for 15 counts, then relax.
Repeat 3 times for both legs. Stretches: Quadriceps and hip
muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward.
Pull your feet toward your groin area as far as possible. Hold
for 15 counts, then relax. Repeat 3 times. Stretches:
Quadriceps and hip muscles.
1
2
3
4
5
14
15
HOW TO LOWER THE BENCH FOR USE
To use the bench, the treadmill must be folded to the
storage position. See HOW TO FOLD THE TREADMILL TO THE STORAGE POSITION on page 11.
Hold the end of
the bench as
shown—do not
hold the leg.
Using your
right hand,
slide the bench
knob to the
right as far as
possible. Make
sure that the
knob is moved
all of the way
to the “bench”
position. Note:
It may be necessary to push
on the leg
while you slide
the knob to the
“bench” position. Lower the bench until the leg is resting on the floor.
HOW TO ADJUST THE BACKREST
The backrest can be used in a level position or in either
of two inclined positions. When the bench is first
lowered, the backrest will be in the level position. To
adjust the backrest to one of the inclined positions, first
raise the backrest and lower the support (see the drawing below). Rest the end of the support against either
of the backrest stops as shown. Make sure that the
support is resting against one of the backrest stops.
To adjust the
backrest to the
level position,
first raise the
backrest
slightly. Pivot
the end of the
support in the
direction
shown by the
arrow. Lower
the backrest
onto the bench frame.
HOW TO FOLD THE BENCH TO THE STORAGE
POSITION
Raise the
bench to the
vertical position and hold it
in place. Using
your right
hand, slide the
bench knob to
the left as far
as possible.
Make sure
that the knob
is moved all
of the way to
the “treadmill” position.
Bench
Knob
HOW TO OPERATE THE WEIGHT BENCH
Backrest
Backrest Stops
Support
Support
Bench
Knob
Leg
The CROSSTRAINER offers a variety of exercises
designed to trim, tone, and strengthen the body.
Please read these guidelines before using the
weight bench. WARNING: Before beginning any
exercise program, consult your physician. This is
especially important for persons over the age of 35
or persons with pre-existing health problems.
STRENGTH TRAINING GUIDELINES
Your strength training program should include three
workouts each week. To give your body time to rest,
workouts should be on alternating days, such as
Monday, Wednesday, and Friday. Instead of waiting
for a convenient time to exercise, plan a specific time.
The morning hours work well for many, and the selfdiscipline required to rise early and exercise may result
in greater productivity throughout the day. For others,
exercising before dinner offers a chance to wind down
from the day’s activities. Whatever time you choose,
be consistent and stick with it.
Each workout should include three important parts:
(1) a warm-up, (2) 6 to 10 exercises, and (3) a cooldown.
Warming Up
Begin each workout with 5 to 8 minutes of stretching
(see SUGGESTED STRETCHES on page 14).
Stretching prepares the body for exercise by increasing circulation, delivering more oxygen to the muscles,
and raising the body temperature.
Exercises
Next, perform 6 to 10 of the exercises shown on the
exercise chart on the CROSSTRAINER. To give bal-
ance and variety to your workouts, vary the exercises
from workout to workout.
Begin with 1 set of 12 repetitions for each exercise that
you do. (A “repetition” is one cycle of an exercise, such
as one sit-up. A “set” is a series of repetitions performed without pausing.) As your fitness level increases, perform 2 sets of 12 repetitions for each exercise that you do. When you are ready for an advanced
workout, try 3 sets of 12 repetitions. Always rest for at
least 1 minute after each set. When you can complete
3 sets of 12 repetitions without difficulty, you may
choose to use heavier weights. CAUTION: The
CROSSTRAINER includes three pairs of hand
weights. Do not use any other weights with the
CROSSTRAINER.
Cooling Down
Finish each workout with 5 to 8 minutes of stretching to
cool down. This will increase your flexibility, and will
help to reduce post-exercise soreness.
Be careful to avoid overdoing it during the first few
months of your exercise program—it is important to
progress at your own pace. CAUTION: If you feel
pain or dizziness at any time, stop immediately and
begin cooling down.
EXERCISE FORM
For the best results, correct form is important. The exercise chart on the CROSSTRAINER shows the correct form for twenty different exercises. Try to move
through the full range of motion for each exercise and
move only the appropriate parts of the body. Perform
each exercise with a smooth, steady motion. Exhale as
you exert yourself, and inhale as you return to the
starting position; never hold your breath.
STAYING MOTIVATED
To stay motivated, try listening to music or watching
television while you exercise. It may also be helpful to
work out with a partner. Use a calendar to keep a
record of your workouts, and write key body measurements at the end of every month. Remember, the key
to lasting results is to make exercise a regular and enjoyable part of your daily life.
HOW TO EXERCISE ON THE WEIGHT BENCH
16
17
WEIGHT BENCH EXERCISES
The exercise chart on the CROSSTRAINER shows
twenty exercises that can be performed on the weight
bench. Read the exercise guidelines on this page
before beginning any exercises.
1. Flat Bench Press—Press the weights up in a
straight line from your chest.
2. Flat Bench Flyes—With the bench in a flat position, bend your elbows slightly and bring the
weights together above your chest.
3. Incline Flyes—With the bench in an inclined position, bend your elbows slightly and bring the
weights together above your chest.
4. One Arm Row—Lift a weight up and back, bending your elbow as shown. Repeat this exercise
with your other arm.
5. Bent Over Lat Raise—Lift the weights to the side,
bringing your shoulder blades towards each other.
6. Seated Overhead Raise—Press the weights up in
a straight line until they are overhead.
7. Lateral Raise—Raise the weights to the side until
they are even with your shoulders.
8. Front Raise—Raise the weights to the front until
your arms are in a horizontal position.
9. Upright Row—Keeping your hands close together
and your elbows outward, bring the weights up to
your chin.
10. Seated Curl—Keeping your upper arms stationary, bring the weights up to shoulder level.
11. Incline Curl—With the bench in an inclined position, bring the weights up to shoulder level. Be
sure to keep your upper arms stationary.
12. Concentration Curl—Keeping one elbow pressed
against your inner thigh, lift a weight by bending
your elbow. Repeat this exercise with the other
arm.
13. Seated Overhead Press—While seated on the
bench, press a weight up in a straight line by
bending your elbow. Repeat this exercise with
your other arm.
14. Lying Overhead Press—While lying on the
bench, press a weight up in a straight line by
bending your elbow. Repeat this exercise with
your other arm.
15. Kickback—Keeping your upper arm stationary,
bring a weight up and back as shown. Repeat this
exercise with the other arm.
16. Flat Bench Crunch—Lie on the bench. Using
your abdominal muscles, raise your upper body a
few inches. Be sure to keep your back straight.
17. Vertical Sit-ups—Hold the bench as shown and
pull both knees toward your chest.
18. Crunch with Weights—Lie on the bench and hold
one or two weights against your chest. Using your
abdominal muscles, raise your upper body a few
inches. Be sure to keep your back straight.
19. Shrug—Keeping your arms against your sides,
raise your shoulders.
20. Forearm Curl—Rest your forearm on the bench
as shown. Using your wrist, curl a weight upward.
Repeat this exercise with your other arm.
MAINTENANCE AND TROUBLE-SHOOTING
Most treadmill problems can be solved by following the simple steps below. Find the symptom that applies to your treadmill and follow the steps listed. If further assistance is needed, please call our
Customer Service Department at 1-888-936-4266, Monday through Friday, 8h00 until 18h00 Eastern Time
(excluding holidays).
PROBLEM: The power does not turn on
SOLUTION: a. Make sure that the power cord is plugged into a surge protector, and that the surge protector is
plugged into a properly grounded outlet. (See HOW TO PLUG IN THE POWER CORD on page
8.) Use only a CUL-listed surge protector, rated at 15 amps, with a 14-gauge cord of five feet or
less in length.
b. After the power cord has been plugged in, make sure that the key is fully inserted into the con-
sole. See step 1 on page 10.
c. Check the circuit breaker located on the treadmill
frame near the power cord. If the switch protrudes
as shown, the circuit breaker has tripped. To reset
the circuit breaker, wait for five minutes and then
press the switch back in.
PROBLEM: The power turns off during use
SOLUTION: a. Check the circuit breaker located on the treadmill frame near the power cord (see the drawing
above). If the circuit breaker has tripped, wait for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in.
c. Remove the key from the console. Reinsert the key fully into the console. See step 1 on page 10.
d. If the treadmill still will not run, please call our Customer Service Department, toll-free.
PROBLEM: The displays of the console do not function properly
SOLUTION: a. Check the batteries in the console. See BATTERY INSTALLATION on page 9. Most problems are
the result of drained batteries.
b. Remove the six screws from the hood. Carefully re-
move the hood. Locate the Reed Switch (45) and the
Magnet (44) on the left side of the Pulley (49). Turn
the Pulley until the Magnet is aligned with the Reed
Switch. Make sure that the gap between the
Magnet and the Reed Switch is about 1/8”. If nec-
essary, loosen the Screw (53) and move the Reed
Switch slightly. Retighten the Screw. Re-attach the
hood, and run the treadmill for a few minutes to check
for a correct speed reading.
44
45
53
Top
View
1/8”
49
Tripped
Reset
c
18
Tripped
Reset
19
PROBLEM: The walking belt is off-centre or slips when walked on
SOLUTION: a. If the walking belt has shifted to the left, first remove
the key and UNPLUG THE POWER CORD. Using the
allen wrench, turn the left rear roller adjustment bolt clock-
wise, and the right bolt counterclockwise, 1/4 of a turn
each. Be careful not to overtighten the walking belt. Plug
in the power cord, insert the key and run the treadmill for
a few minutes. Repeat until the walking belt is centred.
b. If the walking belt has shifted to the right, first remove
the key and UNPLUG THE POWER CORD. Using the
allen wrench, turn the left rear roller adjustment bolt
counterclockwise, and the right bolt clockwise, 1/4 of a
turn each. Be careful not to overtighten the walking belt.
Plug in the power cord, insert the key and run the tread-
mill for a few minutes. Repeat until the walking belt is
centred.
c. If the walking belt slips when walked on, first remove
the key and UNPLUG THE POWER CORD. Using the
allen wrench, turn both rear roller adjustment bolts clock-
wise, 1/4 of a turn. When the walking belt is correctly
tightened, you should be able to lift each side of the walk-
ing belt 3 to 4 inches off the walking platform. The centre
of the walking belt should just touch the walking platform.
Be careful to keep the walking belt centred. Plug in the
power cord, insert the key and run the treadmill for a few
minutes. Repeat until the walking belt is properly tightened.
PROBLEM: The walking belt slows when walked on
SOLUTION: a. Use only a CUL-listed surge protector, rated at 15 amps, with a 14-gauge cord of five feet or less
in length.
b. If the walking belt is overtightened, treadmill perfor-
mance may decrease and the walking belt may be
permanently damaged. Remove the key and UN-
PLUG THE POWER CORD. Using the allen wrench,
turn both rear roller adjustment bolts counterclock-
wise, 1/4 of a turn. When the walking belt is properly
tightened, you should be able to lift each side of the
walking belt 3 to 4 inches off the walking platform. The
centre of the walking belt should just touch the walk-
ing platform. Be careful to keep the walking belt cen-
tred. Plug in the power cord, insert the key and run
the treadmill for a few minutes. Repeat until the walk-
ing belt is properly tightened.
c. If the walking belt still slows when walked on, please call our Customer Service Department toll-free.
Rear Roller Adjustment Bolts
3”–4”
b
c
b
a
HOW TO MOVE THE CROSSTRAINER
Before moving the CROSSTRAINER, make sure that the bench and treadmill are folded to the storage
position, and that the lock pins are fully engaged (see HOW TO FOLD THE TREADMILL TO THE STORAGE POSITION on page 11, and HOW TO FOLD THE BENCH TO THE STORAGE POSITION on page 15).
To move the CROSSTRAINER, first hold the handrails
and place one foot on the base as shown.
Next, tilt the CROSSTRAINER back until it rolls freely on
the front wheels. Carefully move the CROSSTRAINER to
the desired location. Place one foot on the base, and
carefully lower the CROSSTRAINER until it is resting on
the base. Never move the CROSSTRAINER without
tipping it back, or the base pads may come off. To reduce the risk of injury, use extreme caution while
moving the CROSSTRAINER. Do not move the
CROSSTRAINER over an uneven surface.
Base
Front Wheels
20
PART LIST—Model No. PCTL50071 R0402A
Key No. Qty. Description
1 1 Backrest
2 6 Backrest Screw
3 6 Nut
4 2 Backrest Support Bolt
5 1 Left Backrest Frame
6 1 Right Backrest Frame
7 2 Bench Frame Spacer
8 1 Bench Bracket
9 2 Bench Bracket Bolt
10 1 Bench Pivot Bolt
11 2 Bench Support Pivot
Bolt
12 1 Backrest Support
13 1 Bench Adjustment
14 1 Bench Seat
15 1 Bench Pin
16 1 Bench Back
17 22 Plastic Fastener
18 2 Bench Leg Cap
19 1 Bench Leg
20 1 Bench Leg Pivot Bolt
21 1 Bench Poster
22* 1 Latch Assembly
23 1 Bench Bottom
24 2 Rear Roller Adj. Bolt
25 5 Adjustment Washer
26 5 Rear Roller Endcap
Screw
27 2 Endcap Screw
28 1 Rear Roller Endcap
29 1 Latch Warning Decal
30 1 Belly Pan
31 1 Frame
32 2 Solid Isolator
33 4 Belt Guide Screw
34 4 Hood Anchor
35 4 Isolator
36 1 Rear Roller
37 1 Left Foot Rail
38 1 Right Foot Rail
39 1 Walking Belt
40 1 Motor Pivot Nut
41 6 Walking Platform Screw
42 1 Walking Platform
43 2 Upright Spacer
44 1 Magnet
45 1 Reed Switch/Sensor
Wire
46 1 Reed Switch Clip
47 1 Ground Wire
48 15 Pan Screw
49 1 Front Roller/Pulley
50 2 Cage Nut
51 1 Front Roller Adj. Bolt
52 2 Belt Guide
53 15 Screw
54 4 Incline Bracket
Bolt/Motor Tension Bolt
55 1 Incline Bracket
Key No. Qty. Description
56 1 Incline Motor
57 14 Incline Nut
58 1 Bench Lock Pin
59 2 Bench Latch Bolt
60 1 Bench Latch Spacer
61 1 Latch Frame Spacer
62 1 Latch Slide
63 1 Latch Bracket
64 2 Latch Nut
65 1 Hood
66 2 Incline Leg Bolt
67 2 Wheel Bolt
68 2 Wheel
69 1 Motor
70 1 Flywheel
71 1 Incline Leg
72 1 Power Cord
73 3 Tie Clamp
74 1 Incline Wire Harness
75 1 Battery Cover
76 4 7 1/2” Cable Tie
77 12 Weight Rack Screw
78 2 Lock Knob
79 2 2-lb. Weight
80 2 4-lb. Weight
81 2 6-lb. Weight
82 1 Left Weight Rack
83 1 Lock Knob Spring
84 1 Lock Pin Collar
85 1 Incline Motor Spacer
86 1 Latch Clip
87 1 Treadmill Lock Pin
88 2 Handrail Cap
89 1 Motor Belt
90 4 Console Base Screw
91 1 Frame Guide
92 1 Console Base
93 1 Speed Control Knob
94 1 Speed Potentiometer
95 1 Hood Cover
96* 1 Console
97 2 Rear Platform Screw
98 1 Key/Clip
99 1 Right Weight Rack
100* 1 Motor Assembly
101 1 Motor Pivot Bolt
102 1 Upright/Base
103 1 Shock
104 1 Frame Guide Spacer
105 1 Motor Tension Washer
106 1 Tension Star Washer
107 1 Motor Tension Nut
108 1 Wire Harness
109 2 Front Wheel Bolt
110 2 Front Wheel
111 4 Wheel Nut
112 1 Choke
113 1 Grommet
114 2 Backrest Spacer
Key No. Qty. Description
115 1 Incline Switch
116 1 Allen Wrench
117 4 Base Pad
118 2 Upright Pivot Bolt
119 4 Washer
120 2 Hood Long Screw
121 1 Adhesive Clip
122 2 Spacer Plate
123 1 Controller
124 1 Circuit Breaker
# 1 10” White, 2 Female/
1 Male
# 1 8” Blue, 3 Female
# 1 User’s Manual
* Includes all parts shown in the box
# These parts are not illustrated
21
CUSTOMER RECORDS
Model No.: Serial No.:
Retailer Name: Purchase Date:
Retailer Address:
22
ICON of Canada Inc.
900 de l’Industrie
St-Jérôme, Québec
Canada, J7Y 4B8
PLACE
STAMP
HERE
ORDERING REPLACEMENT PARTS
To order replacement parts, call our Customer Service Department toll-free at 1-888-936-4266, Monday through
Friday 8h00 until 18h30 Eastern Time (excluding holidays). When ordering parts, please be prepared to give the
following information:
• The MODEL NUMBER OF THE PRODUCT (PCTL50071).
• The NAME OF THE PRODUCT (PROFORM
®
CROSSTRAINER treadmill).
• The SERIAL NUMBER OF THE PRODUCT (see the front cover of this manual).
• The KEY NUMBER OF THE PART(S) (see the EXPLODED DRAWING in the centre of this manual).
• The DESCRIPTION OF THE PART(S) (see the EXPLODED DRAWING in the centre of this manual).
If possible, place the treadmill near your telephone for easy reference when calling.
23
77
77
77
78
88
82
102
83
84
86
87
90
89
90
99
77
77
77
40
88
100*
101
54
105
106
107
103
112
53
111
110
124
72
109
48
117
117
118
119
48
48
48
65
95
98
96*
93
94
75
53
53
92
81
80
79
80
108
119
118
115
69
70
48
34
34
48
34
74
95
109
111
110
48
117
48
113
123
53
120
Remove this EXPLODED DRAWING from
the user’s manual. Save this EXPLODED
DRAWING for future reference.
EXPLODED DRAWING—Model No. PCTL50071 R0402A
35
53
57
43
51
25
50
53
57
50
49
46
45
44
54
43
41
53
35
42
41
35
37
39
53
97
41
52
17
33
35
53
17
91
104
38
32
36
30
31
32
57
85
26
17
56
57
55
54
71
54
17
66
17
29
17
25
68
67
121
25
26
27
24
66
57
116
53
67
68
111
3
61
Welded
22*
Bracket
60
59
78
58
64
63
62
73
10
119
9
7
122
8
7
6
3
5
4
1
2
2
114
3
2
3
11
12
13
2
14
28
11
34
25
24
23
15
25
27
26
17
17
17
34
2
16
47
26
17
76
21
17
20
3
17
18
19
18
Part No. 149170 H0402-C R1098A © 2002 Printed in Canada
PROFORM is a registered trademark of ICON Health & Fitness, Inc.
LIMITED WARRANTY
ICON OF/DU CANADA INC., (ICON), warrants this product to be free from defects in workmanship and material,
under normal use and service conditions, for a period of one year from the date of purchase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing or repairing, at
ICON's option, the product at one of its authorised service centres. All products for which warranty claim is made
must be received by ICON at one of its authorised service centres with all freight and other transportation charges
prepaid, accompanied by sufficient proof of purchase. All returns must be pre-authorised by ICON. This warranty
does not extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an ICON authorised service centre, to products used
for commercial or rental purposes, or to products used as store display models. No other warranty beyond that
specifically set forth above is authorised by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection
with the use or performance of the product or damages with respect to any economic loss, loss of property, loss
of revenues or profits, loss of enjoyment or use, costs of removal, installation or other consequential damages of
whatsoever nature. Some provinces do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you. The warranty extended hereunder is in lieu of any
and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited
in its scope and duration to the terms set forth herein. Some provinces do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from province to province
or so specified by the retailer of your equipment.
ICON OF/DU CANADA, 900 de l’Industrie, St. Jerôme, QC J7Y 4B8
IMPORTANT: MAIL WITHIN 14 DAYS OF PURCHASE
NAME:
ADDRESS:
COUNTY:
MODEL NO.
RETAILER NAME:
PHONE:
POSTCODE:
SERIAL NO. PURCHASE DATE:
RETAILER ADDRESS:
1) Primary user(s) of product:
❏ Male ❏ Female ❏ Family
2) Age of primary user:
❏ 0–24 ❏ 35–44 ❏ 55–64
❏ 25–34 ❏ 45–54 ❏ 65 and over
3) Annual household income:
❏ 0–9,999 ❏ 15,000–19,999
❏ 10,000–14,999 ❏ 20,000+
4) How many times a week do you exercise?
❏ Less than 3 times ❏ 3 times or more
5) Have you ever purchased an ICON product before?
❏ Yes ❏ No
6) Where did you first see or hear about ICON products?
❏ Magazine ❏ Friend/relative
❏ Newspaper Ad ❏ Store
❏ Other
7) What was the primary reason for purchasing this ICON product?
❏ Store Employee ❏ Television Ads ❏ Colour
❏ Electronic Features ❏ Magazine Ads ❏ Price
❏ Product Design ❏ Product Innovation
❏ Other Features
8) Did you consider purchasing fitness equipment from another
manufacturer?
❏ No ❏ Yes
What other Manufacturer?
9) Based on your impression of what you have purchased,
would you buy another ICON product?
❏ Yes ❏ No ❏ No Opinion
If not, what other brand name equipment would you purchase?
10)What other type of exercise equipment do you own?
❏ Bicycle ❏ Exercise Cycle ❏ Treadmill
❏ Home Gym ❏ Weight Bench ❏ Stepper
❏ Cardio Glide ❏ Other
11)Which type of magazines do you read regularly?
❏ Sports ❏ Fitness ❏ Motoring
❏ Business ❏ Computer ❏ General
12) Do you wish to be sent further bulletins about ICON products?
❏ Yes ❏ No
THANK YOU FOR YOUR TIME
PRODUCT WARRANTY REGISTRATION
© 2002 ICON of Canada, Inc. Printed in Canada
24
™
of/du Canada Inc.
®
Loading...
