Pro-Form Light Cycle PFRX35390 User Manual

¨
USER'S MANUAL
CAUTION
Read all precautions and instruc­tions in this manual before using this equipment. Keep this manu­al for future reference.
Number
Decal
QUESTIONS?
As a manufacturer, we are committed to providing com­plete customer satisfaction. If you have questions, or if there are missing parts, we will guar­antee complete satisfaction through direct assistance from our factory.
TO AVOID UNNECESSARY DELAYS, PLEASE CALL DIRECT TO OUR TOLL-FREE CUSTOMER HOT LINE. The trained technicians on our customer hot line will provide immediate assistance, free of charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.ÐFri., 6 a.m.Ð6 p.m. MST
Model No. PFRX35390 Serial No.
Patent Pending
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
2
TABLE OF CONTENTS
CAUTION DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
HOW TO USE THE LIGHT CYCLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
HOW TO USE THE PULSE SENSOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
MAINTENANCE AND STORAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
CAUTION DECAL PLACEMENT
The decals shown below have been placed on the Light Cycle. If one of the decals is missing, or if it is not legible, please call our Customer Service Department toll-free at 1-800-999-3756 to order a free replacement decal. Apply the decal in the location shown.
CAUTION
SURFACE MAY BE HOT
KEEP CLEAR
Do not allow children on or around machine.
Keep hands and feet away from moving parts and contact points.
Read owner's manual and follow instructions.
3
IMPORTANT PRECAUTIONS
WARNING:
To reduce the risk of serious injury, read the following important precau-
tions before using the PROFORM¨Light Cycle.
1. Read all instructions in this manual before using the Light Cycle.
2. Use the Light Cycle only as described in this manual.
3. It is the responsibility of the owner to ensure that all users of the Light Cycle are ade­quately informed of all precautions.
4. The Light Cycle is intended for in-home use only. Do not use the Light Cycle in a com­mercial, rental, or institutional setting.
5. Use the Light Cycle indoors on a level sur­face. Keep the Light Cycle away from mois­ture and dust. Place a mat under the Light Cycle to protect the floor or carpet.
6. Inspect and tighten all parts regularly. Replace any worn parts immediately.
7. Keep children under the age of 12 and pets away from the Light Cycle at all times.
8. The Light Cycle should not be used by per­sons weighing more than 250 pounds.
9. Wear appropriate clothing when exercising; do not wear loose clothing that could become caught on the Light Cycle. Always wear athletic shoes for foot protection.
10. When connecting the power cord on the light therapy pod (see HOW TO PLUG IN THE POWER CORD on page 16), plug the power cord into a grounded circuit capable of carrying 15 or more amps. No other appli­ance should be on the same circuit.
11. Keep the power cord away from heated surfaces.
12. If you have serious back injuries or chronic back pain, consult a physician before using the lumbar cushion.
13. Do not use the lumbar cushion if you are pregnant or wearing a pacemaker or any other electrical implant.
14. The magnets in the lumbar cushion are not being sold as medical devices.
15. The light therapy pod becomes hot during use. Allow the light therapy pod to cool before touching it.
16. Do not place towels, clothing, or any other objects on the light therapy pod.
17. Although your eyes must be open to benefit from light therapy, do not look directly into the lights on the light therapy pod.
18. Do not drop or insert any object into any opening.
19. The pulse sensor is not a medical device. Various factors may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in deter­mining heart rate trends in general.
20. Always keep your back straight when using the Light Cycle. Do not arch your back.
21. If you feel pain or dizziness at any time while exercising, stop immediately and begin cooling down.
22. DANGER: Always unplug the light
therapy pod immediately after using it and before cleaning.
WARNING: Before beginning this or any exercise program, consult your physician.
This is especially important for persons over the age of 35 or persons with pre-existing health prob­lems. Read all instructions before using. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS
4
BEFORE YOU BEGIN
Congratulations for selecting the innovative PROFORM
¨
Light Cycle. The PROFORM Light Cycle features a semi-recumbent exercise cycle, a lumbar support with massage and magnet therapy, and a light therapy pod to let you enjoy a variety of exercise and relaxation options in the convenience of your home.
For your benefit, read this manual carefully before you use the PROFORM Light Cycle. If you have
additional questions, please call our Customer Service Department toll-free at 1-800-999-3756, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please mention the product model number and serial number when calling. The model number is PFRX35390. The serial number can be found on a decal attached to the Light Cycle (see the front cover of this manual for the location of the decal).
Before reading further, please look at the drawing below and familiarize yourself with the parts that are labeled.
Seat Handle
Handlebar with
Pulse Sensor
Ballast Box with
Power Switch
Water Bottle Holder*
*Water bottle is not included
FRONT
BACK
Seat
Lumbar Cushion
Seat Frame
Backrest
Book Holder
Resistance Knob
Adjustment Bulb
Pedal
Power Cord
Pedal
Strap
Light Therapy Pod
Console
RIGHT SIDE
Lock Knob
5
ASSEMBLY
Place all parts of the Light Cycle in a cleared area and remove the packing materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires the included tools and your own adjustable wrench and phillips screwdriver .
To identify the small parts used in assembly, refer to the part drawings below. The number in parenthesis below each drawing refers to the key number of the part, from the part list on page 12. The second number refers to the quantity used in assembly. Note: Some small parts may have been pre-attached for shipping. If a part
is not in the parts bag, check to see if it has been pre-assembled.
M10 Split Washer (26)Ð3
M10 x 25mm Button Head Screw (25)Ð3
#8 x 5/8Ó Screw (22)Ð4
M6 x 38mm Button Head Bolt (18)Ð4
M6 x 16mm Hex Head Screw (24)Ð8
M10 Flat Washer (71)Ð4
M10 Nylon Locknut (72)Ð4
M6 Nylon Locknut (66)Ð4
M6 Split Washer (67)Ð4
M10 x 105mm Button Head Bolt (70)Ð4
M6 x 25mm Hex Head Screw (14)Ð4
M4 x 16mm Screw (34)Ñ1
6
68
1
3
1

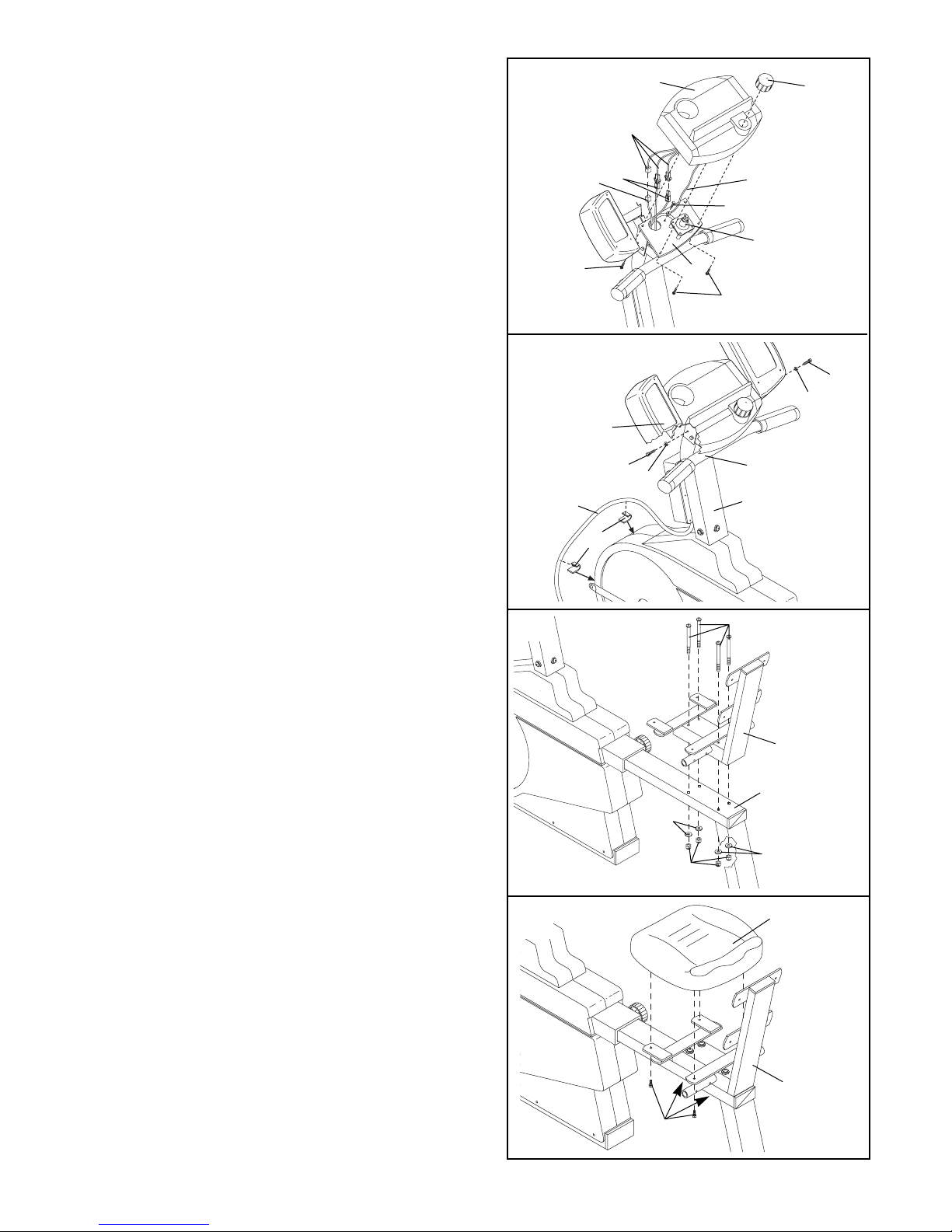

1. Loosen the Lock Knob (68) on the right side of the Frame (1). Slide the Seat Frame (3) out until it stops. Tighten the Lock Knob.
2. Attach the Upright (2) to the Frame (1) with three M10 x 25mm Button Head Screws (25) and three M10 Split Washers (26). Be careful not to pinch
the Reed Switch Wire (13) or the Resistance Cable (10).
4. Route both Extension Wires (41) up through the Upright (2) as shown.
Attach the Handlebar (4) and the Light Frame (82) to the Upright (2) with two M6 x 25mm Hex Head Screws (14) and two M6 Split Washers (67), but do
not tighten the Screws yet. Make sure that the Screws are in the indicated holes. Note: Two more Screws will be attached in step 6.
Remove the backing from the Fastener Strip (77) and press it onto the Upright (2) in the position shown. Firmly press the Ballast Box (81) onto the Fastener Strip.
2
2
26
26
25
25
25
1
10
13
4
3. The light therapy pod requires two GX 24 Q-3 Base Light Tubes (88). Remove the four #8 x 3/8Ó Screws (97) from the back of the Left Light Cover (91). Remove the Left Light Cover. Insert a Light Tube into the Light Fixture (87). Reattach the Left Light Cover with the #8 x 3/8Ó screws.
Install a Light Tube (88) into the right side of the light therapy pod in the same manner.
3
41
2
14
14
82
67
67
77
81
4
97
91
87
88
7
6. Finish attaching the Handlebar (4) and the Light Frame (82) to the Upright (2) with two more M6 x 25mm Hex Head Screws (14) and two more M6 Split Washers (67). Tighten all four Hex Head
Screws.
Remove the backing from the Cord Clips (95) and and press them onto the exercise cycle in the indi­cated locations. Insert the Power Cord (73) into the Cord Clips. Make sure that the Power Cord can-
not get caught on the pedals while you are exer­cising.
7. Attach the Seat Bracket (69) to the Seat Frame (3) with four M10 x 105mm Button Head Bolts (70), four M10 Flat Washers (71), and four M10 Nylon Locknuts (72).
8. Attach the Seat (16) to the Seat Bracket (69) with four M6 x 16mm Hex Head Screws (24).
71
71
69
69
3
72
70
24
16
14
14
2
4
6
7
8
67
67
95
73
82
5. Connect the Reed Switch Wire (13) and the two Extension Wires (41) to the corresponding wires on the Console (8).
If your Console (8) has a ground wire, attach it to the Upright (2) with an M4 x 16mm Screw (34).
Next, attach the Console (8) to the Upright (2) with four #8 x 5/8Ó Screws (22).
Press the Resistance Knob (9) onto the Resistance Control (10). Be sure that the mark on the Knob is correctly aligned.
Console
Wires
Ground
Wire
10
8
9
13
34
2
41
22
22
5
8
10. Attach the Backrest (15) to the Seat Bracket (69) with four M6 x 16mm Hex Head Screws (24).
11. Identify the Left Pedal (45) (there is an ÒLÓ on the Left Pedal for identification). Using an adjustable wrench, firmly tighten the Left Pedal counterclock-
wise into the left arm of the Crank (29).
Firmly tighten the Right Pedal (not shown) clock­wise into the right arm of the Crank (29).
Adjust the Pedal Strap (27) on the Left Pedal (45) to the desired position. Press the Pedal Strap onto the tab on the Left Pedal.
Adjust the Pedal Strap on the Right Pedal (not shown) in the same manner.
15
24
69
29
27
45
Tab
10
11
9. Attach a Seat Handle (17) to the Seat Bracket (69) with two M6 x 38mm Button Head Bolts (18) and two M6 Nylon Locknuts (66).
Attach the other Seat Handle (17) to the Seat Bracket (69) in the same manner.
69
17
18
66
17
9
9
15. Make sure that all parts are properly tightened
before you use the Light Cycle. Note: Some hardware may be left over after assembly is completed. Place a mat under the Light Cycle to
protect the floor or carpet.
13. The Lumbar Cushion (94) requires two ÒDÓ batteries (not included); alkaline batteries are recommended. Open the zipper on the back of the Lumbar Cushion. Press the batteries into the battery clip.
Make sure that the negative (Ð) ends of the bat­teries are turned away from the motor. Close the
zipper.
14. Slide the Lumbar Cushion (94) over the Backrest (15) as shown.
94
Zipper
Battery
Clip
Motor
Batteries
15
94
Elastic
Strap
13
14
12. The Console (8) requires either two or three ÒAAÓ batteries (not included); alkaline batteries are recommended. Open the battery cover (not shown) on the back of the Console. Press the batteries into the battery clip. Make sure that the negative (Ð)
ends of the batteries are touching the springs.
Close the battery cover. Note: If the battery clip holds three batteries, you must insert three batteries.
12
8
Batteries
Battery
Clip

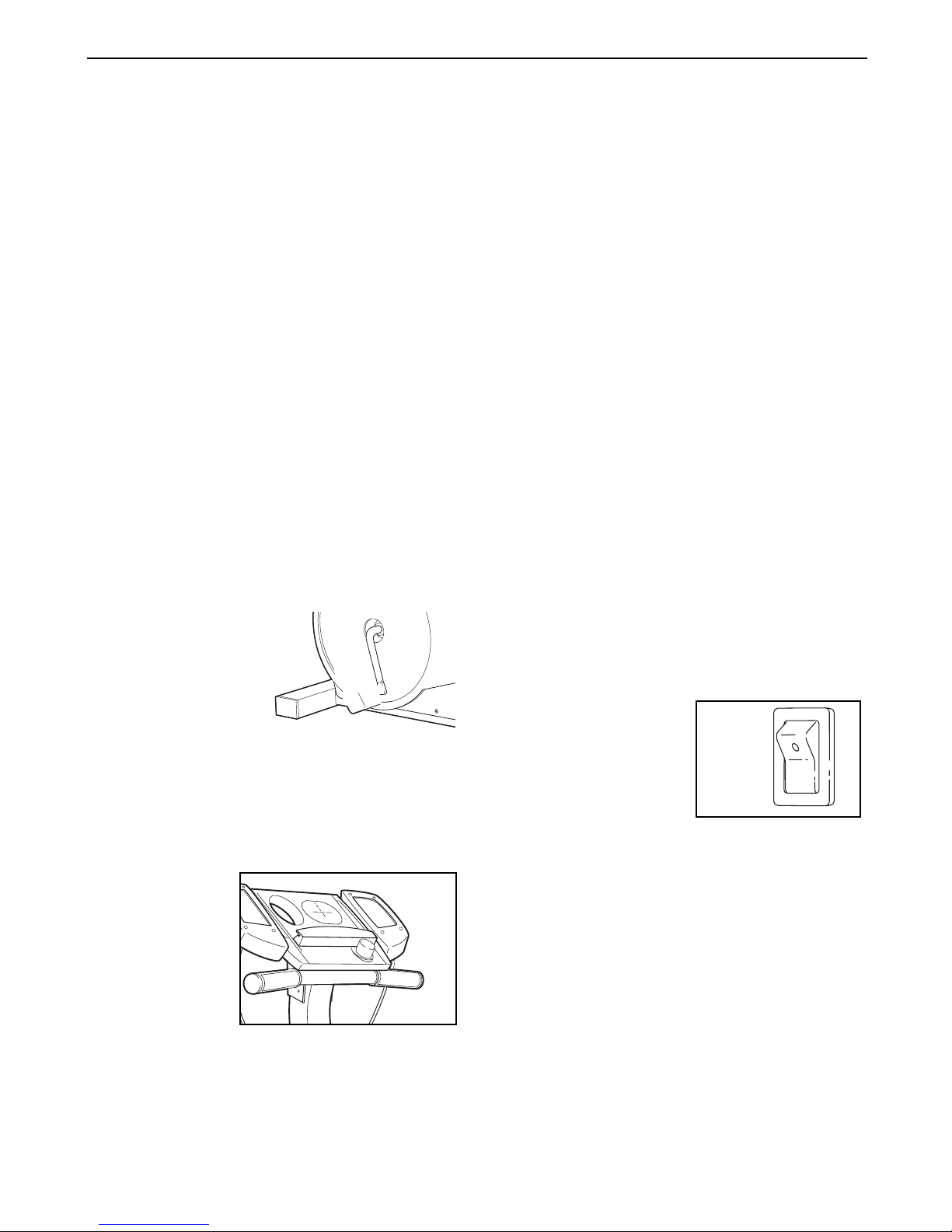

HOW TO ADJUST THE SEAT FRAME
The Seat Frame (3) can be adjusted to the position that is the most comfortable for you. To adjust the Seat Frame, first loosen the Lock Knob (68) on the right side of the Frame (1). Slide the Seat Frame to the desired position and retighten the Lock Knob.
HOW TO ADJUST THE PEDAL STRAPS
To adjust the Pedal Straps (27, 31 [not shown]), first pull the ends of the Pedal Straps off the tabs on the pedals. Slide the Pedal Straps to the desired positions and press the Pedal Straps back onto the tabs.
HOW TO ADJUST THE PEDALING RESISTANCE
The pedaling resistance can be adjusted with the Resistance Knob (9) located on the Console (8). To increase the resis­tance, turn the Resistance Knob clockwise; to decrease the resistance, turn the Resistance Knob counterclockwise.
HOW TO USE THE LUMBAR CUSHION
Slide the Lumbar Cushion (94) over the Backrest (15) as shown. Adjust the position of the Lumbar Cushion until it feels comfortable against your back.
The firmness of the Lumbar Cushion (94) can be adjusted as desired using the attached hand pump. To increase the firmness, squeeze the hand pump repeatedly. To decrease the firmness, press the release button.
The massager in the Lumbar Cushion (94) requires two ÒDÓ batteries (not included). If you have not installed batteries, see assembly step 13 on page 9. To turn on the massager, press the top of the on/off switch on the Lumbar Cushion. Press the bottom of the switch to turn off the massager.
The lumbar cushion also features four 800-gauss magnets for magnet therapy. Research indicates that the positive energy emitted from bipolar magnets may help to increase circulation and eliminate minor aches.
13
HOW TO USE THE LIGHT CYCLE
14
DESCRIPTION OF THE CONSOLE
The innovative console offers a manual mode and three pacer programs. The pacer programs are designed to help you achieve your exercise goals by pacing your exercise. The programs include an 18 MPH/90 RPM program, a 12 MPH/60 RPM program, and a 6 MPH/30 RPM program. The console also fea­tures five monitor modes that provide continuous exer­cise feedback. Note: On some consoles the pro-
grams are listed in MPH and on others in RPM. Both sets of programs are identical.
HOW THE PACER PROGRAMS OPERATE
When you use a pacer program, an indicator will light on each track of the P.A.C.E.R. display. The outer track shows a target pace; the inner track will show your actual pace. The target pace will change periodically during the 18 MPH/90 RPM and 12 MPH/60 RPM programs; as the target pace changes, simply adjust your pace to keep both indica­tors even. Important: The target pace is a goal
pace. Your actual pace may be slower than the tar-
get pace, especially during the first few months of your exercise program. Be sure to exercise at a pace that is comfortable for you.
The graphs on the left side of the console show how the target pace will change during each program (see the drawing above). Each graph is divided into ten columns, and each column represents 1/10 of a mile. The bars in each column show what the target pace will be during that 1/10 of a mile. For example, in the first column of the 12 MPH/60 RPM graph, there is one bar. This shows that during the first 1/10 of a mile in this program, the target pace will be 6 MPH (30 RPM). In the second column, there are two bars, indi­cating that the pace is now 12 MPH (60 RPM).
DESCRIPTION OF THE MONITOR MODES
The five monitor modes provide continuous exercise feedback. The modes are described below.
¥ SpeedÑThis mode shows your pace, in miles per
hour.
¥ TimeÑThis mode counts the length of time you
have exercised. Note: If you stop exercising for ten seconds or longer, the time mode will pause.
¥ Distance (DIST)ÑThis mode shows the total num-
ber of miles you have cycled, up to 999. The dis­play will then reset to zero and continue counting.
DIAGRAM OF THE CONSOLE
Before the console can be operated, ÒAAÓ batteries must be installed. If you have not installed batteries, see assem­bly step 12 on page 9. Note: If there is a thin sheet of clear plastic on the face of the console, remove the plastic before using the console.
Actual
Pace
Target
Pace
15
¥ LapsÑThis mode shows the number of quarter-mile
laps you have completed.
¥ Calories (CAL)ÑThis mode shows the approximate
number of calories you have burned.

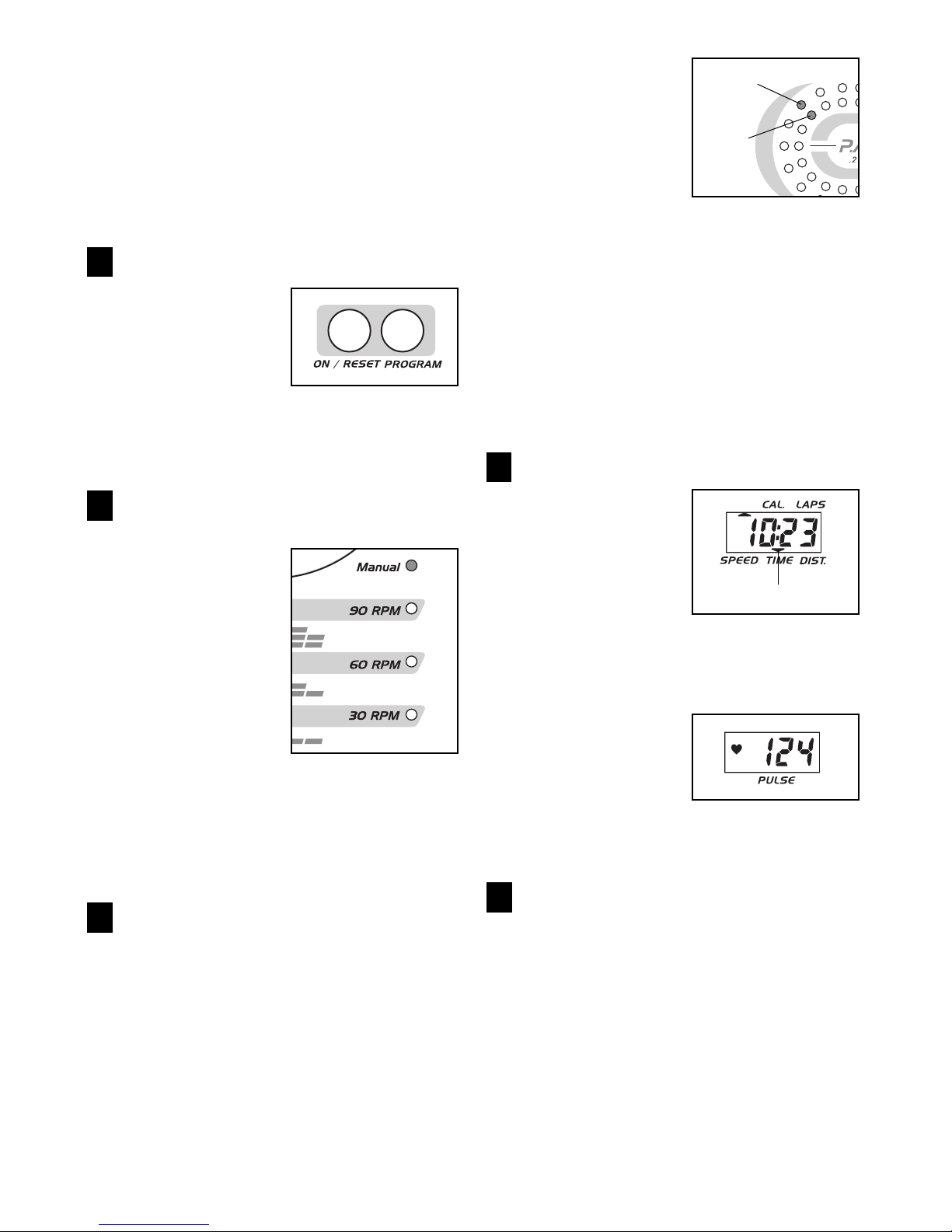

STEP-BY-STEP CONSOLE OPERATION
Follow the steps below to operate the console.
Turn on the power
To turn on the power, press the on/reset button or simply begin exercising. When the power is turned on, the entire display will appear for two seconds. The console will then be ready for use. Note: If batteries were just installed, the power will already be on.
Select one of the three pacer programs or the manual mode
When the power is first turned on, the console will be in the manual mode. To select one of the pacer programs, repeatedly press the program button. The program indicator will show which program you have selected. The programs will be selected in the following order: the manual mode, the 6 MPH/30 RPM program, the 12 MPH/60 RPM program, and the 18 MPH/ 90 RPM pro­gram. Note: Once you select a pacer program, you can reselect the manual mode by repeatedly pressing the program button.
Begin your workout
If you selected the manual mode, one indicator on the inner P.A.C.E.R. track will light. As you exer­cise, this indicator will move around the quarter­mile track.
If you selected a pacer program, two indicators on the P.A.C.E.R. track will light. The indicator on the inner track will show your actual pace. The indicator on the outer track will move around the track at the programmed pace. As you exercise, adjust your pace so that the indi­cators on the inner and outer tracks remain even. As the program progresses, the target pace will change periodically; as the target pace changes, you should also adjust your pace. Important: The
target pace is a goal pace. Your actual pace may be slower than the target pace, especially during the first few months of your exercise program. Be sure to exercise at a pace that is comfortable for you.
Follow your progress with the monitor modes
When the power is turned on, the con­sole will scan through the five modes auto­matically. A flashing mode indicator will show which mode is currently displayed. When the Laps mode is displayed, an ÒLÓ will also appear. If desired, the display can be reset by pressing the on/reset button.
The Light Cycle also features an innova­tive handgrip pulse sensor. The pulse display allows you to monitor your heart rate during your workout. To use the pulse sensor, see page 17.
Turn off the power
To turn off the power, simply wait for about six minutes. If the pedals are not moved and the
console buttons are not pressed for six minutes, the power will turn off automatically.
5
4
3
2
1
Target
Pace
Actual
Pace
Mode Indicator
16

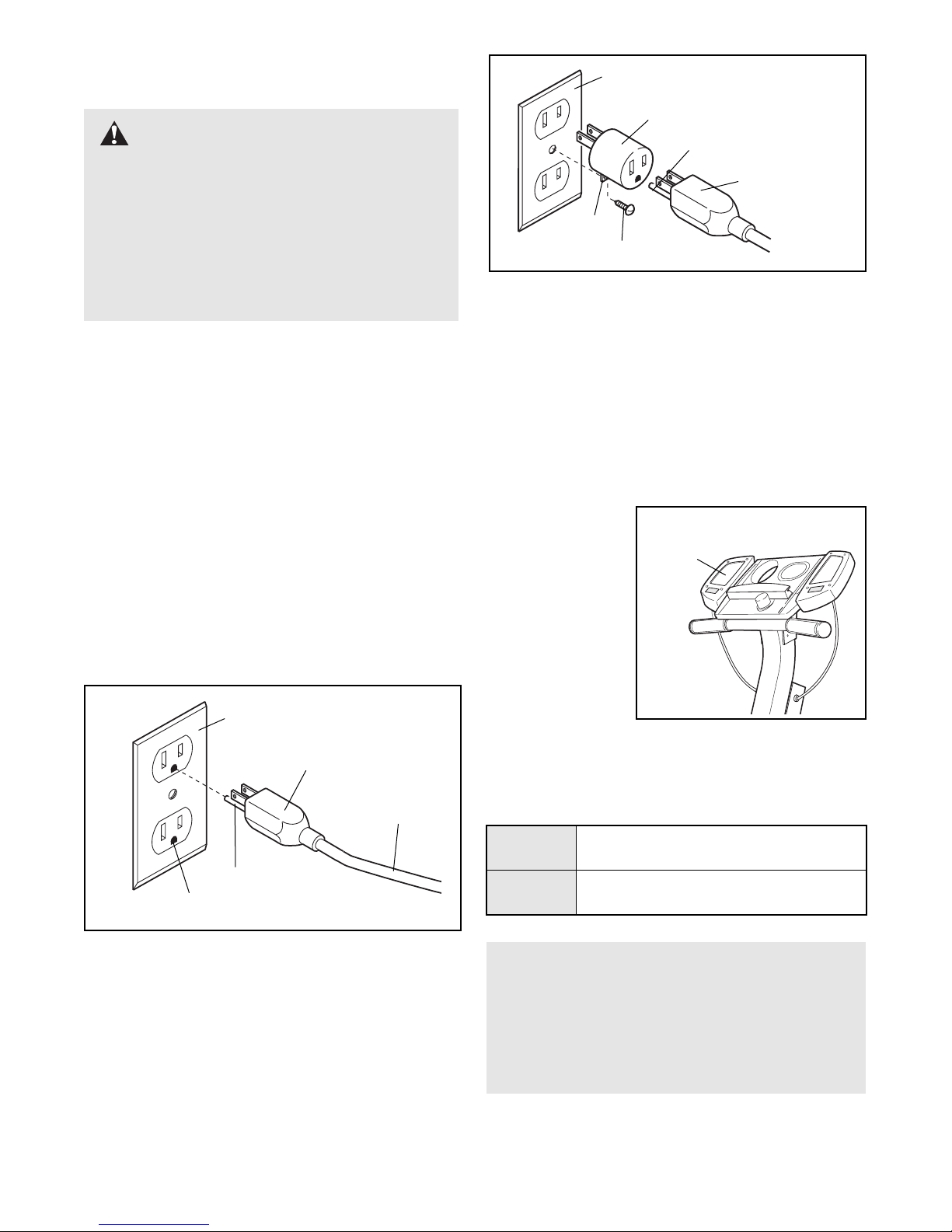

HOW TO PLUG IN THE POWER CORD ON THE LIGHT THERAPY POD
This product must be grounded. If it should mal-
function or break down, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. Plug the power cord into an appro-
priate outlet that is properly installed and ground­ed in accordance with all local codes and ordi­nances.
This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illustrated in drawing 1 below. A temporary adapter that looks like the adapter illustrated in drawing 2 may be used to connect the power cord to a 2-pole recep­tacle as shown in drawing 2 if a properly grounded outlet is not available.
The temporary adapter should be used only until a properly grounded outlet (drawing 1) can be installed by a qualified electrician.
The green-colored rigid ear, lug, or the like extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adapter is used it must be held in place by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a qualified electrician to determine if the outlet box cover is grounded before using an adapter.
HOW TO USE THE LIGHT THERAPY POD
The light therapy pod allows you to enjoy the ben­efits of light ther­apy while you exercise or while you simply relax.
The effective­ness of light ther­apy depends on two factors: your distance from the light and the length of time you use the light. The chart below shows the intensity of the lights at different dis­tances.
Light
Therapy
Pod
DANGER: Improper connection
of the equipment-grounding conductor can result in an increased risk of electric shock. Check with a qualified electrician or service representative if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the prod­uctÑif it will not fit the outlet, have a proper outlet installed by a qualified electrician.
1
Grounded Outlet Box
Light Cycle
Power Cord
Grounding Plug
Grounding Pin
Grounded Outlet
2
Grounded Outlet Box
Adapter
Lug
Metal Screw
Grounding Pin
Grounding Plug
Distance 12Ó 18Ó 24Ó
Lux 10,000 3,200 2,500 1,500
WARNING: Before beginning this or any light therapy program, consult your physician.
WARNING: The light therapy pod becomes hot during use. Allow the light therapy pod to cool before touching it.
17
The convenient pulse sensor allows you to measure your heart rate periodically. You can measure your heart rate before you begin exercising, during your workout, and again when you finish.
Note: Before the pulse sen­sor can be used, the pro­tective vinyl covering must be peeled off the metal con­tacts on the front and rear of each pulse grip.
To use the pulse sensor, first make sure that the power is turned on. Stop exercising, rest both feet on the floor, and place your hands on the metal contacts. Your palms must be resting on the inner contacts and your fingers must be touching the outer contacts. Avoid moving your hands. After a moment, the heart indicator in the PULSE display will flash and your heart rate will be shown. For the most accurate heart rate reading, continue to hold the contacts for about 15 seconds.
HAND PULSE SENSOR TROUBLE-SHOOTING
¥ Avoid moving your hands while using the pulse sen-
sor. Excessive movement may interfere with heart rate readings. If the pulse sensor is not used correct­ly, the heart indicator will flash repeatedly in the PULSE display but your heart rate will not be shown.
¥ Do not hold the metal contacts too tightly; doing so
may interfere with heart rate readings.
¥ Do not move your hands while you hold the metal
contacts; your muscle movement may interfere with heart rate readings.
¥ For the most accurate heart rate reading, wait for
about 15 seconds.
¥ For optimal performance of the pulse sensor, keep
the metal contacts clean. The contacts can be cleaned with a soft clothÑnever use alcohol, abrasives, or chemicals.
HOW TO USE THE PULSE SENSOR
Metal
Contacts
WARNING:The pulse sensor is not a med­ical device. Various factors, including the userÕs movement, may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in deter­mining heart rate trends in general.
Follow the steps below to use the light therapy pod.
1. Plug in the power cord (see page 16).
2. Sit on the Light Cycle and adjust the position of the seat as desired.
3. Press the bottom of the on/off switch on the bal­last box to turn on the lights.
4. To enjoy the benefits of light therapy, it is not neces­sary to look at the lights. However, you must open your eyes so that light can enter.
It is recommended that you use the lights for 30 to 60 minutes three times per week to begin with. This may be done while exercising or while relaxing. When you are familiar with the light therapy pod, you may adjust the length and frequency of your light therapy sessions as desired.
5. When you are finished using the light therapy pod,
press the top of the on/off switch on the ballast box to turn off the lights. In addition, unplug the power
cord.
On/Off Switch
18
Inspect and tighten all parts of the Light Cycle regular­ly. The Light Cycle can be cleaned with a soft, damp cloth. To prevent damage to the console, keep liquids away and keep the console out of direct sunlight.
BATTERY REPLACEMENT
If the console does not function properly, the batteries should be replaced. To replace the batteries, refer to assembly step 12 on page 9.
CRANK ADJUSTMENT
If the arms of the Crank (29) become loose, they should be tightened in order to prevent excessive wear. Loosen the Crank Nut (35) on the left arm of the Crank. Place the end of a standard screw-
driver in one of the slots in the slotted bearing nut. Lightly tap the screwdriver with a hammer to turn the slotted bearing nut counterclockwise until the arms are no longer loose. Do not overtighten the slotted bearing nut. When the slotted bearing nut is properly tightened, tighten the Crank Nut.
HOW TO STORE THE EXERCISE CYCLE
When the exer­cise cycle is not in use, it can be folded for com­pact storage. Refer to the drawing at the right. Loosen the Lock Knob (68) on the right side of the Frame (1). Slide the Seat Frame (3) as far into the Frame as it will go. Tighten the Lock Knob. Store the exer­cise cycle indoors, away from moisture and dust.
MAINTENANCE AND STORAGE
Crank
Nut
Slotted
Bearing
Nut
29
68
3
1
19

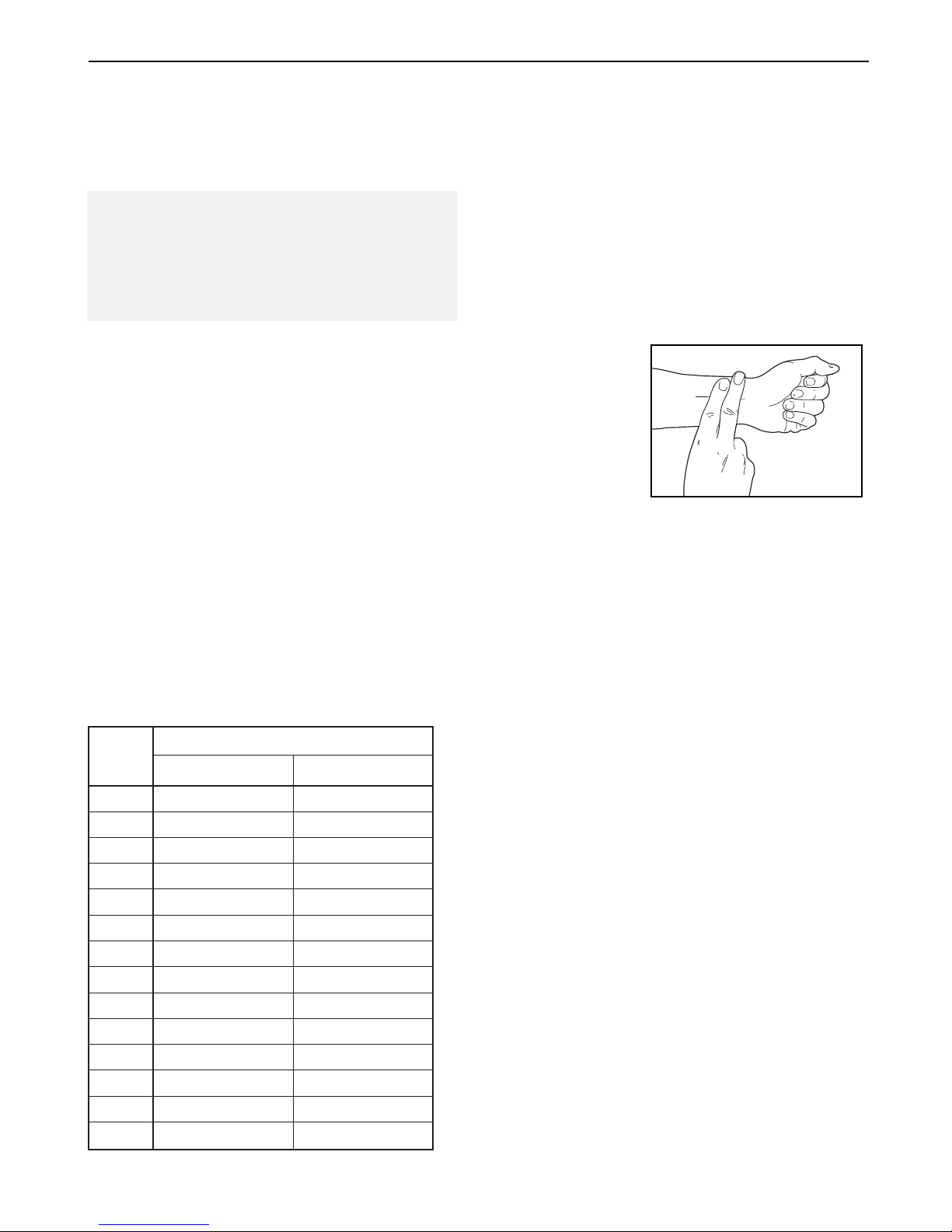

The following guidelines will help you to plan your exercise program. Remember that proper nutrition and adequate rest are essential for successful results.
WHY EXERCISE?
Exercise has proven essential for good health and general well-being. Regular participation in a well­rounded exercise program results in a stronger and more efficient heart, improved respiratory function, increased stamina and endurance, better weight man­agement and body fat control, increased ability to deal with stress, and greater self-esteem and confidence.
EXERCISE INTENSITY
To maximize the benefits of exercising, it is important to exercise with the proper intensity. The proper inten­sity level can be found by using your heart rate as a guide. For effective aerobic exercise, your heart rate should be maintained at a level between 70% and 85% of your maximum heart rate as you exercise. This is known as your training zone. You can find
your training zone in the table below. Training zones are listed according to age and physical condition. During the first few months of your exercise program, keep your heart rate near the low end of your training zone as you exercise. After a few months of regular exercise, your heart rate can be increased gradually until it is near the middle of your training zone as you exercise.
To measure your heart rate, use the pulse sensor in the handlebar. You can also measure your pulse by placing two fingers on your wrist. Stop exercising and take a six-second heartbeat count. Multiply the result by ten to find your heart rate. (A six­second count is used because your heart rate drops quickly when you stop exercising.) If your heart rate is too high, decrease the intensity of your exer­cise. If your heart rate is too low, increase the intensity of your exercise.
WORKOUT GUIDELINES
A well-rounded workout includes the following three phases:
A warm-up phase, lasting 5 to 10 minutes. Begin with slow, controlled stretches, and progress to more rhyth­mic stretches. This will increase the body temperature, heart rate, and circulation in preparation for strenuous exercise.
A cardiovascular phase, including 20 to 30 minutes of exercising with your heart rate in your training zone.
A cool-down phase, consisting of 5 to 10 minutes of stretching. Thorough stretching offsets muscle con­tractions and other problems caused when you stop exercising suddenly. Stretching for increased flexibility is often most effective during this phase. This phase should leave you relaxed and comfortably tired.
To maintain or improve your condition, complete three workouts each week, with at least one day of rest between workouts. After a few months of regular exer­cise, you may complete up to five workouts each week, if desired. Find the best time of day for your workouts, and then stick with it. Remember, the key to success is to make exercise a regular and enjoyable part of your everyday life.
CONDITIONING GUIDELINES
TRAINING ZONE (BEATS/MIN.)
20
25
30
35
40
45
50
55
60
65
70
75
80
85
AGE CONDITIONEDUNCONDITIONED
133Ð162
132Ð160
130Ð158
129Ð156
127Ð155
125Ð153
124Ð150
122Ð149
121Ð147
119Ð145
118Ð144
117Ð142
115Ð140
114Ð139
138Ð167
136Ð166
135Ð164
134Ð162
132Ð161
131Ð159
129Ð156
127Ð155
126Ð153
125Ð151
123Ð150
122Ð147
120Ð146
118Ð144
WARNING: Before beginning this or any exercise program, consult your physician. This is especially important for individuals over the age of 35 or individuals with pre­existing health problems.
Part No. 160464 R1099A Printed in China © 1999 ICON Health & Fitness, Inc.
PROFORM¨is a registered trademark of ICON Health & Fitness, Inc.
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of ninety (90) days from the date of pur­chase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is lim­ited to replacing or repairing, at ICON's option, the product through one of its authorized service centers. All repairs for which warranty claims are made must be pre-authorized by ICON. This warranty does not extend to any product or damage to a product caused by or attributable to freight damage, abuse, mis­use, improper or abnormal usage or repairs not provided by an ICON authorized service center, products used for commercial or rental purposes, or products used as store display models. No other warranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con­nection with the use or performance of the product or damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of inci­dental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
ORDERING REPLACEMENT PARTS
To order replacement parts, call our Customer Service Department toll-free at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be prepared to give the following information:
¥ The MODEL NUMBER of the product (PFRX35390)
¥ The NAME of the product (PROFORM¨Light Cycle)
¥ The SERIAL NUMBER of the product (see the front cover of this manual)
¥ The KEY NUMBER and DESCRIPTION of the part(s) (see the EXPLODED DRAWING and PART LIST
attached in the center of this manual).
12
PART LISTÑModel No. PFRX35390 R1099A
1 1 Frame 2 1 Upright 3 1 Seat Frame 4 1 Handlebar 5 2 Pulse Grip 6 1 Left Side Shield 7 1 Right Side Shield 8 1 Console
9 1 Resistance Knob 10 1 Resistance Cable/Control 11 4 M5 x 30mm Screw 12 4 M5 Nut 13 1 Reed Switch/Wire 14 4 M6 x 25mm Hex Head Screw 15 1 Backrest 16 1 Seat 17 2 Seat Handle 18 4 M6 x 38mm Button Head Bolt 19 2 Foam Handle Grip 20 1 1Ó x 3Ó Endcap 21 6 Tree Fastener 22 21 #8 x 5/8Ó Screw 23 2 #8 x 3/8Ó Screw 24 8 M6 x 16mm Hex Head Screw 25 3 M10 x 25mm Button Head Screw 26 3 M10 Split Washer 27 1 Left Pedal Strap 28 1 Right Pedal 29 1 Crank/Pulley 30 1 Bearing Assembly 31 1 Right Pedal Strap 32 1 Magnet 33 2 M4 x32mm Screw 34 1 M4 x 16mm Screw 35 4 Rubber Bumper 36 2 M8 Flanged Hex Nut 37 2 M6 Eyebolt 38 2 Adjustment Bracket 39 4 M6 Nut 40 2 M10 Washer 41 2 Extension Wire 42 1 Flywheel 43 1 10mm x 13mm Spacer 44 1 Flywheel Axle 45 1 Left Pedal 46 2 M10 x 52mm Button Head Screw 47 2 Wheel 48 5 2Ó x 3Ó Endcap 49 1 1 1/2Ó x 3Ó Endcap 50 1 Cable Clamp
51 1 M6 x 56mm Bolt 52 2 M8 Split Washer 53 4 #8 Flat Washer 54 1 Clamp Bolt 55 1 Clamp Nut 56 1 Resistance Hook 57 1 Resistance Spring 58 1 Magnet Bracket 59 1 M8 x 65mm Hex Head Bolt 60 1 M8 Nylon Locknut 61 1 Drive Belt 62 2 1 1/4Ó Round Endcap 63 1 2Ó x 4Ó Endcap 64 1 Frame Bushing 65 1 Seat Frame Bushing 66 4 M6 Nylon Locknut 67 4 M6 Split Washer 68 1 Lock Knob 69 1 Seat Bracket 70 4 M10 x 105mm Button Head Bolt 71 4 M10 Flat Washer 72 4 M10 Nylon Locknut 73 1 Power Cord 74 5 Grommet 75 1 Power Switch 76 2 Fixture Cord 77 1 Fastener Strip 78 6 Cover Screw 79 2 Ballast Screw 80 1 Ballast 81 1 Ballast Box 82 1 Light Frame 83 8 Light Cover Screw 84 1 Ballast Cover 85 8 Fixture Nut 86 8 Fixture Screw 87 2 Light Fixture 88 2 Light Tube 89 2 Lens 90 8 Hex Spacer 91 1 Left Light Cover 92 1 Right Light Cover 93 1 Junction Wire 94 1 Lumbar Cushion 95 2 Cord Clip 96 1 Support Bladder 97 8 #8 x 3/8Ó Screw
# 1 UserÕs Manual # 1 4mm Allen Wrench # 1 5.5mm Allen Wrench
Note: Ò#Ó indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover of this manual for information about ordering replacement parts.
Key No. Qty. Description Key No. Qty. Description
Loading...
