ProForm Interactive Trainer PFEX59030, Interactive Trainer GL125 User Manual

USER’S MANUAL
CAUTION
Read all precautions and instruc­tions in this manual before using this equipment. Keep this manual for future reference.
Serial Number Decal
(beneath stabilizer)
Write the serial number in the space above for reference.
QUESTIONS?
If you have questions, or if there are missing parts, we will guarantee complete satisfac­tion through direct assistance from our factory.
TO AVOID DELA YS, PLEASE CALL DIRECT TO OUR TOLL­FREE CUSTOMER HOT LINE. The trained technicians on our customer hot line will provide immediate assistance, free of charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.–Fri., 6 a.m.–6 p.m. MST
Patent Pending
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
2
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO OPERATE THE EXERCISE CYCLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
PROFORM is a registered trademark of ICON Health & Fitness, Inc.
3
1. Read all instructions in this manual before using the exercise cycle.
2. Use the exercise cycle only as described in this manual.
3. It is the responsibility of the owner to ensure that all users of the exercise cycle are ade­quately informed of all precautions.
4. The exercise cycle is intended for home use only. Do not use the exercise cycle in a commercial, rental, or institutional setting.
5. Place the exercise cycle indoors on a level surface. Keep the exercise cycle away from moisture and dust. Place a mat under the exercise cycle to protect the floor.
6. Inspect and properly tighten all parts regular­ly. Replace any worn parts immediately.
7. Keep children under the age of 12 and pets away from the exercise cycle at all times.
8. Wear appropriate clothing when exercising; do not wear loose clothing that could become caught on the exercise cycle. Always wear athletic shoes for foot protection.
9. The exercise cycle should not be used by persons weighing more than 250 pounds.
10.The pulse sensor is not a medical device. Various factors, including the user's move­ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only as an exercise aid in determining heart rate trends in general.
11.Always keep your back straight when using the exercise cycle; do not arch your back.
12. If you feel pain or dizziness while exercising, stop immediately and cool down.
13.The exercise cycle does not have a free­wheel; the pedals will continue to move until the flywheel stops.
14.The decal shown below has been placed on the exercise cycle. If the decal is missing, or if it is not legible, please call toll-free 1-800­999-3756 and order a free replacement decal. Apply the decal in the location shown.
WARNING:Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
IMPORTANT PRECAUTIONS
WARNING:
To reduce the risk of serious injury, read the following important precau-
tions before using the exercise cycle.
4
Congratulations for selecting the new PROFORM
®
GL125 exercise cycle. Cycling is one of the most effective exercises for increasing cardiovascular fit­ness, building endurance, and toning the entire body. The PROFORM
®
GL125 exercise cycle offers an impressive array of features to let you enjoy this healthful exercise in the convenience and privacy of your home.
For your benefit, read this manual carefully before you use the exercise cycle. If you have questions
after reading this manual, please call our Customer
Service Department toll-free at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please note the product model number and serial number before calling. The model number is PFEX59030. The serial number can be found on a decal attached to the exercise cycle (see the front cover of this manual).
Before reading further, please familiarize yourself with the parts that are labeled in the drawing below.
Handgrip Pulse Sensor
REAR
Seat
Seat Lever
Pedal/Strap
Wheel
Leveling Foot
Console
Fan
Power Jack
CD Holder
CD Player
Handlebar
Water Bottle Holder*
*No bottle is included
Adjustment Knob
RIGHT SIDE
BEFORE YOU BEGIN
Backrest
5
ASSEMBLY
Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires the included tools and your own adjustable wrench and Phillips screwdriver .
Use the drawings below to identify the small parts used for assembly. The number in parenthesis below each drawing is the key number of the part, from the PART LIST on page 25. The number following the key number is the quantity needed for assembly. Note: Some small parts may have been pre-assembled. If a part is not in
the parts bag, check to see if it has been pre-assembled.
1. Orient the Front Stabilizer (15) as shown. While another
person lifts the front of the Frame (1), attach the Front Stabilizer to the Frame with two M8 x 52mm Button Screws (54) and two M8 Washers (64).
15
54
64
1
1
M8 Nylon
Locknut (49)–4
M6 x 16mm Tapered
Button Screw (102)–8
M8 x 25mm Button
Screw (40)–4
M6 Washer
(66)–4
M6 x 16mm Button
M8 Washer
(64)–2
Screw (8)–4
M8 x 38mm Button
Bolt (96)–4
M4 x 12mm
Screw (41)–4
M6 x 22mm Button
Screw (93)–3
M4 x 16mm
Screw (57)–10
M8 x 52mm Button
Screw (54)–2
M4 x 20mm
Screw (101)–1
M6 x 25mm Button
Screw (99)–1
6
2
2
31
Make sure the
wire harnesses
do not get
pinched and
damaged during
this step.
41
20
43
1
99
42
2. While another person holds the Upright (2) in the posi-
tion shown, connect the Upper Wire Harness (42) to the Lower Wire Harness (43). Gently pull the upper end of the Upper Wire Harness to remove any slack from the Wire Harnesses.
Turn the indicated Adjustment Knob (20) counterclock­wise two or three turns to loosen it. Next, pull the Knob, insert the Upright (2) into the Frame (1), and then release the Knob. Be careful to avoid pinching the
Wire Harnesses (42, 43). Move the Upright up and down slightly until the pin on the Knob snaps into one of the holes in the Upright. Then, turn the Knob
clockwise until it is tight. Tighten the M6 x 25mm Button Screw (99) into the Frame.
Attach the Water Bottle Holder (31) to the Upright (2) with two M4 x 12mm Screws (41).
3. Attach the Left Inner Handlebar (71) to the Upright (2)
with four M6 x 16mm Tapered Button Screws (102).
Attach the Right Inner Handlebar (68) to the Upright (2) in the same way.
3
71
2
102
102
68
4. Attach a Handlebar (3) to the Seat Bracket (11) with
two M8 x 38mm Button Bolts (96) and two M8 Nylon Locknuts (49). Make sure that the Nylon Locknuts
are resting in the hexagonal holes in the front of the Handlebar.
Attach the other Handlebar (3) to the Seat Bracket (11) in the same way.
11
3
3
96
49
4
7
5. Attach the Seat (9) to the Seat Bracket (11) with four
M6 x 16mm Button Screws (8) and four M6 Washers (66).
5
9
11
66
8
8
66
6. Attach the Seat Back (106) and the Backrest (90) to
the Seat Bracket (11) with three M6 x 22mm Button Screws (93).
11
93
90
106
6
7. Push down the lever (not shown) on the right side of
the Seat Carriage (10), slide the Seat Carriage into the Frame Rail (81), and then pull the lever back up.
Attach a Bumper (82) to the Frame Rail (81) with an M4 x 20mm Screw (101). Next, press the Frame Rail Endcap (83) into the end of the Frame Rail.
10
83
81
82
101
7
8
9. Refer to step 10. Remove the six M4 x 16mm Screws
(57) and the Right and Left Handlebar Covers (5, 6) from the Console (4).
With the help of another person, carefully raise the exercise cycle so it is resting on the Front and Rear Stabilizers (not shown).
While another person holds the Console (4) in the position shown, connect the wire harness on the Console to the Upper Wire Harness (42). Insert the excess wire harness down into the Upright (2).
Attach the Console (4) to the Upright (2) with four M4 x 16mm Screws (57). Be careful to avoid pinching
the wire harnesses.
9
4
2
57
10. Attach the CD Holder (104) to the Console (4) with
two M4 x 12mm Screws (41) as shown. Attach the Left Handlebar Cover (6) to the Console (4)
with three M4 x 16mm Screws (57).
Attach the Right Handlebar Cover (5) to the Console (4) in the same way.
57
5
4
104
41
6
10
Wire
Harness
42
8. With the help of another person, carefully tip the
exercise cycle onto its left side so it is resting on the Left Inner Handlebar (not shown).
Identify the Left Rear Stabilizer (16), which is marked with an “L” sticker. Attach the Left Rear Stabilizer and the Stabilizer Plate (87) to the Frame (1) with two M8 x 25mm Button Screws (40) as shown; do not tighten
the Button Screws yet.
Insert the Right Rear Stabilizer (98) between the Stabilizer Plate (87) and the Frame (1). Attach the Right Rear Stabilizer with two M8 x 25mm Button Screws (40). Tighten all four Button Screws.
40
87
40
1
8
98
16
9
13. Make sure that all parts are properly tightened before you use the exercise cycle. Note: After assembly is
completed, some extra parts may be left over. Place a mat beneath the exercise cycle to protect the floor.
11. Identify the Left Pedal (22), which is marked with an
“L.” Using an adjustable wrench, firmly tighten the Left Pedal counterclockwise into the Left Crank Arm (24). Tighten the Right Pedal (not shown) clockwise into the Right Crank Arm. Important: Tighten both
Pedals as firmly as possible. After using the exer­cise cycle for one week, retighten the Pedals. For best performance, the Pedals must be kept tight­ened.
Adjust the Left Pedal Strap (25) to the desired posi­tion, and press the end of the Pedal Strap onto the tab on the Left Pedal (22).
Adjust the Right Pedal Strap (not shown) in the same way.
12. Plug one end of the Power Supply (52) into the jack at
the front of the exercise cycle. Plug the other end of the Power Supply into an appropriate outlet that is properly installed in accordance with all local codes and ordinances.
Note: The console can be operated with batteries (not included) instead of the Power Supply (52) if desired. To install batteries, follow the instructions below.
See the inset drawing. Press the indicated tab on the battery drawer and pull the battery drawer down. Press four “D” batteries into the battery clips; make
sure that the batteries are oriented as shown by the markings inside of the battery clips. Then,
close the battery drawer. Note: Alkaline batteries are recommended.
11
24
25
Tab
Batteries
Battery Drawer
22
12
52
4
Tab
10
HOW TO OPERATE THE EXERCISE CYCLE
HOW TO ADJUST THE SEAT
For effective exercise, the seat should be in the proper position. As you pedal, there should be a slight bend in your knees when the pedals are all of the way forward. To adjust the seat, push the seat lever down, slide the seat forward or backward, and then firmly pull the seat lever back up.
HOW TO ADJUST THE UPRIGHT
The upright can be adjusted to the height that is the most comfortable for you. To adjust the upright, first turn the indicated knob counterclockwise two or three turns to loosen it (if the knob is not loosened enough, it may scratch the upright). Next, pull the knob, slide the upright to the desired height, and then release the knob. Move the upright up and down slightly
until the pin on the knob snaps into one of the holes in the upright. Then, turn the knob clockwise
until it is tight.
HOW TO ADJUST THE PEDAL STRAPS
To adjust the pedal straps, first pull the ends of the straps off the tabs on the pedals. Adjust the straps to the desired position, and then press the ends of the straps back onto the tabs.
Pedal
Strap
Knob
Seat
Lever
Seat
Upright
Tab
11
FEATURES OF THE CONSOLE
The advanced console offers a selection of features designed to make your workouts more enjoyable and effective. When the manual mode of the console is selected, the resistance of the pedals can be changed with the touch of a button. As you work out, the con­sole will provide continuous exercise feedback. You can even measure your heart rate using the built-in handgrip pulse sensor.
The console also offers six Smart programs. Each pro­gram automatically changes the resistance of the ped­als and prompts you to increase or decrease your pace as it guides you through an effective workout. In addi­tion, the console features two Heart Rate programs that change the resistance of the pedals and prompt you to vary your pace to keep your heart rate near a target heart rate as you exercise.
The console also features iFIT.com interactive technol­ogy. Having iFIT.com technology is like having a per-
sonal trainer in your home. Using the built-in CD player, you can play special iFIT.com CD programs. iFIT.com CD programs automatically control the resistance of the pedals and prompt you to vary your pace while a personal trainer coaches you through every step of your workout. High-energy music provides added moti­vation. Two iFIT.com CDs are included; to purchase
additional CDs, call toll-free 1-800-735-0768.
Using a stereo audio cable (available at electronics stores), you can also connect the exercise cycle to your VCR and TV and play iFIT.com video programs. iFIT.com video programs offer the same benefits as iFIT.com CD programs, and allow you to enjoy breath­taking scenery while you exercise. To purchase
iFIT.com videocassettes, call toll-free 1-800-735-
0768.
You can even connect the exercise cycle to your home computer, go to our Web site at www.iFIT.com, an d access programs directly from our Web site. Explore
www.iFIT.com for more information.
12
To use the manual mode of the console, see the
instructions below. To use a Smart program, see page 14. To use a Heart Rate program, see page 15.
To use an iFIT.com CD program, see page 16. To use an iFIT.com video program, see page 19. To use a program directly from our Web site, see
page 20.
HOW TO USE THE MANUAL MODE
Turn on the console.
Make sure that the transformer is plugged in or that batteries are installed in the console (see assembly step 12 on page 9).
To turn on the console, press the On/Reset button or begin pedaling. (The On/Reset button is the button just above the large display.)
Select the manual mode.
Each time the console is turned on, the manual mode will be selected. If a program has been select­ed, reselect the manual mode by pressing the Program button repeated­ly until the letters RPM appear in the small display.
Begin pedaling and change the resistance of the pedals as desired.
As you pedal, change the resistance of the ped­als by pressing the Resistance + and – buttons. There are ten resistance levels; level 10 is the most challenging. Note: After the buttons are pressed, it will take a few seconds for the resis­tance to reach the selected level.

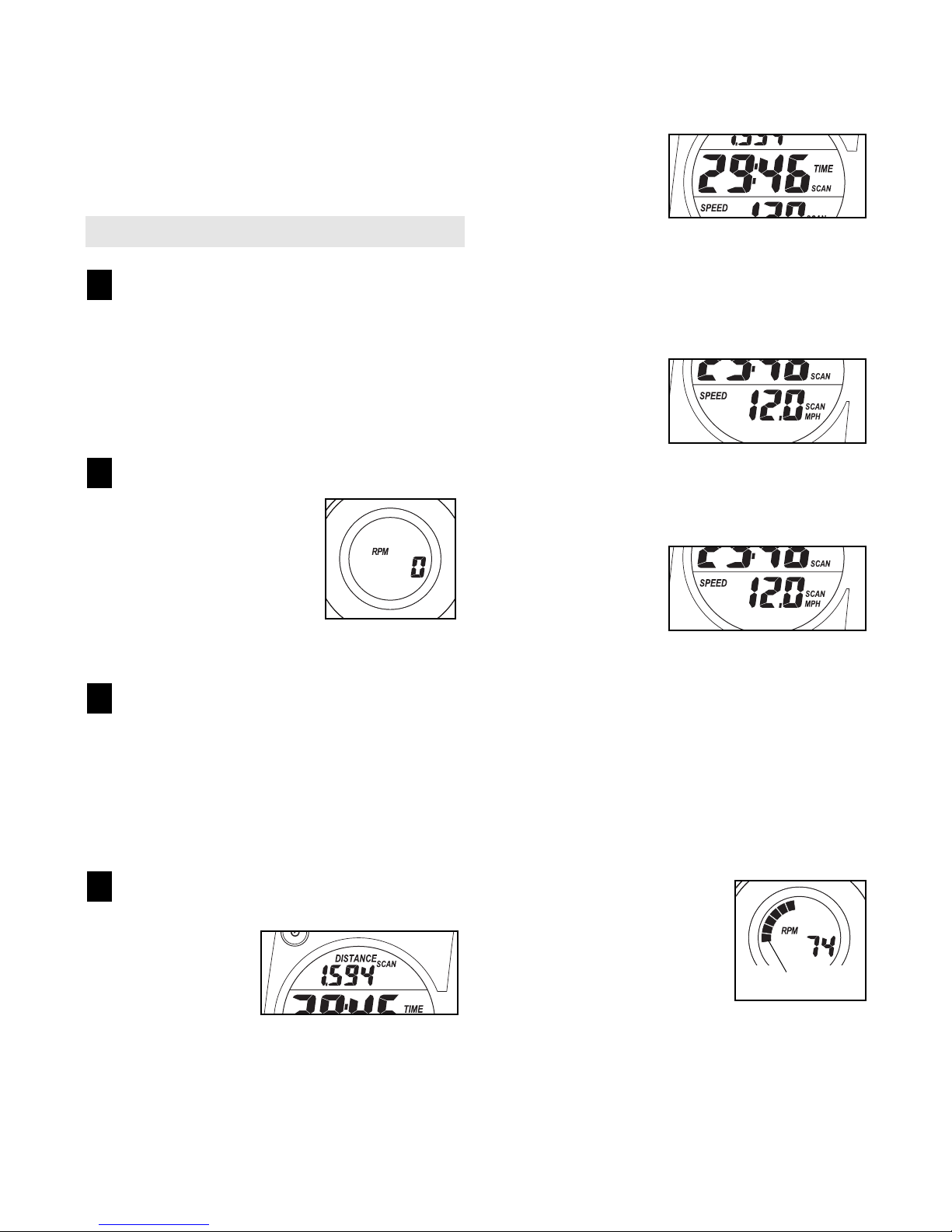

Follow your progress with the large display and the small display.
The upper sec­tion of the large display will
show the dis­tance you have pedaled and the numbers of calories and fat calories you have burned (see FAT BURNING on page 22). The dis­play will change from one number to the next
every few seconds. If you use the handgrip pulse sensor, the display will also show your heart rate (see step 5 on page 13).
The center of the large display
will show the elapsed time and your pedaling pace (in minutes per mile). The display will change from one num­ber to the other every few seconds. Note: When a program is selected (except for Heart Rate pro­gram 2), the display will show the time remaining in the program instead of the elapsed time.
The lower sec­tion of the large display will show
your pedaling speed, your ped­aling pace (in rev­olutions per minute), and the resistance level. The display will change from one number to the next every few seconds.
Note: The con­sole can show speed and dis­tance in either miles or kilome­ters. The letters
MPH or KM/H will appear in the lower section of the large display to show which unit of measure­ment is selected. To change the unit of measure­ment, first hold down the Program button for a few seconds. An E (for English) or an M (for metric) will appear in the lower section of the large display. Press the Resistance + button to change the unit of measurement. Then, press the On/Reset button. Note: When the batteries are replaced, it may be necessary to reselect the desired unit of measure­ment.
The small display will show your pedaling pace (in revolutions per minute). The indicator bar in the small display will increase or decrease in length as you increase or decrease your pedaling pace. Note: When you use a Heart Rate program, the small display will show your heart rate instead of your pedaling pace (see step 5 on page 13).
4
3
2
1
Indicator Bar
13
To reset the displays, press the On/Reset button.
Measure your heart rate if desired.
If there are thin sheets of plastic on the metal contacts on the hand­grips, peel off the plastic. To
use the hand­grip pulse sen­sor, hold the handgrips with your palms rest­ing against the metal contacts. Avoid moving your hands. When your pulse is detected, the heart-shaped indicator in the large display will flash each time your heart beats, and your heart rate will be shown.
For the most accurate heart rate reading, continue to hold the handgrips for about 30 seconds. Note: When you first hold the handgrips, the large dis­play will show your heart rate continuously for 30 seconds. The display will then show your heart rate along with other feedback modes.

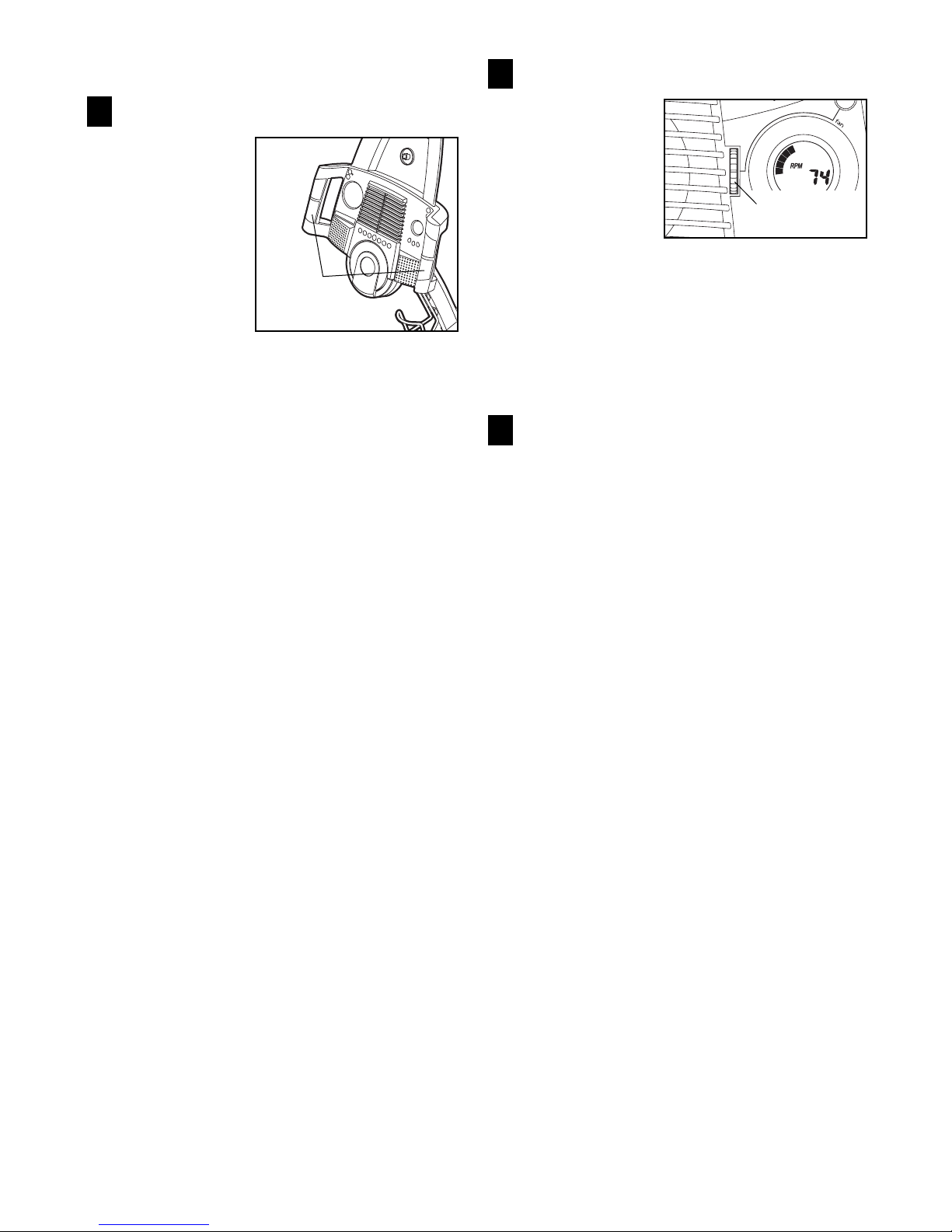

Turn on the fan if desired.
To turn on the fan at low speed, press the fan button. To turn on the fan at high speed, press the fan button a second time. To turn off the fan, press the fan button a third time. Note: If the fan is turned on but the pedals are not moved for thirty seconds, the fan will automatically turn off.
Rotate the thumb wheel on the right side of the fan to pivot the fan to the desired angle.
When you are finished exercising, the console will automatically turn off.
If the pedals are not moved for a few seconds, the displays will pause and the time will flash in the large display. If the pedals are not moved and the console buttons are not pressed for a few minutes, the console will turn off to conserve the batteries.
7
6
5
Metal
Contacts
Thumb Wheel
14
Each Smart program will automatically change the resistance of the pedals and prompt you to increase or decrease your pace as it guides you through an effec­tive workout. Programs 3 and 4 are weight loss pro­grams, programs 5 and 6 are aerobic programs, and programs 7 and 8 are high-performance programs.
Follow the steps below to use a Smart program.
Turn on the console.
See step 1 on page 12.
Select one of the Smart programs.
Each time the console is turned on, the manual mode will be selected. To select a Smart program, press the Program button repeatedly until the num­ber 3, 4, 5, 6, 7, or 8 appears in the small dis­play.
Begin pedaling to start the program.
Each Smart program consists of either 20 or 30 one-minute periods. One resistance level and one target pace are programmed for each period. Note: The same resistance level and/or target pace may be programmed for two or more con­secutive periods.
When you begin pedaling, the resistance of the pedals will automatically change to the resistance level programmed for the first period. Note: If the resistance level is too high or too low, you can change it by pressing the Resistance buttons.
The target pace for the first period will appear in the small display for a few seconds, and the arrows in the small display will help you to pedal at the target pace—simply increase or decrease your pace until one segment of the indicator bar
appears at the tip of each arrow (see the drawing at the right). Note: When the word TARGET does not appear in the small display, your actual pedaling pace will be shown. Important:
The target pace is intended only to provide a goal. Your actual pace may be slower than the target pace, especially during the first few months of your exercise program. Make sure to pedal at a pace that is comfortable for you.
During the last three seconds of each period, a series of tones will sound and the time will flash in the large display. The resistance of the pedals will then change if a different resistance level is pro­grammed for the next period. In addition, the number of arrows in the small display will change if a different target pace is programmed for the next period.
During the program, the center of the large dis­play will show the time remaining in the program. If you stop pedaling for a few seconds, the dis­plays will pause and the time will flash. To restart the program, resume pedaling.
Follow your progress with the large display.
See step 4 on page 12.
Measure your heart rate if desired.
See step 5 on page 13.
Turn on the fan if desired.
See step 6 on page 13.
When you are finished exercising, the console will automatically turn off.
See step 7 on page 13.
7
6
5
4
3
2
1
HOW TO USE A SMART PROGRAM
Arrows
Indicator
Bar
15
Heart Rate program 1 is designed to keep your heart rate between 65% and 85% of your maximum heart rate during your workout. (Your maximum heart rate is estimated by subtracting your age from 220. For example, if you are 25 years old, your maximum heart rate is 195 beats per minute.) Heart Rate program 2 is designed to keep your heart rate near a target heart rate that you select.
Follow the steps below to use a Heart Rate program.
Turn on the console.
See step 1 on page 12.
Select one of the Heart Rate programs.
Each time the console is turned on, the manual mode will be selected. To select a Heart Rate pro­gram, press the Program button repeatedly until the number 1 or 2 appears in the small display.
Enter your age or a target heart rate. If program 1 is selected, the word AGE and the
current age setting will appear in the large display. If you have already entered your age, press the Enter button. If you have not entered your age, press the small + and – buttons to enter your age, and then press the Enter button. Once you have entered your age, it will be saved in memory until the batteries are replaced.
If program 2 is selected, the letters PLS and the current target heart rate will appear in the large display. If you do not wish to change the target heart rate, press the Enter button. If you wish to change the target heart rate, press the small + and – buttons, and then press the Enter button. The target heart rate can be from 70 to 170 beats per minute.
Hold the handgrip pulse sensor
.
It is not necessary to hold the handgrips continu­ously during a Heart Rate program; however, you must hold the handgrips frequently for the program
to operate properly. Each time you hold the
handgrips, keep your hands on the metal con­tacts for at least 30 seconds.
Begin pedaling to start the program. Heart rate program 1 consists of 20 one-minute
periods. One resistance level and one target heart rate are programmed for each period. (Note: The same resistance level and/or target heart rate may be programmed for two or more consecutive periods.) Heart Rate program 2 is sixty minutes long (you may choose to use only part of the pro­gram). The same resistance level and target heart rate are programmed for the entire program.
When you begin pedaling, the resistance of the pedals will automatically change to the resistance level programmed for the first period.
As you pedal, the arrows in the small display will help you to keep your heart rate near the current target heart rate. When you hold the handgrip pulse sensor, the console will com­pare your heart rate to the current target heart rate. If your heart rate is too far above or below the target heart rate, the number of arrows in the small display will change to prompt you to increase or decrease your pace. When the num­ber of arrows changes, change your pace until one segment of the indicator bar appears at the tip of each arrow. Important: The target pace is
intended only to provide a goal. Your actual pace may be slower than the target pace, especially during the first few months of your exercise program. Make sure to pedal at a pace that is comfortable for you.
During the last three seconds of each period, a series of tones will sound and the time will flash in the large display. The resistance of the pedals will then change if a different resistance level is pro­grammed for the next period. Note: If the resis­tance level is too high or too low, you can adjust it by pressing the Resistance buttons. However, when the next period begins, the resistance will automatically change if a different resistance level is programmed for the next period.
5
4
3
2
1
HOW TO USE A HEART RATE PROGRAM
Arrows
Indicator
Bar
16
The program will continue in this way until the large display shows that no time remains in the program. Note: If you stop pedaling for a few sec­onds, the program will end. To use the program again, reselect it and start it at the beginning.
Follow your progress with the large display.
See step 4 on page 12.
Turn on the fan if desired.
See step 6 on page 13.
When you are finished exercising, the console will automatically turn off.
See step 7 on page 13.
HOW TO USE IFIT.COM CD PROGRAMS
When you use an iFIT.com CD program, a certified personal trainer will guide you through your workout while the program interactively controls the resistance of the pedals and prompts you to increase or decrease your pace. Note: To purchase iFIT.com CDs, call
toll-free 1-800-735-0768.
Follow the steps below to use an iFIT.com CD program.
Turn on the console.
See step 1 on page 12.
Select the iFIT.com mode.
Each time the console is turned on, the manual mode will be selected. To use an iFIT.com CD, press the iFIT.com button. The iFIT.com indicator will light and the letters IF will appear in the small display.
Insert an iFIT.com CD into the CD player.
To open the CD player, slide the center button on the CD player upward. Carefully insert an iFIT.com CD into the CD player and then close the lid.
Press the Play/Pause button to start the program.
To start the CD program, press the play/pause button on the CD player. Amoment after the button is pressed, your personal trainer will begin guiding you through your workout. Simply follow your per­sonal trainer’s instructions.
4
3
2
1
8
7
6
17
The CD program will function in almost the same way as a Smart program (see step 3 on page 14). However, an electronic “chirping” sound will alert you when the resistance level and/or the target pace is about to change. Note: If the resistance
level and/or the target pace does not change when a “chirp” is heard, make sure that the iFIT.com indicator is lit. In addition, adjust the volume (see step 5 below). If the volume is too high or too low, the console may not detect the program signals.
To stop the pro­gram at any time, press the play/pause but­ton and stop pedaling. To restart the program, press the play/pause button and begin pedaling.
Note: To select a different pro­gram on the CD, press the skip/search but­tons on the CD player.
Adjust the volume if desired.
To adjust the volume, press the Volume – and + buttons on the CD player.
Follow your progress with the large display.
See step 4 on page 12.
Measure your heart rate if desired.
See step 5 on page 13.
Turn on the fan if desired.
See step 6 on page 13.
When you are finished exercising, the console will automatically turn off.
See step 7 on page 13.
Note: Always remove iFIT.com CDs from the CD player when you are finished using them.
HOW TO PLAY MUSIC CDS
If desired, you can play your own music CDs in the CD player. Before playing music CDs, select the manual mode of the console (see HOW TO USE THE MANUAL MODE on page 12).
9
8
7
6
5
18
HOW TO CONNECT THE EXERCISE CYCLE TO YOUR VCR OR COMPUTER
HOW TO CONNECT TO YOUR VCR
Note: If your VCR has an unused AUDIO OUT jack, see instruction A below. If the AUDIO OUT jack is being used, see instruction B. If you have a TV with a built-in VCR, see instruction B.
A. Plug one end of a 1/8” to RCA stereo audio cable
(available at electronics stores) into the jack beneath the console. Plug the other end of the cable into the AUDIO OUT jack on your VCR.
B. Plug one end of a 1/8” to RCA stereo audio cable
(available at electronics stores) into the jack beneath the console. Plug the other end of the cable into an RCA Y-adapter (available at electron­ics stores). Next, remove the wire that is currently plugged into the AUDIO OUT jack on your VCR and plug the wire into the unused side of the Y­adapter. Plug the Y-adapter into the AUDIO OUT jack on your VCR.
HOW TO CONNECT TO YOUR COMPUTER
Note: If your computer has a 1/8” LINE OUT jack, see instruction A. If your computer has only a PHONES jack, see instruction B.
A. Plug one end of a 1/8” to 1/8” stereo audio cable
(available at electronics stores) into the jack beneath the console. Plug the other end of the cable into the LINE OUT jack on your computer.
B. Plug one end of a 1/8” to 1/8” stereo audio cable
(available at electronics stores) into the jack beneath the console. Plug the other end of the cable into a 1/8” Y-adapter (available at electronics stores). Plug the Y-adapter into the PHONES jack on your computer. Plug your headphones or speak­ers into the other side of the Y-adapter.
Audio Cable
A
Audio Cable
B
1/8”
Y-adapter
Headphones/Speakers
Audio Cable
A
Audio Cable
B
Wire removed from
AUDIO OUT jack
RCA
Y-adapter
VIDEO AUDIO
IN
CH 34
OUT
AUDIO OUT
RIGHT LEFT
ANT. IN
RF OUT
ANT. IN
VIDEO AUDIO
IN
RF OUT CH 34
OUT
LINE OUT
PHONES
19
HOW TO USE IFIT.COM VIDEO PROGRAMS
To use iFIT.com videocassettes, the exercise cycle must be connected to your VCR. See HOW TO CON­NECT TO YOUR VCR on page 18. To purchase
iFIT.com videocassettes, call toll-free 1-800-735-
0768.
Follow the steps below to use an iFIT.com video pro­gram.
Turn on the console.
See step 1 on page 12.
Select the iFIT.com mode.
Each time the console is turned on, the manual mode will be selected. To use an iFIT.com videocas­sette, press the iFIT.com button. The iFIT.com indi­cator will light and the let­ters IF will appear in the small display.
Insert the iFIT.com videocassette.
Insert the videocassette into your VCR.
Press the play button on your VCR.
A moment after the play button is pressed, your personal trainer will begin guiding you through your workout. Simply follow your personal trainer’s instructions.
The video program will function in almost the same way as a Smart program (see step 3 on
page 14). However, an electronic “chirping” sound will alert you when the resistance level and/or the target pace is about to change.
Note: If the resistance level and/or the target pace does not change when a “chirp” is heard:
• Make sure that the iFIT.com indicator is lit.
• Adjust the volume of your VCR. If the volume is too high or too low, the console may not detect the program signals.
• Make sure that the audio cable is properly connected and that it is fully plugged in.
To stop the program at any time, stop pedaling and press the pause button on your VCR. To restart the program, press the play button on your VCR and begin pedaling.
Follow your progress with the large display.
See step 4 on page 12.
Measure your heart rate if desired.
See step 5 on page 13.
Turn on the fan if desired.
See step 6 on page 13.
When you are finished exercising, the console will automatically turn off.
See step 7 on page 13.
8
7
6
5
4
3
2
1
20
Our Web site at www.iFIT.com allows you to play iFIT.com programs directly from the internet. To use programs from our Web site, the exercise cycle must be connected to your computer. See HOW TO CON­NECT TO YOUR COMPUTER on page 18. In addi­tion, you must have an internet connection and an internet service provider. A list of specific system requirements is found on our Web site.
Follow the steps below to use a program from our Web site.
Turn on the console.
See step 1 on page 12.
Select the iFIT.com mode.
Each time the console is turned on, the manual mode will be selected. To use a program from our Web site, press the iFIT.com button. The iFIT.com indicator will light and the letters IF will appear in the small display.
Go to your computer and start an internet connection.
Start your Web browser, if necessary, and go to our Web site at www.iFIT.com.
Follow the desired links on our Web site to select a program.
Follow the on-line instructions to start the program.
When you start the program, an on-screen count­down will begin.
Return to the exercise cycle and begin pedaling.
When the on-screen countdown ends, the pro­gram will begin. The program will function in almost the same way as a Smart program (see step 3 on page 14). However, an electronic “chirp­ing” sound will alert you when the resistance level and/or the target pace is about to change.
Follow your progress with the large display.
See step 4 on page 12.
Measure your heart rate if desired.
See step 5 on page 13.
Turn on the fan if desired.
See step 6 on page 13.
When you are finished exercising, the console will automatically turn off.
See step 7 on page 13.
11
10
9
8
7
6
5
4
3
2
1
HOW TO USE PROGRAMS DIRECTLY FROM OUR WEB SITE
21
Inspect and tighten all parts of the exercise cycle reg­ularly. Replace any worn parts immediately.
To clean the exercise cycle, use a damp cloth and a small amount of mild soap. Important: To avoid
damage to the console, keep liquids away from the console and keep the console out of direct sunlight.
CD PLAYER TROUBLESHOOTING
If the CD player stops working or fails to respond, remove the batteries and then reinstall them or unplug the power supply and then plug it back in.
HOW TO MOVE THE EXERCISE CYCLE
To move the exercise cycle, stand behind it and lift the frame in the location shown below. To reduce the
risk of injury, bend your legs and keep your back straight. As you lift the frame, make sure to lift with your legs rather than your back. Carefully
move the exercise cycle on the front wheels, and then lower the frame.
HOW TO LEVEL THE EXERCISE CYCLE
After the exercise cycle has been moved to the location where it will be used, make sure that both ends of front stabilizer are touching the floor. If the exercise cycle rocks slight­ly during use, turn one or both of the leveling feet under the front stabilizer until the rocking motion is eliminated.
HANDGRIP PULSE SENSOR TROUBLESHOOTING
• Avoid moving your hands while using the handgrip pulse sensor. Excessive movement may interfere with heart rate readings.
• Do not hold the metal contacts too tightly; doing so may interfere with heart rate readings.
• For the most accurate heart rate reading, hold the metal contacts for about 30 seconds.
• For optimal performance of the handgrip pulse sen­sor, keep the metal contacts clean. The contacts can be cleaned with a soft cloth; never use alcohol,
abrasives, or chemicals.
BATTERY REPLACEMENT
If the console is using battery power, and if the dis­plays becomes dim, the batteries should be replaced. Most console problems are the result of low batteries. See assembly step 12 on page 9 for replacement instructions.
MAINTENANCE AND TROUBLESHOOTING
Lift
Here
Leveling
Foot
Wheel
22
CONDITIONING GUIDELINES
The following guidelines will help you to plan your exercise program. Remember that proper nutrition and adequate rest are essential for successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your cardiovascular system, the key to achieving the desired results is to exercise with the proper intensity. The proper intensity level can be found by using your heart rate as a guide. The chart below shows recom­mended heart rates for fat burning, maximum fat burning, and cardiovascular (aerobic) exercise.

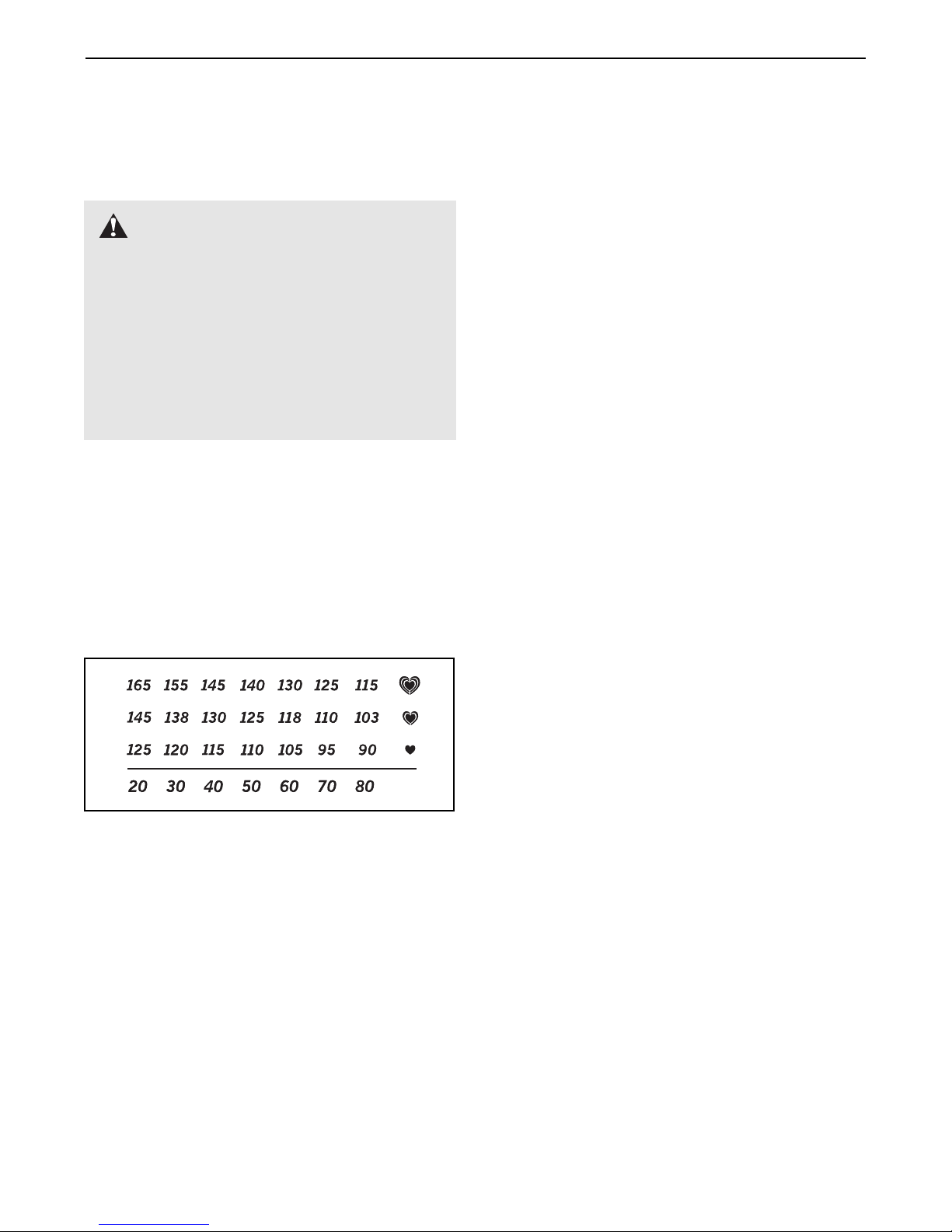

To find the proper heart rate for you, first find your age at the bottom of the chart (ages are rounded off to the nearest ten years). Next, find the three numbers above your age. The three numbers are your “training zone.” The lowest number is the recommended heart rate for fat burning; the middle number is the recommended heart rate for maximum fat burning; the highest num­ber is the recommended heart rate for aerobic exer­cise.
Fat Burning
To burn fat effectively, you must exercise at a relative­ly low intensity level for a sustained period of time.
During the first few minutes of exercise, your body uses easily accessible carbohydrate calories for ener­gy. Only after the first few minutes of exercise does your body begin to use stored fat calories for energy. If your goal is to burn fat, adjust the intensity of your exercise until your heart rate is near the lowest num­ber in your training zone as you exercise. For maxi­mum fat burning, adjust the intensity of your exercise until your heart rate is near the middle number in your training zone as you exercise.
Aerobic Exercise
If your goal is to strengthen your cardiovascular sys­tem, your exercise must be “aerobic.” Aerobic exer­cise is activity that requires large amounts of oxygen for prolonged periods of time. This increases the demand on the heart to pump blood to the muscles, and on the lungs to oxygenate the blood. For aerobic exercise, adjust the intensity of your exercise until your heart rate is near the highest number in your training zone.
WORKOUT GUIDELINES
Each workout should include the following three parts: A warm-up, consisting of 5 to 10 minutes of stretching
and light exercise. Aproper warm-up increases your body temperature, heart rate, and circulation in prepa­ration for exercise.
Training zone exercise, consisting of 20 to 30 min­utes of exercising with your heart rate in your training zone. Note: During the first few weeks of your exer­cise program, do not keep your heart rate in your training zone for longer than 20 minutes.
A cool-down, with 5 to 10 minutes of stretching. This will increase the flexibility of your muscles and will help to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, plan three work­outs each week, with at least one day of rest between workouts. After a few months of regular exercise, you may complete up to five workouts each week, if desired. Remember, the key to success is make exer­cise a regular and enjoyable part of your everyday life.
WARNING: Before beginning
this or any exercise program, consult your physician. This is especially important for persons over the age of 35 or persons with pre-existing health problems.
The pulse sensor is not a medical device. Various factors may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determin­ing heart rate trends in general.
23
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible. Hold for 15 counts, then relax. Repeat 3 times. Stretches: Hamstrings, back of knees and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot toward you and rest it against the inner thigh of your extended leg. Reach toward your toes as far as possible. Hold for 15 counts, then relax. Repeat 3 times for each leg. Stretches: Hamstrings, lower back and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your hands against a wall. Keep your back leg straight and your back foot flat on the floor. Bend your front leg, lean forward and move your hips toward the wall. Hold for 15 counts, then relax. Repeat 3 times for each leg. To cause further stretching of the achilles tendons, bend your back leg as well. Stretches: Calves, achilles tendons and ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp one foot with your other hand. Bring your heel as close to your buttocks as possible. Hold for 15 counts, then relax. Repeat 3 times for each leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward. Pull your feet toward your groin area as far as possible. Hold for 15 counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip muscles.
1
2
3
4
5
24
NOTES
25
1 1 Frame 2 1 Upright 3 2 Handlebar 4 1 Console 5 1 Right Handlebar Cover 6 1 Left Handlebar Cover 7 1 Rear Stabilizer Bracket 8 4 M6 x 16mm Button Screw 9 1 Seat
10 1 Seat Carriage Assembly
11 1 Seat Bracket 12 1 Small Frame Bushing 13 1 Front Stabilizer Cover 14 1 Left Stabilizer Endcap 15 1 Front Stabilizer 16 1 Left Rear Stabilizer 17 2 Wheel 18 1 Right Pedal Strap 19 2 Leveling Foot 20 1 Adjustment Knob 21 1 Right Pedal 22 1 Left Pedal 23 1 Right Crank Arm 24 1 Left Crank Arm 25 1 Left Pedal Strap 26 1 Left Side Shield 27 1 Right Side Shield 28 1 Large Snap Ring 29 1 Pulley 30 1 Magnet 31 1 Bottle Holder 32 1 Flywheel Washer 33 2 Crank Bearing 34 1 Flywheel 35 1 “C” Magnet 36 1 Resistance Cable Assembly 37 1 Spring 38 1 Resistance Motor 39 1 Idler Assembly 40 4 M8 x 25mm Button Screw 41 8 M4 x 12mm Screw 42 1 Upper Wire Harness 43 1 Lower Wire Harness 44 2 Bushing Bracket 45 1 Clamp 46 1 Reed Switch/Wire 47 1 Drive Belt 48 1 Flywheel Cover 49 6 M8 Nylon Locknut 50 2 Flange Screw 51 4 M6 x 13mm Button Screw 52 1 Power Supply 53 1 Right Belt Cover 54 2 M8 x 52mm Button Screw
55 1 Left Belt Cover 56 2 M4 x 50mm Screw 57 33 M4 x 16mm Screw 58 1 Small Pulley 59 4 M6 x 16mm Button Screw 60 2 M4 x 8mm Screw 61 1 M6 x 8mm Button Screw 62 6 M4 x 10mm Screw 63 2 M6 Nylon Locknut 64 3 M8 Washer 65 1 M8 x 42mm Screw 66 6 M6 Washer 67 6 M4 x 38mm Screw 68 1 Right Inner Handlebar 69 1 Large Frame Bushing 70 6 M4 x 16mm Flange Screw 71 1 Left Inner Handlebar 72 2 Snap Ring 73 1 Right Stabilizer Endcap 74 1 Steel Washer 75 2 Crank Cover 76 1 Idler Bracket 77 1 Stop Bolt 78 2 M6 Nut 79 1 Jack Bracket 80 1 Reed Switch Bracket 81 1 Frame Rail 82 2 Bumper 83 1 Frame Rail Endcap 84 1 Roller 85 1 Left Rail Cover 86 1 Right Rail Cover 87 1 Stabilizer Plate 88 6 Carriage Wheel 89 6 Small Snap Ring 90 1 Backrest 91 2 Foam Grip 92 2 Handlebar Endcap 93 3 M6 x 22mm Button Screw 94 4 M8 x 13mm Button Screw 95 4 M4 x 25mm Screw 96 4 M8 x 38mm Button Bolt 97 1 7.5mm Spacer 98 1 Right Rear Stabilizer
99 1 M6 x 25mm Button Screw 100 6 M6 x 10mm Screw 101 2 M4 x 20mm Screw 102 8 M6 x 16mm Tapered Button Screw 103 1 8.5mm Spacer 104 1 CD Holder 105 4 M8 Split Washer 106 1 Seat Back
# 1 Allen Wrench # 1 User’s Manual
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover of this manual for information about ordering replacement parts.
PART LIST—Model No. PFEX59030 R1203A
Key No. Qty. Description Key No. Qty. Description
26
EXPLODED DRAWING—Model No. PFEX59030 R1203A
51
72
70
25
36
51
34
103
38
44
75
80
50
46
57
41
57
28
78
79
45
33
49
49
6
97
70
35
64
57
77
44
37
84
102
51
20
51
41
58
32
60
12
57
102
72
60
99
1
71
41
41
57
57
5
2
69
101
82
100
39
41
65
61
76
31
104
33
30
41
74
81
100
100
23
29
101
102
82
102
4
68
18
21
75
50
100
83
52
24
22
13
15
17
66
63
19
64
56
56
64
54
17
19
66
63
47
42
43
16
14
40
98
73
87
40
27
92
91
9
91
92
90
3
49
93
106
105
49
3
94
96
105
66
66
8
8
10
88
89
88
89
48
11
88
105
89
57
94
105
93
88
89
53
57
95
96
27
95
57
67
95
95
26
67
55
57
57
62
67
85
62
57
67
86
Part No. 200758 R1203A Printed in USA © 2003 ICON Health and Fitness, Inc.
HOW TO ORDER REPLACEMENT PARTS
To order replacement parts, call our Customer Service Department toll-free at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be prepared to give the following information:
• The MODEL NUMBER of the product (PFEX59030)
• The NAME of the product (PROFORM
®
GL125 exercise cycle)
• The SERIAL NUMBER of the product (see the front cover of this manual)
• The KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST on page 25)
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of ninety (90) days from the date of pur­chase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is lim­ited to replacing or repairing, at ICON's option, the product through one of its authorized service centers. All repairs for which warranty claims are made must be pre-authorized by ICON. This warranty does not extend to any product or damage to a product caused by or attributable to freight damage, abuse, mis­use, improper or abnormal usage or repairs not provided by an ICON authorized service center, products used for commercial or rental purposes, or products used as store display models. No other warranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con­nection with the use or performance of the product or damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of inci­dental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
Loading...
