CAUTION
Read all precautions and instructions in this manual before using
this equipment. Keep this manual
for future reference.
Serial
Number
Decal
Model No. PFEX3096.0
Serial No.
QUESTIONS?
As a manufacturer, we are committed to providing complete
customer satisfaction. If you
have questions, or if parts are
damaged or missing, PLEASE
CONTACT OUR CUSTOMER
SERVICE DEPARTMENT
DIRECTLY.
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri., 6 a.m.–6 p.m. MST
ON THE WEB:
www.proformservice.com
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
USER'S MANUAL
2
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
HOW TO OPERATE THE EXERCISE CYCLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
CYCLING EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
STRENGTH EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
1. Read all instructions in this manual and all
warnings on the exercise cycle before using
the exercise cycle. Use the exercise cycle only
as described in this manual.
2. It is the responsibility of the owner to ensure
that all users of the exercise cycle are adequately informed of all precautions.
3. The exercise cycle is intended for home use
only. Do not use the exercise cycle in
a commercial, rental, or institutional setting.
4. Keep the exercise cycle indoors, away from
moisture and dust. Place the exercise cycle
on a level surface, with a mat beneath it to
protect the floor. Make sure that there is
enough clearance around the exercise cycle
to mount, dismount, and use it.
5. Inspect and properly tighten all parts regularly.
Replace any worn parts immediately.
6. Keep children under the age of 12 and pets
away from the exercise cycle at all times.
7. The exercise cycle should not be used by
persons weighing more than 250 pounds.
8. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the exercise cycle. Always wear
athletic shoes for foot protection.
9. The pulse sensor is not a medical device.
Various factors, including the user's movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
10. Always keep your back straight while using
the exercise cycle; do not arch your back.
11. If you feel pain or dizziness while exercising,
stop immediately and cool down.
12. The exercise cycle does not have a freewheel;
the pedals will continue to move until the flywheel stops.
13. The warning decals shown on page 3 have
been placed on the exercise cycle. If a decal
is missing or illegible, call the toll-free telephone number on the front cover of this manual and request a free replacement decal.
Apply the decal in the location shown.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
IMPORTANT PRECAUTIONS
WARNING:
To reduce the risk of serious injury, read the following important precau-
tions before using the exercise cycle.
3
FRONT
Seat
Seat Carriage Knob
Backrest Knob
Backrest
Pedal/Strap
Console
Pulse Sensor
Fan
Handlebar
Dumbbell
RIGHT SIDE
BEFORE YOU BEGIN
Congratulations for selecting the new PROFORM®GT
95X exercise cycle. Cycling is one of the most effective exercises for increasing cardiovascular fitness,
building endurance, and toning the entire body. The
GT 95X exercise cycle offers a selection of features
designed to let you enjoy this healthful exercise in the
convenience and privacy of your home.
For your benefit, read this manual carefully before
you use the exercise cycle. If you have questions
after reading this manual, see the front cover of this
manual. To help us assist you, please note the prod-
uct model number and serial number before contacting us. The model number is PFEX3096.0. The serial
number can be found on a decal attached to the exercise cycle (see the front cover of this manual).
To avoid a registration fee for any service needed
under warranty, you must register the exercise
cycle at www.proformservice.com/registration.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
4
ASSEMBLY
To hire an authorized service technician to assemble the exercise cycle, call toll-free 1-800-445-2480.
Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires the included tools and your own adjustable wrench and Phillips
screwdriver .
Use the part drawings below to identify the small parts used in assembly. The number in parentheses below
each drawing refers to the key number of the part, from the PART LIST on page 22. The second number refers
to the quantity needed for assembly. Note: Some small parts may have been preattached for shipping. If a
part is not in the parts bag, check to see if it has been preattached.
M8 Nylon
Locknut (47)–4
M4 x 10mm
Screw (54)–8
M8 Acorn
Nut (29)–2
M4 x 16mm
Screw (64)–4
M8 x 75mm Carriage
Bolt (43)–2
M6 x 20mm Button
M8 x 38mm Button
Bolt (45)–4
M8 Split
Washer (66)–4
Screw (52)–4
M10 Split
Washer (48)–4
M6 x 38mm Button
Screw (46)–4
M10 x 25mm Button
Screw (50)–4
M8 x 18mm
Washer (41)–2
M8 x 75mm Button
Screw (44)–2
M8 x 19mm
Washer (65)–4
M8 x 15mm
Screw (42)–6
5
4. Orient the Seat Carriage (3) as shown. Slide the Seat
Carriage onto the Seat Rail (2), and then tighten the
Seat Carriage Knob (31) into the Seat Carriage and an
adjustment hole in the Seat Rail. Make sure the Seat
Carriage Knob is engaged in one of the adjustment
holes.
1.
Identify the Front Stabilizer (9), which is shorter than
the Rear Stabilizer (not shown). While another person
lifts the front of the Frame (1), attach the Front
Stabilizer to the Frame with two M8 x 75mm Button
Screws (44), two M8 Split Washers (66), and two
M8 x 19mm Washers (65).
2. Orient the Seat Rail (2) as shown. Attach the Foot (17)
to the underside of the Seat Rail with an M8 x 15mm
Screw (42).
3. Attach the Rear Stabilizer (10) to the Seat Rail (2) with
two M8 x 75mm Carriage Bolts (43), two M8 x 19mm
Washers (65), two M8 Split Washers (66), and two M8
Acorn Nuts (29).
To make assembly easier, read the information
on page 4 before you begin assembling the
exercise cycle.
1
1
9
65
65
66
66
44
44
2
3
4
2
2
2
3
17
42
43
65
66
29
31
Adjustment
Holes
29
66
65
10
Adjustment Holes
6
7. Attach a Dumbbell Cradle (33) to the side of the Seat
Carriage (3) with two M4 x 10mm Screws (54).
Repeat this step for the other three Dumbbell
Cradles (33).
6. Identify the Left Handlebar (35), which is marked with
a sticker. Orient the Left Handlebar with the hexagonal
holes facing upward. Attach the Left Handlebar to the
Seat Carriage (3) with two M8 x 38mm Button Bolts
(45) and two M8 Nylon Locknuts (47). Make sure the
Nylon Locknuts are in the hexagonal holes.
Repeat this step for the Right Handlebar (36).
5. Slide the rear of the Frame (1) onto the Seat Rail (2).
Attach the Frame with four M10 x 25mm Button
Screws (50) and four M10 Split Washers (48).
5
6
7
50
35
45
47
Hexagonal
Holes
36
48
48
33
54
33
3
1
2
3
7
9. Attach the Seat (14) to the Seat Carriage (3) with four
M6 x 20mm Button Screws (52). Note: The Button
Screws may be preattached to the underside of the
Seat.
10. Attach the Backrest (15) to the Backrest Bracket (13)
with four M6 x 38mm Button Screws (46). Note: The
Button Screws may be preattached to the Backrest.
8. Apply a generous amount of the included grease to
the Pivot Axle (40). Then, orient the Backrest Bracket
(13) near the Seat Carriage (3) as shown.
Pull the Backrest Knob (32) and insert the Backrest
Bracket (13) into the Seat Carriage (3). Then, release
the Backrest Knob into one of the adjustment holes in
the Backrest Bracket. Make sure the Backrest Knob
is engaged in one of the adjustment holes.
Slide the Pivot Axle (40) through the Backrest Bracket
(13) and the welded tube on the Seat Carriage (3).
Then, tighten an M8 x 15mm Screw (42) with an
M8 x 18mm Washer (41) into each end of the Pivot
Axle (40).
8
9
10
42
Adjustment
Hole
Grease
13
3
3
41
40
42
13
41
14
15
46
46
52
52
52
32
8
11
12
13
4
6
6
1
11. Have another person hold the Upright (4) near the
front of the Frame (1). Locate the wire tie (see the
inset drawing) in the Upright. Tie the lower end of the
wire tie to the Wire Harness (28). Next, pull the upper
end of the wire tie upward out of the top of the
Upright. Then, untie and discard the wire tie.
Attach the Upright (4) to the Frame (1) with three
M8 x 15mm Screws (42).
Be careful to avoid pinch-
ing the Wire Harness (28).
13.While another person holds the Console (6) near the
Upright (4), connect the console wire harness to the
Wire Harness (28). Insert the excess console wire harness into the Upright.
Attach the Console (6) to the Upright (4) with four
M4 x 16mm Screws (64).
Console
Wire
Harness
12.The Console (6) requires four “D” batteries (not included); alkaline batteries are recommended. Press the
tab on the battery cover and remove it. Insert four batteries into the Console as shown. Make sure that the
batteries are oriented as shown by the markings
on the battery cover. Then, reattach the battery
cover.
42
64
64
42
Batteries
Avoid pinching the
Wire Harness (28)
during this step
Battery Cover
28
28
4
28
Wire Tie
9
15. Make sure that all parts are properly tightened before you use the exercise cycle. Note: After assembly is
completed, some extra parts may be left over. Place a mat beneath the exercise cycle to protect the floor.
14
14. Identify the Left Pedal (26), which is marked with an
“L.” Using an adjustable wrench, firmly tighten the
Left Pedal
counterclockwise
into the left arm of the
Crank (18). Tighten the Right Pedal (not shown)
clockwise
into the right arm of the Crank. Important:
Tighten both Pedals as firmly as possible. After
using the exercise cycle for one week, retighten
the Pedals. For best performance, the Pedals must
be kept tightened.
Adjust the strap on the Left Pedal (26) to the desired
position, and press the end of the strap onto the tab
on the Left Pedal. Adjust the right pedal strap in the
same way.
26
Strap
Ta b
18
10
HOW TO OPERATE THE EXERCISE CYCLE
HOW TO ADJUST THE SEAT
For effective exercise, the seat
should be in the
proper position. As
you pedal, there
should be a slight
bend in your knees
when the pedals
are in the most forward position. To
adjust the position
of the seat, first
turn the seat carriage knob counterclockwise two or
three turns to
loosen it (if the
knob is not loosened enough, it may scratch the seat
rail). Next, pull the knob, slide the seat carriage forward
or backward to the desired position, and then release
the knob into an adjustment hole in the seat rail. Then,
turn the knob clockwise until it is tight. Make sure the
seat carriage knob is engaged in an adjustment
hole.
HOW TO ADJUST THE PEDAL STRAPS
To adjust the
pedal straps, first
pull the ends of
the pedal straps
off the tabs on the
pedals. Adjust the
pedal straps to the
desired position,
and then press the
ends of the pedal
straps back onto
the tabs.
HOW TO ADJUST THE BACKREST
The backrest can be adjusted to any of three positions: the inclined (upright) position, the semi-inclined
position, and the flat position.
To adjust the backrest, first adjust
the seat to the
most forward position (see HOW TO
ADJUST THE SEAT
at the left). Next,
pull the backrest
knob, move the
backrest bracket to
the desired position,
and then release the
backrest knob into
an adjustment hole.
Make sure the
backrest knob is
engaged in an
adjustment hole.
CAUTION: Never sit on the backrest; doing so
could cause the exercise cycle to tip, resulting in
injury.
Pedal
Strap
Ta b
Seat
Rail
Seat
Carriage
Knob
Seat
Backrest
Backrest
Bracket
Backrest
Knob
11
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
When you select the manual mode of the console, you
can change the resistance of the pedals with the touch
of a button. As you exercise, the console will display
continuous exercise feedback. You can even measure
your heart rate using the handgrip pulse sensor.
The console offers four trainer programs that automatically change the resistance of the pedals and prompt
you to increase or decrease your pace while guiding
you through an effective workout.
The console also features six interactive cross training
programs designed to help you to burn calories and
enhance your cardiovascular system while toning and
strengthening your muscles. The cross training programs automatically control the resistance of the pedals and prompt you to perform a variety of strength
exercises during your workout. Choose an upper body,
lower body, or whole body cross training program for
an effective workout. Note: The strength exercises
require the use of the included dumbbells and an
inflatable exercise ball (not included). To purchase an
exercise ball, call toll-free 1-888-533-1333.
To use the manual mode of the console, follow the
steps beginning on page 12. To use a trainer
program, see page 14. To use a cross training
program, see page 15.
Note: If there is a sheet of clear plastic on the face
of the console, remove the plastic.
12
HOW TO USE THE MANUAL MODE
Press any button or begin pedaling to turn on
the console.
A moment after you turn on the console, the display will light.
Select the manual mode.
Each time you turn on the console, the manual
mode will be selected automatically. If you have
selected a program, reselect the manual mode by
pressing the Program button repeatedly until the
words MANUAL MODE appear in the top of the
display.
Begin pedaling and change the resistance of
the pedals as desired.
As you pedal, change the resistance of the pedals by pressing the Increase and Decrease buttons repeatedly. There are ten resistance levels.
Note: After you press the buttons, it will take a
moment for the pedals to reach the selected
resistance level.
Follow your progress with the display.
The left side of the
display—This side of
the display will show
the elapsed time.
Note: When a program is selected, the
display will show the time remaining in the program instead of the elapsed time.
The left side of the display will also show your
heart rate when you use the handgrip pulse sensor (see step 5 on page 13).
When a program is selected, the left side of the
display will also show the approximate number of
calories you have burned.
The center of the
display—When you
select the manual
mode, the center of
the display will show a
track that represents
1/4 mile. As you exercise, indicators will appear in
succession around the track until the entire track
appears. The track will then disappear and the
indicators will again begin to appear in succession.
The center of the display will also show the
resistance setting of
the pedals for a few
seconds each time the
resistance setting
changes.
The right side of the
display—This side of
the display will show
the distance (in miles
or kilometers) you
have pedaled and
your pedaling pace, in miles or kilometers per
hour.
The top of the display—When you
select the manual
mode, the top of the
display will show the
approximate number
of calories you have burned.
Note: The console
can display speed
and distance in
either miles or kilometers. The letters
MPH or Km/H will
appear in the display to indicate the selected unit
of measurement. To change the unit of measurement, first hold down the Program button for several seconds. An E (for English) or an M (for metric) will appear in the display. Press the Increase
button to change the unit of measurement. When
the desired unit of measurement is selected, press
the Program button again. Note: When you
replace the batteries, it may be necessary to reselect the unit of measurement.
4
3
2
1
13
Measure your heart rate if desired.
If there are sheets
of clear plastic on
the metal contacts
on the handgrip
pulse sensor,
remove the plastic.
To measure your
heart rate, hold the
handgrip pulse sensor with your palms
resting against the metal contacts. Avoid moving
your hands or gripping the contacts too
tightly.
When your pulse is
detected, a heartshaped symbol will
flash in the left side
of the display each
time your heart
beats, one or two dashes will appear, and then
your heart rate will be shown. For the most accurate heart rate reading, hold the contacts for at
least 15 seconds. Note: If you continue to hold the
handgrip pulse sensor, the display will show your
heart rate for up to 30 seconds.
If your heart rate is not shown, make sure that
your hands are positioned as described. Be careful not to move your hands excessively or to
squeeze the metal contacts too tightly. For optimal performance, clean the metal contacts using
a soft cloth; never use alcohol, abrasives, or
chemicals to clean the contacts.
Turn on the fan if desired.
To turn on the fan at
high speed, press the
Fan button. To turn on
the fan at low speed,
press the button a
second time. To turn
off the fan, press the
button a third time.
Note: If the pedals do
not move for a few minutes, the fan will automatically turn off to conserve the batteries.
Pivot the thumb tab on the right side of the fan to
adjust the fan angle.
When you are finished exercising, the console
will turn off automatically.
If the pedals do not move for several seconds, a
tone will sound and the console will pause.
If the pedals do not move for about five minutes
and the buttons are not pressed, the console will
turn off and the display will be reset.
7
65
Thumb Tab
Metal Contacts
14
HOW TO USE A TRAINER PROGRAM
Press any button or begin pedaling to turn on
the console.
A moment after you turn on the console, the display will light.
Select a trainer program.
Press the Program button repeatedly until the
words TRAINER 1, TRAINER 2, TRAINER 3 or
TRAINER 4 appear in the display. When you
select a trainer program, the program time will
appear in the display and a profile of the resistance levels for the program will scroll across the
center of the display.
Begin pedaling to start the program.
Each program is divided into 30 one-minute segments. One resistance level and one target speed
setting are programmed for each segment. Note:
The same resistance level and/or target speed setting may be programmed for two or more consecutive segments.
The resistance level for
the first segment will be
shown in the flashing
Current Segment column of the profile. The
resistance levels for
the next several segments will be shown in the
columns to the right. The target speed setting will
appear in the top of the display.
When only three seconds remain in the first segment of the program, both the Current Segment
column and the column to the right will flash and
a series of tones will sound. If the resistance
and/or target speed is about to change, the resistance level and/or the target speed setting will
appear in the display to alert you.
When the first segment is completed,
all resis-
tance settings will move one column to the left
.
The resistance level for the second segment will
then be shown in the flashing Current Segment
column and the resistance of the pedals will
automatically adjust to the setting for the second
segment. Note: If all the indicators in the Current
Segment column are lit,
the resistance settings
may move downward
so that only the highest indi-
cators appear.
As you exercise, you will be prompted to keep
your pedaling pace near the target speed setting
for the current segment. When the words PEDAL
FASTER appear in the display, increase your
pace. When the words PEDAL SLOWER appear
in the display, decrease your pace. When the
words PEDALING IN RANGE appear, maintain
your current pace.
Important: The target speed settings are
intended only to provide motivation. Your
actual pace may be slower than the target
speed settings. Make sure to exercise at a
pace that is comfortable for you.
You can manually override the resistance level by
pressing the Increase or Decrease button. Every
few times you press a button, an additional indicator will appear or disappear in the Current
Segment column. Important: When the current
segment of the program ends, the pedals will
automatically adjust to the resistance level for
the next segment.
To stop the program at any time, stop pedaling.
The time will begin to flash in the display. To
restart the program, simply resume pedaling.
When the last segment of the program ends, the
words PROGRAM DONE will appear in the display.
Follow your progress with the display.
See step 4 on page 12.
Measure your heart rate if desired.
See step 5 on page 13.
Turn on the fan if desired.
See step 6 on page 13.
When you are finished exercising, the console
will turn off automatically.
See step 7 on page 13.
7
6
5
4
3
2
1
Current Segment
15
HOW TO USE A CROSS TRAINING PROGRAM
Press any button or begin pedaling to turn on
the console.
A moment after you turn on the console, the display will light.
Select a cross training program.
Press the Program button repeatedly until the
name of the desired cross training program
appears in the display. When you select a cross
training program, the program time will appear in
the display and a profile of the resistance levels
for the program will scroll across the center of the
display.
Begin pedaling to start the program.
Each program is divided into 25, 30 or 45 oneminute segments. One resistance level and one
target speed setting are programmed for most
segments. (The same resistance level and/or tar-
get speed setting may be programmed for two or
more consecutive segments.) During other segments, the console will prompt you to perform
strength exercises.
The displays for the cross training programs work
in the same way as the display for the trainer programs (see step 3 on page 14).
As you exercise, you will be prompted to keep
your pedaling pace near the target speed setting
for the current segment. When the words PEDAL
FASTER appear in the display, increase your
pace. When the words PEDAL SLOWER appear,
decrease your pace. When the words PEDALING
IN RANGE appear, maintain your current pace.
Important: The target speed settings are
intended only to provide motivation. Your
actual pace may be slower than the target
speed settings. Make sure to exercise at a
pace that is comfortable for you.
To stop the program at any time, stop pedaling.
The time will begin to flash in the display. To
restart the program, simply resume pedaling.
3
2
1
16
Perform the first strength exercise when
prompted.
When the first strength exercise segment begins,
the name of the first strength exercise will appear
in the display for a few seconds. The time will
pause and flash in the display. Next, the display
will show the recommended number of repetitions
for the first strength exercise.
Step off the
exercise cycle and
prepare to begin
the first strength
exercise. Every few
seconds, the console will sound a
tone; when a tone sounds, perform one repetition
of the exercise. Exercise with a slow, steady
motion; do not perform more than one repetition
each time a tone sounds. The display will count
down the repetitions as you perform them.
Note: Refer to the accompanying exercise chart
to see the correct form for each exercise. When
performing lunges, alternate legs with each repetition. When performing dumbbell rows, perform
half the repetitions with your right arm and half
the repetitions with your left arm. The strength
exercises require the use of the included dumbbells and an inflatable exercise ball (not included).
To purchase an exercise ball, call toll-free
1-888-533-1333.
Continue the cross training program.
When you have performed the recommended
number of repetitions, the words START PEDALING will appear in the display. To continue the
cross training program, step onto the exercise
cycle and start pedaling. the pedals will automatically adjust to the resistance level for the next
segment.
The program will continue in this way until the last
segment ends. Then, the words PROGRAM
DONE will appear in the display.
Follow your progress with the display.
See step 4 on page 12.
Measure your heart rate if desired.
See step 5 on page 13.
Turn on the fan if desired.
See step 6 on page 13.
When you are finished exercising, the console
will turn off automatically.
See step 7 on page 13.
9
8
7
6
54
17
Inspect and properly tighten all parts of the exercise
cycle regularly. Replace any worn parts immediately.
To clean the exercise cycle, use a damp cloth and a
small amount of liquid dish soap. Important: To
avoid damage to the console, keep liquids away
from the console and keep the console out of
direct sunlight.
BATTERY REPLACEMENT
If the console display becomes dim, the batteries
should be replaced; most console problems are the
result of low batteries. To replace the batteries, see
assembly step 12 on page 8.
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. To adjust the reed
switch, you must first remove the left side shield.
Using an adjustable wrench, turn the left pedal clockwise and remove it. Next, remove the screws from
the left side shield. Note: There are different sizes of
screws attaching the left side shield. Be sure to note
the location of each screw. Then, carefully remove
the left side shield.
With the left side shield removed, locate the Reed
Switch (24). Turn the Crank (18) until the Magnet (19)
is aligned with the Reed Switch. Next, loosen, but do
not remove, the indicated Reed Switch Screw (49).
Slide the Reed Switch slightly closer to or away from
the Magnet, and then retighten the Screw. Turn the
Crank for a moment. Repeat until the console displays correct feedback. When the Reed Switch is correctly adjusted, reattach the left side shield and the
left pedal.
HANDGRIP PULSE SENSOR TROUBLESHOOTING
If the handgrip pulse sensor does not function properly,
see step 5 on page 13.
MAINTENANCE AND TROUBLESHOOTING
19
24
49
18
View From Front
18
CYCLING EXERCISE GUIDELINES
The following guidelines will help you to plan your
exercise program. Remember that proper nutrition
and adequate rest are essential for successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. The chart below shows recommended heart rates for fat burning, maximum fat
burning, and cardiovascular (aerobic) exercise.
To find the proper heart rate for you, first find your age
at the bottom of the chart (ages are rounded off to the
nearest ten years). Next, find the three numbers above
your age. The three numbers are your “training zone.”
The lowest number is the recommended heart rate for
fat burning, the middle number is the recommended
heart rate for maximum fat burning, and the highest
number is the recommended heart rate for aerobic
exercise.
Fat Burning
To burn fat effectively, you must exercise at a relatively low intensity level for a sustained period of time.
During the first few minutes of exercise, your body
uses easily accessible
carbohydrate
calories for energy. Only after the first few minutes of exercise does
your body begin to use stored
fat
calories for energy.
If your goal is to burn fat, adjust the intensity of your
exercise until your heart rate is near the lowest number in your training zone as you exercise.
For maximum fat burning, adjust the intensity of your
exercise until your heart rate is near the middle of
your training zone as you exercise.
Aerobic Exercise
If your goal is to strengthen your cardiovascular system, your exercise must be “aerobic.” Aerobic exercise is activity that requires large amounts of oxygen
for prolonged periods of time. This increases the
demand on the heart to pump blood to the muscles,
and on the lungs to oxygenate the blood. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A warm-up, consisting of 5 to 10 minutes of stretching
and light exercise. A proper warm-up increases your
body temperature, heart rate, and circulation in preparation for exercise.
Training zone exercise, consisting of 20 to 30 minutes of exercising with your heart rate in your training
zone. Note: During the first few weeks of your exercise program, do not keep your heart rate in your
training zone for longer than 20 minutes.
A cool-down, with 5 to 10 minutes of stretching. This
will increase the flexibility of your muscles and will
help to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, plan three workouts each week, with at least one day of rest between
workouts. After a few months of regular exercise, you
may complete up to five workouts each week, if
desired. Remember, the key to success is make exercise a regular and enjoyable part of your everyday life.
WARNING: Before beginning
this or any exercise program, consult your
physician. This is especially important for
persons over the age of 35 or persons with
pre-existing health problems.
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determining heart rate trends in general.
19
STRENGTH EXERCISE GUIDELINES
STRENGTH EXERCISE GUIDELINES
The exercise cycle and the included dumbbells can be
used for a variety of strength exercises designed to
trim, tone, and strengthen the body. Please read these
guidelines before performing strength exercises.
It is recommended that your strength exercise program
include three strength workouts each week. Use the
exercise cycle’s interactive cross training programs to
combine strength exercises with cycling exercise. An
alternative is to perform strength exercises and cycling
exercise on alternating days. For example, perform
strength exercises on Tuesday, Thursday, and
Saturday, and plan cycling exercise on Monday,
Wednesday, and Friday. Make sure to rest for at least
one full day each week to give your body time to
regenerate. CAUTION: It is very important to avoid
overdoing it during the first few months of your
exercise program, and to progress at your own
pace.
Begin each workout with five to ten minutes of stretching and light exercise to warm up. A proper warm-up
increases your body temperature, heart rate, and circulation in preparation for exercise.
After warming up, perform a selection of strength exercises. The cross training programs will guide you
through a variety of strength exercises. Consult a reputable book to find additional strength exercises. When
you use a cross training program, you will be prompted to perform a specific number of repetitions. When
you are not using a cross training program, begin with
12 repetitions for each exercise that you perform. (A
“repetition” is one complete cycle of an exercise, such
as one shoulder press.) As your fitness level increases, perform two or three sets of repetitions for each
exercise. Always rest for at least one minute after each
set. When you can complete three sets of 12 repetitions without difficulty, you may choose to use heavier
weights.
Finish each workout with five to ten minutes of stretching to cool down. This will increase your flexibility and
will help to prevent soreness.
EXERCISE FORM
For the best results, correct form is important.
Maintaining proper form means moving through the full
range of motion for each strength exercise, and moving only the appropriate parts of the body. Make sure
to perform each strength exercise with a smooth,
steady motion. Exhale as you exert yourself, and
inhale as you return to the starting position; never hold
your breath.
STAYING MOTIVATED
For motivation, try listening to music or watching television while you exercise. Use a calendar to keep a
record of your workouts, and record key body measurements at the end of every month. Remember, the
key to lasting results is to make exercise a regular and
enjoyable part of your daily life.
WARNING: Before beginning any
exercise program, consult your physician.
This is especially important for persons over
the age of 35 or persons with pre-existing
health problems.
20

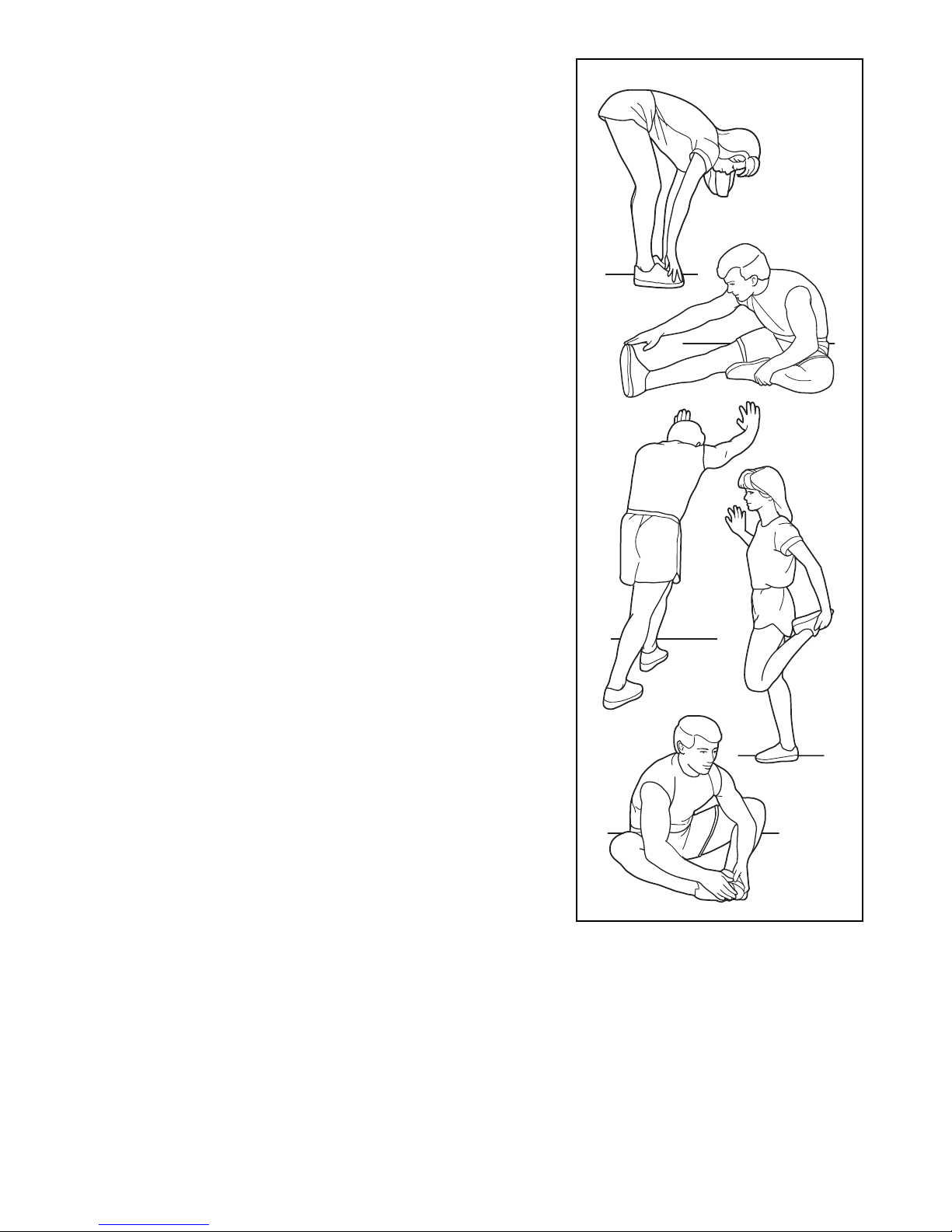

SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right.
Move slowly as you stretch—never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach
down toward your toes as far as possible. Hold for 15 counts,
then relax. Repeat 3 times. Stretches: Hamstrings, backs of
knees, and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot
toward you and rest it against the inner thigh of your extended
leg. Reach toward your toes as far as possible. Hold for 15
counts, then relax. Repeat 3 times for each leg. Stretches:
Hamstrings, lower back, and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your back
foot flat on the floor. Bend your front leg, lean forward, and move
your hips toward the wall. Hold for 15 counts, then relax. Repeat
3 times for each leg. To cause further stretching of the achilles
tendons, bend your back leg as well. Stretches: Calves, achilles
tendons, and ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp
one foot with your other hand. Bring your heel as close to your
buttocks as possible. Hold for 15 counts, then relax. Repeat 3
times for each leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward.
Pull your feet toward your groin as far as possible. Hold for 15
counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip
muscles.
1
2
3
4
5
21
NOTES
22
1 1 Frame
2 1 Seat Rail
3 1 Seat Carriage
4 1 Upright
5 1 Upright Endcap
6 1 Console
7 1 Left Side Shield
8 1 Right Side Shield
9 1 Front Stabilizer
10 1 Rear Stabilizer
11 4 M5 x 12mm Screw
12 1 M8 x 20mm Bolt
13 1 Backrest Bracket
14 1 Seat
15 1 Backrest
16 4 Stabilizer Endcap
17 1 Foot
18 1 Pulley/Crank
19 1 Magnet
20 1 Crank Bearing Assembly
21 1 Drive Belt
22 1 Eddy Mechanism
23 1 Resistance Motor
24 1 Reed Switch/Wire
25 1 Clamp
26 1 Left Pedal/Strap
27 1 Right Pedal/Strap
28 1 Wire Harness
29 2 M8 Acorn Nut
30 1 Seat Carriage Endcap
31 1 Seat Carriage Knob
32 1 Backrest Knob
33 4 Dumbbell Cradle
34 2 Dumbbell
35 1 Left Handlebar
36 1 Right Handlebar
37 2 Foam Grip
38 2 Handlebar Endcap
39 2 Seat Carriage Bushing
40 1 Pivot Axle
41 2 M8 x 18mm Washer
42 6 M8 x 15mm Screw
43 2 M8 x 75mm Carriage Bolt
44 2 M8 x 75mm Button Screw
45 4 M8 x 38mm Button Bolt
46 4 M6 x 38mm Button Screw
47 4 M8 Nylon Locknut
48 4 M10 Split Washer
49 1 Reed Switch Screw
50 4 M10 x 25mm Button Screw
51 2 3/8" x 4mm Nut
52 4 M6 x 20mm Button Screw
53 8 M5 x 7mm Screw
54 8 M4 x 10mm Screw
55 1 Idler
56 1 Idler Spring
57 1 Eddy Cable
58 2 Eye Bolt
59 2 “U” Bracket
60 2 M6 Nut
61 2 3/8" x 7mm Nut
62 1 Idler Washer
63 1 M8 Jamnut
64 4 M4 x 16mm Screw
65 4 M8 x 19mm Washer
66 4 M8 Split Washer
67 8 M5 x 15mm Screw
68 2 M4 x 25mm Screw
# 2 Hex Key
# 1 Assembly Tool
# 1 Grease Packet
# 1 User’s Manual
Note: # indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover
of this manual for information about ordering replacement parts.
PART LIST—Model No. PFEX3096.0 R0607A
Key No. Qty. Description Key No. Qty. Description
23
EXPLODED DRAWING—Model No. PFEX3096.0 R0607A
16
44
66
38
65
37
26
20
64
66
42
65
64
67
28
9
35
15
13
5
18
7
61
45
4
42
16
49
25
24
63
1
58
57
60
48
33
54
33
59
47
54
68
6
20
55
62
56
51
50
12
23
22
39
53
19
11
58
51
53
3
53
21
34
61
59
53
60
39
27
30
14
52
31
42
52
16
41
32
33
29
66
65
42
2
17
40
54
42
38
37
54
33
68
8
29
66
65
41
46
36
47
45
10
46
67
67
16
43
67
Part No. 246090 R0607A Printed in China © 2007 ICON IP, Inc.
ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to give
the following information when contacting us:
• the MODEL NUMBER of the product (PFEX3096.0)
• the NAME of the product (PROFORM GT 95X exercise cycle)
• the SERIAL NUMBER of the product (see the front cover of this manual)
• the KEY NUMBER and DESCRIPTION of the part(s) (see pages 22 and 23)
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of ninety (90) days from the date of purchase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing or repairing, at ICON's option, the product through one of its authorized service centers.
All repairs for which warranty claims are made must be pre-authorized by ICON. This warranty does not
extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an ICON authorized service center, products
used for commercial or rental purposes, or products used as store display models. No other warranty
beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss
of property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth
herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above
limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
PROFORM is a registered trademark of ICON IP, Inc.
Loading...
