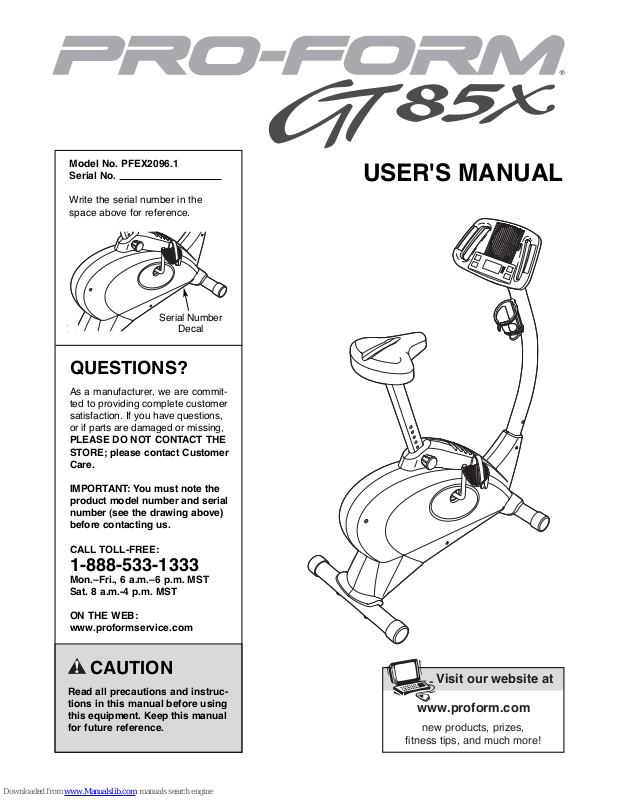

Pro-Form GT85X User Manual

Page 1
CAUTION
Read all precautions and instruc­tions in this manual before using this equipment. Keep this manual for future reference.
Serial Number
Decal
Model No. PFEX2096.1 Serial No.
Write the serial number in the space above for reference.
USER'S MANUAL
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
QUESTIONS?
As a manufacturer, we are commit­ted to providing complete customer satisfaction. If you have questions, or if parts are damaged or missing,
PLEASE DO NOT CONTACT THE STORE; please contact Customer Care.
IMPORTANT: You must note the product model number and serial number (see the drawing above) before contacting us.
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri., 6 a.m.–6 p.m. MST Sat. 8 a.m.-4 p.m. MST
ON THE WEB: www.proformservice.com
Page 2
2
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO OPERATE THE EXERCISE CYCLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

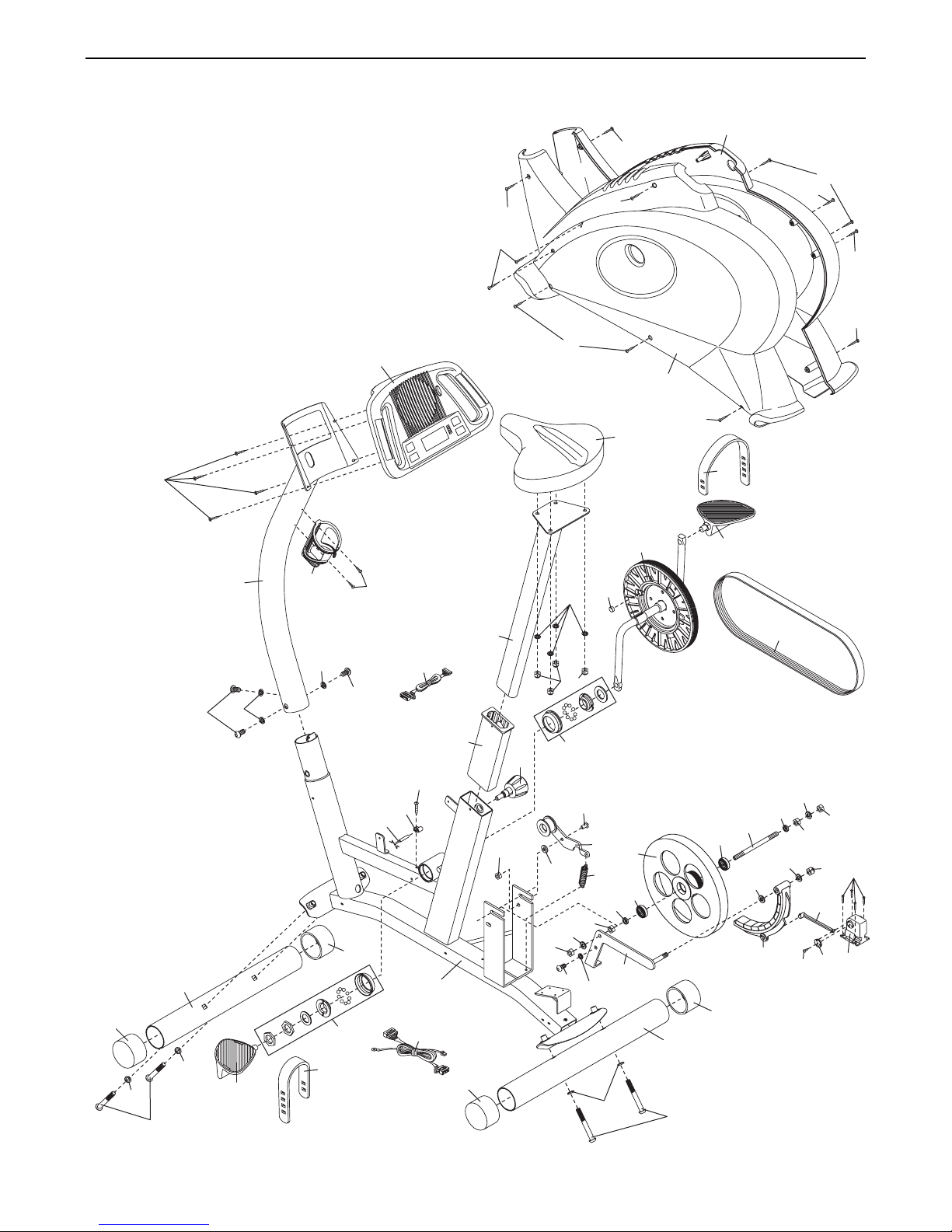

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
PROFORM is a registered trademark of ICON IP, Inc.
WARNING DECAL PLACEMENT
The warning decal shown here has been applied in the location shown. If a decal is
missing or illegible, call the telephone number on the front cover of this manual and request a free replacement decal. Apply the decal in the location shown. Note: The
decal may not be shown at actual size.
Page 3
3
1. Before beginning any exercise program, con­sult your physician. This is especially impor­tant for persons over the age of 35 or per­sons with pre-existing health problems.
2. It is the responsibility of the owner to ensure that all users of the exercise cycle are ade­quately informed of all precautions.
3. Your exercise cycle is intended for home use only. Do not use your exercise cycle in a commercial, rental, or institutional setting.
4. Keep your exercise cycle indoors, away from moisture and dust. Place your exercise cycle on a level surface, with a mat beneath it to protect the floor or carpet. Make sure that there is enough clearance around your exer­cise cycle to mount, dismount, and use it.
5. Inspect and properly tighten all parts regu­larly. Replace any worn parts immediately.
6. Keep children under age 12 and pets away from your exercise cycle at all times.
7. Your exercise cycle should not be used by persons weighing more than 250 lbs. (113 kg).
8. The pulse sensor is not a medical device. Various factors, including the user's move­ment, may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determining heart rate trends in general.
9. Wear appropriate exercise clothes while exercising; do not wear loose clothes that could become caught on your exercise cycle. Always wear athletic shoes for foot protec­tion while exercising.
10. Keep your back straight while using your
exercise cycle; do not arch your back.
11. When you stop exercising, allow the pedals
to slowly come to a stop.
12. If you feel pain or dizziness while exercising,
stop immediately and cool down.
13. Use your exercise cycle only as described in
this manual.
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your exercise cycle before using your exercise cycle. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
IMPORTANT PRECAUTIONS
Page 4
4
BEFORE YOU BEGIN
Seat
Seat Knob
Pedal/Strap
Console
Fan
Seat Post
Pulse Sensor
Water Bottle Holder*
*No water bottle is included
Congratulations for selecting the new PROFORM®GT 85X exercise cycle. Cycling is one of the most effec­tive exercises for increasing cardiovascular fitness, building endurance, and toning the entire body. The GT 85X exercise cycle offers a selection of features designed to let you enjoy this healthful exercise in the convenience and privacy of your home.
For your benefit, read this manual carefully before you use the exercise cycle. If you have questions
after reading this manual, please see the front cover of this manual. To help us assist you, note the product
model number and serial number before contacting us. The model number and the location of the serial number decal are shown on the front cover of this manual.
To avoid a registration fee for any service needed under warranty, you must register the exercise cycle at www.proformservice.com/registration.
Before reading further, please familiarize yourself with the parts that are labeled in the drawing below.
Page 5
5
ASSEMBLY
To hire an authorized service technician to assemble the exercise cycle, call 1-800-445-2480.
Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires the included tools and your own adjustable wrench and Phillips screwdriver .
Use the part drawings below to identify the small parts used in assembly. The number in parenthesis below each drawing refers to the key number of the part, from the PART LIST near the end of this manual. The number following the parentheses is the quantity needed for assembly. Note: Some small parts may have been pre-
assembled. If a part is not in the hardware kit, check to see if it has been preassembled.
1. Identify the Front Stabilizer (2), which is narrower than the Rear Stabilizer (not shown). While another person lifts the front of the Frame (1), attach the Front Stabilizer to the Frame with two M10 x 73mm Button Screws (33) and two M10 Split Washers (34).
2
33
34
34
1
1
M8 Nylon
Locknut (37)–4
M10 x 20mm Button
Screw (35)–3
M8 Split
Washer (36)–4
M10 Bright Split
Washer (32)–3
M10 Split
Washer (34)–4
M10 x 73mm Button Screw (33)–4
M4 x 15mm
Screw (15)–2
M4 x 15mm
Bright Screw
(40)–4
Page 6
6
2. While another person lifts the rear of the Frame (1), attach the Rear Stabilizer (14) to the Frame with two M10 x 73mm Button Screws (33) and two M10 Split Washers (34).
33
34
34
14
1
3
3
35
Be careful to avoid
pinching the Wire
Harnesses (31, 57)
32
32
1
35
3. While another person holds the Upright (3) near the Frame (1), connect the Upper Wire Harness (57) to the Lower Wire Harness (31).
Gently pull the upper end of the Upper Wire Harness (57) to remove the slack, and slide the Upright (3) onto the Frame (1). Be careful to avoid pinching the Wire Harnesses. Attach the Upright with three M10 x 20mm Button Screws (35) and three M10 Bright Split Washers (32).
2
4
4. Attach the Water Bottle Holder (29) to the Upright (3) with two M4 x 15mm Screws (15).
15
29
3
31
57
Page 7
7

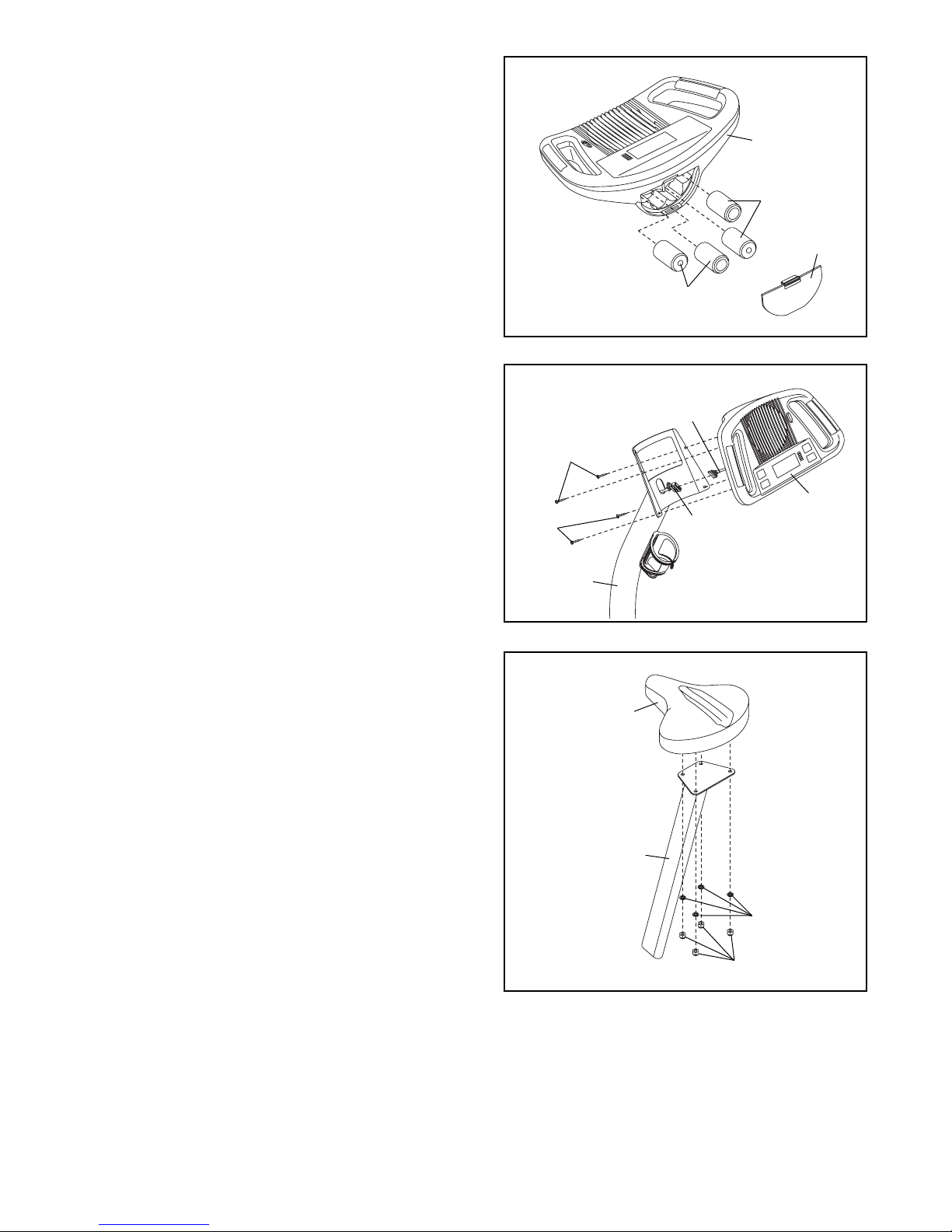

7. Attach the Seat (12) to the Seat Post (5) with four M8 Nylon Locknuts (37) and four M8 Split Washers (36). Note: The Nylon Locknuts and Split
Washers may be preattached to the Seat.
6. While another person holds the Console (6) near the Upright (3), connect the console wire harness to the Upper Wire Harness (57).
Insert the excess Upper Wire Harness (57) down­ward into the Upright (3). Attach the Console (6) to the Upright with four M4 x 15mm Bright Screws (40). Be careful to avoid pinching the Wire
Harness.
3
40
57
6
Console Wire
Harness
40
6
12
5
36
37
7
5. The Console (6) requires four “D” batteries (not included); alkaline batteries are recommended.
IMPORTANT: If the exercise cycle has been exposed to cold temperatures, allow it to warm to room temperature before inserting batteries into the Console. If you do not do this, the con­sole displays or other electronic components may become damaged. Press the tab on the bat-
tery cover and remove the battery cover. Insert four batteries into the console; make sure that the bat-
teries are oriented as shown by the diagram inside the battery compartment. Then, reattach
the battery cover.
6
Batteries
Batteries
Battery
Cover
5
Be careful to avoid
pinching the wires
Page 8
8
10. Make sure that all parts are properly tightened before you use the exercise cycle. Note: After assembly is completed, some extra parts may be left over. Place a mat beneath the exercise cycle to protect the floor.
9. Identify the Left Pedal (24), which is marked with an “L.” Using an adjustable wrench, firmly tighten the Left Pedal
counterclockwise
into the left arm of the
Crank (13). Tighten the Right Pedal (not shown)
clockwise
into the right arm of the Crank. IMPOR­TANT: Tighten both Pedals as firmly as possible. After using the exercise cycle for one week, retighten the Pedals. For best performance, keep the Pedals tightened.
Adjust the left Pedal Strap (25) to the desired posi­tion, and press the end of the Pedal Strap onto the tab on the side of the Left Pedal (24). Adjust the right Pedal Strap (not shown) in the same way.
9
24
13
25

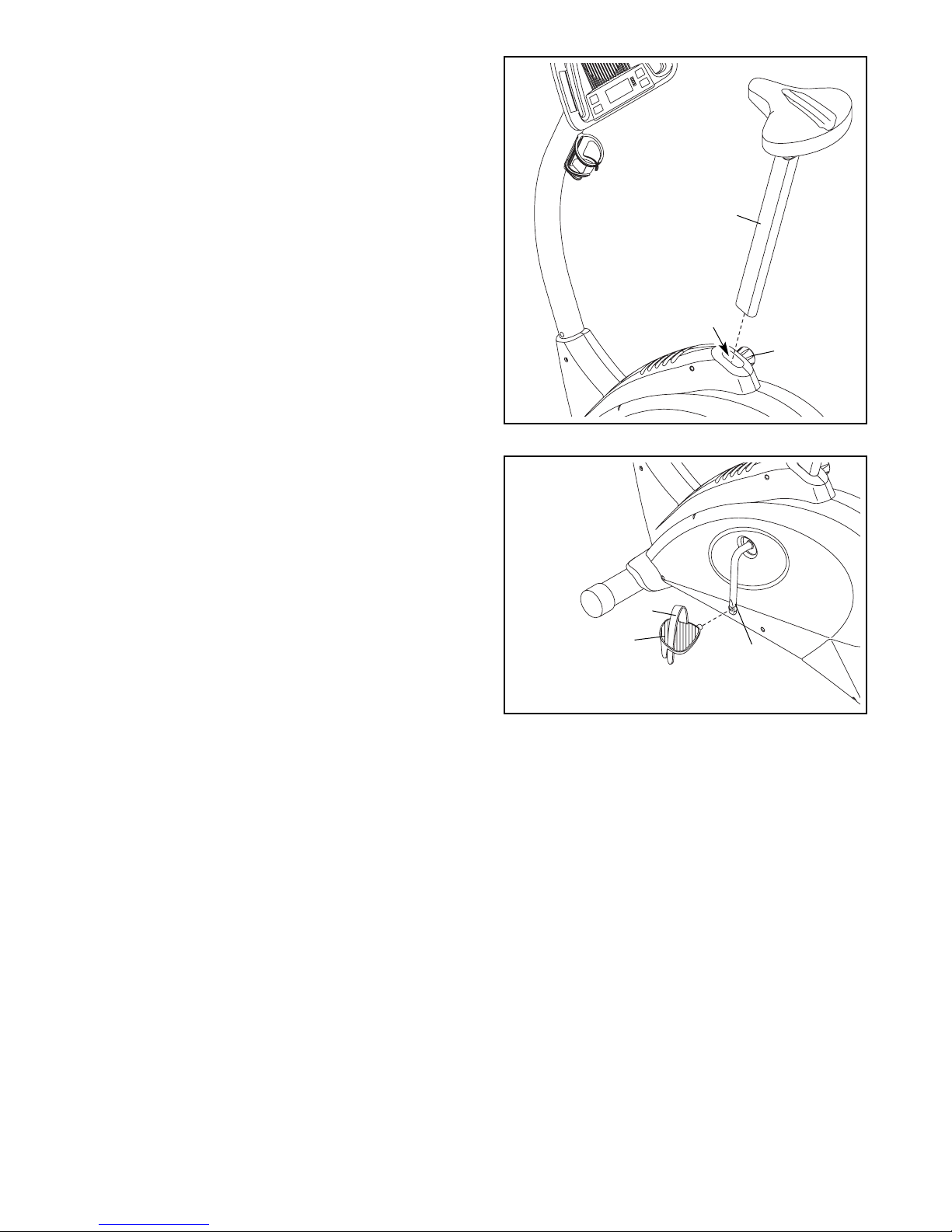

8. Turn the Adjustment Knob (11) counterclockwise two or three turns to loosen it (if the Adjustment Knob is not loosened enough, it may scratch the Seat Post [5]). Next, pull the Adjustment Knob, insert the Seat Post into the Frame (1), and then release the Adjustment Knob. Move the Seat Post upward and
downward slightly until the pin on the Adjustment Knob engages one of the holes in the Seat Post. Then, turn the Adjustment Knob
clockwise until it is tight.
5
11
8
1
Page 9
9
HOW TO OPERATE THE EXERCISE CYCLE

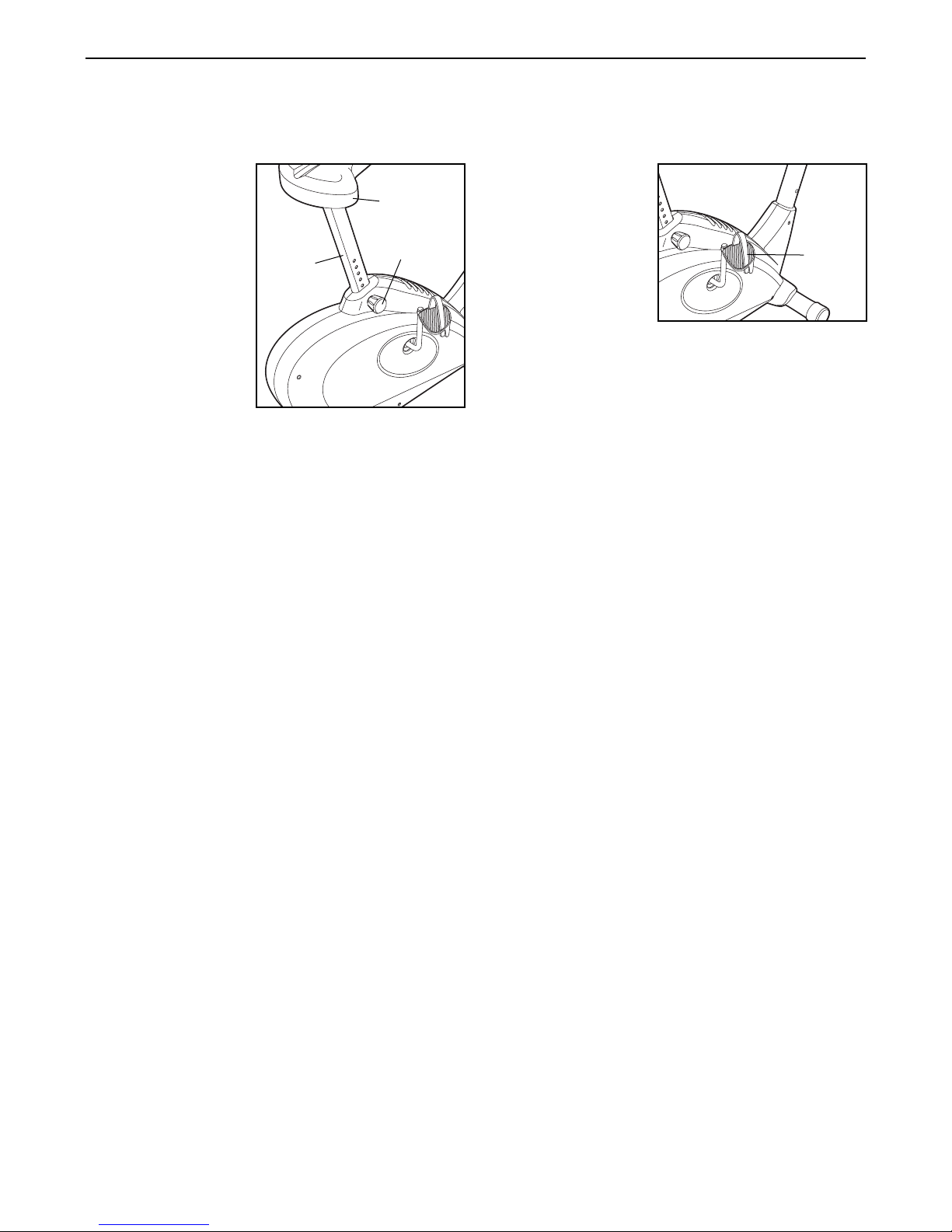

HOW TO ADJUST THE SEAT
For effective exer­cise, the seat should be at the proper height. As you pedal, there should be a slight bend in your knees when the pedals are in the lowest position. To adjust the height of the seat, first turn the seat knob counter­clockwise two or three turns to loosen it (if the knob is not loosened enough, it may scratch the seat post). Next, pull the knob, slide the seat post to the desired height, and then release the knob. Move the seat post up and down slightly until
the pin on the knob snaps into one of the holes in the seat post. Then, turn the knob clockwise until it is
tight.
HOW TO ADJUST THE PEDAL STRAPS
To adjust the pedal straps, first pull the ends of the pedal straps off the tabs on the pedals. Adjust the pedal straps to the desired position, and then press the ends of the pedal straps onto the tabs.
Pedal
Strap
Seat Post
Seat
Knob
Seat
Page 10
10
FEATURES OF THE CONSOLE
The advanced console offers an array of features designed to make your workouts more effective and enjoyable.
When you select the manual mode of the console, you can change the resistance of the pedals with the touch of a button. As you exercise, the console will display continuous exercise feedback. You can even measure your heart rate using the handgrip pulse sensor.
The console offers three trainer programs that automati­cally change the resistance of the pedals and prompt you to increase or decrease your pace while guiding you through an effective workout.
The console also features three interactive cross train­ing programs designed to help you to burn calories and enhance your cardiovascular system while toning
and strengthening your muscles. The cross training programs automatically control the resistance of the pedals and prompt you to perform a variety of strength exercises during your workout. Choose an upper body, lower body, or whole body cross training program for an effective workout. Note: The strength exercises require the use of dumbbells and an inflatable exer­cise ball (not included). To purchase dumbbells or
an exercise ball, call 1-888-533-1333.
To use the manual mode of the console, follow the steps beginning on page 11. To use a trainer program, see page 13. To use a cross training program, see page 14.
Note: If there is a sheet of clear plastic on the face of the console, remove the plastic.

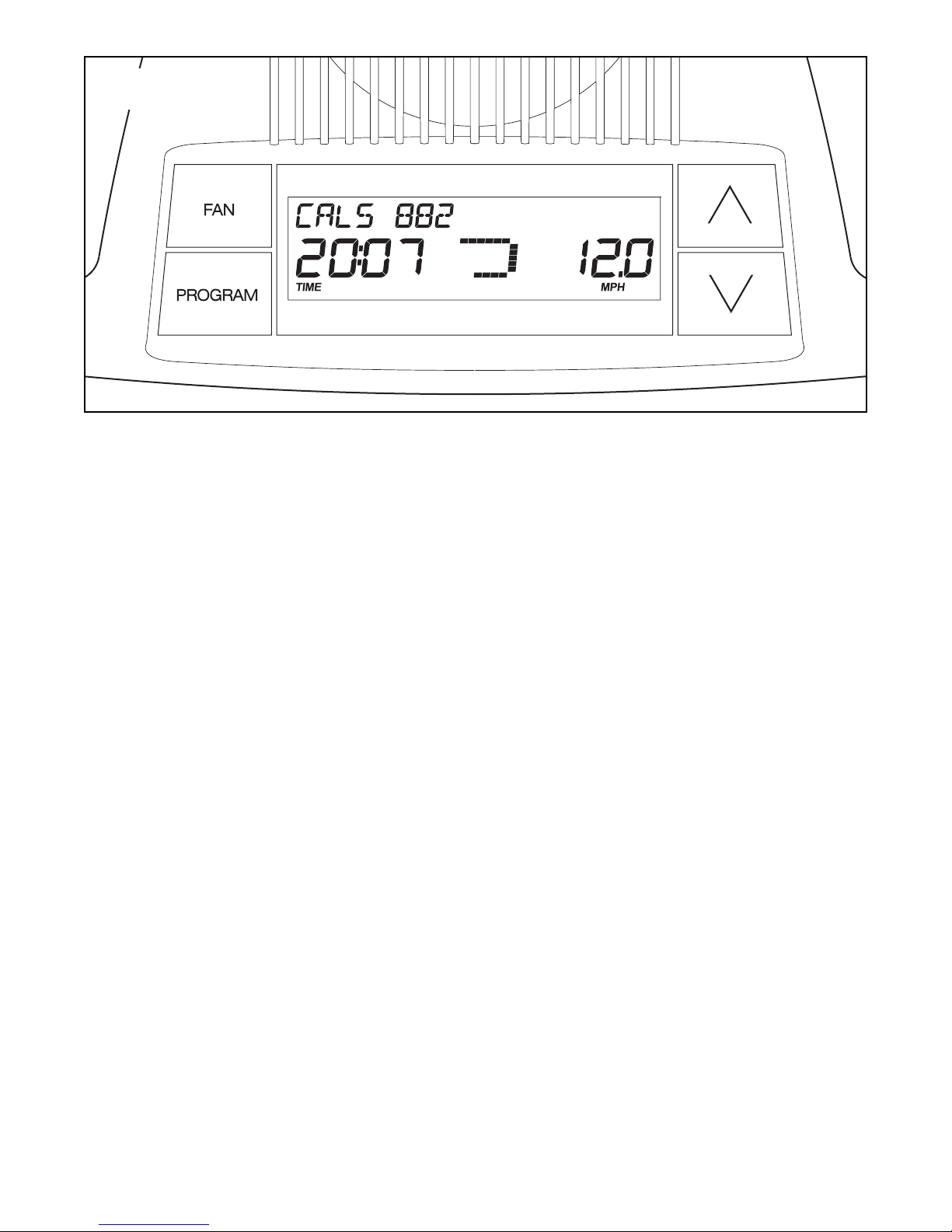

CONSOLE DIAGRAM
Page 11
11
HOW TO USE THE MANUAL MODE
1. Press any button or begin pedaling to turn on
the console.
A moment after you turn on the console, the dis­play will light.
2. Select the manual mode.
Each time you turn on the console, the manual mode will be selected automatically. If you have selected a program, reselect the manual mode by pressing the Program button repeatedly until the words MANUAL MODE appear in the top of the display.
3. Begin pedaling and change the resistance of
the pedals as desired.
As you pedal, change the resistance of the ped­als by pressing the Increase and Decrease but­tons repeatedly. There are ten resistance levels. Note: After you press the buttons, it will take a moment for the pedals to reach the selected resistance level.

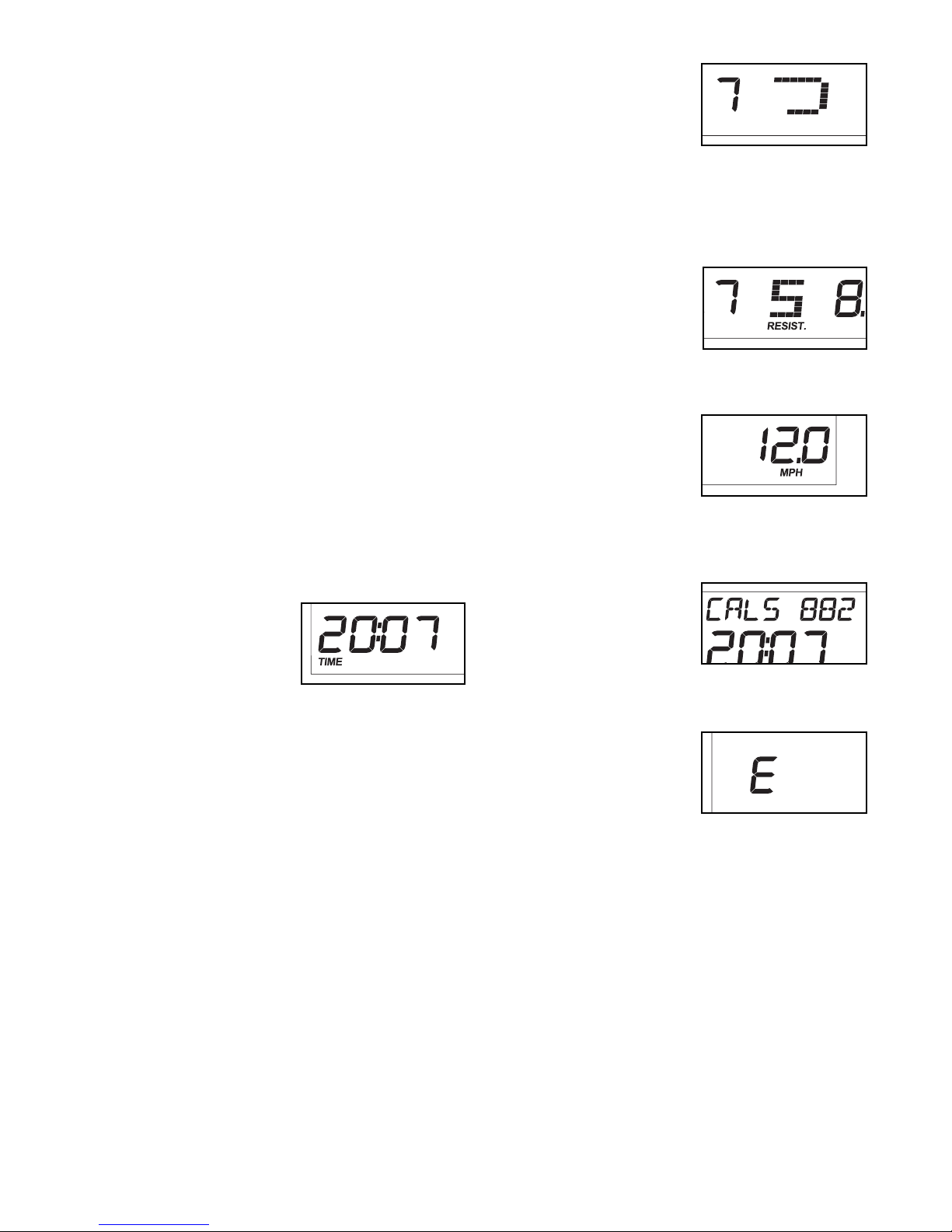

4. Follow your progress with the display.
The left side of the display—The left side
of the display will show the elapsed time. Note: When a program is selected, the display will show the time remaining in the program instead of the elapsed time.
The left side of the display will also show your heart rate when you use the handgrip pulse sen­sor (see step 5 on page 12).
When a program is selected, the left side of the display will also show the approximate number of calories you have burned.
The center of the display—When you
select the manual mode, the center of the display will show a track that represents 1/4 mile. As you exercise, indicators will appear in succession around the track until the entire track appears. The track will then disappear and the indicators will again begin to appear in succession.
The center of the dis­play will also show the resistance setting of the pedals for a few seconds each time the resistance level changes.
The right side of the display—The right
side of the display will show the distance (in miles or kilometers) you have pedaled and your pedaling pace, in miles or kilometers per hour.
The top of the dis­play—When you
select the manual mode, the top of the display will show the approximate number of calories you have burned.
Note: The console can display speed and distance in either miles or kilo­meters. The letters
MPH or Km/H will appear in the display to indicate the selected unit of measurement. To change the unit of measure­ment, first hold down the Program button for sever­al seconds. An E (for English) or an M (for metric) will appear in the display. Press the Increase but­ton to change the unit of measurement. When the desired unit of measurement is selected, press the Program button again. Note: When you replace the batteries, it may be necessary to reselect the unit of measurement.
Page 12
12

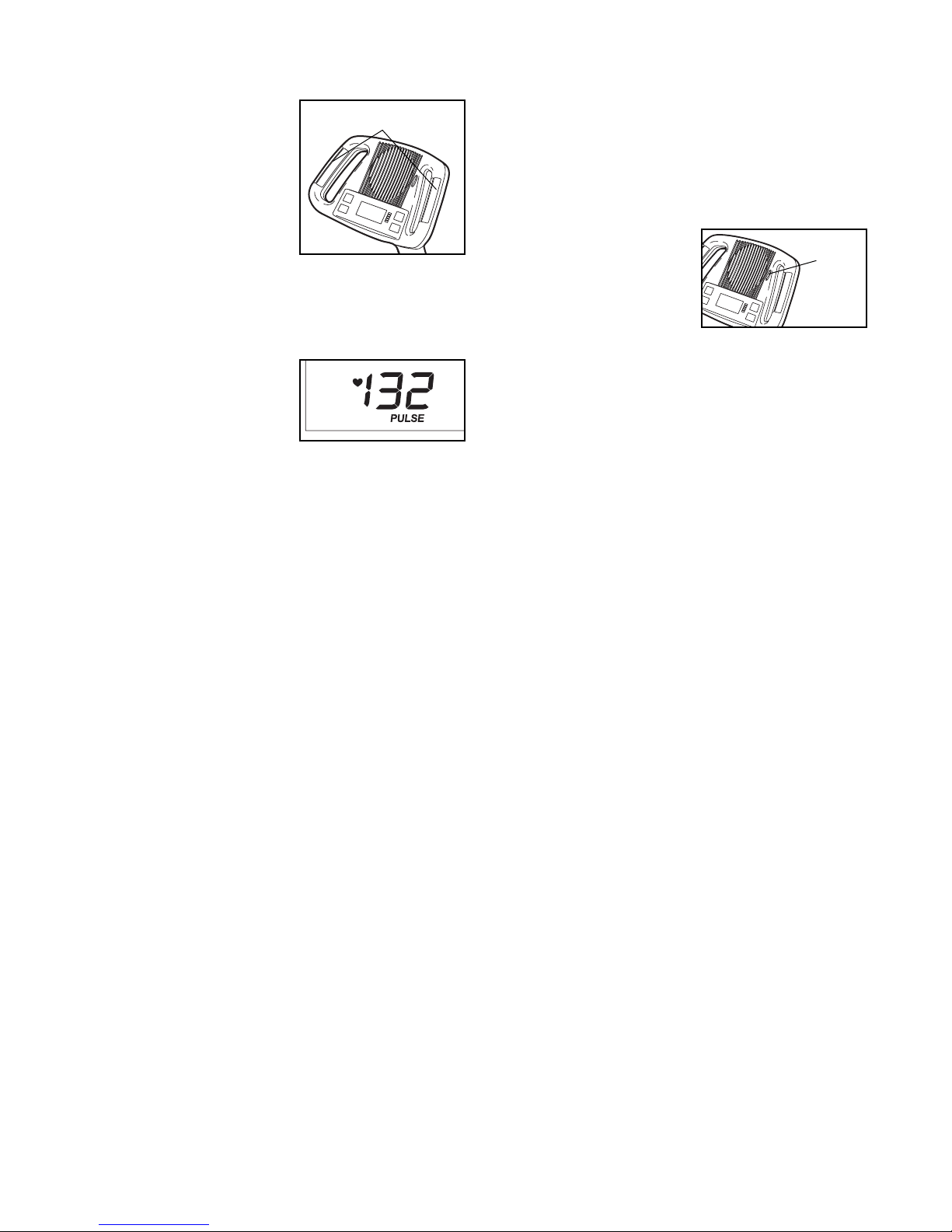

5. Measure your heart rate if desired.
If there are sheets of clear plastic on the metal contacts on the handgrip pulse sensor, remove the plastic. To measure
your heart rate, hold the handgrip pulse sensor with your palms resting against the metal contacts. Avoid moving your hands
or gripping the contacts too tightly.
When your pulse is detected, a heart­shaped symbol will flash in the left side of the display. Each time your heart beats, one or two dashes will appear, and then your heart rate will be shown. For the most accurate heart rate reading, hold the contacts for at least 15 sec­onds. Note: If you continue to hold the handgrip pulse sensor, the display will show your heart rate for up to 30 seconds.
If your heart rate is not shown, make sure that your hands are positioned as described. Be care­ful not to move your hands excessively or to squeeze the metal contacts too tightly. For opti­mal performance, clean the metal contacts using a soft cloth; never use alcohol, abrasives, or
chemicals to clean the contacts.
6. Turn on the fan if desired.
To turn on the fan at high speed, press the Fan button. To turn on the fan at low speed, press the button a second time. To turn off the fan, press the button a third time. Note: If the pedals do not move for a few minutes, the fan will automatically turn off to conserve the batteries.
Pivot the thumb tab on the right side of the fan to adjust the fan angle.
7. When you are finished exercising, the console will turn off automatically.
If the pedals do not move for several seconds, a tone will sound and the console will pause.
If the pedals do not move for about five minutes and the buttons are not pressed, the console will turn off and the display will be reset.
Thumb
Ta b
Metal Contacts
Page 13
13

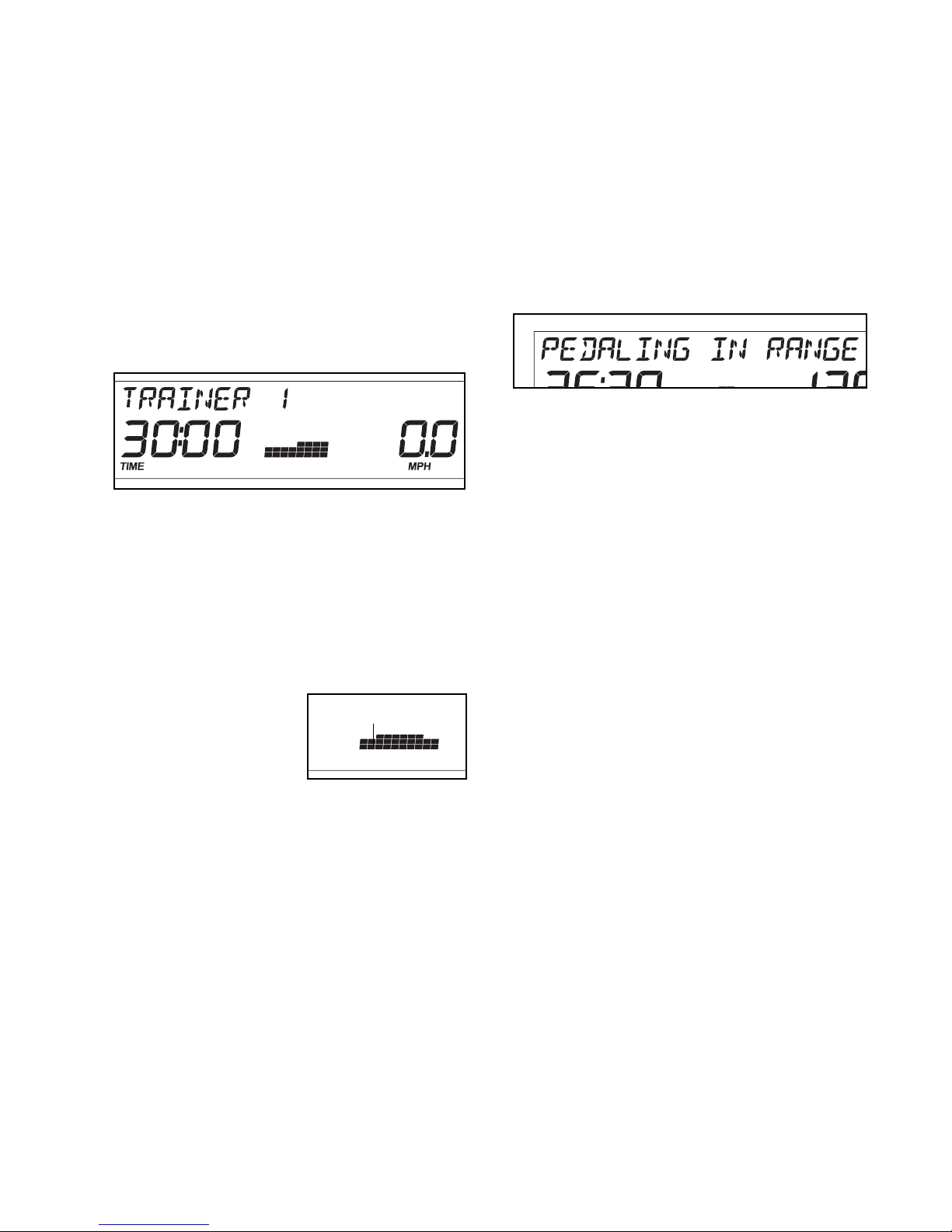

HOW TO USE A TRAINER PROGRAM
1. Press any button or begin pedaling to turn on the console.
A moment after you turn on the console, the dis­play will light.
2. Select a trainer program.
Press the Program button repeatedly until the words TRAINER 1, TRAINER 2, or TRAINER 3 appear in the display. When you select a trainer program, the program time will appear in the dis­play and a profile of the resistance levels for the program will scroll across the center of the display.
3. Begin pedaling to start the program.
Each program is divided into 30 one-minute seg­ments. One resistance level and one target speed setting are programmed for each segment. Note: The same resistance level and/or target speed setting may be programmed for two or more con­secutive segments.
The resistance level for the first segment will be shown in the flashing Current Segment col­umn of the profile. The resistance levels for the next several segments will be shown in the columns to the right. The target speed setting will appear in the top of the display.
When only three seconds remain in the first seg­ment of the program, both the Current Segment column and the column to the right will flash and a series of tones will sound. If the resistance and/or target speed is about to change, the resistance level and/or the target speed setting will appear in the display to alert you.
When the first segment is completed,
all resis-
tance settings will move one column to the left
. The resistance level for the second segment will then be shown in the flashing Current Segment column and the resistance of the pedals will auto­matically adjust to the level programmed for the
second segment. Note: If all the indicators in the Current Segment column are lit,
the resistance
levels may move downward
so that only the high-
est indicators appear.
As you exercise, you will be prompted to keep your pedaling pace near the target speed setting for the current segment. When the words PEDAL FASTER appear in the display, increase your pace. When the words PEDAL SLOWER appear in the display, decrease your pace. When the words PEDALING IN RANGE appear, maintain your current pace.
IMPORTANT: The target speed settings are intended only to provide motivation. Your actu­al pace may be slower than the target speed settings. Make sure to exercise at a pace that is comfortable for you.
You can manually override the resistance level by pressing the Increase or Decrease buttons. Every few times you press an Increase or Decrease but­ton, an additional indicator will appear or disap­pear in the Current Segment column. IMPOR-
TANT: When the current segment of the pro­gram ends, the exercise cycle will automatical­ly adjust to the resistance level for the next segment.
To stop the program at any time, stop pedaling. The time will begin to flash in the display. To restart the program, simply resume pedaling. When the last segment of the program ends, the words PROGRAM DONE will appear in the dis­play.
4. Follow your progress with the display.
See step 4 on page 11.
5. Measure your heart rate if desired.
See step 5 on page 12.
6. Turn on the fan if desired.
See step 6 on page 12.
7. When you are finished exercising, the console will turn off automatically.
See step 7 on page 12.
Current Segment
Page 14
14
HOW TO USE A CROSS TRAINING PROGRAM
1. Press any button or begin pedaling to turn on the console.
A moment after you turn on the console, the dis­play will light.

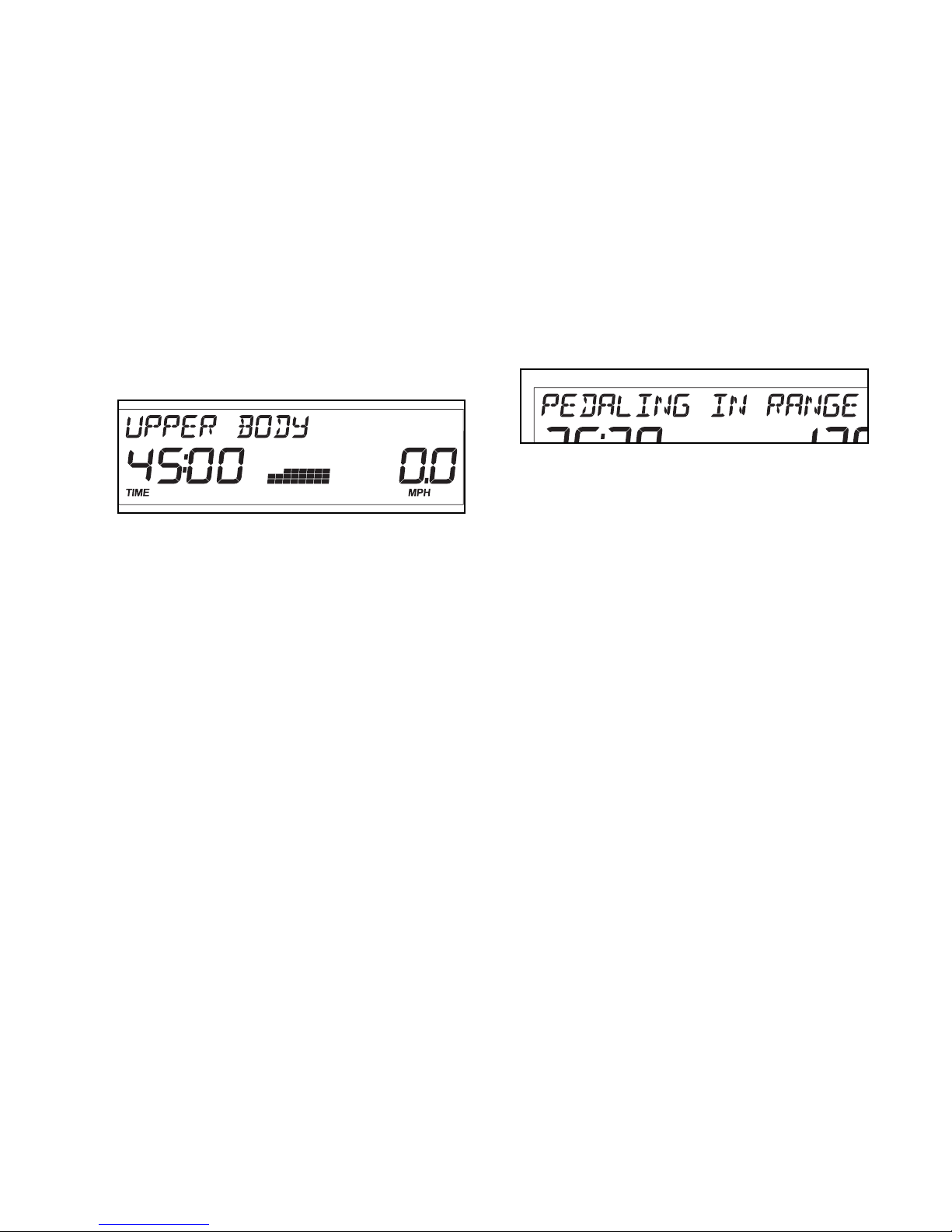

2. Select a cross training program.
Press the Program button repeatedly until the words UPPER BODY, LOWER BODY, or WHOLE BODY appear in the display. When you select a cross training program, the program time will appear in the display and a profile of the resis­tance levels for the program will scroll across the center of the display.

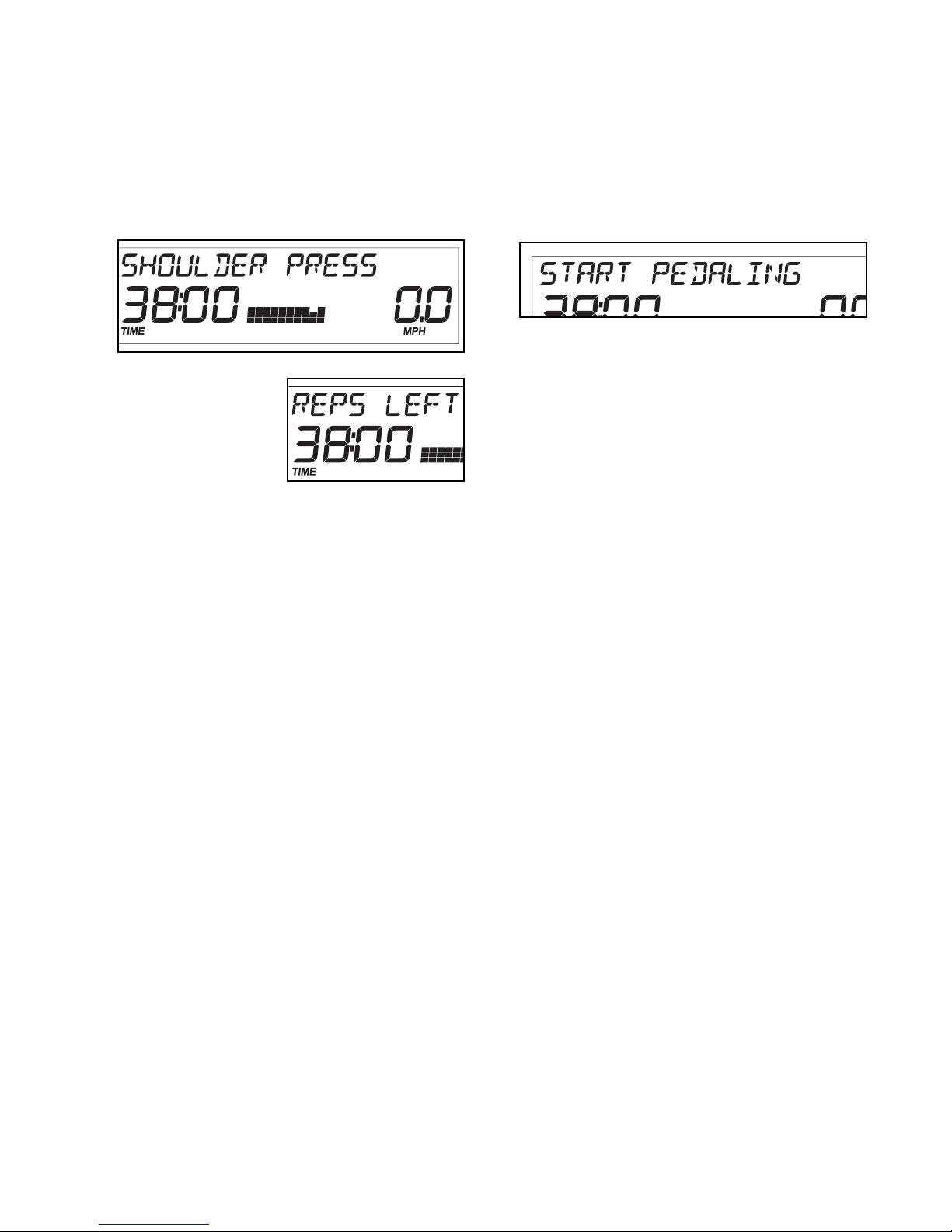

3. Begin pedaling to start the program.
Each program is divided into 30 or 45 one-minute segments. One resistance level and one target speed setting are programmed for most seg­ments. (The same resistance level and/or target speed setting may be programmed for two or
more consecutive segments.) During other seg­ments, the console will prompt you to perform strength exercises.
The displays for the cross training programs work in the same way as the displays for the trainer programs (see step 3 on page 13).
As you exercise, you will be prompted to keep your pedaling pace near the target speed setting for the current segment. When the words PEDAL FASTER appear in the display, increase your pace. When the words PEDAL SLOWER appear in the display, decrease your pace. When the words PEDALING IN RANGE appear, maintain your current pace.
IMPORTANT: The target speed settings are intended only to provide motivation. Your actual pace may be slower than the target speed settings. Make sure to exercise at a pace that is comfortable for you.
To stop the program at any time, stop pedaling. The time will begin to flash in the display. To restart the program, simply resume pedaling.
Page 15
15
4. Perform the first strength exercise when prompted.
When the first strength exercise segment begins, the name of the first strength exercise will appear in the display for a few seconds. The time will pause and flash in the display. Next, the display will show the recommended number of repetitions for the first strength exercise.
Step off the exercise cycle and prepare to begin the first strength exer­cise. Every few sec­onds, the console will sound a tone; when a tone sounds, perform one repetition of the exercise. Exercise with a slow, steady motion; do not perform more than one repetition each time a tone sounds. The display will count down the rep­etitions as you perform them.
Note: Refer to the accompanying exercise chart to see the correct form for each exercise. When performing lunges, alternate legs with each repe­tition. When performing dumbbell rows, perform half the repetitions with your right arm and half the repetitions with your left arm. The strength exercises require the use of dumbbells and an inflatable exercise ball (not included). To pur-
chase dumbbells or an exercise ball, call 1-888-533-1333.
5. Continue the cross training program.
When you have performed the recommended number of repetitions, the words START PEDALING will appear in the display. To continue the cross training program, step onto the exercise cycle and start pedaling. The pedals will automati­cally adjust to the resistance level for the next segment.
The program will continue in this way until the last segment ends. Then, the words PROGRAM DONE will appear in the display.
6. Follow your progress with the display.
See step 4 on page 11.
7. Measure your heart rate if desired.
See step 5 on page 12.
8. Turn on the fan if desired.
See step 6 on page 12.
9. When you are finished exercising, the console will turn off automatically.
See step 7 on page 12.
Page 16
16
Inspect and properly tighten all parts of the exercise cycle regularly. Replace any worn parts immediately.
To clean the exercise cycle, use a damp cloth and a small amount of mild soap—never use alcohol,
abrasives, or chemicals to clean the exercise cycle.
IMPORTANT: To avoid damage to the console, keep liquids away from the console and keep the console out of direct sunlight.
PULSE SENSOR TROUBLESHOOTING
For optimal performance of the pulse sensor, keep the metal contacts clean. Clean the contacts with a soft cloth—never use alcohol, abrasives, or chemicals
to clean the metal contacts.
Avoid moving your hands or squeezing the metal con­tacts too tightly while using the pulse sensor; doing so may interfere with heart rate readings. For the most accurate heart rate reading, hold the metal contacts for about 15 seconds.
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the reed switch should be adjusted. To adjust the reed switch, the pedals and the side shields must be removed.
Using an adjustable wrench, turn the left pedal clock­wise and turn the right pedal counterclockwise to remove the pedals.
Next, remove the screws from the left and right side shields. Note: There are two different sizes of screws in the side shields. Make sure to note the location of each screw. Then, carefully remove the side shields.
Next, locate the Reed Switch (21). Turn the Crank (13) until the Magnet (16) is aligned with the Reed Switch. Loosen, but do not remove, the indicated M5 x 10mm Screw (9). Slide the Reed Switch slightly closer to or away from the Magnet, and then retighten the Screw. Turn the Crank for a moment. Repeat until the console displays correct feedback.
When the reed switch is correctly adjusted, reattach the side shields and the pedals. To reattach the ped­als, turn the left pedal counterclockwise and turn the right pedal clockwise.
BATTERY REPLACEMENT
If the console display becomes dim, the batteries should be replaced; most console problems are the result of low batteries. To replace the batteries, see assembly step 5 on page 7.
MAINTENANCE AND TROUBLESHOOTING
13
9
21
16
Page 17
17
EXERCISE GUIDELINES
These guidelines will help you to plan your exercise program. For detailed exercise information, obtain a reputable book or consult your physician. Remember, proper nutrition and adequate rest are essential for successful results.
EXERCISE INTENSITY

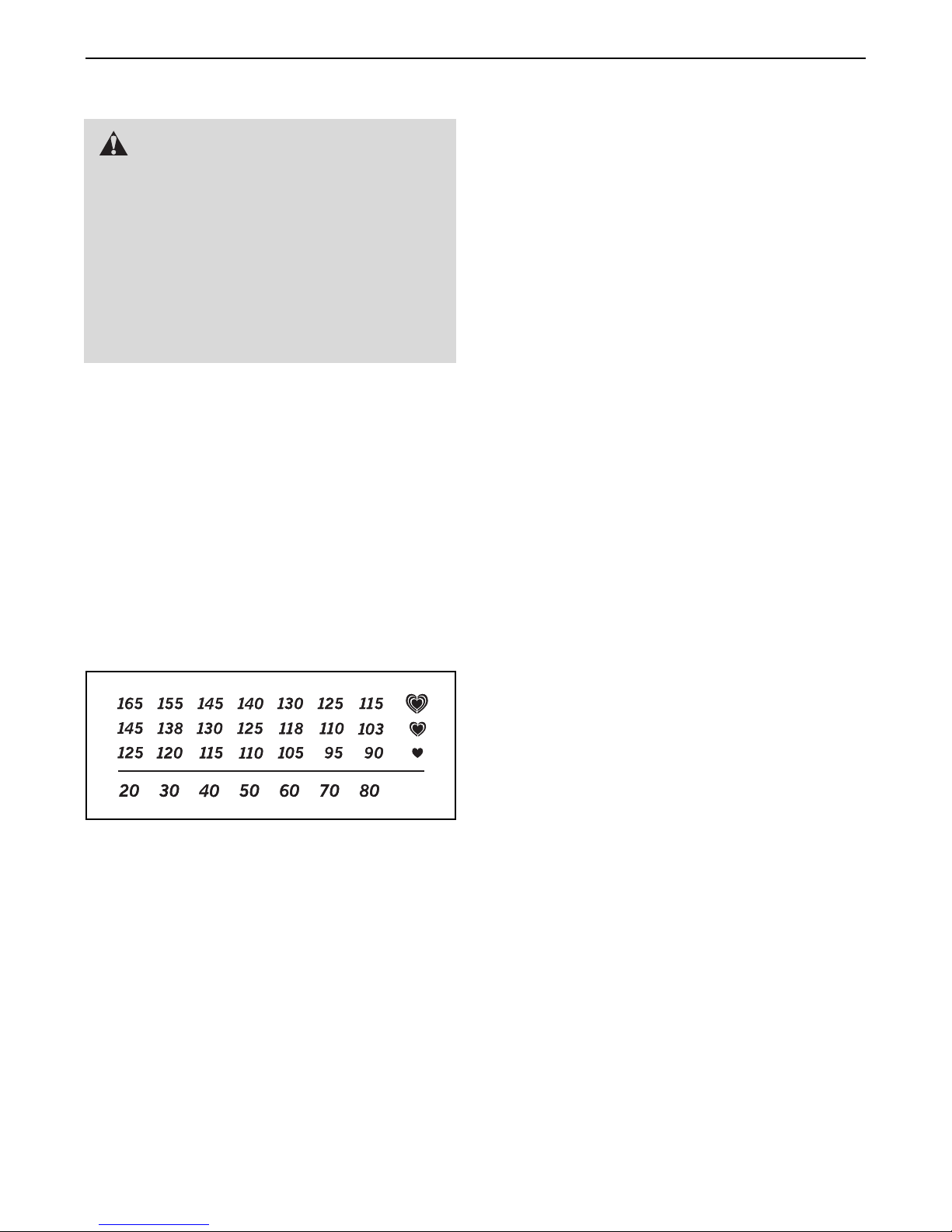

Whether your goal is to burn fat or to strengthen your cardiovascular system, exercising at the proper inten­sity is the key to achieving results. You can use your heart rate as a guide to find the proper intensity level. The chart below shows recommended heart rates for fat burning and aerobic exercise.
To find the proper intensity level, find your age at the bottom of the chart (ages are rounded off to the near­est ten years). The three numbers listed above your age define your “training zone.” The lowest number is the heart rate for fat burning, the middle number is the heart rate for maximum fat burning, and the highest number is the heart rate for aerobic exercise.
Burning Fat—To burn fat effectively, you must exer­cise at a low intensity level for a sustained period of time. During the first few minutes of exercise, your body uses
carbohydrate calories
for energy. Only after the first few minutes of exercise does your body begin to use stored
fat calories
for energy. If your goal is to burn fat, adjust the intensity of your exercise until your heart rate is near the lowest number in your training zone. For maximum fat burning, exercise with your heart rate near the middle number in your training zone.
Aerobic Exercise—If your goal is to strengthen your cardiovascular system, you must perform aerobic exercise, which is activity that requires large amounts of oxygen for prolonged periods of time. For aerobic exercise, adjust the intensity of your exercise until your heart rate is near the highest number in your training zone.
WORKOUT GUIDELINES
Warming up—Start with 5 to 10 minutes of stretching
and light exercise. A warm-up increases your body temperature, heart rate, and circulation in preparation for exercise.
Training Zone Exercise—Exercise for 20 to 30 min­utes with your heart rate in your training zone. (During the first few weeks of your exercise program, do not keep your heart rate in your training zone for longer than 20 minutes.) Breathe regularly and deeply as you exercise–never hold your breath.
Cooling down—Finish with 5 to 10 minutes of stretching. Stretching increases the flexibility of your muscles and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three workouts each week, with at least one day of rest between workouts. After a few months of regular exer­cise, you may complete up to five workouts each week, if desired. Remember, the key to success is to make exercise a regular and enjoyable part of your everyday life.
WARNING: Before beginning
this or any exercise program, consult your physician. This is especially important for persons over the age of 35 or persons with pre-existing health problems.
The pulse sensor is not a medical device. Various factors may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determin­ing heart rate trends in general.
Page 18
18
1 1 Frame 2 1 Front Stabilizer 3 1 Upright 4 4 Endcap 5 1 Seat Post 6 1 Console 7 1 Eddy Mechanism 8 1 Resistance Motor 9 5 M5 x 10mm Screw
10 1 Flywheel Bearing (6900)
11 1 Adjustment Knob 12 1 Seat 13 1 Pulley/Crank 14 1 Rear Stabilizer 15 2 M4 x 15mm Screw 16 1 Magnet 17 1 Left Side Shield 18 1 Right Side Shield 19 1 Spring 20 1 Seat Post Bushing 21 1 Reed Switch/Wire 22 1 Clamp 23 1 Belt 24 1 Left Pedal 25 2 Pedal Strap 26 1 Right Pedal 27 1 Crank Bearing Set 28 1 Idler 29 1 Water Bottle Holder 30 1 Flywheel Axle
31 1 Lower Wire Harness 32 3 M10 Bright Split Washer 33 4 M10 x 73mm Button Screw 34 4 M10 Split Washer 35 3 M10 x 20mm Button Screw 36 4 M8 Split Washer 37 4 M8 Nylon Locknut 38 1 “C” Magnet 39 5 M4 x 25mm Screw 40 4 M4 x 15mm Bright Screw 41 8 M5 x 20mm Screw 42 1 Magnet Bracket 43 3 3/8" Nut 44 1 Flywheel Nut 45 1 M10 x 20mm Bolt 46 1 M10 Washer 47 1 Flywheel Bearing 48 1 Adjustment Bar 49 1 Motor Washer 50 1 M8 x 12mm Bolt 51 2 Flywheel Clip 52 2 Flywheel Washer 53 2 Magnet Bracket Washer 54 1 M4 x 10mm Screw 55 2 M10 Nylon Locknut 56 1 Lock Washer 57 1 Upper Wire Harness
* User’s Manual * Hex Key * Assembly Tool
Note: Specifications are subject to change without notice. See the back cover of this manual for information about ordering replacement parts. *These parts are not illustrated.
PART LIST—Model No. PFEX2096.1 R0108A
Key No. Qty. Description Key No. Qty. Description
Page 19
19
EXPLODED DRAWING—Model No. PFEX2096.1 R0108A
18
41
41
41
39
6
39
41
17
41
12
39
39
41
10
4
25
26
30
53
38
51
23
53
52
54
43
48
55
49
43
9
8
40
13
3
32
35
2
4
34
34
33
24
29
32
25
27
4
35
15
21
22
57
9
31
16
36
5
37
20
11
55
1
4
43
46
52
27
50
45
44
56
28
19
34
51
7
47
42
14
33
Page 20
Part No. 245865 R0108A Printed in China © 2008 ICON IP, Inc.
ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED DRAWING near the end of this manual)
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of ninety (90) days from the date of pur­chase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is lim­ited to replacing or repairing, at ICON's option, the product through one of its authorized service centers. All repairs for which warranty claims are made must be pre-authorized by ICON. If the product is shipped to a service center, freight charges to and from the service center will be the customer’s responsibility. For in-home service, the customer will be responsible for a minimal trip charge. This warranty does not extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an ICON authorized service center; products used for commercial or rental purposes; or products used as store display models. No other warranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con­nection with the use or performance of the product or damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of inci­dental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
Loading...
