Model No. PFBE1816.0
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
Serial No.
Write the serial number in the
space above for future reference.
Serial Number Decal
QUESTIONS?
As a manufacturer, we are committed to providing complete
customer satisfaction. If you
have questions, or if a part is
damaged or missing, PLEASE
CONTACT OUR CUSTOMER
SERVICE DEPARTMENT
DIRECTLY.
USER’S MANUAL
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri., 6 a.m.–6 p.m. MST
ON THE WEB:
www.proformservice.com
CAUTION
Read all precautions and instruc
tions in this manual before using
this equipment. Save this manual
for future reference.
-
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
PART IDENTIFICATION CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
PROFORM is a registered trademark of ICON IP
, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read the following important precautions
efore using the weight bench.
b
1
. Read all instructions in this manual
warnings on the weight bench
t
he weight bench. Use the weight bench only
as described in this manual.
2. It is the responsibility of the owner to ensure
that all users of the weight bench are adequately informed of all precautions.
3. The weight bench is intended for home use
only. Do not use the weight bench in any
commercial, rental, or institutional setting.
4.
Keep the weight
moisture and dust. Place the weight
a level surface, with a mat beneath it to protect the floor or carpet. Make sure that there is
enough clearance around the weight
mount, dismount, and use the weight
5. Keep children under 12 and pets away from
the weight bench at all times.
6.
Inspect and properly tighten all parts regularly. Replace any worn parts immediately.
bench
indoors, away from
and all
before using
bench
bench
bench
on
to
.
The weight bench is designed to support a
9
.
maximum user weight of 300 pounds and a
maximum total weight of 610 pounds. Do not
use the weight bench with more than 210
pounds of weight. Do not place more than
130 pounds on the leg lever. Note: The weight
bench does not include weights.
10.
If you feel pain or dizziness at any time while
exercising, stop immediately and begin cooling down.

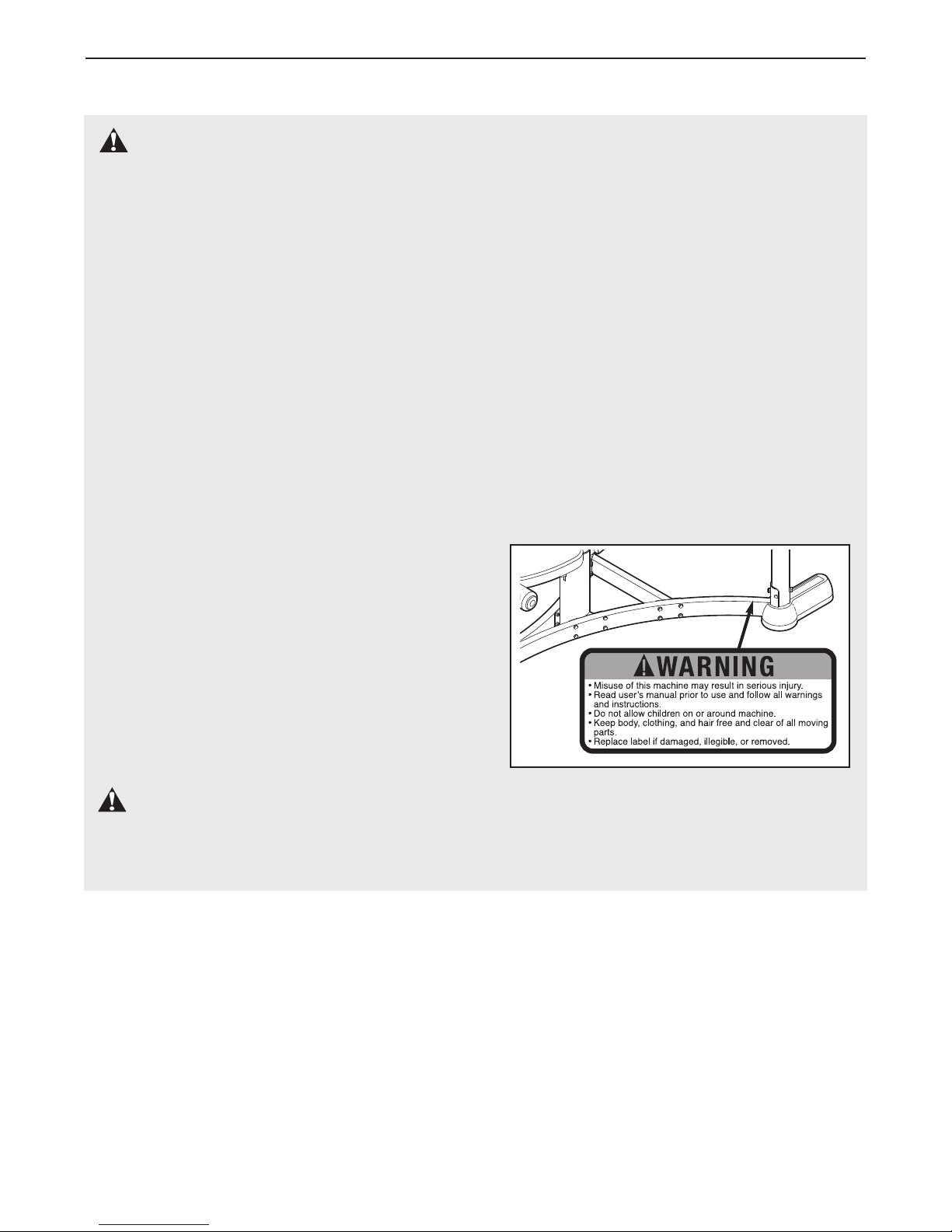

The decals shown below have been placed
11.
on the weight bench. If a decal is missing or
illegible, call the toll-free telephone number
on the front cover of this manual and order a
free replacement decal. Apply the decal in the
location shown.
7.
Always make sure that the backrest knob is
fully engaged before using the backrest.
8.
Wear appropriate clothes when exercising.
Always wear athletic shoes for foot protection while exercising.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
3
BEFORE YOU BEGIN
hank you for selecting the versatile PROFORM
T
FUSION 2.0 X weight bench. The weight bench offers
a selection of exercise stations designed to develop
the major muscle group of the upper body. Whether
your goal is to tone your body, build dramatic muscle
ize and strength, or improve your cardiovascular sys-
s
tem, the weight bench will help you to achieve the
specific results you want.
For your benefit, read this manual carefully before
using the weight bench. If you have questions after
reading this manual, please see the front cover of this
Weight Rest
Safety Spotter
®
anual. To help us assist you, please note the product
m
model number and serial number before contacting us.
The model number is PFBE1816.0. The serial number
can be found on a decal attached to the weight bench
(see the front cover of this manual).
To avoid a registration fee for any service needed
under warranty, you must register the weight bench
at www.proformservice.com/registration.
Before reading further, please review the drawing below
and familiarize yourself with the parts that are labeled.
ASSEMBLED DIMENSIONS:
Height: 61 in. / 155 cm
Width: 52 in. / 132 cm
Depth: 87 in. / 221 cm
Upright Pin
Upright
Curl Pad
Leg Developer
Curl Bar
Backrest
Backrest
Frame
Seat
4
M6 Washer (21)
M10 Nylon
Locknut (49)
M10 x 75mm Button Screw (55)
M10 x 16mm
Bolt (51)
M10 x 85mm Button Screw (57)
M10 Washer (52)
M4 x 16mm
Screw (47)
M6 x 25mm
Screw (50)
M6 x 75mm Screw (48)
M10 x 55mm Button Bolt (53)
M10 x 98mm Button Bolt (56)
M10 x 70mm Bolt Set (54)
PART IDENTIFICATION CHART
See the drawings below to identify small parts used in assembly. The number in parentheses by each drawing is
the key number of the part, from the PART LIST on page 18. Note: Some small parts may have been pre-
assembled. If a part is not in the parts bag, check to see if it has been preassembled.
5
ASSEMBLY
Make Assembly Easier
ighten all parts as you assemble them, unless
• T
instructed to do otherwise.
Everything in this manual is designed to ensure
that the weight bench can be assembled successfully by almost anyone. However, the weight
bench has many parts and the assembly
process will take time. By setting aside plenty of
time, assembly will go smoothly.
To hire an authorized service technician to
assemble the weight bench, call toll-free
1-800-445-2480.
Before beginning assembly, carefully read the
following information and instructions:
Because of its weight and size, the weight bench
•
should be assembled in the location where it will
be used. Make sure that there is enough clearance to walk around the weight bench as you
assemble it.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
• As you assemble the weight bench, make sure all
parts are oriented as shown in the drawings.
• Assembly requires two persons.
• For help identifying small parts, use the PART
IDENTIFICATION CHART.
In addition to the included grease, assembly
may require the following tools (not included):
Two adjustable wrenches
•
One rubber mallet
•
• One standard screwdriver
• One Phillips screwdriver
Assembly may be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
1.
Before beginning assembly, make sure
that you have read and understand the
information in the box above. See the
PART IDENTIFICATION CHART on page 5
for help identifying small parts.
Attach the Left and Right Bases (1, 2) with an
M10 x 16mm Bolt (51) and an M10 Nylon
Locknut (49). Do not tighten the Nylon
Locknut yet.
Next, attach the Center Base (3) to the Left and
Right Bases with eight M10 x 55mm Button
Bolts (53), eight M10 Washers (52), and eight
M10 Nylon Locknuts (49). Do not tighten the
Nylon Locknuts yet.
1
52
53
49
3
52
53
51
53
52
52
2
1
49
49
6
2. Attach the Left and Right Seat Frame Caps (42,
44) to the Seat Frame (6) with four M4 x 16mm
crews (47).
S
ttach the Seat Frame Bumper (29) to the Seat
A
Frame (6) with an M4 x 16mm Screw (47).
Next, attach the Bumper (34) to the Seat Frame
ith an M4 x 16mm Screw (47).
w
2
47
44
29
47
47
47
4
6
34
2
3. Attach the Seat Frame (6) to the Left and Right
Bases (1, 2) with eight M10 x 55mm Button
Bolts (53), eight M10 Washers (52), and eight
M10 Nylon Locknuts (49).
Tighten the Nylon Locknuts (49) used in
step 1 and this step.
See the inset drawing.
(15) to the Left and Right Bases (1, 2) with four
M4 x 16mm Screws (47).
4. Attach the Left Upright (4) to the Left Base (1)
with three M10 x 98mm Button Bolts (56), an
M10 Washer (52), and two M10 Nylon Locknuts
(49).
Attach the Left Foot (28) to the Left Upright (4)
with two M4 x 16mm Screws (47).
Attach the Front Foot
3
15
6
49
53
52
2
4
52
52
1
49
49
53
47
52
2
1
47
Repeat this step for the other side of the
weight bench.
4
49
52
56
1
56
28
47
7
5. Orient the Backrest (16) with the wide end in the
position shown. Attach the Backrest to the
Backrest Frame (7) with four M6 x 25mm
Screws (50).
5
6
Wide
nd
E
1
6. Tighten the Backrest Knob (38) into the Seat
Frame (6). Then, pull the Backrest Knob out as
far as it will go. Insert the Backrest Frame (7)
into the Seat Frame and engage the Backrest
Knob into one of the holes in the Seat Frame.
Apply a small amount of the included grease to
an M10 x 85mm Button Screw (57). Attach the
Backrest Frame (7) to the Seat Frame (6) with
the Button Screw and an M10 Nylon Locknut
Do not overtighten the Nylon Locknut;
(49).
the Backrest Frame must pivot freely.
7
50
6
Grease
7
57
38
6
50
49
7. Orient the Seat (14) with the wide end in the
position shown. Attach the Seat to the Seat
Frame (6) with four M6 x 75mm Screws (48)
and four M6 W
ashers (21).
7
ide
W
End
14
6
21
21
48
48
8
8. Apply grease to the barrel of the M10 x 70mm
Bolt Set (54) and to the indicated locations on
he Leg Developer (8).
t
Attach the Leg Developer (8) to the Seat Frame
(6) with the M10 x 70mm Bolt Set (54). Make
ure the barrel of the Bolt Set is inserted
s
through both sides of the bracket on the
Seat Frame. Do not overtighten the Bolt Set;
the Leg Developer must pivot freely.
8
Grease
54
Grease
8
6
Grease
Bracket
54
9. Insert a Pad Tube (19) into the Leg Developer
(8). Slide a Foam Pad (20) onto each end of
the Pad Tube. Then, press a Pad Cap (46) into
each Foam Pad.
Repeat this step with the other two Pad
ubes (19).
T
10. Attach the Curl Bumper (24) to the Curl Frame
(9) with an M4 x 16mm Screw (47). Next, attach
the Curl Tube (23) to the Curl Frame (9) with an
M10 x 75mm Button Screw (55).
9
10
46
20
20
46
19
8
13
9
23
13
24
6
19
55
11. See the inset drawing and identify the Curl
Pin (25). Attach the Curl Frame (9) to the Leg
Developer (8) with the Curl Pin. Next, attach the
ether (58) to the Leg Developer with an M4 x
T
16mm Screw (47).
47
11
9
25
58
47
8
31
25
9
12. Slide a Safety Spotter (11) onto the Right
Upright (5). Insert an Upright Pin (31) through
he Safety Spotter and the Right Upright. Next,
t
attach the Tether (58) on the Upright Pin to the
afety Spotter with an M4 x 16mm Screw (47).
S
2
1
12
Slide a Weight Rest (12) onto the Right Upright
(5). Insert an Upright Pin (31) through the
Weight Rest and the Right Upright. Next, attach
the Tether (58) on the Upright Pin to the Weight
Rest with an M4 x 16mm Screw (47).
Repeat this step for the other side of the
weight bench. Make sure that the Safety
Spotters (11) and the Weight Rests (12) are
at the same height.
13. Attach the Curl Pad (18) to the Curl Post (10) with
two M6 x 25mm Screws (50).
31
58
47
11
31
58
5
47
13
18
10
50
14. Make sure that all parts are properly tightened before you use the weight bench. The use of the remaining
parts will be explained in ADJUSTMENTS, beginning on the next page.
10
ADJUSTMENTS
This section explains how to adjust the weight bench. See the EXERCISE GUIDELINES on page 13 for impor-
ant information about how to get the most benefit from your exercise program. Also, refer to the accompanying
t
exercise guide to see the correct form for each exercise.
Make sure all parts are properly tightened each time you use the weight bench. Replace any worn parts immediate-
y. The weight bench can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use solvents.
l
ADJUSTING THE BACKREST
To adjust the position of the Backrest (16), pull the
Backrest Knob (38) out of the Seat Frame (6) as far
as it will go. Raise or lower the Backrest, and reengage the Backrest Knob into the Backrest Frame (7).
USING THE CURL PAD
16
38
7
6
To use the Curl Pad (18), remove the indicated 56mm
Round Cap (17) and insert the Curl Post (10) into the
Seat Frame (6). Tighten the Curl Knob (37) into the
Seat Frame. Make sure that the Curl Knob passes
through a hole in the Curl Post.
When performing exercises that do not require the
Curl Pad (18), remove the Curl Pad and reinsert the
56mm Round Cap (17) into the Seat Frame (6).
USING THE LEG DEVELOPER
The Leg Developer (8) can be used with Olympic
weights. To use Olympic weights, slide a weight plate
(not shown) onto the Leg Developer and secure it
with a Spring Clip (26).
Note: Remove the Curl Post (10) when using the
Leg Developer (8).
18
10
17
37
6
10
8
26
11
ADJUSTING THE WEIGHT RESTS AND THE
SAFETY SPOTTERS
To adjust the position of the Weight Rests (12),
remove the Upright Pins (31) from the Left and Right
Uprights (4, 5). Raise or lower the Weight Rests to
the desired position. Reengage the Upright Pins into
the Weight Rests and the Left and Right Uprights.
Make sure that the Weight Rests are at the same
height.
Repeat this action to adjust the Safety Spotters
(11).
Note: You can turn the Safety Spotters 180
degrees for use with squat exercises.
REMOVING THE CURL FRAME
To remove the Curl Frame (9), remove the Curl Pin
(25) from the Leg Developer (8).
1
11
2
31
5
4
31
8
12
31
9
25
12
EXERCISE GUIDELINES
THE FOUR BASIC TYPES OF WORKOUTS
Muscle Building
o increase the size and strength of your muscles,
T
push them close to their maximum capacity. Your muscles will continually adapt and grow as you progressively increase the intensity of your exercise. You can
adjust the intensity level of an individual exercise in
two ways:
• by changing the amount of resistance used
• by changing the number of repetitions or sets performed. (A “repetition” is one complete cycle of an
exercise, such as one sit-up. A “set” is a series of
repetitions.)
The proper amount of resistance for each exercise
depends upon the individual user. You must gauge
your limits and select the amount of resistance that is
right for you. Begin with 3 sets of 8 repetitions for each
exercise you perform. Rest for 3 minutes after each
set. When you can complete 3 sets of 12 repetitions
without difficulty, increase the amount of resistance.
Toning
You can tone your muscles by pushing them to a moderate percentage of their capacity. Select a moderate
amount of resistance and increase the number of repetitions in each set. Complete as many sets of 15 to
20 repetitions as possible without discomfort. Rest for
1 minute after each set. Work your muscles by completing more sets rather than by using high amounts of
resistance.
Weight Loss
To lose weight, use a low amount of resistance and
increase the number of repetitions in each set.
Exercise for 20 to 30 minutes, resting for a maximum
of 30 seconds between sets.
Cross Training
Cross training is an ef
well-balanced fitness program. An example of a balanced program follows:
Plan strength training workouts on Monday,
•
Wednesday, and Friday.
• Plan 20 to 30 minutes of aerobic exercise, such as
running on a treadmill or riding on an elliptical exerciser or exercise cycle, on Tuesday and Thursday.
• Rest from both strength training and aerobic exercise
for at least one full day each week to give your body
time to regenerate.
The combination of strength training and aerobic exercise will reshape and strengthen your body, plus develop your heart and lungs.
ficient way to get a complete and
PERSONALIZING YOUR EXERCISE PROGRAM
Determining the exact length of time for each workout,
s well as the number of repetitions or sets completed,
a
is an individual matter. It is important to avoid overdoing it during the first few months of your exercise program. You should progress at your own pace and be
sensitive to your body’s signals. If you experience pain
or dizziness at any time while exercising, stop immediately and begin cooling down. Find out what is wrong
before continuing. Remember that adequate rest and a
proper diet are important factors in any exercise program.
WARMING UP
Begin each workout with 5 to 10 minutes of stretching
and light exercise to warm up. Warming up prepares
your body for more strenuous exercise by increasing
circulation, raising your body temperature and delivering more oxygen to your muscles.
WORKING OUT
Each workout should include 6 to 10 different exercises. Select exercises for every major muscle group,
emphasizing areas that you want to develop most. To
give balance and variety to your workouts, vary the
exercises from session to session.
Schedule your workouts for the time of day when your
energy level is the highest. Each workout should be
followed by at least one day of rest. Once you find the
schedule that is right for you, stick with it.
EXERCISE FORM
Maintaining proper form is an essential part of an
effective exercise program. This requires moving
through the full range of motion for each exercise, and
moving only the appropriate parts of the body
Exercising in an uncontrolled manner will leave you
feeling exhausted. On the exercise guide accompanying this manual you will find photographs showing the
correct form for several exercises, and a list of the
muscles affected. Refer to the muscle chart on the
next page to find the names of the muscles.
The repetitions in each set should be performed
smoothly and without pausing. The exertion stage of
each repetition should last about half as long as the
return stage. Proper breathing is important. Exhale
during the exertion stage of each repetition and inhale
during the return stroke. Never hold your breath.
.
13
Rest for a short period of time after each set. The
O
P
Q
R
S
T
U
V
X
W
N
M
J
G
F
H
I
K
E
C
D
B
A
L
MUSCLE CHART
A. Sternomastoid (neck)
B. Pectoralis Major (chest)
C. Biceps (front of arm)
D. Obliques (waist)
E. Brachioradials (forearm)
F. Hip Flexors (upper thigh)
G. Abductor (outer thigh)
H. Quadriceps (front of thigh)
I. Sartorius (front of thigh)
J. Tibialis Anterior (front of calf)
K. Soleus (front of calf)
L. Anterior Deltoid (shoulder)
M. Rectus Abdominus (stomach)
N. Adductor (inner thigh)
O. Trapezius (upper back)
P. Rhomboideus (shoulder)
Q. Posterior Deltoid (Upper Back)
R. Triceps (back of arm)
S. Latissimus Dorsi (mid back)
T. Spinae Erectors (lower back)
U. Gluteus Medius (hip)
V. Gluteus Maximus (buttocks)
W. Hamstring (back of leg)
X. Gastrocnemius (back of calf)
deal resting periods are:
i
• Rest for three minutes after each set for a muscle
uilding workout.
b
• Rest for one minute after each set for a toning workout.
• Rest for 30 seconds after each set for a weight loss
workout.
Plan to spend the first couple of weeks familiarizing
yourself with the equipment and learning the proper
form for each exercise.
COOLING DOWN
End each workout with 5 to 10 minutes of stretching.
Include stretches for both your arms and legs. Move
slowly as you stretch and do not bounce. Ease into
ach stretch gradually and go only as far as you can
e
without strain. Stretching at the end of each workout
s an effective way to increase flexibility.
i
STAYING MOTIVATED
For motivation, keep a record of each workout. List the
date, the exercises performed, the resistance used,
and the numbers of sets and repetitions completed.
Make copies of the exercise logs found on pages 15
and 16. Use the logs to record your weight and key
body measurements at the end of every month.
Remember, the key to achieving the greatest results is
to make exercise a regular and enjoyable part of your
everyday life.
14
MONDAY
ate:
D
/
EXERCISE WEIGHT SETS REPS
/
TUESDAY
Date:
/ /
WEDNESDAY
Date:
/ /
THURSDAY
Date:
/ /
AEROBIC EXERCISE
EXERCISE WEIGHT SETS REPS
AEROBIC EXERCISE
FRIDAY
Date:
EXERCISE WEIGHT SETS REPS
/ /
Make photocopies of this page for scheduling and recording your workouts.
15
MONDAY
ate:
D
/
EXERCISE WEIGHT SETS REPS
/
TUESDAY
Date:
/ /
WEDNESDAY
Date:
/ /
THURSDAY
Date:
/ /
AEROBIC EXERCISE
EXERCISE WEIGHT SETS REPS
AEROBIC EXERCISE
FRIDAY
Date:
EXERCISE WEIGHT SETS REPS
/ /
Make photocopies of this page for scheduling and recording your workouts.
16
NOTES
17
PART LIST—Model No. PFBE1816.0 R0606A
Key No. Qty. Description Key No. Qty. Description
1 1 Left Base
2 1 Right Base
3 1 Center Base
4
5 1 Right Upright
6 1 Seat Frame
7 1 Backrest Frame
8 1 Leg Developer
9 1 Curl Frame
10 1 Curl Post
11 2 Safety Spotter
12 2 Weight Rest
13 2 Curl Handle
14 1 Seat
15 1 Front Foot
16 1 Backrest
17 2 56mm Round Cap
18 1 Curl Pad
19 3 Pad Tube
20 6 Foam Pad
21 4 M6 Washer
22 2 Roll Pin
23 1 Curl Tube
24 1 Curl Bumper
25 1 Curl Pin
26 1 Spring Clip
27 1 Right Foot
28 1 Left Foot
29 1 Seat Frame Bumper
30 8 Guide Bushing
31 4 Upright Pin
1 Left Upright
32 2 Backrest Bushing
33 4 Developer Bushing
34 1 Bumper
5 1 48mm Round Cap
3
36 2 50mm Round Cap
37 1 Curl Knob
38 1 Backrest Knob
39 2 Curl Bushing
40 8 38mm Round Cap
41 2 75mm Round Cap
42 1 Left Seat Frame Cap
43 1 Backrest Frame Cap
44 1 Right Seat Frame Cap
45 2 25mm Round Cap
46 6 Pad Cap
47 20 M4 x 16mm Screw
48 4 M6 x 75mm Screw
49 22 M10 Nylon Locknut
50 6 M6 x 25mm Screw
51 1 M10 x 16mm Bolt
52 18 M10 Washer
53 16 M10 x 55mm Button Bolt
54 1 M10 x 70mm Bolt Set
55 1 M10 x 75mm Button Screw
56 6 M10 x 98mm Button Bolt
57 1 M10 x 85mm Button Screw
58 5 Tether
# 1 User’s Manual
# 1 Exercise Guide
# 4 Hex Key
# 1 Grease Pack
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover
of the user’s manual for information about ordering replacement parts.
18
17
44
18
10
50
4
1
30
12
40
31
47
31
47
30
403011
5
19
19
19
20
20
46
20
20
20
20
46
46
46
55
23
39
13
45
13
45
22
39
24
47
9
36
47
25
8
54
33
33
36
33
33
35
26
15
47
51
49
1
2
16
7
57
32
32
49
43
50
50
41
30
12
11
30
30
40
40
31
31
47
47
14
4
47
56
52
27
47
37
38
42
6
49
49
48
17
29
47
52
56
56
28
47
56
49
49
56
49
49
3
49
53
53
53
52
52
52
53
53
53
52
52
52
49
22
47
49
34
47
40
40
40
40
54
21
58
58
58
58
58
46
46
EXPLODED DRAWING—Model No. PFBE1816.0 R0606A
19
ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, please be prepared
o give the following information:
t
• the MODEL NUMBER of the product (PFBE1816.0)
the NAME of the product (PROFORM FUSION 2.0 X weight bench)
•
• the SERIAL NUMBER of the product (see the front cover of this manual)
• the KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST and EXPLODED DRAWING on
pages 18 and 19)
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of ninety (90) days from the date of purchase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing or repairing, at ICON's option, the product through one of its authorized service centers.
All repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped
to a service center, freight charges to and from the service center will be the customer’s responsibility. For
in-home service, the customer will be responsible for a minimal trip charge.
to any product or damage to a product caused by or attributable to freight damage, abuse, misuse,
improper or abnormal usage or repairs not provided by an ICON authorized service center; products used
for commercial or rental purposes; or products used as store display models. No other warranty beyond
that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con
nection with the use or performance of the product or damages with respect to any economic loss, loss
of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth
herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly
limitation may not apply to you.
This warranty does not extend
, the above
-
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEAL
Part No. 241
184 R0606A Printed in China © 2006 ICON IP, Inc.
TH & FITNESS, INC., 1500 S. 1000 W
., LOGAN, UT 84321-9813
Loading...
