www.proform.com
Model No. PFEL74908.0
Serial No.
Write the serial number in the
space above for reference.
Serial
Number
Decal
QUESTIONS?
As a manufacturer, we are committed to providing complete customer
satisfaction. If you have questions,
or if parts are damaged or missing,
DO NOT CONTACT THE STORE;
please contact Customer Care.
USER'S MANUAL
IMPORTANT: You must note the
product model number and serial
number (see the drawing above)
before contacting us:
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.proformservice.com
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Keep this manual
for future reference.
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
MPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
I
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO USE THE ELLIPTICAL EXERCISER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

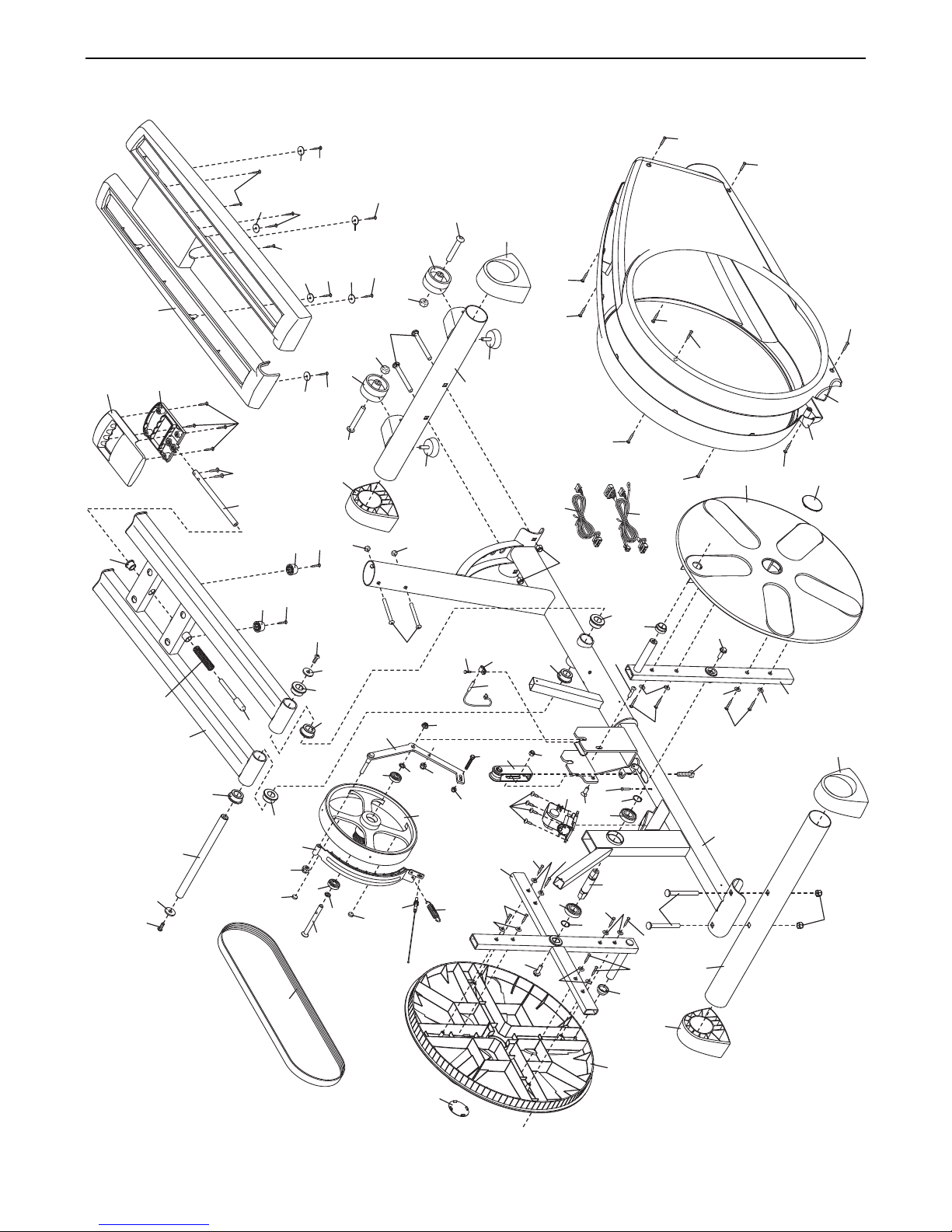

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
WARNING DECAL PLACEMENT
This drawing shows the location(s) of
the warning decal(s). If a decal is
missing or illegible, see the front
cover of this manual and request a
free replacement decal. Apply the
decal in the location shown. Note:
The decal(s) may not be shown at
actual size.
PROFORM is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your elliptical exerciser before using your elliptical
exerciser. ICON assumes no responsibility for personal injury or property damage sustained by or
hrough the use of this product.
t
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over the age of 35 or
persons with pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of the elliptical exerciser are
adequately informed of all precautions.
3. Your elliptical exerciser is intended for home
use only. Do not use your elliptical exerciser
in a commercial, rental, or institutional setting.
4. Keep your elliptical exerciser indoors, away
from moisture and dust. Place your elliptical
exerciser on a level surface, with a mat
beneath it to protect the floor or carpet.
Make sure that there is at least 3 ft. (1 m) of
clearance in the front and rear of your elliptical exerciser and 2 ft. (0.6 m) on each side.
5. Inspect and properly tighten all parts regularly. Replace any worn parts immediately.
6. Keep children under age 12 and pets away
from your elliptical exerciser at all times.
7. Your elliptical exerciser should not be used
by persons weighing more than 250 lbs.
(113 kg).
8. Wear appropriate exercise clothes when
exercising; do not wear loose clothes that
could become caught on your elliptical exerciser. Always wear athletic shoes for foot
protection.
9. Hold the handgrip pulse sensor or the handlebars when mounting, dismounting, or using
your elliptical exerciser.
10. Keep your back straight while using your
elliptical exerciser; do not arch your back.
11. The pulse sensor is not a medical device.
Various factors, including the userʼs movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
12. When you stop exercising, allow the pedals
to slowly come to a stop.
13. If you feel pain or dizziness while exercising,
stop immediately and cool down.
14. Use your elliptical exerciser only as
described in this manual.
3
BEFORE YOU BEGIN
hank you for selecting the new PROFORM
T
elliptical exerciser. The 480 CSE is a smooth exerciser
that moves your feet in a natural elliptical path, minimizing the impact on your knees and ankles.
For your benefit, read this manual carefully before
you use the elliptical exerciser. If you have ques-
tions after reading this manual, please see the front
cover of this manual. To help us assist you, note the
product model number and serial number before con-
Handlebar
®
80 CSE
4
acting us. The model number and the location of the
t
serial number decal are shown on the front cover of
this manual.
o avoid a registration fee for any service needed
T
under warranty, you must register the elliptical
exerciser at www.proformservice.com/registration.

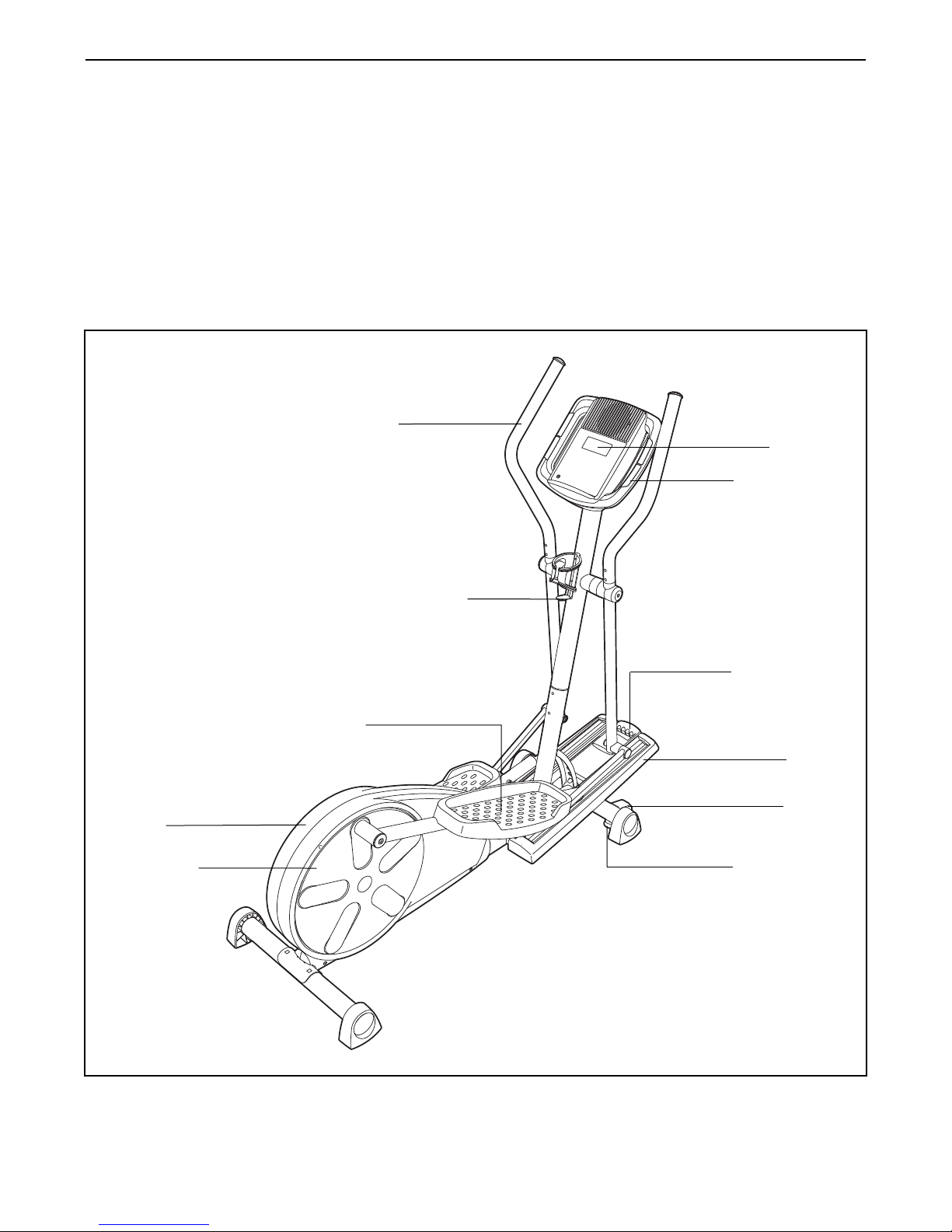

Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Console
Pulse Sensor
Shield
Pedal Disc
Water Bottle Holder*
Ramp Handle
Pedal
Ramp
Wheel
Leveling Foot
*Water bottle is not included
4

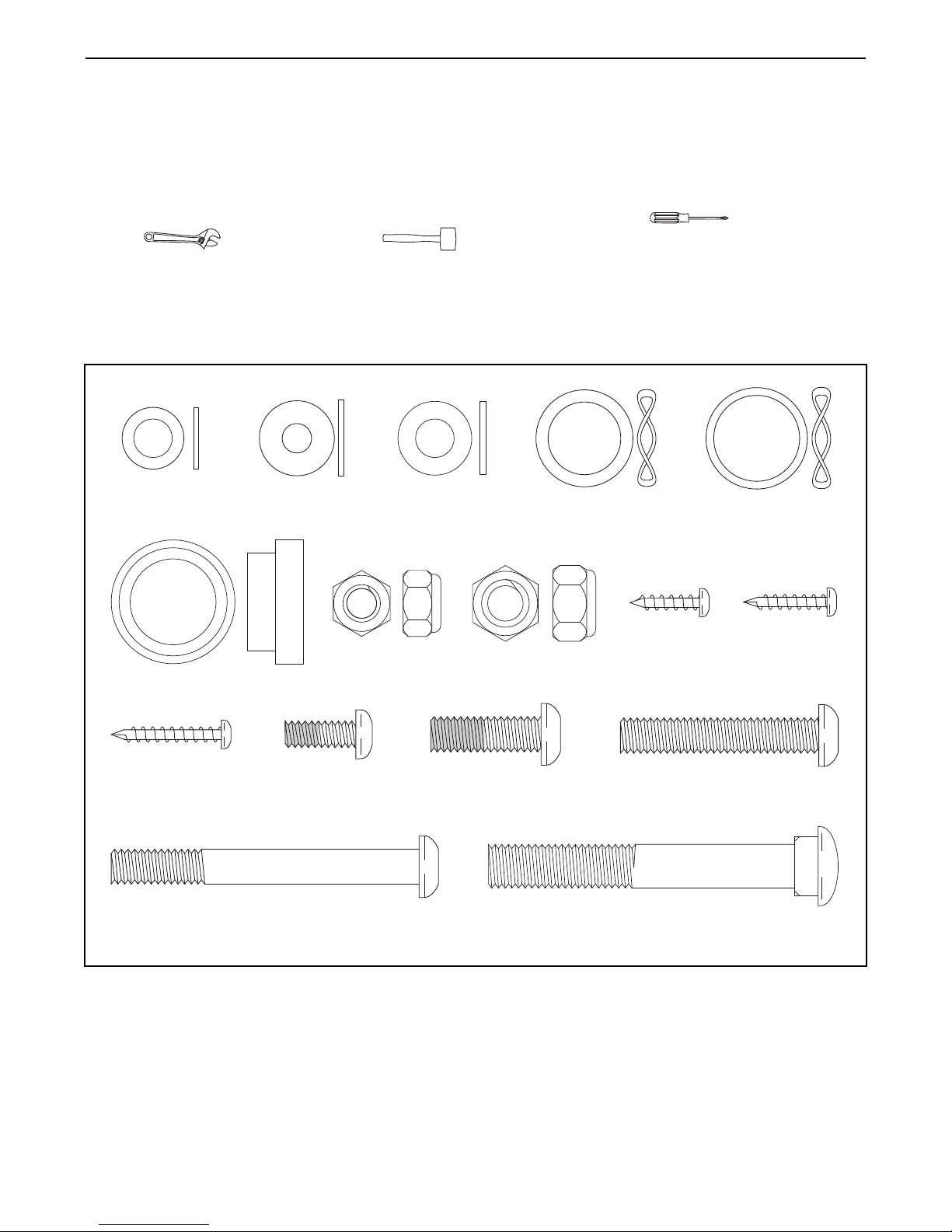

M6 x 16mm Patch
Screw (96)–4
M8 Washer
(80)–2
M6 Large
Washer (87)–4
M4 x 19mm
Self-tapping
Screw (95)–6
M4 x 25mm
Self-tapping
Screw (92)–2
M8 x 45mm Button
Bolt (71)–4
M8 x 70mm Button
Bolt (66)–2
M8 Small
Washer (88)–2
M10 x 75mm Carriage
Bolt (65)–4
M8 x 25mm Patch
Screw (83)–4
M4 x 16mm
Screw (84)–4
M8 Locknut
(79)–6
M10 Locknut
(77)–4
23mm x 19.5mm
Wave Washer (49)–2
22mm x 16.5mm
Wave Washer (70)–6
Crank Arm Spacer (25)–2
ASSEMBLY
To hire an authorized service technician to assemble the elliptical exerciser, call 1-800-445-2480.
ssembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
A
packing materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s), assembly requires a Phillips screwdriver , an adjustable
wrench , and a rubber mallet .
See the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following
the key number is the quantity needed for assembly. Note: Some small parts may have been preassembled.
If a part is not in the hardware kit, check to see if it has been preassembled.
5

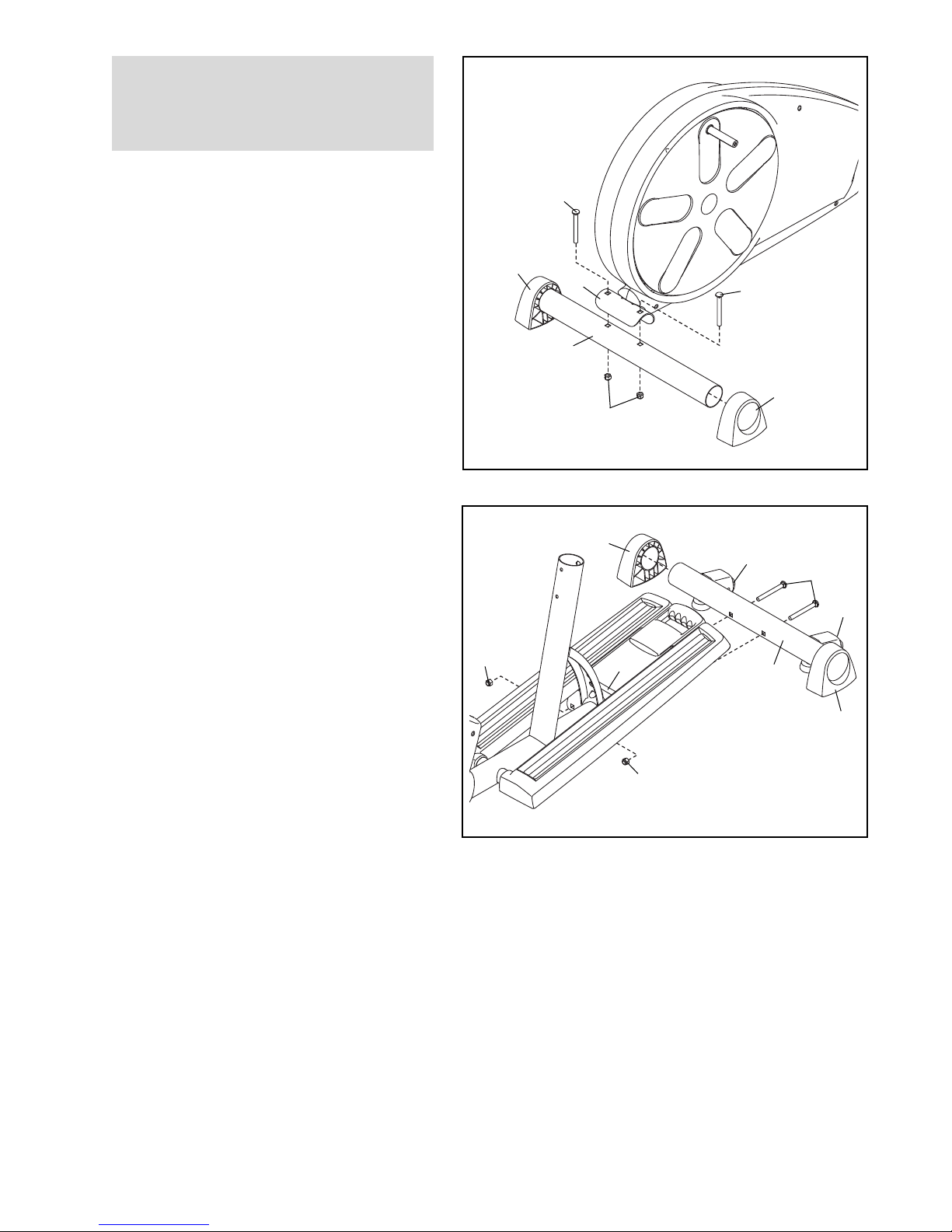

1.
To make assembly easier, read the
information on page 5 before you
egin assembling the elliptical
b
exerciser.
ress a Stabilizer Cap (19) onto each end of
P
the Rear Stabilizer (4).
Attach the Rear Stabilizer (4) to the Frame (1)
with two M10 x 75mm Carriage Bolts (65) and
two M10 Locknuts (77).
1
65
19
1
65
4
19
77
2. Orient the Front Stabilizer (3) so that the
Wheels (21) are in the position shown.
Press a Stabilizer Cap (19) onto each end of
the Front Stabilizer (3).
Attach the Front Stabilizer (3) to the Frame
(1) with two M10 x 75mm Carriage Bolts (65)
and two M10 Locknuts (77).
2
19
21
65
21
77
1
3
19
77
6
3. While another person holds the Upright (2)
near the Frame (1) as shown, connect the
Upper Wire Harness (51) to the Lower Wire
arness (52).
H
3
ip: Avoid pinching the Wire Harnesses
T
(51, 52). Insert the Upright (2) into the Frame
(1). Attach the Upright with two M8 x 70mm
Button Bolts (66) and two M8 Locknuts (79).
Do not tighten the Button Bolts yet. Make
sure that the Locknuts are in the indicated
hexagonal holes.
Avoid pinching the
Wire Harnesses (51, 52)
2
66
1
51
52
79
Hexagonal
Holes
4. Attach the Water Bottle Holder (39) to the
Upright (2) with two M4 x 25mm Self-tapping
Screws (92).
4
2
39
92
7
5. The Console (10) can use four 1.5V “D” batteries (not included); alkaline batteries are recommended. IMPORTANT: If the Console has
een exposed to cold temperatures, allow
b
it to warm to room temperature before
nserting batteries. Otherwise, you may
i
damage the console displays or other electronic components. Remove the battery
cover, insert the batteries into the battery
compartment, and reattach the battery cover.
Make sure to orient the batteries as shown
by the diagram inside the battery compartment.
5
Cover
Batteries
To purchase an optional AC adapter, contact the store where you purchased this
product or call the telephone number on
the cover of this manual. To avoid damaging the console, use only a manufacturersupplied AC adapter. Plug one end of the AC
adapter into the jack on the console; plug the
other end into an outlet installed in accordance with all local codes and ordinances.
6. While another person holds the Console (10)
near the Upright (2), connect the console wire
to the Upper Wire Harness (51).
Tip: Avoid pinching the wires. Attach the
Console (10) to the Upright (2) with four M4 x
16mm Screws (84).
10
6
10
Console Wire
2
Avoid pinching
the wires
8
51
84

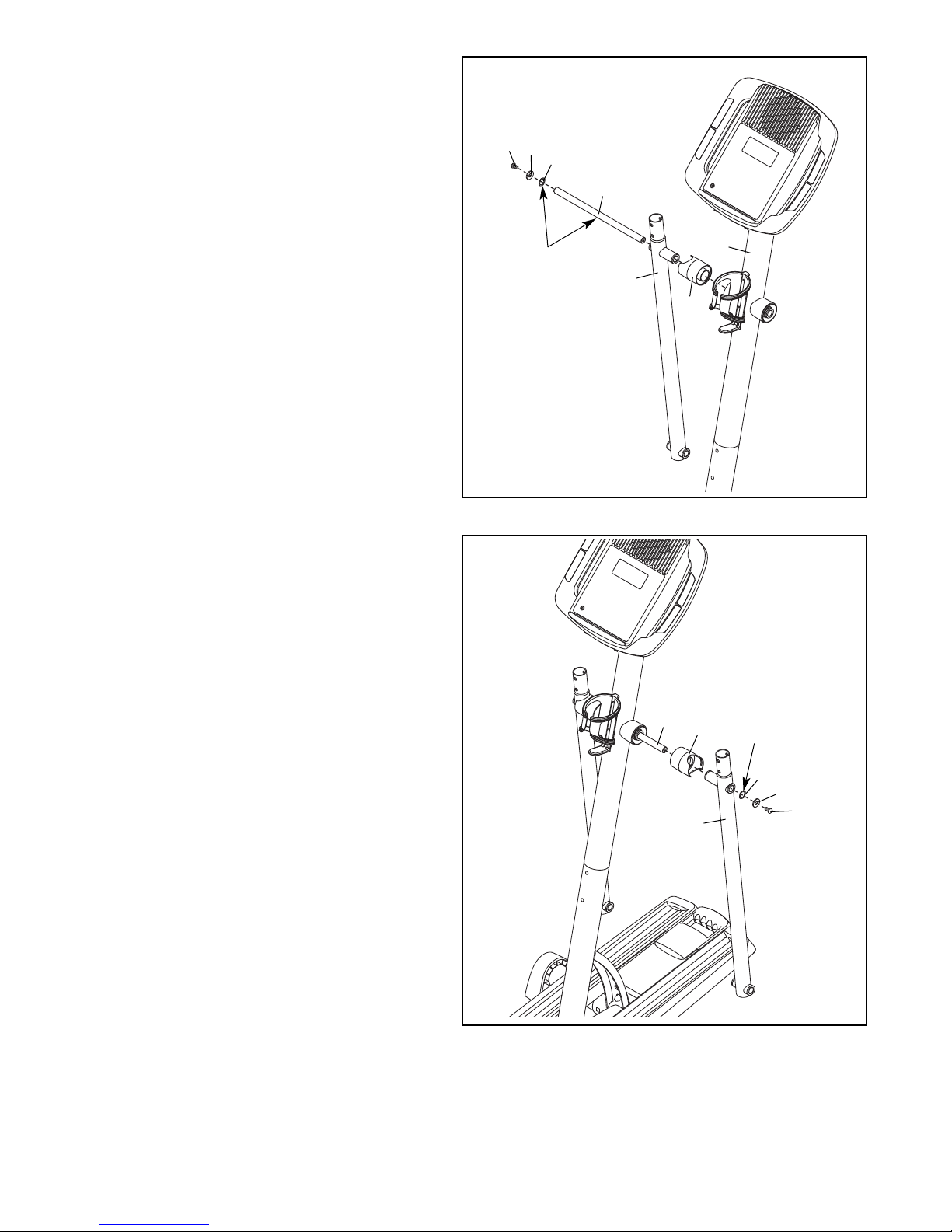

7. Apply a generous amount of the included
grease to the Pivot Axle (45). Then, apply a
small amount of grease to two 22mm x
6.5mm Wave Washers (70).
1
lide the Pivot Axle (45) through the Upright
S
(2). Then, orient an Upper Body Leg Spacer
(43) and an Upper Body Leg (9) as shown
and slide them onto the left side of the Pivot
Axle.
Attach the left Upper Body Leg (9) with an
M8 x 25mm Patch Screw (83), an M8 Washer
(80), and one of the 22mm x 16.5mm Wave
Washers (70). Do not tighten the Patch
Screw yet.
7
83
80
0
7
45
Grease
9
2
43
8. Orient an Upper Body Leg Spacer (43) and
an Upper Body Leg (9) as shown and slide
them onto the right side of the Pivot Axle (45).
Attach the right Upper Body Leg (9) with an
M8 x 25mm Patch Screw (83), an M8 Washer
(80), and the other 22mm x 16.5mm Wave
Washer (70). Do not tighten the Patch
Screw yet.
8
45
43
Grease
70
80
9
83
9
9. Identify the Right Handlebar (8), which is
marked with an “R” sticker. Orient the Right
Handlebar so that the hexagonal holes are in
he location shown.
t
ttach the Right Handlebar (8) to the right
A
Upper Body Leg (9) with two M8 x 45mm
Button Bolts (71) and two M8 Locknuts (79).
Make sure that the Locknuts are in the
hexagonal holes.
Attach the Left Handlebar (7) in the same
way.
9
7
71
79
Hexagonal
9
8
Holes
10. Identify the Left Pedal Leg (11), which is
marked with an “L” sticker. Orient the Left
Pedal Leg and a Pedal (46) as shown.
Attach the Pedal (46) to the Left Pedal Leg
(11) with three M4 x 19mm Self-tapping
Screws (95).
Repeat this step for the Right Pedal Leg
(not shown).
10
46
11
95
10
11. Apply a generous amount of grease to the
axle of the Right Crank Arm (24). Then, apply
a small amount of grease to two 23mm x
9.5mm Wave Washers (49).
1
lide a Crank Arm Spacer (25) and the Right
S
Pedal Leg (12) onto the axle of the Right
Crank Arm (24). Make sure that the flat side
of the Crank Arm Spacer is facing away
from the Right Crank Arm.
1
1
Grease
24
Attach the Right Pedal Leg (12) with an M8 x
25mm Patch Screw (83), an M8 Small
Washer (88), a Pedal Leg Cover (50), and
one of the 23mm x 19.5mm Wave Washers
(49). Do not tighten the Patch Screw yet.
Attach the Left Pedal Leg (not shown) in
the same way.
12. Orient a Link Arm (13) as shown. Apply a
small amount of grease to the axles on the
Link Arm and to two 22mm x 16.5mm Wave
Washers (70). Then, slide a Wave Washer
onto each axle.
Identify a Link Arm Spacer (48) and a Rear
Link Arm Spacer (38); the Link Arm Spacer is
longer than the Rear Link Arm Spacer. Orient
the Link Arm Spacer and the Rear Link Arm
Spacer as shown.
Slide the Link Arm Spacer (48) onto the front
axle of the Link Arm (13); slide the Rear Link
Arm Spacer (38) onto the rear axle.
At the same time, slide the Link Arm (13) into
the left Upper Body Leg (9) and into the Left
Pedal Leg (11). Attach the Link Arm with two
M6 x 16mm Patch Screws (96) and two M6
Large Washers (87).
12
25
70
13
38
49
50
88
12
83
70
Grease
11
87
96
9
48
87
96
Repeat this step on the right side of the
elliptical exerciser.
See step 3. Tighten the M8 x 70mm Button
Bolts (66).
See steps 7, 8, and 11. Tighten the M8 x
25mm Patch Screws (83).
See the inset drawing. Press an Upper Body
Leg Cover (42) onto each Upper Body Leg (9).
13. Make sure that all parts of the elliptical exerciser are properly tightened. Note: Some hardware may be
left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the
elliptical exerciser.
11
42
9
42
9

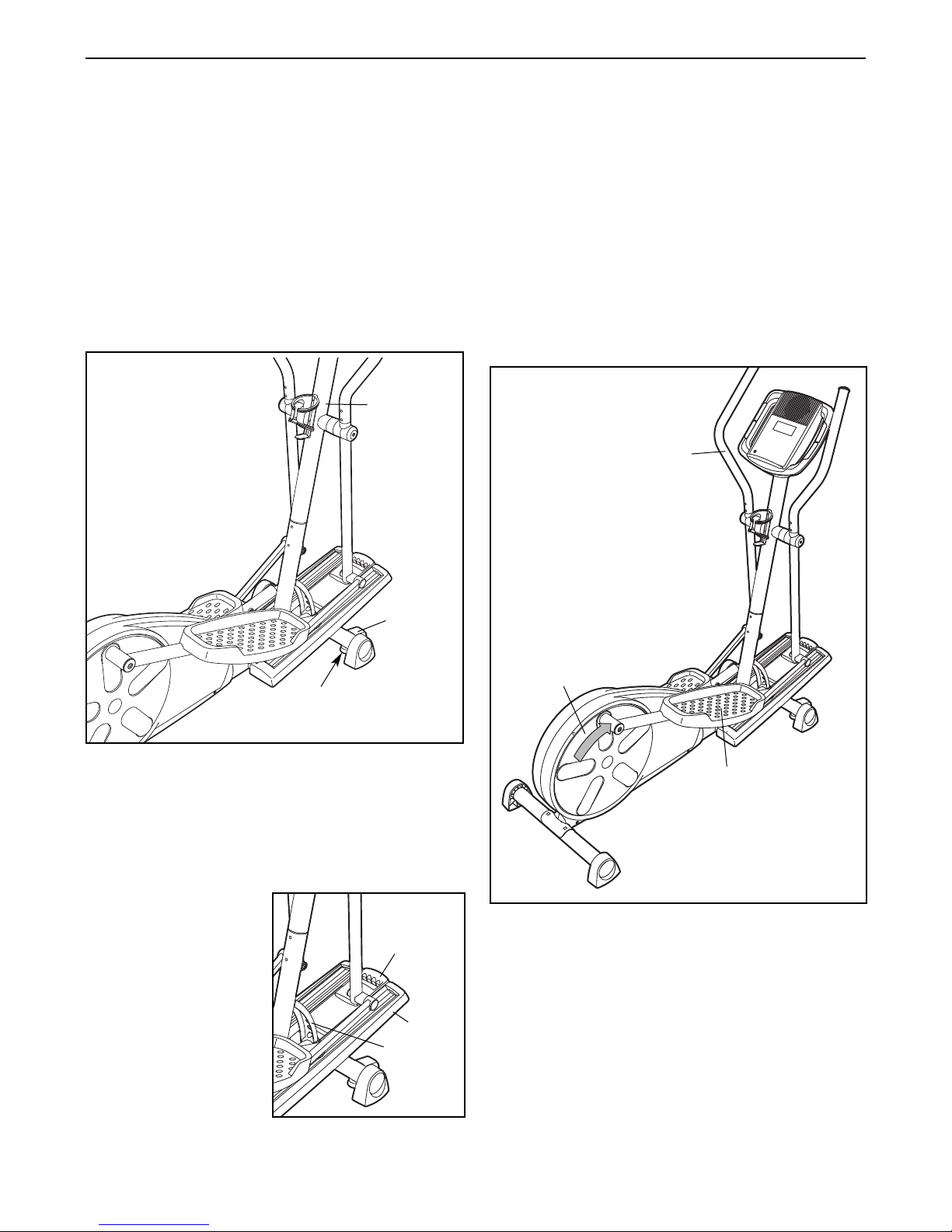

HOW TO USE THE ELLIPTICAL EXERCISER
HOW TO MOVE AND LEVEL THE ELLIPTICAL
EXERCISER
To move the elliptical exerciser, stand in front of it,
lace one foot against one of the wheels, and firmly
p
hold the upper end of the upright. Pull the upright forward until you can move the elliptical exerciser on the
wheels. Carefully move the elliptical exerciser to the
desired location and then lower it. To decrease the
risk of injury, do not attempt to move the elliptical
exerciser over an uneven surface.
Upright
HOW TO EXERCISE ON THE ELLIPTICAL
EXERCISER
To mount the elliptical exerciser, firmly hold the upper
ody arms and carefully step onto the pedal that is in
b
the lowest position. Next, step onto the other pedal.
Push the pedals until they begin to move with a continuous motion. Note: The pedal discs can turn in
either direction. It is recommended that you turn
the pedal discs in the direction shown below;
however, for variety, you can turn the pedal discs
in the opposite direction.
Handlebar
Wheel
Leveling
Foot
If the elliptical exerciser rocks slightly on your floor,
turn one or both of the leveling feet under the front
stabilizer until the rocking motion is eliminated.
HOW TO ADJUST THE RAMP INCLINE
To adjust the incline
level of the ramp, pull
the ramp handle,
move the ramp to the
desired incline level,
and engage the ramp
pin into one of the
holes in the frame.
Ramp
Handle
Ramp
Frame
Pedal
Disc
Pedal
To dismount the elliptical exerciser, allow the pedals to
come to a complete stop. The elliptical exerciser
does not have a freewheel; the pedals will continue to move until the flywheel stops. When the ped-
als are stationary, step off the higher pedal first. Then,
step off the lower pedal.
12

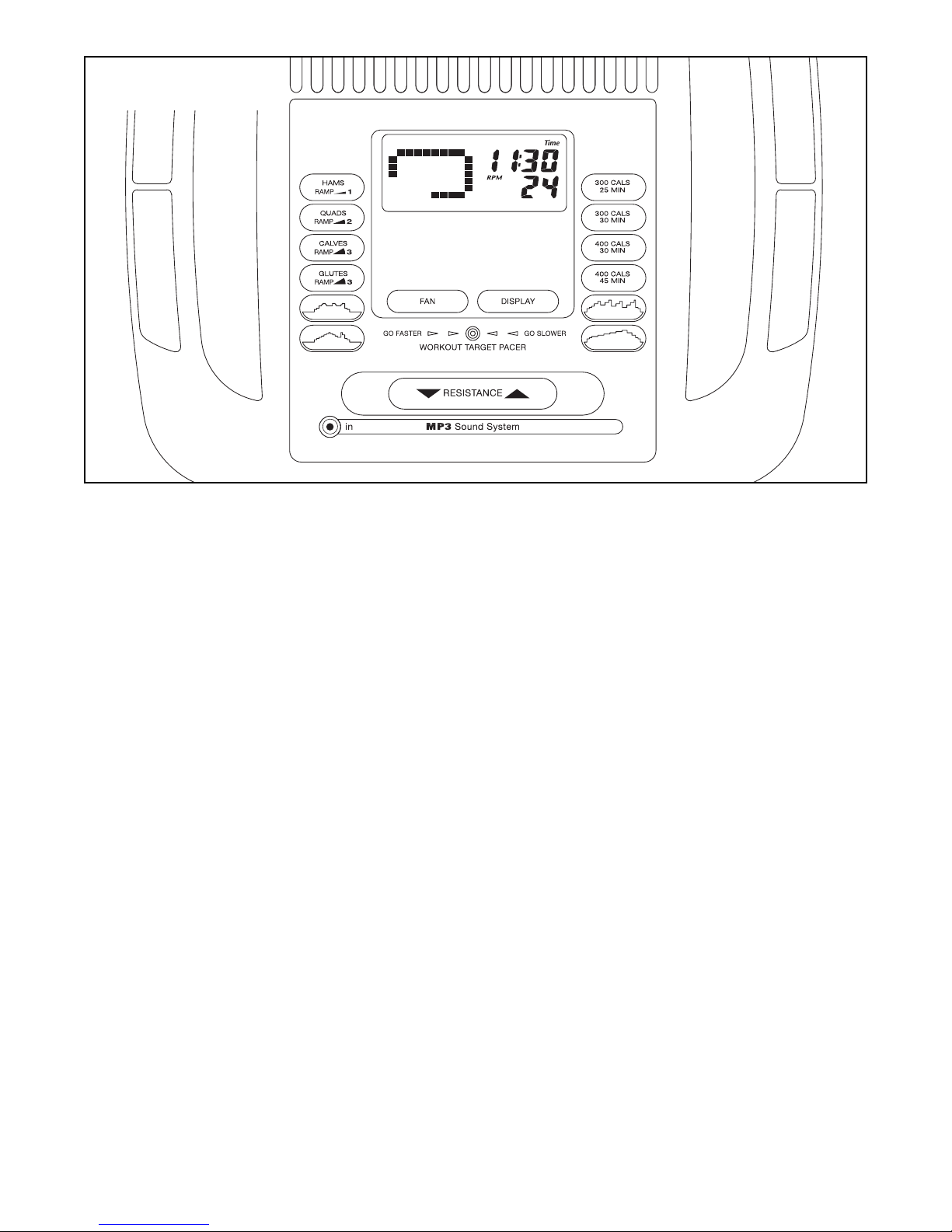

ONSOLE DIAGRAM
C
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
When you use the manual mode of the console, you
can change the resistance of the pedals with the touch
of a button. As you exercise, the console will display
continuous exercise feedback. You can even measure
your heart rate using the handgrip pulse sensor.
The console also offers four target toning workouts
designed to work specific areas of the body. The console guides you through each workout with a variety of
exercise instructions while automatically changing the
resistance of the pedals.
In addition, there are four calorie goal workouts
designed to help you burn 300 or 400 calories in 25-,
30-, or 45-minute workouts. The calorie goal workouts
automatically control the resistance of the pedals and
prompt you to vary your pace while counting the calories you burn.
There are also four preset workouts that automatically
change the resistance of the pedals and prompt you to
vary your pace while guiding you through an effective
workout.
You can even connect your MP3 player or CD player
to the consoleʼs sound system and listen to your
favorite workout music or audio books while you exercise.
To use the manual mode, see page 14. To use a
target toning workout, see page 16. To use a calorie goal workout, see page 17. To use a preset
workout, see page 18. To use the sound system,
see page 18.
13
HOW TO USE THE MANUAL MODE
4. Follow your progress with the displays.
Note: If there is a sheet of clear plastic on the face of
he console, remove the plastic.
t
. Press any button on the console or begin
1
pedaling to turn on the console.
When you turn on the console, the displays and
the workout target pacer will light. A tone will then
sound and the console will be ready for use.
2. Select the manual mode.
When you turn on the console, the manual mode
will be selected. If you have selected a workout,
reselect the manual mode by pressing one of the
six buttons on the right or left side of the console
repeatedly until a track appears in the left display.
3. Begin pedaling and change the resistance of
the pedals as desired.
The upper right
isplay can show the
d
elapsed time, the
pproximate number
a
of calories you have
burned, and the distance (total revolutions) you have pedaled. The
display will change modes every few seconds.
The lower right
display can show your
pedaling pace in revolutions per minute
(rpm) and the resistance level of the pedals. The display will change modes every few seconds. The display will also show your heart rate
when you use the handgrip pulse sensor (see step
5 on page 15).
The left display will
show a track representing 640 revolutions. As
you exercise, indicators
will appear in succession around the track
until the entire track
appears. The track will
then disappear and the indicators will again begin
to appear in succession.
As you pedal, change
the resistance of the
pedals by pressing the
Resistance increase
and decrease buttons
repeatedly. Note: After
you press the buttons, it may take a moment for
the pedals to reach the selected resistance level.
To change the display mode, press the Display
button repeatedly until the desired exercise information appears in the upper or lower right display.
After several seconds, the displays will change
modes automatically as before.
Note: You can adjust
the volume of the console tones and the
voice of the personal
trainer. First, press and
hold the Display button
for a few seconds until
the display is blank; then, release the Display button. Next, press the Resistance increase and
decrease buttons to select a volume level between
1 and 5. When you have selected the desired volume level, press the Display button again.
14
5. Measure your heart rate if desired.
6. Turn on the fan if desired.
If there are sheets
ontacts
f clear plastic on
o
the metal contacts
n the handgrip
o
pulse sensor,
remove the plastic. In addition,
make sure that
your hands are
clean. To measure
your heart rate, hold
the handgrip pulse sensor with your palms resting
against the metal contacts. Avoid moving your
hands or gripping the contacts tightly.
When your pulse is detected, a heart-shaped symbol will flash in the lower right display each time
your heart beats, one or two dashes will appear,
and then your heart rate will be shown. For the
most accurate heart rate reading, hold the contacts for at least 15 seconds.
If your heart rate is not shown, make sure that
your hands are positioned as described. Be careful not to move your hands excessively or to
squeeze the metal contacts tightly. For optimal
performance, clean the metal contacts using a soft
cloth; never use alcohol, abrasives, or chemi-
cals to clean the contacts.
C
The fan has high, low, and auto speed settings;
hile the auto mode is selected, the speed of the
w
fan will automatically increase or decrease as you
ncrease or decrease your pedaling pace. Press
i
the Fan button repeatedly to select a fan speed or
to turn off the fan. Note: If the pedals do not move
for about thirty seconds, the fan will turn off automatically.
Pivot the thumb tab
on the right side of
the fan to adjust the
fan angle.
7. When you are finished exercising, the console
will turn off automatically.
If the pedals do not move for several seconds, a
series of tones will sound and the console will
pause.
If the pedals do not move for about five minutes,
the console will turn off and the displays will be
reset.
Thumb
Tab
15
HOW TO USE A TARGET TONING WORKOUT
1. Press any button on the console or begin pedling to turn on the console.
a
hen you turn on the console, the displays and
W
the workout target pacer will light. A tone will then
sound and the console will be ready for use.
2. Select a target toning workout.
To select a target toning workout, press the Hams,
Quads, Calves, or Glutes button. When you select
a target toning workout, the name of the workout
and the maximum resistance level will appear in
the display for a few seconds. A profile of the
resistance levels of the workout will also scroll
across the left side of the display.

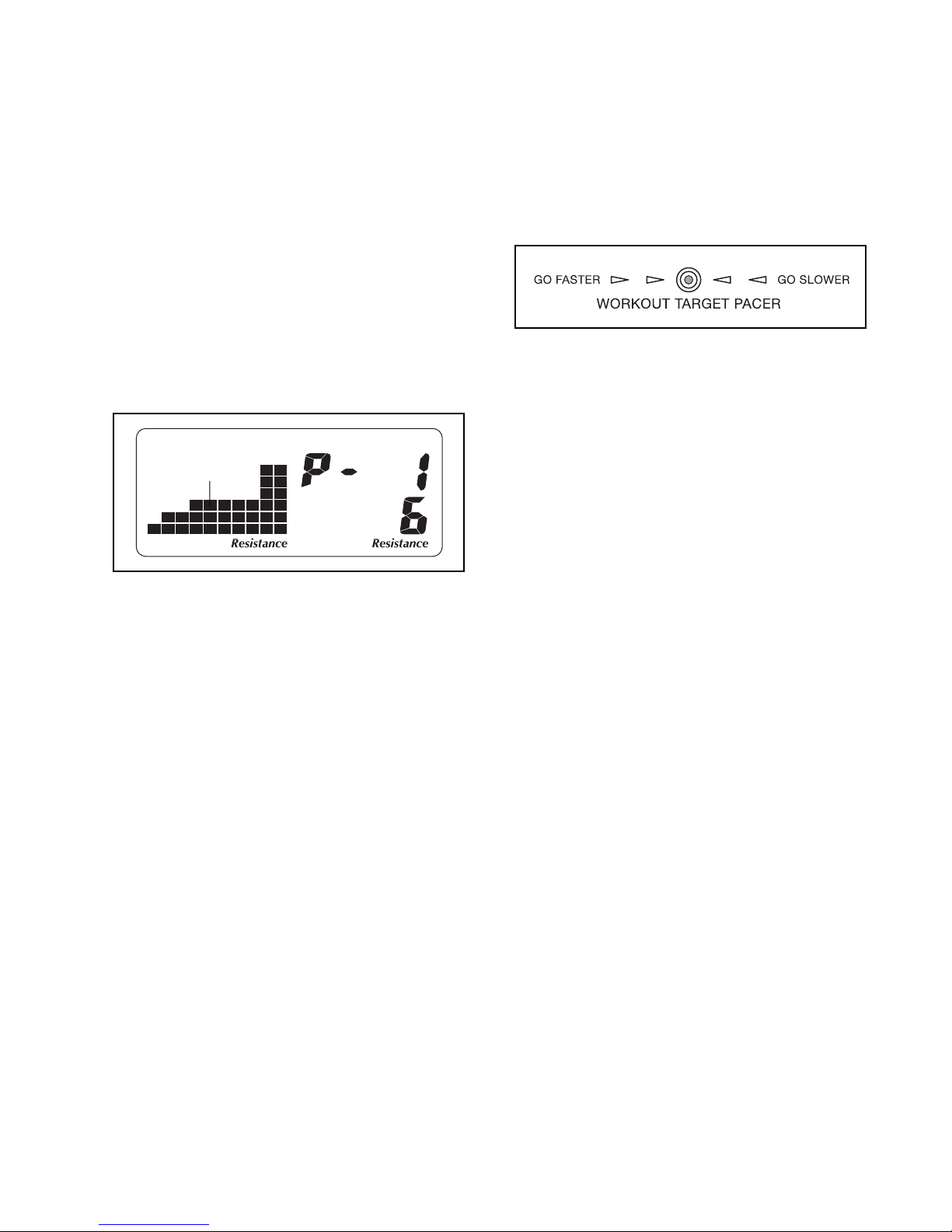

Profile
Note: A recommended ramp incline level for each
target toning workout is listed on the button for
each target toning workout. To set the ramp incline
level for the workout, see HOW TO ADJUST THE
RAMP INCLINE on page 12.
3. Begin pedaling to start the workout.
Each workout is divided into 30 one-minute segments. One resistance level and one target pace
setting are programmed for each segment. Note:
The same resistance level and/or target pace setting may be programmed for consecutive segments.
During the workout, the workout profile will show
your progress (see the drawing above). The flashing segment of the profile represents the current
segment of the workout. The height of the flashing
segment indicates the resistance level for the current segment. At the end of each segment of the
workout, a series of tones will sound and the next
segment of the profile will begin to flash. If a different resistance level is programmed for the next
segment, the resistance level will appear in the
display for a few seconds to alert you. The resistance of the pedals will then change.

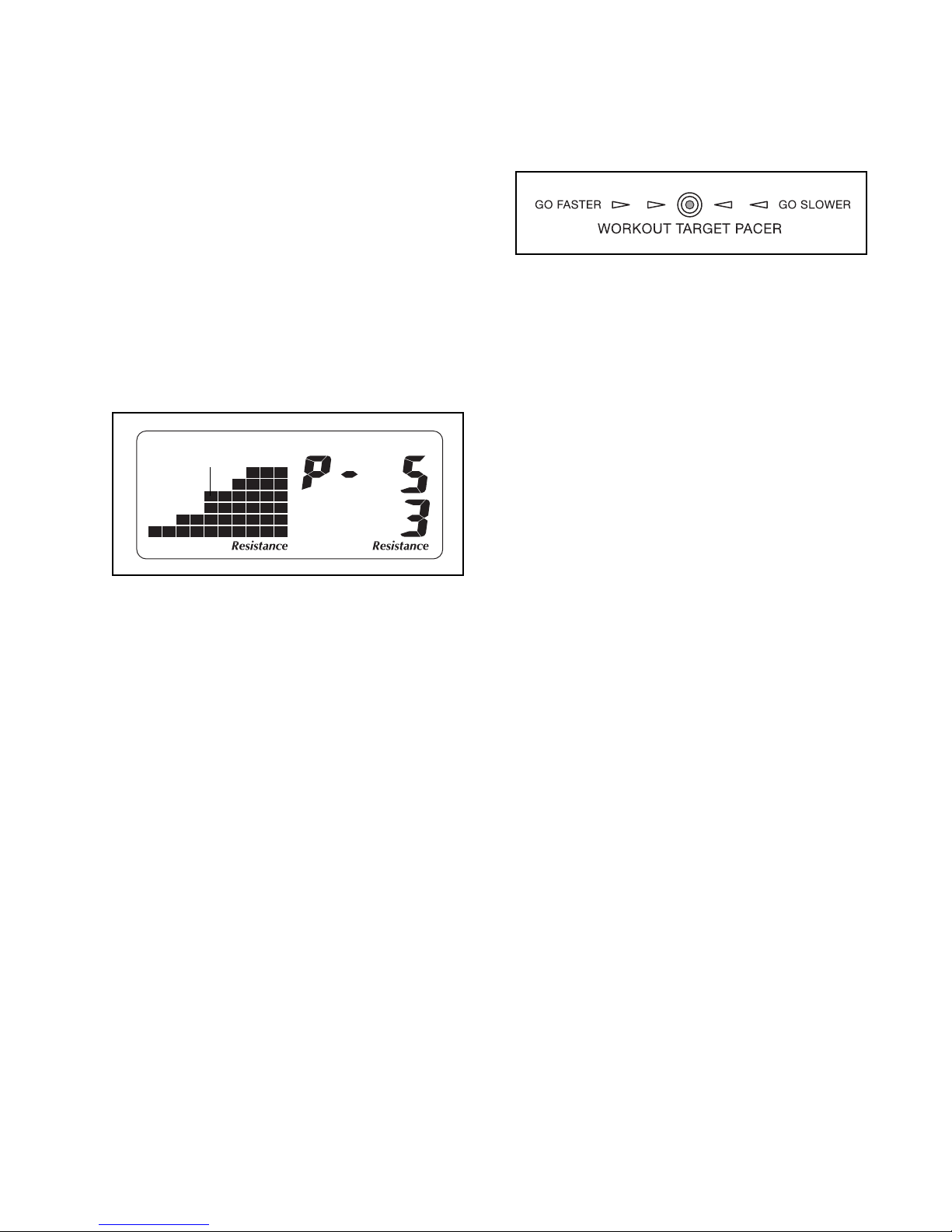

During the workout, the workout target pacer will
prompt you to keep your pedaling pace near the
target pace setting for the current segment. When
left indicator lights, increase your pace; when a
a
right indicator lights, decrease your pace. When
he center indicator lights, maintain your current
t
pace. IMPORTANT: The workout target pacer is
intended only to provide a goal. Make sure to
pedal at a pace that is comfortable for you.
If the resistance level for the current segment is
too high or too low, you can manually override the
resistance level by pressing the Resistance buttons. However, when the current segment ends,
the resistance of the pedals will automatically
adjust to the resistance level programmed for the
next segment.
If you stop pedaling for several seconds, a series
of tones will sound and the workout will pause. To
restart the workout, simply resume pedaling. The
workout will continue until the last segment of the
workout ends.
4. Follow your progress with the displays.
See step 4 on page 14.
5. Measure your heart rate if desired.
See step 5 on page 15.
6. Turn on the fan if desired.
See step 6 on page 15.
7. When you are finished exercising, the console
will turn off automatically.
See step 7 on page 15.
16
HOW TO USE A CALORIE GOAL WORKOUT
1. Press any button on the console or begin pedling to turn on the console.
a
hen you turn on the console, the displays and
W
the workout target pacer will light. A tone will then
sound and the console will be ready for use.
2. Select a calorie goal workout.
To select a calorie goal workout, press the 300
Cals 25 Min, 300 Cals 30 Min, 400 Cals 30 Min, or
400 Cals 45 Min button. When you select a target
toning workout, the name of the workout and the
maximum resistance level will appear in the display for a few seconds. A profile of the resistance
levels of the workout will also scroll across the left
side of the display.
Profile
During the workout, the workout target pacer will
prompt you to keep your pedaling pace near the
target pace setting for the current segment. When
left indicator lights, increase your pace; when a
a
right indicator lights, decrease your pace. When
he center indicator lights, maintain your current
t
pace. IMPORTANT: The workout target pacer is
intended only to provide a goal. Make sure to
pedal at a pace that is comfortable for you.
If the resistance level for the current segment is
too high or too low, you can manually override the
resistance level by pressing the Resistance buttons. However, when the current segment ends,
the resistance of the pedals will automatically
adjust to the resistance level programmed for the
next segment.
If you stop pedaling for several seconds, a series
of tones will sound and the workout will pause. To
restart the workout, simply resume pedaling. The
workout will continue until the last segment of the
workout ends.
3. Begin pedaling to start the workout.
Each workout is divided into 25, 30, or 45 oneminute segments. One resistance level and one
target pace setting are programmed for each segment. Note: The same resistance level and/or target pace setting may be programmed for consecutive segments.
During the workout, the workout profile will show
your progress (see the drawing above). The flashing segment of the profile represents the current
segment of the workout. The height of the flashing
segment indicates the resistance level for the current segment. At the end of each segment of the
workout, a series of tones will sound and the next
segment of the profile will begin to flash. If a different resistance level is programmed for the next
segment, the resistance level will appear in the
display for a few seconds to alert you. The resistance of the pedals will then change.
4. Follow your progress with the displays.
See step 4 on page 14.
5. Measure your heart rate if desired.
See step 5 on page 15.
6. Turn on the fan if desired.
See step 6 on page 15.
7. When you are finished exercising, the console
will turn off automatically.
See step 7 on page 15.
17
HOW TO USE A PRESET WORKOUT
1. Press any button on the console or begin pedling to turn on the console.
a
hen you turn on the console, the displays and
W
the workout target pacer will light. A tone will then
sound and the console will be ready for use.
2. Select a preset workout.
To select one of the four preset workouts, press
one of the four buttons that show workout profiles.
When you select a preset workout, the name of
the workout and the maximum resistance level will
appear in the display for a few seconds. A profile
of the resistance levels of the workout will also
scroll across the left side of the display.
Profile
right indicator lights, decrease your pace. When
the center indicator lights, maintain your current
pace. IMPORTANT: The workout target pacer is
ntended only to provide a goal. Make sure to
i
pedal at a pace that is comfortable for you.
If the resistance level for the current segment is
too high or too low, you can manually override the
resistance level by pressing the Resistance
increase or decrease button. However, when the
current segment ends, the resistance of the pedals
will automatically adjust to the resistance level programmed for the next segment.
If you stop pedaling for several seconds, a series
of tones will sound and the workout will pause. To
restart the workout, simply resume pedaling. The
workout will continue until the last segment of the
workout ends.
3. Begin pedaling to start the workout.
Each workout is divided into either 30 or 45 oneminute segments. One resistance level and one
target pace setting are programmed for each segment. Note: The same resistance level and/or target pace setting may be programmed for consecutive segments.
During the workout, the workout profile will show
your progress (see the drawing above). The flashing segment of the profile represents the current
segment of the workout. The height of the flashing
segment indicates the resistance level for the current segment. At the end of each segment of the
workout, a series of tones will sound and the next
segment of the profile will begin to flash. If a different resistance level is programmed for the next
segment, the resistance level will appear in the
display for a few seconds to alert you. The resistance of the pedals will then change.
During the workout, the workout target pacer will
prompt you to keep your pedaling pace near the
target pace setting for the current segment. When
a left indicator lights, increase your pace; when a
4.
Follow your progress with the displays.
See step 4 on page 14.
5.
Measure your heart rate if desired.
See step 5 on page 15.
6. Turn on the fan if desired.
See step 6 on page 15.
7.
When you are finished exercising, the console
will turn off automatically.
See step 7 on page 15.
HOW TO USE THE SOUND SYSTEM
To play music or audio books through the consoleʼs
sound system while you exercise, plug an audio cable
(not included) into the jack on the console and into a
jack on your MP3 player or CD player; make sure
that the audio cable is fully plugged in.
Next, press the play button on your MP3 player or CD
player. Adjust the volume level using the volume control on your MP3 player or CD player.
18
MAINTENANCE AND TROUBLESHOOTING
Inspect and properly tighten all parts of the elliptical
exerciser regularly. Replace any worn parts immedi-
tely. The elliptical exerciser can be cleaned with a
a
soft cloth and mild detergent. Do not use abrasives
or solvents to clean the exerciser. To prevent damage to the console, keep liquids away from the console and keep the console out of direct sunlight.
When storing the elliptical exerciser, remove the batteries from the console. Keep the elliptical exerciser in
a clean, dry location, away from moisture and dust.

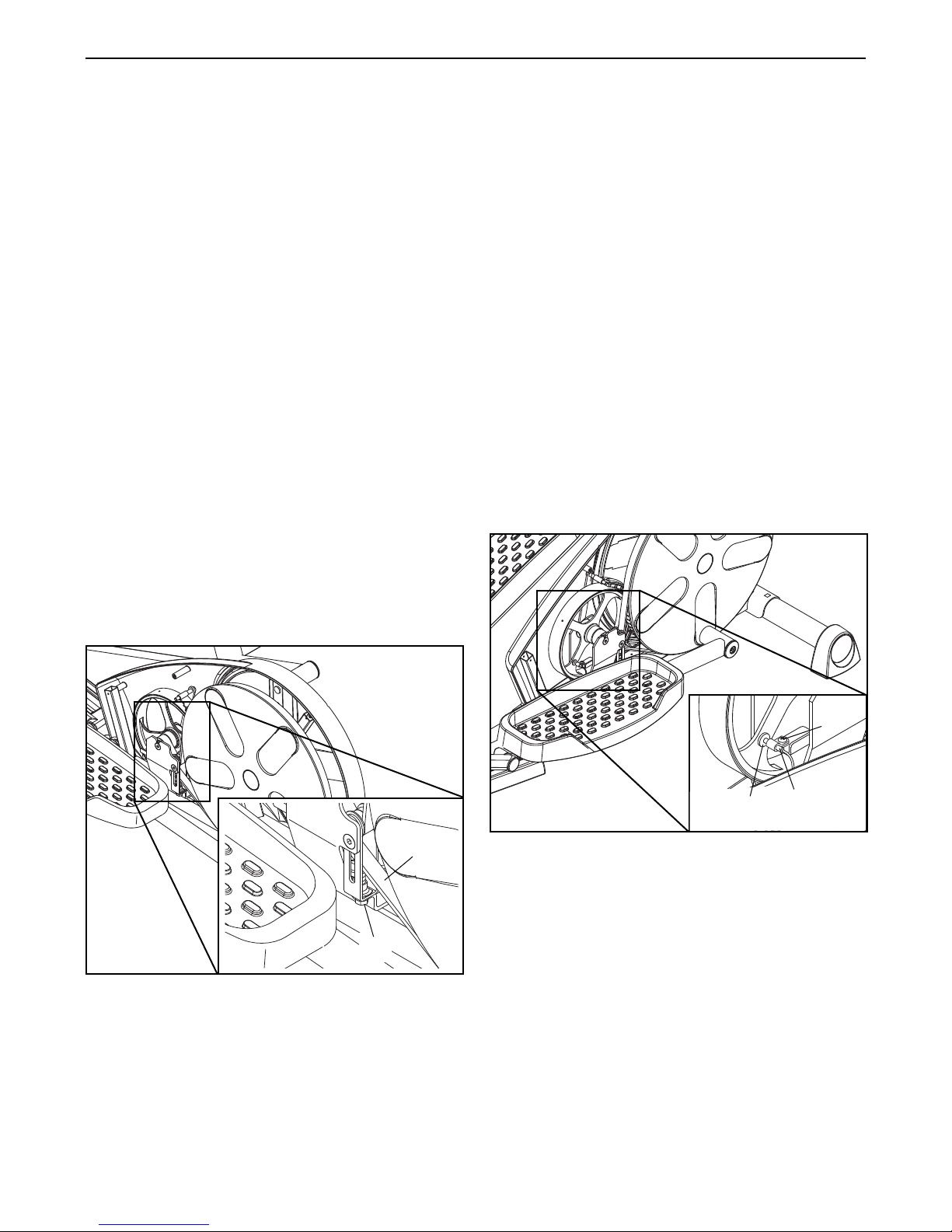

HOW TO ADJUST THE BELT
If you can feel the pedals slip while you are pedaling,
even when the resistance of the pedals is at the highest setting, the belt may need to be adjusted. First,
remove all of the screws from both shields; there are
two sizes of screws in the shields—note which
size of screw you remove from each hole.
Next, tighten the M10 x 45mm Button Bolt (68) until
the Belt (22) is tight. Once the Belt is tight, tighten the
Hex Bolt. Then, reattach the shields. Note: If you have
questions regarding which screw should be in which
hole, see EXPLODED DRAWING B on page 23 and
the PART LIST on page 21.
HOW TO ADJUST THE REED SWITCH
f the console does not display correct feedback, the
I
reed switch should be adjusted. First, remove all of
the screws from both shields; there are two sizes of
screws in the shields—note which size of screw
you remove from each hole.
Next, locate the Reed Switch (63). Turn the Flywheel
(28) until the Magnet (35) is aligned with the Reed
Switch. Loosen, but do not remove, the indicated M4 x
12mm Self-tapping Screw (93). Slide the Reed Switch
slightly closer to or away from the Magnet, and then
retighten the Screw. Rock the Flywheel forward and
back just enough that the Magnet passes the Reed
Switch repeatedly. Repeat until the console displays
correct feedback. When the Reed Switch is correctly
adjusted, reattach the shields. Note: If you have questions regarding which screw should be in which hole,
see EXPLODED DRAWING B on page 23 and the
PART LIST on page 21.
68
22
93
35
CONSOLE TROUBLESHOOTING
If the console does not function properly, the batteries
should be replaced. To replace the batteries, see
assembly step 5 on page 8.
Note: If you use the sound system regularly, it is recommended that you purchase an optional manufacturer-supplied AC adapter (see assembly step 5 on page
8).
If the handgrip pulse sensor does not function properly, see step 5 on page 15.
63
19
EXERCISE GUIDELINES
WARNING: B
this or any exercise program, consult your
physician. This is especially important for
persons over the age of 35 or persons with
pre-existing health problems.
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determining heart rate trends in general.
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
efore beginning
Burning Fat—To burn fat effectively, you must exer-
cise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.

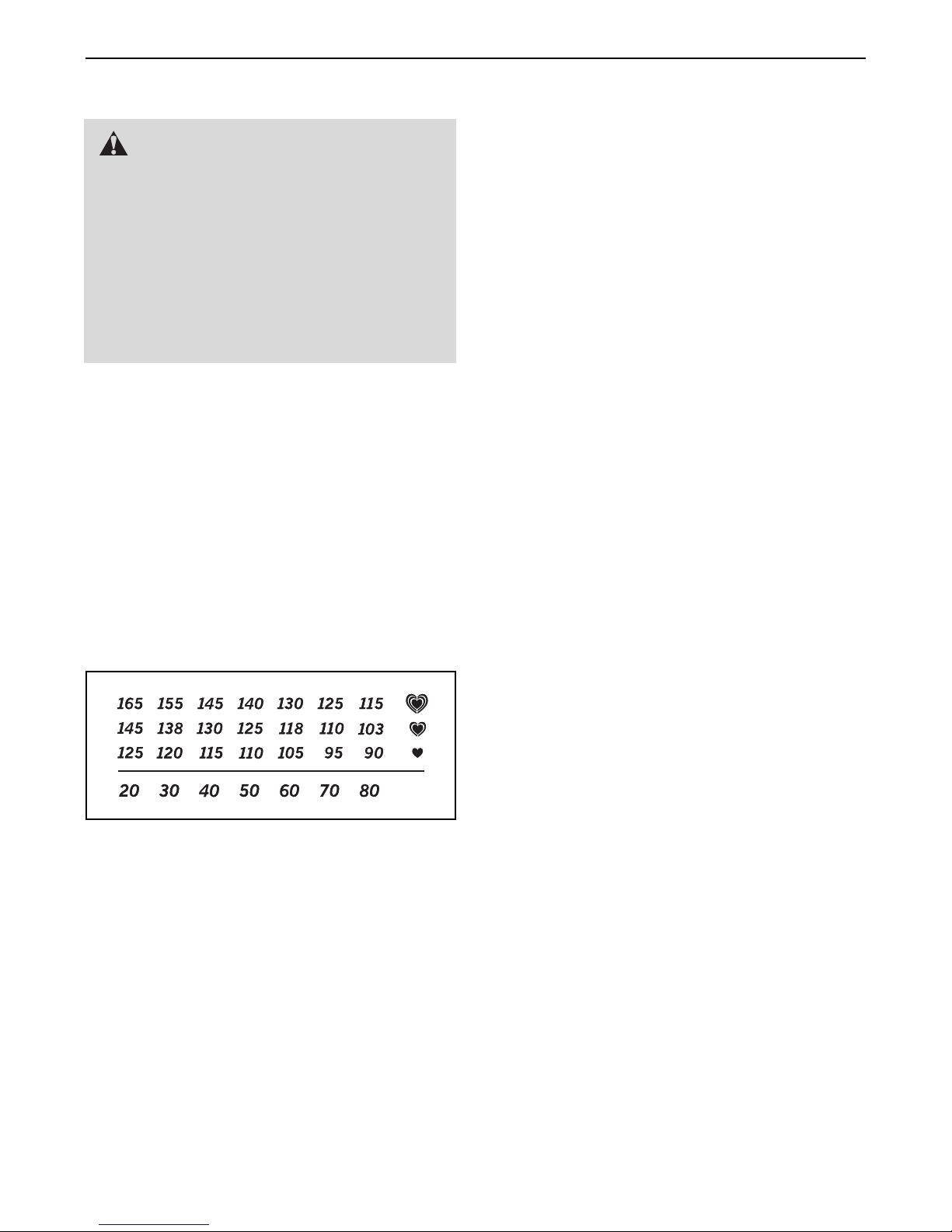

The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretching
and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise–never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of
stretching. Stretching increases the flexibility of your
muscles and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exercise, you may complete up to five workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.
20
PART LIST—Model No. PFEL74908.0 R0908A
Key No. Qty. Description Key No. Qty. Description
11Frame
21Upright
3
41Rear Stabilizer
51Ramp
61Ramp Cover
71Left Handlebar
81Right Handlebar
92Upper Body Leg
10 1 Console
11 1 Left Pedal Leg
12 1 Right Pedal Leg
13 2 Link Arm
14 1 Left Shield
15 1 Right Shield
16 1 Left Disc
17 1 Right Disc
18 2 Disc Cover
19 4 Stabilizer Cap
20 2 Foot
21 2 Wheel
22 1 Belt
23 1 Left Crank Arm
24 1 Right Crank Arm
25 2 Crank Arm Spacer
26 1 Crank
27 6 Crank Bearing
28 1 Flywheel
29 1 Flywheel Axle
30 2 Flywheel Bearing
31 1 Flywheel Bracket
32 1 C-magnet
33 1 Resistance Cable
34 1 Resistance Motor
35 2 Magnet
36 1 Spring
37 1 Idler
38 2 Rear Link Arm Spacer
39 1 Water Bottle Holder
40 6 Cap
41 14 Pivot Bushing
42 2 Upper Body Leg Cover
43 2 Upper Body Leg Spacer
44 2 Upright Spacer
45 1 Pivot Axle
46 2 Pedal
47 2 Roller
48 2 Link Arm Spacer
49 2 23mm x 19.5mm Wave Washer
50 2 Pedal Leg Cover
1 Front Stabilizer
51 1 Upper Wire Harness
52 1 Lower Wire Harness
3 1 Ramp Pin
5
54 1 Ramp Spring
55 1 Ramp Bushing
56 1 Ramp Shaft
57 1 Top Ramp Handle
58 1 Bottom Ramp Handle
59 2 Ramp Foot
60 1 Ramp Axle
61 6 Ramp Axle Bushing
62 1 Clamp
63 1 Reed Switch/Wire
64 6 Fender Washer
65 4 M10 x 75mm Carriage Bolt
66 2 M8 x 70mm Button Bolt
67 2 Crank Snap Ring
68 1 M10 x 45mm Button Bolt
69 2 C-clip
70 6 22mm x 16.5mm Wave Washer
71 4 M8 x 45mm Button Bolt
72 2 M10 x 64mm Button Bolt
73 2 M10 x 16mm Flange Screw
74 1 M6 x 18mm Bolt
75 1 M8 x 19mm Flat Head Bolt
76 1 M6 x 38mm Button Bolt
77 7 M10 Locknut
78 2 Flywheel Spacer
79 8 M8 Locknut
80 2 M8 Washer
81 2 M10 Large Washer
82 2 M10 x 20mm Patch Screw
83 4 M8 x 25mm Patch Screw
84 28 M4 x 16mm Screw
85 1 M6 Locknut
86 1 M6 Nut
87 4 M6 Large Washer
88 2 M8 Small Washer
89 2 M6 x 30mm Screw
90 4 M4 x 12mm Flange Screw
91 12 M5 x 25mm Self-tapping Screw
92 4 M4 x 25mm Self-tapping Screw
93 2 M4 x 12mm Self-tapping Screw
94 2 M3 x 16mm Self-tapping Screw
95 6 M4 x 19mm Self-tapping Screw
96 4 M6 x 16mm Patch Screw
97 12 M5 Star Washer
*–Assembly Tool
*–Grease Packet
*–Userʼs Manual
Note: Specifications are subject to change without notice. See the back cover of this manual for information
about ordering replacement parts. *These parts are not illustrated.
21
46
40
38
41
48
40
13
41
41
87
96
47
69
96
87
41
27
49
88
83
11
50
27
95
27
27
49
50
88
83
95
96
87
47
41
69
12
41
38
40
40
13
48
41
41
96
87
46
9
42
80
41
70
83
41
43
44
45
41
41
44
43
41
9
92
39
41
80
42
70
83
10
7
40
40
8
71
79
71
79
84
2
94
94
70
70
70
70
EXPLODED DRAWING A—Model No. PFEL74908.0 R0908A
22
33
35
36
32
62
93
63
74
22
34
90
79
37
76
86
85
77
78
30
31
30
78
29
79
61
61
60
81
82
5
53
54
55
61
61
81
82
84
59
84
59
56
89
84
58
57
6
64
84
84
64
84
64
84
64
84
84
64
84
64
84
19
72
21
20
20
19
77
77
72
21
65
3
79
79
66
77
61
61
25
73
24
17
18
19
68
14
15
84
84
84
84
84
84
84
84
52
51
77
65
91
91
91
91
91
73
27
67
26
27
67
75
91
25
16
18
19
4
1
23
28
92
92
93
91
97
97
91
97
97
97
97
97
35
EXPLODED DRAWING B—Model No. PFEL74908.0 R0908A
23
ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED
DRAWING near the end of this manual)
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and
material, under normal use and service conditions. Parts and labor are warranted for ninety (90) days from
the date of purchase.
This warranty extends only to the original purchaser. ICONʼs obligation under this warranty is limited to
repairing or replacing, at ICONʼs option, the product through one of its authorized service centers. All
repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped to
a service center, freight charges to and from the service center will be the customerʼs responsibility. For
replacement parts shipped while the product is under warranty, the customer will be responsible for a
minimal handling charge. For in-home service, the customer will be responsible for a minimal trip
charge. This warranty does not extend to any damage to a product caused by or attributable to freight
damage, abuse, misuse, improper or abnormal usage, or repairs not provided by an ICON authorized
service center; products used for commercial or rental purposes; or products used as store display
models. No other warranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in connection with the use or performance of the product; damages with respect to any economic loss, loss of
property, loss of revenues or profits, loss of enjoyment or use, or costs of removal or installation; or
other consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties
of merchantability or fitness for a particular purpose are limited in their scope and duration to the terms
set forth herein. Some states do not allow limitations on how long an implied warranty lasts.
Accordingly, the above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights that vary from state to state.
ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813
Part No. 271814 R0908A Printed in China © 2008 ICON IP, Inc.
Loading...
